Getting Started
WARNING
See the Important Safety and Product
Information guide in the product box for product
warnings and other important information.
Device Placement Considerations
WARNING
Failure to observe the following device
placement considerations could result in an
accident or collision resulting in death or serious
injury.
• Place the device securely on the dashboard.
•
Do not place your smartphone on the
dashboard of the vehicle.
• Do not place the device so that it obstructs
the driver's view of the road. The reflector
lens and film can be placed in the driver's
field of vision.
• Do not place the device where it or the cable
will interfere with vehicle operating controls.
• Do not place the device in front of or above
any airbags.
• Test the device and film placement before
applying the film. After the film is dry, it
cannot be moved.
Applying the Film to the Windscreen
NOTICE
Before applying the film to the window, check
laws and ordinances in the area where you
drive. Some laws prohibit or restrict the
application of film to the front window. It is your
responsibility to apply the film in compliance
with all applicable laws and ordinances.
Garmin
is not responsible for any fines, penalties, or
damages that may be incurred as a result of any
2
DRAFT
law or ordinance relating to the use of your
Garmin
device.
Do not apply the film to a dry surface. If you
apply the film to a dry surface and try to remove
the bubbles, the film will be ruined.
NOTE: Before applying the film, test the location
with the device turned on. You cannot move the
film after it is applied and has dried.
You can use the included film to reflect the
display onto the windscreen.
1
Select a location to apply the film.
The film should be in the driver's view,
preferably in the center of the field of vision.
2
Clean and dry the windscreen with a lint-free
cloth.
3
Spray clean water on the windscreen.
The water enables the film to attach to the
window.
4
Pull the tab labeled 1 to remove the
protective layer from the adhesive side of
the film.
5

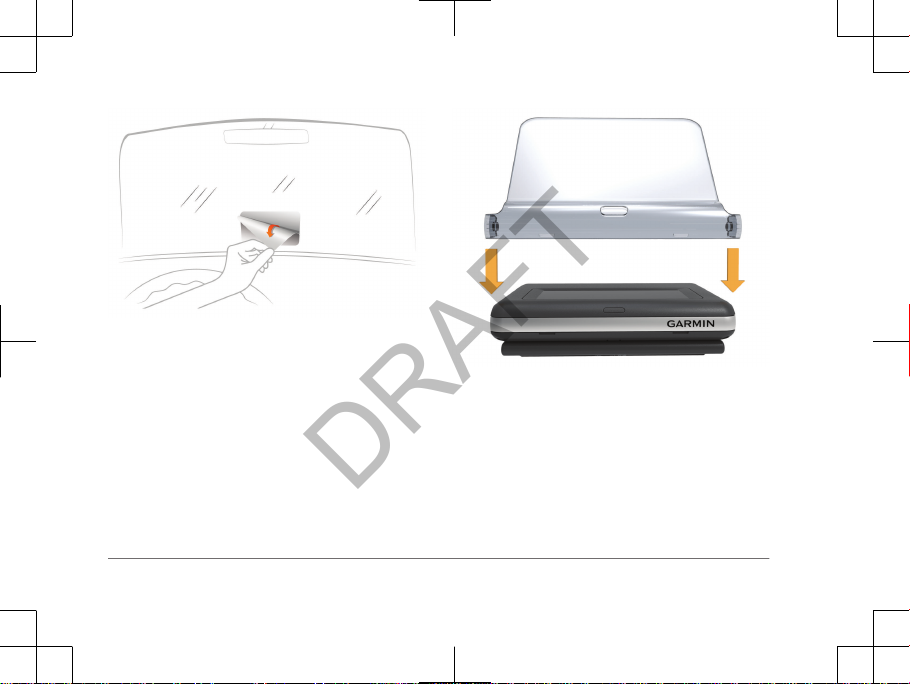

Apply the film to the window, with the
protective layer 2 facing out.
6
If necessary, move the film to the ideal
viewing location while the windscreen is still
wet.
7
Use a card to scrape the bubbles out to the
edge of the film.
Only remove the bubbles with the top layer
on the film.
The fewer bubbles in the film, the better the
view of the data.
8
Wait three to five days for the film to dry.
TIP: You can use the reflector lens while you
are waiting for the film to dry.
9
Pull the tab labeled 2 to remove the final
protective layer from the film.
