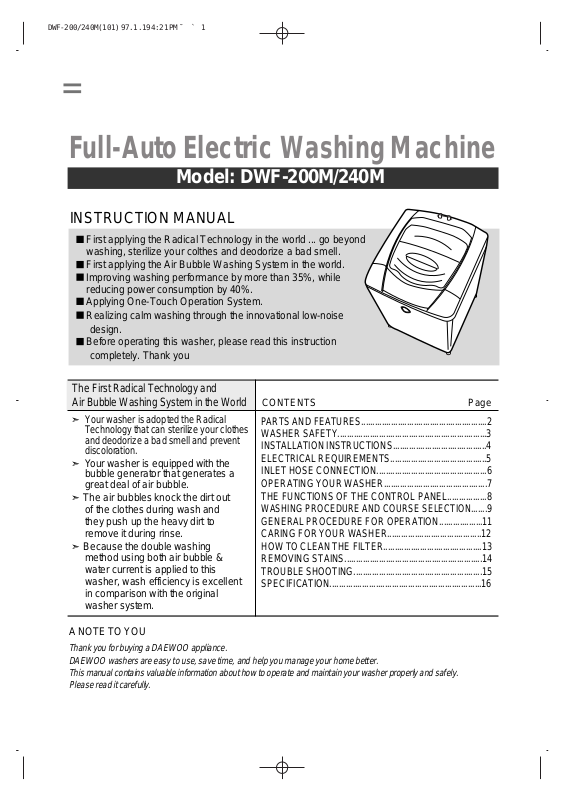

INSTRUCTION MANUAL

First applying the Air Bubble Washing System in the world. Improving washing performance by more than 35%, while reducing power consumption by 40%. Applying One-Touch Operation System.

Realizing calm washing through the innovational low-noise

First applying the Radical Technology in the world ... go beyond washing, sterilize your colthes and deodorize a bad smell.

design.

Before operating this washer, please read this instruction

completely. Thank you

Model: DWF-200M/240M

Full-Auto Electric Washing Machine

➣ Your washer is equipped with the

➣

Your washer is adopted the Radical Technology that can sterilize your clothes and deodorize a bad smell and prevent discoloration.

bubble generator that generates a great deal of air bubble.

➣ The air bubbles knock the dirt out

of the clothes during wash and they push up the heavy dirt to remove it during rinse.

➣ Because the double washing

method using both air bubble & water current is applied to this washer, wash efficiency is excellent in comparison with the original washer system.

The First Radical Technology and Air Bubble Washing System in the World

CONTENTS Page

RTS AND FEATURES.......................................................2

WASHER SAFETY.................................................................3

INSTALLATION INSTRUCTIONS.........................................4

ELECTRICAL REQUIREMENTS..........................................5

INLET HOSE CONNECTION................................................6

OPERATING YOUR WASHER.............................................7

THE FUNCTIONS OF THE CONTROL PANEL.................8

WASHING PROCEDURE AND COURSE SELECTION

.......9

GENERAL PROCEDURE FOR OPERATION...................11

CARING FOR YOUR WASHER.........................................12

HOW TO CLEAN THE FILTER...........................................13

REMOVING STAINS............................................................14

TROUBLE SHOOTING........................................................15

SPECIFICATION..................................................................16

A NOTE TO YOU

Thank you for buying a DAEWOO appliance. DAEWOO washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

DWF-200/240M(101) 97.1.19 4:21 PM ˘`1

WATER TAP ADAPTER INLET HOSE

PARTS AND FEATURES

DRYTEN (OPTION) COVER UNDER (OPTION)

HOSE DRAIN (FOR NON-PUMP) HOSE DRAIN CLAMP

HOSE DRAIN (FOR PUMP) CONNECTOR INLET(OPTION)

DRYTEN

The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer.

NOTE

•

The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book, Your model may not include all features.

ACCESSORIES

• HOSE DRAIN

• POWER CORD

• LINT FILTER(2EA)

• HOT WATER TAP

• COLD WATER TAP

After using the washer, close the water tap, In case of the single valve model, there is no hot water valve.

After using the washer, close the water tap

In case of 3-wire power cord ground wire will not be provided

• CASE DETERGENT

AND SOFTENER

• BLEACH INLET

• ADJUSTABLE LEG

• PULSATOR

• CONTROL PANEL

• GROUND WIRE(OPTION)

RINSE

SPIN

ECO.

HEAVY

FUZZY

NIGHT

WOOL

SOAK

BLANKET

FEED

DWF-200/240M(101) 97.1.19 4:21 PM ˘`2

Read all instructions before using your washer

Save these instructions

Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer, follow basic precautions including the following:

Understanding your responsibilities

• Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.

• Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer.

• Do not wash fiber glass materials.

Small particles can stick to fabrics and cause skin irritation.

• Do not use hot water that temperature is over 50˚C (120˚F). It can cause a deformation of plastic parts.

• Do not spray water on the control panel and back cover of the washer. It can cause a fire or an electric shock.

• Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.) should not be used or stored in near your washer. .Do not add flammable fluids to your wash water.These substances give off vapors that can create a fire hazard or explosion.

• Do not allow children to operate, play with, or crawl on or inside your washer. Supervise children closely when your washer is used near them.

• After starting a cycle, do not reach into the spin basket unless all motion stops.

• Do not tamper with the controls.

Please ...

• Have only a qualified person install, repair, or replace parts on washer.

• Maintain washer properly.

• Protect washer from the weather and

keep it where the temperature will not fall below freezing.

• Do not install the washer at a place of extremely high humidity. It could cause an Electrical shock or a short circuit.

• Connect washer to the correct outlet, electrical supply, water supply, and drain.

• Ground washer properly.

WASHER SAFETY

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

• If the appliance is supplied from a cord extension set or electrical portable outlet device it should be positioned so it is not subjected to splashing or ingress of moisture.

DWF-200/240M(101) 97.1.19 4:21 PM ˘`3

Non-Pump Model Pump Model

Location of washer

Check location where washer will be installed. Make sure you have everything necessary for correct installation. Proper installation is your responsibility.

•Do not place or store your washer below 0˚C (32˚F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

Drain system

Never forget to install drain hose before operating your washer. The packing box is opened, there are a drain hose, and a hose clamp in the washer.

INSTALLATION IN STRUCTIONS

• Connect the drain hose to the drain outlet at the back of the washer, and fasten it tightly with the clamp attached.

• Connect the drain hose to the drain outlet at the back of the washing machine, and fasten it tightly with the clamp supplied.

Hose clamp

Drain hose

Hose Clamp

Drain Outlet

Drain hose

If the washer is installed on an unsuitable floor, it could make considerable noise, vibration and cause a malfunction. If washer is not level, adjust the front leg(A) up or down for horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1M of the upper back of the washer cabinet and provide water pressure 0.3kgf/cm

-8kgf/cm2 (29.4kPa-784.5kPa).

UP DOWN

NOTES

•

The opening must not be obstructed by carpeting when the washing machine is

installed on a carpeted floor.

RINSE

5 7

3 4

S P IN

ECO.

HEAVY

FUZZY

NIGHT

WOOL

SOAK

BLANKET

FEED

DWF-200/240M(101) 97.1.19 4:21 PM ˘`4

Recommended earthing method

WARNING

Laundry tub drain system Standpipe drain system

Pump Model

Non-Pump Model

1In case that it goes over

a door sill. Don’t let the height of the drain hose exceed 20cm from the bottom of washer.

2In case of extending the

drain hose. Don’t let the total length exceed 3m.

3Be careful that the end

of the drain hose is not immersed in water.

• Top of tub must be at least 86cm

(34inches) high and no higher than 130cm from bottom of washer (A)

• Needs a 3cm minimum diameter

standpipe with minimum carry away capacity of 30liters per minute.

• Top of tub must be at least 86cm

(34inches) high and no higher than 130cm from bottom of washer (B)

ELECTRICAL REQUIREMENTS

For your personal safety, this washer must be earthed. This washer is equipped with a power supply cord (A) having a earthing plug (B). To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle (C). If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.

• Electrical earth is required on this washer

• If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

• Don’t earth to a gas pipe

• Don’t change the power supply cord plug.

• Check with a qualified electrician if you are not

sure the washer is properly earthed.

electrical shock hazard:failure to follow these instructions could result in

death or serious injury.

B A

DWF-200/240M(101) 97.1.19 4:21 PM ˘`5

20Cm
