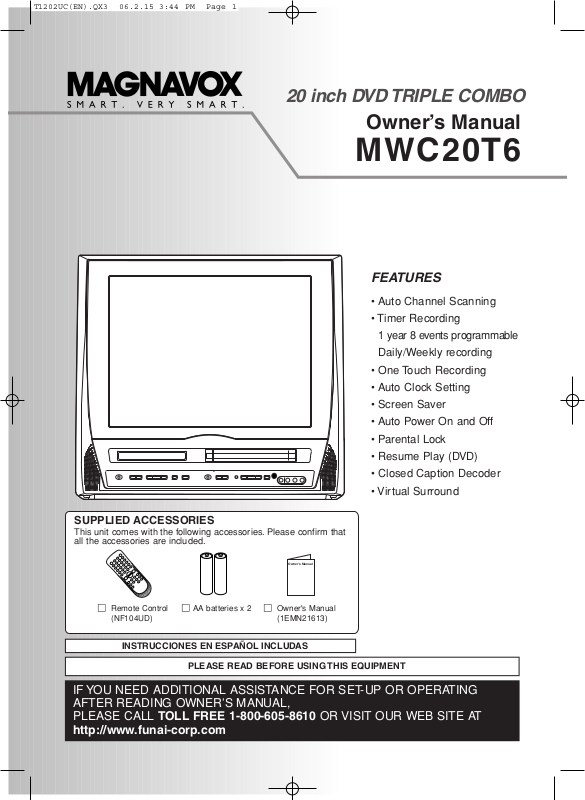

Funai MWC20T6 User Manual

20 inch DVD TRIPLE COMBO

Owner's Manual

Owner’s Manual

MWC20T6

FEATURES

• Auto Channel Scanning

• Timer Recording

1 year 8 events programmable Daily/Weekly recording

• One Touch Recording

• Auto Clock Setting

• Screen Saver

• Auto Power On and Off

• Parental Lock

• Resume Play (DVD)

• Closed Caption Decoder

• Virtual Surround

SUPPLIED ACCESSORIES

This unit comes with the following accessories. Please confirm that all the accessories are included.

P Remote Control

(NF104UD)

INSTRUCCIONES EN ESPAÑOL INCLUDAS

P AA batteries x 2

PLEASE READ BEFORE USING THIS EQUIPMENT

P Owner's Manual

(1EMN21613)

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL

http://www.funai-corp.com

TOLL FREE 1-800-605-8610 OR VISIT OUR WEB SITE AT

RECAUTIONS

PORTABLE CART WARNING

S3126A

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN

WIRE GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ELECTRIC SERVICE EQUIPMENT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

S2898A

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

MPORTANT SAFEGUARDS

1. Read instructions - All the safety and operating instructions

2. Retain Instructions - The safety and operating instructions

3. Heed Warnings - All warnings on the appliance and in the

4. Follow Instructions - All operating and use instructions

6. Attachments - Do not use attachments not recommended

7. Water and Moisture - Do not use this unit near water - for

8. Accessories - Do not place this unit on an

9. Ventilation - Slots and openings in the cabinet and the back

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

should be read before the appliance is operated.

should be retained for future reference.

operating instructions should be adhered to.

should be followed. Cleaning - Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

by the unit manufacturer as they may cause hazards.

example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the unit. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. Ameubles - Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’in- stallez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating, and

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface.This unit should never be placed near or over a radiator or heat register.This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For the units intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna grounding - If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14. Lightning - For added protection for this unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power-line surges.

15. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

18. Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service - Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operat-

ing instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or damaged in any way.

f. When the unit exhibits a distinct change in performance, this

indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21. Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform routine safety checks to determine that the unit is in proper operating condition.

22. Heat - This unit product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

PRECAUTIONS / IMPORTANT SAFEGUARDS

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC WARNING-

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the owner’s manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED.

DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE

LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the

top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

• Install unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the unit near strong magnetic fields.

• Avoid moving unit to locations where temperature differences are extreme.

• Be sure to remove disc and unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our

Authorized Service Center for servicing.

• Do not put your fingers or objects into the unit disc loading tray.

• Do not place anything directly on top of the unit.

MOISTURE WARNING

• Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If you play a videotape or DVD in a moist unit, it may damage the tape or DVD and the unit. When the condensation occurs inside the unit, turn the unit on and leave it at least 2 hours to dry out.

NOTE ABOUT RECYCLING

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

The serial number of this product may be found on the back of the unit. No other unit has the same serial number as yours.You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address

Dealer Phone No. Model No. Serial No.

ABLE OF CONTENTS

TV/VCRTV/VCRTV/VCR

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . .2

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS MANUAL . . . . . . . . . . . .5

PREPARATION FOR USE . . . . . . . . . . . . . . . . . .6

ANTENNA/CABLE CONNECTIONS . . . . . . . . . . . .6

CONNECTING TO AN EXTERNAL DEVICE (FRONT) CONNECTING TO A DIGITAL AUDIO DEVICE (REAR) INSTALLING THE BATTERIES IN REMOTE CONTROL

. .6

.7 .7

OPERATING CONTROLS AND FUNCTIONS . . .8

TV/VCR SECTION

TV OPERATION AND SETTINGS . . . . . . . . . . . .9

WATCHING A TV PROGRAM . . . . . . . . . . . . . . . . .9

SLEEP TIMER / PICTURE CONTROL . . . . . . . . . . .9

CLOCK SET UP . . . . . . . . . . . . . . . . . . . . . . . . . .10

DAYLIGHT-SAVING TIME . . . . . . . . . . . . . . . . . . .11

ON-SCREEN MENU LANGUAGE . . . . . . . . . . . . .11

CLOSED CAPTION SYSTEM . . . . . . . . . . . . . . . .11

V-CHIP SET UP . . . . . . . . . . . . . . . . . . . . . . . . . .12

CHANNEL SET UP . . . . . . . . . . . . . . . . . . . . . . . .13

ON-SCREEN DISPLAY . . . . . . . . . . . . . . . . . . .14

STATUS DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . .14

CHECKING THE STATUS . . . . . . . . . . . . . . . . . . .14

VIDEO CASSETTE . . . . . . . . . . . . . . . . . . . . . .15

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . .15

SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . .16

RENTAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . .16

AUTO REPEAT PLAYBACK . . . . . . . . . . . . . . . . . .16

SEARCH FUNCTION . . . . . . . . . . . . . . . . . . . .16

ZERO RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . .16

PICTURE SEARCH . . . . . . . . . . . . . . . . . . . . . . . .17

TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . .17

INDEX SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . .17

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . .18

NORMAL RECORDING . . . . . . . . . . . . . . . . . . . . .18

OTR (One Touch Recording) . . . . . . . . . . . . . . . . .18

AUTOMATIC TIMER RECORDING . . . . . . . . . . . .19

AUTO RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . .21

AUTO REWIND-EJECT . . . . . . . . . . . . . . . . . . . . .21

COPYING A VIDEO CASSETTE (from another source)

.21

DVD SECTION

ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . .22

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . . . . .22

UNPLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . .22

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . .23

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . .23

DISC MENU / TITLE MENU . . . . . . . . . . . . . . . . . .23

SPECIAL PLAYBACK FUNCTIONS & SETTINGS . . .

FUNCTION TABLE . . . . . . . . . . . . . . . . . . . . . . . .24

AUDIO MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . .25

ANGLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

BLACK LEVEL MENU . . . . . . . . . . . . . . . . . . . . . .26

V.S.S. (Virtual Surround System) . . . . . . . . . . . . . .26

SEARCH MENU . . . . . . . . . . . . . . . . . . . . . . . . . .26

REPEAT PLAYBACK . . . . . . . . . . . . . . . . . . . . . . .27

PROGRAMMED PLAYBACK . . . . . . . . . . . . . . . . .28

RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . .28

ON-SCREEN INFORMATION . . . . . . . . . . . . . .28

CHANGING THE DVD SET UP ITEMS . . . . . . .29

CUSTOM MENU . . . . . . . . . . . . . . . . . . . . . . . . . .29

INITIALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . .32

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . .34

APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

CABLE CHANNEL DESIGNATIONS . . . . . . . . . . .35

LANGUAGE CODE LIST . . . . . . . . . . . . . . . . . . . .35

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . .36

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . .37

WARRANTY . . . . . . . . . . . . . . . . . .BACK COVER

IMPORTANT SAFEGUARDS / TABLE OF CONTENTS

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings.

Description refers to TV/VCR operation (in the TV/VCR mode).

Description refers to playback of DVD video discs (in the DVD mode).

QUICK

Description refers to playback of audio CDs (in the DVD mode).

Description refers to the items to be set by the QUICK mode (in the DVD mode).

REPARATION FOR USE

ANT.

AUDIO OUT COAXIAL

ANT.

OUT

HEADPHONE

VIDEO

L – AUDIO – R

ex. VCR or video camera

, etc.

ANTENNA/CABLE CONNECTIONS

Plug the incoming cable into the ANT. jack on the rear of the unit. If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below.

AntennaCable

TV signal

Rear of the unit

Incoming cable from home Antenna / Cable Company (No Cable Box)

Cable Box or Satellite Box*

*NOTE

(DO NOT DISCONNECT FROM BOX)

Some cable TV systems use scrambled

Incoming cable from Cable Company or Satellite Antenna

NOTE:

Before plugging the antenna into the ANT. jack of the unit, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. jack of the unit.

Bent pin

Cable

Plug

(Needs to be

straightened)

(Straight pin)

signals and require a special converter to receive these channels. Consult your local cable company.

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. jack before moving the unit.

CONNECTING TO AN EXTERNAL DEVICE (FRONT)

When you watch a program recorded on another source (VCR or video camera), use the AUDIO/VIDEO input jacks on the front of the unit. Connect the Audio/Video output jacks of another source to the AUDIO L/R and VIDEO jacks of this unit.

Then use [SELECT] or [CH.KK/ LL] until "AUX" appears on the screen.

AUX

To the Audio output jacks

(OUT)

Audio Cable (commercially available)

(IN)

(OUT)

NOTE:

When you connect a monaural VCR (another source) to this unit, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this unit.The audio will output in both L and R channel equally.

To the Video output jack

Video Cable (commercially available)

Front of the unit

(IN)

To Coaxial digital Audio input jack

Audio coaxial digital cable (commercially available)

To AUDIO OUT COAXIAL jack (DVD AUDIO OUT Only)

Dolby Digital

decoder

AUDIO OUT COAXIAL

MD deck, DAT deck, etc.

To Coaxial digital Audio input jack

CONNECTING TO A DIGITAL AUDIO DEVICE (REAR)

21 3

You can connect this unit to a digital audio device to enjoy the digital audio of DVD. Connect to an amplifier equipped with digital input jacks, such as MD deck or DAT deck. To play a DVD disc in a Dolby Digital Multichannel surround format in this unit, connect to a Dolby Digital decoder. Use an audio coaxial digital cable (commercially available) for the audio connections.

(OUT)

(IN)

PREPARATION FOR USE

(IN)

NOTES:

• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound by an MD or DAT deck.

• Be sure to turn off the power to all devices in the system before connecting another device.

• Refer to the Owner's Manuals for the devices to be connected to the unit.

• To connect to a MD or DAT deck, set "DOLBY DIGITAL" to "PCM" for the audio output in the setup mode, and to connect to a Dolby Digital decoder, set to "BITSTREAM" (Refer to "AUDIO SETTING" on page 30). Playing a unit using incorrect settings may generate noise distortion and may also damage the speakers.

INSTALLING THE BATTERIES IN REMOTE CONTROL

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2) Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3) Replace the cover.

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicat-

•

ed in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together

•

(e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.

If the device is not to be used for a long period

•

of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to

•

be recharged; they can overheat and rupture.

PERATING CONTROLS AND FUNCTIONS

12 4 5 6 107 1514983 3 412 13 212019181711 16

STANDBY-ON

PICTURE/ SLEEP

SELECT

REC

DISPLAY

+100

VOL.

SET-UP MUTE

SPEED

TV/VCR Audio

CH.

SLOW

PAUSE TITLE

CLEAR

MODE

ENTER

DISC MENU

RETURN

REW

PLAY

STOP

FWD

7 8 9

+10+10

22 23

25 26

∗

27 28

29 30

33 34

- FRONT PANEL -

- REMOTE CONTROL -

[FRONT PANEL]

STANDBY-ON Button

VOLUME K/ LButtons

H PREV / NEXT G Buttons SEARCH E / D Buttons

PLAY B Button

STOP C Button

OPEN/CLOSE A Button

Disc loading tray

DVD Indicator

SOURCE Button

VCR/TV Indicator

CHANNEL K/ LButtons

Recording Indicator

REC/OTR Button

REW E Button

FWD D Button

STOP/EJECT C A Button

Remote sensor window

[TV/VCR P.15 / DVD P.23] [DVD P.23]

[TV/VCR P.9]

[TV/VCR P.18] [TV/VCR P.15] [TV/VCR P.15]

[TV/VCR P.9 / DVD P.23]

[P.9]

[DVD P.26]

[DVD P.23]

[TV/VCR P.9]

[TV/VCR P.15]

HEADPHONE Jack

VIDEO input Jack

AUDIO L/R input Jacks

Cassette compartment

[P.6]

[REMOTE CONTROL] 22

STANDBY-ON yyButton

PICTURE/SLEEP Button

Number Buttons

DISPLAY Button

SPEED Button

PLAY B Button

REW E Button SKIP H Button

PAUSE F Button

TITLE Button

CLEAR Button

MODE Button

REC Button

SELECT Button

CH.K/ LButtons

VOL.X/YButtons

MUTE Button

SET-UP Button

FWD D Button SKIP G Button

STOP C Button

DISC MENU Button

ENTER Button

K /L

43 44

∗∗

/{ / B Buttons

RETURN Button

This button is not available on this model.

[TV/VCR P.9 / DVD P.26]

[TV/VCR P.14 / DVD P.28]

[TV/VCR P.18]

[TV/VCR P.15 / DVD P.23]

[DVD P.26]

[TV/VCR P.15 / DVD P.23]

[DVD P.23]

[TV/VCR P.9 / DVD P.26]

[DVD P.24]

[TV/VCR P.16]

[TV/VCR P.9]

[TV/VCR P.10 / DVD P.29]

[TV/VCR P.15 / DVD P.23] [DVD P.26]

[TV/VCR P.15 / DVD P.23]

[TV/VCR P.10 / DVD P.23]

[TV/VCR P.10 / DVD P.25]

NOTES:

• We do not recommend the use of universal remote controls as it may not control all the functions. Note that the code number given by universal remote controls may not program with this unit. For more details, contact the manufacturer of the universal remote control.

• Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

[TV/VCR P.9 / DVD P.23] [TV/VCR P.9]

[TV/VCR P.9]

[DVD P.23]

[TV/VCR P.9 / DVD P.23]

COLOR TINT SHARPNESS

BRIGHT CONTRAST

to pale to purple to soft

to decrease brightness to decrease contrast

to brilliant to green to clear

to increase brightness to increase contrast

TV/VCRTV/VCR

TV/VCR SECTION

TV/VCRTV/VCR

V OPERATION AND SETTINGS

WATCHING A TV PROGRAM

1 After antenna or cable connection is

completed, connect the power cord into a standard AC outlet.

2 Press [STANDBY-ON 3 Use [CH.

select your desired channel number.

To use the number buttons

•Single digit channels: (Ex. 02, 03, 04 and so on)

Press [0] first to select a single digit channel.

•Two digit channels: (Ex. 12, 38, 95 ...) Press two digits directly.

•Three digit channels: (Ex. 115, 125 ...) Press

4 Use [VOL.

Press mute the sound. Press it again to restore the previous sound level.

NOTE:

• Even if you turn off the unit in the DVD mode, the unit will be in the TV/VCR mode when you turn it on again.

TO WATCH CABLE OR SATELLITE CHANNEL

If the unit is connected to a cable box or satellite box, use ing to the output channel setting of the device and select desired channel on that device.

TO WATCH EXTERNAL INPUT

When an external equipment is connected to the front AUDIO/ VIDEO input jacks, press [SELECT] or [CH. K / L] repeat- edly until "AUX" appears on the screen.

K/ L

[+100] first, then press the last two digits.

X/ Y

[MUTE] to instantly

[CH. K / L] to select CH3 or CH4 accord-

] to turn on the unit.

] or the Number buttons to

] to adjust the volume.

VOLUME 20

C C C C C C C C C C C C C C C C

AUX

SLEEP TIMER / PICTURE CONTROL

You can set Sleep Timer and picture adjustment with [PICTURE / SLEEP].

• The menu changes as described below every time you press

Sleep Timer BRIGHT CONTRAST

[PICTURE / SLEEP].

COLORTINTSHARPNESS

SLEEP TIMER SETTING

The Sleep Timer function is used to turn off the unit without pressing desired time.

1 Press [PICTURE / SLEEP] to

display the Sleep Timer menu.

[STANDBY-ON yy] after a

SLEEP 0 MINUTE

2 Within 5 seconds, set your desired sleep time

using

[s / B].

[B]...Increase by 30 min. (Up to 120 min.)

•

[s]...Decrease by 30 min.

•

NOTE:

• To cancel the Sleep Timer, use [CLEAR] or [s / B]

to set the time to "0".

3 To confirm the remainder time to shutdown,

press

[PICTURE / SLEEP].

PICTURE CONTROL

1 Press [PICTURE / SLEEP]

repeatedly until desired control is displayed.

BRIGHT

PP PP PP PP PP PP PP CC PP PP PP PP PP PP PP

–

2 Use [s / B] to adjust to your desired level within

5 seconds.

TV/VCR SECTION

OPERATING CONTROLS AND FUNCTIONS / TV OPERATION AND SETTINGS

NOTE:

• If there is no air signal input from the antenna terminal and no operation for 15 minutes, the unit will turn itself off automatically.

• Even if any power failure occurs, the unit will retain its memory for this feature.

TV/VCR SECTION

TV/VCRTV/VCR

TV OPERATION AND SETTINGS

CLOCK SET UP

Set the unit clock correctly for VCR timer recording. We suggest that you should set the clock manually when you first set up the unit, then set the auto clock setting to "ON" to correct the time periodically.

NOTE:

• If you cannot receive a station with time signals, auto clock setting is not available. Use manual setting only.

MANUAL CLOCK SETTING

In the example below, the clock is to be set to:

DATE: May 5th, 2006 SETTING TIME: 5:40PM

1 Press [SET-UP].

Use

[KK/ LL] to point to

"SETTING CLOCK", then press

[ENTER].

2 Use [

• If there is no local PBS station in

3 Use [

KK/ LL

] to point to "MANUAL CLOCK SET", then press

[ENTER].

your area or on your cable system, select "AUTO CLOCK" and press to turn "OFF" the function before this step.

KK/ LL

] to set your desired month, day, year, hour and minute.

Use

[s / B] to move to

another item.

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

B MANUAL CLOCK SET

D.S.T. [OFF]

[ENTER]

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 5 FRI 2 0 0 6

HOUR MINUTE

0 5 : 4 0 PM

4 Press [SET-UP].

Although seconds are not displayed, they begin counting from 00 when you press [SET-UP]. Use this feature to synchronize the clock with the correct time.

NOTE:

• When unplugging the AC cord or if there is a power failure for more than 3 seconds, you may have to reset the clock.

TO CHANGE CLOCK SETTING

5:40 PM

1 Follow steps 1 to 2 above. 2 Select the item you want to change using [ 3 Enter correct numbers using [

KK/ LL

4 Press [SET-UP] to start the clock.

AUTOMATIC CLOCK SETTING

NOTES:

• If a cable converter box is being used, make sure it is turned on.

• You must use the remote control for the clock setting.

• If the unit is connected directly to a cable converter

box or satellite box, the local PBS station must be selected on the cable box itself and the unit must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to enable to set up or correct the clock automatically.

1 Press [SET-UP].

[KK/ LL] select "SETTING

Using CLOCK", then press

[ENTER].

2 Press [ENTER] to select "ON".

3 Press [

• The unit begins searching for the station which contains the auto clock set signal. The search for a signal may take up to 20 seconds per channel.

] to select "AUTO CLOCK CH SEARCH". Then press

[ENTER].

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

– SETTING CLOCK –

INDEX SEARCH

B AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

– SETTING CLOCK –

AUTO CLOCK [ON]

B AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

D.S.T. [OFF]

– AUTO CLOCK CH SEARCH –

08 10 13

• When the search has finished, "_ _" appears at the lower left of the screen.

_ _

NOTES:

• During AUTO CLOCK CH SEARCH, the picture may be distorted.

• If no number appears on the TV screen, there are no stations in your area which contain the Auto Clock signal. Auto Clock Setting is not possible. Please use Manual Clock Setting on this page.

4 Write down the numbers that appear on the

screen. They are the auto clock stations in your area.

5 Press [RETURN] to go back to

"SETTING CLOCK" menu.

[LL] to select

Press "AUTO CLOCK CH".

Use [s / B] until you locate an auto clock station number.

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

B AUTO CLOCK CH [ 08 ]

MANUAL CLOCK SET

D.S.T. [OFF]

6 Press [SET-UP] to exit the menu.

NOTE:

• Once the unit is turned off, it will periodically check and set the correct date and time.

DAYLIGHT-SAVING TIME

TV/VCRTV/VCR

Select this feature and the unit clock will automatically advance one hour in April, then reverse one hour in October.

•

First Sunday of April : At 2 AM, the clock immediately changes to 3 AM. Any timer programming you have set to occur between 2 AM and 3 AM will be canceled.

•

Last Sunday of October : At 2 AM, the clock immediately changes to 1 AM.

1 Press [SET-UP].

[KK/ LL] to point to

Use "SETTING CLOCK", then press

[ENTER].

2 Use [

KK/ LL

] to point to "D.S.T.".

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

B D.S.T. [ON]

CLOSED CAPTION SYSTEM

You can view specially labeled (cc) TV programs, movies, news and pre-recorded tapes with either a dialogue caption or text display.

1 Press [SET-UP].

Use [KK/ LL] to point to "CAPTION".

2 Press [ENTER] repeatedly to

select your desired caption mode.

• CAPTION mode: You can watch dramas, movies and

news while captioning the dialogues and the contents of news.

• TEXT mode: You can watch half screen text informa-

tion if you want.

*"CAPTION2" is usually used for a second language

(if available).

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [OFF]

ZERO RETURN TIME SEARCH

- TV/VCR SETUP -

INDEX SEARCH TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [CAPTION1]

ZERO RETURN TIME SEARCH INDEX SEARCH

TV/VCR SECTION

3 Press [ENTER] to select "ON".

NOTE:

• To cancel the setting, select "OFF".

4 Press [SET-UP] to exit the menu.

ON-SCREEN MENU LANGUAGE

You can select the language of on-screen menu among English, Spanish and French.

1 Press [SET-UP].

Use

[KK/ LL] to point to

"LANGUAGE".

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP

B LANGUAGE [ENGLISH]

CAPTION [OFF] ZERO RETURN TIME SEARCH

INDEX SEARCH

2 Press [ENTER] repeatedly to select "ENGLISH",

"ESPAÑOL" or "FRANÇAIS".

3 Press [SET-UP] to exit the menu.

NOTES:

• This function effects only the language on the screen menu and not the audio source.

• If for some reason the menu is already in Spanish or French, press [SET-UP], using [KK/ LL] point to "IDIOMA [ESPAÑOL]" or "LANGAGE [FRANÇAIS]", then press [ENTER] repeatedly to select desired language, then press [SET-UP].

3 Press [SET-UP] to exit the menu.

NOTES:

• Even if any power failure, the unit will retain its memory for this feature.

• Some programs are not broadcasted with closed captions. The unit is designed to provide error-free closed captions with high quality antenna, cable and VCR signals. Conversely, poor quality signals are likely to result in caption errors or no captions at all.

• Common signal conditions which may cause caption errors are listed below:

- Electric motor brush noise

- Weak snowy reception on TV screen

- Multiplex signal reception displaying picture ghosts or airplane flutter

• If the unit displays a black box on the TV screen, this means that the unit is set to the TEXT mode. To clear screen, select "CAPTION1", "CAPTION2" or "OFF".

TO CANCEL THE CLOSED CAPTION SYSTEM

1 Press [SET-UP]. Use [

"CAPTION".

KK/ LL

] to point to

2 Press [ENTER] repeatedly to select "OFF".

3 Press [SET-UP] to exit the menu.

TV OPERATION AND SETTINGS

Selection Rating Category Explanations TV-Y7

FV Fantasy Violence

TV-PG, TV-14, TV-MA

Suggestive Dialog (TV-PG, TV-14 only) L Coarse Language S Sexual Situation V Violence

Selection Rating Category Explanations

TV-Y Appropriate for all children TV-Y7

Appropriate for children seven and older TV-G General Audience TV-PG Parental Guidance suggested TV-14 Unsuitable for children under 14 TV-MA Mature audience only

TV/VCRTV/VCR

TV/VCR SECTION

TV OPERATION AND SETTINGS

V-CHIP SET UP

This feature enables parents to prevent their children from watching inappropriate material on TV. When you try to access a blocked program, “PROTECTED PROGRAM by ...” mes- sage appears on the TV screen.

NOTE:

• To change the rating, the TV must be turned to an unprotected program. If the screen on the right is displayed, change the channel to a station that is not protected.

PROTECTED PROGRAM

by TV-Y

TV RATING SET UP

4 Use [

KK/ LL

] to select a rating

that you wish to block.

[ENTER] repeatedly to

Press set it to "BLOCK" or "VIEW".

B TV–Y [VIEW]

TV–Y7 ( ) [VIEW] TV–G [VIEW] TV–PG ( ) [VIEW] TV–14 ( ) [VIEW] TV–MA( ) [VIEW]

1 Press [SET-UP].

Use

[KK/ LL] to select

"V-CHIP SET UP", then press [ENTER].

2 Use the Number buttons to

enter the access code.

• For the first time set-up or in

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP

B V-CHIP SET UP

LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

ACCESS CODE

_ _ _ _

the event the unit has lost power, enter the default code of 0000.

3 Use [

KK/ LL

] to select "TV RATING", "MPAA RATING" or "CHANGE CODE", then press [ENTER]. Refer to the pages below to set up each item.

– V-CHIP SET UP –

B TV RATING

MPAA RATING CHANGE CODE

P 12 P 13 P 13

A B C

NOTES:

• When you select a rating and set it to "BLOCK", the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

TV–Y [VIEW] TV–Y7 ( ) [VIEW]

B TV–G [BLOCK]

TV–PG (DLSV) [BLOCK] TV–14 (DLSV) [BLOCK] TV–MA ( LSV) [BLOCK]

• When you set the lowest rating to "VIEW", all other ratings will be automatically available for viewing.

5 The TV-Y7, TV-PG, TV-14 and

TV-MA ratings have the option of sub rating categories. Use

[KK/ LL] to select a rating

with sub-ratings, then press [ENTER] twice.

6 Use [

KK/ LL

] to select a sub-

rating, then press

[ENTER] to

set it to "BLOCK" or "VIEW".

NOTE:

• The blocked sub-ratings will appear next to the rating category in the "TV RATING" menu.

TV–Y [VIEW]

B TV–Y7 ( ) [VIEW]

TV–G [VIEW] TV–PG ( ) [VIEW] TV–14 ( ) [VIEW] TV–MA( ) [VIEW]

TV–PG [BLOCK]

B D [BLOCK]

L [BLOCK] S [BLOCK] V [BLOCK]

TV–Y [VIEW] TV–Y7 ( ) [VIEW] TV–G [VIEW]

B TV–PG (DLSV) [BLOCK]

TV–14 (DLSV) [BLOCK] TV–MA ( LSV) [BLOCK]

7 Press [SET-UP] to exit the menu.

Selection Rating Category Explanations

G General Audience PG Parental Guidance suggested. PG-13 Unsuitable for children under 13 R Restricted; under 17 requires acco-

mpanying parent or adult guardian NC-17 No one under 17 admitted X Mature audience only

TV/VCRTV/VCR

MPAA RATING SET UP

4 Use [

KK/ LL

] to point to your desired item, then press [ENTER] to select "BLOCK" or "VIEW".

G [VIEW] PG [VIEW] PG–13 [VIEW]

B R [BLOCK]

NC–17 [BLOCK] X [BLOCK]

CHANGE ACCESS CODE

4 Use the Number buttons to

enter your desired access code in the "NEW CODE", then enter the same code in the "CONFIRM CODE". When completed, the menu will return to "V-CHIP SET UP".

5 Press [SET-UP] to exit the menu.

NOTE:

• Your personal access code will be erased and will return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you forget the code, unplug the power cord

5 Press [SET-UP] to exit the menu.

for 10 seconds to restore the access code to 0000.

CHANNEL SET UP

Channel presetting is necessary at the start or in case you moved the TV to a different area.

NEW CODE

X X X X

CONFIRM CODE

_ _ _ _

TV/VCR SECTION

AUTO CHANNEL PROGRAMMING

1 Press [SET-UP].

[KK/ LL] to point to

Use "CHANNEL SET UP", then

press [ENTER].

2 Use [

KK / LL

] to point to "AUTO CH PROGRAMMING", then press

[ENTER].

The tuner scans and memorizes all the active channels in your area.

3 When the scanning is comple-

ted, the lowest memorized channel is displayed.

If "NO TV SIGNALS" appears on the TV screen, check the antenna connection and try again.

NOTES:

• The unit may recognize CATV channels to be TV channels if reception condition is poor. In this case, check the antenna connection and try "AUTO CH PROGRAMMING" again.

•

Auto channel programming is NOT necessary when connected to a cable box or satellite box. Just select the channel for cable box or satellite input (ex. CH3 or CH4) on the unit, then select your desired channel on the cable box or satellite box.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

INDEX SEARCH

– CHANNEL SET UP –

ADD / DELETE CH (CATV)

B AUTO CH PROGRAMMING

CH 15

NO TV SIGNALS

ADDING/DELETING CHANNELS

You can add channels that was not memorized due to the bad reception status and also delete channels you no longer receive or seldom watch.

1 Press [SET-UP].

Use

[KK/ LL] to point to

"CHANNEL SET UP", then press

[ENTER].

2 Use [

KK/ LL

] to point to "ADD/DELETE CH", then press

[ENTER].

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– CHANNEL SET UP –

B ADD / DELETE CH (CATV)

AUTO CH PROGRAMMING

3 Use the Number buttons or

[CH.KK/ LL] to select your

desired channel number. (You can also use

[KK/ LL] to

ADD / DELETE

enter it.)

• Refer to page 9 on how to use

(Example: CH8)

the Number buttons.

4 Press [ENTER] repeatedly. The channel number

changes to time you press the button.

• To delete another channel, repeat steps

red (deleted) or blue (added) every

3 to 4.

5 Press [SET-UP] to exit the menu.

NOTE:

• To confirm that channel(s) has been deleted or

added, select it (them) using [CH.KK/ LL].

TV OPERATION AND SETTINGS

TV/VCRTV/VCR

STOP

SP COUNT 0:12:34

5:40PM

CH2

Display OFF CLOCK/COUNTER

display

*The display will disappear after 5 seconds

STOP

SPSPCOUNT 0:12:34

COUNT 0:12:34

5:40PM

CH2

5:40PM

CH2

After 5 seconds

Display OFF

COUNTER display CLOCK display

TV/VCRTV/VCR

TV/VCR SECTION

N-SCREEN DISPLAY

STATUS DISPLAY

On screen display examples are shown below.

PLAY B 12:00AM

CH 123

SP COUNT 0:00:00

1. VCR status

Displays the current VCR motion: PLAY / STOP / REC / OTR / PAUSE / FF / REW

2. Tape speed (during recording) Displays the tape speed: SP / SLP

3. Clock

4. Channel number

(in TV mode) Displays the current channel number. "AUX" is displayed in external input mode.

5. Tape counter (during playback or recording) Shows the elapsed recording or playback time. (Not available for a blank tape or blank portions on the tape.) You can reset the counter by pressing

[CLEAR].

3 4

CHECKING THE STATUS

While receiving a broadcast or playing a VHS tape, you can check the status displayed on the screen by pressing display will change as shown below each time you press

[DISPLAY].

WHEN THE CLOSED CAPTION IS OFF

The display switches among VCR counter and clock.

WHEN THE CLOSED CAPTION IS ON

The display switches among VCR counter and clock.

[DISPLAY]. The

+ 30 hidden pages
