OWNER’S

MANUAL

COLOR TV/DVD MSD513E (13 inch)

INSTRUCCIONES

EN ESPAÑOL INCLUIDAS.

As an ENERGYSTAR®

Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® is a U.S. registered mark.

If you need additional assistance for set-upor operating after reading owner’s manual, please callTOLL FREE : 1-800-605-8610.

Or visit our WEB SITE at http://www.funai-corp.com

Please read before using this equipment

AVERTISSEMENT POUR UNE TABLE ROULANTE PORTATIVE
S3126A
PORTABLE CART WARNING

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1.Read instructions-Allthe safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions-Thesafety and operating instructions should be retained for future reference.

3.Heed Warnings-Allwarnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-UnplugTV/DVD from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Donot use attachments not recommended by the TV/DVD manufacturer as they may cause hazards.

7.Water and Moisture-Donot use this TV/DVD near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Donot place this TV/DVD on an unstable cart, stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/DVD. Any mounting of the

appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance

and cart combination should be moved with care.

Quick stops, excessive force, and

uneven surfaces may cause the appliance and cart combination to over-

turn.

Accessoires- Ne placez pas cette TV/DVD sur une table roulante, un support, un trépied, une console ou une table instable. Cette TV/DVD risquerait de tomber, pouvant gravement blesser quelqu'un et l'appareil même pourrait être sérieusement endommagé. N'utilisez qu'une table roulante, un support, un trépied, une console ou une table recommandé par le fabriquant, ou vendu avec la TV/DVD. Pour n'importe quelle installation de l'appareil, on devra suivre les instructions du fabriquant et l'on devra utiliser les accessoires d'installation recommandés par le fabriquant. L'ensemble combiné de l'appareil avec une table roulante devra être déplacé avec précaution. Des arrêts brusques, une force excessive et des surfaces inégales peuvent provoquer le renversement de l'ensemble combiné de l'appareil/table roulante.

9.Ventilation-Slotsand openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-ThisTV/DVD should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/DVD is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

– 2 –

EN

0C28

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECT RICAL CODE













ANTENNA













L EAD I N













W I R E



GROUND



C L A M P













ANTENNA





































DI SCHARGE UN I T













(NEC SECTION 8 10 -20)

EL ECTRI C













SE RV I CE













EQU I PMEN T

























GROUNDI NG CONDUCTORS













(NEC SECTION 8 10 -21)











G RO UND CL AMPS

NEC - NATI O NAL EL ECTRI CAL CODE





POWER SERVI C E GROUNDI NG







EL EC TR ODE SYSTEM

S2 8 9 8 A





(NEC ART 2 50 , PART H)

12.Power-Cord Protection-Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-Foradded protection for this TV/DVD receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning andpower-linesurges.

15.Power Lines-Anoutside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Donot overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Neverpush objects of any kind into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

18.Servicing-Donot attempt to service this TV/DVD yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supplycord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV/DVD.

c.If the TV/DVD has been exposed to rain or water.

d.If the TV/DVD does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD to its normal operation.

e.If the TV/DVD has been dropped or damaged in any way.

f.When the TV/DVD exhibits a distinct change in perfor- mance-thisindicates a need for service.

20.Replacement Parts-Whenreplacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Uponcompletion of any service or repairs to this TV/DVD, ask the service technician to perform routine safety checks to determine that the TV/DVD is in proper operating condition.

22.Heat-ThisTV/DVD product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

– 3 –

EN

0C28

PRECAUTIONS

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

FCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase

Dealer Purchase from

Dealer Address

Dealer Phone No.

Model No.

Serial No.

– 4 –

EN

0C28

LOCATION



SYMBOLS USED IN THIS MANUAL







For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top or bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the TV/DVD near strong magnetic fields.

Avoid moving TV/DVD to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the TV/DVD disc loading tray.

Do not place anything directly on top of the unit.

The following symbols below appear in some headings and notes in this manual, with the following meanings

TV

:Description refers to TV operation (in the TV mode).

DVD-V

:Description refers to playback of DVD video discs (in the DVD mode).

CD

:Description refers to playback of audio CDs (in the DVD mode).

MP3

:Description refers to playback of MP3 discs (in the DVD mode).

QUICK

:Description refers to the items to be set by the QUICK mode (in the DVD mode).

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn POWER on and allow at least 2 hours for the unit to dry out.

SUPPLIED ACCESSORIES

Remote Control Unit

Batteries

Owner’s Manual

Rod Antenna

Owner's Manual

0EMN01755 or 0EMN00673 or 0EMN01599

NE224UD

2 AA Batteries

1EMN20023

If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-605-8610.

Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.

We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

– 5 –

EN

0C28

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE . . . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS MANUAL . . . . . . .5 WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

C SUPPLIED ACCESSORIES . . . . . . . . . . . . . . .5

C TABLE OF CONTENTS . . . . . . . . . . . . . . . . . .6

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

C OPERATING CONTROLS AND FUNCTIONS . . .8

INSTALLING THE BATTERIES . . . . . . . . . . .9

C PREPARATION FOR USE . . . . . . . . . . . . . . .10

ANTENNA/CABLE CONNECTIONS . . . . . . .10 CONNECTING TO EXTERNAL INPUT JACKS .11

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only) . .11

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD) . . . . . . . . . . . . . . . . . . .12

TV SECTION



C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . .

13

SELECTING THE LANGUAGE . . . . . . . . . . .13 CHANNEL SET UP . . . . . . . . . . . . . . . . . . . . .13 DELETING (OR ADDING) CHANNEL (S) . .14

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .15

WATCHING A TV PROGRAM . . . . . . . . . . . .15 DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .15 PICTURE CONTROL . . . . . . . . . . . . . . . . . . .15 SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .16 CLOSED CAPTION SYSTEM . . . . . . . . . . . .16 V-CHIPSET UP . . . . . . . . . . . . . . . . . . . . . . . .17

DVD SECTION

C ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . .19

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . .19 DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . .19

C PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . .20

C SEARCH FUNCTION . . . . . . . . . . . . . . . . . .22

TRACK SEARCH . . . . . . . . . . . . . . . . . . . . . .22 TITLE / CHAPTER SEARCH . . . . . . . . . . . . .22 TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . .22 MARKER SETUP SCREEN . . . . . . . . . . . . . .22

C SPECIAL PLAYBACK FUNCTION . . . . . . . .23

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .23 RANDOM PLAYBACK . . . . . . . . . . . . . . . . .23

C PLAYING A MP3 DISC . . . . . . . . . . . . . . . . . .24

MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . .24 REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .24 RANDOM PLAYBACK . . . . . . . . . . . . . . . . .24

C CHANGING THE SETTINGS . . . . . . . . . . . .25

SUBTITLE LANGUAGE . . . . . . . . . . . . . . . .25 AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . .25 STEREO SOUND MODE . . . . . . . . . . . . . . . .25 CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . .25 BLACK LEVEL SETTING . . . . . . . . . . . . . . .25 VIRTUAL SURROUND . . . . . . . . . . . . . . . . .25

C THEON-SCREENINFORMATION . . . . . . .26

C CHANGING THE DVD SETUP ITEMS . . . .27

LANGUAGE SETTING . . . . . . . . . . . . . . . . .27 DISPLAY SETTING . . . . . . . . . . . . . . . . . . . .28 AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . .28 PARENTAL CONTROL . . . . . . . . . . . . . . . . .29 INITIALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . .29

C TROUBLESHOOTING GUIDE . . . . . . . . . . .30

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .32

DISC HANDLING . . . . . . . . . . . . . . . . . . . . . .32

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .33

C ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . .20

GENERAL FEATURES . . . . . . . . . . . . . . . . . .20

DISC MENU . . . . . . . . . . . . . . . . . . . . . . . . . .20

TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . .20

RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

STEP BY STEP PLAYBACK . . . . . . . . . . . . .21

FAST FORWARD/REVERSE SEARCH . . . . .21

SLOW FORWARD / SLOW REVERSE . . . . .21

– 6 –

EN

0C28

FEATURES

TV Mode

181 channel capability PLL frequency synthesizer tuner with direct station call

(A converter may be necessary to view scrambled cable channels.)

Infrared remote control

Trilingual on screen menu display selectable in English, Spanish, or French

¡Sleep Timer

The Sleep Timer function enables you to shut off the power without pressing POWER after a desired time period.

¡Closed Caption Decoder

You may view specially labeled (cc) TV programs, movies, news, etc. with either a dialogue caption or text display added to the program.

¡Auto Shut Off Function

If there is no air signal input from the antenna terminal and no operation for 15 minutes, the TV/DVD will turn itself off automatically.

¡V-CHIP

Enables parents to prevent their children from watching inappropriate material on TV.

DVD Mode

¡Dolby Digital sound

This TV/DVD can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for audio CD and MP3

This TV/DVD can shuffle the order of tracks to play them in random order.

¡Program playback for audio CD and MP3

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Autopower-offfunctions

The screen saver program starts when there is no input from the TV/DVD for five minutes in the stop mode. When the screen saver program is activated for 15 minutes, the power is automatically turned off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This TV/DVD automatically detects if the loaded disc is DVD, audio CD or MP3 on disc.

¡On-screendisplay

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped.

¡Virtual Surround

¡Bit rate indication

¡DRC (Dynamic range control)

You can control the range of sound volume.

– 7 –

EN

0C28

OPERATING CONTROLS AND FUNCTIONS

TV/DVD FRONT PANEL [Fig. 1]

VIDEO

AUDIO

POWER

VOLUME

CHANNEL

STOP

PREV

PLAY

NEXT

PAUSE OPEN/CLOSE HEADPHONE

L R

SEARCH

1 2 3 4 5 6 7 8 9 10 11 12 13 14

REMOTE CONTROL

[Fig. 2]



7. Remote Sensor Window













8. STOP Button [page 20]













Stops operation of the disc.













9. PREV (SKIP)H Button [page 21]













Plays back from the beginning of the current



POWER PICTURE SELECT

CLOSE



chapter or track.









OPEN/





4









13

SEARCH (REV) E Button (Front Panel)

36

1

2

3



34

[page 21]







During playback or in the pause mode, press and









CH.

6

16

4

5

6



hold button down for a few seconds to change





reverse playback speed.

7

8

9



5

10. PLAY Button [page 20]

SLEEP



+100

VOL.







Starts playback of the disc contents.

17

0

+10







SKIP



V.SURR

MUTE

35



Press to change to DVD mode when TV mode.

9







11.

NEXT (SKIP) G Button [page 21]

11







19









Plays back from the beginning of the next chapter

10



PLAY



18



REV





FWD





or track.





STOP



8



PAUSE

SLOW

DISC

12

MENU

33







23

DISPLAY





32



ENTER



20

SETUP

TITLE

RETURN

31







30

21







CLEAR

SEARCH MODE REPEAT

A-B

29

22



AUDIO SUBTITLE

ANGLE

15

MODE

28







24







27

25







26

1.Disc loading tray

2.VIDEO input Jack [page 11]

Connect to the video output jack of a video camera or VCR.

3.AUDIO L/R input Jacks [page 11]

Connect to the audio output jacks of a video camera or VCR.

4.POWER Button [page 13]

Press to turn the power on and off.

5.VOLUME K/L (VOL.m/n) Buttons

Press to control the volume level for the DVD and TV.

6.CHANNEL K/L (CH.K/L) Buttons [page 14]

Press to select memorized channel.

Press to change to TV mode when DVD mode.

SEARCH (FWD) D Button (Front Panel)

[page 21]

During playback or in the pause mode, press and hold button down for a few seconds to change forward playback speed.

12.PAUSE Button [page 21]

Pauses the current disc operation.

13.OPEN/CLOSE Button [page 20]

Press to insert discs into or remove them from the tray.

14.HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

15.MODE Button [pages 23-25]

Activates program playback or random playback mode when playing CDs or MP3.

16.Number Buttons TV Mode: [page 15]

Press two digits to directly access the desired channel. Remember to press 0 before a single digit channel.

+100 Button

Press to select cable channels which are higher than 99.

DVD Mode: [page 22]

Press to enter the desired number.

+10 Button

Press to enter the desired numbers which are greater than 9.

– 8 –

EN

0C28

TV/DVD REAR VIEW

[Fig. 3]

ANT.

COAXIAL

37

38

39

17.SLEEP Button [page 16]

Press SLEEP to display the sleep timer and start the function. The shut off time can be determined by the number of times you press this button. (0, 30, 60, 90, or 120 minutes)

18.REV h Button [page 21]

Press to view the DVD picture in fast reverse motion. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the reverse speed of slow motion.

FWD g Button [page 21]

Press to fast forward the Disc. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the forward speed of slow motion.

19.V.SURR (VIRTUAL SURROUND) Button

[page 25]

Press to set virtual surround on/off.

20.SETUP Button [pages 13,27-29]

Press to enter or exit the TV menu or DVD setup mode.

21.TITLE Button [page 20]

Displays the title menu.

22.CLEAR Button [pages 22-24]

Resets a setting.

23.DISPLAY Button TV Mode:

Press to display the channel number on the screen. If you press it again, the channel number will disappear.

DVD Mode: [page 26]

Displays the current status on the TV screen for checking purposes.

24.SEARCH MODE Button [page 22]

Press to locate a desired point.

25.AUDIO Button [page 25]

Press to select a desired audio language or sound mode.

32.Arrow Buttons

TV Mode: [page 13]

Press to select a setting mode from the menu on the TV screen.

Press to select or adjust from a particular menu.

DVD Mode: [page 20]

Use when making settings while watching the display on a TV screen.

33.DISC MENU Button [page 20]

Displays the menus in the DVD.

34.SELECT Button [page 20]

Press to change to TV mode, external input mode or DVD mode.

NOTE: When you select the DVD mode by this button, press PLAY or OPEN/CLOSE first. Otherwise, the DVD features are not operated.

35.MUTE Button

Press MUTE to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED

from LIGHT BLUE.) Press MUTE again or press VOL. m ornto restore sound.

36.PICTURE Button [page 15]

Press to enter picture adjustment mode.

37.Power cord

Connect to a standard AC outlet (120V/60Hz). NOTE: Remove the power cord from the hook to

avoid breaking a wire before you connect to a standard AC outlet.

38.COAXIAL digital audio out Jack (DVD Audio Only) [pages 11, 12]

Connect to the digital input of an external amplifier or decoder.

39.ANT. in Jack

Connect to an antenna, cable system, or satellite system.

26.SUBTITLE Button [page 25]

Press to select a desired subtitle language.

27.

REPEAT Button [page 23]



INSTALLING THE BATTERIES



Repeats playback of the current disc, title, chapter













or track.



1)Open the battery compartment cover by pressing the

28.

ANGLE Button [page 25]



cover on the remote unit in the direction of the arrow.



Press to change the camera angle to see the sequence

2)Insert 2 “AA” penlight batteries into the battery





being played back from a different angle.









compartment in the direction indicated by the



29.

REPEAT A-BButton [page 23]







polarity (+/-)markings.





Repeats playback of a selected section.









3)Replace the cover.







30.

RETURN Button [page 25]

















Returns to the previous operation in the DVD setup













mode.



NOTES



31.

ENTER Button [pages 13, 20]







¡Do not mix alkaline and manganese batteries.





Press to accept a setting.









¡Do not mix old and new batteries.















– 9 –

EN

0C28

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

Satellite Box or Cable Box (Not supplied)

From

Cable System

OUT

From Cable System or

Satellite Dish

Rod Antenna

(Supplied) VHF/UHF Antenna (Not supplied)

IN





VHF Antenna





(Not supplied)





UHF Antenna



or

(Not supplied)

COAXIAL ANT.

VHF/UHF





or Combiner





(Not supplied)



ANT.

75-ohmCoaxial

or



Cable (Not supplied)



or

Flat twin-leadcable

[Fig. 4]





Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

NOTE:

Before plugging the antenna into the ANT. IN jack of the TV/DVD, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. IN jack of the TV/DVD.

Bent pin

Cable Plug

(Needs to be straightened)(Straight pin)

VHF/UHF COMBINED ANTENNA

The VHF/UHF Rod Antenna (supplied) is detachable. Insert the stem of the antenna into the hole on the upper-backportion of the TV/DVD. Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/DVD as shown in the diagram above. For the best reception, fully extend the VHF/UHF Rod Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box. Use the TV/ DVD Remote Control to select channels.

CABLE WITH CONVERTER/DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

Channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/ DVD Remote Control.

TO VIEW A SCRAMBLED/UNSCRAMBLED CHANNEL

1.Set the TV/DVD channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2.Select the channel to view on your Cable Converter Box or Satellite Box.

– 10 –

EN

0C28

CONNECTING TO EXTERNAL INPUT JACKS

When you watch a program recorded on an another source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD.

Connect the audio/video output

jacks of another source to the AUX AUDIO L/R and VIDEO jacks of

this TV/DVD. Then press SELECT until "AUX" appears on the screen.

NOTE:

When you connect a monaural VCR (another source) to this TV/DVD, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will output in both L and R channel equally.

[Front of the TV/DVD]

VIDEO

AUDIO

POWER

L R

[Another source]

To the





audio out-







put jacks







Audio/Video

VIDEO

AUDIO



cables



L

R



(not supplied)





etc.







To the video



output jack

[Fig. 5]

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only)

Use an audio coaxial digital cable available at retail for the audio connections.

Amplifier equipped with digital input jacks, MD deck,

DAT deck, etc.



ANT.



COAXIAL

To COAXIAL DIGITAL



AUDIO INPUT jack



To DIGITAL AUDIO OUT



(PCM/BITSTREAM)



COAXIAL jack

[Fig. 6]

(only DVD AUDIO OUT)



NOTES:

The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or DAT deck.

Be sure to turn off the power to all components in the system before connecting another component.

Refer to the Owner's Manuals for the components to be connected to the TV/DVD.

Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion and may also damage the speakers. (See page 28 to set DOLBY DIGITAL to OFF.)

– 11 –

EN

0C28

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)

If using this TV/DVD to play a DVD disc in a 5.1 channel Dolby Digital surround format, the TV/DVD outputs a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the TV/DVD up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-qual-ity surround sound as enjoyed in movie theaters.

Use audio coaxial digital cables available at retail for the audio connections.

Center



speaker

COAXIAL

Front speaker

ANT.

Front speaker

(left)

(right)







To DIGITAL AUDIO OUT

Dolby Digital decoder

To COAXIAL DIGITAL

(PCM/BITSTREAM)



AUDIO INPUT jack

COAXIAL jack

Surround

Surround

Subwoofer



speaker

speaker





(left)

(right)





[Fig. 7]

NOTES:

Be sure to turn off the power to all components in the system before connecting another component.

Refer to the Owner's Manuals for the components to be connected to the TV/DVD.

If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode. (See page 28 to set DOLBY DIGITAL to ON.)

Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-Dsymbol are trademarks of Dolby Laboratories.

– 12 –

EN

0C28

TV SECTION

FOR USE

SELECTING THE

1 Plug in the TV/DVD power cord

Plug the TV/DVD power cord into a standard AC outlet.

NOTE:

If any digits appear in the corner the screen, press POWER without unplugging the power cord.

Make sure ...

Press POWER to turn on the TV/DVDNOTE: This function effects only the the screen menu and not the audio

2 Select “LANGUAGE”

- TV SETUP

Press SETUP on the remote control.

CHANNEL SET

Press Arrow (K/L) to point to

V-CHIPSET UP

B LANGUAGE

CAPTION [OFF]

“LANGUAGE”.

















3Select “ENGLISH”, “ESPAÑOL” or “FRANÇAIS”

Select “ENGLISH”, “ESPAÑOL”= Spanish or “FRANÇAIS”= French using ENTER.

4Exit the Language mode

Press SETUP to return to TV mode.

NOTE: If for some reason the menu is in Spanish or French, press SETUP, press Arrow (K/L) to point to “IDIOMA [ESPAÑOL]” or “LANGAGE [FRANÇAIS]”, then press ENTER, then press SETUP on the remote control.

CHANNEL SET UP

TV

You can program the tuner to scan all the channels you receive in your area.

NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just select the TV/DVD channel selector to the output channel of the cable box or satellite box (Ex CH3), then select the channel to be viewed on the Cable Box or Satellite Box.

Make sure ...

Press POWER to turn on the TV/DVD.

1 Select “CHANNEL SET UP”

- TV SETUP -

B CHANNEL SET UP

V-CHIPSET UP

LANGUAGE [ENGLISH]

CAPTION [OFF]

2 Begin auto ch programming



Press Arrow (K/L) to point to

– CHANNEL SET UP –

“AUTO CH PROGRAMMING”.

ADD / DELETE CH (CATV)

Then press ENTER.

B AUTO CH PROGRAMMING

The tuner scans and memorizes all



the active channels in your area.



3 After scanning

The tuner stops on the lowest memorized channel.

When AUTO CH PROGRAMMING is activated where there is no TV signal input, “NO TV SIGNALS” will appear on the display after the completion of the channel scanning.

The TV/DVD may recognize TV channels to be CATV channels by the receiving conditions. In this case, try auto ch programming again in the fine receiving conditions.

– 13 –

EN

0C28

DELETING (OR ADDING)

CHANNEL(S)

TV

The channels you no longer receive can be deleted from the memory. (Of

add the deleted channel into the memory

1 Select “CHANNEL SET UP”

Press SETUP on the remote control. Press Arrow (K/L) to point to “CHANNEL SET UP”.

Then press ENTER.

- TV SETUP -

BCHANNEL SET UP V-CHIPSET UP

LANGUAGE [ENGLISH] CAPTION [OFF]

2 Select “ADD/DELETE CH”

Press Arrow (K/L) to point to “ADD/DELETE CH”.

Press ENTER.

– CHANNEL SET UP –

BADD / DELETE CH (CATV)

AUTO CH PROGRAMMING

3Enter the desired channel number

Press Arrow (K/L) until your desired channel number appears. (You can also use the number buttons or CHANNEL(CH.)K/L to enter it) (Example: CH8)

You must precede single-digitchannel numbers with a zero

When selecting cable channels than 99, press +100 first, then digits. (Example: to select channel +100, then press 2 and 5).

4Delete (or add) it from (into)

Press ENTER. The channel number red. The channel is deleted from

To delete another channel, repeat

If you press ENTER again, the rized again.

Added channel: Light blue.

Deleted channel: Light red.

5 Exit the channel setup mode

Press SETUP to return to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press CHANNEL(CH.)K/L.

– 14 –

EN

0C28

TV OPERATION

WATCHING A TV PROGRAM

TV

1 Turn on the TV/DVD

Press POWER to turn on the TV/DVD.

2 Select the channel number

Press CHANNEL(CH.) K/L to select your desired channel number, or press the number buttons.

Notes for using the number buttons on the remote control:

You must precede single-digitchannel numbers with a zero (Example: 02 ... 09).

When selecting cable channels which are higher than 99, press +100 first, then press the last two digits. (Example: to select channel 125, first press +100, then press 2 and 5).

Remember:

¡If the TV/DVD is connected to a cable box or satellite box, the TV/DVD must be on CH3 or CH4, then the channel to be viewed must be select ed on the cable box or satellite box.

3 Adjust sound

Press VOLUME(VOL.) X/Y to adjust the volume.

VOLUME 20

C C C C C C C C C C C C C C C C

NOTE:

If you press CHANNEL(CH.) K/L mode, you can change the TV

Even if you turn off the TV/DVD mode, when you turn it on again, it TV mode.

DEGAUSSING

Magnetism from nearby appliances might affect the color of the TV picture If this happens, move this unit away ance. If the color is still not correct, cord from AC outlet then reconnect it

PICTURE CONTROL

TV

The TV/DVD’s picture controls – BRIGHT, CONTRAST, COLOR, TINT andSHARPNESS – are preset to factory specifications. Although they are usually the best, you may need to make some further adjustments for a more natural looking image.

Make sure ...

TV/DVD power must be turned on.

1Select “PICTURE CONTROL”

Press PICTURE on the remote control.

2Select item you want to adjust

Press Arrow (K/L) until desired control is displayed.

BRIGHT

P P P P P P P C P P P P P P P+

NOTE:

At step [3], the picture adjustment display will disappear from the TV screen after about 5 seconds unless you press any buttons, even though you may not be finished. In this case, repeat from step [1].



Arrow Button {

Arrow Button B







BRIGHT

to decrease

to increase

brightness

brightness









CONTRAST

to decrease

to increase

contrast

contrast









COLOR

to pale

to brilliant







TINT

to purple

to green







SHAPNESS

to soft

to clear







If there is a power failure of any kind, the unit will retain its memory for this feature.

– 15 –

EN

0C28

SLEEP TIMER

TV

The Sleep Timer function enables you to without pressing POWER after a desired

1 Set “SLEEP TIMER”

Press SLEEP on the remote control. You may change the sleep time with pressing SLEEP repeatedly.

The timer is set up to 120 minutes,

SLEEP 120 MINUTE

30 minutes each time SLEEP is pressed.

To cancel the sleep timer:

Press SLEEP repeatedly until “SLEEP 0 MINUTE” is displayed.

NOTES:

When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.

To view the time left for sleep timer press SLEEP once when SLEEP display disappears. After 10 seconds, display will disappear again.

CLOSED CAPTION SYSTEM

TV

NOTE:

If the TV/DVD displays a black box on the TV screen, this means that the TV/DVD is set to the TEXT mode. To clear screen, select [CAPTION1], [CAPTION2] or [OFF].

Make sure ...

TV/DVD power must be turned

1 Select “CAPTION”

- TV SETUP -

Press SETUP on the remote control.

CHANNEL SET UP

Press K orL to point to “CAP-

V-CHIPSET UP

LANGUAGE [ENGLISH]



TION”.







2 Select your desired caption



Press ENTER until your desired

- TV SETUP -

caption menu appears.

CHANNEL SET UP

([CAPTION1], [CAPTION2],

V-CHIPSET UP

LANGUAGE [ENGLISH]

B CAPTION [CAPTION1]

[TEXT1] or [TEXT2])







3 Exit the caption setting mode



Press SETUP to return to TV mode.



You can view specially labeled (cc) TV programs, movies, news, etc. with either a dialogue caption or text display.

CAPTION mode: By choosing the caption mode, you can watch dramas, movies and news while captioning the dialogues and the contents of news.

TEXT mode: By choosing the text mode, you can watch half screen text information if you want.1-2: You may get these captions or text information by selecting either “1” or “2”. Caption “2” is used, usually for a second language if available.

TO CANCEL THE CLOSED SYSTEM

Repeat steps [1] and [2], select [OFF] Press SETUP on the remote control mode.

WHEN THE CLOSED

IS ON

The On-ScreenDisplay will disappear onds.

NOTE:

This is also true when MUTE is



Not all programs are broadcast with closed caption.

If there is a power failure of any



Your television is designed to provide error free

retain its memory for this feature.



closed captions from high quality antenna, cable and





VCR signals. Conversely, poor quality signals are





likely to result in caption errors or no captions at all.





Common signal conditions which may cause captions





errors are listed below:





Automobile ignition noise





Electric motor brush noise





Weak snowy reception on TV screen





Multiplex signal reception displaying picture





ghosts or airplane flutter.





– 16 –

EN

0C28

V-CHIPSET UP

TV

V-CHIPenables parents to prevent their children from watching inappropriate material on TV.V-CHIPreads the ratings for programming

for news and sports programs, unedited premium cable channels, and Emergency System signals), then denies access

if the program’s rating meets the select. In this case, “PROTECTED

...” message appears on the TV screen To block ratings, follow the steps

Programming may be rated by the Association of America (MPAA) or the Television Parental Guidelines. block any inappropriate programming, limits in both places (MPAA RATING RATING).

TV RATING SET UP

Make sure ...

TV/DVD power must be turned on

1 Select“V-CHIPSET UP”





- TV SETUP -

Press SETUP on the remote control.

CHANNEL SET UP



B V-CHIPSET UP

Press Arrow (K/L) to point to “V-

LANGUAGE [ENGLISH]

CAPTION [OFF]

CHIP SET UP”.









Then press ENTER.



















2 Input Access code



ACCESS CODE

Press the number buttons to enter 4-









digit access code. The default code





_ _ _ _



















is 0000.



















3 Select “TV RATING”



V-CHIPSET UP –

Press Arrow (K/L) to point to “TV

B

TV RATING



MPAA RATING

CHANGE CODE

RATING”.

Then press ENTER.

4 Select your desired item

Press Arrow (K/L) to point to your desired item.

Then press ENTER to select [BLOCK] or [VIEW].

When you select a rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

When you turn “TV-Y”to [VIEW], all ratings will turn to [VIEW] automatically.

Selection

Rating Category Explanations

TV-Y

Appropriate for all children





TV-Y7

Appropriate for children seven and older

TV-G

General Audience

TV-PG

Parental Guidance suggested.

TV-14

Unsuitable for children under 14





TV-MA

Mature audience only





When you select TV-Y7,TV-PG,TV-14orTV-MAand you press ENTER, thesub-ratingswill appear on the TV screen.

If you select the rating category (example: TV-PG)and turn it [BLOCK] or [VIEW], thesub-ratings(example: V for Violence) will turn [BLOCK] or [VIEW] automatically.

You can set the sub-ratingsto [BLOCK] or [VIEW] individually when the rating category is set to [BLOCK].

To set the sub-ratingsindividually, follow the steps below.

When

Press “FV” Then [BLOCK]

When you select [TV-PG],[TV-

Press Arrow (K/L) to select “D”(Suggestive Dialog), “L”(Coarse Language), “S”(Sexual Situation), or “V”(Violence). Then press ENTER to select [BLOCK] orNOTE: When you select [TVappear on the TV screen.

The sub-ratingswhich set to [BLOCK] appears next to the rating category in the TV RATING menu.

TV–Y7

[BLOCK]

B FV

[BLOCK]

TV–PG

[BLOCK]

B D

[BLOCK]

L

[BLOCK]

S

[BLOCK]

V

[BLOCK]

B TV–Y



[VIEW]

TV–Y7(

)

[VIEW]

TV–G



[VIEW]

TV–PG(DLSV )

[BLOCK]

TV–14(DLSV )

[BLOCK]

TV–MA(

LSV)

[BLOCK]

5 Exit theV-Chipsetting mode

Press SETUP on the remote control inal mode.

– 17 –

EN

0C28

MPAA RATING SET UP

Make sure ...

TV/DVD power must be turned on.

1 Select“V-CHIPSET UP”

Press SETUP on the remote control

- TV SETUP -







Press Arrow (K/L) to point to “V-

CHANNEL SET UP



LANGUAGE [ENGLISH]





B V-CHIPSET UP



CHIP SET UP”.

CAPTION [OFF]







Then press ENTER.











2 Enter4-digitaccess code





ACCESS CODE



Press the number buttons. The





default code is 0000.

_ _ _ _



















CHANGE ACCESS CODE

To change access code, follow the steps.

1 Select“V-CHIPSET UP”

Press SETUP on the remote trol.

Press Arrow (K/L) to point CHIP SET UP”.

Then press ENTER.

- TV SETUP -

CHANNEL SET UP

BV-CHIPSET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Enter4-digitaccess code

ACCESS CODE

Press the number buttons. The default code is 0000.

3 Select “MPAA RATING”

Press Arrow (K/L) to point to “MPAA RATING”.

Then press ENTER.

3 Select “CHANGE CODE”

Press Arrow (K/L) to point to “CHANGE CODE".

Then press ENTER.

V-CHIPSET UP –

TV RATING

MPAA RATING

BCHANGE CODE

4 Select your desired item

Press Arrow (K/L) to point to your desired item.

Then press ENTER to select [BLOCK] or [VIEW].

Selection

Rating Category

G

General Audience

PG

Parental Guidance

PG-13

Unsuitable for children

RRestricted; under 17 nying parent or adult

NC-17No one under 17

X Mature audience only

When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

When you turn “G” to [VIEW], all ratings will turn to [VIEW] automatically.

5 Exit theV-Chipsetting mode

Press SETUP on the remote control to return to original mode.

4 Enter4-digitaccess code

Press the number buttons to enter your desired access code in the NEW CODE space. Then enter the same code in the CONFIRM CODE space. V-CHIPSET UP screen appear on the screen.

If you enter wrong code, repeat sure you enter the same new code confirm code space.

NEW CODE

_ _ _ _

CONFIRM CODE

_ _ _ _

5 Exit theV-Chipsetting mode

Press SETUP on the remote control inal mode.

NOTE:

If you unplug the power cord or occurs, the changed access code will return to default (0000). code again as necessary.

– 18 –

EN

0C28

DVD SECTION

ABOUT THE DISCS

PLAYABLE DISCS



DISC TYPES







The following discs can be played back on this TV/DVD.

¡DVD video

¡DVD-R/RW*

¡DVD+R/RW*

¡Audio CD

¡CD-R/RW*

¡MP3*

*Depending on the types or the writing method of the medium some discs can not be played.

Some DVD-R/RW,DVD+R/RW, orCD-R/RWdiscs made on personal computers or on DVD recorders may not be played back properly due to the factors such as scratches, dirt or special properties of the disc.

Discs made on personal computers may not be played back properly due to the different environment or the settings of the application you use. We recommend always to use the standardized, rightly formatted discs. (Please contact the sales agency for more detail).

[DVD]

Data on a DVD is divided into sections called "titles" and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs and these playback conditions take priority over user operations on this TV/DVD. If a function you selected does not run as desired, refer to the manual accompanying the disc.

Example





Title 1

Title 2

Chapter 1



Chapter 2



Chapter 3



Chapter 4

Chapter 1



Chapter 2

















































This TV/DVD conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

¡Some discs include region codes as shown below.

¡The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on TV/DVD with the same region code.

The following discs cannot be played back on this TV/DVD.

¡DVD with region codes other than 1 or ALL

¡DVD-ROM

¡DVD-RAM(Never play back, otherwise malfunction may result.)

¡CD-ROM

¡VSD

¡CDV (Only plays back the audio part.)

¡CD-G(Only plays back the sound.)

¡CD-I(Never play back, otherwise malfunction may result.)

¡SACD

¡Photo CD (Never play back, otherwise malfunction may result.)

¡Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications.

[AUDIO CD]

Data on an audio CD is divided into sections called “tracks”, each of which is given a track number.

Example

Track 1



Track 2



Track 3



Track 4



Track 5



Track 6























































[MP3]

Data on an MP3 is divided into sections called "groups", and then into subsections called "tracks", each of which is given a group or track number.

Example





Group 1

Group 2

Track 1



Track 2



Track 3



Track 4

Track 5



Track 6

















































– 19 –

EN

0C28

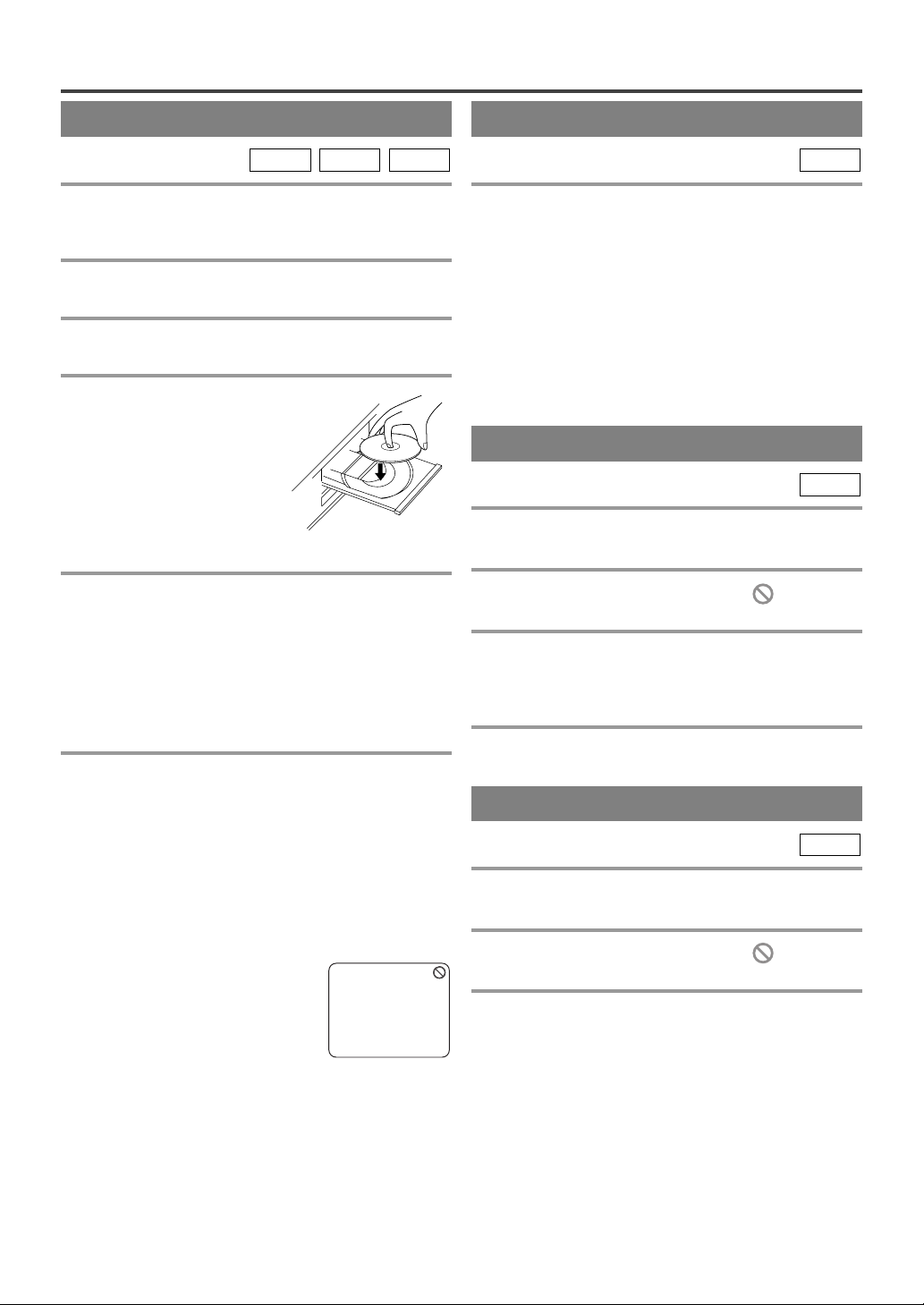

PLAYING A DISC

BASIC PLAYBACK



GENERAL FEATURES







DVD-VCDMP3

Getting started

¡Turn on the power of amplifier and any other components, if necessary.

1Press POWER.

¡The power will turn on.

2Press OPEN/CLOSE to open disc loading tray.

3Place the chosen disc in the tray, with the label facing up.

DVD-V

DVD may contain menus to navigate the disc and access special features. Press appropriate number buttons or use Arrow (K/L/s/B) to highlight your selection in the DVD main menu and press ENTER to confirm.

NOTES

¡Select DVD mode by pressing SELECT on the remote control. Then press PLAY or OPEN/CLOSE before you operate the DVD functions.

¡Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

4 Press PLAY.

¡The tray will close automatically and playback will then start from the first chapter or track of the disc. If the playback does not start automatically, press PLAY.

¡When you playback a DVD which features a title menu, it may appear on the screen. In this case, refer to “TITLE MENU”.

5 Press STOP to stop playback.

DISC MENU

DVD-V

1Press DISC MENU on the remote control.

¡The DVD main menu will appear.

2If the feature is not available, symbol may appear on the TV screen.

3If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

4Press Arrow (K/L/s/B) to select an item and ENTER to confirm selection.

NOTES

¡When the DVD mode has been switched to the TV mode, the DVD mode shuts down first and then TV picture and sound appears in about 4 seconds. Similarly, when POWER is pressed to turn off in the DVD mode, this mode shuts down first and then the TV/DVD’s power is turned off.

¡A “prohibited icon” may appear at thetop-righton the TV screen dur-

ing operation, warning that a prohibited operation has been encountered by the DVD or the disc.

¡With DVDs that use titles for playback program signals, playback may start from the second title, or it may skip these titles.

¡During the playback of a two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

TITLE MENU

DVD-V

1Press TITLE on the remote control.

¡The title menu will appear.

2If the feature is not available, symbol may appear on the TV screen.

3Press Arrow (K/L/s/B) to select an item and ENTER to confirm selection.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVD-Vs

¡Press DISC MENU to call up the DVD menu.¡Press TITLE to call up the title menu.

NOTE

¡Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

– 20 –

EN

0C28

RESUME

DVD-VCDMP3

1 During playback, press STOP.

¡Resume message will appear on the TV screen.

2 Press PLAY, playback will resume from the point at which playback was stopped.

¡To cancel resume, press STOP twice.

¡If TV/DVD is turned off, resume function will be cancelled.

¡For MP3, playback will resume from the beginning of the track at which playback was stopped.

PAUSE

DVD-VCDMP3

1 During playback, press PAUSE.

¡Playback will pause and sound will be muted.

2 To continue playback, press PLAY.

STEP BY STEP PLAYBACK

DVD-V

1 During playback, press PAUSE.

¡Playback will pause and sound will be muted.

2The disc goes forward by one frame each time PAUSE is pressed.

3To exit step by step playback, press PLAY.

FAST FORWARD/REVERSE

SEARCH

DVD-VCDMP3

1 During playback, press FWDg or REVh.

¡g 1” or “h 1” appears on the screen.

2 To select another speed, repeat step1 until your required speed appears on the screen.

¡For DVDs, fast forward/reverse search speed is different depending on the disc. Approximate speed is 1(×2), 2(×8), 3(×50) and 4(×100).

¡For audio CDs, approximate speed is×16.¡For MP3, approximate speed is×8

¡When you use buttons on the TV/DVD front panel, press and hold NEXTG/SEARCHg or PREVH/SEARCHh for a few seconds.

3 To return to normal playback, press PLAY.

SLOW FORWARD /

SLOW REVERSE

DVD-V

1During playback, press PAUSE.

2Press FWD g or REVh.

¡1” or “1” appears on the screen.

3To select another speed, repeat step2 until your required speed appears on the screen.

¡Slow forward or reverse speed varies with the disc. Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

¡When you use buttons on the TV/DVD front panel, press and hold NEXTG/SEARCHg or PREVH/SEARCHh for a few seconds.

4 To return to normal playback, press PLAY.

– 21 –

EN

0C28

SEARCH FUNCTION

TRACK SEARCH



TIME SEARCH























CD

MP3

DVD-V

CD























There are three ways to begin playback on an Audio CD and MP3 at a specific track.

Using the number buttons on the remote control

1 Press the number buttons to enter the desired track number.

¡Playback will start at the selected track.

¡For single digit tracks(1-9),press a single number (eg. track 3, press 3).

¡To play track 26, press +10, 2, 6.

Using SEARCH MODE

1 Press SEARCH MODE.

¡The Track search display appears.

2 Within 30 seconds, select a desired track number using the number buttons.

¡For single digits press 0 first.¡Playback will start at the selected track.

Using PREV/NEXT (H/G)

During playback, press NEXT G to move the next track. Press it repeatedly to skip subsequent tracks. Press PREVH to go back to beginning of the current track. Press it repeatedly to go to the previous tracks.¡If NEXTG is pressed while the playback is

paused, the playback will be paused again after skipping to the next track.

NOTE

¡PREV/NEXT (H/G) are not available when playback is stopped.

TITLE / CHAPTER SEARCH

DVD-V

1Press SEARCH MODE once for the Chapter search and twice for the Title search during playback.

_/2

2 Enter the desired chapter/title number using the number buttons.

¡Playback will start at the selected chapter or track.¡Press CLEAR to erase the incorrect input.

¡For single digits press 0 first.

1During playback press SEARCH MODE three times (CD: twice) to display the Time Search on the TV screen.

2Within 30 seconds, enter a desired disc

time using the number buttons.

¡Playback will start at the specified time.¡Press CLEAR to erase the incorrect input.

¡When there is no need to enter a number, “0” appears automatically. For example, “ 0 : 0- :- -appears in the Time Search display if the total time of the disc is less than 10 minutes.

MARKER SETUP SCREEN

DVD-VCD

Use markers to memorise your favorite places on a disc.

1 Press SEARCH MODE four times (CD: three times) during playback.

¡The display screen and Markers will appear on the TV screen.

2Press Arrow (s/B) to select 1, 2, 3, 4, 5, 6,

7, 8, 9, or 10 and ensure that “- - - - :- - :- -appears in the display.

3When you reach the desired point press ENTER.

¡The title or track and elapsed playing time will appear on the TV screen.

4To return to the Marker later, press SEARCH MODE four times (CD: three times) during playback and Arrow (s/B) to choose the

desired marker then press ENTER.

NOTES

¡Opening the disc tray or turning off the power or selecting AC at step 2 and pressing ENTER will erase all Markers.

¡To clear a marker using Arrow (s/B), position the cursor on to the marker number to be cleared and press CLEAR.

¡You can mark up to 10 points.

5 Press SEARCH MODE or RETURN to exit.

– 22 –

EN

0C28

SPECIAL PLAYBACK FUNCTION

REPEAT



PROGRAM







REPEAT is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate the repeat function press REPEAT during playback.

¡The repeat mode changes as described below every time you press the button.

CHAPTER

TITLE

OFF

(current chapterrepeat)

(current titlerepeat)

(repeat off)

NOTES





CD

You may determine the order in which tracks will play.

1In stop mode, press MODE.

¡The PROGRAM screen will appear.

2Press Arrow (/) to select a track then

press ENTER.



¡Press CLEAR to erase the

TOTAL

most recently entered pro-



gram.



¡Repeat Title/Chapter is not available with some scenes.

¡The REPEAT setting will be cleared when moving to other title or chapter.

REPEAT TRACK

CD

To activate the repeat function press REPEAT during playback.

¡The repeat mode changes as described below every time you press the button.

TRACK

ALL

OFF

(current trackrepeat)

(entire discrepeat)

(repeat off)

NOTES





¡Repeat setting will be cleared when moving to other track.

¡Repeat playback does not function during repeat A- B playback.

REPEAT A-B

DVD-VCD

1Press REPEAT A-Bat your chosen starting point.

¡A- appears briefly on the TV screen.

2Press REPEAT A-Bagain at your chosen end point.

¡A-Bappears briefly on the TV screen and the repeat sequence begins.

3To exit the sequence press REPEAT A-B.

3Repeat step 2 until you have selected all the tracks you want to play in the program.

4Press PLAY to play the programmed tracks.

NOTES

¡While the program is being played back, the STOP works as follows.

¡Press STOP once and then PLAY again, playback will restart from the point where STOP was pressed. (Program continued)

¡Press STOP twice and then PLAY again, playback will restart from the track in the usual way. (Program cleared)

¡Up to 99 programs can be entered.

¡To erase all programs at once, select ALL CLEAR at the bottom of the list at Step2.

¡If you like to repeat the current track in the program, press REPEAT repeatedly untilTRACK appears

during playback. If you like to repeat the entire program press REPEAT repeatedly until ALL appears during playback.

RANDOM PLAYBACK

CD

This shuffles the playing order of tracks instead of playback in the sequence.

1 In stop mode, press MODE twice.

¡RANDOM screen appears.

RANDOM

CD-DA

TOTAL 0:45:55

RANDOM PROGRAM - - no indication - -

PLAY

NOTES

¡The repeatA-Bsection can only be set within the current title (for DVDs) or current track (for audio CDs).

¡RepeatA-Bis not available with some scenes in DVD.¡To cancel the A point which was set, press CLEAR.¡RepeatA-Bplayback does not function during title,

chapter, track or all repeat playback.

2 Press PLAY to start random playback.

NOTE

¡If you like to repeat the current track in the random selection, press REPEAT repeatedly untilTRACK appears during playback. If you like to repeat the entire random selection press REPEAT repeatedly untilALL appears during playback.

– 23 –

EN

0C28

folder name 1
folder name 2 folder name 3 folder name 4 file name 1 file name 2 file name 3
folder name 1

PLAYING A MP3 DISC

MP3 PLAYBACK



PROGRAM















MP3

MP3













When a CD with MP3 files is in the TV/DVD, press DISC MENU to call up the MP3 menu on the TV screen.

1 In stop mode, press Arrow (K/L) to select the desired group or track.

¡If a group is selected pressB

or ENTER to go on to the

track selection screen. Press Arrow (K/L) to choose a

track, then press ENTER.

¡If a track is selected press ENTER to start playing

tracks. Starting from the one you’ve just chosen the subsequent tracks will be played.

¡Press TITLE to return to the first item.

2 Press STOP to stop playback.

NOTES

¡Folders are known as Groups; files are known as Tracks.

¡MP3 files are accompanied by3 icon.¡Maximum of 255 folders can be recognized.¡Maximum of 512 files can be recognized.¡Up to 8 hierarchies can be created.

This TV/DVD recommends the use of files recorded at the below specifications:

¡Sampling frequency: 44.1kHz or 48kHz¡Constant bit rate: 112kbps ~ 320kbps.

REPEAT

MP3

REPEAT is available only during playback.

To activate the repeat function, press REPEAT during playback.

¡The repeat mode changes as described below every time you press the button.

TRACK

GROUP



ALL





OFF







(current track

(current group

(entire disc

(repeat off)

repeat)

repeat)

repeat)





































NOTE

¡Repeat setting will be cleared when moving to other track.

This feature allows you to program an MP3 disc to play in a desired sequence.

1In stop mode, press MODE.

¡The PROGRAM screen will appear.

2Select a desired track using Arrow

(K/L/s/B). Then press ENTER.

¡PressB when you want to go to the next hierarchy.¡Presss when you want to go back to the previous

hierarchy.

¡Press CLEAR to erase the most recently entered program.

3Repeat step 2 until you have selected all the tracks you want to play in the program.

4Press PLAY to start programmed playback.

NOTES

¡While the program is being played back, the STOP works as follows.

¡Press STOP once and then PLAY again, playback will restart from the point where STOP was pressed. (Program continued)

¡Press STOP twice and then PLAY again, playback will restart from the track in the usual way. (Program cleared)

¡To erase all programs at once, select ALL CLEAR at the bottom of the list at Step2.

RANDOM PLAYBACK

MP3

1In stop mode, press MODE twice.

¡RANDOM screen appears.

2Press PLAY to start random playback.

– 24 –

EN

0C28

CHANGING THE SETTINGS

SUBTITLE LANGUAGE



CAMERA ANGLE















DVD-V

DVD-V













The TV/DVD allows you to select a language for subtitles during DVD disc (if available) playback.

1Press SUBTITLE during playback.

2Press SUBTITLE repeatedly to select your

desired subtitle language.

¡The subtitle language will be displayed on the display bar at the top of the screen.

3 To turn off subtitles, press SUBTITLE repeatedly until OFF appears.

NOTES

¡Some discs allow audio language setting/subtitle language setting on the disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)

¡If the desired language is not shown after pressing SUBTITLE several times, the disc does not have subtitles in that language.

¡If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Subtitle language setting. If you choose any other languages,‘---’will be displayed instead. (Refer to page 27.)

AUDIO LANGUAGE

DVD-V

The TV/DVD allows you to select a language during DVD disc (if multi languages are available) playback.

1Press AUDIO during playback.

2Press AUDIO repeatedly to select your

desired language.

NOTE

¡Pressing AUDIO may not work on some DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu).

STEREO SOUND MODE

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the ( ) icon appears on the screen.

1 Press ANGLE during playback.

¡The selected angle will be displayed on the display bar at the top of the screen.

2Press ANGLE repeatedly to select your desired angle.

BLACK LEVEL SETTING

DVD-V

Adjust the Black Level Settings to make the black parts of the picture brighter.

1 Press MODE during playback.

OFF

2Press ENTER to switch ON/OFF.

ON: Makes the dark parts brighter.

OFF: Shows the original picture as recorded.

3Press MODE twice or RETURN to exit.

NOTE

¡The setting will be saved even if the TV/DVD is turned off.

VIRTUAL SURROUND

DVD-VCDMP3

You can enjoy surround-soundeffect over two speakers on this TV/DVD.

1Press V.SURR once or MODE twice (CD/MP3: once) during playback.

CD

OFF

1Press AUDIO repeatedly during playback to select between STEREO, L-CHorR-CH.

¡STEREO - both right and left channels are active





2 Press ENTER to set it 1 (Natural effect) or 2

(stereo)





(Emphasized effect) or OFF.

L-CH- only left channel is active





3 Press V.SURR, MODE or RETURN to exit.

R-CH- only right channel is active







NOTE (for CD play only)

NOTE





¡Virtual Surround will not be effective if the sound

¡If the Virtual Surround setting is ON, the sound mode



mode is set to something other than STEREO.

will be fixed to STEREO and can not be changed.





– 25 –

EN



0C28

THE ON-SCREENINFORMATION

DVD-VCDMP3

You can check the information about the current disc by pressing DISPLAY on the remote control.

For DVD-Vs

1 Press DISPLAY during playback to show current Chapter.

¡The elapsed and remaining



playing time of the current

9/49 0:00:00 -0:03:30

chapter will be displayed.



2Press DISPLAY again to show current Title.

¡The elapsed and remaining playing time of the current title will be displayed.

3Press DISPLAY again.

¡The BIT RATE and the current repeat setting will be displayed.

¡If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is playing. L1: Layer 1 is playing).

4 Press DISPLAY again to exit the display.

For audio CDs

1 Press DISPLAY during playback to show the current Track.

¡The elapsed and remaining playing time of the current track will be displayed.

2 Press DISPLAY again to show current Total Track.

¡The elapsed and remaining playing time of the current track will be displayed.

3 Press DISPLAY again to exit the display.

For MP3

1 Press DISPLAY during playback.

¡The name of the file currently in play will be displayed.

2Press DISPLAY again to show the track number, the elapsed time, the repeat status and the playback status at the top of the screen.

¡will be displayed when repeat play has been selected.

T - indicates Track repeat

G - indicates Group (folder) repeat

A - indicates Disc repeat

3Press DISPLAY again to exit the display.

– 26 –

EN

0C28

CHANGING THE DVD SETUP ITEMS

LANGUAGE SETTING

DVD-V

Language options are not available with some discs.

1Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

¡If the menu does not appear, press PLAY and STOP then SETUP twice.

SETUP

QUICK

CUSTOM

INITIALIZE

2Press Arrow L to select “CUSTOM”, then press ENTER.

¡CUSTOM mode will appear.

3Press Arrow (K/L) to select “LANGUAGE”, then press ENTER to confirm.

SETUP CUSTOM

LANGUAGE

DISPLAY

AUDIO

PARENTAL

4Press Arrow (K/L) to select the next items, then press ENTER.

AUDIO: Sets the audio language.SUBTITLE: Sets the subtitle language.

DISC MENU: Sets the language for DVD menu.

5Press Arrow (K/L) to select a setting, then press ENTER.

¡If OTHER is selected on the AUDIO, SUBTITLE or DISC MENU screen, pressfour-digitnumber to enter the code for the desired language. (Refer to the language code list.)

¡Only the languages supported by the disc can be selected.

6 Press SETUP to exit.

NOTE

¡Language Setting for Audio and Subtitle is not available with some discs. Then use the AUDIO and the SUBTITLE button. Details are on page 25.

TO CHANGE THE ON-SCREENMENUS

You can access the TV SETUP menu by pressing SETUP from the DVD mode. Refer to “Selecting the Language” on page 13 to changing the on-screenmenus.

Language

Code

Language

Code

A-B



L-N



Abkhazian

4748

Laothian

5861

Afar

4747

Latin

5847

Afrikaans

4752

Latvian;Lettish

5868

Albanian

6563

Lingala

5860

Amharic

4759

Lithuanian

5866

Arabic

4764

Macedonian

5957

Armenian

5471

Malagasy

5953

Assamese

4765

Malay

5965

Aymara

4771

Malayalam

5958

Azerbaijani

4772

Maltese

5966

Bashkir

4847

Maori

5955

Basque

5167

Marathi

5964

Bengali;Bangla

4860

Moldavian

5961

Bhutani

5072

Mongolian

5960

Bihari

4854

Nauru

6047

Bislama

4855

Nepali

6051

Breton

4864

Norwegian [NOR]

6061

Bulgarian

4853

O-R



Burmese

5971

Occitan

6149

Byelorussian

4851

Oriya

6164

C-E



Oromo(Afan)

6159

Cambodian

5759

Panjabi

6247

Catalan

4947

Pashto;Pushto

6265

Chinese [CHI]

7254

Persian

5247

Corsican

4961

Polish

6258

Croatian

5464

Portuguese [POR]

6266

Czech

4965

Quechua

6367

Danish [DAN]

5047

Rhaeto-Romance

6459

Dutch [DUT]

6058

Romanian [RUM]

6461

English [ENG]

5160

Russian [RUS]

6467

Esperanto

5161

S



Estonian

5166

Samoan

6559

F-H



Sangho

6553

Faroese

5261

Sanskrit

6547

Fiji

5256

Scots Gaelic

5350

Finnish [FIN]

5255

Serbian

6564

French [FRE]

5264

Serbo-Croatian

6554

Frisian

5271

Sesotho

6566

Galician

5358

Setswana

6660

Georgian

5747

Shona

6560

German [GER]

5051

Sindhi

6550

Greek [GRE]

5158

Singhalese

6555

Greenlandic

5758

Siswat

6565

Guarani

5360

Slovak

6557

Gujarati

5367

Slovenian

6558

Hausa

5447

Somali

6561

Hebrew

5569

Spanish [SPA]

5165

Hindi

5455

Sundanese

6567

Hungarian [HUN]

5467

Swahili

6569

I-K



Swedish [SWE]

6568

Icelandic [ICE]

5565

T



Indonesian

5560

Tagalog

6658

Interlingua

5547

Tajik

6653

Interlingue

5551

Tamil

6647

Inupiak

5557

Tatar

6666

Irish [IRI]

5347

Telugu

6651

Italian [ITA]

5566

Thai

6654

Japanese [JPN]

5647

Tibetan

4861

Javanese

5669

Tigrinya

6655

Kannada

5760

Tonga

6661

Kashmiri

5765

Tsonga

6665

Kazakh

5757

Turkish [TUR]

6664

Kinyarwanda

6469

Turkmen

6657

Kirghiz

5771

Twi

6669

Kirundi

6460

U-Z



Korean [KOR]

5761

Ukrainian

6757

Kurdish

5767

Urdu

6764





Uzbek

6772





Vietnamese

6855





Volapuk

6861





Welsh

4971





Wolof

6961





Xhosa

7054





Yiddish

5655





Yoruba

7161





Zulu

7267









If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 25. If you choose any other languages, ‘---’will be displayed instead. (3 letter language code is written in bracket.)

– 27 –

EN

0C28

DISPLAY SETTING



AUDIO SETTINGS













DVD-V



DVD-V















You can change certain aspects of the DVD display screens and on-screenmessages on the TV screen.

1Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

¡If the menu does not appear, press PLAY and STOP then SETUP twice.

SETUP

QUICK

CUSTOM

INITIALIZE

2Press Arrow L to select “CUSTOM”, then press ENTER.

¡CUSTOM mode will appear.

3Press Arrow (K/L) to select “DISPLAY”, then press ENTER to confirm.

SETUP CUSTOM

LANGUAGE

DISPLAY

AUDIO

PARENTAL

4Press Arrow (K/L) to select the below items, then press ENTER.

TV MODE: QUICK

¡Press Arrow (K/L) for an item selection, then press ENTER.

¡Select 4:3 LETTER BOX for black bars to appear on top and bottom of the screen.

¡Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.

¡The default setting is 4:3 LETTER BOX.

STILL MODE:

¡Press Arrow (K/L) for an item selection, then press ENTER.

¡Select “AUTO” usually.

¡If you select “FIELD”, the picture in the still mode will be stabilized.

¡If you select “FRAME”, the picture in the still mode will be highly defined.

ANGLE ICON:

¡Press ENTER repeatedly to turn Angle icon ON or OFF.

¡The default setting is ON.

AUTO POWER OFF:

¡Press ENTER repeatedly to turn Auto Power off ON or OFF.

¡The default setting is ON and it will turn the TV/DVD off automatically after 15 minutes of no use.

5 Press SETUP to exit.

Choose the appropriate Audio settings for your equipment as it only affects during the playback of DVD discs.

1Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

¡If the menu does not appear, press PLAY and STOP then SETUP twice.

SETUP

QUICK

CUSTOM

INITIALIZE

2Press Arrow L to select “CUSTOM”, then press ENTER.

¡CUSTOM mode will appear.

3Press Arrow (K/L) to select “AUDIO”, then press ENTER to confirm.

SETUP CUSTOM

LANGUAGE

DISPLAY

AUDIO

PARENTAL

4Press Arrow (K/L) to select the below items, then press ENTER.

DRC (Dynamic Range Control):

¡To compress the range of sound volume.¡The default setting is ON.

DOWN SAMPLING:

¡Set to ON when outputting in 48 kHz.¡The default setting is ON.

When playing disc with copyright Protection

¡If you select OFF, copyright protection will be activated and sound will be down sampled at 48kHz.

DOLBY DIGITAL: QUICK

Set to On when the unit is connected to a Dolby Digital Decoder.

(ON: Output by Dolby Digital)

(OFF: Convert the Dolby Digital to PCM (2 channel stereo))

¡The default setting is ON.

5 Press SETUP to exit.

– 28 –

EN

0C28

PARENTAL CONTROL

DVD-V

Parental Control limits the disc viewing that exceed your settings. (with a password or playback will stop.) This feature allows you to prevent discs with alternative scenes from being played by your children.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc’s ratings exceed the level you set.

1Press SETUP twice in STOP mode so that the QUICK SETUP menu appears.

¡If the menu does not appear, press PLAY and STOP then SETUP twice.

SETUP

QUICK

CUSTOM

INITIALIZE

2Press Arrow L to select “CUSTOM”, then press ENTER.

3Press Arrow (K/L) to select “PARENTAL”, then press ENTER.

SETUP CUSTOM

LANGUAGE

DISPLAY

AUDIO

PARENTAL

4Enter your four-digitpassword then press ENTER.

5Press Arrow (K/L) to select PARENTAL

LEVEL, then press ENTER.

6Press Arrow (K/L) to select the desired level, then press ENTER.

7Press SETUP to exit

NOTES

¡When doing this for the first time, enter any 4 digits. (except for 4737) That number will be used as the password from the second time onward.

¡To change the password, press Arrow (K/L) to select CHANGE at step 5, then press ENTER. Enter thefour-digitpassword, then press ENTER.

¡With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

¡Record the password in case you forget it.

CONTROL LEVELS

¡ALL

All parental lock is cancelled.

¡Level 8

DVD software of any grade (adult/general/children) can be played back.

¡Levels 7 to 2

Only DVD software intended for general use and children can be played back.

¡Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use is prohibited.

IF YOU FORGET THE PASSWORD

1 Press 4, 7, 3, 7 at step 4. Then enter your new password.

¡Password will be cleared and parental level will be set to ALL.

2 Follow Steps[5]-[7]again.

INITIALIZE

This allows you to return all selections of SETUP (except for PARENTAL) to their default settings.

1Press SETUP twice in STOP mode so that the INITIALIZE menu appears.

2Press Arrow (K/L) to select “INITIALIZE”, then press ENTER.

3Select “YES”, then press ENTER twice. All the settings (except for “PARENTAL”) will be cleared.

¡To cancel the initialization, select “NO”.

4 Press SETUP to exit.

– 29 –

EN

0C28

TROUBLESHOOTING GUIDE

If the TV/DVD does not perform properly when operated as instructed in this Owner’s Manual, check the TV/DVD, consulting the following checklist.

Problem

Corrective Action



No power

Make sure the power plug is connected to an AC outlet.







Make sure the power is turned on.



The TV/DVD does not respond to

Check if the power plug is connected to an AC outlet.



the remote control.

Check the batteries in the remote control.







Aim the remote control directly at the remote sensor. If necessary,







remove all the obstacles between the sensor and the remote.







You have to be within 23 feet of the TV/DVD.







Check if the correct mode is selected. If not switch the mode by







pressing SELECT on the remote control,whichever you need.











TV Mode















Problem

Corrective Action



No Picture or Sound

Try a new channel, if OK, then possible station trouble.







Make sure the power is turned on.







Press SELECT on the remote control to select TV mode. Then try







other TV feature.







Is antenna connected to terminal on the back of the set?







If outside antenna is being used, check for broken wire.



Bars On Screen

If outside antenna is being used, check for broken wire.







Check for local interference.



Picture Distorted or Blurred

Try a new channel, if OK, then possible station trouble.







If outside antenna is being used, check for broken wire.



Picture Rolls Vertically

Try a new channel, if OK, then possible station trouble.



Lines or Streaks in Picture

If outside antenna is being used, check for broken wire.







Check for local interference.



No Color

Try a new channel, if OK, then possible station trouble.







Is antenna connected to terminal on the back of the set?







If outside antenna is being used, check for broken wire.







Adjust COLOR control.



Poor Reception on Some Channels

Try a new channel, if OK, then possible station trouble.



Ghosts in Picture

Is antenna connected to terminal on the back of the set?







If outside antenna is being used, check for broken wire.







Check for local interference.



Weak Picture

Try a new channel, if OK, then possible station trouble.







Is antenna connected to terminal on the back of the set?







If outside antenna is being used, check for broken wire.







Adjust CONTRAST & BRIGHT control.



Sound OK, Picture Poor

Try a new channel, if OK, then possible station trouble.







Is antenna connected to terminal on the back of the set?







If outside antenna is being used, check for broken wire.







Check for local interference.







Adjust CONTRAST & BRIGHT control.



Picture OK, Sound Poor

Try a new channel, if OK, then possible station trouble.







Check for local interference.



Different color marks on screen

Magnetism from nearby appliances and geomagnetism might affect





the color of the TV picture. Move the TV/DVD away from the appli-





ances, the TV/DVD can repair itself automatically. If you want to







repair immediately, unplug the TV/DVD power cord, then plug it in





again 30 minutes or so later.















– 30 –

EN

0C28

Closed Caption Problem

Possible Remedy

My TV/DVD is showing captions

• You are watching a live broadcast and spelling errors made by the

that are misspelled.

closed captioning production company may pass through uncorrected.



A prerecorded program will not show any misspelled words because



of the normal time available for editing the captions.

My TV/DVD will not show the text

• Captions that are delayed a few seconds behind the actual dialogue

in its entirety or there is a delay of

are common for live broadcast. Most captioning production companies

what is being said.

can display a dialogue to a maximum of 220 words per minute. If a



dialogue exceeds that rate, selective editing is used to insure that the



captions remainup-to-datewith the current TV screen dialogue.

My captions are scrambled with

• Interference caused by building, power lines, thunderstorms, etc.

white boxes on the TV screen.

may cause scrambled or incomplete captions to appear.

My program guide listed a TV show

• Broadcasters may at times use a time compression process to the

as being closed captioned but none

actual program so that additional advertising time can be given.

of the captions were displayed.

Since the decoder cannot read the compressed information,



captions will be lost.

My TV/DVD screen shows a black

• You are in the TEXT mode. Select CAPTION mode or CAPTION

box on certain channels.

[OFF].





DVD Mode

Problem

Corrective Action

No picture

• Insert a correct video disc that plays on this TV/DVD.



• Press SELECT on the remote control to select DVD mode. Next,



press PLAY or OPEN/CLOSE. Then, try other DVD feature.

Disc cannot be played

• Insert the disc.



• Clean the disc.



• Place the disc correctly, with the label side up.



• Cancel the parental lock or change the control level.

No sound

• Connect the audio cables firmly.



• Turn the power of the audio component on.



• Correct the audio output settings.



• Correct the input settings on the audio component.

No DTS audio is output

• This TV/DVD does not support DTS audio. This is not a malfunction.

Distorted picture

• There are some cases where pictures may be slightly distorted, which



are not a sign of a malfunction.



• Although pictures may stop for a moment, this is not a malfunction.

Audio or subtitle language

• The selected language is not available for audio or subtitles on the

does not match the set up

DVD.



This is not a malfunction

The camera angle cannot be

• The DVD does not contain sequences recorded from different camera

changed

angles. This is not a malfunction

Audio or subtitle language cannot

• The DVD does not contain audio source or subtitles in the selected

be changed

language. This is not a malfunction.

“Prohibited icon” appears on the

• That operation is prohibited by the TV/DVD or the disc.

screen, prohibiting an operation

This is not a malfunction.

CD sound dropout

• Scratched disc. Replace the disc with an unscratched one.

No CD reproduction



DVD picture dropout



DVD picture freeze



DVD picture in mosaic



No DVD reproduction







NOTES:

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for details on correct operations.

Playback from a desired track and random playback are not available during program playback.

– 31 –

EN

0C28

MAINTENANCE

CABINET CLEANING

Wipe the front panel and other exterior surfaces of the TV/DVD with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insecticide liquid near the TV/DVD. Such chemicals may cause damage and discoloration to the exposed surfaces.

SERVICING

Should your TV/DVD become inoperative, do not try to correct the problem by yourself. There are no user-serviceableparts inside. Turn off, unplug the power cord and please call our help line at1-800-605-8610,to locate an Authorized Service Center.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

If the TV/DVD still does not perform properly when it is operated while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

Use discs which have the following logos on them. (Optical audio digital discs.)

Recordable ReWritable

Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

To clean-off,use a soft cloth.

Do not use a hard cloth since this will mar the disc. Wipe the disc in a straight line from center to edge. Never wipe with a circular motion.

Do not use detergent or abrasive cleaning agents.

Always store the disc in its protective case when it is not used.

– 32 –

EN

0C28

SPECIFICATIONS

GENERAL SPECIFICATIONS

TV

CRT :

13 inch in-linegun,



90˚ deflection tube

Television system:

NTSC-M



TV Standard

Closed caption system: §15.119/FCC

Channel coverage:



VHF:

2 ~ 13

UHF:

14 ~ 69

CATV:

2 ~13, A ~ W,



W+1 ~ W+84,



A-5~A-1,5A

Tuning System:

181 channel



frequency synthesized



tuning system

Channel access:

Direct access keyboard,



programmable



scan and up/down

DVD

Discs:

DVD video, Audio CD

Output signal format:

NTSC color

ELECTRICAL SPECIFICATIONS

Sound output: 2 speakers, 1W, 8 ohm

OTHER SPECIFICATIONS

Terminals



Antenna input:

VHF/UHF/CATV



75 ohm unbalanced (F-type)

Video input:

RCA connector [ 1

Audio L/R input:

RCA connector [ 2

Headphone:

1/8” stereo (3.5 mm)

Coaxial digital



audio output



(only DVD):

One pin jack,



500m Vpp (75 ohm)

Remote control:

Digital encoded



infrared light system

Operating



temperature:

5°C to 40°C



(41°F~104°F)

Power requirements:

AC 120V, 60Hz

Power consumption



(Maximum) :

65W

Dimensions :

H:15-13/16”(402mm)



W:15-3/16”(386mm)



D:14-13/16”(376mm)

Weight :

21.6lbs(9.8kg)

Designs and specifications are subject to change without notice.

If there is a discrepancy between languages, the default language will be English.

– 33 –

EN

0C28

INDICE

CONTROLES DE OPERACIÓN Y FUNCIONES . . . . . 34

PANEL FRONTAL DEL TELEVISOR/DVD. . . . . . . . . . 34 MANDO A DISTANCIA . . . . . . . . . . . . . . . . . . . . . . . . . 34 VISTA POSTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 PARA INSERTAR LAS PILAS . . . . . . . . . . . . . . . . . . . . 35

PREPARACIÓN PARA LA UTILIZACIÓN . . . . . . . . . . 35

CONEXIONES DE ANTENA/CABLE . . . . . . . . . . . . . . 35 CONEXIÓN A TOMAS DE ENTRADA EXTERNA. . . . 36 CONEXIÓN A UN AMPLIFICADOR EQUIPADO

CON TOMAS DE ENTRADA DIGITAL, PLATINA

MD O PLATINA DAT (Para DVD) . . . . . . . . . . . . . . . . . 36 CONEXCIONA UN DECODIFICADOR DOLBY DIGITAL (Para DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

TV SECTION

PREPARACIÓN PARA LA UTILIZACIÓN . . . . . . . . . . 37

SELECCIÓN DE IDIOMA . . . . . . . . . . . . . . . . . . . . . . . 37 AJUSTE DE CANAL . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

DVD SECTION

REPRODUCCIÓN DE UN DVD DE VÍDEO O UN

CD DE AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

REPRODUCCION BASICA . . . . . . . . . . . . . . . . . . . . . . 38

CONTROLES DE

OPERACIÓN Y FUNCIONES

PANEL FRONTAL DEL

TELEVISOR/DVD

Consulte la figura 1 de la página 8

MANDO A DISTANCIA

Consulte la figura 2 de la página 8

VISTA POSTERIOR

Consulte la figura 3 de la página 9

1.Bandeja de carga del disco

2.Toma de entrada VIDEO

Conecte aquí la toma de salida de vídeo de una videocámara o de una videograbadora.

3.Tomas de entrada AUDIO L/R

Conecte aquí las tomas de salida de audio de una videocámara o de una videograbadora.

4.Botón POWER

Púlselo para conectar y desconectar la alimentación.

5.Botones VOLUME o/p(VOL.m/n)

Púlselos para controlar el nivel del volumen para el DVD y el televisor.

6.Botones CHANNEL o/p(CH.o/p)

Púlselo para seleccionar el canal memorizado. Púlselo para cambiar a un modo de televisor cuando esta en el modo de DVD.

7.Ventanilla del sensor del mando a distancia

8.Botón STOP

Detiene la operación del disco.

9.Botón PREV (SKIP) H

Reproduce desde el inicio del capítulo o canción actual.

Botón SEARCH (REV) h (panel delantero)

Durante la reproducción o en el modo de pausa, mantenga presionado el botón durante unos segundos para cambiar la velocidad de reproducción hacia atrás.

10.Botón PLAY

Inicia la reproducción del contenido del disco. Púlselo para cambiar a un modo de DVD cuando esta en el modo de televisor.

11.Botón NEXT (SKIP) G

Reproduce desde el inicio del siguiente capítulo o canción.

Botón SEARCH (FWD) g (panel delantero)

Durante la reproducción o en el modo de pausa, mantenga presionado el botón durante unos segundos para cambiar la velocidad de reproducción en avance.

12.Botón PAUSE

Hace una pausa en la operación del disco.

13.Botón OPEN/CLOSE

Púlselo para insertar discos en la bandeja o retirarlos de ella.

14.Toma HEADPHONE

Para conectar auriculares (no suministrados) y escuchar en privado.

15.Botón MODE

Activa el modo de reproducción programada o el modo de reproducción aleatoria cuand se reproducen CDs o MP3.

16.Botones de números Modo del televisor:

Pulse dos dígitos para tener acceso directamente al canal deseado.

Recuerde pulsar "0" antes de elegir un canal de un solo dígito.

Botón +100

Púlselo para seleccionar canales de televisión por cable cuyo número sea igual o superior al 100.

Modo DVD:

Púlselo para introducir el número deseado.

Botón +10

Púlselo para introducir los números deseados cuyo número sea igual o superior al 10.

17.Botón SLEEP

Pulse el botón SLEEP para visualizar el temporizador para dormir y activar la función. La hora de apagado puede determinarse por el número de veces que usted pulsa el botón. (0, 30, 60, 90 o 120 minutos)

18.Botón REV h

Presione para ver la imagena en DVD en retroceso rápido. Presione PAUSE y presione este botón para empezar la reproducción en cámara lenta. Presione repetidamente este botón para cambiar la velocidad en avance de la cámara lenta.

Botón FWD g

Presione para avanzar rápidamente en el disco. Presione PAUSE y presione este botón para empezar la reproducción en cámara lenta. Presione repetidamente este botón para cambiar la velocidad de avance de la cámara lenta.

19.Botón V.SURR

Púlselo para activar/desactivar el envolvente virtual.

20.Botón SETUP

Púlselo para activar o salir del modo de menús de televisor o preparación de DVD.

– 34 –

ES

0C28

21.Botón TITLE

Visualiza el menú de títulos.

22.Botón CLEAR

Repone un ajuste.

23.Botón DISPLAY Modo del televisor:

Púlselo para visualizar el número del canal en la pantalla. Si lo pulsa de nuevo, el número del canal desaparecerá.

Modo de DVD:

Visualiza el estado actual en la pantalla del televisor con fines de comprobación.

24.Botón SEARCH MODE

Púlselo para localizar un punto deseado.

25.Botón AUDIO

Púlselo para seleccionar un idioma de audio o un modo de sonido deseado.

26.Botón SUBTITLE

Púlselo para seleccionar un idioma de subtítulos deseado.

27.Botón REPEAT

Repite la reproducción del disco, título, capítulo o pista actual.

28.Botón ANGLE

Púlselo para cambiar el ángulo de la cámara y ver, desde un ángulo diferente, la secuencia que está siendo reproducida.

29.Botón A-BREPEAT

Repite la reproducción de una sección seleccionada.

30.Botón RETURN

Vuelve a la operación anterior en el modo de instalación del DVD.

31.Botón ENTER

Púlselo para establecer un ajuste.

32.Botones de flechas Modo de televisor:

Púlselo para seleccionar un modo de ajuste desde el menú que aparece en la pantalla del televisor. Púlselo para seleccionar o ajustar desde un menú particular.

Modo de DVD:

Se utiliza cuando se hacen ajustes mientras se observa la visualización en una pantalla de televisor.

33.Botón DISC MENU

Visualiza menús en el DVD.

34.Botón SELECT

Púlselo para cambiar a un modo de televisor, modo de entrada externa o modo de DVD.

NOTA: Cuando seleccione el modo DVD con este botón, pulse primero PLAY u OPEN/CLOSE.

De lo contrario, las funciones del DVD no se activarán.

35.Botón MUTE

Pulse el botón MUTE para apagar el sonido de un programa de TV. (La visualización del nivel del

sonido cambia de ROJO CLARO a AZUL CLARO.) Pulse de nuevo el botón MUTE o el botón VOL m on para restaurar el sonido.

36.Botón PICTURE

Presione para entrar en el modo de ajuste de imagen.

37.Cable de alimentaciónConéctelo a una toma de CA convencional (120 V/60 Hz).

NOTA: Retire el cable de alimentación del gancho para evitar romperlo antes de conectarlo a una toma de CA convencional.

38.Toma de salida de audio digital COAXIAL (DVD Audio solamente)

Conéctela a la entrada digital de un amplificador o decodificador externo.

39.Toma de entrada ANT.

Conéctela a una antena, sistema de televisión por cable o sistema de satélite.

PARA INSERTAR LAS PILAS

1)Abra la cubierta del compartimiento de las pilas empujando la cubierta del mando a distancia en el sentido de la flecha.

2)Inserte 2 pilas "AA" en el compartimiento de las pilas, en el sentido indicado por las marcas de polaridad (+/-).

3) Vuelva a poner la cubierta.

NOTAS:

No mezcle pilas alcalinas y de manganeso.

No mezcle pilas viejas y nuevas.

PREPARACIÓN PARA LA

UTILIZACIÓN

CONEXIONES DE

ANTENA/CABLE

Consulte la figura 4 de la página 10

Nota para el instalador de sistemas CATV

Esta nota tiene la finalidad de llamar la atención del instalador de sistemas CATV para que tenga en cuenta el Artículo 820-40del NEC, el cual proporciona consejos para hacer una conexión a tierra apropiada y, en particular, especifica que la tierra del cable deberá estar conectada al sistema de puesta a tierra del edificio, tan cerca del punto de entrada del cable como sea posible.

NOTA:

Antes de enchufar la antena a la toma ANT.IN del televisor/DVD, compruebe que la clavija no esté doblada. Si esta doblada, póngala derecha como se muestra en la ilustración, y luego conéctela en la toma ANT.IN del televisor/DVD.

Clavija doblada

Cable Clavija

(Necesita enderezarse) (Clavija derecha)

ANTENA COMBINADA DE VHF/UHF

La antena combinada de VHF/UHF de 75 ohmios puede conectarse al terminal ANT.

– 35 –

ES

0C28

ANTENA SEPARADAS DE VHF/UHF

En algunas zonas será necesario utilizar una antena exterior.

TELEVICION POR CABLE SIN CAJA DE CONVERTIDOR / DECODIFICADOR

Utilice esta conexión si su sistema de televisión por cable se conecta directamente a su televisor/DVD sin una caja de convertidor. Utilice el mando a distancia del televisor/DVD para seleccionar los canales.

NOTA:

Cuando conecte una videograbadora monofónica (otra fuente) a este televisor/DVD, conecte la toma de salida de audio de la videograbadora monofónica (otra fuente) a la toma AUDIO L de este televisor/DVD. El audio saldrá igualmente por los canales izquierdo y derecho.

Consulte la figura 5 de la página 11

TELEVICION POR CABLE CON CAJA DE CONVERTIDOR/DECODIFICADOR O CAJA DE SATRLITE

Si su compañía de televisión por cable le suministra una caja de convertidor, o si usted utiliza un sistema de satélite, usted podrá utilizar la conexión básica mostrada aquí.

La selección de los canales deberá hacerse con la caja de convertidor o con la caja de satélite. Esto significa que los canales no se podrán cambiar utilizando el mando a distancia del televisor/DVD.

PARA VER UN CANAL

CODIFICADO/DECODIFICADO

1)Ponga el selector de canales del televisor/DVD en la posición del canal de salida de la caja de convertidor de televisión por cable o de la caja de satélite. (Ej., CH3)

2)Seleccione el canal que va a ver en su caja de convertidor de televisión por cable o caja de satélite.

CONEXIÓN A TOMAS DE ENTRADA EXTERNA

Cuando vea un programa grabado en otra fuente (videograbadora o videocámara), utilice las tomas de entrada de audio/vídeo de la parte delantera del televisor/DVD.

Conecte las tomas de salida de audio/vídeo de otra fuente a las tomas AUDIO L/R y VIDEO de este televisor/DVD. Luego pulse SELECT hasta que aparezca "AUX" en la pantalla.

CONEXIÓN A UN

AMPLIFICADOR EQUIPADO CON TOMAS DE ENTRADA DIGITAL, PLATINA MD O PLATINA DAT (Para DVD)

Utilice un cable digital coaxial de audio de venta en el comercio especializado para hacer las conexiones de audio.

Consulte la figura 6 de la página 11

NOTAS:

La fuente de audio de un disco en un formato de sonido ambiental Dolby Digital de 5,1 canales no se puede grabar como sonido digital mediante una platina MD o DAT.

Asegúrese de desconectar la alimentación de todos los componentes antes de conectar otro componente.

Consulte los manuales del propietario de los componentes que va a conectar al televisor/DVD.

Ponga DOLBY DIGITAL en OFF para la salida de audio en el modo de preparación. La reproducción en un televisor/DVD utilizando ajustes incorrectos puede causar distorsión de ruido, y también se pueden dañar los altavoces. (Consulte la página 28 para poner DOLBY DIGITAL en OFF.)

– 36 –

ES

0C28

CONEXCIONA UN

DECODIFICADOR DOLBY DIGITAL (Para DVD)

Si utiliza este televisor/DVD para reproducir un disco DVD en un formato de sonido ambiental Dolby Digital de 5,1 canales, el televisor/DVD dará salida a un flujo de datos DOLBY DIGITAL desde su toma de salida de audio digital COAXIAL. Conectando el reproductor a un decodificador Dolby Digital, usted podrá disfrutar de un ambiente más convincente y real, con un sonido ambiental potente y de alta calidad similar al de los cines.

Utilice cables digitales coaxiales de audio disponibles en el comercio especializado para hacer las conexiones de audio.

Consulte la figura 7 de la página 12

NOTAS:

Asegúrese de desconectar la alimentación de todos los componentes del sistema antes de conector a otro componente.

Consulte los manuales del propietario de los componentes que vaya a conectar al televisor/DVD.

Si conecta un decodificador Dolby Digital, ponga DOLBY DIGITAL en ON para la salida de audio en el modo de preparación. (Consulte la página 28 para poner DOLBY DIGITAL en ON.)

A menos que se haga la conexión a un decodificador Dolby Digital , ponga DOLBY DIGITAL en OFF para la salida de audio en el modo de preparación. La reproducción en el televisor/DVD utilizando ajustes incorrectos puede generar distorsión de ruido, y también puede estropear los altavoces.

TV SECTION

PREPARACIÓN PARA LA

UTILIZACIÓN

SELECCIÓN DE IDIOMA

TV

1Enchufe el cordón de alimentación del televisor/DVD

Enchufe el cordón de alimentación del televisor/DVD en una toma de CA estándar.

NOTA:

Si aparecen algunas cifras en la esquina de la pantalla, pulse el botón POWER sin desenchufar el cordón de alimentación.

Asegúrese de que ...

Pulse el botón POWER para encender el televisor/DVD.

NOTA: Esta función afecta sólo el idioma en el menú de la pantalla y no la fuente de audio.

2 Seleccione “LANGUAGE”

- TV SETUP -

Pulse el botón SETUP en el mando

CHANNEL SET UP

a distancia.

V-CHIPSET UP

CAPTION [OFF]



B LANGUAGE [ENGLISH]

Pulse el botón K oL para señalar



“LANGUAGE”.



3 Seleccione “ENGLISH”, “ESPAÑOL” o “FRANÇAIS”

Seleccione “ENGLISH”, “ESPAÑOL” o “FRANÇAIS” con el botón ENTER.

Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo de la D doble son marcas de fábrica de Dolby Laboratories.

4 Salga del modo de idioma

Pulse el botón SETUP en el mando a distancia para volver al modo del televisor.

NOTA: Si, por alguna razón, el menú está en español o francés, pulse el botón SETUP en el mando a distancia, pulse el botónK oL para señalar el “IDIOMA (ESPAÑOL)” o “LANGAGE (FRANÇAIS)”, a continuación, pulse el botón ENTER y pulse el botón SETUP en el mando a distancia.

– 37 –

ES

0C28

AJUSTE DE CANAL

TV

Puede programar el sintonizador para buscar todos los canales que recibe en su localidad.

NOTA: El canal preparado NO es esté conectado a una caja de cable o Sólo tiene que seleccionar con el televisor/videograbadora al canal de de cabe o caja de satélite (por ejemplo Seleccione el canal a ver en la caja satélite.

Asegúrese de que ...

Pulse el botón POWER para encender sor/DVD.

1 Seleccione “AJUSTE DE CANAL”

Pulse el botón SETUP en el mando

– M E N U –

a distancia.

B AJUSTE DE CANAL

Pulse el botón K oL para señalar

AJUSTE DE V-CHIP

IDIOMA [ESPAÑOL]`

“AJUSTE DE CANAL”.

TITULO [OFF]



A continuación, pulse el botón



ENTER.





2 Empiece el prefijado automático

Pulse el botón K oL para señalar

– AJUSTE DE CANAL –

“AUTOPROGRAMACION DE

AGREGAR/BORRAR (CATV)

CA”.

BAUTOPROGRAMACION DE CA.

A continuación, pulse el botón ENTER.

El sintonizador busca y memoriza

todos los canales activos en su localidad.

3 Después de buscar

El sintonizador se detiene en el canal memorizado más bajo.

Cuando se activa AUTOPROGRAMACION DE CA, donde no hay entrada de señal del televisor, aparecerá “NO HAY SEÑAL DE TV” en la pantalla después de terminar la búsqueda de canales.

El televisor/DVD puede reconocer los canales de TV para que sean canales de TV de antena de cable con las condiciones de recepción. En este caso, pruebe nuevamente con el prefijado automático en las condiciones de recepción fina.

DVD SECTION

REPRODUCCIÓN DE UN DVD DE VÍDEO O UN CD DE AUDIO

REPRODUCCION BASICA

DVD-VCDMP3

Para empezar

¡Conecte el interruptor del amplificador y otros equipos, si fuera necesario.

1 Pulse el boton POWER.

¡La alimentación se conectará.

.

abrirá.

3Ponga el dlsco en la bandeja con el lado de la eliguta hacia arriba.

4Pulse el botón PLAY.

¡La bandeja se cerrará automáticamente y la reproducción empezará luego desde el primer capítulo o pista del disco. Si la reproducción no empieza automáticamente, pulse PLAY.

¡Cuando reproduzca un DVD que tenga grabado un menú de títulos, el menú aparecerá en la pantalla.

5Pulse el botón STOP para detener la reproducción.

– 38 –

ES

0C28

MEMO

– 39 –

ES

0C28

LIMITED WARRANTY

FUNAI CORP. will repair this MAGNAVOX product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This MAGNAVOX Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-INTO FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest MAGNAVOX Authorized Service Center or for general service procedure, please call 1-800-605-8610or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-605-8610http://www.funai-corp.com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Printed in Malaysia

1EMN20023



T8058UJ
