Owner’s Manual

Please read before using this unit.

DVD/CD Player

MSD1005

Supplied Accessory

• Remote

• Audio/Video

• HDMI cable

control

cables

(WPZ0202NB001)

(NB070UD)

(WPZ0102TM015/



with two AA

WPZ0102LTE01/



batteries

WPZ0102CAB01)



Owner’s Manual (1VMN21386)

Owner's Manual

Before Using Your Unit

If your TV has AUDIO/VIDEO input jacks, see the section “Connections” on page 6. If not, it is still possible to connect this unit to your TV by using a STEREO AUDIO/VIDEO RF Modulator (commercially available.) In this case, follow the instructions below.

1)Connect the AUDIO/VIDEO output jacks of this unit to the AUDIO/VIDEO input jacks of your RF Modulator by audio and video cables.

2)The antenna input jack of your TV may have been already occupied. If so, disconnect the RF cable from your TV, and then connect the RF cable to your RF Modulator (usually marked “ANT IN”.)

3)Connect your RF modulator to your TV by another RF cable.

4)Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If your RF modulator has a Modulator/Antenna switch, set it according to your RF modulator’s manual.

5)Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.

For more details, follow the instructions supplied with the RF Modulator.

(Back of DVD player)

Cable

Antenna

(PCM/BITSTREAM)

HDMI OUT

OUT

VIDEO OUT

OUT



L

Y CR/PR

S-VIDEO

Signal



DIGITAL OUT

2CH AUDIO COMPONENT



OPTICAL COAXIAL









(Back of T

Stereo Audio/Video RF Modulator

R VIDEO CB/PB

OUT

(commercially available)







1

AC 120V ANT IN

CHANNEL

TO TV

VIDEO

AUDIO



3

4





R

L















Audio/Video















Cables

2













(Supplied)







3



Antenna in jack









RF Cable (Not supplied)













Hint

The quality of picture may become poor if the unit is connected to an RF Modulator.

If you need additional operating assistance after reading this owner’s manual, please call

TOLL FREE : 1-800-605-8610

or visit our web site at http://www.funai-corp.com

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Table of Contents

Notice for Progressive Scan Outputs . . . . . . . . . . . . . .

. 4

Precautions

Precautions





Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. 2



Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . .

. 3



Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



Avoid the Hazards of Electrical Shock and Fire . . . . . . .

4



Moisture Condensation Warning . . . . . . . . . . . . . . . . . .

4



About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . .

4



Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



About the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5



Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5



Unplayable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Setup

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

Setup





Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



Connection to a TV with an HDMI Compatible Port . . . .

7



Connection to an Audio System . . . . . . . . . . . . . . . . . . .

8



Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8



Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9



HDMI Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9



About the Remote Control . . . . . . . . . . . . . . . . . . . .

10

Functions

Remote Control

10



Installing the Batteries for the Remote Control . . . . . . .

10



Functions





Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11



MP3/WMA Playback . . . . . . . . . . . . . . . . . . . . . . . . . .

12



On-ScreenDisplay. . . . . . . . . . . . . . . . . . . . . . . . . . .

12



Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14



Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14



Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . .

14

Information

Special Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14



Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14



Repeat / Random / Programmed Playback . . . . . . . .

15



Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15



Repeat A-BPlayback. . . . . . . . . . . . . . . . . . . . . . . . . .

15



Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15



Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . . .

15



Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16



Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16



Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16



Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Español

Stereo Sound Mode. . . . . . . . . . . . . . . . . . . . . . . . . . .

16

AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16



DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17



LANGUAGE Setting. . . . . . . . . . . . . . . . . . . . . . . . . . .

17



DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18



PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . .

19



OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20



Reset to the Default Setting





(Except for PARENTAL Setting) . . . . . . . . . . . . . . . . . .

20



Information

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . 21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . 22

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

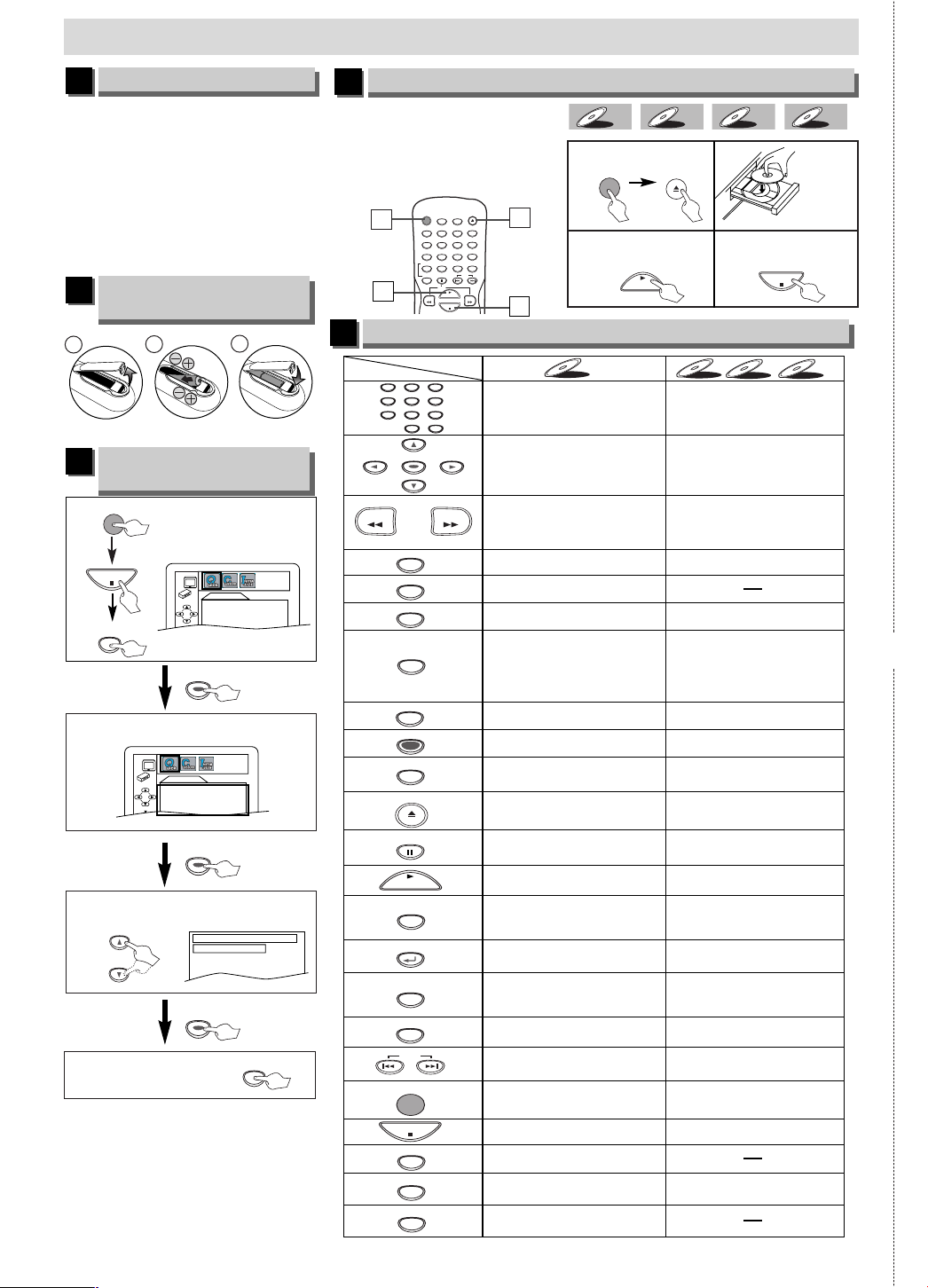

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . .Back Cover

Precautions

Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TVINTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

Used up batteries do not belong in the dust bin.

You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use:

Read carefully the information located at the bottom of this unit and enter below the Serial No. Retain this information for future reference.

Model No. _____________________

Serial No. _____________________

– 2 –

EN

IMPORTANT SAFEGUARDS

1)Read Instructions - All the safety and operating instructions should be read before the product is operated.

2)Retain Instructions - The safety and operating instructions should be retained for future reference.

3)Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4)Follow Instructions - All operating and use instructions should be followed.

5)Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6)Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7)Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8)Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and seri-

ous damage to the product. Use only with a cart, stand, tripod, bracket, or table recom- mended by the manufacturer, or soldwith the product. Any mounting of theproduct should follow the manufac-turer’s instructions, and should use amounting accessory recommended

by the manufacturer.

9)A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10)Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11)Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12)Grounding or Polarization - This product may be equipped with a polarized alternating-currentline plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13)Power-CordProtection -Power-supplycords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14)Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-linesurges.

15)Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16)Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17)Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-outparts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18)Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19)Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a)When the power-supplycord or plug is damaged,

b)If liquid has been spilled, or objects have fallen into the product,

c)If the product has been exposed to rain or water,

d)If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e)If the product has been dropped or damaged in any way.

f ) When the product exhibits a distinct change in performance - this indicates a need for service.

20)Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21)Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22)Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Precautions

– 3 –

EN

Precautions

Installation Location

For safety and optimum performance of this unit:

Do not stand the unit up vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.

Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection

technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.

Symbols Used in This Manual

The following symbols appear in some headings in this manual.

DVD-V

: Description refers to playback of DVD-Videodiscs.

CD

: Description refers to playback of Audio CDs.

MP3

: Description refers to playback of MP3 files.

WMA

:Description refers to playback of discs formatted with WMA.

Maintenance

SERVICING

¡Please refer to relevant topics on the “Troubleshooting Guide” on page 21 before returning the product.

¡If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-service-able parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

¡Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

CLEANING THE DISC LENS

¡If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting Guide” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

¡When you handle a disc, hold it by its edge and try not to touch the surface of the disc.

¡Always store a disc in its protective case when it is not used.

“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft® in the United States of America.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-Dsymbol are trademarks of Dolby Laboratories.

– 4 –

EN

About the Discs

Playable Discs

Playable

Mark (logo)

Region code

Recorded

Disc size



Disc types









discs

signals































DVD-Video



or



















* 1, 2, 4, 6, 10











































DVD-RW











Example









Precautions

DVD-R





Digital video

12 cm



Title 1



Title 2



-











or













* 1, 3, 4, 5,



(MPEG2)



Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2







6, 7, 9, 10







8cm













DVD+RW





















DVD+R



-





































* 1, 3, 4, 5,























6, 8, 9, 10























Audio CD



-

Digital audio



Audio CD

Example











* 4, 6, 10











Track 1 Track 2 Track 3

Track 4

Track 5

Track 6

















CD-RW





Digital audio

12 cm



















or















CD-R



-

or

8cm

MP3/WMA

Example











* 4, 5, 6,



Group 1



Group 2







MP3/

















9, 10









Track 1 Track 2 Track 3

Track 4

Track 5

Track 6







WMA*11





























is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL may not be played back or the picture may be distorted.

*2: Certain DVD-Videodiscs do not operate as described in this manual due to the intentions of the disc’s producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back.

*4: Scratched or stained discs may not be played back.

*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*7: You may play back the unfinalized DVD-R/RWdisc recorded in the video format on our brand’s DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.

*8: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).

*9: If there is too much recording space left on a disc (the used portion is less than 55 mm across), it may not play back properly. *10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

*11: This DVD/CD player cannot playback the disc contents protected by Windows Media Digital Rights Management (DRM).

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Unplayable Discs

¡NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM /CD-I/PhotoCD / Video CD / DVD with region codes other than 1 or ALLDTS-CD /DVD-ROMfor personal computers /CD-ROMfor personal computers

¡On the following disc, the sound MAY NOT be heard.

Super Audio CD

NOTE: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

¡Any other discs without compatibility indications

– 5 –

EN

Setup

Setup

Connections

If your TV has AUDIO/VIDEO input jacks, see the following instructions. If not, see the section “Before Using Your Unit” on the front page.

Connection to a TV





Method 1

Method 2

Method 3



Basic Audio

Good picture

Better picture

Best picture

TV

AUDIO IN

VIDEO IN







(INPUT)

L R

S-VIDEOIN

COMPONENT









VIDEO IN







Y

Y









PB

CB









or











PR

CR

Audio cable

Video

S-Video





cable





cable







(supplied)







(commercially







(supplied)

Component Video cables









available)







(commercially available)









This unit

2CH AUDIO



S-VIDEO





(OUTPUT)

OUT



COMPONENT



L



OUT

Y CR/PR









VIDEO OUT











VIDEO CB/PB





R





OUT





VIDEO





















OUT







2CH AUDIO OUT (Analog)

VIDEO OUT

S-VIDEOOUT

COMPONENT VIDEO OUT

Hint

Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEOOUT jack.

If your TV is compatible with 525p (480p) progressive scanning and you want to enjoy the high quality picture;

Set “PROGRESSIVE” to “ON” in the Display setting. Details are on pages 17-18.You also need to set your TV to progressive scanning mode.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode. Set “PROGRESSIVE” to “OFF” in the Display setting. Holding [PLAY B] on the front panel or the remote control for more than 5 seconds will also switch from progressive scanning mode to interlace mode.

After you have completed connections

Press the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual accompanying your TV.

INPUT MODES FOR COMMON TV BRANDS (Example)

• Listed below are inputs for common brand name TV’s.

Admiral:

AUX

Sanyo:

VIDEO

Curtis Mathis:

LINE1, LINE2, 00, 90, 91, 92, 93

Sharp:

00

GE:

INPUT, TV/VCR, 00, 90, 91, 92, 93

Sony:

VIDEO1, VIDEO2, VIDEO3

Hitachi:

INPUT, AUX

Toshiba:

TV/GAME

JVC:

VIDEO, VIDEO1, VIDEO2, VIDEO3

Zenith:

00

Kenwood:

AUX





LXI-Series:

00





Magnavox:

AUX CHANNEL





Panasonic:

TV/VIDEO





RCA:

INPUT, TV/VCR, 00, 90, 91, 92, 93





Samsung:

TV/VIDEO













The DCDi (Directional Correlational Deinterlacing) system of this DVD player produces smooth and natural video images, even if really dynamic, by eliminating the jagged edges. *“DCDi” is a trademark of Faroudja, a division of Genesis Microchip Inc.

– 6 –

EN

Connection to a TV with an HDMI Compatible Port

A simple 1-cableconnection with a device having an HDMI(High-DefinitionMultimedia Interface) connector allows digital transfer of the digital images ofDVD-Videoand other sources,DVD-Video,and themulti-channelsound ofDVD-Audio.





DIGITAL OUT HDMI OUT

2CH AUDIO COMPONENT

S-VIDEO





(PCM/BITSTREAM)

OUT

VIDEO OUT

OUT







L

Y CR/PR







OPTICAL COAXIAL













R

VIDEO CB/PB











OUT



To HDMI Input



HDMI cable



Connector













(supplied)



A display equipment with an HDMI compatible port











C Actual output modes by media













DOLBY DIGITAL Setting







Audio Recording Format

BITSTREAM *1

PCM







Dolby Digital

Dolby Digital

2channel PCM





DVD-Video

2channel PCM

2channel PCM





LPCM





Audio CD

2channel PCM

2channel PCM





MP3/WMA

2channel PCM

2channel PCM





*1 If the connected equipment is not compatible with HDMI BITSTREAM, signals are output on PCM.

Copyright protection system

To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display equipment (or an AV amplifier) support a copyright protection system called HDCP (High-bandwidthDigital Content Protection System). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV equipment.

This player supports HDCP. Please read the operating instructions of your display equipment (or AV amplifier) for more information.

*HDMI: High Definition Multimedia Interface

NOTES:

When using an HDMI-incompatibleorHDCP-incompatibledisplay equipment, the image will not be viewed properly.

Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however, this player cannot be controlled by another device via the HDMI connector.

The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the equipment that is connected.

Among the monitors that support HDMI, some do not support audio output (for example, projectors). In connections with equipment such as this, audio signals are not output from the HDMI output connector.

When the set’s HDMI connector is connected to a DVI-Dcompatible monitor (HDCP compatible) with anHDMI-DVIconverter cable (commercially available), the signals are output in digital RGB.

“HDMI, the HDMI logo and High-DefinitionMultimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

Setup

– 7 –

EN

Setup

Connection to an Audio System

Method 1

Stereo system

Analog audio input jacks

AUDIO

L

R

Audio cable (supplied)

This unit

2CH AUDIO

OUT

2CH AUDIO OUT L (Analog)



R

Setting

SETUP > QUICK >

Connection

DOLBY DIGITAL

Connecting to Stereo System.

PCM

* To complete these settings, refer to pages 17-19.

Hint

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Method 2

OPTICAL

COAXIAL



Dolby Digital







decoder, MD deck







or DAT deck

Digital













audio input





jack



Audio Coaxial







Optical cable





Digital cable





(commercially

(commercially

DIGITAL OUT

available)

(PCM/BITSTREAM)

available)





OPTICAL COAXIAL







DIGITAL







AUDIO OUT







Connection

Setting



SETUP > QUICK >





DOLBY DIGITAL

Connecting to a Dolby Digital decoder for



BITSTREAM

Dolby Digital audio output.











Connecting to the other equipment (an MD deck

PCM

or DAT deck etc.) without Dolby Digital decoder.







* To complete these settings, refer to pages 17-19.



Hint

The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.

By hooking this unit up to a Multi-channelDolby Digital decoder, you can enjoyhigh-qualityDolby Digital 5.1 channel surround sound as heard in the movie theaters.

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Optical cable (commercially available)

Optical cable (commercially available) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 6 inches (15 cm) or more when storing them.

Use a cable which is 9.8 feet (3 m) or shorter.

Insert cable plugs firmly into the connectors when making connections.

If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

Rear Terminals

OPTICAL jack



HDMI OUT jack



COMPONENT VIDEO OUT jacks

Connect an optional digital audio cable



Use a HDMI connection cable (supplied)



Connect optional component video

here through the optional digital audio in



to connect to a display with an HDMI



cables here through the component

jack of a decoder or audio receiver.



compatible port.



video in jacks of a television.











DIGITAL OUT HDMI OUT

2CH AUDIO

COMPONENT

S-VIDEO

(PCM/BITSTREAM)

OUT

VIDEO OUT

OUT

L

Y

CR/PR









OPTICAL COAXIAL













R

VIDEO CB/PB









OUT





COAXIAL jack

2CH AUDIO OUT jacks

VIDEO OUT jack

Connect an optional coaxial digital

Connect the supplied

Connect the supplied yellow

audio cable here through the coaxial

audio cables here



video cable here through the

digital audio in jack of a decoder or

through the audio in

TV’s video in jack.

audio receiver.

jacks of a television or









other audio equipment.







S-VIDEOOUT jack

Connect an optional S-Videocable here through theS-videoin jack of a television.

Hint

When there is video output from the HDMI OUT jack, no signal is output from the COMPONENT VIDEO OUT jacks.

– 8 –

EN

Front Panel Display

H/ E D/G

HDMI indicator

Lights up when there is video signal output from the HDMI OUT jack.

HDMI Button

Press to set the HDMI connectors video signal output.



















Displays a type of the disc























which is inserted on the tray.



Lights up when the









• DVD: DVD disc











• CD: Audio CD, MP3, WMA



A-Brepeat function





































is on.







Lights up when the

Lights up when the





























repeat function is on.

progressive scan

























system is activated.





















GROUP



P.SCAN

























































DVD



















































CD































Lights up when

























































the ALL repeat







































Displays how long the current title or track

function is on.





























has been played back. When a chapter or track is



















switched, the number of a new title,

Lights up when the









chapter or track is displayed.

inserted disc comes









Selected HDMI output mode is displayed.

to a pause.









Lights up when the inserted



















Lights up when playing

back

disc is being played back.

in slow mode. (DVD)



















Power on

No disc inserted or cannot read

Tray open

Tray closed

Loading the Disc

Power off

HDMI output mode (480p) is selected

HDMI output mode (720p) is selected

HDMI output mode (1080i) is selected

HDMI output mode (OFF) is selected

Setup

HDMI Setup

Press [HDMI] on the front panel to select the HDMI output mode. The output mode changes as follows every time[HDMI] is pressed.

The HDMI indicator on the front panel lights up when HDMI output mode is on.

480P

720P

1080i

hdOFF

480P (Default): Video output from the HDMI OUT jack at 480p.

720P: Video output from the HDMI OUT jack at 720p. 1080i: Video output from the HDMI OUT jack at 1080i. hdOFF: No video output from the HDMI OUT connector.

Hint

Video and audio signals may distorted temporarily when switching to/from the HDMI output mode.

Use a display equipment with an HDMI-compatibleport.

Progressive video signal will not be output from the COMPONENT VIDEO OUT jacks during the HDMI output mode.

If the HDMI cable is not connected correctly or the other equipment is not turned on, the HDMI indicator on the front panel will not light up even you select the

HDMI mode.

You can check the HDMI connection status by pressing [DISPLAY] during playback with the HDMI output mode (refer to page 7).

If the TV is not compatible with newly selected HDMI output mode, the actual output mode will be kept the one before changing the selection. When this occurs, the newly selected mode will appear on the front panel display while the actual output resolution will be indicated by performing the on-screendisplay as described above.

– 9 –

EN

Setup

About the Remote Control

Remote Control

STANDBY-ON



SEARCH

OPEN/CLOSE









DISPLAY

MODE



AUDIO









1

2

3

SUBTITLE









4

5

6

ANGLE









7

8

9

REPEAT

CLEAR









0

+10

A-B

PAUSE



SKIP



SLOW







PLAY



REV





FWD



STOP



SETUP

TOP MENU



MENU

MODE



ENTER



ZOOM





RETURN

Installing the Batteries for the Remote Control

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

1

2

3

Keep in mind the following when using the remote control:

Make sure that there is no obstacle between the remote control and the remote sensor on the unit.

The maximum operable ranges from the unit are as follows.

-Beeline: approx. 23 feet (7m)

-Either side of the center: approx. 16 feet (5m) within 30°

-Above: approx. 16 feet (5m) within 15°

-Below: approx. 10 feet (3m) within 30°

Button















Disc

DVD-V

CD

MP3 WMA

















(Alphabetical order)

1

2





3



To select chapter or title









4

5





6



To select track directly.









7

8





9



directly.



















0





+10















































ENTER





To move the cursor and

To move the cursor and









































determine its position.

determine its position.



















































To search forward/backward









REV















FWD

through a disc.

To search forward/backward





















To begin slow forward

through a disc.





















/reverse playback during





























the pause mode.















A-B





To repeat between your

To repeat between your









































chosen point A and B.

chosen point A and B.(CD)



































ANGLE





To select camera angles on

























































a disc.











































AUDIO





To select audio languages on

To select STEREO,









































a disc.

L-chorR-ch.(CD)













































To clear the markers.

To clear the markers.(CD)





















To remove status number





CLEAR





To clear the numbers

in program input.





















entered incorrectly.

To clear the numbers





















To cancel the point forA-B

entered incorrectly.





















repeat.

To cancel the point forA-B























repeat.(CD)





DISPLAY





To display the current disc

To display the current disc









































or HDMI mode.

or HDMI mode.



































MENU





To call up the Menu

To call up the file list.









































on a disc.

(MP3/WMA)





























MODE





To set black level on/off.

To arrange the playing





















order or play randomly.





















To set virtual surround on/off.





















To set virtual surround on/off.



OPEN/CLOSE

To open or close the disc

To open or close the disc









































tray.

tray.



































































PAUSE





To pause disc playback.

To pause disc playback.





















To advance playback





















one frame at a time.















PLAY





To begin disc playback.

To begin disc playback.





























REPEAT





To play a chapter or title

To play a track or disc









repeatedly.(CD)





















repeatedly.

To play a track, group or disc























repeatedly. (MP3/WMA)





RETURN





To return to the previous

To return to the previous









































operation in menu.

operation in menu.





























SEARCH





To search chapter, title or time.

To search track.







MODE





To search time. (CD)





















To set or search the

To set or search the





















markers.





















markers. (CD)



























SETUP





To call up the DVD setup

Only used to call up the









































menu.

DVD setup menu.





































SKIP







To skip chapters.

To skip tracks.





















































































STANDBY-ON

To turn the unit on or off.

To turn the unit on or off.























































STOP





To stop playback.

To stop playback.





















































SUBTITLE





To select subtitles on a disc.



























































































TOP MENU





To call up the Top Menu

To return to the top file of the





















highest hierarchy in the program





















on a disc.





















and file list. (MP3/WMA)





























ZOOM





To magnify part of a picture.





























(x2/x4)







































– 10 –

EN

Functions

Operations described in this section are mainly based on the remote control use. Some operations can be carried out on main unit.

Playback

Before: Turn on the TV, amplifier and any other equipment which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.



DVD-V



CD





(

MP3



WMA

Pages 12-13)



1





2





STANDBY-ON

OPEN/CLOSE



1

















Insert a disc with









label facing up.



3

To start

4

To stop

3



playback



playback



PLAY





STOP

4









Lights up when power is on.

H/E

D/G

1 1

STANDBY-ON



SEARCH

OPEN/CLOSE





1



DISPLAY

MODE

AUDIO









1

2

3

SUBTITLE









4

5

6

ANGLE









7

8

9

REPEAT

CLEAR









0

+10

A-B

PAUSE



SKIP



SLOW







PLAY



REV





FWD



STOP



SETUP

TOP MENU



MENU

2

3

4

Hint

When you play an MP3/WMA file, details on pages 12-13.

A “prohibited icon” may appear at the top-righton the TV screen when the operation is prohibited by the disc or this unit.

Some DVDs may start playback from title 2 or 3 due to specific programs.

During the playback of a two-layereddisc, pictures may stop for a moment.This happens while the 1st layer is being switched to the 2nd layer.This is not a malfunction.

TIP:

You can change the on-screenlanguage in “PLAYER MENU” setting. (Refer to page 17.)

DVD menu

Some discs contain menus which allow you to customize DVD playback. Use [K/ L/ s/ B] to select an item, then press[ENTER] (or[PLAY B]), to select.

Calling Up a Menu Screen during Playback

Press [MENU] to call up the DVD menu.

Press [TOP MENU] to call up the title menu.

Hint

Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details.

Fast Forward/Reverse Search

DVD-V

CD

MP3

WMA

E 1

Press [REV h] or[FWD g] repeatedly during playback to select the required forward or reverse speed.

To continue playback, press [PLAY B].

Hint

For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and 5(x100).

For Audio CDs, approximate speed is 1(x2), 2(x8) and 3(x30).

For MP3/WMA, approximate speed is 1(x2), 2(x8), 3(x30).

Resume

DVD-V

CD

MP3

Press [STOP C]. Resume message will appear on the TV screen.

Press [PLAY B], playback will resume from the point at which playback was stopped.

WMA

Resume ON

Press 'PLAY' to play from here. To play the beginning,

press 'STOP' first and then 'PLAY'.

<Example : DVD>

Resume information stays on even when unit is in standby mode.

Hint

To cancel resume, press [STOP C] one more time during the stop mode.

For MP3/WMA, playback will resume from the beginning of the track at which playback was stopped.

The resume information will be kept even when unit is in standby mode.

Paused and Step-by-StepPlayback

DVD-V

CD

MP3

WMA

Press [PAUSE F] during playback.

To continue playback, press [PLAY B].

DVD-V

The disc goes forward by one frame each time [PAUSE F] is pressed during the pause mode.

To continue playback, press [PLAY B].

Hint

On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause mode are blurred. (Refer to pages 17-18.)

Slow Forward/Slow Reverse

DVD-V

1

Press [REV h] or[FWD g] repeatedly during the pause mode to select the required forward or reverse speed.

To continue playback, press [PLAY B].

Hint

Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

Set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow playback mode are blurred. (Refer to pages 17-18.)

Zoom

DVD-V

Press [ZOOM] repeatedly during playback to select the required zoom factor: x2, x4 or OFF.

x2

x4

Use [K/ L/ s/ B] to slide the zoomed picture across the screen.

To exit zoom function, press [ZOOM] repeatedly to select OFF.

Hint

Zooming function does not work while the disc menu is showing up.

x4 zoom is not available on some discs.

The picture may be distorted when you press [PAUSE k] or[REV h] repeatedly in the zoom mode.

It may take several seconds to slide the zoomed picture.

Functions

– 11 –

EN

MP3/WMA Playback

MP3/WMA is a method of compressing files. You can copy MP3/WMA files on CD-R/RWsfrom the computer and play the files on this unit.

MP3 WMA

Insert an MP3-formatdisc, then press[MENU] to call up the file list on the TV screen.

1 MENU

FILE LIST

FOLDER DISC NAME

3

MP3





WMA

folder name 1





folder name 2





folder name 3





folder name 4



3

file name 1



3

file name 2





file name 3

ENTER

1/

2



PLAY

folder name 1



When selecting the folder:

Press [B] when you want to go to the next hierarchy.

Press [s] when you

ENTER or

want to go back to the

PLAY

previous hierarchy



(except for the top



hierarchy).

On-ScreenDisplay

2

STOP

Refer to “Resume” on page 11.

Hint

Some selections may take a while to be recognized.

Press [TOP MENU] to return to the first item.

Folders are known as Groups; files are known as Tracks.

• MP3 files are accompanied by 3 icon.

• WMA files are accompanied by

icon.

Folders are accompanied by icon.

A maximum of 255 folders can be recognized.

A maximum of 999 files can be recognized.

Up to 8 hierarchies can be created.

This player recommends the files recorded under the following circumstances:

Sampling frequency: 44.1kHz or 48kHz (MP3/WMA)

Constant bit rate: 32kbps ~ 320kbps (MP3), 48kbps ~ 192kbps (WMA)

For MP3/WMA file recorded in Variable Bit Rate(VBR), the unit may not display the actual elapsed time.

Copyright protected WMA files will not play on this DVD/CD player.

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

Functions

DVD-V

DISPLAY

1

11/16 0:00:00 - 0:03:30



Angle icon, appears only when available on the DVD

Current playback status

Remaining time of the current chapter

Elapsed time of the current chapter

CH(Chapter):

Current chapter number / Total chapters

DISPLAY

2

1/3 0:00:00 - 1:23:45

Remaining time of the current title

Elapsed time of the current title

TT(Title):

Current title number / Total titles

DISPLAY

3

T L1

Layer numbers, appears only when playing a two-layeredDisc

L0: Layer 0 is playing L1: Layer 1 is playing

Current repeat setting appears only when the repeat setting is active

C: Chapter repeat /T: Title repeat / AB:A-Brepeat

BIT RATE: The amount of audio and

video data currently being read

DISPLAY

Current HDMI status

4

5

VIDEO INFO. : YCbCr/1080i AUDIO INFO. : BITSTREAM MAX CHANNEL : 2ch

DISPLAY

Image output / Resolution of image

Sound output format

Maximum number of audio channels

CD

DISPLAY

Current playback status

1

- 0:02:15

T





Remaining time of the current track





Elapsed time of the current track





TR(Track):



DISPLAY

Current track number / Total tracks





ALL:

2

4/12 0:13:45 - 0:45:40

Current track number / Total tracks

T







Current repeat setting appears only





when the repeat setting is active





T: Track repeat





A: All Tracks repeat





A B: A-Brepeat





Remaining time of the entire disc





Elapsed time of the entire disc



DISPLAY







Current HDMI status

3

4

VIDEO INFO. : YCbCr/1080i AUDIO INFO. : BITSTREAM MAX CHANNEL : 2ch

DISPLAY

Image output / Resolution of image

Sound output format

Maximum number of audio channels

Hint

• When you are playing a disc in PROGRAM or RANDOM mode, PROGRAM (or RANDOM) will be displayed instead of2 .

– 12 –

EN

MP3

DISPLAY

1







Current playback status

3

TRACK 01



















The name of the file currently in





DISPLAY



play will be displayed.









TR(Track):

2



1/36 0:01:15

T

Current track number / Total tracks









Current repeat setting, if active









T: Track repeat









G: Group (folder) repeat









A: Disc repeat





DISPLAY



Elapsed playing time of the current







track









3



PROGRAM



RANDOM









or

(Only when you are playing a disc in PROGRAM or RANDOM mode.)

DISPLAY















Current HDMI status





























Image output / Resolution of image

4





VIDEO INFO. : YCbCr/1080i





Sound output format





AUDIO INFO. : BITSTREAM



















MAX CHANNEL : 2ch





Maximum number of audio channels















DISPLAY

5

WMA

DISPLAY

Current playback status

1

3

TRACK 01























The name of the file currently in











play will be displayed.







DISPLAY







2



TITLE NAME

























Title name based on tag











information currently in play will







DISPLAY



be displayed.



3



ARTIST NAME

























Artist name based on tag











information currently in play will











be displayed.







DISPLAY















TR(Track):



4



1/36 0:01:15

T

Current track number / Total tracks











Current repeat setting, if active



5







T: Track repeat

Functions







G: Group (folder) repeat









A: Disc repeat







DISPLAY



Elapsed playing time of the current









track

















PROGRAM



RANDOM











or



(Only when you are playing a disc in PROGRAM or RANDOM mode.)



DISPLAY







Current HDMI status

6

VIDEO INFO. : YCbCr/1080i

Image output / Resolution of image

Sound output format

AUDIO INFO. : BITSTREAM

MAX CHANNEL : 2ch

Maximum number of audio channels

DISPLAY

7

– 13 –

EN

Functions

Search Function

Track Search

Title / Chapter Search

Time Search

CD

MP3

WMA

Using [SEARCH MODE]

1 SEARCH MODE

/29

2 1 2 3

4 5 6

/29

7 8 9

0

within 30 seconds

For the disc with less than 10 tracks, press the track number directly.

For discs with more than 10 but less than 99 tracks, to play a single-digittrack, press

[0]first, then the track number (e.g. for track 3, press [0],[3]). To play a doubledigit track, press the track number.

For discs with more than 100 tracks, to play a single or a double-digittrack, press

[0]first, then the track number (e.g. for track 3, press [0],[0],[3], and for track 26, press[0],[2],[6]). To play atriple-digittrack,press the track number.

Using [SKIP H ,G]

1

PLAY



Current Track

SKIP

(TR)

TR 1 TR 2 TR 3 TR 4



SKIP

SKIP

Hint

[+10] button can also bring the Track Search display, except for the disc with less than 10 tracks. For such a disc, track search can be done by just pressing the track number.

DVD-V

Using [SEARCH MODE]

1

/12

SEARCH

MODE

Press once for the

Chapter Search.

Press twice for the

Title Search.

2

1

2

3





4

5

6

/12

7 8 9

0

within 30 seconds

Using [SKIP H ,G]

1

Current Chapter



(CH)

PLAY

CH 1 CH 2 CH 3 CH 4

SKIP

SKIP



or

SKIP

Current Title



(TT)



TT 1 TT2 TT3 TT4

SKIP

SKIP

(If the disc has no chapters)

Hint

Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons. Refer to the manual accompanying the disc.

For CDs and MP3/WMA, Track Search is not available for Programmed or Random

Playback.

DVD-VCD

1

PLAY

TOTAL 1:29:00

SEARCH

MODE Press repeatedly untilthe Time Search display appears.

2

1

2

3







4

5

6

TOTAL

1:29:00







7 8 9

0

within 30 seconds

Hint

When there is no need to enter a number, “0” appears automatically.

For example, “0: 0-:--appears in the Time Search display if the total time of the title or track is less than 10 minutes.

Press [CLEAR] to erase the incorrect input at step 2.

Marker Setup

DVD-VCD

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

1



PLAY



SEARCH

Press repeatedly until

MODE





the marker display



appears.

2



or



3



ENTER



To return to the markerTo exit the marker display later

1



PLAY



SEARCH

Press repeatedly until

MODE





the marker display



appears.

2



or



3

ENTER

at the desired marker

Playback will restart from the specific point which you set.

1

RETURN

Hint

The Marker display will disappear in about 30 seconds when there is no output.

To clear a marker, select the marker to be cleared at step 2 in the section “To set a marker” or “To return to the marker later” and then press [CLEAR].

Opening the disc tray or putting unit in standby mode will erase all markers.

Selecting “AC” at step 2 in the section “To set a marker” or “To return to the marker later” will also erase all markers.

– 14 –

EN

Repeat / Random / Programmed Playback

Repeat Playback

DVD-VCD

MP3 WMA

Repeat function is available only during playback.

1

PLAY

REPEAT

Each time you press [REPEAT], repeat function changes as example below.

DVD-V

CHAPTER(current chapterrepeat)

TITLE(current titlerepeat)



OFF

(repeat off)

CD







TRACK

(current trackrepeat)



ALL

(entire discrepeat)



OFF

(repeat off)

MP3

WMA



TRACK

(current trackrepeat)



GROUP

(current grouprepeat)



ALL

(entire discrepeat)



OFF

(repeat off)

Hint

In the track or group repeat setting will be cleared when moving to another title, chapter, track or group.

Repeat playback may not function with some discs or during repeat A-Bplayback.

Repeat A-BPlayback

DVD-VCD

1

PLAY

A-

A-B

at your desired starting point (A)

2

A-B

A-B

at your desired end point (B)

Point B should be in the same title or track as point A.

Hint

To exit the sequence, press [A-B] so that OFF appears.

To cancel Point A, press [CLEAR].

This function does not work in the other repeat modes.

Random Playback

This function shuffles the playing order of tracks instead of playback in the sequence.

CD MP3 WMA

1

STOP

RANDOM





CD-DA

TOTAL 0:45:55





RANDOM PROGRAM





--noindication--

MODE

PLAY







Press twice.

<Example: CD>

2

PLAY

Hint

To repeat the current track in the random

selections, press [REPEAT] repeatedly until “TRACK” appears during playback.

To repeat the entire random selections, press [REPEAT] repeatedly until “ALL”

appears during playback.

Programmed Playback

CD

MP3

WMA

You may determine the order in which tracks will play.

1

STOP







CD-DA

TOTAL 0:00:00

MODE

ENTER



Press once. <Example: CD>

2

CD-DA

TOTAL 1:03:30



1

3:30



5

5:10



10

4:20

or

11

3:00

12

3:20

17

4:10



22

2:50





2/3

Up to 99 tracks can be ordered.

ENTER • If eight or more tracks were in aprogram, use[SKIP H, G] to see all the tracks.

While an MP3/WMA folder is open:

Press[B] when you want to go to the next hierarchy.

Press[s] when you want to go back to the previous hierarchy (except for the top hierarchy).

3

PLAY

Hint

Press [CLEAR] at step 2 to erase the most recently entered track.

To erase all programmed tracks at once, select “ALL CLEAR’’ and press [ENTER] at step 2.

While a program is being played back,

[STOP C] works as follows;

Press [STOP C] and[PLAY B] next, so that the programmed playback restarts. (CD playback restarts from the current point. MP3/WMA playback restarts from

the beginning of the current track.)Press [STOP C] twice and[PLAY B]

next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow above steps. (Your programs are still stored until either the disc is removed or unit is put in standby mode.)

To repeat the current track in the program, press [REPEAT] repeatedly until

TRACK’’ appears during playback.

To repeat the entire program, press [REPEAT] repeatedly until “ALL’’ appears during playback.

Functions

– 15 –

EN

Special Settings

Subtitle Language

DVD-V

This unit allows you to select a subtitle language (if available) during DVD playback.

1

PLAY

1.ENG/6

SUBTITLE

Each time you press [SUBTITLE], subtitle language changes as example below.

ENG (English subtitles)

FRE (French subtitles)

...

OFF (no subtitles)

To set subtitle ON/OFF



1

Functions

PLAY

1.ENG/6

SUBTITLE

2





OFF

Hint

• If your language is not shown after pressing [AUDIO] or[SUBTITLE] several times, the disc may not have that language.

However, some discs allow audio language or subtitle language setting on the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.)

• When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.

• If you choose a language that has a three- letter-languagecode, the code will be displayed every time you change the subtitle language setting. If you choose any other languages,‘---’will be displayed instead. (Refer to page 22.)

• Some discs will only allow you to change the subtitle from the disc menu. Refer to the manual accompanying the discs for details.

Audio Language

DVD-V

This unit allows you to select an audio language (if multiple languages are available) during DVD playback.

1

PLAY

1.ENG Dolby D 3/2.1ch 48k/3

AUDIO

Each time you press [AUDIO], audio language changes as example below.

ENG (English audio)

SPA (Spanish audio)

...

FRE (French audio)

Hint

Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details.

Camera Angles

2

ENTER

OFF

ON: Makes the dark areas brighter.

OFF: Shows the original picture as recorded.

3 RETURN

Stereo Sound Mode

CD

This unit allows you to select a sound mode during CD playback.

1

PLAY

STEREO

AUDIO

Each time you press [AUDIO], sound mode changes as example below.

STEREO (right and left channels are active)

L-ch (left channel is active)

R-ch

(right channel is active)

Virtual Surround

DVD-V

Some DVD discs may con-

tain scenes which have been shot simultaneously from var-

ious angles. You can change the camera angle if the ( ) icon appears on the screen. If the “ANGLE ICON” setting is “OFF” in the OTHERS menu, the () icon will not appear. (Refer to pages17-20.)

1

PLAY

1 / 8

ANGLE

Black Level Setting

DVD-V

Adjust the Black Level Setting to make the dark areas of the TV picture brighter.

1

ON

PLAY

MODE

DVD-VCD

MP3 WMA

You can enjoy stereophonic virtual world on your existing 2 channel stereo system.

1

PLAY

OFF

MODE

Press twice (once for CD and MP3/WMA).

2

ENTER

1

1:Natural effect.

2:Emphasized effect.

OFF: No effects (original sound).

3 RETURN

Hint

For CD playback only

Virtual Surround will not be effective if the sound mode is set to something other than STEREO. Refer to “Stereo Sound Mode”.

– 16 –

EN

DVD Setup

QUICK SETUP Menu

You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” from the QUICK SETUP menu quickly.

1

SETUP

2









STOP

or





















<SETUP MENU>

Select the desired item.







Confirm that “QUICK” is selected.

ENTER

























QUICK SETUP



P17

A Step 5







P18

B

Step 5

QUICK SETUP



TV ASPECT

4:3 LETTER BOX





PLAYER MENU

ENGLISH







PLAYER MENU

ENGLISH

PROGRESSIVE

OFF

P18

B Step 5

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM

TV ASPECT

4:3 LETTER BOX







DOLBY DIGITAL

BITSTREAM



ENTER

P19

C

Step 5







ENTER







Refer to the sections “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE or “DOLBY DIGITAL” on pages 17-19.

CUSTOM Menu

You can change the settings of the DVD/CD player.

QUICK on pages17-20indicates DVD Setup menus also accessible from the QUICK SETUP menu.

1

SETUP

STOP



<SETUP MENU>

QUICK SETUP



PLAYER MENU

ENGLISH

TV ASPECT

4:3 LETTER BOX

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM

2

or

3

or

ENTER



Select “CUSTOM”.

Select the desired item.





ENTER







QUICK SETUP



LANGUAGE













PLAYER MENU

ENGLISH

AUDIO

ORIGINAL



TV ASPECT

4:3 LETTER BOX



SUBTITLE

OFF



PROGRESSIVE

OFF



DOLBY DIGITAL

BITSTREAM

DISC MENU

ENGLISH







PLAYER MENU

ENGLISH

LANGUAGE menu

DISPLAY menu

AUDIO menu

PARENTAL menu

OTHERS menu

LANGUAGE



DISPLAY



AUDIO







OTHERS





TV ASPECT

4:3 LETTER BOX









AUDIO

ORIGINAL

DRC

ON





ANGLE ICON

ON

SUBTITLE

OFF

STILL MODE

AUTO

DOWN SAMPLING

ON

PARENTAL LEVEL

ALL

DISC MENU

ENGLISH

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM





AUTO POWER OFF

ON

PLAYER MENU

ENGLISH

PROGRESSIVE MODE

AUTO 1









PANEL DISPLAY

BRIGHT

FORMAT

RGB















ENTER

ENTER















RGB RANGE

NORMAL













page 17 A

page 18 B

page

C

page

D

page

E

A LANGUAGE Setting

Follow steps 1 to 3 in the “CUSTOM Menu” section above.

4

Select the desired item.

5

Select the desired language.

ENTER

6

To exit the menu







ENTER









SETUP









or











or



AUDIO 1 2





Hint







AUDIO









(Default: ORIGINAL)

ORIGINAL



1









Sets the audio language.

ENGLISH











FRENCH



• Language options are not available















<LANGUAGE” menu>











SUBTITLE: 1 2

SUBTITLE



with some discs.









• If “OTHER” is selected in the “AUDIO,







(Default: OFF)

OFF











SUBTITLE” or “DISC MENU” screen,







ENGLISH









Sets the subtitle language.

FRENCH



press four-digitnumber to enter the



LANGUAGE



DISC MENU: 1





code for the desired language. (Refer



AUDIO

ORIGINAL

DISC MENU



to the language code list on page 22.)



SUBTITLE

OFF

(Default: ENGLISH)

ENGLISH



• Only the languages supported by the



DISC MENU

ENGLISH





PLAYER MENU

ENGLISH

Sets the language in DVD

FRENCH



disc can be selected.







SPANISH









menu.







2









PLAYER MENU: QUICK

PLAYER MENU



• Language setting for Audio and







(Default: ENGLISH)

ENGLISH



Subtitle are not available with some







FRANÇAIS



discs. Then press [AUDIO] and







Sets the language for the

ESPAÑOL











[SUBTITLE]. Details are on page 16.







On-ScreenDisplay.



















Functions

– 17 –

EN

– 18 –

Functions

B DISPLAY Setting

You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.

4

Select the desired item.

5

TV ASPECT: QUICK

















(Default: 4:3 LETTER BOX)

Select the













See Hint to the right.



desired

















ASPECT

setting.

ENTER











TV ASPECT

4:3 LETTERBOX









or





LETTER BOX













STILL MODE

AUTO















4:3 PAN & SCAN

or













PROGRESSIVE

OFF













16:9 WIDE















PROGRESSIVE MODE

AUTO 1















16:9 SQUEEZE















FORMAT

RGB































RGB RANGE

NORMAL

ENTER





DISPLAY menu





































STILL MODE:











DISPLAY





(Default: AUTO)



Select the







TV ASPECT

4:3 LETTER BOX



See Hint to the right.



desired







STILL MODE

AUTO









setting.







PROGRESSIVE

OFF







STILL MODE



ENTER





PROGRESSIVE MODE

AUTO1



TV ASPECT

4:3 LETTERBOX





ENTER

FORMAT

RGB



AUTO









STILL MODE

AUTO

or







RGB RANGE

NORMAL



FIELD













PROGRESSIVE

OFF

FRAME















PROGRESSIVE MODE

AUTO 1

















FORMAT

RGB

ENTER















RGB RANGE

NORMAL















PROGRESSIVE MODE:















(Default: AUTO1)



Select the













See Hint to the right.



desired

















PROGRESSIVE MODE

setting.













TV ASPECT

4:3 LETTERBOX















AUTO1















STILL MODE

AUTO















AUTO2

or

ENTER











PROGRESSIVE

OFF











VIDEO1















PROGRESSIVE MODE

AUTO 1















VIDEO2















FORMAT

RGB















VIDEO3















RGB RANGE

NORMAL





















ENTER















FORMAT:

















(Default: RGB)

















See Hint to the right.

















TV ASPECT

4:3 LETTERBOX

4:3 LETTERBOX















STILL MODE

AUTO

AUTO















PROGRESSIVE

OFF

OFF















PROGRESSIVE MODE

AUTO 1

AUTO1















FORMAT

RGB

YCbCr















RGB RANGE

NORMAL

NORMAL



















ENTER















RGB RANGE:

















(Default: NORMAL)

















See Hint to the right.

















TV ASPECT

4:3 LETTERBOX

4:3 LETTERBOX















STILL MODE

AUTO

AUTO















PROGRESSIVE

OFF

OFF















PROGRESSIVE MODE

AUTO 1

AUTO1















FORMAT

RGB

RGB















RGB RANGE

NORMAL

ENHANCED





ENTER

5 PROGRESSIVE:QUICK

(Default: OFF)

See Hint to the right.

TV ASPECT

4:3 LETTERBOX



STILL MODE

AUTO



PROGRESSIVE

OFF



PROGRESSIVE MODE

AUTO 1



FORMAT

RGB



RGB RANGE

NORMAL

ENTER













If “PROGRESSIVE” is “ON”,









this message appears:



































Before proceeding…













SETUP







1. Make sure your TV has progressive scan.















2. Connect with component video cable









4:3 LETTERBOX









NOTE: If there is no picture or picture is























AUTO











distorted after selecting “YES”,









ON











wait about 15 seconds for auto recovery.















Activate Progressive?

NO



















YES







AUTO 1











SELECT: K / L SET:ENTER





















RGB









































NORMAL









































Select

YES.

or





If you do not press any buttons





for 15 seconds, Progressive



6

To confirm the

Scan will switch to “OFF”.

Select





YES.



PROGRESSIVE





ENTER



Confirm again to use progressive scan.





scanning mode

If Picture is good, Select “YES”.

or









ENTER



NO







YES







SELECT: K / L

SET:ENTER



6To exit the menu

SETUP

Hint

TV ASPECT:

Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the screen.

Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.

Select “16:9 WIDE” if a wide-screenTV is connected to this unit.

Select “16:9 SQUEEZE” when the TV screen is too large horizontally at “16:9 WIDE” setting and when it is possible to adjust the screen size using the TV’s controls.

STILL MODE:

Select “AUTO” usually.

If you select AUTO, automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures. (default)

If you select “FIELD”, the picture in the still mode will be stabilized.

If you select “FRAME”, the picture in the still mode will be highly defined.

An individual picture on TV screen is called a “frame”, which consists of two separate images called as “field”.

Some pictures may be blurred at the AUTO setting in the still mode due to their data characteristics.

PROGRESSIVE MODE:

You can select a mode below for the progressive scan output.

AUTO1: mode suitable for images on the film material.

AUTO2: mode for images on the material of 30frame film.

VIDEO1: mode for normal video material.

VIDEO2: mode for video material with less movements.

VIDEO3: mode for video material with many movements.

FORMAT:

Select an HDMI output mode between YCbCr and RGB.

When the connected equipment is not compatible with YCbCr, HDMI signal is output as RGB regardless of the setting.

This setting is effective only when you use the HDMI connection.

RGB RANGE:

Select a HDMI picture mode between NORMAL and ENHANCED.

Select ENHANCED if the blackwhite contrast is not clear.

This setting is effective only for HDMI RGB output.

PROGRESSIVE:

You can set “PROGRESSIVE” to “OFF” either in the Display menu or by pressing and holding [PLAY B] on the front of the unit for more than 5 seconds.

When “PROGRESSIVE” is “ON”, video signals from VIDEO OUT and S-VIDEOOUT jacks will be distorted or not be output at all.

EN

C AUDIO Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.

4

Select the desired item.

5 DRC (Dynamic Range Control):









(Default: ON)















Set to “ON” to compress the range between soft and loud sounds.



or



DRC

ON





OFF







DOWN SAMPLING

ON













DOLBY DIGITAL

BITSTREAM

ENTER

BITSTREAM



<AUDIO menu>



DOWN SAMPLING:





















(Default: ON)











AUDIO



Set to “ON” when outputting in 48kHz.







Set to “OFF” when outputting the original sound.



DRC

ON















DOWN SAMPLING

ON

DRC

ON









DOLBY DIGITAL

BITSTREAM









DOWN SAMPLING

ON





OFF













ENTER



DOLBY DIGITAL

BITSTREAM



BITSTREAM







ENTER





















DOLBY DIGITAL:

QUICK











(Default: BITSTREAM)











Set to “BITSTREAM” when the unit is connected to a Dolby Digital receiver.

BITSTREAM: Outputs a Dolby Digital Signals.

PCM: Convert the Dolby Digital into PCM (2 channel).

DRC

ON

ON

DOWN SAMPLING

ON



DOLBY DIGITAL

BITSTREAM

PCM

ENTER

6 To exit the menu

SETUP

Hint

DRC:

This function is available only on the discs which are recorded in the Dolby Digital format.

DOWN SAMPLING:

When playing disc with copyright protection, the sound will be down sampled at 48kHz, even if you set to “OFF”.

This function is available only on digital outputting of a disc recorded in 96kHz.

D PARENTAL Setting

Parental Control limits the disc viewing that exceed your settings. (An incorrect password will be not acceptable.) This feature prevents your children from viewing inappropriate materials.

Parental Levels

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.

4 Enter your desired four-

5

Select “PARENTAL

6

Select the

7

To exit

digit password (except



LEVEL”.





desired level.



the menu

for 4737).

















SETUP

1

2

3



























4

5

6

ENTER

or

ENTER



or

ENTER











7

8

9

















0





PARENTAL LEVEL

ALL



PARENTAL LEVEL











PASSWORD CHANGE





ALL



















8





<PARENTAL menu











7 [NC-17]















6 [R]













CONTROL LEVELS

















• ALL:

All parental locks are cancelled.





PASSWORD







• Level 8:

DVD softwares of any grades (adult/general/children) can be played back.

















• Levels 7 to 2: Only DVD softwares intended for general use and children can be played back.

or





• Level 1:

Only DVD softwares intended for children can be played back, with those







intended for adult and general use prohibited.



If you have set a password already,



TIPS FOR LEVELS









enter the current four-digit



• 7 [NC-17]:

No one under 17 admitted







• 6 [R]:

Restricted; under 17 requires accompanying parent or adult guardian

password.







• 4 [PG13]:

Unsuitable for children under 13













• 3 [PG]:

Parental Guidance suggested













• 1 [G]:

General Audience













Hint



















DVD-Videodiscs may not respond to the parental lock settings. Make sure this function









works with your DVD-Videodiscs.





Functions

Instructions continue on the next page.

– 19 –

EN

Functions

To Change the Password for Parental Controls

You can change your password for parental controls. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.

4 Enter your desired four-

5

Select “PASSWORD

6

Enter your new

digit password (except



CHANGE”.





four-digitpassword

for 4737).













(except for 4737).

1

2

3



or





1

2

3













4

5

6







ENTER

4

5

6















7

8

9









7

8

9









PARENTAL LEVEL

ALL





0



















PASSWORD CHANGE







0



<PARENTAL menu













































PASSWORD



7To exit the menu

SETUP

ENTER

Hint

Record the password in case you forget it.

If you forget the password, press [4],[7],[3],[7] at step 4, then enter your new password.

Password will be cleared and parental levels will be set to “ALL”.

E OTHERS Setting

You can change the other functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 17.

4 Select the desired item

or

<OTHERS menu>

OTHERS

ANGLE ICON

ON

AUTO POWER OFF

ON

PANEL DISPLAY

BRIGHT

5

ANGLE ICON: (Default: ON)

Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback.

ANGLE ICON



AUTO POWER OFF



PANEL DISPLAY BRIGHT

ENTER

AUTO POWER OFF: (Default: ON)

Set to “ON” to turn this unit off automatically after 30 minutes of no use.

ANGLE ICON

AUTO POWER OFF

PANEL DISPLAY

ENTER

PANEL DISPLAY: (Default: BRIGHT)

This adjusts the brightness of the panel display.

Select the

desired

See Hint to the right.





setting







ANGLE ICON

ON

PANEL DISPLAY

ENTER

AUTO POWER OFF

ON

BRIGHT

or

PANEL DISPLAY

BRIGHT

DIMMER







AUTO



ENTER

6 To exit the menu

SETUP

Hint

PANEL DISPLAY:

When AUTO is selected, the display dims only during playback.

Reset to the Default Setting (Except for PARENTAL Setting)

1

STOP

SETUP

<SETUP MENU>



QUICK SETUP





PLAYER MENU

ENGLISH



TV ASPECT

4:3 LETTER BOX



PROGRESSIVE

OFF



DOLBY DIGITAL

BITSTREAM

2

or





3



4

To exit









or





the menu















SETUP

Select “INITIALIZE”.

ENTER

Select “YES”.

ENTER







QUICK SETUP





INITIALIZE

Press

Hint



TV ASPECT

4:3 LETTER BOX



Initialize?

twice.



PLAYER MENU

ENGLISH











PROGRESSIVE

OFF



NO



• When you cancel



DOLBY DIGITAL

BITSTREAM



YES















to initialize at step













3, select “NO”.

– 20 –

EN

Information

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit consulting the following checklist.

Problem

Solution

No power

– Check if the AC power cord is properly connected.



– Unplug the outlet once, and wait for 5-10secondsand then plug it in again.

No sound or picture

– Check if the TV is switched on.



– Check the video connection and HDMI.



– Check the VIDEO/AUDIO cable connections to the TV. (See Connection to a TV.)



– When signals are output from the HDMI OUT jack, signals (interlace/pro-



gressive) are not output from the COMPONENT VIDEO OUT jacks. Press



the HDMI button on the front panel to set the HDMI output mode to “OFF”.



– Set PROGRESSIVE correctly. Turn it on only if your TV has Progressive



Scan and you are using the Component Video connections between the unit



and the TV. Disable Progressive Scan for all other connections. (See page 6.)

Distorted picture

– Sometimes a small amount of picture distortion may appear.



This is not a malfunction.



– Connect the unit directly to the TV.

Completely distorted picture or

– Connect the unit directly to the TV.

black/white picture with DVD

– Make sure the disc is compatible with the unit.



– Check if the INTERLACE/PROGRESSIVE mode is set correctly. (See pages 17-18.)

No sound or distorted sound

– Adjust the volume.



– Check that the speakers are connected correctly.

No audio at digital output

– Check the digital connections.



– Check if the audio format of the selected audio language matches your



receiver capabilities.

No DTS audio is output

– This unit does not support DTS audio.



This is not a malfunction.

No image from HDMI connection

– Check the HDMI connection. (Check the status of the HDMI related indications.)



– Check whether the connected monitor equipment or other equipment



supports HDCP. (This player will not output a video signal unless the other



equipment supports HDCP.)



– Check the setting of HDMI.



– Check whether the output format of this player (HDMI FORMAT) matches the



supported input format of other connected equipment.

Picture freezes momentarily

– Check the disc for fingerprints/scratches and clean with a soft cloth wiping

during playback

from center to edge.



– Clean the disc.

Disc can’t be played

– Clean the disc.



– Ensure the disc label is facing up.



– Check if the disc is defective by trying another disc.



– Cancel the parental lock or change the control level.



– Insert a correct disc that plays on this unit.



– Handle a disc with special care so that it does not have fingerprints,



scratches, or dusts on its surface.

No return to start-up screen when disc is removed – Reset the unit by switching the unit off, then on again.

The unit does not respond to

– Aim the remote control directly at the sensor on the front of the unit.

the remote control

– Reduce the distance to the unit.



– Replace the batteries in the remote control.



Re-insertthe batteries with their polarities (+/– signs) as indicated.



– Tune your radio to an empty AM station so that you hear a lot of noises.



Then, turn the volume up. If you hear some signal sound from the radio by



pressing buttons on the remote control, the remote control is working.

Buttons do not work or the unit stops

– To completely reset the unit, unplug the AC

responding

cord from the AC outlet for 5-10seconds.

The unit does not respond to some

– Operations may not be permitted by the disc.

operating commands during playback

Refer to the instructions of the disc.

The unit cannot read CDs/DVDs

– Use a commonly available cleaning CD/DVD to clean the lens before send-



ing the unit for repair.

Angle does not switch

– The angle cannot be switched for DVDs which do not contain multiple



angles. In some cases multiple angles are only recorded for specific scenes.

Playback does not start when the title is selected

– Check the “PARENTAL” setting.

The password for rating level has been forgotten

– Enter the default password “4737”, then your forgotten password will be cleared.

NOTES:

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for more details on correct operations.

Playback from a desired track and random playback are not available during program playback.

Some functions are prohibited on some discs.

Information

– 21 –

EN

Information

Specifications

Output signal format:

Operating temperature:

NTSC color

41°F (5°C) to 104°F (40°C)

Power source:

Dimensions:



120 V AC +/- 10%, 60 Hz +/- 0.5%

W : 17 1/16"

(433 mm)

Power consumption:

H : 2 3/8”

(61 mm)

14 W (standby: 0.8 W)

D : 11 13/16"(300 mm)



Weight :





Approx 5.1 lbs (2.3 kg)

Designs and specifications are subject to change without notice.

If there is a discrepancy between languages, the default language will be English.

Language Code List

Language

Code

Language

Code

Language

Code

Language



Code

A-B



French [FRE]

5264

Macedonian

5957

Siswat



6565

Abkhazian

4748

Frisian

5271

Malagasy

5953

Slovak



6557

Afar

4747

Galician

5358

Malay

5965

Slovenian



6558

Afrikaans

4752

Georgian

5747

Malayalam

5958

Somali



6561

Albanian

6563

German [GER]

5051

Maltese

5966

Spanish [SPA]



5165

Amharic

4759

Greek [GRE]

5158

Maori

5955

Sundanese



6567

Arabic

4764

Greenlandic

5758

Marathi

5964

Swahili



6569

Armenian

5471

Guarani

5360

Moldavian

5961

Swedish [SWE]

6568

Assamese

4765

Gujarati

5367

Mongolian

5960



T



Aymara

4771

Hausa

5447

Nauru

6047

Tagalog



6658

Azerbaijani

4772

Hebrew

5569

Nepali

6051

Tajik



6653

Bashkir

4847

Hindi

5455

Norwegian [NOR]

6061

Tamil



6647

Basque

5167

Hungarian [HUN]

5467

O-R



Tatar



6666

Bengali;Bangla

4860

I-K



Occitan

6149

Telugu



6651

Bhutani

5072

Icelandic [ICE]

5565

Oriya

6164

Thai



6654

Bihari

4854

Indonesian

5560

Oromo(Afan)

6159

Tibetan



4861

Bislama

4855

Interlingua

5547

Panjabi

6247

Tigrinya



6655

Breton

4864

Interlingue

5551

Pashto;Pushto

6265

Tonga



6661

Bulgarian

4853

Inupiak

5557

Persian

5247

Tsonga



6665

Burmese

5971

Irish [IRI]

5347

Polish

6258

Turkish [TUR]



6664

Byelorussian

4851

Italian [ITA]

5566

Portuguese [POR]

6266

Turkmen



6657

C-E



Japanese [JPN]

5647

Quechua

6367

Twi

U-Z

6669

Cambodian

5759

Javanese

5669

Rhaeto-Romance

6459





Catalan

4947

Kannada

5760

Romanian [RUM]

6461

Ukrainian



6757

Chinese [CHI]

7254

Kashmiri

5765

Russian [RUS]

6467

Urdu



6764

Corsican

4961

Kazakh

5757

S



Uzbek



6772

Croatian

5464

Kinyarwanda

6469

Samoan

6559

Vietnamese



6855

Czech

4965

Kirghiz

5771

Sangho

6553

Volapuk



6861

Danish [DAN]

5047

Kirundi

6460

Sanskrit

6547

Welsh



4971

Dutch [DUT]

6058

Korean [KOR]

5761

Scots Gaelic

5350

Wolof



6961

English [ENG]

5160

Kurdish

5767

Serbian

6564

Xhosa



7054

Esperanto

5161

L-N



Serbo-Croatian

6554

Yiddish



5655

Estonian

5166

Laothian

5861

Sesotho

6566

Yoruba



7161

F-H



Latin

5847

Setswana

6660

Zulu



7267

Faroese

5261

Latvian;Lettish

5868

Shona

6560







Fiji

5256

Lingala

5860

Sindhi

6550







Finnish [FIN]

5255

Lithuanian

5866

Singhalese

6555







If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 16. If you choose any other languages, ‘---’will be displayed instead. (3 letter language code is written in bracket.)

Limited Warranty

FUNAI CORP. will repair this MAGNAVOX product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This MAGNAVOX Limited warranty does not apply to any product not purchased and used in the United States.

This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-INTO A FUNAI AUTHORIZED SERVICE CENTER.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:

FUNAI CORPORATION

Customer Service

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY

Tel :1-800-605-8610

ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC

http://www.funai-corp.com

PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

19900 Van Ness Avenue, Torrance, CA 90501



– 22 –

EN

1 Conexiones

Si su televisor tiene entradas de AUDIO/VIDEO vea la sección “Connection to a TV” en la página 6 en el Manual de Manejo. En caso contrario, vea la sección “Before Using Your Unit” en la página del frente en el Manual de Manejo.

2

Instalación de las pilas



en el control remoto

1

2

3

3

Para cambiar el idioma



en la pantalla



1

STANDBY-ON





Confirme que ha selec-



cionado “QUICK”.



STOP





QUICK SETUP





PLAYER MENU

ENGLISH



TV ASPECT

4:3 LETTER BOX



PROGRESSIVE

OFF



DOLBY DIGITAL

BITSTREAM



SETUP



ENTER

2 Confirme que ha seleccionado “PLAYER MENU”.

QUICK SETUP

PLAYER MENU

ENGLISH

TV ASPECT

4:3 LETTER BOX

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM

ENTER

3 Seleccione el idioma deseado para las indicaciones en la pantalla.



PLAYER MENU

o

ENGLISH

FRANÇAIS





ESPAÑOL



ENTER

4 Para salir del menú.SETUP

Español

4 Reproducción

Antes:

¡Encienda el televisor, amplificador y otros equipos conectados a esta unidad. Asegúrese que el televisor y el sintonizador de audio (de venta en los comercios) están en el canal correcto.

1

STANDBY-ON



SEARCH

OPEN/CLOSE

1









DISPLAY

MODE



AUDIO











1

2

3





SUBTITLE













4

5

6





ANGLE













7

8

9





REPEAT

CLEAR













0

+10





A-B

PAUSE



SKIP



3



SLOW









PLAY



4

REV





FWD





STOP



5 Control remoto

DVD-VCD MP3 WMA

1





2

Ponga un













OPEN/CLOSE



disco con



STANDBY-ON



la















etiqueta









hacia









arriba.

3

Para empezar

4

Para parar



la reproducción



la reproducción





PLAY



STOP











Botón

















Disco

DVD-V

CD

MP3 WMA





















(Orden alfabético)













1

2





3















4

5





6



Para seleccionar

Para seleccionar

























directamente el capítulo o



7

8





9



directamente la canción.









título.









































0





+10























ENTER





Para mover el cursor y

Para mover el cursor y

















































determinar la posición.

determinar la posición.



























































Para buscar en avance/











REV















FWD

retroceso por un disco.

Para buscar en avance/

















Para empezar la reproducción

























retroceso por un disco.

























en avance lento/retroceso

























durante el modo de pausa.



















A-B





Para repetir entre su punto A

Para repetir entre su punto A y B

























y B seleccionado.

seleccionado.(CD)









ANGLE





Para seleccionar los ángulos

































de cámara en un disco.













































AUDIO





Para seleccionar idiomas de

Para seleccionar ESTÉREO

























audio en un disco.

L-choR-ch.(CD)























































Para borrar los marcadores.

























Para borrar los marcadores.

(CD)































Para eliminar el Nº de estado









CLEAR





Para borrar los números mal













en la entrada de programa.

























entrados.

























Para borrar los números mal

























Para borrar el punto para la

























entrados.































repetición A-B.































Para borrar el punto para la



























repetición A-B.(CD)









DISPLAY





Para indicar el modo de

Para indicar el modo de

















































disco actual o modo de HDMI.

disco actual o modo de HDMI.











































MENU





Para llamar el Menú en un

Para llamar la lista de archivo

















































disco.

(MP3/WMA)











































MODE





Para activar/desactivar el

Para disponer el orden de reproducción













nivel del negro.

o la reproducción aleatoria.

























Para activar/desactivar el

Para activar/desactivar el

























ambiental virtual.

ambiental virtual.





OPEN/CLOSE



Para abrir o cerrar la bandeja

Para abrir o cerrar la bandeja

















































del disco.

del disco.









































































PAUSE





Para hacer una pausa en la reproducción.

Para hacer una pausa en la

























Para avanzar la reproducción un cuadro

reproducción del disco.

























cada vez.











































PLAY





Para empezar la

Para empezar la















reproducción del disco.

reproducción del disco.





































REPEAT





Para reproducir

Para reproducir repetidamente













una canción o disco.(CD)

























repetidamente un capítulo o

























Para reproducir repetidamente una

























título.

























canción, grupo o disco. (MP3/WMA)



































RETURN





Para volver a la operación

Para volver a la operación

























anterior en el menú.

anterior en el menú.





































SEARCH





Para buscar un capítulo, título

Para buscar una canción.











MODE





o tiempo.

Para buscar el tiempo.(CD)

























Para colocar o buscar los

Para colocar o buscar los

























marcadores.

marcadores. (CD)









SETUP





Para llamar el menú de

Para llamar el menú de

















































ajustes de DVD.

ajustes de DVD.













































SKIP







Para saltar capítulos.

Para saltar canciones.











































































STANDBY-ON



Para encender o apagar la

Para encender o apagar la

















































unidad.

unidad.













































STOP





Para parar la reproducción.

Para parar la reproducción.









































SUBTITLE





Para seleccionar subtítulos

































en un disco.











































TOP MENU





Para llamar el menú inicial

Para volver al archivo superior de la

























jerarquía más alta en el programa

























en un disco.

























y en la lista de archivo. (MP3/WMA)





































ZOOM





Para ampliar parte de la

































































imagen. (x2/x4)











































Español

– 23 –

EN

Quick Use Guide

1 Connections

If your TV has AUDIO/VIDEO input jacks, see the section “Connection to a TV” on page 6 of the Owner’s Manual. If not, see the section “Before using your Unit” on the front page of the Owner’s Manual.

2

Installing the Batteries



for the Remote Control

1

2

3

3

To Change the On-



Screen Language

1

STANDBY-ON





Confirm that “QUICK” is



selected.





STOP





QUICK SETUP





PLAYER MENU

ENGLISH



TV ASPECT

4:3 LETTER BOX



PROGRESSIVE

OFF



DOLBY DIGITAL

BITSTREAM

SETUP

ENTER

2 Confirm that “PLAYER MENU” is selected.

QUICK SETUP

PLAYER MENU

ENGLISH

TV ASPECT

4:3 LETTER BOX

PROGRESSIVE

OFF

DOLBY DIGITAL

BITSTREAM

ENTER

3 Select the desired language for the OnScreen Display.





PLAYER MENU



or

ENGLISH



FRANÇAIS





ESPAÑOL



ENTER

4

To exit the menu.

SETUP

Printed in China

4 Playback

Before:

¡Turn on the TV, amplifier and any other equipment which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

1

STANDBY-ON



SEARCH

OPEN/CLOSE

1



DISPLAY

MODE



AUDIO











1

2

3





SUBTITLE













4

5

6





ANGLE













7

8

9





REPEAT

CLEAR













0

+10





A-B

PAUSE



SKIP



3



SLOW









PLAY



4

REV





FWD





STOP



5 Remote Control

DVD-VCD MP3 WMA

1





2

Insert a



STANDBY-ON

OPEN/CLOSE



disc with







label

















facing up.

3

To start

4

To stop



playback



playback





PLAY



STOP









Button













Disc

DVD-V

CD

MP3 WMA

(Alphabetical order)

1

2





3











4

5





6

To select chapter or title

To select track directly.

7

8





9

directly.

















0





+10

















ENTER





To move the cursor and

To move the cursor and
