SERVICE MANUAL

This Service Manual is for the LH8-M26BB (A03A0EP) / LT8-M26BB (A03A1EP) model. For the LH8-M26BB (A03A0EP) / LT8-M26BB (A03A1EP) model, the letter (A03A0EP) / (A03A1EP) is printed on the Serial Number Label on the back of the unit. Refer to the Serial Number Label below.

Serial No. Label Serial No. Label

"A03A0EP" "A03A1EP"

26″ COLOR LCD TELEVISION

LH8-M26BB / LT8-M26BB

Page 2

26″ COLOR LCD TELEVISION

LH8-M26BB / LT8-M26BB

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

Page 3

SPECIFICATIONS

< TUNER >

VHS/UHF Input ----------- 75Ω unbal., IEC Connector Center IF ------------------- SECAM-L 38.9MHz, SECAM-L’ 33.9MHz

Description Condition Unit Nominal Limit

1. Video S/N 80 dB --- 40

2. Audio S/N --- dB --- 40/40

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Viewing Angle

<DVB-T>

Description Condition Unit Nominal Limit

RECEIVED FREQ.RANGE (-60dBm, 45ch.) *1, *2

2. INPUT DYNAMIC RANGE (mix./max)

3. C/N PERFORMANCE

(-50dBm)

4. MULTIPATH (-50dBm)

a. Performance with

short delay echoes

b. Performance with

long delay echoes

Horizontal

Ver t i cal

Horizontal

Ver t i cal

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

c:*3 d:*4 c:*3 d:*4

pixels pixels

kHz kHz

dBuV dBuV

dB dB

dB dB dB dB

1366

768

° °

-88 to 88

1000

900

25/101 25/101

18/101 18/101

15 15

11 11

18.7

14.0

19.1

13.0

---

500 167

28/98 29/98

21/98 21/98

≦18 ≦18

≦14 ≦14

≦23 ≦20 ≦23 ≦18

*1: modulation parameters = [8k 64QAM CR=2/3 GI=1/32] *2: modulation parameters = [8k 16QAM CR=3/4 GI=1/8] *3: modulation parameters = [2k 64QAM CR=2/3 GI=1/32] *4: modulation parameters = [2k 16QAM CR=3/4 GI=1/32]

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution

4. Brightness AT 100% WHITE FIELD cd/m

Horizontal

Ver t i cal

AT 70% WHITE FIELD

x y

Horizontal

Ver t i cal

1-1 A03A0SP

line line

% %

°K 9200

5 5

0.286

0.295

400 350

300 ---

---

--±0.008 ±0.008

---

Page 4

< AUDIO >

All items are measured across 16 Ω load at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 5.0/5.0 4.0/4.0

2. Audio Distortion 500mW: Lch/Rch % 1.5/1.5 3.0/3.0

3. Audio Freq. Response

6dB: Lch

6dB: Rch

Hz Hz

70 to 10 k 70 to 10 k

---

4. Audio S/N Lch/Rch dB ---

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

≧45/45

1-2 A03A0SP

Page 5

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the LCD module and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 230 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American

National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this LCD TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

CURRENT

TESTER

EARTH GROUND

2-1 LTVP_ISP

Page 6

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVP_ISP

Page 7

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVP_ISP

Page 8

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

≥ 3mm(d)

≥ 8mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Chassis or Secondary Conductor

Primary Circuit

d' d

Exposed Accessible Part

AC Voltmeter (High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

220 to 240 V

50kΩ RES.

Connected in

parallel

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

Fig. 2

RF or

2-4 LTVP_ISP

Page 9

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

3-1 TVP_SN

Machine

Flat Pack-IC

Fig. S-1-2

Page 10

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid Mounting Point

CBA

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Tweezers

Fig. S-1-6

3-2 TVP_SN

Page 11

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-3 TVP_SN

Page 12

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[1] Stand

Assembly

[15] Junction CBA

[3] Jack Holder(HP)

[4] Jack CBA

[2] Rear Cabinet

[6] Tuner Shield

[7] Power Supply CBA

[8] Jack Holder

[9] Shield Box

[10] Digital Main CBA Unit

[11] PCB Holder

[12] Stand Holder

[17] LCD Module Assembly

[18] Front Cabinet

[13] Speaker Holder(s) [L,R]

[14] Speaker(s)

[5] Inverter Power CBA

[16] Function CBA

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand

[1]

Assembly

Rear

[2]

Cabinet

Jack Holder

[3]

(HP)

[4] Jack CBA

Inverter

[5]

Power CBAD2D6

Tuner

[6]

Shield

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1) ---

D1 11(S-2), 3(S-3), (S-4) ---

D2 (S-5) ---

2(S-6), *CL202B ---

4(S-7), *CN1900, *CN1951, *CN1952

D3 2(S-8) ---

---

Removal

Step/

Loc.

No.

Part

Fig.

Remove/*Unhook/

Unlock/Release/

No.

Unplug/Unclamp/

Note

Desolder

6(S-9), *CN101,

*CN401, *CN402,

*CN403, *CN404, *CN801, *CN802

---

[7]

Power Supply CBA

[8] Jack Holder D3 2(S-10) ---

[9] Shield Box D3

Digital Main

[10]

CBA UnitD3D6

9(S-11), 2(S-12), 2(H-1), *CN3903

---

--------------- ---

[11] PCB Holder D4 6(S-13) ---

Stand

[12]

Holder

D4 2(S-14) ---

Speaker

[13]

Holder(s)

D5 8(S-15), Hook ---

[L,R]

[14] Speaker(s) D5 --------------- ---

[15]

[16]

Junction CBA

Function CBA

*CL104B ---

3(S-16) ---

LCD

[17]

Module

D5 2(S-17), 6(S-18) ---

Assembly

Front

[18]

↓

(1)

Cabinet

↓

(2)

D5 --------------- ---

↓

(3)

↓

(4)

(5)

↓

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. N = Nut, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta bl e ."

4-1 A03A0DC

Page 13

[2] Rear Cabinet

[1] Stand Assembly

(S-2)

(S-4)

(S-3)

(S-2)

(S-1)

Fig. D1

4-2 A03A0DC

Page 14

[5] Inverter Power CBA

[3] Jack Holder(HP)

(S-5)

(S-6)

[4] Jack CBA

(S-7)

(S-9)

(S-11)

(S-7)

[10] Digital Main CBA Unit

(S-11)

Fig. D2

[8] Jack Holder

(S-10)

(S-11)

(H-1)

(S-12)

[9] Shield Box

(S-11)

(S-8)

(S-9)

[7] Power Supply CBA

4-3 A03A0DC

(S-9)

[6] Tuner Shield

Fig. D3

Page 15

(S-14)

[11] PCB Holder

[18] Front Cabinet

[12] Stand Holder

(S-17)

(S-13)

Fig. D4

[17] LCD Module Assembly

(S-18)

[14] Speaker

(S-15)

Hook

(S-18)

[13] Speaker Holder [L]

Hook

(S-18)

[13] Speaker Holder [R]

(S-18)

[15] Junction CBA

(S-16)

(S-15)

[16] Function CBA

[14] Speaker

Fig. D5

4-4 A03A0DC

Page 16

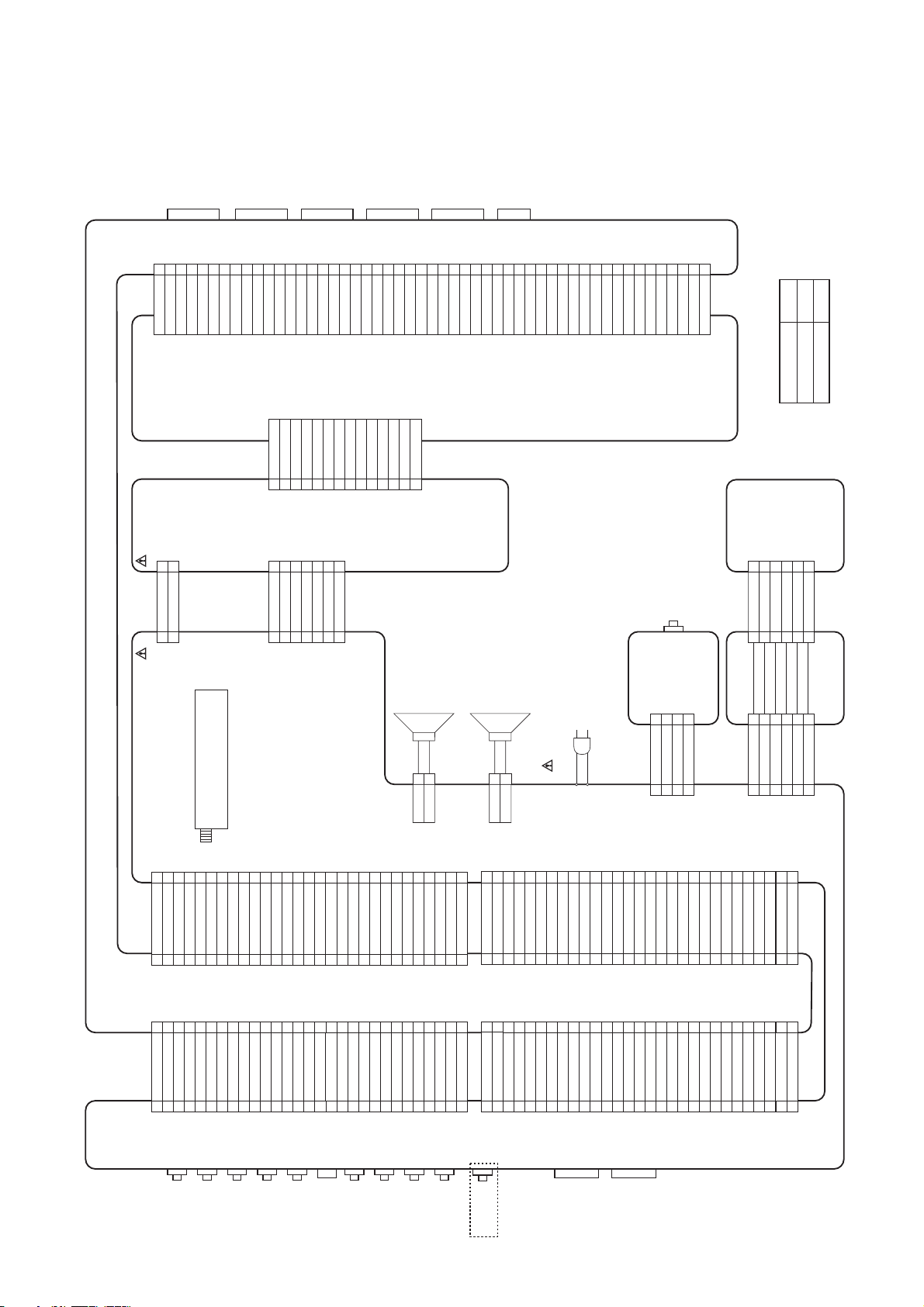

3. TV Cable Wiring Diagram

To LCD Module Assembly

Inverter Power CBA

CN1952

CN1951

CN1900

Power Supply CBA

CN453

CN610

CN801

CN101

AC CORD

CN402

CN404

CN403

CN401

CN802

To SpeakerTo Speaker

CL202B

CN3903

CN3701

CN3702

CN3703

CN3704

Digital Main CBA Unit

Jack CBA

CL201A

Function CBA

CL104B

CL104A

Junction CBA

CN105

Fig. D6

4-5 A03A0DC

Page 17

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. Pattern Generato

2. Color Analyzer

3. Servic Remote control unit

How to make the Service remote control unit:

Cut “A” portion of the attached remote control unit as shown in Fig. 1.

service button

1. Purity Check Mode

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service remote control unit, the display changes as follows.

Purity Check Mode

White mode

[7] button

Black mode

Fig. 1

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote control unit as shown in Fig.1.

[7] button

Red mode

[7] button

Green mode

[7] button

Blue mode

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Cheak Mode, press [BACK] button.

5-1 A03A0EA

Page 18

2. Auto Calibration [Component]

3. Auto Calibration [PC]

Purpose: To bring the color adjustment of each

component into standard alignment.

Symptom of Misadjustment: If this adjustment is incorrect, component signals do not reproduce the corresponding color.

1. Input 720P 100% Color Bar signal.

2. Enter the service mode.

3. To enter the Auto Calibration adjustment mode, press [6] button on the service remote control unit.

4. To start auto adjustment, press [P ] button on the service remote control unit.

- In the auto adjustment mode, “Calibration Check”

appears on the screen.

- Upon completion, “OK” appears on the screen.

5. To cancel or to exit from the Auto Calibration [Component], press [BACK] button.

Purpose: To bring the color adjustment of PC into standard alignment.

Symptom of Misadjustment: If this adjustment is incorrect, PC signals do not reproduce the corresponding color.

1. Input SVGA 100% White signal.

2. Enter the service mode.

3. To enter the Auto Calibration adjustment mode, press [5] button on the service remote control unit.

4. To start auto adjustment, press [P ] button on the service remote control unit.

- In the auto adjustment mode, “Calibration Check”

appears on the screen.

- Upon completion, “OK” appears on the screen.

5. To cancel or to exit from the Auto Calibration [PC], press [BACK] button.

5-2 A03A0EA

Page 19

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital CBA.

4. White Balance Adjustment [Video/Component/PC]

Purpose: To mix red, green and blue beams correctly

for pure white.

Symptom of Misadjustment: White becomes bluish or reddish.

Test Point

Screen

Pattern Generator,

Color analyzer

Adj. Point Mode Input

[P / ]

buttons

M. EQ. Spec.

[VIDEO]

C/D

x= 0.286 ± 0.005 y= 0.295 ± 0.005

Figure

White Raster

(APL 70%)

(APL 30%)

4. Enter the Service mode. Press [ -] button on the service remote control unit and select “C/D” mode.

5. [CUTOFF] Press [3] button to select “COB” for Blue Cutoff adjustment. Press [1] button to select “COR” for Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive adjustment. Press [4] button to select “DR” for Red Drive adjustment.

6. In each color mode, press [P / ] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 9200°K (x ±0.005).

8. Change the video signal input in step 2 and repeat from step 3.

9. To cancel or to exit from the White Balance Adjustment, press [BACK] button.

0.286 / y= 0.295

To avoid interference from ambinent light, this adjustment should be performed in a dark room.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 30%

1. Operate the unit for more than 20 minutes.

2. [VIDEO input] Input the White Raster (70%=70IRE, 30%=30IRE). [Component input] Input the 720P White Raster (70%=70IRE, 30%=30IRE). [PC input] Input the SVGA White Raster (70%=70IRE, 30%=30IRE).

INPUT SIGNAL

Color Analyzer

30%=30IRE

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

70%=70IRE

5-3 A03A0EA

Page 20

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. To enter the service mode, press the service button on the service remote control unit. (Refer to page 5-1.)

- To cancel the service mode, Press [ ] button on

the remote control unit.

3. Press [ ] button on the service remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is complete.

6-1 A03A0INT

Page 21

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Is the fuse (F601) normal?

Ye s

Is normal state restored when once unplugged power cord is plugged again several seconds?

Ye s

Is approximately 15V voltage supplied to the cathode of D504?

Ye s

Check each rectifying circuit of the secondary circuit and service it if defective.

FLOW CHART NO.2

The fuse blows out.

Check the presence that the primary component is leaking or shorted and service it if defective.

See FLOW CHART No.2 <The fuse blows out.>

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (IC607, IC621, Q621, Q622, Q623, D609, D610, D611, D612, T601, T602)

Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective.

After servicing, replace the fuse (F601).

FLOW CHART NO.3

When the output voltage fluctuates.

Does the photocoupler circuit on the secondary side operate normally?

Ye s

Check IC607, IC621, D625, D628, D630, D631, D634, D635, D636, D638 and their periphery, and service it if defective.

FLOW CHART NO.4

When buzz sound can be heard in the vicinity of power circuit.

Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side, and service it if defective. (D504, D511, D514, D523, D524, D525, D539, Q501, Q

Check IC607, Q512, Q513, D505, D530 and their periphery, and service it if defective.

510, Q517, Q518, Q521)

7-1 A01A0TR

Page 22

FLOW CHART NO.5

LCD+12V is not output.

Is approximately 15V voltage supplied to the collector of Q501?

Ye s

Is approximately 13V voltage supplied to the base of Q501?

Ye s

Replace Q501.

FLOW CHART NO.6

AL+3.3V is not output.

Is approximately 6V voltage supplied to the collector of Q521?

Ye s

Is approximately 4V voltage supplied to the base of Q521?

Ye s

Replace Q521.

Check D504, D505, C503 and their periphery circuit, and service it defective.

Check Q504, Q505, D501, P-ON-H1 line and their periphery circuit, and service it defective.

Check D525, D527, D528, C516 and their periphery circuit, and service it if defective.

Check D552 and their periphery circuit, and service it if defective.

FLOW CHART NO.7

P-ON+5V is not output.

Is approximately 6V voltage supplied to the collector of Q518?

Ye s

Is approximately 5V voltage supplied to the base of Q518?

Ye s

Replace Q518.

FLOW CHART NO.8

LCD+24V is not output.

Check IC1930, IC1931, Q1930, Q1931, Q1932, Q1933, T1950 and their periphery circuit, and service it if defective.

Check D525, C516 and their periphery circuit, and service it if defective.

Check Q508, Q520, D543, P-ON-H2 line and their periphery circuit, and service it if defective.

7-2 A01A0TR

Page 23

FLOW CHART NO.9

AL+5V is not output.

Is approximately 5V voltage supplied to the cathode of D523?

Ye s

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

FLOW CHART NO.10

P-ON+3.3V is not output.

Is approximately 5V voltage supplied to the collector of Q510?

Ye s

Is approximately 3.4V voltage supplied to the base of Q510?

Ye s

Replace Q510.

FLOW CHART NO.11

P-ON+9V is not output.

Check D523, D524, C515 and their periphery circuit, and service it if defective.

Check Q508, Q511, D526, P-ON-H2 line and their periphery circuit, and service it if defective.

Is approximately 13V voltage supplied to the collector of Q517?

Ye s

Is approximately 10V voltage supplied to the base of Q517?

Ye s

Replace Q517.

FLOW CHART NO.12

The key operation is not functioning.

Are the contact point and installation state of the key switches (SW101, SW103-SW107) normal?

Ye s

When pressing each switches (SW101, SW103SW107) do the voltage of Pin(11) on CN403 increase?

Ye s

Replace Digital Main CBA Unit.

Check D539, C522 and their periphery circuit, and service it if defective.

Check Q508, Q520, D541, D542, P-ON-H2 line an their periphery circuit, and service it if defective.

Re-install the switches (SW101, SW103-SW107) correctly or replace the poor switch.

Check the switches (SW101, SW103-SW107) and their periphery, and service it if defective.

7-3 A01A0TR

Page 24

FLOW CHART NO.13

No operation is possible from the remote control unit.

Operation is possible from the unit.

Is 3.3V voltage supplied to Pin(2) of RS102 (remote control receiver)?

Ye s

Is the "L" pulse sent out Pin(1) of receiver) when the infrared remote control is activated?

Ye s

Is the "L" pulse supplied to Pin(13) of CN403?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.14

Picture does not appear normally. (Video input/S-Video input/Y/Pb/Pr input/RGB input)

Are the video signals outputted to the specific terminal?

Are the luminance signals outputted to Pin(27) of CN401?

Are the chrominance signals outputted to Pin(29) of CN401?

Are the component video(Y/Pb/Pr) signals outputted to Pin(4, 6, 8) of CN404?

Are the RGB video signals outputted to Pin(26, 28, 29) of CN404?

Are the composite video signals outputted to Pin(2,12,22) of CN404?

Ye s

RS102 (remote control

Check AL+3.3V line and service it if defective.

Replace the RS102 (remote control receiver) or remote control unit.

Check the line between Pin(1) of RS102 (remote control receiver) and Pin(13) of CN403, and service it if defective.

Check the line between each pin of CN401 and CN404 and input terminal and service it if defective.

Check the luminance signal line, and service it if defective.

Check the chrominance signal line, and service it if defective.

Check the component video(Y/Pb/Pr) signal line, and service it if defective.

Check the RGB video signal line, and service it if defective.

Check the composite video signal line, and service it if defective.

Replace Digital Main CBA Unit or LCD Module Assembly.

7-4 A01A0TR

Page 25

FLOW CHART NO.15

Picture does not appear normally. (Tuner input (Digital))

Are the DIF signals outputted to Pin(16, 18) of CN403?

Ye s

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.16

Audio is not outputted normally. (Tuner input (Digital))

Are the DIF signals outputted to Pin(16,18) of CN403?

Ye s

Are the audio(L/R) signals outputted to Pin(8,10) of CN403?

Ye s

Are the audio(L/R) signals inputted to the Pin(1,44) of IC803?

Ye s

Are the audio(L/R) signals outputted to CN801 and CN802?

Ye s

Check the line between Pin(16, 18) of CN403 and Pin(4, 5) of TU1, and TU1(Tuner Unit), and service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(8,10) of CN403 and Pin(1,44) of IC803, and service it if defective.

Check IC803 and the periphery circuit, and service it if defective.

Check SP801,SP802 and their periphery circuit, and service it if defective.

FLOW CHART NO.17

Audio is not outputted normally. (Audio input terminals)

Are the audio(L/R) signals outputted to the specific terminal?

Are the audio(L/R) signals outputted to Pin(21,22) of CN401?

Are the component audio(L/R) signals outputted to Pin(18,19) of CN401?

Are the PC audio(L/R) signals outputted to Pin(24,25) of CN401?

Ye s

Replace Digital Main CBA Unit.

Check the line between each pin of CN401 and input terminal and service it if defective.

Check the audio(L/R) signal line, and service it if defective.

Check the component audio(L/R) signal line, and service it if defective.

Check the PC audio(L/R) signal line, and service it if defective.

7-5 A01A0TR

Page 26

BLOCK DIAGRAMS

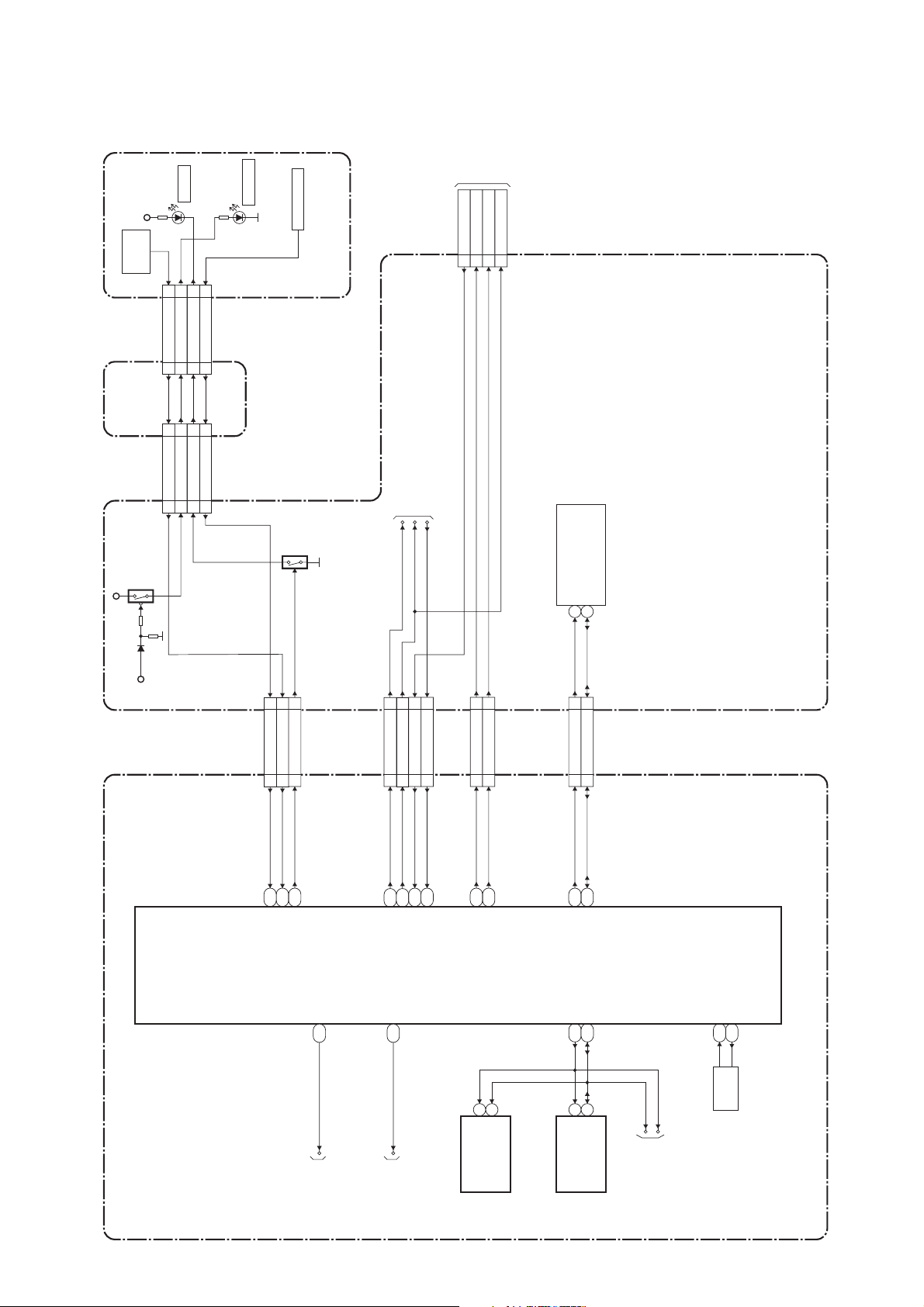

System Control Block Diagram

POWER

AL+3.3V

SENSOR

REMOTE

RS102

CL104

JUNCTION

CBA

CN105

CN101

AL+3.3V

Q182

D104

REMOTE22

STANDBY-LED55

REMOTE52

STANDBY-LED25

D105

STANDBY

KEY SWITCH

FUNCTION CBA

POWER-LED44

KEY-IN166

POWER-LED34

KEY-IN116

Q181

POWER SUPPLY

P-ON-H2

P-ON-H1

BLOCK DIAGRAM

PROTECT1

INVERTER

POWER

BLOCK

DIAGRAM

PROTECT36BACKLIGHT-SW4BACKLIGHT-ADJ3P-ON-H1 2

CN453

(CN1951)

SCL

SDA

TU1 (TUNER UNIT)

POWER SUPPLY CBA

P-ON+9V

IC3301

(MAIN MICRO CONTROLLER)

CN403

KEY-IN111 11

CN3703

AA25

KEY-IN

REMOTE13 13

AD11

REMOTE

LED114 14

B16

LED1

SCART-OUT-SEL

E16

SCART-OUT-SEL

CN402CN3701

PROTECT1

P-ON-H111

P-ON-H222

PROTECT3

A12

W23

AC11

P-ON-H2

P-ON-H1

PROTECT3

PROTECT1 Y24

BACKLIGHT-ADJ

AUDIO-MUTE

A15

AUDIO-MUTE

CN403CN3703

BACKLIGHT-SW 2

BACKLIGHT-SW D23

SCL

BACKLIGHT-ADJ 1

D16

SDA

SCL

SDA

CN3703 CN403

F24

F25

TUNER-CLK

TUNER-DATA

OSCL0

OSDA0

AF3

AE4

SCL

SDA

OSDA0

OSCL0

X3101

XTALO

XTALI

V26

V25

54MHz

OSC

DIGITAL MAIN CBA UNIT

TO VIDEO

BLOCK

DIAGRAM

TO AUDIO

BLOCK

DIAGRAM

IC3802

(AUDIO SELECTOR)

8-1

IC3101 (MEMORY)

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

A03A0BLS

Page 27

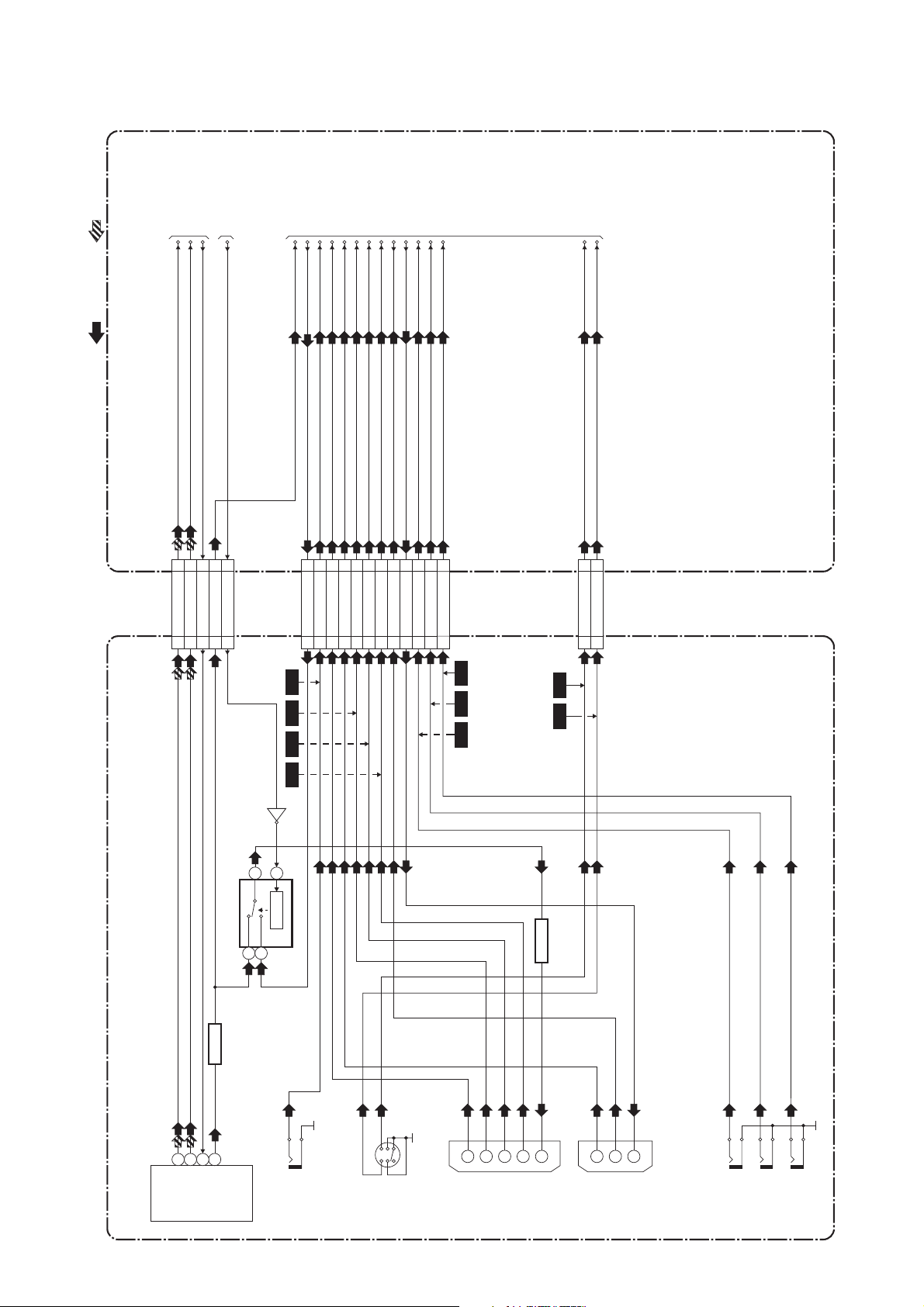

Video Block Diagram

AUDIO SIGNAL

VIDEO SIGNAL

TO DIGITAL SIGNAL

DIF-OUT2

DIF-OUT1

DIF-OUT216 16

CN403 CN3703

PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

IF-AGC

SCART-OUT-SEL

IF-AGC20 20

DIF-OUT118 18

TU-CVBS29 29

SCART-OUT-SEL 66

TU-CVBS

WF1

WF10WF8

WF9

VIDEO-IN

VIDEO-OUT1

RGB-VIDEO-IN1

VIDEO-IN22

VIDEO-OUT124 24

CN404 CN3702

VIDEO-B1

VIDEO-R1

VIDEO-G1

RGB-VIDEO-IN2

VIDEO-R126 26

VIDEO-G128 28

RGB-VIDEO-IN1 22 22

VIDEO-B129 29

RGB-VIDEO-IN2 12 12

VIDEO-R2

VIDEO-OUT2

COM-VIDEO-Y-IN

VIDEO-R216 16

VIDEO-OUT214 14

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

COM-VIDEO-Pr-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

WF6

WF5

WF4

CN401 CN3704

WF2

WF3

S-VIDEO-Y-IN

S-VIDEO-C-IN

S-VIDEO-C-IN29 29

S-VIDEO-Y-IN27 27

DIGITAL MAIN CBA UNIT

TU1

(TUNER UNIT)

IF-AGC

DIF-OUT1

DIF-OUT2

IC1

(INPUT SELECT)

BUFFER

Q011

VIDEO-OUT

Q12

SW CTL

Q15

BUFFER

POWER SUPPLY CBA

JK211

VIDEO-IN

JK210

S-VIDEO-IN

JK301

RGB-

VIDEO-IN1

VIDEO-R1

VIDEO-G1

VIDEO-B1

VIDEO-OUT1

JK302

RGB-

VIDEO-IN2

VIDEO-R2

VIDEO-OUT2

COMPONENT

-Y-IN

JK201

JK202

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK203

8-2

A03A0BLV

Page 28

Audio Block Diagram

Model Mark

LT8-M26BB

Comparison Chart of

AUDIO SIGNAL

LH8-M26BB A

Models and Marks

TO DIGITALSIGNAL

PROCESS

BLOCK DIAGRAM

AUDIO(R)-2

AUDIO(R)-1

AUDIO(R)-0

LRCK

TO DIGITALSIGNAL PROCESS

BCK

SDATA0

BLOCK DIAGRAM

MCLK

SIF(+)

AUDIO-MUTE2

HEADPHONE-DET

TO SYSTEM CONTROL

BLOCK DIAGRAM

AUDIO-MUTE

SPDIF

AUDIO(L)-2

AUDIO(L)-1

AUDIO(L)-0

IC3802

ADC-OUT(L)

ADC-OUT(R)

8116

AUDIO

SELECTOR

(L-CH)

(AUDIO SELECTOR)

4844514947

CN3704CN401

AUDIO(L)22 22

SPDIF11

WF7

COM-AUDIO(L)19 19

PC-AUDIO(L)25 25

RGB-AUDIO(L)-IN1 10 10

RGB-AUDIO(L)-IN2 16 16

AUDIO

SELECTOR

(R-CH)

452123

AUDIO(R)21 21

PC-AUDIO(R)24 24

RGB-AUDIO(R)-IN1

RGB-AUDIO(R)-IN2

COM-AUDIO(R)

15 15

18 18

D/A

CONVERTER

(L-CH)

IC3801

(AUDIO D/A CONVERTER)

CN3704

RGB-AUDIO(L)-OUT1

RGB-AUDIO(R)-OUT1

RGB-AUDIO(L)-OUT2

RGB-AUDIO(R)-OUT2

12 12

13 13

CN401

(R-CH)

Q3806

MUTE

Q3807

MUTE

Q3812

MUTE

HEADPHONE(L)

HEADPHONE(R)

HEADPHONE-DET

TU1

Q3802, Q3809, Q3810

Q3805

MUTE

Q3808

MUTE

Q3813

MUTE

SIF-OUT

(TUNER UNIT)

DRIVE

CN3703

SIF(+)26 26

CN403

CN3703CN403

IC803 (AUDIO AMP)

9,10

AMP(L)-OUT10 10

AMP(R)-OUT88

AUDIO-MUTE12 12

PWM1

DRIVE1

13,14

PWM2

DRIVE2

35,36

31,32

MUTE CONTROL

DIGITAL MAIN CBA UNIT

POWER SUPPLY CBA

DIGITAL

JK207

AUDIO-OUT

(COAXIAL)

JK212

AUDIO(L)

-IN

JK213

AUDIO(R)

-IN JK204

JK205

COMPONENT

AUDIO(L)-IN

COMPONENT

AUDIO(R)-IN

PC-AUDIO-IN

JK206

JK301

3RGB-AUDIO(L)-OUT1

RGB-AUDIO(L)-IN1

RGB-AUDIO(R)-IN1

JK302

RGB-AUDIO(R)-OUT1

RGB-AUDIO(L)-IN2

8-3

RGB-AUDIO(L)-OUT2

RGB-AUDIO(R)-OUT2

RGB-AUDIO(R)-IN2

CL202BCL201A

HEADPHONE-DET

HEADPHONE(R)

HEADPHONE(L)

JK208

HEADPHONE

JACK

CN802CL802

SP(L)- 1

SP(L)+ 2

JACK CBA

SP802

SPEAKER

L-CH

CN801

SP(R)+ 2

CL801

SP801

SP(R)- 1

SPEAKER

R-CH

A03A0BLA1

Page 29

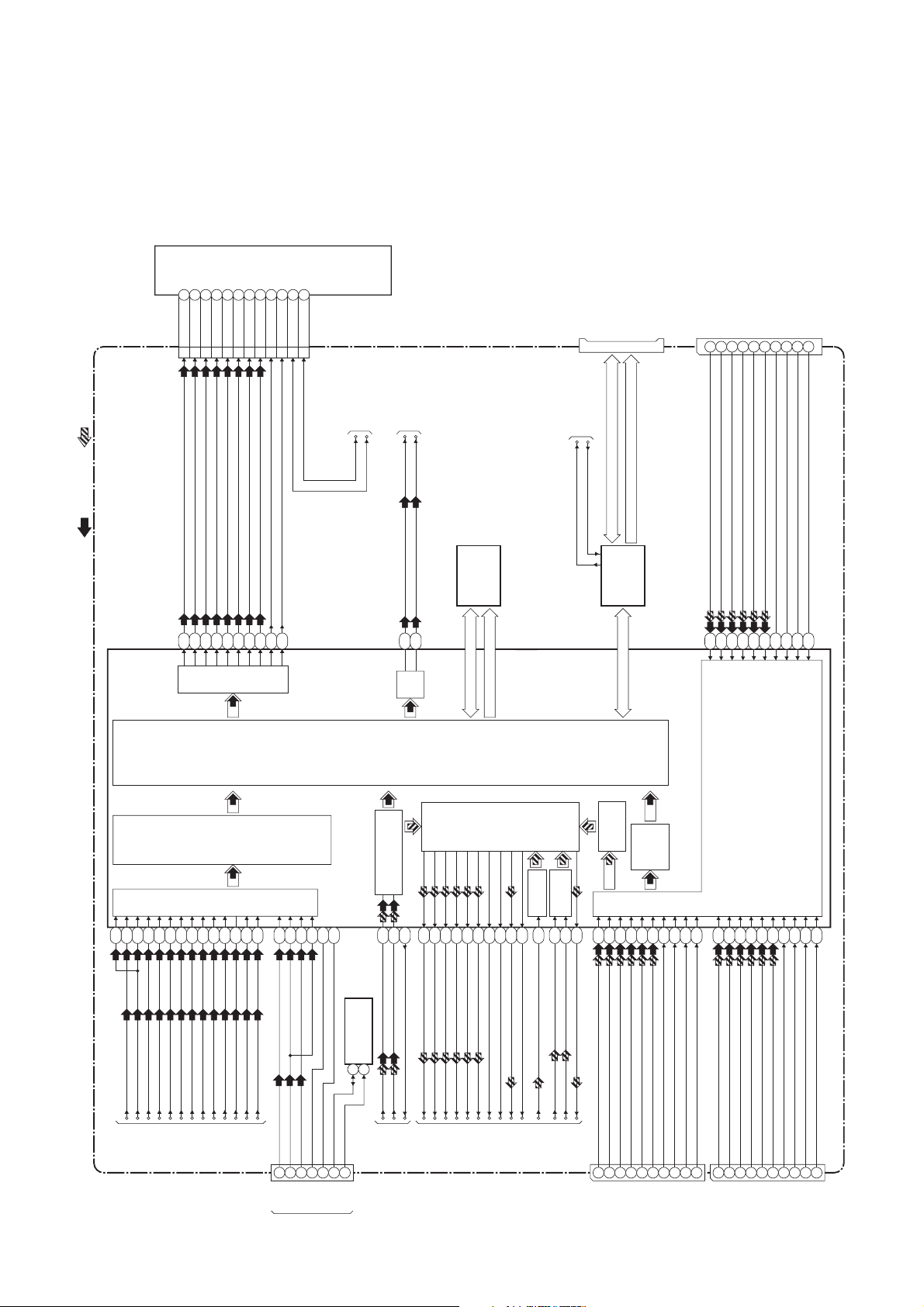

Digital Signal Process Block Diagram

LCD MODUL

ASSEMBLY

LVDS-OD1(-)46LVDS-OD1(+)

LVDS-OD0(-)48LVDS-OD0(+)47LVDS-OD2(-)44LVDS-OD2(+)43LVDS-OD3(-)38LVDS-OD3(+)37LVDS-CLK(-)41LVDS-CLK(+)40OSCL031

CN3903

AUDIO SIGNAL

VIDEO SIGNAL

OSDA030

TO VIDEO

BLOCK DIAGRAM

VIDEO-OUT2

VIDEO-OUT1

TO SYSTEM

CONTROL

OSDA0

OSCL0

TO AUDIO

BLOCK DIAGRAM

AUDIO-MUTE2

CI-D(0-15)

HEADPHONE-DET

CARD

SLOT

CI-A(0-14)

79461

TMDS-D0(-)

TMDS-D0(+)

TMDS-D1(+)

JK3704

HDMI-IN3

TMDS-D1(-)

TMDS-D2(-)

TMDS-D2(+)

101216

SCL

SDA

TMDS-CLOCK(-)

TMDS-CLOCK(+)

IC3301 (DIGITAL SIGNAL PROCESS)

AD21

AB24

AE21

AD22

AF22

AC24

AE26

AE25

B7A7B8

AF24

AD24

LVD S

A/D

AD23

CONVERTER

AF25

RDQ(0-31)

RA(0-12)

IC3201, IC3202

(SDRAM)

B10

A10

HSYNC

VSYNC

AF19

AE20

AE19

AD26

AE24

AD19

AC18

AB18

B13

A13

DAC

DEMODULATOR

/MPEG DECODER

IF-AGC

T25

E24

R25

H26

DATA(0-31)

ADDESS(0-12)

DIGITAL

SIGNAL

PROCESS

AUDIO I/F

ADC

DEMODU.

J26

J25

K26

H25

J24

D24

C25

B25

D25

AB25

L26

K25

E26

IC3401

AUDIO

AF16

CONTROL

DECODER

AF17

AE16

AE17

VIDEO

AF18

AE18

DECODER

AF15

AE15

AB16

AC16

AF8

AE8

AF12

AF9

AE12

AE9

AF13

AF10

AE10

HDMI I/F

AF14

AE13

AF7

AE14

AE7

AF11

AB12

AE11

AC14

AC12

AC15

TU-CVBS

DIGITAL MAIN CBA UNIT

VIDEO-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

VIDEO-R1

S-VIDEO-Y-IN

S-VIDEO-C-IN

TO VIDEO

BLOCK

DIAGRAM

VIDEO-G1

VIDEO-B1

VIDEO-R2

RGB-VIDEO-IN1

RGB-VIDEO-IN2

JK3701

RED

BLUE

GREEN

VSYNC

HSYNC

D-SUB

DAT A

IC3704 (MEMORY)

CLOCK

SDA

SCL

DIF-OUT1

IF-AGC

AUDIO(L)-0

AUDIO(L)-1

AUDIO(L)-2

AUDIO(R)-0

AUDIO(R)-1

AUDIO(R)-2

LRCK

BCK

DAT A0

MCLK

SIF(+)

ADC-OUT(L)

ADC-OUT(R)

DIF-OUT2

TO VIDEO

BLOCK

DIAGRAM

8-4

TO AUDIO

BLOCK

DIAGRAM

SPDIF

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

HDMI-IN1

JK3702

SDA

SCL

TMDS-CLOCK(+)

TMDS-CLOCK(-)

101216

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

79461

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

101216

HDMI-IN2

JK3703

A03A0BLD

TMDS-CLOCK(-)

SDA

SCL

Page 30

Inverter Power Block Diagram

LCD MODULE

ASSEMBLY

LCD+24V

BACKLIGHT-SW3

BACKLIGHT-ADJ1

10-14

CN1952

Q1972

INVERTER POWER CBA

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

T1950

IC1930

Q1971

Q1973

3 2

IC1931

Q1931

3 2

Q1933

Q1931

CN1900

ACL2

HOT CIRCUIT. BE CAREFUL.

HOT-GND1

TO POWER

SUPPLY

BLOCK

DIAGRAM

(CN610)

Q1930

SWITCHING

8-5

Q1932

HOT

COLD

CN1951

PROTECT36

TO SYSTEM

CONTROL

A03A0BLINV

BACKLIGHT-ADJ

BACKLIGHT-SW

BLOCK

DIAGRAM

P-ON-H15

(CN453)

Page 31

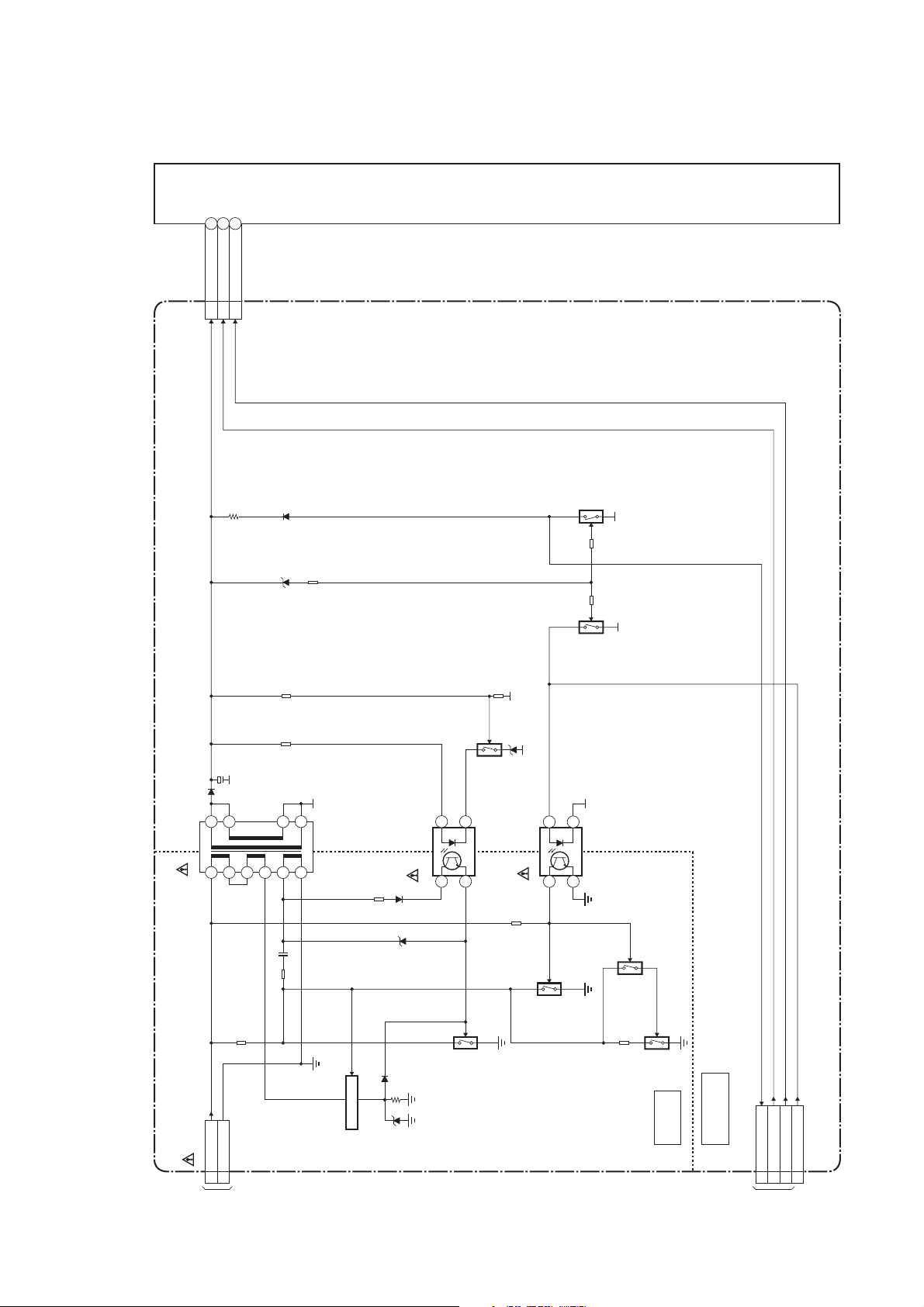

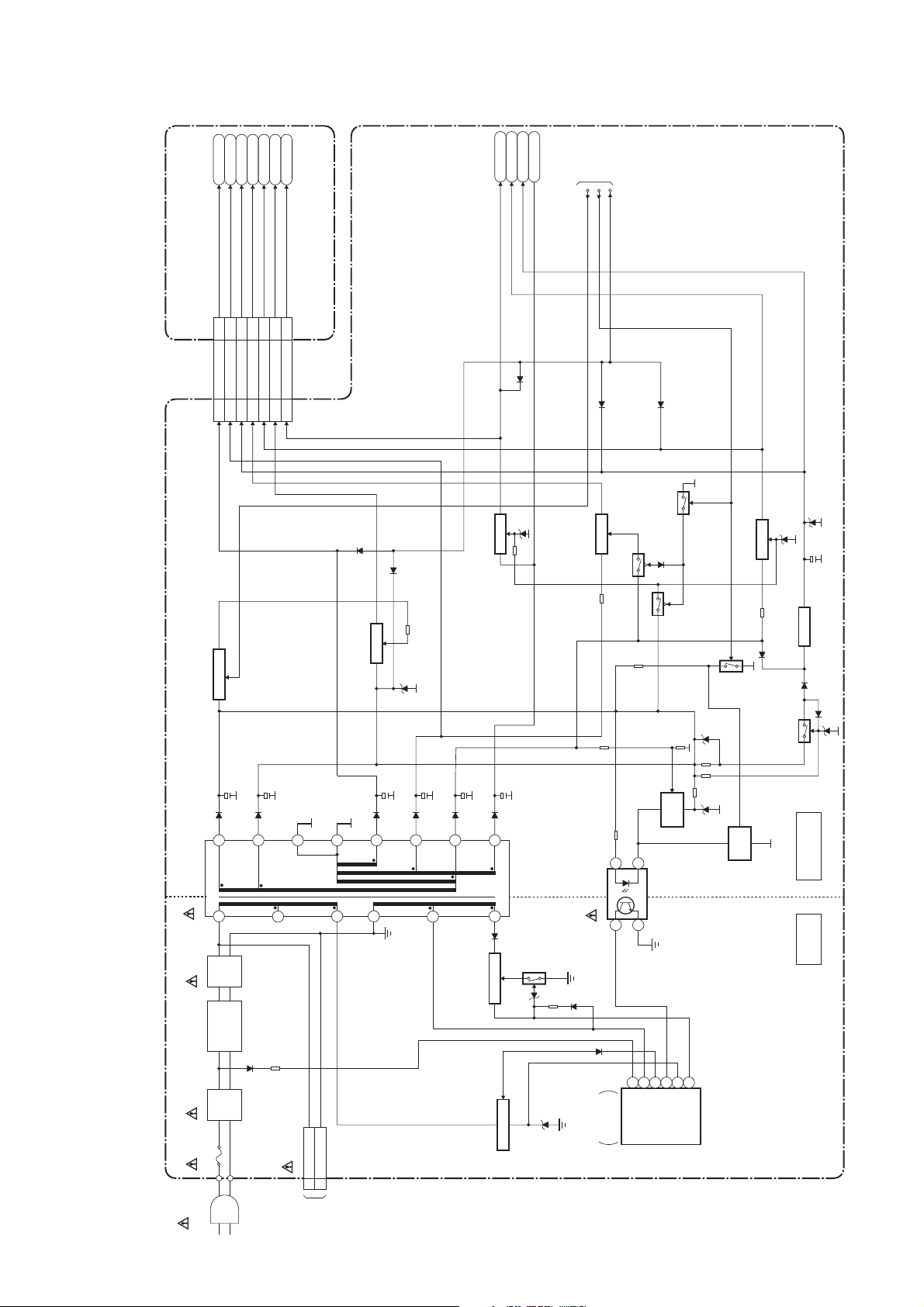

Power Supply Block Diagram

LCD+12V

AL+3.3V

P-ON+3.3V

13,14

P-ON+3.3V13,14

AL+3.3V10

P-ON+5V

15,16

27-29

LCD+12V15,16

P-ON+5V27-29

P-ON+9V

P-ON+9V6

AL+3.3V(1)

AL+5V

DIGITAL MAIN CBA UNIT

24,26

19-21

AL+5V24,26

AL+3.3V(1)19-21

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CN402 CN3701

P-ON+5V

P-ON+9V

AL+3.3V

AL+13V

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

P-ON-H1

P-ON-H2

PROTECT1

Q508

SW+12V

Q501

SWITCHING

Q504, Q505

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

T601

LINE

FILTER

T602F601

SW+9V

Q517

Q623

SWITCHING

Q622

SW+3.3V

Q510,D526

IC607

Q511

3 2

Q520

Q512,

Q522

FEED

SW+5V

Q518

SW+3.3V

Q521

Q514

Q516

BACK

FEED

BACK

Q513

HOT COLD

BRIDGE

RECTIFIER

D609- D612

LINE

FILTER

L601A, L602A

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

HOT CIRCUIT. BE CAREFUL.

AC601

AC CORD

T4A H 250V

CN610

ACL2

INVERTER

HOT-GND1

BLOCK

DIAGRAM

(CN1900)

8-6

SWITCHING

Q621

SWITCHING

CONTROL

IC621

5OUT

2FB3IS6VCC

ZCD

POWER SUPPLY CBA

A03A0BLP

Page 32

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “!” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identified by four digits. The first two digits are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits.

, M = 106).

-6

µF).

9-1 LCDP_SC

Page 33

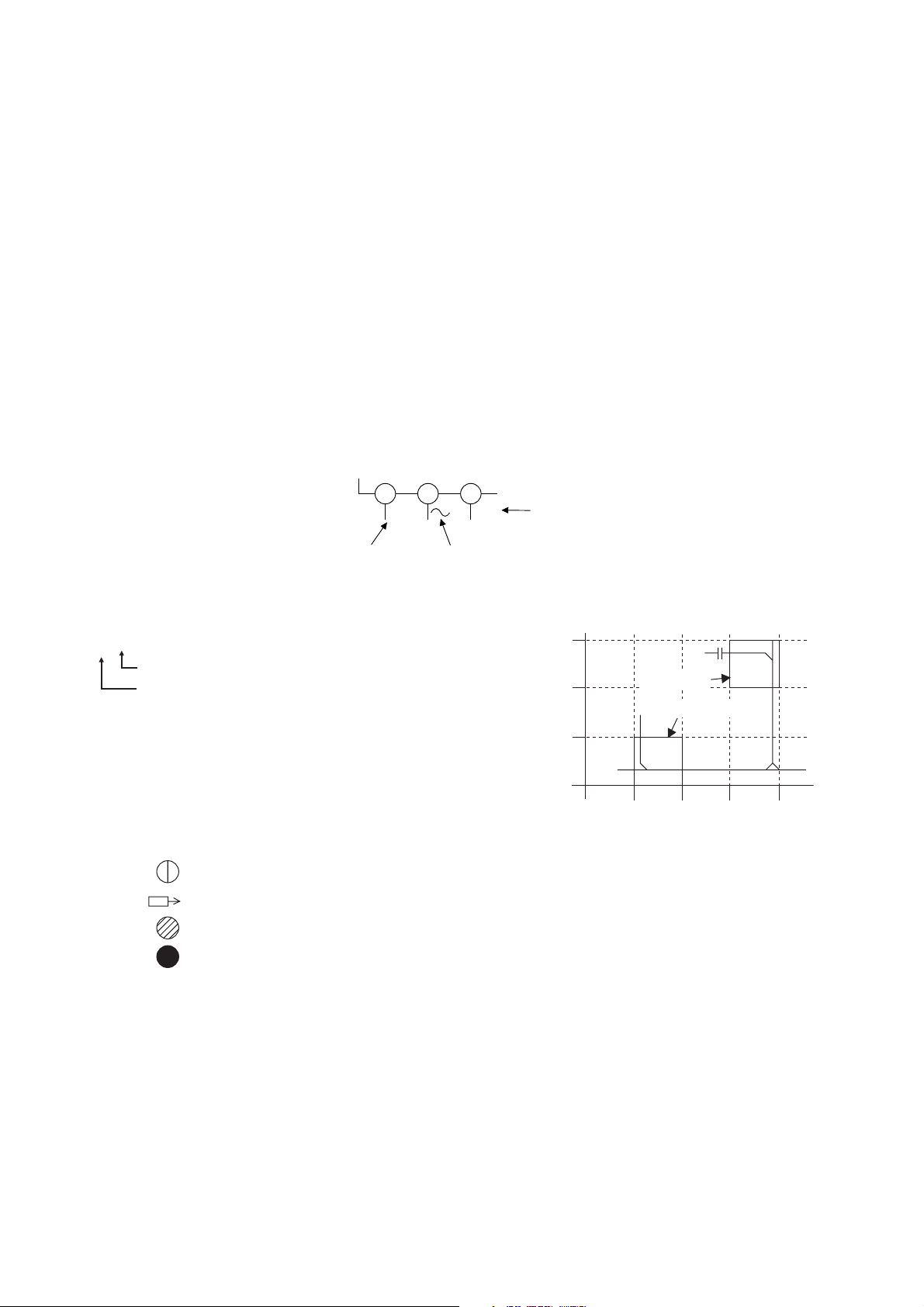

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

9-2 LCDP_SC

Page 34

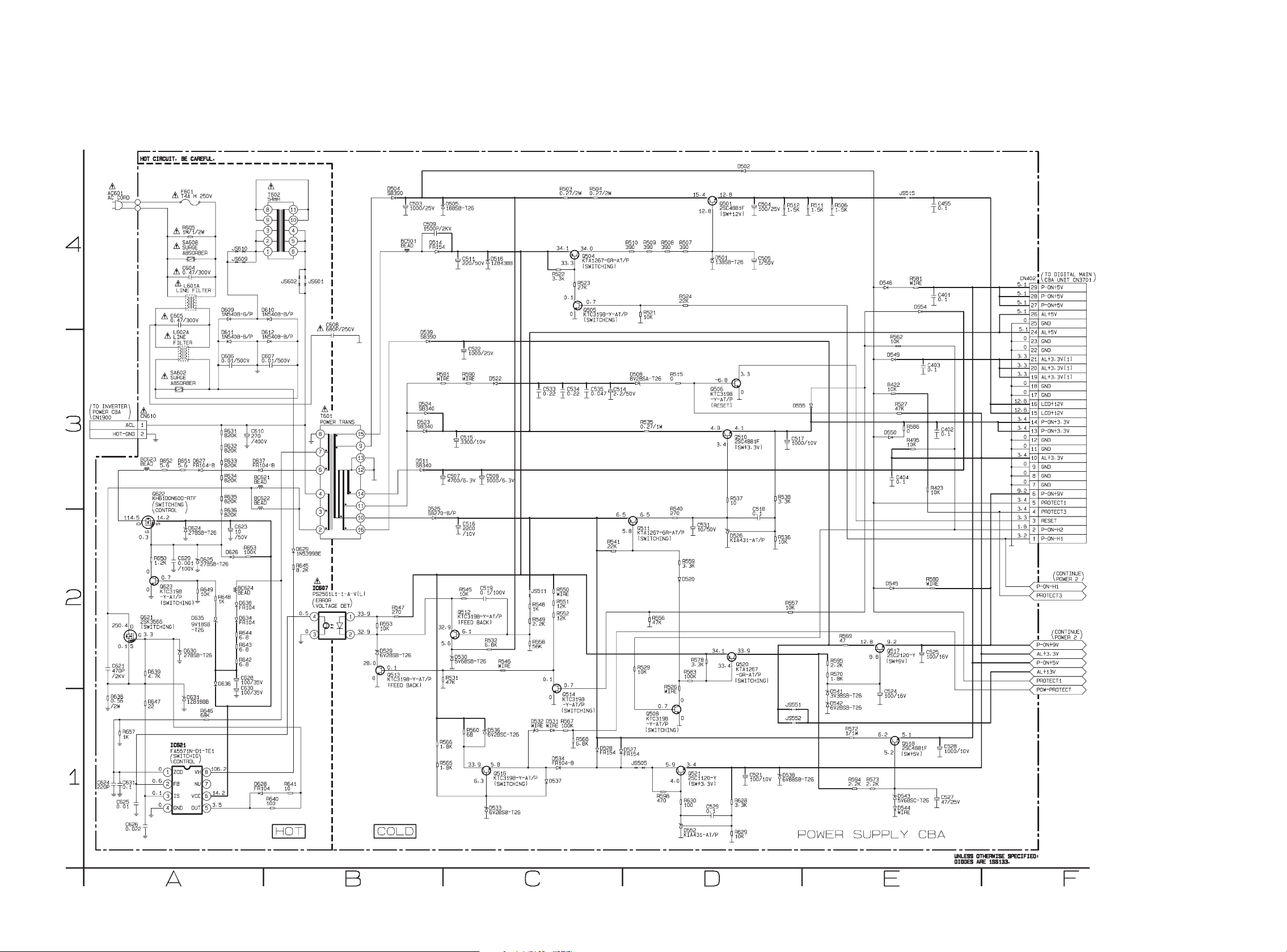

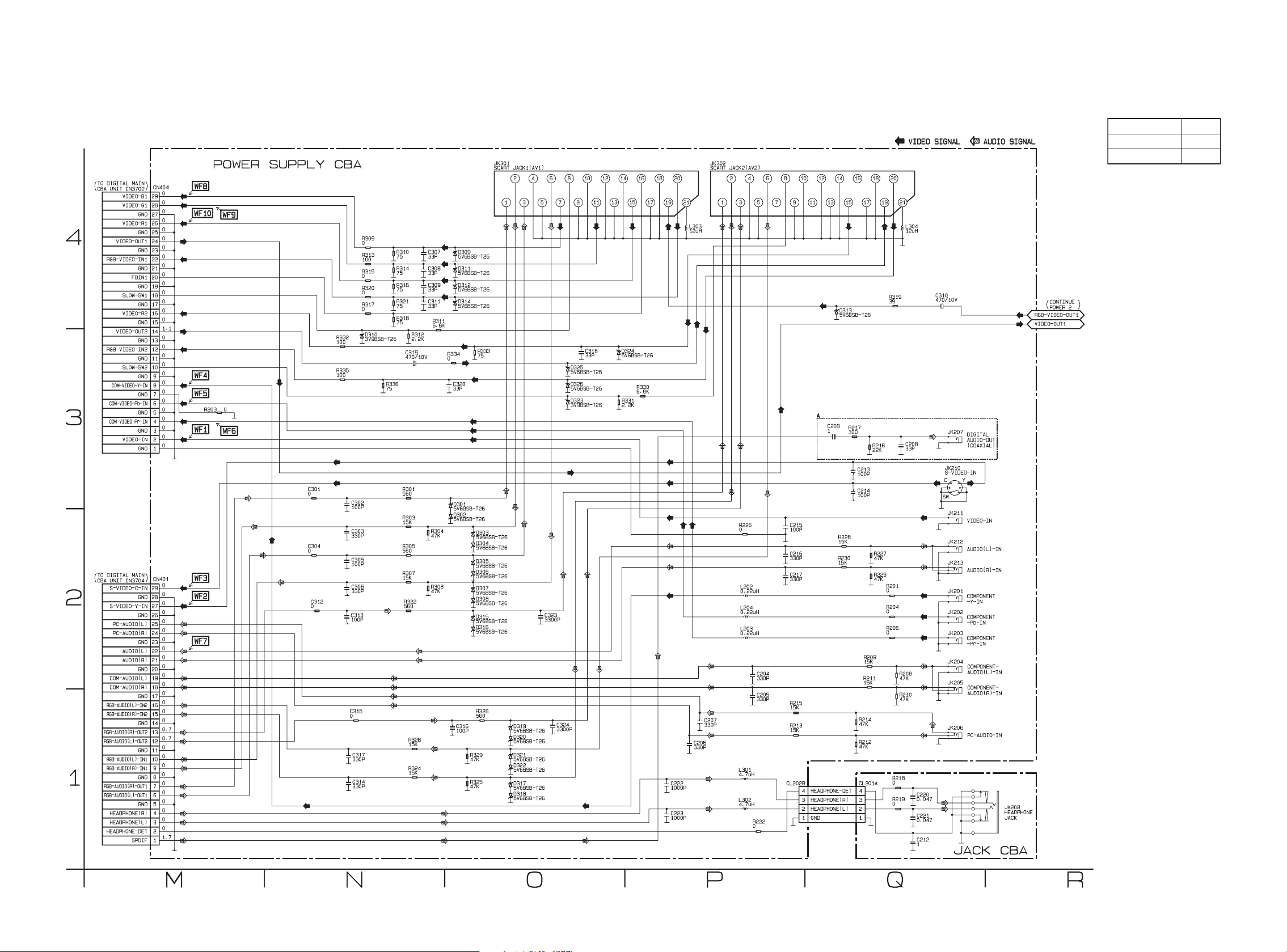

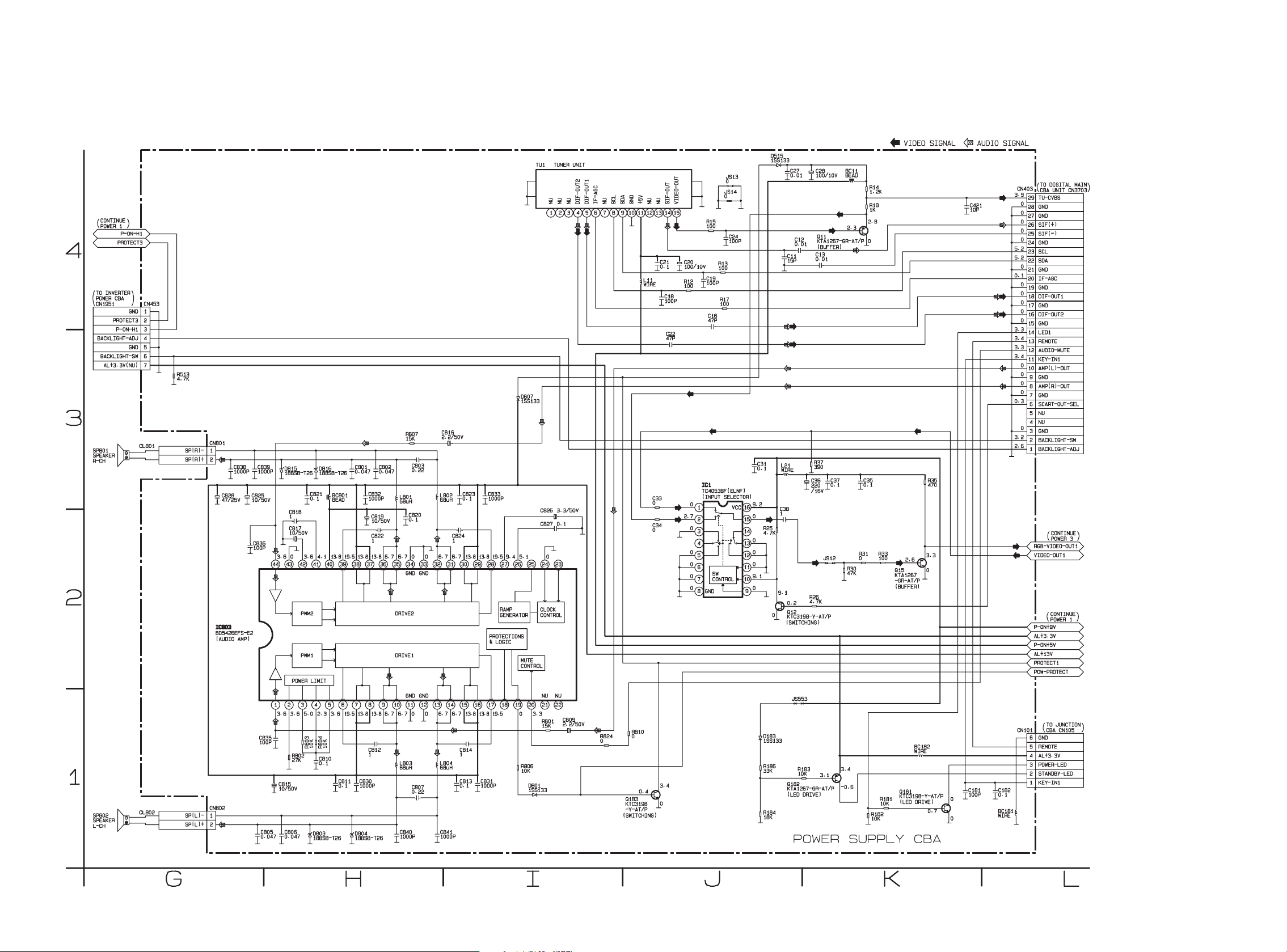

Power Supply 1 Schematic Diagram

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

9-3

A03A0SCP1

Page 35

Power Supply 2 Schematic Diagram

9-4

A03A0SCP2

Page 36

Power Supply 3 & Jack Schematic Diagram

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-5 A03A0SCP3

Page 37

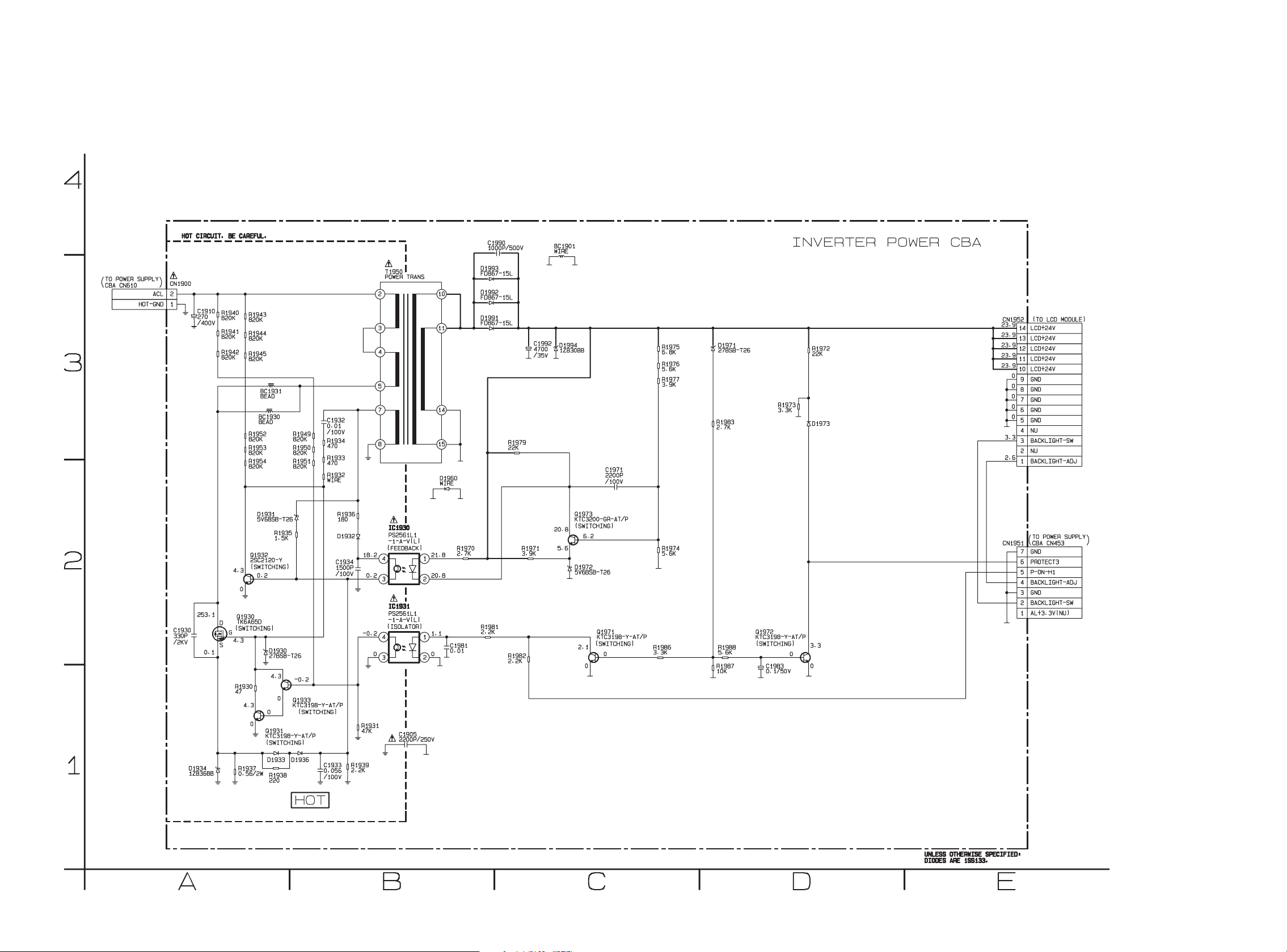

Inverter Power Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

9-6

A03A0SCINP

Page 38

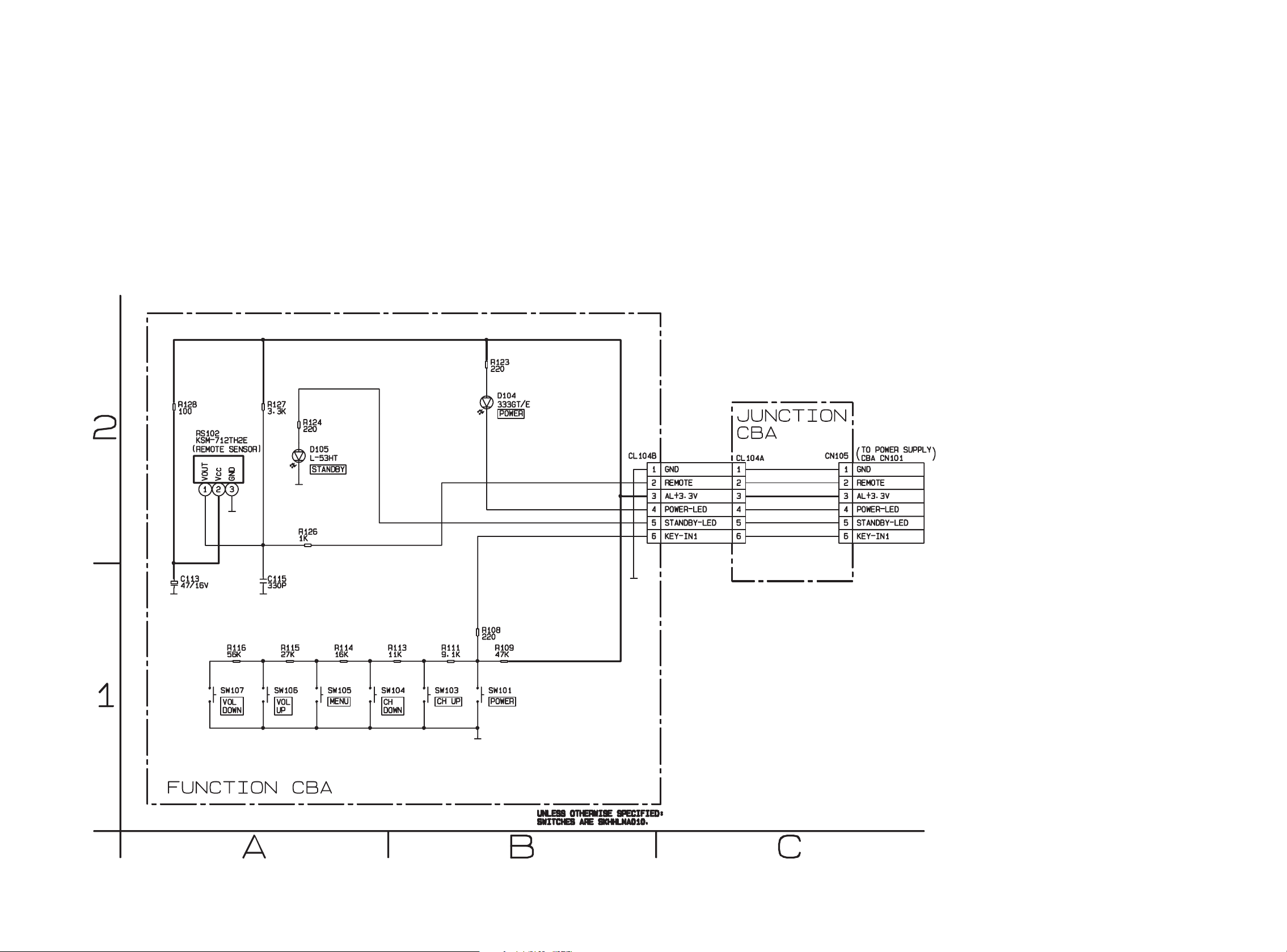

Function & Junction Schematic Diagram

9-7

A03A0SCIRF

Page 39

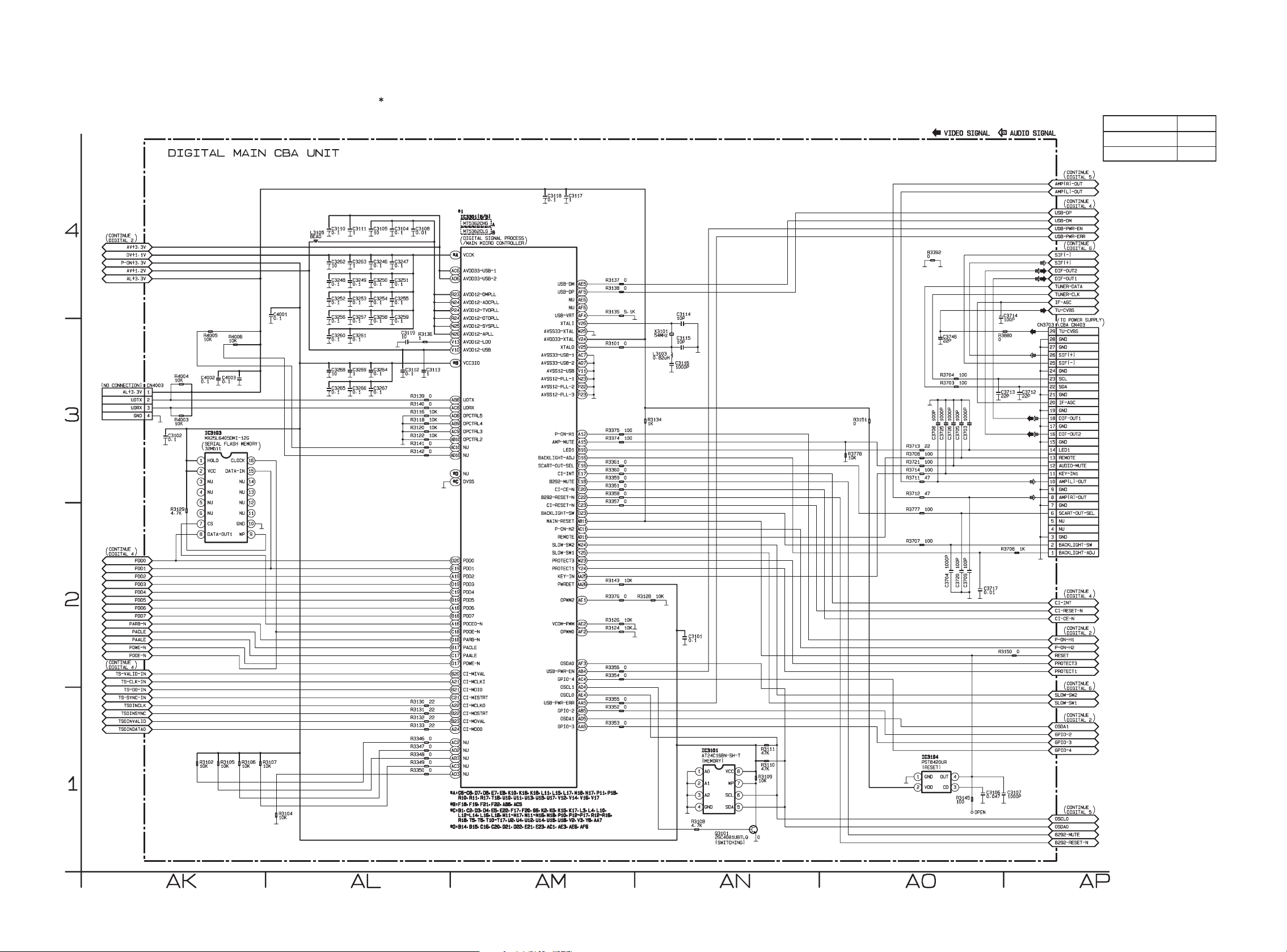

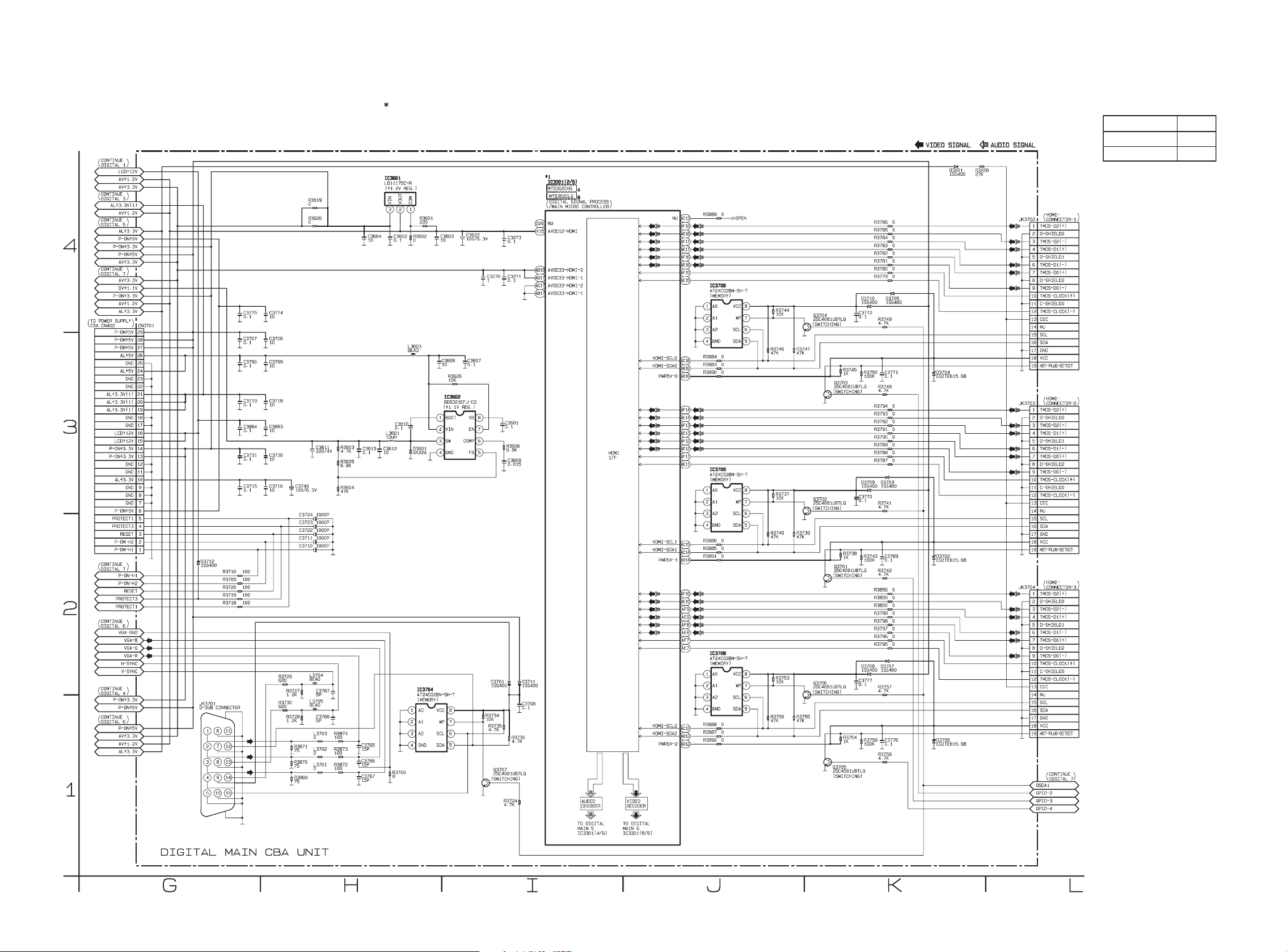

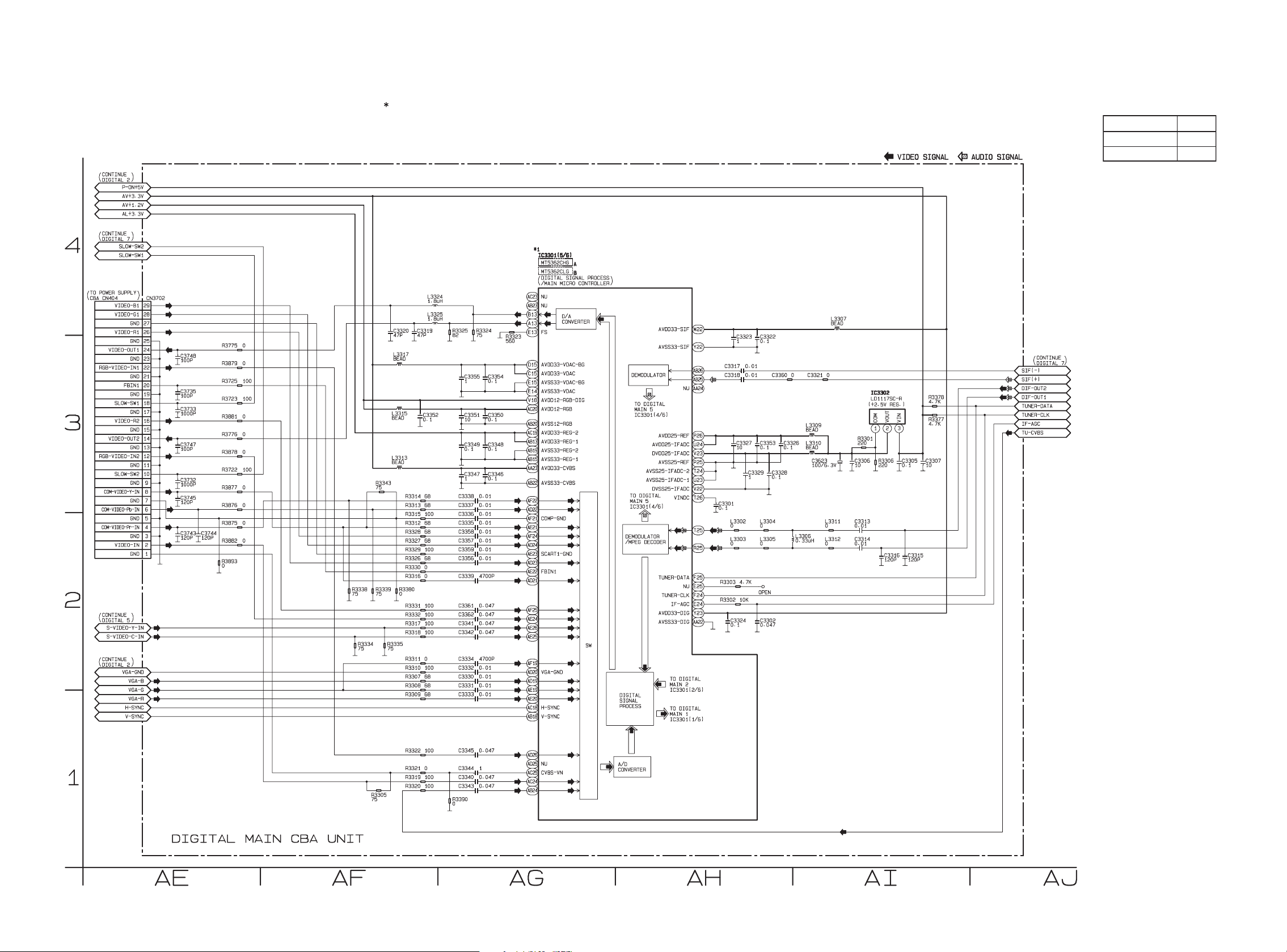

Digital Main 1 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A

LT8-M26BB

9-8

A03A0SCD1

Page 40

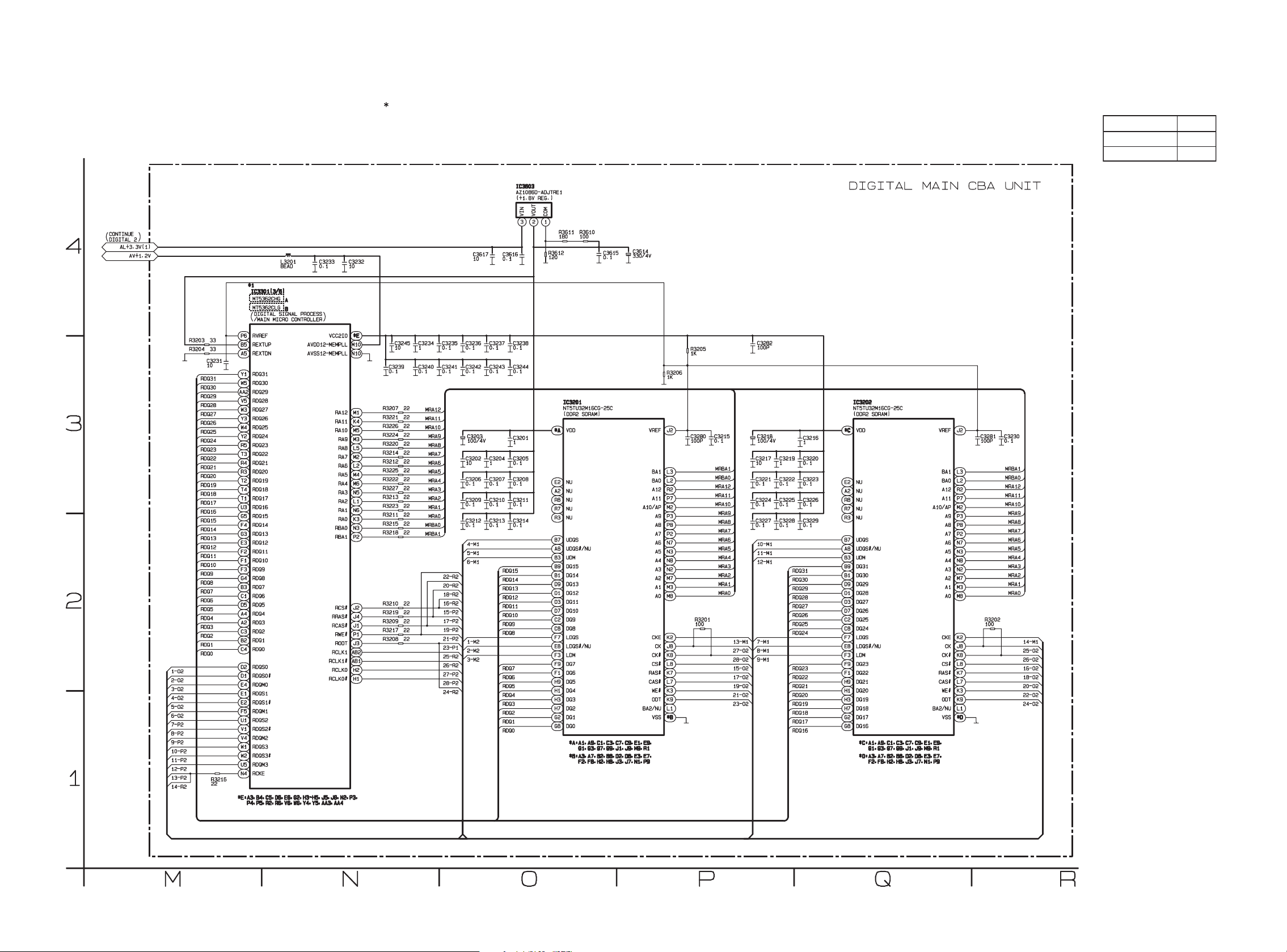

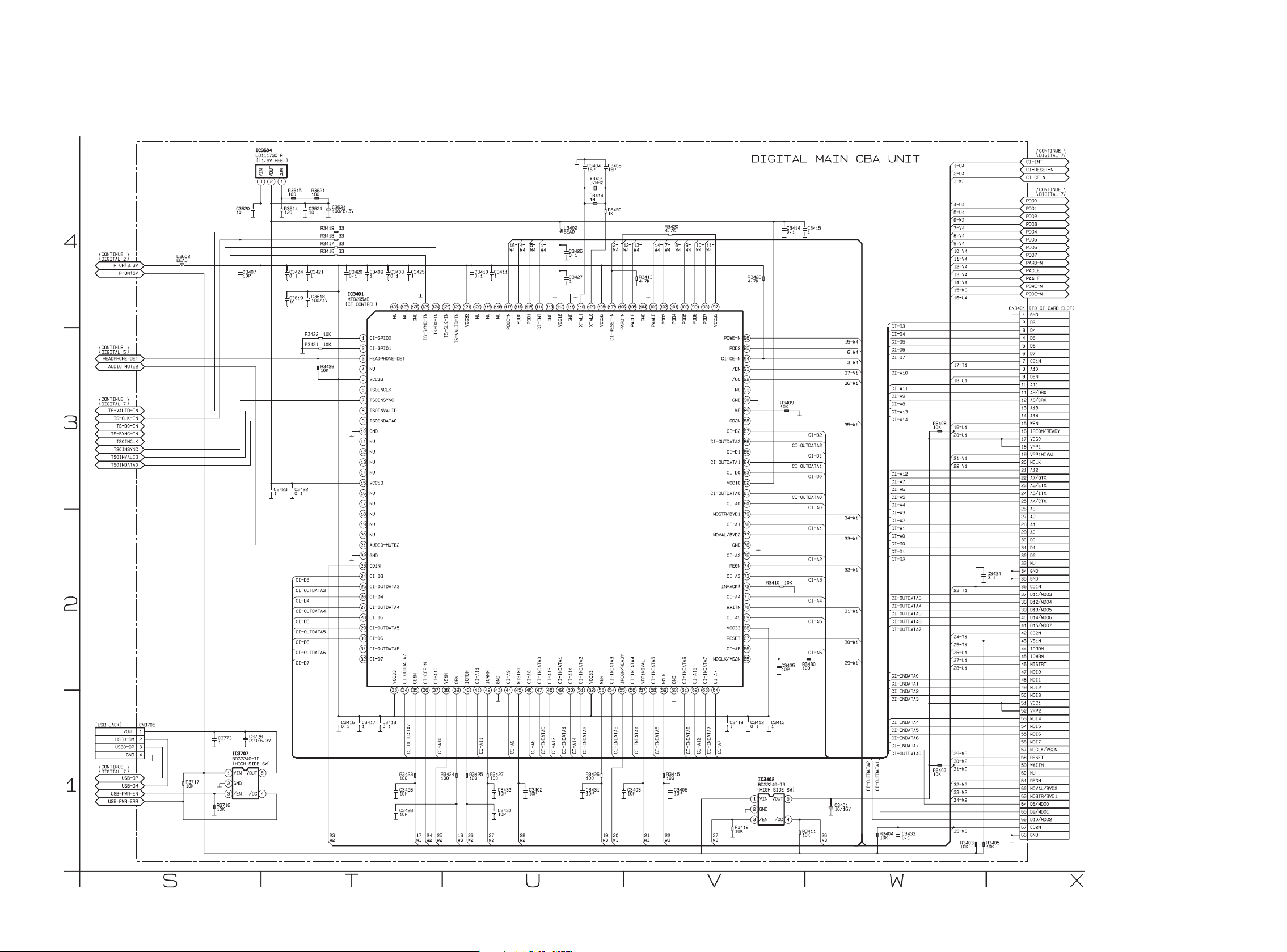

Digital Main 2 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-9

A03A0SCD2

Page 41

Digital Main 3 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-10

A03A0SCD3

Page 42

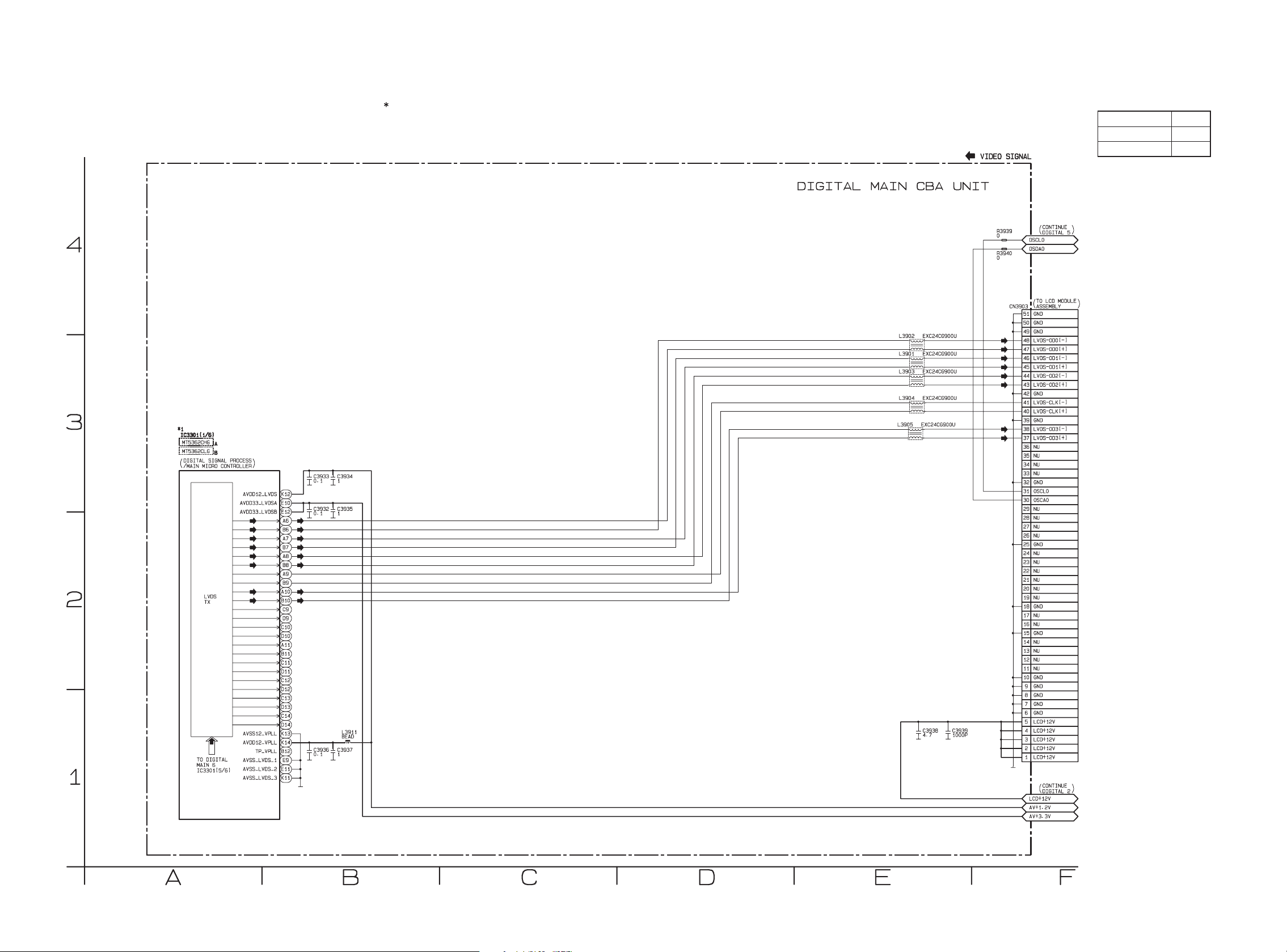

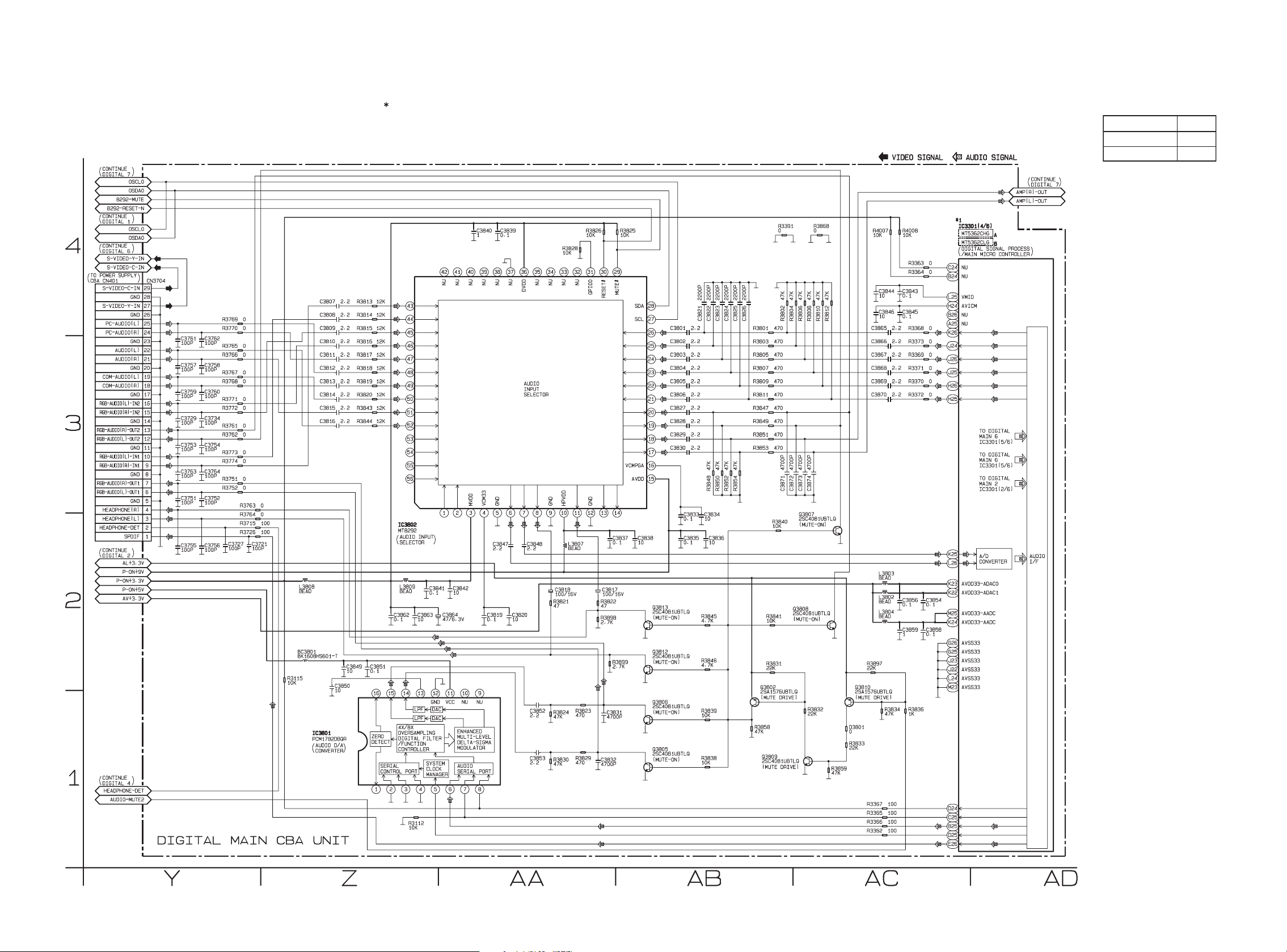

Digital Main 4 Schematic Diagram

9-11

A03A0SCD4

Page 43

Digital Main 5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-12

A03A0SCD5

Page 44

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-13

A03A0SCD6

Page 45

Digital Main 7 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A LT8-M26BB

9-14

A03A0SCD7

Page 46

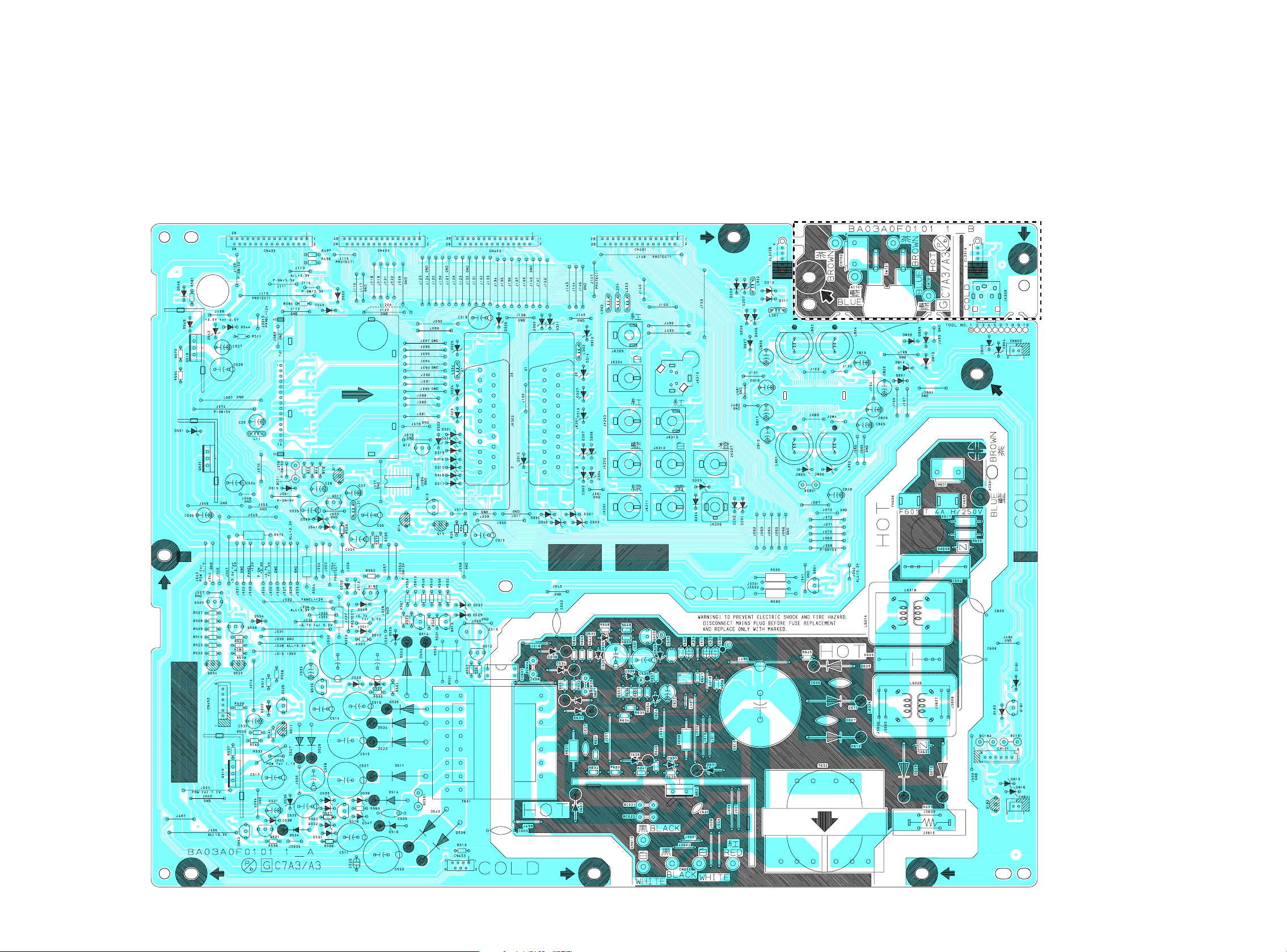

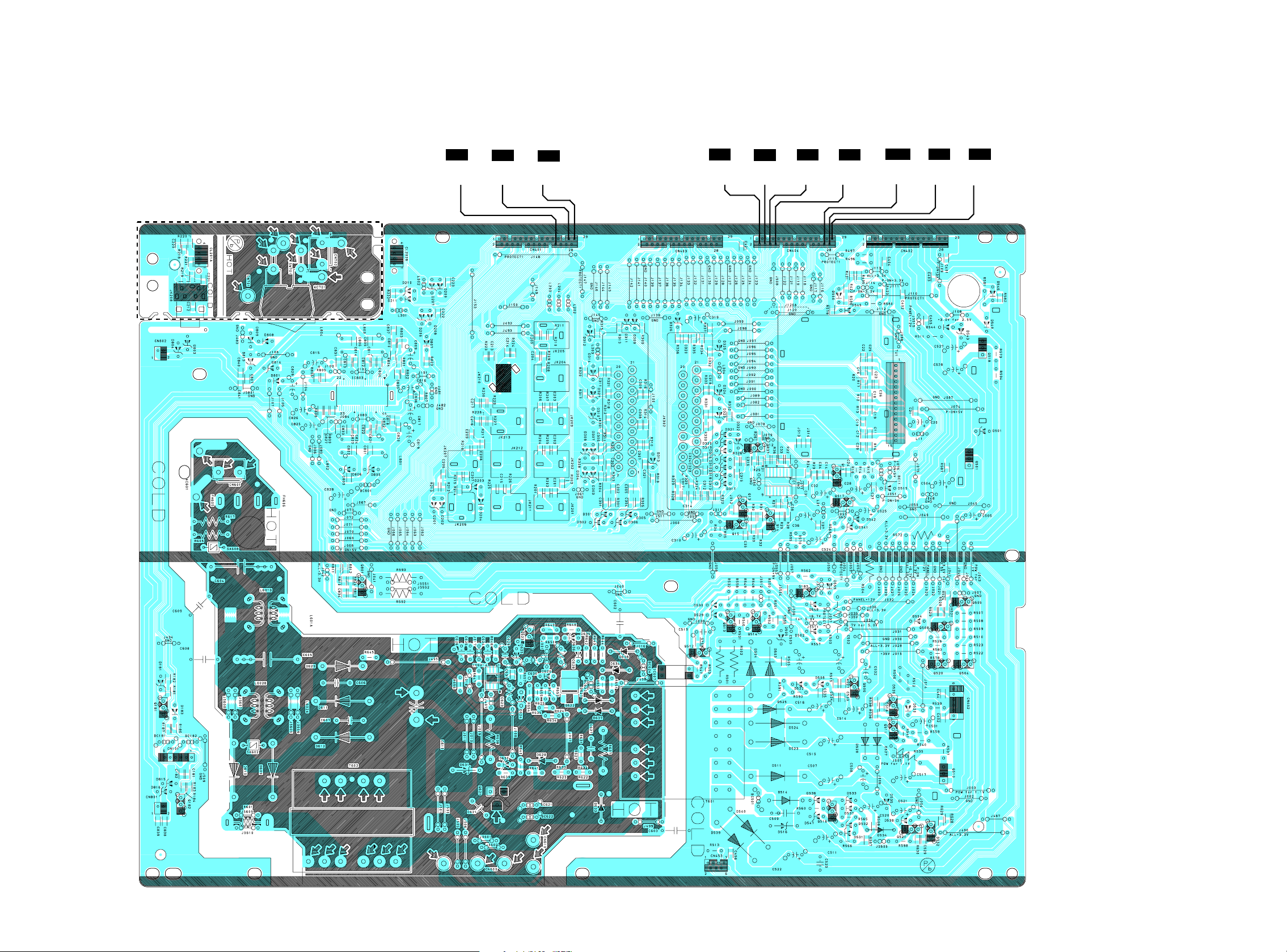

Power Supply & Jack CBA Top View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

Power Supply CBA

CAUTION !

Jack CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

9-15

BA03A0F01011

Page 47

Power Supply & Jack CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF7

PIN 22 OF CN401

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

WF2

PIN 27 OF CN401

WF3

PIN 29 OF CN401

WF1

PIN 2 OF CN404

WF6

PIN 4 OF CN404

WF5

PIN 6 OF CN404

CAUTION !

WF4

PIN 8 OF CN404

WF10

PIN 26 OF CN404

WF9

PIN 28 OF CN404

WF8

PIN 29 OF CN404

Jack CBA

Power Supply CBA

9-16

BA03A0F01011

Page 48

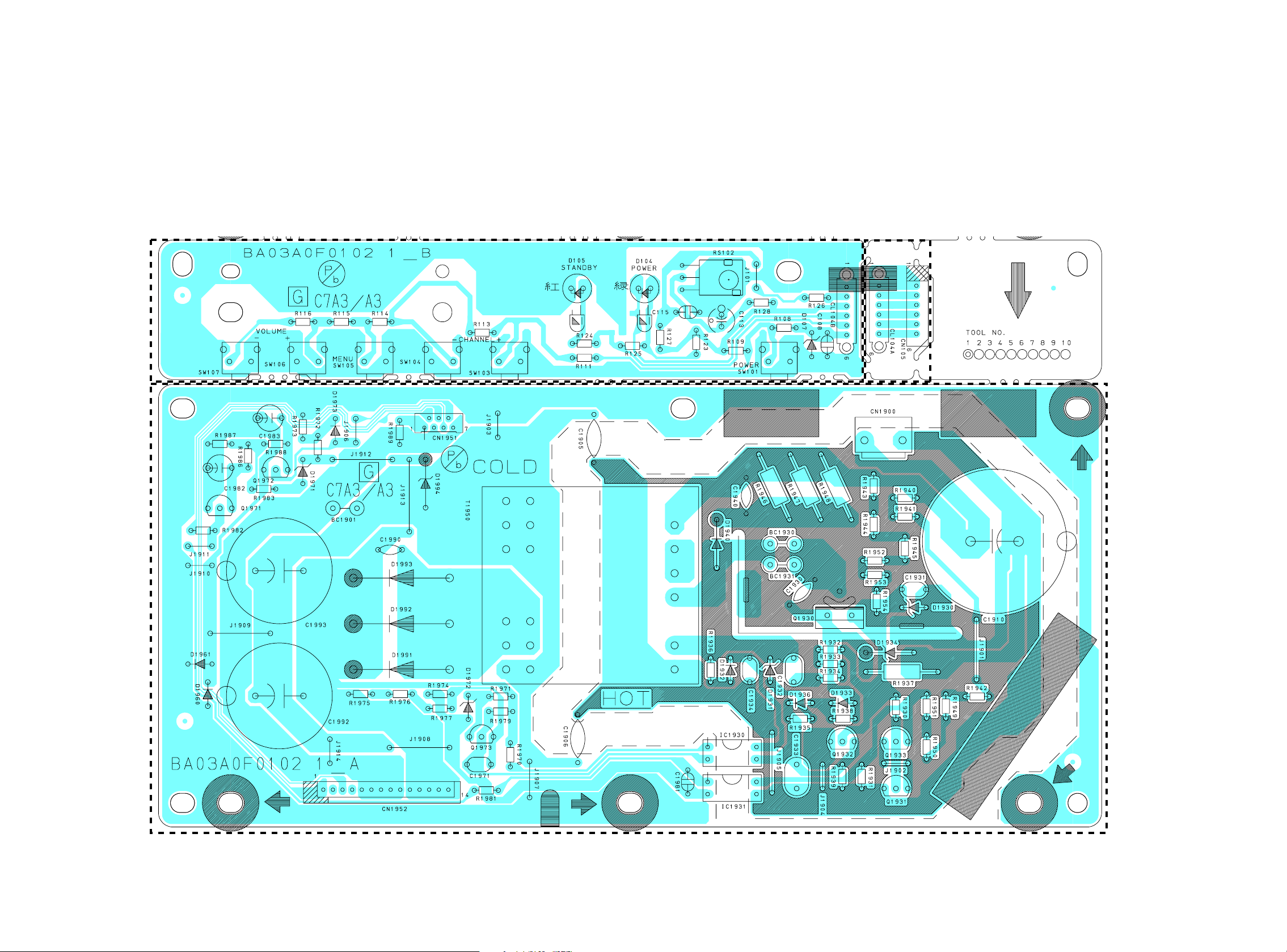

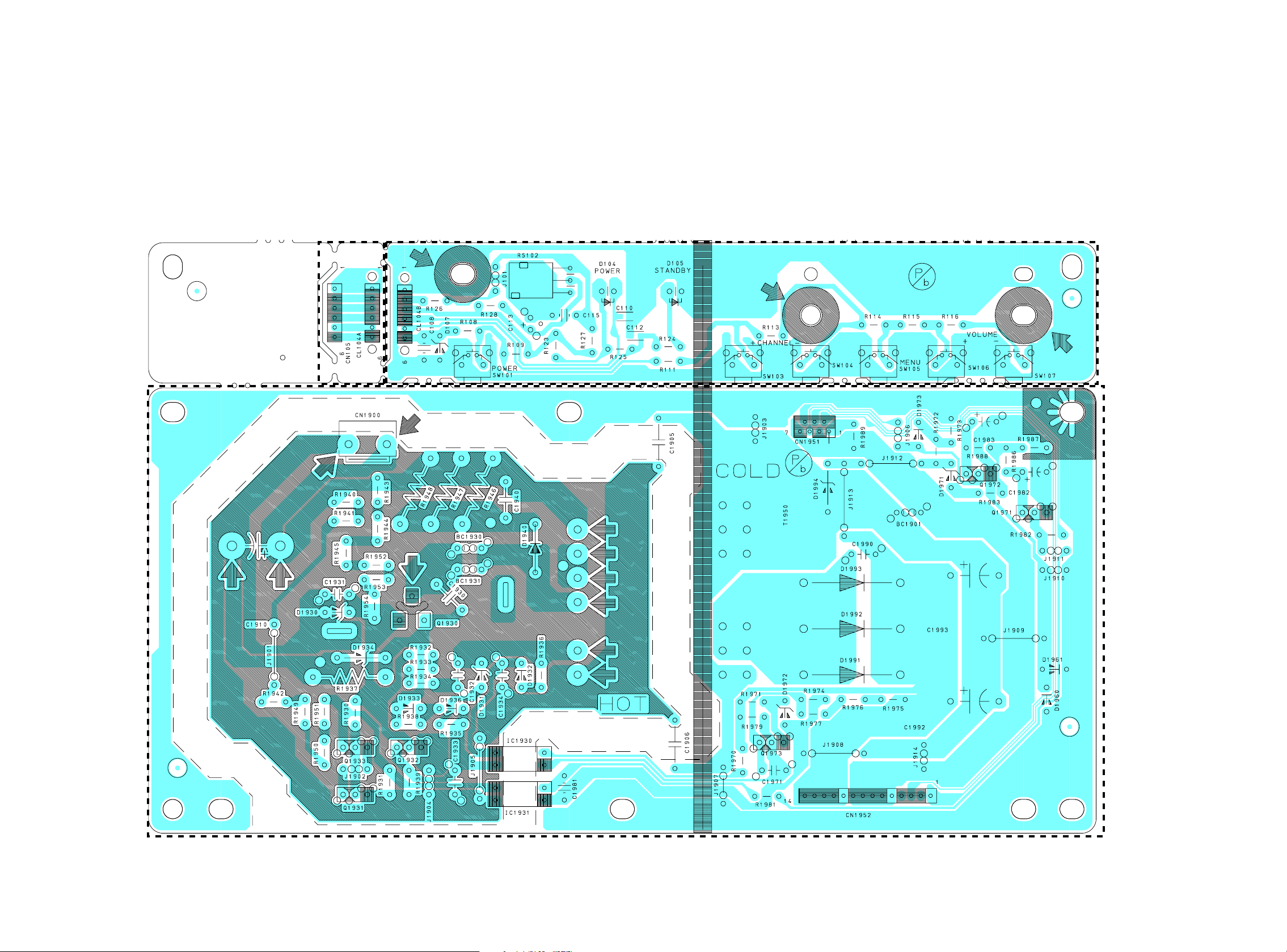

Inverter Power, Function & Junction CBA Top View

Function CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Junction CBA

Inverter Po wer CBA

9-17

BA03A0F01021

Page 49

Inverter Power, Function & Junction CBA Bottom View

Junction CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Function CBA

Inverter Power CBA

9-18

BA03A0F01021

Page 50

WAVEFORMS

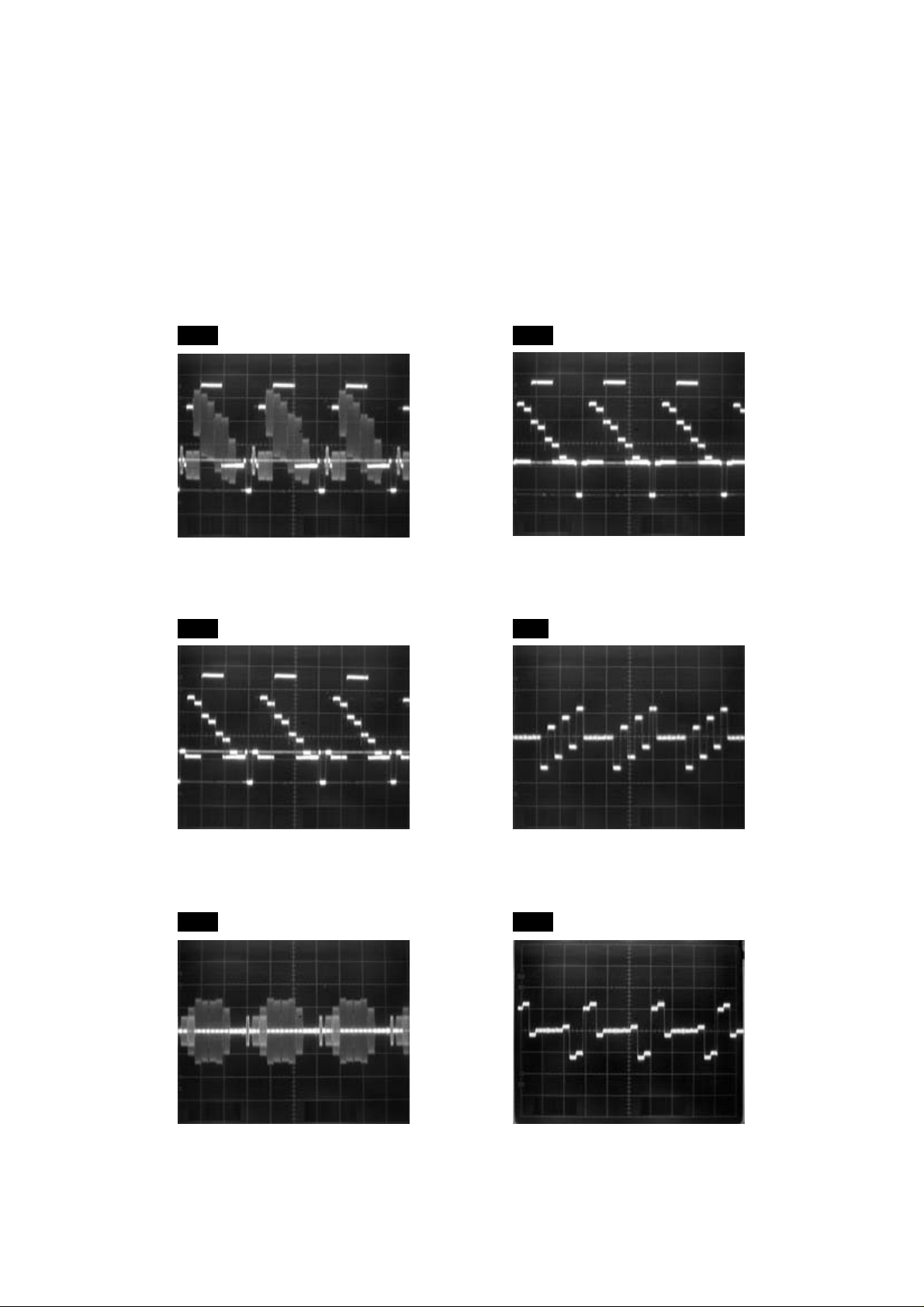

WF1 ~ WF6 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

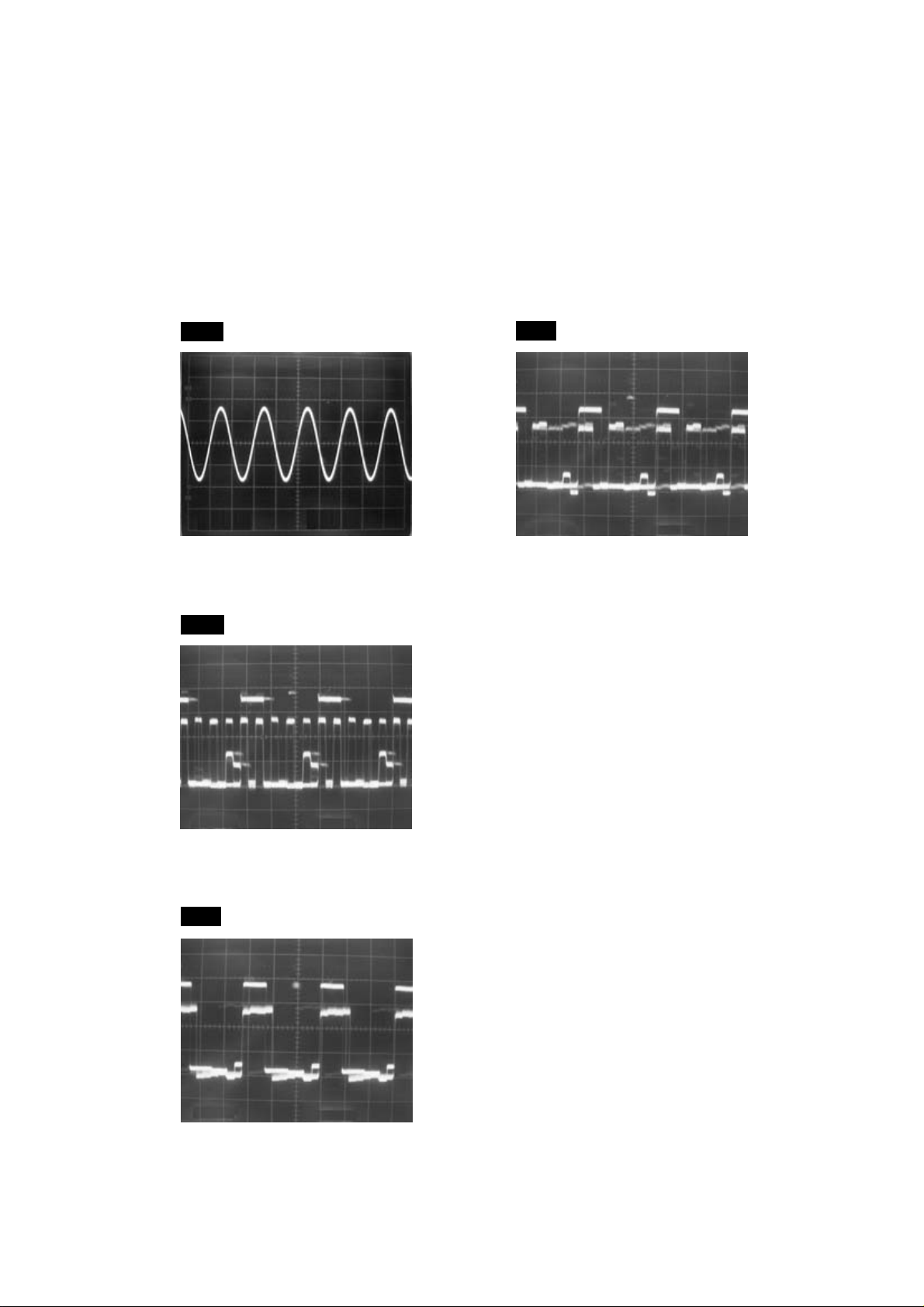

WF1

WF2

Pin 2 of CN404

VIDEO 0.2V 20µs

Pin 27 of CN401

WF4

WF5

Pin 8 of CN404

VIDEO-Y 0.2V 20µs

Pin 6 of CN404

S-VIDEO-Y 0.2V

WF3

Pin 29 of CN401

S-VIDEO-C 0.2V

VIDEO-Pb 0.2V 20µs

WF6

Pin 4 of CN404

VIDEO-Pr 0.2V 20µs

10-1

LC8PWF

Page 51

WF7 ~ WF10 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF7

WF8

Pin 22 of CN401

AUDIO(L) 0.5V 0.5ms

Pin 29 of CN404

WF10

Pin 26 of CN404

VIDEO-R 0.5V

VIDEO-B 0.5V

WF9

Pin 28 of CN404

VIDEO-G 0.5V

20µs

10-2

LC8PWF

Page 52

CN3903CL3903

LCD+12V

HDMI-

214

LCD+12V

CONNECTOR-1

735

GND

LCD+12V

GND

HDMI-

CONNECTOR-2

101513

NUNUNU

GND

CL1952CL453

BACKLIGHT-ADJ

CN1952

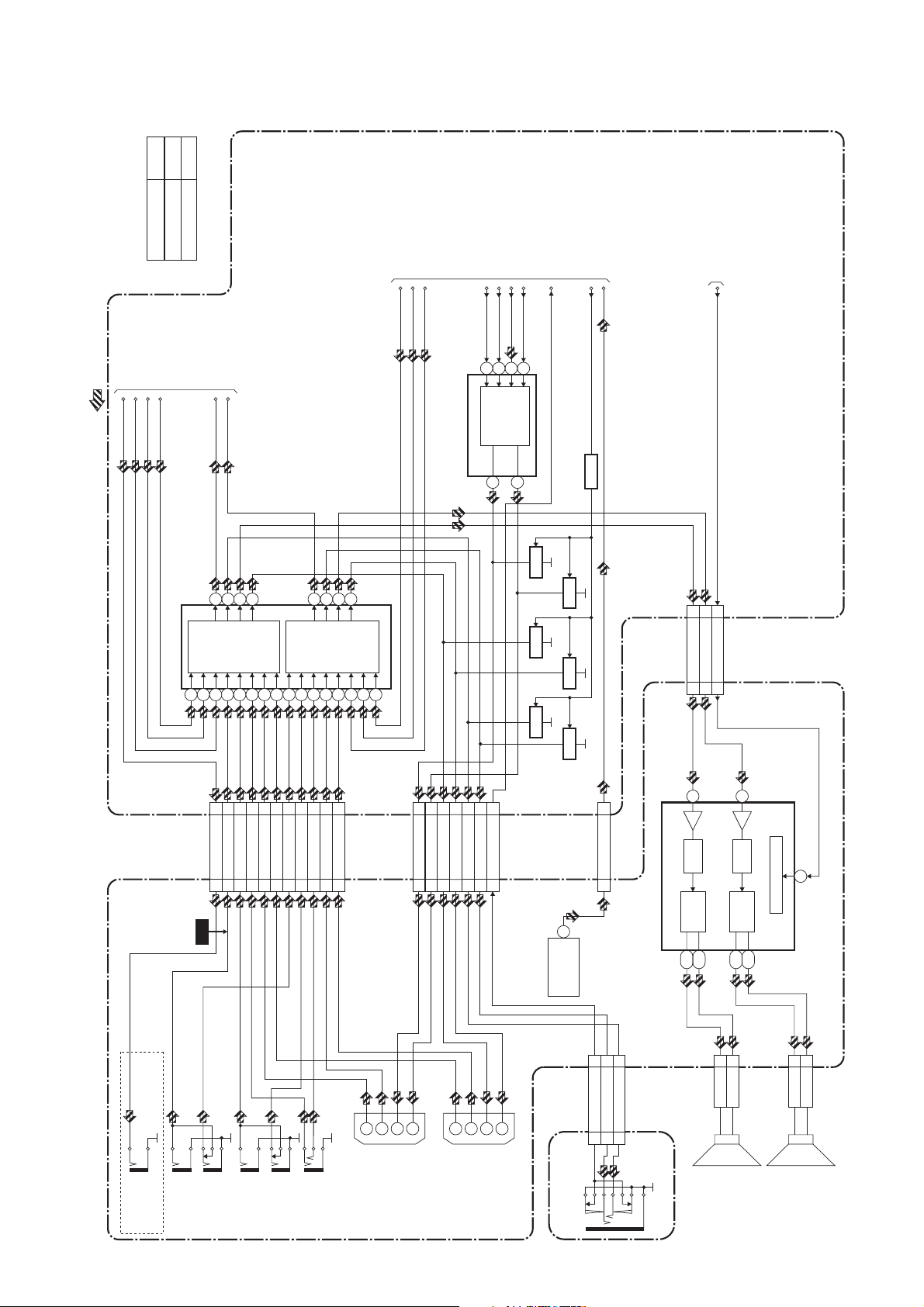

WIRING DIAGRAMS

HDMI-

GND

BACKLIGHT-SWNUGND

CONNECTOR-3

161214

GND

NUNUNUNUNU

GND

LCD+24V

GND

D-SUB

CONNECTOR

LCD+24V

LCD+24V12LCD+24V13LCD+24V

25NU26NU27NU28NU29

GND

CARD SLOT

OSCA0

32NU33NU34NU35NU36

GND

OSCL0

USB JACK

39404142434445464748495051

GND

LVDS-CLK(-)

LVDS-OD3(-)

LVDS-OD3(+)

LVDS-CLK(+)

LVDS-OD2(-)

LVDS-OD2(+)

LVDS-OD1(+)

LVDS-OD1(-)

GND

LVDS-OD0(-)

LVDS-OD0(+)

GND

Model Mark

LT8-M26BB

Comparison Chart of

LCD MODULE ASSEMBLY

LH8-M26BB A

Models and Marks

DIGITAL MAIN CBA UNIT

CN1900

ACL

HOT-GND

CN610

POWER SUPPLY CBA

CN401

CL401CL403

HEADPHONE-DET

SPDIF

CN3704

TU1 TUNER UNIT

HEADPHONE(L)

RGB-AUDIO(L)-OUT1

HEADPHONE(R)

GND

RGB-AUDIO(R)-OUT1

321

GND

RGB-AUDIO(R)-IN1

CN1951

GND

CN453

101513

RGB-AUDIO(L)-IN1

GND

RGB-AUDIO(L)-OUT2

101513

P-ON-H1

BACKLIGHT-ADJ

PROTECT3

GND

537

161214

RGB-AUDIO(R)-OUT2

GND

RGB-AUDIO(R)-IN2

RGB-AUDIO(L)-IN2

161214

AL+3.3V(NU)

BACKLIGHT-SW

GND

COM-AUDIO(R)

192422

AUDIO(R)

COM-AUDIO(L)

GND

192422

AUDIO(L)

GND

SP801

SPEAKER

CN801

SP(R)+

252123

PC-AUDIO(L)

PC-AUDIO(R)

252123

R-CH

CL801

SP(R)-

262728

GND

262728

S-VIDEO-Y-IN

GND

INVERTER

POWER CBA

SP802

SPEAKER

CN802

SP(L)+

CN404

CL404

VIDEO-IN

GND

S-VIDEO-C-IN

CN3702

L-CH

CL802

SP(L)-

GND

321

-IN Pr

COM-VIDEO-Pb-IN

GND

COM-VIDEO-

GND

AC CORD

AC601

101513

-IN Y

COM-VIDEO-

GND

SLOW-SW2

101513

GND

RGB-VIDEO-IN2

VIDEO-OUT2

CN201A

CN202B

161214

GND

VIDEO-R2

161214

GND

123

HEADPHONE

JACK

234

HEADPHONE(L)

HEADPHONE(R)

HEADPHONE-DET

192422

GND

SLOW-SW1

GND

FBIN1

192422

JACK CBA

GND

RGB-VIDEO-IN1

GND

VIDEO-OUT1

CL104B

13245

REMOTE

GND

13245

CL104A

CN105

GND

REMOTE

CN101

262728

GND

VIDEO-R1

262728

AL+3.3V

4 AL+3.3V

GND

VIDEO-G1

POWER-LED

STANDBY-LED

KEY-IN1

POWER-LED

STANDBY-LED

KEY-IN1

VIDEO-B1

FUNCTION CBA

JUNCTION CBA

CN3703CN403

BACKLIGHT-ADJNUNU

BACKLIGHT-SW

2 2

COMPONENT

GND

-Y-IN

513

SCART-OUT-SEL

GND

AMP(R)-OUT

513

COMPONENT

-Pb-IN

COMPONENT

GND

AMP(L)-OUT

-Pr-IN

141012

KEY-IN1

AUDIO-MUTE

REMOTE

LED1

141012

COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

GND

DIF-OUT2

172220

GND

DIF-OUT1

172220

S-VIDEO

-IN

GND

IF-AGC

VIDEO-IN

GND

SDA

AUDIO(L)

-IN

231921

SCL

231921

2524262728

GND

SIF(-)

2524262728

AUDIO(R)

-IN

SIF(+)

GND

PC-

AUDIO-IN

11-1

GND

TU-CVBS

CN3701CN402

CL402

P-ON-H1

DIGITAL

AUDIO-OUT

(COAXIAL)

RESET

P-ON-H2

PROTECT3

PROTECT1

P-ON+9V

GND

735

GND

101412

GND

AL+3.3V

101513

SCART

JACK 1

GND

P-ON+3.3V

GND

P-ON+3.3V

LCD+12V

161214

SCART

JACK 2

GND

AL+3.3V(1)

192422

AL+3.3V(1)

GND

GND26AL+5V27P-ON+5V28P-ON+5V

AL+5V

262728

P-ON+5V

A03A0WI

Page 53

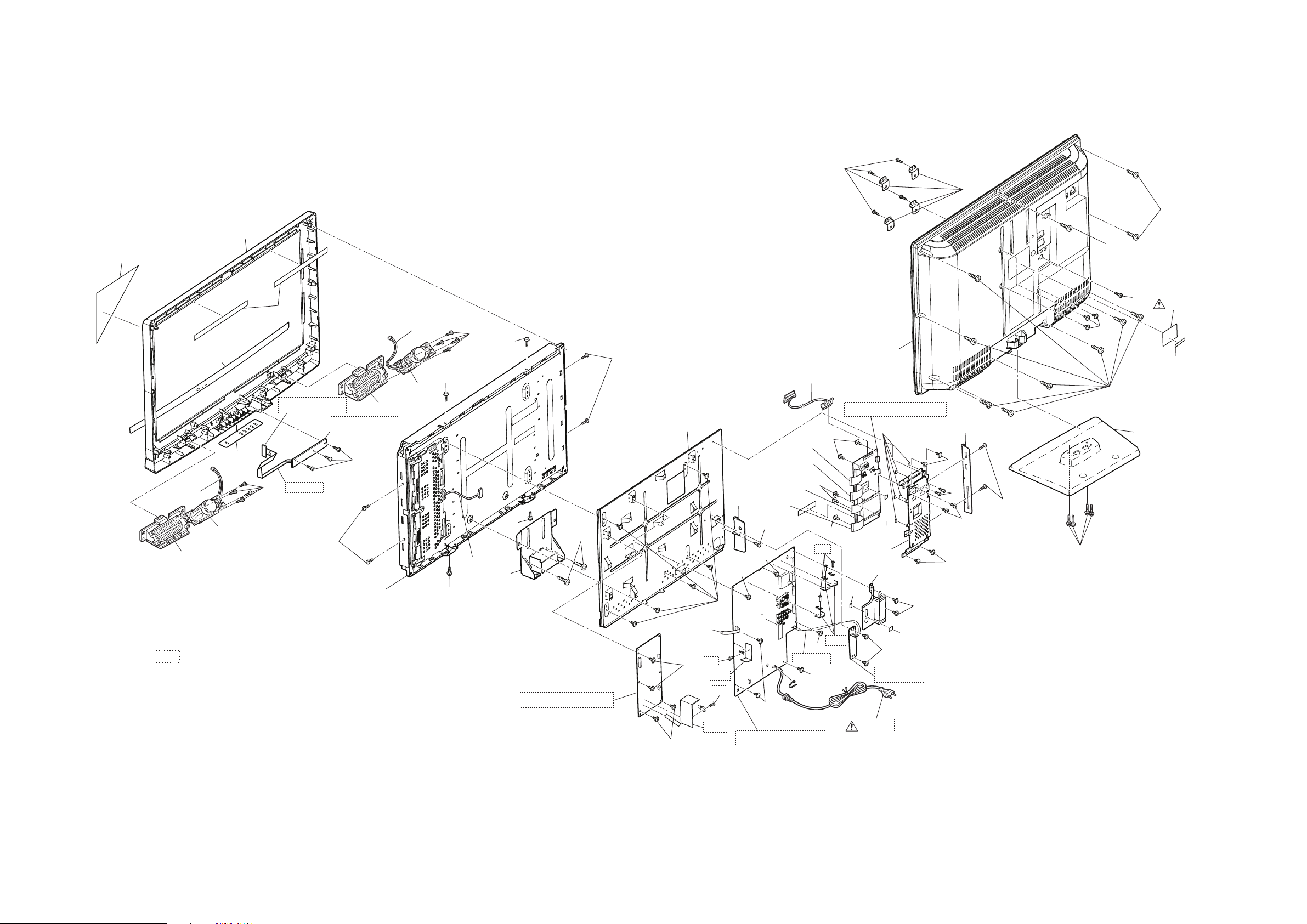

Cabinet

EXPLODED VIEWS

A10

CL801

SP801

B18

Junction CBA

CL104A

Function CBA

L13

LCD-1

CL802

SP802

L12

L13

CL1952

L12

L13

CL403

CL401

CL3903

CL402

CL404

Digital Main CBA Unit

X3301

B17

A11

L10

Stand Assembly

See Electrical Parts List for parts with this mark.

Inverter Power CBA

CL453

B-11

CL201A

Power Supply CBA

B10

AC601

B19

Jack CBA

12-1 A03A0CEX

Page 54

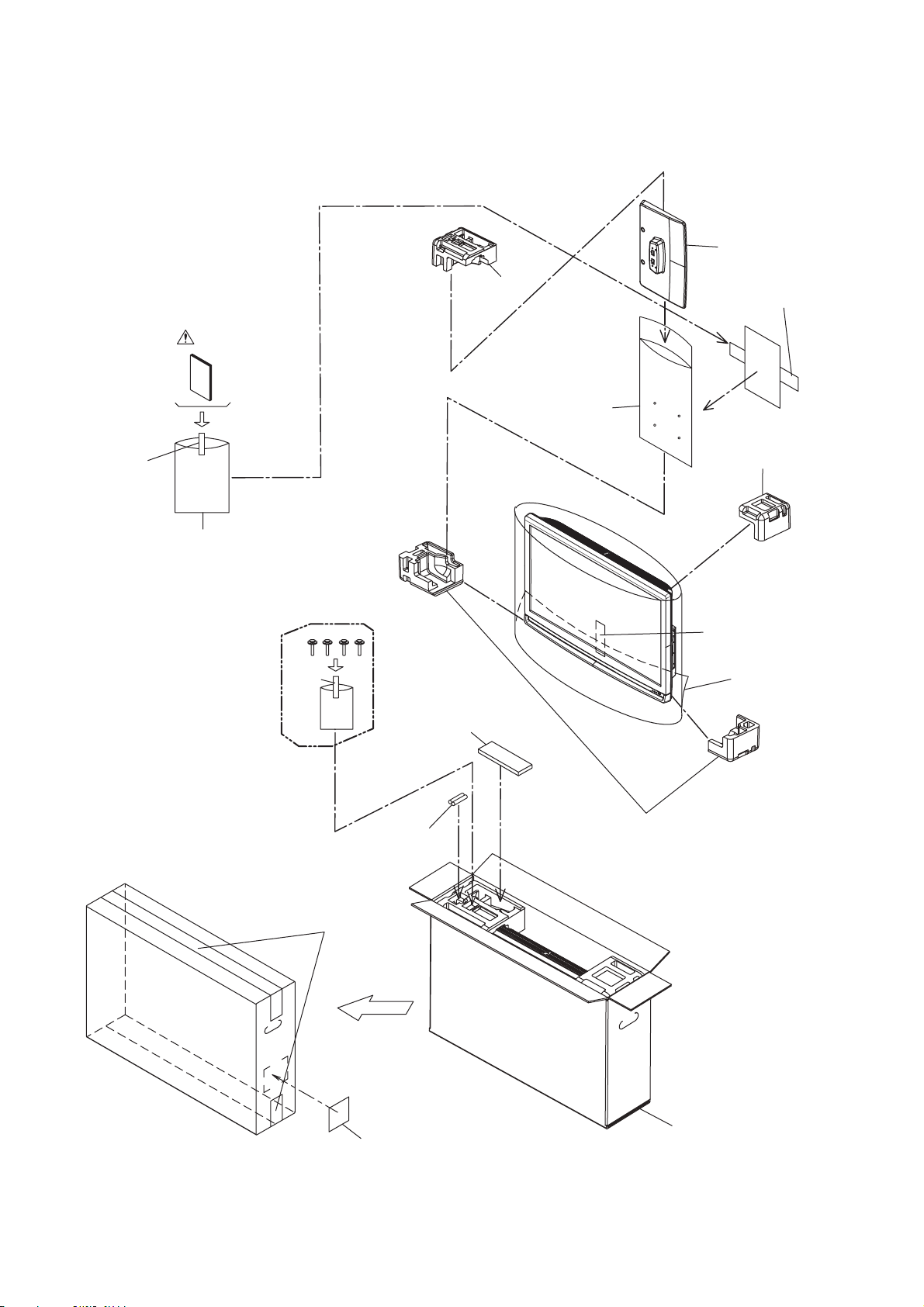

Packing

Some Ref. Numbers are not in sequence.

Tape

Stand Assembly

Packing Tape

FRONT

Packing Tape

FRONT

12-2 A03A0PEX

Page 55

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A

LT8-M26BB B

Ref. No. Mark Description Part No.

STAND ASSEMBLY A03A0EZ 1ESA23453

A1 FRONT CABINET A03A0EP 1EM024625

A2 CONTROL PLATE A91F0UH 1EM325799

A3 A DECORATION PLATE A03A0EP 1EM123953

A3 B DECORATION PLATE A03A1EP 1EM123973

A4 A REAR CABINET A03A0EP 1EM024627

A4 B REAR CABINET A03A1EP 1EM024645

A6 JACK HOLDER(HP) A03A0EP 1EM326877

A10 A POP LABEL A93F0FP ----------

A10 B POP LABEL A93F1EP ----------

A11 JACK HOLDER A93F0FP 1EM123494A

B1 SHIELD BOX A03A0EP 1EM223605

B2 TUNER SHIELD A03A0EP 1EM223604

B3 STAND HOLDER 26W A03A0EP 1EM223603

B4 WALL MOUNT BRACKET A84N0UH 1EM323797

B5 SPEAKER HOLDER (L) A94F0UH 1EM123233

B6 SPEAKER HOLDER (R) A94F0UH 1EM123234

B7 PCB HOLDER A03A0EP 1EM123954

B17 GASKET A8AF0UH 1EM425861

B18 CLOTH(10X180XT0.5) L0336JG 0EM408827

CL401 WIRE ASSEMBLY 29PIN FFC 29PIN

CL402 WIRE ASSEMBLY 29PIN FFC 29PIN

CL403 WIRE ASSEMBLY 29PIN FFC 29PIN

CL404 WIRE ASSEMBLY 29PIN FFC 29PIN

CL453 WIRE ASSEMBLY 7PIN FFC 7PIN/50MM WX1A03A0-102

CL801 WIRE ASSEMBLY 2PIN 2PIN/70MM/

CL802 WIRE ASSEMBLY 2PIN 2PIN/150MM/

CL1952 WIRE ASSEMBLY 14PIN 14PIN/110MM/

CL3903 WIRE ASSEMBLY 51-30PIN LVDS

L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L6 ASSEMBLED SCREW ( D9 M3X6 )

L8 S-TIGHT SCREW M3X6 BIND

L9 HEX SCREW #4-40 7MM 1EM430139

SP801 SPEAKER MAGNETIC S0412F08 or DSD1609XQ001

SP802 SPEAKER MAGNETIC S0412F08 or DSD1609XQ001

X3301 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003

50MM

AWG24/BLAC

AWG24/BLA

AWG24/RE

AWG30/BLACK WHITE BL

A71F0UH

HEAD+BLACK

SPEAKER MAGNETIC YDP411-17FN DS1610EFU001

PACKING

S5 SET BAG L0301UB 1EM320014B

WX1A94F0-101

WX1A03A0-202

WX1A03A0-203

WX1A03A0-201

WX1A03A0-401

1EM424392B

GBHS3060

Ref. No. Mark Description Part No.

S7 STAND BAG A94F0UH 1EM428757

ACCESSORY

X3 REMOTE CONTROL NF036RD 170/

Ref. No. Mark Description Part No.

A8! A RATING LABEL A03A0EP ----------

A8! B RATING LABEL A03A1EP ----------

B19 CLOTH(B) L5201U0 15X10X1.0T 0EM400076

L1 SCREW P-TIGHT M4X14 BIND

L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L5 DOUBLE SEMS SCREW M4X6 M4X6 FPJ34060

L6 ASSEMBLED SCREW ( D9 M3X6 )

L10 SCREW S-TIGHT 3X8 WASHER

L12 DOUBLE SEMS SCREW M4X12 + BLAK FPH34120

L13 SCREW S-TIGHT M4X5 BIND HEAD+ GBJS4050

LCD-1 LCD MODULE T260XW02 VP UDULCD07A001

ECPLC6.501/NF036

HEAD+BLK

A71F0UH

HEAD+BLAC

NF036RD

GBHP4140

1EM424392B

GCHS3080

PACKING

S1 A CARTON A03A0EP 1EM430098

S1 B CARTON A03A1EP 1EM430100

S2 STYROFOAM TOP A03A0EP 1EM024705

S3 STYROFOAM BOTTOM A03A0EP 1EM024706

S6 SERIAL NO. LABEL L9750UA ----------

ACCESSORIES

L7 STAND SCREW KIT A93F0FP 1ESA20855

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2! A OWNERS MANUAL(WE-10) A03A0EP or 1EMN25679

! A OWNERS MANUAL(PL-7) A03A0EP 1EMN25501

X2! B OWNERS MANUAL(WE-10) A03A1EP or 1EMN25680

! B OWNERS MANUAL(PL-7) A03A1EP 1EMN25561

X4 BATTERY R6DB/2PA XB0M601MS003

20091214 13-1 A03A0/A1EL

Page 56

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Comparison Chart of Models and Marks

Model Mark

LH8-M26BB A

LT8-M26BB B

DIGITAL MAIN CBA UNIT

Ref. No. Mark Description Part No.

ABDIGITAL MAIN CBA UNIT

DIGITAL MAIN CBA UNIT

A03A0MMA-001 A03A1MMA-001

POWER SUPPLY ASSEMBLY

Ref. No. Mark Description Part No.

ABPOWER SUPPLY ASSEMBLY

POWER SUPPLY ASSEMBLY Consists of the following:

POWER SUPPLY CBA JACK CBA

POWER SUPPLY CBA

Ref. No. Mark Description Part No.

POWER SUPPLY CBA Consists of the following:

CAPACITORS

C11 CHIP CERAMIC CAP. CH J 15pF/50V CHD1JJ3CH150

C12 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C13 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C16 CHIP CERAMIC CAP.(1608) CH J 47pF/

C18 CHIP CERAMIC CAP.(1608) CH J 100pF/

C19 CHIP CERAMIC CAP.(1608) CH J 100pF/

C20 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C21 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C22 CHIP CERAMIC CAP.(1608) CH J 47pF/

C24 CHIP CERAMIC CAP.(1608) CH J 100pF/

C27 CHIP CERAMIC CAP.(1608) B K 0.01µF/

C28 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C31 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C33 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

50V

25V

50V

25V

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

A03A0MPW-001 A03A1MPW-001

----------

CHD1JK30B103

CHD1JJ3CH470

CHD1JJ3CH101

CHD1EZ30F104

CHD1JJ3CH470

CHD1JJ3CH101

CHD1JK30B103

CHD1EZ30F104

Ref. No. Mark Description Part No.

C34 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C35 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C36 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221

C37 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C38 CHIP CERAMIC CAP.(1608) B K 1µF/10V CHD1AK30B105

C181 CHIP CERAMIC CAP.(1608) CH J 100pF/

C182 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C204 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C205 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C206 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C207 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C208 A CHIP CERAMIC CAP.(1608) CH J 33pF/

C209 A CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C213 CHIP CERAMIC CAP.(1608) CH J 100pF/

C214 CHIP CERAMIC CAP.(1608) CH J 100pF/

C215 CHIP CERAMIC CAP.(1608) CH J 100pF/

C216 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C217 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C222 CHIP CERAMIC CAP.(1608) B K 1000pF/

C223 CHIP CERAMIC CAP.(1608) B K 1000pF/

C301 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C302 CHIP CERAMIC CAP.(1608) CH J 100pF/

C303 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C304 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C305 CHIP CERAMIC CAP.(1608) CH J 100pF/

C306 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C307 CHIP CERAMIC CAP.(1608) CH J 33pF/

C308 CHIP CERAMIC CAP.(1608) CH J 33pF/

C309 CHIP CERAMIC CAP.(1608) CH J 33pF/

C310 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C311 CHIP CERAMIC CAP.(1608) CH J 33pF/

C312 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C313 CHIP CERAMIC CAP.(1608) CH J 100pF/

C314 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C315 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

C316 CHIP CERAMIC CAP.(1608) CH J 100pF/

C317 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C318 CHIP CERAMIC CAP.(1608) CH J 33pF/

C319 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C320 CHIP CERAMIC CAP.(1608) CH J 33pF/

C323 CHIP CERAMIC CAP.(1608) B K 3300pF/

C324 CHIP CERAMIC CAP.(1608) B K 3300pF/

C401 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C402 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

50V

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

50V

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

50V

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

50V

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

50V

25V

CHD1EK30B104

CHD1JJ3CH101

CHD1JZ30F104

CHD1JJ3CH330

CHD1JJ3CH101

CHD1JK30B102

CHD1JJ3CH101

CHD1JJ3CH330

CHD1JJ3CH101

CHD1JJ3CH330

CHD1JK30B332

CHD1EZ30F104

20091214 14-1 A03A0/A1EL

Page 57

Ref. No. Mark Description Part No.

C403 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C404 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C421 CHIP CERAMIC CAP.(1608) CH D 10pF/

C455 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C503 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

C504 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C505 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

C507 CAP ELE STD-85 4700µF 6.3V SL or CE0KMZNDL472

C508 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102

C509 CERAMIC CAP. 1500pF/2KV or CA3D152PAN04

C511 ELECTROLYTIC CAP. 220µF/50V M or CE1JMZADL221

C514 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C515 ELECTROLYTIC CAP 3300µF/10V or CE1AMZNDL332

C516 ELECTROLYTIC CAP. 2200µF/10V M or CE1AMZNDL222

C517 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102

C518 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C519 POLYESTER FILM CAP. (PB FREE)

C521 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C522 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

C524 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C525 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C527 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470

C528 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102

C529 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

C531 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C533 CHIP CERAMIC CAP.(1608) B K 0.22µF/

C534 CHIP CERAMIC CAP.(1608) B K 0.22µF/

C535 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C604! CAP METALIZED FILM 0.47µF/300V K

! CAP METALIZED FILM 0.47µF/250V/K/

C605! CAP METALIZED FILM 0.47µF/300V K

! CAP METALIZED FILM 0.47µF/250V/K/

C606 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C607 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C608! CAP CERAMIC 680pF/250V KX or CA2E681MR100

! SAFETY CAP. 680pF/250V M or CCN2HMN0E681

! SAFETY CAP. 680pF/250 CCN2EKA0B681

C610 CAP ELECTROLYTIC 270µF/400V/M/30/

C621 CERAMIC CAP. 470pF/2KV or CA3D471PAN04

C623 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

25V

50V or

CHIP CERAMIC CAP.(1608) CH J 10pF/ 50V

25V

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102

ELECTROLYTIC CAP. 4700µF/6.3V SM CE0KMZPDL472

CERAMIC CAP RB 1500pF/2KV or CA3D152TE006

CERAMIC CAP. BL 1500pF/2KV CA3D152XF003

ELECTROLYTIC CAP 220µF/50V M CE1JMZPDL221

ELECTROLYTIC CAP. 3300µF/10V M CE1AMZPDL332

ELECTROLYTIC CAP. 2200µF/10V M CE1AMZPDL222

50V

0.1µF/100V J or

CAP POLYESTER FILM 0.1µF/100V J or CA2A104SER02

CAP POLYESTER FILM 0.1µF/100V/J/ PCMT or

POLYESTER FILM CAP. 0.1µF/100V J CMB104EUR001

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102

25V

16V

50V

3.5MM or

MPX

3.5MM or

MPX

30 or

ELECTROLYTIC CAPACITOR 270µF/ 400V or

ELECTROLYTIC CAP. 270µF/400V M CA2H271S6037

CERAMIC CAP. RB 470pF/2KV or CA3D471TE006

CERAMIC CAP. BL 470pF/2KV CA3D471XF003

CHD1EZ30F104

CHD1JD3CH100

CHD1JJ3CH100

CHD1EZ30F104

CHD1JK30B104

CA2A104DT018

CTA104PKR003

CHD1EZ30F104

CHD1CK30B224

CHD1JK30B473

CT2F474DC004

CTA474EUR001

CT2F474DC004

CTA474EUR001

CA2H271DYG10

CA2H271NC226

Ref. No. Mark Description Part No.

C624 CAP CERAMIC (AX) 220pF/50V/B/K CA1J221TU061

C625 CAP CERAMIC (AX) 0.01µF/50V/B/K CA1J103TU061

C626 CAP CERAMIC (AX) 0.022µF/50V/B/K CA1J223TU061

C628 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101

C629 POLYESTER FILM CAP. (PB FREE)

C630 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101

C631 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C801 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C802 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C803 CHIP CERAMIC CAP.(1608) B K 0.22µF/

C805 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C806 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C807 CHIP CERAMIC CAP.(1608) B K 0.22µF/

C809 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C811 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C812 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C813 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C814 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C815 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C816 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C817 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C818 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C819 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C820 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C822 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C823 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C824 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105

C825 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C826 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3

C827 CHIP CERAMIC CAP.(1608) B K 0.1µF/

C828 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470

C830 CHIP CERAMIC CAP.(1608) CH J

C831 CHIP CERAMIC CAP.(1608) CH J

C832 CHIP CERAMIC CAP.(1608) CH J

C833 CHIP CERAMIC CAP.(1608) CH J

C835 CHIP CERAMIC CAP.(1608) CH J 100pF/

C836 CHIP CERAMIC CAP.(1608) CH J 100pF/

C838 CHIP CERAMIC CAP.(1608) B K 1000pF/

C839 CHIP CERAMIC CAP.(1608) B K 1000pF/

C840 CHIP CERAMIC CAP.(1608) B K 1000pF/

C841 CHIP CERAMIC CAP.(1608) B K 1000pF/

0.001µF/100V J or

CAP POLYESTER FILM 0.001µF/100V J orCA2A102SER02

POLYESTER FILM CAP. 0.001µF/100V J CMB102EUR001

50V

16V

50V

16V

50V

1000pF/50V

50V

CA2A102DT018

CHD1JK30B104

CHD1JK30B473

CHD1CK30B224

CHD1JK30B473

CHD1CK30B224

CHD1JK30B104

CHD1JJ3CH102

CHD1JJ3CH101

CHD1JK30B102

CONNECTORS

CN101 242 SERIES CONNECTOR

CN401 FFC CONNECTOR IMSA-9615S-29A-

224202106W1

PP-A or

CONNECTOR PRINT MES 00 6232 029 006 800+ or

J322C06TG001

JC96J29ER007

JC62G29UG026

20091214 14-2 A03A0/A1EL

Page 58

Ref. No. Mark Description Part No.

CONNECTOR PRINT MES 29 S 1.0-1129P

CN402 FFC CONNECTOR IMSA-9615S-29A-

CN403 FFC CONNECTOR IMSA-9615S-29A-

CN404 FFC CONNECTOR IMSA-9615S-29A-

CN453 FPC/FFC CONNECTOR IMSA-9615S-

CN610! WIRE ASSEMBLY 2PIN 2PIN/80MM/

CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

PP-A or

CONNECTOR PRINT MES 00 6232 029 006 800+ or

CONNECTOR PRINT MES 29 S 1.0-1129P

PP-A or

CONNECTOR PRINT MES 00 6232 029 006 800+ or

CONNECTOR PRINT MES 29 S 1.0-1129P

PP-A or

CONNECTOR PRINT MES 00 6232 029 006 800+ or

CONNECTOR PRINT MES 29 S 1.0-1129P

07A-PP-A or

CONNECTOR PRINT MES 07 S 1.0-117P or

CONNECTOR PRINT MES 00 6232 007 006 800+

AWG18/BLAC

(LF)(SN) or

CONNECTOR PRINT OSU TOP 2P 440054-2 or

CONNECTOR PRINT OSU JS-112502KK

(LF)(SN) or

CONNECTOR PRINT OSU TOP 2P 440054-2 or

CONNECTOR PRINT OSU JS-112502KK

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J29ER007

JC62G29UG026

JC1129JSH001

JC96J07ER007

JC1107JSH001

JC62G07UG026

WX1A03A0-302

J3PHC02JG029

J344C02AP001

J3JT02CHY002

J3PHC02JG029

J344C02AP001

J3JT02CHY002

DIODES

D183 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D301 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D302 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D303 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D304 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D305 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D306 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D307 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D308 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D309 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D310 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26

D311 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D312 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D313 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D314 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D315 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D316 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D317 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D318 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D319 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D320 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D321 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D322 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D323 DIODE ZENER 3V9BSB-T26 NDTB3R9BST26

D324 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D325 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D326 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D501 DIODE ZENER 13BSB-T26 or NDTB013BST26

ZENER DIODE MTZJT-7713B or QDTB00MTZJ13

DIODE ZENER DO-34 MTZJ13B NDTB00MTZJ13

D502 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

Ref. No. Mark Description Part No.

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D504 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D505 DIODE ZENER 18BSB-T26 NDTB018BST26

D508 DIODE ZENER 8V2BSA-T26 NDTA8R2BST26

D511 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D514 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D515 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D516 DIODE ZENER 1ZB43BB NDWZ0001ZB43

D520 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D522 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D523 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D524 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D525 SCHOTTKY BARRIER DIODE SB270-B/PNDWZ000SB270

D526 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D527 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D528 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D529 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26

D530 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D531 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D532 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D533 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26

D534 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D536 DIODE ZENER 6V2BSC-T26 NDTC6R2BST26

D537 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D538 DIODE ZENER 6V8BSB-T26 NDTB6R8BST26

D539 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D541 DIODE ZENER 3V3BSB-T26 NDTB3R3BST26

D542 DIODE ZENER 6V2BSB-T26 NDTB6R2BST26

D543 DIODE ZENER 5V6BSC-T26 NDTC5R6BST26

D544 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D545 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D546 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D549 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D550 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D552 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D554 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

20091214 14-3 A03A0/A1EL

Page 59

Ref. No. Mark Description Part No.

D555 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D609 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D610 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D611 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D612 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D624 DIODE ZENER 27BSB-T26 NDTB027BST26

D625 DIODE ZENER 27BSB-T26 NDTB027BST26

D626 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D627 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D628 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D629 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D630 DIODE ZENER 27BSB-T26 NDTB027BST26

D631 DIODE ZENER 1ZB18BB NDWZ0001ZB18

D634 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D635 DIODE ZENER 9V1BSB-T26 NDTB9R1BST26

D636 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D637 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D638 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D803 DIODE ZENER 18BSB-T26 NDTB018BST26

D804 DIODE ZENER 18BSB-T26 NDTB018BST26

D807 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D815 DIODE ZENER 18BSB-T26 NDTB018BST26

D816 DIODE ZENER 18BSB-T26 NDTB018BST26

ICS

IC1 IC SWITCH TC4053BF(EL N F) or QSZBA0TTS163

IC SWITCH 4053L-S16-R or NSZBA0TUTC04

IC ANALOG MULTIPLEXERS HCF4053M013TR or

IC ANALOG MULTIPLEXER CD4053BNSR

IC607! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

IC621 IC SWITING FA5571N-D1-TE1/SOP-8 QSCA0T0FD003

IC803 IC D-AMP BD5426EFS-E2 QSZBA0TRM137

NSZBA0SSS002

NSZBA0TTY093

COILS

L11 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L21 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L202 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L203 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L204 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

L301 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7

L302 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7

L303 INDUCTOR 12µH-J-26T LLAXJATTU120

L304 INDUCTOR 12µH-J-26T LLAXJATTU120

L601A! LINE FILTER MS036 or LLBG00ZY2009

! LINE FILTER JLB2808 LLBG00ZXB004

Ref. No. Mark Description Part No.

L602A! LINE FILTER MS036 or LLBG00ZY2009

! LINE FILTER JLB2808 LLBG00ZXB004

L801 COIL SEALED POWER INDUCTORS

L802 COIL SEALED POWER INDUCTORS

L803 COIL SEALED POWER INDUCTORS

L804 COIL SEALED POWER INDUCTORS

LHL10NB680K or

COIL SEALED POWER INDUCTORS CWKBNP-680K or

COIL DRUM JLC08105 68µH LLED0A0XB005

LHL10NB680K or

COIL SEALED POWER INDUCTORS CWKBNP-680K or

COIL DRUM JLC08105 68µH LLED0A0XB005

LHL10NB680K or

COIL SEALED POWER INDUCTORS CWKBNP-680K or

COIL DRUM JLC08105 68µH LLED0A0XB005

LHL10NB680K or

COIL SEALED POWER INDUCTORS CWKBNP-680K or

COIL DRUM JLC08105 68µH LLED0A0XB005

LLARKGQTU680

LLF6800KV002

LLARKGQTU680

LLF6800KV002

LLARKGQTU680

LLF6800KV002

LLARKGQTU680

LLF6800KV002

TRANSISTORS

Q11 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q12 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q15 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q181 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q182 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q183 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

20091214 14-4 A03A0/A1EL

Page 60

Ref. No. Mark Description Part No.

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q501 NPN TRANSISTOR POWER 2SC4881F

Q504 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

Q505 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

Q506 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

Q508 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

Q510 NPN TRANSISTOR POWER 2SC4881F

Q511 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

Q512 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

Q513 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

HFE MAX320 or

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

HFE MAX320 or

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

QQWZ2SC4881F

Ref. No. Mark Description Part No.

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q514 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q516 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q517 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q518 NPN TRANSISTOR POWER 2SC4881F

Q520 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

Q521 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

Q621 FET 2SK3566(Q) or QFWZ02SK3566

Q622 FET POWER MOS SMD KHB1D0N60D-

Q623 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

HFE MAX320 or

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

FET 2SK3566(Q M) QFQZSK3566QM

RTF/PMC or

FET 2SK3498(T6L1FUNANQ) QF1Z02SK3498

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

QQWZ2SC4881F

NF1ZKHB1D0N6

RESISTORS

R12 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R13 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

20091214 14-5 A03A0/A1EL

Page 61

Ref. No. Mark Description Part No.

R14 RES CARBON FILM 1/4W J 1.2k Ω or RCX4122FS002

RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001

R15 RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002

RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

R17 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R18 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R25 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R26 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R30 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R31 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R33 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R35 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R37 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002

R181 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R182 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R183 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R184 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002

R186 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002

R201 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R203 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R204 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R206 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R208 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R209 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R210 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R211 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R212 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R213 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R214 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R215 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R216 A CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

A RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R217 A CHIP RES. 1/10W J 300 Ω or RRXAJR5Z0301

A RES CHIP 1608 1/10W J 300 Ω RRXA301YF002

R222 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R226 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R227 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R228 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R229 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R230 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R301 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002

R303 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R304 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R305 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002

R307 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R308 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R309 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R310 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R311 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002

R312 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R313 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R314 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R315 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R316 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R317 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R318 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R319 CHIP RES. 1/10W J 39 Ω or RRXAJR5Z0390

RES CHIP 1608 1/10W J 39 Ω RRXA390YF002

R320 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R321 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R322 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002

R324 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R325 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R326 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002

R328 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R329 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R330 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002

R331 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R332 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R333 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R334 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R335 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

20091214 14-6 A03A0/A1EL

Page 62

Ref. No. Mark Description Part No.

R336 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R422 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R423 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R495 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R503 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004

R504 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004

R506 RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002

RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001

R507 RES CARBON FILM 1/4W J 390 Ω or RCX4391FS002

RES CARBON FILM T 1/4W J 390 Ω RCX4391T1001

R508 RES CARBON FILM 1/4W J 390 Ω or RCX4391FS002

RES CARBON FILM T 1/4W J 390 Ω RCX4391T1001

R509 RES CARBON FILM 1/4W J 390 Ω or RCX4391FS002

RES CARBON FILM T 1/4W J 390 Ω RCX4391T1001

R510 RES CARBON FILM 1/4W J 390 Ω or RCX4391FS002

RES CARBON FILM T 1/4W J 390 Ω RCX4391T1001

R511 RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002

RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001

R512 RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002

RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001

R513 RES CARBON FILM 1/4W J 4.7k Ω or RCX4472FS002

RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001

R515 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R521 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R522 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R523 RES CARBON FILM 1/4W J 27k Ω or RCX4273FS002

RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001

R524 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R526 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R527 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R529 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R531 RES CARBON FILM 1/4W J 47k Ω or RCX4473FS002

RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001

R532 RES CARBON FILM 1/4W J 6.8k Ω or RCX4682FS002

RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001

R535 METAL OXIDE FILM RES. 1W J 0.27 Ω RN01R27ZU001

R536 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R537 RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001

R538 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301

RES CHIP 1608 1/10W F 3.30k Ω RTW3301YF002

R540 RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002

RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001

R541 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001

R545 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R546 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R547 RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002

RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001

Ref. No. Mark Description Part No.

R548 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R549 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R550 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R551 RES CARBON FILM 1/4W J 12k Ω or RCX4123FS002

RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001

R552 RES CARBON FILM 1/4W J 12k Ω or RCX4123FS002

RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001

R553 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R556 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R557 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R558 RES CARBON FILM 1/4W J 56k Ω or RCX4563FS002

RES CARBON FILM T 1/4W J 56k Ω RCX4563T1001

R559 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R560 RES CARBON FILM 1/4W J 68 Ω or RCX4680FS002

RES CARBON FILM T 1/4W J 68 Ω RCX4680T1001

R562 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R565 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001

R566 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001

R567 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002

R568 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002

R569 RES CARBON FILM 1/4W J 47 Ω or RCX4470FS002

RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001

R570 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001

R572 METAL OXIDE FILM RES. 1W J 1 Ω RN011R0ZU001

R573 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R578 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R580 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R581 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R583 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001

R586 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R590 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R591 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R594 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R595 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R598 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R605! GLASS GLAZE RES. 1/2W J 1M Ω RXX2JZLZ0105

R628 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301

RES CHIP 1608 1/10W F 3.30k Ω RTW3301YF002

R629 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R630 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

20091214 14-7 A03A0/A1EL

Page 63

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R631 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R632 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R633 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R634 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R635 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R636 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R638 METAL RESISTER. 2W J 0.56 Ω RN02R56ZU001

R639 RES CARBON FILM 1/4W J 4.7k Ω or RCX4472FS002

RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001

R640 RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002

RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

R641 RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001

R642 RES CARBON FILM 1/4W J 6.8 Ω or RCX46R8FS002

CARBON RES. 1/4W J 6.8 Ω or RCX4JATZ06R8

RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001

R643 RES CARBON FILM 1/4W J 6.8 Ω or RCX46R8FS002

CARBON RES. 1/4W J 6.8 Ω or RCX4JATZ06R8

RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001

R644 RES CARBON FILM 1/4W J 6.8 Ω or RCX46R8FS002

CARBON RES. 1/4W J 6.8 Ω or RCX4JATZ06R8

RES CARBON FILM T 1/4W J 6.8 Ω RCX46R8T1001

R645 RES CARBON FILM 1/4W J 8.2k Ω or RCX4822FS002

RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001

R646 RES CARBON FILM 1/4W J 68k Ω or RCX4683FS002

RES CARBON FILM T 1/4W J 68k Ω RCX4683T1001

R647 RES CARBON FILM 1/4W J 22 Ω or RCX4220FS002

RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001

R648 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R649 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R650 RES CARBON FILM 1/4W J 1.2k Ω or RCX4122FS002

RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001

R651 RES CARBON FILM 1/4W J 5.6 Ω or RCX45R6FS002

RES CARBON FILM T 1/4W J 5.6 Ω RCX45R6T1001

R652 RES CARBON FILM 1/4W J 5.6 Ω or RCX45R6FS002

RES CARBON FILM T 1/4W J 5.6 Ω RCX45R6T1001

R653 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001

R657 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R801 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R802 CHIP RES. 1/10W F 27k Ω or RRXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF002

R803 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R804 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R806 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R807 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R810 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R824 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

MISCELLANEOUS

AC601! AC CORD W/O A GND WIRE CEE/

! AC CORD W/O A GND WIRE CEE/

B9 HEAT SINK PMR ASSEMBLY A8CN0FP 1EM425837A

1760MM/NO/BLACK or

1760MM/NO/BLACK

WAE1720LW001

WAE172ZHN001

Ref. No. Mark Description Part No.

B10 MODULE HEAT SINK PMC P7150UT 1EM423968

BC11 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC181 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

BC182 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

BC501 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC621 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC622 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC623 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC624 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH605 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH606 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JK201 JACK RCA PCB S GREEN 01/RCA-

JK202 JACK RCA PCB S BLUE 01/RCA-

JK203 JACK RCA PCB S RED 01/RCA-

JK204 JACK RCA PCB S WHITE 01/RCA-

JK205 JACK SW RCA PCB S RED RCA-

JK206 JACK HPEP SML PCB S PJ-358H or JXSJ020YUQ01

JK207 A JACK RCA PCB S ORANGE 01/RCA-

JK210 JACK SW DIN PCB S 04/DIN-417HA-01 orJYEJ040YUQ03

JK211 JACK RCA PCB S YELLOW 01/RCA-

JK212 JACK RCA PCB S WHITE 01/RCA-

JK213 JACK SW RCA PCB S RED RCA-

JK301 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001

JK302 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001

JS12 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

JS13 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

JS14 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

JS505 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

JS511 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

JS515 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

JS551 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

JS552 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

101H(GN) or

JACK RCA PCB S(GREEN) 01 MTJ-03204B-73 FE

101H(BL) or

JACK RCA PCB S(BLUE) 01 MTJ-03204B-74 FE

101H(RD) or

JACK RCA PCB S(RED) 01 MTJ-03204B-75 FE

101H(WH) or

JACK RCA PCB S (WHITE) 01 MTJ-03204B-41 FE

102H(RD) or

JACK SW RCA PCB S(RED) 01 MTJ032-04A-75 FE

JACK HPEP SML PCB S 02 MSJ-03529D (ABS)

101H(OR) or

A JACK RCA PCB S(ORANGE) 01 MTJ-

032-04B-76 FE

JACK SW DIN PCB S 04 MDC-076H-A LF JYEJ040LY002

101H(YL) or

JACK RCA PCB S (YELLOW) 01 MTJ032-04B-40 FE

101H(WH) or

JACK RCA PCB S (WHITE) 01 MTJ-03204B-41 FE

102H(RD) or

JACK SW RCA PCB S(RED) 01 MTJ032-04A-75 FE

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

WIRE COPPER JP0.6MM XZ40C0AKM001

JXRJ010YUQ03

JXRJ010LY030

JXRJ010YUQ04

JXRJ010LY033

JXRJ010YUQ01

JXRJ010LY028

JXRJ010YUQ02

JXRJ010LY031

JYRJ010YUQ03

JYRJ010LY031

JXSJ020LY001

JXRJ010YUQ06

JXRJ010LY029

JXRJ010YUQ05

JXRJ010LY032

JXRJ010YUQ02

JXRJ010LY031

JYRJ010YUQ03

JYRJ010LY031

20091214 14-8 A03A0/A1EL

Page 64

Ref. No. Mark Description Part No.

WIRE COPPER JP0.6MM XZ40C0AKM001

JS553 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS601 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS602 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS609 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS610 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

LD601 LEAD WIRE 50MM/AWG24/BLACK WX3001B45505

SA602! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR NVQZVR10D471

SA608! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR NVQZVR10D471

T601! TRANS POWER BCK-35-0720 LTT3PE0XB058

T602! COIL EE JCC41-0024 54MH LLEE0Z0XB006

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

JACK CBA

Ref. No. Mark Description Part No.

JACK CBA Consists of the following:

----------

CAPACITORS

C212 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C220 CHIP CERAMIC CAP.(1608) B K 0.047µF/

C221 CHIP CERAMIC CAP.(1608) B K 0.047µF/

50V

CHD1JK30B473

RESISTORS

R218 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R219 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

MISCELLANEOUS

CL201A WIRE ASSEMBLY 4PIN 4PIN/120MM/

JK208 JACK SW HPEP SML PCB L PJ-350 or JYSL010YUQ03

AWG26/STR

JACK SW HPEP SML PCB L MSJ-2000 AG(B110)

WX1A03A0-001

JYSL010LY005

INVERTER ASSEMBLY

Ref. No. Description Part No.

INVERTER ASSEMBLY Consists of the following:

INVERTER POWER CBA FUNCTION CBA JUNCTION CBA

INVERTER POWER CBA

Ref. No. Description Part No.

INVERTER POWER CBA Consists of the following:

CAPACITORS

C1905! SAFTY CAP. 2200pF/250V KX or CA2E222MR101

! SAFTY CAP. 2200pF/250V CCN2EMA0E222

C1910 CAP ELECTROLYTIC 270µF/400V/M/30/30 or CA2H271DYG10

ELECTROLYTIC CAPACITOR 270µF/400V or CA2H271NC226

ELECTROLYTIC CAP. 270µF/400V M CA2H271S6037

C1930 CERAMIC CAP. 330pF/2KV or CA3D331PAN04

CERAMIC CAP. RB 330pF/2KV or CA3D331TE006

CERAMIC CAP. BL 330pF/2KV CA3D331XF003

C1932 POLYESTER FILM CAP. (PB FREE) 0.01µF/

100V J or

CAP POLYESTER FILM 0.01µF/100V J or CA2A103SER02

A03A0M1V001

----------

CA2A103DT018

Ref. No. Description Part No.

CAP POLYESTER FILM 0.01µF/100V/J/PCMT orCTA103PKR003

POLYESTER FILM CAP. 0.01µF/100V J CMB103EUR001

C1933 POLYESTER FILM CAP. (PB FREE) 0.056µF/

C1934 POLYESTER FILM CAP. (PB FREE) 0.0015µF/

C1971 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C1981 CAP CERAMIC (AX) 0.01µF/50V/B/K CA1J103TU061

C1983 ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1

C1990 CERAMIC CAP. B K 1000pF/500V CCD2JKS0B102

C1992 CAP ELE 4700/35V/M/85/D22XL2 CEA472KSN004

100V J or

CAP POLYESTER FILM 0.056µF/100V J or CA2A563SER02

CAP POLYESTER FILM 0.056µF/100V/J/PCMT orCTA563PKR003

POLYESTER FILM CAP. 0.056µF/100V J CMB563EUR001

100V J or

CAP POLYESTER FILM 0.0015µF/100V J or CA2A152SER02

POLYESTER FILM CAP. 0.0015µF/100V J CMB152EUR001

100V J or

CAP POLYESTER FILM 0.0022µF/100V J or CA2A222SER02

POLYESTER FILM CAP. 0.0022µF/100V J CMB222EUR001

CA2A563DT018

CA2A152DT018

CA2A222DT018

CONNECTORS

CN1900! CONNECTOR B2P3-VH(LF)(SN) or J3VH020JG001

! CONNECTOR PRINT OSU 02/S/JS-1120-

CN1951 FPC/FFC CONNECTOR IMSA-9615S-07A-PP-

CN1952 CONNECTOR PRINT OSU B14B-PH-K-

03N02

A or

CONNECTOR PRINT MES 07 S 1.0-11-7P or JC1107JSH001

CONNECTOR PRINT MES 00 6232 007 006 800+

S(LF)(SN) or

CONNECTOR PRINT OSU JS-1125-14(K) or J3JT14CHY001

CONNECTOR PRINT OSU C S 1-440054-4 J344C14AP001

J3JT02CHY004

JC96J07ER007

JC62G07UG026

J3PHC14JG029

DIODES

D1930 DIODE ZENER 27BSB-T26 NDTB027BST26

D1931 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D1932 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1933 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1934 DIODE ZENER 1ZB36BB NDWZ0001ZB36

D1936 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1960 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D1971 DIODE ZENER 27BSB-T26 NDTB027BST26

D1972 DIODE ZENER 5V6BSB-T26 NDTB5R6BST26

D1973 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1991 DIODE SCHOTTKY FD867-15L or QDWZFD86715L

DIODE SCHOTTKY GDB3150-C532-1 NDWZGDB3150C

D1992 DIODE SCHOTTKY FD867-15L or QDWZFD86715L

DIODE SCHOTTKY GDB3150-C532-1 NDWZGDB3150C

D1993 DIODE SCHOTTKY FD867-15L or QDWZFD86715L

DIODE SCHOTTKY GDB3150-C532-1 NDWZGDB3150C

D1994 DIODE ZENER 1ZB30BB or NDWZ0001ZB30

DIODE 1ZC30(Q) QDLZ001ZC30Q

ICS

IC1930! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

IC1931! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

TRANSISTORS

Q1930 FET MOS TK6A65D(Q)/TK6A65D(Q QFWZ0TK6A65D

Q1931 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

20091214 14-9 A03A0/A1EL

Page 65

Ref. No. Description Part No.

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1932 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q1933 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1971 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1972 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1973 NPN TRANSISTOR KTC3200-GR-AT/P NQSGKTC3200P

RESISTORS

R1930 RES CARBON FILM 1/4W J 47 Ω or RCX4470FS002

RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001

R1931 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001

R1932 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R1933 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R1934 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R1935 RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002

RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001

R1936 RES CARBON FILM 1/4W J 180 Ω or RCX4181FS002

RES CARBON FILM T 1/4W J 180 Ω RCX4181T1001

R1937 METAL RESISTER. 2W J 0.56 Ω RN02R56ZU001

R1938 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R1939 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R1940 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1941 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1942 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1943 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1944 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1945 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1949 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

Ref. No. Description Part No.

R1950 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1951 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1952 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1953 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1954 RES CARBON FILM 1/4W J 820k Ω RCX4824FS002

R1970 RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001

R1971 RES CARBON FILM 1/4W J 3.9k Ω or RCX4392FS002

RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001

R1972 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001

R1973 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R1974 RES CARBON FILM T 1/4W G 5.6k Ω or RCX4562T1002

CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562

R1975 RES CARBON FILM T 1/4W G 6.8k Ω RCX4682T1002

R1976 RES CARBON FILM T 1/4W G 5.6k Ω or RCX4562T1002

CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562

R1977 RES CARBON FILM T 1/4W G 3.9k Ω RCX4392T1002

R1979 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001

R1981 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R1982 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R1983 RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001

R1986 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R1987 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R1988 RES CARBON FILM 1/4W J 5.6k Ω or RCX4562FS002

RES CARBON FILM T 1/4W J 5.6k Ω RCX4562T1001

MISCELLANEOUS

B-11 HEAT SINK PNB ASSEMBLY A94F0UH 1EM428123

BC1901 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

BC1930 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC1931 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

T1950! TRANS INV BCK-35-0731 LTT3PE0XB059

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

CAPACITORS

C113 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470

C115 CERAMIC CAP.(AX) B K 330pF/50V or CCA1JKT0B331

CAP CERAMIC (AX) 330pF/50V/B/K CA1J331TU061

DIODES

D104 LED GREEN 333GT/E(FNA) or NPWZ33GTEFNA

LED(GREEN) LTL-4234 NPWZ0LTL4234

D105 LED L-53HT or NP4Z000L53HT

LED 333HT/E-L or NPHL00333HTE

LED 333HT/E-K NPHK00333HTE

RESISTORS

R108 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R109 RES CARBON FILM T 1/4W G 47k Ω RCX4473T1002

R111 RES CARBON FILM T 1/4W G 9.1k Ω RCX4912T1002

R113 RES CARBON FILM T 1/4W G 11k Ω RCX4113T1002

R114 RES CARBON FILM T 1/4W G 16k Ω RCX4163T1002

R115 RES CARBON FILM T 1/4W G 27k Ω RCX4273T1002

R116 RES CARBON FILM T 1/4W G 56k Ω RCX4563T1002

R123 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

----------

20091214 14-10 A03A0/A1EL

Page 66

Ref. No. Description Part No.

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R124 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R126 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R127 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R128 RES CARBON FILM T 1/4W J 100 Ω or RCX4101T1001

RES CARBON FILM 1/4W J 100 Ω RCX4101FS002

SWITCHES

SW101 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW103 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW104 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW105 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW106 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

SW107 TACT SWITCH SKHHLMA010 or SST0101AL049

TACT SWITCH KSMC632A SST0101HH025

MISCELLANEOUS

RS102 SENSOR REMOTE RECEIVER KSM-712TH2E orUSESJRSKK044

SENSOR REMOTE RECEIVER KSM-712TH2M USEJRS0KK001

JUNCTION CBA

Ref. No. Description Part No.

JUNCTION CBA Consists of the following:

CONNECTOR

CN105 242 SERIES CONNECTOR TUC-P06X-B1 WHT STJCTUB06TG002

MISCELLANEOUS

CL104A WIRE ASSEMBLY 6PIN 6PIN/170MM/AWG26/STWX1A03A0-002

Ref. No. Description Part No.

TU1 TUNER UNIT DTOS40AML201A UTNPSG0SM002

----------

20091214 14-11 A03A0/A1EL

Page 67

LH8-M26BB/LT8-M26BB

A03A0EP/A1EP

2009-12-18
