SERVICE MANUAL

15" COLOR LCD TELEVISION

LCD-B15E6

15″ COLOR LCD TELEVISION

LCD-B15E6

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 80 dBµV, Video: PAL 87.5%, Audio: 30 kHz dev (1 kHz Sin)

Test Input Signal----------- 400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture

2. Video S/N (White 50%) CH-3 dB 45 40

3. Audio S/N (Output Level 500mV)

Description Condition Unit Nominal Limit

1. Number of Pixels Horizontal

2. Brightness

3. Response Time - msec 16 -

4. Support Color - - 16mil.(8bit) -

5. Viewing Angle Horizontal

PAL-BG/I/DK

Sound

PA L- B G PA L- I PA L- D K

MHz

MHz MHz MHz

–dB5347

Vert i c al

pixels pixels

cd/m

° °

38.9

33.4

32.9

32.4

640 x 3

480

450 -

-85 to 85

-85 to 70

<VIDEO>

Description Condition Unit Nominal Limit

1. Over Scan Horizontal

2. Color Temperature -

3. Resolution Horizontal

<AUDIO>

1. Audio Output Power 10% THD: Lch/Rch W 0.95/0.95 0.75/0.75

2. Audio Distortion 500mW: Lch/Rch % 0.6/0.6 <4

3. Audio Freq. Response

4. Audio S/N VIDEO 1

Note:

Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

Vert i c al

6dB: Lch

6dB: Rch

VIDEO 2

x y

% %

°K 8500

line line

Hz Hz

dB dB

8.5

6.5

0.29

0.30

400 350

50 to 12K 50 to 12K

43 55

10±5 10±5

0.29±0.03

0.30±0.03

<250 <300

40 40

1-1 L4531SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the LCD module and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 230 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American

National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this LCD TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

CURRENT

TESTER

EARTH GROUND

2-1 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 LTVP_ISP

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

M. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

2-3 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

230 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

≥ 3mm(d)

≥ 6 mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Chassis or Secondary Conductor

Primary Circuit

d' d

Exposed Accessible Part

AC Voltmeter (High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

230 V

50kΩ RES.

Connected in

parallel

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

Fig. 2

RF or

2-4 LTVP_ISP

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

3-1 TVP_SN

Machine

Flat Pack-IC

Fig. S-1-2

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid Mounting Point

CBA

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Tweezers

Fig. S-1-6

3-2 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-3 TVP_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[11] IR Sensor CBA

[10] Speaker (s)

[1] Rear Cabinet

[6] Jack Holder

[7] Main CBA

[8] LCD Main CBA Unit & Liquid Crystal Panel Unit

[9] Function CBA

[12] Front Cabinet

[2] Stand A

[3] Bracket

[4] Holder

[5] Stand B

2. Disassembly Method

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

[10] Speaker (s) D2 6(S-11) ---

IR Sensor

[11]

[12]

↓

(1)

CBA

Front Cabinet

↓

(2)

D2 (S-12) ---

D2 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta b le . "

Rear

[1]

Cabinet

D1 10(S-1), 2(S-2) ---

[2] Stand A D1 4(S-3) ---

[3] Bracket D1 4(S-4), Shaft ---

[4] Holder D1 4(S-5) ---

[5] Stand B D1 --------------- ---

[6] Jack Holder D2 3(S-6), (S-7) ---

9(S-8), *CN53, *CN101B, *CN102B,

[7] Main CBA

*CN103B, *CN401,

*CN403, *CN801,

---

*CN802

LCD Main CBA Unit &

[8]

Liquid

D2 11(S-9), *CN106 --Crystal Panel Unit

Function

[9]

CBA

D2 4(S-10) ---

4-1 L4534DC

[1] Rear Cabinet

S-1

S-2

S-1

S-2

S-1

S-4

Shaft

S-5

[4] Holder

[5] Stand B

S-1

[3] Bracket

[2] Stand A

S-3

Fig. D1

4-2 L4534DC

[12] Front Cabinet

[10] Speaker

[9] Function CBA

S-10

S-11

S-9

S-12

[11] IR Sensor CBA

[8] LCD Main CBA Unit & Liquid Crystal Panel Unit

S-11

S-9

[6] Jack Holder

S-9

S-7

S-6

[7] Main CBA

S-6

S-9

S-8

Fig. D2

4-3 L4534DC

TV Cable Wiring Diagram

To Liquid Crystal Panel Unit

LCD Main CBA Unit

Function CBA

CN31B

CN801

CN311 CN312

CN103B

CN103A

CN53

CN102B

CN102A

CN106

CN101B

CN101A

Main CBA

CN401

CN403

CN802

To Liquid Crystal Panel Unit

To Speaker

IR Sensor CBA

CLN53

Fig. D3

4-4 L4534DC

HOW TO INITIALIZE THE LCD TELEVISION

To put the program back at the factory-default, initialize the LCD television as the following procedure.

How to initialize the LCD television:

1. Turn the power on. (Use main power on the TV unit.)

2. To enter the service mode, press [STANDBY], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds.

- To cancel the service mode, press [STANDBY]

button on the remote control.

3. To initialize the LCD television, press “DISPLAY” button on the remote control unit.

4. Confirm "FF" indication on the upper right of the screen.

5-1 L4620INT

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assem-

bly.” NOTE:

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. Pattern Generator

3. Color Analyzer

How to Set up the Service mode:

1. Turn the power on. (Use main power on the TV unit.)

2. Press [STANDBY], [2], [7], [1], and [MUTE] buttons on the remote control unit in that order within 5 seconds.

- To cancel the service mode, press [STANDBY] button on the remote control.

1. Initial Setting

General

Enter the Service mode.

Set the each initial data as shown on table 1 below.

Table 1: Initial Data

BUTTON

ITEM

BRT(PAL) CNT(PAL) 140 CLR-R(PAL) 88 CLR-B(PAL) 88 SHR(PAL) 143 S-BRT(PAL) S-CNT(PAL) 140 S-CLR-R(PAL) 74 S-CLR-B(PAL) 74 S-SHR(PAL) 143 C-BRT(PAL) C-CNT(PAL) 128 C-CLR-R(PAL) 150 C-CLR-B(PAL) 150 C-SHR(PAL) 143 BRT(SECAM) CNT(SECAM) 140 CLR-R(SECAM) 88 CLR-B(SECAM) 88 SHR(SECAM) 143 S-BRT(SECAM) S-CNT(SECAM) 140 S-CLR-R(SECAM) 74 S-CLR-B(SECAM) 74 S-SHR(SECAM) 143 C-BRT(SECAM) C-CNT(SECAM) 128 C-CLR-R(SECAM) 150 C-CLR-B(SECAM) 150 C-SHR(SECAM) 143 BRT(NTSC) CNT(NTSC) 138 CLR-R(NTSC) 74 CLR-B(NTSC) 74 TNT(NTSC) 131 SHR(NTSC) 143 S-BRT(NTSC) S-CNT(NTSC) 140 S-CLR-R(NTSC) 74 S-CLR-B(NTSC) 74 S-TNT(NTSC) 131 S-SHR(NTSC) 143

(on the remote

control)

MENU → 1

MENU → 2

MENU → 3

MENU → 4

MENU → 5

MENU → 6

MENU → 7

MENU → 8

DATA

VALUE

133

131

128

133

131

128

131

128

6-1 L4531EA

BUTTON

ITEM

C-BRT(NTSC) C-CNT(NTSC) 128 C-CLR-R(NTSC) 150 C-CLR-B(NTSC) 150 C-TNT(NTSC) 131 C-SHR(NTSC) 143 BRIGHT 0 0 NORMAL 0 40 DARK 0 95 COR(C/D/S-1) VOL. p → 1 128 COG(C/D/S-1) VOL. p → 2 128 COB(C/D/S-1) VOL. p → 3 128 DR(C/D/S-1) VOL. p → 4 180 DG(C/D/S-1) VOL. p → 5 180 DB(C/D/S-1) VOL. p → 6 180 SBR(C/D/S-1) VOL. p → 70 SBB(C/D/S-1) VOL. p → 90 C-COR(C/D/S-2) VOL. p → 1 128 C-COG(C/D/S-2) VOL. p → 2 128 C-COB(C/D/S-2) VOL. p → 3 128 C-DR(C/D/S-2) VOL. p → 4 150 C-DG(C/D/S-2) VOL. p → 5 150 C-DB(C/D/S-2) VOL. p → 6 150 C-SBR(C/D/S-2) VOL. p → 70 C-SBB(C/D/S-2) VOL. p → 90 7F LAST POWER OFF SYSTEM PAL-I NCM ON ASPECT OFF RUSSIAN OFF

(on the remote

control)

MENU → 9

VOL. p

DATA

VALUE

128

2. Flicker Adjustment

1. Enter the Service mode. (See page 6-1.)

2. Press [2] button on the remote control unit. The following screen appears.

VCOM

128

3. If Flicker Adjustment is not fit, the screen becomes the following.

VCOM

128

FLASH (Go and Off)

4. Press [CH. o / p] buttons on the remote control unit so that flash stops.

6-2 L4531EA

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

[RF/AV2(CVBS)]

Screen

VOL. p

buttons

M. EQ. Spec.

C/D/S-1

[AV1(RGB)]

C/D/S-2

White Purity

(APL 80%)

(APL 40%)

6. [AV1(RGB)]----(APL 80%) Press “6” button to select “C-DB(C/D/S-2)” for Blue adjustment. Press “4” button to select “C-DR(C/D/ S-2)” for Red adjustment.When “x” value and “y” value are not within specification, adjust “C-DB(C/ D/S-2)” or “C-DR(C/D/S-2)”. Refer to “1. Initial Setting.”

[AV1(RGB)]----(APL 40%)

Press “3” button to select “C-COB(C/D/S-2)” for Blue adjustment. Press “1” button to select “CCOR(C/D/S-2)” for Red adjustment.When “x” value and “y” value are not within specification, a d j u s t “ C - C O B ( C / D / S - 2 ) ” o r “ C - C O R ( C / D / S - 2 ) ” . Refer to “1. Initial Setting.”

7. Turn the power off and on again. (Main power button on the TV unit.)

Pattern Generator,

Color analyzer

Figure

x: 285 to 295,

y: 295 to 305

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 80%

1. Operate the unit for more than 20 minutes.

2. Input the White Purity.

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. [RF/AV2(CVBS)] Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S-1” mode.

[AV1(RGB)]

Enter the Service mode. Press “VOL p” button on the remote control unit and select “C/D/S-2” mode.

5. [RF/AV2(CVBS)]----(APL 80%) Press “6” button to select “DB(C/D/S-1)” for Blue adjustment. Press “4” button to select “DR(C/D/S-

1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “DB (C/D/ S-1)” or “DR (C/D/S-1)”. Refer to “1. Initial Setting.”

[RF/AV2(CVBS)]----(APL 40%)

Press “3” button to select “COB(C/D/S-1)” for Blue adjustment. Press “1” button to select “COR(C/D/ S-1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “COB (C/ D/S-1)” or “COR (C/D/S-1)”. Refer to “1. Initial Setting.”

Color Analyzer

6-3 L4531EA

BLOCK DIAGRAMS

System Control Block Diagram

AL+5V

FUNCTION CBA

KEY SWITCH

CN31B

KEY-IN-122

KEY-IN-211

CN106

RCV51

CLN53

CN53

POWER

IR SENSOR CBA

D51

SENSOR

REMOTE

RCV-IN33

TO LCD BACKLIGHT

PROTECT-1

BACKLIGHT-ADJ

CN102A

RCV-IN11

TO POWER SUPPLY

BLOCK DIAGRAM

BACKLIGHT-ADJ 22

BLOCK DIAGRAM

SCL

SDA

P-ON-H

PROTECT-1

PROTECT-113 13

P-25V-ON

PROTECT-2

P-ON-H66

PROTECT-214 14

AFT-IN11 11

INPUT-099

S-SW15 15

SCL18 18

SDA19 19

AFT-IN

S/C-JACK-MUTE

INPUT-110 10

TO IF/VIDEO

BLOCK DIAGRAM

FBIN

S-SW

INPUT-0

INPUT-1

RAPID-SW

VOLUME77

P-25V-ON21 21

SLOW-SW

RAPID-SW16 16

INSEL-MUTE

S/C-JACK-MUTE

SLOW-SW17 17

S/C-JACK-MUTE

14 14

SP-MUTE

INSEL-MUTE

15 15

TO AUDI O

BLOCK DIAGRAM

SCL

SDA

NICAM-RESET

SP-MUTE18 18

FBIN22 22

20 20

VOLUME

MAIN CBALCD MAIN CBA UNIT

X151

10MHz

IC151

(MICRO COMPUTER)

CN301(NO CONNECTION)

DVP-RESET-PC8DVP-CLK-PC

DVP-SOUT-PC6DVP-SIN-PC7DVP-CS-PC4MPSEL-0 3

XIN

BUS-OPEN 2

XOUT

AL+5V

VCOM

TO LCD

IC153

VCOM

BLOCK DIAGRAM

IC301

RESET

2DVP-RESET

AL+3.3V

RESET

MPSEL-0

LCD DRIVE / LCD

SIGNAL PROCESS

2DVP-CLK

3.3V<-->5V

Q152

MPWEH

CONVERTER

3.3V<-->5V

Q153

2DVP-SIN

CONVERTER

Q154

MPOE

KEY-IN-1

KEY-IN-2

2DVP-SOUT

3.3V<-->5V

CONVERTER

Q155

585060

MPWEL

CN102B

RCV-IN

BUS-OPENV

2DVP-CS

3.3V<-->5V

CONVERTER

Q156

MPCE

895922

PROTECT-1

PROTECT-2

BACKLIGHT-ADJ

H-SYNC

3.3V<-->5V

CONVERTER

HDIN/FBIN

AFT-IN

P-ON-H

277845

SCL

S-SW

CN103B CN103A

P-25V-ON

AL+5V

IC152

(MEMORY)

838519

SLOW-SW-IN

RAPID-SW-IN

SC-VIDEO-MUTE

EEP-SCL

SCL

84INSEL-MUTE

SP-MUTE

NICAM-RESET

EEP-SDA

SDA

CN105(NO CONNECTION)

EEP-SDA 2

EEP-SCL 1

BUS-OPEN 4

CN105 IS

USED FOR

ADJUSTMENT

AT FACTORY

SDA

INPUT-0

INPUT-1

VOLUME

7-1

L4534BLS

IF/Video Block Diagram

LCD BLOC

DIAGRAM

CN103B

CVBS18

S-VIDEO-C5

VIDEO-R1

S-VIDEO-Y6

VIDEO-G2

VIDEO-B3

CVBS29

AUDIO SIGNAL

MAIN CBA

VIDEO SIGNAL

TO AUDIO BLOCK

DIAGRAM

SIF

AUDIO

IC781 (INPUT SELECT)

WF3

Q781

BUFFER

CN103A

WF6

AUDI O

BLOCK DIAGRAM

INPUT-0(INV)

Q872

INPUT-0

SYSTEM CONTROL

INPUT-1(INV)

Q871

INPUT-1

BLOCK DIAGRAM

CONTROL

WF2

WF4

WF5

WF7

WF8

SIF

TU1

(TUNER UNIT)

AUDIO

Q11

BUFFER

AFT

VIDEO

SCL

BUFFER

Q744

Q730

SDA

SCL

SDA

AFT-IN

RAPID-SW

TO SYSTEM

CONTROL

BLOCK

FBIN

DIAGRAM

Q734

SLOW-SW

S/C-JACK-MUTE

S-SW

7-2

JK722

VIDEO1

-IN

Q791

JK721

S-VIDEO

-IN

JK751

SLOW-SW

Q731

Q792

RAPID-SW

BUFFER

VIDEO-R

VIDEO-OUT

VIDEO-B

VIDEO-G

L4534BLIF

VIDEO-IN

Audio Block Diagram

SP802

SPEAKER

L-CH

JK801

HEADPHONE

JACK

SP801

SPEAKER

R-CH

AUDIO SIGNAL

AUTOMATIC

FM/AM

PRESCALE

dBX/MNR

PANDA1

SOUND

SELECT

NICAM

PRESCALE

DEEMPHASIS

SOUND

SELECT

SCART1

CHANNEL

MATRIX

VOLUME

D/A

CONVERTER

SP-L 1

CN802

CLN802

GND 2

IC801 (AUDIO AMP)

AMP

(L-CH)

VOLUME

MUTE

/STANDBY

CLN801

GND 2

SP-R 1

CN801

TO SYSTEM

CONTROL

BLOCK

S/C-JACK-MUTE

SP-MUTE

VOLUME

INSEL-MUTE

WF1

AMP

CONTROL

(R-CH)

TO IF/VIDEO

BLOCK

DIAGRAM

INPUT-0(INV)

INPUT-1(INV)

IC831 (SOUND PROCESSOR)

MAIN CBA

A/D

I2C READ

AND SOUND

DETECTION

I2C

DECORDER

SCL

SDA

TO SYSTEM

CONTROL

BLOCK

RESET

R-CH

SIF

AUDI O

NICAM-RESET

TO IF/VIDEO

BLOCK

DIAGRAM

SCART1 OUTPUT SELECT

L-CH

TUNER

AUDIO2

AUDIO1

IC871 (INPUT SELECT)

421

AUDIO1(L)

JK723

-IN

(L-CH)

JK724

AUDIO1(R)

-IN

STANDERD

DEMODULATOR

CONVERTER

AGC

(R-CH)

TUNER

AUDIO1

AUDIO2

SW CTL

INH

9 10

Q733

Q732

BUFFER

Q742

BUFFER

Q741

AUDIO2(R)

-OUT

AUDIO2(L)

-OUT

JK751

AUDIO2(L)

-IN2AUDIO2(R)

-IN

7-3

L4534BLA

LCD Block Diagram

LCD MODULE

OR(3)31OR(4)30OR(5)

OR(0)34OR(1)33OR(2)

CN311

VIDEO SIGNAL

TP322

TP323

182

181

180

179

175

174

173

169

OG(0)27OG(1)26OG(2)

168

167

166

OG(3)24OG(4)23OG(5)

165

161

160

OB(0)20OB(1)19OB(2)

TP318

TP319

159

158

OB(3)17OB(4)16OB(5)

155

154

153

152

151

ER(0)6ER(1)5ER(2)

TP320

TP321

150

146

145

ER(3)3ER(4)2ER(5)

143

142

141

140

139

135

TP316

TP317

134

133

EG(0)50EG(1)49EG(2)

CN312

132

131

130

129

EG(3)47EG(4)46EG(5)

TP312

128

127

123

EB(0)43EB(1)42EB(2)

TP313

121

120

122

EB(3)40EB(4)39EB(5)

119

116

115

114

TP314

TP315

113

106

LCD MAIN CBA UNIT

IC301 (LCD DRIVE / LCD SIGNAL PROCESS)

CVBSYC

A/D

VIDEO

SIGNAL

A/D

OUTPUT

CONTROL

PROCESS

A/D

SECAM PDM

QDRVVA

103

R905

WF14WF13

R907

QDRVHE

PANEL

SIGNAL

XIN XOUT

PROCESS

Q971

IC981

X301

54MHz

SYSTEM

CONTROL

VCOM

PANEL+10.8V

BLOCK

DIAGRAM

CONTROL

BURST

QDRVHC

R904

LOCKED

QDRVHB

QDRVHA/QDE

R901

R902

QDRVHC

R997

CHROMA

DECODER

RCO

QDRVVB

QCLKL

104

105

NTSC/PAL

SEPARATION

INPUT

CONTROL

A/D

134240

WF12

WF11

WF10

WF9

CN103B

VIDEO-R 1

VIDEO-B 3

VIDEO-G

S-VIDEO-C 5

IF/VIDEO

BLOCK

CVBS1 8

CVBS2 9

S-VIDEO-Y

DIAGRAM

CN103A

CN311

LP 44

POL 43

LCD MODULE

CN312

STH1 42

CLKH 10

HMS1-E 7

HMS1-O 13

STV1 13

CLKV 14

VREF(0) 32

VREF(4) 28

VREF(1) 31

VREF(2) 30

VREF(3) 29

VREF(7) 24

VREF(5) 26

VREF(6) 25

7-4

VCOM 35

VCOM

VCOM 3

VCOM

VREF(8) 23

VREF(9) 22

L4534BLLCD

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

REG+3.3V

REG+1.8V

LCD MAIN CBA UNIT

CN103B

CN103A

AL+3.3V

AL+3.3V10 10

AL+5V11 11 AL+5V

IC101

AL+5V(D)12 12

+3.3V

AL+4V(D)13 13

REG

IC102

+1.8V

IC606

REG

PANEL+10.8V

PANEL+3.3V

CN101B

PANEL+3.3V

PANEL+10.8V

CN101A

+3.3V REG.

IC602

+5V REG.

PANEL+25V

AL+33V

AL+3.3V

PANEL-6V

PANEL+25V

99PANEL-6V

+10.8V REG.

Q503

AL+7.5V

AL+5V

+5V REG.

Q633

IC605

P-ON+5V

AL+12V

+5V REG.

TO LCD BACKLIGHT

BLOCK DIAGRAM

AL+40V

INV+22V

Q506

Q507

-6V REG.

Q505

Q504

P-ON-H

+25V REG.

Q501

P-25V-ON

Q502

TO SYSTEM CONTROL

BLOCK DIAGRAM

PROTECT-1

PROTECT-2

MAIN CBA

Q632

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

T601

HOT COLD

D605-D608

L601

F601

T4A L 250V

AC601

AC CORD

BRIDGE

RECTIFIER

LINE

FILTER

Q608

Q603

7-5

IC601

ERROR

VOLTAGE

DET

L4534BLP

LCD Backlight Block Diagram

BACK

LIGHT

CN401

OVER VOLTAGE

PROTECTOR

Q422,432

BACK

CN403

LIGHT

OVER VOLTAGE

PROTECTOR

Q462,463

LCD MODULE

Q405

OVER VOLTAGE

PROTECTOR

Q404

SWITCHING

Q406

T401

614

CURRENT

CONTROL

Q421

SWITCH

Q424

Q401

SWITCHING

Q402

BACKLIGHT-ON

Q403

PWM CONTROL

T402

614

CURRENT

CONTROL

Q461

SWITCH

Q464

OVER CURERENT

PROTECTOR

Q425

BACKLIGHT-ADJ

SYSTEM

PROTECT-1

CONTROL

BLOCK

DIAGRAM

INV+22V

POWER

SUPPLY

AL+40V

BLOCK

DIAGRAM

7-6

MAIN CBA

L4534BLLB

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “!” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60 ppm/°C CSL --- +350~-1000 ppm/°C

, M = 106).

-6

µF).

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

PNP Transistor

E C B

(Top View)

Schematic Diagram Symbols

Digital Transistor

E C B

NPN Digital Transistor

PNP Digital Transistor

E C B

8-1 LC4P_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

(Unit: Volt)

5.0 5.0

Power on mode

5. How to read converged lines

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage is not consistent here.

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 LC4P_SC

Main 1/4 Schematic Diagram

8-3

L4534SCM1

Main 2/4 Schematic Diagram

CN103A

10.1

20.4

30.2 40

52.6

62.6 70

81.7

90.2 10 0 11 3.5 12 5.2 13 6.9 14 3.1 15 0 16 4.8 17 0 18 5.2 19 0 20 5.2 21 3.3 22 3.1 23 0

VOLTAGE CHART

Pin No. Voltage

8-4

L4534SCM2

Main 3/4 Schematic Diagram

CN101A

1 10.8 20

33.4

40 50 6 25.9 70 80 9-6.3

VOLTAGE CHART

Pin No. Voltage

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

8-5 L4534SCM3

Main 4/4 & IR Sensor Schematic Diagram

CN102A

13.8

30.1

45.2

55.2

63.3

70.2

92.0 10 0 11 4.4 12 0.4 13 3.8 14 1.5 15 3.4 16 0 17 0 18 5.2 19 5.2 20 0 21 0 22 0 23 0

VOLTAGE CHART

Pin No. Voltage

8-6

L4534SCM4

Function Schematic Diagram

8-7

L4534SCF

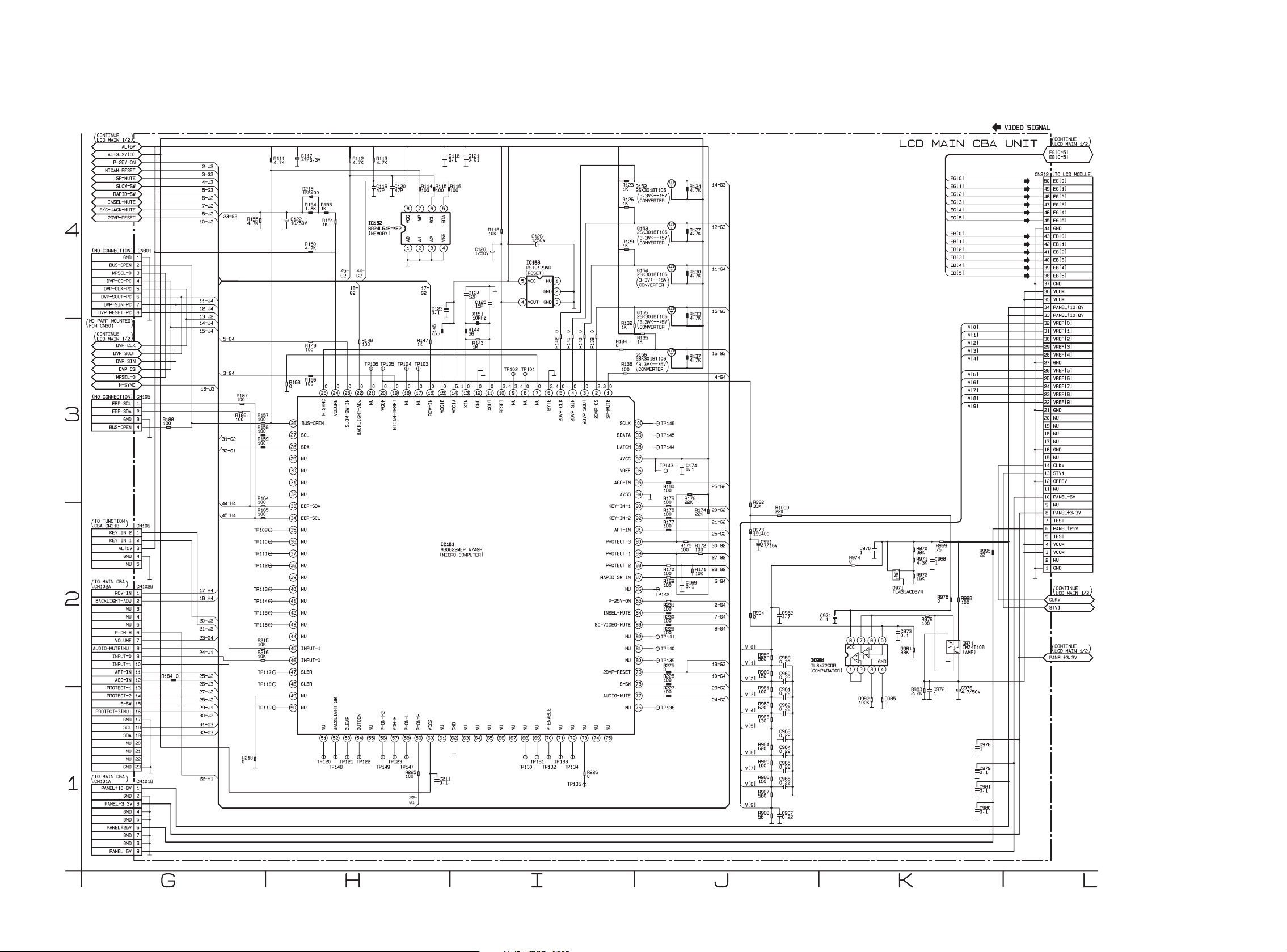

LCD Main 1/2 Schematic Diagram

8-8

L4534SCL1

LCD Main 2/2 Schematic Diagram

8-9

L4534SCL2

Main CBA Top View

Because a hot chassis ground is present in the power supply circut, an isolation transformer must be used. Also, in order to have the ability to increase the input slowly, when troubleshooting this type power supply circuit, a variable isolation transformer is required.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

8-10

BL4520F01012-1

Main CBA Bottom View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

WF8

PIN 8 OF CN103A

WF7

PIN 9 OF CN103A

WF4

PIN 3 OF CN103A

WF6

PIN 1 OF CN103A

WF5

PIN 2 OF CN103A

WF2

PIN 1 OF IC781

WF3

PIN 13 OF IC781

8-11

WF1

PIN 14 OF IC801

BL4520F01012-1

IR Sensor CBA Top & Bottom ViewFunction CBA Top View

BL4520F01012-3

Function CBA Bottom View

BL4520F01012-2

8-12

WAVEFORMS

WF1 ~ WF8 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1

Pin 14 of IC801

WF4

Pin 3 of CN103A

WF7

Pin 9 of CN103A

AUDIO 0.1V 0.5ms

WF2

Pin 1 of IC781

S-VIDEO-Y 0.2V 10µs

WF3

Pin 13 of IC781

B 0.5V

B 0.5V 5µs

WF5

Pin 2 of CN103A

G 0.5V

G 0.5V 20µs

WF6

Pin 1 of CN103A

CVBS2 0.2V 20µs

WF8

Pin 8 of CN103A

CVBS1 0.2V 20µs

S-VIDEO-C 0.2V 20µs

R 0.5V

R 0.5V 10µs

9-1

L4620WF

WF9 ~ WF14 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF9

R997

WF12

R904

CTKH 1V 20ns

WF10

R902

STH1 1V 1µs

WF11

R901

LP 1V 10µs

WF13

R907

STV1 1V 5ms

WF14

R905

POL 1V 20µs

9-2

CLKV 1V 10µs

L4620WF

WIRING DIAGRAMS

LCD MAIN CBA UNIT

SP-R2GND

CN801

CN103B

VIDEO-R

CN103A

CN102A

RCV-IN

1325476

CN102B

CLN801

VIDEO-B

VIDEO-G

BACKLIGHT-ADJ

CN802

51342

GND

S-VIDEO-Y

GND

S-VIDEO-C

51342

NUNUP-ON-H

VOLUME

JK751

SP-L2GND

CLN802

CVBS1

CVBS2

AUDIO-MUTE(NU)

INPUT-0

123456789

AL+5V

AL+4V(D)

AL+3.3V

AL+5V(D)

PROTECT-1

AGC-IN

INPUT-1

AFT-IN

10131211141517161918212022

152018

S/C-JACK-MUTE

RAPID-SW

SLOW-SW

INSEL-MUTE

152018

172220

PROTECT-2

GND

S-SW

PROTECT-3(NU)

1011121314151617181920

NICAM-RESET

SP-MUTE

SDA

SCL

P-25V-ON

FBIN

GND

PANEL+10.8V

CN101A CN101B

413

GND

PANEL+3.3V

24365

GND

PANEL+25V

GND

789

95786

PANEL-6V

AC CORD

AC601

CLN53

AL+5V

CN53

AL+5V

RCV-IN

GND

P-ON-H(NU)

GND

RCV-IN

P-ON-H(NU)

TU1 TUNER UNIT

IR SENSOR

GND

51342

GND

CBA

AUDIO(R)

-IN

AUDIO(L)

-IN

VIDEO

-IN

S-VIDEO

SP801

SPEAKER

R CH

ER(3)

ER(4)

ER(5)

CN311

1325476

2NU3

GND

VCOM4VCOM

CN312

ER(2)

SP802

ER(0)

ER(1)

TEST

PANEL+25V

SPEAKER

L CH

HMS1-E

TEST

CN105 IS

USED FOR

ADJUSTMENT

AT FACTORY

< NO CONNECTION >

132

GND

CN105

EEP-SCL

EEP-SDA

BUS-OPEN

GND

CLKH

GND

PANEL+3.3V

GND

HMS1-O

GND

STV1

OFFEV

CLKV

OB(5)

15NU16

101312111415171619182120222324272625282930

11NU12

PANEL-6V

1325476

GND

CN301

MPSEL-0

BUS-OPEN

OB(4)

OB(3)

OB(2)

OB(1)

17NU18NU19NU20NU21

GND

< NO CONNECTION >

DVP-CS-PC

DVP-SIN-PC

DVP-CLK-PC

DVP-SOUT-PC

OB(0)

GND

OG(5)

OG(4)

GND

VREF(9)23VREF(8)24VREF(7)25VREF(6)26VREF(5)

DVP-RESET-PC

OG(3)

OG(2)

OG(1)

FUNCTION

132

CN31B

KEY-IN-1

AL+5VNUGND

KEY-IN-2

132

CN106

OG(0)

GND

OR(5)

OR(4)

GND

VREF(4)29VREF(3)30VREF(2)31VREF(1)

CBA

OR(3)

OR(2)

OR(1)

OR(0)

GND

323134353736393840

333435

VREF(0)

PANEL+3.3V PANEL+10.8V

PANEL+3.3V

GND

VCOM

PANEL+10.8V

CN401

PANEL+3.3V

EB(5)39EB(4)40EB(3)

BACK

LIGHT

GND

STH1

4241444345

EB(2)

EB(1)

CN403

POLLPGND

434445

GND

EB(0)

EG(5)

PANEL+3.3V

MAIN CBA

BACK

LIGHT

EG(4)47EG(3)48EG(2)49EG(1)50EG(0)

LCD MODULE

10-1

L4534WI

Cabinet

EXPLODED VIEWS

A11

IR Sensor CBA

B18

SP801

L25

CLN801

B18

L25

SP802

CLN802

L25

B18

Function CBA

B18

B34

L21

L23

B18

L30

L17

L30

B51

B49

B47

L17

B53

B48

A21

LCD Main CBA Unit & Liquid Crystal Panel Unit

See Electrical Parts List for parts with this mark.

L21

B10

L16

L21

Main CBA

AC601

11-1 L4534EX

L16

B22

B52

A20

A22

Packing

X2-1

Tape

Packing Tape

FRONT

Some Ref. Numbers are not in sequence.

Packing Tape

11-2 L4534PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

PARTS produced in CHINA

Ref. No. Description Part No.

A1 FRONT CABINET L4534BE 1EM121720

A2 BRAND BADGE L6509UK 0EM408355

A3 CONTROL PLATE L4534BE 1EM322276

A4 REAR CABINET L4534BE 1EM021495

A5 RUUBBER FOOT L3201UB 1EM320183

A7 FUNCTION KNOB L4534BZ 1EM322289

A9 PHOTO STAND ASSEMBLY L4520EA 1ESA13353

A11 LED LENS L2531JB 1EM423797

A20 STAND B (15V) L4520EA 1EM121703

A21 STAND A L4520EA 1EM221419

A22 FOOT L4520EA 1EM423649

B3 STAND HOLDER L2500UA 1EM321428

B4 JACK HOLDER L4520EA 1EM121697

B9 INSULATION SHEET L4520EA 1EM423590

B18 CLOTH(10X190XT0.3) L0200UA 1EM420019

B34 CLOTH 10X150XT1.0 1EM421092

B47 BRACKET L4520EA 1EM322218

B48 LATCH L4520EA 1EM322221

B49 CLIP L4520EA 1EM423647

B51 SHAFT L4520EA 1EM423648

B52 HOLDER L4520EA 1EM423650

B53 LATCH SPRING L4520EA 1EM423652

CLN801 WIRE ASSEMBLY 2PIN 2PIN 300MM AWG26 WX1L4520-003

CLN802 WIRE ASSEMBLY 2PIN 2PIN 130MM AWG26 WX1L4520-004

L1 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120

L4 SCREW P-TIGHT M3*10 WASHERHEAD+ GCJP3100

L7 SCREW S-TIGHT M4X18 BIND HEAD+ GBHS4180

L9 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L23 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080

L25 ASSEMBLED SCREW M3X10 1EM420633A

L30 SCREW P-TIGHT M3X8 DISH HEAD+ GDJP3080

SP801 SPEAKER MAGNETIC S08F72 DSD0808XQ017

SP802 SPEAKER MAGNETIC S08F72 DSD0808XQ017

ACCESSORY

X3 REMOTE CONTROL NF007RD 192/ERC001/

NF007RD

PARTS produced in EU

Ref. No. Description Part No.

A6! RATING LABEL L4534BE ----------

L1 SCREW P-TIGHT 3X12 WASHER HEAD+ GCJP3120

L9 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L17 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L21 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080

L25 ASSEMBLED SCREW M3X10 1EM420633A

PACKING

S1 CARTON L4534BE 1EM423828

S2 STYROFOAM TOP L4534BE 1EM021501

S3 STYROFOAM BOTTOM L4534BE 1EM021504

S4 SET BAG L3100UA 1EM320214

S5 SERIAL NO. LABEL L4534BE ----------

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2-1! OWNERS MANUAL(EN) L4534BE 1EMN21947

X5 BATTERY R6RC/2P XB0M601MS001

20060808 12-1 L4534CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

PARTS produced in CHINA

LCD MAIN CBA UNIT & LIQUID CRYSTAL PANEL UNIT

Ref. No. Description Part No.

LCD MAIN CBA UNIT & LIQUID CRYSTAL PANEL UNIT

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA FUNCTION CBA IR SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA Consists of the following:

CAPACITORS

C11 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C12 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M or CA0K101SP085

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTM101 C14 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C15 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M or CA1A101SP085

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTM101 C16 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C17 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP 1µF/50V M or CA1J1R0SP085

ELECTROLYTIC CAP 1µF/50V M CE1JMASTM1R0 C18 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C20 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CA1C100SP085

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100 C21 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470

C402 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C403 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASDL221

UE150EA

1ESA13359

----------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 220µF/25V M or CA1E221SP085 ELECTROLYTIC CAP. 220µF/25V M CE1EMASTM221

C421 CAP CHIP 5PF 3KV C XC or CA3F5R05M016

CAP CHIP CERAMIC 5pF/3.15KV/DJ CA3F5R0MR060

C422 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C423 CAP CHIP 5PF 3KV C XC or CA3F5R05M016

CAP CHIP CERAMIC 5pF/3.15KV/DJ CA3F5R0MR060

C425 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C426 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C427 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C428 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C429 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C430 CAP METALIZED FILM 0.056µF 250V J ECWF2 orCT2E563MS041

CAP METALIZED FILM 0.056/250VDC/J/MPEF CT2E563DT051 C431 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M or CA1J220SP085

ELECTROLYTIC CAP 22µF/50V M CE1JMASTM220 C432 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C461 CAP CHIP 5PF 3KV C XC or CA3F5R05M016

CAP CHIP CERAMIC 5pF/3.15KV/DJ CA3F5R0MR060 C462 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

C463 CAP CHIP 5PF 3KV C XC or CA3F5R05M016

CAP CHIP CERAMIC 5pF/3.15KV/DJ CA3F5R0MR060 C465 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C466 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C467 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C468 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C469 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C470 CAP METALIZED FILM 0.056µF 250V J ECWF2 orCT2E563MS041

CAP METALIZED FILM 0.056/250VDC/J/MPEF CT2E563DT051 C471 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M or CA1J220SP085

ELECTROLYTIC CAP 22µF/50V M CE1JMASTM220 C501 ELECTROLYTIC CAP. 22µF/50V M H7 or CE1JMAVSL220

ALUMINUM ELECTROLYTIC CAP 22µF/50V H7 CE1JMAVSM220 C502 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C503 ELECTROLYTIC CAP. 220µF/16V M H7 or CE1CMASSL221

ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSM221 C504 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C505 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C506 ELECTROLYTIC CAP. 100µF/10V M H7 or CE1AMAVSL101

ALUMINUM ELECTROLYTIC CAP 100µF/10V H7CE1AMAVSM101

C507 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C512 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C513 ELECTROLYTIC CAP. 220µF/6.3V M H7 or CE0KMAVSL221

ALUMINUM ELECTROLYTIC CAP 220µF/6.3V H7CE0KMAVSM221

C517 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

ALUMINUM ELECTROLYTIC CAP 100µF/16V H7CE1CMAVSM101

C527 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V H7 CE1JMAVSM100 C536 ELECTROLYTIC CAP. 330µF/6.3V M H7 or CE0KMAVSL331

ALUMINUM ELECTROLYTIC CAP 330µF/6.3V H7CE0KMAVSM331

20060808 13-1 L4534EL

Ref. No. Description Part No.

C601! METALIZED FILM CAP. 0.1µF/250V or CT2E104MS037 ! ACROSS THE LINE CAP. 0.1µF/250V K or CT2E104DC011

! ACROSS THE LINE CAP. 0.1U/250V CT2E104DC015 C602! METALIZED FILM CAP. 0.1µF/250V or CT2E104MS037 ! ACROSS THE LINE CAP. 0.1µF/250V K or CT2E104DC011

! ACROSS THE LINE CAP. 0.1U/250V CT2E104DC015

C608 CERAMIC CAP. BN 470pF/2KV or CCD3DKA0B471

CERAMIC CAP. 470pF/2KV or CA3D471PAN04

CERAMIC CAP. RB 470pF/2KV or CA3D471TE006

CERAMIC CAP. BL 470pF/2KV CA3D471XF003

C610! CAP ELE LQ SERIES 150µF/400V/M/85 CA2H151NC234 C612 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J or CA1J103MS029 POLYESTER FILM CAP. (PB FREE) 0.01µF/

100V J or CAP POLYESTER FILM 0.01µF/50V J CA1J103SER04

C613 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J or CA1J683MS029 POLYESTER FILM CAP. (PB FREE) 0.068µF/

100V J or CAP POLYESTER FILM 0.068µF/50V J CA1J683SER04

C614 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J or CA1J102MS029 POLYESTER FILM CAP. (PB FREE) 0.001µF/

100V J or CAP POLYESTER FILM 0.001µF/50V J CA1J102SER04

C631! ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

! ALUMINUM ELECTROLYTIC CAP 2200µF/25V

! ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNDL222 C632! ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100 ! ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085 ! ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C633! ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221 ! ELECTROLYTIC CAP. 220µF/16V M or CA1C221SP085 ! ELECTROLYTIC CAP. 220µF/16V M CE1CMASTM221 C635! ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471 ! ELECTROLYTIC CAP. 470µF/16V M or CA1C471SP085 ! ELECTROLYTIC CAP. 470µF/16V M CE1CMASTM471 C636! ELECTROLYTIC CAP. 220µF/50V M or CE1JMASDL221 ! ELECTROLYTIC CAP. 220µF/50V M or CA1J221SP085 ! ELECTROLYTIC CAP 220µF/50V M CE1JMASTM221 C637! ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471 ! ELECTROLYTIC CAP. 470µF/16V M or CA1C471SP085 ! ELECTROLYTIC CAP. 470µF/16V M CE1CMASTM471

C641! SAFETY CAP. 2200pF/250V KX CA2E222MR050 C643 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C645 ELECTROLYTIC CAP. 330µF/6.3V M H7 or CE0KMAVSL331

C646 FILM CAP.(P) 0.082µF/50V J or CMA1JJS00823

C647 ELECTROLYTIC CAP. 330µF/6.3V M H7 or CE0KMAVSL331

C648 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C649 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

C650 ELECTROLYTIC CAP. 330µF/25V M or CE1EMASDL331

C651 ELECTROLYTIC CAP. 47µF/6.3V M H7 or CE0KMAVSL470

C652 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

M or

ALUMINUM ELECTROLYTIC CAP 330µF/6.3V H7CE0KMAVSM331

FILM CAP.(P) 0.082µF/50V J or CA1J823MS029 POLYESTER FILM CAP. (PB FREE) 0.082µF/

100V J or CAP POLYESTER FILM 0.082µF/50V J CA1J823SER04

ALUMINUM ELECTROLYTIC CAP 330µF/6.3V H7CE0KMAVSM331

ELECTROLYTIC CAP. 470µF/10V M or CA1A471SP085 ELECTROLYTIC CAP. 470µF/10V M CE1AMASTM471

ELECTROLYTIC CAP. 330µF/25V M or CA1E331SP085 ALUMINUM ELECTROLYTIC CAP 330µF/25V MCE1EMASTM331

ALUMINUM ELECTROLYTIC CAP 47µF/6.3V H7CE0KMAVSM470

CA2A103DT018

CA2A683DT018

CA2A102DT018

CE1EMZNTM222

CA2A823DT018

Ref. No. Description Part No.

ALUMINUM ELECTROLYTIC CAP 10µF/50V H7 CE1JMAVSM100 C653 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASDL471

ELECTROLYTIC CAP. 470µF/10V M or CA1A471SP085

ELECTROLYTIC CAP. 470µF/10V M CE1AMASTM471 C654 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C655 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASDL471

ELECTROLYTIC CAP. 470µF/6.3V M or CA0K471SP085

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASTM471 C656 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP 1µF/50V M or CA1J1R0SP085

ELECTROLYTIC CAP 1µF/50V M CE1JMASTM1R0 C657 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C659 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J or CA1J223MS029

POLYESTER FILM CAP. (PB FREE) 0.022µF/

100V J or

CAP POLYESTER FILM 0.022µF/50V J CA1J223SER04 C660 FILM CAP.(P) 0.0068µF/50V J or CMA1JJS00682

FILM CAP.(P) 0.0068µF/50V J or CA1J682MS029

POLYESTER FILM CAP. (PB FREE) 0.0068µF/

100V J or

CAP POLYESTER FILM 0.0068µF/50V J CA1J682SER04 C663 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C664 ELECTROLYTIC CAP. 330µF/6.3V M H7 or CE0KMAVSL331

ALUMINUM ELECTROLYTIC CAP 330µF/6.3V H7CE0KMAVSM331

C702 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C703 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470

C707 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102

C710 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C711 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470

C712 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C713 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C714 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C715 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C716 CERAMIC CAP.(AX) CH J 560pF/50V CCK1JJTCH561 C717 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225

C718 CERAMIC CAP.(AX) CH J 560pF/50V CCK1JJTCH561 C719 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C720 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C721 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C722 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C723 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C730 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C742 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470 C743 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C745 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470 C746 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C747 ELECTROLYTIC CAP. 33µF/16V M H7 or CE1CMAVSL330

ALUMINUM ELECTROLYTIC CAP 33µF/16V H7 CE1CMAVSM330 C751 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470 C753 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V H7 CE1CMAVSM470 C756 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASDL470

ELECTROLYTIC CAP. 47µF/16V M or CA1C470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/16V M CE1CMASTM470 C758 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V H7 CE1CMAVSM470

CA2A223DT018

CA2A682DT018

20060808 13-2 L4534EL

Ref. No. Description Part No.

C761 ELECTROLYTIC CAP. 100µF/6.3V H7 or CE0KMAVSL101

ALUMINUM ELECTROLYTIC CAP 100µF/6.3V H7CE0KMAVSM101

C762 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C766 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

ALUMINUM ELECTROLYTIC CAP 100µF/16V H7CE1CMAVSM101

C767 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C768 ELECTROLYTIC CAP. 330µF/6.3V M H7 or CE0KMAVSL331

ALUMINUM ELECTROLYTIC CAP 330µF/6.3V H7CE0KMAVSM331

C781 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C782 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V H7 CE1CMAVSM470

C783 ELECTROLYTIC CAP. 10µF/50V M H7 or CE1JMAVSL100

ALUMINUM ELECTROLYTIC CAP 10µF/50V H7 CE1JMAVSM100 C784 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C785 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V H7 CE1CMAVSM470 C787 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

ALUMINUM ELECTROLYTIC CAP 47µF/16V H7 CE1CMAVSM470 C791 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C792 ELECTROLYTIC CAP. 100µF/6.3V H7 or CE0KMAVSL101

ALUMINUM ELECTROLYTIC CAP 100µF/6.3V H7CE0KMAVSM101

C801 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M or CA1C221SP085

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTM221 C802 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M or CA1C221SP085

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTM221 C810 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C811 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASDL101

ELECTROLYTIC CAP. 100µF/16V M or CA1C101SP085

ELECTROLYTIC CAP. 100µF/16V M CE1CMASTM101 C812 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C813 PCB JUMPER D0.6-P5.0 JW5.0T

C814 PCB JUMPER D0.6-P5.0 JW5.0T C815 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP 1µF/50V M or CA1J1R0SP085

ELECTROLYTIC CAP 1µF/50V M CE1JMASTM1R0 C818 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M or CA1C471SP085

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTM471

C819 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C820 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C831 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C832 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C833 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220

C834 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680

C835 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680

C836 CHIP CERAMIC CAP. CH D 3pF/50V or CHD1JD3CH3R0

CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP. CJ C 3pF/50V CHD1JC3CJ3R0

C837 CHIP CERAMIC CAP. CH D 3pF/50V or CHD1JD3CH3R0

CHIP CERAMIC CAP. CH C 3pF/50V or CHD1JC3CH3R0

CHIP CERAMIC CAP. CJ C 3pF/50V CHD1JC3CJ3R0

C838 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

C839 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C840 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CA1C100SP085

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100 C841 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103 C843 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M or CA0K101SP085

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTM101 C844 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C845 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C846 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103

Ref. No. Description Part No.

C847 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CA1C100SP085

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100 C848 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C850 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CA1C100SP085

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100 C851 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASDL3R3

ELECTROLYTIC CAP. 3.3µF/50V M or CA1J3R3SP085

ALUMINUM ELECTROLYTIC CAP 3.3µF/50V M CE1JMASTM3R3 C852 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C853 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104 C854 ELECTROLYTIC CAP. 10µF/16V M or CE1CMASDL100

ELECTROLYTIC CAP. 10µF/16V M or CA1C100SP085

ELECTROLYTIC CAP. 10µF/16V M CE1CMASTM100 C855 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474 C860 ELECTROLYTIC CAP. 2.2µF/50V M H7 or CE1JMAVSL2R2

ALUMINUM ELECTROLYTIC CAP 2.2µF/50V H7CE1JMAVSM2R2

C861 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C871 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M or CA1J100SP085

ALUMINUM ELECTROLYTIC CAP 10µF/50V M CE1JMASTM100 C872 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C873 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C874 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C875 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

C876 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

C877 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

CONNECTORS

CN53 CONNECTOR PRINT OSU B5B-PH-K-S

CN101A TWG CONNECTOR 09P TWG-P09P-A1 J3TWA09TG001

CN102A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN103A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN401 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001

CN403 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001

CN801 CONNECTOR BASE 008283021100000S+ J383C02UG003

CN802 CONNECTOR BASE 008283021100000S+ J383C02UG003

(LF)(SN)

J3PHC05JG029

DIODES

D11 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D12 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D401 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D402 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D403 ZENER DIODE MTZJT-7718B or QDTB00MTZJ18

ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS

D404 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D405 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D406 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D407 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D408 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D409 ZENER DIODE MTZJT-7710B or QDTB00MTZJ10

ZENER DIODE DZ-10BSBT265 NDTB00DZ10BS

D421 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D422 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D423 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D424 SWITCHING DIODE 1SS400 or QD1Z001SS400

20060808 13-3 L4534EL

Ref. No. Description Part No.

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D425 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D426 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D427 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D428 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D429 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D430 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D431 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D432 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D433 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D434 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D461 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D462 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D463 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D464 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D465 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D466 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D467 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D468 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D469 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D470 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D471 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D472 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D474 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D476 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D501 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D502 ZENER DIODE MTZJT-7724B or QDTB00MTZJ24

ZENER DIODE DZ-24BSBT265 NDTB00DZ24BS

D503 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D504 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D505 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

D506 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D507 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D516 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D524! ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

! ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D605! DIODE 1N5399-B/P or NDLZ001N5399

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D606! DIODE 1N5399-B/P or NDLZ001N5399

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D607! DIODE 1N5399-B/P or NDLZ001N5399

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D608! DIODE 1N5399-B/P or NDLZ001N5399

! RECTIFIER DIODE ERB12-06 or QDQZ0ERB1206

! DIODE 1N5399BE NDL1001N5399

D609 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

Ref. No. Description Part No.

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D611! ZENER DIODE MTZJT-7722B or QDTB00MTZJ22

! ZENER DIODE DZ-22BSBT265 NDTB00DZ22BS

D612 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D613 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D615 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D616! ZENER DIODE MTZJT-7733B or QDTB00MTZJ33

! ZENER DIODE DZ-33BSBT265 NDTB00DZ33BS

D620 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D624 DIODE ZENER 1ZC18(Q) QDLZ001ZC18Q

D631! DIODE SCHOTTKY 30PHA20 QDLZ030PHA20

D632! DIODE FR104-B or NDLZ000FR104

! DIODE FR104BB NDL1000FR104

D633! DIODE FR154 or NDLZ000FR154

! DIODE FR154BD NDL1000FR154

D635! DIODE FR154 or NDLZ000FR154

! DIODE FR154BD NDL1000FR154

D636! DIODE FR154 or NDLZ000FR154

! DIODE FR154BD NDL1000FR154

D637 DIODE 1ZC43(Q) QDLZ001ZC43Q

D638! SCHOTTKY BARRIER DIODE ERB84-009 QD7Z000ERB84

D639 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D640 DIODE 1N5397-B NDLZ001N5397

D641 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D642 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D643 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D644 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D645 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D646 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D647! IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036

D648 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D649! ZENER DIODE MTZJT-7739B or QDTB00MTZJ39

! ZENER DIODE DZ-39BSBT265 NDTB00DZ39BS

D650 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D651 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D653 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D654 ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D655 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D656 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q

D657 DIODE 1N5397-B NDLZ001N5397

D660 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D663 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D664 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D665 DIODE 1N5397-B NDLZ001N5397

D666 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D667 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D668 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D712 PCB JUMPER D0.6-P5.0 JW5.0T

D713 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D714 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D730 SWITCHING DIODE 1SS400 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D751 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

20060808 13-4 L4534EL

Ref. No. Description Part No.

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D752 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D753 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D754 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D755 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D756 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS

D802! SWITCHING DIODE 1SS400 or QD1Z001SS400

! SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP

D803! ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

! ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D804 PCB JUMPER D0.6-P5.0 JW5.0T D808 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

ICS

IC601! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

IC602 VOLTAGE REGULATOR LD1117SC-R or NSZBA0TSS229

VOLTAGE REGULATOR LM1117S-ADJ NSZBA0T2T001

IC605 IC VOLTAGE REGULATOR 5V KIA7805API/P or NSZBA0SJY041

VOLTAGE REGULATOR KA7805A NSZBA0SF3052

IC606! IC VOLTAGE REGULATOR 5V KIA7805API/P or NSZBA0SJY041

! VOLTAGE REGULATOR KA7805A NSZBA0SF3052

IC781 IC SWITCH TC4053BF(EL N F) QSZBA0TTS163

IC801 IC AN17812A QSZBA0SMS017

IC831 IC AUDIO PROCESSOR MSP3417G-QG-B8-V3 NSZBA0SP3005

IC871 IC SWITCHING TC4052BF(ELNF) or QSZBA0TTS162

IC SWITCHING CD4052BCSJX_NL or NSZBA0TF3137

IC SWITCHING CD4052BNSR NSZBA0TTY091

COILS

L11 PCB JUMPER D0.6-P5.0 JW5.0T L12 INDUCTOR 22µH-K-5FT LLARKBSTU220 L14 INDUCTOR 22µH-J-26T LLAXJATTU220

L401 COIL CHOKE ELC10D101EL LLC101KMS003

L403 COIL CHOKE ELC10D101EL LLC101KMS003

L601! LINE FILTER ELF17N008A LLBG00ZMS048 L631 INDUCTOR 47µH-K-5FT LLARKBSTU470 L632 INDUCTOR 22µH-J-26T LLAXJATTU220 L741 INDUCTOR 12µH-J-26T LLAXJATTU120 L760 INDUCTOR 100µH-K-5FT LLARKBSTU101

L761 PCB JUMPER D0.6-P5.0 JW5.0T L781 INDUCTOR 22µH-J-26T LLAXJATTU220 L831 INDUCTOR 18µH-J-26T LLAXJATTU180 L832 INDUCTOR 10µH-J-26T LLAXJATTU100 L833 INDUCTOR 47µH-K-5FT LLARKBSTU470

L834 PCB JUMPER D0.6-P5.0 JW5.0T L835 INDUCTOR 10µH-J-26T LLAXJATTU100

L836 PCB JUMPER D0.6-P5.0 JW5.0T

L837 PCB JUMPER D0.6-P5.0 JW5.0T L838 INDUCTOR 2.2µH-K-5FT LLARKBSTU2R2 L839 INDUCTOR 2.2µH-K-5FT LLARKBSTU2R2 L840 INDUCTOR 2.2µH-K-5FT LLARKBSTU2R2

TRANSISTORS

Q11 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A

Q401 NPN TRANSISTOR POWER 2SC4881F HFE

Q402 TRANSISTOR 2SA950-O (TE2 F T) or QQS002SA950F

Q403 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

Q404 TRANSISTOR 2SC2785(F) or QQSF02SC2785

MAX320

TRANSISTOR 2SA950-Y(TE2 F T) or QQSY02SA950F

TRANSISTOR (PB FREE) KTA1271-Y-AT/P NQSYKTA1271P

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

QQWZ2SC4881F

Ref. No. Description Part No.

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P NQS4KTC3198P

Q405 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP 2SA1318UZ

Q406 TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q421! FET MOS SMD HAT2215R01-EL-E QF2ZHAT2215R

Q422 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q424 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q425 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q432 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q461! FET MOS SMD HAT2215R01-EL-E QF2ZHAT2215R

Q462 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q463 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q464 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q501 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP 2SA1318UZ

Q502 NPN TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q503 TRANSISTOR 2SD1666R or QQER02SD1666

TRANSISTOR 2SD1666S or QQES02SD1666

TRANSISTOR KTD2059-Y/P or NQEYKTD2059P

TRANSISTOR KTD2059-O/P NQE0KTD2059P

Q504 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP 2SA1318UZ

Q505 NPN TRANSISTOR KRC103M-AT/P or NQSZKRC103MP

RES. BUILT-IN TRANSISTOR BA1F4M-T QQSZ00BA1F4M

Q506 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P NQS4KTC3198P

Q507 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q603! TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

! TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q608! MOS FET 2SK3798(Q) QFWZ2SK3798Q

Q632 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P NQS4KTC3198P

Q633 TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F

Q730 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q731 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q732 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q733 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

20060808 13-5 L4534EL

Ref. No. Description Part No.

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q734 RES. BUILT-IN TRANSISTOR KRA103M-AT/P or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

Q741 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q742 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q743 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A

Q744 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q781 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q791 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q792 TRANSISTOR 2SA1576A T106R QQ1R2SA1576A

Q871 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

Q872 TRANSISTOR 2SC4081 T106 Q or QQ1Q02SC4081

TRANSSISTOR 2SC4116-Y(TE85L F) QQ1Y2SC4116F

RESISTORS

R11 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R12 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R13 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R14 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R15 CHIP RES. 1/10W J 470 Ω or RRXAJR5Z0471

RES CHIP 1608 1/10W J 470 Ω RRXA471YF002 R17 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R18 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R401 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R402 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R403 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R404 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R406 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002 R407 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R408 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R409 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R410 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R411 CHIP RES. 1/10W J 47 Ω or RRXAJR5Z0470

RES CHIP 1608 1/10W J 47 Ω RRXA470YF002 R412 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R413 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002 R414 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R415 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R416 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R417 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330 R418 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R419 CARBON RES. 1/4W J 33 Ω RCX4JATZ0330

R420 PCB JUMPER D0.6-P5.0 JW5.0T R421 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002 R422 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002 R423 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R424 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R425 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

Ref. No. Description Part No.

R426 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R427 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R428 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω RRXA220YF002

R429 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω RRXA220YF002

R430 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R431 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R432 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R433 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R434 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R435 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002

R436 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R437 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R461 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002

R462 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002

R463 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R464 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R465 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R466 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R467 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω RRXA220YF002

R468 CHIP RES. 1/10W J 22 Ω or RRXAJR5Z0220

RES CHIP 1608 1/10W J 22 Ω RRXA220YF002

R469 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R470 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R471 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R472 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R473 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R476 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R477 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R502 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002 R503 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R504 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R505 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R507 PCB JUMPER D0.6-P5.0 JW5.0T R509 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R510 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R511 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R512 CHIP RES. 1/10W J 3.3k Ω or RRXAJR5Z0332

RES CHIP 1608 1/10W J 3.3k Ω RRXA332YF002

20060808 13-6 L4534EL

Ref. No. Description Part No.

R513 CHIP RES. 1/10W J 27k Ω or RRXAJR5Z0273

RES CHIP 1608 1/10W J 27k Ω RRXA273YF002

R514 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002 RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF002

R515 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R516 CHIP RES. 1/10W F 3k Ω or RRXAFR5H3001

CHIP RES. 1/10W F 3.0k Ω or RRXAFR5Z3001

RES CHIP 1608 1/10W F 3.00k Ω RTW3001YF002 R517 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R518 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R519 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R520 CHIP RES. 1/10W J 56k Ω or RRXAJR5Z0563

RES CHIP 1608 1/10W J 56k Ω RRXA563YF002 R521 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R526 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R601! CARBON RES. 1/2W J 3.3M Ω or RCX2335DP001 ! GLASS GLAZE RES. 1/2W J 3.3M Ω RXX2JZLZ0335 R602! CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001 ! CEMENT RESISTOR 5W J 1.2 Ω H 10MM RW051R2PAK10 R603 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R604 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R605 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R606 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824 R607 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R608 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R609 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684 R610 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R611 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R613! METAL OXIDE FILM RES. 2W J 0.68 Ω or RN02R68ZU001 ! METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R620 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R621 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R623 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R625 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R626 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R627 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R631 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R632 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002 R633 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R635 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682 R636 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R638 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R640 CHIP RES. 1/10W F 1.8k Ω or RRXAFR5H1801

CHIP RES. 1/10W F 1.8k Ω or RRXAFR5Z1801

RES CHIP 1608 1/10W F 1.80k Ω RTW1801YF002 R641 CHIP RES. 1/10W F 1.1k Ω or RRXAFR5H1101

CHIP RES. 1/10W F 1.1k Ω or RRXAFR5Z1101

RES CHIP 1608 1/10W F 1.10k Ω RTW1101YF002 R645 CHIP RES. 1/10W F 2.2k Ω or RRXAFR5H2201

CHIP RES.(1608) 1/10W F 2.2k Ω or RRXAFR5Z2201

RES CHIP 1608 1/10W F 2.20k Ω RTW2201YF002 R646 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R647! CHIP RES. 1/10W F 3.9k Ω or RRXAFR5H3901

! CHIP RES.(1608) 1/10W F 3.9k Ω or RRXAFR5Z3901 ! RES CHIP 1608 1/10W F 3.90k Ω RTW3901YF002 R648! CHIP RES. 1/10W F 3.9k Ω or RRXAFR5H3901 ! CHIP RES.(1608) 1/10W F 3.9k Ω or RRXAFR5Z3901 ! RES CHIP 1608 1/10W F 3.90k Ω RTW3901YF002 R649! CHIP RES. 1/10W F 4.7k Ω or RRXAFR5H4701 ! CHIP RES.(1608) 1/10W F 4.7k Ω or RRXAFR5Z4701 ! RES CHIP 1608 1/10W F 4.70k Ω RTW4701YF002

Ref. No. Description Part No.

R650! CHIP RES. 1/10W F 4.7k Ω or RRXAFR5H4701 ! CHIP RES.(1608) 1/10W F 4.7k Ω or RRXAFR5Z4701 ! RES CHIP 1608 1/10W F 4.70k Ω RTW4701YF002 R651! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5H1501 ! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5Z1501 ! RES CHIP 1608 1/10W F 1.50k Ω RTW1501YF002 R652! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5H1501 ! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5Z1501 ! RES CHIP 1608 1/10W F 1.50k Ω RTW1501YF002 R653! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5H1501 ! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5Z1501 ! RES CHIP 1608 1/10W F 1.50k Ω RTW1501YF002 R654! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5H1501 ! CHIP RES. 1/10W F 1.5k Ω or RRXAFR5Z1501 ! RES CHIP 1608 1/10W F 1.50k Ω RTW1501YF002

R655 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R656 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002 R657 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R659! CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103 ! RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R661 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R663 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2 R664 CARBON RES. 1/4W J 2.2 Ω RCX4JATZ02R2

R665 PCB JUMPER D0.6-P5.0 JW5.0T R667 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R669 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R670 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R671 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331 R672 METAL OXIDE FILM RES. 2W J 5.6 Ω or RN025R6ZU001

METAL OXIDE FILM RES. 2W J 5.6 Ω RN025R6DP004 R701 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R702 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R707 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R708 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R713 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750 R714 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R716 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R717 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R718 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002 R719 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R720 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R721 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002 R722 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R723 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R724 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R725 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R726 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R727 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002 R729 CHIP RES. 1/10W J 68k Ω or RRXAJR5Z0683

RES CHIP 1608 1/10W J 68k Ω RRXA683YF002 R730 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

20060808 13-7 L4534EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R731 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R732 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R733 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R735 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R736 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R737 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R738 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R740 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R741 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R743 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002 R744 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002 R745 CHIP RES. 1/10W J 39k Ω or RRXAJR5Z0393

RES CHIP 1608 1/10W J 39k Ω RRXA393YF002 R746 CARBON RES. 1/4W J 560 Ω RCX4JATZ0561 R748 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002 R749 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002 R750 CHIP RES. 1/10W J 39k Ω or RRXAJR5Z0393

RES CHIP 1608 1/10W J 39k Ω RRXA393YF002 R751 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R752 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R756 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R757 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R758 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R759 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R763 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R764 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750 R765 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R766 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R770 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R771 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R775 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R776 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R777 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002 R778 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002 R780 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R781 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002 R783 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002

Ref. No. Description Part No.

R784 CHIP RES. 1/10W J 39k Ω or RRXAJR5Z0393

RES CHIP 1608 1/10W J 39k Ω RRXA393YF002

R785 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002

R786 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002

R791 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R792 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R793 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

R794 CHIP RES. 1/10W J 820 Ω or RRXAJR5Z0821

RES CHIP 1608 1/10W J 820 Ω RRXA821YF002 R795 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R796 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R797 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R798 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R799 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R801 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R802 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R805! METAL OXIDE FILM RES. 2W J 2.2 Ω or RN022R2ZU001 ! METAL OXIDE FILM RES. 2W J 2.2 Ω RN022R2DP004 R807! METAL OXIDE FILM RES. 2W J 2.2 Ω or RN022R2ZU001 ! METAL OXIDE FILM RES. 2W J 2.2 Ω RN022R2DP004 R812! CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222 ! RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R813 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R814 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R815 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R816 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R817 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R831 CHIP RES. 1/10W J 1.2k Ω or RRXAJR5Z0122

RES CHIP 1608 1/10W J 1.2k Ω RRXA122YF002 R832 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R833 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R834 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R835 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002 R838 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R851 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R853 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R862 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R863 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R871 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R872 CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102

RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 R873 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R874 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153 R875 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R876 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R877 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

20060808 13-8 L4534EL

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R878 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R879 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R880 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R881 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R882 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R883 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R884 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R885 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R886 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002 R887 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R888 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R901 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R903 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R904 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R905 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R907 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R908 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R910 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R911 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

MISCELLANEOUS

B10 POW HEAT SINK PKG ASSEMBLY L3201UB 1EM420650

B22 HEAT SINK PLW ASSEMBLY L4520EA 1EM423670

BC602 BEAD INDUCTOR FBR07HA121TB-00 LLBF00ZTU021

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH601 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH602 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JK721 JACK SW DIN PCB L DIN-435C or JYEL040YUQ02

Y/C JACK 1P(SW) DMDC1-01-021 JYEL040RP001

JK722 JACK RCA PCB L RCA-112(2)-04(YL) JXRL010YUQ10

JK723 JACK RCA PCB L RCA-112(2)-04(WH) JXRL010YUQ11

JK724 JACK SW RCA PCB L RCA-112-03(RD) JYRL010YUQ02

JK751 JACK RGB PCB L MRC-021V-26 ABS (B11 JXGL210LY010

JK801 MINIATURE JACK(PB FREE) CKX-035-318AZ4 orJYSL010SNJ01

JACK SW HPEP SML PCB L PJ-350 JYSL010YUQ03

JS381 PCB JUMPER D0.6-P7.0 JW7.0T

JS426 PCB JUMPER D0.6-P5.0 JW5.0T

JS466 PCB JUMPER D0.6-P5.0 JW5.0T

JS601 PCB JUMPER D0.6-P10.0 JW10.0T

JS602 PCB JUMPER D0.6-P10.0 JW10.0T

JS603 PCB JUMPER D0.6-P10.0 JW10.0T

JS604 PCB JUMPER D0.6-P10.0 JW10.0T JS703 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 JS706 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 JS707 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 JS708 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 JS709 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

Ref. No. Description Part No.

JS710 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS711 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS810 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS813 PCB JUMPER D0.6-P15.0 JW15.0T

L16 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA601! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VARISTOR 10D 471K SVR NVQZVR10D471

T401! TRANS INVERTER ETJV27ZJ22AC LTZ2PC0MS002

T402! TRANS INVERTER ETJV27ZJ22AC LTZ2PC0MS002

T601! TRANS POWER 6740 LTT3PE0KT012

TM601 EYELET TYPE D-1 0VM406868

TM602 EYELET TYPE D-1 0VM406868

X831 XTAL 18.432MHZ FXD186LLN001

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

----------

CAPACITOR

C33 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

CONNECTOR

CN31B WIRE ASSEMBLY 5PIN 5PIN 130MM AWG26 WX1L4520-001

RESISTORS

R24 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R25 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R26 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R27 CHIP RES. 1/10W J 1.5k Ω or RRXAJR5Z0152

RES CHIP 1608 1/10W J 1.5k Ω RRXA152YF002 R28 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R29 CHIP RES. 1/10W J 2.7k Ω or RRXAJR5Z0272

RES CHIP 1608 1/10W J 2.7k Ω RRXA272YF002 R30 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472 R31 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R32 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R33 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101

SWITCHES

SW30 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW31 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW32 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW33 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW34 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW36 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

SW37 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSMC622A SST0101HH031

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA

Consists of the following:

CAPACITORS

C53 ELECTROLYTIC CAP. 47µF/10V M or CE1AMASDL470

ELECTROLYTIC CAP. 47µF/10V M or CA1A470SP085

ALUMINUM ELECTROLYTIC CAP 47µF/10V M CE1AMASTM470

----------

20060808 13-9 L4534EL

Ref. No. Description Part No.

DIODE

D51 LED L-53HT NP4Z000L53HT

RESISTORS

R63 CHIP RES. 1/10W J 68 Ω or RRXAJR5Z0680

RES CHIP 1608 1/10W J 68 Ω RRXA680YF002

R64 CHIP RES. 1/10W J 68 Ω or RRXAJR5Z0680

RES CHIP 1608 1/10W J 68 Ω RRXA680YF002

R65 CHIP RES. 1/10W J 150 Ω or RRXAJR5Z0151

RES CHIP 1608 1/10W J 150 Ω RRXA151YF002

R66 CHIP RES. 1/10W J 150 Ω or RRXAJR5Z0151

RES CHIP 1608 1/10W J 150 Ω RRXA151YF002

MISCELLANEOUS

CLN53 WIRE ASSEMBLY 5PIN 5PIN 250MM WX1L4534-001 JS52 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

RCV51 REMOCON RECEIVE UNIT KSM-602SR2E-2 or USESJRSKK045

REMOCON RESEVER MIM-0BM8DKL-C USESJRSUNT07

PARTS produced in EU

Ref. No. Description Part No.

MISCELLANEOUS

AC601! AC CORD BS 1800MM BLACK WAB0182LW017

TU1 TUNER UNIT BS TMFE6-301A UTUNPLGAL018

20060808 13-10 L4534EL

LCD-B15E6

L4534BE

2006-09-05

Funai LCD-B15E6 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

HOW TO INITIALIZE THE LCD TELEVISION

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAMS

EXPLODED VIEWS

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
