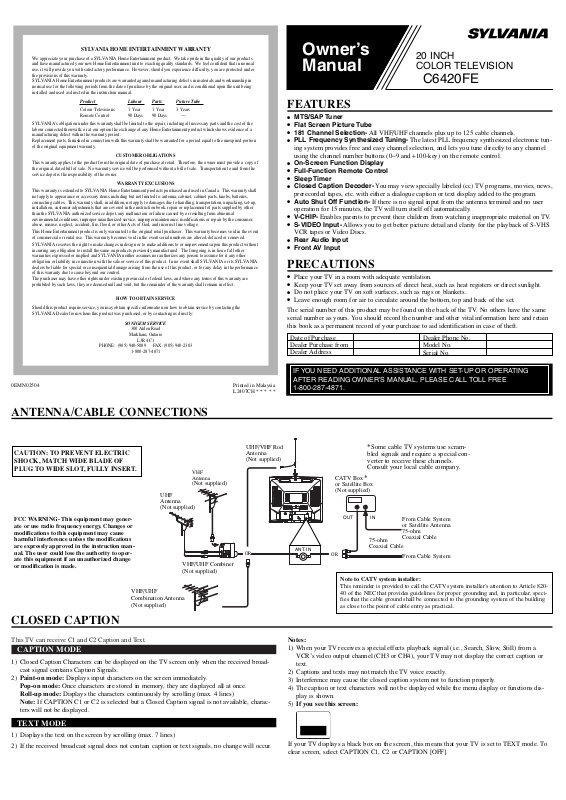

Funai C6420FE User Manual

This TV can receive C1 and C2 Caption and Text.

CAPTION MODE

1) Closed Caption Characters can be displayed on the TV screen only when the received broad­cast signal contains Caption Signals.

2) Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)
Note: If CAPTION C1 or C2 is selected but a Closed Caption signal is not available, charac-

ters will not be displayed.

TEXT MODE

1) Displays the text on the screen by scrolling (max. 7 lines)

2) If the received broadcast signal does not contain caption or text signals, no change will occur.

Notes:

1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a
VCR’s video output channel (CH3 or CH4), your TV may not display the correct caption or
text.

2) Captions and texts may not match the TV voice exactly.

3) Interference may cause the closed caption system not to function properly.

4) The caption or text characters will not be displayed while the menu display or functions dis­play is shown.

5) If you see this screen:

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].

ANTENNA/CABLE CONNECTIONS

PRECAUTIONS

●

Place your TV in a room with adequate ventilation.

●

Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

●

Do not place your TV on soft surfaces, such as rugs or blankets.

●

Leave enough room for air to circulate around the bottom, top and back of the set.

FEATURES

●

MTS/SAP Tuner

●

Flat Screen Picture Tube

●

181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

●

PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun­ing system provides free and easy channel selection, and lets you tune directly to any channel
using the channel number buttons (0~9 and +100-key) on the remote control.

●

On-Screen Function Display

●

Full-Function Remote Control

●

Sleep Timer

●

Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,
prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

●

Auto Shut Off Function- If there is no signal input from the antenna terminal and no user
operation for 15 minutes, the TV will turn itself off automatically.

●

V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

●

S-VIDEO Input- Allows you to get better picture detail and clarity for the playback of S-VHS
VCR tapes or Video Discs.

●

Rear Audio Input

●

Front AV Input

The serial number of this product may be found on the back of the TV. No others have the same
serial number as yours. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft.

CLOSED CAPTION

UHF
Antenna
(Not supplied)

VHF
Antenna

(Not supplied)

VHF/UHF Combiner
(Not supplied)

VHF/UHF
Combination Antenna
(Not supplied)

UHF/VHF Rod
Antenna
(Not supplied)

OR

OR

OUT IN

75-ohm
Coaxial Cable

From Cable System

From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable

CATV Box

*

or Satellite Box
(Not supplied)

*

Some cable TV systems use scram­bled signals and require a special con­verter to receive these channels.
Consult your local cable company.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820­40 of the NEC that provides guidelines for proper grounding and, in particular, speci­fies that the cable ground shall be connected to the grounding system of the building
as close to the point of cable entry as practical.

FCC WARNING- This equipment may gener­ate or use radio frequency energy. Changes or
modifications to this equipment may cause
harmful interference unless the modifications
are expressly approved in the instruction man­ual. The user could lose the authority to oper­ate this equipment if an unauthorized change
or modification is made.

Owner’s
Manual

CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.

ANT. IN

IF YOU NEED ADDITIONAL ASSISTANCE WITH SET-UP OR OPERATING
AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE
1-800-287-4871.

20 INCH
COLOR TELEVISION

C6420FE

0EMN02504 Printed in Malaysia

L2407CH * * * * *

SYLVANIA HOME ENTERTAINMENT WARRANTY

We appreciate your purchase of a SYLVANIA Home Entertainment product. We take pride in the quality of our products
and have manufactured your new Home Entertainment unit to exacting quality standards. We feel confident that in normal
use, it will provide you with satisfactory performance. However, should you experience difficulty, you are protected under
the provisions of this warranty.
SYLVANIA Home Entertainment products are warranted against manufacturing defects in materials and workmanship in
normal use for the following periods from the date of purchase by the original user, and is conditional upon the unit being
installed and used as directed in the instruction manual.

Product Labour Parts Picture Tube

Colour Televisions 1 Year 1 Year 3 Years
Remote Control 90 Days 90 Days —

SYLVANIA's obligation under this warranty shall be limited to the repair, including all necessary parts and the cost of the
labour connected therewith, or at our option the exchange of any Home Entertainment product which shows evidence of a
manufacturing defect within the warranty period.
Replacement parts, furnished in connection with this warranty shall be warranted for a period equal to the unexpired portion
of the original equipment warranty.

This warranty applies to the product from the original date of purchase at retail. Therefore, the owner must provide a copy of
the original, dated bill of sale. No warranty service will be performed without a bill of sale. Transportation to and from the
service depot is the responsibility of the owner.

This warranty is extended to SYLVANIA Home Entertainment products purchased and used in Canada. This warranty shall
not apply to appearance or accessory items including but not limited to: antenna, cabinet, cabinet parts, knobs, batteries,
connecting cables. This warranty shall, in addition, not apply to damages due to handling, transportation, unpacking, set-up,
installation, customer adjustments that are covered in the instruction book, repair or replacement of parts supplied by other
than the SYLVANIA authorized service depot, any malfunction or failure caused by or resulting from abnormal
environmental conditions, improper unauthorized service, improper maintenance, modifications or repair by the consumer,
abuse, misuse, neglect, accident, fire, flood, or other Acts of God, and incorrect line voltage.

This Home Entertainment product is only warranted to the original retail purchaser. This warranty becomes void in the event
of commercial or rental use. This warranty becomes void in the event serial numbers are altered, defaced or removed.

SYLVANIA reserves the right to make changes in design or to make additions to or improvements upon this product without
incurring any obligation to install the same on products previously manufactured. The foregoing is in lieu of all other
warranties expressed or implied and SYLVANIA neither assumes nor authorizes any person to assume for it any other
obligation or liability in connection with the sale or service of this product. In no event shall SYLVANIA or its SYLVANIA
dealers be liable for special or consequential damage arising from the use of this product, or for any delay in the performance
of this warranty due to cause beyond our control.
The purchaser may have other rights under existing provincial or federal laws, and where any terms of this warranty are
prohibited by such laws, they are deemed null and void, but the remainder of the warranty shall remain in effect.

Should this product require service, you may obtain specific information on how to obtain service by contacting the
SYLVANIA Dealer from whom this product was purchased, or by contacting us directly:

CUSTOMER OBLIGATIONS

WARRANTY EXCLUSIONS

HOW TO OBTAIN SERVICE

SONIGEM SERVICE

300 Alden Road

Markham, Ontario

PHONE: [phone] FAX: [phone]

L3R 4C1

1-800-287-4871

Date of Purchase
Dealer Purchase from
Dealer Address

Dealer Phone No.
Model No.
Serial No.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI­ANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SER­VICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DAN­GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRE­SENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.

The important note is located on the rear of the cabinet.

1. Read instructions-All the safety and operating instruc­tions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instruc­tions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in
the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions
should be followed.

5. Cleaning-Unplug TV from the wall outlet before clean­ing. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupt­ed service and, that for some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by
the user for cleaning or any other purpose, may
exclude the reference to unplugging the appliance in
the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended
by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming
pool, and the like.

8. Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, caus­ing serious injury to someone, and serious damage to
the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer, or
sold with the TV.
Any mounting of the appliance should follow the man­ufacturer’s instructions and should
use a mounting accessory recom­mended by the manufacturer. An
appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.

9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to
ensure reliable operation of the TV and to protect it
from overheating, these openings must not be blocked
or covered. The openings should never be blocked by
placing the TV on a bed, sofa, rug, or other similar sur­face. This TV should never be placed near or over a
radiator or heat register. This TV should not be placed
in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac­turer’s instructions have been adhered to .

10. Power Sources-This TV should be operated only from
the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local
power company. For TVs intended to operate from bat­tery power, or other sources, refer to the operating
instructions.

11. Grounding or Polarization-This TV is equipped with a
polarized alternating-current line plug(a plug having
one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.

12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.

13. Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV, be sure the anten­na or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect
to proper grounding of the mast and supporting struc­ture, grounding of the lead-in wire to an antenna dis­charge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding elec­trodes, and requirements for the grounding electrode.
(Fig. A)

14. Lightning-For added protection for this TV receiver
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning
and power-line surges.

15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.

16. Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any
kind into this TV through openings as they may touch
dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of
any kind on the TV.18. Servicing-Do not attempt
to service this TV yourself as opening or removing
covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service person­nel.

19. Damage Requiring Service-Unplug this TV from the
wall outlet and refer servicing to qualified service per­sonnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV.

c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that
are covered by the operating instructions, as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified techni­cian to restore the TV to its normal operation.

e. If the TV has been dropped or damaged in any way.
f. When the TV exhibits a distinct change in perfor-

mance-this indicates a need for service.

20. Replacement Parts-When replacement parts are
required, be sure the service technician uses replace­ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.

21. Safety Check-Upon completion of any service or
repairs to this TV, ask the service technician to perform
routine safety checks to determine that the TV is in
proper operating condition.

22. Heat-This TV product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC
SERVICE
EQUIPMENT

GROUND
CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM
(NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

ANTENNA
LEAD IN
WIRE

OPERATING CONTROLS AND FUNCTIONS

- FRONT PANEL - - REAR PANEL -

1. VIDEO (INPUT) jack- Connect to the

video output jack of a video camera or
VCR.

2. AUDIO (INPUT) L/R jacks- Connect to

the left/right channel audio output jacks of
a video camera or VCR.
Note: The AUDIO (INPUT)L jack is for
mono input. The sound is heard from both
speakers. Use this jack for monaural audio
equipment to be hooked up.

3. HEADPHONE jack- To connect headphone

(not supplied) for personal listening.

4. MENU button- Press to display the menu

on the TV screen.

5. VOLUME (VOL) ▲/▼ buttons- Press to

control the volume level.
Press to determine the setting mode from the
menu on the TV screen. (only the VOL ▲
button)
Press to select or adjust from a particular
menu. (for example: Language Selection,
Channel Presetting, Closed Caption Selection,
Picture Adjustment, V-CHIP Set Up)

6. CHANNEL (CH) ▲/▼ buttons- Press to

select memorized channel.
Press to select the setting mode from the
menu on the TV screen.
Press to select item you want to adjust in
the picture control mode.

7. POWER button- Press to turn the TV ON

and OFF.

8. Infrared Sensor Window- Receives the

infrared control signals from the remote
control unit.

9. CHANNEL NUMBER buttons- Press two

digits to directly access the desired channel.
Remember to press a "0" before a single
digit channel.
+100 button- Press to select cable channels
higher than 99.

10.MUTE button- Press the MUTE button to

turn off the sound portion of the TV pro­gram. (Volume level display turns LIGHT
RED from LIGHT BLUE.) Press the
MUTE button again or press the VOL(ume)
▲ or ▼ button to restore sound.

11. INPUT SELECT button- Press to select

TV or the external input (VIDEO1,
VIDEO2) mode.
(See USING AUDIO/VIDEO INPUT JACKS.)

12.CHANNEL RETURN button- Press this

button to go back to the previously viewed
channel. For example, pressing the CHAN­NEL RETURN button once will change
channel display from CH 3 (present chan­nel) to CH 10 (previously viewed channel),
and pressing it a second time will return
from CH 10 to CH 3.

13.DISPLAY button- Press to display the

channel number on the screen. If you press
it again, the channel number will disappear.

14.SLEEP button- Press the SLEEP button to

display the sleep timer and start the func­tion. The shut off time can be determined
by the number of times you press the but­ton. (0, 10, 20, 30,..90, 0 minutes)

15.GAME button- Press to set the Game

mode. Press the GAME button again to exit
this mode.
(See USING AUDIO/VIDEO INPUT JACKS
and PICTURE ADJUSTMENT.)

16.

S-VIDEO (INPUT) jack-

Connect to the
S-VIDEO output jack of a video camera or
VCR using the S-VIDEO cable (not sup­plied).

17.ANT(enna). IN jack- Connect to an anten-

na, cable system, or satellite system.

18.AC cord- Connect to a standard AC outlet

(120V/60Hz).
Note: Unwrap the AC cord completely
from the backcover before plugging the
cord into an AC outlet.

- REMOTE CONTROL -

MENU

VOLUME

CHANNEL

L-AUDIO-R

VIDEO

HEADPHONE

POWER

1 2 3123

5

78

6

4

AUDIO IN

L

R

S-VIDEO

ANT. IN

17162

18

INSTALLING THE BATTERIES

1) Slide the battery compartment cover back
on the remote unit.

2) Insert 2 "AA" penlight batteries into battery
compartment in the direction as indicated
by the polarity (+ / -) markings. Batteries
installed with incorrect polarity may dam­age the remote unit.

3) Replace the cover.

USING AUDIO/VIDEO INPUT JACKS

When you use the AUDIO/VIDEO input
jacks, select “VIDEO1” or “VIDEO2” mode
by pressing the INPUT SELECT button on the
remote control.

•To use the jacks on the back of the TV, select

“VIDEO1”.

•To use the jacks on the front of the TV,

select “VIDEO2”.

Note:

•You may also set the Game mode and

VIDEO2 at the same time by pressing the
GAME button on the remote control.
"GAME" appears on the TV screen. In this
case, connect the external source to the
AUDIO/VIDEO jacks on the front panel.
(See PICTURE ADJUSTMENT.)

POWER

123

456

789

0 +100

DISPLAY

VOL

CH

CH

VOL

SLEEP

CHANNEL

RETURN

7

9

5

4

10

13

12

11

14

MUTE

MENU

6

GAME

15

INPUT

SELECT

PORTABLE CART WARNING

S3126A

[-]

GAME MODE

[+]

OFF ON

[-]

BRIGHT

[+]

[-]

CONTRAST

[+] [-]

COLOR

[+] [-]

TINT

[+]

[-]

SHARPNESS

[+]

PREPARATION FOR USE

WATCHING A TV PROGRAM

1) Press the POWER button to turn on the TV.

2) Select the desired channel with the CH(annel) ▲ or ▼ button.

3) Adjust the volume to the desired listening level using the VOL(ume) ▲ or ▼ button.

4) Adjust picture controls for a natural looking image. (See "PICTURE ADJUSTMENT".)

SETTING THE SLEEP TIMER

The sleep timer function allows you to have the power automatically turn off
after a set time period.

1) Press the POWER button to turn on the TV and press the SLEEP button
on the remote control .

2) You may change the sleep time by pressing the SLEEP button on the
remote control repeatedly. The timer can be set up to 90
minutes, 10 minutes each time the SLEEP button is
pressed. (The timer display counts up each time on the
screen as you press the SLEEP button on the remote con­trol.)
Note: When you disconnect the unit from the AC outlet, or when you have a power failure, the
sleep time will be lost.

CLOSED CAPTION SELECTION

GAME MODE

Set to the most suitable position for video
games.

[+] : ON [- ] : OFF

BRIGHT

Adjust until the darkest parts of the picture are
as bright as you prefer.

[+] : increase brightness [-] : decrease brightness

CONTRAST

Adjust to increase or decrease contrast.

[+] : increase contrast [ - ] : decrease contrast

COLOR

Adjust to be brilliant or pale color.

[+] : be brilliant color [ - ] : be pale color

TINT

Adjust to obtain natural skin tones.

[+] : greenish tone [ - ] : reddish tone

SHARPNESS

Adjust to increase or decrease the level of
detail in the picture.

[+]:increase sharpness [-]:decrease sharpness

Notes:

● “+” is achieved by pressing the VOL(ume)

▲ button and “-” by pressing the
VOL(ume)▼ button.

●

In the above steps, the picture adjustment
display will disappear from the TV screen
automatically after about 10 seconds if you
do not press any buttons. Press the MENU
and VOL(ume) ▲ button so that "PIC­TURE" is selected. Then, press the
CH(annel) ▲ or ▼ button repeatedly until
the display returns to the screen.

●

If you adjust another picture control after
you set the Game mode to [ON], the Game
mode is set to [OFF] automatically.

[USING THE GAME BUTTON]

You may also set the Game mode and external
input mode at the same time by pressing the
GAME button on the remote control. “GAME”
appears on the TV screen.

●

To exit the Game mode and external input
mode, press the GAME button on the remote
control again.

●

To cancel the Game mode only, adjust the
picture control. The GAME mode will be set
to [OFF] automatically as explained in the
previous section. In this case, “VIDEO”
(external input mode) instead of “GAME”
appears on the TV screen.

●

If you press the GAME button when the TV
is off, the TV turns on and will be in the
Game mode and external input mode auto­matically.

PICTURE ADJUSTMENT

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the VOL(ume) ▲ button so that "PICTURE" is selected.

3) Select the feature you wish to adjust with the CH(annel) ▲ or ▼ button and adjust it with the
VOL(ume) ▲ or ▼ button.

: Press the CH(annel) ▲ or ▼ button.

LANGUAGE SELECTION

If you want to change the language of the on-screen menu, follow the proce­dure below.

1) Connect the power cord to a standard AC outlet.

Note: If some digits appear in the corner of the screen, press the POWER
button without unplugging the power cord.

2) Press the POWER button to turn on the TV.

3) Press the MENU button so that the menu display appears
on the TV screen.

4) Press the CH(annel) ▲ or ▼ button to point to "[ENG]".

5) Select "ENG(lish)", "ESP(añol)" or "FRA(nçais)" by using
the VOL(ume) ▲ or ▼ button.

6) Press the MENU button to exit the menu.

CHANNEL PRESETTING

To preset a channel or to change a preset channel, follow the procedure below.

1) Press the POWER button to turn on the TV.

2) Press the MENU button so that the menu display appears
on the TV screen.

3) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".
Then, press the VOL(ume) ▲ button.

4) Press the CH(annel) ▲ or ▼ button to point to "AUTO PRESET CH".
Then, press the VOL(ume) ▲ button.
The tuner scans and memorizes all active channels in your area.

● The TV distinguishes between standard TV channels and cable (CATV)

channels.

● When AUTO PRESET CH action is completed, the lowest memorized

channel reappears on the screen.

● When you press the CH(annel) ▲ or ▼ button after selecting "AUTO PRESET CH",

the tuner will stop at the memorized channels only.

● The TV may recognize TV channels to be CATV channels by receiving conditions. In this case,

try AUTO PRESET CH action again after checking antenna connection.

● When AUTO PRESET CH is activated where there is no TV signal input, "NO TV SIGNALS"

will appear on the display after the completion of channel scanning.

[ADD/DELETE FUNCTION]

1) Press the MENU button so that the menu display appears on the TV
screen.

2) Press the CH(annel) ▲ or ▼ button to point to "CHANNEL SET".
Then, press the VOL(ume) ▲ button.

3) Press the VOL(ume) ▲ button so that "ADD/DELETE" is selected.

4) Use the CH(annel) ▲ or ▼ button to select the channel you wish to put

into memory or to erase from memory.
Note: The display will disappear automatically in about 10 seconds.
Perform "ADD/DELETE" function while this display appears on the
screen.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number
in LIGHT BLUE if you wish to add the channel into memory.

●

Press the VOL(ume) ▲ or ▼ button to light up the channel number
in LIGHT RED if you wish to erase the channel from memory.

5) Press the MENU button to exit the menu.

MTS (Multi-Channel Television Sound) System

You can listen to a program in MTS stereo by following the steps below.

[To Select STEREO, MONO or SAP in Stereo broadcast]

1) Press the MENU button so that the menu display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point to "TV SOUND".

3) Press the VOL(ume) ▲ or ▼ button to select your desired stereo mode.

([MAIN], [MONO] or [SAP].)

RESUME FUNCTION

If the power fails or is disconnected while the TV is powered on, the TV will turn on automatical­ly when the power resumes.

OPERATIONS

To show the status, press the DISPLAY
button on the remote control.

SAP: Second Audio Program, which
means your program can also be
received in a second language or
sometimes a radio station.

: Press the VOL(ume) ▲ or ▼ button.

To cancel the sleep timer:

Press the SLEEP button repeatedly
until "SLEEP 0" is displayed.

You may view specially labeled (cc) TV pro­grams, movies, news, prerecorded tapes, etc.
with either a dialogue caption or text display
added to the program.

1) Press the MENU button so that the menu
display appears on the TV screen.

2) Press the CH(annel) ▲ or ▼ button to point
to "CAPTION".

3) Press the VOL(ume) ▲ or ▼ button to
select the mode you wish.

4) When done, press the MENU button to exit
the menu.

: Press the VOL(ume) ▲ or ▼ button.

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

ADD/DELETE
AUTO PRESET CH

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

ADD/DELETE
AUTO PRESET CH

Menu

Typ e of

broadcast

Regular

Stereo

broadcast

SAP

Selection

MAIN

-None-

STEREO

MAIN

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

MONO

-None- -None-

MONO

MAIN

SAP

STEREO

SAP

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MONO]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [SAP]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [OFF]
TV SOUND [MAIN]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [ C1]
TV SOUND [MAIN]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [ C2]
TV SOUND [MAIN]

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [ T1]
TV SOUND [MAIN]

SLEEP 10

CHANNEL SET
[ENG] / ESP / FRA
V-CHIP SET UP
CAPTION [ T2]
TV SOUND [MAIN]
