13 inch COLOR TV/DVD

Owner's Manual

CMWC13D6

FEATURES

• Auto Channel Programming

• Screen Saver

• Auto Power Off

• Parental Lock

• Resume Play

• Closed Caption Decoder

SUPPLIED ACCESSORIES

This unit comes with the following accessories. Please confirm that all the accessories are included.



Owner's Manual

P Remote Control

P Owner's Manual

(NF102UD)

(1EMN21877)

*Batteries for remote control are not included. Two "AA" batteries are required.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING AFTER READING OWNER'S MANUAL,

PLEASE CALL TOLL FREE 1-800-605-8610 OR VISIT OUR WEB SITE AT http://www.funai-corp.com

PORTABLE CART WARNING
S3126A

PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

1.Read instructions - All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions - The safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments - Do not use attachments not recommended by the unit manufacturer as they may cause hazards.

7.Water and Moisture - Do not use this unit near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this unit on an unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manu-

facturer, or sold with the unit. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.Ventilation - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat register. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you

2

are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For the units intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding - If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE



ANTENNA



LEAD IN



WIRE



GROUND



CLAMP



ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT





GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING



ELECTRODE SYSTEM

S 2 8 9 8 A

(NEC ART 250, PART H)

14.Lightning - For added protection for this unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power-line surges.

EN

15.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

18.Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service - Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the unit.

c.If the unit has been exposed to rain or water.

d.If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e.If the unit has been dropped or damaged in any way.

f.When the unit exhibits a distinct change in performance, this indicates a need for service.

20.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to perform routine safety checks to determine that the unit is in proper operating condition.

22.Heat - This unit product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

PRECAUTIONS / IMPORTANT SAFEGUARDS

3

EN

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

LOCATION

For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from sources of intense heat.

Avoid dusty or humid places.

Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

Avoid locations subject to strong vibration.

Do not place the unit near strong magnetic fields.

Avoid moving unit to locations where temperature differences are extreme.

Be sure to remove disc and unplug the AC power cord from the outlet before carrying the unit.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the unit disc loading tray.

Do not place anything directly on top of the unit.

MOISTURE WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If you play a DVD in a moist unit, it may damage the DVD and the unit. When the condensation occurs inside the unit, turn the unit on and leave it at least 2 hours to dry out.

NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

The serial number of this product may be found on the back of the unit. No other unit has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase



Dealer Phone No.





Dealer Purchase from



Model No.





Dealer Address



Serial No.















4

EN

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2 IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . .2 TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS MANUAL . . . . . . . . . . . .5

PREPARATION FOR USE . . . . . . . . . . . . . . . . . .6

ANTENNA/CABLE CONNECTIONS . . . . . . . . . . . .6 CONNECTING TO AN EXTERNAL DEVICE (FRONT) . .7 INSTALLING THE BATTERIES IN REMOTE CONTROL .7

OPERATING CONTROLS AND FUNCTIONS . . .8

TV SECTION

TV OPERATION AND SETTINGS . . . . . . . . . . . .9

INITIAL SET UP . . . . . . . . . . . . . . . . . . . . . . . . . . .9 WATCHING A TV PROGRAM . . . . . . . . . . . . . . . . .9 SLEEP TIMER / PICTURE CONTROL . . . . . . . . . .10 CLOSED CAPTION SYSTEM . . . . . . . . . . . . . . . .10 CHANNEL SET UP . . . . . . . . . . . . . . . . . . . . . . . .11

ON-SCREEN MENU LANGUAGE . . . . . . . . . . . . .11 V-CHIP SET UP . . . . . . . . . . . . . . . . . . . . . . . . . .12

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . .15

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . .15 DISC MENU / TITLE MENU . . . . . . . . . . . . . . . . . .15

SPECIAL PLAYBACK FUNCTIONS & SETTINGS . . .16

FUNCTION TABLE . . . . . . . . . . . . . . . . . . . . . . . .16 AUDIO MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . .17 ANGLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 BLACK LEVEL MENU . . . . . . . . . . . . . . . . . . . . . .18 SEARCH MENU . . . . . . . . . . . . . . . . . . . . . . . . . .18 REPEAT PLAYBACK . . . . . . . . . . . . . . . . . . . . . . .19 PROGRAMMED PLAYBACK . . . . . . . . . . . . . . . . .20 RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . .20

ON-SCREEN INFORMATION . . . . . . . . . . . . . .

20

CHANGING THE DVD SET UP ITEMS . . . . . . .

21

CUSTOM MENU . . . . . . . . . . . . . . . . . . . . . . . . . .21 INITIALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . .24 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . .26 APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

DVD SECTION





CABLE CHANNEL DESIGNATIONS

. . . . . . . . . . .27





LANGUAGE CODE LIST . . . . . . . . .

27. . . . . . . . . . .

ABOUT THE DISCS

14

SPECIFICATIONS . . . . . . . . . . . . .

. . . . . . . . . .28

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . . . . .

14





UNPLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . . .

14

WARRANTY

BACK COVER







IMPORTANT SAFEGUARDS / TABLE OF CONTENTS

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings.









Description refers to TV operation



Description refers to playback of





TV









(in the TV mode).



audio CDs (in the DVD mode).



















Description refers to playback of



Description refers to the items









QUICK









DVD video discs (in the DVD mode).



to be set by the QUICK mode























(in the DVD mode).















5

EN

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

Plug the incoming cable into the ANT. jack on the rear of the unit.

If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below.

Cable OR Antenna

TV signal

Incoming cable from home Antenna / Cable Company (No Cable Box)

OR

Cable Box or Satellite Box*

OUT

IN

Incoming cable from Cable Company or Satellite Antenna

ANT.

Rear of the unit

ANT.

*NOTE

(DO NOT DISCONNECT FROM BOX) Some cable TV systems use scrambled signals and require a special converter to receive these channels. Consult your local cable company.

NOTE:

Before plugging the antenna into the ANT. jack of the unit, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. jack of the unit.

Bent pin

Cable Plug

(Needs to be straightened)

(Straight pin)

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. jack before moving the unit.

6

EN

CONNECTING TO AN EXTERNAL DEVICE (FRONT)

When you watch a program recorded on another source (VCR or video camera), use the AUDIO/VIDEO input jacks on the front of the unit.

Connect the Audio/Video output jacks of another source to the AUDIO and VIDEO jacks of this unit.

ex.

VCR or video camera, etc.

STANDBY-ON

OPEN/CLOSE

VIDEO AUDIO

VOLUME

CH. STOP

PLAY



SELECT



of the unit]

To the Audio output jack

(OUT) Audio Cable

(commercially available)

To the Video output jack

(OUT) Video Cable

(commercially available)

AUX

Then use [SELECT] or [CH. K / L] until "AUX" appears on the screen.

(Refer to "TO WATCH EXTERNAL INPUT" on page 9.)

PREPARATION FOR USE

INSTALLING THE BATTERIES IN REMOTE CONTROL

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

1

2

3

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.

If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

7

EN

OPERATING CONTROLS AND FUNCTIONS

- CONTROL PANEL -

STANDBY-ON



OPEN/CLOSE





VIDEO AUDIO

VOLUME

CH. STOP

PLAY



SELECT





1

2

3

4

5

6

7

8

9

10

[CONTROL PANEL]









06

PLAY B Button [TV P.9 / DVD P.15]

01

y STANDBY-ON Button [TV P.9 / DVD P.15]





07

Remote sensor window

02

Disc loading tray









08

OPEN/CLOSE A Button [DVD P.15]

03

VOLUME Y / X Buttons [P.9]







09

VIDEO input Jack [P.7]



04

CH. SELECT K Button [TV P.9]







10

AUDIO input Jack [P.7]



05

STOP C Button [DVD P.15]



















- REMOTE CONTROL -



STANDBY-ON





OPEN/





PICTURE/



CLOSE



11



SLEEP SELECT



22









12

1

2

3



23

13



24







CH.



4

5

6







7

8

9





14

DISPLAY



+100

VOL.

25



0

+10







PREV

NEXT

SET-UP

MUTE

26

15

















27

16



PLAY





28

17

REW





FWD





STOP



29



SLOW







18

PAUSE

TITLE



DISC MENU

30









19

CLEAR



ENTER



31

20









32



MODE





RETURN



21









33

[REMOTE CONTROL]

11STANDBY-ON y Button [TV P.9 / DVD P.15]

12PICTURE/SLEEP Button [TV P.10]

13Number Buttons [TV P.9 / DVD P.18]

14DISPLAY Button [DVD P.20]

15PREV H Button [DVD P.18]

16NEXT G Button [DVD P.18]

17PLAY B Button [TV P.9 / DVD P.15]

18PAUSE FButton [DVD P.15]

19TITLE Button [DVD P.15]

20CLEAR Button [TV P.10 / DVD P.18]

21MODE Button [DVD P.16]

22OPEN/CLOSE A Button [DVD P.15]

23SELECT Button [TV P.9]

24CH. K / L Buttons [TV P.9]

25VOL. X / Y Buttons [TV P.9]

26MUTE Button [TV P.9]

27SET-UP Button [TV P.10 / DVD P.21]

28REW E Button [DVD P.15] FWD D Button [DVD P.15]

29STOP C Button [DVD P.15]

30DISC MENU Button [DVD P.15]

31ENTER Button [TV P.10 / DVD P.15]

32K / L/{ / B Buttons [TV P.10 / DVD P.15]

33RETURN Button [DVD P.17]

NOTES:

We do not recommend the use of universal remote controls as it may not control all the functions. Note that the code number given by universal remote controls may not program to this unit. For more details, contact the manufacturer of the universal remote control.

Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

8

EN

TV SECTION

TV OPERATION AND SETTINGS

INITIAL SET UP

When you turn on the power for the first time, TV the SELECT LANGUAGE screen is displayed. Select the language for screen display and perform auto programming of the channels.

1After antenna or cable connection is completed, connect the power cord into

a standard AC outlet.

2 Press [STANDBY-ON y] to turn on the unit.

3Press one of the keys listed below to select the language of on-screen menu.

ENGLISH: [VOL. Y]

ESPAÑOL: [VOL. X]

FRANÇAIS: [CH. K]

SELECT LANGUAGE

ENGLISH

NEXT:PRESS VOLYH

ESPAÑOL

DESPUÉS:PRESIONE VOLXH FRANÇAIS

APRÈS:PRESSEZ CH.KH

4 Confirm the antenna (or cable)

– INITIAL SETUP –

connection and press [PLAY B].

PLEASE CONNECT ANTENNA



OR CABLE OR SATELLITE

• The tuner scans and

TO THIS UNIT.

IN ORDER TO PERFORM



THEN PRESS PLAY,

memorizes all active

“AUTO CH PROGRAMMING”.



channels in your area.







5 When the scanning is completed,



the tuner stops on the lowest



memorized channel.

(Example)



NOTES:

You can exit the INITIAL SETUP [SET-UP]. If the button is pressed scanning, the tuner stops scanning memorized channel is displayed.

The INITIAL SETUP menu is you turn on the unit unless the pleted.

In case no channel can be received by the channel scanning,

"NO TV SIGNALS" is displayed on NO TV SIGNALS the screen. Turn off the unit and

check the antenna connection, then follow steps 1 to 5 again.

You can change the setting after completing INITIAL SET UP by LANGUAGE menu or CHANNEL SET UP menu. (Refer to "ON-SCREEN MENU LANGUAGE" or "CHANNEL SET UP" on page 11).

If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn itself off automatically.

WATCHING A TV PROGRAM

1 Press [STANDBY-ONy] to turn on the unit. TV

NOTES:

- HELPFUL HINTS -

If

1.PLEASE CHECK TO SEE IF

THE ANTENNA/CABLE/

noise

SATELLITE IS

PROPERLY CONNECTED.

for

2.DID YOU PERFORM

“AUTO CH PROGRAMMING”?

3.PLEASE REFER TO FRONT



PAGE OF THE OWNER’S



MANUAL OR REAR PANEL



FOR SUPPORT LINE



INFORMATION.

Make sure if the antenna or cable properly. (Refer to

TIONS" on page 6.)

Set the "AUTO CH CHANNEL SET UP. (Refer to on page 11.)

If those settings do not work

call our help line on the front manual.

2Use [CH. K / L] or the select your desired channel

To use the number buttons

•Single digit channels: (Ex. 02, 03, 04 and so on) Press [0] first to select a single digit channel.

•Two digit channels: (Ex. 12, 38, 95 ...) Press two digits directly.

•Tree digit channels: (Ex. 115, 125 ...)

Press [+100] first, then press the last two digits.

3Use [VOL. X / Y] to adjust the

Press [MUTE] to instantly mute the sound. Press it again to restore the previous sound level.

NOTE:

Even if you turn off the unit in the will be in the TV mode when you

TO WATCH CABLE OR

If the unit is connected to a cable box, use [CH. K / L] to select ing to the output channel setting select desired channel on that

TO WATCH EXTERNAL

When an external equipment is connected to the front AUDIO/ VIDEO input jacks, press

[SELECT] or [CH. K / L] repeatedly until "AUX" appears on the screen.

TV SECTION

OPERATING CONTROLS AND FUNCTIONS / TV OPERATION AND SETTINGS

9

EN

TV SECTION

TV OPERATION AND SETTINGS

SLEEP TIMER / PICTURE CONTROL

You can set Sleep Timer and picture

TV

adjustment with [PICTURE / SLEEP].





The menu changes as described below every time you press [PICTURE / SLEEP].











BRIGHT













Sleep Timer













CONTRAST























































SHARPNESS



TINT







COLOR

































SLEEP TIMER SETTING

The Sleep Timer function is used to turn off the unit without pressing [STANDBY-ON y] after a desired time.

1 Press [PICTURE / SLEEP] to

SLEEP 0 MINUTE

display the Sleep Timer menu.

C C C C C C C C C C C C



2Within 10 seconds, set your desired sleep time using [s / B].

[B]...Increase by 10 min. (Up to 120 min.)

[s]...Decrease by 10 min.

NOTE:

To cancel the Sleep Timer, use [CLEAR] or [s / B] to set the time to "0".

3To confirm the remainder time to shutdown, press [PICTURE / SLEEP].

PICTURE CONTROL

The picture controls are preset to factory defaults, but you can change them to your desired setting.

1 Press [PICTURE / SLEEP]

BRIGHT

repeatedly until desired control P P P P P P P C P P P P P P P + is displayed.

2Use [s / B] to adjust to your desired level within 5 seconds.







BRIGHT

to decrease brightness

to increase brightness

CONTRAST

to decrease contrast

to increase contrast

COLOR

to pale

to brilliant







TINT

to purple

to green

SHARPNESS

to soft

to clear

Even if any power failure occurs, the unit will retain its memory for this feature.

CLOSED CAPTION SYSTEM

You can view specially labeled (cc) TV pro-

TV











grams, movies, news and pre-recorded tapes with



either a dialogue caption or text display.













1 Press [SET-UP].

- TV SETUP -





Use [K / L] to point to

CHANNEL SET UP





LANGUAGE [ENGLISH]





V-CHIP SET UP





"CAPTION".

B CAPTION [OFF]



















2 Press [ENTER] repeatedly to

- TV SETUP -





select your desired caption

V-CHIP SET UP







CHANNEL SET UP





mode.

LANGUAGE [ENGLISH]



B CAPTION [CAPTION1]





CAPTION mode (1, 2): You can watch dramas, movies and news while captioning the dialogues and the contents of news.

TEXT mode (1, 2): You can watch half screen text information if you want.

*"CAPTION2" is usually used for a second language (if available).

3 Press [SET-UP] to exit the menu.

NOTES:

Even if any power failure, the unit will retain its memory for this feature.

Some programs are not broadcasted with closed captions. The unit is designed to provide error-free closed captions with high quality antenna, cable and VCR signals. Conversely, poor quality signals are likely to result in caption errors or no captions at all.

Common signal conditions which may cause caption errors are listed below:

-Weak snowy reception on TV screen

-Multiplex signal reception displaying picture ghosts or airplane flutter

If the unit displays a black box on the TV screen, this means that the unit is set to the TEXT mode. To clear screen, select "CAP-

TION1", "CAPTION2" or "OFF".

TO CANCEL THE CLOSED

1Press [SET-UP]. Use [K / L] to "CAPTION".

2Press [ENTER] repeatedly to

3Press [SET-UP] to exit the menu

10

EN

CHANNEL SET UP

Channel presetting is necessary at the start TV or in case you moved the TV to a different area.

AUTO CHANNEL PROGRAMMING

1 Press [SET-UP].



- TV SETUP -

Use [K / L] to point to

B CHANNEL SET UP



V-CHIP SET UP

"CHANNEL SET UP", then

LANGUAGE [ENGLISH]

CAPTION [OFF]



press [ENTER].















2 Use [K/ L] to point to "AUTO





– CHANNEL SET UP –

CH PROGRAMMING", then

ADD/DELETE CH (CATV)

press [ENTER].

B AUTO CH PROGRAMMING



The tuner scans and memorizes all the active channels in your area.

3When the scanning is completed, the lowest memorized channel is displayed.

If "NO TV SIGNALS" appears on the TV screen, check the antenna connection and try again.

CH 15

(Example)

NO TV SIGNALS

NOTES:

The unit may recognize CATV channels to be TV channels if reception condition is poor. In this case, check the antenna connection and try "AUTO CH PROGRAMMING" again.

Auto channel programming is NOT necessary when connected to a cable box or satellite box. Just select the channel for cable box or satellite input (ex. CH3 or CH4) on the unit, then select your desired channel on the cable box or satellite box.

ADDING/DELETING CHANNELS

You can add channels that was not memorized due to the bad reception status and also delete channels you no longer receive or seldom watch.

1 Press [SET-UP].

- TV SETUP -

Use [K / L] to point to

B CHANNEL SET UP

"CHANNEL SET UP", then

V-CHIP SET UP

CAPTION [OFF]



LANGUAGE [ENGLISH]

press [ENTER].















2 Use [K / L] to point to





– CHANNEL SET UP –

"ADD/DELETE CH", then

B ADD/DELETE CH (CATV)

press [ENTER].

AUTO CH PROGRAMMING

3Use the Number buttons or

[CH. K / L] to select your desired channel number. (You can also use [K / L] to enter it.)

Refer to page 9 on how to use the Number buttons.

08

ADD / DELETE

(Example: CH8)

4

Press [ENTER] repeatedly. The channel number

SECTION

to 4.



changes to red (deleted) or blue (added) every





time you press the button.



• To delete or add another channel, repeat steps 3







TV

5

Press [SET-UP] to exit the menu.



NOTE:

To confirm that channel(s) has (have) been deleted or added, select it (them) using [CH. K / L].

ON-SCREEN MENU LANGUAGE

TV

SETTINGS



You can select the language of on-screen



menu among English, Spanish and French.



AND







1 Press [SET-UP].

- TV SETUP -



Use [K / L] to point to

CHANNEL SET UP



OPERATION

"LANGUAGE".

V-CHIP SET UP







CAPTION [OFF]







B LANGUAGE [ENGLISH]







2 Press [ENTER] repeatedly to select "ENGLISH",

TV







"ESPAÑOL" or "FRANÇAIS".

3 Press [SET-UP] to exit the menu.

NOTES:

• This function effects only the language on the screen menu and not the audio source.

• If for some reason the menu is already in Spanish or French, press [SET-UP], using [K / L] point to "IDIOMA [ESPAÑOL]" or "LANGAGE [FRANÇAIS]", then press [ENTER] repeatedly to select desired language, then press [SET-UP].

11

EN

TV SECTION

TV OPERATION AND SETTINGS

V-CHIP SET UP A TV RATING SET UP

TV

on the TV screen.

NOTE:

To change the rating, the TV must be turned to an unprotected program. If the screen on the right is displayed, change the channel to a station that is not protected.

PROTECTED PROGRAM by TV-Y

1

Press [SET-UP].

- TV SETUP -



Use [K / L] to select

B



"V-CHIP SET UP", then press









[ENTER].



















2

Use the Number buttons to











enter the access code.





Selection Rating Category

TV-Y

Appropriate for all

TV-Y7

Appropriate for

TV-G

General Audience

TV-PG

Parental Guidance

TV-14

Unsuitable for

TV-MA

Mature audience

NOTES:

TV–Y



[VIEW]

TV–Y7 (

)

[VIEW]

B TV–G



[BLOCK]

TV–PG (DLSV)

[BLOCK]

TV–14 (DLSV)

[BLOCK]

TV–MA (

LSV)

[BLOCK]

• For the first time set-up or in

ACCESS CODE









_ _ _ _





the event the unit has lost

























power, enter the default code of

0000.









3 Use [K / L] to select









– V-CHIP SET UP –

"TV RATING", "MPAA RATING"

B TV RATING

or "CHANGE CODE",

CHANGE CODE



MPAA RATING

then press [ENTER].

Refer to the pages below to set up each item.

• TV RATING :

P.12

A

• MPAA RATING :

P.13

B

• CHANGE CODE:

P.13

C

"VIEW", all ratings will turn to automatically.

5The TV-Y7, TV-PG, TV-14 and TV-MA ratings have the option of sub rating categories.

Use [K / L] to select a rating with sub-ratings, then press

[ENTER] twice.

6Use [K / L] to select a subrating, then press [ENTER] to set it to "BLOCK" or "VIEW".

NOTE:

The blocked sub-ratings will appear next to the rating category in the "TV RATING" menu.

Selection Rating Category

TV-Y7

FV

Fantasy Violence

TV-PG, TV-14, TV-MA

D

Suggestive Dialog (TV

L

Coarse Language

S

Sexual Situation

V

Violence

7 Press [SET-UP] to exit the

12

EN

B MPAA RATING SET UP

4 Use [K / L] to point to your











desired item, then press

G

[VIEW]



[ENTER] to select "BLOCK"

PG

[VIEW]



B R

[BLOCK]









PG–13

[VIEW]



or "VIEW".



NC–17

[BLOCK]





X

[BLOCK]

































Selection



Rating Category Explanations









G



General Audience











PG



Parental Guidance suggested.









PG-13



Unsuitable for children under 13









R



Restricted; under 17 requires acco-











mpanying parent or adult guardian







NC-17



No one under 17 admitted









X



Mature audience only







































5 Press [SET-UP] to exit the menu.

C CHANGE ACCESS CODE

4 Use the Number buttons to

NEW CODE

X X X X

CONFIRM CODE

_ _ _ _

5 Press [SET-UP] to exit the menu.

NOTE:

Your personal access code will be erased and will return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you forget the code, unplug the power cord for 10 seconds to restore the access code to 0000.

TV SECTION

TV OPERATION AND SETTINGS

13

EN

DVD SECTION

ABOUT THE DISCS

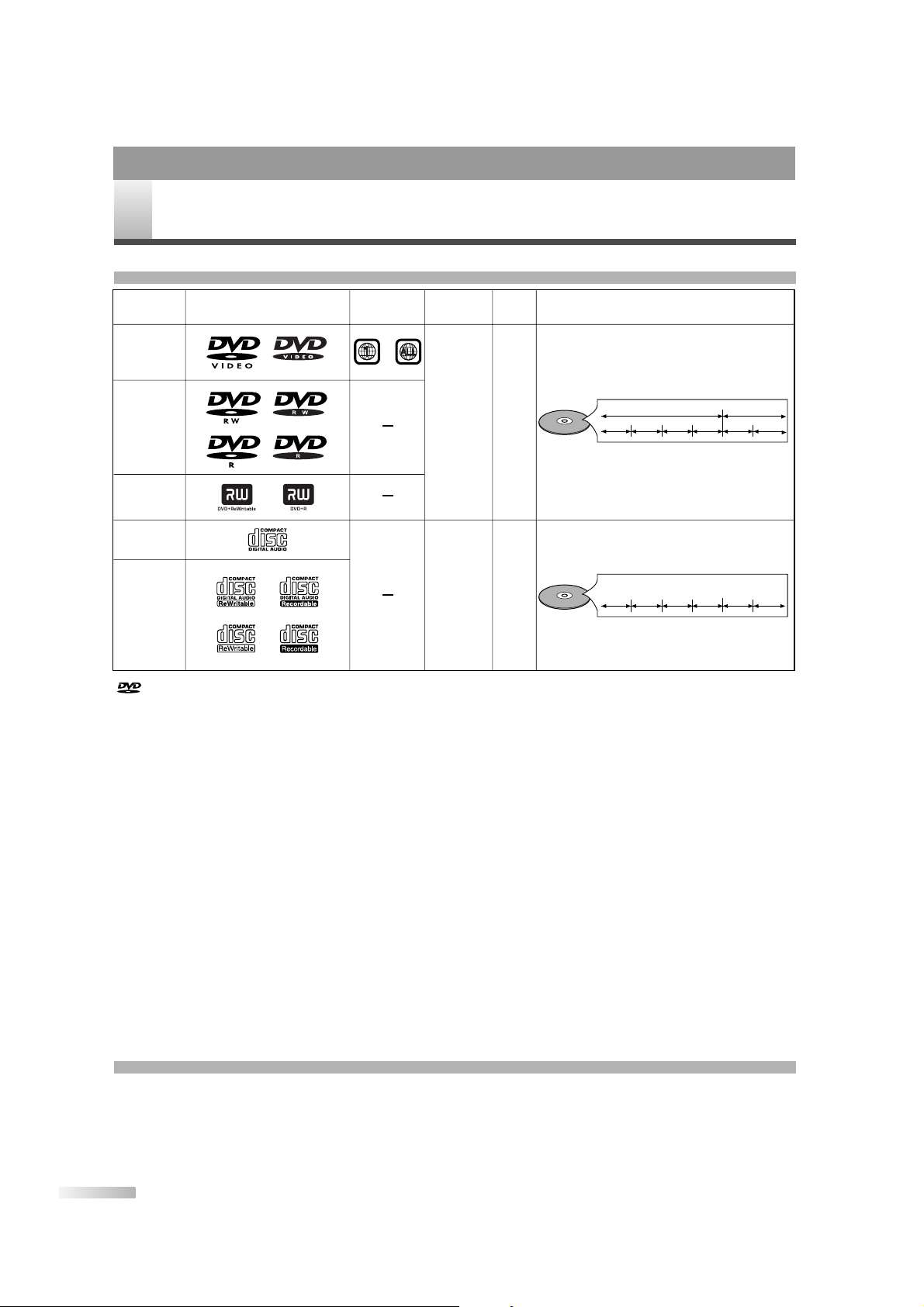

PLAYABLE DISCS

Playable

Mark (logo)

Region

Recorded

Disc

Disc types

discs

code

signals

size





DVD-Video

or



*1,2,4,6,10,11







DVD-RW

Digital

12 cm

DVD-R

video

or

*1,3,4,5,6,

(MPEG2)

8 cm

7,9,10





DVD+RW





DVD+R





*1,3,4,5,6,8,9,10





Audio CD





* 4,6,10







Digital

12 cm

CD-RW

or

audio

CD-R



8 cm

Example

Title 1

Title 2



Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2

Example

Track 1

Track 2

Track 3

Track 4

Track 5

Track 6













* 4,5,6,9,10

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.

*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back.

*4: Scratched or stained discs may not be played back.

*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand's DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.

*8: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).

*9: If there is too much recording space left on a disc (the used portion is less than 55mm across), it may not play back properly.

*10: Do not glue paper or put stickers on to the disc. These may damage the disc and the unit may not read it correctly. *11: The number inside the symbol refers to a region of the world and a disc encoded in a specific region

format can only be played back on unit with the same region code.

UNPLAYABLE DISCS

NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-i / Photo CD / Video CD / DVD-Audio / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers / CD-RW/-R with MP3 files

The sound MAY NOT be heard: Super Audio CD

NOTE:

Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density Super Audio CD layer cannot be delivered.

Any other discs without compatibility indications

14

EN

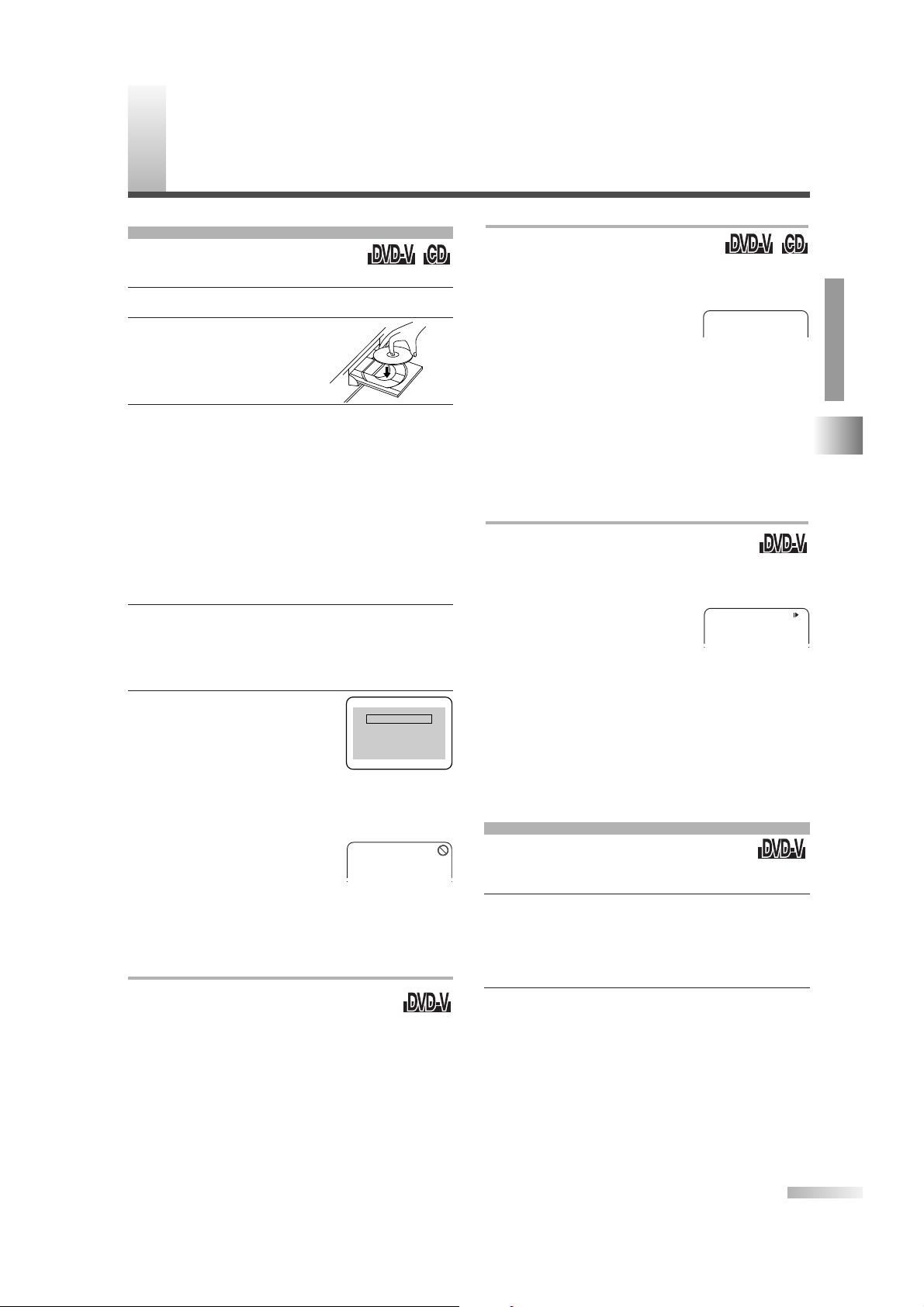

PLAYING A DISC

BASIC PLAYBACK

1 Press [STANDBY-ONy] to turn on the unit.

2Press [OPEN/CLOSE A].

3Place the disc in the tray, with

the label facing up.

4 Press [PLAY B].

The tray will close automatically and playback will start. When you play back a DVD which features a title menu, it may appear on the screen.

NOTES:

FAST FORWARD / FAST REVERSE

• During playback, press and hold [FWD D] for fast forward or [REW E] for fast reverse.

• Every time you press and hold

D1

the button, playback speeds up and the level of the speed appears on the screen.

NOTES:

For DVDs, fast forward/reverse speed is different depending on the disc. Approximate speed is 1 (×2), 2 (×8), 3 (×20), 4 (×50) and 5 (×100).

For Audio CDs approximate speed is 1 (×2), 2 (×8) and 3 (×30).

To return to normal playback, press [PLAY B].

Closing the disc tray manually or by pressing [OPEN/CLOSE A] also starts playback.

With DVDs that use titles for playback program signals, playback may start from the second title or it may skip these titles.

5To freeze the picture, press [PAUSE F] during playback.

NOTE:

• The sound will be muted in pause mode.

SLOW FORWARD / SLOW REVERSE

• During playback, press [PAUSE F].

Press and hold [FWD D] for slow forward or [REW E] for slow reverse.

• Every time you press and hold



1





the button, playback is slowed down and the level of the speed appears on the screen.

NOTE:

6Press [STOP C] to stop playback temporarily.

Press [PLAY B] to resume the playback.

To cancel resume and stop the disc, [STOP C] again.

NOTES:

Resume ON

Press 'PLAY' to play from here. To play the beginning,

press 'STOP' first and then 'PLAY'.

The resume information stays on even if the unit is turned off.

A "prohibited icon" may appear at the top-right on the TV screen during operation. This means

that the operation is not available on the disc.

STEP BY STEP PLAYBACK

• During playback, press [PAUSE F]. You can advance the picture frame by

frame by pressing [PAUSE F] repeatedly.

• To return to normal playback, press [PLAY B].

Slow forward / reverse speed varies with the disc. Approximate speed is 1 (1/16), 2 (1/8) and 3 (1/2).

To return to normal playback, press [PLAY B].

DISC MENU / TITLE MENU

DVD may contain menus to navigate the disc and access special features.

1 Press [DISC MENU] or [TITLE].

The DVD main menu / the title menu will appear.

You can call up the menu even during playback.

2Use [K / L / s / B] to select an item, and press

[ENTER].

NOTES:

If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

Contents of menu and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

DVD SECTION

ABOUT THE DISCS / PLAYING A DISC

15

EN

+ 45 hidden pages
