PORTABLE CART WARNING
S3126A

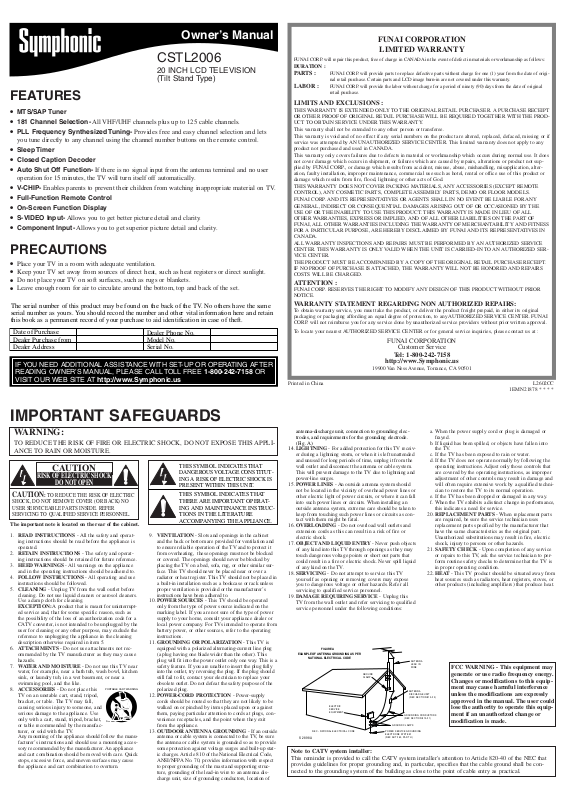

Owner’s Manual

CSTL2006

20 INCH LCD TELEVISION

(Tilt Stand Type)

FEATURES

MTS/SAP Tuner

181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

PLL Frequency Synthesized Tuning- Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.

Sleep Timer

Closed Caption Decoder

Auto Shut Off Function- If there is no signal input from the antenna terminal and no user operation for 15 minutes, the TV will turn itself off automatically.

V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

Full-FunctionRemote Control

On-ScreenFunction Display

S-VIDEO Input- Allows you to get better picture detail and clarity.

Component Input- Allows you to get superior picture detail and clarity.

PRECAUTIONS

Place your TV in a room with adequate ventilation.

Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

Do not place your TV on soft surfaces, such as rugs or blankets.

Leave enough room for air to circulate around the bottom, top and back of the set.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase



Dealer Phone No.



Dealer Purchase from



Model No.



Dealer Address



Serial No.



IF YOU NEED ADDITIONAL ASSISTANCE WITH SET-UPOR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE1-800-242-7158 OR VISIT OUR WEB SITE AThttp://www.Symphonic.us

FUNAI CORPORATION

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in CANADA in the event of defect in materials or workmanship as follows:

DURATION :

PARTS : FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts and LCD imageburn-inare not covered under this warranty.

LABOR : FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS :

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by AN UNAUTHORIZED SERVICE CENTER. This limited warranty does not apply to any product not purchased and used in CANADA.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS. FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF

FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN CANADA.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-INTO AN AUTHORIZED SERVICE CENTER.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS COSTS WILL BE CHARGED.

ATTENTION :

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at :

FUNAI CORPORATION

Customer Service

Tel: 1-800-242-7158http://www.Symphonic.us

19900 Van Ness Avenue, Torrance, CA 90501

Printed in China

L2602CC



1EMN21878 * * * *

IMPORTANT SAFEGUARDS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

1.READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.

2.RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference.

3.HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.

4.FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.

5.CLEANING - Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.ATTACHMENTS - Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7.WATER AND MOISTURE - Do not use this TV near

water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. ACCESSORIES - Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall,

causing serious injury to someone, and serious damage to the appliance. Use

only with a cart, stand, tripod, bracket, or table recommended by the manufac-

turer, or sold with the TV.

Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE CONSTITUT-

ING A RISK OF ELECTRIC SHOCK IS

PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT

THERE ARE IMPORTANT OPERAT-

ING AND MAINTENANCE INSTRUC-

TIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

9.VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in abuilt-ininstallation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.POWER SOURCES - This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11.GROUNDING OR POLARIZATION - This TV is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.POWER-CORDPROTECTION- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of

antenna-dischargeunit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.LIGHTNING - For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning andpower-linesurges.

15.POWER LINES - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18.SERVICING - Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.DAMAGE REQUIRING SERVICE - Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power supply cord or plug is damaged or frayed.

b.If liquid has been spilled, or objects have fallen into the TV.

c.If the TV has been exposed to rain or water.

d.If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.

e.If the TV has been dropped or damaged in any way.

f.When the TV exhibits a distinct change in performance, this indicates a need for service.

20.REPLACEMENT PARTS - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.SAFETY CHECK - Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22.HEAT - This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE



ANTENNA



LEAD IN



WIRE



GROUND



CLAMP



ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT





GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING



ELECTRODE SYSTEM

S 2 8 9 8 A

(NEC ART 250, PART H)

FCC WARNING - This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

PREPARATION FOR USE

CONNECTIONS

Plug the incoming cable into the ANT jack on the rear of the TV.

Antenna OR Cable

TV signal

Incoming cable from home Antenna /

Cable Company (No Cable Box)

OR

IN

Cable Box or

OUT

Satellite Box*



Incoming cable from

Cable Company or

Satellite Antenna

Rear of this TV

S-VI

DEO

ANT

Cables not included

*NOTE (DO NOT DISCONNECT FROM BOX)

Some cable TV systems use scrambled signals and require a special converter to receive these channels. Consult your local cable company.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Note:

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT jack before moving the unit.

[EXTERNAL CONNECTION]

VIDEO1 input

Rear of this TV

(OUT)

(IN)









ex.







R











Audio Cable



AUDIO

(IN)







L

(OUT)

VID

EO

1

EO









VID











Video Cable

(IN)







EO

OR

S-



Video Cassette Recorder (OUT)





VID













S-VideoCable





ANT

HEADPHONE jack











ex.



PHONE



HEAD

















Headphone

Notes:

The AUDIO L jack is for mono input. The sound is heard from both speakers. Use this jack for connecting monaural audio equipment.

The S-VIDEO jack is given priority over theVIDEO jack.

VIDEO2 input

ex.





Rear of this TV



(OUT)

(IN)

VIDEO2



R







AUDIO



Audio Cable



L





COMPONEN

Video Camera





T





Y





(IN)

Pb













Pr



(OUT)





Component

Video Cable

Video Game

Notes:

This TV can accept 480p / 480i / simplified 1080i video signal.

Simplified 1080 video signal differs to the original 1080i video signal because it is displayed after converted into 480p signal.

INSTALLING THE BATTERIES



1

2

3

Install two AAA batteries (supplied)







matching the polarity indicated inside







battery compartment of the remote con-







trol.

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc)or old batteries with fresh ones.

If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

INITIAL SETUP

When you turn on the power for the first time, the “SELECT LANGUAGE” menu is displayed.

The “INITIAL SETUP” menu is displayed every time you turn on the unit unless the scanning is completed.

1 Select the desired





2 If the TV screen shows



SELECT LANGUAGE





- HELPFUL HINTS -

language according to









snow noise and there is

1. PLEASE CHECK TO SEE IF THE

ENGLISH

NEXT:PRESS CHK





PROPERLY CONNECTED.









ANTENNA/CABLE/SATELLITE IS

the screen indication.

ESPAÑOL

DESPUÉS:PRESIONE CHL





no operation for more

2. DID YOU PERFORM “AUTO PRESET CH” ?

FRANÇAIS

APRÈS:PRESSEZ VOLX





OWNER’S MANUAL OR REAR PANEL FOR

After that, the TV









than 5 seconds,

3. PLEASE REFER TO FRONT PAGE OF THE









SUPPORT LINE INFORMATION.

performs “AUTO









“HELPFUL HINTS”



PRESET CH” to scan



– INITIAL SETUP –



appears. Follow the



channels available for





instructions listed on-



PLEASE CONNECT ANTENNA OR CABLE





the broadcasting in

OR SATELLITE TO THIS UNIT.



screen.



IN ORDER TO PERFORM







THEN PRESS CH K,







your area.

“AUTO PRESET CH ”.

































When the scanning is completed, or [MENU] is pressed during channel scanning to cancel it, the tuner stops on the lowest memorized channel.

Notes:

In case no channel can be received by the channel scanning, “NO TV SIGNALS” is displayed on the screen. Turn off the unit and check the antenna connection, then follow step 1 again.

If those settings do not work properly, please call our help line on the front page of this owner's manual.

SELECTING AUDIO/VIDEO INPUT

When you use the AUDIO/VIDEO input jacks, select “VIDEO1” or “VIDEO2” mode by pressing [INPUT SELECT] on the remote control or[INPUT SELECT] on the main unit. The input mode changes by pressing the button as following:

INPUT

TV channel

VIDEO1

VIDEO2

SELECT

TILT STAND



Tilt Stand

-5° 10°

Adjust the stand to change the angle of TV (-5°~ 10°).



OPERATIONS

REMOTE CONTROL AND TOP PANEL FUNCTION

IR transmitter

To send infrared ray (IR) signal







INPUT







SELECT

POWER button







To turn TV on/off

POWER

o



VOL X/Y buttons



CH

m



p

To adjust volume

VOL

n



To decide the command of settings

1

2

3





4

5

6



7

8

9

MENU button

MENU

0

+100

To view on-screenmenu







MUTE button

MUTE

SLEEP

CH RET

To mute sound







INPUT SELECT button

To select TV or external input

CH K/L buttons

To select channels and move up/down through menu items

Channel number buttons

Press two digits to directly access the desired channel. Remember to press a "0" before a single digit channel.

+100 button

Press to select cable channels higher than 99.

SLEEP button

To set Sleep Timer

DISPLAY button

DISPLAY

CH RET button





To return to previous channel

To display CH No./Audio Status







Note:

You can test if the remote control sends out the infrared signal with an AM radio. (Refer to “TROUBLESHOOTING GUIDE”.)

MENU button

To view on-screenmenu

VOLUME K/L buttons

To adjust volume

CHANNEL K/L buttons

To select channels

INPUT SELECT button

To select TV or external input

POWER button

To turn TV on/off

MENU

VOLUME

CHANNEL

INPUT SELECT

POWER

Power Indicator

Infrared Sensor Window

Note:

If some digits appear in the corner of the screen when the unit is turned on at the first time, press [POWER] without unplugging the power cord.

SLEEP 10 MINUTE
NO TV SIGNAL

OPERATIONS (Continued)

CHANNEL SETTING

[AUTO PRESET CHANNELS]

Channel presetting is necessary at the start or in case you moved the TV to a different area. This feature automatically scans and memorizes all available channels in your area and lets you easily select with [CH /].

1 Select “CHANNEL SET UP”









MENU



- TV SET UP -
















CHANNEL SET UP







V-CHIPSET UP







LANGUAGE

[ENGLISH]

CH



CAPTION

[OFF]

o



TV SOUND

[MAIN]



BACK LIGHT

[BRIGHT]





p



SLEEP

[0] MINUTE















VOL

m

2 Select “AUTO PRESET CH”

CH

o

- CHANNEL SET UP -

ADD/DELETE CH (TV)



p

AUTO PRESET CH

VOL

m

The tuner scans and memorizes all available channels in your area.

3When the scanning is completed, the lowest memorized channel appears on the TV screen.

Notes:

The TV distinguishes between standard TV channels and cable (CATV) channels.

The TV may recognize CATV channels as TV channels if reception condition is poor. If this happens, check the antenna connections and try steps 2 to3 again when reception conditions are better.

If there is no TV signal input, “NO TV

SIGNAL” will appear on the display after the completion of channel scanning.

[ADDING/DELETING CHANNELS]

You can add channels that was not memorized by AUTO PRESET CH due to the bad reception status and also delete channels you no longer receive or seldom watch.

1 Select “CHANNEL SET UP”

MENU



- TV SET UP -




















CHANNEL SET UP







V-CHIPSET UP









LANGUAGE

[ENGLISH]

CH



CAPTION

[OFF]



TV SOUND

[MAIN]

o



BACK LIGHT

[BRIGHT]



SLEEP

[0] MINUTE











p

VOL

m

2 Select “ADD/DELETE CH”





- CHANNEL SET UP -





VOL



ADD/DELETE CH (TV)

m



AUTO PRESET CH













3 Select the channel you wish

CH

1

2

3

o



4

5

6

p

or

7

8

9















0

+100

4 Add or delete the channel

VOL

15

m



n

ADD/DELETE



Add: light blue



Delete: light red

5 To exit the menu



MENU

SLEEP TIMER SETTING

1 Select “SLEEP”

MENU

- TV SET UP -














CHANNEL SET UP









V-CHIPSET UP













LANGUAGE

[ENGLISH]

CH

CAPTION

[OFF]





TV SOUND

[MAIN]

o

BACK LIGHT

[BRIGHT]





SLEEP

[0] MINUTE

p

VOL

m• The time increases by 10

nminutes up to 90.

Notes:

When you disconnect the unit from the AC outlet or when you have a power failure, the sleep time will be lost.

To cancel the sleep timer, press [SLEEP] repeatedly until “SLEEP 0 MINUTE” is displayed.

The Sleep Timer Setting display will disappear

automatically after 10 seconds of the operation.

You can also set the Sleep Timer by pressing [SLEEP] repeatedly.

MULTI-CHANNELTELEVISION SOUND (MTS) SYSTEM

1 Select “TV SOUND”

MENU

- TV SET UP -














CHANNEL SET UP









V-CHIPSET UP







LANGUAGE

[ENGLISH]

CH

CAPTION

[OFF]

TV SOUND

[MAIN]

o

BACK LIGHT

[BRIGHT]

SLEEP

[0] MINUTE

p

2

VOL

Select the desired sound



m

mode



n



[MAIN] [MONO][SAP]

3 To exit the menu

MENU

PICTURE ADJUSTMENT

Menu







Selection

MAIN

MONO

SAP*

Type of

broadcast







Regular

-None-

-None-

-None-









Stereo

STEREO

MONO

STEREO

broadcast







SAP

MAIN

MAIN

SAP









*Second Audio Program (SAP) :

Your program can also be received in a second language or sometimes a radio station.

Note:

If you select [SAP] when second audio is not available, the TV will receive normal audio.

1 Select “PICTURE”

MENU

VOL

m

- TV SET UP -


CHANNEL SET UP

V-CHIPSET UP

LANGUAGE

[ENGLISH]

CAPTION

[OFF]

TV SOUND

[MAIN]

BACK LIGHT

[BRIGHT]

SLEEP

[0] MINUTE

2 Select an item to adjust

CH

o p

[BRIGHTNESS] [CONTRAST]

[SHARPNESS][TINT][COLOR]

3 Adjust the setting

VOL

... +





m





n

...



BRIGHTNESS

-

+





BRIGHTNESS

Adjust until the darkest parts of the picture are as bright as you prefer.

[-] :decrease brightness [+] : increase brightness

CONTRAST

Adjust to increase or decrease contrast. [-] :decrease contrast

[+] : increase contrast

COLOR

Adjust to be brilliant or pale color.

[-] :be pale color [+] : be brilliant color

TINT

Adjust to obtain natural skin tones.

[-] :add red [+] : add green

SHARPNESS

Adjust the detail of the picture.

[-] :less clear [+] : more clearer

BACK LIGHT SETTING

Note:

The display will disappear automatically after 10 seconds unless you press any buttons.

1

Select “BACK LIGHT”



2

Select the desired brightness mode



MENU

- TV SET UP -



VOL












m





















CHANNEL SET UP













V-CHIPSET UP





n









LANGUAGE

[ENGLISH]









CH

CAPTION

[OFF]

[BRIGHT]

[NORMAL]

[DARK]



TV SOUND

[MAIN]



BACK LIGHT

[BRIGHT]



o

SLEEP

[0] MINUTE











p





3

To exit the menu























MENU





CLOSED CAPTION

You may view specially labeled (cc) TV programs, movies, news and prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

1 Select “CAPTION”

MENU

- TV SET UP -














CHANNEL SET UP









V-CHIPSET UP









CH

LANGUAGE

[ENGLISH]

CAPTION

[OFF]





TV SOUND

[MAIN]

o

BACK LIGHT

[BRIGHT]





SLEEP

[0] MINUTE

p

[CAPTION MODE (CAPTION1, CAPTION2)]

CAPTION1

displays standard closed captions (what a character is saying).

CAPTION2

displays foreign language closed captions (foreign language words showing what a character is saying).

There are three ways of displaying according to programs:

Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode : Once characters are stored in memory, they are displayed all at once.

Roll-up mode : Displays the characters continuously by scrolling (max. 4 lines).

2 Select the desired caption mode

VOL

m

n

[OFF] [CAPTION1][CAPTION2]

[TEXT2] [TEXT1]

3 To exit the menu

MENU

[TEXT MODE (TEXT1, TEXT2)]

TEXT1 and TEXT2 display half-screentext by scrolling (such as a channel guide, schedule or announcement).

Notes:

If closed captioning is cannot receive it and

When your TV receives playback signal (i.e., from a VCR’s video CH4), the TV may not caption or text.

Captions and texts may voice exactly.

Interference may cause system not to function

The caption or text displayed while the menu functions display is shown

If a black box appears means that the TV is set clear screen, select [CAPTION2] or [OFF].

OPTIONAL SETTINGS

LANGUAGE SELECTION

1 Select “LANGUAGE”





2 Select the desired language

MENU

- TV SET UP -

VOL






m











CHANNEL SET UP







V-CHIPSET UP



n





LANGUAGE

[ENGLISH]











CAPTION

[OFF]

[ENGLISH]

[ESPAÑOL]

CH

TV SOUND

[MAIN]

BACK LIGHT

[BRIGHT]

o

SLEEP

[0] MINUTE













p





[FRANÇAIS]







3 To exit the menu









MENU



OPTIONAL SETTINGS (Continued)

V-CHIPSET UP

This enables parents to prevent their children from watching inappropriate material on TV. The limitation is not available for news,

sports programs, unedited movies on premium cable channels and Emergency Broadcast System signals.

When you try to access to a program which is blocked, “PROTECTED PROGRAM by ...” message appears on the TV screen.

Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both MPAA RATING and TV RATING.

1 Select“V-CHIPSET UP”



MENU



- TV SET UP -






















CHANNEL SET UP







V-CHIPSET UP





CH



LANGUAGE

[ENGLISH]





CAPTION

[OFF]



o



TV SOUND

[MAIN]





BACK LIGHT

[BRIGHT]







SLEEP

[0] MINUTE



p









VOL









m







2 Enter4-digitcode





1

2

3

ACCESS CODE







4

5

6

_ _ _ _

7

8

9





0 +100

If you have not set up your personal access code, enter 0000 (default access code).

3 Select a feature to set up

CH



o

A

p

B



C

VOL



m



A [TV RATING SET UP]

4

Select a rating















B TV-Y



[VIEW]





CH











TV-Y7(

)

[VIEW]





o









TV-G



[VIEW]









TV-PG(

)

[VIEW]





p



TV-14(

)

[VIEW]







TV-MA(

)

[VIEW]









<Selection> <Rating

TV-Y :Appropriate

TV-Y7 :Appropriate

older

TV-G :General

TV-PG :Parental

TV-14 :Unsuitable

14

TV-MA :Mature

5-1 * Rating with no Set to [BLOCK]





TV-Y



[VIEW]

VOL



TV-Y7(

)

[VIEW]



B TV-G



[BLOCK]

m







TV-PG(DLSV)

[BLOCK]





TV-14(DLSV)

[BLOCK]





TV-MA( LSV)

[BLOCK]











5-2 * Rating with sub

VOL

m

TV-Y



[VIEW]



TV-Y7(

)

[VIEW]

2 times

TV-G



[VIEW]







B TV-PG(

)

[VIEW]



TV-14(

)

[VIEW]



TV-MA(

)

[VIEW]

Sub categories

Select a rating



TV-PG

[BLOCK]



B D

[BLOCK]



L

[BLOCK]



S

[BLOCK]



V

[BLOCK]



Set to [BLOCK] or [VIEW]



TV-PG

[BLOCK]





B D

[VIEW]



L

[BLOCK]



S

[BLOCK]





V

[BLOCK]

<Selection>

<Rating

TV-Y7



FV :

Fantasy

TV-PG /TV-14 /TV-

D :

Suggestive



(TV-PG,

L :

Coarse

S :

Sexual

V :

Violence





6 To exit the menu

MENU

B [MPAA RATING SET UP]

4 Select a rating





B G

[VIEW]

CH



PG

[VIEW]

o



PG-13

[VIEW]



R

[VIEW]

p



NC-17

[VIEW]



X

[VIEW]

















5 Set to [BLOCK] or [VIEW]



VOL



G

[VIEW]



m



PG

[VIEW]





PG-13

[VIEW]







repeatedly

B R

[BLOCK]

NC-17

[BLOCK]







X

[BLOCK]

<Selection> <Rating Category Explanations>

G : General Audience

PG : Parental Guidance suggested

PG-13 :Unsuitable for children under

13

• R : Restricted; under 17 requires accompanying parent or adult guardian

NC-17 :No one under 17 admitted

X : Mature audience only

6 To exit the menu

MENU

Notes (for TV RATING and MPAA

RATING):

You cannot access the setup menu when the “PROTECTED PROGRAM by ...” message appears. Move to an unblocked channel before you press [MENU].

When you select a rating and set it to [BLOCK], the higher ratings will be blocked automatically. The lower ratings will be available for viewing.

When you set “X” or “TV-MA”to [VIEW], all ratings turn to [VIEW] automatically.

C [CHANGING THE ACCESS CODE]

4 Enter4-digitcode

1

2

3

NEW CODE







4

5

6

[ [ [ [

7

8

9

CONFIRM CODE

_ _ _ _









0

+100



5 To exit the menu

MENU

Notes:

Make sure you enter exactly the same new code as the “CONFIRM CODE”. If they are different, the “NEW CODE” space is cleared for redoing.

Your personal access code will be erased and will return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you have forgotten the code, unplug the power cord for 10 seconds to restore the access code to 0000.

TROUBLESHOOTING GUIDE

Sometimes a performance problem can be easily solved by checking seemingly

-

looked possibilities. Before arranging for service, check these items. It could save

.

QUICK SERVICE CHECK LIST



















Problem





Possible Remedy



Remote Control Doesn’t Work

2, 10, 12, 13

1

····Try a new channel, if OK, then possible station









trouble.



Bars on Screen

5, 6





2

····Is TV plugged in?









Power at outlet?



Picture Distorted

1, 5





3

····Is TV’s power on?



















Picture Rolls Vertically

1, 5, 6

4

····Is antenna or cable connected to terminal on the









back of the set?



No Color

1, 4, 5, 8





5

····If outside antenna is being used, check for broken









wire or loose connection.



Poor Reception on Some Channels

1, 4, 5, 6





6

····Check for local interference.









Weak Picture









1, 4, 5, 9

7

····Turn off the TV and then turn it on after about a









minute.



Lines or Streaks in Picture

1, 5, 6





8

····Adjust COLOR control.









Ghosts in Picture

1, 4, 5, 6

9

····Adjust CONTRAST & BRIGHT control.







10····Check batteries in remote control.



Picture Blurred

1, 5



11····Move the TV away from the nearby appliances which





Sound OK, Picture Poor

1, 4, 5, 6, 9



generate a magnetic field.





Turn off using [POWER], then turn it on again 30











Picture OK, Sound Poor

1, 6



minutes later or so.



12····Check if there is an obstacle between the sensor and





No Picture or Sound



1, 2, 3, 4, 5, 7



the remote control.







13····Test the signal output.* If OK, then possible



Different Color Marks on Screen

1, 11





remote sensor trouble.











*Additional Remote Test

Tune an AM radio to a station with no broadcasting. Press a button on the remote control toward the radio. Sound will be fluttering when you press any key and the radio receives the signal. This means the remote control unit is working.

Closed Caption Problem

Possible Remedy



Misspelled captions are shown.

Spelling errors may pass through

-



ing production company in a live broadcast.









Text is not shown in its entirety

Captions that are delayed a few seconds



or there is a delay of what is being said.

are common for live broadcasts. Most





nies can display a dialogue to a maximum





If a dialogue exceeds that rate, selective





the captions remain up-to-datewith the









Captions are scrambled with white boxes

Interference caused by building, power



on the TV screen.

may cause scrambled or incomplete









No captions are displayed in a program

Broadcasters may use a time compression



which must contain closed caption.

gram so that additional advertising time can





captions will be lost since the decoder





information.









No captions are displayed when playing a

The videotape may be either an illegal copy



prerecorded videotape with closed caption.

company may accidentally have left out the





ing the copying process.









The TV screen shows a black box.

You are in TEXT mode. Select





[OFF].









The LCD panel is manufactured to provide many years of useful life. pixels may appear as a fixed point of blue, green or red. This is not to be LCD screen.

MAINTENANCE



CABINET CLEANING



PICTURE SCREEN CLEANING

Wipe the front panel and other exterior



If the liquid crystal display panel should



surfaces of the TV with a soft cloth



require cleaning, wipe it with a cotton or soft



immersed in lukewarm water and wrung dry.



cloth. Before cleaning the picture screen,



Never use a solvent or alcohol. Do not spray





disconnect the power cord.



insecticide liquid near the TV. Such











chemicals may cause damage and







discoloration to the exposed surfaces.





SUPPLIED ACCESSORIES

Owner’s Manual

Remote control unit

Batteries

(1EMN21878)

(NE900UD)

(“AAA” x 2)

SPECIFICATIONS

GENERAL SPECIFICATIONS

Television system:

NTSC-M

Closed Caption

TV Standard



System:

§15.119/FCC

Channel coverage



VHF:

2 ~ 13

UHF:

14 ~ 69

CATV:

2 ~ 13, A ~ W,



W+1 ~ W+84,



A-5~A-1,5A

Tuning System:

181 channels



frequency synthesized



tuning system

Channel access:

Direct access keyboard,



programmable

Terminals

scan and up/down



Antenna input:

VHF/UHF/CATV



75 ohm unbalanced



(F-type)

S-Videoinput:

Mini DIN 4-pinjack

Video input:

RCA connector x 1

Audio input:

RCA connector x 4

Component video input:

One pin jack (Y), 1Vpp(75 ohm)

Two pin jacks (Pr)/(Pb), 700mVpp(75 ohm)

Headphone:

1/8" stereo (3.5mm)

Stereo Sound System



2 speakers



2 ways AV input



ELECTRICAL SPECIFICATIONS

Sound output: 1W, 8 ohm x 2

OTHER SPECIFICATIONS

Remote control:

Digital encoded



infrared light system

Operating

temperature: 5°C to 40°C (41°F~104°F)

Power requirements: AC120V, 60Hz Power consumption

(Maximum): 53W LCD: 20" Dimensions (H x W x D):

With Tilt Stand

19" x 24-7/16"x10-5/8"(483mm x 620mm x 269mm)

Weight:

With Tilt Stand: 15.4 lbs. (7.0kg)

•Designs and specifications are subject to change without notice and without our legal obligation.

•If there is a discrepancy between languages, the default language will be English.
