Operator's Guide
P3PC-1592-01ENZ0
fi-5015C Image Scanner
CONTENTS
■ Regulatory Information ........................................................ iii
■ Note, Liability ......................................................................... v
■ Safety Precautions ............................................................. viii
Chapter 1 NAME OF PARTS....................................................1
1.1 Units..................................................................................... 2
1.2 Operator Panel.................................................................... 5
Chapter 2 BASIC SCANNER OPERATIONS..........................7
2.1 Turning ON/OFF the Scanner ............................................ 8
2.2 Loading Documents on ADF ........................................... 12
2.3 Loading Document on Flatbed ........................................ 16
2.4 Scanning Documents ....................................................... 18
2.5 How to use the Scanner Driver........................................ 20
Chapter 3 MAINTENANCE..................................................... 35
3.1 How to clear the paper jam ............................................ 36
3.2 Cleaning............................................................................. 37
3.3 Replacing Consumable .................................................... 42
fi-5015C Image Scanner Operator’s Guide i
Chapter 4 TROUBLESHOOTING........................................... 51
4.1 Error Indications in the Function Number Display........ 52
4.2 Troubleshooting ............................................................... 54
APPENDIX A SCANNER SPECIFICATIONS..................................... AP-1
APPENDIX B Using [Scan] or [Send to] button .............................. AP-3
APPENDIX C GLOSSARY OF TERMS.............................................. AP-5
INDEX ...................................................................................................... IN-1
ii
INTRODUCTION
Thank you for purchasing the fi-5015C Color Scanner.
This document describes how to handle fi-5015C and basic operation methods. Before you start using fi5015C be sure to thoroughly read this manual to ensure correct use.
■Regulatory Information
FCC declaration
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is located.
• Consult your dealer or an experienced radio/TV technician.
FCC warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
The use of a shielded interface cable is required to comply with the Class
B limits of Part 15 of FCC rules.
The length of the AC cable must be 3 meters (10 feet) or less.
Canadian DOC Regulations
This digital apparatus does not exceed the Class B limit for radio noise emissions from digital
apparatus set out in the Radio interference Regulations of the Canadian Department of
Communications.
This Class B digital apparatus complies with Canadian ICES-003.
Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le brouillage
radioélectrique dictées par le Ministère des Communications du Canada.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
fi-5015C Image Scanner Operator’s Guide iii
Bescheimigung des Herstellers / Importeurs
Für den fi-5015C wid folgendes bescheinigt:
• In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört
• Maschinenlärminformationsverordnung 3.GPSGV: Der höchste Schalldruckpegel beträgt 70 dB (A)
oder weniger, gemäß EN ISO 7779.
International ENERGY STAR® Program
As an ENERGY STAR® Partner, PFU LIMITED has determined that this product
meets the
The International
program that promotes energy saving through the penetration of energy efficient
computers and other office equipment. The program backs the development and
dissemination of products with functions that effectively reduce energy consumption. It is an open
system in which business proprietors can participate voluntarily. The targeted products are office
equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction
devices. Their standards and logos are uniform among participating nations.
ENERGY STAR
ENERGY STAR
®
guidelines for energy efficiency.
®
Office Equipment Program is an international
iv
■Note, Liability
READ ALL OF THIS MANUAL CAREFULLY BEFORE USING THIS PRODUCT. IF THIS
PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY MAY BE CAUSED TO USERS
OR BYSTANDERS.
Also, keep this manual in a safe place so that it can be easily referred to during use of this product.
While all efforts have been made to ensure the accuracy of all information in this manual, PFU
assumes no liability to any party for any damage caused by errors or omissions or by statements of any
kind in this manual, its updates or supplements, whether such errors are omissions or statements
resulting from negligence, accidents, or any other cause. PFU further assumes no liability arising from
the application or use of any product or system described herein; nor any liability for incidental or
consequential damages arising from the use of this manual. PFU disclaims all warranties regarding the
information contained herein, whether expressed, implied, or statutory.
Use in High-safety Applications
This product has been designed and manufactured on the assumption that it will be used in office,
personal, domestic, regular industrial, and general-purpose applications. It has not been designed and
manufactured for use in applications (simply called "high-safety applications" from here on) that
directly involve danger to life and health when a high degree of safety is required, for example, in the
control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic
control, operation control in mass-transport systems, medical equipment for sustaining life, and
missile firing control in weapons systems, and when provisionally the safety in question is not
ensured. The user should use this product with adopting measures for ensuring safety in such high-
safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of
this product by the user in high-safety applications, and for any claims or compensation for damages
by the user or a third party.
About the use of mercury
Lamp(s) inside this product contain mercury and must be recycled or
g
H
To avoid unexpected injuries;
disposed of according to local, state, or federal laws.
• Do not put the substance contained in the lamp in your mouth as it has mercury.
• Do not breathe the chemical liquid contained in the scanner lamps.
• Do not incinerate, crush, or shred the lamps or scanner parts.
Trademarks
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
ISIS, QuickScan and their respective logos are trademarks or registered trademarks of EMC
Corporation in the United States.
Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated
in the United States and/or other countries.
Other product names are the trademarks or registered trademarks of the respective companies.
fi-5015C Image Scanner Operator’s Guide v
How Trademarks Are Indicated In This Manual
References to operating systems (OS) are indicated as follows:
Windows 98
Windows Me
Windows 2000
Windows XP
Microsoft® Windows® 98
operating system.
Microsoft® Windows®
Millennium Edition operating system.
Microsoft® Windows® 2000
Professional operating system.
Microsoft® Windows® XP
Professional operating system,
®
Microsoft
Windows® XP Home Edition operating system.
Where there is no distinction between the different versions of the above operating system, the general
term "Windows " is used.
Adobe Acrobat
Adobe® Acrobat®
All the descriptions in this manual assume the usage of Adobe Acrobat bundled with this product.
However, Adobe Acrobat may be upgraded without notice. If the descriptions differ from the screens
actually displayed, refer to the Acrobat’s “Help”.
Manufacturer
PFU LIMITED
International Sales Dept., Imaging Business Division, Products Group
Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan
Phone : (81-44) 540-4538
All Rights Reserved, Copyright© PFU LIMITED 2006
About Maintenance
The user must not perform repairs on this scanner.
Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service
provider to make repairs to this product.
vi
Warning Indications Used In This Manual
This indication alerts operators to an operation that, if not strictly
WARNING
CAUTION
observed, may result in severe injury or death.
This indication alerts operators to an operation that, if not strictly
observed, may result in safety hazards to personnel or damage to
equipment.
Symbols Used In This Manual
ATTENTION
HINT
R
This symbol alerts operators to particularly important information. Be
sure to read this information.
This symbol alerts operators to helpful advice regarding operation.
A TRIANGLE symbol indicates that special care and attention is required.
The drawing inside the triangle shows the specific caution.
A CIRCLE with a diagonal line inside shows action which users may not
perform.
The drawing inside or under the circle shows the specific action that is not
allowed.
Outline characters on a colored background show instructions users should
follow.
It may also include the drawing that shows the specific instruction.
Screen Examples In This Manual
The screen examples in this manual are subject to change without notice in the interest of product
improvement. If the actual displayed screen differs from the screen examples in this manual, operate
by following the actual displayed screen while referring to the User's Manual of the scanner
application you are using.
The screenshots in this manual were captured from FUJITSU TWAIN32 scanner driver, ScandAll 21
Image Capturing Utility Software, FUJITSU ISIS scanner driver, QuickScan Pro™ image capturing
®
software and Adobe
Acrobat®.
fi-5015C Image Scanner Operator’s Guide vii
■Safety Precautions
WARNING
Do not damage the AC cable.
A damaged AC cable may cause fire or electric shock. Do not place heavy objects on
AC cables, or pull, bend, twist, heat, damage or modify AC cables.
Do not use damaged AC cables or power plugs, or install any cables or power plugs to
loose wall sockets.
Use only specified AC cables and connector cables
Use only specified AC cables and connector cables. Failure to use the correct cables
might cause electric shock and/or equipment failure.
Please don’t use the AC cable provided with this scanner for other devices, since this
might cause equipment failure and other troubles or an electric shock.
Use this scanner only at the indicated power voltage. Do not
connect to multiple-power strips.
Use this scanner only at the indicated power voltage and current. Improper power
voltage and current might cause fire or electric shock. Do not connect to multiple-power
strips.
Do not touch the AC cable with wet hands.
Do not touch the power plug with wet hands. Doing so might cause electric shock.
Wipe any dust from the power plug.
Wipe off any dust from metal parts on the power plug or metal fittings with a soft, dry
cloth. Accumulated dust might cause fire or electric shock.
Do not install the device in locations that has oil smoke, steam,
humidity, and dust.
Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust.
Doing so might cause a fire or electric shock.
viii
Turn the scanner OFF if it is damaged.
If the scanner is damaged for any reason, disconnect immediately the power plug in
order to turn out the scanner. Contact the store where you purchased the scanner.
Do not put liquids inside the scanner.
Do not insert or drop metal objects in to the scanner. Do not scan wet documents or
documents with paper clips or staples. Do not splash or allow the scanner to get wet.
If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner,
immediately turn off the scanner and disconnect the power plug from the power outlet,
then contact the store where you bought the scanner or the Maintenance Service
Center. Pay particular attention to this warning in households where there are small
children.
Do not touch the inside of the scanner unless necessary.
Do not take apart or modify the scanner. The inside of the scanner contains highvoltage components. Touching these components might cause fire or electric shock.
Do not use the scanner if there is a strange odor.
If you detect excessive heat coming from the device or detect other problems such as
smoke, strange smells or noises, disconnect immediately the power plug in order to
turn out the scanner. Make sure that any smoke coming from it has stopped, before
contacting the store where you bought the scanner or an authorized FUJITSU scanner
service provider.
fi-5015C Image Scanner Operator’s Guide ix
CAUTION
Do not install the scanner on unstable surfaces.
Make sure that the scanner is installed on a flat, level surface and that none of its parts
extend beyond the surface top, such as a desk or table. Do not install the scanner on
unstable surfaces. Install the scanner on a level surface that is free of vibration to
prevent it from falling.
Install the scanner on a strong surface that will support the weight of the scanner and
other devices.
Do not block the ventilation ports.
Do not block the ventilation ports. Blocking the ventilation ports generates heat inside of
scanner, which may results in fire or scanner failure.
Do not place heavy objects or stand on top of the scanner.
Do not place heavy objects on the scanner or use the scanner's surface top to perform
other work. Improper installation might cause injuries and equipment failure.
Firmly insert the power plug.
Firmly insert the power plug as far it can go into the power outlet.
Avoid any contact when scanner is in use.
Avoid touching any scanner mechanism during scanning since this may cause injuries.
Do not use the scanner immediately after moving it from a cold
place into a warm room.
Do not use the device immediately after moving it from a cold place into a warm room.
This may cause condensation, which might lead to scanning errors. Let the device dry
about one or two hours before you use it.
x
Before moving the scanner, disconnect the power plug from the
power outlet.
Do not move the scanner with the power and interface cables connected as this might
damage the cables, causing fire, electric shock or injuries. Before moving the scanner,
be sure to disconnect the power plug from the power outlet, and all other data cables.
Make sure that the floor is free of any obstruction.
Protect the scanner from static electricity.
Install the scanner away from strong magnetic fields and other sources of electronic
noise. Also, protect the scanner from any static electricity as this might cause the
scanner to malfunction.
Do not use aerosol sprays near the scanner.
Do not use aerosol sprays to clean the scanner. Aerosol sprays cause dirt and dust to
enter the scanner, resulting scanner failure and malfunction.
Disconnect the power plug from the power outlet when the scanner
is not used for a long period of time.
When the scanner is not going to be used for a long period of time, be sure to
disconnect the power plug from the power outlet for safety.
Do not install the scanner in the direct sunlight.
Do not install the scanner under direct sunlight or near heating apparatus. Doing so
might cause excessive heat to build up inside the scanner, which can cause scanner
trouble or even fire. Install the scanner in a well-ventilated location.
Before moving the scanner, make sure the shipping lock is locked.
When moving the scanner, be sure to lock the shipping lock in order to prevent
damages to the scanner.
fi-5015C Image Scanner Operator’s Guide xi
xii
Chapter 1
NAME OF PARTS
This chapter shows the exterior view and the name of each part to descrive its function.
1
1.1 Units ......................................................................................................................... 2
1.2 Operator Panel ........................................................................................................ 5
fi-5015C Image Scanner Operator’s Guide 1
1.1 Units
1. Front side
1
2
3
4
Part Function
1. Automatic document feeder (ADF)
2. Side guides Holds the documents straight.
Automatically feeds documents one by one to the reading position in the
scanner.
5
6
7
8
3. ADF paper chute Holds the documents to be fed by the automatic document feeder (ADF).
4. Extension Extended when long documents are set.
5. Document cover Stacks the documents after being scanned by ADF.
Holds the document to be scanned on Flatbed.
6. Document stopper Prevents ejected documents from dropping off the scanners exit tray.
7. Flatbed Used when the ADF is not appropriate to scan the document.
8. Operator panel Turns on/off the scanner, starts scanning by [Send to] or [Scan] button, or
displays function number.
2
2. Flatbed
1.1 Units
1
1
NAME OF PARTS
2
Part Function
1. Document holding
pad
2. Document bed On which the document is set face down.
3. Backside
Part Function
Holds the document on Flatbed.
3
1
2
4
1. USB connector Connects USB cable to PC.
2. ADF cable connector Connects the cable from ADF.
3. DC inlet Connects the cable from AC adaptor
4. Main Power switch Turns the power ON or OFF to the scanner
fi-5015C Image Scanner Operator’s Guide 3
4. Side (ADF side)
1
Part Function
1. Shipping lock Locks the scanning head to prevent the scanner damaged when moving or
transporting.
8QORFNHG
/RFNHG
4
1.2 Operator Panel
(WPEVKQP 5GPFVQ 5ECP
1.2 Operator Panel
1
2QYGT
NAME OF PARTS
2
Part Function
1. Function button Changes the function activated by [Send to] button.
2. Function number
display
3. [Send to] button Launches an application software which is linked by the value of Function
4. [Scan] button Launches an application software linked.
5. Power LED Lights when the scanner is turned on.
6. Power button Turns the scanner ON or OFF
Indicates the function number or error status. For detail refer "4.1Error
Indications in the Function Number Display" on page 52
number display.
1
3
4
6
5
fi-5015C Image Scanner Operator’s Guide 5
6
Chapter 2
BASIC SCANNER OPERATIONS
This chapter describes how to turn On/Off the scanner, and how to load/scan the documents.
In this chapter Windows XP screenshots are illustrated.
The screens and operations may differ slightly if the OS you are using is not Windows XP.
Also, when FUJITSU TWAIN32 is updated the screens and operations noted in this chapter will
differ slightly.
2
2.1 Turning ON/OFF the Scanner ................................................................................ 8
2.2 Loading Documents on ADF................................................................................ 12
2.3 Loading Document on Flatbed ............................................................................ 16
2.4 Scanning Documents ........................................................................................... 18
2.5 How to use the Scanner Driver............................................................................ 20
fi-5015C Image Scanner Operator’s Guide 7
2.1 Turning ON/OFF the Scanner
1. Turning the Power On
Switch on the Main Power switch located on the side. Then press [Power] button on the
operator Panel.
The scanner is turned ON, and the green LED on the operator panel lights.
During the initialization, the indication of the Function Number Display changes as follows:
“8”->"P" -> "0" -> "1"
The indication "1" means that the operator panel scanner is in the ready status.
2. Turning the Power Off
Hold the power buton down for at least two seconds.
2QYGT
ATTENTION
(WPEVKQP 5GPFVQ 5ECP
Be sure to turn off the Power button on the operation panel before turning
off the main power switch. If you turn off the main power switch without
turning off the Power button first, other USB devices connected with the
USB2.0 hub may fail.
■ About Power ON/OFF Control
You can select either the scanner to be turned on/off with disable the Power buton on the
operator panel, or alternately you would then power the scanner on/off by connecting or disconnecting the power cable.The procedure is as follows.
1. Open Scanner’s Properties.
1) When turning on the power, check that the scanner is connected to your PC. Refer to "2.3
Connecting the Scanner your a PC" in fi-5015C Getting Started on the CD-ROM for
information about connecting the scanner to your personal computer.
8
2.1 Turning ON/OFF the Scanner
2) Double click the "Printer and Other Hardware" icon on the Control panel of your PC.
⇒ The [Printer and Other Hardware] window appears.
3) On the [Printers and Other Hardware] window, double click the [Scanners and Cameras]
icon.
2
BASIC SCANNER OPERATIONS
⇒ The [Scanners and Cameras] window is displayed.
4) Right click the "fi-5015C", and select [Properties] from the menu (for Windows Me, Windows XP), or double click (for Windows 98, Windows 2000).
fi-5015C Image Scanner Operator’s Guide 9
⇒ The [fi-5015C Properties] dialog box appears.
5) Click the "Device Set" tab.
⇒ The following panel appears.
10
2. Click [Power Control] button
⇒ The following screen is displayed.
3. In this screen,
• To power on/off the scanner by pressing the Power button:
⇒ select "Enable power switch".
• To power on/off the scanner by connecting or disconnecting the AC cable:
⇒ select "Disable power switch".
■ Power Save Mode
2.1 Turning ON/OFF the Scanner
The Power Save mode keeps the scanner in a low-powered state after it has been turned ON.
If no operation is performed on the scanner for 15 minutes, the scanner automatically switches to
the Power Save mode.
In the Power Save mode, the indication of the Function Number display on the operator panel goes
out, but the green LED stays lit.
To return from the Power Save mode, perform one of the following:
• Load the document on the ADF paper chute.
• Press any button on the operator panel.
(The scanner will be turned OFF when pressing down the power button for at least two
seconds.)
• Execute a command from the scanner driver.
2
BASIC SCANNER OPERATIONS
fi-5015C Image Scanner Operator’s Guide 11
2.2 Loading Documents on ADF
This section explains how to check the document condition and load them on ADF. These operations are very important to avoid paper jam or scanning error.
2.2.1 Checking document condition
Check that the document meets the following condition.
HINT
• If the documents do not meet the conditions, scan them on Flatbed
referring to "Loading Document on Flatbed" on page.16
• If you scan sheets of paper that is not recommended for feeding with
ADF, a paper jam may occur in the scanner or a wrinkle may occur on a
sheet. To prevent this from occurring, use Flatbed when scanning such
paper.
■ Document Size
For ADF: Minimum 115 (Width) x 140 (Length) mm (4.53 x 5.51 in.)
Maximum 216 (Width) x 355 (Length) mm (8.5 x 14 in.)
■ Document Type
The following paper types are recommended for ADF scanning:
• Woodfree paper
• Wood containing paper
When using documents other than above paper types, scan som test sheets of the same type
to see if the documents can be scanned or not, before attempting to scan the documents.
12
■ Document Thickness
Paper thickness is generally expressed by "paper weight". The following shows the paper
weights that can be used on this scanner:
• 52 g/m
2
to 127 g/m2 (14lb to 34lb)
■ Precautions
The following documents may not be scanned successfully:
• Documents of non-uniform thickness (e.g. envelopes)
• Wrinkled or curled documents (Refer to HINTs on the next page)
• Folded or torn documents
• Tracing paper
• Coated paper
• Carbon paper
• Carbonless paper
• Photosensitive paper
• Perforated or punched documents
2.2 Loading Documents on ADF
m
eed direction
ead surface
r
ess
an
eed direction
ess
an
• Documents that are not square or rectangular
• Very thin documents
Do not use the following documents:
• Paper-clipped or stapled documents
• Documents on which the ink is still wet
• Documents other than paper such as fabric, metal foil, or transparencies
HINT
ATTENTION
• When scanning semi-transparent documents, slide the [Brightness] bar
to light to avoid bleed through.
• To prevent the rollers from becoming dirty, avoid scanning documents
containing large areas written or filled in pencil. If scanning of such documents is unavoidable, clean the rollers frequently
• Carbonless paper contains chemical substances that may damage the
Pad ASSY or rollers (e.g. Pick roller) when these types of documents
are fed. Pay attention to the following:
Cleaning:
If pick errors occur frequently, clean the Pad ASSY.

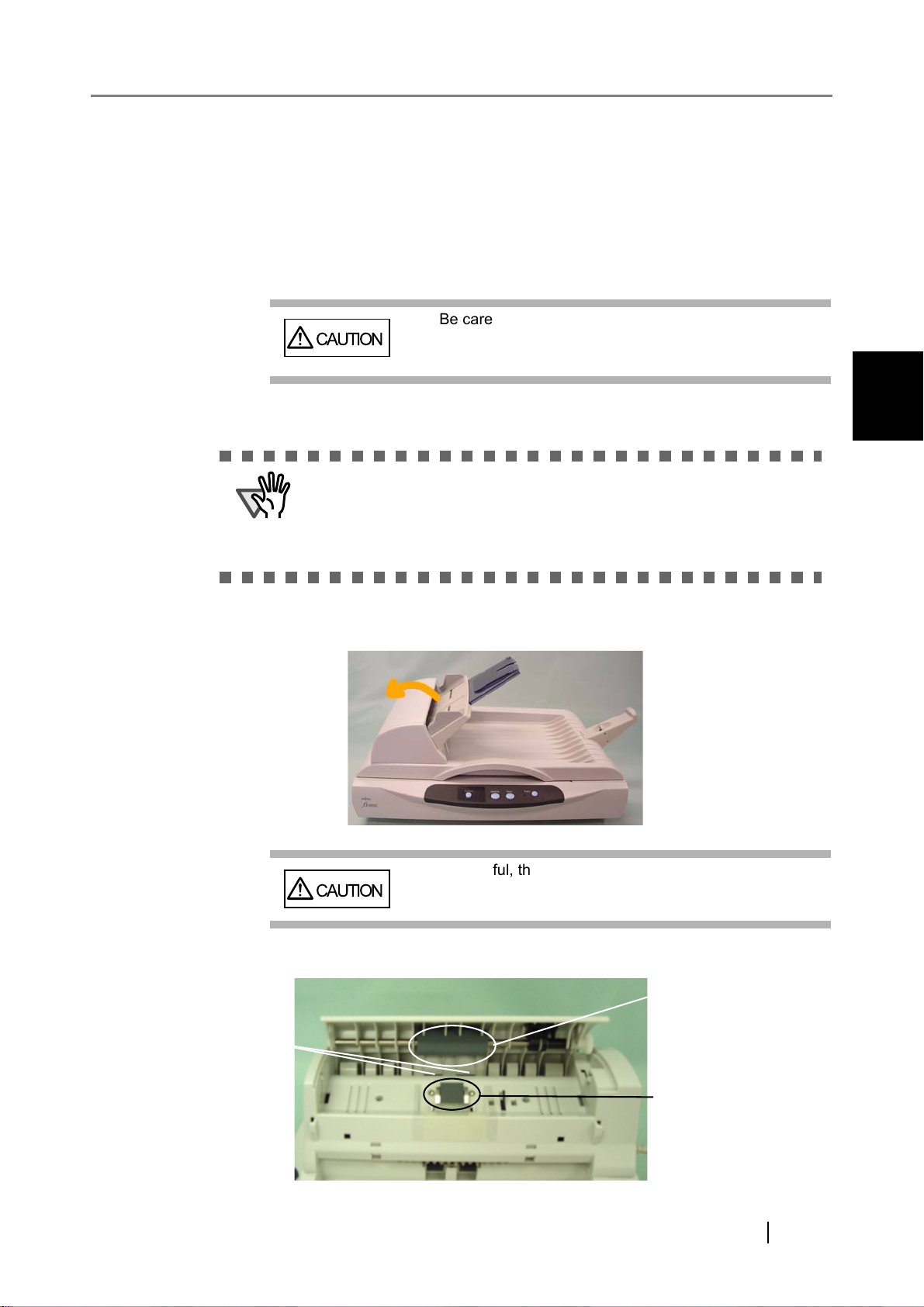

For details on cleaning the Pad ASSY, refer to "3.2.3 Cleaning the
ADF" on page 39.
Replacing parts:
The service lives of the Pad ASSY and Pick roller ASSY are sometimes shortened when scanning medium-grade paper documents.
• When documents of Wood containing paper are scanned, the life of
Pad ASSY and Pick roller ASSY may be shorter compared with the
case where the manuscript of Woodfree paper is scanned.
2
BASIC SCANNER OPERATIONS
HINT
When using the ADF, the leading edge of all document sheets must be
evenly aligned. Make sure that curling at the leading edge is within the
following tolerances:
L
th
3mm
Top of the pape
th
L
5mm
Top of the paper
More than 30m
F
R
F
Read surface
fi-5015C Image Scanner Operator’s Guide 13
2.2.2 Loading documents on ADF
This section explains how to load documents on ADF.
1. Align the edges of the documents.
1) Grasp no more than 50 sheets in a stack.
2) Confirm that all the documents have the same width.
ATTENTION
• The documents on ADF paper chute should be less than 50 sheets.
Setting more than 50 sheets may cause paper jam or reading problem.
• When scanning with the ADF, make sure that no documents are placed
on the flatbed. Any documents on the flatbed will raise the flatbed cover
and cause deterioration of image quality.
2. Fan the documents as follows:
1) Lightly grip both ends of the documents with both hands, and bend the documents as follows.
2) Hold the documents firmly with both hands and bend them back as follows so that the
bent section rises up in the middle of the stack as shown below.
14
3) Repeat steps 1) and 2) a couple of times.
4) Rotate documents 90 degrees, and fan again.
3. Align the top of the documents.
4. Load the documents on the ADF paper chute.
2.2 Loading Documents on ADF
2
BASIC SCANNER OPERATIONS
ATTENTION
5. Adjust the side guides to the width of the documents.
Move the side guides so that they touch both sides of the documents.
If there is any clearance between the side guides and the edges of documents, the scanned
image may be skewed.
Set the documents face-up in the ADF paper chute with the upper edge
of the documents downwards.
6. Scan the documents.
For how to scan the document, refer to "2.4 Scanning Documents" on page.18.
fi-5015C Image Scanner Operator’s Guide 15
2.3 Loading Document on Flatbed
Do not look directly at the light source during the scan-
CAUTION
1. Open the document cover.
2. Place the document on the document bed (glass) with face down.
3. Position the document so that the upper-left corner of the document is aligned with
the reference mark of the document bed.
ning operation.
4. Close the document cover gently.
5. Scan the document.
For how to scan the document, refer to "2.4 Scanning Documents" on page.18.
ATTENTION
• Do not move the document during scanning.
• Do not press or open the document cover during scanning.
■ Scanning Thick Documents with Flatbed
When scanning a thick document such as a book, please remember the following notes.
1. The document cover can be pulled out upwards.
2. The not-seated part of the document is not scanned correctly.
16
2.3 Loading Document on Flatbed
■ Document Size
For Flatbed: Minimum 26 (Width ) x 26 (Length) mm (1 x 1 in.)
Maximum 216 (Width ) x 297 (Length) mm (8.5 x 11.7 in.)
Orientation of the document and how to set Paper size shall be as follows for Portrait scanning or Landscape scanning
[Portrait] [Landscape]
• Paper Size setting
Select Paper Size among A4, A5, B5,
Letter and Exective, in the following
driver screen.
• Paper Size setting
Select Paper Size A5L, in the following
driver screen.
2
BASIC SCANNER OPERATIONS
.
fi-5015C Image Scanner Operator’s Guide 17
2.4 Scanning Documents
This section explains how to scan documents using Scandall21 as an example.
1. Load documents on the scanner.
For details about loading documents, refer to "2.2 Loading Documents on ADF" on page 12
or "2.3 Loading Document on Flatbed" on page 16.
2. Start up ScandAll 21.
Select [Start] - [Program] - [Scanner Utility for Microsoft Windows] - [ScandAll 21].
⇒ This starts up ScandAll 21.
3. Select the scanner to use.
Select [Select Source] from the [Scan] menu.
⇒ The [Select Source] dialog box appears.
Select "FUJITSU fi-5015C" and click the [Select] button.
4. Click the [Scan To View] button on the tool bar.
⇒ The [TWAIN Driver] dialog box (for setting the scan conditions) appears.
18
2.4 Scanning Documents
5. Set the scan type, paper size (see below), etc., and click the [Scan] button.
For details on settings in the [TWAIN Driver] dialog box, refer to "2.5 How to use the Scanner Driver" on page 20
Select
ADF or Flatbed
Select
Paper Size
2
BASIC SCANNER OPERATIONS
⇒ The images of scanned documents are displayed on the [ScandAll 21] window.
For details on functions and operations of ScandAll 21, refer to the description in the [Help]
menu.
fi-5015C Image Scanner Operator’s Guide 19
2.5 How to use the Scanner Driver
■ FUJITSU TWAIN32 Scanner Driver
FUJITSU TWAIN32 Scanner Driver is designed for scanning documents with FUJITSU image
scanner fi series by using application software that complies with the TWAIN standard.
The following describes the procedure with examples of ScandAll 21 for ordinary scanning by
using this driver.
1. Procedure for Basic Scanning Operation
1) Startup the application.
From the [Start] menu, select [Programs]-[Scanner Utility for Microsoft Window] and
click [ScandAll 21].
2) Select your scanner on the window below.
Select [Select Source] from the [Scan] menu.
3) Select the scanner to use, then click the [Select] button.
Select [FUJITSU fi-5015C] then click the [Select] button.
4) Load the documents on the scanner.
For details on loading documents, refer to "2.2 Loading Documents on ADF" on page
12 and "2.3 Loading Document on Flatbed" on page 16
5) Open the TWAIN Driver window.
Select [Scan To View] from the [Scan] menu.
20
2.5 How to use the Scanner Driver
HINT
6) Configure settings for scanning and click the [Scan] button.
ScandAll 21 provides the following scanning methods:
• [To View...] :Displays scanned images on the display screen.
• [To File...:] :Saves scanned images as files (*.BMP, *.TIF, *.JPG).
• [To FTP...:] :Transfers scanned images to a FTP server.
• [To Adobe PDF...:] :Saves scanned images as PDF files.
(*Adobe Acrobat must be installed beforehand.)
• [To Microsoft SharePoint Portal Server...] :Transfers scanned images to
Microsoft Share Point Portal Server.
• [To Mail...] :Launches mailer software and attaches scanned images to e-
mail.
For details, refer to the [Help] menu.
2
BASIC SCANNER OPERATIONS
For details about the settings on this window, refer to "Setting Window for FUJITSU
TWAIN32 Scanner Driver" on page 23.
fi-5015C Image Scanner Operator’s Guide 21
⇒ The images of scanned documents are displayed on the [ScandAll 21] window.
Depending on the settings of the application software, images may not be displayed.
For details, refer to the documentation or Help file of your application.
e.x.) When you select [To File...] from the [Scan] menu of ScandAll 21, images of
scanned documents are not displayed on the window.
7) Save the scanned images.
Select [Save As...] from the [File] menu to save the scanned images.
If you wish to start another scanning, return to procedure 4).
8) End ScandAll 21.
Select [Exit] from the [File] menu.
22
2.5 How to use the Scanner Driver
2. Setting Window for FUJITSU TWAIN32 Scanner Driver
2
BASIC SCANNER OPERATIONS
You can set the FUJITSU TWAIN32 Scanner Driver on this window.
The following describes the main setting items.
• For details on each functions, refer to "FUJITSU TWAIN32 Scanner Driver Help"
(appears by pressing [Help] or [F1] button).
Resolution
Specifies the resolution of scanning.
It can be specified by selecting from the list a default value or "custom" (specifies any
resolution in 1 dpi unit).
By marking the [Predefine] checkbox, you can select one from three predefined settings as [Best], [Better] and [Normal] to scan documents instead of setting details by
yourself. Otherwise, you can change the predefined settings of [Best], [Better] and
[Normal] by clicking the [...] button.
Scan Type
Specifies the feeding method, ADF scanning or Flatbed scanning.
Paper Size
Selects the size of documents to be scanned from the list.
Windows for customizing the paper size will appear when you click on [...] by the list.
You can save any document size as a customized setting (up to three) or for changing
the order of the paper size in the list.
fi-5015C Image Scanner Operator’s Guide 23
Image Mode
Specifies the image type for the scanned documents.
Black & White Documents are scanned in binary (black and white).
Halftone Documents are scanned through halftone process-
ing in black and white.
Grayscale Documents are scanned in gradations from black to
white. For this mode you can select 256 gradations
or 4 bit (16 gradations).
Color Documents are scanned color mod. For this mode,
you can select 24 bit Color, 256 Color or 8 Color.
[Scan] button
Starts scanning documents with the current settings.
[Preview] button
Documents are scanned preliminarily before the actual scanning.
You can confirm the image of the documents in the preview window.
[Close] button
Saves the current settings and closes this window.
[Reset] button
Undoes change opetation.
[Help] button
Opens the "FUJITSU TWAIN32 Scanner Driver Help" window. The window also
opens by pressing the [F1] key.
[About...] button
Opens an information window about the FUJITSU TWAIN32 Scanner Driver's version.
24
2.5 How to use the Scanner Driver
[Option...] button
You can set up the details of optional functions on the window below.
[Rotation] tab
Select this tab when setting image rotation.
2
BASIC SCANNER OPERATIONS
[Job/Cache] tab
Select this tab when setting cache mode, blank page skipping, etc.
[Generic] tab
Select this tab to change the unit displayed on the Setting Window for the FUJITSU
TWAIN32 Scanner Driver. (Millimeters, Inches, and Pixels are available)
[Startup] tab
Select this tab for setting the Scanner Operation Panel.
[Filter] tab
Select this tab for setting the image processing filter(s).
Page Edge Filler: Fills up the margins of the scanned documents with a selected
color.
Digital Endoser: A character string, such as the alphabet and numbers, can be
added in the scanned document.
[Advance...] button
Click this button for settings of the advanced image processing.
You can set Dropout Color, Reverse, etc. Also Gamma Pattern by custom settings,
[Config...] button
Click this button for configuring the Setting Files.
You can save the changed settings as a Setting File. From next scanning, the settings
are quickly changed by using these Setting Files.
For details of each function, refer to the "FUJITSU TWAIN32 Scanner Driver Help".
fi-5015C Image Scanner Operator’s Guide 25
■ FUJITSU ISIS Scanner Driver
FUJITSU ISIS Scanner Driver is designed for scanning documents with FUJITSU image scanner fi
series by using application software that complies with the ISIS standard.
The following describes the procedure with examples of QuickScan for ordinary scanning by using
this driver.
The procedure may vary depending on your application. If you use an application other than
QuickScan, please refer to its Guide or Help for further information.
1. Procedure for Basic Scanning Operation
1) Startup the application.
From the [Start] menu, select [Programs]-[QuickScan] and click [QuickScan].
2) Select your scanner on the window below.
Select [Scan] - [Select Scanner] on the menu bar.
3) Select fi-5015C, then click the [OK] button.
4) Select [Scan] - [New Batch] on the menu bar.
26
2.5 How to use the Scanner Driver
5) Select the profile for scanning.
• When creating a new profile
Select one from already existing profiles and click [Add Profile...] button.
⇒ A new profile will be created based on the profile you select.
• When changing the settings of already existing profiles
Select one from already existing profiles and click [Edit Profile...] button.
⇒ The settings of the selected profile can be changed.
• When using an existing profile
Select the one from an already existing profiles
⇒ The scanning will be started according to the settings of the selected profile.
Go to the procedure 9.
2
BASIC SCANNER OPERATIONS
6) Open the window of ISIS Driver.
Select the [Scan] tab and click the [Scanner Settings] on the [Profile Editor] window.
⇒ The configuration window of ISIS driver appears.
fi-5015C Image Scanner Operator’s Guide 27
7) Configure settings for scanning and click the [OK] button.
For details on this dialog box, refer to "Configuration Window of FUJITSU ISIS Scanner Driver" on page 29.
8) The [Profile Editor] window appears. Click the [OK] button to return to [New batch]
dialog.
9) Load the documents on the scanner.
10) Click the [Scan] button.
⇒ Scanned images are displayed on the window.
Refer to the "QuickScan Overview" or the "QuickScan Help" for further information
on functions and operations of QuickScan. After the installation of QuickScan, it is registered in the [Start] menu.
28
2.5 How to use the Scanner Driver
2. Configuration Window of FUJITSU ISIS Scanner Driver
"Main" tab
2
BASIC SCANNER OPERATIONS
Mode
Selects a color mode suitable for the purpose from the menu.
Black & White Documents are scanned in binary (black and white).
256-level Grayscale Scans data by 254 shades of gray plus black and
white. This mode uses 8 bits per pixel. This mode is
switable for scanning monochrome photographs.
24-bit Color Scans data as full-colored image using 24 bits per
pixel. This mode is suitable for scanning color photographs.
Dots per inch
Specifies the number of pixels (dots) per inch.
Select a fixed resolution from the list (75, 100, 150, 200, 300, 400, 500, 600).
A higher resolution produces finer image, but requires much more memory.
Halftone
Selects the halftone pattern for halftone scanning. This setting is available when "Black
& White" is selected in the "Image Mode".
Dither Pattern 0 This setting is suitable for scanning dark photo-
graphs.
fi-5015C Image Scanner Operator’s Guide 29
Brightness
Sets the brightness of the entire image. Specify the brightness as a number within the
range of 1 (dark) to 128 (bright). To brighten the entire image, increase the value of the
setting. To darken the entire image, decrease the value.
Contrast
Sets the contrast between light and shadow of the scanned image. Specify the contrast
as a number within the range of 1 (low [soft]) to 100 (high [sharp]). Increasing this
value makes the contrast sharper.
Paper Source
Selects the scanning method.
Automatic Automatically switches the method between ADF scanning
and flatbed scanning.
ADF Scans documents using the automatic document feeder
(ADF).
Flatbed Scans documents using the flatbed.
"Layout" tab
30
Paper Size
Selects a paper size according to the size of the document to be scanned. Select a standard paper size from the list.
Paper Layout
Specifies orientation of the documents as portrait or landscape.
2.5 How to use the Scanner Driver
[Scan Area...] button
Opens the Scan Area dialog box. Specify scan area for the document size.
The size can be set by dragging the frame with mouse. Otherwise, enter any value for
the setting.
2
BASIC SCANNER OPERATIONS
fi-5015C Image Scanner Operator’s Guide 31
"More" tab
Opens [More Settings] window. Used for setting advanced features.
Use Advanced DTC
This option scans any kind of documents by binary processing to produce data with
good scanning quality. Documents containing thin letters, characters with the colored
background, and colored charts cannot be scanned sufficiently clearly by ordinary
binary processing. By using this option, however, you can achieve good scanning quality.
Overscan
Specifies the overscan function, which makes the scanned images larger than the
original documents by adding margins.
Color Dropout
Excludes selected color (the three primary colors of light i.e. green, red, blue) from
scanned images. For example, if the document contains black text in a red frame and
when the red color is selected, the scanner reads only the text and eliminates (drops
out) the red frame.
If you do not wish to have any colors dropped out select "None".
Reverse
Colors of scanned images are reversed.
[Setup IPC...] button
You can configure settings for scanning with Image Processing Software Option.
32
"Gamma" tab
2.5 How to use the Scanner Driver
2
BASIC SCANNER OPERATIONS
Download
You can download and use any Gamma pattern.
Custom
You can specify the numeric values of items such as “Gamma”, “Brightness”, “Contrast”.
"About" tab
Displays the version number of ISIS driver.
fi-5015C Image Scanner Operator’s Guide 33
34
Chapter 3
MAINTENANCE
This chapter describes how to clear the paper jam, perform daily maintenance and cleaning.
CAUTION
3
Be careful, the inside of ADF (automatic document
feeder) may become hot during the operation.
3.1 How to clear the paper jam .................................................................................. 36
3.2 Cleaning................................................................................................................. 37
3.3 Replacing Consumable ........................................................................................ 42
fi-5015C Image Scanner Operator’s Guide 35
3.1 How to clear the paper jam
Be careful not to get injured when removing jammed
CAUTION
When a paper jam occurs while using ADF, follow the procedure below to remove jammed paper.
1) Remove the documents from the ADF paper chute.
2) Open the ADF.
.
CAUTION
documents.
Be careful, the ADF may close and pinch your fingers.
3) Remove the jammed paper.
ATTENTION
Staples, paper clips, etc. cause document jams. Be sure to fully check the
document and feed path, and remove any small metal objects such as
these.
Also, before you start scanning, be sure to remove any staples, clips, etc.
from the document.
4) Close the ADF completely until it clicks.
36
3.2 Cleaning
To keep scanner performance stable, clean the scanner and replace the consumable if necessary as
follows.
CAUTION
3.2.1 Cleaning Materials
Cleaning Materials Parts Number Remarks
Cleaner F1
(or isopropyl alcohol)
3.2 Cleaning
Be careful, the inside of ADF (automatic document
feeder) may become hot during the operation.
3
MAINTENANCE
CA99501-0013 1 bottle
Moisten a cloth with this fluid and wipe the
scanner clean.
Lint-free dry cloth - Commercially available one
For details about the cleaning materials, contact the FUJITSU scanner dealer where you purchased the scanner.
fi-5015C Image Scanner Operator’s Guide 37
3.2.2 Cleaning the Flatbed
ATTENTION
• Detergent for cleaning windows or glass cleaner can be used instead of
cleaning fluid. However, do not use paint thinner or other organic solvents.
• Do not allow moisture to get inside the device during cleaning.
■ Cleaning Method
1. Open the document cover.
2. Clean the following locations using a soft, dry cloth moistened with cleaning fluid.
1
• Document holding pad - 1
Wipe gently.
• Document bed - 2
Wipe lightly.
ATTENTION
Be careful not to allow moisture to get inside the device during cleaning.
3. Wait for cleaned parts to dry.
4. Gently close the document cover.
2
38
3.2.3 Cleaning the ADF
Clean the ADF every 1,000 scans. Note that this guideline varies according to the type of documents you are
scanning. For example, it may be necessary to clean the ADF more frequently if documents are scanned
when the toner is not sufficiently fixed on the printout.
As the documents are scanned by ADF, Pad ASSY and Pick roller unit may be contaminated with ink, toner
particles or paper dust. In this case the scanner may not feed documents smoothly or several documents may
be fed at once. If this occurs please clean the ADF as follows to return your scanner to its original state.
CAUTION
3.2 Cleaning
Be careful, the inside of ADF (automatic document
feeder) may become hot during the operation.
■ Cleaning Method
ATTENTION
1. Open the ADF.
The glass surface under the ADF becomes hot during the operation of
the scanner.
Before you start to clean the inner parts of the scanner, disconnect the
AC adapter from the power outlet, and wait at least 15 minutes to let the
glass cool down.
3
MAINTENANCE
Be careful, the ADF may close and pinch your
CAUTION
2. Clean the following locations with a lint-free cloth moistened with the Cleaner F1.
Pinch
rollers
fingers.
Pick roller unit
Pad ASSY
fi-5015C Image Scanner Operator’s Guide 39
• Pad ASSY
Wipe Pad ASSY with the cloth in the direction from bottom to top.
Mylar
sheet
Pick Springs
Sensor
lever
ATTENTION
Be careful not to hook the pick springs, sensor lever and mylar sheet
near the Pad ASSY.
• Pick roller unit
Wipe the Pick roller unit by moving the cloth from side to side of rollers. Rotate the rollers
forward with your finger and repeat the wiping procedure until all surface of roller are
cleaned.
• Pinch rollers
Clean Pinch roller softly not to damage its surface. Try to remove any black stain which
may degrade the performance of paper feeding
3. Push in the center of the ADF to return it to its original position, until it clicks.
40
ATTENTION
Close the ADF until it clicks. Paper jams or feeding errors may occur if the
ADF is not closed completely.
4. Open the Flatbed cover and clean the following locations.
3.2 Cleaning
3
MAINTENANCE
ATTENTION
The glass surface under the ADF becomes hot during the operation of
the scanner.
fi-5015C Image Scanner Operator’s Guide 41
3.3 Replacing Consumable
Note the inside of ADF (automatic document feeder)
CAUTION
3.3.1 Part number and Replacement cycle
The following table lists the consumable used in the scanner. Be sure to keep some consumables in
stock.
The customer is required to replace consumable periodically. Otherwise, the scanner may not function properly. Part number and recommended replacement cycle is,
No. Name Part Number Replacement Cycle
1 Pad ASSY PA03209-0550 Up to 20,000 sheets, or 1 year
2 Pick roller unit PA03209-0551 Up to 100,000 sheets, or 1 year
may become hot during the operation.
Replacement cycle may be shortened depending on the type of scanned documents. The above
replacement cycle is estimated with the following paper quality:
Woodfree paper or Plain paper
ATTENTION
HINT
Use only the above specified consumables.
Refer to "Guidelines for Consumable Replacement Cycle" on page 43 to
find how many documents are scanned by the consumable.
42
3.3 Replacing Consumable
3.3.2 Guidelines for Consumable Replacement Cycle
With this product, you can learn how many times the consumables are used so that you can
estimate the right timing for the replacement.
1. When turning on the power, check that the scanner is connected to your PC.
Refer to "2.3 Connecting the Scanner to your PC" in fi-5015C Getting Started on the CDROM for information about connecting the scanner to your personal computer.
2. Double click the "Printers and Other Hardware" icon on the Control panel of your PC.
3
MAINTENANCE
⇒ The [Printer and Other Hardware] window appears.
3. On the [Printers and Other Hardware] window, double click the
[Scanners and Cameras] icon.
⇒ The [Scanners and Cameras] window is displayed.
4. Right click the "fi-5015C", and select [Properties] from the menu (for Windows Me,
Windows XP), or double click (for Windows98, Windows 2000)
fi-5015C Image Scanner Operator’s Guide 43
⇒ The [fi-5015C Properties] dialog box appears.
5. Click the "Device Set" tab.
⇒ The following panel appears.
44
You can confirm the following information on this panel:
• Total number of scans with ADF and Flatbed.
• Pad and Pick roller counter (approximate number of scans after resetting the counter)
The following message may appear while using the scanner:
Replace consumables when this message is displayed.
After clicking the [Ignore] button, this message will disappear and scanning will continue.
Please replace the consumable as soon as possible.
As a default, this message appears again after 100 scans. If you do not wish this message to
display, click the [This message not display again].
To stop scanning and replace the consumable, click the [Cancel] button.
3.3.3 Replacing the Pad ASSY
3.3 Replacing Consumable
3
MAINTENANCE
1. Remove all documents from the ADF paper chute.
2. Open the ADF.
CAUTION
Be careful, the ADF may close and pinch your
fingers.
fi-5015C Image Scanner Operator’s Guide 45
3. Remove the snap-in Pad ASSY by pinching the upper part of the pad clamp as shown
in the following photo.
4. Install new Pad ASSY by the reverse procedure of removing.
ATTENTION
Make sure that the Pad ASSY is firmly attached. When the Pad ASSY is
not correctly attached, document jams or other feeding errors may occur.
5. Press the center of the ADF to close it until it clicks.
6. Reset the pad counter.
1) Check that the scanner is connected to your PC and turn on the scanner.
2) Open the [Scanners and Cameras] from the control panel of your PC.
3) Open the [Properties] of [fi-5015C] from the [Scanners and Cameras].
⇒ The [Properties of fi-5015C] dialog box appears.
46
4) Click the "Device Set" tab.
3.3 Replacing Consumable
3
MAINTENANCE
5) After clicking the [Clear] button beside "Pad" in "Page Counter", click the [OK] button.
⇒ The following window appears.
Click the [OK] button.
The Pad counter returns to "0".
fi-5015C Image Scanner Operator’s Guide 47
3.3.4 Replacing the Pick roller unit
1. Remove all documents from the ADF paper chute.
2. Open the ADF.
Be careful, the ADF may close and pinch your fingers.
CAUTION
3. Remove the Pick roller unit from the scanner.
1) Pinch the fixture with your fingers with another hand holding the Pick roller unit.
48
2) Pull the Pick roller unit to the fixture‘s side.
⇒ The Pick roller unit is removed downwards.
3.3 Replacing Consumable
3
MAINTENANCE
4. Attach a new Pick roller unit to the scanner.
Attatch a new Pick roller unit to the scanner in reverse order of removing.
1) Set the Pick roller unit inserting an end of shaft into the shaft hole correctly as shown in
the following photos.
ATTENTION
Make sure that the end of the Pick roller unit shaft is correctly inserted in
the shaft hole. Otherwise the ADF will not be closed completely.
2) Lock the fixture in the original place to fix the Pick roller unit.
fi-5015C Image Scanner Operator’s Guide 49
5. Press the center of the ADF to close it until it clicks.
6. Reset the Pick roller counter.
1) Check that the scanner is connected to your PC and turn on the scanner.
2) Open the [Scanners and Cameras] from the control panel of your PC.
3) Open the [Properties] of [fi-5015C] from the [Scanners and Cameras].
⇒ The [Properties of fi-5015C] dialog box appears.
4) Click the "Device Set" tab.
50
5) After clicking the [Clear] button besides "Pick roller" in "Page Counter", click the [OK]
button.
⇒ The following window appears.
Click the [OK] button.
The Pick roller counter returns to "0".
Chapter 4
TROUBLESHOOTING
This chapter describes how to remedy troubles and items to check before contacting
the agent where you bought the scanner.
4
4.1 Error Indications in the Function Number Display ............................................ 52
4.2 Troubleshooting.................................................................................................... 54
fi-5015C Image Scanner Operator’s Guide 51
4.1 Error Indications in the Function Number Display
When any error occurs, the operator panel indicates "U" followed by a number alternately for temporary errors, or "E" followed by a number for device alarms (permanent error).
Temporary errors can be resolved by the operator, but the device alarm requires recovery works by
support engineers.
When the Error Recovery Guide is installed on your PC and if any error or device alarm has
occurred, this software displays information such as error names and error codes regarding the
error/alarm. Take notes of the information and click [Details] on its window to learn detailed information for troubleshooting.
■ Temporary Errors:
A number appearing in alternation following the "U" refers to the following type of errors:
Indication Meaning Solution
U0
U1
U9
HINT
Shipping lock error occurred. Confirm that the shipping lock is released.
A paper feed error occurred. 1. Remove the jammed documents.
(Refer to "3.1 How to clear the paper
jam" on page 36.)
2. Confirm that the documents meet the
paper conditions for scanning. (Refer
to "2.2.1 Checking document condition" on page 12. )
ADF error Turn off the scanner power. Confirm/
Connect the ADF cable, then turn on the
scanner power.
The Error Recover Guide is stored in Setup CD-ROM. For installing the
application software, refer to "2.1 Installing the Scanner Application" in fi5015C Getting Started.
52
4.1 Error Indications in the Function Number Display
■ Device alarms:
A number appearing in alternation following the "E" refers to the following type of device alarms:
Indication Meaning Solution
E0 Flatbed motor malfunction When you encounter any alarm, turn
E2 Trouble in the optical system
E7 Trouble occurred in the internal
memory (EEPROM).
Eb A LSI error
Ec An error in the memory
Ed An error with USB chip
off and on the scanner. If the alarm is
still displayed on the Function Number Display, contact the dealer where
you purchased the scanner or an
authorized FUJITSU scanner service
provider.
4
TROUBLESHOOTING
fi-5015C Image Scanner Operator’s Guide 53
4.2 Troubleshooting
CAUTION
If a problem occurs, check the following items before contacting the manufacturer's authorized service center.
Symptom Check this item Remedy
Be careful, the inside of ADF (automatic document
feeder) may become hot during the operation.
Scanner does not turn
on.
Scanning does not
start.
Vertical lines appear in
the generated image of
the scanned image.
The generated image
shifts or is distorted.
Quality of generated
image is unsatisfactory.
Is the main switch turned on? Turn the main switch on.
Have you pushed the power button? Push the power button.
Are the AC cable and AC adapter
properly connected to the scanner?
Is Windows normally started up? Push the power button again after
Are the documents loaded correctly
on the ADF paper chute?
Is the ADF closed completely? Close the ADF completely.
Is the USB cable properly con-
nected?
Does the Function Number Display
indicates an alarm or an error?
Does the alarm state remain displayed even after the scanner has
been turned off and back on again?
Is the glass dirty? Clean the glass following the instruc-
Are the documents loaded correctly? Load the documents correctly.
Are the glass or sheet guides (a
white location) clean?
Correctly connect the AC cable and
the AC adapter.
Disconnect the AC cable and the AC
adapter from the scanner, then connect them again.
If this does not restore the power supply, contact the store where you purchased the scanner or an authorized
FUJITSU scanner service provider.
completely starting up Windows.
Load the document correctly on ADF
paper chute.
Correctly connect the cable. (When a
USB hub is used, check the hub's
power supply.)
When the Function Number Display
indicates an alarm or an error, refer to
the Operator’s Guide "4.1 Error Indications in the Function Number Display" (page. 52) for removing the
alarm or the error.
Turn off and on the power button.
If this does not eliminate the alarm
state, contact the store where you purchased the scanner or an authorized
FUJITSU scanner service provider.
tions in the Operator's Guide "3.
Maintenance".
Clean dirty locations.
54
4.2 Troubleshooting
Symptom Check this item Remedy
Multi feed* frequently
occurs.
Paper is not fed (paper
feed error occurs frequently, or document
stops midway).
The generated image
are elongated.
There is a shadow on
the leading edge of the
generated image.
Does the document satisfy the "Document Quality" described in Section
2.2.1?
Are the documents set properly in
the ADF paper chute?
Is the document stack thicker than
4mm?
Is the Pad ASSY dirty? Clean the Pad ASSY. Refer to the
Is the Pad ASSY worn out? Replace the Pad ASSY. Refer to the
Does the document satisfy the "Document Quality" described in Section
2.2.1?
Is the thick document placed on the
Flatbed?
Is the Pick roller dirty? Clean the Pick roller. Refer to the
Is the Pick roller worn out? Replace the Pick roller ASSY. Refer
Is the Pick roller dirty? Clean the Pick roller. Refer to the
Are the Pinch rollers dirty? Clean the Pinch rollers. Refer to the
Have you adjusted the offset (the
scanning starting position)?
Scan the documents by Flatbed.
Fan the documents before scanning.
Correctly align the document stack
and load them on the ADF paper
chute. Refer to Section 2.2.2 for
details.
Reduce the number of sheets in the
document stack to 4 mm thickness or
less.
Operator's Guide "3.2.3 Cleaning the
ADF".
Operator's Guide "3.3.3 Replacing the
Pad ASSY".
Scan the documents by Flatbed.
Remove the document from the Flatbed.
Operator's Guide "3.2.3 Cleaning the
ADF".
to the Operator's Guide "3.3.4
Replacing the Pick Roller".
Operator's Guide "3.2.3 Cleaning the
ADF".
Operator's Guide "3.2.3 Cleaning the
ADF" on page 39..
Adjust the [Sub-scan Setting] on
[Scanners and Cameras] in the control
panel.
4
TROUBLESHOOTING
* "Multi feed" means that more than 2 papers are fed at the same time.
fi-5015C Image Scanner Operator’s Guide 55
56
APPENDIX A
SCANNER SPECIFICATIONS
■ Basic Specifications
Item Specifications
Dimension (mm) Width Depth Height
328 (12.9 in.) 447 (17.6 in.) 175 (6.9 in.)
Weight(kg)/lb 5.5 (11.7 lbs)
Input power Voltage AC100 to 240V
Phases Single
Power consumption
Operating environment
Frequency 50 / 60Hz
During operation 24W or less
Stand by 6W or less
Device status At Operation At Stand by At shipping
Temperature 5 to 35° C
(59 to 95 ° F)
Humidity 10 to 85% 8 to 95% 8 to 95%
-20 to 60 ° C
(-4 to 140° F)
-20 to 60 ° C
(-4 to 140 ° F)
A
fi-5015C Image Scanner Operator’s Guide AP-1
■ Dimensions
175
(6.88 in.)
447 (17.6 in.)
(6.88 in.)
Unit: millimeters
175
328 (12.9 in.)
AP-2
APPENDIX B
Using [Scan] or [Send to] button
■ Settings on the Personal Computer
By setting the link of the application software to the [Scan] or [Send to] button, you can launch the
linked application by simply pushing the button.
1. Select [Start]-[Control Panel].
2. Select [Scanners and Cameras]-[Properties].
3. Select the [Events] tab.
4. Select an Event. For the case of Windows XP, select an event for starting up any
application from the [Select an event] menu.
The events available for this function are:
- Scan Button (When pressing the [Scan] button)
- Send to 1- 9 (When pressing the [Send to] button)
B
fi-5015C Image Scanner Operator’s Guide AP-3
5. Select the application with its process, excuted by the event. For the case of Windows
XP, click [Start this program] under [Actions] and select the application and process
from the menu.
6. Click the [OK] button.
HINT
The window and operations may vary depending on your OS.
■ Settings on the Scanner
(WPEVKQP 5GPFVQ 5ECP
Function number display
2QYGT
Send to button Scan buttonFunction button
AP-4
• To use the [SCAN] button:
You can use this button as is; no special settings are required.
⇒ Simply pressing the [SCAN] button starts the linked application.
• To use the [Send to] button:
Press the [Function] button to change the number on the function number display.
Choose the same number as an event number you selected (Send to 1 - 9) on the computer.
HINT
⇒ Simply pressing the [Send to] button starts the linked application
• For example, when you want to execute an event "Send to 2", choose
on the function number display.
• Every time you press the [Function] button, the number displayed will
change in the order presented below.
"1, 2, 3...9, C, 1, 2, 3,..."
B
fi-5015C Image Scanner Operator’s Guide AP-5
AP-6
APPENDIX C
GLOSSARY OF TERMS
A4 size
A standard paper size. Paper size is 210 x 297 mm.
A5 size
A standard paper size. Paper size is 148 x 210 mm.
A6 size
A standard paper size. Paper size is 105 x 148 mm.
A7 size
A standard paper size. Paper size is 74 x 105 mm.
A8 size
A standard paper size. Paper size is 53 x 74 mm.
ADF (Automatic Document Feeder)
A unit that allows the user to scan a number of pages consecutively. Fed documents are
transported from the ADF paper chute (or hopper) to the Stacker. Actual scanning operation is executed by the mechanism inside of this unit. Backside reading = Back-side
scanning Refers to reading the backside of the document, specifically in Duplex reading
mode.
Automatic separation
An image processing method in which the scanner automatically detects difference
between text and photos, and chooses the threshold accordingly. This function allows
the scanner to switch between line mode and half tone mode in one pass.
C
fi-5015C Image Scanner Operator’s Guide AP-7
Automatic size/skew detection
A function that automatically detects the documents' page size and adjusts output data to
the detected page size. Document skewing is automatically detected and corrected for
the output image.
Brake roller
A roller that prevents two or more sheets of paper from being fed simultaneously into the
ADF.
Brightness
Refers to the brightness of scanned images in this manual.
Canadian DOC Regualtions
"A standard issued by Industry Canada, a department of the Canadian government,
which sets out the technical requirements relative to the radiated and conducted radio
noise emissions from digital apparatus. "
CCD (Charged Coupling Device) Image Sensor
A semiconductor device inside the scanner that registers light reflected from the original
image and converts it into a digitized (electronic) form. CCD technology is the basis of
high-quality image acquisition in scanners, cameras, and other specialized devices.
Cleaning paper
Sheets used with the F1 cleaner for cleaning the rollers (pick rollers, pinch rollers, etc.)
and complete document path in the scanner. Used in daily maintenance of the low volume production scanner to reduce paper transport problems. Note: these sheets are not
meant to replace the more thorough periodic cleaning of the scanner.
Cleaning sheet
Adhesive sheets used for cleaning the rollers (pick rollers, pinch rollers, etc.) and complete document path in the scanner. Used in daily maintenance of the high volume production level scanner to reduce paper transport problems. Note: these sheets are not
meant to replace the more thorough periodic cleaning of the scanner.
AP-8
Color balance
Balance of colors in images.
Default settings
Pre-set values for optional menus.
Density
In this manual, refers to a measurement of the depth of the display.
Dither
The process by which a group of dots is arranged to represent a shade of gray. The predetermined dot pattern simulates shades of gray. This scanning process offers the
advantage of reduce memory requirements compared to multilevel gray.
Document jam
A warning that appears when document is jammed in the transport unit, or transportation
is interrupted because the paper is slipping.
dpi
Dots per inch. Number of dots lined along one inch A measurement of resolution normally used for scanners and printers. Higher dpi means better resolution.
Driver software
In this manual, driver software refers to software that allows the scanning application
software to communicate with the scanner.
Dropout color
A color which is used in the document but does not appear in the read image.
Duplex reading mode
A mode for scanning both sides of the document in one pass.
Eject rollers
Rollers that transport documents from the ADF onto the Stacker.
C
Energy Star
ENERGY STAR is an international standard for energy-efficient electronic equipment. It
was created by the US Environment Protection Agency (EPA) in 1992. The standard program has now been adopted by several countries around the world.
fi-5015C Image Scanner Operator’s Guide AP-9
Equipment Error
An error that cannot be fixed by the operator. The operator should call the manufacturer
for service.
Error diffusion
High-quality halftone (pseudo-grayscale) image production based on black-and-white
pixel binarization. A pixel's optical density and that of adjacent pixels are summed, with
black pixels relocated in their order of density as they relate to adjacent pixels. The purpose of this technique is to minimize the average error between read and printed densities. Density data for adjacent pixels is modified by diffusing errors on the objective pixel
into several pixels, which are then binarized. This maintains high grayscale levels and
resolution during reading, while suppressing more patterns by dotted halftone images
such as newspaper photographs.
FCC
Acronym for "The Federal Communications Commission", an independent United States
government agency which is in charge of regulating interstate and international communications via radio, television, wire, satellite and cable. The Part 15 of the FCC regulations mentioned in this manual is designed to prevent harmful interferences on radio
communication of radio receivers and other devices which radiate radio frequency
energy, and provides for the certification of radio receivers. It also provides the certification of low power transmitters and the operation of certificated transmitters without a
license.
Feeds rollers
Rollers that feed documents through the ADF.
Filtering
A correction method that improves the read quality of handwritten documents. The read
quality of images written in pencil or ball-pointed pen depends on the reflective light
characteristics of the specific ink or lead used. Dropped pixels may produce outlines,
gaps, or thin, barely connected lines due to uneven optical density. Filtering detects
areas lighter than their surroundings and increases their density to improve image clarity.
Flat bed An input device of the scanner, where documents are placed and scanned.
Generally used for scanning pages out of a book, or paper that is out of the feeding
specification of the ADF. Also used to scan a small volume of documents by manual
operation.
AP-10
Flatbed
An input device of the scanner, where documents are placed and scanned. Generally
used for scanning pages out of a book, or paper that is out of the feeding specification of
the ADF. Also used to scan a small volume of documents by manual operation.
Gamma
A unit of changes of images' brightness. It is expressed as a function of the electric input
power to devices (scanner, display, etc.) and an image's brightness. If the gamma rate is
larger than 1, the brightness of an image increases and vice versa. In order to adjust the
brithtness of an image close to the orignal, generally the gamma value is set to 1.
Grayscale
A method for realizing the gradation from black to white on the scanned image. For
example, when scanning monochrome documents, the computer recognizes the documents as sets of black and white dots. In the Gray scale method, each dot contains data
regarding density of black. The original gradation of the documents is realized as the
gradation of the density data.
Halftone processing
Any method used to reproduce a photograph which includes a shade as an image composed of dots, namely, a binary image. Dithering and error diffusion processing are
examples of halftone processing.
Image emphasis
Density is decreased for lighter but not completely white areas adjacent to black areas.
Weakening this emphasis eliminates spot noise or produces softened images.
Image processing
An image is scanned with specified parameters.
Interface
The connection that allows communication from the computer to the scanner.
Inversion (Reverse-image reading)
C
In reverse-image reading, data is changed from black to white and vice versa.
fi-5015C Image Scanner Operator’s Guide AP-11
IPC preset mode
While reading binary images, it is necessary to set the scanner according to the quality
of the sheet to be read. In this mode, these settings can be performed in advance by corresponding each setting to a pattern number.
ISIS (Image Scanner Interface Specification)
A standard of API (Application Program Interface) or protocol for imaging devices (scanners, digital cameras, etc.) developed by Pixel Translations, a division of Captiva Software. In order to use imaging devices designed on the ISIS standard, it is necessary to
install the driver software of the same standard.
Jaggy images
Images that have sharp projections or irregular shape on their edges.
Job separation sheet
A sheet inserted between documents in a batch for separating different jobs.
Landscape
A document is transported and read with the short side parallel to the moving direction.
Landscape orientation
A document is transported and scanned with the long side vertical to the moving direction.
Letter size
A standard paper size used in the U.S.A. and other countries. Paper size is 8-1/2 x 11
inches.
Linedrawing mode
Selecting linedrawing mode makes threshold and contrast settings effective but prevents
brightness from being set. The specified threshold value determines whether black or
white pixels are scanned. Line drawing mode is therefore appropriate for scanning text
and line art images.
AP-12
Multi Feed detection
A scanner function which detects accidental feeding of multiple sheets into the ADF. This
can be set as both enabled/disabled.
Mirror image
The read image is symmetrically flipped to produce a mirror image of the original
detected in the main scanning direction.
Moire Patterns
Recurrent patterns on scanned images caused by incorrect settings of angles.
Noise removal
Isolated noise from an image appearing as black spots in white areas and voids in black
areas is removed to improve image quality.
Removes particles from the document image. Common particles include toner and fax
particles. Noise reduction works via an algorithm that removes pixels up to 5 x 5 dots
appart. A dot is 1/400 inch. A particle can be distinguished from a character as it is not
connected to another dot within 5 pixels.
OCR (optical character recognition)
Devices or technologies for identifying characters on documents and converting them
into text data that can be manipulated. The documents are checked by light and the differences of light reflection are recognized as character shapes.
Operator panel
A panel consists of indicators and buttons. The operator panel is used to control scanner
operations such as, selecting features, and changing settings.
Optical sensor
A type of sensor for detecting Multi Feeding by light transmission. It also detects multi
feeding by recognizing differences in length of documents.
Outline extraction
The boundary between black and white areas is traced and the outline extracted for
closed areas.
Pad ASSY (Pad Assembly)
This part is used to separate a sheet of paper from a batch before feeding documents
into the ADF. This assembly is made out of rubber.
C
fi-5015C Image Scanner Operator’s Guide AP-13
Photograph mode (White level follower OFF)
Selecting photograph mode makes brightness and contrast settings effective but prevents the threshold from being set. With photograph mode, the darkness of image corresponds to the black-pixel density, making it suitable in scanning images such as
photographs having gradations.
Pick roller
Roller(s) that picks the page from the batch of paper in the paper chute and feed it into
the ADF.
Pick start time
The period from the manual insertion of the document until picking starts after the document passes the hopper empty sensor.
Pixel (Picture Element)
The tiny dots that make up a scanned image.
Portrait
Orientation of documents or images. Documents/images are set or displayed vertically.
Portrait orientation
A document is transported and read with the long side parallel to the moving direction.
Resolution
The measure of the details or grain of images displayed on a computer screen. As a metric of the resolution, dpi is customarily used.
SCSI (Small Computer System Interface)
An abbreviation for "Small Computer System Interface". SCSI is a standard for interfaces, used to connect devices such as hard disks, scanners, etc. Up to seven devices
can be connected through this interface (daisy chain). The data transfer rates are different between "Fast SCSI" (Max. 10MB/sec.) and "Wide SCSI" (Max. 20MB/sec.).
AP-14
SCSI-ID
Used to specify a particular SCSI device when the initiator selects a target or the target
reconnects to the initiator.
Separation roller
A roller that separates the sheets of paper from each other.
Simplex reading mode
A mode for scanning only the front side of the document.
Smoothing
A process that eliminates "jaggies" from slanted lines and curves. Irregular convexities
are deleted and irregular concavities filled in. This is useful in OCR applications, for
example.
Storage temperature/humidity
The temperature and humidity levels necessary for proper storage of the scanner.
Temporary Error
An error that can be fixed by the operator.
Terminator
Devices with a SCSI interface can be daisy-chained. A resistor that includes terminal circuits needs to be placed at both ends of the SCSI chain when devices are daisychained. If a device (such as a scanner) is the last device in a chain, leaving an interface
connector unused, a Terminator therefore must be attached to provide those terminal circits.
Third Party Interface
Used to install optional board provided by Fujitsu or interface board manufactured by a
third party.
Threshold
A value used as a metric for judging a color as black or white. For scanning an image
with gray gradation, this value must be defined. The threshold setting determines which
pixels are converted to black and which will become white.
TUV
C
"An institution that controls products for conformity with various standars of security,
usability and environmental matters. "
fi-5015C Image Scanner Operator’s Guide AP-15
TWAIN (Technology Without Any Interesting Name)
A standard for API (Application Program Interface) or protocol for imaging devices (scanners, digital cameras, etc.) developed by TWAIN Working Group. In order to use devices
that comply with this standard, it is necessary to install driver software based on the
same standard.
Ultrasonic sensor
A type of sensor for detecting multi feeding by ultrasonic sound. Scanners detect multi
feeding by recognizing differences in the amount of ultrasonic waves that penetrates the
documents.
USB (Universal Serial Bus)
An abbreviation for "Universal Serial Bus". A standard for interfaces used to connect
devices such as key boards, scanners, etc. Up to 127 devices can be connected through
this interface. USB devices can be plugged/unplugged without turning off their power.
Data transfer rates are different between the "Low speed mode" (1.5Mbps) and "High
speed mode" (Max. 12Mbps).
White level follower
A function to correct the difference between white colors in unbleached paper (e.g. wood
containing paper, etc.) and in scanned images.
White Reference Stripe
The white part located in the ADF that defines the lightest area in an image, causing all
other areas to be adjusted accordingly.
AP-16
INDEX
A
ADF (automatic document feeder) ............ 2
C
Checking document condition ................. 12
Cleaning Materials
Cleaner F1
Configuration Window of FUJITSU ISIS
Scanner Driver
.................................. 37
........................................ 37
........................................ 29
F
Flatbed ...................................................... 3
FUJITSU ISIS Scanner Driver
FUJITSU TWAIN32 Scanner Driver
Function number display
................ 26
........ 20
....................... 5, 8
Paper Size (TWAIN)
Power save mode
.................... 17, 19, 23
.................................... 11
R
Remedying Common Troubles ................ 54
Replacing the Pad ASSY
Replacing the Pick Roller
Reset the pad counter
Reset the Pick roller counter
Resolution (TWAIN)
........................45
........................ 48
............................. 46
................... 50
................................23
S
Scan (button) ............................................. 5
Scan Type (ISIS)
Scan Type (TWAIN)
..................................... 30
.......................... 19, 23
H
How to use the Scanner Driver ............... 20
L
Loading Documents on the ADF for
Scanning
Loading Documents on the Flatbed for
Scanning
................................................. 12
................................................. 16
P
Paper jam ................................................ 36
Paper layout (ISIS)
Paper Layout (TWAIN)
Paper Size (ISIS)
.................................. 30
............................ 17
.................................... 30
Scanner spacifications
Scanning Documents
Send to (button)
Setting Window for FUJITSU TWAIN32
Scanner Driver
Shipping lock
Side guide
......................................... 5
........................................23
............................................. 4
...........................................2, 15
..............................1
..............................18
T
Troubleshooting ....................................... 51
Turning ON/OFF the Scanner
...................8
U
USB connector ..........................................3
Using the (Scan) or (Send to) button
......... 3
fi-5015C Image Scanner Operator’s Guide IN-1
fi-5015C Image Scanner Operator's Guide
P3PC-1592-01ENZ0
Date of issuance: February, 2006
Issuance responsibility: PFU LIMITED
z The contents of this manual are subject to change without notice.
z PFU LIMITED is not liable whatsoever for any damages resulting
from the use of this scanner and procedures described in this
manual, profit loss due to defects, and any claims by a third party.
z Copying of the contents of this manual in whole or in part and
copying of the scanner application is forbidden under the copyright
law.
