FUJITSU fi-475PR Operator's Guide

C150-E191-01XA

fi-475PR Imprinter User's Guide: Option

User's Guide

English

Japanese

			Revision Record
	Edition	Date published	Revised contents
	01	March 2001	First edition

C150-E191-01XA

The contents of this manual may be revised without prior notice.

All Rights Reserved, Copyright © 2001 FUJITSU LIMITED.

Printed in Japan.

No part of this manual may be reproduced in any form without permission.

1

fi-475PR Imprinter User's Guide: Option

English

Fujitsu Limited

FCC Declaration:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Warning:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTICE

•The use of a non-shielded interface cable with the referenced device is prohibited. The length of the parallel interface cable must be 3 meters (10 feet) or less. The length of the serial interface cable must be 15 meters (50 feet) or less.

•The length of the power cord must be 3 meters (10 feet) or less.

ICES:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conformme à la norme NMB-003 du Canada.

High Safety Required Use:

The Product is designed, developed and manufactured as contemplated foe general use, including without limitation, general office use, personal use and household use, but is not designed, developed and manufactured as contemplated for use accompanying fatal risks or dangers that, unless extremely high safety is secured, could lead directly to death, personal injury, severe physical damage or other loss (hereinafter "High Safety Required Use"), including without limitation, nuclear power core control, airplane control, air traffic control, mass transport operation control, life support, weapon launching control. The Customer shall not use the Product without securing the sufficient safety required for the High Safety Required Use. In addition, Fujitsu (or other affiliate's name) shall not be liable against the Customer and/or any third party for any claims or damages arising in connection with the High Safety Required Use by the Customer of the Product.

Energy Saving:

As an ENERGYSTAR ® Partner, Fujitsu Limited has determined that this scanner meets ENERGYSTAR ® guidelines for energy efficiency. ENERGYSTAR ® is a U. S. registered mark.

The contents of this manual may be revised without prior notice.

All Rights Reserved, Copyright © 2001 FUJITSU LIMITED.

Printed in Japan.

No part of this manual may be reproduced in any form without permission.

2

Fujitsu Offices

Please send your comments on this manual or on Fujitsu products to the following addresses:

FUJITSU COMPUTER PRODUCTS OF AMERICA,INC. 2904 Orchard Parkway,San Jose.

California 95134-2022,U.S.A.

TEL:[phone]

FAX:[phone] http://www.fcpa.com/

FUJITSU AUSTRALIA LIMITED

Fujitsu Hause 2 Julius Avenue North Ryde N.S.W 2113

AUSTRALIA TEL:[phone]

FAX:[phone] http://www.fujitsu.com.au/

FUJITSU CANADA,INC.

2800 Matheson Blvd.East,Mississauga. Ontario L4W 4X5,CANADA

TEL:[phone]

FAX:[phone] http://www.fujitsu.ca/

FUJITSU DEUTSCHLAND GmbH.

Frankfurter Ring 211,

8000 München 40,F.R,GERMANY

TEL:[phone]

FAX:[phone] http://www.fujitsu.de/

FUJITSU ESPAÑA,S.A

Edificio torre Europa 5a

Paseo de la Castellana 95

Madrid 28046,SPAIN

TEL:[phone]

FAX:[phone]

http://www.fujitsu-europe.com/home/

FUJITSU EUROPE LTD.

2,Longwalk Road,Stockey Park,Uxbridge Middlesex,UB11 1AB,U.K TEL:[phone]

FAX:[phone] http://www.fujitsu-europe.com/home

FUJITSU FRANCE S.A.

I, Place des Etats-Unis, SILIC 310,

94588 Rungis cedex, FRANCE

TEL:[phone]

FAX:[phone] http://www.fujitsu-europe.com/home/

FUJITSU COMPUTERS (SINGAPORE) PTE, LTD.

20 Science Park Road #03-01, Tele Teck Park Singapore

Science Park II, Singapore 117674 Republic of Singapore TEL:[phone]

FAX:[phone] http://www.fujitsu-computers.com.sg/

FUJITSU HONG KONG Limited

10/F, Lincoln House, Taikoo Place,

979 King’s Road, Island East, Hong Kong

TEL:[phone]

FAX:[phone]

TLX:62667

http://www.fujitsu.com.hk/

FUJITSU ITALIA S.p.A.

Via Nazario Sauro, 38

20099 Sestos, Giovanni (MI), ITALY

TEL:[phone] FAX:[phone] http://www.fujitsu-europe.com/home

FUJITSU NORDIC AB

Kung Hans väg,S-192 68 Sollentuna, SWEDEN

TEL:[phone]

FAX:[phone] http://www.fujitsu-europe.com/home

FUJITSU LIMITED

International Operations

Marunouchi 1-6-1, Chiyoda-ku,

Tokyo 100 JAPAN

TEL:[phone]

FAX:[phone]

TLX:J2283

Cable:”FUJITSU LIMITED TOKYO”

http://www.fujitsu.co.jp/

3

Table of Contents

1.	Introduction .....................................................................................................................................		5
	Conventions .....................................................................................................................................		5
2.	Components of the Imprinter .........................................................................................................		6
3.	Installation .......................................................................................................................................		7
	(1)	Mounting the Imprinter .................................................................................................................	7
	(2)	Mounting the Clamps ...................................................................................................................	8
	(3)	Mounting the Print Cartridge ........................................................................................................	9
	(4)	Operation Test ...........................................................................................................................	10
	(5)	Installing the Firmware and Device Driver .................................................................................	11
4.	Operation .......................................................................................................................................		12
	(1)	Replacing the Print Cartridge .....................................................................................................	12
	(2)	Reset of the Ink Remain Counter...............................................................................................	13
	(3)	Clearing Paper Jam ...................................................................................................................	14
	(4)	Clearing the Nozzle Surface of the Print Cartridge ....................................................................	15
	(5)	Clearing the Imprinter Base .......................................................................................................	16
	(6)	Connecting to fi-4750L Scanner .................................................................................................	18
5.	Precautions ...................................................................................................................................		19
6. Error Messages .............................................................................................................................			20
7.	Specifications ...............................................................................................................................		21

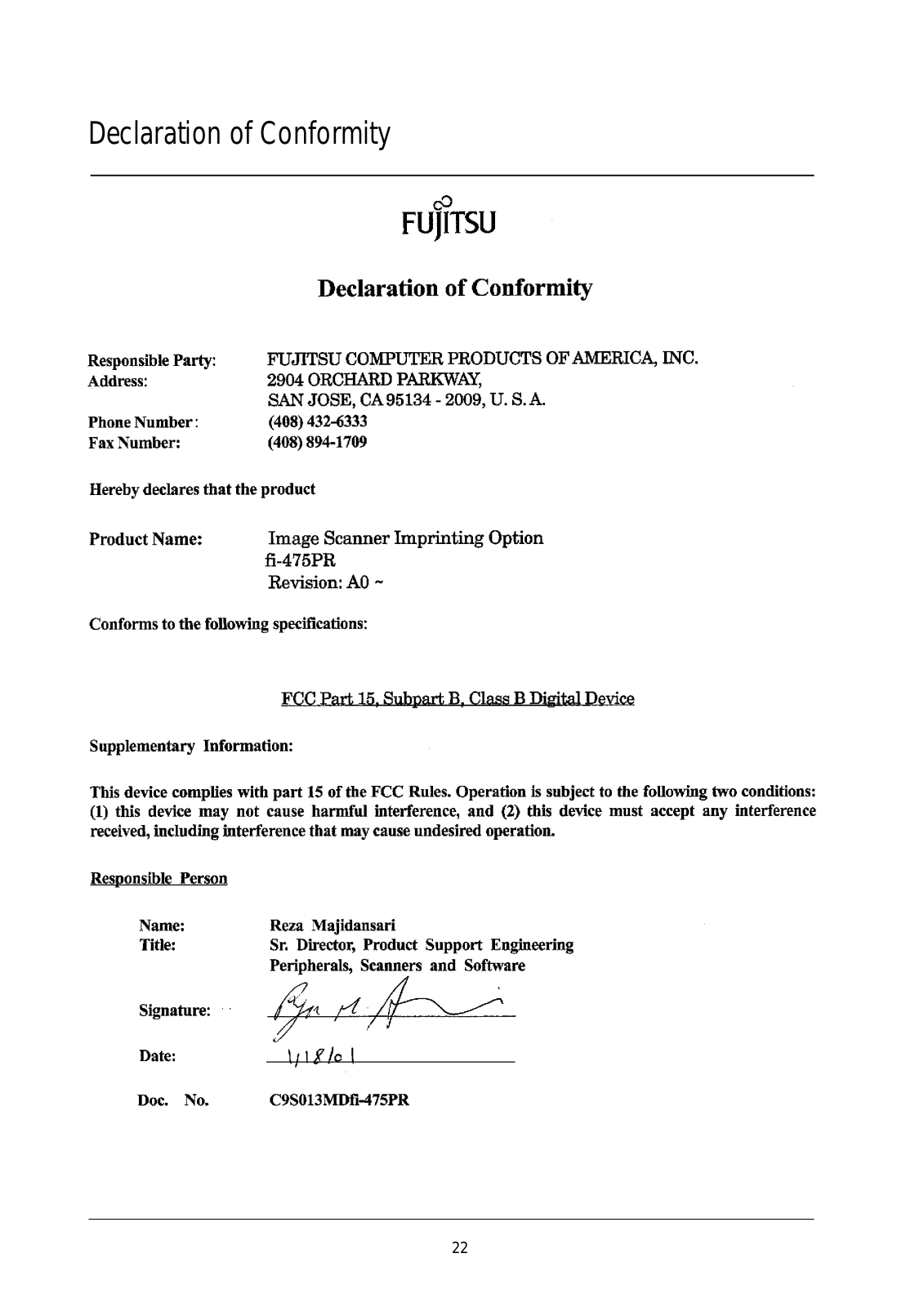

8.	Declarations of Conformity ...........................................................................................................		22

4

1. Introduction

Thank you very much for purchasing the fi-475PR Imprinter Option.

This guide explains how to use the imprinter.

Use the imprinter correctly according to this guide.

This guide contains important information such as methods to replace consumables. Keep this guide in safety custody.

Uncrating the imprinter packaging box, check that all the components of the imprinter are contained correctly.

Conventions

Important information that requires special attention is indicated as follows:

WARNING

WARNING indicates that serious personal injury may result if you do not follow a procedure correctly.

CAUTION

CAUTION indicates that minor personal injury, loss of data, or damage to the scanner may result if you do not follow a procedure correctly.

Official Fujitsu part names are indicated with an initial capital letter, as in the part name “Pick Roller”.

NOTICE

A NOTICE provides “how-to” tips or suggestions to help you perform a procedure correctly.

[DAMAGE]

Use a cloth that is either dry or dampened with water when you clean the imprinter. Use of the F1 or F2 cleaner may damage the imprinter.

5

2. Components of the Imprinter

Table 1.1 shows the imprinter components.

Table 1.1 Imprinter Components

Component	Quantity	External View
Imprinter Unit	1
Print Cartridge	1
Operator's Guide	1
Imprinter Cable	1
Drivers Disk	1
Clamp (black)	2
Clamp (white)	1
Shipping Notice	1

6

3. Installation

(1) Mounting the Imprinter

Mount the imprinter as follows:

1 Prepare a Phillips screw driver.

2Turn off the power switch of the scanner and disconnect the power cable.

3Unfasten the two screws near the eject rollers of the ADF.

(1)

6Connect the imprinter cable between the imprinter (side) and the scanner (back).

When removing the imprinter, reverse the mounting procedures.

Screw

4(1) While pushing the lower part of the imprinter against the scanner, (2) hang the arms on the ADF unit and push down the ends of the arms to mount the imprinter on the scanner.

(2)

5Secure the imprinter unit with the two screws removed at procedure 2.

7

(2) Mounting the Clamps

Two types of clamps are used for securing the imprinter cable. Mount the clamps as follows:

Clamps (black)

Use these clamps (black) to fix the imprinter cable.

1Insert the clamps into the holes on the back of the imprinter.

2Fasten the imprinter cable with the clamps as shown in the figure.

Clamp (white)

The clamp (white) holds the imprinter cable loosely. If the imprinter cable hangs dowh loosely inthe way, use this clamp. It is not necessary, keep the clamp not so as to lose it.

3Put the clamp (white) at the left part of the upper shaft of the imprinter.

4Hold the imprinter cable with the clamp as shown in the figure below.

8

(3) Mounting the Print Cartridge

Mount the print cartridge as follows:

1Turn off the power switch of the scanner and disconnect the power cable.

2Hold and raise the knob of the imprinter cover in the arrow direction to open the cover.

3 Insert the print cartridge so that its tab is positioned leftward.

4Lower the lever gently until it is locked by the hook to secure the print cartridge.

9

(4) Operation Test

After installing the imprinter, check if the printing operation can be done using the Offline Print Test mode of the scanner.

■Print test mode

This mode tests printing peformance of the imprinter.

Turning the power on while pressing the [Exit] switch of the scanner's operator panel makes the imprinter enter in this mode where “Print Test” is available.

1	Put sheets of printing paper on the ADF paper chute.
2	In the “Print Test n” screen (screen 1), press [Start] switch.	(Screen 1)
3	One sheet of paper is fed and printed.	Print Test
4	To print another sheet of paper, press [Start] switch.
5	With three pages printed, you can check all characters to be
	printed. (Printing characters are listed in Chapter 7,
	“Specifications”.)
6	To quit the <<Print Test>>, turn off the power.

About paper put on the ADF paper chute, use the one longer than 297 mm (A4 size). Shorter paper may cause printing to stop halfway.

10

(5) Installing the Firmware and Device Drivers

Before installation, confirm the following conditions:

1.The scanner is connected to a computer through the SCSI cable.

2.The scanner is turned on and is set online.

If the above conditions are not satisfied, make sure of the above conditions before installation.

Never turn off the scanner or the computer while updating the firmware or installing the device driver. Turning-off during installation may damage the scanner.

For installation, refer to the installing instructions in the Drivers Disk.

11

4.Operation

(1)Replacing the Print Cartridge

Replace the print cartridge as follows:

1Turn off the power switch of the scanner and disconnect the power cable.

2Hold and raise the knob of the imprinter cover in the arrow direction to open the cover.

3 Unlock the lever which secures the print cartridge and open the lever upward.

4Hold and remove the old print cartridge and then insert a new print cartridge so that its tab is positioned leftward.

5 Lower the lever gently until it is locked by the hook to secure the print cartridge.

12

(2) Reset of the Ink Remain Counter

You must reset the ink remain counter whenever you replace the print cartridge.

When you install the print cartridge, the ink remain counter will count automatically every character printed and a message “Please a new Ink” is displayed on the operator panel when the remaining ink is running short. If this message appears (during read operation), prepare a new ink cartridge. When the imprinter cannot print any more, replace the print cartridge with the new one and implement the “Ink remain counter reset” in Setup mode.

Imprement the “Ink remain counter reset” operation even if you replace the print cartridge before the alarm.

	Setup item	Options		Remarks
	Ink remain counter reset	Reset, No
1 At the Ready screen, press [Next] switch three times. The				X X X X
	Setup mode initial screen appears. (screen 1)		R e a d y X X X X X X X 0

(Screen 1)

2At screen 1, press [Enter] switch. Thefisrst setup item “Double Feed” appears. (Screen 2)

	M o d e S e		l	e c	t 2
!	S e t u p		M o d e
(Screen 2)
!	0 1	D o u b	l	e F e e d
= N o		/ Y e s 1 / 2			: S t o p

3At screen 2, press [Previous] switch repeatedly until the item “Ink remain” appears. First, No binks.

4Press [] switch, then Reset blinks. (Screen 3)

! 2 1 I n k r e m a i n

= n q q q q q R e s e t / N o (Screen 3)

! 2 1 I n k r e m a i n

= n q q q q q R e s e t / N o

5 At screen 3, press [ENTER] switch. The reset execution screen

appears. First, No blinks.	! 2 1 – 1 R e s e t N o w
		N o	/ Y e s

6Press [] switch, then Yes blinks. (Screen 4)

7Press [Enter] switch to perform reset operation.

The ink remain display returns to nnnnnn. (Screen 5)

8Press [Exit] switch.

The LCD returns to the Ready screen.

(Screen 4)

! 2 1 – 1 R e s e t N o w N o / Y e s

(Screen 5)

! 2 1 I n k r e m a i n

= n n n n n n R e s e t / N o

X X X X R e a d y X X X X X X X 0
