FujiFilm S5 Pro User Manual

Getting Ready

Using the Camera

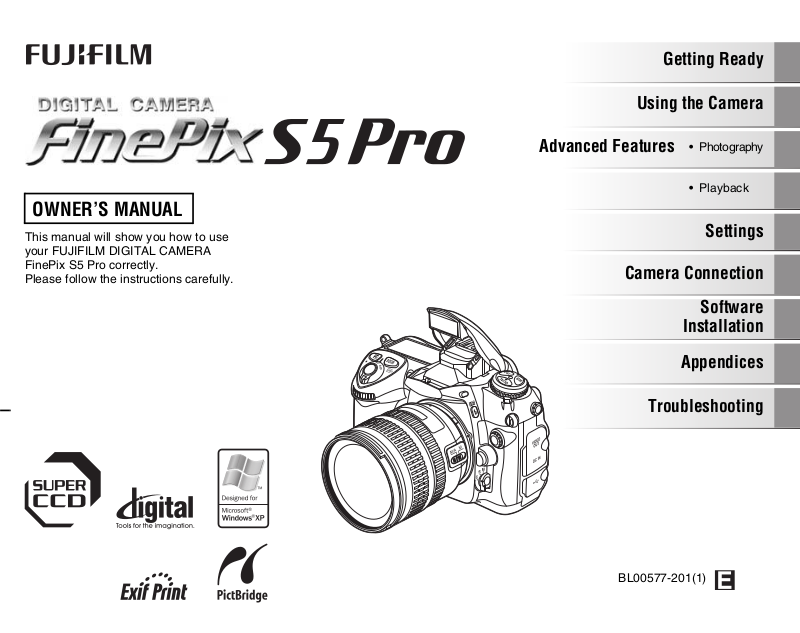

OWNER’S MANUAL

This manual will show you how to use your FUJIFILM DIGITAL CAMERA FinePix S5 Pro correctly. Please follow the instructions carefully.

Advanced Features

Camera Connection

Troubleshooting

BL00577-201(1)

• Photography

• Playback

Settings

Software

Installation

Appendices

Warning

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

For customers in the U.S.A.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for

help. You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment.

Notes on the Grant:

To comply with Part 15 of the FCC Rules, this product must be used with a Fujifilm-specified ferrite-core A/V cable, USB cable, and DC supply cord.

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

For customers in Canada

CAUTION

This Class B digital apparatus complies with Canadian ICES-003.

Please read the Safety Notes (➝p.238) and make sure you understand them before using the camera.

Perchlorate Material-special handling may apply, See http://www.dtsc.ca.gov/hazardouswaste/ perchlorate.

IMPORTANT

BEFORE OPENING THE CD-ROM PROVIDED BY FUJIFILM Corporation, PLEASE READ THIS END USER LICENSE AGREEMENT CAREFULLY. ONLY IF YOU AGREE WITH THIS AGREEMENT, SHOULD YOU USE THE SOFTWARE RECORDED ON THE CD-ROM. BY OPENING THE PACKAGE, YO U ACCEPT AND A GREE TO BE BOUND BY THIS AGREEMEN T.

This End User License Agreement (“Agreement”) is an agreement between FUJIFILM Corporation (“FUJIFILM”) and you, which sets forth the terms and conditions of the license granted for you to use the software provided by FUJIFILM. The CD-ROM contains third party software. In case a separate agreement is provided by a third party supplier for its software, the provisions of such separate agreement shall apply to the use of such third party software, prevailing over those of this Agreement.

1. Definitions.

(a) “Media” means the CD-ROM titled “Software for FinePix CX”- which

is provided to you together with this Agreement. (b) “Software” means the software which is recorded on M edia. (c) “Documentation” means the operation manuals of Software and

other related written materials which are provided to you together

with Media. (d) “Product” means Media (including Software) and Documentation

collectively.

2. Use of Software.

FUJIFILM grants to you a nontransferable, nonexclusive license: (a) to install one copy of Software onto one computer in binary machine

executable form; (b) to use Software on the computer onto which Software is installed; and (c) to make one backup copy of Software.

3. Restrictions.

3.1 You shall not distribute, rent, lease or otherwise transfer all or any

part of Software, Media or Documentation to any third party without

FUJIFILM’s prior written consent. You also shall not sublicense,

assign or otherwise transfer all or any part of the rights granted to

you by FUJIFILM under this Agreement without FUJIFILM’s prior

written consent.

3.2 Except as expressly granted by FUJIFILM hereunder, you shall not

copy or reproduce all or any part of Software or Documentation.

3.3 You shall not modify, adapt or translate Software or Documentation.

You also shall not alter or remove copyright and other proprietary

notices that appear on or in Software or Documentation.

3.4 You shall not, or shall not have any third party, reverse-engineer,

decompile, or disassemble Software.

NOTICE

End User License Agreement

Be sure to read this page before using the software.

4. Ownership.

All copyrights and other proprietary rights to Software and Documentation are owned and retained by FUJIFILM or the third party suppliers as indi cated on or in Software or Documentation. Nothing contained her ein shall be construed, expressly or implicitly, as transf erring or granting any right, license, or title to you other than t hose explicitly granted under thi s Agreement.

5. Lim ited Warranty.

FUJIFILM warrants to you that Media is free from any defect in material and workmanship under normal use for ninety (90) days from the date of your receipt of Media. Should Media not meet the foregoing warranty, FUJIFILM shall replace such defective Media with other Media bearing no defect. FUJIFILM’s entire liability and your sole and exclusive remedy with regard to any defect in Media shall be expressly limited to such FUJIFILM’s replacement of Media as provided herein

6. DIS CLAIMER OF WARRANTY .

EXCEPT AS PROVIDED IN SECTION 5 HEREIN, FUJIFILM PROVIDES PRODUCT “AS IS” AND WITHOUT WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED. FUJIFILM SHALL MAKE NO WARRANTY, EXPRESS, IMPLIED OR STATUTORY, AS TO ANY OTHER MATTERS, INCLUDING, BUT NOT LIMITED TO NON-INFRINGEMENT OF ANY COPYRIGHT, PATENT, TRADE SECRET, OR ANY OTHER PROPRIETARY RIGHTS OF ANY THIRD PARTY, MERCHANTABILITY, OR FITNESS FOR ANY PARTICULAR PURPOSE.

7. LIMI TATION OF LIABILITY.

IN NO EVENT SHALL FUJIFILM HAVE ANY LIABILITY FOR ANY GENERAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL, OR OTHER DAMAGES (I NCLUDING DAMAG ES FOR LOSS OF PROFITS OR LOST SAVINGS) INCURRED FROM THE USE OF OR INABILITY TO USE PRODUCT EVEN IF FUJIFILM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

8. No export.

You acknowledge that neither Software nor any part thereof, will be transferred, or exported to any country or used in any manner in violation of any export control laws and regulations to which Software is subject.

9. Termination.

In case you breach any of the terms and conditions hereof, FUJIFILM may immediately terminate this Agreement without any notice.

10. Term.

This Agreement is effective until the date when you cease to use Software, unless earlier terminated in ac cordance with Se ction 9 hereof.

11. Obligation upon termination.

Upon termination or expiration of this Agreement, you shall, at your own responsibility and expense, delete or destroy immediately all Software (including its copies), Media and Documentation.

12. Governing Law.

This Agreement shall be governed by and construed in accordance with laws of Japan.

EC Declaration of Conformity

We Name: FUJIFILM Europe GmbH Address: Heesenstrasse 31

declare that the product Product Name: FUJIFILM DIGITAL CAMERA FinePix S5 Pro Manufacturer’s Name: FUJIFILM Corporation Manufacturer’s Address: 7-3, AKASAKA 9-CHOME, MINATO-KU,

conforms to the following Standards:

following the provision of the EMC Directive (89/336/EEC, 92/31/EEC) and Low Voltage Directive (2006/95/EC).

40549 Dusseldorf, Germany

TOKYO 107-0052, JAPAN

Safety: EN60065 EMC: EN55022: 1998 Classe B

EN55024: 1998 EN61000-3-2: 1995 + A1: 1998 + A2: 1998

Dusseldorf, Germany

Place

This product comes with batteries. When these are empty, you shouldn’t throw them away but deliver them as domestic chemical refuse.

January 1, 2007

Signature/Managing DirectorDate

Disposal of Electric and Electronic Equipment in Private Households

Disposal of used Electrical & Electronic Equipment (Applicable in the European Union and other European countries with

separate collection systems)

This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this

If your equipment contains easy removable batteries or accumulators please dispose these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you have purchased the product.

In Countries outside the EU:

If you wish to discard this product, please contact your local authorities and ask for the correct way of disposal.

product.

Contents

Warning................................................................. 2

IMPORTANT ......................................................... 3

EC Declaration of Conformity................................ 4

Disposal of Electric and Electronic Equipment in

Private Households ......................................... 5

Contents ................................................................ 6

Preface.................................................................. 9

About this Manual ............................................... 11

Accessories Included .......................................... 12

Camera Parts and Features ................................ 13

Example of Control Panel, Viewfinder and LCD

Monitor........................................................... 17

Getting Ready

Attaching the Strap and Lens.............................. 23

Attaching the strap ...................................... 23

Mounting the camera lens........................... 23

Attaching the LCD cover ............................. 29

Charging the Battery ........................................... 30

Loading the Battery ............................................. 32

Checking the battery charge ....................... 33

Inserting Memory Cards...................................... 34

Formatting the memory card....................... 35

Turning On and Off ............................................. 36

Setting the language, date, and time .......... 36

Correcting the Date and Time ............................. 39

Adjusting Viewfinder Focus ................................. 40

Selecting the Language ...................................... 41

Using the Camera

Basic Operation Guide ........................................ 42

Taking Pictures at Default Settings .................... 47

Viewing the Images ............................................ 50

Setting the camera to playback mode ........ 50

Single-frame playback................................ 51

Multi-frame playback .................................. 53

Using the erase button ............................... 53

Advanced Features — Photography

Focus.................................................................. 54

Focus mode ............................................... 54

AF-area mode ............................................ 55

Focus zone selection ................................. 57

Focus area selection .................................. 59

Manual focus .............................................. 60

Focus lock .................................................. 61

Getting good results with autofocus........... 63

The AF-assist illuminator............................ 64

Depth-of-field preview button ..................... 65

Release .............................................................. 66

Metering ............................................................. 68

Taking Pictures with AE Lock..................... 69

Exposure Mode .................................................. 70

Programmed auto ................................... 70

Shutter-priority auto ................................ 72

Aperture-priority auto .............................. 73

Manual.................................................... 74

Exposure compensation............................. 76

Flash Photography ............................................. 78

Built-in flash................................................ 78

Using the Built-in flash ............................... 79

Synchro modes and their features ............. 82

Flash exposure compensation .................... 84

FV lock ........................................................ 85

Lenses that can be used with the built-in

flash.......................................................... 87

Nikon Speedlights that can be used ........... 88

Changing the Sensitivity Setting ( ISO)........... 92

Changing the Image Quality Setting

( QUALITY)................................................ 93

Changing the Image Size Setting

( RECORDING PIXELS)............................ 94

Adjusting Color Balance

(T WHITE BALANCE)................................. 95

CHOOSE COLOR TEMP. ..................... 97

WB FINE TUNE ..................................... 98

Preset White Balance ................................. 99

Self-Timer Mode................................................ 101

Using Auto Bracketing ...................................... 103

Using SHOOTING MENU ................................. 108

Setting the [SHOOTING MENU] ............... 108

List of [SHOOTING MENU] options .......... 109

SHOOTING MENU ........................................... 111

FILM SIMULATION.............................. 111

D-RANGE ............................................ 112

COLOR ................................................ 113

TONE ................................................... 113

SHARPNESS ....................................... 114

COLOR SPACE ................................... 114

MULTIPLE EXPOSURE ...................... 115

LIVE VIEW DISPLAY ........................... 117

SHOOTING MENU RESET ................. 119

NOISE REDUCTION ........................... 119

Two-Button Reset............................................. 120

Non-CPU Lenses ............................................. 121

Specifying lens focal length...................... 122

Specifying maximum aperture.................. 123

Advanced Features — Playback

Using PLAYBACK MENU................................. 126

Setting the [PLAYBACK MENU] .............. 126

PLAYBACK MENU........................................... 127

Erasing the images ( ERASE).............. 127

DPOF set frame

( PRINT ORDER (DPOF))................. 128

Protecting the images ( PROTECT)..... 132

Setting automatic playback

( SLIDE SHOW) ................................ 133

Increasing monitor brightness

( LCD BRIGHTNESS) ....................... 134

Cropping the images ( CROPPING) .... 134

Settings

U SET UP ...................................................... 138

Using the [SET UP] menu ........................ 138

List of [SET UP] menu options................. 139

SHOOTING ......................................... 146

DISPLAY ............................................. 150

ROTATE IMAGE ................................. 151

HAF ........................................................ 152

SEXPOSURE ........................................ 154

FLASH/BKT......................................... 158

BUTTON ASSIGNMENT..................... 166

MISC. .................................................. 175

Continued Q

Contents

MAINTENANCE ................................... 176

TIME .................................. 177

SYSTEM .............................................. 179

FORMAT .............................................179

USB MODE .........................................179

FRAME NO. ........................................180

AUTO POWER SAVE .........................181

BEEP ...................................................181

VIDEO SYSTEM .................................181

SET-UP RESET ..................................181

Camera Connection

Connecting to a TV ........................................... 182

Connecting Camera Directly to Printer —

PictBridge Function ..................................... 183

Before connecting to a printer................... 183

Connecting to a printer.............................. 183

Specifying images for printing (PRINT WITH

DATE / PRINT WITHOUT DATE) .......... 184

Printing with DPOF setting

(u PRINT DPOF) .................................. 185

Software Installation

Installation on a Windows PC ........................... 188

Installation on a Mac OS X ............................... 191

Connecting to a PC ........................................... 194

Using FinePixViewer................................. 198

Appendices

System Expansion Option................................. 200

Accessories Guide ............................................ 202

Using Your Camera Correctly ........................... 203

Cleaning the CCD ............................................ 204

Power Supply and Battery ................................ 208

Notes on the Memory Card .............................. 211

Warning Displays ............................................. 212

Warning messages displayed in the control

panel and viewfinder ............................. 212

Warning messages displayed in the LCD

monitor .................................................. 214

Troubleshooting

Troubleshooting................................................ 218

Specifications ................................................. 223

Explanation of Terms ..................................... 228

FUJIFILM Digital Camera Worldwide

Network..................................................... 230

Safety Notes ................................................... 238

Preface

Z Test Shots Prior to Photography

For important photographs (such as weddings and overseas trips), always take a test shot and view the image to make sure that the camera is working normally.

• FUJIFILM Corporation cannot accept liability for any incidental losses (such as the costs of photography or the loss of income from photography) incurred as a result of faults with this product.

Z Notes on Copyright

Images recorded using your digi tal camera system cannot be used in ways that infringe copyright laws without the consent of the owner, unless intended only for personal use. Note that some restrictions apply to the photographing of stage performances, entertainments and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards (CompactFlash or Microdrive) containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws.

Z Handling Your Digital Camera

This camera contains precision electronic components. To ensure that images are recorded correctly, do not subject the camera to impact or shock while an image is being recorded.

Z Liquid Crystal

If the LCD monitor is damaged, take particular care with the liquid crystal in the monitor. If any of the following situations arise, take the urgent action indicated.

• If liquid crystal comes in contact with your skin Wipe the area with a cloth and then wash thoroughly with soap and running water.

• If liquid crystal gets into your eye Flush the affected eye with clean water for at least 15 minutes and then seek medical assistance.

• If liquid crystal is swallowed Flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical assistance.

Z Trademark Information

• CompactFlash is a trademark of SanDisk Corporation.

• IBM PC/AT is a registered trademark of International Business Machines Corp. of the U.S.A.

• Macintosh, Power Macintosh, iMac, PowerBook, iBook and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

• Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the

Microsoft The “Designed for Microsoft® Windows® XP” logo refers

to the camera and the driver only.

• Other company or product names are trademarks or registered trademarks of the respective companies.

Windows® Operating System.

Continued Q

Preface

Z Notes on Electrical Interference

If the camera is to be used in hospitals or aircrafts, please note that this camera may cause interference to other equipment in the hospital or aircraft. For details, please check with the applicable regulations.

Z Explanation of Color Television System

NTSC: National Television System Committee, color

television telecasting specifications adopted mainly in the U.S.A., Canada and Japan.

PAL: Phase Alternation by Line, a color television

system adopted mainly by European countries and China.

Z Exif Print (Exif ver. 2.2)

Exif Print Format is a newly revised digital camera file format that contains a variety of shooting information for optimal printing.

See “Using Your Camera Correctly” (➝p.203) for more

information.

About this Manual

Connecting Camera Directly to Printer — PictBridge Function

CHECK

To select [uPRINT DPOF], the DPOF settings must be specified on FinePix S5 Pro beforehand ( p.128).

CAUTION

Even when [WITH DATEE] is specified in the DPOF settings ( p.128), the date is not inserted on printers that do not support date printing.

MEMO

Press DISP/BACK to cancel the printing. Depending on the printer, the printing may not be canceled immediately or printing may stop midway through. When printing stops midway, briefly turn the camera off and then on again.

Disconnecting the printer

ACheck that [PRINTING] is not displayed on the

camera’s screen.

BTurn the camera off. Unplug the USB cable (mini-B).

CAUTION

DPress MENU/OK again to download the

data to the printer and start printing the specified frames (files) continuously.

YES

CANCEL

TOTAL

9 SHEETS

PRINT DPOF OK?

PRINTING

CANCEL

CAUTION

This mark denotes issues that may affect the camera’s operation.

CHECK

This mark denotes points to notice in the camera’s operation.

MEMO

This mark denotes additional topics that complement the basic operating procedures.

Z 4-direction (nopq) button

Up, down, left, and right are indicated by black triangles in the Owner’s Manual. Up or down is shown as n or o, and left or right is shown as p or q.

/OK

Z Notation

In this manual, “memory card” means CompactFlash memory card (CF card)/Microdrive. Also, the messages displayed in the LCD monitor on the camera or application software appear in square brackets([ ]).

When pressing q:

When pressing MENU/OK:

Accessories Included

• Rechargeable battery NP-150 (1)

• Battery charger BC-150 (1)

• Shoulder strap (1)

• Eyepiece cap (1)

• LCD cover (1)

Fitted on the camera body

• Camera body cap (1)

Fitted on the camera body

• Video cable for FinePix S5 Pro (1)

• USB cable (mini-B) (1)

• Accessory shoe cover (1) Fitted on the camera body

• Synchronizing terminal cap (1) Fitted on the camera body

• Remote release socket cap (1) Fitted on the camera body

• CD-ROM (1) Software for FinePix CX

• Owner’s Manual (this manual) (1)

Camera Parts and Features

A Accessory shoe (p.91) B Built-in flash (p.78) C Lens release button (p.24) D Focus-mode selector (p.47, 54) E Flash pop-up button (p.79) F d Flash sync mode button (p.82) /

Flash compensation button (p.84)

G Strap mount (p.23) H Sync terminal (p.91) I 10-pin remote terminal J Terminal cover (p.182) K VIDEO OUT (Video output) socket (p.182) L DC IN (power input) socket M L USB socket (p.183, p.194)

Continued Q

Camera Parts and Features

N AF-assist illuminator (p.64)/Self-timer lamp (p.101)/

Red-eye reduction lamp (p.82)

O Sub-command dial P Strap mount (p.23) Q Depth-of-field preview button (p.65) R FUNC. Button (p.168) S Battery cover lock release catch (p.32) T Battery cover (p.32) U Tripod mount

V QUAL (image quality/size) button (p.93, 94)/

Reset button (p.120)

W Release mode dial unlock button (p.66) X WB (white balance) button (p.95-100) Y ISO (ISO sensitivity) button (p.92) Z Release mode dial (p.66) ! Power switch (p.36)/ Illuminator switch (p.18) _ Shutter button (p.49) # D (Exposure compensation) button (p.76)/

Reset button (p.120)

$ MODE (exposure mode) button (p.70)/

Format button (p.35)

% Focal plane mark (p.60) ^

Control panel (p.17)

Continued Q

Camera Parts and Features

/OK

DISP/ BACK

SET UP

& Viewfinder eyepiece cup (p.102) * (erase) button (p.53)/ Format button (p.35) ( BKT (bracketing) button (p.103) ) w (playback) button (p.50) : MENU/OK button + DISP (display)/BACK button (p.50) { SET UP button (p.138) } Face zoom in button (p.52)/Help button (p.108)

LCD monitor (p.29, 134, 203) Viewfinder (p.40) Diopter adjustment control (p.40) Metering selector (p.68) AE-L/AF-L (AE / AF lock) button (p.62, p.69) AF-ON button (p.55) Main-command dial Multi-selector Focus selector lock (p.59) Slot cover (p.34) Access lamp (p.34) AF-area mode selector (p.55) Card slot cover latch (p.34)

Example of Control Panel, Viewfinder and LCD Monitor

Z Control panel

A Color temperature indicator (p.97) B Shutter speed (p.70-p.76)

Exposure compensation value (p.76) Flash compensation value (p.84) ISO sensitivity (p.92) Color temperature, or preset number (p.97, 99) Number of shots in bracketing sequence (p.103) Focal length (non-CPU lens) (p.123)

C Flash sync indicator (p.158) D Flexible program indicator (p.71) E Exposure mode (p.70) F Image size (p.94) G Image quality (p.93) H Focus area (p.59)

AF-area mode (p.56)

I White balance mode (p.95) J Number of available frames (p.49)

Number of shots remaining before memory buffer fills (p.67) PC mode indicator Preset white balance recording indicator (p.100)

K “K” (appears when memory remains for over 1000 exposures)

(p.21)

L Battery level indicator (p.33) M Flash sync mode (p.82) N “Beep” indicator (p.181) O Aperture (f/-number) (p.70-76)

Aperture (number of stops) (p.73, 76) Bracketing increment (p.103) Maximum aperture (non-CPU lens) (p.124) PC connection indicator (p.195)

P Aperture stop indicator (p.73, 76)

Continued Q

Example of Control Panel, Viewfinder and LCD Monitor

Q Flash compensation indicator (p.84) R Exposure compensation indicator (p.76) S ISO sensitivity indicator (p.92)

ISO auto control indicator (p.156)

T Flash value (FV) lock (p.85) U Image comment indicator (p.146) V Wide-frame focus area indicator (p.58) W Barcode data input display (p.147)

X Bracketing indicator (p.103) Y Electronic analog exposure display (p.75)

Exposure compensation (p.76) Bracketing progress indicator (p.103) PC connection indicator (p.195)

Z GPS connection indicator (p.147) ! Multiple exposure indicator (p.116)

Z The LCD Illuminator

Holding the power switch in the

position activates the control panel backlight (LCD illuminator), allowing the display to be

read in the dark. After the power switch is released, the illuminator will remain active except immediately after the shutter is released, or when the auto power save is activated.

Z Viewfinder

A Framing grid

(Displayed when [ON] is selected for the [GRID DISPLAY] under [ DISPLAY] in the [SET UP] menu.) (p.22)

B 8-mm (0.31-in.) reference circle for center-weighted metering

(p.68)

C “No memory card” warning D Battery indicator E Normal-frame focus brackets (focus areas) (p.57) F Wide-frame focus brackets (focus areas) (p.57) G Focus indicator (p.48, 54) H Metering (p.68) I Autoexposure (AE) lock (p.69) J Shutter speed (p.70-76) K Aperture (f/-number) (p.70-76)

Aperture (number of stops) (p.73, 76)

L Exposure mode (p.70) M Flash compensation indicator (p.84) N Exposure compensation indicator (p.76)

To not display, use the [VIEWFINDER WARNING] under [ DISPLAY] in the [SET UP] menu.

(p.33)

(p.213)

O ISO sensitivity (p.92) P Number of available frames (p.49)

Number of shots available before memory buffer fills (p.67) Preset white balance recording indicator (p.100) Exposure compensation value (p.76) Flash compensation value (p.84) PC connection indicator (p.195)

Q Flash-ready indicator (p.79) R Flash value (FV) lock (p.85) S Flash sync indicator (p.158) T Aperture stop indicator (p.73, 76) U Electronic analog exposure display (p.75)

Exposure compensation (p.76)

V ISO auto control indicator (p.156) W “K” (appears when memory remains for over 1000 exposures)

(p.21)

Continued Q

Example of Control Panel, Viewfinder and LCD Monitor

MASTER

MIN

MAX

IS O

20 0

10 0

00 01

20 0

. 1.

2 0 1

A M

10 00

F2.8

ABCDEFGH

AUTO STD STD STD STD sRGB SPOT PROGRAM

D-RANGE COLOR TONE SHARPNESS FILM SIM. COLOR SPACE METERING EXPOSURE MODE

80mm

F3.5

5.6

38mm

- --

XXXXXXXXXXXXX XXXXXXXXXXXXX XXXXXXXX

LENS

FOCAL LENGTH FLASH COMMENT

ABCD

Z LCD Monitor Photo information 1

CAUTION

Brightness warning

Photo information 2

200

7. 1 .

20 1

0:0000 AM

1000

IJ K LM

MASTER

MIN

F2.8

Highlights can be displayed separately for each of the following: histogram for brightness (all channels), red, green, and blue color channels, and brightness

MAX

warning.

Overexposed area blinks in black.

Brightness warning

A Playback mode (p.50) B Zoom in face (p.52)

100

0001

C DPOF (p.130)

ISO

200

D Protection (p.132) E Quality mode (p.93) F Present (p.50) G Frame number (p.180)

0.0

H Sensitivity (p.92) I Date and time (p.36) J Shutter speed (p.72) K Aperture (p.73) L Exposure compensation

(p.76)

M White balance (p.95)

ABCD

D-RANGE COLOR TONE SHARPNESS FILM SIM. COLOR SPACE METERING EXPOSURE MODE

AUTO

STD

sRGB

SPOT

PROGRAM

A D-RANGE (p.112) B

COLOR (p.113)

TONE (p.113)

SHARPNESS (p.114)

FILM SIMULATION

(p.111)

COLOR SPACE (p.114)

G Metering mode (p.68) H Exposure mode (p.70)

EFGH

A Lens B Focal length

LENS

FOCAL LENGTH FLASH COMMENT

2020-

80mm

F3.5

5.6

38mm :--:

XXXXXXXXXXXXX

XXXXXXXXXXXXX XXXXXXXX

C Flash sync mode (p.82) D IMAGE COMMENT (p.146)

MEMO

• While playing back images on the LCD monitor or when in single-frame playback mode, press DISP/BACK to switch the display. When the screen display is histogram (or photo information), press no to switch color channels (or to display different information).

• When the screen display is photo information 2, press

no several times to display the focus frame.

Z Large-capacity memory cards

When enough memory remains on the memory card to record a thousand or more pictures at current settings, the number of available frame will be shown in thousands, round down to the nearest hundred (e.g., if there is room for approximately 1,260 exposures, the exposure count display will show 1.2K).

CAUTION

• When the battery is totally exhausted, the display in the viewfinder will dim. The viewfinder display will return to normal when a fully-charged battery is inserted.

• The LCD panel in the upper part of the viewfinder (focus area and grid lines) will become paler at high temperatures and will become darker and respond a little more slowly at low temperatures. However, it will operate normally again at normal temperatures.

• The LCD panel in the viewfinder display (where the icons and numbers are displayed) will turn dark at high temperatures and will respond a little more slowly at low temperatures. However, it will operate normally again at normal temperatures.

Z Camera off display

If the camera is turned off with a battery and memory card inserted, the number of available frame will be displayed in the control panel.

Continued Q

Example of Control Panel, Viewfinder and LCD Monitor

About advanced focusing screen display

The new advanced focusing screen display of the FinePix S5 Pro employs the convenient Vari-Brite focus area display system; it enables clear display of the focus brackets at the selected focus area in the viewfinder for easy identification. When the finder image is bright, the focus brackets are displayed in black and when the finder image is dark, the focus brackets are momentarily illuminated in red. The selected focus area can be identified easily in both bright and dark conditions with this function. Also, the new Advanced Focusing Screen Display allows the superimposition of grid lines. The grid lines can be displayed by selecting [ON] for the [GRID DISPLAY] under [ DISPLAY] in the [SET UP] menu (➝p.150). These grids assist you in composing the frame, in taking landscape pictures or in shifting/tilting PC-Nikkor lenses.

Due to characteristics of the LCD used in the Vari-Brite

focus area display system, a thin line outside the selected focus area may also be displayed or the entire viewfinder may be illuminated in red under certain conditions. These are not malfunctions.

Attaching the Strap and Lens

Attaching the strap

Attach the strap to the strap mounts on the camera. Once you have attached both ends of the strap, check carefully to make sure that the strap is firmly secured.

CAUTION

Attach the strap correctly to prevent dropping the camera.

Mounting the camera lens

1 Check the lens type.

CPU contacts of

CPU lens

The lens is fitted

with CPU signal

contacts.

MEMO

See “Lens compatibility” (➝p.25) for details.

G-type Nikkor

lens

(without

aperture ring)

CPU Nikkor lens

other than G-

type

(with aperture

ring)

2 Set the Power switch to OFF to turn the

camera off (➝p.36).

3 Remove the rear lens cap and camera body

cap.

Continued Q

Getting Ready

Attaching the Strap and Lens

4 Position the lens in the camera’s bayonet

mount so that the mounting indexes on lens and camera body are aligned, then twist lens counterclockwise until it locks into place.

Mounting index

CAUTION

• Always change the lens in an area free of dirt and dust.

• When attaching the lens, take care not to press the lens release button.

• Take care not to mount the lens when it is at an angle to the camera as this can damage the lens mount on the camera.

Detaching lenses

Be sure the camera is off when removing or exchanging lenses. To remove the lens, press and hold the lens release button while turning the lens clockwise. While the lens is removed from the camera, fit the camera body cap provided onto the camera to protect the inside of the camera and prevent soiling of the mirror and viewfinder screen.You can also use the Nikon Body Cap.

Z Lens compatibility

Use a CPU lens (except IX-Nikkor) with this camera. D- or G-type AF lenses give you access to all available functions.

Types of CPU lenses and other usable lenses/accessories

Camera setting

Lens/accessory

Type G or D AF Nikkor

CPU lenses

PC-Micro Nikkor 85 mm f/2.8D

AF-S / AF-I Teleconverter

Other AF Nikkor (except lenses for F3AF) ✔

; AF-S, AF-I Nikkor ✔✔✔✔✔✔ – ✔

AI-P Nikkor – ✔

AI-modified, Ai, Ai-S, or Series E Nikkor

Medical Nikkor 120 mm f/4 – ✔✔ – ✔

Non-CPU lenses

*12

Reflex Nikkor – – ✔ – ✔

PC-Nikkor – ✔

AI–type Teleconverter

TC–16AS AF Teleconverter – ✔

*11

PB–6 Bellows Focusing Attachment

Auto extension rings (PK–series 11–A, 12, or 13;PN–11)

IX Nikkor lenses cannot be used.

Vibration Reduction (VR) supported with VR lenses.

Spot metering meters selected focus area.

The camera’s exposure metering and flash control systems do not work properly when shif ting and/or tilting the lens, or when

an aperture other than the maximum aperture is used.

Electronic range finder cannot be used with shifting or tilting.

*18

*19

Focus mode Exposure mode Metering

(with

– ✔

✔

– ✔

electronic

range finder)

✔

M P S A M

✔ – ✔

✔✔✔✔ – ✔

✔✔✔ – ✔✔

*10

✔✔✔ – ✔✔

*10

✔ – ✔

3D Color

✔ – ✔

*13

– ✔

*16

–––

*13

––✔

*17

––✔

*13

– ✔

*13

– ✔

*20

––✔

*13

––✔

*14

Continued Q

Getting Ready

*15

✔

*15

✔

*15

✔

Attaching the Strap and Lens

Manual exposure mode only.

Compatible with AF-I Nikkor lenses and with all AF-S lens except AF-S DX VR ED 18-200 mm f/3.5-5.6G; AF-S DX ED 1224 mm f/4G, 17-55 mm f/2.8G, 18-55 mm f/3.5-5.6G, 18-70 mm f/3.5-4.5G, and 55-200 mm f/4-5.6G; AF-S VR ED 24-120 mm f/3.5-5.6G; and AF-S ED 17-35 mm f/2.8D, 24-85 mm f/3.5-4.5G, and 28-70 mm f/2.8D.

With maximum effective aperture of f/5.6 or faster.

If AF 80-200 mm f/2.8S, AF 35-70 mm f/2.8S, new-model AF 28-85 mm f/3.5-4.5S, or AF 28-85 mm f/3.5-4.5S is zoomed

in while focusing at minimum range, image on matte screen in viewfinder may not be in focus when in-focus indicator is displayed. Focus manually using image in viewfinder as guide.

With maximum aperture of f/5.6 or faster.

Some lenses cannot be used (see following page).

Range of rotation for Ai 80-200 mm f/2.8S ED tripod mount limited by camera body. Filters cannot be exchanged while Ai

200-400 mm f/4S ED is mounted on camera.

If maximum aperture is specified using [NON-CPU LENS DATA] under [ MISC.] in the [SET UP] menu, aperture value

will be displayed in viewfinder and control panel.

Can be used only if lens focal length and maximum aperture are specified using [NON-CPU LENS DATA] under [ MISC.]

in the [SET UP] menu. Use spot or center-weighted metering if desired results are not achieved.

For improved precision, specify lens focal length and maximum aperture using [NON-CPU LENS DATA] under [ MISC.]

in the [SET UP] menu.

Can be used in manual exposure modes at shutter speeds slower than 1/125 s. If maximum aperture is specified using

[NON-CPU LENS DATA] under [ MISC.] in the [SET UP] menu, aperture value will be displayed in the viewfinder and control panel.

Exposure determined by presetting lens aperture. In aperture-priority auto exposure mode, preset aperture using lens

aperture ring before performing AE lock or shifting lens. In manual exposure mode, preset aperture using lens aperture ring and determine exposure before shifting lens.

Exposure compensation required when used with AI 28-85 mm f/3.5-4.5S, AI 35-105 mm f/3.5-4.5S, AI 35-135 mm f/3.5-

4.5S, or AF-S 80-200 mm f/2.8D. See teleconverter manual for details.

Requires PK-12 or PK-13 auto extension ring.

Use preset aperture. In exposure mode A, set aperture using focusing attachment before determining exposure and taking

photograph.

• PF-4 Reprocopy Outfit requires PA-4 Camera Holder.

Z G-type Nikkor and other CPU Nikkor lens

The G-type Nikkor lens has no aperture ring; aperture should be selected from camera body. Unlike other CPU Nikkor lenses, aperture does not need to be set to minimum (largest f-number). CPU Nikkor lenses other than G-type Nikkor lens have an aperture ring. Set the lens aperture to its minimum and lock. When the lens is not set to its minimum aperture setting and the power switch is turned on, “ ” blinks in the control panel and viewfinder and the shutter cannot be released.

Z When a non-CPU lens is attached

If lens data are specified using the [NON-CPU LENS DATA] under [ MISC.] in the [SET UP] menu, many of the features available with CPU lenses can also be used with non-CPU lenses. If lens data are not specified, color matrix metering cannot be used, and center-weighted metering is used when matrix metering is selected. Non-CPU lenses can only be used in exposure modes and , when aperture must be set using the lens aperture ring. If the maximum aperture has not been specified using [NON-CPU LENS DATA], the camera aperture display will show the number of stops from maximum aperture; the actual aperture value must be read off the lens aperture ring. Aperture-priority auto will be selected automatically in exposure modes and . The exposure-mode indicator in the control panel will blink, and A will be displayed in the viewfinder.

Continued Q

Getting Ready

Attaching the Strap and Lens

Z Nikkor lenses/accessories that cannot be attached to the FinePix S5 Pro

The following Nikkor lenses/accessories cannot be attached to the FinePix S5 Pro (otherwise camera body or lens may be damaged):

• Non-AI lenses

• Lenses that require the AU-1 focusing unit (400 mm f/4.5, 600 mm f/5.6, 800 mm f/8, 1200 mm f/11)

• Fisheye (6 mm f/5.6, 8 mm f/8, OP 10 mm f/5.6)

• 21 mm f/4 (old type)

• K2 rings

• ED 180-600 mm f/8 (serial numbers 174041-174180)

• ED 360-1200 mm f/11 (serial numbers 174031-174127)

• 200-600 mm f/9.5 (serial numbers 280001-300490)

• Lenses for the F3AF (80 mm f/2.8, 200 mm f/3.5, TC-16 Teleconverter)

• PC 28 mm f/4 (serial number 180900 or earlier)

• PC 35 mm f/2.8 (serial numbers 851001-906200)

• PC 35 mm f/3.5 (old type)

• 1000 mm f/6.3 Reflex (old type)

• 1000 mm f/11 Reflex (serial numbers 142361-143000)

• 2000 mm f/11 Reflex (serial numbers 200111-200310)

Attaching the LCD cover

To prevent soiling or damage to the LCD monitor, attach the enclosed LCD cover to the camera when you are carrying or not using the camera.

1 To attach the cover, insert the projection on

the top of the cover into the matching indentation above the camera monitor.

2 Press the bottom of the cover until it clicks

into place.

Removing the LCD cover

Hold the camera firmly and pull the bottom of the cover gently outwards as shown above.

Getting Ready

Charging the Battery

The battery is not fully charged at shipment and must be fully charged before being used.

Z Compatible battery

Rechargeable Battery NP-150

Indicator

Terminals

Z Rechargeable battery NP-150

The NP-150 shares information with compatible devices, enabling the battery charge state to be shown in six levels in control panel and as a percentage displayed in [BATTERY INFO] under [ MA INTENANCE] in the [SET UP] menu (➝p.176), together with battery life and the number of pictures taken since the battery was last charged.

CAUTION

• Always use the rechargeable battery NP-150 (included). Other brands of rechargeable battery (including Nikon) cannot be used.

• The battery is not fully charged at shipment and must be fully charged before being used.

• Connecting the camera directly to the AC power adapter will NOT charge the battery. Use the designated battery charger (BC-150) to charge the battery.

• If the terminals of battery are soiled, it may not be possible to charge it. Clean the battery terminals and battery charger terminals with a clean, dry cloth.

• Charging times increase at low temperatures.

• The NP-150 gradually loses its charge even when not used. Charge a NP-150 just before taking pictures (in the last day or two).

• Do not split or peel outer labels of the battery.

• See p.208-209 for information on the battery.

+ 214 hidden pages
