Oil Conserving Fryer (OCF30)
Electric Series Fryers
Installation & Operation Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians.
www.frymaster.com E-mail: service@frymaster.com
24-Hour Service Hotline 1-800-551-8633
MARCH 2011
Page 2
NOTICE IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS MANITOWOC FOOD SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXP ENSES INCUR RED B Y THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
NOTICE This appliance is intended for professional use only and is to be operated by qualified personnel only. A Frymaster Dean Factory Authorized Servicer (FAS) or other qualified professional should perform installation, maintenance, and repairs. Installation, maintenance, or repairs by unqualified personnel may void the manufacturer’s warranty. See Chapter 1 of this manual for definitions of qualified personnel.
NOTICE This equipment must be installed in accordance with the appropriate national and local codes of the country and/or region in which the appliance is installed. See NATIONAL CODE REQUIREMENTS in Chapter 2 of this manual for specifics.
NOTICE TO U.S. CUSTOMERS This equipment is to be installed in compliance with the basic plumbing code of the Building Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the U.S. Food and Drug Administration.
NOTICE Drawings and photos used in this manual are intended to illustrate operational, cleaning and technical procedures and may not conform to onsite management operational procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH CONTROLLERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. While this device is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A et B prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER Improper installation, adjustment, maintenance or service, and unauthorized alterations or modifications can cause property damage, injury, or death. Read the installation, operating, and service instructions thoroughly before installing or servicing this equipment.
Page 3
DANGER The front ledge of this appliance is not a step! Do not stand on the appliance. Serious injury can result from slips or contact with the hot cooking oil.
DANGER Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
DANGER The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.
WARNING Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for cleaning.
DANGER Adequate means must be provided to limit the movement of this appliance without depending on or transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If the restraint kit is missing contact your local KES.
DANGER Prior to movement, testing, maintenance and any repair on your Frymaster fryer, disconnect ALL electrical power from the fryer.
NOTICE
The instructions in this manual for using a bulk oil system for filling and discarding oil are for an RTI and Frontline system. These instructions may not be applicable to other bulk oil systems.
Page 4
OCF30™ Series Electric Fryers
Installation and Operation Manual
TABLE OF CONTENTS
CHAPTER 1: Introduction
1.1 General ..................................................................................................................................... 1-1
1.2 Safety Information ................................................................................................................... 1-1
1.3 Computer Information .............................................................................................................. 1-2
1.4 European Community (CE) Specific Information ................................................................... 1-2
1.5 Installation, Operating, and Service Personnel ........................................................................ 1-2
1.6 Definitions ................................................................................................................................ 1-2
1.7 Shipping Damage Claim Procedure ......................................................................................... 1-3
1.8 Service Information .................................................................................................................. 1-3
CHAPTER 2: Installation Instructions
2.1 General Installation Requirements ........................................................................................... 2-1
2.1.1 Clearance and Ventilation ............................................................................................ 2-2
2.1.2 Electrical Grounding Requirements ............................................................................. 2-2
2.1.3 Australian Requirements .............................................................................................. 2-3
2.2 Power Requirements ................................................................................................................ 2-3
2.3 Positioning the Fryer ................................................................................................................ 2-4
CHAPTER 3: Operating Instructions
3.1 Equipment Setup and Start-Up Procedures .............................................................................. 3-2
3.2 Operation .................................................................................................................................. 3-2
3.3 Oil Attendant™ Automatic Topoff .......................................................................................... 3-3
3.3.1 Prepare the System for Use .......................................................................................... 3-3
3.3.2 Install the Oil Reservoir ............................................................................................... 3-3
3.3.3 Routine Oil Changes .................................................................................................... 3-3
3.3.4 Bulk Oil Systems ......................................................................................................... 3-4
CHAPTER 4: 3000 Controller Instructions
4.1 Using the 3000 ......................................................................................................................... 4-1
4.2 3000 Menu Summary Tree ...................................................................................................... 4-2
4.3 Setup Main Menu ..................................................................................................................... 4-3
4.4 Vat Setup .................................................................................................................................. 4-3
4.5 Info Mode ................................................................................................................................. 4-5
4.6 Product Setup (Single Setpoint) ............................................................................................... 4-8
4.7 Multiple Setpoint Cooking Overview ...................................................................................... 4-9
4.8 Product Setup (Multiple Setpoint) ......................................................................................... 4-10
4.9 Filter Menu ............................................................................................................................. 4-11
4.9.1 Filter ........................................................................................................................... 4-11
4.9.2 Clean and Filter .......................................................................................................... 4-12
4.9.3 Dispose ....................................................................................................................... 4-12
4.9.4 Dispose (Bulk) ........................................................................................................... 4-13
4.9.5 Fill Vat from Bulk (Bulk option only) ....................................................................... 4-13
4.9.6 Boil Out ...................................................................................................................... 4-14
4.10 Polishing ................................................................................................................................ 4-14
4.11 SCAN Mode ........................................................................................................................... 4-15
iv
Page 5
4.12 Sensitivity Setting Chart ........................................................................................................ 4-16
CHAPTER 5: Filtration Instructions
5.1 Preparing the Built-In Filtration System for Use ..................................................................... 5-1
5.1.1 Preparation for Use with Filter Paper or Filter Pad ...................................................... 5-1
5.1.2 Preparation for Use with Magnasol Filter Assembly .................................................... 5-2
5.2 Filtration .................................................................................................................................. 5-3
5.2.1 Operation of the Filter ................................................................................................... 5-3
5.3 Disassembly and Reassembly of the Magnasol Filter .............................................................. 5-5
5.4 Draining and Disposing of Waster Oil ..................................................................................... 5-6
CHAPTER 6: Preventive Maintenance
6.1 Cleaning the Fryer ................................................................................................................... 6-1
6.2 Daily Checks and Service ........................................................................................................ 6-1
6.2.1 Inspect Fryer for Damage ............................................................................................. 6-1
6.2.2 Clean Fryer Cabinet Inside and Out ............................................................................. 6-1
6.2.3 Clean the Built-in Filtration System ............................................................................. 6-1
6.3 Weekly Checks and Service .................................................................................................... 6-2
6.3.1 Clean Frypot and Heating Elements ............................................................................. 6-2
6.3.2 Boiling Out the Frypot .................................................................................................. 6-2
6.3.3 Clean Detachable Parts and Accessories ...................................................................... 6-3
6.4 Monthly Checks and Service ................................................................................................... 6-3
6.4.1 Check Controller Setpoint Accuracy ............................................................................ 6-3
6.5 Annual/Periodic System Inspection ......................................................................................... 6-3
6.5.1 Fryer .............................................................................................................................. 6-3
6.5.2 Built-In Filtration System ............................................................................................. 6-4
CHAPTER 7: Operator Troubleshooting
7.1 Introduction .............................................................................................................................. 7-1
7.2 Troubleshooting ....................................................................................................................... 7-2
7.2.1 Controller and Heating Problems ................................................................................. 7-2
7.2.2 Error Message and Display Problems ........................................................................... 7-2
7.2.3 Basket Lift Problems .................................................................................................... 7-3
7.2.4 Filtration Problems ....................................................................................................... 7-4
7.2.5 Auto Top Off Problems ................................................................................................ 7-4
7.2.6 Error Log Codes............................................................................................................ 7-5
CHAPTER 8: Wiring Diagrams
8.1 Simplified OCF30 Wiring ....................................................................................................... 8-1
8.2 Component Wiring Domestic with 3000 controller ................................................................ 8-2
8.3 Component Wiring Domestic with CM3.5 controller ............................................................. 8-3
8.4 Component Wiring CE ............................................................................................................ 8-4
8.5 Component Wiring CSA .......................................................................................................... 8-5
8.6 Contactor Box-Delta Configuration ......................................................................................... 8-6
8.7 Contactor Box-WYE Configuration ........................................................................................ 8-7
v
Page 6
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 1: INTRODUCTION
1.1 General
Read the instructions in this manual thoroughly before attempting to operate this equipment. This manual covers all configurations of FPEL14 and FPEL17 variants. The fryers in this model family have most parts in common, and when discussed as a group, will be referred to as “OCF30™ Series Electric” fryers.
Although similar in appearance to the RE Series Electric family of Electric fryers, the OCF30™ Series Electric fryers with SMART4U automatic oil top off system. The Euro-Look design incorporates a rounded topcap and a large round drain, which ensures that fries and other debris, will be washed into the filter pan. Other features, such as rotating elements and filtration system remain essentially unchanged. The OCF30 Series Electric fryers are controlled with a 3000 or CM3.5 computer. Fryers in this series come in full- or split-vat arrangements, and can be purchased as two, three or four vat fryers.
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the one below.
®
technology feature a low oil volume frypot with an optional
DANGER Hot cooking oil causes severe burns. Never attempt to move a fryer containing hot oil or to transfer hot oil from one container to another.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER boxes contain information about actions or conditions that may cause or result in
injury to personnel, and which may cause damage to your system and/or cause your system to
malfunction. The OCF30™ series electric fryers incorporate a high-temperature detection feature which shuts off
power to the elements should the temperature controls fail.
1-1
Page 7
1.3 Computer Information
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been shown to meet the Class B limits. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician for additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 European Community (CE) Specific Information
The European Community (CE) has established certain specific standards regarding equipment of this type. Whenever a difference exists between CE and non-CE standards, the information or instructions concerned are identified by means of shadowed boxes similar to the one below.
CE Standard
Example of box used to distinguish CE and
Non-CE specific information.
1.5 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or authorized personnel only, as defined in Section 1.6. All installation and service on Frymaster
equipment must be performed by qualified, certified, licensed, and/or authorized installation or service personnel, as defined in Section 1.6.
1.6 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this manual and have familiarized themselves with the equipment functions, or who have had previous experience with the operation of the equipment covered in this manual.
1-2
Page 8
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, firms, corporations, and/or companies which, either in person or through a representative, are engaged in and are responsible for the installation of electrical appliances. Qualified personnel must be experienced in such work, be familiar with all electrical precautions involved, and have complied with all requirements of applicable national and local codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with Frymaster equipment and who have been authorized by Frymaster, L.L.C. to perform service on the equipment. All authorized service personnel are required to be equipped with a complete set of service and parts manuals, and to stock a minimum amount of parts for Frymaster equipment. A list of Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. Failure to use
qualified service personnel will void the Frymaster warranty on your equipment.
1.7 Shipping Damage Claim Procedure
What to do if your equipment arrives damaged:
Please note that this equipment was carefully inspected and packed by skilled personnel before leaving the factory. Frymaster does not assume responsibility for damage or loss incurred in transit. The freight company assumes full responsibility for safe delivery upon acceptance of the equipment.
1. File Claim for Damages Immediately—Regardless of extent of damage.
2. Visible Loss or Damage—Be sure this is noted on the freight bill or express receipt and is signed
by the person making the delivery.
3. Concealed Loss or Damage—If damage is unnoticed until equipment is unpacked, notify the
freight company or carrier immediately and file a concealed damage claim. This should be done within 15 days of date of delivery. Be sure to retain container for inspection.
1.8 Service Information
For non-routine maintenance or repairs, or for service information, contact your local Frymaster Factory Authorized Servicer (FAS). Service information may also be obtained by calling the Frymaster Technical Services Department at 1-800-551-8633 or 1-318-865-1711 or by e-mail at
service@frymaster.com. The following information will be needed in order to assist you efficiently:
Model Number _________________________ Serial Number _________________________ Voltage ______________________________ Nature of the Problem ___________________ ____________________________________ ____________________________________
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.
1-3
Page 9
OCF30™ II SERIES ELECTRIC FRYERS
CHAPTER 2: INSTALLATION INSTRUCTIONS
2.1 General Installation Requirements
Proper installation is essential for the safe, efficient, trouble-free operation of this appliance. Qualified, licensed, and/or authorized installation or service personnel, as defined in Section
1.6 of this manual, should perform all installation and service on Frymaster equipment. Failure to use qualified, licensed, and/or authorized installation or service personnel (as
defined in Section 1.6 of this manual) to install or otherwise service this equipment will void the Frymaster warranty and may result in damage to the equipment or injury to personnel.
Where conflicts exist between instructions and information in this manual and local or national codes or regulations, installation and operation shall comply with the codes or regulations in force in the country in which the equipment is installed.
Service may be obtained by contacting your local Frymaster Factory Authorized Servicer.
NOTICE All fryers shipped without factory supplied cords and plug assemblies must be hardwired using flexible conduit to the terminal block located on the rear of the fryer. These fryers should be wired to NEC specifications. Hardwired units must include installation of restraint devices.
DANGER Adequate means must be provided to limit the movement of this appliance without depending on or transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If the restraint kit is missing contact your local KES.
NOTICE If this equipment is wired directly into the electrical power supply, a means for disconnection from the supply having a contact separation of at least 3-mm in all poles must be incorporated in the fixed wiring.
NOTICE This equipment must be positioned so that the plug is accessible unless other means for disconnection from the power supply (e.g., a circuit breaker) is provided.
NOTICE If this appliance is permanently connected to fixed wiring, it must be connected by means of copper wires having a temperature rating of not less than 167°F (75°C).
NOTICE If the electrical power supply cord is damaged, it must be replaced by a Frymaster Dean Factory Authorized Service technician or a similarly qualified person in order to avoid a hazard.
2-1
Page 10
DANGER This appliance must be connected to a power supply having the same voltage and phase as specified on the rating plate located on the inside of the appliance door.
DANGER All wiring connections for this appliance must be made in accordance with the wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s) affixed to the inside of the appliance door when installing or servicing th is equipmen t.
DANGER Frymaster appliances equipped with legs are for stationary installations. Appliances fitted with legs must be lifted during movement to avoid damage to the appliance and bodily injury. For movable installations, optional equipment casters must be used. Questions? Call 1-800-551-8633.
DANGER Do not attach an apron drainboard to a fryer. The fryer may become unstable, tip over and cause injury. The appliance area must be kept free and clear of combustible material at all times.
DANGER Building codes prohibit a fryer with its open tank of hot oil being installed beside an open flame of any type, including those of broilers and ranges.
In the event of a power failure, the fryer(s) will automatically shut down. If this occurs, turn the power switch OFF. Do not attempt to start the fryer(s) until power is restored.
2.1.1 Clearance and Ventilation
This appliance must be kept free and clear of combustible material, except that it may be installed on combustible floors.
A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for servicing and proper operation.
WARNING
Do not block the area around the base or under the fryers.
2.1.2 Electrical Grounding Requirements
All electrically operated appliances must be grounded in accordance with all applicable national and local codes, and, where applicable, CE codes. All units (cord connected or permanently connected) should be connected to a grounded power supply system. A wiring diagram is located on the inside of the fryer door. Refer to the rating plate on the inside of the fryer door for proper voltages.
2-2
Page 11
2.1.3 Australian Requirements
To be installed in accordance with AS 5601 / AG 601, local authority, gas, electricity, and any other relevant statutory regulations.
2.2 Power Requirements
Three (3) Phase Requirements
MODEL VOLTAGE
FPEL14 208 3 6 (4.11) 39 FPEL14 240 3 6 (4.11) 34 FPEL14 480 3 8 (2.59) 17 FPEL14 220/380 4 6 (4.11) 21 FPEL14 240/415 4 6 (4.11) 20 FPEL14 230/400 4 6 (4.11) 21 FPEL17 208 3 6 (4.11) 48 FPEL17 240 3 6 (4.11) 41 FPEL17 480 3 6 (4.11) 21 FPEL17 220/380 4 6 (4.11) 26 FPEL17 240/415 4 6 (4.11) 24 FPEL17 230/400 4 6 (4.11) 25
WIRE
SERVICE
MINIMUM WIRE
SIZE
AWG (mm)
AMPS
(per leg)
NOTICE If this appliance is permanently connected to fixed wiring, it must be connected by means of copper wires having a temperature rating of not less than 167°F (75°C).
DANGER This appliance must be connected to a power supply having the same voltage and phase as specified on the rating plate located on the inside of the appliance door.
DANGER All wiring connections for this appliance must be made in accordance with the wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s) affixed to the inside of the appliance door when installing or servicing this equipment.
2-3
Page 12
2.3 Positioning the Fryer
DANGER
No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633.
1. Once the fryer has been positioned at the frying station, use a carpenter’s level placed across the
top of the frypot to verify that the unit is level, both side-to-side and front-to-back. To level fryers, adjust the casters being careful to ensure the fryer(s) are at the proper height in
the frying station.
When the fryer is leveled in its final position, install the restraints provided by the KES to limit its movement so that it does not depend on or transmit stress to the electrical conduit or connection. Install the restraints in accordance with the provided instructions. If the restraints are disconnected for service or other reasons, they must be reconnected before the fryer is used.
DANGER Adequate means must be provided to limit the movement of this appliance without depending on or transmitting stress to the electrical conduit. A restraint kit is provided with the fryer. If the restraint kit is missing contact your local KES.
DANGER Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be removed from the fryer before attempting to move it to avoid oil spills, falls and severe burns. This fryer may tip and cause personal injury if not secured in a stationary position.
2. Close fryer drain-valve(s).
3. Clean and fill frypot(s) to the bottom oil level line with cooking oil. (See Equipment Setup and
Shutdown Procedures in Chapter 3.)
2-4
Page 13
OCF30™ SERIES ELECTRIC FRYER
CHAPTER 3: OPERATING INSTRUCTIONS
FINDING YOUR WAY AROUND THE OCF30
SERIES ELECTRIC FRYER
Basket Hanger
Controller (3000 Shown)
Fuse
Lift Rod
Elements
Tilt Housing
Top Cap
Bezel
Power Switch (Domestic Only)
Drain Handle
Filter Handle
JIB reset
Filter Pan
FootPrint Pro Built­In Filtration Unit
TYPICAL CONFIGURATION (FPEL214 SHOWN)
NOTE: The appearance of your fryer may differ slightly from that
shown depending upon the configuration and date of manufacture.
3–1
Optional JIB (See Sec. 3.3)
button
Page 14
3.1 Equipment Setup and Shutdown Procedures
Setup
DANGER Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with water or oil before energizing the elements. Failure to do so will result in irreparable damage to the elements and may cause a fire.
DANGER Remove all drops of water from the frypot before filling with oil. Failure to do so will cause spattering of hot liquid when the oil is heated to cooking temperature.
WARNING
The OCF30™ with the automatic top off is NOT intended to use solid shortening. Use only liquid shortening with this fryer. The use of solid shortening will clog the oil lines. The cooking oil capacity of the OCF30™ Series electric fryer is 31 lbs. (3.7 gallons/14 liters) at 70°F (21°C).
DANGER When using solid shortening, pack the shortening down into the bottom of the frypot. DO NOT operate the fryer with a solid block of shortening sitting in the upper portion of the frypot. This will cause damage to the frypot and may cause a flash fire.
Prior to filling frypots with oil ensure all drains are closed.
1. Fill the frypot with cooking oil to the bottom OIL LEVEL line located on the rear of the frypot. This will
allow for oil expansion as heat is applied. Do not fill cold oil any higher than the bottom line; overflow may occur as heat expands the oil.
2. Ensure that the power cord(s) is/are plugged into the appropriate receptacle(s). Verify that the face of the
plug is flush with the outlet plate, with no portion of the prongs visible.
3. Ensure that the power is switched on. Some models are equipped with a master switch located behind the
fryer door cabinet on the front panel of the component box, next to the fuse. OFF is displayed on the controller.
4. Ensure that the controller is switched ON. When the controller is switched on, the fryer will begin heating
and will display MLT-CYCL alternating with the temperature and setpoint until the fryer temperature reaches 180°F (82°C). On CM 3.5 equipped fryers the display changes to LOW TEMP until within 15°F of the setpoint. Then the display changes to product or dashed lines. On the 3000, once the fryer reaches
setpoint, the controller display changes to DROP and the fryer is ready for use. To exit the melt cycle on the 3000, press and hold the EXIT COOL button. Answer YES to EXIT MELT?
Ensure that the oil level is at the top OIL LEVEL line when the oil is at its cooking temperature.
5.
Shutdown
1. Filter the oil and clean the fryers (See Chapters 5 and 6). If using a CM3.5 reverse steps 1 and 2.
2. Turn the fryer off.
3. Place the frypot covers on the frypots.
3.2 Operation
This fryer is equipped with either 3000 or CM3.5 controllers (illustrated on the following page). Fryers with 3000 controllers should refer to the 3000 Controller Operating Instructions in Chapter 4 for the controller programming and operating procedure. For CM3.5 controllers r
efer to the separate Frymaster Fryer Controllers User’s Manual furnished with your fryer for the specific controller operating instructions.
3–2
Page 15
3000 CONTROLLER CM3.5
Refer to Chapter 5 of this manual for operating instructions for the built-in filtration system.
3.3 Optional Oil Attendant® Automatic Top-Off
When the Oil Attendant® top-off oil system is in place on the fryer, oil is continually topped off in the frypots from a reservoir in the cabinet. The reservoir holds a 35 pound box of oil. In a typical operation this will last approximately two days before changing. Components of the system are annotated at the right (see Figure 1).
NOTE: The system is intended to top off the frypots, not fill them. The frypots will require manual filling upon startup and after disposal.
3.3.1 Prepare the System for Use
To prepare the system for its initial operation remove cross brace (see Figure
2). Install the JIB cradle shipped in the accessories pack with the screws that were removed in the cross brace removal step. (see Figure 3).
Figure 2 Figure 3
3.3.2 Install the Oil Reservoir
Remove the original lid from the oil container and foil liner. Replace with the provided cap, which has connected suction hardware. Ensure the feeder tube from the cap reaches to the bottom of the oil container.
Place the oil container inside the cabinet and slide it into place (as shown on the following page). Avoid catching the suction hardware on the cabinet interior as the container is placed in the fryer.
The system is now ready for operation. As the fryer heats to preprogrammed temperatures, the system will energize and then slowly add oil to the frypots as needed, until the oil reaches an optimal level.
3–3
Page 16
3.3.3 Routine Oil Changes
When the oil reservoir level is low, the controller displays TOPOFF OIL EMPTY in the left display and CONFIRM in the right display.
Press S (CONFIRM). Some procedures may differ from photos
shown. Follow manufacturer’s instructions for changing the JIB.
1. Open the cabinet and slide the JIB from
the cabinet (see Figure 4).
2. Remove the cap and pour any remaining oil in the container into all fry vats equally (see Figure 5).
Figure 4
3. With the jug upright remove the cap and foil seal (see Figure 6).
Figure 6
WARNING:
Do not add HOT or USED oil to a JIB.
Figure 5
4. Put the tube in the new full container (see Figure 7).
Figure 7
5. Slide the JIB onto the shelf inside the fryer cabinet (as seen in Figure 4).
6. Press and hold the orange JIB reset switch three (3)
seconds to reset the top off system. (see Figure 8).
Figure 8
Image and location may differ from photo.
3–4
Page 17
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 4: 3000 CONTROLLER INSTRUCTIONS
4.1 Using the 3000
ON/OFF
Press ON/OFF button fryer heats to setpoint or idle temperature and displays: COOL or DROP.
Cooking
Fryer displays COOL or DROP
COOL display: Press product button; fryer heats to setpoint and displays DROP.
Press product button and drop product.
DROP display: Press product button and drop product.
DONE display: Press blinking product button to cancel alarm and end a cook.
Cancel a Cook: Press and hold blinking product button to cancel cook cycle.
Responding to Polish Prompt
Controller displays Polish Now, alternating with Yes No.
Press Yes (button under Yes display) and the polish cycle launches.
Controller displays Cool after polish cycle.
Controller Button Navigation
Product: Press to start a cook cycle. Active when adjacent LED is lit. LED flashes during a cook cycle. Press and
hold to cancel a cook cycle. Press at end of cook cycle to cancel an alarm. Press and hold a product with different setpoint (approximately three seconds) until it beeps to change setpoint temperature.
Scan/Exit: Press once, all product buttons are lit; Select Product displayed. Press product button to view product
name. Press Scan again to repeat. Press Scan twice to return to normal operation. Press scan to exit menus.
Left/Right Arrows: Navigate options in left display. Press both simultaneously to start a polish cycle.
Up/Down Arrows: Navigate options in right display. Press both simultaneously to change to a second language if
one is selected in setup.
Exit Cool: Exits cool mode, returns fryer to setpoint temperature.
Thermometer: Fryer ON: Press and release for setpoint in left display and vat temperature in right display.
Thermometer, Fryer OFF: Press to display temperature, time, date, system version, controller and circuit board
software versions.
Checkmark: Fryer OFF: Press and hold 3 seconds: Scroll filter usage; Press and hold 10 seconds: Product
setup.
Checkmark: Fryer ON: Enter Codes, Respond to left display prompts.
Filter: Press and release: Cooks remaining to filter cycle. Press and hold: Filter options: Filter, Clean and Filter,
Dispose, Fill Vat from Bulk (Bulk option only) and Boil Out (OFF only).
4-1
Page 18
4.2 3000 Menu Summary Tree
4-2
Page 19
4.3 Setup: Main Menu
Press and hold the checkmark key for 10 seconds produces the setup mode, which first displays Product Setup. Turn the controller off and follow the steps below to navigate the options.
Left Display Right Display Action
OFF OFF Product Setup
Blank Press  to scroll to Product Setup, Vat Setup, Tech Mode, and Exit. With the desired
Press and hold 9 until controller displays Main Menu changing to Product Setup.
selection displayed, press 9.
Product Setup vat setup
Tech Mode Exit Exit
4.4 Vat Setup
Blank Programming menu items and cooking parameters. Described on page 4-8 through 4-11. Blank Vat set up is described below in section 4.4.
Blank Tech mode is for technicians only.
Press Exit/Scan button three times to return the controller to OFF.
Vat Setup mode allows the controller to be set for language displays, vat sizes, and temperature range displays. With the controller OFF follow the steps below.
Left Display Right Display Action
OFF OFF
Press 9 until the controller displays Main Menu for three seconds changing to PRODUCT SETUP.
Product Setup
Blank
Press to scroll to Vat setup and press 9. Product setup is described on pages 4-8 through 4-11.
Vat setup Enter code
System
Blank
Enter 1656. Press to scroll to System, Time/Date, DST Setup, Filter, E-Log or Change
Password. With desired choice displayed, press 9 or press Exit/Scan button twice to return the controller to OFF.
Language English
2nd language SPANISH
Press  to scroll to choice and press . Press  to scroll to choice and press . (This option allows another language to
be toggled easily from the front panel (ex. Spanish as a second language.)). Default is Spanish.
Locale Non-ce
Press  to scroll to choices: CE (European Conformity standards) or Non-CE (non-European standards) and press . This option is only available on the far left computer on multiple batteries.
Energy Gas
Press  to scroll to choices: Gas or Electric and press . This option is only available on the far left computer on multiple batteries.
type GL30 Full
Press  to scroll choices: Gas- GL30 Full, GL30 Split, Electric- EL30-14 Full, EL30-14 Split, EL30-17 Full and EL30-17 Split. With the current fryer vat type displayed, press .
SYSTEM volume 9
TempR format F
Exit Melt TempR
180º (82 ºC)
Sets sound level for controller. Enter level, 1-9 (1=Lowest/ 9=Loudest). Press . Press  to scroll choices: F for Fahrenheit; C for Celsius. Press .
Use numbered keys to change default setting. Press . (This is the temperature for the fryer to exit the melt cycle.) Range is 100°F (38°C) to 200°F (93°C). Default is 180°F (82°C).
COOL MODE TEMPR 250F
Use numbered keys to change default setting. Press . (This is the temperature during setback or idle mode.) Default is 250°F (121°C).
COOL MODE DEFAULT
0
Use numbered keys to change default setting. (This is the amount of minutes the fryers sits idle before going to cool mode. Setting is disabled if set to zero.) Press . Default is zero.
FRESH OIL NONE
WASTE NONE
Press  to scroll choices JIB, Bulk-RTI, Bulk-FL (Frontline) or None. Default is none. Press . This option is only available on the far left computer.
MIB board is not present set to NONE.
NOTE: If an
Press  to scroll choices Bulk-RTI, Bulk-FL (Frontline) or None. Default is none. Press . This option is only available on the far left computer.
MIB board is not present set to NONE.
NOTE: If an
4-3
Page 20
4.4 Vat Setup cont.
Left Display Right Display Action
DRAIN SWITCH NO
RECOVERY ALARM DISABLED
Basket Lift DISABLED
HOLD TIME AUTO
Exit Exit
Time/date
OFF OFF
Product Setup
Vat setup Enter code
SYSTEM
Time/date
Time entry Time
Date format Mm/dd/yy
Enter date date
Exit Exit
DST SETUP
OFF OFF
Product Setup
Vat setup Enter code
DST ENABLED
DST START MONTH
DST START SUNDAY
DST END MONTH
DST END SUNDAY
EXIT Exit
filter
SYSTEM
filter
Blank
Blank Blank
This is daylight savings time setup. In the United States, daylight savings time begins each year at 2:00 A.M. on the second Sunday in March, with clocks moving ahead one hour. Daylight savings time ends each year at 2:00 A.M. on the first Sunday in November, with clocks moving back one hour. For the two states and international locations, which do not use DST, set to disabled.
Blank
3
2
11
1
Blank Blank
Press  to scroll choices YES and NO. Press . (Set to YES if the fryer has a drain switch installed.) Default is NO.
Press  to scroll choices DISABLED and ENABLED. Press . (This is a recovery alarm that locks out the fryer if it does not heat properly. Default is disabled.
Press  to scroll choices DISABLED and ENABLED. If the fryer has basket lifts, set to enabled. Press . Default is disabled.
Press  to scroll choices AUTO and MANUAL. Press . (This is the hold timer cancel alarm.) If set to auto, the alarm will auto cancel. Default is auto.
Press 9 button once to return the controller to OFF.
Press 9 until the controller displays Main Menu for three seconds changing to PRODUCT SETUP.
Press to scroll to Vat setup and press 9. Enter 1656. Press to scroll to TIME/DATE. Press 9. Use numbered keys to change time. Enter the time in 24 hour format. Press . Press  to scroll choices. With the date format displayed, press .
Use numbered keys to change date. Press . Press 9 button once and press to scroll to System, Time/Date, Filter, E-Log or
Change Password. With desired choice displayed, press 9 or press the Exit/Scan button three times to return the controller to OFF.
Press 9 until the controller displays Main Menu for three seconds changing to PRODUCT SETUP.
Press to scroll to Vat setup and press 9. Enter 1656. Press  to scroll choices DISABLED and ENABLED. Press . (This enables or
disabled daylight savings time. Default is enabled.) If disabled is chosen, pressing the button, displays exit. Press the exit scan button three times to exit.
Enter the daylight savings time starting month using the 1-10 keys. (Default is US government starting month “3”.) Press .
Enter the daylight savings time starting Sunday using the 1-10 keys. (Default is US government starting Sunday “2”.) Press .
Enter the daylight savings time ending month using the 1-10 keys. (Default is US government ending month “11”.) Press .
Enter the daylight savings time ending Sunday using the 1-10 keys. (Default is US government ending Sunday “1”.) Press .
Press 9 button once and press to scroll to System, Time/Date, Filter, E-Log or Change Password. With desired choice displayed, press 9 or press the Exit/Scan button three times to return the controller to OFF.
Follow the first three steps above to adjust time and date. Press to scroll to FILTER. Press 9.
4-4
Page 21
4.4 Vat Setup cont.
Left Display Right Display Action
Cooks til Filter
20
Press . (This is the total number of cooks that occur before a filter prompt. The default is 20.)
Eod filter time 21:00
Use numbered keys to program end of day filter alert time. Enter time in 24 hour format. Press . Enter 23:59 if no end of day filter prompt is desired.
FLUSHING TIMER 5
Use numbered keys to change default setting for the flushing timer in Clean and Filter. Enter the time in minutes. Default is five minutes.
Boil out timer 30
Use numbered keys to change default setting for the boil out timer. Enter the time in minutes. Default is 30 minutes.
1 polish TIMER ENABLED
Press  to scroll to choice enable or disable and press . Default is ENABLED)
1 polish prompt time
1 polish duration
00:00
15
Use numbered keys to program polish prompt time. Press . (This is the time the polish prompt will occur each day.) Enter time in 24 hour format.
Use numbered keys to change. Press . (This is the duration, in minutes for a polish.) Default to 15 minutes.
1 polish start TEMPR
Exit Exit
(300F)
Use numbered buttons to change temperature. (This is the minimum temperature required for a polish to begin.) Press .
Press 9 button once and press to scroll to System, Time/Date, Filter, E-Log or Change Password. With desired choice displaye d, pres s 9
or press the Exit/Scan
button once to return the controller to OFF.
E-LOG
SYSTEM
E-Log
NOW Time/date
A E#
Exit Exit
Blank Blank
Time/date
Follow the first three steps above to adjust time and date. Press to scroll to E-LOG. Press 9. (This is a log of the ten most recent error codes.) Press . (Current time and date) Errors listed A-J. Press to scroll through errors. Error codes are listed on page 7-
5. If no errors exist, pressing will display No errors. Press 9 button once and press to scroll to System, Time/Date, Filter, E-Log or
Change Password. With desired choice displayed, press 9
or press the Exit/Scan
button three times to return the controller to OFF.
Change password
Product setup
Vat setup
Exit Exit
Blank
1650 1656
Press 9. Use numbered keys to change code. Press . Use numbered keys to change code. Press . Press 9 button once and press to scroll to System, Time/Date, Filter, E-Log or
Change Password. With desired choice displayed, press 9
or press the Exit/Scan
button three times to return the controller to OFF.
4.5 INFO MODE: Viewing Operational Stats
The 3000 collects and stores information on the cook cycles and filter cycles. This data is accessed in the info mode, which is accessed by pressing the checkmark key with the controller off or on. The steps to view the data are detailed below.
Left Display Right Display Action
OFF/ON OFF/ON
Press 9 until INFO MODE is displayed.
Last Dispose
Blank Press  to scroll: Last Dispose Stats, Daily Stats, Selected Period Stats, Last Load
Stats Total cooks
Number Press . (This is the number of cooks since the last dispose.)
Last dispose date
FILTERS—since
Number Press . (This is the number of filters since oil disposal.)
dispose Filters by-passed
Number Press . (This is the number of by-passed filters since oil di sposal.)
– SINCE DISPOSE
Stats. With the desired stats displayed, press 9.
Press . (This is the date of the last dispose.)
4-5
Page 22
4.5 INFO MODE: Viewing Operational Stats cont.
Left Display
Polishes—since dispose Polishes by­passed – SINCE DISPOSE Oil Life
Oil Life- 1 dispose prior Oil Life – 2 disposes prior Avg Oil Life
Avg cooks
Reset Last dispose stats Reset Last dispose stats complete Exit
Daily Stats
MON date
Filters Number and day
Filters – prior week
Filters bypass Number and day
Cooks Number and day
Exit Exit
Selected Period Stats
Usage since TIME
COOKS
QUIT COOKS
On HOURS
Reset usage Yes no
Reset usage Enter code
Complete
Exit Exit
Last load stats
Right Display Action
Number Press . (This is the number of polishes since oil disposal.)
Number Press . (This is the number of by-passed polishes since oil disposal . )
Number Days Press . (This is the number of days since the last dispose.) Number Days Press . (This is the oil life in number of days 1 dispose prior.)
Number Days Press . (This is the oil life in number of days 2 disposes prior.)
Number Days Press . (This is the average oil life of past 3 disposes.) Number Press . (This is the average cooks over past 3 disposes.)
Yes no
Enter code
Blank Exit
Press to scroll or to reset Last Dispose stats.
Enter 1656
Press 9 button once and press to scroll to desired choice. Once desired choice is displayed, press 9 button or press the Scan button once to return the controller to OFF.
Blank
With the desired stats displayed, press 9. Press  to scroll a day within the prior week. With the desired date displayed,
press . Press  to scroll number of times the vat was filtered on that day of the prior
week. Press .
Number and day
Press  to scroll number of daily filter cycles that occurred in the prior week. Press . Press 9 button once to return to Info Mode menu, or Exit/Scan button once to return the controller to OFF.
Press  to scroll number of times the filter prompt was bypassed on that day in the prior week. Press .
Press  to scroll number of cook cycles on that day of the prior week occurred. Press .
Press 9 button once and press to scroll to desired choice. Once desired choice is displayed, press 9 button or press the Scan button once to return the controller to OFF.
Blank
Press to scroll Info Mode Menu: Last Dispose Stats, Daily Stats, Selected Period Stats, Last Load Stats with the desired stats displayed, press 9.
Press . (This is the date and time the selected period started.)
Number Number
Press . (This is the total number of cooks since start of selected period.) Press . (This is the total number of cooks that were cancelled since start of the
selected period.)
Number
Press . (This is the total number of hours the fryer was on since start of the selected period.)
Press to scroll or to set start of new selected period stats. Enter 1656.
Blank
Press 9 button once and press to scroll to desired choice. Once desired choice is displayed, press 9 button or press the Scan button once to return the controller to OFF.
Blank
With the desired stats displayed, press 9.
4-6
Page 23
4.5 INFO MODE: Viewing Operational Stats cont.
Left Display
Product Product name
Started
Actual time
Program time
Max TEMP
Min TEMP
Avg TEMP
Heat on
Ready for Cook Yes or no
Exit Exit
Right Display Action
Press . (This is the product last cooked.)
Number Minutes Number Minutes Number Minutes Number Number Number
%
Press . (This is the time the last cook started.) Press . (This is the actual cook time including stretch time.) Press . (This is the programmed cook time.) Press . (This is the maximum temperature of the oil during the last cook.) Press . (This is the minimum temperature of the oil during the last cook.) Press . (This is the average temperature of the oil during the last cook.)
Press . (This is the percentage of the cook time the heat source was on during the last cook.)
Press . (If the fryer was back to set temperature before the cook cycle was started.)
Press 9 button once and press to scroll to desired choice. Once desired choice is displayed, press 9 button or press the Scan button once to return the controller to OFF.
4-7
Page 24
4.6 Main Menu: Product Setup (Single Setpoint Cooking)
Programming food items is shown below. The right column has the action necessary to continue. Exit from a programming step at any time by pressing the Exit/Scan key until the display returns to its pre-programming status. Ensure the controller is OFF and follow the steps below. To access menu strip, remove screws attaching bezel. Lower bezel and remove strip from back of controller. Once menu strip is updated, reverse the steps. To unassign a product from a button set the cook time to 0:00 and press EXIT/SCAN.
Left Display Right Display Action
OFF OFF
Product Setup
Product Setup Enter Code
Select Product
Blank
Blank
Press 9 until the controller displays Main Menu for three seconds changing to PRODUCT SETUP.
Press 9. Enter 1650. Press desired product button.
Long Name Product name or
button number
Short Name Abbreviated
Product name or button number
COOKING MODE SINGLE SETPOINT
1 Time 0:00 or
previously entered time
1 TEMPR TEMPR
1 Sensitivity
1 alarm time (Shake
Time)
1 ALARM NAME SHAKE
1 ALARM MODE (Shake
Alarm Mode)
1 ALARM TONE (Shake
Alarm tone)
2 alarm time 0:00
Filter PROMPT
Instant On
HOLD TIME
Exit Exit
Select Product

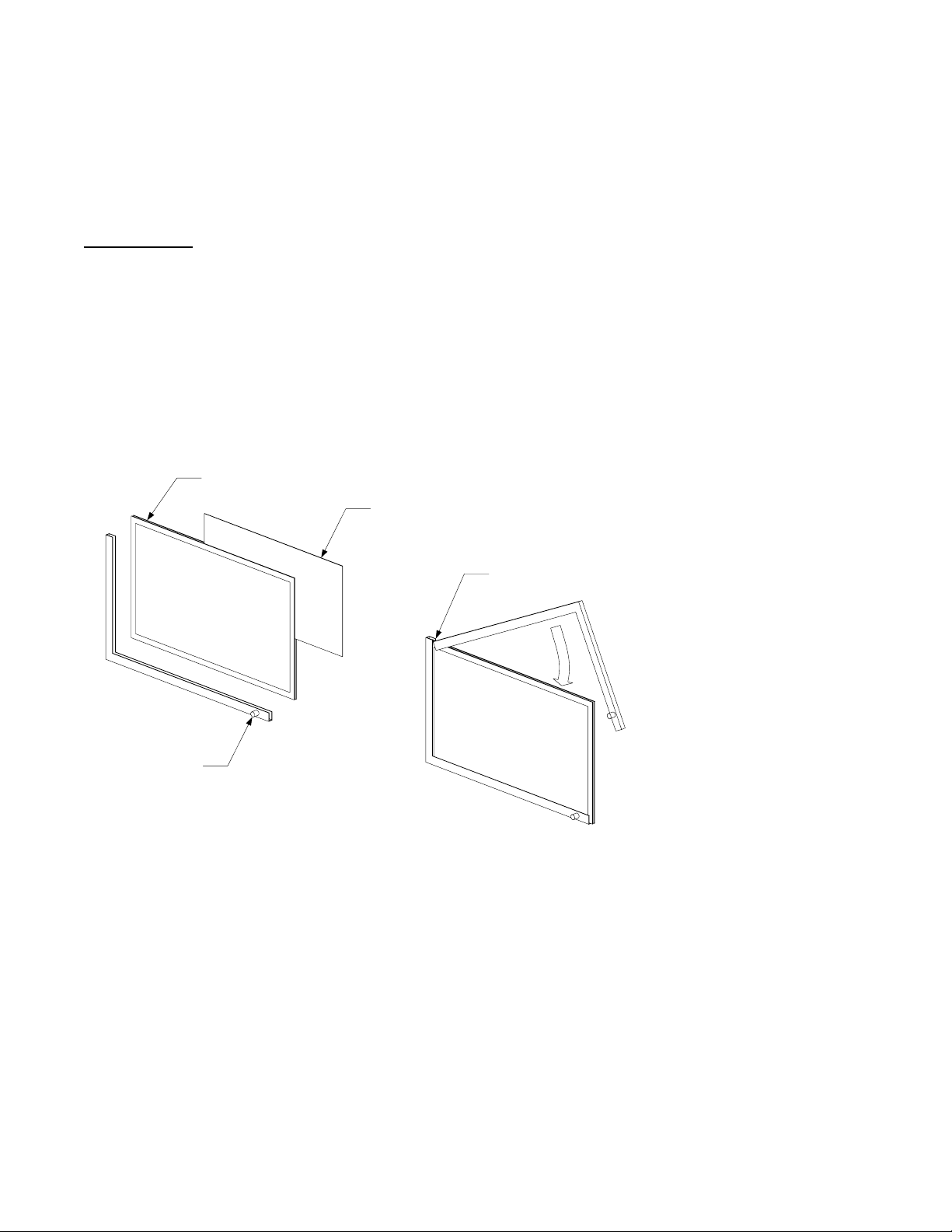

To access menu strip, remove screws attaching bezel. Lower bezel and remove strip from back of controller. Once the menu strip is updated, reverse the steps to reassemble. To unassign a product from a button set the cook time to 0:00 and press EXIT/SCAN.
Number
0:00 or previously entered time
AUTO
Short
0 or previously
entered number. 30 or previously
set number
0 or previously entered time.
Blank
Enter product name with letter keys. Advance cursor with . Press to advance to next product set up feature.
Enter abbreviated four character product name with letter keys that alternate with the timer during a cook. Press .
Press . If multiple setpoint or segmented cooking is desired press MULTIPLE SETPOINT and go to 4.8 and follow the instructions. (Default is SINGLE SETPOINT)
Enter total cook time with numbered keys. Press .
Enter cooking temperature. Press . Enter the level of sensitivity, 0-9, for the product. Press . Enter time in cook cycle for audible alarm for shaking. Press . This is
the time during a cook when the fryer alarms that requires the user to shake the product.
Press  to scroll through the alarm names (ex. Shake, Stir). Press . Press . Default is auto. If manual is desired press  to scroll to
Manual shake alarm mode. Press . Alarm (Shake) Mode when set to auto, cancels the alarm automatically after a few seconds. Manual requires user action.
Press  to scroll to choice of shake alarm tones. Press . Default is SHORT. This is the alarm tone for the shake alarm.
Press . Leave at 0:00 if a second alarm is not needed. Enter number of cook cycles before a filter prompt and press .
This is the time, in seconds, the fryer heats at 100%, after the product button is pressed, before the controller adjusts the temperature. Enter value and press . (Default is 30. 0=OFF). NOTE : Inst a nt on time may need to be minimized down for light cooking loads.
Enter time in minutes to hold product before discarding. Press .
Press the 9 button to save changes. For additional programming refer back to Product Setup above. To exit
press the EXIT SCAN button twice to OFF.
4-8
Page 25
4.7 Multiple Setpoint (Segmented) Cooking Overview
The 3000 is capable of multiple setpoint (segmented) cooking, a feature which allows a cooking cycle to be broken into a number of parts, each with its own cooking temperature and time.
An abbreviated version of the programming for a 13-minute cook cycle with four cooking temperatures is shown below. Steps are compressed for clarity. The cook times represent when on the timeline of the total cook cycle the segment occurs. In this example, the first temperature change occurs with 11 minutes remaining in the total cook time; 11 is entered at the prompt for the second cook time. Two minutes into the total cook cycle, the temperature will change;11 minutes will remain. Cook times for the remaining segments are arrived at by subtracting the segment length from the remaining cook time. The complete programming steps are shown on pages 10 and 11.
Step 1sets total cook time and initial setpoint.
Step 2 sets the duration of the first cooking segment, 2 minutes, and the setpoint of the first
temperature change.
Step 3 sets the duration of the second cooking segment, 4 minutes, and the setpoint of the
second temperature change.
Step 4 sets the duration of the third cooking segment, 3 minutes, and the setpoint of the third
temperature change.
The four remaining minutes in the cook time elapse at the final temperature. No entry is required to
use the final minutes
4-9
Page 26
4.8 Main Menu: Product Setup (Multiple Setpoint (Segmented) Cooking)
Left Display Right Display Action
OFF OFF
Product Setup Product Setup Enter Code Select Product
Long Name Product name or button number
Short Name Abbreviated Product name or
COOKING MODE SINGLE SETPOINT
1 Time 0:00 or previously entered time
1 TEMPR temperature
1 sensitivity
2 Time 0:00 or previously entered time
2 TEMPR 0:00 or previously entered
2 sensitivity 0 or previously entered value 3 Time O:00 or previously programmed
3 TEMPR 0:00 or previously programmed
3 sensitivity 0 or previously entered value
Blank Press 9.
Blank Press desired product button
button number
Number
temperature
time
temperature
Press 9 until the controller displays Main Menu for three seconds changing to PRODUCT SETUP.
Enter 1650
Enter product name with letter keys. Advance cursor with . Press to advance to next product set up feature.
Enter abbreviated four character product name with letter keys that alternate with time during a cook. Press .
Press . If multiple setpoint or segmented cooking is desired press Multiple Setpoint (Segmented) and follow the instructions in the next section. (Default is SINGLE SETPOINT) Enter total cook time for segmented item and press .
Enter initial cooking temperature and press . Enter the level of sensitivity, 0-9, for the product. Press .
Enter time remaining after first temperature change (see page 4-9) and press . Enter first temperature change and press .
Enter the flex value, 0-9, for the product and press . Enter time remaining after second temperature change and press .
Enter temperature of the second segment and press .
Enter the flex value, 0-9, for the product and press .
4 Time 00 or previously entered time
4 TEMPR 0:00 or previously programmed
temperature
4 sensitivity 0 or previously entered value
5 Time :00 or previously entered time
1 ALARM time :00 or previously entered time
1 alarm name shake
1 alarm mode auto default
1 Alarm Tone Short
2 SHAKE time :00 or previously entered time
2 Alarm name shake
2 alarm mode auto default
Enter time remaining after third temperature change and press .
Enter temperature of the third segment and press .
Enter the flex value, 0-9, for the product and press . Leave at zero if no more segments are needed and press .
If more segments are needed, 10 is the limit, continue programming as shown above.
Enter time in cook cycle for audible alarm for shaking. Press .
Press  to scroll through the alarm names (ex. Shake). Press .
Press  to scroll to confirm Auto or Manual shake alarm mode. Press . Move to vat setup
Press  to scroll to choice of shake alarm tones. Press . Move to vat setup.
Enter time in cook cycle for a second audible alarm for shaking. Press .
Press  to scroll through the alarm names (ex. Shake). Press .
Press  to scroll to confirm Auto or Manual shake alarm mode. Press . Move to vat setup
4-10
Page 27
4.8 Main Menu: Product Setup (Multiple Setpoint (Segmented) Cooking) cont.
Left Display Right Display Action
2 Alarm Tone Short
Press  to scroll to choice of shake alarm tones. Press . Move to vat setup
3 time :00 or previously entered time
3 Alarm name shake
Enter time for third audible alarm for shaking. Press . Press  to scroll through the alarm names (ex. Shake). Press
.
3 alarm mode auto default
Press  to scroll to confirm Auto or Manual shake alarm mode. Press . Move to vat setup
3 Alarm Tone Short
Press  to scroll to choice of alarm tones. Press . Move to vat setup
Filter PROMPT
Instant ON 0
0 or previously entered number.
Enter number of cook cycles before a filter prompt and press . This is the time, in seconds, the fryer heats at 100%, after the
product button is pressed, before the controller adjusts the temperature. Enter value and press . (Default is 30. 0=OFF).
HOLD TIME
Exit Exit
Select Product
0 or previously entered time.
Blank
Enter time to hold product before discarding. Press . Press the 9 button to save changes.
For additional programming refer back to Product Setup above.
To exit press the EXIT SCAN button twice to OFF. To access menu strip, remove screws attaching bezel. Lower bezel and remove strip from back of controller. Once the menu strip is updated, reverse the steps to reassemble. To unassign a product from a button set the cook time to 0:00 and press EXIT/SCAN.
4.9 Filter Menu
WARNING The on-site supervisor is responsible for ensuring that operators are made aware of the inherent hazards of operating a hot oil filtering system, particularly the aspects of oil filtration, draining and cleaning procedures.
DANGER Draining and filtering of oil must be accomplished with care to avoid the possibility of a serious burn caused by careless handling. The oil to be filtered is at or near 350°F (177°C). Ensure all hoses are connected properly and drain handles are in their proper position before operating any switches or valves. Wear all appropriate safety equipment when draining and filtering oil.
DANGER Allow oil to cool to 100°F (38°C) before draining into an appropriate container for disposal.
DANGER Do not drain more than one frypot at a time into the built-in filtration unit to avoid overflow and spillage of hot oil.
DANGER When draining oil into a disposal unit or portable filter unit, do not fill above the maximum fill line located on the container.
The 3000 has five Filter menu options: Filter, Clean and Filter, Dispose, Fill Vat from Bulk (Bulk option only) and Boil Out (only in OFF mode). All are accessed by pressing and holding the Filter button until the display becomes Filter Menu. If fryer is not at set point controller displays wait for filter. The controller must be on and at setpoint for Filter and Filter and Clean.
4-11
Page 28
Entering Filter Menu Mode
Left Display Right
Action
Display
DROP DROP
Press the filter button until FILTER MENU is displayed for three seconds changing to Filter.
FILTER
Blank Press  to scroll to Clean and Filter, Dispose, Boil Out (available only in OFF
mode), or Exit. With the desired choice display ed press 9. Follow the instructions below to navigate the modes.
4.9.1 Filter
Left Display Right Display Action
FILTER LEFT (Split vats only) RIGHT (Split vats only)
Filter Now? Yes No
Blank
Press 9. Press either button under side to filter. Press (YES) to continue. A no answer bypasses
filtration and cooking continues.
FILTER PAN READY? CONFIRM
Ensure the filter pan is in place and the filter changed and press .
OPEN DRAIN VALVE
Draining
Blank :40 sec. countdown timer
Open drain valve. None required. If the drain valve becomes clogged
with food particles, use the Fryer’s Friend (poker­like tool) to clear the blockage.
DANGER NEVER attempt to clear a clogged drain valve from the front of the valve! Hot oil will rush out creating the potential for severe burns.
DO NOT hammer on the drain valve with the cleanout rod or other objects. Damage to the ball inside will result in leaks and will void the Frymaster warranty.
Turn Filter On CONFIRM
Flushing
CLOSE DRAIN VALVE
Filling
Turn Filter Off WHEN
:30 sec. countdown timer Blank :45 sec. countdown timer
CONFIRM
Turn filter on and press . None required. Close drain valve. None required. Turn filter off and press .
FULL OFF OFF
DANGER The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.
WARNING Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for cleaning.
4-12
Page 29
4.9.2 Clean and Filter
Left Display Right Display Action
Follow steps to Entering Filter Menu Mode on page 4-12.
Clean and filter
Clean now? Yes NO
Blank Press 9.
Press . A yes answer turns vat off. A no answer bypasses clean and filter and cooking continues
FILTER PAN READY? CONFIRM
Ensure the filter pan is in place and the filter changed. Press .
Open drain valve
Draining Scrub vat complete? YES Turn Filter On CONFIRM FLUSHING FILL VAT YES CLOSE DRAIN VALVE
filling
TURN FILTER OFF WHEN
Blank Open drain valve. :40 sec. countdown timer None required.
Press . Turn filter on and press .
5:00 countdown timer
None required. Press .
Blank Close drain valve. 1:30 sec. countdown timer None required.
CONFIRM
Turn filter off and press .
FULL off off
4.9.3 Dispose
DANGER
Allow oil to cool to 100°F (38°C) before draining into an appropriate METAL container for disposal. When draining oil into a disposal unit, do not fill above the maximum fill line located on the container.
For safe, convenient draining and disposal of used oil or shortening, Frymaster recommends using the Frymaster Shortening Disposal Unit (SDU). The SDU is available through your local distributor.
Left Display Right Display Action
Follow steps to Entering Filter Menu Mode on page 4-12.
dispose
Dispose now? Yes NO
Remove FILTER Pan CONFIRM
INSERT DISPOSAL UNIT CONFIRM
OPEN DRAIN VALVE
disposing
Blank Press 9.
Press . A yes answer turns fryer off. A no answer delays dispose and cooking continues Remove filter pan and press .
Insert disposal unit under the drain and press . Blank Open the drain valve. :60 sec. countdown timer None required.
VAT EMPTY? CONFIRM
VAT CLEAN? CONFIRM
CLOSE DRAIN VALVE
Blank Close the drain valve.
Remove Disposal Unit CONFIRM
INSERT Filter PAN CONFIRM
fill vat Confirm
off off
Press when empty.
Press when clean.
Remove disposal unit and press .
Insert the pan and press .
Fill vat with fresh oil and press when full.
4-13
Page 30
DANGER
WHEN USING SOLID SHORTENING, PACK THE SHORTENING DOWN INTO THE BOTTOM OF THE FRYPOT. DO NOT OPERATE THE FRYER WITH A SOLID BLOCK OF SHORTENING SITTING IN THE UPPER PORTION OF THE FRYPOT. THIS WILL CAUSE DAMAGE TO THE FRYPOT AND MAY CAUSE A FLASH FIRE.
4.9.6 Boil Out
Never leave the fryer unattended during the boil-out process. If the boil-out solution boils over, turn the fryer off immediately and let the solution cool for a few minutes before resuming the process.
Do not drain boil-out solution into a shortening disposal unit (SDU), a built-in filtration unit, or a portable filter unit. These units are not intended for this purpose, and will be damaged by the solution.
Left Display Right Display Action
Follow steps to Entering Filter Menu Mode on page 4-12.
BOIL OUT
Boil Out Now? Yes No
IS VAT PREPARED? Confirm
REMOVE Filter Pan Confirm
IS SOLUTION IN THE VAT? CONFIRM
START BOIL OUT Confirm
BOIL OUT 30:00
Boil Out Done CONFIRM
IS SOLUTION REMOVED? CONFIRM
OFF OFF
(NOTE: To enter boil out mode, the fryer must be OFF)
DANGER
WARNING
Blank
Press 9. Press to continue. Ensure vat is empty and drain closed and press . Remove the filter pan and press . Ensure solution is in the vat and press . Press . Turns on and heats to 195ºF (91 ºC).
The boil-out timer starts. The countdown timer begins. Press to confirm and cancel the alarm.
Once solution is removed press to confirm.
DANGER Remove all drops of water from the frypot before filling with oil. Failure to do so will cause spattering of hot liquid when the oil is heated to cooking temperature.
4.10 Polishing
The 3000 displays a series of prompts when a polish filter cycle is under way. To initiate a polish, press and hold the   arrows simultaneously. The steps are detailed below. A “waiting to polish” message may display until the signal is received that the vat is ready for polish cycle to begin.
Left Display Right Display Explanation/Action
Polish Now? Yes NO
Respond to prompt with button push. Press under YES or under NO. Yes starts a polish, detailed below. No delays filter for 30 minutes and cooking continues. Answering NO after two times cancels polish.
Filter PAN READY? Confirm
OPEN DRAIN VALVE
Draining
Blank Open the drain valve. :40 sec. countdown
Press when replaced.
None required.
timer
Turn Filter On Confirm
Turn filter on and press .
4-14
Page 31
Polishing cont.
Left Display Right Display Explanation/Action
POLISHING 15-MINUTE COUNTDOWN
TIMER
Close drain valve
FILLING
TURN FILTER OFF WHEN FULL
Off off
Blank Close the drain valve. :45 sec. countdown
timer
CONFIRM
None required. The oil flows from the filter pan to the frypot and back to the filter pan for 15 minutes.
None required.
Turn filter off and press .
4.11 SCAN Mode
The daily stats mode can be used to see current stats about any product quickly throughout the day. To enter the daily stats mode the controller must be on. Follow the steps below to view stats.
Left Display Right Display Explanation/Action
DROP DROP
SELECT PRODUCT
Long name
Short Name
Blank Press a product button to check daily stats. 8 Character product name Press to progress to next product stat. 4 character abbreviated
product
Press the Exit/Scan button.
Press to progress to next product stat.
COOKS REMAINING
COOKS TODAY
COOKS SINCE LAST DISPOSE
1 TIME
1 TEMPR
1 Sensitivity
1 ALARM TIME
1 ALARM NAME Shake, stir, numbered
1 ALARM MODE AUTO OR MANUAL
1 alarm tone Short, medium, long double
Number Number of cooks remaining until filter prompt. Press to progress to
Number Number of cooks completed today. Press to progress to next product
Number Numbers of cooks since last dispose. Press to progress to next
Time Time that product is programmed to cook. Press to progress to next
Temperature Temperature that product is programmed to cook. Press to progress to
Number The level of sensitivity the product is programmed to cook at. Press
Shake Time The time during a cook till a product shake alarm occurs. Press to
alarm
or long short, none
next product stat.
stat.
product stat.
product stat.
next product stat.
to progress to next product stat.
progress to next product stat. This is the name of the alarm.
The alarm mode the product is programmed with. Press  to progress to next product stat.
The shake alarm tone the product is programmed with. Press to progress to next product stat.
4-15
Page 32
SCAN Mode cont.
Left Display Right Display Explanation/Action
FILTER PROMPT
INSTANT ON
HOLD time
Exit Exit
Number The number of cook cycles before a filter prompt occurs. Press to
0 This is the time, in seconds, the fryer heats before the computer checks
0:00 or previously entered time.
progress to next product stat.
the temperature. NOTE: An incorrect entry may cause the fryer to overshoot temperature and over cook some products.
The time to hold product before discarding. Press .
Press Exit/Scan button to exit or the 9 button for additional programming.
4-16
Page 33
4.12 Sensitivity Settings Chart
Sensitivity Settings for Various Products
Product 350° F/176° C Sensitivity Setting
Chicken
chicken fillet, 1 ¼ oz. 3:25 5 chicken fillet (frozen), 4 oz. 4:20 5 chicken patty (frozen), 5 oz. 6:15 5 frozen chicken 5 fresh chicken, 9 pieces 5
Potatoes
steak fries 3:43 5 regular fries, ½-inch 3:16 5 shoestrings, ¼-inch 1:50 5 shoestrings, -inch 2:40 5 tater tots 2:05 5 hash browns 2:05 5 farm fries 1:14 5
Seafood
crab cakes 4:00 3 clam cakes 4:00 3 large scallops 3:25 3 small scallops 1:10 3 shrimp (35 to a lb.) 2:15 3 shrimp (40 to 75 to a lb.) 1:45 3 shrimp (75 to 100 to a lb.) 1:10 3 cod, 2 ½ oz. 3:25 7 flounder fillet, 7 oz. 4:35 3 flounder, whole, 10-12 oz. 6:25 3 cod fillet, 3 ½ oz. 4:35 7 perch, 5 oz. 4:30 3 haddock, 7 oz. 6:25 7 clams 2:00 3 oysters 1:10 4 strip clams (fresh) 0:35 4 strip clams (frozen) 0:45 4
Vegetables
okra 4:30 4 eggplant 4:00 4 zucchini 3:00 4 mushrooms 3:45 4 onion rings (frozen) 3:00 4 cauliflower 1:45 4
Other
corn dogs 4 chicken fried steak patty 5:00 5
Note: This chart is provided to assist in choosing a sensitivity setting. It is meant as a guide only and the
settings may be changed to suit different needs.
4-17
Page 34
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 5: FILTRATION INSTRUCTIONS
WARNING The on-site supervisor is responsible for ensuring that operators are made aware of the inherent hazards of operating a hot oil filtering system, particularly the aspects of oil filtration, draining and cleaning procedures.
5.1 Preparing the Built-In Filtration System for Use
The FootPrint Pro filtration system allows the oil in one frypot to be safely and efficiently filtered while the other frypots in a battery remain in operation. The FootPrint Pro filtration system is available in three different configurations:
Filter Paper – includes crumb tray, large hold-down ring, and metal filter screen.
Filter Pad – includes crumb tray, small hold-down ring, and metal filter screen.
Section 5.1.1 covers preparation of the Filter Paper and Filter Pad configurations for use. Refer to Section 5.1.2 for instructions on preparing the Magnasol Filter configuration for use. Operation of all three configurations is the same and is covered in section 5.3. Disassembly and reassembly of the Magnasol filter is covered in section 5.4.
5.1.1 Preparing the Built-In Filtration System for Use with Filter Paper or Filter Pad
The FootPrint Pro filtration system allows the oil in one frypot to be safely and efficiently filtered while the other frypots in a battery remain in operation. The FootPrint Pro filtration system uses a filter paper configuration which includes a crumb tray, large hold-down ring, and metal filter screen.
1. Pull the filter pan out from the cabinet and
Magnasol Filter – includes crumb tray and Magnasol filter assembly.
remove the crumb tray, hold-down ring, filter paper and filter screen (see Figure1). Clean all components with a solution of detergent and hot water then dry thoroughly.
The pan cover must not be removed except for cleaning, interior access, or to allow a shortening disposal unit (SDU) built before January 2004 to be positioned under the drain. Disposal instructions are on page 5-6.
Figure 1
5-1
Page 35

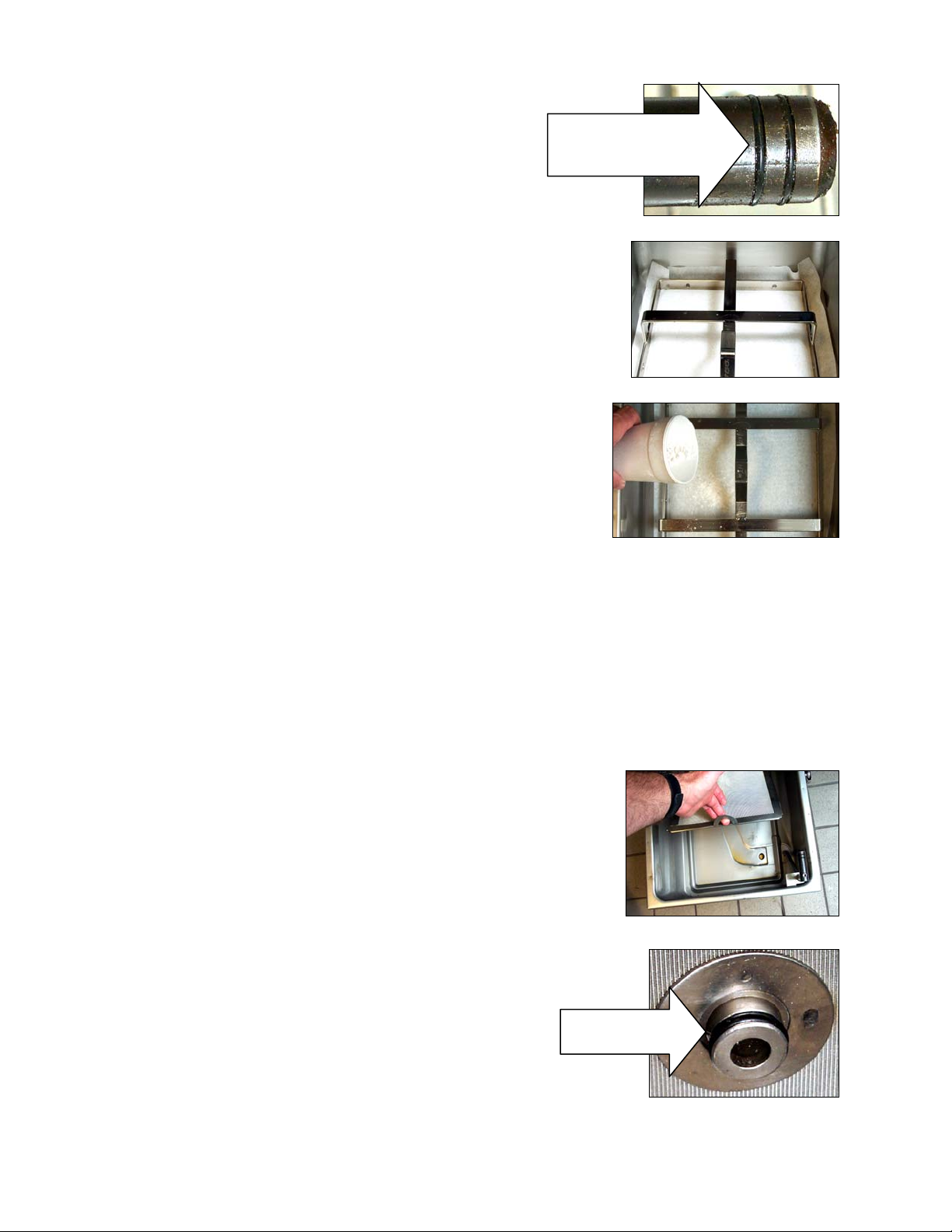

2. Inspect the filter pan connection fitting to ensure that
both O-rings are in good condition (see Figure 2).
3. Then in reverse order, place the metal filter screen in
Inspect the filter connection fitting O-rings.
the center of the bottom of the pan, then lay a sheet of filter paper on top of the screen, overlapping on all sides (see Figure1). If using a filter pad, ensure the rough side of the pad is up and lay the pad over the screen, making sure that the pad is in between the embossed ridges of the filter pan.
4. Position the hold-down ring over the filter paper and
lower the ring into the pan, allowing the paper to rest on the sides of the filter pan (see Figure 3).
5. When the hold-down ring is in position, if using filter
paper, sprinkle one packet of filter powder evenly over the paper. (See Figure 4)
6. Replace the crumb tray in the filter pan, then push the
filter pan back into the fryer, positioning it under the drain.
5.1.2 Preparation for Use with the Magnasol Filter Assembly
1. Pull the filter pan out from the cabinet
and remove the crumb tray and Magnasol filter assembly (see Figure 5). Clean as directed in section 5.4
The pan cover must not be removed except for cleaning, interior access, or to allow a shortening disposal unit (SDU) to be positioned under the drain.
seated in the port in the bottom of the pan. Sprinkle one packet of the Magnasol XL filter powder evenly over the screen.
5. Replace the crumb tray, and then push the filter
pan back into the fryer, positioning it all the way to the back of the cabinet.
NOTE: Refer to Section 5.4 for instructions on how to disassemble and reassemble the Magnasol filter screen assembly.
2. Inspect the fitting on the bottom of the
Magnasol filter assembly to ensure that the O-ring is present and in good
Figure 5
condition. (See Figure 6)
3. Inspect the filter pan connection fitting
to ensure that both O-rings are present and in good condition. (See Figure 2
Inspect the filter screen O-ring.
above).
4. Replace the Magnasol filter assembly in
the filter pan, ensuring that the fitting on the bottom of the assembly is securely
Figure 6
Figure 2
Figure 3
Figure 4
5-2
Page 36
5.2 Filtration
A 3000 controller prompts the user when to filter on the OCF30
fryer. After a preset number of
cook cycles the controller displays filter now? alternating with YES NO. Follow the instructions on page 4-12. If NO is selected or a cook cycle is started, the controller will prompt
again soon to filter the oil.
On demand filtration is used to manually start a filter. See page 4-11 for the filter menu.
The fryer MUST be at setpoint temperature for any filtration operation to start.
Note: Do NOT filter multiple vats simultaneously.
5.2.1 Operation of the Filter
DANGER Draining and filtering of cooking oil must be accomplished with care to avoid the possibility of a serious burn caused by careless handling. The oil to be filtered is at or near 350°F (177°C). Ensure drain handles are in their proper position before operating any switches or valves. Wear all appropriate safety equipment when draining and filtering cooking oil.
DANGER NEVER attempt to drain cooking oil from the fryer with the elements energized! Doing so will cause irreparable damage to the frypot and may cause a flash fire. Doing so will also void the Frymaster warranty.
1. Ensure that the filter is prepared. See Section. 5.1.
2. Make sure the oil is at operating temperature.
3. When prompted, drain the frypot into the filter pan by rotating the drain valve handle 90º (see
Figure 7). If necessary, use the Fryer's Friend clean-out rod to clear the drain from inside the frypot.

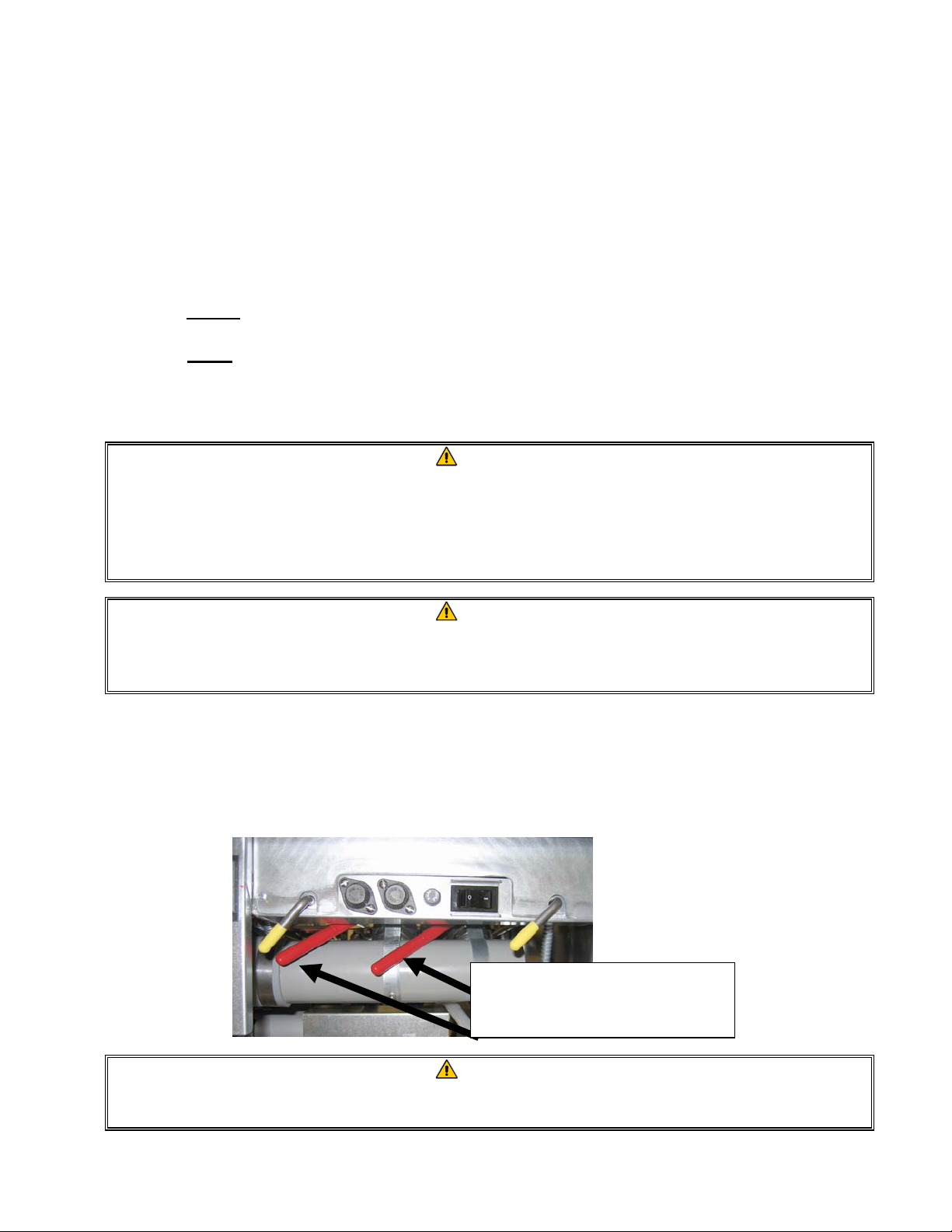

Open drain valve by rotating 90º. (Handles may differ from photo.)
Figure 7
DANGER Do not drain more than one frypot at a time into the built-in filtration unit to avoid overflow and spillage of hot oil that may cause severe burns, slipping and falling.
5-3
Page 37
DANGER NEVER attempt to clear a clogged drain valve from the front of the valve! Hot oil will rush out creating the potential for severe burns.
DANGER DO NOT hammer on the drain valve with the cleanout rod or other objects. Damage to the ball inside will result in leaks and will void the Frymaster warranty.
4. After the oil has drained from the frypot
and when prompted, rotate the filter handle towards the I” to start the pump and begin the filtering process. There may be a slight delay before the pump activates (see Figure 8).
Rotate filter handle to the “I” to start the pump. (Position of handle may differ from
Figure 8
5. The filter pump draws the oil through the filter medium and circulates it back up to and through
the frypot during a filter.
6. After the oil is filtered, close the drain valve when prompted and allow the fryer to refill. Let the
filter pump run 10 to 12 seconds after the oil begins to bubble. Turn the filter off.
7. Ensure the drain valve is fully closed. (If the drain valve is not fully closed, the fryer will not
operate.)
8. Turn the filter off when prompted. The computer displays OFF when finished.
WARNING The filter pump is equipped with a manual reset switch in case the filter motor overheats or an electrical fault occurs. If this switch trips, turn off power to the filter system and allow the pump motor to cool 20 minutes before attempting to reset the switch (see photo below).
Filter Pump Reset Switch
5-4
Page 38
WARNING Use caution and wear appropriate safety equipment when resetting the filter pump reset switch. Resetting the switch must be accomplished with care to avoid the possibility of a serious burn caused by careless maneuvering around a drain tube and around a frypot.
DANGER The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.
WARNING Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for cleaning.
5.3 Disassembly and Reassembly of the Magnasol Filter Dissassembly
1. Grasp the frame with your thumbs on the handles at the corner of the assembly and pull outward
in opposite directions to separate the frame at the corner. Continue to open the frame (it will pivot at the opposite corner) until the outer screens and grid can be removed from the frame.
Step 2 - Separate the outer screens
and grid.
Step 1 - Grasp frame with thumbs on these handles and pull frame appart at corner.
2. Separate the outer screens and grid.
Cleaning
1. Clean the two frame pieces, outer screens, and grid using a good quality degreaser and hot water
from a spray nozzle. The groove in the seal frame pieces can be cleaned with the edge of a Scotch-Brite™ or similar cleaning pad.
5-5
Page 39
2. At each scheduled boil-out, disassemble the leaf filter assembly and place in the frypot being
boiled out. Follow the boil-out procedure in Section 6.3.2 of this manual.
3. Allow all filter assembly components to air dry or thoroughly dry with clean towels before
reassembling.
Reassembly
1. Place the two outer screens together and align their edges (see illustration below).
2. Insert the screens into one of the frame halves (it doesn’t matter which one). Ensure that the
fitting in the bottom screen is on the opposite side of the frame from the handle.
3. Slip the grid between the screens, ensuring that the grid is centered between the edges of the
screens.
4. Connect the other half of the frame at the corner opposite the handles and pivot the frame onto
the free edges of the screen.
Steps 1 and 2 - Stack outer screens and insert edges into fram e.
Step 3 - Insert grid between screens after screens have been positioned in frame.
Step 4 - Connect corner then pivot frame over free edges of screens.
Handle
5.4 Draining and Disposing of Waste Oil
When cooking oil is exhausted, the oil must be drained into the filter pan, SDU or other appropriate METAL container for transport to the disposal container or if a bulk oil system is installed, use the
bulk oil disposal system by selecting DISPOSE from the filter menu if the fryer is equipped with a 3000 (see page 4-13) and follow the prompts and instructions for disposing oil to the bulk oil system.
(For safe, convenient draining and disposal of used oil, Frymaster recommends the use of the Frymaster Shortening Disposal Unit (SDU) for JIB systems. The SDU is available through your local distributor.) NOTE: If using an SDU built before January 2004 the filter pan cover must be removed to allow the unit to be positioned beneath the drain. To remove the lid, lift up on the front edge and pull it straight out of the cabinet. Refer to the documentation furnished with your disposal unit for specific operating instructions. If a shortening disposal unit is not available, allow the oil to
cool to 100°F (38°C), then drain the oil into a METAL stockpot or similar METAL container.
5-6
Page 40
DANGER Draining and filtering of cooking oil must be accomplished with care to avoid the possibility of a serious burn caused by careless handling. The oil to be filtered is at or near 350°F (177°C). Ensure all hoses are connected properly and drain handles are in their proper position before operating any switches or valves. Wear all appropriate safety equipment when draining and filtering oil.
DANGER Allow oil to cool to 100°F (38°C) before draining into an appropriate METAL
container for disposal.
DANGER When draining oil into a disposal unit, do not fill above the maximum fill line located on the container.
1. Turn the computer power switch to the OFF position.
2. Position a METAL container with a sealable cover under the drainpipe. The METAL
container must be able to withstand the heat of the oil and hold hot liquids.
3. Follow the instructions for disposing of oil on page 4-13 if equipped with a 3000. Open the
drain valve slowly to avoid splattering. If the drain valve becomes clogged with food particles, use the Fryer’s Friend (poker-like tool) to clear the blockage.
DANGER NEVER attempt to clear a clogged drain valve from the front of the valve! Hot oil will rush out creating the potential for severe burns.
DANGER DO NOT hammer on the drain valve with the cleanout rod or other objects. Damage to the ball inside will result in leaks and will void the Frymaster warranty.
4. After draining the oil, clean all food particles and residual oil from the frypot. BE CAREFUL,
this material may still cause severe burns if it comes in contact with bare skin.
5. Ensure the drain valve is closed securely and fill the frypot with clean, filtered or fresh cooking
oil to the bottom OIL-LEVEL line.
5-7
Page 41
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 6: PREVENTATIVE MAINTENANCE
6.1 Cleaning the Fryer
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.
Never attempt to clean the fryer during the frying process or when the frypot is filled with hot oil. If water comes in contact with oil heated to frying temperature, it will cause spattering of the oil, which can result in severe burns to nearby personnel.
Use a commercial-grade cleaner formulated to effectively clean and sanitize food-contact surfaces. Read the directions for use and precautionary statements before use. Particular attention must be paid to the concentration of cleaner and the length of time the cleaner remains on the food-contact surfaces.
6.2 DAILY CHECKS AND SERVICE
6.2.1 Inspect Fryer and Accessories for Damage- Daily
Look for loose or frayed wires and cords, leaks, foreign material in frypot or inside cabinet, and any other indications that the fryer and accessories are not ready and safe for operation.
6.2.2 Clean Inside and Outside of the Fryer Cabinet – Daily
Clean inside the fryer cabinet with a dry, clean cloth. Wipe all accessible metal surfaces and components to remove accumulated oil and dust.
Clean outside the fryer cabinet with a clean, damp cloth soaked with detergent. Wipe with a clean, damp cloth.
6.2.3 Clean the Built-in Filtration System Daily
DANGER
DANGER
WARNING
WARNING
Never operate the filter system without oil in the system.
WARNING
Never use the filter pan to transport old oil to the disposal area.
WARNING
Never drain water into the filter pan. Water will damage the filter pump.
6–1
Page 42
There are no periodic preventive maintenance checks and services required for your FootPrint Pro Filtration System other than daily cleaning of the filter pan and associated components with a solution of hot water and detergent.
If you notice that the system is pumping slowly or not at all, verify that the filter pan screen is on the bottom of the filter pan, with the paper on top of the screen. (If the unit is equipped with a Magnasol filter screen rather than with the standard screen and paper system, verify that the O-ring on the bottom fitting of the screen in present and in good condition.) Verify that the two O-ring(s) on the fitting at the right front of the filter pan are present and in good condition.
6.3 WEEKLY CHECKS AND SERVICE
6.3.1 Clean Frypot and Heating Elements
DANGER Never operate the appliance with an empty frypot. The frypot must be filled to the fill line with water or oil before energizing the elements. Failure to do so will result in irreparable damage to the elements and may cause a fire.
6.3.2 Boiling Out the Frypot
After the fryer has been in use for a period of time, a hard film of caramelized oil will form on the inside of the frypot. This film should be periodically removed by following the boil out procedure that follows.
1. Before switching the fryer(s) ON, close the frypot drain valve(s), then fill the empty frypot with
a mixture of cold water and detergent. Follow instructions on detergent container when mixing.
2. For fryers equipped with 3000 controllers, program the controller for boil-out as described on
page 4-14. For fryers equipped with CM 3.5 controllers, program the controller for boil-out as described in the separate Frymaster Fryer Controllers User’s Manual.
3. Simmer the solution for 30 minutes to one hour. Do not allow the water level to drop below the
bottom oil-level line in the frypot during the boil-out operation.
DANGER Never leave the fryer unattended during the boil-out process. If the boil-out solution boils over, turn the fryer off immediately and let the solution cool for a few minutes before resuming the process.
4. Turn the fryer ON/OFF switch(s) to the OFF position.
5. Add two gallons (7.6 liters) of water. Drain out the solution and clean the frypot(s) thoroughly.
WARNING Do not drain boil-out solution into a shortening disposal unit (SDU), a built-in filtration unit, or a portable filter unit. These units are not intended for this purpose, and will be damaged by the solution.
6. Refill the frypot(s) with clean water. Rinse the frypot(s) twice, drain and dry with a clean towel.
Thoroughly remove all water from the frypot and elements before refilling the frypot with oil.
6–2
Page 43
DANGER Remove all drops of water from the frypot before filling with oil. Failure to do so will cause spattering of hot liquid when the oil is heated to cooking temperature.
6.3.3 Clean Detachable Parts and Accessories – Weekly
Wipe all detachable parts and accessories with a clean, dry cloth. Use a clean cloth saturated with detergent to remove accumulated carbonized oil on detachable parts and accessories. Rinse the parts and accessories thoroughly with clean water and wipe dry before reinstalling.
6.4 MONTHLY CHECKS AND SERVICE
6.4.1 Check the Controller Set Point Accuracy
(This check applies only to units equipped with 3000 or CM3.5 Controllers.)
1. Insert a good-grade thermometer or pyrometer probe into the oil, with the end touching the fryer
temperature-sensing probe.
2. When the 3000 controller displays “DROP” or the CM3.5 displays a product or dashed lines
(indicating that the frypot contents are within the cooking range), press the switch once to display the temperature and setpoint of the cooking oil as sensed by the temperature probe. The setpoint is the temperature with a dot after it.
3. Note the temperature on the thermometer or pyrometer. All three readings should be within
± 5ºF (2ºC) of each other. If not, contact an Factory Authorized Servicer for assistance.
6.5 Annual/Periodic System Inspection
This appliance should be inspected and adjusted periodically by qualified service personnel as part of a regular kitchen maintenance program.
Frymaster recommends that this appliance be inspected at least annually by a Factory Authorized Servicer as follows:
6.5.1 Fryer
Inspect the cabinet inside and out, front and rear for excess oil.
Verify that the heating element wires are in good condition and that leads have no visible fraying
or insulation damage and that they are free of oil.
Verify that heating elements are in good condition with no carbon/caramelized oil build-up.
Inspect the elements for signs of extensive dry-firing.
Verify that the tilt mechanism is working properly when lifting and lowering elements, and that
the element wires are not binding and/or chafing.
Verify the heating-element amp-draw is within the allowed range as indicated on the appliance’s
rating plate.
6-3
Page 44
Verify that the temperature and high-limit probes are properly connected, tightened and
functioning properly, and that mounting hardware and probe guards are present and properly installed.
Verify that component box and contactor box components (i.e. controller/controller, relays,
interface boards, transformers, contactors, etc.) are in good condition and free from oil and other debris.
Verify that component box and contactor box wiring connections are tight and that wiring is in
good condition.
Verify that all safety features (i.e. contactor shields, drain safety switches, reset switches, etc.)
are present and functioning properly.
Verify that the frypot is in good condition and free of leaks and that the frypot insulation is in
serviceable condition.
Verify that all wiring harnesses and connections are tight and in good condition.
6.5.2 Built-In Filtration System
Inspect all oil-return and drain lines for leaks and verify that all connections are tight.
Inspect the filter pan for leaks and cleanliness. If there is a large accumulation of crumbs in the
crumb basket, advise the owner/operator that the crumb basket should be emptied into a fireproof container and cleaned daily.
Verify that all O-rings and seals (including those on the quick-disconnect fittings) are present
and in good condition. Replace O-rings and seals if worn or damaged.
Check filtration system integrity as follows:
Verify that filter pan cover is present and properly installed.
With the filter pan empty, place each filter handle, one at a time, in the ON position. Verify that
the pump activates and that bubbles appear in the oil of the associated frypot.
Close all oil return valves (i.e., place all filter handles in the OFF position). Verify proper
functioning of each oil return valve by activating the filter pump using the lever on one of the oil return handle microswitches. No air bubbles should be visible in any frypot.
Verify that the filter pan is properly prepared for filtering, then drain a frypot of oil heated to
350°F (177°C) into the filter pan and close the frypot drain valve. Place the filter handle in the ON position. Allow all oil to return to the frypot, indicated by bubbles in the oil. Return the filter handle to the OFF position. The frypot should have refilled in no more than 2 minutes and 30 seconds.
6–4
Page 45
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 7: OPERATOR TROUBLESHOOTING
7.1 Introduction
This section provides an easy reference guide to some of the common problems that may occur during the operation of this equipment. The troubleshooting guides that follow are intended to help correct, or at least accurately diagnose, problems with this equipment. Although the chapter covers the most common problems reported, you may encounter problems that are not covered. In such instances, the Frymaster Technical Services staff will make every effort to help you identify and resolve the problem.
When troubleshooting a problem, always use a process of elimination starting with the simplest solution and working through to the most complex. Never overlook the obvious – anyone can forget to plug in a cord or fail to close a valve completely. Most importantly, always try to establish a clear idea of why a problem has occurred. Part of any corrective action involves taking steps to ensure that it doesn’t happen again. If a controller malfunctions because of a poor connection, check all other connections, too. If a fuse continues to blow, find out why. Always keep in mind that failure of a small component may often be indicative of potential failure or incorrect functioning of a more important component or system.
Before calling a service agent or the Frymaster HOTLINE (1-800-24-FRYER):
Verify that electrical cords are plugged in and that circuit breakers are on.
Verify that frypot drain valves are fully closed.
Have your fryer’s model and serial numbers ready to give to the technician assisting
you.
DANGER Hot oil will cause severe burns. Never attempt to move this appliance when filled with hot oil or to transfer hot oil from one container to another.
DANGER This equipment should be unplugged when servicing, except when electrical circuit tests are required. Use extreme care when performing such tests.
This appliance may have more than one electrical power supply connection point. Disconnect all power cords before servicing.
Inspection, testing, and repair of electrical components should be performed by an authorized service agent only.
7-1
Page 46
7.2 Troubleshooting
7.2.1 Controller and Heating Problems
Problem Probable Causes Corrective Action
A. Press the ON/OFF switch to turn the
controller on.
B. Verify controller power cord is
plugged in and that circuit breaker is not tripped.
No Display on
controller.
A. Controller not turned on. B. No power to the fryer. C. Failed controller or other component.
C. Call your FAS for assistance.
Controller displays
IS VAT FULL?
YES NO after a
filtration.
Controller displays
CHANGE FILTER
PAPER?
Fryer repeatedly cycles
on and off when first
started.
A. Normal operation after a filtration. B. Oil may be in the filter pan.
Daily filter paper change prompt has occurred.
Fryer is in melt cycle.
A. Press S (YES) if the vat is full,
otherwise press T (NO).
B. Follow controller prompts to clear
message. If problem persists, call your FAS for assistance.
Press S (YES), follow prompts and change the filter paper.
This is normal operation. This will continue until the fryer temperature reaches 180ºF (82ºC).
A. Verify that all power cords are fully
seated in the receptacles, locked into place and that a circuit breaker is not tripped
B. Close drain. C. Call your FAS for assistance
Fryer does not heat.
A. Main power cord not plugged in. B. Drain is open. C. Controller has failed. D. One or more other components have
failed.
D. Call your FAS for assistance.
Fryer heats until high-
limit trips with heat
indicator ON.
Fryer heats until high-
limit trips without heat
indicator ON.
Temperature probe or controller has failed.
Contactor or controller has failed Call your FAS for assistance.
Turn fryer off and call your FAS for assistance.
7.2.2 Error Messages and Display Problems
Problem Probable Causes Corrective Action
Fryers using the 3000 controller can toggle between F° to C° by pressing the 9 button until Product setup is displayed.
Controller display is in
wrong temperature
scale (Fahrenheit or
Celsius).
Controller displays
HEATING
FAILURE.
Incorrect display option programmed.
Failed controller, failed interface board, open high-limit thermostat.
Press X to scroll to Tech Mode and press
9. Enter 1658. Press the scan button. The controller displays OFF. Turn the controller on to check temperature. If the desired scale is not displayed, repeat. Fryers using the CM3.5 should refer to the separate Fryer Controllers User’s Manual. Turn the fryer off and on again. If issue persists call your FAS for assistance.
7-2
Page 47
Problem Probable Causes Corrective Action
Controller displays
or LOw temp.
Controller displays
hot or HOT-hi-1.
Controller displays Hi
CM III.5 displays HI.
Controller displays
hELP HI-2 or High
limit failure.
Controller displays
TEMP PROBE
FAILURE or PROB.
lo
temp.
Frypot temperature has dropped more than 21ºF (12ºC) for CM3.5 or 30°F (17°C) for 3000 controllers below setpoint in idle mode or 45°F (25°C) in cook mode. Frypot temperature is more than 410ºF (210ºC) or, in CE countries, 395ºF (202ºC).
Frypot temperature is more than 40 ºF (4ºC).
Fryer is more than 21ºF (12ºC) above setpoint.
A. Open drain valve B. Failed high limit
Problem with the temperature measuring circuitry including the probe or damaged controller wiring harness or connector.
This display is normal for a short while if a large batch of frozen product is added to the frypot or if the fryer is not heating properly. If the issue persists call your FAS for assistance. Shut the fryer down immediately and call your FAS for assistance.
Press the power button to turn off fryer and let cool before returning power to fryer. If issue continues call your FAS for assistance. This display is normal if the fryer setpoint has been changed to a lower temperature. The display should revert to the normal four dashes when the frypot temperature cools to the setpoint. If the setpoint has not been changed, this indicates a problem with the temperature control circuitry. Turn the fryer off and call FAS.
A. Close the drain valve. B. Shut the fryer down immediately and
call your FAS for assistance.
Shut the fryer down and call your FAS for assistance.
Verify that both the main power cord and
Heating indicator is on,
but fryer is not heating.
Controller displays
RECOVERY
FAULT/ YES and
alarm sounds.
Controller displays
SERVICE
REQUIRED followed
by an error message.
Three phase power cord unplugged or circuit breaker is tripped.
Recovery time exceeded maximum time limit.
An error has occurred which requires a service technician.
120V is fully seated in its receptacle, locked into place and that circuit breaker is not tripped If the problem continues call your FAS for assistance.
Clear error and silence the alarm by pressing the S (YES) button. Maximum recovery time for electric is 1:40. If this error continues call your FAS for assistance.
Press the S (YES) button if the issue is fixed or press the T (NO) button to continue cooking and call your FAS for assistance. In some cases, cooking may not be available.
7.2.3 Basket Lift Problems
PROBLEM PROBABLE CAUSES CORRECTIVE ACTION
Basket lift movement is
jerky and/or noisy.
Basket lift rods need lubrication.
Apply a light coating of Lubriplate similar lightweight white grease to the rod and bushings.
or
7-3
Page 48
7.2.4 Filtration Problems
Problem Probable Causes Corrective Action
Fryer filters after each
cook cycle.
Filter menu functions
won’t start.
Controller displays
WAIT FOR FILTER.
Filter prompt setting incorrect.
Temperature too low.
Another function is still in process.
Change the filter prompt setting.
Ensure fryer is at setpoint before starting; ensure the controller is ON.
Wait until the previous function ends to start another filtration cycle.
A. Verify that the power cord is fully
plugged in and the circuit breaker is not tripped.
Filter pump won't start
or pump stops during
filtering.
A. Power cord is not plugged in or circuit
breaker is tripped.
B. Pump motor has overheated causing
the thermal overload switch to trip.
C. Blockage in filter pump.
B. If the motor is too hot to touch for
more than a few seconds, the thermal overload switch has probably tripped. Allow the motor to cool at least 45 minutes then press the Pump Reset Switch. (See page 5-
4)
C. Call your FAS for assistance.
Remove the oil from the filter pan and replace the filter paper, ensuring that the filter screen is in place under the paper. Verify that O-rings are present and in good condition on filter pan connection
Filter Pump runs, but
oil return is very slow.
Improperly installed or prepared filter pan components or cold oil.
fitting.
Controller displays
OIL IN DRAIN
PAN / CONFIRM
7.2.5 Auto Top-Off Problems
Drain valve open or possibility that oil is in drain pan.
Press S (CONFIRM) and follow directions for FILL VAT FROM DRAIN PAN.
Problem Probable Causes Corrective Action
Frypots top off cold.
Frypots won’t top off.
One vat doesn’t top off.
Incorrect setpoint. Ensure setpoint is correct.
A. Fryer temperature must be at
setpoint.
B. Ensure that the oil in the JIB is
A. Fryer temperature too low. B. Oil is too cold. C. JIB out of oil D. Service required error exists
above 70°F (21°C).
C. Ensure the JIB is not out of oil and
supply line is in the JIB. Replace JIB and press the S button when
prompted to reset top off system. If problem persists call your FAS for assistance.
D. Call your FAS for assistance.
A. Filter error exists. B. Service required error exists C. Solenoid, pump, pin issue, RTD or
ATO issue.
A. Clear filter error properly. If
problem persists call your FAS for
assistance.
B. Call your FAS for assistance. C. Call your FAS for assistance.
7-4
Page 49
Problem Probable Causes Corrective Action
Controller displays
TOPOFF OIL
EMPTY /
CONFIRM
Top off system out of oil.
7.2.6 Error Log Codes (For 3000 Controller Only)
Code ERROR MESSAGE
E03 ERROR TEMP PROBE FAILURE TEMP Probe reading out of range E04 HI 2 BAD High limit reading is out of range. E05 HOT HI 1 High limit temperature is past more than 410°F
(210°C), or in CE countries, 395°F (202°C)
E06 HEATING FAILURE A component has failed in the high limit circuit
such as controller, interface board, contactor or
open-high limit. E07 ERROR MIB SOFTWARE Internal MIB software error E08 ERROR ATO BOARD ATO board connection lost; ATO board failure E15 ERROR MIB BOARD Cooking controller detects MIB connections lost;
Check software version on each controller. If
versions are missing, check CAN connections
between each controller; MIB board failure E17 ERROR ATO PROBE ATO RTD reading out of range E20 INVALID CODE LOCATION SD card removed during update E21 CHANGE FILTER PAPER 25 hour timer has expired. Change filter paper
and follow prompts. E22 OIL IN PAN ERROR
Oil may be present in the filter pan. E25 RECOVERY FAULT Recovery time exceeded maximum time limit.
Recovery time should not exceed 1:40 for
electric. E27 LOW TEMP ALARM Oil temperature has dropped 30°F (17°C) lower
than setpoint in idle mode or 45°F (25°C) in cook
mode. (This message may appear if a product is
dropped and the start cook button is not pressed
immediately or if too large of cook loads are
dropped.)
Fill top off system with oil and press the S (CONFIRM) button.
EXPLANATION
7-5
Page 50
OCF30™ SERIES ELECTRIC FRYERS
CHAPTER 8: WIRING DIAGRAMS

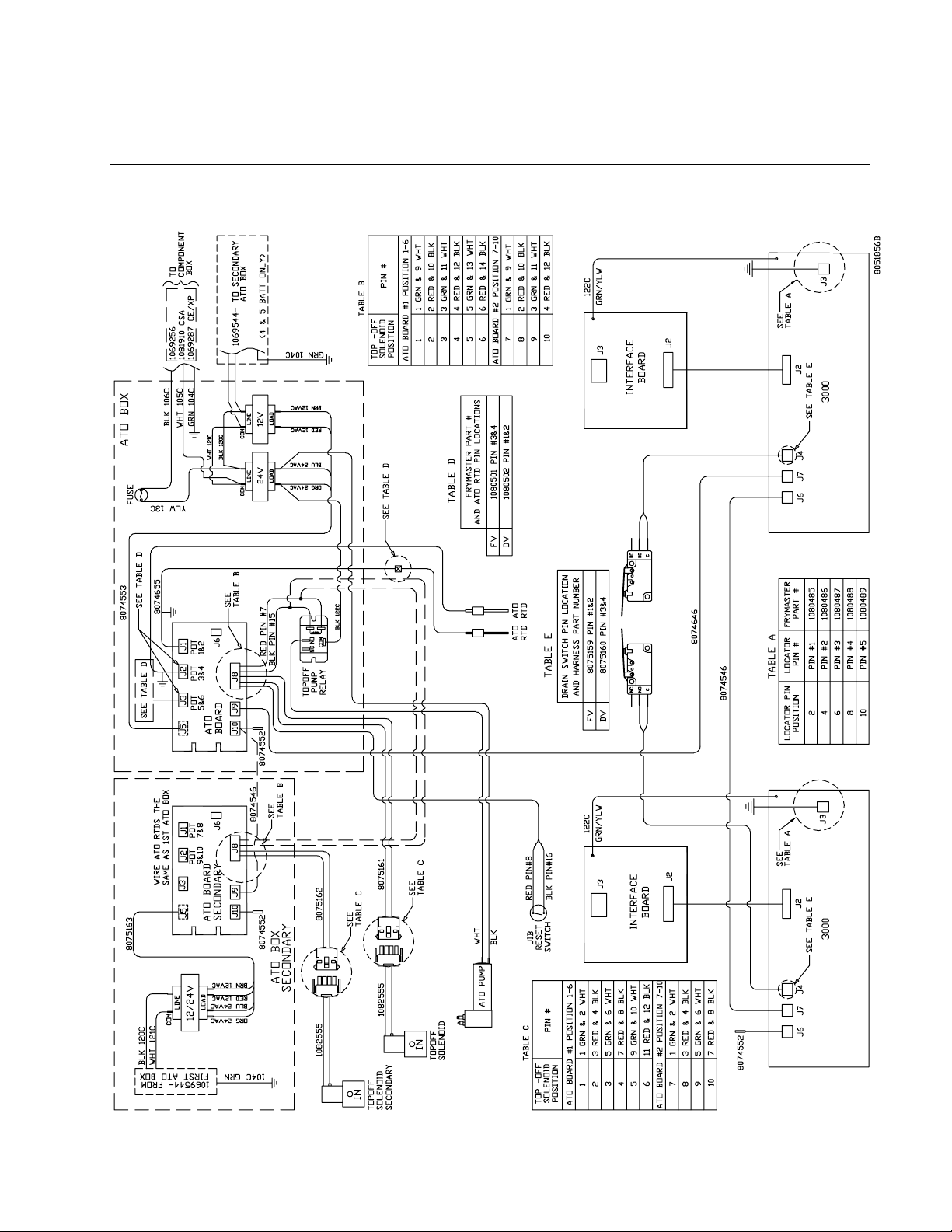

8.1 OCF30™ Series Simplified Wiring with 3000 Controller
8-1
Page 51
8.2 Component Wiring with 3000 controller (Domestic)
8-2
Page 52
8.3 Component Wiring with CM3.5 controller (Domestic)
8-3
Page 53
8.4 Component Wiring with CM3.5 Controller (CE)
8-4
Page 54
8.5 Component Wiring with CM3.5 Controller (CSA)
8-5
Page 55
8.6 Contactor Box – Delta Configuration
8-6
Page 56
8.7 Contactor Box – WYE Configuration
8-7
Page 57
THIS PAGE INTENTIONALLY LEFT BLANK
Page 58
Frymaster, L.L.C., 8700 Line Avenue, Shreveport, Louisiana 71106
TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 (Tech Support Fax) 1-318-219-7135
PRINTED IN THE UNITED STATES
SERVICE HOTLINE
1-800-551-8633
819-6685
MAR 2011
Loading...
