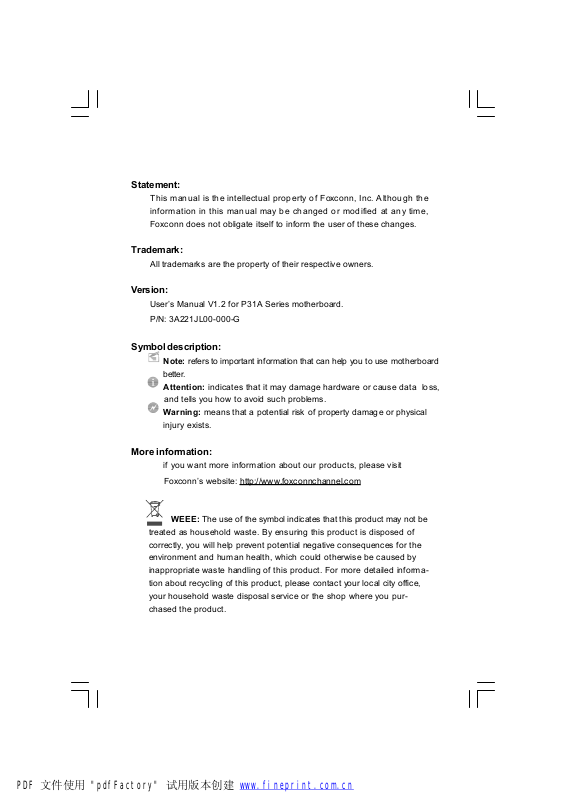

Foxconn P31A User Manual

Statement:

This manual is the intellectual property of Foxconn, Inc. Although the

information in this manual may be changed or modified at any time,

Foxconn does not obligate itself to inform the user of these changes.

Trademark:

All trademarks are the property of their respective owners.

Version:

User’s Manual V1.2 for P31A Series motherboard.

P/N: 3A221JL00-000-G

Symbol description:

Note: refers to important information that can help you to use motherboard

better.

Attention: indicates that it may damage hardware or cause data loss,

and tells you how to avoid such problems.

Warning: means that a potential risk of property damage or physical

injury exists.

More information:

if you want more information about our products, please visit

Foxconn’s website: http://www.foxconnchannel.com

WEEE: The use of the symbol indicates that this product may not be

treated as household waste. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed informa-

tion about recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you pur-

chased the product.

Declaration of conformity

HON HAI PRECISION INDUSTRY COMPANY LTD

66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,

TAIPEI HSIEN, TAIWAN, R.O.C.

declares that the product

Motherboard

P31A/P31A-S/P31A-U/P31A-G

is in conformity with

(reference to the specification under which conformity is declared in

accordance with 89/336 EEC-EMC Directive)

þ EN 55022: 1998/A2 Limits and methods of measurements of radio disturbance

characteristics of information technology equipment

þ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)

Part 3: Limits Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase)

þ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)

Part 3: Limits Section 2: Limits of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current <= 16A

þ EN 55024/A2:2003 Information technology equipment-Immunity characteristics limits

and methods of measurement

Signature : Place / Date : TAIPEI/2009

Printed Name : James Liang Position/ Title : Assistant President

Declaration of conformity

Trade Name: FOXCONN

Model Name: P31A/P31A-S/P31A-U/P31A-G

Responsible Party: PCE Industry Inc.

Address: 458 E. Lambert Rd.

Fullerton, CA 92835

Telephone: 714-738-8868

Facsimile: 714-738-8838

Equipment Classification: FCC Class B Subassembly

Type of Product: Motherboard

Manufacturer: HON HAI PRECISION INDUSTRY

COMPANY LTD

Address: 66 , CHUNG SHAN RD., TU-CHENG

INDUSTRIAL DISTRICT, TAIPEI HSIEN,

TAIWAN, R.O.C.

Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Tested to comply with FCC standards.

Signature : Date : 2009

Table of Contents

Chapter

Specifications............................................................................................ 2

Jumpers ...................................................................................................18

Chapter

Enter BIOS Setup.................................................................................21

Main menu............................................................................................21

1. System Information......................................................................22

2. Fox Central Control Unit..............................................................24

3. Advanced BIOS Features.............................................................25

4. Integrated Periphreals.................................................................26

5. Power Management Setup..........................................................27

6. PnP/PCI Configuration.................................................................29

7. PC Health Status..........................................................................29

8. Load Optimized Defaults.............................................................30

9. Set Supervisor Password............................................................30

10. Set User Password....................................................................30

11. Save & Exit Setup........................................................................31

12. Exit Without Saving.....................................................................31

Chapter

Main Features

BIOS Description

Directions for Bundled Software

FOX ONE...............................................................................................33

FOX LiveUpdate...................................................................................36

FOX LOGO............................................................................................38

FOX DMI................................................................................................39

Attention:

1.Attach the CPU and heatsink using silica gel to ensure full contact.

2.It is suggested to select high-quality, certified fans in order to avoid damaging the motherboard and CPU due to high temperature.

3. Never turn on the computer if the CPU fan is not properly installed.

4.Ensure that the DC power supply is turned off before inserting or removing expansion cards or other peripherals, especially when you insert or remove a memory module. Failure to switch off the DC power supply may result in serious damage to your system or

memory module.

Attention:

We cannot guarantee that your system will operate normally while

over-clocked. Normal operation depends on the over-clock capacity

of your device.

Attention:

Since BIOS programs are upgrated from time to time, the BIOS

description in this manual is just for reference. We do not guarantee

that the content of this manual will remain consistent with the actual

BIOS version at any given time in the future.

Attention:

The pictures of objects used in this manual are just for your reference.

Please refer to the physical motherboard.

Attention:

Please visit the Foxconn global English website (http://www.foxconn

channel.com) to download the latest BIOS file and drivers for this

motherboard.

Chapter

Thank you for buying Foxconn’s P31A Series motherboard. This

series of motherboard is one of our new products, and offers su-

perior performance, reliability and quality, at a reasonable price.

This motherboard adopts the advanced Intel® P31/G31 + ICH7

chipset, providing a computer platform with high integration, pow-

erful compatibility and high performance-price ratio for users.

This chapter includes the following information:

v Specifications

v Jumpers

Chapter 1 Main Features

Specifications - - English

Size

CPU

Chipset

Front Side

Bus

Memory

Expansion Slots

Audio

LAN

·ATX form factor : 305mm x 203mm

· LGA775 socket for Intel

Extreme, CoreTM 2 Duo, Pentium® 4 Extreme Edition,

Pentium® D, Pentium® 4 processors

· Supports Hyper-Threading Technology

·Northbridge: Intel® P31 / G31(P31A-G)

·Southbridge: Intel® ICH7

· 1333 /1066 /800 MHz

·2 x 240-pin DIMM slots

·Supports Dual-Channel DDR2 1066(OC)/800/667

·Supports up to 4GB

·1 x PCI Express x16 slot

·2 x PCI Express x1 slots

·3 x PCI slots

· Realtek 6-channel Audio CODEC / Realtek 8-channel

Audio CODEC

·Supports S/PDIF output, Jack-Sensing function,Intel

High Definition Audio

·Broadcom 10/100 Mb/s LAN Controller / Broadcom

Gigabit LAN Controller

CoreTM 2 Quad, CoreTM 2

Storage

Rear Panel I/O

· 2 x Ultra DMA 100/66 devices

· 4 xSATA 300MB/s devices

·1 x PS/2 Mouse Port

·1 x PS/2 Keyboard Port

·1 x Serial Port(COM1)

·1 x Serial Port(COM2) (optional)

·1 x Parallel Port

·4 x USB 2.0 Ports

·1 x RJ45 LAN Port

·6/8-channel Audio Ports

(continued on the next page)

Chapter 1 Main Features

Internal I/O

Connectors

Support CD

·2 x USB 2.0 headers(supports 4 USB 2.0 ports)

·4 x SATA connectors

·1 x Floppy connector

·1 x IDE connector

·1 x Chassis intruder header(INTR)

·1 x CD_IN header

·1 x Speaker header

·1 x S/PDIF_OUT header

·1 x Front Audio connector

·1 x 24-pin ATX Power Connector

·1 x 4-pin ATX_12V Power Connector

·1 x IrDA header

·1 x CPU Fan connector

·1 x System Fan connector

·1 x NB Fan connector

·Front panel connector

· Driver

· Utility

·Specifications are subject to change without notice

第一章

主要性能

产品规格- -简体中文

尺寸

中央处理器

芯片组

系统总线

内存

扩展槽

音频

LAN

· ATX 结构: 305mm x 203mm

· 支持采用 LGA775 封装的 Intel® CoreTM 2

Quad,CoreTM 2 Extreme,CoreTM 2 Duo,Pentium 4 Extreme Edition,Pentium® D,Pentium® 4,处理器

· 支持 Hyper-Threading 技术

·北桥：Intel® P31/G31(P31A-G)

·南桥：Intel® ICH7

·1333/1066/800 MHz

·2 个 240针脚内存插槽

· 支持双通道DDR2 1066(OC)/800/667

· 内存总容量最大可达 4GB

·1 个 PCI Express x16 插槽

·2 个 PCI Express x1 插槽

·3 个 PCI 插槽

·Realtek 6 声道音频编解码器 / Realtek 8 声道音频编解码器

·支持 S/PDIF 输出,Jack-Sensing 功能, Intel

High Definition Audio

·Broadcom 10/100Mb/s LAN/Broadcom Gigabit LAN

存储

后面板I/O

· 2 个 Ultra DMA 100/66 设备

· 4 个 SATA 300MB/s 设备

·1 个 PS/2 鼠标接口

·1 个 PS/2 键盘接口

·1 个串行接口（COM1）

·1 个串行接口（COM2）（选配）

·1 个并行接口

·4 个 USB 2.0 接口

·1 个 RJ45 网络接口

·6/8声道音频接口

(下页继续)

第一章

主要性能

内置连接器

实用程序光盘

·规格若有任何更改，恕不另行通知

·2 个 USB 2.0 接头（提供 4 USB 2.0 接口）

·4 个 SATA 接头

·1 个软驱接口

·1 个 IDE 接口

·1 个机箱开启侦测接头

·1 个 CD_IN 接头

·1 个 Speaker 接头

·1 个前置音频接头

·1 个 S/PDIF_OUT 接头

·1 个 24 针ATX 电源接口

·1 个 4 针 ATX_12V 电源接口

·1 个红外线通讯接头

·1 个 CPU 风扇接头

·1 x 系统风扇接头

·1 x 北桥风扇接头

·前端面板接头

·驱动程序

·应用程序

Kapitel 1 Hauptmerkmale

Technische Daten--Deutsch

Größe

CPU

Chipsatz

Front Side Bus

Speicher

Erweiterungs steckplätze

Audio

LAN

·ATX-Formfaktor: 305 mm x 203 mm

· LGA775-Sockel für Intel®_ CoreTM 2 Quad-, CoreTM 2

Extreme-, CoreTM 2 Duo-, Pentium®_4 Extreme Edition-, Pentium®_D-, Pentium®_4-Prozessoren

· Unterstützt Hyper-Threading-Technologie

·Northbridge: Intel® P31 / G31(P31A-G)

·Southbridge: ICH7

·1333/1066/800 MHz

·2 x 240-polige DIMM-Steckplätze

· Unterstützt Dual-Channel DDR2 1066(OC)/800/667

·Unterstützt bis 4 GB

·1 x PCI Express x16-Steckplatz

·2 x PCI Express x1-Steckplätze

·3 x PCI-Steckplätze

· Realtek 6-Kanal-Audio CODEC / Realtek 8-Kanal-Audio

CODEC

·Unterstützt S/PDIF-Ausgang, Anschlusserkennung, Intel®

High Definition Audio

·Broadcom 10/100 Mb/s / Broadcom Gigabit LAN

Speichergeräte

I/O-Anschlüsse an

der Rückseite

· 2 Ultra DMA 100/66-Geräte

· 4 x SATA-Geräte, 300 MB/s

·1 x PS/2-Mausanschluss

·1 x PS/2-Tastaturanschluss

·1 x Seriellanschluss(COM1)

·1 x Seriellanschluss(COM2)(optional)

·1 x Parallelanschluss

·4 x USB 2.0-Ports

·1 x RJ45-LAN-Port

·6/8-Kanal-Audio-Ports

(Fortsetzung auf der nächsten Seite)

Kapitel 1 Hauptmerkmale

Interne I/OAnschlüsse

Support-CD

·2 x USB 2.0-Anschlussleisten (Unterstützung für 4 USB

2.0-Ports)

·4 x SATA-Anschlüsse

·1 x Diskettenlaufwerkanschluss

·1 x IDE-Anschluss

·1 x Gehäuse-offen-Anschluss (INTR)

·1 x CD_IN-Anschluss

·1 x Lautsprecher-Anschluss

·1 x S/PDIF_OUT-Anschluss

·1 x Front-Audio-Anschluss

·1 x ATX Power, 24-polig-Anschluss

·1 x ATX_12V Power, 4-polig-Anschluss

·1 x IrDA-Anschluss

·1 x CPU-Lüfter-Anschluss

·1 x Systemlüfter-Anschluss

·1 x NB-Lüfter-Anschluss

·Frontbedienfeld-Anschluss

· Treibe

· Dienstprogramme

·Angaben können sich ohne Vorankündigung ändern.

Capítulo 1 Principales funciones

Características- -Español

Tamaño

CPU

Conjunto de chips

Bus frontal

Memoria

Ranuras de expansión

Audio

·ATX factor de forma: 305mm x 203mm

· Conector LGA775 para procesadores Intel® CoreTM 2

Quad, CoreTM 2 Duo, CoreTM 2 Extreme, Pentium® 4 Extreme Edition, Pentium® 4, Pentium® D

· Compatible con Hyper-Threading

·Northbridge: Intel® P31 / G31(P31A-G)

·Southbridge: ICH7

·1333/1066 /800 MHz

·2 x ranuras DIMM de 240-pin

·Compatible DDR 2 de doble canal 1066(OC)/800/667

·Compatible con hasta 4GB

·1 x ranura PCI Express x16

·2 x ranuras PCI Express x1

·3 x ranuras PCI

· Realtek 6 canales Audio CODEC / Realtek 8 canales

Audio CODEC

·Compatible salida S/PDIF, sensible a conexión, sonido Intel® de Alta Definición

LAN

Almacenamiento

Panel de E/S

trasero

·Broadcom 10/100 Mb/s LAN / Broadcom Gigabit LAN

· 2 x dispositivos Ultra DMA 100/66

· Dispositivo 4 SATA 300MB/s

·1 x Puerto de ratón PS/2

·1 x Puerto de teclado PS/2

·1 x Puerto Serie(COM1)

·1 x Puerto Serie(COM2)(opcional)

·1 x Puerto Paralelo

·4 x Puertos USB 2.0

·1 x Puerto LAN RJ45

·Puertos 6/8 canales Audio

(continú a en la página siguiente)

+ 31 hidden pages
