Follett 12HI400A User Manual
Symphony™ ice and water dispenser
detail sheet

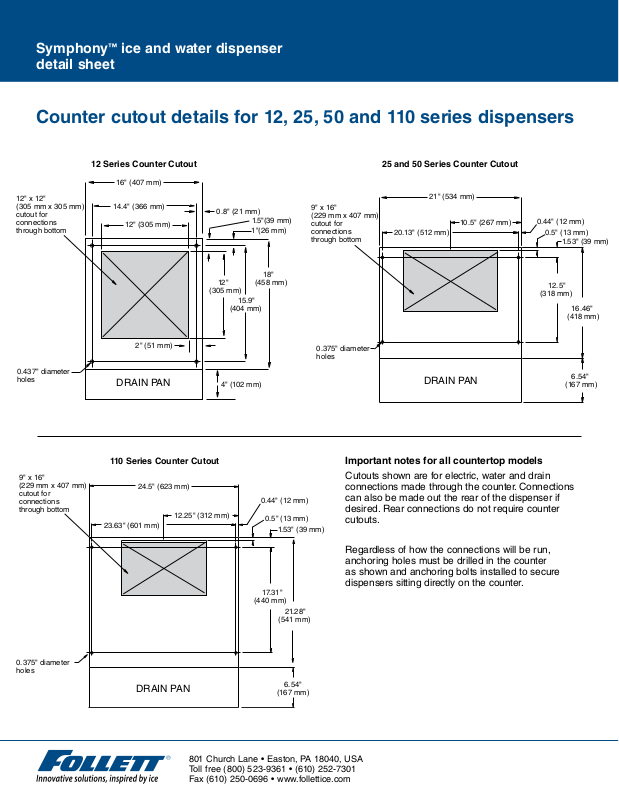

Counter cutout details for 12, 25, 50 and 110 series dispensers
12" x 12"
(305 mm x 305 mm)
cutout for
connections
through bottom
0.437" diameter
holes
12 Series Counter Cutout
16" (407 mm)
14.4" (366 mm)
12" (305 mm)
2" (51 mm)
DRAIN PAN
0.8" (21 mm)
12"
(305 mm)
15.9"
(404 mm)
4" (102 mm)
1.5"(39 mm)
1"(26 mm)
18"
(458 mm)
9" x 16"
(229 mm x 407 mm)
cutout for
connections
through bottom
0.375" diameter
holes
25 and 50 Series Counter Cutout
21" (534 mm)
10.5" (267 mm)
20.13" (512 mm)
DRAIN PAN
0.44" (12 mm)
0.5" (13 mm)
1.53" (39 mm)
12.5"
(318 mm)
16.46"
(418 mm)
6.54"
(167 mm)
9" x 16"
(229 mm x 407 mm)
cutout for
connections
through bottom
0.375" diameter
holes
110 Series Counter Cutout
24.5" (623 mm)
12.25" (312 mm)
23.63" (601 mm)
DRAIN PAN
0.44" (12 mm)
0.5" (13 mm)
1.53" (39 mm)
17.31"
(440 mm)
21.28"
(541 mm)
6.54"
(167 mm)
Important notes for all countertop models
Cutouts shown are for electric, water and drain
connections made through the counter. Connections
can also be made out the rear of the dispenser if
desired. Rear connections do not require counter
cutouts.
Regardless of how the connections will be run,
anchoring holes must be drilled in the counter
as shown and anchoring bolts installed to secure
dispensers sitting directly on the counter.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Wall mount specics and clearance information for all models
Important notes for wall mounted dispensers
• No drain pan is provided since the dispenser is intended to be
installed above a sink. (Contact Follett ® if a drain pan is desired.)
™
• SensorSAFE
infrared dispensing is standard
D1
• 12HI400A bracket requires 13" (331 mm) on center mounting for
securing and will require wall bracing in most applications
H
• 25 and 50 series brackets secure to 16" (407 mm) on center studs
with 1" (26 mm) left to right alignment possible
Minimum sink width
Model Centered under dispenser Centered under chutes
12 series 16" (407 mm) 11.5" (293 mm)
25/50 series 21" (534 mm) 14.5" (369 mm)
D2
min. distance to
front of sink
D3
sink
Recommended
mounting height
above counter
18" (458 mm) –
all models
Wall mount model dimensions
Model Width D1 D2 D3 Height
12HI400A* 16.0" (407 mm) 23.0" (585 mm) 18.50" (470 mm) 24.5" (623 mm) 32.5" ( 825 mm)
25HR400A/W* 21.0" (534 mm) 24.0" (610 mm) 17.00" (432 mm) 23.0" (584 mm) 26.5" ( 674 mm)
25HI400A 21.5" (547 mm) 24.5" (623 mm) 17.00" (432 mm) 23.0" (584 mm) 36.5" ( 928 mm)
25HT400A/W 21.0" (534 mm) 24.0" (610 mm) 17.00" (432 mm) 23.0" (584 mm) 44.0" (1118 mm)
50HR400A/W* 21.0" (534 mm) 24.0" (610 mm) 17.00" (432 mm) 23.0" (584 mm) 30.5" ( 775 mm)
50HI400A 21.5" (547 mm) 24.5" (623 mm) 17.00" (432 mm) 23.0" (584 mm) 40.5" (1029 mm)
50HT400A/W 21.0" (534 mm) 24.0" (610 mm) 17.00" (432 mm) 23.0" (584 mm) 48.0" (1220 mm)
* Includes alternate voltage models. For 220 V, 60 Hz, use “C” as the prex to the model number. For 230 V, 50 Hz, use “E” as the prex.
For example, E12HI400A.
Clearance requirements – all models
Model Required ventilation clearance Recommended clearance for service
Air-cooled Water-cooled Air- and Water-cooled
12CI400A*
12HI400A*
25CI400A/W
25HI400A
25CT400A/W*
25CR400A/W*
25HT400A/W*
25HR400A/W*
50CI400A/W
50HI400A
50CT400A/W*
50CR400A/W*
50HT400A/W*
50HR400A/W*
* Includes alternate voltage models. For 220 V, 60 Hz, use “C” as the prex to the model number.
For 230 V, 50 Hz, use “E” as the prex. For example, E12HI400A.
SensorSAFE and Symphony are trademarks of Follett Corporation.
Follett is a registered trademark of Follett Corporation, registered in the US.
6" (153 mm) at top,
6" (153 mm) right side
3" (77 mm) each side zero
n/a 12" (305 mm) at top
12" (305 mm) at top,
6" (153 mm) left side
6" (153 mm) at top zero 12" (305 mm) at top
3" (77 mm) each side zero
12" (305 mm) on top,
6" (153 mm) left side
6" (153 mm) at top zero 12" (305 mm) at top
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
© Follett Corporation
Form #2075
230 V only
115 V only115 V only
08/10
