3PR, 3PG
Point Laser Levels
Users Manual
August 2016
© 2016 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is three years and
begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to the original buyer or end-user
customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in Fluke's opinion, has been misused,
altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate
substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant
that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this war
different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid theE
applicable international price. Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country
is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the pu
returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your n
service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following
warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure was caused by neglect, misuse,
contamination, alteration, accident, or abnormal condition of operation or handling, including overvoltage failures caused by use outside the product’s specified
rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work.
Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges
(FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU O
BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY
CAUSE OR THEORY.
Since some countries or states do not allow limitation of the ter
limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other
decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
11/99
ranty on new and unused products to end-user customers only but have no authority to extend a greater or
rchase price, free of charge repair, or replacement of a defective product which is
earest Fluke authorized service center to obtain return authorization information, then send the product to that
F ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
m of an implied warranty, or exclusion or limitation of incidental or consequential damages, the
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
Table of Contents
Title Page
Introduction...................................................................................................................... 1
How to Contact Fluke...................................................................................................... 1
Safety Information........................................................................................................... 1
Product Familiarization.................................................................................................... 3
Level................................................................................................................................ 4
Plumb .............................................................................................................................. 5
Check Accuracy of the Product....................................................................................... 6
Check Accuracy of Level ............................................................................................ 6
Check Accuracy of Plumb........................................................................................... 8
Maintenance.................................................................................................................... 8
Clean the Product ....................................................................................................... 9

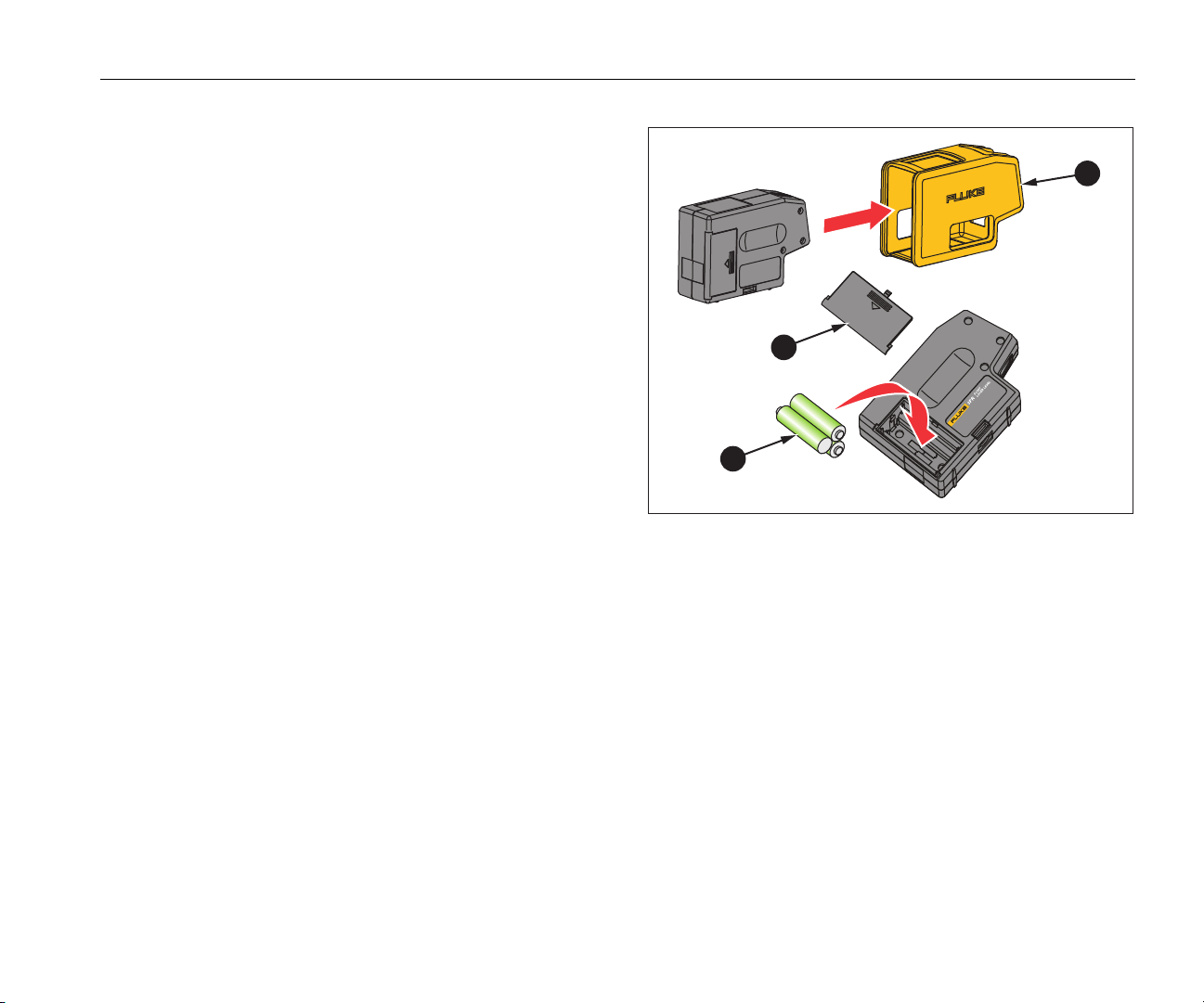

Batteries...................................................................................................................... 9
Specifications .................................................................................................................. 10
i
3PR, 3PG
Users Manual
ii
Introduction
The 3PR and 3PG Point Laser Levels (the Product) are
battery-powered, self-leveling, professional grade
instruments. Use the Product to layout reference points and
to make sure conditions are level and plumb. The 3PR
emits a dashed red line and is for use indoors. The 3PG
emits a dashed green line and is for use outdoors.
How to Contact Fluke
To contact Fluke, call one of the following telephone
numbers:
•
Technical Support USA: 1-800-44-FLUKE
(1-800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE
(1-888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-3-6714-3114
•
Singapore: +65-6799-5566
•
Anywhere in the world: +1-425-446-5500
To view, print, or download the latest manual supplement,
visit
http://us.fluke.com/usen/support/manuals.
Safety Information
A Warning identifies conditions and actions that pose
hazards to the user; a Caution identifies conditions and
actions that may damage the Product or the equipment
under test.
Warning
To prevent eye damage and personal injury:
•
Read all safety information before you use the
Product.
•
Carefully read all instructions.
•
Use the Product only as specified or hazardous
laser radiation exposure can occur.
•
Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
1
3PR, 3PG
LASER
CAUTION
3R
!
Users Manual
•
Do not look directly into the laser with optical
tools (for example, binoculars, telescopes,
microscopes). Optical tools can focus the laser
and be dangerous to the eye.
•
Remove the batteries if the Product is not used
for an extended period of time, or if stored in
temperatures above 50 °C. If the batteries are
t removed, battery leakage can damage the
no
•
Do not use the Product if it operates
incorrectly.
•
Do not look into the laser. Do not point laser
directly at persons or animals or indirectly off
reflective surfaces.
Ta bl e 1 is a list of the symbols used on the Product or in this
manual.
Product.
Table 1. Symbols
Symbol Description Symbol Description
WARNING. RISK OF DANGER.
Certified by CSA Group to North American safety
standards.
Consult user documentation. Conforms to European Union directives.
WARNING. LASER RADIATION. Risk of
eye damage.
Battery or battery compartment. Conforms to relevant South Korean EMC Standards.
This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not
discard this electrical/electronic product in domestic household waste. Product Category: With reference to the
equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control
Instrument
Indicates a Class 3R laser. AVOID DIRECT EYE EXPOSURE The following text may appear with the symbol on the
product label: “IEC/EN 60825-1. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser
Notice 50, dated June 24, 2007.” In addition, the following pattern on the label will indicate wavelength and optical
power: λ = xxxnm, x.xxmW.
ation" product. Do not dispose of this product as unsorted municipal waste.
2
Conforms to relevant Australian Safety and EMC
standards.
Product Familiarization
2
3
4
5
1
7
6
10
9
8
11
Ta bl e 2 shows the features of the Product.
Point Laser Levels
Product Familiarization
Table 2. Product Features
Item Description
Power switch
Indicator LED
Green - On
Red - Tilt, the Product is not level
Yellow - Battery low
Up laser
Down laser
Horizontal laser
Optical windows
Accessory mount
Floor stand
Wall bracket
Battery door
Holster
Soft case (not shown)
--
3
3PR, 3PG
Users Manual
Level
To identify new level and grade marks:
1. Put the bottom of the Product on a stable surface.
2. Turn the Product around on its center until the
h
orizontal laser points to the target area. See Figure 1.
3. Place a mark at the level or grade point on the target
ar
ea.
4. Repeat steps 2 and 3 for each point as needed.
Note
When the Product is mounted on a tripod, make sure
tripod head is perfectly level. Errors in marks can
the
result if a tripod is out of level.
To determine if an existing item is level:
1. Point the horizontal laser at the target area.
2. Measure the distance from the item to the laser. See
Fig
ure 2.
3. Repeat step 2 at various distances from the Product.
If the measurements are the same from each distance
from t
he Product, the condition is level.
21
=OK
=
1 2

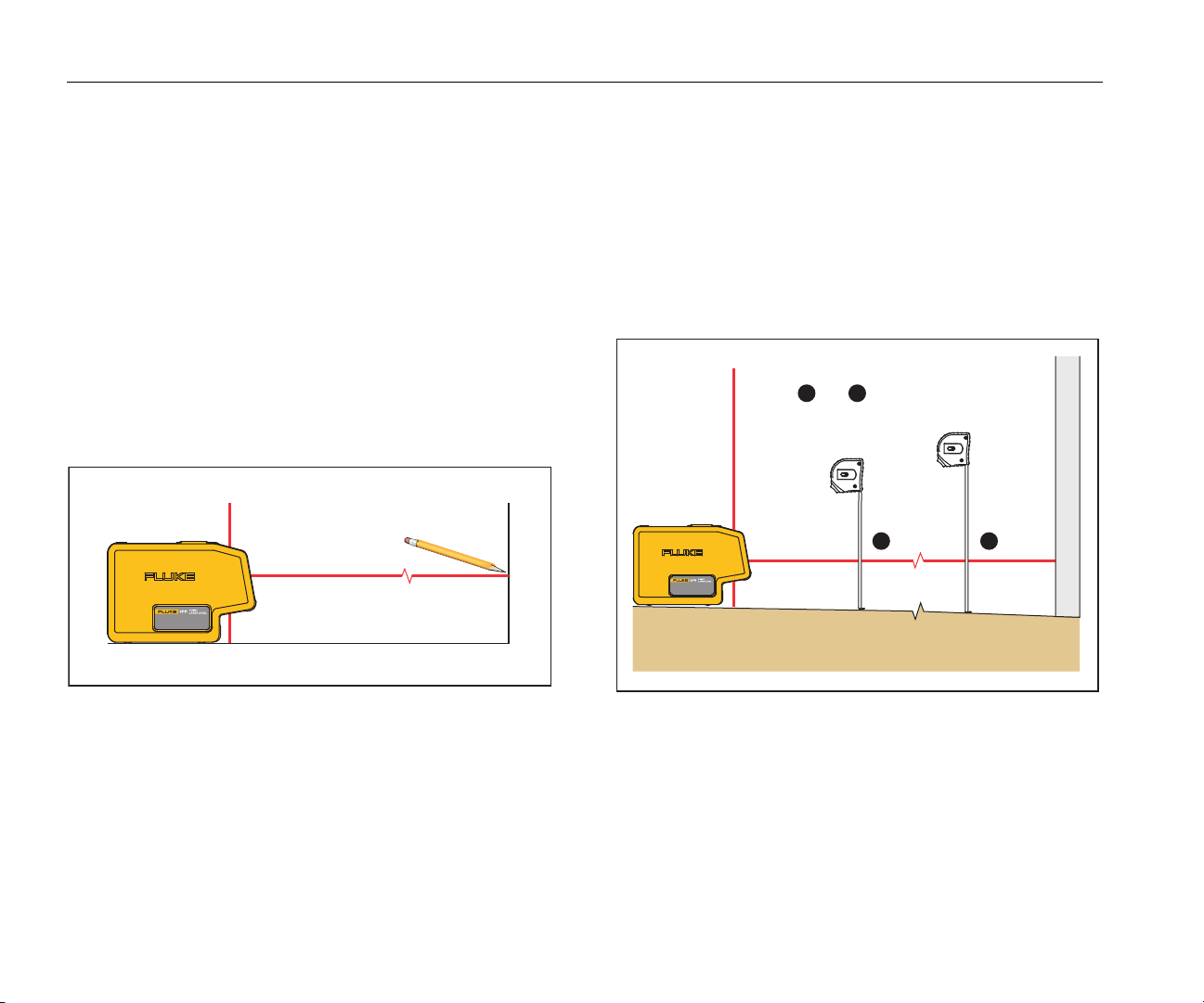

Figure 1. New Level Mark
Figure 2. Level of Existing Item
4
Plumb
The Product can send plumb marks up, down, or
cantilevered over the edge of a building or shaft opening.
Point Laser Levels
Plumb
To identify new plumb marks
1. Place a cross mark on the point to be transposed.
2. Center the down laser over the cross mark. See
Fig
ure 3.
3. Place a mark at the point where the up laser intersects
th
e target area.
To identify new plumb marks on a floor, repeat the steps
a
bove but interchange the down and up lasers.
Use the floor stand with the Product to increase the
t angle of down laser.
sigh
on a ceiling or roof:
Note

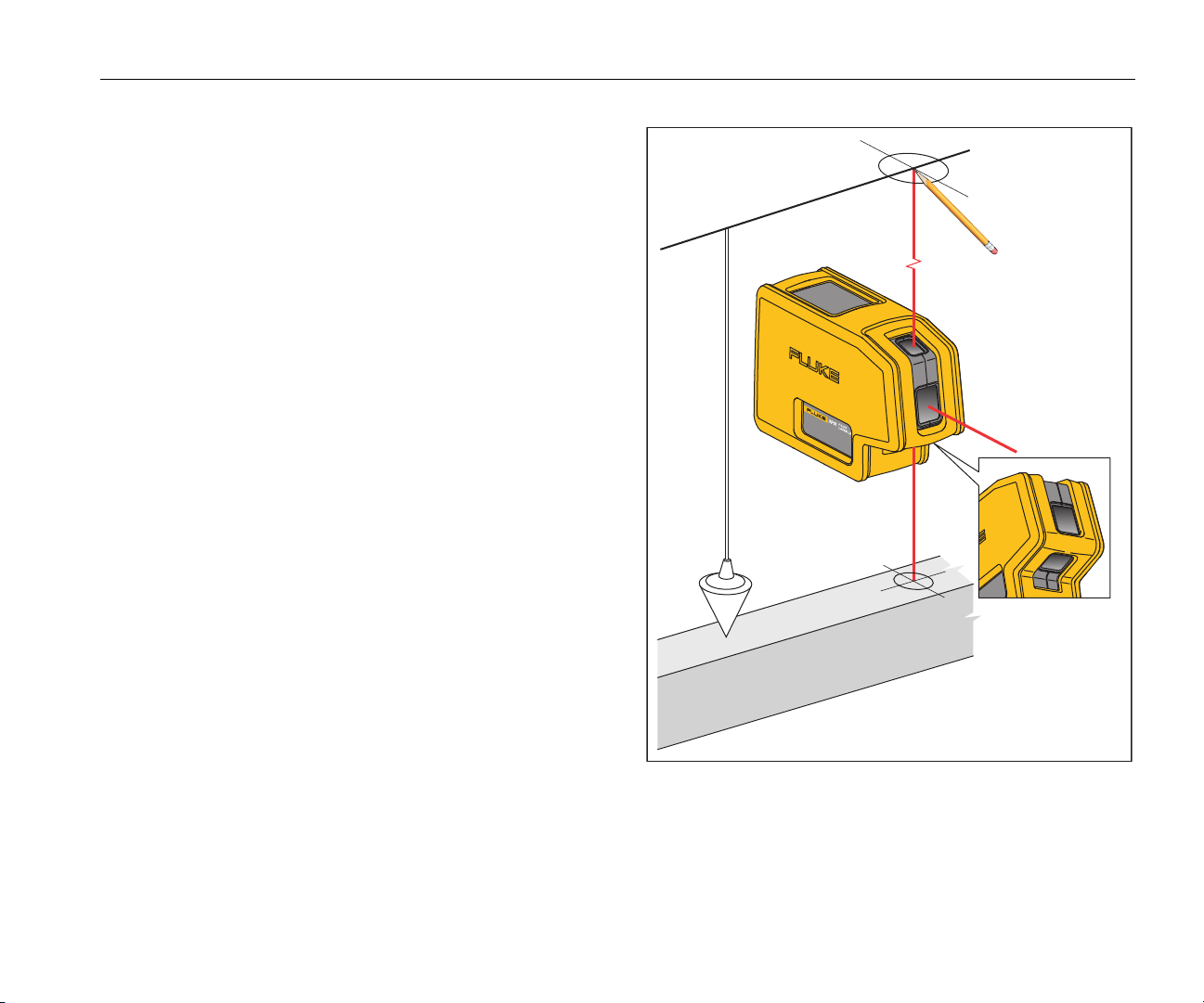

Figure 3. New Plumb Mark
5
3PR, 3PG
Users Manual
To determine if an existing item is plumb:
1. Point either the up or down laser at the target area.
2. Measure the distance from the item to the laser. See
Fig
ure 4.
3. Repeat step 2 at various distances from the Product.
If the measurements are the same from each distance
fro
m the Product, the item is plumb.
1
2
1
2
=OK
=
Check Accuracy of the Product
Periodically check the accuracy of the Product.
Check Accuracy of Level
To check the accuracy of the level:
1. Find a horizontal site that is almost level, preferably a
con
crete slab, that is ≥7.62 m (25 ft) wide with two
posing walls to use as targets. You can also use
op
scrap wood as targets. See Figure 5.
2. Place the Product about 15 cm (6 in) from target
3. Point the horizontal laser at target
4. Place a mark
at the point where the horizontal laser
.
intersects the target area.
5. Turn the Product 180 ° on its center so that the
horizont
al laser intersects with target
6. Place a mark
at the point where the horizontal laser
.
intersects the target area.
7. Repeat steps 2 through 6 with the Product 15 cm from
target
.
.

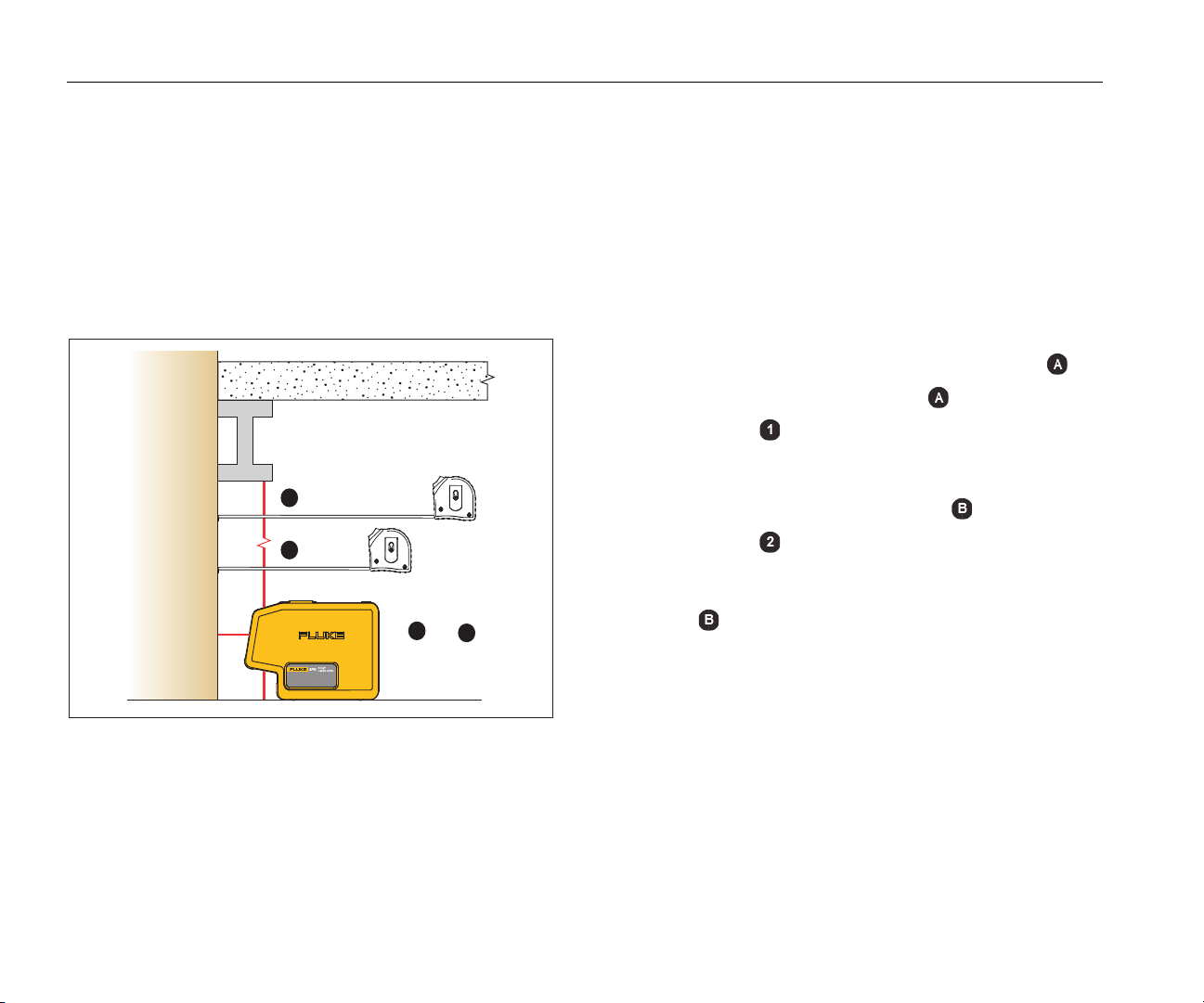

Figure 4. Plumb of Existing Item
6
1
A B
2
4
≥7.62 m
(25 ft)
3
15 mm (6 in)
3
1
4
= A
d
A
d
- B
d
≤ 6 mm @ 30 m
4
2
4
= B
d
2
Check Accuracy of the Product
Point Laser Levels
123
8. Measure the distance between mark and mark
on target
and mark and mark on target .
Figure 5. Level Accuracy
9. If the distances are not the same, subtract the lesser
easurement from the greater measurement and divide
m
by two to calculate the difference of error.
If the distances are the same, the laser is level.
If the distance is ≤6 mm @ 30 m, the laser is within
alibration accuracy.
c
123
7
3PR, 3PG
≥ 3.05 m
10 ft
4
-
≤ 6 mm @ 30 m
1 2
1 2
1 2
Users Manual
Check Accuracy of Plumb
To check the accuracy of the plumb:
1. Find a site that has a ≥3.0
2. Place a cross mark at the bottom of the site.
3. Center the down laser on both axes of the cross mark.
See Figure 6.
5 m (10 ft) vertical height.
123
4. Place a cross mark at the point where the up laser
intersects the target area at the top of the site.
5. Turn the Product 180 ° on its center.
6. Repeat step 3 and step 4.
If the first and second cross marks on the target area at
th
e top of the site are the same, the laser is plumb.
7. If the cross marks are not the same, measure the
d
istance between the center points of the two cross
marks and divide by two to calculate the difference of
error.
If the distance is ≤6 mm @ 30 m, the laser is within
calibrat
ion accuracy.
Maintenance
The Product does not require maintenance but treat the
Product as a calibrated instrument. Do not drop the Product.
Warning
To prevent eye damage and personal injury, do not
open the Product. The laser beam is dangerous to the
eyes. Have the Product repaired only through an
approved technical site.
Figure 6. Plumb Accuracy
8
Clean the Product
1
2
3
Clean the case with a damp cloth and a weak soap solution.
Do not use abrasives, isopropyl alcohol, or solvents to clean
the case or optic windows.
Batteries
Replace the batteries when the Indicator LED is yellow.
To install or replace the batteries (See Figure 7.):
1. Remove the Product from the holster.
Point Laser Levels
Maintenance
2. Remove the battery comp
artment lid.
3. Install three AA batteries with the correct polarity.
4. Replace the battery compartment lid.
5. Put the Product back into the holster.
Figure 7. Battery Replacement
9
3PR, 3PG
Users Manual
Specifications
Light Source ..................... Semiconductor laser diode
Working Range................. ≤30 m
Accuracy........................... ≤6 mm @ 30 m
Leveling............................. Automatic
Leveling Range................. ≤6 °
Power
Batteries......................... 3 x AA Alkaline IEC LR6
Battery Life
Red............................. ≥30 hrs, continuous use
Green .........................10 hrs to 12 hrs, continuous use
Dimensions
(H x W x L)......................... 140 mm x 102 mm x 57 mm
Weight
(with batteries).................. 0.52 kg
Temperature
Operating ....................... -18 °C to +50 °C
Storage........................... -40 °C to +70 °C
with battery: -20 °C to +50 °C
Relative Humidity .............0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Altitude
Operating ....................... 2000 m
Storage........................... 12 000 m
Safety
General ...........................IEC 61010-1: Pollution Degree 2
Laser...............................IEC 60825-1: Class 3R
Max output power .......<5 mW
Wavelength.................Red: 635 nm
Green: 510 nm
Electromagnetic Compatibility (EMC)
International ....................IEC 61326-1: Industrial Electromagnetic
Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses
conductively-coupled radio frequency energy that is necessary for the
internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than
domestic and those directly connected to a low-voltage power supply
network that supplies buildings used for domestic purposes. There
may be potential difficulties in ensuring electromagnetic compatibility
in other environments due to conducted and radiated disturbances.
Korea (KCC) ...................Class A Equipment (Industrial Broadcasting &
Communication Equipment)
Class A: Equipment meets requirements for industrial
electromagnetic wave equipment and the seller or user should take
notice of it. This equipment is intended for use in business
environments and not to be used in homes.
USA (FCC)......................47 CFR 15 subpart B. This product is
considered an exempt device per clause
15.103.
10
Loading...
