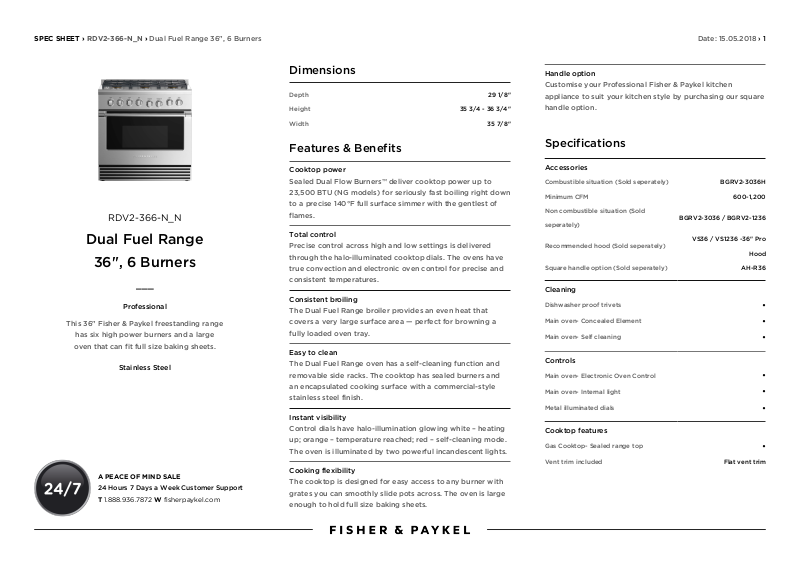

SPEC SHEET › RDV2-366-N_N › Dual Fuel Range 36", 6 Burners Date: 15.05.2018 › 1
RDV2-366-N_N
Dual Fuel Range
36", 6 Burners
___
Professional
This 36" Fisher & Paykel freestanding range
has six high power burners and a large
oven that can fit full size baking sheets.
Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W fisherpaykel.com
Dimensions
Depth 29 1/8"
Height 35 3/4 - 36 3/4"
Width 35 7/8"
Features & Benefits
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to
23,500 BTU (NG models) for seriously fast boiling right down
to a precise 140°F full surface simmer with the gentlest of
flames.
Total control
Precise control across high and low settings is delivered
through the halo-illuminated cooktop dials. The ovens have
true convection and electronic oven control for precise and
consistent temperatures.
Consistent broiling
The Dual Fuel Range broiler provides an even heat that
covers a very large surface area — perfect for browning a
fully loaded oven tray.
Easy to clean
The Dual Fuel Range oven has a self-cleaning function and
removable side racks. The cooktop has sealed burners and
an encapsulated cooking surface with a commercial-style
stainless steel finish.
Instant visibility
Control dials have halo-illumination glowing white – heating
up; orange – temperature reached; red – self-cleaning mode.
The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with
grates you can smoothly slide pots across. The oven is large
enough to hold full size baking sheets.
Handle option
Customise your Professional Fisher & Paykel kitchen
appliance to suit your kitchen style by purchasing our square
handle option.
Specifications
Accessories
Combustible situation (Sold seperately) BGRV2-3036H
Minimum CFM 600-1,200
Non combustible situation (Sold
seperately)
Recommended hood (Sold seperately)
Square handle option (Sold seperately) AH-R36
Cleaning
Dishwasher proof trivets
Main oven- Concealed Element
Main oven- Self cleaning
Controls
Main oven- Electronic Oven Control
Main oven- Internal light
Metal illuminated dials
Cooktop features
Gas Cooktop- Sealed range top
Vent trim included Flat vent trim
BGRV2-3036 / BGRV2-1236
VS36 / VS1236 -36" Pro
Hood
•
•
•
•
•
•
•
SPEC SHEET › RDV2-366-N_N › Dual Fuel Range 36", 6 Burners Date: 15.05.2018 › 2
Cooktop performance
Max burner power 23500 BTU
Power back centre 18500 BTU
Power back left 18500 BTU
Power back right 18500 BTU
Power front centre 18500 BTU
Power front left 23500 BTU
Power front right 23500 BTU
Sealed Dual Flow Burners™ 6
Simmer on all burners 140 °F
Total cooktop power 121000 BTU
Gas requirements
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure NG Pressure 6" to 9" W.C
Oven features
Main oven- Large broil pan
Oven functions
Main oven functions 6
Main oven- Bake
Main oven- Broil
Main oven- Clean
Main oven- Convection Bake
Main oven- Convection Broil
Main oven- True Convection
Oven performance
Main oven- Bake 4600 W
Main oven- Broil 4000 W
Main oven- Shelf positions 5
Main oven- Total Capacity (AHAM) 4.8 cu ft
Main oven- True Convection 2500 W
Main oven- Usable Capacity (AHAM) 3.8 cu ft
Total oven capacity 4.8 cu ft
Other product downloads available at fisherpaykel.com
fisherpaykel.com
Power requirements
Electric circuit 4 wire
Rated current 30
Supply frequency 60
Supply voltage 120 - 240
Product dimensions
Depth (excluding handle and dials) 29 1/8 "
•
Height (excluding vent trim) 35 3/4 - 36 3/4 "
Width 35 7/8 "
Safety
•
•
•
Full extension telescopic racks 3
Style And Series
Product Style Professional
•
•
•
SKU 71370
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © © Fisher & Paykel Appliances Ltd 2018
