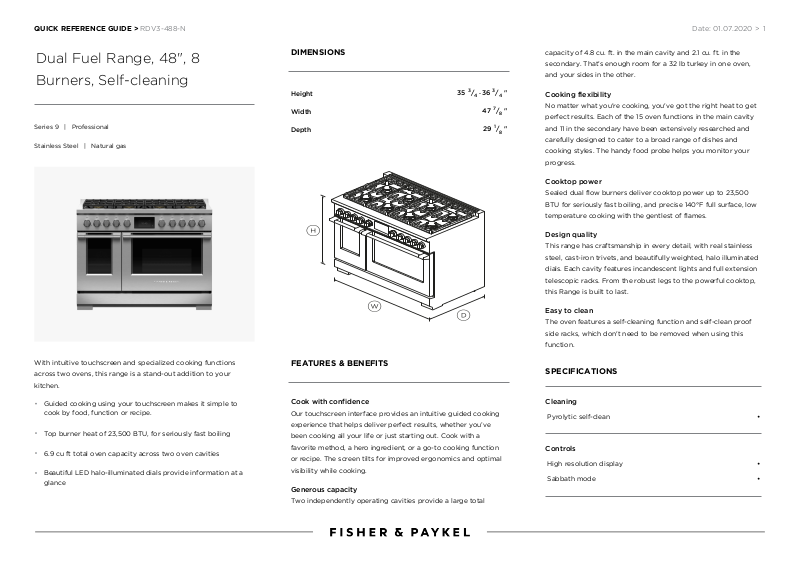

Fisher & Paykel RDV3-488-N Quick Reference Guide
QUICK REFERENCE GUIDE > RDV3-488-N
Dual Fuel Range, 48", 8
Burners, Self-cleaning
Series 9 | Professional
Stainless Steel | Natural gas
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.
Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
Top burner heat of 23,500 BTU, for seriously fast boiling
6.9 cu ft total oven capacity across two oven cavities
Beautiful LED halo-illuminated dials provide information at a glance
DIMENSIONS
Height |
35 3/4 - 36 3/4 |
" |
Width |
47 7/8 |
" |
Depth |
29 1/8 |
" |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Date: 01.07.2020 > 1
capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking flexibility
No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
SPECIFICATIONS
Cleaning
Pyrolytic self-clean •
Controls
High resolution display |
• |
Sabbath mode |
• |
Two independently operating cavities provide a large total
QUICK REFERENCE GUIDE > RDV3-488-N
Oven features
Concealed element |
• |
Electronic oven control |
• |
Full extension telescopic |
2 |
Internal light |
• |
Pyrolytic self-clean |
• |
Oven functions
Pyrolytic self-clean •
Oven performance
Main Oven Shelf Positions |
5 |
Main Oven Usable Capacity |
3.8cu ft |
Power requirements
Supply frequency |
60Hz |
Supply voltage |
120 - 240V |
Product dimensions
Depth |
29 1/8 |
" |
Height |
35 3/4 - 36 3/4 |
" |
Width |
47 7/8 |
" |
Rangetop features
Sealed range top •
Rangetop Performance
Warranty
Parts and labor |
Limited 2 Years Parts & Labor |
|
|
SKU |
81896 |
|
|
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel's Customer Care Centre to ensure this page correctly describes the model currently available. © Fisher & Paykel Appliances Ltd 2019.
Date: 01.07.2020 > 2
Other product downloads available at fisherpaykel.com
User Guide
Service & Warranty Booklet
Installation Guide
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
Max burner power |
23500BTU |
Total cooktop power |
158000BTU |
