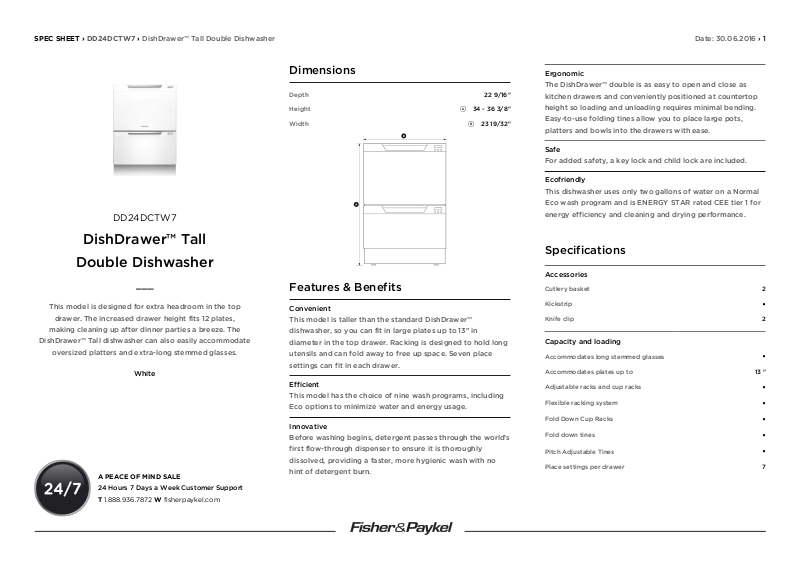

SPEC SHEET › DD24DCTW7 › DishDrawer™ Tall Double Dishwasher Date: 30.06.2016 › 1
DD24DCTW7
DishDrawer™ Tall
Double Dishwasher
___
This model is designed for extra headroom in the top
drawer. The increased drawer height fits 12 plates,
making cleaning up after dinner parties a breeze. The
DishDrawer™ Tall dishwasher can also easily accommodate
oversized platters and extra-long stemmed glasses.
White
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W fisherpaykel.com
Dimensions
Depth 22 9/16"
Height
Width
A34 - 36 3/8"
B23 19/32"
Features & Benefits
Convenient
This model is taller than the standard DishDrawer™
dishwasher, so you can fit in large plates up to 13" in
diameter in the top drawer. Racking is designed to hold long
utensils and can fold away to free up space. Seven place
settings can fit in each drawer.
Efficient
This model has the choice of nine wash programs, including
Eco options to minimize water and energy usage.
Innovative
Before washing begins, detergent passes through the world’s
first flow-through dispenser to ensure it is thoroughly
dissolved, providing a faster, more hygienic wash with no
hint of detergent burn.
Ergonomic
The DishDrawer™ double is as easy to open and close as
kitchen drawers and conveniently positioned at countertop
height so loading and unloading requires minimal bending.
Easy-to-use folding tines allow you to place large pots,
platters and bowls into the drawers with ease.
Safe
For added safety, a key lock and child lock are included.
Ecofriendly
This dishwasher uses only two gallons of water on a Normal
Eco wash program and is ENERGY STAR rated CEE tier 1 for
energy efficiency and cleaning and drying performance.
Specifications
Accessories
Cutlery basket 2
Kickstrip
Knife clip 2
Capacity and loading
Accommodates long stemmed glasses
Accommodates plates up to 13 "
Adjustable racks and cup racks
Flexible racking system
Fold Down Cup Racks
Fold down tines
Pitch Adjustable Tines
Place settings per drawer 7
•
•
•
•
•
•
•
SPEC SHEET › DD24DCTW7 › DishDrawer™ Tall Double Dishwasher Date: 30.06.2016 › 2
Consumption
Energy Star Certified
Energy usage 251 kWh/year
Controls
Child safety lock
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option of up to
12 hours
Internal Wash Selector
Key lock
One button start
Rinse aid indicator light and lens
Details
UPC Code 822843886289
Performance
Fan assisted drying
Flow through detergent dispenser
Load Sensing
Quiet operation
SmartDrive™ technology
Safety
•
Three stage total flood protection
•
Warranty
Warranty 1 year
•
•
•
•
•
•
•
Wash programs
Eco options
Genuine half load wash option
Nine wash programs
Permanent memory of the last cycle used
Water Usage
Water Usage 3.32 gallons per cycle
•
•
•
•
•
SKU 88628
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
•
currently available. © © Fisher & Paykel Appliances Ltd 2016
•
•
•
•
Other product downloads available at fisherpaykel.com
fisherpaykel.com
Data Sheet
Power requirement
AMP draw 10.6 A
Supply Frequency 60 Hz
Supply voltage 110 - 120 V
