DISHDRAWERTM DISHWASHER

DD60 and DD24

Double and Single models

USER GUIDE

NZ AU US CA GB IE

This user guide is an accompaniment to your ‘Quick start guide’ which is included with your dishwasher.

For operating instructions, see your ‘Quick start guide’. If you no longer have your ‘Quick start guide’, you can download it from our local website, listed on the back cover.

Refer to your ‘Quick start guide’ for information on:

Starting a wash

Wash programs and when to use them

Controls

Dos and don’ts of loading

Preference options and how to change their settings

CONTENTS

Safety and warnings

2

Caring for your dinnerware

9

Operating instructions



Wash modifiers (some models only)

10

Racking features

14

Loading suggestions

20

Water hardness and dishwashing

21

Wash programs and detergent quantities

22

Adding detergent

23

Using rinse aid

27

Water softener (some models only)

28

Preference options

30

User maintenance instructions

34

Troubleshooting

39

If there is a fault

37

How to attend to a fault

44

Warranty and service

48

Wash program data

49

Standards tests

52

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

1

SAFETY AND WARNINGS

Your dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you are using your dishwasher.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! - When using your dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.

The information in this manual must be followed to minimise the risk of fire or explosion or to prevent property damage, personal injury or loss of life.

Use the dishwasher only for its intended function as described in this user guide and in your ‘Quick start guide’.

This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

farm houses;

by clients in hotels, motels and other residential type environments;

bed and breakfast type environments.

NSF 184-Certified residential dishwashers are not intended for licensed food establishments.

Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. Check that the detergent dispenser(s) is empty after the completion of each wash program.

When loading items to be washed, locate sharp items so that they are not likely to damage the internal lid of the dishwasher and load sharp knives with the handle up to reduce the risk of cut-type injuries.

2

SAFETY AND WARNINGS

Do not touch the filter plate (in the dishwasher base) during or immediately after use, as it may be hot.

Do not operate your dishwasher unless all enclosure panels are properly in place.

Do not tamper with the controls.

Do not abuse, sit on, stand in or on the drawer or dish rack of the dishwasher.

The drawer should not be left in the open position since this could present a tripping hazard.

The foldaway cup racks are designed to support cups, glasses and kitchen utensils. When the foldaway cup racks are in the drawer do not lean on or use them to support your body weight.

To reduce the risk of injury, do not allow children to play in or on the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water heater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher, turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent dispenser is empty after completion of the wash program.

3

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

Installation

This dishwasher must be installed and located in accordance with the Installation instructions

before it is used. If you did not receive Installation instructions with your dishwasher, you can order them by calling your Authorised Repairer or download them from our local Fisher & Paykel website, listed on the back cover.

Installation and service must be performed by a qualified technician.

If the power supply cord is damaged, it must be replaced by a dealer or Authorised Repairer or a similar qualified trades person in order to avoid a hazard.

Ensure the dishwasher is secured to adjacent cabinetry using the brackets provided. Failure to do so may result in an unstable product, which may cause damage or injury.

Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged power supply cord or plug.

Do not store or use petrol, or other flammable vapours and liquids in the vicinity of the dishwasher.

Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

Make sure that the power supply cord is located so that it will not be stepped on, tripped over or otherwise subject to damage or stress.

Do not install or store the dishwasher where it will be exposed to temperatures below freezing or exposed to weather.

Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box) to connect the dishwasher to the power supply.

4

SAFETY AND WARNINGS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified technician.

If the dishwasher is installed as a permanently connected appliance:

GROUNDING INSTRUCTIONS - This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Connected models only:

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation.

Do not change or modify the wireless communication device in any way. Changes or modifications not expressly approved by Fisher & Paykel could void the user’s authority to operate the equipment.

5

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

Maintenance

Disconnect the appliance from the power supply before any cleaning or maintenance.

When disconnecting the appliance pull the plug rather than the power supply cord or junction of cord to avoid damage.

Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this user guide. We recommend that you contact Customer Care to arrange service. See your ‘Service and warranty’ booklet for contact details.

Keep the floor around your appliance clean and dry to reduce the possibility of slipping.

Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals.

Models with a remote control: Do not attempt to recharge, short-circuit, disassemble, heat or throw the remote control battery into a fire. Dispose of an old battery responsibly, keeping it out of reach of children.

6

SAFETY AND WARNINGS

Operational

Under no circumstances should you open the drawer whilst the dishwasher is in operation.

Always press the button OR knock on the front of the drawer (DD*I models only) to pause and wait until you hear the four additional beeps before opening the drawer.

The dishwasher must be used with the motor assembly, filter plate, drain filter and spray arm in place. To identify what these parts are, see drawings in section ‘User maintenance instructions’ of this user guide.

Take care when loading the drawer not to load dishware items so they prevent the internal lid from properly sealing with the drawer. Items should be placed so they do not protrude above and/or forced into the drawer, otherwise a service call may result.

Cleaning and user maintenance shall not be done by children without supervision.

Do not allow children to play inside, on or with this appliance or any discarded appliance.

If the dishwasher is not being used for long periods of time, turn the electricity and water supply to the dishwasher off.

7

SAFETY AND WARNINGS

Household appliances are not intended to be played with by children. Children of less than 8 years

old must be kept away from the appliance unless continuously supervised. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and they understand the hazards involved.

If a dishwasher cleaner is used, we would strongly recommend a wash program with detergent should be run immediately afterward, to prevent any damage to the dishwasher.

The dishwasher is designed for washing normal household utensils. Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not to be washed in the dishwasher.

Do not wash plastic items unless they are marked “dishwasher safe” or equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

8

CARING FOR YOUR DINNERWARE

The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the dishwasher. Remember, if in any doubt about any aspect concerning items washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash the item by hand.

Cutlery & silverware

All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods. The Rinse wash program is useful for this. Silver items should not come into contact with stainless steel, eg other cutlery. Mixing these items can cause staining. Remove silver cutlery from the dishwasher and hand dry it immediately after the program has finished.

Aluminium

Aluminium can be dulled by dishwasher detergent. The degree of change depends on the quality of the detergent or aluminium.

Other metals

Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.

Woodware

Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may cause deterioration over time. If in doubt, wash by hand.

Glassware

Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware may etch and will develop a cloudy appearance. You may prefer to wash these items by hand.

Plastics

Some plastics may change shape or colour with hot water. Check manufacturer’s instructions about washing plastic items. Dishwasher safe plastic items should be weighed down so they do not flip over and fill with water or fall through the base rack during the wash.

Decorated items

Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in doubt, wash by hand.

Glued items

Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.

9

OPERATING INSTRUCTIONS

WASH MODIFIERS (SOME MODELS ONLY)

Along with setting the wash program, you may select one of the following the additional options:

Extra dry: Increases the final rinse temperature and the length of the drying phase for improved drying performance.

Quick: Uses additional water and energy for a faster wash time, while maintaining wash performance.

Sanitize: Raises the water temperature during the rinse phase to sanitize dishes. Ideal for washing items such as baby bottles and preserving jars.

Note:

Only one modifier can be set at a time

Not all modifiers are available for every wash program. If a wash modifier is not available for the chosen wash program, then that modifier cannot be selected.

DD*C MODELS:

















WASH PROGRAM



MODIFIER AVAILABLE













Heavy



Extra Dry

Quick

Sanitize











Normal



Extra Dry

Quick

Sanitize











Normal Eco

-

-

-











Fast



Extra Dry

-

-











Delicate



Extra Dry

Quick

-











Rinse

-

-

-











DD*D AND DD*I MODELS:

















WASH PROGRAM



MODIFIER AVAILABLE













Heavy



Extra Dry

Quick

Sanitize











Medium



Extra Dry

Quick

Sanitize











Eco

-

-

-











Fast



Extra Dry

-

-











Delicate



Extra Dry

Quick

-











Rinse

-

-

-











10

WASH MODIFIERS (SOME MODELS ONLY)

DD*C MODELS:

To set a wash modifier

1Make sure the dishwasher is on and detergent (and rinse aid if necessary) has been added.

Double models only: Check the correct drawer is selected, or press to change. 2 Press to select a wash program.

3Press to scroll through the wash modifier options.

The selected wash modifier indicator will light up on the display.

Press to start the wash

DD*D AND DD*I MODELS:

To set a wash modifier

1Make sure the dishwasher is on and detergent (and rinse aid if necessary) has been added.

2 Press to select a wash program.

3Press to scroll through the wash modifier options.

The selected wash modifier indicator will light up on the display.

Press to start the wash and close the drawer.

11

WASH MODIFIERS (SOME MODELS ONLY)

Using sanitize

The sanitize wash modifier adjusts the wash program to meet the conditions required by Section 6, NSF 184 for sanitization to occur.

While sanitize is running, the wash program is monitored to ensure that these conditions are met.

IMPORTANT!

Only programs utilising the sanitize wash modifier are certified to meet the conditions required by Section 6, NSF 184. Other wash programs may not reach the temperatures required for sanitization to occur. See table on previous page for wash programs that have sanitize available

For sanitization to occur, the temperature of the water needs to reach 700C/1580F. Check that all items are ‘dishwasher safe’ before running the sanitize modifier.

If the wash is interrupted or the water supply is turned off during the program, then the heating conditions for sanitization may not be met. You may need to run the program again to ensure sanitization of your dishes.

At the end of a wash program with sanitize, always check to make sure that sanitization has been successful.

12

WASH MODIFIERS (SOME MODELS ONLY)

DD*C MODELS:

If sanitization has been successful:

The dishwasher will beep 0 will show in the display

The sanitize indicator will remain lit. After 30 seconds the display will turn off.

If sanitization has not been successful:

An alert will sound

An alert code will show in the display The sanitize indicator will not be lit.

Check if the water supply has been turned off or the wash program interrupted.

Press once to stop the beeping and then again to clear the alert code, then run the sanitize cycle again.

See also section ‘How to attend to a fault’.

DD*D AND DD*I MODELS:

If sanitization has been successful:

The wash will finish as normal.

If sanitization has not been successful:

An alert will sound

When the drawer is opened the sanitize indicator will flash.

Check if the water supply has been turned off or the wash program interrupted.

Press and hold once to stop the beeping and a second time to clear the flashing alert code.

Reset sanitize and then run the cycle again.

See also section ‘How to attend to a fault’

13

Fisher & Paykel DD24 User Manual

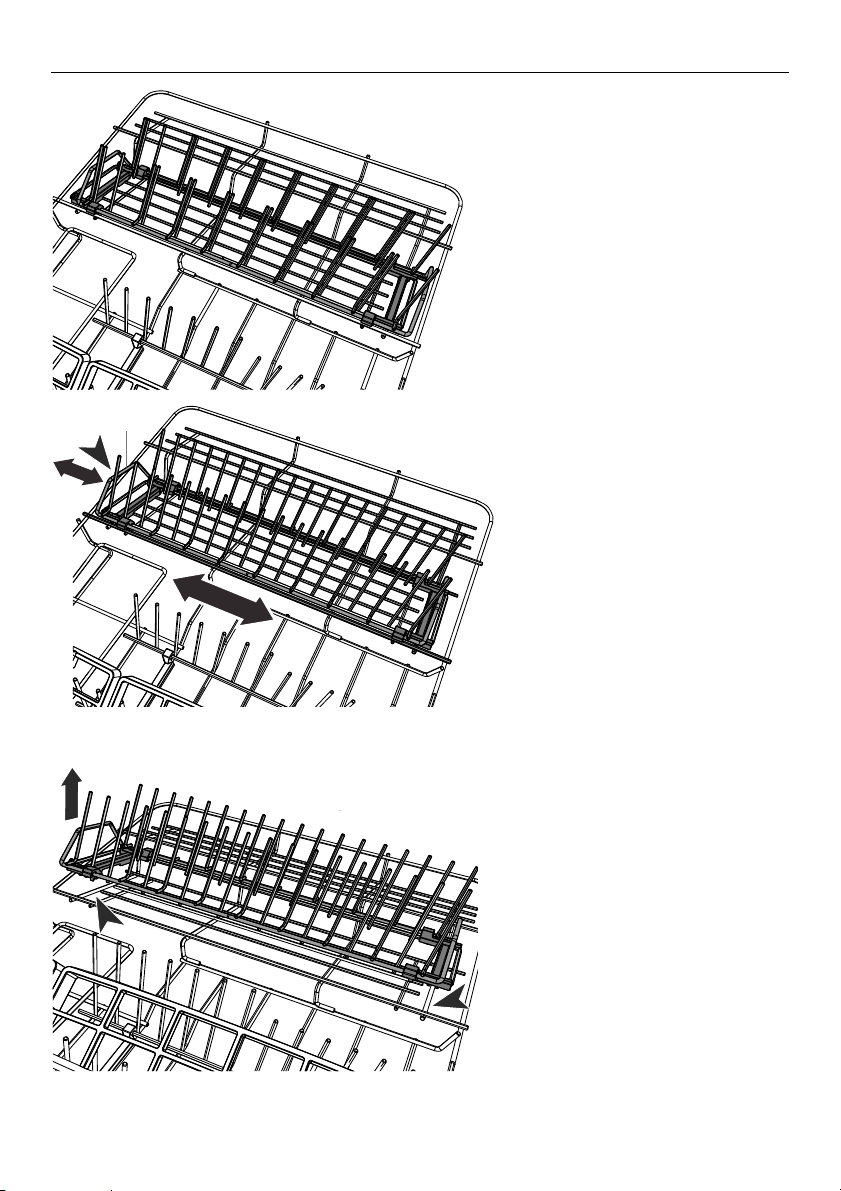

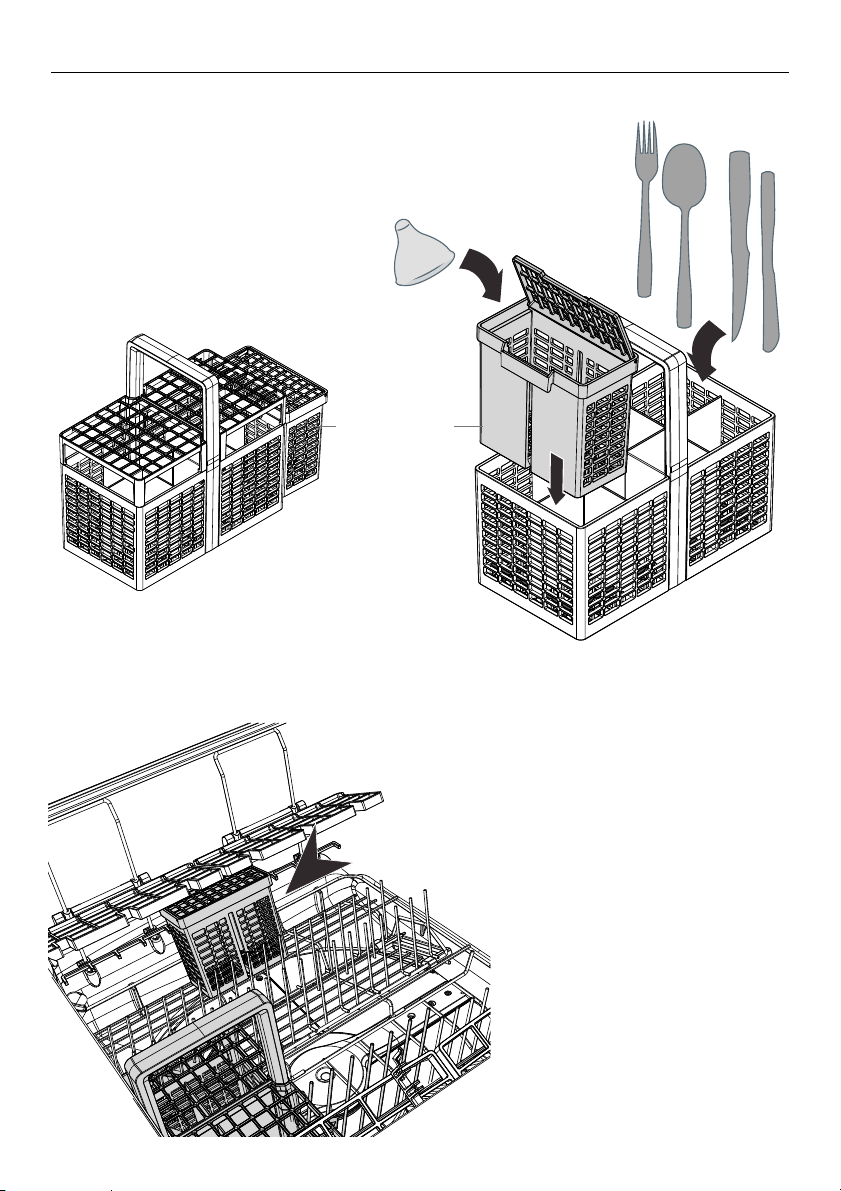

RACKING FEATURES - CUTLERY BASKET

Removable

anti-nesting grid

Removable tablet tray

If you are using dishwasher tablets or gel packs, place them on the removable tablet tray, as shown. See also ‘Adding detergent’ for more information.

IMPORTANT!

Dishwasher tablets should not be in direct contact with dishes or cutlery or placed on the bottom of the drawer.

To reduce the risk of injury, we recommend loading knives and sharp utensils with handles facing up.

Mix spoons, knives and forks within each section to stop cutlery nesting together and to ensure the water circulates freely. Keep stainless steel from touching silver cutlery to avoid staining.

Removable anti-nesting grid

The anti-nesting grid clips onto the top of the cutlery basket. Use the grid to separate cutlery items and stop them from nesting together.

14
