Fire-Lite MS-9600, MS-9600E User Manual

Download

Page 1

PN: 51335:E ECN 03-352

Fire Alarm Control Panel

MS-9600/MS-9600E

IMPORTANT! The SLC Manual Document #51309 must be referenced in addition to this

manual when installing or servicing the Fire Alarm Control Panel.

Document #51335

7/9/03 Revision:

Page 2

Fire Alarm System Limitations

While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance!

An automatic fire alarm system–typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control with remote notification capability–can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire.

The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise following the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guide for Proper Use of System Smoke Detectors, which is made available at no charge to all installing dealers. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons:

Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire.

Particles of combustion or "smoke" from a developing fire may not reach the sensing chambers of smoke detectors because:

• Barriers such as closed or partially closed doors, walls, or chimneys may inhibit particle or smoke flow.

• Smoke particles may become "cold," stratify, and not reach the ceiling or upper walls where detectors are located.

• Smoke particles may be blown away from detectors by air outlets.

• Smoke particles may be drawn into air returns before reaching the detector.

The amount of "smoke" present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at various levels of smoke density. If such density levels are not created by a developing fire at the location of detectors, the detectors will not go into alarm.

Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing chambers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.

Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper storage of flammable materials, etc.).

Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detectors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist.

Heat detectors are designed to protect property, not life.

IMPORTANT! Smoke detectors must be installed in the same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If detectors are not so located, a devel-

oping fire may damage the alarm system, crippling its ability to report a fire.

Audible warning devices such as bells may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol or medication. Please note that:

• Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy.

• Studies have shown that certain people, even when they hear a fire alarm signal, do not respond or comprehend the meaning of the signal. It is the property owner's responsibility to conduct fire drills and other training exercise to make people aware of fire alarm signals and instruct them on the proper reaction to alarm signals.

• In rare instances, the sounding of a warning device can cause temporary or permanent hearing loss.

A fire alarm system will not operate without any electrical power. If AC power fails, the system will operate from standby batteries only for a specified time and only if the batteries have been properly maintained and replaced regularly.

Equipment used in the system may not be technically compatible with the control. It is essential to use only equipment listed for service with your control panel.

Telephone lines needed to transmit alarm signals from a premise to a central monitoring station may be out of service or temporarily disabled. For added protection against telephone line failure, backup radio transmission systems are recommended.

The most common cause of fire alarm malfunction is inadequate maintenance. To keep the entire fire alarm system in excellent working order, ongoing maintenance is required per the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the requirements of Chapter 7 of NFPA 72 shall be followed. Environments with large amounts of dust, dirt or high air velocity require more frequent maintenance. A maintenance agreement should be arranged through the local manufacturer's representative. Maintenance should be scheduled monthly or as required by National and/ or local fire codes and should be performed by authorized professional fire alarm installers only. Adequate written records of all inspections should be kept.

LimWarLg.p65 01/10/2000

Page 3

Installation Precautions

Adherence to the following will aid in problem-free installation with long-term reliability:

WARNING - Several different sources of power can be con- nected to the fire alarm control panel. Disconnect all sources

of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized. Do not attempt to install, service, or operate this unit until this manual is read and understood.

CAUTION - System Reacceptance Test after Software Changes. To ensure proper system operation, this product

must be tested in accordance with NFPA 72 Chapter 7 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring.

All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.

This system meets NFPA requirements for operation at 0-49° C/32-120° F condensing) at 30° C/86° F. However, the useful life of the system's standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and all peripherals be installed in an environment with a nominal room temperature of 15-27° C/60-80° F.

Verify that wire sizes are adequate for all initiating and indicating device loops. Most devices cannot tolerate more than a 10% I.R. drop from the specified device voltage.

and at a relative humidity of 85% RH (non-

Like all solid state electronic devices, this system may operate erratically or can be damaged when subjected to lightning-induced transients. Although no system is completely immune from lightning transients and interferences, proper grounding will reduce susceptibility. Overhead or outside

aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes. Consult with the Techni-

cal Services Department if any problems are anticipated or encountered.

Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.

Remove all electronic assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible, make all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, and printed circuit board location.

Do not tighten screw terminals more than 9 in-lbs. Over-tightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal.

Though designed to last many years, system components can fail at any time. This system contains static-sensitive components. Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body. Use static-suppressive packaging to protect electronic assemblies removed from the unit.

Follow the instructions in the installation, operating, and programming manuals. These instructions must be followed to avoid damage to the control panel and associated equipment. FACP operation and reliability depend upon proper installation by authorized personnel.

FCC Warning

WARNING: This equipment generates, uses, and can

radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which is designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his own expense.

Canadian Requirements

This digital apparatus does not exceed the Class A limits for radiation noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.

LimWarLg.p65 01/10/2000

Page 4

Notes

4 MS-9600 PN 51335:E 7/9/03

Page 5

Table of Contents

SECTION 1: Product Description ........................................................................................................................12

1.1: Inventory .....................................................................................................................................................12

1.2: Features and Options...................................................................................................................................12

1.3: Specifications ..............................................................................................................................................14

1.3.1: Current Availability...........................................................................................................................15

1.4: Controls and Indicators ...............................................................................................................................16

1.5: Circuits ........................................................................................................................................................17

1.6: Components.................................................................................................................................................17

1.6.1: Intelligent Addressable Detectors: Newer Series..............................................................................18

1.6.2: Intelligent Addressable Modules: Newer Series ...............................................................................19

1.6.3: 300 Series Intelligent Addressable Devices......................................................................................20

1.6.4: Addressable Device Accessories.......................................................................................................20

1.7: Optional Modules........................................................................................................................................20

1.8: Accessories..................................................................................................................................................21

1.8.1: PK-CD Programming Utility ............................................................................................................21

1.8.2: Dress Panel........................................................................................................................................21

1.8.3: Battery Box .......................................................................................................................................21

1.8.4: Battery Charger .................................................................................................................................22

1.8.4.1 CHG-75 Battery Charger ........................................................................................................22

1.8.4.2 CHG-120F Battery Charger ....................................................................................................22

1.8.5: Annunciators .....................................................................................................................................22

1.9: Getting Started.............................................................................................................................................23

SECTION 2: Installation .......................................................................................................................................24

2.1: Mounting .....................................................................................................................................................24

2.2: Power...........................................................................................................................................................27

2.2.1: AC Power and Earth Ground Connection.........................................................................................27

2.2.2: Battery Power....................................................................................................................................27

2.2.3: DC Power Output Connection ..........................................................................................................27

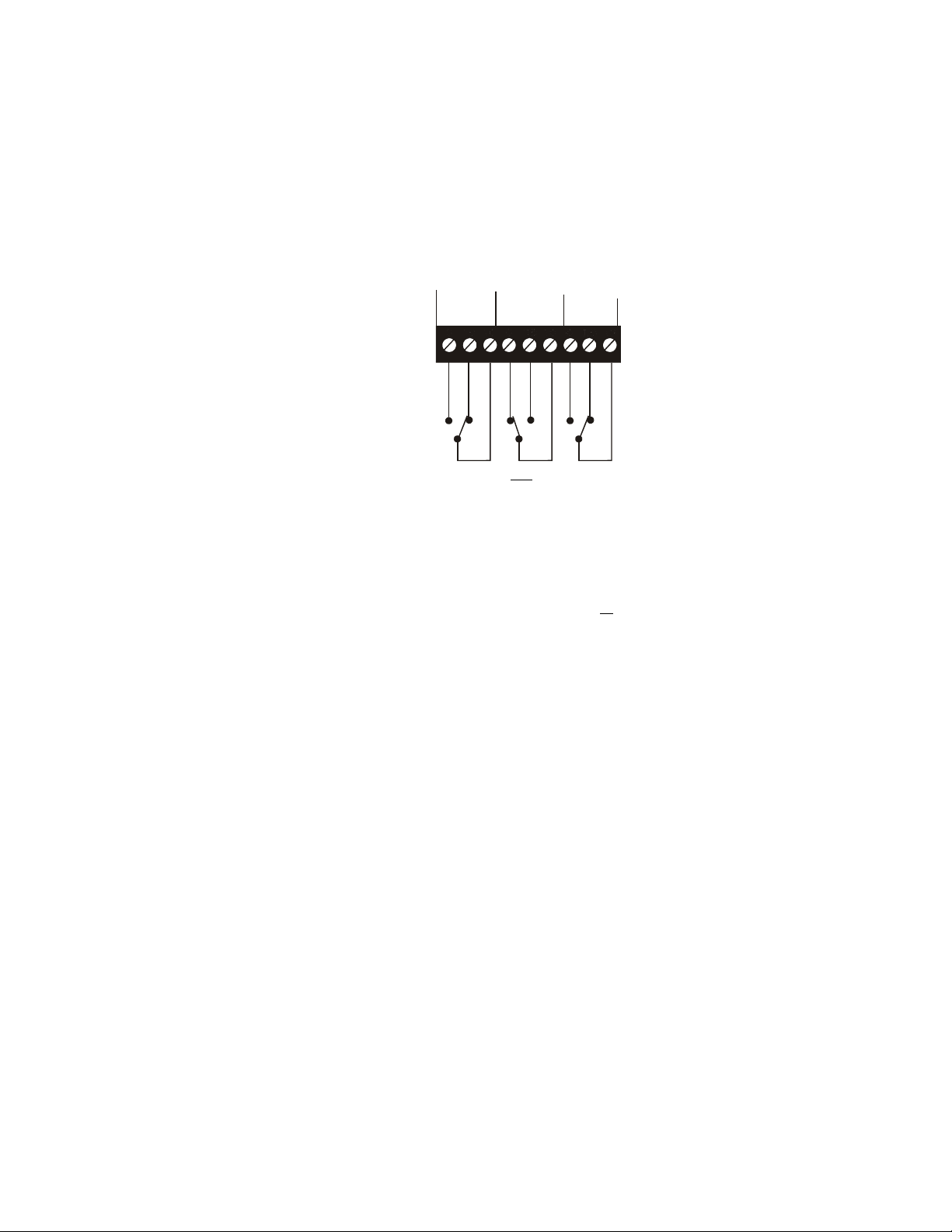

2.3: Relays ..........................................................................................................................................................28

2.4: Notification Appliance Circuits ..................................................................................................................28

2.4.1: Configuring NACs ............................................................................................................................29

2.4.2: Style Y (Class B) NAC Wiring .........................................................................................................29

2.4.3: Style Z (Class A) NAC Wiring ........................................................................................................30

2.5: UL Power-limited Wiring Requirements ....................................................................................................31

2.6: Optional Modules and Devices ...................................................................................................................32

2.6.1: DACT-UD Installation ......................................................................................................................33

2.6.2: 4XTMF Transmitter Module Installation..........................................................................................36

2.6.3: Auxiliary Trouble Input (J16 & J17).................................................................................................37

2.6.4: SLC-2 Expander Module ..................................................................................................................38

2.6.5: Printer/PC..........................................................................................................................................39

2.6.6: Digital Communicator and Annunciators .........................................................................................40

2.6.6.1 UDACT-F Digital Alarm Communicator/Transmitter ...........................................................40

2.6.6.2 ACM-8RF Relay Control Module ..........................................................................................40

2.6.6.3 BRKT-9600 Universal Bracket Installation ............................................................................40

2.6.6.4 ACM and AFM Series Annunciators ......................................................................................42

SECTION 3: Programming ...................................................................................................................................43

3.1: Programming Data Entry ............................................................................................................................43

3.2: User Programming ......................................................................................................................................44

3.3: Initial Power-up...........................................................................................................................................45

3.4: Programming Screens Description..............................................................................................................45

3.5: Programming and Passwords ......................................................................................................................45

3.6: Master Programming Level.........................................................................................................................47

MS-9600 PN 51335:E 7/9/03 5

Page 6

Table of Contents

3.6.1: Autoprogram .....................................................................................................................................48

3.6.2: Point Program....................................................................................................................................49

3.6.3: Zone Setup.........................................................................................................................................76

3.6.4: Loop Setup ........................................................................................................................................80

3.6.5: System Setup .....................................................................................................................................81

3.6.6: Verify Loops ......................................................................................................................................94

3.6.7: History...............................................................................................................................................95

3.6.8: Walktest.............................................................................................................................................96

3.6.9: Option Modules................................................................................................................................97

3.6.2.1 Detector Programming ............................................................................................................49

3.6.2.1.1 Add Detector ........................................................................................................................49

3.6.2.1.2 Delete Detector .....................................................................................................................50

3.6.2.1.3 Edit Detector ........................................................................................................................50

3.6.2.2 Module Programming .............................................................................................................59

3.6.2.2.1 Add Module .........................................................................................................................59

3.6.2.2.2 Delete Module ......................................................................................................................60

3.6.2.2.3 Edit Module Screen for Monitor Module .............................................................................61

3.6.2.2.4 Edit Module Screen for Control Modules ............................................................................69

3.6.3.1 Enable ......................................................................................................................................76

3.6.3.2 Disable .....................................................................................................................................77

3.6.3.3 Zone 97, 98 and 99 ..................................................................................................................77

3.6.3.4 Zones Installed ........................................................................................................................78

3.6.3.5 Zones Enabled .........................................................................................................................78

3.6.3.6 Zones Disabled ........................................................................................................................78

3.6.3.7 Zone Type ...............................................................................................................................79

3.6.4.1 Style .........................................................................................................................................80

3.6.4.2 Loop Protocol ..........................................................................................................................80

3.6.5.1 Trouble Reminder ...................................................................................................................82

3.6.5.2 Banner .....................................................................................................................................82

3.6.5.3 Time-Date ...............................................................................................................................83

3.6.5.3.1 Time .....................................................................................................................................83

3.6.5.3.2 Date ......................................................................................................................................84

3.6.5.3.3 Clock Format ........................................................................................................................84

3.6.5.3.4 Daylight Savings Time .........................................................................................................84

3.6.5.4 Timers .....................................................................................................................................85

3.6.5.4.1 PAS (Positive Alarm Sequence) Delay ................................................................................85

3.6.5.4.2 Pre-signal Delay ...................................................................................................................86

3.6.5.4.3 Waterflow Delay ..................................................................................................................86

3.6.5.4.4 AC Loss Delay .....................................................................................................................87

3.6.5.5 NAC (Notification Appliance Circuit) ....................................................................................87

3.6.5.5.1 Enabled .................................................................................................................................88

3.6.5.5.2 Type ......................................................................................................................................89

3.6.5.5.3 Silenceable ...........................................................................................................................89

3.6.5.5.4 Auto Silence .........................................................................................................................90

3.6.5.5.5 Coding ..................................................................................................................................90

3.6.5.5.6 Zone ......................................................................................................................................92

3.6.5.5.7 Silence Inhibited ...................................................................................................................92

3.6.5.5.8 Synced Type .........................................................................................................................92

3.6.5.6 Relays ......................................................................................................................................93

3.6.5.7 Canadian Option ......................................................................................................................94

3.6.5.8 Waterflow Silenceable ............................................................................................................94

3.6.7.1 View Events ............................................................................................................................95

3.6.7.2 Erase History ...........................................................................................................................95

3.6.9.1 Annunciators/UDACT ............................................................................................................97

3.6.9.2 On Board DACT .....................................................................................................................98

3.6.9.3 Printer/PC ................................................................................................................................98

MS-9600 PN 51335:E 7/9/03

Page 7

Table of Contents

3.6.10: Password Change ............................................................................................................................99

3.6.11: Clear Program .................................................................................................................................100

3.6.12: Program Check................................................................................................................................101

3.7: Maintenance Programming Level ...............................................................................................................103

3.7.1: Disable Point .....................................................................................................................................104

3.7.2: History...............................................................................................................................................105

3.7.3: Program Check..................................................................................................................................106

3.7.4: Walktest.............................................................................................................................................107

3.7.5: System...............................................................................................................................................107

3.7.6: Zone Setup ........................................................................................................................................109

SECTION 4: Operating Instructions ....................................................................................................................111

4.1: Panel Control Buttons .................................................................................................................................111

4.1.1: Acknowledge/Step ............................................................................................................................111

4.1.2: Alarm Silence....................................................................................................................................111

4.1.3: Drill/Hold 2 Sec ................................................................................................................................111

4.1.4: Reset..................................................................................................................................................111

4.2: LED Indicators ............................................................................................................................................112

4.3: Normal Operation........................................................................................................................................113

4.4: Trouble Operation .......................................................................................................................................113

4.5: Alarm Operation..........................................................................................................................................115

4.6: Supervisory Operation.................................................................................................................................116

4.7: Process Monitor Operation..........................................................................................................................117

4.8: Hazard Condition Operation .......................................................................................................................117

4.9: Medical Alert Condition Operation.............................................................................................................117

4.10: Programmed Zone Operation ....................................................................................................................117

4.11: Disable/Enable Operation..........................................................................................................................118

4.12: Waterflow Circuits Operation ...................................................................................................................118

4.13: Detector Functions ....................................................................................................................................118

4.14: Time Functions: Real-Time Clock ............................................................................................................118

4.15: NAC Operation .........................................................................................................................................118

4.16: Synchronized NAC Operation ..................................................................................................................119

4.17: Coded Operation .......................................................................................................................................119

4.18: Presignal ....................................................................................................................................................119

4.19: Positive Alarm Sequence ..........................................................................................................................120

4.20: Special System Timers ..............................................................................................................................121

4.20.1: Silence Inhibit Timer.......................................................................................................................121

4.20.2: Autosilence Timer...........................................................................................................................121

4.20.3: Trouble Reminder ...........................................................................................................................121

4.20.4: Waterflow Retard Timer..................................................................................................................121

4.20.5: Alarm Verification...........................................................................................................................122

4.21: Walktest.....................................................................................................................................................122

4.22: Read Status................................................................................................................................................123

4.22.1: System Point ...................................................................................................................................124

4.22.2: Zones...............................................................................................................................................125

4.22.3: Power...............................................................................................................................................126

4.22.4: Trouble Reminder ...........................................................................................................................127

4.22.5: Timers..............................................................................................................................................127

4.22.6: NAC ................................................................................................................................................128

4.22.7: Relays..............................................................................................................................................128

4.22.8: Program Check................................................................................................................................129

4.22.9: History.............................................................................................................................................129

4.22.10: Annunciators .................................................................................................................................130

4.22.11: Phone Line.....................................................................................................................................130

4.22.12: Central Station...............................................................................................................................131

MS-9600 PN 51335:E 7/9/03 7

Page 8

Table of Contents

4.22.13: Service Terminal............................................................................................................................132

4.22.14: Printer/PC ......................................................................................................................................132

4.22.15: Print ...............................................................................................................................................133

4.22.16: Time-Date......................................................................................................................................135

SECTION 5: Power Supply Calculations .............................................................................................................136

5.1: Overview .....................................................................................................................................................136

5.2: Calculating the AC Branch Circuit..............................................................................................................136

5.3: Calculating the System Current Draw.........................................................................................................137

5.3.1: Overview ...........................................................................................................................................137

5.3.2: How to Use Table 5.3 on page 138 to Calculate System Current Draw ...........................................137

5.4: Calculating the Battery Size ........................................................................................................................139

5.4.1: NFPA Battery Requirements .............................................................................................................139

5.4.2: Selecting and Locating Batteries.......................................................................................................139

APPENDIX A: Software Zones ............................................................................................................................140

A.1: Correlations ...............................................................................................................................................140

APPENDIX B: Default Programming .................................................................................................................148

APPENDIX C: NFPA Standard-Specific Requirements ...................................................................................149

APPENDIX D: Wire Requirements .....................................................................................................................156

MS-9600 PN 51335:E 7/9/03

Page 9

It is imperative that the installer understand the requirements of the Authority Having Jurisdiction (AHJ) and be familiar with the standards set forth by the following regulatory agencies:

• Underwriters Laboratories Standards

• NFPA 72 National Fire Alarm Code

• CAN/ULC - S527-99 Standard for Control Units for Fire Alarm Systems

Before proceeding, the installer should be familiar with the following documents.

NFPA Standards

NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code

Underwriters Laboratories Documents:

UL 38 Manually Actuated Signaling Boxes UL 217 Smoke Detectors, Single and Multiple Station UL 228 Door Closers–Holders for Fire Protective Signaling Systems UL 268 Smoke Detectors for Fire Protective Signaling Systems UL 268A Smoke Detectors for Duct Applications UL 346 Waterflow Indicators for Fire Protective Signaling Systems UL 464 Audible Signaling Appliances UL 521 Heat Detectors for Fire Protective Signaling Systems UL 864 Standard for Control Units for Fire Protective Signaling Systems UL 1481 Power Supplies for Fire Protective Signaling Systems UL 1610 Central Station Burglar Alarm Units UL 1638 Visual Signaling Appliances UL 1971 Signaling Devices for Hearing Impaired

CAN/ULC - S524-01 Standard for Installation of Fire Alarm Systems Note: MS-9600E

is not ULC listed for Canadian applications

Other:

EIA-232E Serial Interface Standard EIA-485 Serial Interface Standard NEC Article 250 Grounding NEC Article 300 Wiring Methods NEC Article 760 Fire Protective Signaling Systems Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction (LAHJ)

Fire-Lite Documents:

Fire-Lite Device Compatibility Document #15384 SLC Wiring Manual Document #51309 AFM-16ATF & AFM-32AF Document #15970 AFM-16AF Annunciator Document #15210 ACS Series Annunciators Document #51480 UDACT-F Communicator/Transmitter Document #50049 411UD Communicator/Transmitter Document #50759 411UDAC Communicator/Transmitter Document #51073 CHG-120F Battery Charger Document #50888 CHG-75 Battery Charger Document #51315 LDM Series Lamp Driver Modules Document #50055 LCD-80F Remote Fire Annunciator Document #51338 ACM-8RF Relay Control Module Document #50362 DACT-UD Manual Document #51899

MS-9600 PN 51335:E 7/9/03 9

Page 10

ELRs 4.7K, ½W

TB4

B B

2244

SLC Loop

Manual for detailed

for Style 4, 6 and 7.

addressa ble devices

informat ion on wiring

Refer to the SLC Wiring

using NACKEY card

3.0 amps m ax. per circui t.

JP8 conf igured for Clas s B

NAC #1, #2, #3 & #4, Style Y (Class B)

Notification Appliance Circuits

GND DTR RCV

TB7 (option to DB-25)

BA A

5 4 3 2 1

9 8 7 613 12 11 10

25 24 23 22 21 20 19 18 17 16 15 14

TERM

EIA-232

to printer or

Upload/Download Utility.

personal computer

For EDP-li sted equipment or

personal computer with FACP

50 foot maximum wi thin same room.

Contact Ratings:

0.5 amps @ 30 VAC (resis tive)

2.0 amps @ 30 VDC (resistive)

1 Fixed Trouble Relay

2 Programmable Relays &

NAC #2

NAC #1 & #2

Style Z (Clas s A)

3.0 amps max. per circui t.

JP8 configured for Clas s A

Notification Appliance Circuits

NAC #1

using NACKEY card.

(See Style Y illustrated

near ri ght edge of boar d)

Red

9 8 7 6

DB9F

5 4 3 2 1

NC NO C

A Fail Safe Trouble

trouble or supervisory activity).

Contacts shown below in n ormal

conditi on (AC power wit h no alarm,

A B

O I

(EIA-485)

to LCD-80F

N GND DTR RCV T

Black

Green

White

supervised)

or UDACT-F

(power-limited,

ACS (EIA-485)

to ACS Annunc .

Alarm* Trouble Supervi sory*

relay switches to the

NO position during

trouble conditions and

under loss of all power.

A A

B B A A

NO NC C NC NO C NO NC C

+ +

- -

+ +

TB8

shield

TB6 TB7

Factory default relay programming (*

TB5

TB4

JP3

TB3

++++

(factory default configuration)

NAC #1 NAC #4NAC #3 NAC #2

)

JP5

as shown on circuit board

CUT TO

JP6

MONITOR 4XTMF

JP8

4 Style Y or 2 Sty le Z circuits

orientati on to configur e NACs as

JP8 - Ins tall NACKEY board i n proper

REMOVE TO

DISABLE

LOCAL

CHARGER

++++

Cut this jumper to enab le

Supervis ory relay when

4XTMF module is installed

++++

Connect or for Optional

Onboard D ACT-UD

Cut this jumper to s upervise

the 4XTMF module when

install ed (see J10 & J11)

J11

4XTMF OPT BD

Connectors for 4XTMF optio n module

J10

JP2

To disable grou nd fault detecti on,

Remove this jumper to d isable

the FACP batt ery charger when

using external charger.

remove jumper/shunt from J P2

Circuit Number

OPT SLC

Connector for Optional 2nd

Signalling Line Circuit Module

Flash Memory Load Enable Switch.

PS2 Keyboard Interface

UP is normal position for swi tch.

DOWN position allows loading of

factor y software upgrade s

SW1

OPT DACT

KEYPAD I/F

TB2

Battery

24 VDC, 25 Amp Hour maximum

+BATTERY-

TB1

LCD DISPLAY

J16

DISABLE

J17

GND

FLT

NEUT EARTH

HOT

CB1

120 VAC, 60 HZ , 3.2 amps

220/240 VAC, 50 Hz, 1.6 amps

Nonresettable Power #2 - 24 VDC filtered,

power-li mited (3.00 amps maximum)

Supervision required. S uitable for

DC Power Outputs (24 VDC)

Supervise with a power supervis ion relay A77-716B

Basic System Connections

powering annunciators.

Nonreset table Power #1 - 24 VDC filtered ,

power-l imited (3.00 a mps maximum)

Supervision required. Su itable for

powering annunciators.

Resettable Power - 24 VDC fil tered, power-limited

(3.00 amps maximum) to smoke det ectors (IDC).

Supervision required.

CAUTION! HIGH VOLTAGE

10 MS-9600 PN 51335:E 7/9/03

9600layE.cdr

Page 11

Peripheral Devices and Their Documents:

ACS (EIA-485)

Annunciators

UDACT-F

Doc. # 50049

TERM (EIA-485)

Annunciators

J2 Connector

AFM-16ATF &

AFM-32AF

Doc. # 15970

Ack/Step Silence Reset

PH2

PH1

LCD-80F

Doc. # 51338

DACT-UD

Doc. # 51889

AFM-16AF

Doc. # 15210

Drill

Hold 2 sec.

ACM-16ATF &

ACM-32ATF

Doc. # 51480

ACM-8RF

Doc. # 50362

LDM-32F

Doc. # 50055

Battery Connector

CHG-120F Charger

Doc. # 50888

SLC Loop

Addressable Devices and SLC Wiring

JP1

CUT FOR 240VAC

TB1

HOT

EARTHNEUT

CHG-75 Charger

Doc. # 51315

Doc. # 51309

TENS

12 13

ADDRESS

SW1

ON OFF

12 13

ONES

TB3

- B- A+ B+

9600peri.cdr

M-1 ENABLE

ENABLE

JP5

JP3

C DELAY

AM-1

TB2

BAT

15 15

BAT

JP4

OUT

16 HR DELAY

OUT

JP2

GND FLT DISABLE

TB4

J1 J2

NC NO C

MS-9600 PN 51335:E 7/9/03 11

Page 12

Product Description Inventory

SECTION 1 Product Description

The Fire•Lite MS-9600 is a compact, cost effective, intelligent addressable FACP (Fire Alarm Control Panel) with an extensive list of powerful features. The combination of Fire•Lite’s newer series devices and legacy 300 Series devices, along with the MS-9600 FACP, offer the latest in fire protection technology. The power supply and all electronics are contained on a single circuit board housed in a metal cabinet, providing a complete fire control system for most applications. Optional modules, which plug into the main circuit board, are available for special functions. Available accessories include LED, graphic and LCD annunciators, reverse polarity/city box transmitter, digital alarm communicator/transmitter, SLC expansion module, local and remote upload/download software and remote power expansion. The MS-9600E offers the same features as the MS-9600 but allows connection to 220/240 VAC input.

Note: Unless otherwise specified, the term MS-9600 is used in this manual to refer to both the MS-9600 and the MS-9600E FACPs.

1.1 Inventory

When the MS-9600 shipment is received, check to make certain that all parts have been included in the shipment. The MS-9600 shipment should consist of one of each of the following:

 main circuit board with display  backbox with door  plastic bag containing screws, cables, key, etc.  manual

1.2 Features and Options

• Single standard addressable SLC loop which meets NFPA Style 4, 6 and 7 requirements

• Optional module for adding a second SLC loop which meets NFPA Style 4, 6 and 7 requirements

• 318 addressable device capacity for each SLC loop (159 detectors and 159 control/monitor modules)

• 99 software zones

• Up to four onboard NACs (Notification Appliance Circuits): four Style Y (Class B) or two Style Z (Class A)

• Additional NAC capability using control modules

• 7.0 amps total power for NACs and 24 VDC auxiliary power outputs in alarm

• Two programmable relay outputs and one fixed trouble relay

• EIA-232 Printer/PC interface (variable baud rate)

• 80-character LCD display (backlit)

• Real-time clock/calendar with daylight savings time control

• History file with 1,000 event capacity

• Advanced fire technology features:

 Automatic drift compensation  Maintenance alert  Detector sensitivity test capability (NFPA 72 compliant)  Automatic device type-code verification  Point trouble identification

• Waterflow selection per module point

• Alarm verification selection per detector point

• Walktest, silent or audible

12 MS-9600 PN 51335:E 7/9/03

Page 13

Features and Options Product Description

• PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant)

• Annunciators:

 ACM Series-LED Zone Annunciators  LDM Graphic Annunciator Series  LCD-80F Liquid Crystal Display point annunciator  ACM-8RF Relay Module

• Silence inhibit timer option per NAC

• Autosilence timer option per NAC

• Continuous, March Time, Temporal or California code for main circuit board NACs with two-stage capability

• Selectable strobe synchronization per NAC

• Remote Acknowledge, Alarm Silence, Reset and Drill via addressable modules, AFM annunciators or LCD-80F Remote annunciator

• Auto-program (learn mode) reduces installation time. Reports two devices set to the same address

• Password and key-protected nonvolatile memory

• User programmable password

• Fully programmable from local keypad or keyboard or local PC

• SLC operates up to 10,000 ft. (3,000 m) with twisted, shielded wire or 3,000 ft (900 m) with untwisted, unshielded wire

• Compatible with Fire•Lite newer series devices (CLIP Mode)

 CP350 and CP355: addressable Ionization Smoke Detector  SD350(T) and SD355(T): addressable Photo Smoke Detector (T= with

Thermal Sensor)

 H350(R) and H350(R): Fast Response Heat Detector (R=Rate-of-Rise option)  D350P(R): addressable Photo Duct Detector (R=alarm relay option)  B501BH & B501BHT Sounder Base  B224RB Relay Base  B224BI Isolator Base  MMF-300: Monitor Module  MMF-300-10: Monitor Module (10 Input Class B or 5 Input Class A)  MDF-300: Dual Monitor Module (uses two consecutive SLC addresses)  MMF-301: Miniature Monitor Module  MMF-302: 2-wire Detector Module  MMF-302-6: 2-wire Detector Module (6 Input Class B or 3 Input Class A)  CMF-300: Control Module  CMF-300-6: Control Module (6 Output Class B or 3 Output Class A)  CRF-300: Relay Module  CRF-300-6: Relay Module (6 Form-C relays)  BG-12LX: Manual Pull Station  I300: Isolator Module

• Compatible with legacy Fire•Lite 300 Series devices (CLIP Mode only):

 CP300: addressable Ionization Smoke Detector  SD300(T): addressable Photoelectric Smoke Detector (T= Thermal Sensor)  C304: Control Module  M300: Monitor Module  M301: Miniature Monitor Module  M302: 2-wire Detector Module  BG-10LX: Manual Pull Station

• Optional 4XTMF module (conventional reverse polarity/city box transmitter)

• Optional DACT-UD Digital Alarm Communicator Transmitter, reports up to 99 zones or 636 points (all devices) to a UL listed Central Station

MS-9600 PN 51335:E 7/9/03 13

Page 14

Product Description Specifications

1.3 Specifications

AC Power - TB1

MS-9600: 120 VAC, 50/60 Hz, 3.2 amps MS-9600E: 240 VAC, 50 Hz, 1.6 amps Wire size: minimum 14 AWG (2.00 mm

Battery (Lead Acid Only) - TB2

Maximum Charging Circuit: Normal Flat Charge - 27.6 VDC @ 1.00 amp Maximum Battery Charger Capacity: 25 Amp Hour (MS-9600 cabinet holds maximum of two 18 Amp Hour batteries. For greater than 25 Amp Hour up to 75 Amp Hour batteries, use the CHG-75 Battery Charger and BB26 or BB-55F Battery Box. For greater than 75 Amp Hour up to 120 Amp Hour batteries, use the CHG-120F Battery Charger and BB-55F Battery Box). Note: Jumper JP3, on the FACP main circuit board, must be removed to disable the FACP battery charger when using the CHG-75 or CHG-120F.

Communication Loop - (Standard ) TB8 and (Optional SLC Expander Module) J3

24 VDC nominal, 27.6 VDC maximum Maximum length is 10,000 ft. (3,000 m) total twisted, shielded pair length or 3,000 ft. (900 m) untwisted, unshielded pair length Maximum loop current is 400 mA (short circuit) or 100 mA (normal) Maximum loop resistance is 40 ohms Supervised and power-limited Refer to SLC Loop manual for wiring information

) with 600 V insulation

Notification Appliance Circuits - TB4

Power-limited circuitry Maximum voltage drop in wiring: 2.0 VDC Nominal operating voltage: 24 VDC Current-limit: fuseless, electronic, power-limited circuitry Maximum signaling current per circuit: 3.00 amps (see Figure 1.1 on page 15) End-of-Line Resistor: 4.7 kΩ, ½ watt (P/N 71252 UL listed) for NACs Refer to Fire•Lite Device Compatibility Document for listed compatible devices

Two Programmable and One Fixed Output Relay - TB5

Contact rating: 2.0 amps @ 30 VDC (resistive), 0.5 amps @ 30 VAC (resistive) Form-C relays Refer to Figure 2.5 on page 28 for information on power-limited wiring for relay circuits

Four-Wire Resettable Smoke Detector Power (24 VDC nominal) - TB3, Terminals 1 (+) & 2 (-)

Maximum ripple voltage: 10 mV

RMS

Up to 3.0 amps is available for powering 4-wire smoke detectors (see Figure 1.1) Power-limited circuit Refer to Fire•Lite Device Compatibility Document for listed compatible devices

Nonresettable Power #1 (24 VDC Nominal) - TB3, Terminals 3 (+) & 4 (-)

Maximum ripple voltage: 10mV

RMS

Total DC current available from each output is up to 3.00 amps (see Figure 1.1) Power-limited circuit

Nonresettable Power #2 (24 VDC Nominal) - TB3, Terminals 5 (+) & 6 (-)

Maximum ripple voltage: 10mV

RMS

Total DC current available from each output is up to 3.00 amps (see Figure 1.1) Power-limited circuit

14 MS-9600 PN 51335:E 7/9/03

Page 15

Specifications Product Description

EIA-485 (ACS) - TB6

ACS annunciator connector, Terminal 1 (+) and Terminal 2 (-)

EIA-485 (TERM) - TB7

Terminal Mode annunciator connector, Terminal 5 (In +), 6 (In -), 7 (Out +), 8 (Out -)

EIA-232 (ACS) - TB7

PC/Printer Connector, Terminal 1 (Transmit), 2 (Receive), 3 (DTR), 4 (Ground)

Auxiliary Trouble Inputs - J16 & J17

Two-pin connectors which can be used to monitor trouble conditions on auxiliary equipment. They can be connected to the trouble bus of a peripheral such as the CHG-120F or to the normally-open dry contacts of a trouble relay.

CAUTION! Do not connect power to these connectors since circuit damage may result.

1.3.1 Current Availability

The following figure illustrates the maximum current that is possible for each panel circuit and the total current available from the FACP power supply.

Resettable P ower

for 4-Wire Smoke Detectors

Nonresettable Power # 1

Nonresettable Power # 2

NAC # 1

Style Y or Z

NAC # 3

Style Y only

NAC # 2

Style Y or Z

NAC # 4

Style Y only

TB3

TB4

3 amps max

powerdist.cdr

per circuit

Standby

6 amps max

per panel

Alarm

7 amps max

per panel

Refer to the battery calculations section for additional information.

Figure 1.1 Current Availability

MS-9600 PN 51335:E 7/9/03 15

Page 16

Product Description Controls and Indicators

1.4 Controls and Indicators

LCD Display

The FACP uses an 80-character (4 lines X 20 characters) high viewing angle LCD display. The display includes a long life LED backlight that remains illuminated. If AC power is lost and the system is not in alarm, the LED backlight will turn off to conserve batteries.

LED Indicators

LED indicators are provided to annunciate the following conditions:

• AC Power (green)

• Fire Alarm (red)

• Supervisory (yellow)

• Trouble (yellow)

• Maintenance/presignal (yellow)

• Alarm Silenced signals (yellow)

• Disabled (yellow)

• Battery fault (yellow)

• Ground fault (yellow)

Key Panel

Mounted on the main circuit board, the key panel includes a window for the LCD display and LED indicators as listed above. The key panel, which is visible with the cabinet door closed, has 25 keys, including a 16 key alpha-numeric pad similar to a telephone keypad.

FIRE-LITE ALARMS INC SYSTEM ALL NORMAL 10:00A 020102

Function keys:

• Acknowledge/Step

• Alarm Silence

• Drill

• Reset (lamp test)

Service/program keys:

• Keys labeled 1 to 9

• * key

• # key

• 0 (recall) key

GHI

78 9

PRS

ABC

JKL

TUV WXY

RECALL

DEF

MNO

-/.

CLR

ESC

MODE

EVENT

AC POWER

FIRE ALARM

SUPERVISORY

TROUBLE

ENTER

MAINTENANCE

ALARM SILENCED

DISABLED

BATTERY

ACK/STEP

ALARM SILENCE

DRILL

HOLD 2 SEC

RESET

GROUND

•1st Event key

• Clear key

Figure 1.2 Membrane/Display Panel

• Escape key

• Mode key

• Four cursor keys (up, down, left and right)

• Enter key

Local Piezo Sounder

A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory conditions.

9600kypd.cdr

16 MS-9600 PN 51335:E 7/9/03

Page 17

Circuits Product Description

1.5 Circuits

SLC Communication Loop

One SLC loop is provided standard on the FACP main circuit board. A second SLC loop is available by plugging the optional SLC module into connector J3 on the main circuit board. SLC loops, configurable for NFPA Style 4, 6 or 7, provide



Reference

Manual

communication to addressable detectors, monitor (initiating device) and control (output device) modules. Refer to the SLC Wiring manual for information on wiring devices.

Output Circuits

The following output circuits are available on the FACP:

• 24 VDC Resettable (smoke detector power) output - 3.00 amps maximum

• 24 VDC Nonresettable power output #1 - 3.00 amps maximum

• 24 VDC Nonresettable power output #2 - 3.00 amps maximum

• 24 VDC Battery Charger (up to 25 AH batteries)

NAC (Notification Appliance Circuits)

Up to four NACs are provided with various programmable features:

• four Style Y (Class B) NACs OR

• two Style Z (Class A) NACs

1.6 Components



See Page

Relays

One fixed and two fully programmable Form-C dry contact relays are provided. The fixed fail-safe relay monitors system trouble and the two programmable relays are factory default programmed for system alarm and system supervisory. Contacts are rated 2.0 amps @ 30 VDC (resistive) and 0.5 amps @ 30 VAC (resistive). The programmable relays can be programmed for the following operations:

• fire alarm

• trouble

• supervisory

• supervisory auto-resettable

• DACT communication failure

• process monitor

• process monitor auto-resettable

• hazard alert

• medical alert

•AC loss

Auxiliary Trouble Inputs

Auxiliary Trouble Inputs can be connected to trouble bus outputs from auxiliary equipment, such as power supplies or normally-open dry contacts of a trouble relay to allow monitoring by the MS-9600.

Main Circuit Board

The main circuit board contains the system’s CPU, power supply, other primary components and wiring interface connectors. Optional modules plug in and are mounted to the main circuit board. The circuit board is delivered in the MS-9600 kit and must be mounted to the backbox. Refer to the circuit board illustration on Page 10.

MS-9600 PN 51335:E 7/9/03 17

Page 18

Product Description Components

Cabinet

The MS-9600 cabinet is red with a navy blue front overlay. The backbox provides space for two batteries (up to 18 Amp Hour). Ample knockouts are provided for system wiring. Also included is a standard dress panel, which mounts to the inside of the cabinet (required by ULC for Canadian applications). The dress panel must be installed to meet FM requirements.

ms9600.cdr

Batteries

The MS-9600 cabinet provides space for two batteries (up to 18 Amp Hour). Batteries larger than 18 Amp Hour up to 25 Amp Hour require use of the Fire•Lite BB-26 or similar UL listed battery cabinet. The CHG-75 can be used for charging 25 to 75 AH batteries and the BB-26 can be used for housing the batteries. The CHG-120F can be used for charging 25 to 120 AH batteries and the BB-55F can be used for housing the batteries. Batteries must be ordered separately.

1.6.1 Intelligent Addressable Detectors: Newer Series

Intelligent, addressable detectors provide information to the control panel on an SLC Signaling Line Circuit (refer to the SLC Wiring Manual for detailed information on device installation, wiring and operation). This allows the control panel to continually process the information to determine the status (alarm, trouble, maintenance or normal) of each detector. Each detector responds to an SLC address that is set in the detector head using built-in rotary decimal switches with the ability to select up to 159 addresses. Note that a blinking LED on an intelligent detector indicates communication between the detector and the control panel. Refer to the Fire•Lite Device Compatibility Document for a list of approved detectors.

Smoke Detectors (Photoelectric)

The SD350 and SD355 are intelligent, addressable low profile photoelectric smoke detectors which provide smoke sensing technology. The SD350T and SD355T include

a 135

fixed thermal sensor. The AD350and AD355 are multicriteria photoelectric

smoke detectors with heat sensing capabilities and automatic drift compensation.

Smoke Detector (Ionization)

The CP350 and CP355 are intelligent, addressable low profile ionization smoke detectors which measure the level of combustion products in their chambers using the ‘ionization principle.’

Smoke Detector (Duct)

The D350P is an intelligent, addressable photoelectric duct smoke detector. The D350RP includes an alarm relay.

Heat Detectors

The H350 and H355 are intelligent heat detectors with thermistor sensing circuits for fast response, designed to provide open area protection with 50 foot (15 m) spacing capability. The H350R and H355R incorporate a thermal Rate-of-Rise circuit of 15

(9.4

C). The H355HT is a high temperature heat detector rated for 190oF.

Detector Bases

The B501BH is a standard sounder base and the B501BHT is a temporal tone sounder base for intelligent, addressable smoke detectors.

The B224RB is a relay base with one Form-C relay for intelligent, addressable smoke detectors. It may be used to control auxiliary functions.

The B224BI is an isolator base for intelligent, addressable smoke detectors. It functions similar to the I300 isolator module which allows loops to operate under fault conditions and automatically restore when the fault is removed.

18 MS-9600 PN 51335:E 7/9/03

Page 19

Components Product Description

1.6.2 Intelligent Addressable Modules: Newer Series

The newer series of Control Modules and Monitor Modules provide an interface between the control panel and conventional notification and initiating devices. Each module can be set to respond to an address with built-in rotary switches with the ability to select up to 159 addresses (a tab on the address switch must be broken off to use addresses 100-159). A blinking LED on a monitor module indicates communication between the module and the control panel. These devices are also compatible with older systems. Refer to the Fire•Lite Device Compatibility Document for a list of



Reference

Manual

approved notification and initiating devices.

Monitor Modules

The MMF-300, MMF-300-10, MDF-300, MMF-302 and MMF-302-6 are addressable monitor modules for monitoring conventional initiating devices. The MMF-300 is used for normally open contact alarm initiating devices, such as manual pull stations, fourwire smoke detectors, heat detectors, waterflow, security contacts and supervisory devices. The MMF-300-10 functions the same as the MMF-300 except it provides 10 Class B or 5 Class A inputs. The MDF-300 is a dual monitor module (Class B only) which occupies two consecutive SLC addresses, with each module functionally the same as the MMF-300. The MMF-302 is used primarily for two-wire smokes detectors in addition to normally open contact devices. The MMF-302-6 functions the same as the MMF-302 except it provides 6 Class B or 3 Class A inputs. The supervised IDCs (Initiating Device Circuits) can be wired to the modules as NFPA Style B (Class B) or Style D (Class A) circuits. The modules are supplied with a thermoplastic cover for mounting to a 4-inch mounting box.

Monitor Module (miniature)

The MMF-301 is an addressable module that is functionally similar to an MMF-300 but offered in a smaller package for mounting directly in the electrical box of the device being monitored.

Control Module

The CMF-300 and CMF-300-6 are an addressable Control Modules used to connect NACs (Notification Appliance Circuits) to power and supervise compatible, UL-listed notification appliances. The CMF-300 provides one Class B or Class A output while the CMF-300-6 provides 6 Class B or 3 Class A outputs. The NACs can be wired to the module as supervised NFPA Style Y (Class B) or Style Z (Class A) circuits. The modules are supplied with a thermoplastic cover for mounting to a 4-inch square mounting box.

Relay Module

The CRF-300 and CRF-300-6 are a Control Relay Modules which are functionally similar to the CMF-300 but used as Form-C relay modules. The CRF-300 provides one Form-C relay while the CRF-300-6 provides six Form-C relays.

Isolator Module

The I300 loop isolator module is an automatic switch which opens the circuit voltage to the SLC loop branch(es) whenever a wire-to-wire short circuit is detected on that loop. The remainder of the communications loop leading up to the I300 will continue to operate, unaffected by the short. The isolator module is bidirectional, meaning that it can detect a fault condition between the input SLC terminals or output SLC terminals. The I300 is required to meet NFPA Style 7 requirements.

Detector Annunciator

The RA400Z is a remote single LED annunciator that can be wired directly to an addressable detector for annunciation of that detector’s alarm status.

Manual Pull Station

The BG-12LX is an addressable manual pull station featuring a key-lock reset. The pull station responds to an address set by the installer using the built-in rotary decimal switches on the pull station. The manual pull station includes a Fire•Lite key.

MS-9600 PN 51335:E 7/9/03 19

Page 20

Product Description Optional Modules

1.6.3 300 Series Intelligent Addressable Devices

Fire•Lite’s 300 Series Intelligent Addressable Devices are fully compatible with the MS-9600 FACP. The devices must be configured for CLIP Mode operation if the control panel is installed in an existing system with 300 Series devices. The address of 300 Series devices cannot be set above 99. Compatible devices include:

• SD300 Photoelectric Detector

• SD300T Photoelectric Detector with Thermal Sensor

• CP300 Ionization Detector

• M300 Monitor Module

• M301 Miniature Monitor Module

• M302 2-wire Monitor Module

• C304 Control/Relay Module

• BG-10LX Manual Pull Station

1.6.4 Addressable Device Accessories

End-of-Line Resistor Assembly Fire•Lite P/N R-47K

The 47 kΩ End-of-Line Resistor assembly (P/N: R-47K) is used to supervise the MMF-300, MDF-300, MMF-301 and CMF-300 module circuits. The 3.9 kΩ End-ofLine Resistor assembly is used to supervise the MMF-302 module circuit. The resistors are included with each module.

Power Supervision Relay

The UL listed End-of-Line power supervision relay is used to supervise the power to 4wire smoke detectors and notification appliances.

N-ELR Mounting Plate

The N-ELR is a single End-of-Line resistor plate which is required for use in Canada. An ELR, which is supplied with each module and fire alarm control panel, is mounted to the ELR plate. Resistors mounted to the N-ELR plate can be used for the supervision of a monitor and control module circuit.

1.7 Optional Modules

The MS-9600 main circuit board includes option module connectors for the following modules:

4XTMF Transmitter Module

The 4XTMF provides a supervised output for local energy municipal box transmitter, alarm and trouble reverse polarity. It includes a disable switch and disable trouble LED. A jumper on the module is used to select an option which allows the reverse polarity circuit to open with a system trouble condition if no alarm condition exists. The module plugs into connectors J10 and J11 which are located near the top center of the main circuit board. When the 4XTMF module is installed, Jumper JP6, on the main circuit board, must be cut to allow supervision of the module.

SLC-2 Expander Module

The SLC-2 Expander Module allows expansion of the MS-9600 from one SLC circuit to two SLC circuits. The module plugs into connector J3 which is located in the lower right corner of the main circuit board. The wiring for the second SLC connects to terminals located on the expander module.

DACT-UD Digital Alarm Communicator/Transmitter

The DACT-UD is used to transmit system status to UL-listed Central Station receivers via the public switched telephone network. All circuitry and connectors are contained on a compact module which plugs into connector J2, which is located near the bottom center of the main circuit board.

20 MS-9600 PN 51335:E 7/9/03

Page 21

Accessories Product Description

1.8 Accessories

1.8.1 PK-CD Programming Utility

The PK-CD Programming Utility can be used to program an MS-9600 directly from most IBM compatible computers, including laptops and portables, equipped with a serial port. MS-9600 program files can also be created and stored on the PC and then downloaded to the control panel. The PK-CD Kit includes the MS-9600 Windowsbased Programming Utility software on CD-ROM with on-line help file. A serial cable (P/N: PRT/PK-CABLE), which must be purchased separately, is required for connection of the PC to the RS-232 (PC/Printer) terminals at TB7 of the MS-9600 main circuit board. Refer to the illustration on page 10 and the section titled "Printer/PC" on page 39, for the location and connections to this terminal.

1.8.2 Dress Panel

A dress panel is provided standard with the MS-9600 (required for Canadian installations). The dress panel restricts access to the system wiring while allowing access to the key panel.

Note that the MS-9600 FACP, installed with the dress panel, has received Factory Mutual (FM) approval. FM approval is contingent on the proper installation of the dress panel.

CAUTION: HIGH VOLTAGE UNDER PANEL

!! WARNING !!

SEVERAL DIFFERENT SOURCES OF POWER

CAN BE CONNECTED TO THIS CONTROL UNIT

DISCONNECT ALL SOURCES OF POWER BEFO RE SERVICING

dp9600.cdr

1.8.3 Battery Box

BB-17F

The BB-17F battery box may be used to house up to two 18 AH batteries in the event that room is not available in the main cabinet due to the use of a UDACT-F, 411UD, etc. The battery box mounts directly below the FACP cabinet. The battery box is red and is provided with knockouts.

BB-26

The BB-26 battery box may be used to house up to two 26 AH batteries and the CHG-75 Battery Charger. The battery box is red and is provided with knockouts.

BB-55F

The BB-55F battery box may be used to house two 25 AH batteries, two 60 AH batteries or one 100 AH battery. When the CHG-120F is mounted in the BB-55F, two 25 AH or one 60 AH battery may also be housed in the battery box.

MS-9600 PN 51335:E 7/9/03 21

Page 22

Product Description Accessories

1.8.4 Battery Charger

1.8.4.1 CHG-75 Battery Charger

The CHG-75 is capable of charging up to 75 AH lead-acid batteries with the MS-9600 FACP. The FACP battery charger must be disabled when using the CHG-75. The charger and up to 26 AH batteries can be housed in the Fire•Lite BB-26 battery box. Larger batteries and the charger can be housed in the Fire•Lite BB-55F battery box which can be mounted up to 20 feet away from the control panel. Refer to the CHG-75 Manual for additional information.

1.8.4.2 CHG-120F Battery Charger

The CHG-120F is capable of charging up to 120 AH lead-acid batteries with the MS-9600 FACP. The FACP battery charger must be disabled when using the CHG-120F. The batteries and charger can be housed in the Fire•Lite BB-55F battery box which can be mounted up to 20 feet away from the control panel. Note



Reference

Manual

that when using the BB-55F for housing the charger and batteries greater than 25AH, multiple BB-55Fs are required. Refer to the CHG-120F Manual for additional information.

1.8.5 Annunciators

ACM Series LED Zone Type Annunciators

The ACM Series Annunciators remotely display alarm and trouble status as well as system status. In addition, they can provide remote Acknowledge, Silence, Reset and Drill functions. For more detailed information, refer to the appropriate annunciator manual. Following is a list of annunciators which can be used with the MS-9600.



Reference

Manual

• ACM-16ATF alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble LED, an On Line/Power LED and a local piezo sounder. It also has switches for FACP Acknowledge, Silence, Reset and Drill. It has rotary address switches and will accept up to three AEM-16ATF Expanders. In Canada, this module must be used to annunciate the fire alarm input points/zones only.

• AEM-16ATF Annunciator Expander Module annunciates 16 zones with 16 red alarm LEDs and 16 yellow trouble LEDs

• AFM-16ATF alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble LED, an On Line/Power LED and a local piezo sounder. It also has switches for FACP Acknowledge, Silence, Reset and Drill. It is fixed at address ‘1.’ In Canada, this module must be used to annunciate the fire alarm input points/zones only.

• ACM-32AF red LEDs. In addition, it has a System Trouble LED, an On Line/Power LED and a local piezo sounder. It also has a switch for local piezo silence. It has rotary address switches and will accept one AEM-32AF Expander. In Canada, this module must be used to annunciate the fire alarm input points/zones only.

• AEM-32AF Annunciator Expander Module annunciates 32 alarm zones with 32 red LEDs

• AFM-16AF alarm LEDs. In addition, it has a System Trouble LED, an On Line/Power LED and a local piezo sounder. It also has a switch for local piezo silence. It is fixed at address ‘1.’ In Canada, this module must be used to annunciate the fire alarm input points/zones only.

• AFM-32AF LEDs. In Canada, this module must be used to annunciate the fire alarm input points/zones only.

Annunciator Control Module annunciates 16 zones with 16 red

Annunciator Fixed Module annunciates 16 zones with 16 red

Annunciator Control Module annunciates 32 alarm zones with 32

Annunciator Fixed Module annunciates 16 alarm zones with 16 red

Annunciator Fixed Module annunciates 32 alarm zones with 32 red

* In Canada, the color red must be used to indicate active alarm inputs. Yellow

indicates supervisory, burglary or trouble signals. Green indicates the presence of power, or an activated output.

22 MS-9600 PN 51335:E 7/9/03

Page 23

Getting Started Product Description

LCD-80F Remote Fire Annunciator

The LCD-80F annunciator is a compact 80-character backlit LCD remote fire annunciator that is capable of displaying English language text. It mimics the display on the control panel and will annunciate device type, point alarm, trouble or supervisory condition, zone assignment plus any custom alpha labels programmed into the FACP. The annunciator also provides system status LEDs to display AC Power, Alarm, Trouble, Supervisory and Alarm Silenced conditions. Additionally, the LCD80F is capable of remotely performing critical system functions such as Acknowledge, Silence, Reset and Drill.

Communications between the control panel and the annunciator is accomplished over a serial interface employing the EIA-485 communication standard. Up to 32 LCD-80F annunciators may be connected to the EIA-485 circuit. The annunciators may be powered from the host FACP or a remote UL listed filtered power supply such as the



Reference

Manual



Reference

Manual

Fire•Lite FCPS Series. For more detailed information, refer to the LCD-80F manual.

LDM Series Lamp Driver Modules (Graphic Annunciator)

The LDM Series Lamp Driver Modules, which consist of the LDM-32F master and LDM-E32F expander modules, are used to provide an interface to a custom graphic LED annunciator. The master module provides power and control for a maximum of three expander modules. The LDM-32F and LDM-E32F have output connectors which are used to drive lamps or LEDs and input connectors which are used for remote switch functions. Refer to the LDM Series Lamp Driver Modules manual for a complete description.

1.9 Getting Started

The following is a brief summary of the minimal steps involved in bringing an MS-9600 on-line:

• Install Backbox and Main Circuit Board (refer to "Mounting" on page 24)

• Address and Install Intelligent Devices (refer to the SLC Wiring Manual)

• Enter Autoprogramming (refer to "Autoprogram" on page 48)

• Resolve Programming Conflicts

• Go to Point Program to Enter Specific Data (refer to "Point Program" on page

49). Use the right and left arrow keys to navigate between devices.

MS-9600 PN 51335:E 7/9/03 23

Page 24

Installation Mounting

SECTION 2 Installation

The cabinet may be either semi-flush or surface mounted. The cabinet mounts using two key slots and two 0.250” (6.35 mm) diameter holes located in the backbox. The key slots are located at the top of the backbox and the two securing holes at the bottom.

Carefully unpack the system and check for shipping damage. Mount the cabinet in a clean, dry, vibration-free area where extreme temperatures are not encountered. The area should be readily accessible with sufficient room to easily install and maintain the panel. Locate the top of the cabinet approximately 5 feet (1.5 m) above the floor with the hinge mounting on the left. Determine the number of conductors required for the devices to be installed. Sufficient knockouts are provided for wiring convenience. Select the appropriate knockout(s) and pull the conductors into the box. All wiring should be in accordance with the National and/or Local codes for fire alarm systems.

2.1 Mounting

The circuit board contains static-sensitive components. Always ground yourself with a proper wrist strap before handling any boards so that static charges are removed from

the body. Use static suppressive packaging to protect electronic assemblies.

 Mark and predrill holes in the wall for the top two keyhole mounting bolts



See Page

IMPORTANT!

Secure circuit board to this standoff with supplied male/female standoff

using the dimensions illustrated in Figure 2.2 on page 25

 Install two upper fasteners in the wall with the screw heads protruding  Using upper ‘keyholes,’ place backbox over the two screws, level and secure  Mark and drill the lower two holes  Install remaining fasteners and tighten  Screw supplied standoffs onto mounting studs in locations indicated below  Attach solid earth ground wire to grounding stud as indicated in Figure 2.1  When the location is dry and free of construction dust, install the main circuit

board by aligning the 10 mounting holes in the circuit board with the 10 mounting standoffs in the backbox as illustrated below

 Secure the circuit board to the standoffs with the supplied screws and male/

female standoff as indicated in following figure

MS-9600 Main Circuit Board

REMOVE TODISABLE LOCAL CHARGER

TB3

JP3

TB5

TB4

4XTM OPT BD

JP10

JP11

TB6 TB7 TB8

JP5

JP2

mounting studs

DISABLE GND FLT

J17

J16

HOT

CB1

CUT TO MONITO R 4 XTM

LCD DISPLAY

NEUTE ART H

JP6

TB1 TB2

+BATTERY-

OPT DACT

SW1

KEYPAD I/F

OPT SLC

96brdmnt.cdr

grounding stud: attach solid earth ground wire (refer to "AC Power and Earth

MS-9600 Backbox

Ground Connection" on page 27)

Figure 2.1 MS-9600 Main Circuit Board Installation

24 MS-9600 PN 51335:E 7/9/03

Page 25

Mounting Installation

4.1 cm

1.62“

3.79 cm

1.49“

1.50“ (3.81 cm)

1.62“ (4.11 cm)

1.453“ (3.69 cm)

10.0“

25.4 cm

1.75“

5.1 cm

2.00“

2.00“2.00“

15.5“ (39.37 cm)

12.00“ (30.48 cm)

2.00“

4.45 cm

1.75“

47.0cm

18.5“

3.81 cm

1.50“

4.1cm

1.62“

17.35 cm

6.83“

1.50“

3.81 cm

1.50“ (3.81 cm)

1.75“

4.45 cm

Figure 2.2 MS-9600 Cabinet Mounting

11. 1 c m

4.37“

11. 1 c m

9600encl.cdr

4.45cm

1.75“

4.45cm

1.75“

4.1cm

1.583“

MS-9600 PN 51335:E 7/9/03 25

Page 26

Installation Mounting

Left Side

Door = 18.67" (47.43 cm) Backbox = 18.5" (47.0 cm)

18.620" (47.3 cm)

To p

Bottom

Door = 15.78" (40.08 cm) Backbox = 15.5" (39.37 cm)

Depth = 4.37" (11.1 cm)

Depth =

4.425" (11.24 cm)

Right Side

15.625" (39.688 cm)

18.625" (47.308 cm)

Trim Ring P/N:FC-T

21.620" (54.92 cm)

Battery Box = 14.34" (36.42 cm)

Figure 2.3 MS-9600 Cabinet Dimensions

Depth = 4.75" (12.07 cm)

Battery Box = 8.5" (21.59 cm)

9600cab.cdr

26 MS-9600 PN 51335:E 7/9/03

Page 27

Power Installation

2.2 Power

WARNING: Several different sources of power can be connected to this panel. Disconnect all sources of power before servicing. The panel and associated equipment may be damaged by removing and/or inserting cards, modules or interconnecting cables while this unit is energized.

2.2.1 AC Power and Earth Ground Connection

Primary power required for the FACP is 120 VAC, 50/60 Hz,

HOT

LCD DISPLAY

TB1

NEUT EARTH

TB2

+BATTERY-

3.2 amps for the MS-9600 or 220/240 VAC, 50/60 Hz, 1.6 amps for the MS-9600E. Overcurrent protection for this circuit must comply with Article 760 of the National Electrical Code (NEC) and/or local codes. Use 14 AWG (2.00 mm

) or larger wire with 600 volt insulation rating.

Make certain that the AC mains circuit breaker is off

before

wiring any connections between the mains and the control panel. Connect wiring from the AC mains to TB1 on the FACP, being careful to observe proper connections.

Connect a wire from the grounding stud in the cabinet to a known solid earth ground (refer to Figure 2.1 on page 24). This connection is vital for maintaining the control panel’s immunity to unwanted transients generated by lightning and electrostatic discharge. Apply AC power to the panel only after the system is completely installed and visually checked. Note that AC power must be applied to the panel before

installing the battery interconnect cable (refer to the following section).

2.2.2 Battery Power

Before connecting the batteries to the FACP, make certain that the interconnect cable between the batteries is not interconnect cable until the system is completely



See Page

installed. Observe polarity when connecting the batteries. Connect the battery cable to TB2 on the main circuit board. Refer "Power Supply Calculations" on page 136, for calculation of the correct battery rating.

WARNING: Battery contains sulfuric acid which can cause severe burns to the skin and eyes and can destroy fabrics. If contact is made with sulfuric acid, immediately flush the skin or eyes with water for 15 minutes and seek immediate medical attention.

2.2.3 DC Power Output Connection

All DC power outputs are power-limited.

Power-limited Resettable Power

3.0 amperes max., 24 VDC nominal filtered, resettable power can be drawn from TB3 Terminals 1(+) and 2(-)

connected. Do not connect the

Power-limited Nonresettable Power #1

3.0 amperes max. , 24 VDC nominal filtered, nonresettable power can be drawn from TB3 Terminals 3(+) and 4(-)

+ - + - + -

Interconnect Cable

Power-limited Nonresettable Power #2

3.0 amperes max. , 24 VDC nominal filtered, nonresettable power can be drawn from TB3 Terminals 5(+) and 6(-)

1 2 3 4 5 6

9600tb3.cdr

Figure 2.4 Power Outputs - 24 VDC

MS-9600 PN 51335:E 7/9/03 27

Page 28

Installation Relays

2.3 Relays

The FACP provides two programmable Form-C relays and one fixed fail-safe Form-C trouble relay, all with contacts rated for 2.0 amps @ 30 VDC (resistive) or 0.5 amps @ 30 VAC (resistive). The Alarm and Supervisory silk-screen labels reflect the factory default programming for the two programmable relays.

Note that relay connections may be power-limited or nonpower-limited, provided that

0.25” spacing is maintained between conductors of power-limited and nonpowerlimited circuits. Refer to UL Power-limited wiring requirements.

Note that the relays labeled as Alarm Relay (Relay 1) and Supervisory Relay (Relay 3) reflect the factory default programming for these relays which are programmable. The relay labeled Trouble Relay (Relay 2) is fixed and cannot be changed. It is a failsafe relay which will transfer on any trouble or total power failure.

TB5

ALARM

RELAY

NO NC

Relay contacts shown with power applied to panel and no active troubles, alarms or supervisories

Figure 2.5 Relay Terminals

2.4 Notification Appliance Circuits

The control panel provides four Style Y/Class B or two Style Z/Class A NACs



See Page



Reference

Manual

(Notification Appliance Circuits). Each circuit is capable of 3.0 amps of current. Total system current in alarm cannot exceed 7.0 amps (refer to "Calculating the System Current Draw" on page 137). Use UL listed 24 VDC notification appliances only. Circuits are supervised and power-limited. Refer to the Fire•Lite Device Compatibility Document for a listing of compatible notification appliances. The NACs, which are located on the main circuit board, may be expanded via the Fire•Lite FCPS Series field charger/power supplies.

TROUBLE

RELAY

SUPV

RELAY

NONC NO

9600reyp.cdr

The following sections describe the configuration and wiring of Style Y and Style Z Notification Appliance Circuits on the MS-9600 main circuit board. The NACs are configured for Style Y (Class B) from the factory. Refer to "Configuring NACs" on page 29 for information on changing the NAC configuration to Style Z (Class A) and preparing the NACKEY configuration card located in JP8, when installing a 4XTMF Transmitter Module.

28 MS-9600 PN 51335:E 7/9/03

Page 29

Notification Appliance Circuits Installation

2.4.1 Configuring NACs

The Notification Appliance Circuits on the main circuit board are configured for Style Y or Style Z by properly orienting the NACKEY card in JP8 which is located at the top of the main circuit board near the NAC Terminal TB4. The default configuration is for Style Y (Class B). Refer to Figure 2.6 for information on installing the NACKEY card.

• Style Z (Class A) - install NACKEY into JP8 with Class A pointing down toward circuit board as illustrated to the right.

• Style Y (Class B) - install NACKEY into JP8 with Class B pointing down toward circuit board .

NACKEY must be inserted with text side facing in toward center of main circuit board and key into keyslot as illustrated to the right. It is keyed to prevent incorrect insertion.

Top edge of MS-9600 Main Circuit Board

NACKEY card slot

4XTMF Module connectors

TB4

4XTMF OPT BD

J10

Connectors fo r 4XTMF option module

Figure 2.6 NAC Configuration Using NACKEY

2.4.2 Style Y (Class B) NAC Wiring

Key

Key-slot

JP8

NACKEY Card

NACKEY -PCA

CLASS B

CLASS A

NACKEY -PCA

If the 4XTMF Option Module is to be installed in connectors J10 and J11, the NACKEY card must be carefully separated at the scored mark and only the required half installed into JP8. This will allow room for the 4XTMF module.

J11

scored mark

JP8

4 Style Y (Class B) Notification Appliance Circuits, supervised and power-limited - 4.7 kohm, ½ watt P/N:71252 UL listed

NAC 1

Polarized Bells

Polarized Strobes

Polarized Horns

Notification Appliance Circuit polarity shown in alarm state

circuit number

NAC 3

B + 1

NAC 4

++++

B+B

2244

NAC 2

Polarized Bells

Polarized Strobes

Polarized Horns

Dummy Load all unused circuit

TB4

Figure 2.7 NAC Style Y (Class B) Wiring

9600nacy.cdr

MS-9600 PN 51335:E 7/9/03 29

Page 30

Installation Notification Appliance Circuits

2.4.3 Style Z (Class A) NAC Wiring

2 Style Z (Class A) Notification Appliance Circuits, supervised and power-limited

Polarized Strobe

Polarized Horn

Notification Appliance Circuit polarity shown in alarm state

Polarized Bell

NAC 1

Polarized Bell

Polarized Strobe

Polarized Horn

NAC 2

9600nacz.cdr

B+B

Figure 2.8 NAC Style Z (Class A) Wiring

30 MS-9600 PN 51335:E 7/9/03

Page 31

UL Power-limited Wiring Requirements Installation

2.5 UL Power-limited Wiring Requirements

Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” (6.35 mm) away from any nonpower-limited circuit wiring and nonpower-limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits. A typical wiring diagram for the MS-9600 is shown below.

4XTMF

C b r

SLC-2

UDACT-F

9600wireroute.cdr

Figure 2.9 Typical UL Power-limited Wiring Requirements

Ferrite Bead Installation at Terminal Inside Cabinet

Per FCC requirements, ferrite beads are required on the wiring for the DC Nonresettable Power Outputs, NACs, TERM EIA-485 and SLC Circuit.

Wrap wire around ferrite bead as shown

Close ferrite bead.

MS-9600 PN 51335:E 7/9/03 31

Page 32

Installation Optional Modules and Devices

2.6 Optional Modules and Devices

WARNING! Disconnect all sources of power (AC and DC) before installing or removing any modules or wiring.

MS-9600 Keypad/Display Removal

Removal of the keypad/display is normally not necessary. If, however, it becomes necessary to replace the keypad/display, access the auxiliary trouble bus connectors at J16 and J17 or install the DACT-UD option module on J2, the Keypad/Display can be removed by inserting a Phillips screwdriver into each of the three holes located in the flexible covering of the Keypad/Display and loosening the three mounting screws. Note that it is not necessary to disconnect the cables between the Keypad/Display and the main circuit board unless the unit itself is being replaced. Carefully lift the Keypad/ Display and rest the unit at the bottom of the main circuit board.

Mounting Screw Access Hole

TB3

JP3

REMOVE TO DISABLE LOCAL CHARGER

JP10

JP2

DISABL E GND FLT

GHI JKL

J17

J16

78 9

PRS

RECALL

HOT

CB1

4XTM OPT BD

ABC DEF

CUT TO MONITOR 4XTM

TUV WXY

LCD DISPLAY

NEUT EARTH

TB4 TB5

JP6

AC POWER

FIRE ALARM

SUPERVISORY

JP8

EVENT

JP7

CLR

MNO

JP6

ESC

MODE

TB1

-/.

+BATTE RY-

TB2

ENTER

KEYPAD I/F

TROUBLE

OPT DACT

MAINTENANCE

ALARM SILENCED

DISABLED

BATTERY

GROUND

CK/STEP

ALARM SILENCE

DRILL

HOLD 2 SEC

RESET

JP5

JP4

1 2 3

Mounting Screw Access Holes

Figure 2.10 Keypad/Display Removal

TB6 TB7

TB8

OPT SLC

96dact1.cdr

32 MS-9600 PN 51335:E 7/9/03

Page 33

Optional Modules and Devices Installation

2.6.1 DACT-UD Installation

WARNING! Disconnect all sources of power (AC and DC) before installing or removing any modules or wiring.

The optional DACT-UD Digital Alarm Communicator/Transmitter transmits system status to UL listed Central Station receivers via the public switched telephone network. It is capable of reporting up to 99 software zones or up to 636 addressable points. Two modular phone jacks, labeled PH1 for Primary phone line and PH2 for Secondary phone line, allow easy connection of two independent telephone lines to the DACT. Telephone line ‘Primary’ and ‘Secondary’ active red LEDs are provided as well as a green ‘Kissoff’ LED. The following functions have been incorporated into the DACT:

• Line Seizure - takes control of phone lines disconnecting any premises phones

• Off/On Hook - performs on and off-hook status to the phone lines

• Listen for dial tone - 440 hertz tone typical in most networks

• Dialing Central Station(s) number - default is Touch-Tone®, programmable to rotary

• For tone burst or touchtone type formats: determine proper ‘Acknowledge’ and ‘Kissoff’ tone(s) - the frequency and time duration of the tone(s) varies with the transmission format. The control panel will adjust accordingly

• Communicate in the following formats:  12 Tone Burst Types: 20 pps

(3+1, 4+1, 4+2, 3+1 Exp., 4+1 Exp., 4+2 Exp.)

 3 Touchtone Types:

4+1 Ademco Express 4+2 Ademco Express Ademco Contact ID

The DACT-UD module plugs into connector J2 on the MS-9600 main circuit board.

2 1

SW1

SECONDARY

O F F

O N

PH2 Secondary Phone Line

Secondary Active LED

J1 Connector (located on back of module) plugs into J2 on MS-9600 main circuit board

PH1 Primary Phone Line

Primary Active LED

Kissoff LED

PRIMARY

Figure 2.11 DACT-UD Module

MS-9600 PN 51335:E 7/9/03 33

Page 34

Installation Optional Modules and Devices

The following steps must be followed when installing the DACT module:

1. Remove all power (AC and DC) from FACP before proceeding with installation

2. Remove the Keypad/Display from the main circuit board as described in the beginning of this section

3. Carefully plug connector J1 on back of the DACT-UD module into connector J2 on the MS-9600 main circuit board, being careful not to bend any pins

4. Align the mounting holes in the DACT module with the premounted standoffs on the FACP main circuit board

PRIMARY

TB4

TB3

TB5

JP8

CUT TO MONITOR 4XTM

4XTM OPT BD

J10

JP6

J11

Standoff

OPT DACT

J17

CB1

J16

LCD DISPLAY

TB1

HOT

NEUT EARTH

+BATTE RY-

TB2

KEYPAD I/F

TB6 TB7

Standoff

JP5

SW1

Standoff

J1J2

SW1

J1 Connector located on back of DACT module

Figure 2.12 DACT J1 Connector to FACP J2 Connector

5. Secure the module to the standoffs on the main circuit board with the three screws supplied with the DACT-UD. It is important that the supplied screws be used to secure the module to the metal standoff in order to help protect against electrical transients.

JP5

SECONDARY

TB6

Mounting Screw

PRIMARY

TB4TB3 TB5

JP8

CUT TO MONITOR 4XTM

4XTM OPT BD

J10

CUT TO

JP6

DISABL E SPV RELAY

J11

SECONDARY

O F F

2 1

O N

Mounting Screws

O F F

2 1

OPT DACT

SW1

J17

CB1

J16

LCD DISPLAY

NEUT E ARTH

HOT

TB1

+BATTE RY-

TB2

KEYPAD I/F

Figure 2.13 DACT Installation on Standoffs

6. Reinstall Keypad/Display on the main circuit board by positioning the unit over the appropriate standoffs and securing with screws which were loosened in step 2

7. Make certain to program the control panel for DACT operation

34 MS-9600 PN 51335:E 7/9/03

Page 35

Optional Modules and Devices Installation

8. Refer to the Telephone Requirement and Warnings section of the DACT-UD Installation and Programming Manual Document #51889, before proceeding with this step. Connect the premises primary and secondary phone lines to the DACT as illustrated in Figure 2.14 and test the system for correct operation

Primary Lines Incoming Telco Phone Lines

Green Wire

Tip

Red Wire

Ring

Primary Phone Line PH-1

1 2 3 4 5 6 7 8

RJ31-X

Jack

Ring

To premise phones

Tip

Note: Shorting bars inside RJ31X Jack removed during male plug insertion

7 foot cable (MCBL-7) order separately

Male Plug Connectors

CAUTION: It is critical that the DACT-UD

Female Connectors

be located as the first device on the incoming telephone circuit to properly function

Green Wire

Ring

Red Wire

Tip

1 2 3 4 5 6 7 8

Secondary Lines Incoming Telco Phone Lines

Ring

To premise phones

Tip

RJ31-X

Jack

Secondary Phone Line PH-1

PH1

DACT-UD

PH2

Figure 2.14 Wiring Phone Jacks

MS-9600 PN 51335:E 7/9/03 35

Page 36

Installation Optional Modules and Devices

2.6.2 4XTMF Transmitter Module Installation

The 4XTMF provides a supervised output for a local energy municipal box transmitter in addition to alarm and trouble reverse polarity. A jumper option allows the reverse polarity circuit to open with a system trouble condition if no alarm condition exists. A disable switch allows disabling of the transmitter output during testing to prevent accidental calling of the monitoring service.

Local Energy Municipal Box Service (NFPA 72 Auxiliary Fire Alarm Systems):

Supervisory Current: 5.0 mA Trip Current: 350 mA (subtracted from notification appliance power) Coil Voltage: 3.65 VDC Maximum Coil Resistance: 14.6 ohms Maximum allowable wire resistance between panel and trip coil: 3 ohms Municipal Box wiring can leave the building

Remote Station Service (NFPA 72 Remote Station Fire Alarm Systems) - Intended for connection to a polarity reversal circuit or a Remote Station receiving unit having compatible ratings:

Maximum load for each circuit: 10 mA Reverse polarity output voltage: 24 VDC Remote Alarm and Remote Trouble wiring can leave the building

Before installing the module, place the disconnect switch to the right (disconnect) position to prevent accidental activation of the municipal box. Note that a Disconnect LED will illuminate after the module is installed in the MS-9600. In addition, the System Trouble LED will turn on to indicate the Disconnect condition.

Note: 4XTMF Module is not suitable for transmitting reverse polarity supervisory signal.

}Remote Alarm (power-limited)* }Remote Trouble (power-limited)*

No connection

}Municipal Box (nonpower-limited)*

+ - + - + 1 2 3 4 5 6 7

Polarities are shown for module activation

* Wiring from these terminals can exit the protected premises. Dummy load terminals 6 and 7 (4.7kΩ, ¼ watt resistor) if Municipal Box is not connected.

Disconnect LED

4xtmfl.cdr

Disconnect Switch shown in disconnect position

TBL Jumper

Connect to FACP J10 & J11

Figure 2.15 4XTMF Transmitter Module

36 MS-9600 PN 51335:E 7/9/03

Page 37

Optional Modules and Devices Installation

The following steps must be followed when installing the 4XTMF module:

1. Remove all power (AC and DC) from the FACP before installing 4XTMF

2. Cut jumper JP6 on the main circuit board to allow the control panel to supervise the 4XTMF module

3. Carefully plug the connectors on the 4XTMF module into connectors J10 and J11 on the MS-9600 main circuit board, being careful not to bend any pins

4. Secure 4XTMF module to standoffs with supplied screws.

5. Reapply power to the FACP

6. For proper 4XTMF operation, the output relays must be programmed for the factory default settings as shown on the PC board silkscreen: Alarm Relay, Trouble Relay and Supervisory Relay

7. When the installation has been complete, enable the 4XTMF module by sliding the disconnect switch to the left

8. Test system for proper operation

4XTMF

Standoff

J10 & J11 Connectors

MS-9600

TB3

JP3

J17

CB1

J16

J10

HOT

Standoff

4XTM OPT BD

LCD DISPLAY

NEUT E ARTH

CUT TO MONITOR 4XTM

TB1

TB4 TB5

TB2

+BATTE RY-

TB6 TB7

JP5

JP6

J11

KEYPAD I/F

OPT DACT

Cut Jumper JP6

SW1

9604xtm1.cdr

Figure 2.16 4XTMF Connectors to MS-9600 Connectors

NOTE: Jumper JP5 on the MS-9600 main circuit board can be used to configure the FACP supervisory relay for operation with the 4XTMF module. The supervisory relay must be programmed as shown on the main circuit board silkscreen (TB5, Terminals 7, 8 & 9). Cutting JP5 will allow the 4XTMF to generate a trouble if the supervisory contact opens Leaving JP5 in will prevent generation of a trouble if the supervisory contact opens

2.6.3 Auxiliary Trouble Input (J16 & J17)

Auxiliary Trouble Inputs 1 (J17) and 2 (J16), which are located on the MS-9600 main circuit board, can be used to monitor for trouble conditions on auxiliary equipment such as power supplies. J16 and/or J17 can be connected to any open collector trouble output on the auxiliary equipment. The MS-9600 control panel will indicate a trouble condition if a trouble is sensed at the Auxiliary Trouble Inputs.

If the 4XTMF Module is installed and jumper JP6 on the MS-9600 has been cut to supervise it, Auxiliary Trouble Input 1 (J17) will monitor the 4XTMF for trouble conditions.

MS-9600 PN 51335:E 7/9/03 37

Page 38

Installation Optional Modules and Devices

2.6.4 SLC-2 Expander Module

The optional SLC-2 Expander Module provides a second SLC loop for the MS-9600 control panel. This allows connection of an additional 318 addressable devices, bringing the total to 636 addressable devices which can be connected to the FACP.



Reference

Manual

Refer to the SLC Manual for information on connecting devices to the SLC.

The following steps must be followed when installing the SLC-2 Expander Module:

1. Remove all power (AC and DC) from the FACP before installing the SLC-2 module

2. Carefully plug connector J3 on the SLC-2 module into connector J3 on the MS-9600 main circuit board, being careful not to bend any pins

3. Secure the SLC-2 Expander Module to the four standoffs on the FACP main circuit board with the supplied screws

4. Connect the SLC wiring and devices to TB8 on the SLC Expander Module. Refer to the SLC Manual for wiring information

5. Reapply power to the control panel



See Page

6. Program the addressable devices connected to the SLC-2 Expander Module as detailed in "Master Programming Level" on page 47

7. Test the system for proper operation

SLC Loop 1

Shield B Shield A

SLC A-

SLC BSLC A+ SLC B+

TB7

TB8 TB8

SLC Loop 2

Shield B

Shield A

SLC ASLC B-

SLC A+

SLC B+

OPT SLC

SLC-2 Expander Module

MS-9600

96optslc.cdr

Figure 2.17 SLC-2 Expander Module Installation

38 MS-9600 PN 51335:E 7/9/03

Page 39

Optional Modules and Devices Installation

2.6.5 Printer/PC

A serial printer or a PC (personal computer) may be connected to TB7 Terminals 1 - 4 on the FACP. The printer can be used to provide a hard-copy printout of real-time events, history file and walktest data. An IBM compatible PC can be connected to provide local FACP programming capabilities using the PK-CD programming utility. Installation of either device requires panel programming to allow the FACP to communicate with the device.

CAUTION! Do not connect a printer or PC to the MS-9600 FACP if a ground fault exists on the control panel. Circuit damage may result. Remove all power (AC and

DC) before installing or removing any wiring.

Installation

Remote printers and PCs require separate primary power. Also required is the PRT/ PK-CABLE which is an interface cable prewired to a DB9F connector. Wire the PRT/ PK-CABLE to TB7 Terminals 1 - 4 as illustrated in the following figure. Connect the DB9F connector to the printer or PC serial EIA-232 port. If a nine-pin serial connector is not available on the printer or PC, use a DB25 adapter. Make certain that the DB25 adapter does not swap the Transmit and Receive lines. Apply power to the FACP and printer or PC. Note that a ground fault may occur on the FACP, dependent on the printer or PC being used, due to this connection. For this reason, it is important that there be no preexisting ground fault on the panel.

Note that the printer may or may not be supervised as determined by user programming. Refer to "Printer/PC" on page 98.

5 4 3 2 1

9 8 7 6

PRT/PK-CABLE

RCV

DTR

GRND

ACS SHIELD

1 COMM 2

T B 6

RS-232 PC/PRINTER

XMT RCV DTR GRND

T B 7

Red

White

Green

Black

SLC SLC

B+ A+ B- A - B A

T B 8

Figure 2.18 Serial Printer and Computer Connections

Printer Configuration

Refer to the documentation supplied with the printer for pertinent information about printer setup. Set the printer’s options as listed in the following table:

COMMUNICATION SETUP

BUFFER: LARGE

DATA BITS: 7

PA RI TY: E VE N

STOP BIT: 1 STOP

BAUD RATE: 2400/4800/9600

AUTOMATIC LINE FEED NO

AUTOMATIC CARRIAGE RETURN NO

9600tb7a.cdr

PC Configuration

The Windows-based PK-CD Programming Utility Kit contains CD-ROM with on-line help file.

MS-9600 PN 51335:E 7/9/03 39

Page 40

Installation Optional Modules and Devices

2.6.6 Digital Communicator and Annunciators

2.6.6.1 UDACT-F Digital Alarm Communicator/Transmitter

The UDACT-F transmits system status to UL listed Central Station receivers via the



Reference

Manual



See Page



Reference

Manual

public switched telephone network. It is capable of reporting up to 99 software zones or up to 636 addressable points. The UDACT-F can be mounted remotely in a UBS-1F or ABS-8RF enclosure or in the panel cabinet using the P/N: BRKT-9600 Universal Bracket. For additional information, refer to the UDACT-F Manual.

Programming

The MS-9600 must be programmed to operate with the UDACT-F. Refer to "Annunciators/UDACT" on page 97 for control panel programming information.

2.6.6.2 ACM-8RF Relay Control Module

The ACM-8RF module provides eight Form-C relays with contacts rated for 5 amps. When installed with an MS-9600 FACP, the ACM-8RF modules provide relay activation for each of the 99 possible FACP zones plus special functions. Options exist to allow for alarm only or alarm and trouble activation per zone. Output activation for general alarm, general trouble, general supervisory, NAC fault, AC fail, walktest start and battery trouble are also available. The ACM-8RF can be mounted remotely in an ABS-8RF annunciator surface-mount backbox or in the panel cabinet using the P/N: BRKT-9600 Universal Bracket. Refer to the ACM-8RF manual for information on setting module switches for addressing and relay functions.

2.6.6.3 BRKT-9600 Universal Bracket Installation

The optional BRKT-9600 Universal Bracket can be used to mount specific modules inside the MS-9600 cabinet. The BRKT-9600 mounts to two studs located in the lower right corner of the control panel cabinet as illustrated below. It is secured to the PEM studs on the back wall of the cabinet with two supplied hex nuts.

IMPORTANT! When the BRKT-9600 is installed, the MS-9600 cabinet can hold a maximum of two 12 Amp Hour batteries with the orientation illustrated below.

TB3

JP3

REMOVE TO DISABLE LOCAL CHARGER

JP10

JP2

DISABLE GND FLT

GHI

J17

J16

789

PRS

CB1

RECALL

HOT

ABC

JKL MNO

TUV WXY

4XTM OPT BD

CUT TO MONITOR 4XTM

LCD DISPLAY

NEUT EARTH

TB5

TB4

JP11

JP8

DEF

EVENT

JP7

CLR

JP6

ESC

MODE

TB1

TB2

-/.

+BATTERY-

ENTER

KEYPAD I/F

AC POWER

FIRE ALARM

SUPERVISORY

TROUBLE

OPT DACT

ACK/STEP

ALARM SILENCE

JP5

MAINTENANCE

ALARM SILENCED

DISABLED

BATTERY

GROUND

DRILL

HOLD 2 SEC

RESET

JP4

1 2 3

TB6 TB 7 TB8

J12

OPT SLC

Mount BRKT-9600 to PEM

studs on back of cabinet using supplied hex nuts.

MS-9600 Cabinet

96brkmnt.cdr

Figure 2.19 BRKT-9600 Bracket Installation

40 MS-9600 PN 51335:E 7/9/03

Page 41

Optional Modules and Devices Installation

Module Installation on BRKT-9600

The following modules can be installed inside the MS-9600 cabinet using the BRKT-9600 Universal Bracket:

 UDACT-F Digital Alarm Communicator/Transmitter - installs at standoff

location (A)

 ACM-8RF Annunciator Control Module (Relay) - installs at standoff location

(A)

Refer to the appropriate module manual for detailed information on module operation and wiring.

1. Install the two supplied standoffs in location (A) as indicated in Step 1 of the following illustration

2. Position the module bottom in the slot located in the bottom of the BRKT-9600 as indicated in Step 2 of the following illustration

3. Secure the module to the standoffs installed in the top of the BRKT-9600 with two mounting screws as indicated in Step 3 of the following illustration

4. Refer to the appropriate module manual for detailed information on wiring the module for power, communication, etc.

5. Install a maximum of two 12 Amp Hour batteries with the orientation illustrated in Figure 2.19. Larger batteries require a separate UL listed battery box

(A)

BRKT-9600

Step 1

Note: Do not bring wiring or conduit into the bottom of the cabinet for this application.

BRKT-9600 BRKT-9600

(A)

9600brkt.cdr

Step 2

standoffs

Slot

module

mounting screws

module

Step 3

96brcksd.cdr

Figure 2.20 BRKT-9600 Module Installation Steps

MS-9600 PN 51335:E 7/9/03 41

Page 42

Installation Optional Modules and Devices

2.6.6.4 ACM and AFM Series Annunciators

ACM and AFM Series Annunciators provide visual indications of FACP status in remote locations. Refer to the appropriate annunciator manual for information on installation, wiring and operation.

Annunciator addressing is specific to the MS-9600 control panel. The following table describes the annunciator addresses and the corresponding addressable devices that will be annunciated at each annunciator address.

ACM Annunciator Address Annunciator Displays the Following Points

1 8 General System Status Points & Zones 1 - 56 2 Zones 57 - 99 & 4 NACs 3 Loop 1, Module Addresses 1 - 64 4 Loop 2, Module Addresses 1 - 64 5 Loop 1, Module Addresses 65 - 128 6 Loop 2, Module Addresses 65 - 128 7 Loop 1, Module Addresses 129 - 159 & Loop 2 Module Addresses 129 - 159 8 Loop 1, Detector Addresses 1 - 64

9 Loop 2, Detector Addresses 1 - 64 10 Loop 1, Detector Addresses 65 - 128 11 Loop 2, Detector Addresses 65 - 128 12 Loop 1 Detector Addresses 129 - 159 & Loop 2 Detector Addresses 129 - 159 13 not used 14 not used 15 not used 16 not used 17 not used 18 not used 19 not used 20 8 General System Status Points & Zones 1 - 56 21 Zones 57 - 99 & 4 NACs 22 Loop 1, Module Addresses 1 - 64 23 Loop 2, Module Addresses 1 - 64 24 Loop 1, Module Addresses 65 - 128 25 Loop 2, Module Addresses 65 - 128 26 Loop 1, Module Addresses 129 - 159 & Loop 2 Module Addresses 129 - 159 27 Loop 1, Detector Addresses 1 - 64 28 Loop 2, Detector Addresses 1 - 64 29 Loop 1, Detector Addresses 65 - 128 30 Loop 2, Detector Addresses 65 - 128 31 Loop 1 Detector Addresses 129 - 159 & Loop 2 Detector Addresses 129 - 159 32 not used

Important: If a UDACT-F is installed in the MS-9600 and selected in programming, the control panel will automatically assign annunciator addresses 20 - 31 to the UDACT-F and disable the selection of these addresses in programming for ACM annunciators. Do not

set any ACM annunciators to these addresses.

The MS-9600 must be programmed for the annunciators installed on the system. Refer to "Annunciators/UDACT" on page 97 for information on UDACT-F and annunciator programming. Make certain to program the annunciator addresses that have been physically installed on the system.

Note: The 8 General System Status Points include the following:

• General Alarm

• General Trouble

• General Supervisory

• Alarm Silenced

• System Off Normal

•AC Loss

• Battery Fault

• NAC Fault

42 MS-9600 PN 51335:E 7/9/03

Page 43

Programming Data Entry Programming

SECTION 3 Programming

3.1 Programming Data Entry

Programming can be accomplished using the MS-9600 keypad or by connecting an optional standard computer keyboard. The keyboard can be connected to the PS-2 connector J7 on the control panel main circuit board.

The information presented in this section refers to programming the MS-9600 via the onboard keypad. If an optional computer keyboard is connected to the MS-9600 main circuit board, the following table describes the keyboard keys which correspond to the onboard keypad keys.

Keypad Keys Computer Keyboard Keys

1st Event Home

CLR Delete

ESC Esc

RECALL Insert

A - Z A - Z

0 - 9 0 - 9

 (on QZ key)

——

••

Space bar









ENTER Enter

ACK/STEP F1

SILENCE F2

DRILL F3

RESET F4

MS-9600 PN 51335:E 7/9/03 43

Page 44

Programming User Programming

3.2 User Programming

The MS-9600 is completely field programmable and requires no special software skills.

While programming the MS-9600, the fire protection capabilities of the control panel

!!!

are

enabled.

Site-specific programming may be accomplished in three ways:

• Autoprogramming Feature - This is a convenient method for quickly bringing the FACP addressable SLC devices on-line without the necessity of programming each device individually. Refer to "Autoprogram" on page 48 for a detailed description of Autoprogramming

• Manual programming or editing, using the FACP keypad or a PC keyboard

• Off-line Programming and Editing Feature - allows creation and editing of sitespecific custom programs using a Windows-based computer. For programs requiring a large amount of data entry, this method may be preferred. A PK-CD programming kit can be ordered for this purpose

The System All Normal screen will be displayed in a programmed system with no active alarms, troubles or supervisories, as illustrated below:

FIRE-LITE ALARMS INC SYSTEM ALL NORMAL 10:00A 010801



See Page

Programming and Read Status mode can be entered while the panel is in any operation. If the panel is in alarm, the alarm condition must be acknowledged before entering any other mode. To access any of the programming or read status features, the Enter or Mode key must be pressed, which will cause the LCD to display the following:

mode of

1=READ STATUS 2=PROGRAMMING 3=MANUAL DIAL MODE

Pressing 1, while this screen is being displayed, will cause the control panel to enter the Read Status feature which allows the user to view the programmed features and status of the control panel The Read Status feature is not password protected. Refer to "Read Status" on page 123 for a detailed description of this feature.

Pressing 2 will select user Programming which may only be accomplished by an authorized person. After pressing 2, a screen will prompt for a password. After entering the correct password, the user may select from a list of programming options.

Pressing 3 will select the Manual Dial Mode feature which is used when the optional DACT-UD board is installed. Refer to the DACT-UD manual for a detailed description of this feature.

Exit Programming or Read Status

The programmer can exit Read Status or Programming mode by repeatedly pressing the keypad ESC (Escape) key until the display reads System All Normal. Note that the

data which is entered during Programming mode is not exits this mode by repeatedly pressing the ‘ESC’ key. If the Reset key is pressed or power is lost before exiting Programming mode, all data which was just entered will be lost.

saved until the programmer

44 MS-9600 PN 51335:E 7/9/03

Page 45

Initial Power-up Programming

User Programming Levels

There are two user programming levels:

• User Master Program Level 1 is used for programming panel specific data relating to device types, zoning, messages, control panel functions, etc.

• User Maintenance Program Level 2 is used by a qualified operator to access features such as Disable/Enable, View and Clear History, Walktest and System Time Change.

3.3 Initial Power-up

The following sections describe the initial programming procedures for a new system. The same procedures are used to modify programming in an existing system.

After completing the wiring of addressable devices to the SLC, apply power to the control panel. If the addressable devices have not yet been programmed into the FACP, their LEDs will not flash and the following trouble message will be displayed.

TROUBL IN SYSTEM NO DEVICES INSTALLED 09:03A 010801

3.4 Programming Screens Description

Three main options are available when the Enter key is pressed: Read Status, Programming and Manual Dial Mode. Each option has multiple functions or features which may be chosen. To view all of the choices, it is necessary that the programmer scroll through a number of additional subscreens. These selections are displayed on



See Page

multiple screens to make them more readable for the programmer. Refer to "Master Programming Level" on page 47, for additional information on the various screens.

The title of the main option screen will always be displayed at the top of the subscreens for the programmer’s convenience. If additional subscreens exist, an Up or Down arrow will be displayed in the upper right corner of the screen being viewed. The programmer can then press the keypad Up or Down arrow key to view the new subscreen. To select one of the choices in a screen, the programmer presses the keypad numerical key corresponding to the desired choice.

Note that subscreens may also have multiple options which require viewing more than one screen. The same process, as detailed in the previous paragraphs, is followed to view all option choices.

3.5 Programming and Passwords

There are two factory set programming passwords which will access the Programming screens as indicated in the following examples. From either of the screens, access to specific system and device features or programming may be obtained. All user



See Page

programming entries are stored in nonvolatile memory. The factory set passwords can be changed by the user as described in "Password Change" on page 99. If an invalid password is entered, the blinking cursor will return to the first password character position. To exit Programming, Read Status or Manual Dial mode at any time, press the ESC (Escape) key repeatedly. Note that Programming mode must be exited using the ESC key in order to store the program data entered during this mode. If the Reset key is pressed or power is lost before exiting Programming mode, the data just entered will not be saved.

MS-9600 PN 51335:E 7/9/03 45

Page 46

Programming Programming and Passwords

To access user Programming mode, press the Enter or Mode key. The LCD will display the following:

1=READ STATUS 2=PROGRAMMING 3=MANUAL DIAL MODE

To enter the user Programming mode, press 2. The display will read as follows:

PROGRAMMING ENTER PASSWORD *****

Entering the Master appear:

If the Maintenance appear:

level password (default 00000) will cause the following screen to

PROGRAMMING 1=AUTOPROGRAM 2=POINT PROGRAM 3=ZONE SETUP

level password (default 11111) is entered, the following screen will

PROGRAMMING 1=POINT PROGRAM 2=HISTORY 3=PROGRAM CHECK

Note that in the two preceding screens, an arrow appears to inform the programmer that additional options can be viewed by pressing the keypad down arrow key.

46 MS-9600 PN 51335:E 7/9/03

Page 47

Master Programming Level Programming

3.6 Master Programming Level

When the Master Program Level password is entered, the control panel will enter user Programming mode. In this mode, the piezo sounder remains off, the trouble relay is activated and the system Trouble LED flashes until Programming mode is exited. The following display will appear:

PROGRAMMING 1=AUTOPROGRAM 2=POINT PROGRAM 3=ZONE SETUP

Programming Screen #1

The down arrow which appears in the display indicates that additional programming choices can be viewed by pressing the down arrow key on the keypad. If a down and up arrow appear in the display, pressing the ‘down’ arrow key will display the subsequent Programming Screens as illustrated below while pressing the ‘up’ arrow key will display the previous screen.

PROGRAMMING 1=LOOP SETUP 2=SYSTEM SETUP 3=VERIFY LOOPS

Programming Screen #2

PROGRAMMING 1=HISTORY 2=WALKTEST 3=OPTION MODULES

Programming Screen #3

PROGRAMMING 1=PASSWORD CHANGE 2=CLEAR PROGRAM 3=PROGRAM CHECK

Programming Screen #4

MS-9600 PN 51335:E 7/9/03 47

Page 48

Programming Master Programming Level

3.6.1 Autoprogram

PROGRAMMING 1=AUTOPROGRAM 2=POINT PROGRAM 3=ZONE SETUP

Programming Screen #1

Pressing 1 while viewing Programming Screen #1, will select the Autoprogram option, which prompts the control panel to poll all devices installed on one or both SLC loops. The primary purpose of autoprogramming is to allow the installer a fast and easy way to bring the system on-line as quickly as possible. The first time the system is poweredup, it should be autoprogrammed.

If the system is already programmed and Autoprogram is initiated, the system will only add default values for newly installed devices.

When Autoprogram is selected, the programmer is given the option of autoprogramming all loops, only loop 1 or only loop 2. The following will be displayed on the LCD:

AUTOPROGRAM 1=LOOP 1 2=LOOP 2 3=ALL LOOPS

Autoprogram Loop Select Screen

After selecting one of the Autoprogram options, the control panel will begin autoprogramming the system by communicating with each addressable device installed on one or both loops. While autoprogramming, the panel will display the following:

AUTOPROGRAM AUTOPROGRAMMING! PLEASE WAIT

Autoprogram Progress Screen

When Autoprogramming is completed, the control panel will display the type and quantity of each device installed on the SLC loop(s) similar to the following display:

# OF DET LOOP1 055 # OF MON LOOP1 035 # OF CON LOOP1 030

Autoprogram Result Screen #1

# OF DET LOOP2 000 # OF MON LOOP2 000 # OF CON LOOP2 000

Autoprogram Result Screen #2

In the preceding example, the first display indicates that Loop 1 has 55 addressable detectors, 35 monitor modules and 30 control modules installed. The second display indicates that Loop 2 has no devices installed.

48 MS-9600 PN 51335:E 7/9/03

Page 49

Master Programming Level Programming

3.6.2 Point Program

PROGRAMMING 1=AUTOPROGRAM 2=POINT PROGRAM 3=ZONE SETUP

Programming Screen #1

The Point Program option allows the programmer to add a new addressable device to an SLC loop, delete an existing device from a loop or change the programming for an existing device. Pressing 2, while viewing Programming Screen #1, will select the Point Program option and display the following screen:

POINT PROGRAM SELECT LOOP 1=LOOP 1 2=LOOP 2

Point Program Screen #1

The programmer selects the desired SLC loop by pressing 1 or 2 in Point Program Screen #1, which causes the panel to display the following screen:

POINT PROGRAM SELECT TYPE 1=DETECTOR 2=MODULE

Point Program Screen #2

3.6.2.1 Detector Programming

Pressing 1, while viewing Point Program Screen #2, will allow the programmer to add, delete or change the programming of an addressable detector. The following screen will be displayed by the control panel:

DETECTOR 1=ADD 2=DELETE 3=EDIT

Detector Screen

3.6.2.1.1 Add Detector

Pressing 1 while viewing the Detector Screen will display the following screen which allows the programmer to add a new detector address to programming:

ADD DETECTOR ENTER DETECTOR# ***

Add Detector Screen

A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in the three digit detector address, such as 005.

MS-9600 PN 51335:E 7/9/03 49

Page 50

Programming Master Programming Level

When the last digit is keyed-in, the following screen will be displayed:

ADD DETECTOR DETECTOR# 005 IS ADDED

The programmer can continue adding detectors by pressing the ESC or left arrow key which will return the display to the Add Detector Screen.

3.6.2.1.2 Delete Detector

DETECTOR 1=ADD 2=DELETE 3=EDIT

Detector Screen

Pressing 2 in the Detector Screen will display the Delete Detector Screen which allows the programmer to delete a specific detector:

DELETE DETECTOR ENTER DETECTOR# ***

Delete Detector Screen

A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in the three digit detector address, such as 005. When the last digit is keyed-in, the following screen will be displayed:

DELETE DETECTOR DETECTOR# 005 IS DELETED

The programmer can continue deleting detectors by pressing the ESC or left arrow key which will return the display to the Delete Detector Screen.

3.6.2.1.3 Edit Detector

The programmer can change a detectors existing or factory default programming by pressing 3 in the Detector Screen. The following screen will be displayed:

EDIT DETECTOR ENTER POINT ADDRESS ***

Edit Detector Screen

A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in the three digit detector address, such as 017.

50 MS-9600 PN 51335:E 7/9/03

Page 51

Master Programming Level Programming

When the last digit is keyed-in, if the selected address has not been added to programming, a screen showing information about a device with the highest that is installed will be displayed.

If no

detectors have been installed on the loop, the following will be displayed:

address

NO DETECTOR INSTALLED

Edit Detector Screen #1

If the selected address has been added to programming, device summary screens will be displayed. These screens allow the programmer to view all device settings at a single glance. Pressing the left or right arrow keys will allow the programmer to rapidly view the devices at the previous or next address (if installed).

If a detector (such as a photoelectric detector) with the selected address is not physically installed on the SLC or has a communication fault but the address is programmed in the system, the following screen will be displayed:

TROUBL SMOKE(PHOTO) ******************** ZNNN * 1D017

Edit Detector Screen #1

If the selected address has been added to programming and a detector (such as a photoelectric detector) with the selected address is physically installed on the SLC and is communicating with the control panel, the following will be displayed:

NORMAL SMOKE (PHOTO) ********************* ZNNN V 1D017

Edit Detector Screen #1

To change the programming for the displayed detector, press the keyboard ‘down’ arrow key to view the Edit Detector screens.

In the preceding example:

 Normal - indicates that the detector with the selected address is physically

installed on the SLC and communicating with the control panel (enabled)

 <ADJ><NOUN> - represents the adjective and noun, which have been

programmed, describing the location of the displayed device

 ZNNN - represents the first of five possible software zones that the detector is

assigned to (NNN = the three digit zone number from 000 - 099)

 V or * - indicates whether or not alarm verification is enabled (V = alarm

verification enabled and * = alarm verification disabled)

 1D017 - represents the Loop, Device type and Device address (1 = SLC Loop

1, D=Detector and 017 = Detector Address 017)

MS-9600 PN 51335:E 7/9/03 51

Page 52

Programming Master Programming Level

The following examples show the editing of a photoelectric smoke detector with address 017, located on the first SLC loop:

EDIT DETECTOR 1D017 1=ENABLED YES 2=TYPE SMOKE(PHOTO) 3=VERIFICATION OFF

Edit Detector Screen #2

EDIT DETECTOR 1D017 1=WALKTEST NO 2=PAS NO 3=PRE-SIGNAL NO

Edit Detector Screen #3

EDIT DETECTOR 1D017 1=ZONE ASSIGNMENT 00 ** ** ** **

EDIT DETECTOR 1=ENABLED 2=TYPE 3=VERIFICATION

Edit Detector Screen #2

Edit Detector Screen #4

EDIT DETECTOR 1D017 1=NOUN/ADJECTIVE 2=DESCRIPTION ********************

Edit Detector Screen #5

Enable/Disable Detector

To Enable or Disable the detector, press the 1 key while viewing the Edit Detector Screen #2. Each press of the key will toggle the screen between Enabled Yes and Enabled No. If Enabled No is selected, the detector will not be polled by the control panel, preventing the detector from reporting alarms and troubles to the panel. The control panel will display the device type and address which has been disabled and will turn on the Trouble LED and Disable LED.

52 MS-9600 PN 51335:E 7/9/03

Page 53

Master Programming Level Programming

Type

EDIT DETECTOR 1=ENABLED 2=TYPE 3=VERIFICATION

Edit Detector Screen #2

To select the type of detector being programmed, press the 2 key while viewing the Edit Detector Screen #2. This will cause the control panel to display the following Detector Type Screens:

DETECTOR TYPE 1=SMOKE PHOTO 2=USER DEFINED-1 3=SMOKE (ION)

Detector Type Screen #1

Pressing the down arrow key will display additional detector types as indicated in the following table:

Detector Type Action When Activated

Smoke Photo Fire Alarm User-Defined-1 same as previous (Smoke Photo) Smoke Ion Fire Alarm User-Defined-2 same as previous (Smoke Ion) Heat Detect Fire Alarm User-Defined-3 same as previous (Heat Detect) Smoke DuctP Fire Alarm User-Defined-4 same as previous (Smoke DuctP) Superv DuctP Supervsory, latching User-Defined-5 same as previous (Superv DuctP) Future not used Future not used

See Page

EDIT DETECTOR 1=WALKTEST 2=PAS 3=PRE-SIGNAL

Edit Detector Screen #3



While viewing any Detector Type screen, select the type of detector being programmed by pressing the corresponding keyboard number key. The display will return to Edit Detector Screen #2 and indicate the selection next to the Type option.

Note: If a detector is selected as a SUPERV DUCTP type, it will function like a supervisory point, not a fire alarm point. The supervisory LED and supervisory relay will activate, not the fire alarm LED or alarm relay, if smoke is sensed.

Verification

Alarm verification is used to confirm that a smoke detector activation is a true alarm condition and not a false alarm. This feature is selected by pressing 3 while viewing the Edit Detector Screen #2 so that the display reads Verification On. Each time the

3 key is pressed, the display will toggle between Verification On and Verification Off. For a detailed description, refer to "Alarm Verification" on page 122.

Wal ktest

The Walktest feature allows one person to test the system devices without the necessity of manually resetting the control panel after each device activation. To enable a device for the Walktest feature, press 1 while viewing the Edit Detector Screen #3 until the display reads Walk test Yes. Each press of the 1 key will cause the display to toggle between Walkt e st Ye s and Walkt est N o. Refer to "Walktest" on page 122.

PAS

The PAS (Positive Alarm Sequence) option will program the detector to delay panel activation (including alarm relay and communicator) for a period of 15 seconds plus a programmable time of up to 3 minutes. Zone 97, however, will activate immediately and may be used to connect a signaling device to indicate PAS activation (do not use a Notification Appliance Circuit for this purpose).

MS-9600 PN 51335:E 7/9/03 53

Page 54

Programming Master Programming Level

To enable the PAS feature, press 2 while viewing the Edit Detector Screen #3 until



See Page

the display reads PAS Yes. Each press of the 2 key will cause the display to toggle between PAS Yes and PAS No. Refer to "Positive Alarm Sequence" on page 120.

For example, if a detector with address 005 is to be configured for PAS operation:

 Select PAS Yes when editing the detector set to address 005

 Program the desired zone or zones to be activated by this detector, in this

example Z001

 Program an output, such as a control module that is to be activated by detector

005 by assigning the same zone to it; in this example Z001

 Program an output, such as a control module, for PAS activation by assigning

zone Z97 to it. This control module may be connected to a signaling device used to indicate a PAS condition (do not use a Notification Appliance Circuit

for this purpose)

 Enable zones Z001 and Special Purpose Zone PAS 97 and set the PAS delay

timer to some value

With the preceding program settings, when the detector with address 005 is activated, zone Z97 will cause its associated control module to activate immediately, sounding the connected PAS signaling device. Following the PAS delay time, zone Z001 will cause its associated control module to activate and the control panel will initiate an alarm condition.

EDIT DETECTOR 1=WALKTEST 2=PAS 3=PRE-SIGNAL

Edit Detector Screen #3



See Page

Pre-signal

The Pre-signal option programs the detector to delay panel activation for a preprogrammed time delay of up to three minutes while allowing for visual verification by a person. Note that the alarm relay and communicator will respond to the initial alarm immediately. In addition, Zone 98 will activate. This zone can be programmed to a control module which may be used to activate a sounder or indicator which the installer designates as a Presignal indication (do not use a Notification Appliance Circuit for this purpose). To enable the Pre-signal feature, press 3 while viewing Edit Detector Screen #3 until the display reads Pre-signal Ye s. Each press of the 3 key will cause the display to toggle between Pre-signal Yes and Pre-signal No. Refer to "Presignal" on page 119.

For example, if a detector with address 005 is to be configured for Pre-Signal operation:

 Select Pre-signal Yes when editing the detector set to address 005

 Program the desired zone or zones to be activated by this detector, in this

example Z001

 Program an output, such as a control module that is to be activated by detector

005 by assigning the same zone to it; in this example Z001

 Program an output, such as a control module, for Pre-signal activation by

assigning zone Z98 to it. This control module may be connected to a signaling device used to indicate a Pre-signal condition (do not use a Notification

Appliance Circuit for this purpose)

 Enable zones Z001 and Special Purpose Zone Pre-signal 98 and set the Pre-

signal delay timer to some value

With the preceding program settings, when the detector with address 005 is activated, zone Z98 will cause its associated control module to activate immediately, sounding the connected signaling device to indicate the Pre-signal condition. Following the Pre-signal delay time, zone Z001 will cause its associated control module to activate and the control panel will initiate an alarm condition.

54 MS-9600 PN 51335:E 7/9/03

Page 55

Master Programming Level Programming

Zone Assignment

EDIT DETECTOR 1=ZONE ASSIGNMENT 00 ** ** ** **

Edit Detector Screen #4



See Page

A maximum of five zones can be programmed to each addressable detector. Pressing 1 while viewing Edit Detector Screen #4 displays the following screen:

ZONE ASSIGNMENT Z00 Z** Z** Z** Z**

Zone Assignment Screen

Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0 to the left. Enter the two digit number corresponding to the zone that is to be assigned to this device. The cursor moves to the next Z** designation. Continue entering zone assignments or the remaining zones can be left blank or programmed as general alarm zone Z00. When all desired changes have been made, press the Enter key to store the zone assignments. The display will return to the Edit Detector Screen #4. Note that the left and right arrow keys can be used to navigate through the zones and the CLEAR key can be used to quickly clear a zone.

Noun/Adjective

EDIT DETECTOR 1=NOUN/ADJECTIVE 2=DESCRIPTION *****************

Edit Detector Screen #5

The Noun/Adjective selection allows the programmer to enter specific descriptors about the detector currently being programmed. Pressing 1 while viewing Edit Detector Screen #5 will cause the following screen to be displayed:

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

MS-9600 PN 51335:E 7/9/03 55

Page 56

Programming Master Programming Level

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

Pressing 1 while viewing the Noun/Adjective Screen will cause the following screen(s) to be displayed. Note that the keyboard down arrow key must be pressed to see all the Adjective screens. Press the number corresponding to the adjective that is to be used as a descriptor for the location of the detector currently being programmed. When an adjective has been selected, it will appear at the top of the display as indicated by the asterisks.

********************** 1=NORTH 2=SOUTH 3=EAST

Adjective Screen #1

********************** 1=WEST 2=FRONT 3=CENTER

********************** 1=3RD 2=4TH 3=5TH

Adjective Screen #5

********************** 1=FLOOR1 2=FLOOR2 3=FLOOR3

Adjective Screen #2

********************** 1=REAR 2=UPPER 3=LOWER

Adjective Screen #3

********************* 1=MAIN 2=FIRST 3=2ND

Adjective Screen #6

********************** 1=FLOOR4 2=FLOOR5 3=ROOM

Adjective Screen #7

Adjective Screen #4

56 MS-9600 PN 51335:E 7/9/03

Page 57

Master Programming Level Programming

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be displayed. Note that the keyboard down arrow key must be pressed to see all the Noun screens. Press the number corresponding to the noun that is to be used as a descriptor for the location of the detector currently being programmed. When a noun has been selected, it will appear at the top of the display as indicated by the asterisks.

********************** 1=BASEMENT 2=BOILER RM 3=CLASSROOM

Noun Screen #1

********************** 1=CLOSET 2=CORRIDOR 3=ELECTRIC RM

********************** 1=KITCHEN 2=LOBBY 3=OFFICE

Noun Screen #5

********************** 1=PATIENT 2=RESTROOM 3=ROOM

Noun Screen #2

********************** 1=ELEVATOR 2=ENTRANCE 3=FLOOR

Noun Screen #3

********************** 1=GARAGE 2=HALLWAY 3=HVAC RM

Noun Screen #6

********************** 1=STAIRWAY 2=STOREROOM 3=WING

Noun Screen #7

********************** 1=ZONE

Noun Screen #4

MS-9600 PN 51335:E 7/9/03 57

Noun Screen #8

Page 58

Programming Master Programming Level

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

EDIT DETECTOR 1=NOUN/ADJECTIVE 2=DESCRIPTION

Edit Detector Screen #5

Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the previous Adjective and Noun Screens. The new screens will list custom Adjectives and Nouns which have been programmed into the control panel using the PK-CD programming kit. These descriptors are selected as described in the previous sections.

Description

The Description selection allows the programmer to enter additional information about the detector currently being programmed. This information will be displayed as part of the device label on the display. Pressing 2 while viewing Edit Detector Screen #5 will cause the following screen to be displayed:

DESCRIPTION 1D002 1=NOUN/ADJECTIVE

********************

Adjective/Noun Screen

A flashing cursor will appear at the first asterisk to the left. The programmer can enter additional descriptive information about the device being programmed. This information will appear on the display along with the standard device label information.

A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters from the keypad, repeatedly press the appropriate key until the desired character is displayed in the first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle through the characters 1, A and B. Press the right arrow key to move the cursor one position to the right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four times until a blank appears in the desired position. When all characters have been entered, press the Enter key to store the information. The display will return to the Edit Detector Screen #5, displaying the new information at the bottom of the screen.

Recall/Increment Function

In addition, the user may use the Recall/Increment function at any time when the cursor is on the first letter of the Description, Adjective or Noun field as follows:

• If the zero key is pressed, a 0 is placed in the first letter position

• If the zero key is then pressed a second time with no intervening key actions, the entire field is replaced with the field entered for the previous device programmed and the cursor moves to the last character of the field (Recall function). The Recalled Adjective or Noun field may now be changed letter-by-letter

• If the zero key is pressed again with no other intervening key actions and the last character in the field is a number 0-9, the number is incremented by one. If the last character is a letter, it changes to a 0. If the last character goes from 9 to 0 and the characters to the left of the last character are also numbers, they are also incremented (overflow)

• The above increment function may be repeated with each press of the zero key

58 MS-9600 PN 51335:E 7/9/03

Page 59

Master Programming Level Programming

As an example, the user could quickly enter ‘FLR_3_ROOM_305’ as follows:

1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display FLR_3

2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the display ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun field

3. With the cursor on the last letter of the Noun field, press the zero key again to increment the room number to 305

4. Press the right arrow key to advance the zone field

5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01 through Z99 may be selected to link software zones

3.6.2.2 Module Programming

POINT PROGRAM SELECT TYPE 1=DETECTOR 2=MODULE

Point Program Screen #2

Pressing 2, while viewing Point Program Screen #2, will allow the programmer to add, delete or change the programming of an addressable module. The following screen will be displayed by the control panel:

MODULES 1=ADD 2=DELETE 3=EDIT

Modules Screen

3.6.2.2.1 Add Module

Pressing 1 while viewing the Modules Screen will display the following screen which allows the programmer to add a new module address to programming:

ADD MODULE ENTER MODULE# ***

Add Module Screen #1

A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in the three digit module address, such as 005.

MS-9600 PN 51335:E 7/9/03 59

Page 60

Programming Master Programming Level

When the last digit is keyed-in, the following screen will be displayed:

ADD MODULE 1=CONTROL 2=MONITOR

Add Module Screen #2

Pressing 1 for Control Module or 2 for Monitor Module will cause the following screen to be displayed:

ADD MODULE MODULE# 005 IS ADDED

MODULES 1=ADD 2=DELETE 3=EDIT

Modules Screen

Add Module Screen #3

The programmer can continue adding modules by pressing the ESC or left arrow key which will return the display to the Add Module Screen #1.

3.6.2.2.2 Delete Module

Pressing 2 in the Modules Screen will display the Delete Module Screen which allows the programmer to delete a specific module:

DELETE MODULE ENTER MODULE# ***

Delete Module Screen

A flashing cursor will appear in the position of the first asterisk to the left. Using the panel keypad, key in the module address such as 005. When the last digit is keyed in, the following confirmation that the module has been deleted will be displayed:

DELETE MODULE MODULE# 005 IS DELETED

60 MS-9600 PN 51335:E 7/9/03

Page 61

Master Programming Level Programming

3.6.2.2.3 Edit Module Screen for Monitor Module

The programmer can change a modules existing or factory default programming by pressing 3 in the Modules Screen. The following screen will be displayed:

EDIT MODULE ENTER MODULE ADDRESS ***

Edit Module Screen

A flashing cursor will appear in the position of the first asterisk to the left. The programmer keys in the three digit module address, such as 012. When the last digit is keyed-in, if the selected address has not showing information about the highest address that is installed will be displayed. If no modules are installed on the loop, the following screen will be displayed:

been added to programming, a screen

NO MODULE INSTALLED

Edit Module Screen

If the selected address has been added to programming but a module (such as a monitor module) with the selected address is not physically installed on the SLC or has a communication fault, the following screen will be displayed:

TROUBL MONITOR <ADJ><NOUN> ZNNN 1M012

If the selected address has been added to programming and a module (such as a monitor module) with the selected address is physically installed on the SLC and is communicating with the control panel, the following screen will be displayed:

NORMAL MONITOR <ADJ><NOUN> ZNNN 1M012

To change the programming for the displayed module, press the keyboard down arrow key to view the following Edit Monitor screens. In the preceding example:

 Normal - indicates that the module with the selected address is physically

installed on the SLC and communicating with the control panel (enabled)

 <ADJ><NOUN> - represents the adjective and noun, which have been

programmed, describing the location of the displayed device

 ZNNN - represents the first of five possible software zones that the module is

assigned to (NNN = the two digit zone number from 000 - 099)

 1M012 - represents the Loop, Device type and Device address (1 = SLC Loop

1, M=Module and 012 = Module Address 012)

MS-9600 PN 51335:E 7/9/03 61

Page 62

Programming Master Programming Level

If the selected address corresponds to a control module, a screen displaying



See Page

information about the control module with the selected address will be displayed as shown in "Edit Module Screen for Control Modules" on page 69.

If the selected address corresponds to a monitor information about the module with the selected address will be displayed as illustrated in the following:

module, a screen displaying

NORMAL MONITOR <ADJ><NOUN> ZNNN 1M012

EDIT MONITOR 1M012 1=ENABLED YES 2=TYPE MONITOR

Edit Monitor Screen #2

EDIT MONITOR 1M012 1=PRE-SIGNAL NO 2=PAS NO

Edit Monitor Screen #3

EDIT MONITOR 1M012 1=WALKTEST YES 2=ZONE ASSIGNMENT 00 ** ** ** **

Edit Monitor Screen #4

EDIT MONITOR 1M012 1=ADJECTIVE/NOUN 2=DESCRIPTION ********************

Edit Monitor Screen #5

Enable/Disable Module

To Enable or Disable the monitor module, press the 1 key while viewing the Edit Module Screen #2. Each press of the key will toggle the screen between Enabled Ye s and Enabled No. If Enabled No is selected, the module will not be polled by the control panel, preventing the module from reporting alarms and troubles to the panel. The control panel will indicate a system trouble condition and the Disable LED with turn on if any devices are disabled.

62 MS-9600 PN 51335:E 7/9/03

Page 63

Master Programming Level Programming

EDIT MONITOR 1=ENABLED 2=TYPE MONITOR

Edit Monitor Screen #2

Type Mo ni tor

Using the PK-CD Upload/Download utility program, unique user-defined monitor types can be created and loaded into the FACP for later use. The FACP response to the activation of a user-defined type is the same as most previous standard types in the list, thus allowing a variety of user-defined types and responses. To select the type of monitor module being programmed, press the 2 key while viewing the Edit Monitor Screen #2. This will cause the control panel to display the following Monitor Type Screens:

MONITOR TYPE 1=PULL-STATION 2=USER-DEFINED-1 3=WATERFLOW

Monitor Type Screen #1

Pressing the down arrow key will display additional Monitor Type screens. While viewing one of the Monitor Type screens, select the type of monitor module being programmed by pressing the corresponding keypad number key. The display will return to the Edit Monitor Screen #2 which will show the new type selection.

The Table 3.1 on page 64 lists the Monitor Types and their respective functions.

MS-9600 PN 51335:E 7/9/03 63

Page 64

Programming Master Programming Level

Monitor module type selection will affect the function of the point as follows:

Table 3.1 Monitor Types

Monitor Type Action When Activated

Pull-Station Fire Alarm User-Defined-1 same as previous (Pull-Station) Waterflow Fire Alarm Delayed User-Defined-2 same as previous (Waterflow) Monitor Fire Alarm User-Defined-3 same as previous (Monitor) Future not used Future not used Smoke-Conventional Fire Alarm User-Defined-5 same as previous (Smoke-Conventional) Heat-Conventional Fire Alarm User-Defined-6 same as previous (Heat-Detector) Medic-Alert Supervisory, latching User-Defined-7 same as previous (Medic-Alert) Hazard-Alert Supervisory, latching User-Defined-8 same as previous (Hazard-Alert) Tornado-Alert Supervisory, latching User-Defined-9 same as previous (Tornado-Alert) Future not used Future not used Tamper Supervisory, nonlatching (tracking) User-Defined 11 same as previous (Tamper) Supervisory Supervisory, latching User-Defined 12 same as previous (Supervisory) Supervisory-AR Supervisory, nonlatching (tracking) User-Defined 13 same as previous (Supervisory-AR) Power-Monitor Power Fault User-Defined 14 same as previous (Power Monitor) Trouble-Monitor Trouble User-Defined-15 same as previous (Trouble Monitor) Process-Monitor Piezo User-Defined 16 same as previous (Process-Monitor) Process-Monitor-AR Piezo, nonlatching (tracking) User-Defined-17 same as previous (Process-Monitor-AR) Future not used Future not used Ack-Switch Acts like panel Acknowledge Key Sil-Switch Acts like panel Silence Key Reset-Switch Acts like panel Reset Key Drill-Switch Acts like panel Drill Key PAS-Bypass PAS Disable Future not used

Note: For the PROCESS-MONITOR-AR selection, AR refers to AutoResettable

64 MS-9600 PN 51335:E 7/9/03

Page 65

Master Programming Level Programming

EDIT MONITOR 1=PRE-SIGNAL 2=PAS

Edit Monitor Screen #3



See Page



See Page

EDIT MONITOR 1=WALKTEST 2=ZONE ASSIGNMENT 00 ** ** ** **

Edit Monitor Screen #4

Pre-signal

To enable the Pre-signal feature, press 1 while viewing Edit Monitor Screen #3 until the display reads Pre-signal Yes. Each press of the 1 key will cause the display to toggle between Pre-signal Yes and Pre-signal No. Refer to "Presignal" on page 119 for additional information.

PAS

To enable the PAS feature, press 2 while viewing the Edit Detector Screen #3 until the display reads PAS Yes. Each press of the 2 key will cause the display to toggle between PAS Yes and PA S N o . Refer to "Positive Alarm Sequence" on page 120 for additional information.

Wal ktest

The Walktest feature allows one person to test the system devices without the necessity of manually resetting the control panel after each device activation. To enable devices, which are connected to a monitor module, for the Walktest feature, press 1 while viewing the Edit Monitor Screen #4 until the display reads Wa lk tes t Ye s. Each press of the 1 key will cause the display to toggle between Walktest Yes and Walktest No. Refer to "Walktest" on page 122 for additional information.

Zone Assignment

A maximum of five zones can be programmed to each addressable monitor module. Pressing 2 while viewing Edit Monitor Screen #4 displays the following screen:

EDIT MONITOR 1=NOUN/ADJECTIVE 2=DESCRIPTION *****************

Edit Monitor Screen #5

MON ZONE ASSIGN

Z00 Z** Z** Z** Z**

Zone Assignment Screen

Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0 to the left. Enter the two digit number corresponding to the zone that is to be assigned to this device. The cursor moves to the next Z** designation. Continue entering zone assignments or the remaining zones can be left blank or programmed as general alarm zones Z00. When all desired changes have been made, press the Enter key to store the zone assignments. The display will return to the Edit Monitor Screen #4.

Noun/Adjective

The Noun/Adjective selection allows the programmer to enter specific descriptors about the monitor module currently being programmed. Pressing 1 while viewing Edit Monitor Screen #5 will cause the following screen to be displayed:

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

MS-9600 PN 51335:E 7/9/03 65

Page 66

Programming Master Programming Level

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

********************** 1=NORTH 2=SOUTH 3=EAST

Adjective Screen #1

********************** 1=WEST 2=FRONT 3=CENTER

Adjective Screen #2

********************** 1=3RD 2=4TH 3=5TH

Adjective Screen #5

********************** 1=FLOOR 1 2=FLOOR 2 3=FLOOR 3

Adjective Screen #6

********************** 1=REAR 2=UPPER 3=LOWER

Adjective Screen #3

********************** 1=MAIN 2=FIRST 3=2ND

Adjective Screen #4

********************** 1=FLOOR 4 2=FLOOR 5 3=ROOM

Adjective Screen #7

66 MS-9600 PN 51335:E 7/9/03

Page 67

Master Programming Level Programming

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

********************** 1=BASEMENT 2=BOILER RM 3=CLASSROOM

Noun Screen #1

********************** 1=CLOSET 2=CORRIDOR 3=ELECTRIC RM

Noun Screen #2

********************** 1=KITCHEN 2=LOBBY 3=OFFICE

Noun Screen #5

********************** 1=PATIENT 2=RESTROOM 3=ROOM

Noun Screen #6

********************** 1=ELEVATOR 2=ENTRANCE 3=FLOOR

Noun Screen #3

********************** 1=GARAGE 2=HALLWAY 3=HVAC RM

Noun Screen #4

Pressing 3 or 4 while viewing the Noun/Adjective Screen will display screens similar to the previous Adjective and Noun Screens. The new screens will list Custom Adjectives and Nouns which have been programmed into the control panel using the PK-CD programming kit.

********************** 1=STAIRWAY 2=STOREROOM 3=WING

Noun Screen #7

********************** 1=ZONE

Noun Screen #8

MS-9600 PN 51335:E 7/9/03 67

Page 68

Programming Master Programming Level

EDIT MONITOR 1=NOUN/ADJECTIVE 2=DESCRIPTION *****************

Edit Monitor Screen #5

Description

The Description selection allows the programmer to enter additional information about the monitor module currently being programmed. This information will be displayed as part of the device label on the LCD display. Pressing 2 while viewing Edit Monitor Screen #5 will cause the following screen to be displayed:

DESCRIPTION 1M012 1=NOUN/ADJECTIVE

********************

Noun/Adjective Screen

A flashing cursor will appear at the first asterisk to the left. The programmer can enter additional descriptive information about the device being programmed. This information will appear on the LCD display along with the standard device label information.

A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters from the keypad, repeatedly press the appropriate key until the desired character is displayed in the first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle through the characters 2, A and B. Press the right arrow key to move the cursor one position to the right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four times until a blank appears in the desired position. When all characters have been entered, press the Enter key to store the information. The display will return to the Edit Monitor Screen #4, displaying the new information at the bottom of the screen.

Recall/Increment Function

In addition, the user may use the Recall/Increment function at any time when the cursor is on the first letter of the Adjective or Noun field as follows:

• If the zero key is pressed, a 0 is placed in the first letter position

• If the zero key is then pressed a second time with no intervening key actions, the entire Adjective field is replaced with the field entered for the previous device programmed, and the cursor moves to the last character of the field (Recall function). The Recalled Adjective or Noun field may now be changed letter-byletter

• The above increment function may be repeated with each press of the zero key

68 MS-9600 PN 51335:E 7/9/03

Page 69

Master Programming Level Programming

As an example, the user could quickly enter ‘FLR_3_ROOM 305’ as follows:

1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display FLR_3

2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the display ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun field

3. With the cursor on the last letter of the Noun field, press the zero key again to increment the room number to 305

4. Press the right arrow key to advance the zone field

5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01 through Z99 may be selected to link software zones

3.6.2.2.4 Edit Module Screen for Control Modules

The programmer can change a module’s existing or factory default programming by

MODULES 1=ADD 2=DELETE 3=EDIT

Modules Screen

pressing 3 in the Modules Screen. The following screen will be displayed:

EDIT MODULE ENTER MODULE ADDRESS ***

Edit Module Screen

A flashing cursor will appear in the position of the first asterisk to the left.

The programmer keys in the three digit module address, such as 002. When the last digit is keyed-in, if the selected address corresponds to a control module, a screen displaying information about the control module with the selected address will be displayed as illustrated in the following:

NORMAL CONTROL <ADJ><NOUN> SW ZNNN 1M002

Edit Control Screen #1

In the preceding example:

 Normal - indicates that the module with the selected address is physically

installed on the SLC and communicating with the control panel (enabled)

 <ADJ><NOUN> - represents the adjective and noun, which have been

programmed, describing the location of the displayed device

 Control - indicates that the selected module is a control module  S or * - represents Silenceable (S) or Nonsilenceable (*)  W or * - represents Waterflow Timer Delay (W = Waterflow Timer Delay

enabled, * = Waterflow Timer Delay disabled)

 ZNNN - represents the first of five possible software zones that the module is

assigned to (NNN = the three digit zone number from 000 - 099)

 1M002 - represents the Loop, Device type and Device address (1 = SLC Loop

1, M=Module and 002 = Module Address 02)

MS-9600 PN 51335:E 7/9/03 69

Page 70

Programming Master Programming Level

To change the programming for the displayed module, press the keyboard down arrow key to view the following Edit Control screens:

EDIT CONTROL 1=ENABLED YES 2=TYPE CONTROL 3=SILENCEABLE YES

Edit Control Screen #2

EDIT CONTROL 1=WALKTEST YES 2=ZONE ASSIGNMENT 00 ** ** ** **

Edit Control Screen #3

EDIT CONTROL 1=ENABLED 2=TYPE 3=SILENCEABLE

Edit Control Screen #2

EDIT CONTROL 1=NOUN/ADJECTIVE 2=DESCRIPTION ********************

Edit Control Screen #4

Enable/Disable Module

To Enable or Disable the control module, press the 1 key while viewing the Edit Control Screen #2. Each press of the key will toggle the screen between Enabled Ye s and Enabled No. If Enabled No is selected, the module will not be polled by the control panel, preventing the module from activating its output devices. The control panel will indicate a system trouble condition and the Disable LED will turn on if any devices are disabled.

70 MS-9600 PN 51335:E 7/9/03

Page 71

Master Programming Level Programming

EDIT CONTROL 1=ENABLED 2=TYPE 3=SILENCEABLE

Edit Control Screen #2

Type

To select the type of control module being programmed, press the 2 key while viewing the Edit Control Screen #2. This will cause the control panel to display the following Control Type Screens:

CONTROL TYPE 1=FUTURE USE 2=BELL-CIRCUIT 3=HORN-CIRCUIT

Control Type Screen #1

CONTROL TYPE 1=SOUNDERS 2=RELAY-1FC 3=STROBE-CKT

Control Type Screen #2

CONTROL TYPE 1=CONTROL 2=RESETTABLE POWER 3=FUTURE USE

Control Type Screen #3

While viewing one of the Control Type screens, select the type of control module being programmed by pressing the corresponding keypad number key. The display will return to the Edit Control Screen #2 and indicate the new type selection.

Notes:

1. A control module set to the Resettable Power type will follow the main circuit board 24 VDC resettable power unless the control module is disabled.

The following table contains control module type codes and their functions:

Control Type Special Function

Future Use None Bell Circuit None Horn Circuit None Sounders None Relay Ignore Open Circuit Strobe Circuit None Control None Resettable Power None Future Use None

MS-9600 PN 51335:E 7/9/03 71

Page 72

Programming Master Programming Level

EDIT CONTROL 1=ENABLED 2=TYPE 3=SILENCEABLE

Edit Control Screen #2

EDIT CONTROL 1=WALKTEST 2=ZONE ASSIGNMENT

00 ** ** ** **

Edit Control Screen #3

Silenceable

The Silenceable selection allows the programmer to select whether output devices connected to the control module can be silenced, either by pressing the Alarm Silence key or by enabling Autosilence. Pressing the 3 key while viewing Edit Control Screen #2 will enable the Silenceable feature causing the display to read Silenceable Yes. Repeated presses of the 3 key will cause the display to toggle between Silenceable Yes and Silenceable No.

Note that nonsilenceable outputs will not

be activated for Fire Drill.

Wal ktest

The Walktest feature allows one person to test the system devices without the necessity of manually resetting the control panel after each device activation. To enable devices, which are connected to a control module, for the Walktest feature, press 1 while viewing the Edit Control Screen #3 until the display reads Wa lk tes t Ye s. Each press of the 1 key will cause the display to toggle between Walktest Yes and Walktest No. Refer to "Walktest" on page 122 for additional information.

Zone Assignment

A maximum of five zones can be programmed to each addressable control module. Pressing 2 while viewing Edit Control Screen #3 displays the following screen:

ZONE ASSIGNMENT

EDIT CONTROL 1=NOUN/ADJECTIVE 2=DESCRIPTION

Edit Control Screen #4

Z00 Z** Z** Z** Z**

Zone Assignment Screen

Note that Z** represents the Zone Number(s) corresponding to this device. The factory default for an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0 to the left. Enter the two digit number corresponding to the zone that is to be assigned to this device. The cursor moves to the next Z** designation. Continue entering zone assignments or the remaining zones can be left blank or programmed as general alarm zones Z00. When all desired changes have been made, press the Enter key to store the zone assignments. The display will return to the Edit Control Screen #3.

Noun/Adjective

The Noun/Adjective selection allows the programmer to enter specific descriptors about the control module currently being programmed. Pressing 1 while viewing Edit Control Screen #4 will cause the following screen to be displayed:

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

72 MS-9600 PN 51335:E 7/9/03

Page 73

Master Programming Level Programming

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

********************** 1=NORTH 2=SOUTH 3=EAST

Adjective Screen #1

********************** 1=WEST 2=FRONT 3=CENTER

Adjective Screen #2

********************** 1=3RD 2=4TH 3=5TH

Adjective Screen #5

********************** 1=FLOOR 1 2=FLOOR 2 3=FLOOR 3

Adjective Screen #6

********************** 1=REAR 2=UPPER 3=LOWER

Adjective Screen #3

********************** 1=MAIN 2=FIRST 3=2ND

Adjective Screen #4

********************** 1=FLOOR 4 2=FLOOR 5 3=ROOM

Adjective Screen #7

MS-9600 PN 51335:E 7/9/03 73

Page 74

Programming Master Programming Level

1=STANDARD ADJECTIVE 2=STANDARD NOUN 3=CUSTOM ADJECTIVE 4=CUSTOM NOUN

Noun/Adjective Screen

********************** 1=BASEMENT 2=BOILER RM 3=CLASSROOM

Noun Screen #1

********************** 1=CLOSET 2=CORRIDOR 3=ELECTRIC RM

Noun Screen #2

********************** 1=KITCHEN 2=LOBBY 3=OFFICE

Noun Screen #5

********************** 1=PATIENT 2=RESTROOM 3=ROOM

Noun Screen #6

********************** 1=ELEVATOR 2=ENTRANCE 3=FLOOR

Noun Screen #3

********************** 1=GARAGE 2=HALLWAY 3=HVAC RM

Noun Screen #4

********************** 1=STAIRWAY 2=STOREROOM 3=WING

Noun Screen #7

********************** 1=ZONE

Noun Screen #8

74 MS-9600 PN 51335:E 7/9/03

Page 75

Master Programming Level Programming

EDIT CONTROL 1=ADJECTIVE/NOUN 2=DESCRIPTION

Edit Control Screen #4

Description

The Description selection allows the programmer to enter additional information about the control module currently being programmed. This information will be displayed as part of the device label on the display. Pressing 2 while viewing Edit Control Screen #4 will cause the following screen to be displayed:

DESCRIPTION 1M002 1=NOUN/ADJECTIVE

********************

Adjective/Noun Screen

A maximum of 20 characters (including spaces) can be entered. To enter alphanumeric characters from the keypad, repeatedly press the appropriate key until the desired character is displayed in the first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle through the characters 1, A and B. Press the right arrow key to move the cursor one position to the right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four times until a blank appears in the desired position. When all characters have been entered, press the Enter key to store the information. The display will return to the Edit Control Screen #4, displaying the new information at the bottom of the screen.

Recall/Increment Function

In addition, the user may use the Recall/Increment function at any time when the cursor is on the first letter of the Adjective or Noun field as follows:

• If the zero key is pressed, a 0 is placed in the first letter position

• The above increment function may be repeated with each press of the zero key

As an example, the user could quickly enter ‘FLR_3_ROOM 305’ as follows:

1. The cursor is on the first letter of the Adjective field. Press the zero key twice to display FLR_3

2. With the cursor on the first letter of the Noun field, press the zero key twice to recall the display ROOM_304. The cursor automatically jumps from the first to the last letter of the Noun field

3. With the cursor on the last letter of the Noun field, press the zero key again to increment the room number to 305

4. Press the right arrow key to advance the zone field

5. Select a zone number from 00 to 99. Z00 (default zone) is the general alarm zone. Z01 through Z99 may be selected to link software zones

MS-9600 PN 51335:E 7/9/03 75

Page 76

Programming Master Programming Level

PROGRAMMING 1=AUTOPROGRAM 2=POINT PROGRAM 3=ZONE SETUP

Programming Screen #2

3.6.3 Zone Setup

Pressing 3 while viewing Programming Screen #1 will access the Zone Setup screens as illustrated below:

ZONE SETUP 1=ENABLE 2=DISABLE 3=ZONE 97 98 99

Zone Setup Screen #1

ZONE SETUP 1=ZONES INSTALLED 2=ZONES ENABLED 3=ZONES DISABLED

Zone Setup Screen #2

ZONE SETUP 1=ZONE TYPES

ZONE SETUP 1=ENABLE 2=DISABLE 3=ZONE 97 98 99

Zone Setup Screen #1

Zone Setup Screen #3

3.6.3.1 Enable

Pressing 1 for Enable, while viewing Zone Setup Screen #1, will display the following screen:

ZONE TO ENABLE Z

Enable Screen

This screens allows the programmer to enable zones, one at a time. A flashing cursor appears next to the Z, prompting the programmer to enter a two digit zone number (01 - 99). When the second digit is entered, the zone will be enabled and the cursor returns to the original position next to the Z. Another zone can then be enabled.

76 MS-9600 PN 51335:E 7/9/03

Page 77

Master Programming Level Programming

ZONE SETUP 1=ENABLE 2=DISABLE 3=ZONE 97 98 99

Zone Setup Screen #1

3.6.3.2 Disable

Pressing 2 for Disable, while viewing Zone Setup Screen #1, will display the following screen:

ZONE TO DISABLE Z

Disable Screen

This screen allows the programmer to disable zones, one at a time. A flashing cursor appears next to the Z, prompting the programmer to enter a two digit zone number (01 - 99). When the second digit is entered, the zone will be disabled and the cursor will return to the original position next to the Z. Another zone can then be disabled.

3.6.3.3 Zone 97, 98 and 99

Pressing 3 for Zone 97, 98 and 99, while viewing Zone Setup Screen #1, will display the following screen:

SPEC PURPOSE ZONE 1=PAS 97 OFF 2=PRESIGNAL 98 OFF 3=ZONE 99 OFF

Zone 97, 98 and 99 Screen

Zones 97, 98 and 99 can be programmed for normal zone operation or for special purpose applications. In the above illustration, the three zones are shown Off, which means they can be programmed to function in the same manner as all other zones, by assigning them to input and output devices in the Programming Zone Assignment Screen.

Pressing 1 will cause the display to change to PAS 97 On. Each press of the 1 key will cause the display to toggle between PAS 97 On and PAS 97 Off. When Zone 97 is programmed On, a PAS (Positive Alarm Sequence) activation of any device will cause Zone 97 to activate. By assigning Zone 97 to a control module in the Programming Zone Assignment Screen, an output device connected to the control module can be used to indicate a PAS condition in the control panel. Do not assign

Zone 97 to a Notification Appliance Circuit when using this zone to indicate a PAS condition.

Pressing 2 will cause the display to change to Pre-signal 98 On. Each press of the 2 key will cause the display to toggle between Pre-signal 98 On and Pre-signal 98 Off. When Zone 98 is programmed On, a Pre-signal activation of any device will cause Zone 98 to activate. By assigning Zone 98 to a control module in the Programming Zone Assignment Screen, an output device connected to the control module can be used to indicate a Pre-signal condition in the control panel. Do not

assign Zone 98 to a Notification Appliance Circuit when using this zone to indicate a Pre-signal condition.

Zone 99, in special purpose mode, is reserved for future use and has no effect.

MS-9600 PN 51335:E 7/9/03 77

Page 78

Programming Master Programming Level

ZONE SETUP 1=ZONES INSTALLED 2=ZONES ENABLED 3=ZONES DISABLED

Zone Setup Screen #2

3.6.3.4 Zones Installed

Pressing 1 for Zones Installed, while viewing Zone Setup Screen #2, will display a screen similar to the following:

ZONES INSTALLED 00 01 02 03 04 05

Zones Installed Screen

This display will show all of the zones that have been programmed into the control panel. Note that an up and/or down arrow may appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view the additional zones.

3.6.3.5 Zones Enabled

Pressing 2 for Zones Enabled, while viewing Zone Setup Screen #2, will display a screen similar to the following:

ZONES ENABLED 00 01 02 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21

Zones Enabled Screen

This display will show all of the zones that are enabled in the control panel. Note that an up and/or down arrow may appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view the additional zones.

3.6.3.6 Zones Disabled

Pressing 3 for Zones Disabled, while viewing Zone Setup Screen #2, will display a screen similar to the following:

ZONES DISABLED 03

Zones Disabled Screen

This display will show all of the zones that are disabled in the control panel. Note that an up and/or down arrow may appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view the additional zones.

78 MS-9600 PN 51335:E 7/9/03

Page 79

Master Programming Level Programming

ZONE SETUP 1=ZONE TYPES

Zone Setup Screen #3

ZONE TYPE PROG 1=MONITOR 2=SMOKE PHOTO 3=WATERFLOW

3.6.3.7 Zone Type

Zone Types must be programmed only if a DACT, programmed for zone reporting, is installed on the control panel. Pressing 1 for Zone Types, while viewing Zone Setup Screen #3, will display a screen similar to the following:

ZONE TYPE PROG 1=Z00 MONITOR 2=Z01 MONITOR 3=Z02 MONITOR

Zones Installed Screen

This display will show the system zones (default and user programmed) and their associated types. Note that an up and/or down arrow will appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view zones Z00 through Z99.

Zone types can be changed by pressing the keypad number key corresponding to the zone in each Zones Installed Screen. Available zone types will be displayed in the resultant screens. For example, to change the zone type for zone Z02 in the screen illustrated above, press 3. The following screens will be displayed:

ZONE TYPE PROG 1=MEDICAL 2=HAZARD 3=TAMPER

Zone Type Program Screen #1

ZONE TYPE PROG 1=HEAT 2=PULL STATION 3=DUCT

Zone Type Program Screen #2

To change the zone type for Z02 to Pull Station, scroll the display until Zone Type Program Screen #2 is displayed. Press 2 to program zone Z02 as a Pull Station zone. The display will return to the Zones Installed Screen showing zone Z02 and the Pull Station program type. Repeat the procedure for each zone to be changed.

IMPORTANT! In Zone Type Program Screen #1, selecting WATERFLOW will assign a Waterflow silenceable devices programmed to the same zone can key or by using the auto-silence feature.

To program a waterflow circuit as nonsilenceable

81.

Zone Type Program Screen #3

ZONE TYPE PROG 1=SUPERVISORY 2=PROC. MON 3=SMOKE ION

Zone Type Program Screen #4

zone type to the selected zone. Any signaling

be silenced by pressing the Alarm Silence

, refer to "System Setup" on page

MS-9600 PN 51335:E 7/9/03 79

Page 80

Programming Master Programming Level

PROGRAMMING 1=LOOP SETUP 2=SYSTEM SETUP 3=VERIFY LOOPS

Programming Screen #2

3.6.4 Loop Setup

Loop Setup allows the programmer to configure the SLC Loop(s) for NFPA Style 4, 6 or 7 wiring and to select the protocol for each loop. Pressing 1 while viewing Programming Screen #2 will cause the following screen to be displayed:

LOOP SETUP 1=LOOP 1 2=LOOP 2

Loop Selection Screen

Press 1 while viewing the Loop Selection Screen to configure Loop1 or 2 to configure Loop 2. The following screens will appear for each loop.

LOOP # SETUP 1=STYLE 4 2=PROTOCOL CLIP

Loop Setup Screen

3.6.4.1 Style

To program the SLC Style for the selected loop, press 1 for Style, while viewing Loop Setup Screen. In the preceding example, the control panel is programmed for Style 4 SLC wiring as indicated by the 4 to the right of Style in the display. To change the wiring style, press 1 to toggle the display to read Style 6. Each press of the 1 key will cause the display to toggle between Style 4 and Style 6. Note that,

when programming the Loop Style, the programmer can only select between Style 4 and Style 6. To program a system for Style 7 wiring, the programmer must select the Loop Setup for Style 6. Style 7 wiring is the same as Style 6 with the added requirement that each addressable device on the loop must have a pair of isolator modules, one on each side.

3.6.4.2 Loop Protocol

Loop Protocol refers to the SLC loop mode of operation. At the present time, the only mode available is CLIP (Classic Loop Interface Protocol) which is used for the older legacy addressable devices such as the M300 Series modules and detectors. Note that the legacy devices can operate only devices are compatible with all modes. Pressing 2 while viewing the Loop Setup Screen will have no effect on programming at this time.

Device Addressing

It is important to note that the MS-9600 addressable device capacity is 159 detectors and 159 control/monitor modules per SLC loop. Since older legacy addressable devices cannot be set to addresses above 099, the newer series devices must be used when addresses 100 to 159 are to be installed. It is permissible to mix old and new devices on the same loop.

in CLIP mode while the newer

80 MS-9600 PN 51335:E 7/9/03

Page 81

Master Programming Level Programming

3.6.5 System Setup

System Setup allows the programmer to configure the following control panel features:

• Trouble Reminder: This feature, when enabled, provides an audible reminder that an alarm or trouble still exists on the FACP after the control panel has been silenced. The control panel piezo sounder will pulse once every 15 seconds during an alarm and every two minutes during a trouble condition, after the Alarm Silence or Acknowledge key is pressed. The piezo will continue to sound at these rates until the alarm or trouble condition is cleared. If the trouble condition is not cleared within 24 hours, the panel will reactivate the trouble sounder and retransmit the trouble condition to the central station if connected.

• Banner: This option allows the user to change the top line of the LCD display from the factory default readout of FIRE LITE ALARMS INC to a user defined readout when the control panel is in Normal condition.

• Tim e-Date: This feature allows the programmer to set the time, display format (24 hr or 12 hr), date and daylight savings time feature into the FACP memory

• Tim ers: This option allows the programmer to set the PAS (Positive Alarm Sequence) time delay, Pre-Signal time delay and Waterflow time delay.

• NACs: This feature allows the programmer to configure the control panel Notification Appliance Circuits for a variety of options, such as circuit type, silenceable/nonsilenceable, autosilence, coding, silence inhibit, zone assignment and enable/disable.

• Relays: This option allows programming of two onboard relays for activation by various control panel events, such as alarm, trouble, supervisory, etc.

• Canadian Option: This option allows the automatic programming of ionization smoke detector sensitivity thresholds to Canadian specifications.

• Waterflow Silenceable: This option provides the ability to silence any output

PROGRAMMING 1=LOOP SETUP 2=SYSTEM SETUP 3=VERIFY LOOPS

Programming Screen #2

circuit activated by a monitor module programmed as a waterflow type.

Pressing 2 for System Setup, while viewing Programming Screen #2, will cause the following screens to be displayed:

SYSTEM SETUP 1=TROUBLE REM OFF 2=BANNER 3=TIME-DATE

System Setup Screen #1

SYSTEM SETUP 1=TIMERS 2=NAC 3=RELAYS

System Setup Screen #2

SYSTEM SETUP 1=CANADIAN OPT. OFF 2=WATERFLOW SIL. NO

System Setup Screen #3

MS-9600 PN 51335:E 7/9/03 81

Page 82

Programming Master Programming Level

3.6.5.1 Trouble Reminder

The Trouble Reminder features causes the control panel piezo to sound a reminder ‘beep’ for alarms and troubles, after the panel has been silenced. Refer to "System Setup" on page 81, for a detailed description of this feature. Pressing 1 while



See Page

viewing System Setup Screen #1 will cause the display to toggle to Trouble Rem On, which enables this feature. Each press of the 1 key will cause the display to toggle between Trouble Rem On and Trouble Rem Off.

3.6.5.2 Banner

The top line of the display, which appears when the control panel is in normal mode, can be changed by using the Banner option. Pressing 2 while viewing System Setup Screen #1 will cause the following to be displayed:

BANNER 1=FACTORY 2=USER DEFINED

Banner Screen

BANNER 1=FACTORY 2=USER DEFINED

Banner Screen

Pressing 1 while viewing the Banner Screen will select the factory default banner setting and display the following screen:

FACTORY BANNER FIRE LITE ALARMS INC

Factory Banner Screen

Pressing the Enter key will store this selection in nonvolatile memory and return the display to the Banner Screen.

Pressing 2 while viewing the Banner Screen will display the following screens :

USER DEFINED BANNER

PRESS ENTER IF OK

User Defined Banner Screen #1

USER BANNER - LINE 2 PRESS ENTER IF OK ************

User Defined Banner Screen #2

82 MS-9600 PN 51335:E 7/9/03

Page 83

Master Programming Level Programming

These screens allow the programmer to enter a two line custom banner. A flashing cursor will appear in the bottom left corner of each display. A maximum of 20 characters (including spaces) can be entered into each screen for a total of two lines with 40 characters. After entering up to 20 characters in the first screen, press Enter to view the second screen. Enter up to 20 characters in the second screen in the same manner or just press Enter if a second banner line is not being entered. To quickly clear the current banner, press the CLR key.

To enter alphanumeric characters from the keypad, repeatedly press the appropriate key until the desired character is displayed in the first position. For example, to enter the letter B, press the 2 (ABC) key three times to toggle through the characters 1, A and B. Press the right arrow key to move the cursor one position to the right and repeat the process to enter the next character. To enter a space, press the * (QZ) key four times to place a blank in the desired position. When all characters have been entered, press Enter to store the information and return to the Banner Screen.

SYSTEM SETUP 1=TROUBLE REM 2=BANNER 3=TIME-DATE

System Setup Screen #1

3.6.5.3 Time-Date

The control panel time and date can be changed by pressing 3 while viewing the System Setup Screen #1. The following screen will be displayed:

TIME AND DATE 1=TIME 10:00 AM 2=DATE 04-07-2000 3=CLOCK FORMAT 12HR

Time-Date Screen #1

TIME AND DATE 1=DAYLIGHT SAVINGS

Time-Date Screen #2

3.6.5.3.1 Time

To change the time, press 1 while viewing the Time-Date Screen. The following screen will be displayed:

ENTER TIME

10:00 AM 1=AM 2=PM

Time Screen

A flashing cursor is located toward the top left of the display. Below the cursor is the current time. To change the time, enter the two-digit hours followed by the twodigit minutes. The cursor will move one position to the right each time a digit is entered. After the last minutes digit is entered, the cursor will again move one position to the right. At this point enter 1 for AM or 2 for PM. The display will then return to the Time-Date Screen which will show the new time entry. If an error is made while entering a digit, press the CLR key to delete the entire entry and beginning again.

MS-9600 PN 51335:E 7/9/03 83

Page 84

Programming Master Programming Level

3.6.5.3.2 Date

To change the date, press 2 while viewing the Time-Date Screen. The following screen will be displayed:

ENTER DATE

MONTH DAY YEAR 04-07-2001

Date Screen

A flashing cursor is located toward the top left of the display. Below the cursor is the current date. To change the date, enter the two-digit month followed by the twodigit day and then the two-digit year (01 for 2001, 02 for 2002, etc.). The cursor will move one position to the right each time a digit is entered. After the last year digit is entered, the display will return to the Time-Date Screen which will show the new date entry. If an error is made while entering a digit, press the CLR key to delete the entire entry and beginning again.

3.6.5.3.3 Clock Format

The clock can be configured to display 12 hour (AM & PM) or 24 hour (military) time. Pressing 3 while viewing the Time-Date screen will cause the display to toggle between 12HR and 24HR. Select 12HR for 12 hour display or 24HR for 24 hour display.

Note: If the clock is changed to 24 hour (military) format, the date will change to the European standard of Day-Month-Year (for display purposes only).

TIME AND DATE 1=DAYLIGHT SAVINGS

Time & Date Screen #2

3.6.5.3.4 Daylight Savings Time

Pressing 1 while viewing Time-Date Screen #2 will cause the following screens to be displayed:

DAYLIGHT SAVINGS 1=ENABLED YES 2=START MONTH APR 3=START WEEK WEEK-1

Daylight Savings Screen #1

DAYLIGHT SAVINGS 1=END MONTH OCT 2=END WEEK LAST-W

Daylight Savings Screen #2

Pressing 1 while viewing Daylight Savings Screen #1 will cause the display to toggle between Enabled Yes and Enabled No. The control panel will automatically update the time for daylight savings time when Enabled Yes is selected.

Pressing 2 while viewing Daylight Savings Screen #1 will display another screen which allows the programmer to select the month that daylight savings time will begin. In this sub-screen, pressing 1 will select March, 2 will select April and 3 will select May.

84 MS-9600 PN 51335:E 7/9/03

Page 85

Master Programming Level Programming

Pressing 3 while viewing Daylight Savings Screen #1 will display two sub-screens which allow the programmer to select the week of the month that daylight savings time will begin. In the first sub-screen, pressing 1 will select the first week, 2 will select the second week and 3 will select the third week, while in the second subscreen, pressing 1 will select the fourth week and 2 will select the last week of the selected month.

Pressing 1 while viewing Daylight Savings Screen #2 will display another screen which allows the programmer to select the month that daylight savings time will end. In this sub-screen, pressing 1 will select September, 2 will select October and 3 will select November.

Pressing 2 while viewing Daylight Savings Screen #2 will display two sub-screens which allow the programmer to select the week of the month that daylight savings time will end. In the first sub-screen, pressing 1 will select the first week, 2 will select the second week and 3 will select the third week, while in the second subscreen, pressing 4 will select the fourth week and 5 will select the last week of the selected month.

SYSTEM SETUP 1=TIMERS 2=NAC 3=RELAYS

System Setup Screen #2

3.6.5.4 Timers

Timer delays for PAS, Pre-signal and waterflow activation can be programmed by pressing 1 while viewing System Setup Screen #2. The following screen will be displayed:

TIMERS 1=PAS DELAY 000 2=PRE SIGNAL 000 3=WATERFLOW 000

Timer Screen #1

TIMERS 1=PAS DELAY 000 2=PRE SIGNAL 000 3=WATERFLOW 000

Timer Screen #1

TIMERS 1=AC LOSS DELAY 000

Timer Screen #2

3.6.5.4.1 PAS (Positive Alarm Sequence) Delay

The factory default setting for PAS is 000 for no delay. To select a PAS delay of 001 to 180 seconds for all devices programmed for PAS, press 1 while viewing Timer Screen #1. The following display will appear:

PAS DELAY

RANGE 0-180 SECONDS

PAS Delay Screen

A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting of three digits, such as 005 for five seconds. Upon entering the third digit, the time delay will be stored in the control panel memory and the display will return to the Delay Screen which will indicate the new delay time.

MS-9600 PN 51335:E 7/9/03 85

Page 86

Programming Master Programming Level

3.6.5.4.2 Pre-signal Delay

The factory default setting for Pre-signal delay is 000 for no delay. To select a Presignal delay of 001 to 180 seconds for all devices programmed for Pre-signal, press 2 while viewing Timer Screen #1. The following screen will be displayed:

PRESIGNAL DELAY

RANGE 0-180 SECONDS

Pre-signal Delay Screen

A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting of three digits, such as 009 for nine seconds. Upon entering the third digit, the time delay will be stored in the control panel memory and the display will return to the Delay Screen which will indicate the new delay time.

TIMER 1=PAS DELAY 000 2=PRE SIGNAL 000 3=WATERFLOW 000

Timer Screen #1

Note that the FACP can be programmed for either PAS or Pre-signal operation, not both. For this reason, if the PAS Delay timer is set with a value greater than 000 and then the Pre-Signal Delay timer is set with a value greater than 000, the PAS Delay timer will be automatically reset to 000. Only one of the two timers can have a delay time set for it.

3.6.5.4.3 Waterflow Delay

A delay can be added prior to declaring a waterflow type of alarm. Be careful to include any built-in delays of the waterflow device. The factory default setting for Waterflow delay is 000 for no delay. To select a Waterflow delay of 01 to 90 seconds for all devices programmed for Waterflow delay, press 3 while viewing Timer Screen #1. The following screen will be displayed:

WATERFLOW DELAY

RANGE 0-90 SECONDS

Waterflow Delay Screen

A flashing cursor is positioned in the lower left corner of the display. Enter a delay time consisting of two digits, such as 25 for twenty-five seconds. Upon entering the second digit, the time delay will be stored in the control panel memory and the display will return to the Delay Screen which will indicate the new delay time.

86 MS-9600 PN 51335:E 7/9/03

Page 87

Master Programming Level Programming

TIMER 1=AC LOSS DELAY

Timer Screen #2

3.6.5.4.4 AC Loss Delay

The reporting of a loss of AC power to a central station can be delayed by programming the length of the desired delay. Press 1 while viewing Timer Screen #2 to display the following:

AC LOSS DELAY 1=NO DELAY 2=ENTER DELAY

AC Loss Delay Screen #1

Pressing 1 while viewing AC Loss Delay Screen #1 will program the FACP to transmit an AC Loss report immediately to the central station.

Pressing 2 while viewing AC Loss Delay Screen #1 will display the following screen:

AC LOSS DELAY

SYSTEM SETUP 1=TIMERS 2=NAC 3=RELAYS

System Setup Screen #2

RANGE 00-23

AC Loss Delay Screen #2

A flashing cursor will appear in the lower left corner of the display. Type the two digit AC loss reporting delay in hours (00 to 23 hour delay). When the second digit is entered, the display will return to AC Loss Delay Screen #1.

Note: For Central Station applications, AC Loss Reporting Delay must be set to a delay value ranging from 06 to 12 hours. For Remote Station applications, AC Loss Reporting Delay must be set to a delay value ranging from 15 to 23 hours.

3.6.5.5 NAC (Notification Appliance Circuit)

The options for the NACs on the control panel main circuit board can be set by pressing 2 while viewing System Setup Screen #2. The following screens will be displayed:

NACS 1=NAC 1 3=NAC 3 2=NAC 2 4=NAC 4

NAC Selection Screen

The Notification Appliance Circuits can be configured independently by pressing 1 for NAC 1, 2 for NAC 2, 3 for NAC 3 or 4 for NAC 4.

Note that 3=NAC 3 and 4=NAC 4 will only be displayed if the NACKEY NAC option card is installed, in JP8 of the main circuit board, for Class B operation.

MS-9600 PN 51335:E 7/9/03 87

Page 88

Programming Master Programming Level

The following screens will be displayed for either selection:

NAC # 1=ENABLED YES 2=TYPE BELL 3=SILENCEABLE YES

NAC Screen #1

NAC # 1=AUTO SILENCE 00 2=CODING TEMPORAL

NAC Screen #2

NAC # 1=ZONE 00 00 00 00 00 2=SIL INHIBITED NO

NAC Screen #3

NAC # 1=SYNC TYPE S

NAC Screen #4

3.6.5.5.1 Enabled

Pressing 1 while viewing NAC Screen #1 will cause the display to change to Enabled No. This will prevent the selected main circuit board NAC from activating its devices. Each press of the 1 key will cause the display to toggle between Enabled Yes and Enabled No.

88 MS-9600 PN 51335:E 7/9/03

Page 89

Master Programming Level Programming

NAC # 1=ENABLED 2=TYPE 3=SILENCEABLE

NAC Screen #1

3.6.5.5.2 Type

The main circuit board NAC type can be programmed by pressing 2 while viewing NAC Screen #1. The following screens will be displayed:

NAC TYPE 1=BELL 2=HORN 3=STROBE

Type Screen #1

NAC TYPE 1=SYNCED STROBE 2=FUTURE 3=FUTURE

Type Screen #2

NAC TYPE 1=FUTURE 2=SIREN CIRCUIT 3=BLANK

Type Screen #3

Select the NAC device type by pressing the number corresponding to the type in the appropriate screen as shown above. When the selection is made, the display will return to NAC Screen #1.

The following table contains NAC type codes and their functions:

NAC Type Code Special Function

Bell None Horn None Strobe None Synced Strobe Synchronized to manufacturer Future None Future None Future None Siren Circuit None Blank None

3.6.5.5.3 Silenceable

Pressing 3 while viewing NAC Screen #1 will cause the display to change to Silenceable No. This will prevent the selected main circuit board NAC from being

silenced by pressing the Alarm Silence key or by the Auto Silence feature. Each press of the 3 key will cause the display to toggle between Silenceable Yes and Silenceable No.

Important: When a Notification Appliance Circuit with a mix of audible and visual devices is programmed for silenceable and the synchronization feature is selected, only the audible devices will be turned off if the Silence key is pressed. The visual devices (strobes, etc.) will continue to operate.

MS-9600 PN 51335:E 7/9/03 89

Page 90

Programming Master Programming Level

NAC # 1=AUTO SILENCE 2=CODING TEMPORAL

NAC Screen #2

3.6.5.5.4 Auto Silence

The Auto Silence feature, when enabled, automatically silences all main circuit board silenceable notification appliances after a programmed length of time. To enable this feature and program the time delay before Auto Silence activation, press 1 while viewing NAC Screen #2. The following screens will be displayed:

AUTO SILENCE 1=NO 2=5 MINUTES 3=10 MINUTES

Auto Silence Screen #1

AUTO SILENCE 1=15 MINUTES 2=20 MINUTES 3=25 MINUTES

Auto Silence Screen #2

AUTO SILENCE 1=30 MINUTES

Auto Silence Screen #3

To disable the Auto Silence feature, press 1 for No while viewing Auto Silence Screen #1. To enable the Auto Silence feature, press the number corresponding to the time delay which will elapse before Auto Silence activates. When a time delay is selected, the information will be stored in memory and the display will return to NAC Screen #2.

3.6.5.5.5 Coding

The Coding feature allows the programmer to select the type of output that the main circuit board notification appliances will generate when activated. Pressing 2 while viewing NAC Screen #2 will cause the following displays to appear:

CODING 1=STEADY 2=MARCH TIME 3=CALIFORNIA

Coding Screen #1

CODING 1=TEMPORAL 2=TWO STAGE

Coding Screen #2

90 MS-9600 PN 51335:E 7/9/03

Page 91

Master Programming Level Programming

The programmer can select the notification appliance output by pressing the number corresponding to the desired output. The coding selections are:

• Steady - a continuous output with no coding

• March Time - 120 ppm (pulse-per-minute) output

• California - 10 seconds on and 5 seconds off

• Temporal - ½ second on, ½ second off, ½ second on, ½ second off, ½ second on, 1½ second off

• Two Stage - refer to "Two Stage Operation" on page 91 for description

Selection of one of the above options will cause the control panel to store the information in memory and return the display to NAC Screen #2, which will display the new coding choice.

3.6.5.5.5.1 Two Stage Operation

Two Stage operation consists of the following:

• 1st stage output - 20 ppm (pulse-per-minute) coding

• 2nd stage output - Temporal coding as described above

If Two Stage operation is programmed as the Coding option, the following sequence of events will occur during an alarm.

1. The on-board NACs which are programmed to General Alarm Zone 0 will

activate with a 1st stage output upon activation of any alarm point

2. If the activated alarm point is directly mapped to a zone which is programmed

to an on-board NAC, that NAC will go directly to 2nd stage coding output. All other NACs not directly mapped to the activated alarm point’s zone but assigned to Zone 0 will activate with a 1st stage output

3. If, after the programmed time of 3 or 5 minutes, the Acknowledge switch has

not

been pressed, all NACs presently in 1st stage activation will go to 2nd

stage activation

4. If an Acknowledge switch has been pressed, any NACs currently in 1st stage

activation will remain in 1st stage. Pressing the Acknowledge switch does not affect NACs already in 2nd stage activation

5. If another alarm point is activated and the countdown timer is counting, the

alarm point will have no effect on the NACs unless the alarm point’s zones are directly mapped to one of the NACs, in which case it will follow the procedure outlined in step 2

6. If another alarm point is activated and the countdown timer has stopped

counting due to the Acknowledge switch being pressed, the countdown timer will restart and the NACs will respond as outlined in step 2. NACs already in 2nd stage activation will not be affected

7. Any control modules assigned to special Zone 99 will be activated either by

direct mapping of an input device programmed to Zone 99 or if the timer counts down to zero

8. Control modules that are programmed to the same zone as the activated input

device will not be delayed for activation

MS-9600 PN 51335:E 7/9/03 91

Page 92

Programming Master Programming Level

NAC # 1=ZONE 00 00 00 00 00 2=SIL INHIBITED NO

NAC Screen #3

NAC # 1=SYNC TYPE

NAC Screen #4

3.6.5.5.6 Zone

A maximum of five zones can be programmed to each main circuit board NAC. Pressing 1 while viewing NAC Screen #3 displays the following screen:

ZONE ASSIGNMENT

Z00 Z** Z** Z** Z**

Zone Screen

Note that Z** represents the Zone Number(s) corresponding to the selected NAC. The factory default for an unprogrammed device is Z00 for general alarm zone. A flashing cursor will appear on the first 0 to the left. Enter the two digit number corresponding to the zone that is to be assigned to this NAC. The cursor moves to the next Z** designation. Continue entering zone assignments or the remaining zones can be left blank or programmed as general alarm zone Z00. When all desired changes have been made, press the Enter key to store the zone assignments. The display will return to the NAC Screen #3 which will show the zone assignments just entered.

3.6.5.5.7 Silence Inhibited

The Silence Inhibit feature, when enabled, prevents the silencing of the selected main circuit board NAC for a period of one minute. Pressing 2 while viewing NAC Screen #3 will cause the display to change from the factory default of Silence Inhibit No to Silence Inhibit Yes. Each press of the 2 key will cause the display to toggle between the two options.

3.6.5.5.8 Synced Type

If synchronized strobes were selected as the Type of device installed, the type of synchronization must be selected in this option. Pressing 1 while viewing NAC Screen #4 will cause the following screen to be displayed:

NAC SYNC TYPE 1=SYSTEM SENSOR 2=WHEELOCK 3=GENTEX

Pressing 1 while viewing this screen will select System Sensor synchronization, 2 will select Wheelock and 3 will select Gentex.

92 MS-9600 PN 51335:E 7/9/03

Page 93

Master Programming Level Programming

SYSTEM SETUP 1=TIMERS 2=NAC 3=RELAYS

System Setup Screen #2

3.6.5.6 Relays

Pressing 3 while viewing System Setup Screen #2 will allow the programmer to configure two of the three main circuit board Form-C relays. The following screen will be displayed:

RELAYS 1=RELAY 1 2=RELAY 2 3=RELAY 3

Relays Selection Screen

To program Relay 1 or Relay 3, press the number corresponding to the selected relay. Note that Relay 2 is fixed as a Trouble relay. Selecting Relay 2 will have no effect on its programming. The following screen will appear for each relay to be programmed:

RELAY # 1=TYPE ALARM

Pressing 1 for Type while viewing the Relay Screen will cause the following screens to be displayed:

RELAY 1=ALARM 2=SUPERVISORY 3=SUPERVISORY AR

Relay Screen #1

RELAY 1=TROUBLE 2=COMM FAIL 3=PROCESS MON

Relay Screen #2

While viewing the selected screen, press the number corresponding to the desired relay type to program the main circuit board relay. The choice will be stored in memory and the display will return to the Relay Type Screen which will show the programmed type choice. Press the Escape key to return to the Relays Selection Screen and repeat the preceding procedure for the remaining relays.

Relay Type Screen

RELAY 1=PROCMON AR 2=AC LOSS 3=HAZARD

Relay Screen #3

RELAY 1=MEDICAL

Relay Screen #4

Note: AR in SUPERVISORY AR and PROCMON AR indicates AutoResettable which means that the relay will not latch when either of these conditions occur. If the corresponding condition is cleared, the relay will return to its normal state without the necessity of resetting the control panel.

MS-9600 PN 51335:E 7/9/03 93

Page 94

Programming Master Programming Level

SYSTEM SETUP 1=CANADIAN OPT. OFF 2=WATERFLOW SIL. NO

System Setup Screen #3

3.6.5.7 Canadian Option

Pressing 1 while viewing System Setup Screen #3 will allow the programmer to configure the system to automatically monitor addressable ionization smoke detector sensitivity using Canadian specifications. The display will change to

Canadian Opt. On. Each press of the 1 key will cause the display to toggle between Canadian Opt. On and Canadian Opt. Off.:

SYSTEM SETUP 1=CANADIAN OPT. OFF 2=WATERFLOW SIL. NO

Relays Selection Screen

3.6.5.8 Waterflow Silenceable

Pressing 2 while viewing System Setup Screen #3 will allow the programmer to configure the system for silenceable on nonsilenceable waterflow circuits. Each press of the 2 key will toggle the display between Waterflow Sil. No and Wat er fl ow Sil. Yes. When Waterflow Sil. No is selected, all output devices associated with a waterflow type input device, will be nonsilenceable. When Waterflow Sil. Yes is selected, all output devices associated with a waterflow type input device, will be silenceable.

PROGRAMMING 1=LOOP SETUP 2=SYSTEM SETUP 3=VERIFY LOOPS

Programming Screen #2

3.6.6 Verify Loops

Pressing 3 while viewing Programming Screen #2, will select the Verify Loops option and display the following screen:

VERIFY LOOPS 1=LOOP 1 2=LOOP 2 3=BOTH LOOPS

Verify Loop Select Screen

During loop verification, the FACP polls each device on the selected SLC to determine if the device is communicating and whether or not it responds with the proper type identification. The programmer can choose to verify one or both loops by pressing the number corresponding to the choices shown above. When the selection is made, the following screen will be displayed while verification is in progress:

VERIFYING LOOPS PLEASE WAIT

Verification Progress Screen

When Loop verification has been completed, the display will indicate that the system is OK or, if problems have been detected, any device type programming errors. Use the up and down arrow keys to view all detected errors.

94 MS-9600 PN 51335:E 7/9/03

Page 95

Master Programming Level Programming

3.6.7 History

PROGRAMMING 1=HISTORY 2=WALKTEST 3=OPTION MODULES

Programming Screen #3

The History option allows an authorized user to view or erase events which have occurred in the control panel. Pressing 1 while viewing Programming Screen #3 will display the History options as shown in the following display:

HISTORY 1=VIEW EVENTS 2=ERASE HISTORY

History Screen

HISTORY 1=VIEW EVENTS 2=ERASE HISTORY

History Screen

3.6.7.1 View Events

Pressing 1 while viewing the History Screen will allow the user to select the events to be viewed as illustrated in the following:

HISTORY 1=VIEW ALL 2=VIEW ALARMS 3=VIEW OTHER EVENTS

View Events Screen

While displaying the View Events screen, press 1 to view all events, 2 to view only alarms or 3 to view other events. Use the up and down arrow keys to scroll through all of the displayed events.

3.6.7.2 Erase History

The Erase History option allows a user to erase all events from the history file. This will provide a clean slate in order to use the history file to track future events. Pressing 2 while viewing the History Screen will cause the following screen to be displayed:

ERASE HISTORY PROCEED ? 1=YES 2=NO

Erase History Screen

Pressing 1 while viewing the Erase History Screen will erase all events from the History file. During this process, the display will read as follows:

ERASING HISTORY PLEASE WAIT

Erase History Wait Screen

After the History file has been erased, the display will return to the History Screen.

MS-9600 PN 51335:E 7/9/03 95

Page 96

Programming Master Programming Level

3.6.8 Walktest

PROGRAMMING 1=HISTORY 2=WALKTEST 3=OPTION MODULES

Programming Screen #3

Walktest allows an individual to test the fire alarm system without the necessity to reset the control panel after each device activation. Pressing 2 while viewing the Programming Screen #3 will cause the following Walktest options to be displayed:

WALKTEST 1=SILENT 2=AUDIBLE 3=VIEW RESULT

Walktest Screen

To perform a silent walktest which will not sound the NACs, press 1 while viewing the Walktest Screen. To perform an audible walktest, which will sound the NACs, press 2 while viewing the Walktest Screen. When either option is chosen, the panel will enter Walktest Mode and the following screen will be displayed:

UNIT IN WALKTEST

Walktest Active Screen

The user can now perform a one-person walktest by activating devices throughout the system. As each device is activated, the screen will display the information about the activated device as shown below. Note that the colon in the time is replaced with an asterisk to distinguish the walktest screen from an actual alarm screen.

ALARM PULL STATION <ADJ> <NOUN> Z000 10*00A 010801 1M001

After completion of the Walktest, press the Esc (Escape) key to exit Walktest Mode and return to the Walktest Screen. The results of the Walktest can now be viewed by pressing 3 while viewing the Walktest Screen. The following screen will be displayed:

WALKTEST RESULTS

View Result Screen

Use the up and down arrow keys to view all of the walktest results which will be displayed as illustrated in the preceding screen. Note that the Walktest log is stored in RAM. If all power (AC and DC) is removed from the FACP, the Walktest log information will be lost. This information is also overwritten when subsequent walktests are performed.

96 MS-9600 PN 51335:E 7/9/03

Page 97

Master Programming Level Programming

3.6.9 Option Modules

PROGRAMMING 1=HISTORY 2=WALKTEST 3=OPTION MODULES

Programming Screen #3

Options available for the MS-9600 include ACM Series, Graphic and LCD annunciators, UDACT-F Digital Alarm Communicator/Transmitter, printer connection for acquiring hardcopy printouts of panel data and PC (Personal Computer) connection for uploading and downloading panel data.

Pressing 3 while viewing Programming Screen #3 will display the following screen:

OPTION MODULES 1=ANNUNCIATORS/UDACT 2=ONBOARD DACT 3=PRINTER/PC PR4800

Options Screen

Note that PR4800 in the display indicates that a supervised printer, configured for 4800 baud, has been previously programmed into the system.

3.6.9.1 Annunciators/UDACT

Pressing 1 while viewing the Options Screen will cause the control panel to display the following screens:

ANNUNCIATORS 1=TERM ENABLED YES 2=ACS ENABLED YES 3=UDACT YES

Annunciator Screen #1

ANNUNCIATORS 1=ACS INSTALLED 2=FUTURE USE

Annunciator Screen #2

A Terminal Mode annunciator installed in the MS-9600 system. To enable any of these devices, press the number corresponding to the selected device shown in Annunciator Screen #1 so that Yes appears in the display to the right of the device. Each press of the corresponding number key will cause the display to toggle between Enabled Yes and Enabled No.

Note:

1. The LCD-80F is a Terminal Mode annunciator. To enable the MS-9600 for LCD-80F operation, program Term Enabled to Yes.

, ACS Mode annunciator and remote UDACT can be

MS-9600 PN 51335:E 7/9/03 97

Page 98

Programming Master Programming Level

If an ACS annunciator is installed, press 1 while viewing Annunciator Screen #2 to select addresses for the ACS annunciators. The following screen will be displayed:

ANNUNCIATORS 1=ADDRESS 1 YES 2=ADDRESS 2 NO 3=ADDRESS 3 NO

ACS Installed Screen

Pressing the down arrow key will allow the programmer to view additional screens displaying Addresses 1 -31. To select one or more addresses for the installed ACS annunciator(s), press the number key corresponding to the address in each screen. The display for the selected address will change from No to Yes. Each press of the number key will cause the display to toggle between No and Yes .

OPTION MODULES 1=ANNUNCIATORS/UDACT 2=ON BOARD DACT 3=PRINTER/PC NO

Option Module Screen

3.6.9.2 On Board DACT

The Onboard DACT (Digital Alarm Communicator/Transmitter) provides communication to a Central Station. Pressing 2 while viewing the Option Module Screen will allow programming of the Onboard DACT. Refer to the DACT-UD Installation and Programming Manual Document #51889 for detailed information on installing and programming this option.

3.6.9.3 Printer/PC

A Printer or a PC can be connected to the control panel. Pressing 3 while viewing the Option Module Screen will cause the following screen to appear:

PRINTER-PC 1=PRINTER NO SU NO 2=PRINTER SU YES 3=PC NO

Printer-PC Screen

Pressing 1 while viewing the Printer-PC Screen will program the control panel for an unsupervised (NO SU) printer. The display will change to the Printer Baud Rate Screen as shown below.

Pressing 2 while viewing the Printer-PC Screen will program the control panel for a supervised (SU) printer. Printer supervision, when enabled, will typically detect the removal of the printer cable and will detect when the printer power has been turned off. Depending upon the brand of printer, other errors such as paper empty or printer off-line may be detected.

Enabling either printer option will cause the following screen to appear, which allows the programmer to select the baud rate for the printer communication:

PRINTER BAUD RATE 1=2400 BAUD 2=4800 BAUD 3=9600 BAUD

Printer Baud Rate Screen

98 MS-9600 PN 51335:E 7/9/03

Page 99

Master Programming Level Programming

Pressing the number key corresponding to the desired baud rate (2 for 4800 Baud for example) will program the control panel for the selected baud rate and return the display to the Option Module Screen which will indicate Printer/PC PR4800 for a supervised printer installed at 4800 baud rate.

Pressing 3 while viewing the Printer-PC Screen will program the control panel for a PC connection. The display will return to the Option Module Screen which will indicate Printer/PC PC for personal computer installed.

3.6.10 Password Change

PROGRAMMING 1=PASSWORD CHANGE 2=CLEAR PROGRAM 3=PROGRAM CHECK

Programming Screen #4

The factory set passwords, which have been programmed into the control panel, can be changed by selecting the Password Change option. Pressing 1 while viewing Programming Screen #4 will cause the following screen to be displayed:

PASSWORD CHANGE 1=MASTER 2=MAINTENANCE

Password Change Screen

Press 1 to change the Master Programming Level password or 2 to change the Maintenance Level password. Note that the passwords will not

LCD-80F annunciators.

The following screen will appear when either change option is selected:

be displayed on

ENTER NEW FIVE DIGIT PASSWORD

Enter Password Screen

A flashing cursor will appear in the center of the display. Enter a new five digit password (such as 10101 for the Master Level). After the fifth digit is entered, the following screen will be displayed:

NEW MASTER PASSWORD IS 10101 PRESS ENTER IF OK

Password Change Screen

Pressing the Enter key will program the new password into the control panel and return the display to the Password Change Screen.

MS-9600 PN 51335:E 7/9/03 99

Page 100

Programming Master Programming Level

3.6.11 Clear Program

PROGRAMMING 1=PASSWORD CHANGE 2=CLEAR PROGRAM 3=PROGRAM CHECK

Programming Screen #4

Pressing 2 while viewing Programming Screen #4, will select the Clear Program option. This will cause the LCD to display the following screens:

CLEAR PROGRAM 1=WHOLE SYSTEM 2=ALL LOOPS 3=LOOP1

Clear Program Screen #1

CLEAR PROGRAM 1=LOOP2

Clear Program Screen #2



See Page

Pressing 1, for Whole System while viewing the Clear Program Screen #1, will clear all general system programming options and all programmed addressable devices from the nonvolatile memory of the FACP. This function is useful when the control panel is first

installed, prior to autoprogramming. Note that it is necessary to autoprogram after using the Clear Whole System function.

Pressing 2, for All Loops while viewing the Clear Program Screen #1, will clear all programming related to all SLC loops and connected addressable devices.

Pressing 3, for Loop 1 while viewing the Clear Program Screen #1, will clear only the programming related to SLC Loop 1 and the connected addressable devices.

Pressing 1, for Loop 2 while viewing the Clear Program Screen #2, will clear only the programming related to SLC Loop 2 and the connected addressable devices.

Before executing any of the Clear commands listed above, the control panel will provide a warning to the user by prompting with the following display:

WARNING! SYSTEM CHANGE PROCEED? 1=YES 2=NO

Pressing 1 will cause the control panel to carry out the selected clear option. Pressing 2 will prevent programming from being cleared.

100 MS-9600 PN 51335:E 7/9/03
