Fire-Lite MS-9200UDLS, MS-9200UDLSE, MS-9200UDLSC User Manual

Download

Addressable Fire Alarm Control Panel

MS-9200UDLS

MS-9200UDLSE

MS-9200UDLSC

Manual

Document 52750 7/26/2010 Rev:

P/N 52750:F ECN 10-365

Fire Alarm System Limitations

While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance!

An automatic fire alarm system—typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control panel with remote notification capability—can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire.

The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise following the recommendations of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guides for Proper Use of System Smoke Detectors, which are made available at no charge to all installing dealers. These documents can be found at http://www.systemsensor.com/html/applicat.html. A study by the Federal Emergency Management Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons:

Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a firstfloor or basement fire.

Particles of combustion or “smoke” from a developing fire may not reach the sensing chambers of smoke detectors because:

• Barriers such as closed or partially closed doors, walls, or chimneys may inhibit particle or smoke flow.

• Smoke particles may become “cold,” stratify, and not reach the ceiling or upper walls where detectors are located.

• Smoke particles may be blown away from detectors by air outlets.

• Smoke particles may be drawn into air returns before reaching the detector.

The amount of “smoke” present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at various levels of smoke density. If such density levels are not created by a developing fire at the location of detectors, the detectors will not go into alarm.

Smoke detectors, even when working properly, have sensing limitations. Detectors that have photoelectronic sensing chambers tend to detect smoldering fires better than flaming fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.

Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper storage of flammable materials, etc.).

Heat detectors do not sense particles of combustion and alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detectors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist. Heat detectors are designed to protect property, not life.

IMPORTANT! Smoke detectors must be installed in the same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If detectors are not so located, a developing fire may damage the alarm system, crippling its ability to report a fire.

Audible warning devices such as bells may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently consumed drugs, alcohol or medication. Please note that:

• Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy.

• Studies have shown that certain people, even when they hear a fire alarm signal, do not respond or comprehend the meaning of the signal. It is the property owner's responsibility to conduct fire drills and other training exercise to make people aware of fire alarm signals and instruct them on the proper reaction to alarm signals.

• In rare instances, the sounding of a warning device can cause temporary or permanent hearing loss.

A fire alarm system will not operate without any electrical power. If AC power fails, the system will operate from standby batteries only for a specified time and only if the batteries have been properly maintained and replaced regularly.

Equipment used in the system may not be technically compatible with the control panel. It is essential to use only equipment listed for service with your control panel.

Telephone lines needed to transmit alarm signals from a premise to a central monitoring station may be out of service or temporarily disabled. For added protection against telephone line failure, backup radio transmission systems are recommended.

The most common cause of fire alarm malfunction is inadequate maintenance. To keep the entire fire alarm system in excellent working order, ongoing maintenance is required per the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the requirements of NFPA 72 shall be followed. Environments with large amounts of dust, dirt or high air velocity require more frequent maintenance. A maintenance agreement should be arranged through the local manufacturer's representative. Maintenance should be scheduled monthly or as required by National and/or local fire codes and should be performed by authorized professional fire alarm installers only. Adequate written records of all inspections should be kept.

Limit-C1-2-2007

2 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Installation Precautions

Adherence to the following will aid in problem-free installation with long-term reliability:

WARNING - Several different sources of power can be connected to the fire alarm control panel. Disconnect all

sources of power before servicing. Control unit and associated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized. Do not attempt to install, service, or operate this unit until manuals are read and understood.

CAUTION - System Re-acceptance Test after Software Changes: To ensure proper system operation, this product

must be tested in accordance with NFPA 72 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring. All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.

This system meets NFPA requirements for operation at 0-49º C/32-120º F and at a relative humidity 93% ± 2% RH (noncondensing) at 32°C ± 2°C (90°F ± 3°F). However, the useful life of the system's standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and its peripherals be installed in an environment with a normal room temperature of 15-27º C/60-80º F.

Verify that wire sizes are adequate for all initiating and indicating device loops. Most devices cannot tolerate more than a 10% I.R. drop from the specified device voltage.

Like all solid state electronic devices, this system may operate erratically or can be damaged when subjected to lightning induced transients. Although no system is completely immune from lightning transients and interference, proper grounding will reduce susceptibility. Overhead or outside aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes. Consult with the Technical Services Department if any problems are anticipated or encountered.

Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.

Remove all electronic assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible, make all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, or printed circuit board location.

Do not tighten screw terminals more than 9 in-lbs. Overtightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal.

This system contains static-sensitive components. Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body. Use static suppressive packaging to protect electronic assemblies removed from the unit.

Follow the instructions in the installation, operating, and programming manuals. These instructions must be followed to avoid damage to the control panel and associated equipment. FACP operation and reliability depend upon proper installation.

Precau-D1-9-2005

FCC Warning

WARNING: This equipment generates, uses, and can

radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for class A computing devices pursuant to Subpart B of Part 15 of FCC Rules, which is designed to provide reasonable protection against such interference when devices are operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his or her own expense.

Canadian Requirements

This digital apparatus does not exceed the Class A limits for radiation noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.

LiteSpeed™ is a trademark; and FireLite® Alarms is a registered trademark of Honeywell International Inc.

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 3

Software Downloads

In order to supply the latest features and functionality in fire alarm and life safety technology to our customers, we make frequent upgrades to the embedded software in our products. To ensure that you are installing and programming the latest features, we strongly recommend that you download the most current version of software for each product prior to commissioning any system. Contact Technical Support with any questions about software and the appropriate version for a specific application.

Documentation Feedback

Your feedback helps us keep our documentation up-to-date and accurate. If you have any comments or suggestions about our online Help or printed manuals, you can email us.

Please include the following information:

•Product name and version number (if applicable)

•Printed manual or online Help

•Topic Title (for online Help)

•Page number (for printed manual)

•Brief description of content you think should be improved or corrected

•Your suggestion for how to correct/improve documentation

Send email messages to:

FireSystems.TechPubs@honeywell.com

Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical Services.

4 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Section 1: Product Description .............................................................................................13

1.1: Features and Options ...................................................................................................................................13

1.2: Specifications...............................................................................................................................................15

1.3: Controls and Indicators................................................................................................................................17

1.4: Digital Alarm Communicator/Transmitter ..................................................................................................18

1.5: Components .................................................................................................................................................19

1.5.1: Intelligent Addressable Detectors: Newer Series ..............................................................................19

1.5.2: Intelligent Addressable Modules: Newer Series ...............................................................................19

1.5.3: 300 Series Intelligent Addressable Devices ......................................................................................20

1.5.4: Addressable Device Accessories.......................................................................................................20

End-of-Line Resistor Assembly ...........................................................................................................20

Power Supervision Relay .....................................................................................................................20

EOL-C(R/W) Mounting Plate ..............................................................................................................20

1.6: Optional Modules ........................................................................................................................................20

1.7: Accessories ..................................................................................................................................................20

1.7.1: PS-Tools Programming Utility..........................................................................................................20

1.7.2: DP-9692 Dress Panel.........................................................................................................................21

1.7.3: Trim Ring ..........................................................................................................................................21

1.7.4: Multi-Module Mounting Bracket ......................................................................................................21

1.7.5: Battery Box........................................................................................................................................21

BB-26 ...................................................................................................................................................21

BB-55F .................................................................................................................................................21

1.7.6: Battery Charger..................................................................................................................................22

CHG-75 Battery Charger......................................................................................................................22

CHG-120F Battery Charger .................................................................................................................22

1.7.7: IPDACT Internet Protocol DACT.....................................................................................................22

1.7.8: ANN-BUS Annunciators/Modules....................................................................................................22

Guidelines.............................................................................................................................................22

ANN-BUS Wiring ................................................................................................................................23

ANN-BUS Device Addressing......................................................................................................

ANN-80 Remote Fire Annunciator ......................................................................................................27

ANN-S/PG Serial/Parallel Interface Installation..................................................................................30

ANN-I/O LED Driver Module .............................................................................................................33

ANN-LED Annunciator Module..........................................................................................................35

ANN-RLY Annunciator Module..........................................................................................................37

ANN-BUS Audio Panel Control ..........................................................................................................39

1.7.9: Legacy ACS Series LED Zone Type Annunciators ..........................................................................41

LCD-80F/LCD-80FC Remote Fire Annunciator/Indicator ..................................................................41

LDM Series Lamp Driver Modules (Graphic Annunciator) ................................................................41

Legacy ACM-8RF Relay Control Module...........................................................................................41

1.8: Getting Started .............................................................................................................................................41

1.9: Telephone Requirements and Warnings.......................................................................................................42

1.9.1: Telephone Circuitry...........................................................................................................................42

1.9.2: Digital Communicator .......................................................................................................................42

1.9.3: Telephone Company Rights and Warnings .......................................................................................43

1.9.4: For Canadian Applications ..............................................................................................................43

.......26

Section 2: Installation.............................................................................................................45

2.1: Mounting the Backbox ................................................................................................................................45

2.2: Mounting Optional Transformer/Remounting Chassis................................................................................46

2.3: Power ...........................................................................................................................................................49

2.3.1: AC Power and Earth Ground Connection .........................................................................................49

2.3.2: Battery Power ....................................................................................................................................50

2.3.3: Special Application DC Power Output Connection ..........................................................................50

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 5

Table of Contents

2.4: Relays...........................................................................................................................................................51

2.5: Notification Appliance Circuits ...................................................................................................................51

2.5.1: Style Y (Class B) NAC Wiring .........................................................................................................52

2.5.2: Style Z (Class A) NAC Wiring with ZNAC-92 Converter ...............................................................52

2.6: Remote Synchronization Output..................................................................................................................53

2.7: UL Power-limited Wiring Requirements .....................................................................................................54

2.8: Digital Communicator .................................................................................................................................55

2.8.1: Ferrite Clamp Installation ..................................................................................................................56

2.9: Optional Module Installation .......................................................................................................................56

2.9.1: 4XTMF Transmitter Module Installation ..........................................................................................56

2.9.2: Printer ................................................................................................................................................58

Installation ............................................................................................................................................58

Printer Configuration............................................................................................................................59

Section 3: Programming ........................................................................................................ 60

3.1: Programming Data Entry .............................................................................................................................60

3.2: User Programming .......................................................................................................................................61

3.3: Initial Power-up............................................................................................................................................62

3.4: Programming Screens Description ..............................................................................................................62

3.5: Programming and Passwords.......................................................................................................................62

3.6: Master Programming Level .........................................................................................................................64

3.6.1: Autoprogram......................................................................................................................................65

3.6.2: Point Program ....................................................................................................................................65

Detector Programming..........................................................................................................................66

Enable/Disable Detector .......................................................................................................................69

Type ......................................................................................................................................................70

Verification...........................................................................................................................................70

Walktest ................................................................................................................................................71

PAS.......................................................................................................................................................71

Pre-signal ..............................................................................................................................................71

Zone Assignment..................................................................................................................................72

Noun/Adjective.....................................................................................................................................72

Description............................................................................................................................................75

Recall/Increment Function....................................................................................................................75

Module Programming...........................................................................................................................76

Enable/Disable Module ........................................................................................................................79

Type Monitor........................................................................................................................................80

Pre-signal ..............................................................................................................................................82

Walktest ................................................................................................................................................82

Zone Assignment..................................................................................................................................82

Noun/Adjective.....................................................................................................................................82

Description............................................................................................................................................85

Recall/Increment Function....................................................................................................................85

Enable/Disable Module ........................................................................................................................87

Type ......................................................................................................................................................87

Silenceable............................................................................................................................................88

Walktest ................................................................................................................................................88

Zone Assignment..................................................................................................................................89

Noun/Adjective.....................................................................................................................................89

Description............................................................................................................................................92

Recall/Increment Function....................................................................................................................92

3.6.3: Zone Setup .........................................................................................................................................93

Enable ...................................................................................................................................................93

Disable ..................................................................................................................................................94

Zone 97, 98 and 99 ...............................................................................................................................94

Zones Installed......................................................................................................................................95

Zones Enabled ......................................................................................................................................95

6 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Table of Contents

Zones Disabled .....................................................................................................................................95

Zone Type.............................................................................................................................................96

Zones Available....................................................................................................................................97

Zone Message.......................................................................................................................................97

3.6.4: Loop Setup.........................................................................................................................................97

Style......................................................................................................................................................97

Loop Protocol .......................................................................................................................................98

Device Addressing................................................................................................................................98

3.6.5: System Setup .....................................................................................................................................98

Trouble Reminder.................................................................................................................................99

Banner...................................................................................................................................................99

Time-Date...........................................................................................................................................101

Timers.................................................................................................................................................103

NAC (Notification Appliance Circuit) ...............................................................................................105

Relays .................................................................................................................................................111

Canadian Option.................................................................................................................................112

Waterflow Silenceable........................................................................................................................112

3.6.6: Verify Loop .....................................................................................................................................113

3.6.7: History .............................................................................................................................................113

View Events........................................................................................................................................113

Erase History ......................................................................................................................................114

3.6.8: Walktest...........................................................................................................................................114

3.6.9: Option Modules ..............................................................................................................................117

Annunciators.......................................................................................................................................117

ANN-I/O Options ...............................................................................................................................122

Onboard DACT ..................................................................................................................................133

Central Station Primary and Secondary Phone Numbers...................................................................137

Test Time Interval ..............................................................................................................................139

Account Code .....................................................................................................................................139

24 Hour Test Time..............................................................................................................................139

Phone Number ....................................................................................................................................140

Communication Format......................................................................................................................140

Event Codes........................................................................................................................................141

Ademco Contact ID & SIA Formats ..................................................................................................142

Report Style ........................................................................................................................................144

Printer/PC ...........................................................................................................................................144

3.6.10: Password Change...........................................................................................................................145

3.6.11: Clear Program................................................................................................................................146

3.6.12: Program Check ..............................................................................................................................147

3.7: Maintenance Programming Level..............................................................................................................148

3.7.1: Disable Point ...................................................................................................................................149

3.7.2: History .............................................................................................................................................150

3.7.3: Program Check ................................................................................................................................151

3.7.4: Walktest...........................................................................................................................................152

3.7.5: System .............................................................................................................................................154

3.7.6: Zone Setup.......................................................................................................................................155

Section 4: Operating Instructions .......................................................................................158

4.1: Panel Control Buttons................................................................................................................................158

4.1.1: Acknowledge/Step...........................................................................................................................158

4.1.2: Alarm Silence ..................................................................................................................................158

4.1.3: Drill/Hold 2 Sec...............................................................................................................................158

4.1.4: Reset ................................................................................................................................................158

4.2: LED Indicators...........................................................................................................................................158

4.3: Normal Operation ......................................................................................................................................160

4.4: Trouble Operation......................................................................................................................................160

4.5: Alarm Operation ........................................................................................................................................162

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 7

Table of Contents

4.6: Supervisory Operation ...............................................................................................................................163

4.7: Process Monitor Operation ........................................................................................................................163

4.8: Hazard/Tornado Condition Operation........................................................................................................164

4.9: Medical Alert Condition Operation ...........................................................................................................164

4.10: NAC Operation ........................................................................................................................................165

4.11: Programmed Zone Operation...................................................................................................................165

4.12: Disable/Enable Operation ........................................................................................................................165

4.13: Waterflow Circuits Operation ..................................................................................................................165

4.14: Detector Functions ...................................................................................................................................165

4.15: Time Functions: Real-Time Clock...........................................................................................................166

4.16: Synchronized NAC Operation .................................................................................................................166

4.17: Coded Operation ......................................................................................................................................166

4.18: Presignal...................................................................................................................................................166

4.19: Positive Alarm Sequence .........................................................................................................................167

4.20: Special System Timers.............................................................................................................................168

4.20.1: Silence Inhibit Timer .....................................................................................................................168

4.20.2: Autosilence Timer .........................................................................................................................168

4.20.3: Trouble Reminder..........................................................................................................................168

4.20.4: Waterflow Retard Timer................................................................................................................168

4.20.5: Alarm Verification (None or One Minute) ....................................................................................168

4.21: Walktest....................................................................................................................................................169

4.22: Read Status...............................................................................................................................................169

4.22.1: System Point ..................................................................................................................................171

4.22.2: Zones..............................................................................................................................................172

4.22.3: Power .............................................................................................................................................173

4.22.4: Trouble Reminder..........................................................................................................................174

4.22.5: Timers ............................................................................................................................................174

4.22.6: NAC...............................................................................................................................................175

4.22.7: Relays ............................................................................................................................................175

4.22.8: Program Check ..............................................................................................................................176

4.22.9: History ...........................................................................................................................................176

4.22.10: Annunciators................................................................................................................................176

4.22.11: Phone Line ...................................................................................................................................178

4.22.12: Central Station .............................................................................................................................178

4.22.13: Service Terminal..........................................................................................................................179

4.22.14: Printer/PC ....................................................................................................................................179

4.22.15: Print..............................................................................................................................................180

Chamber Value ...................................................................................................................................180

Drift Compensation ............................................................................................................................181

Maintenance Alert ..............................................................................................................................181

4.22.16: Time-Date ....................................................................................................................................182

Section 5: Central Station Communications...................................................................... 183

5.1: Transmittal Priorities..................................................................................................................................184

Section 6: Remote Site Upload/Download ......................................................................... 186

6.1: Remote Download .....................................................................................................................................186

6.2: Transferring a Program ..............................................................................................................................187

6.2.1: Security Features .............................................................................................................................188

Secret Code Verification.....................................................................................................................188

Time-out at Control Panel ..................................................................................................................188

Error Checking....................................................................................................................................188

Central Station Data Protection ..........................................................................................................188

Section 7: Power Supply Calculations ............................................................................... 189

7.1: Overview....................................................................................................................................................189

7.2: Calculating the AC Branch Circuit ............................................................................................................189

7.3: Calculating the System Current Load ........................................................................................................189

8 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Table of Contents

7.3.1: Overview .........................................................................................................................................189

7.3.2: How to Calculate System Current Load ..........................................................................................190

7.4: Calculating the Battery Size ......................................................................................................................192

7.4.1: NFPA Battery Requirements ...........................................................................................................192

7.4.2: Selecting and Locating Batteries .....................................................................................................192

Appendix A: Software Zones............................................................................................... 194

A.1: Correlations...............................................................................................................................................194

Appendix B: Default Programming .....................................................................................200

Appendix C: NFPA Standard-Specific Requirements .......................................................201

C.1: Central Station/Remote Station Transmitter: Connection to FACP Dry Contacts....................................205

C.2: MBT-1 Municipal Box Trip - Silenceable ................................................................................................206

Appendix D: FACP with Keltron ..........................................................................................207

Appendix E: Wire Requirements .........................................................................................208

E.1: NAC Wiring ..............................................................................................................................................210

Appendix F: HVAC Control ..................................................................................................211

F.1: Control Module Operation .........................................................................................................................211

F.1.1: HVAC SHUTDN ............................................................................................................................211

F.2: Monitor Module Operation ........................................................................................................................211

F.2.1: HVAC RESTART...........................................................................................................................211

F.2.2: HVAC OVRRIDE...........................................................................................................................212

Appendix G: Ademco Contact ID Format Event Code Descriptions................................213

G.1: Transmission Format Between DACT and Receiver ................................................................................213

G.2: Ademco Contact ID Typical Printout........................................................................................................213

Appendix H: Central Station Points ....................................................................................218

Appendix I: Canadian Application.......................................................................................220

Index....................................................................................................................................... 224

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 9

It is imperative that the installer understand the requirements of the Authority Having Jurisdiction (AHJ) and be familiar with the standards set forth by the following regulatory agencies:

• Underwriters Laboratories Standards

• NFPA 72 National Fire Alarm Code

• CAN/ULC - S527-99 Standard for Control Units for Fire Alarm Systems

Before proceeding, the installer should be familiar with the following documents.

NFPA Standards

NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code

Underwriters Laboratories Documents:

UL 38 Manually Actuated Signaling Boxes UL 217 Smoke Detectors, Single and Multiple Station UL 228 Door Closers–Holders for Fire Protective Signaling Systems UL 268 Smoke Detectors for Fire Protective Signaling Systems UL 268A Smoke Detectors for Duct Applications UL 346 Waterflow Indicators for Fire Protective Signaling Systems UL 464 Audible Signaling Appliances UL 521 Heat Detectors for Fire Protective Signaling Systems UL 864 Standard for Control Units for Fire Protective Signaling Systems UL 1481 Power Supplies for Fire Protective Signaling Systems UL 1610 Central Station Burglar Alarm Units UL 1638 Visual Signaling Appliances UL 1971 Signaling Devices for Hearing Impaired UL 2017 General-Purpose Signaling Devices and Systems

CAN/ULC - S524-01 Standard for Installation of Fire Alarm Systems CAN/ULC - S559-04 Equipment for Fire Signal Receiving Centers and Systems CAN/ULC - S561-03 Installation and Services for Fire Signal Receiving Centers and Systems CAN/ULC - S527-99 Standard for Control Units for Fire Alarm Systems This Class (A) digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe (A) est conforme à la norme NMB-003 du Canada.

Other:

Canadian Electrical Code, Part I EIA-232E Serial Interface Standard EIA-485 Serial Interface Standard NEC Article 250 Grounding NEC Article 300 Wiring Methods NEC Article 760 Fire Protective Signaling Systems Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction (LAHJ)

Fire-Lite Documents:

Fire-Lite Device Compatibility Document #15384 SLC Wiring Manual Document #51309 ACS Series Annunciators Document #51480 CHG-120F Battery Charger Document #50888 CHG-75 Battery Charger Document #51315 LDM Series Lamp Driver Modules Document #50055 LCD-80F Remote Fire Annunciator Document #51338 ACM-8RF Relay Control Module Document #50362 IPDACT Communicator/Transmitter Document #53109 ANN-80 Product Installation Document Document #52749 ANN-(R)LED Product Installation Doc. Document #53032 ANN-I/O Product Installation Document Document #151416 ANN-RLY Product Installation Document Document #53033 ANN-S/PG Product Installation Document Document #151417 ACC-25/50(ZS/T) Manual Document #52750

This product has been certified to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, 9th Edition. Operation of this product with products not tested for UL 864, 9th Edition has not been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ).

10 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

REMOTE PWR

SUPPLY SYNC

+ -

1B+ 3B+ 3B- 1B-

2B+ 4B+ 4B- 2B-

NO NC C NO NC C NC NO C

TB5

TB3

TB7

TB2

TB1 TB4

TB9

TB8

TB6

J10

321

JP4

123

JP6

JP7

J14

HOT

NEUT

RTH

TB11

J11

TRANSFORMER 1

TRANSFORMER 2

JP5

- +

BATTERY

PH1

PRI. PHONE LINESEC. PHONE LIN

PH16J12

MINI DIN

KEYBOARD CONN.

SW1J5

JP3

JP2

LCD DISPLAY

KEYPAD

I/F

4XTM

Xmt Rcv Dtr Gnd

A B

In+ In- Out+ Out-

+ -

A B

B+ A+ B- A- A B

Slc Slc Slc Slc Shield

B9F

5 4 3 2 1

9 8 7 6

TB8

DTR

TB8

5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

9 8 7 613 12 11 10

RCVDTRGNDXM

Supervisory* Alarm*

Trouble

2 Programmable Relays &

Fixed Trouble Relay

Non-supervised relay contacts

Contact rating:

2.0 amps @ 30 VDC (resistive)

0.5 amps @ 30 VAC (resistive)

Contacts shown below in

normal condition (AC power

with no alarm, trouble, or

supervisory activity)

AC Fail Safe Trouble relay

switches to the NO position

during trouble conditions and

under loss of all power.

(*Factory default relay

programming)

Convert NAC circuits

from Style Y (Class B)

to Style Z (Class A)

with the ZNAC-92

converter module.

Cut this jumper

to enable

Supervisory

relay when

4XTMF is

installed

Auxiliary

Trouble

Input

Cut this jumper to supervise

the 4XTMF when installed

(see J5 & J6)

Flash Memory Load Enable

Switch: UP is normal

position for switch, DOWN

position allows to factory

software upgrades

USB Port J12 for local

programming using a

personal computer and

PS-Toolsutilty

To disable ground fault

detection, remove

jumper/shunt from JP7.

Important! Removing

Ground Fault Disable

Jumper JP7 voids

UL/NFPA Style/Class

identifications for

circuits. Remove

jumper JP7 only with

the approval of the AHJ

(Authority Having

Jurisdiction).

Configure TB1, Terminals

1&2 (JP4) and 3&4 (JP6) as

Resettable or Nonresettable

Power.

Resettable Power- jumper

pins 2&3.

Nonresettable Power-

jumper pins 1&2.

Jumpers are installed at the

factory as shown.

Transformer 2 Connector

Transformer 1 Connector

AC Power

(Supervised,

Nonpower-Limited)

120 VAC, 60 Hx, 2.0 amps

220/240 VAC, 50 Hz, 1.2 amps

Cut this jumper to disable

the FACP battery charger

when using an external

battery charger

Battery

24 VDC, supervised,

nonpower-limited,

18 AH maximum

Off-board piezo

sounder- J8

(Canadian

Applications

only)

PS2 Keyboard Interface

DACT Phone LIne Jacks

(Nonpower-Limited)

TERM

(EIA-485)

to LCD-80F

Secondary

ANN-BUS

to Annunciators

(power-limited,

supervised)

Primary

ACS/ANN-BUS

to Annunciators

(power-limited,

supervised)

SLC Loop

(supervised)

TB8 (option to DB-25)

NAC #1 NAC #3 NAC #2NAC #4

Notification Applicance Circuits

NAC #1, #2, #3, & #4 Style Y (Class B)

(Supervised, Power-Limited) (Special

application) 2.5 amps max. per circuit

Special Application DC Power Outputs (24 VDC)

Nonsupervised, Power-Limited circuits

Supervise with a power supervision relay EOLR-1

Nonresettable Power suitable for powering

annunciators; Resettable Power suitable for

powering smoke detectors.

EIA-232

to printer or

personal computer

(nonsupervised)

For EDP-listed

equipment or personal

computer with FACP

Upload/Download

Utility.

50 foot maximum

within same room.

ELRs, 4.7K, 1/2W

(for Style Y wiring)

Resettable or Nonresettable Power

Jumper selectable by JP6, 24 VDC filtered,

power-limited (1.0 amp maximum).

Supervision required.

Nonresettable or Resettable Power

Jumper selectable by JP4, 24 VDC filtered,

power-limited (1.0 amp maximum).

Supervision required.

Remote Synchronization Output

Supervised, Power-Limited circuits

24 VDC filtered (0.35 amp maximum),

Requires a 4.7 Kohm End-of-Line Resistor

{

+ -

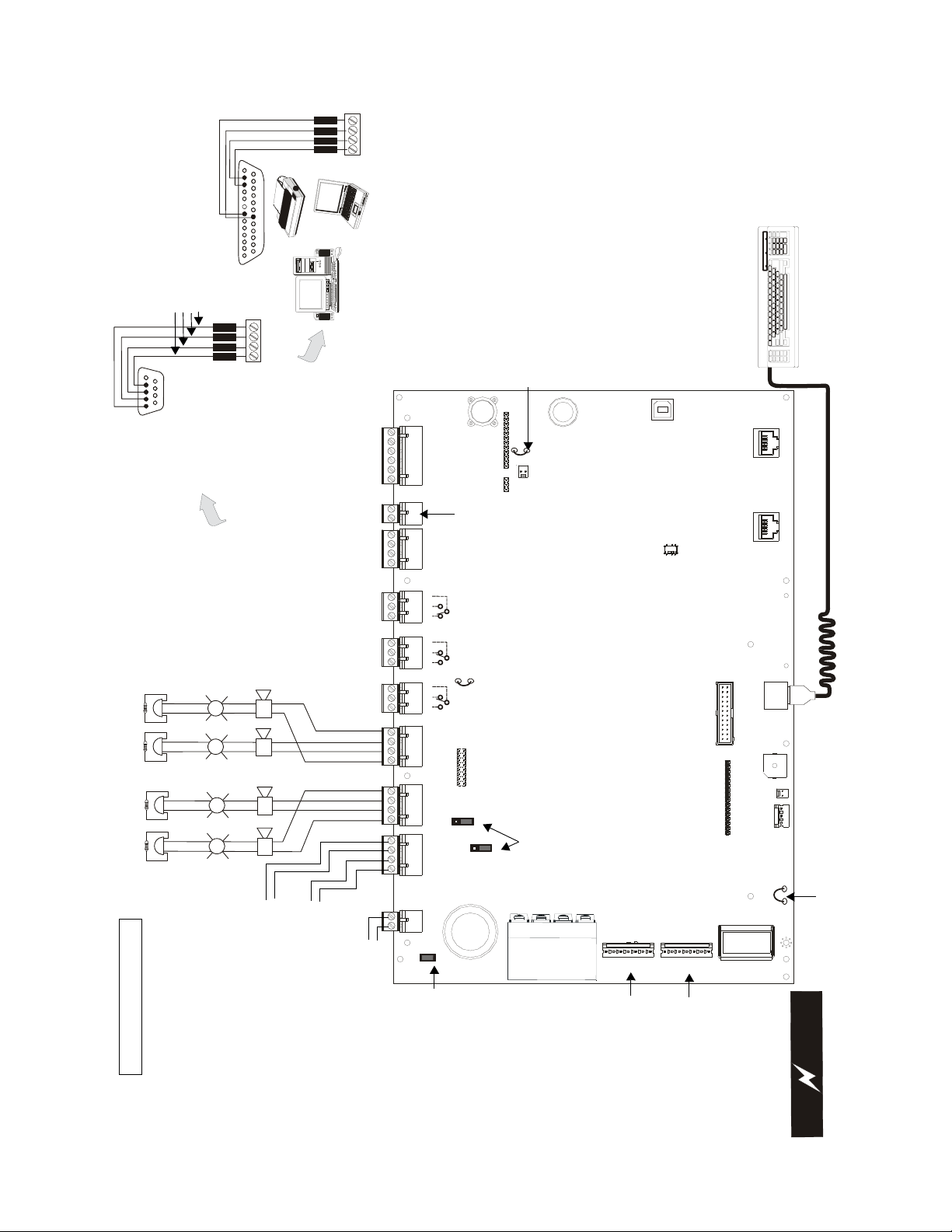

Basic System Connections

9200udlsbrd.wmf

+ - + -

Red

White

Green

Black

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 11

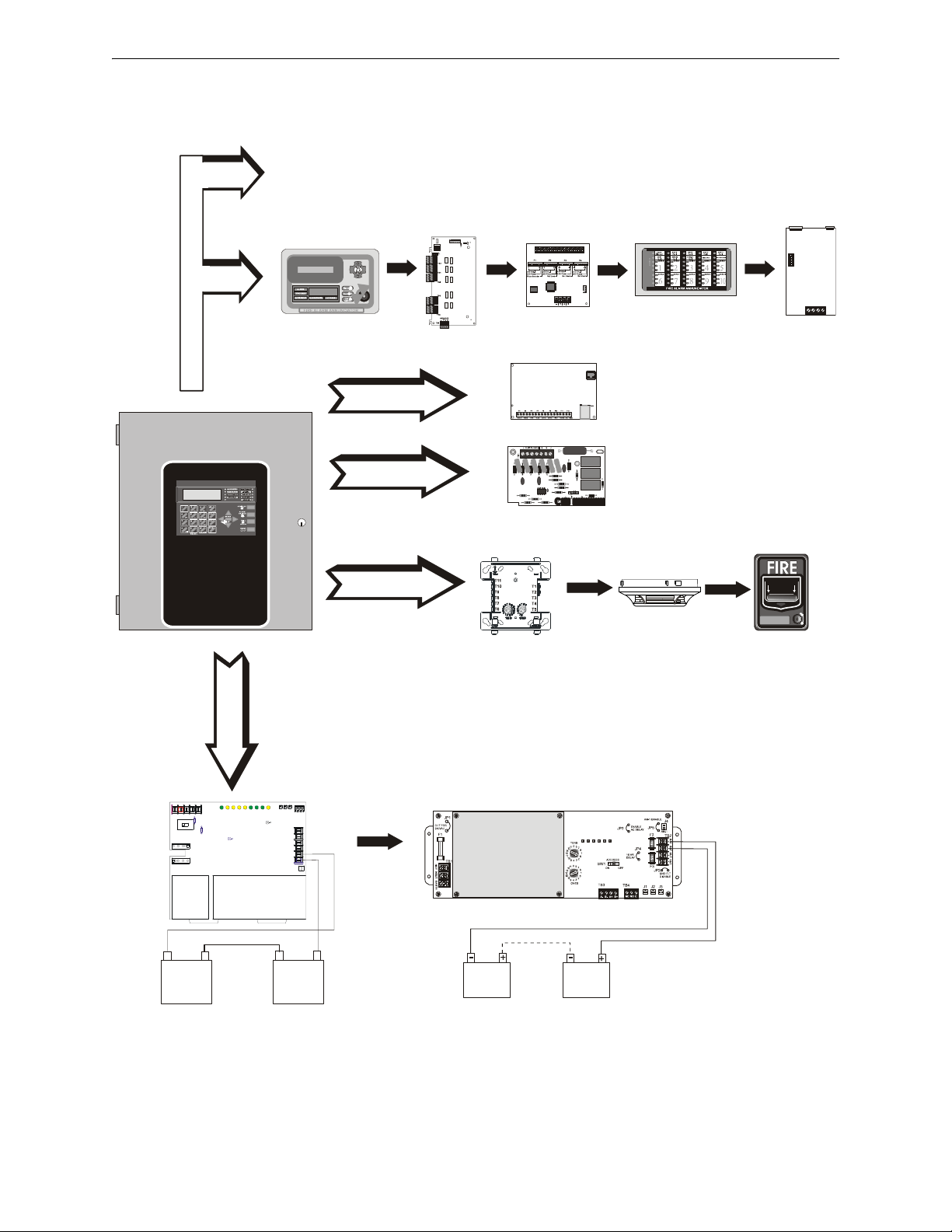

Peripheral Devices and Their Documents:

Addressable Devices and SLC Wiring

Doc. #51309

CHG-120F Charger

Doc. #50888

ANN-BUS - TB9

SLC Loop - TB10

Battery Connector - J9

9200udLSannperi.wmf

ANN-80(C)

LCD Text Annunciator/Indicator

Doc. #52749

ANN-I/O

LED Driver

Doc. #151416

ANN-S/PG

Printer Driver

Doc. #151417

CHG-75 Charger

Doc. # 51315

ANN-(R)LED

LED Display

Doc. #53032

ANN-RLY

10 Form-C Relay Card

Doc. #53033

4XTMF

Reverse Polarity Module

J5 & J6

ANN Audio Control for ACC-25/50(ZS/T) Doc. #51889

IPDACT

Internet Communicator

Doc. #53109

PH15 & PH16 Telephone Connections

12 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Section 1: Product Description

The Fire-Lite MS-9200UDLS is a combination FACP (Fire Alarm Control Panel) and DACT (Digital Alarm Communicator/Transmitter) all on one circuit board. This compact, cost effective, intelligent addressable control panel has an extensive list of powerful features.The combination of Fire-Lite’s newer series devices and legacy 300 Series devices, along with the MS-9200UDLS FACP, offer the latest in fire protection technology. The power supply and all electronics are contained on a single circuit board housed in a metal cabinet, providing a complete fire control system for most applications. Optional modules, which plug into the main circuit board, are available for special functions. Available accessories include LED, graphic and LCD annunciators, reverse polarity/city box transmitter, local and remote upload/download software and remote power expansion.

The integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone network. It also allows remote programming or interrogation of the control panel using the PS-Tools Upload/Download utility via the public switched telephone network. Local programming and interrogation is also possible using the PS-Tools and the USB port (J12) on the FACP. Any personal computer with WINDOWS modem with a speed of 2400 baud or faster and PS-Tools software may serve as a Service Terminal. This allows download of the entire program or upload of the entire program, history file, walktest data, current status and system voltages.

NOTE: MS-9200UDLS is used in this manual to refer to both the MS-9200UDLS/C (120 VAC versions) and the MS-9200UDLSE (240 VAC version) FACPs.

XP or greater, and compatible

Inventory

When MS-9200UDLS shipment is received, check that all parts have been included in shipment. The MS-9200UDLS shipment consists of one of each of the following:

 main circuit board with display

 backbox with door

 plastic bag containing screws, cables, key, etc.

 manual

1.1 Features and Options

• New LiteSpeed™ polling protocol for faster SLC response time

• SLC operates up to 10,000 ft. (3,000 m) in LiteSpeed mode with twisted, unshielded wire (refer to “Wire Requirements” on page 208)

• Built-in DACT (Digital Alarm Communicator/Transmitter)

• Single addressable SLC loop which meets NFPA Style 4, 6 and 7 requirements

• 198 addressable device capacity (99 detectors and 99 control/relay/monitor modules)

• 99 software zones

• Four (4) Style Y (Class B) NACs (Notification Appliance Circuits) with the option to convert to four (4) Style Z (Class A) circuits - special application power

• 3.0 amps total 24 VDC output circuit current, expandable to 6.0 amps with optional transformer

• Two programmable relay outputs and one fixed trouble relay

• Synchronization output for remote power supply applications (special application)

• Built-in Programmer

• Telephone Line Active LEDs

• Communication Confirmation (Kissoff) LED

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 13

Product Description Features and Options

• Touchtone/Rotary dialing

• Programmable Make/Break Ratio

• EIA-232 Printer/PC interface (variable baud rate)

• 80-character LCD display (backlit)

• Real-time clock/calendar with daylight savings time control

• History file with 1,000 event capacity

• Advanced fire technology features:

 Automatic drift compensation

 Maintenance alert

 Detector sensitivity test capability (NFPA 72 compliant)

 Automatic device type-code verification

 Point trouble identification

• Waterflow selection per module point

• Alarm verification selection per detector point

• Walktest, silent or audible

• PAS (Positive Alarm Sequence) and Pre-signal per point (NFPA 72 compliant)

• Silence inhibit timer option per NAC

• Autosilence timer option per NAC

• Continuous, March Time, Temporal or California code for main circuit board NACs with twostage capability

• Selectable strobe synchronization per NAC

• Remote Acknowledge, Alarm Silence, Reset and Drill via addressable modules, ACS annunciators or ANN-80 Remote annunciator

• Auto-program (learn mode) reduces installation time. Reports two devices set to the same address

• Password and key-protected nonvolatile memory

• User programmable password

• Fully programmable from local keypad or optional keyboard

• Optional PK-CD (contains PS-Tools utility) for local or remote Upload/Download of program and data

• Compatible with Fire-Lite’s newer series devices in LiteSpeed and CLIP mode (refer to SLC Wiring Manual for a list of compatible addressable devices)

• Compatible with legacy Fire-Lite 300 Series devices in CLIP mode only (refer to the SLC Wiring Manual for a list of compatible addressable devices)

• Optional 4XTMF module (conventional reverse polarity/city box transmitter)

• Optional ZNAC-92 Class A converter module for NACs

• ANN-BUS for connection to following optional modules (cannot be used if ACS annunciators are used):

 ANN-80 Remote Annunciator

 ANN-80C Remote Indicator (Canadian Applications)

 ANN-I/O LED Driver

 ANN-S/PG Printer Module

 ANN-RLY Form-C Relay Module

 ANN-LED Annunciator Module annunciates alarm, trouble and supervisory (required for

Canada and emergency signaling)

 ANN-RLED Annunciator Module annunciates alarms only

• Automated activation of the ACC-25/50(ZS/T) Audio-Command-Center

14 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Specifications Product Description

• Legacy ACS/TERM Annunciators (cannot be used if ANN annunciators are used):

 ACS Series-LED Zone Annunciators

 LDM Graphic Annunciator Series

 LCD-80F Liquid Crystal Display point annunciator

 LCD-80FC Remote Fire Indicator (Canadian applications)

 ACM-8RF Relay Module

1.2 Specifications

Refer to Illustration on page 10 for terminal locations and connections.

AC Power - TB11

MS-9200UDLS: 120 VAC, 60 Hz, 2.0 amps MS-9200UDLSE: 220/240 VAC, 50 Hz, 1.2 amps Wire size: minimum 14 AWG (2.00 mm

Battery (Sealed Lead Acid Only) - J9

Maximum Charging Circuit: Normal Flat Charge – 27.6 VDC @ 1.4 amps Maximum Battery Charger Capacity: 18 Amp Hour (FACP cabinet holds maximum of two 18 Amp Hour batteries. The BB-26 Battery Box holds two 26 Amp Hour batteries and the CHG-75. For greater than 26 Amp Hour up to 120 Amp Hour batteries, use the CHG-75 or CHG-120F Battery Charger and BB-55F Battery Box). Minimum Battery Size: 7 Amp Hour Note: Jumper JP5, on the FACP main circuit board, must be cut to disable the FACP battery charger when using an external battery charger.

) with 600 V insulation

Communication Loop - TB10

24 VDC nominal, 27.6 VDC maximum Maximum length - refer to “Wire Requirements” on page 208) Maximum loop current is 400 mA (short circuit) or 100 mA (normal) Maximum loop resistance is 40 ohms Supervised and power-limited circuit Refer to SLC Loop manual for wiring information

Notification Appliance Circuits - TB3 & TB4

Four (4) Style Y (Class B) NAC circuits, which can be converted to four (4) Style Z (Class A) circuits with optional ZNAC-92 converter module Special Application full-wave rectified power Power-limited circuitry NAC wiring requirements refer to “NAC Wiring” on page 210 Nominal operating voltage: 24 VDC Current-limit: fuseless, electronic, power-limited circuitry Maximum signaling current per circuit: 2.5 amps (see Figure 1.1 on page 17) End-of-Line Resistor: 4.7 k, ½ watt (P/N 71252 UL listed) required for each circuit Refer to the Device Compatibility Document for listed compatible devices

Two Programmable Relays and One Fixed Trouble Relay - TB5, TB6 & TB7

Contact rating: 2.0 amps @ 30 VDC (resistive), 0.5 amps @ 30 VAC (resistive) Form-C relays Refer to Figure 2.1 on page 45 for information on power-limited relay circuit wiring

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 15

Product Description Specifications

Nonresettable or Resettable Special Application Power (24 VDC Nominal) - TB1, Terminals 1 (+) & 2 (-)

Factory-set as nonresettable, suitable for powering annunciators Jumper selectable (JP4) for conversion to resettable power output Maximum ripple voltage: 20mV

RMS

Total DC current available is up to 1.0 amp (see Figure 1.1 on page 17) Power-limited circuit

Resettable or Nonresettable Special Application Power (24 VDC Nominal) - TB1, Terminals 3 (+) & 4 (-)

Factory-set as resettable, suitable for powering four-wire smoke detectors Jumper selectable (JP6) for conversion to nonresettable power output Maximum ripple voltage: 20 mV

RMS

Total DC current available is up to 1.0 amp (see Figure 1.1) Power-limited circuit Refer to the Device Compatibility Document for listed compatible devices

Remote Sync Output - TB2

Remote power supply synchronization output 24 VDC nominal special application power Maximum current is 350 mA End-of-Line Resistor: 4.7K Output linked to NAC 1 control Supervised and power-limited circuit

EIA-485 (TERM) or EIA-232 Serial or ANN-BUS2 - TB8

EIA-485 Terminal Mode annunciator connections: Terminal 1 (In +), 2 (In -), 3 (Out +), 4 (Out -) EIA-232 PC/Printer applications connections: Terminal 1 (Transmit), 2 (Receive), 3 (DTR) 4 (Ground) EIA-485 ANN Ancillary indicator connections: Terminal 3 (“A” data), 4 (“B” data) Annunciators require non-resettable power

EIA-485 ACS or ANN-BUS1 - TB9

ACS/ANN-BUS annunciator connector, Terminal 1 (+/A) and Terminal 2 (-/B) Annunciators require non-resettable power

16 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Controls and Indicators Product Description

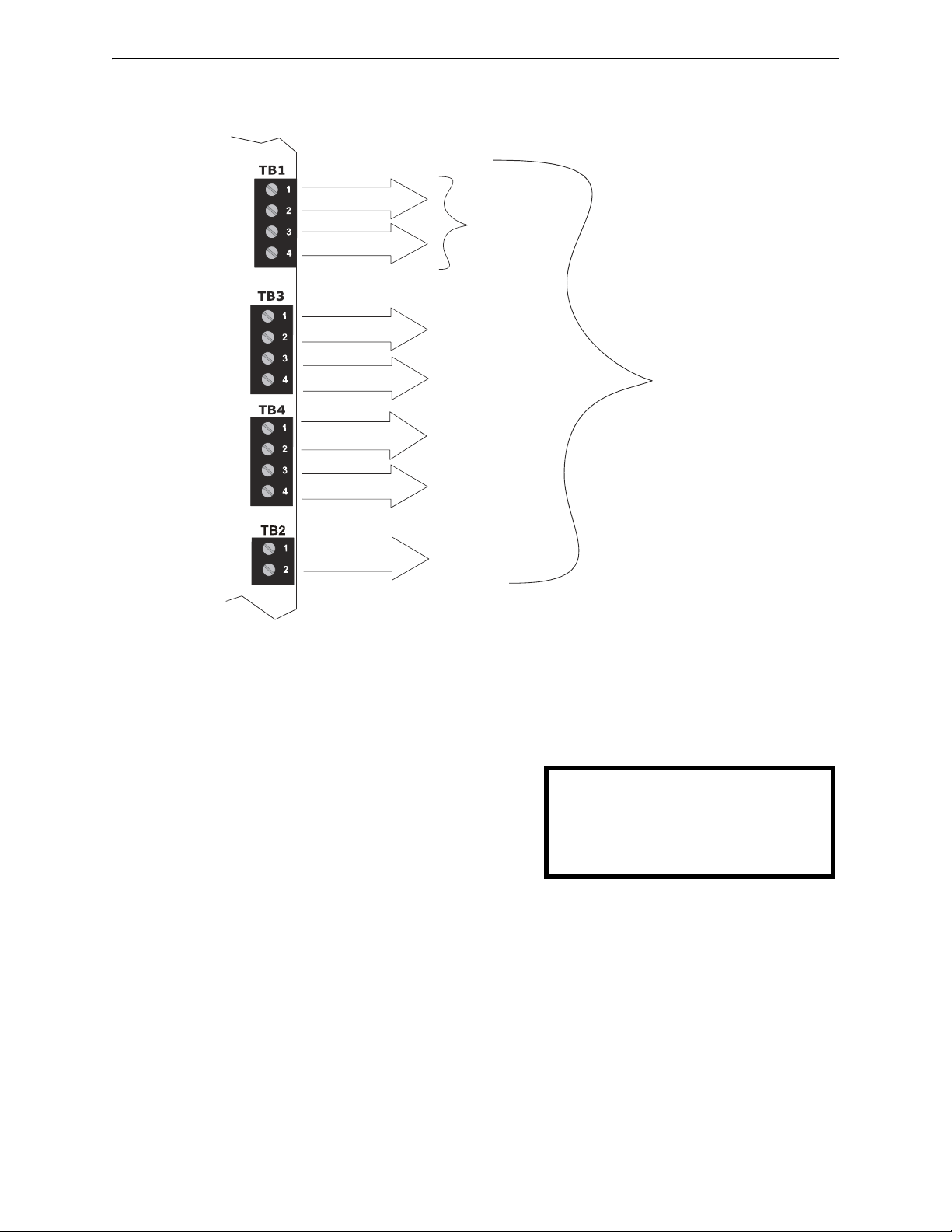

Figure 1.1 Current Availability

powerdist9200ud2.wmf

Refer to the battery calculations section for additional information.

6.0 amps with optional second XRM-24B(E) transformer.

3.0 amps max. with only standard transformer installed.

Standby

2.0 amps max

per panel

Special Application Nonresettable or Resettable Power

Special Application Resettable or Nonresettable Power

NAC #1

NAC #3

NAC #2

NAC #4

1.0 amp max

per circuit

1.0 amp max

per circuit

2.5 amps max

per circuit

2.5 amps max

per circuit

2.5 amps max

per circuit

2.5 amps max

per circuit

Alarm

6.0 amps max

per panel

0.35 amp max

per circuit

Remote

Synchronization

Output

HONEYWELL

LIFE SAFETY

SYSTEM ALL NORMAL

10:00A 012102

The following figure illustrates the maximum current that is possible for each major panel output circuit and the total current available from the FACP.

1.3 Controls and Indicators

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 17

LCD Display

The FACP uses an 80-character (4 lines X 20 characters) high viewing angle LCD display. The display includes a long life LED backlight that remains illuminated. If AC power is lost and the system is not in alarm, the LED backlight will turn off to conserve batteries.

LED Indicators

LED indicators are provided to annunciate the following conditions:

• AC Power (green)

• Fire Alarm (red)

• Supervisory (yellow)

• Trouble (yellow)

• Maintenance (yellow)

• Alarm Silenced signals (yellow)

• Disabled (yellow)

Product Description Digital Alarm Communicator/Transmitter

Figure 1.2 Membrane/Display Panel

9600kypd.wmf

• Battery fault (yellow)

• Ground fault (yellow)

Key Panel

Mounted on the main circuit board, the key panel includes a window for the LCD display and LED indicators as listed above. The key panel, which is visible with the cabinet door closed, has 25 keys, including a 16 key alpha-numeric pad similar to a telephone keypad.

Function keys:

• Acknowledge/Step

• Alarm Silence

• Drill

• Reset (lamp test)

Service/program keys:

• Keys labeled 1 to 9

• * key

• # key

• 0 (recall) key

• 1st Event key

• Clear key

• Escape key

• Mode key

• Four cursor keys (up, down, left and right)

• Enter key

Local Piezo Sounder

A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory conditions.

1.4 Digital Alarm Communicator/Transmitter

Two modular phone jacks allow easy connection to telephone lines. Modular jacks are labeled PH1 for Primary Phone Line and PH2 for Secondary Phone Line. Two telephone line active red LEDs are provided as well as a green Kissoff LED. The integral digital communicator provides the following functions:

• Line Seizure: takes control of the phone lines disconnecting any premises phones

• Off/On Hook: performs on and off-hook status to the phone lines

• Listen for dial tone: 440 Hz tone typical in most networks

• Dialing the Central Station(s) number: default is Touch-Tone

• For tone burst or touchtone type formats: discern proper Ack and Kissoff tone(s). The frequency and time duration of the tone(s) varies with the transmission format. The control panel will adjust accordingly.

• Communicate in the following formats:

 Ademco Contact ID

 SIA DCS 8

 SIA DCS 20

, programmable to rotary

18 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Components Product Description

Standard XRM-24B(E)

Optional XRM-24B(E)

9200xfor.cdr

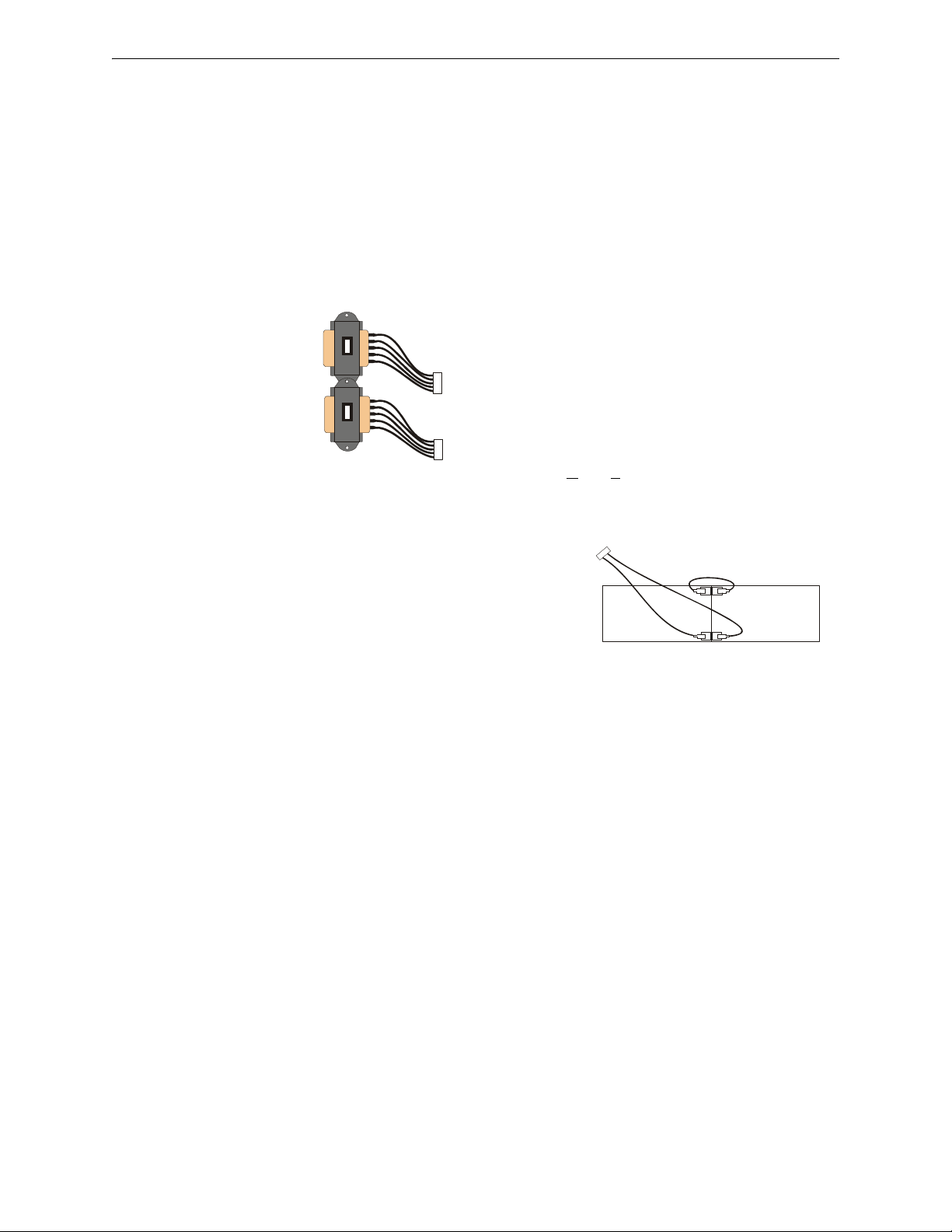

Battery Cable P/N 75287

9200batt.cdr

1.5 Components

Main Circuit Board

The main circuit board contains the system’s CPU, power supply, other primary components and wiring interface connectors. The 4XTMF option module plugs in and is mounted to the main circuit board.

Cabinet

The MS-9200UDLS backbox provides space for two batteries (up to 18 Amp Hour). Ample knockouts are provided for system wiring. Also available is an optional dress panel (DP-9692), which mounts to the inside of the cabinet (required by ULC for Canadian installations).

Transformer Assembly

One 100VA transformer is provided standard with the panel (3.0 amps maximum for output circuits). An optional 100 VA transformer XRM-24B (XRM-24BE for the MS9200UDLSE) is available to provide maximum system and accessory power (6.0 amps total). Note that the XRM-24B and XRM-24BE are only suitable for use with MS9200UDLS(E) with a main circuit board assembly number

9200UDLS-PCX letter or number. This circuit board can also be identified by using the software revision of #9200UDV4.0 (meaning version 4.0) or later.

Rev Y, where “X” and “Y” can be any

Batteries

The MS-9200UDLS cabinet provides space for two batteries (up to 18 Amp Hour). Batteries larger than 18 Amp Hour require an external charger such as the CHG75 or CHG-120F and a UL listed battery box such as the BB-26 or BB-55F. Batteries must be ordered separately.

1.5.1 Intelligent Addressable Detectors: Newer Series

Intelligent, addressable detectors provide information to the control panel on an SLC Signaling Line Circuit (refer to the SLC Wiring Manual for detailed information on device installation, wiring and operation). This allows the control panel to continually process the information to determine the status (alarm, trouble, maintenance or normal) of each detector. Each detector responds to an SLC address that is set in the detector head using built-in rotary decimal switches. The maximum address cannot exceed address 99. Note that a blinking LED on an intelligent detector indicates communication between the detector and the control panel.

These devices (350 Series or newer) can operate in CLIP mode (Classic Loop Interface Protocol) or LiteSpeed mode to provide a quicker response. They are also compatible with older 300 Series devices. If a mix of old and new series devices are installed on the same loop, the FACP must be programmed to operate in CLIP mode. Refer to the SLC Wiring Manual for a list of compatible addressable detectors.

1.5.2 Intelligent Addressable Modules: Newer Series

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 19

The newer series of Control Modules and Monitor Modules provide an interface between the control panel and conventional notification and initiating devices. Each module can be set to respond to an address with built-in rotary switches. The maximum address cannot exceed address 99. Note that a blinking LED on an addressable module indicates communication between the module and the control panel.

Product Description Optional Modules

These devices (i.e., MMF-300, MMF-301, MMF-302, CMF-300, CRF-300) can operate in CLIP mode (Classic Loop Interface Protocol) or LiteSpeed mode to provide a quicker response. They are also compatible with older 300 series devices. If a mix of old and new series devices are installed on the same loop, the FACP must be programmed to operate in CLIP mode. Refer to the SLC Wir-

ing Manual for a list of compatible addressable modules. Refer to the Device Compatibility Document for a list of approved conventional notification and initiating devices.

1.5.3 300 Series Intelligent Addressable Devices

Fire-Lite’s 300 Series Intelligent Addressable Devices are fully compatible with the MS9200UDLS FACP. The address of 300 Series devices cannot be set above 99. Refer to the SLC Wiring Manual for a list of compatible addressable devices.

1.5.4 Addressable Device Accessories

End-of-Line Resistor Assembly

The End-of-Line resistors are included with each module. Refer to the specific module documentation for specific information.

Power Supervision Relay

The UL listed End-of-Line power supervision relay is used to supervise the power to 4-wire smoke detectors and notification appliances.

EOL-C(R/W) Mounting Plate

The EOL-CR (red) and EOL-CW (white) are single End-of-Line resistor plates which are required for use in Canada. An ELR, which is supplied with each module and fire alarm control panel, is mounted to the EOL-C(R/W) plate. Resistors mounted to the plate can be used for the supervision of a monitor and control module circuit.

1.6 Optional Modules

The MS-9200UDLS main circuit board includes option module connectors for the following modules:

4XTMF Transmitter Module

The 4XTMF provides a supervised output for local energy municipal box transmitter, alarm and trouble reverse polarity. It includes a disable switch and disable trouble LED. A jumper on the module is used to select an option which allows the reverse polarity circuit to open with a system trouble condition if no alarm condition exists. The module plugs into connectors J5 and J6 which are located near the right edge the main circuit board. When the 4XTMF module is installed, Jumper JP3, on the main circuit board, must be cut to allow supervision of the module.

ZNAC-92 Class A Converter Module

The ZNAC-92 is an optional Class A conversion module which mounts to connector J14 on the upper left side of the MS-9200UDLS circuit board. This module allows the MS-9200UDLS to support four (4) Style Z (Class A) Notification Appliance Circuits.

1.7 Accessories

1.7.1 PS-Tools Programming Utility

The PS-Tools Programming Utility can be used to locally or remotely program the FACP from most IBM compatible computers (PC), running Windows files can also be created and stored on the PC for future download to the control panel. The PK-CD Kit includes the Windows-based Programming Utility software on CD-ROM with on-line help file.

20 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

XP (or newer). The FACP program

Accessories Product Description

dp9200udls.cdr

A standard USB cable with male-A to male-B connectors, which must be purchased separately, is required for local connection of the PC to the USB port J12 on the FACP main circuit board. Remote programming requires that the PC have a 2400 baud (or faster) modem.

Important: Remote modification of FACP programming requires that the panel be enabled for remote download (refer to “Remote Site Upload/Download” on page 186). Remote interrogation of panel programming, history logs, detector status, etc., is possible without enabling the remote download option.

1.7.2 DP-9692 Dress Panel

An optional dress panel DP-9692 is available for the MS-9200UDLS (required by ULC for Canadian installations). The dress panel restricts access to the system wiring while allowing access to the key panel. A ground strap must be connected between the stud on the inside of the dress panel and the ground stud in the backbox.

1.7.3 Trim Ring

An optional Trim Ring (P/N TR-CE) is available for the FACP backbox. The Trim Ring adds 1.5” of wall coverage around the backbox, concealing hardware and providing a finished appearance for a semi-flush mounted panel.

1.7.4 Multi-Module Mounting Bracket

An addressable Multi-Module can be installed inside the FACP backbox using the MULTIMOD-BRKT module mounting bracket. Refer to the MULTIMOD-BRKT Installation Document P/N 53547 for additional information.

1.7.5 Battery Box

BB-26

The BB-26 battery box may be used to house up to two 26 AH batteries and the CHG-75 Battery Charger.

BB-55F

The BB-55F battery box may be used to house two 26 AH batteries, two 60 AH batteries or one 100 AH battery. When the CHG-120F is mounted in the BB-55F, two 26 AH or one 60 AH battery may also be housed in the battery box.

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 21

Product Description Accessories

1.7.6 Battery Charger

CHG-75 Battery Charger

The CHG-75 is capable of charging up to 75 AH lead-acid batteries with the MS-9200UDLS FACP. The FACP battery charger must be disabled, by removing jumper JP5, when using the CHG-75. The charger and up to 26 AH batteries can be housed in the BB-26 battery box. Larger batteries and the charger can be housed in the BB-55F battery box which can be mounted up to 20 feet away from the control panel. Refer to the CHG-75 Manual for additional information.

CHG-120F Battery Charger

The CHG-120F is capable of charging up to 120 AH lead-acid batteries with the MS-9200UDLS FACP. The FACP battery charger must be disabled, by removing jumper JP5, when using the CHG-120F. The batteries and charger can be housed in the BB-55F battery box which can be mounted up to 20 feet away from the control panel. Note that when using the BB-55F for housing the charger and batteries greater than 26AH, multiple BB-55Fs are required. Refer to the CHG-120F Manual for additional information.

1.7.7 IPDACT Internet Protocol DACT

The IPDACT is a compact, Internet Protocol Digital Alarm Communicator/Transmitter designed to allow FACP status communication to a Central Station via the internet. No telephone lines are required when using the IPDACT. Using Contact ID protocol from the FACP, the IPDACT converts the standard DACT phone communication to a protocol that can be transmitted and received via the internet. It also checks connectivity between the FACP and Central Station. The IPDACT can be mounted inside the FACP cabinet, while still maintaining space for two 18 amp hour batteries, using the IPBRKT moutning bracket. Refer to the IPDACT Product Installation Document P/N 53109 for additional information.

1.7.8 ANN-BUS Annunciators/Modules

WARNING: RISK OF ELECTRICAL SHOCK AND EQUIPMENT DAMAGE

DISCONNECT ALL SOURCES OF POWER (AC AND DC) BEFORE INSTALLING OR REMOVING ANY MODULES OR WIRING.

Guidelines

• The legacy ACS annunciators may not be used on connector TB9 if new ANN-BUS

annunciators are being used on the primary ANN-BUS (connector TB9) due to incompatible serial communication protocols.

• A variety of optional annuciation devices can be connected to an ANN-BUS communication

circuit. ANN Series devices can be connected to the primary communication circuit (EIA-

485) terminals on TB9. A secondary communication circuit for these devices is available at TB8. Each ANN-BUS communication circuit supports up to eight (8) annunciators. Compatible devices include the following:

– ANN-80 LCD Annunciator

– ANN-80C LCD Indicator (Canadian Applications)

– ANN-S/PG Serial/Parallel Printer Interface Module

– ANN-I/O LED Driver Module

– ANN-LED Annunciator Module (alarm, trouble, supervisory LEDs)

– ANN-RLED Annunciator Module (red alarm LEDs only)

– ANN-RLY Relay Module (can be mounted in the supplied FACP chassis)

• When operating two ANN-BUS circuits, only one ANN-S/PG Printer module can be used in

the system.

22 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Accessories Product Description

• The panel is capable of operating a primary ANN-BUS (TB9) and a secondary ANN-BUS

(TB8) simultaneously.

• The panel is capable of operating the ACS-BUS (connector TB9) and the secondary

ANN-BUS (connector TB8) simultaneously.

• The secondary ANN-BUS (on connector TB8) does not support legacy ACS annunciators.

• The secondary ANN-BUS can be configured to support either terminal mode annunciators,

printer/PC devices, or ANN-BUS devices.

ANN-BUS Wiring

This section contains information on calculating ANN-BUS wire distances and the types of wiring configurations (Class B).

 Calculating Wiring Distance for ANN-BUS Modules

The following instructions will guide the installer in determining the type of wire and the maximum wiring distance that can be used with FACP ANN-BUS accessory modules.

To calculate the wire gauge that must be used to connect ANN-BUS modules to the FACP, it is necessary to calculate the total worst case current draw for all modules on a single 4-conductor bus. The total worst case current draw is calculated by adding the individual worst case currents for each module. The individual worst case values are shown in the following table:

Model Number

ANN-80(C) LCD Annunciator/Indicator 0.040 amps

ANN-S/PG Serial/Parallel Printer Interface Module 0.040 amps

ANN-I/O LED Driver Module 0.200 amps

ANN-(R)LED Annunciator Module 0.068 amps

ANN-RLY Relay Module 0.075 amps

1 When powering the ANN-BUS from one of the (nonresettable) DC power out-

puts at TB1, the total worst case current draw cannot exceed 1.0 amp. If sharing this DC output with other devices, the worst case current drawn by these devices must be combined with the ANN-BUS current draw, and the total cannot exceed 1.0 amp. If the total current demand exceeds 1.0 amp, refer to “Powering ANN-BUS Devices from an Auxiliary Power Supply” on page 26.

Worst Case Current Draw

After calculating the total worst case current draw, Table 1.1 specifies the maximum distance the modules can be located from the FACP on a single wire run. The table ensures 6.0 volts of line drop maximum. In general, the wire length is limited by resistance, but for heavier wire gauges, capacitance is the limiting factor. These cases are marked in the chart with an asterisk (*). Maximum length can never be more than 6,000 feet (1,800 m), regardless of gauge used. The formula used to generate this chart is shown in the note below.

Wiring Distance: ANN-BUS Modules to FACP

Total Worst Case Current

Draw (amps)

0.100 1,852 ft. 4,688 ft. * 6,000 ft. *6,000 ft.

0.200 926 ft. 2,344 ft. 3,731 ft. 5,906 ft.

0.300 617 ft. 1,563 ft. 2,488 ft. 3,937 ft.

0.400 463 ft. 1,172 ft. 1,866 ft. 2,953 ft.

0.500 370 ft. 938 ft. 1,493 ft. 2,362 ft.

22 Gauge 18 Gauge 16 Gauge 14 Gauge

Table 1.1 Wiring Distances

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 23

Product Description Accessories

The following formulas were used to generate the wire distance chart:

Maximum Resistance (Ohms)

Maximum Wire Length (feet)

(6,000 feet maximum)

where: Rpu = Ohms per 1,000 feet for various Wire Gauges (see table below)

Exception: When using the ANN-RLY module, the installer must ensure that the maximum 24VDC power line drop does not exceed 0.3 volts. This results in the following wiring limitations:

6.0 Volts

Total Worst Case Current Draw (amps)

Maximum Resistance (Ohms)

Rpu

Wire Gauge Ohms per 1,000 feet (Rpu)

22 16.2

18 6.4

16 4.02

14 2.54

*500

Wire Gauge Maximum Wire Length

18 312 feet

16 497 feet

14 787 feet

12 1,250 feet

Wiring Distance Calculation Example:

Suppose a system is configured with the following ANN-BUS modules:

• 3 ANN-80 Remote Fire Annunciators

• 1 ANN-S/PG Serial/Parallel Printer Interface Module

The total worst case current is calculated as follows:

ANN-80 Current Draw = 3 X 0.040 amps = 0.120 amps

ANN-S/PG Current Draw = 1 X.0.040 amps = 0.040 amps

Total Worst Case Current Draw = 0.160 amps

Using this value and referring to the Wiring Distance Table 1.1 on page 23, it can be found that the available options are:

 926 feet maximum using 22 Gauge wire

 2,344 feet maximum using 18 Gauge wire

 3,731 feet maximum using 16 Gauge wire

 5,906 feet maximum using 14 Gauge wire

24 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Accessories Product Description

B+ A+ B- A- A B

ANN ACS

SHIELDSLC

SLC

TB9

TB10

TB1

B A (+) (-)

4 3 2 1

A B + -

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

TB1

JP7

1 2 3

+ -

REMOTE PWR SUPPLY SYNC

+ -

TB2

Figure 1.3 Primary ANN-BUS wiring to ANN-BUS Device

ANN-BUS Device

MS-9200UDLS

ANN-BUS and power wiring are supervised and power-limited

24 VDC nonresettable

Primary ANN-BUS

92udlsctoann80.wmf

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

B+ A+ B- A- A B

ANN ACS

SHIELD

SLC

TB1

TB8

TB9

TB10

JP7

1 2 3

TB1

B A (+) (-)

4 3 2 1

A B + -

+ -

REMOTE PWR SUPPLY SYNC

+ -

TB2

Xmt Rcv Dtr Gnd

A B

In+ In- Out+ Out-

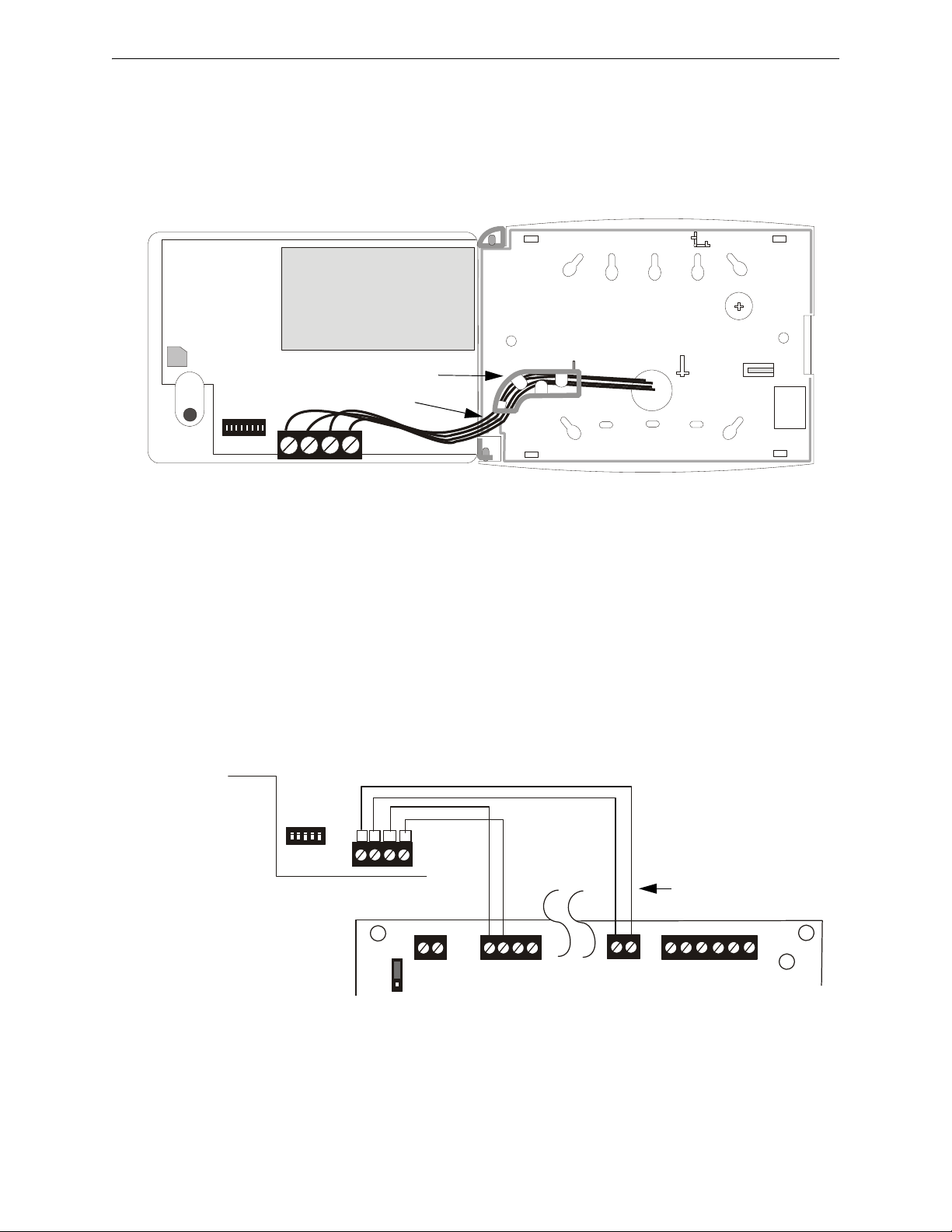

Figure 1.4 Secondary ANN-BUS wiring to ANN-BUS Device

ANN-BUS Device

MS-9200UDLS

ANN-BUS and power wiring are supervised and power-limited

24 VDC nonresettable

Secondary ANN-BUS

92udlsc2toann80.wmf



Wiring Configuration

Figure 1.3 illustrates the wiring between the FACP’s Primary ANN-BUS and ANN-BUS devices.

Figure 1.4 illustrates the wiring between the FACP’s Secondary ANN-BUS and ANN-BUS devices.

 Powering Both ANN-BUS Circuits Simultaneously

When simultaneously using the Primary and Secondary ANN-BUS circuits on the FACP, power can be shared from the Nonresettable Power output on TB1. Alternately, one ANN-BUS can be powered by the Resettable Power output (TB1 Terminals 3 and 4) once it is reconfigured as Nonrettable Power using JP6. This provides the benefit of independently acting power-limiting for the two ANN-BUS circuits (required for Canadian applications).

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 25

Product Description Accessories

TB1

B A (+) (-)

4 3 2 1

1 2 3 4 5 6 7 8

SW1

TB4

JP3

TB5

TB2

JP1

JP2

OUT4

- NAC4 +

OUT3

- NAC3 +

OUT2

- NAC2 +

OUT1

- NAC1 +

8 7 6 5 4 3 2 1

3 2 1

AUX -

IN2-

IN2+

OUT1-

OUT1+

IN1-

IN1+

SYNC IN -

SYNC IN +

AUX +

NO NC

AUX TBL

COM

B+ A+ B- A- A B

ANN ACS

SHIELDSLC

SLC

TB9

TB10

A B

+ -

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

TB1

JP7

1 2 3

REMOTE PWR SUPPLY SYNC

+ -

TB2

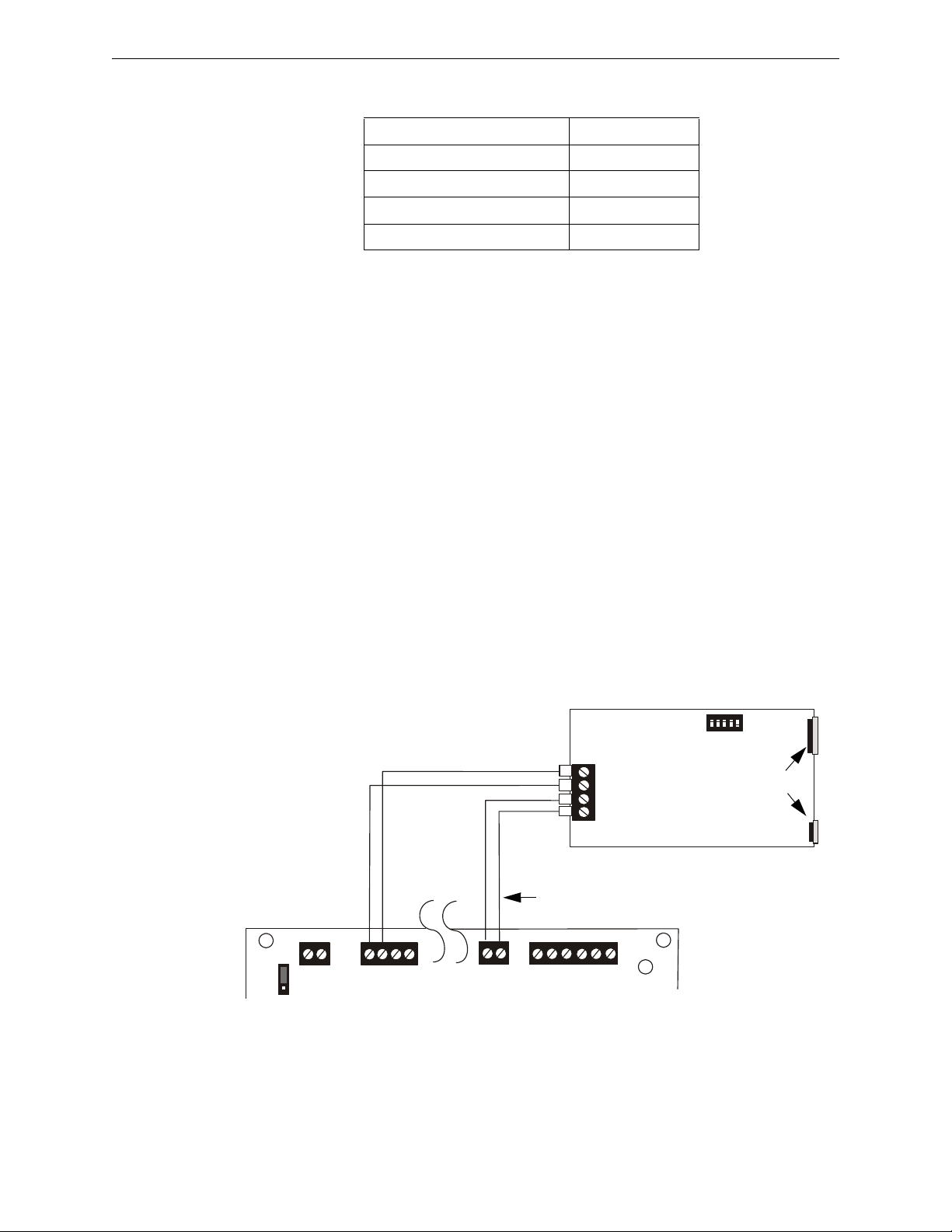

Figure 1.5 Powering ANN-BUS Devices from FCPS-24FS6/8

ANN-80

MS-9200UDLS

FCPS-24FS6/8

-24 VDC

+24 VDC

nonresettable

Cut Ground Fault Detection jumper JP1 (FACP monitors for ground faults).

ANN-BUS and power wiring are

supervised and power-limited

92udblsCtofcpstoann.wmf

Primary ANN-BUS



Powering ANN-BUS Devices from an Auxiliary Power Supply

Figure 1.5 illustrates the powering of ANN-BUS devices from an auxiliary power supply such as the FCPS-24FS6/8, when the total ANN-BUS power requirements exceed the panel’s DC Power Output capability.

ANN-BUS Device Addressing

Each ANN-BUS device requires a unique address (ID Number) in order to communicate with the FACP. A 5-position DIP switch on each device is used to set this address. The address set for these devices must also be programmed at the FACP for the specific device (refer to the programming section titled “ANN-BUS Options” on page 120).

A maximum of 8 devices can be connected to each FACP ANN-BUS communication circuit. Device addresses do not need to be sequential and can be set to any number between 01 and 08. The applies to both ANN-BUS communication circuits. Note that 00 is not a valid address. The following table shows the DIP switch setting for each address.

26 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

positions. Unless otherwise specified in the documentation supplied with each device, switch positions 6 and above must be set to OFF.

NOTE: Address (ID Number) DIP switches on some devices may have more than 5 switch

Accessories Product Description

Address Switch 5 Switch 4 Switch 3 Switch 2 Switch 1

not valid OFF OFF OFF OFF OFF

01 OFF OFF OFF OFF ON

02 OFF OFF OFF ON OFF

03 OFF OFF OFF ON ON

04 OFF OFF ON OFF OFF

05 OFF OFF ON OFF ON

06 OFF OFF ON ON OFF

07 OFF OFF ON ON ON

08 OFF ON OFF OFF OFF

Switch 5 must be set to OFF for ANN-BUS devices to be recognized.

ANN-80 Remote Fire Annunciator

The ANN-80 Annunciator is a compact, 80 character, backlit LCD remote fire annunciator. It mimics the display on the control panel and will annunciate device type, point alarm, trouble or supervisory condition, zone assignment plus any custom alpha labels programmed into the FACP. The annunciator also provides system status LEDs to display AC Power, Alarm, Trouble, Supervisory and Alarm Silenced conditions. Additionally, the annunciator is capable of remotely performing critical system functions such as Acknowledge, Silence, Reset and Drill. Communication between the ANN-80 and FACP is accomplished over a two wire RS-485 serial interface employing the ANN-BUS communication format. The devices are powered, via two additional wires, from either the host FACP or remote UL-listed, filtered, power supply.

The function buttons, keyswitch and piezo sounder may be individually enabled and disabled through the FACP software. Refer to “ANN-80 Options” on page 132 for a description of this feature and programming information.

Note that if the keyswitch is enabled and remains in the unlocked position for more than two minutes without any buttons being pressed on the annunciator, a trouble indication will be annunciated. The ANN-80C (for Canadian applications) does not provide FACP control for Acknowledge, Reset, Silence, or Drill.

 Specifications

• Operating Voltage Range: 18 VDC to 28 VDC

• Current Consumption @ 24 VDC nominal (filtered and nonresettable):

 Normal/Standby (no activity): 37.0 mA

 Trouble: 39.0 mA

 Alarm: 40.0 mA

 AC Fail ( not backlit): 15.0 mA

• For use indoors in a dry location

 Installation

Ensure that all power (AC and DC) has been removed from the FACP before installing the annunciator.

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 27

Product Description Accessories

ann-80_iso2.wmf

Key switch shown in OFF/Locked position

Press in latch and Pull annunciator cover open

Annunciator cover with LCD display

Annunciator backplate

aann80kitmount.wmf

Annunciator mounted on

surface wedge from the

ANN-SB80KIT

Annunciator mounted on stacked

surface wedge and backbox from

the ANN-SB80KIT

Annunciator mounted on

surface backbox from the

ANN-SB80KIT



Opening/Closing Annunciator

The following procedure details the steps used to open the annunciator in order to access the terminal block and DIP switches (refer to figure below):

1. Turn the key switch to the ON (Unlocked) position by turning the key counter-clockwise

2. Push in the snap latch located on the right side of the unit while pulling the cover open

3. To close the cover, make certain the key switch is in the ON (Unlocked) position. Swing the

cover closed, snapping it shut

4. Turn the key switch to the OFF (Locked) position by turning clockwise and remove the key

 Mounting

The ANN-80 can be surface or semi-flush mounted to a single, double or 4” square electrical box. Select and remove the appropriate knockout(s), pull the necessary wires through the knockouts and mount the annunciator in or on the wall depending on the type of installation desired.

The ANN-SB80KIT(-R/-B/-W) is an available mounting kit for the ANN-80 annunciator. The kit comes with a surface backbox and surface wedge for angled viewing. The two pieces can be used separately or can be stacked together.

The ANN-80 cover must be attached to the annunciator backplate before mounting the annunciator to the electrical box/wall. The cover cannot be reattached or removed after the annunciator has been mounted.

28 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

Accessories Product Description

wiring channel

wires

TB1

ann-80boxinside.wmf

B+ A+ B- A- A B

ANN ACS

SHIELDSLC

SLC

TB9

TB10

TB1

B A (+) (-)

4 3 2 1

A B + -

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

TB1

JP7

1 2 3

+ -

REMOTE PWR SUPPLY SYNC

+ -

TB2

Figure 1.6 ANN-80 Wiring to FACP

ANN-80

ANN-BUS and power wiring are supervised and power-limited

24 VDC nonresettable

ANN-BUS

92udlsctoann80.wmf

Primary ANN-BUS

MS-9200UDLS



Wiring ANN-80 to FACP

The following steps can be used as a guide to wire the annunciator. Make certain all power has been removed from the FACP prior to annunciator installation.

1. Route wires from hole in backplate, through wiring channel and then to ANN-80 terminal

block TB1

2. Remove appropriate amount of wire insulation

3. Connect the wiring from the FACP ANN-BUS to annunciator TB1 terminals 3 (A) & 4 (B).

Make certain to connect A to A and B to B

4. If appropriate, connect the wiring going to the next device on the ANN-BUS to TB1 terminals

3 & 4. Make certain to connect A to A and B to B

5. Connect the wiring from the 24 VDC power source to annunciator TB1 terminals 1 (-) & 2 (+).

Make certain to observe proper polarity

6. If appropriate, connect the power wiring going to the next device to terminals

1 (-) & 2 (+). Make certain to observe proper polarity

7. After all connections are made, remove extra wire from inside of annunciator by dressing it

neatly through wire channel, with any excess wire pushed back through hole into electrical box

MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 29

Product Description Accessories

(-)

(+)

A B

B+ A+ B- A- A B

ANN ACS

SHIELD

SLC

TB9

TB10

A B + -

+ 24V -

NON-RST

POWER

+ 24V -

RST

POWER

TB1

JP7

1 2 3

+ -

REMOTE PWR SUPPLY SYNC

+ -

TB2

Figure 1.7 ANN-S/PG Connection to FACP

ANN-S/PG Module

MS-9200UDLS

Cable Connectors for connection to printer

Parallel

Serial

ANN-BUS and power wiring are supervised and power-limited

24 VDC nonresettable

Primary ANN-BUS

92udlsctospg.wmf

The following table shows the ANN-80 connections to the MS-9200UDLS.

MS-9200UDLS ANN-80 (TB1)

Terminal GND (-) on TB1 Terminal 1 (-)

Terminal PWR (+)TB1 Terminal 2 (+)

Terminal Data (A) on TB9 Terminal 3 (A)

Terminal Data (B) on TB9 Terminal 4 (B)

Programming

Following installation and wiring of the ANN-80 LCD annunciator to the FACP, the annunciator must be added to the system via FACP programming. Refer to the programming section titled “ANN-BUS Options” on page 120 in this manual for detailed programming information. Select the LCD option for programming.

Trouble Response

If the ANN-80 is installed but the ANN-BUS is not enabled at the FACP, the ANN-80 will indicate a trouble condition by NOT turning on its AC Power indicator. The LCD will also display Key Bus Trouble and the piezo will sound approximately once every 10 seconds. Note that the FACP will provide no indication of an ANN-80 trouble.

To clear the ANN-80 trouble condition, enable the ANN-BUS and program the address corresponding to the address set on the ANN-80 at the FACP.

ANN-S/PG Serial/Parallel Interface Installation

The ANN-S/PG Serial/Parallel Interface module allows the connection of a remote serial or parallel printer to the FACP for a real-time log of system events, detector status reports and event history. The module is provided with a plastic enclosure for surface mounting. Proceed with the installation as described in the following:

1. Ensure that all power (AC and DC) has been removed from the FACP.

2. Connect the ANN-S/PG to the FACP as illustrated in Figure 1.7

3. Using the DIP switches on the back of the ANN-S/PG module, assign an ID number (address)

to the module

30 MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010

+ 202 hidden pages

Fire-Lite MS-9200UDLS, MS-9200UDLSE, MS-9200UDLSC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Section 1: Product Description

1.1 Features and Options

1.2 Specifications

1.3 Controls and Indicators

1.4 Digital Alarm Communicator/Transmitter

1.5 Components

1.5.1 Intelligent Addressable Detectors: Newer Series

1.5.2 Intelligent Addressable Modules: Newer Series

1.5.3 300 Series Intelligent Addressable Devices

1.5.4 Addressable Device Accessories

End-of-Line Resistor Assembly

Power Supervision Relay

EOL-C(R/W) Mounting Plate

1.6 Optional Modules

1.7 Accessories

1.7.1 PS-Tools Programming Utility

1.7.2 DP-9692 Dress Panel

1.7.3 Trim Ring

1.7.4 Multi-Module Mounting Bracket

1.7.5 Battery Box

BB-26

BB-55F

1.7.6 Battery Charger

CHG-75 Battery Charger

CHG-120F Battery Charger

1.7.7 IPDACT Internet Protocol DACT

1.7.8 ANN-BUS Annunciators/Modules

Guidelines

ANN-BUS Wiring

ANN-BUS Device Addressing

ANN-80 Remote Fire Annunciator

ANN-S/PG Serial/Parallel Interface Installation
