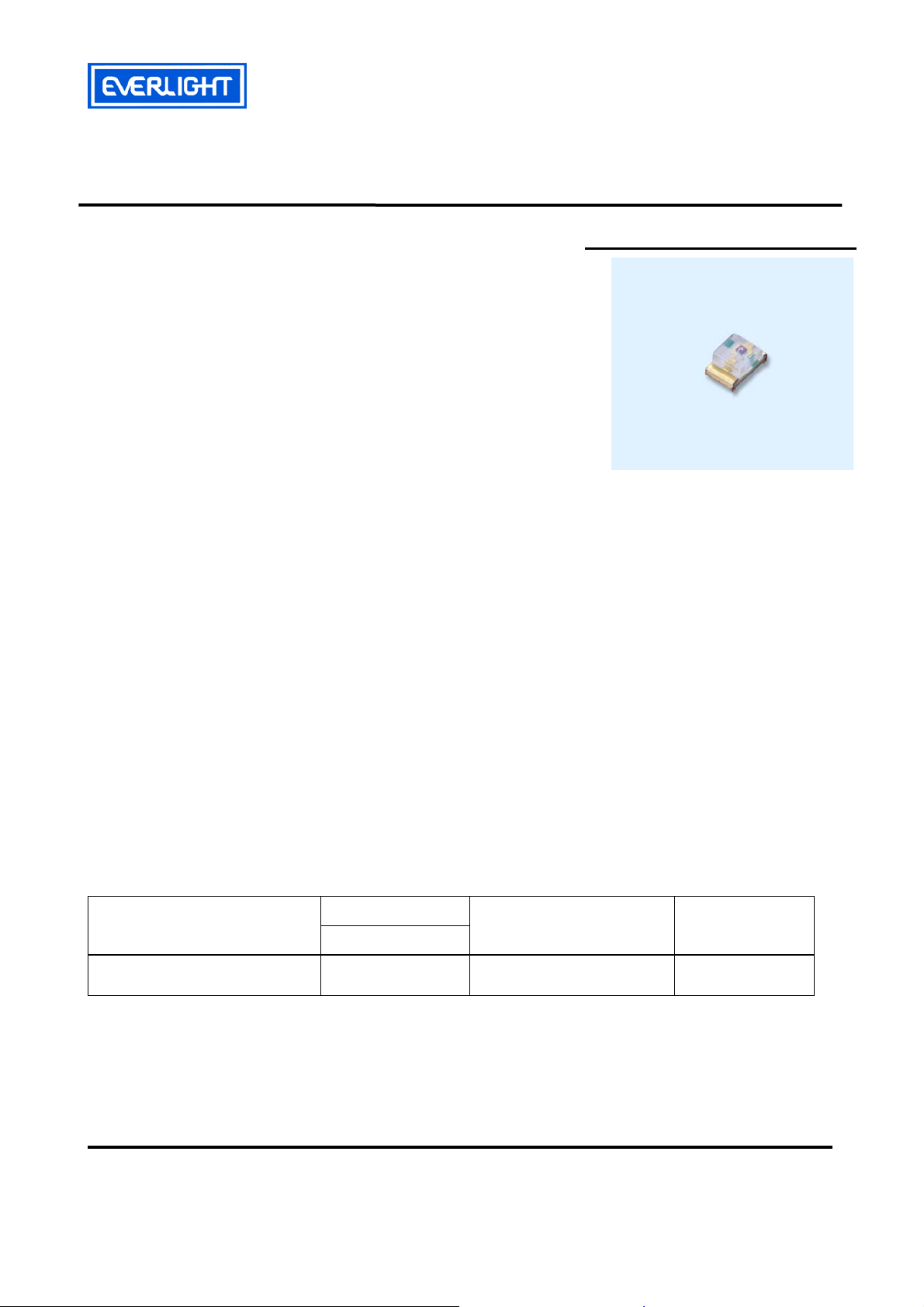

EVERLIGHT 17-215 DATA SHEET

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet
0805 Package Chip LED (0.8mm Height)

Features

․Package in 8mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.
․Compatible with infrared and vapor phase reflow

solder process.

․Mono-color type.
․Pb-free.
․The product itself will remain with in RoHS compliant version

Descriptions

․The 17-215 SMD LED is much smaller than lead

frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.
․General use.
․Indoor signboard use.

17-215/G6C –FN2P2B/3T

Device Selection Guide

Part No.

17-215/G6C-FN1P2B/3T AlGaInP Brilliant Yellow Green Water Clear

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 1 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

Chip

Emitted Color Resin Color

Material

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

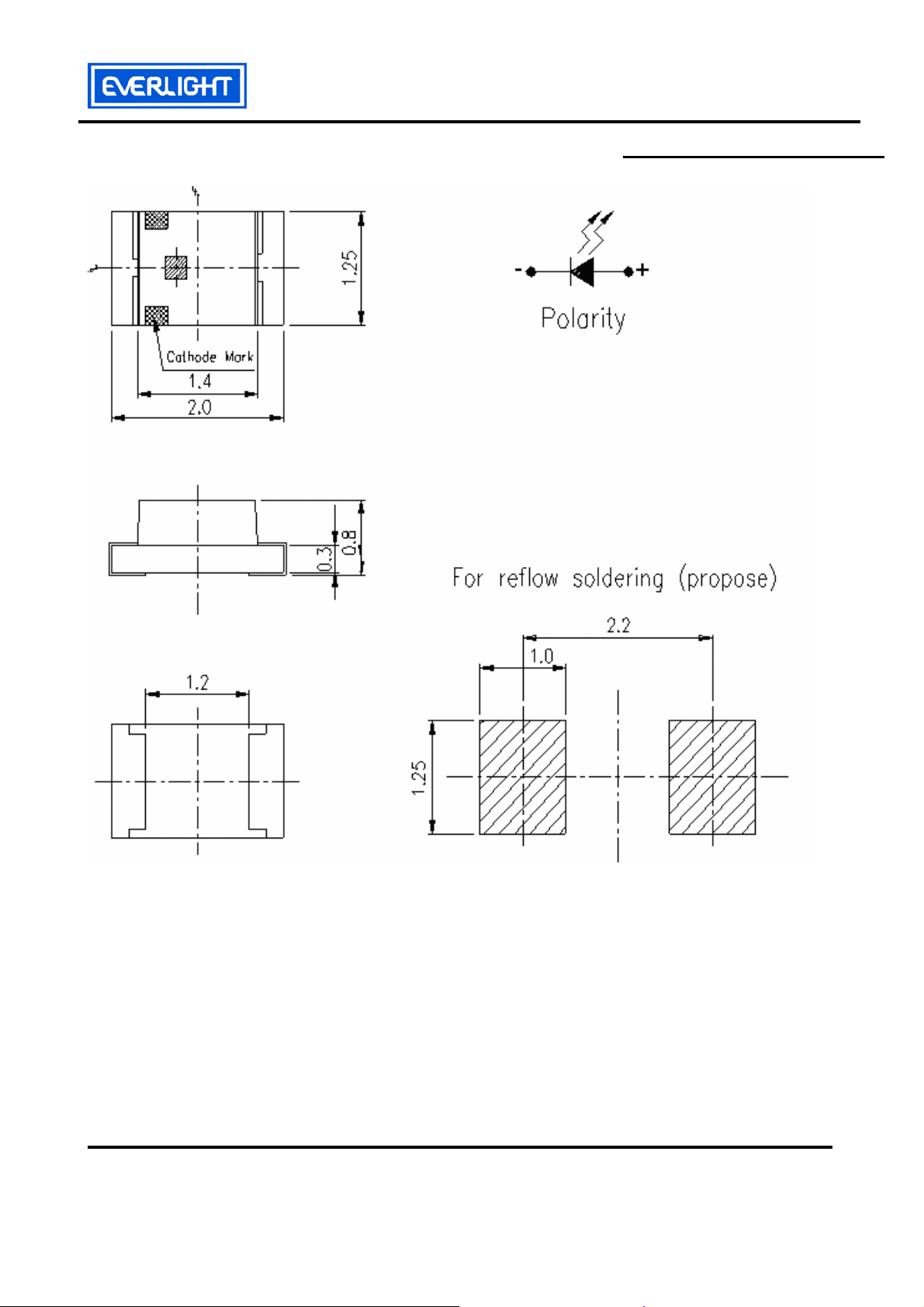

Package Outline Dimensions

Note: The tolerances unless mentioned are ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 2 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V
Forward Current IF 25 mA

Peak Forward Current

IFP 60 mA

(Duty 1/10 @1KHz)

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 2000 V

Operating Temperature T

Storage Temperature T

-40 ~ +85 ℃

opr

-40 ~ +90 ℃

stg

Reflow Soldering : 260 ℃ for 10 sec.

T

Soldering Temperature

sol

Hand Soldering : 350 ℃ for 3 sec.

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous Intensity

Viewing Angle 2θ

Iv 36.0 ----- 72.0

1/2

---- 130 ----

mcd

deg

Peak Wavelength λp

Dominant

Wavelength

λ

---- 575 ----

d

570.0 ---- 574.5

nm

IF =20mA

nm

Spectrum Radiation

Bandwidth

△λ

Forward Voltage VF

Reverse Current IR

---- 20 ----

1.75 ---- 2.35

---- ---- 10

nm

V

μA

VR=5V

Notes:

1.Tolerance of Luminous Intensity ±11%

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 3 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

Bin Range Of Dom. Wavelength

Group Bin Min Max Unit Condition

CC2 570.5 571.5

F

CC3 571.5 573.0
CC4 573.0 574.5

nm IF =20mA

Bin Range Of Luminous Intensity

Bin Min Max Unit Condition

N2 36.0 45.0

P1 45.0 57.0
P2 57.0 72.0

mcd IF =20mA

Bin Range Of Luminous Voltage

Group Bin Min Max Unit Condition

0 1.75 1.95

B

1 1.95 2.15
2 2.15 2.35

V

Notes:

1.Tolerance of Luminous Intensity ±11%

IF =20mA

2.Tolerance of Dominant Wavelength ±1nm

3.Tolerance of Forward Voltage ±0.1V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 4 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

Typical Electro-Optical Characteristics Curves

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 5 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

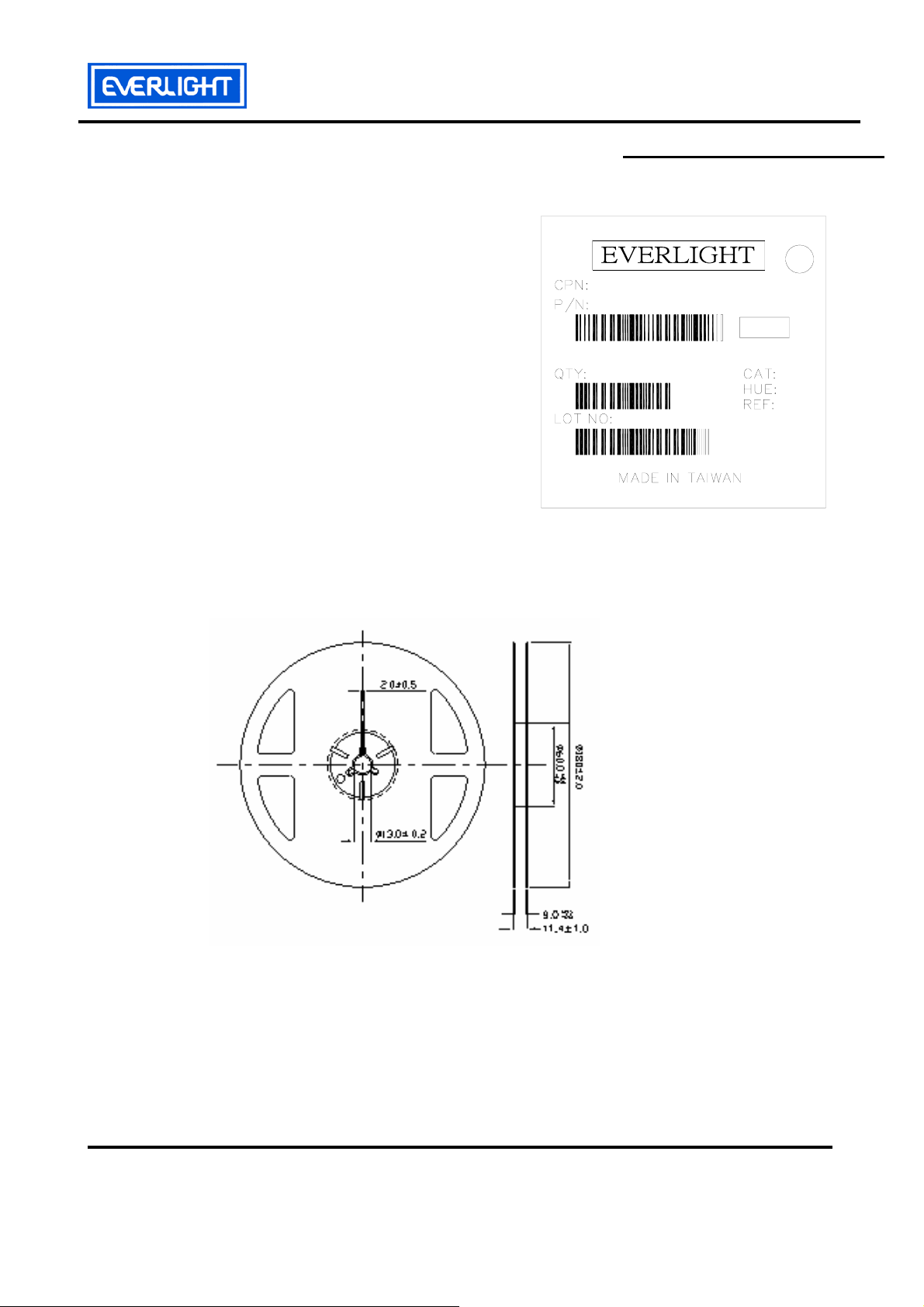

Label explanation

CAT: Luminous Intensity Rank

HUE: Dom. Wavelength Rank

REF: Forward Voltage Rank

xxxxxx
xxxxxx

RoHS

xxxxxxxxxxxx

xxxx

xxxxxxxx

Reel Dimensions

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 6 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

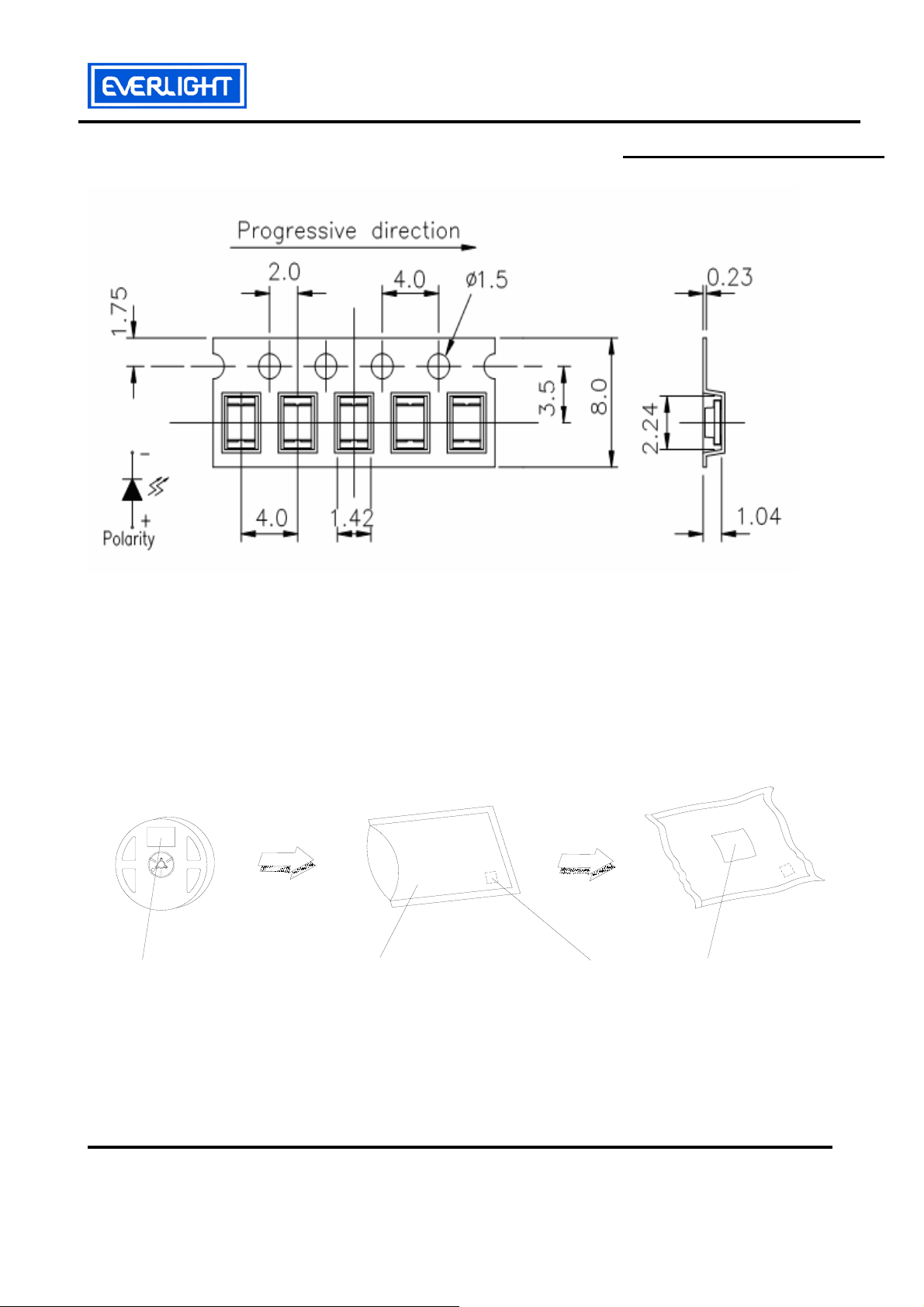

Carrier Tape Dimensions: Loaded quantity 3000PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 7 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level

：90%

LTPD

：10%

No. Items Test Condition

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min. 5sec.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

4

High Temperature

Temp. : 100℃

Storage

5

Low Temperature

Temp. : -40℃

Storage

Test

6 Min.

1000 Hrs.

1000 Hrs.

Sample

Ac/Re

Size

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

6 DC Operating Life IF = 20 mA

7

High Temperature /

85℃/ 85% RH

1000 Hrs.
1000 Hrs.

22 PCS. 0/1

22 PCS. 0/1

High Humidity

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 8 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

Precautions For Use

1. Over-current-proof
Customer must apply resistors for protection , otherwise slight voltage shift will cause big
current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30

2.3 After opening the package: The LED's floor life is 1 year under 30

℃ or less and 90%RH or less.

℃ or less and 60% RH or less.

If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60

±5℃ for 24 hours.

3. Soldering Condition

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev.2 Page: 9 of 10
Device No. : SZDSE-175-G14 Prepared date: 27-Oct-2007 Prepared by: Zhouhua

EVERLIGHT ELECTRONICS CO.,LTD.

17-215/G6C-FN2P2B/3T

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds

within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do
soldering of each terminal. Be careful because the damage of the product is often started at the time of the
hand solder

.

5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether
the characteristics of the LEDs will or will not be damaged by repairing.
