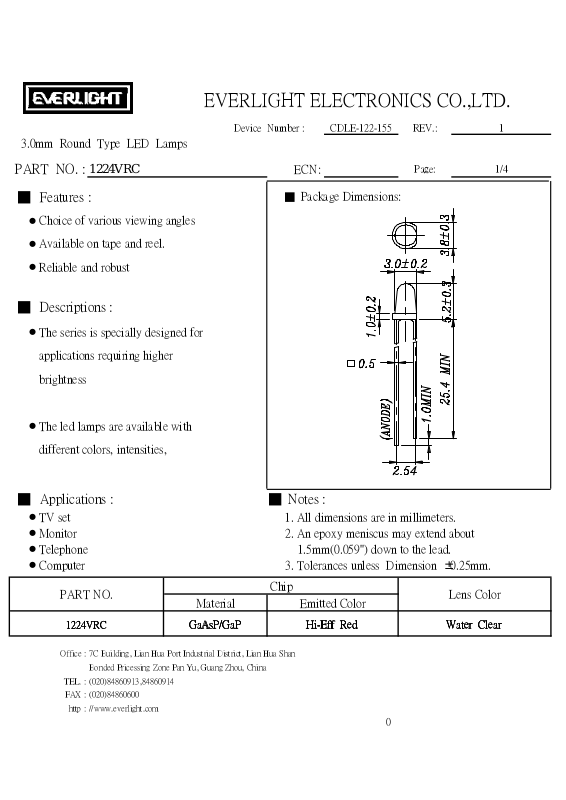

Page 1
EVERLIGHT ELECTRONICS CO.,LTD.
3.0mm Round Type LED Lamps
PART NO. :
█
Features :
●
Choice of various viewing angles
●
Available on tape and reel.
●
Reliable and robust
█
Descriptions :
●
The series is specially designed for
applications requiring higher
1224VRC ECN:
brightness
Device Number :
█
CDLE-122-155
Package Dimensions:
REV.:
Page: 1/4
1
●
The led lamps are available with
different colors, intensities,
█
Applications :
●
TV set 1. All dimensions are in millimeters.
●
Monitor 2. An epoxy meniscus may extend about
●
Telephone 1.5mm(0.059'') down to the lead.
●
Computer
█
Notes :
3. Tolerances unless Dimension ±0.25mm.
Chip
Material Emitted Color
1224VRC
1224VRC
1224VRC1224VRC
Office : 7C Building, Lian Hua Port Industrial District, Lian Hua Shan
Bonded Pricessing Zone Pan Yu, Guang Zhou, China
TEL. : (020)84860913,84860914
FAX : (020)84860600
http : //www.everlight.com
GaAsP/GaP
GaAsP/GaP Hi-Eff Red
GaAsP/GaPGaAsP/GaP
Hi-Eff Red Water Clear
Hi-Eff RedHi-Eff Red
0
Lens ColorPART NO.
Water Clear
Water ClearWater Clear
Page 2
EVERLIGHT ELECTRONICS CO.,LTD.
2/4
3.0mm Round Type LED Lamps
PART NO. :
█
Absolute Maximum Ratings at Ta = 25℃
Forward Current I
Operating Temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +100 ℃
Soldering Temperature Tsol 260 ± 5 ℃
Power Dissipation Pd 100 mW
Peak Forward
Current(Duty 1/10 @
Parameter Symbol Rating Unit
1KHZ)
1224VRC ECN:
F
IF(Peak) 160 mA
Device Number : CDLE-122-155 1
REV.:
Page:
30 mA
Reverse Voltage V
█
Electronic Optical Characteristics :
R
5V
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 25 63 ／ mcd I
Viewing Angle 2θ1/2 ／ 20 ／ deg I
Peak Wavelength λp ／ 640 ／ nm I
Dominant Wavelength λd ／ 625 ／ nm I
Spectrum Radiation
Bandwidth
Forward Voltage V
△λ ／ 45 ／ nm I
F
1.7 2.0 2.4 V I
F=
F=
F=
F=
F=
F=
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
Reverse Current I
R
／／10 μAVR=5V
Page 3
EVERLIGHT ELECTRONICS CO.,LTD.
3.0mm Round Type LED Lamps
PART NO. :
█

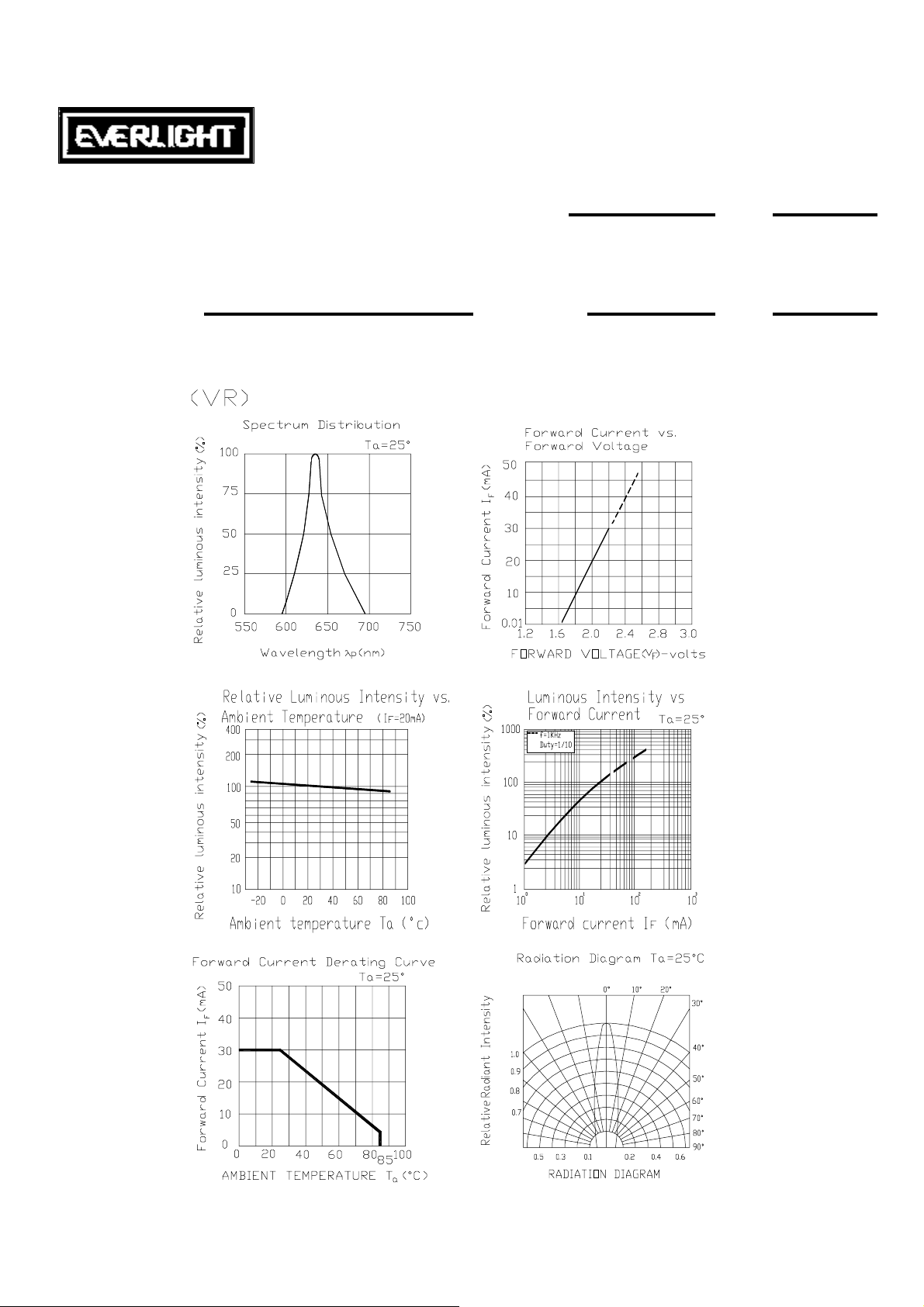

Typical Electro-Optical Characteristic Curves:
1224VRC
Device Number :
CDLE-122-155
ECN : Page:
REV.:
1
3/4
Page 4
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-122-155
REV.:
1
3.0mm Round Type LED Lamps
PART NO. :
█
Reliability test items and conditions:
NO Item Test Conditions
1 Solder Heat TEMP : 260℃ ± 5 ℃ 5 SEC 76 PCS 0/1
2 Temperature Cycle ∫ 5 min 50 CYCLES 76 PCS 0/1
3 Thermal Shock ∫ 10 sec 50 CYCLES 76 PCS 0/1
1224VRC
H : +85℃ 30min
L : -55℃ 30min
H : +100℃ 5min
L : -10℃ 5min
ECN :
Page: 4/4
Test
Hours/Cycle
Ac/Re
4
5
6 DC Operating Life
7
High Temperature
Storage
Low Temperature
Storage
High Temperature /
High Humidity
TEMP : 100℃ 1000 HRS 76 PCS 0/1
TEMP : -55℃ 1000 HRS 76 PCS 0/1
TEMP : 25℃
= 20mA
F
I
85℃ / 85% RH 1000 HRS 76 PCS 0/1
1000 HRS
76 PCS 0/1
