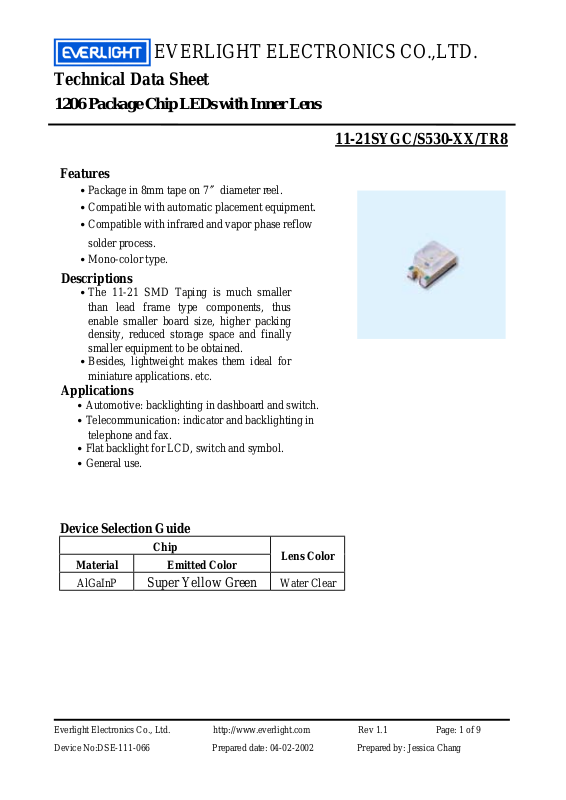

EVERLIGHT EVL 11-21SYGC/S2 Datasheet

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

1206 Package Chip LEDs with Inner Lens

11-21SYGC/S530-XX/TR8

Features

˙Package in 8mm tape on 7〞diameter reel. ˙Compatible with automatic placement equipment. ˙Compatible with infrared and vapor phase reflow

solder process.

˙Mono-color type.

Descriptions

˙The 11-21 SMD Taping is much smaller

than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

˙Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

˙Automotive: backlighting in dashboard and switch. ˙Telecommunication: indicator and backlighting in

telephone and fax.

˙Flat backlight for LCD, switch and symbol. ˙General use.

Device Selection Guide

Chip

Material Emitted Color

AlGaInP

Super Yellow Green

Lens Color

Water Clear

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 1 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

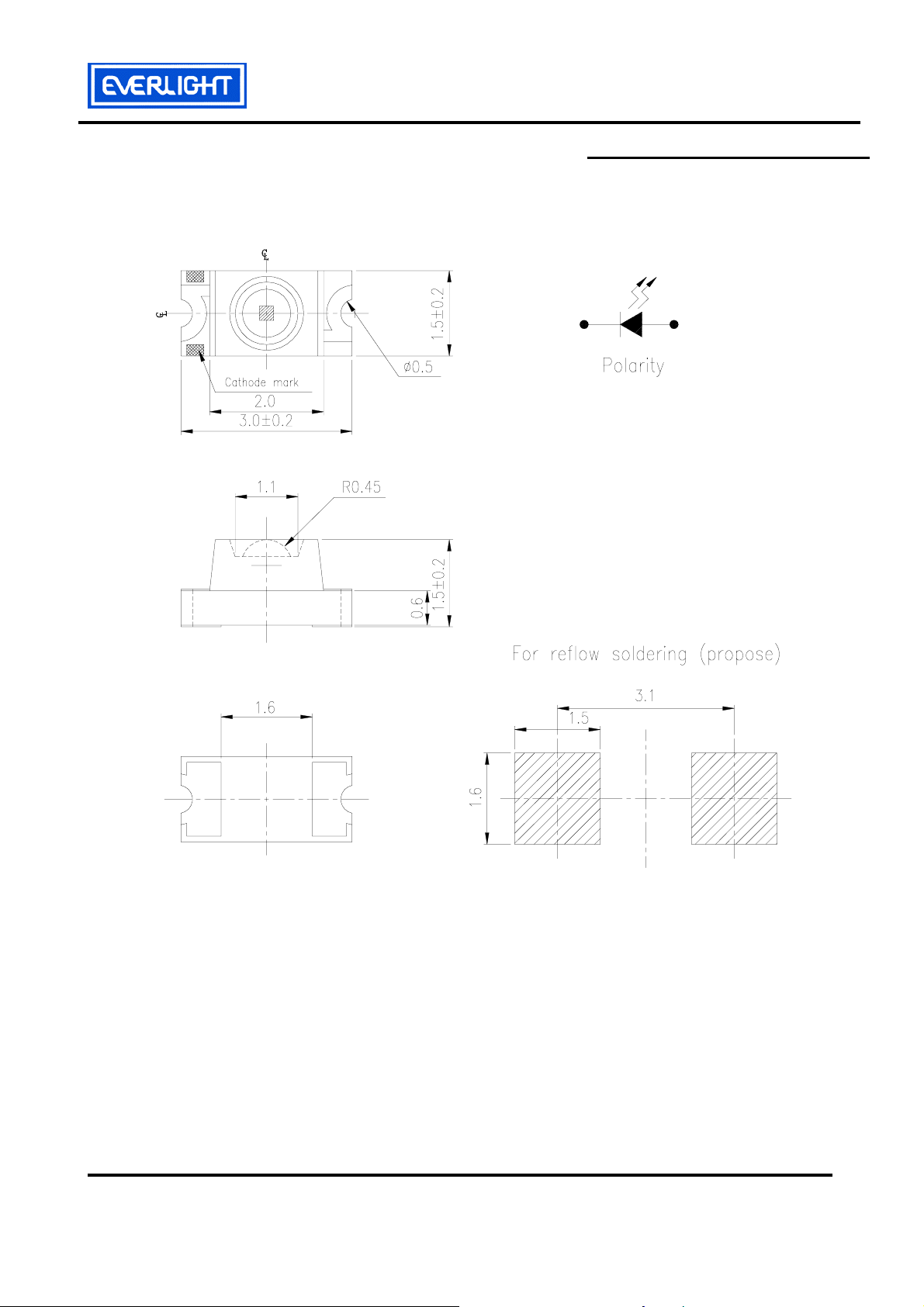

Package Outline Dimensions

EVERLIGHT ELECTRONICS CO.,LTD.

11-21SYGC/S530-XX/TR8

-

+

Note:

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 2 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

Tolerances Unless Dimension ± 0.1mm , Angle± 0.5° ,Unit = mm

EVERLIGHT ELECTRONICS CO.,LTD.

Absolute Maximum Ratings (Ta=25℃℃℃℃)

Parameter Symbol Rating Unit

Reverse Voltage VR 5 V

Forward Current IF 25 mA

Operating Temperature Topr -40 ~ +85 ℃

Storage Temperature Tstg -40~ +90 ℃

11-21SYGC/S530-XX/TR8

Soldering Temperature Tsol

Electrostatic Discharge ESD 2000 V

Power Dissipation Pd 60 mW

Peak Forward Current

IF 60 mA

(Duty 1/10 @1KHz)

260 (for 5

second)

Electro-Optical Characteristics (Ta=25℃℃℃℃)

Parameter

Symbol

*Chip

Min. Typ. Max. Unit Condition

Rank

E1 19 29 ----E2 29 39 -----

Luminous Intensity Iv

E3 39 52 ----E4 52 62 -----

Viewing Angle

2θ1/2

----- ----- 60 -----

℃

mcd IF=20 mA

deg IF=20mA

Peak Wavelength

Dominant Wavele ngt h

Spectrum Radiation

Bandwidth

Forward Voltage

Reverse Current I

λp

----- ----- 575 ----- nm

λd

△λ

F

V

R

----- ----- -----

----- ----- 573 -----

----- -----

20 -----

----- ----- 2.0 2.4 10

nm

V

μA

*11-21SYGC/S530-XX/TR8

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 3 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

Chip Rank

IF=20mA IF=20mA

IF=20mA

VR=5V

EVERLIGHT ELECTRONICS CO.,LTD.

11-21SYGC/S530-XX/TR8

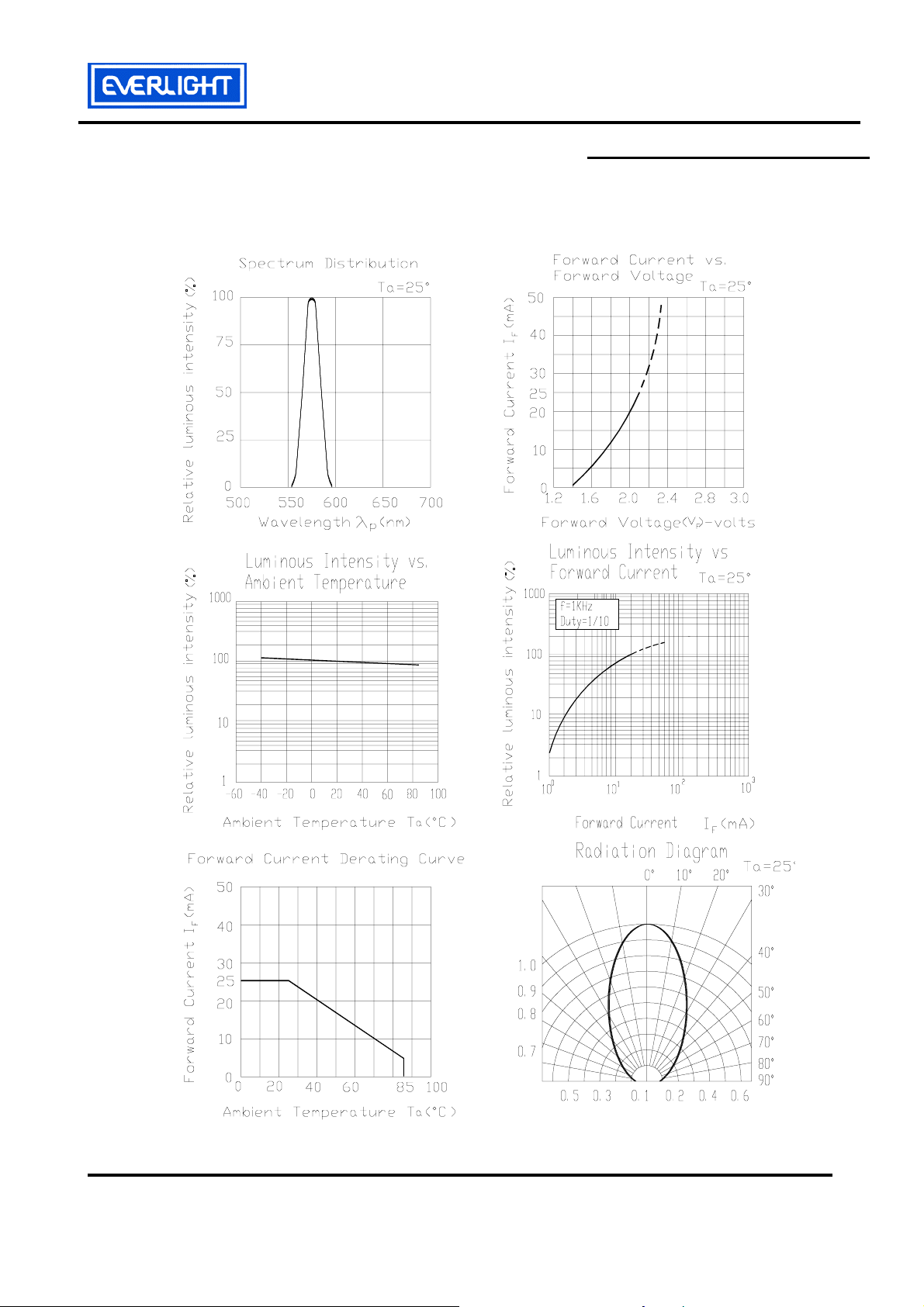

Typical Electro-Optical Characteristics Curves

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 4 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

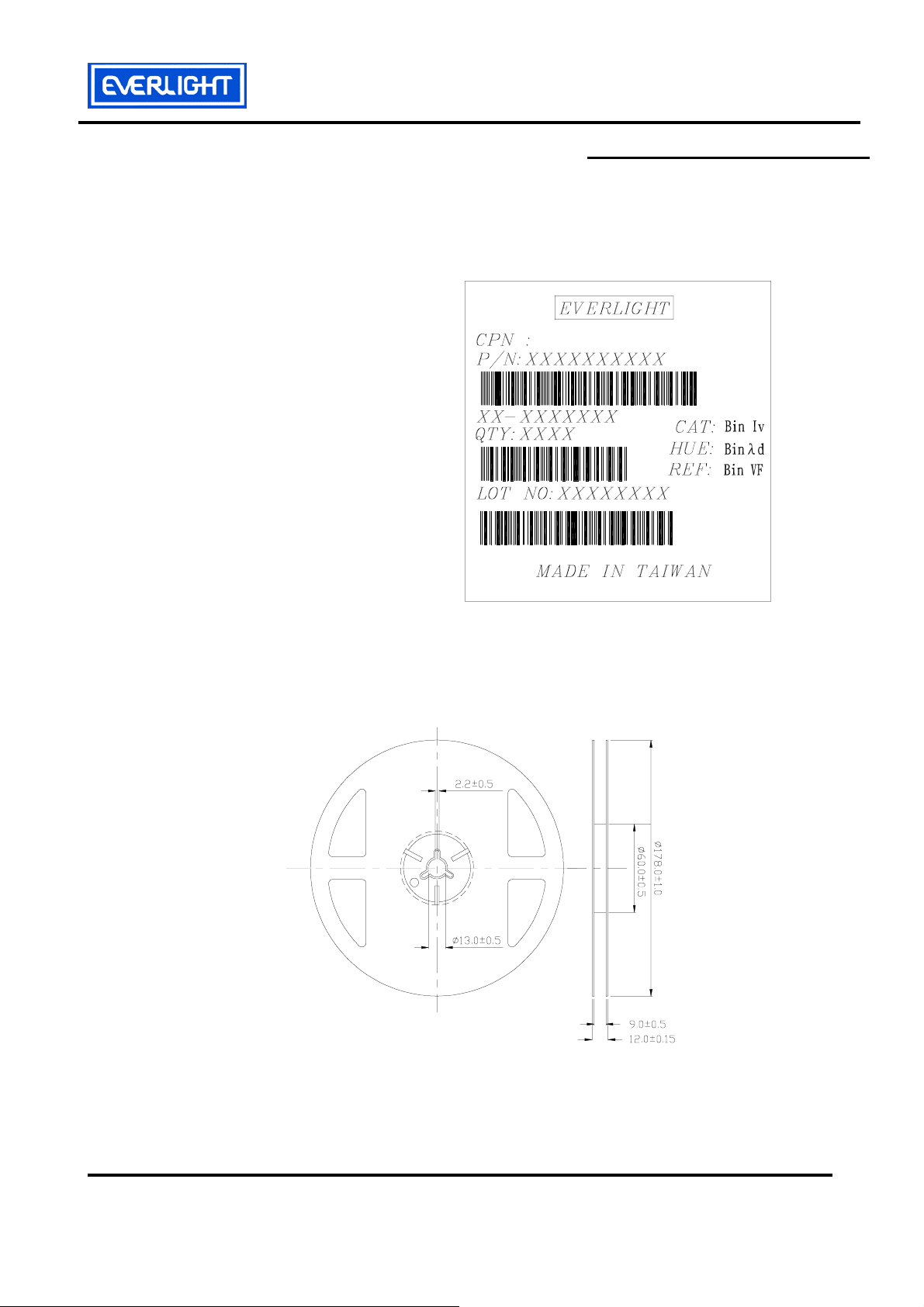

■ Label explanation

CAT: Luminous Intensity (mcd) HUE: Dom. Wavelength (nm) REF: Forward Voltage (V)

11-21SYGC/S530-XX/TR8

■ Reel Dimensions

Note: Tolerances Unless Dimension ± 0.1mm , Angle± 0.5° ,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 5 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

11-21SYGC/S530-XX/TR8

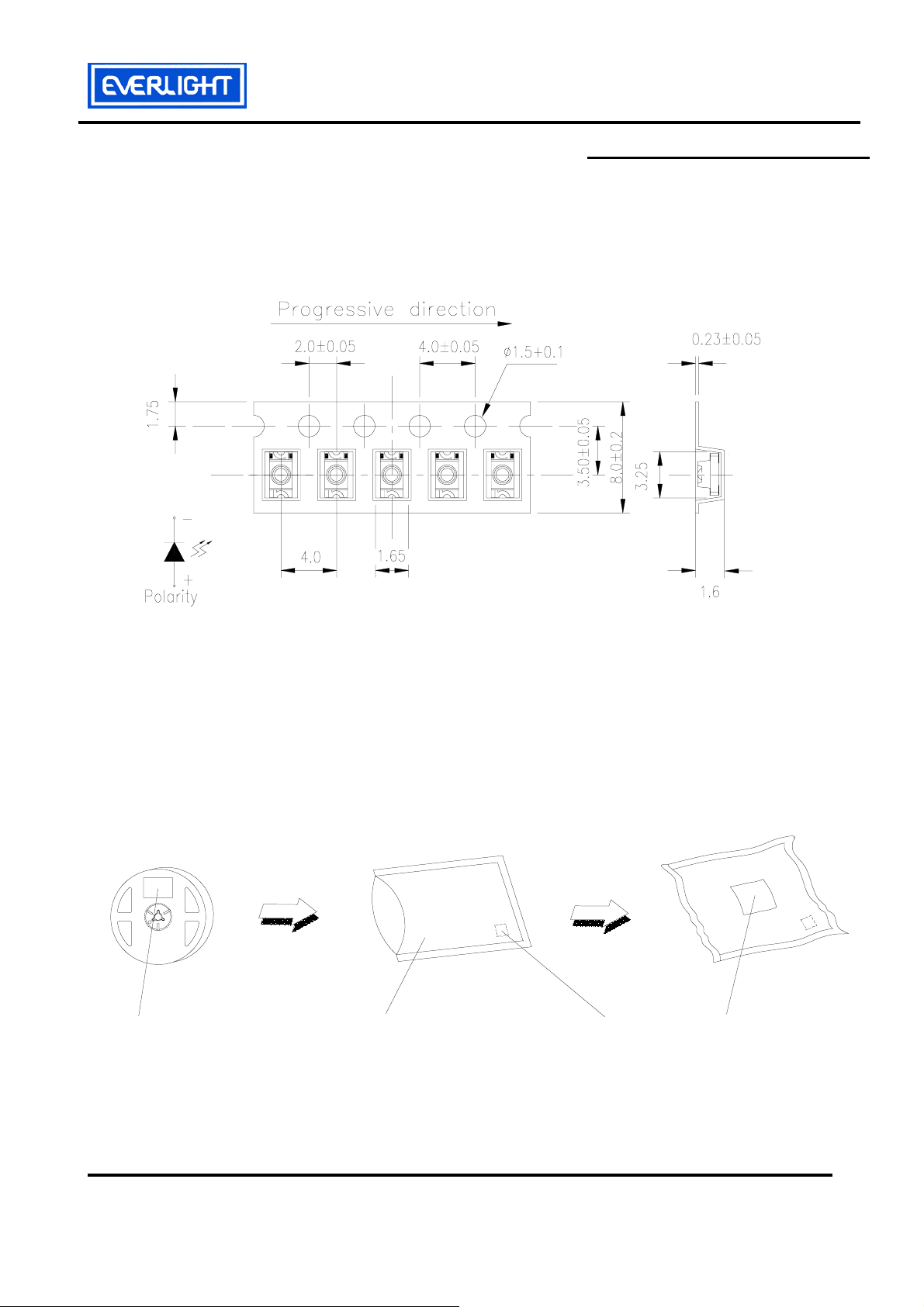

■ Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel

Note: Tolerances Unless Dimension ± 0.1mm , Angle± 0.5° ,Unit = mm

■ Moisture Resistant Packaging

Label

Aluminum moistue-proof bag

LabelDesiccant

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 6 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

11-21SYGC/S530-XX/TR8

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below. Confidence level : 90 % LTPD : 10 %

No. Items Test Condition

Test

Hours/Cycles

Temp. : 240

1 Reflow

℃±5℃

6 min.

Min. 5 sec.

H : +100

2 Temperature Cycle

L : -40

H : +100

3 Thermal Shock

High Temperature

4

∫

L : -10

Temp. : 100

15min.

℃

5 min.

15min.

℃

5min.

℃

10 sec.

5min.

℃

300 Cycles

1000 Hrs.

Storage

5

Low Temperature

Temp. : -55

℃

1000 Hrs.

Storage

6 DC Operating Life IF = 20 mA

1000 Hrs.

Sample

Size

22 Pcs. 0/1

Ac/Re

7

High Temperature

85℃/R.H85%

1000 Hrs.

22 Pcs. 0/1

/ High Humidity

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 7 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

11-21SYGC/S530-XX/TR8

Precautions For Use

1. Over-current-proof

Customer must apply resistors for protection , otherwise slight voltage shift

will cause big current change ( Burn out will happen ).

2. Storage time

2.1 The operation of Temperature and RH are : 5℃~35℃, RH60%.

2.2 Once the package is opened, the products should be used within a week. Otherwise, they should be kept in a damp proof box with descanting agent. Considering the tape life , we suggest our customers to use our products within a year(from production date).

2.3 If opened more than one week in an atmosphere 5℃~35℃, RH 60%, they should be treated at 60℃± 5℃for 15hrs.

2.4 When you discover that the desiccant in the package has a pink color (Normal = blue) , you should treat them in the same conditions as 2.3.

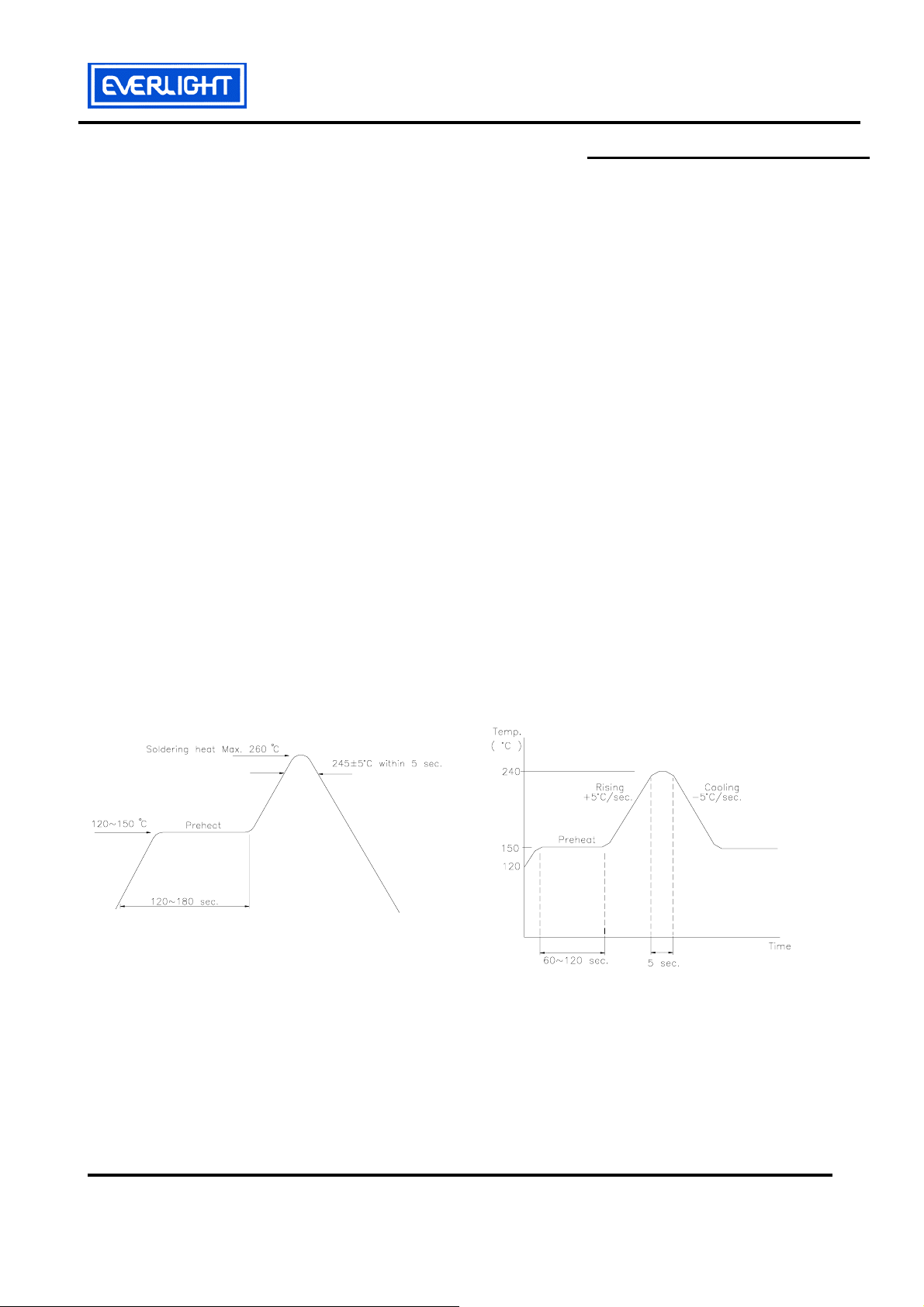

Soldering heat Reflow Temp / Time

Soldering Iron

Basic spec is ≦5 sec when 260℃.If temperature is higher, time should be shorter (+10℃→ -1sec). Power dissipation of Iron should be smaller than 15 W , and temperature should be controllable.

Surface temperature of the device should be under 230 ℃.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1.1 Page: 8 of 9 Device No:DSE-111-066 Prepared date: 04-02-2002 Prepared by: Jessica Chang

EVERLIGHT ELECTRONICS CO.,LTD.

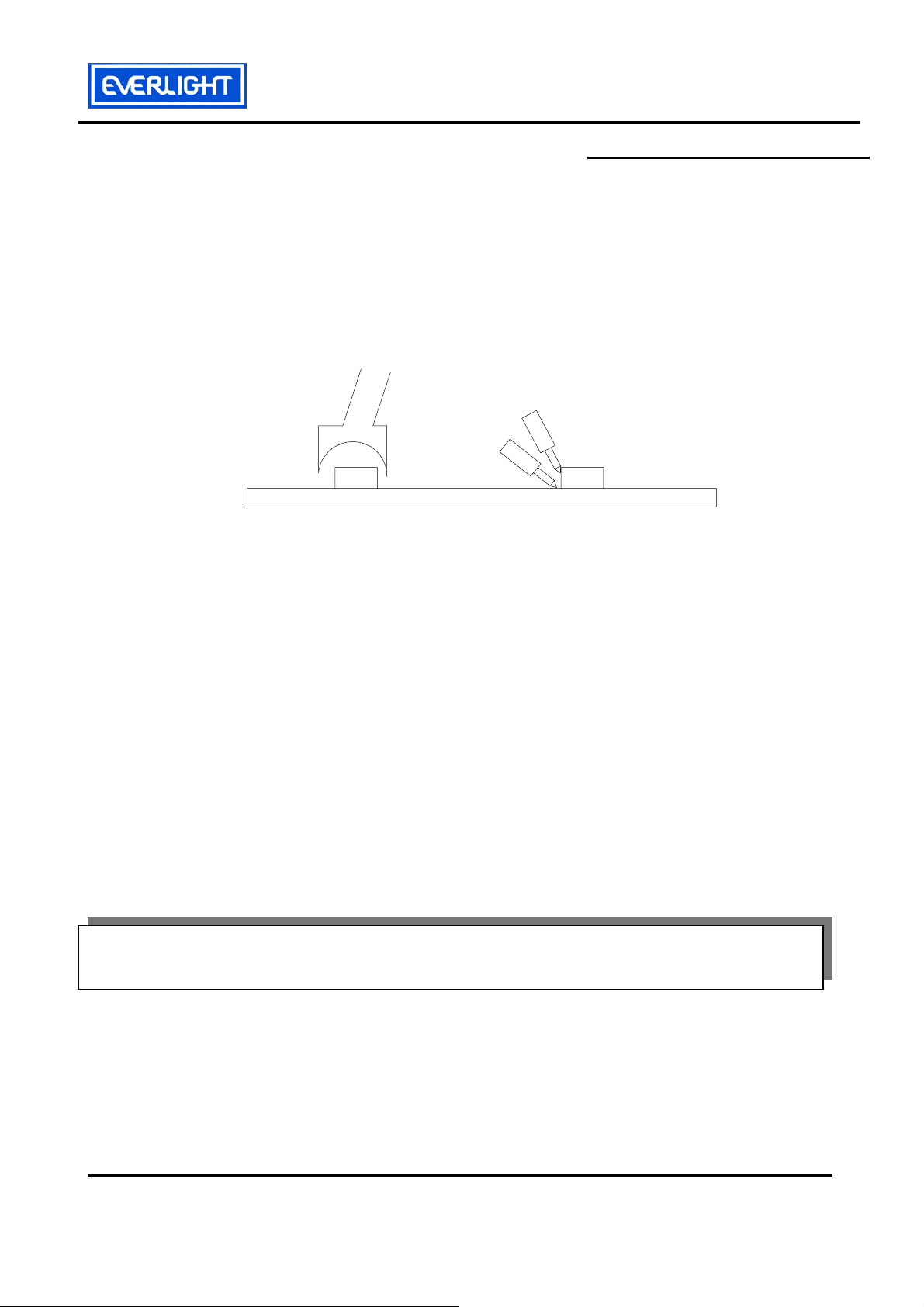

Rework

1. Customer must finish rework within 5 sec under 245℃.

2. The head of iron can not touch copper foil.

3. Twin-head type is preferred.

11-21SYGC/S530-XX/TR8

○

×

EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
