Page 1
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307

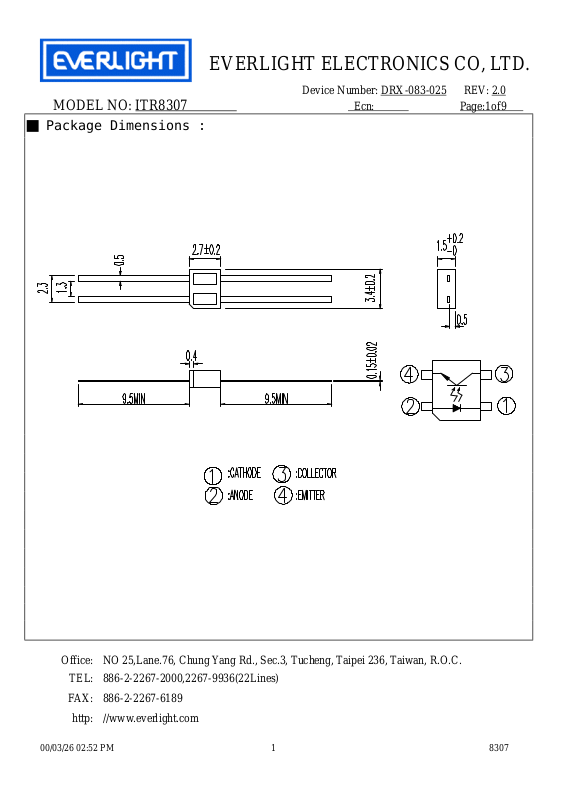

■ Package Dimensions :
Ecn: Page:1of9
Office: NO 25,Lane.76, Chung Yang Rd., Sec.3, Tucheng, Taipei 236, Taiwan, R.O.C.
TEL: 886-2-2267-2000,2267-9936(22Lines)
FAX: 886-2-2267-6189
http: //www.everlight.com
00/03/26 02:52 PM 1 8307
Page 2
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
◎
◎Notes：
◎◎
：
：：
1.All dimensions are in millimeters.
2.General Tolerance:± 0.15mm.
3.Lead spacing is measured where the lead emerge from the package.
4.Above specification may be changed without notice. EVERLIGHT will
reserve authority on material change for above specification.
5.These specification sheets include materials protected under
copyright of EVERLIGHT corporation. Please don’t reproduce or
cause anyone to reproduce them without EVERLIGHT’s consent.
6.When using this product , please observe the absolute maximum
ratings and the instructions for use outlined in these
specification sheets. EVERLIGHT assumes no responsibility
for any damage resulting from use of the product which does not
comply with the absolute maximum ratings and the instructions
included in these specification sheets.
Ecn: Page:2of9
■ Descriptions:
ITR8307
is a light reflection switch which includes
a GaAs IRLED transmitter and a NPN photo-transistor with a high
photosensitive receiver for short distance, operating in the
infrared range. Both components are mounted side-by-side in a
plastic package.
■ Features:
•
•
•
•
•
Fast response time
High sensitivity
Cutting wavelength λ=840nm
Thin
Compact
■ Applications:
•
Camera
•
VCR
•
Floppy disk driver
•
Cassette type recorder
•
Various microcomputer control equipment
00/03/26 02:52 PM 2 8307
Page 3
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
■
Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Ratings Unit
Ecn: Page:3of9
Power Dissipation at(or below) 25℃ Free
Air Temperature
Input Reverse Voltage V
Forward Current I
Peak Forward Current
Pulse width ≦100μs, Duty cycle=1%
Collector Power Dissipation P
Output Collector Current I
Collector-Emitter Voltage B V
Emitter-Collector Voltage B V
Pd 75 mW
R
F
I
FP
C
C
CEO
ECO
Operating Temperature Topr -25~+85
Storage Temperature Tstg -40~+85
Lead Soldering Temperature
(1/16 inch from body for 5 seconds)
Tsol 260
(＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec
5V
50 mA
1A
75 mW
50 mA
30 V
5V
℃
℃
℃
■
Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min.
Forward Voltage V
Reverse Current I
Input
Peak Wavelength
View Angle
Dark Current I
Output
C-E Saturation
Voltage
Light Current IC(ON) 0.1 --- --- mA VCE=5V
Leakage Current
Rise time t
Speed
Fall time t
R
λ
2€1/2
CEO
V
CE
(sat)
I
CEOD
r
f
Typ.
Max. Unit Conditions
F
P
--- 1.2 1.6 V IF=20mA
A
--- --- 10
μ
VR=5V
--- 940 --- nm ---
--- 110 --- Deg I
=20mA
F
--- --- 100 nA VCE=10V
I
=2mA
---
---
0.4 V
--- --- 1
--- 20 ---
--- 20 ---
μ
μ
μ
A
sec
sec
C
=0.1mA
I
B
IF=20mA
VCE=2V
IC=100μA
RL=1K
Ω
00/03/26 02:52 PM 3 8307
Page 4
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
■

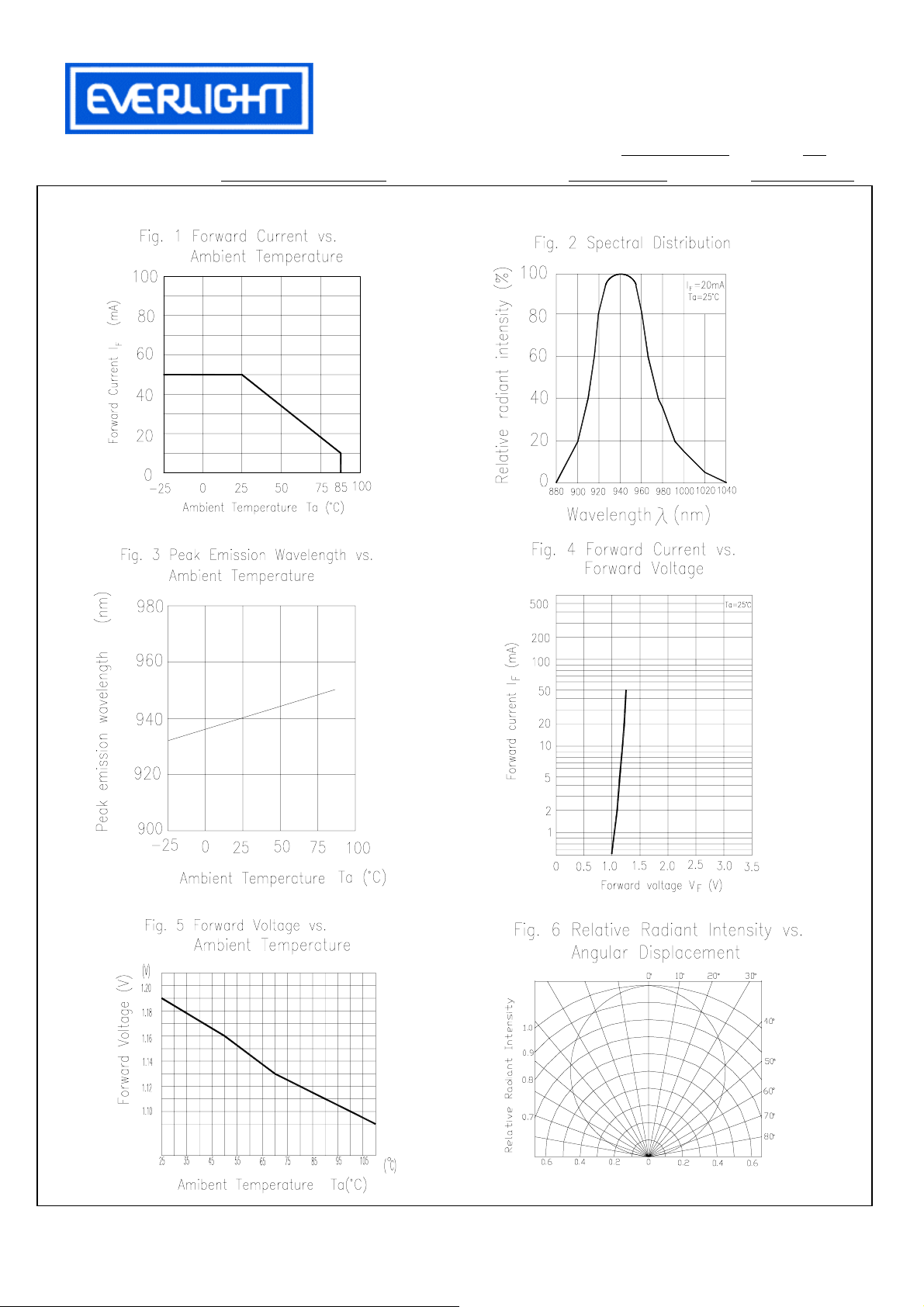

Typical Characteristics For IR
Ecn: Page:4of9
00/03/26 02:52 PM 4 8307
Page 5
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307

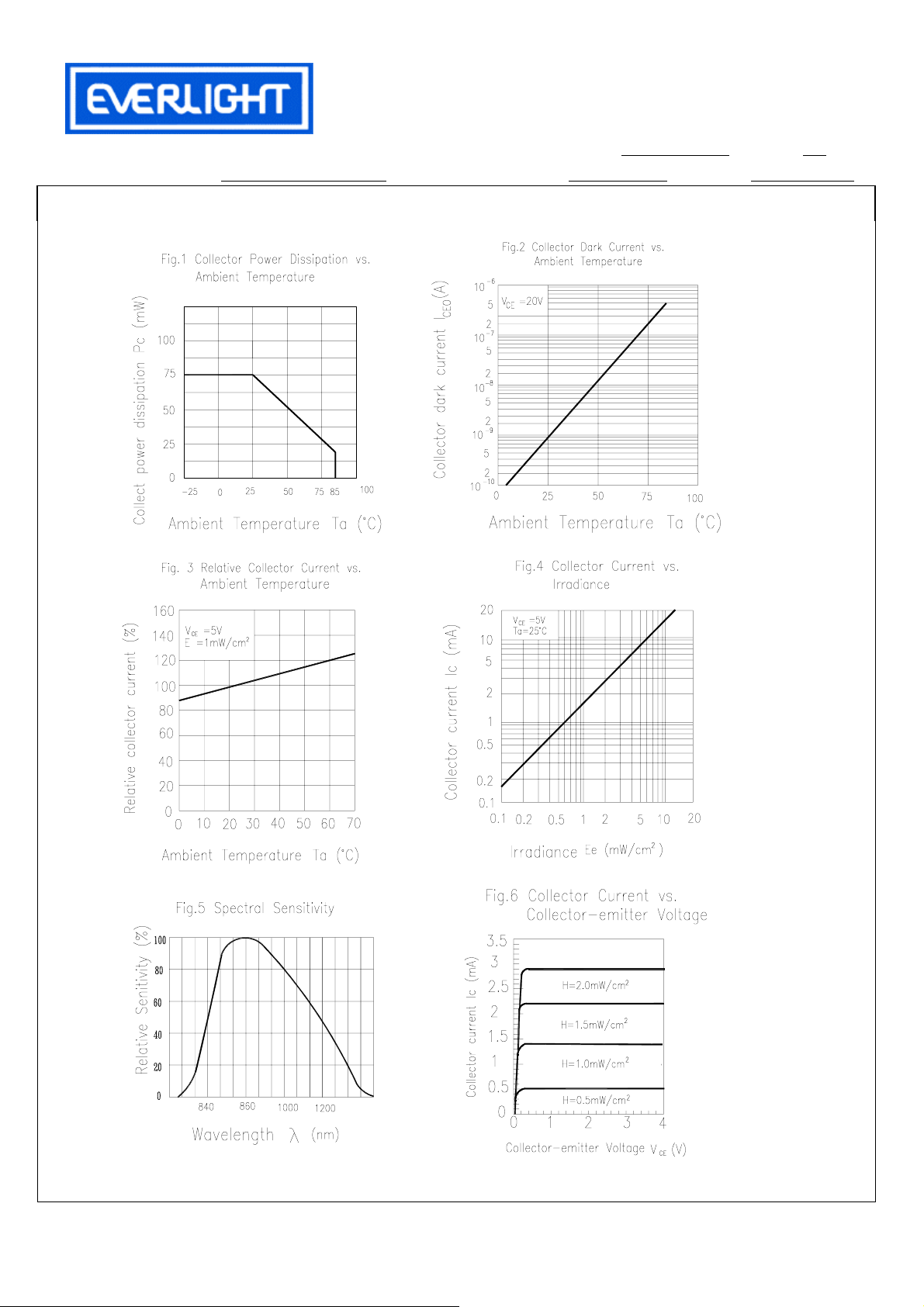

Typical Characteristics
■
Ecn: Page:5of9
00/03/26 02:52 PM 5 8307
Page 6
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
■

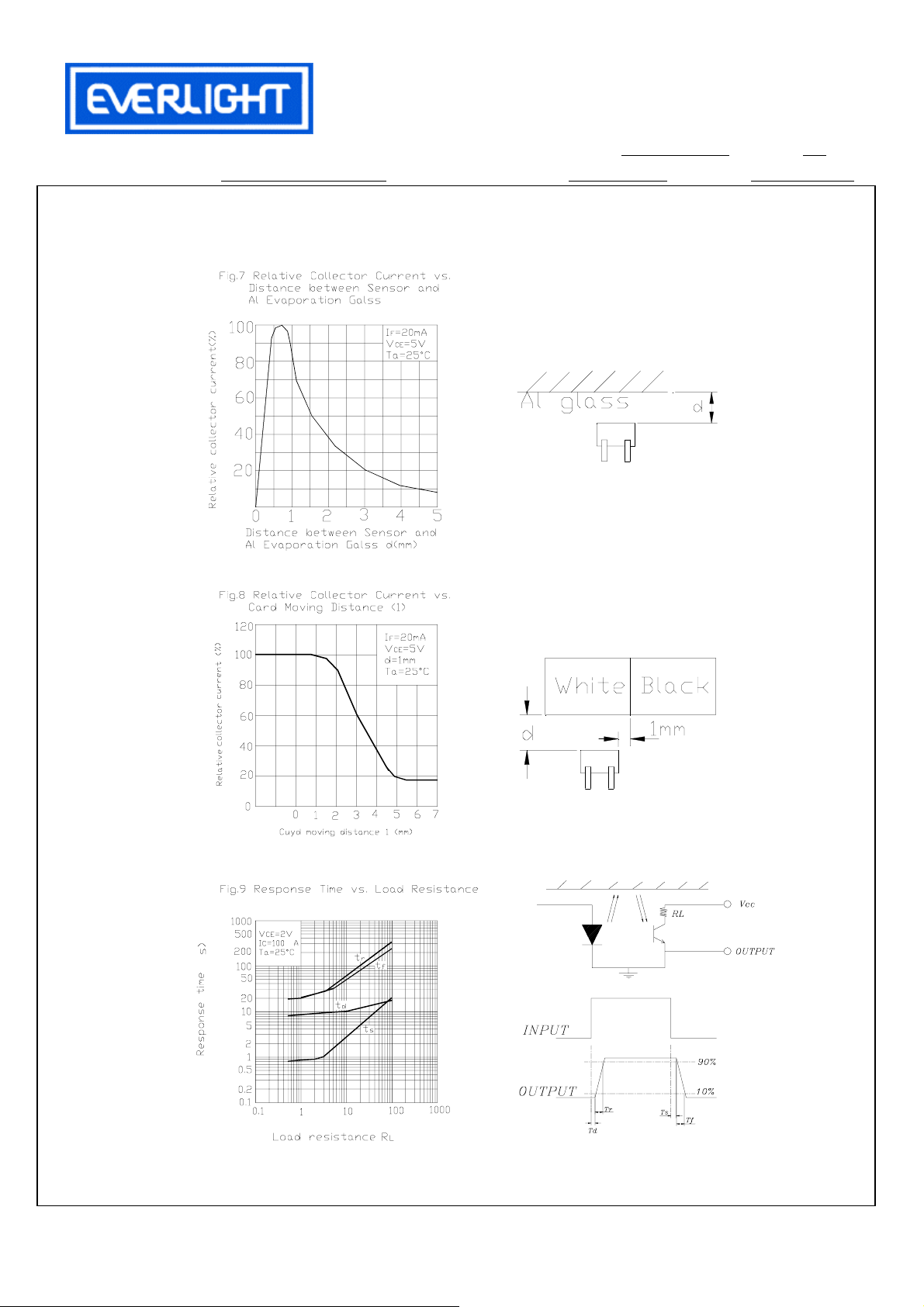

Typical Characteristics F or ITR
Ecn: Page:6of9
μ
(μ
k
Ω
)
(
00/03/26 02:52 PM 6 8307
Page 7
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
Reliability test item and condition
■
The reliability of products shall be satisfied with item listed below:
Confidence level :90% LTPD:10%
Ecn: Page:7of9
Parameter Purpose & Condition
Temperature Cycle Evaluates product's ability
to withstand exposure to
high temperature, low
temperature, and temperature
variation between two limit
temperature. Standard test
Condition:
85℃~25℃~-55℃~25
30min 5min 30min 5min
50 cycle
Thermal Shock Evaluates product's ability to
withstand rapid temperature
change Standard test
℃
Failure
Judgement
Criteria
I
U x 2
≧
R
Ic(on)≦L x 0.8
V
U x 1.2
≧
F
U：Upper
specification
limit
L：Lower
specification
limit
Samples(n)
Defective(c)
n =22，c=0
n =22，c=0
Condition:
℃
85
~ -55
5min (10 sec)5min
50cycle
High Temperature Evaluates product's ability to
Storage withstand prolonged storage
at high temperature Standard
test Condition:
Temperature : 100
Time : 1000hrs
Low Temperature
Storage
Evaluates product's ability to
withstand prolonged storage
at low temperature Standard
test Condition:
Temperature : -55
Time : 1000hrs
℃
n =22，c=0
℃
n =22，c=0
℃
00/03/26 02:52 PM 7 8307
Page 8
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
Ecn: Page:8of9
Parameter Purpose & Condition
Operating Life Test Evaluates product's endurance
to prolonged electrical or
temperature stresses. Standard
test Condition:
VCE=5V
IF=20mA
Time : 1000hrs
High Temperature Evaluates product's ability to
withstand prolonged storage
High Humidity at high temperature and high
humidity. Standard test
Condition:
Temperature: 85
℃
Failure
Judgement
Criteria
I
U x 2
≧
R
Ic(on)≦L x 0.8
V
U x 1.2
≧
F
U：Upper
specification
limit
L：Lower
specification
limit
Samples(n)
Defective(c)
n =22，c=0
n =22，c=0
Relative humidi ty :85%
Time : 1000hrs
Soldering Heat Evaluates product's ability to
withstand soldering heat
Standard test conditions
Solder temperature : 260±5
Solder time : 5 seconds
Supplements
■
1.Parts
(1) Chip
Type Material Peak Wavelength
IR GaAs
Type Material Cutting Wavelength
PT Silicon
940
840
n =22，c=0
℃
nm
nm
(2)Material
00/03/26 02:52 PM 8 8307
Type Lead frame Wire Part Package
Material Cu Gold Epoxy
Page 9
EVERLIGHT ELECTRONICS CO, LTD.
Device Number: DRX-083-025 REV: 2.0
MODEL NO: ITR8307
Packing Specifications
■
Ecn: Page:9of9
1.Bag
2.Box
3.Carton
4.5
3.5
4.0
15± 0.5
15
5.5
Label
19± 0.5
22
EVERLIGHT
Opto-elect ronic,Compome nts
Label
33
9
ITR8307
T
H
G
I
L
R
E
V
E
24
■
Label
Packing Quantity Specification
1. 1000Pcs/1Volume，1Volume/1Bag
2.10Bags/1Carton
48
UNIT：cm
CPN : Customer’s Production
P/N : Production Number
QTY
CAT : Ranks
HUE : Peak Wavelength
REF : Reference
LOT NO : Lot Number
MADE IN TAIWAN : Production
Packing Quantity
:
place
00/03/26 02:52 PM 9 8307
