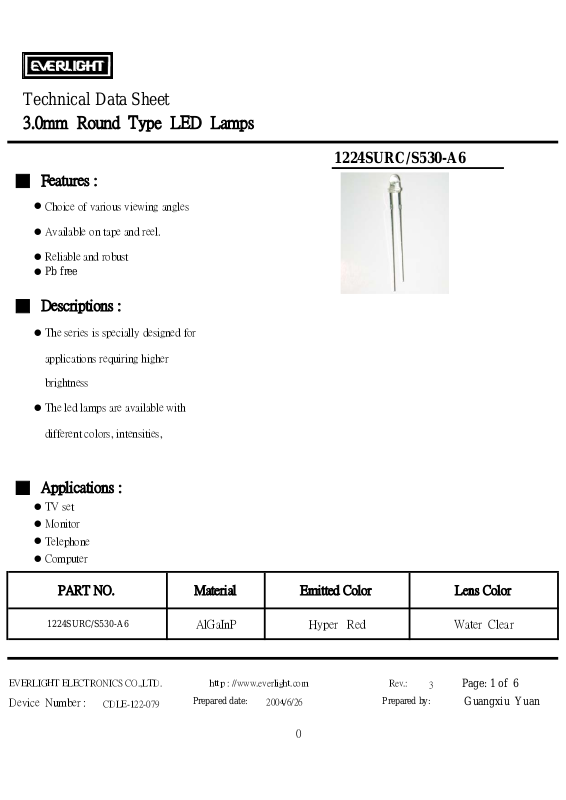

Page 1
Technical Data Sheet
3.0mm Round Type LED Lamps
█ Features :
●
Choice of various viewing angles
1224SURC/S530-A6
●
Available on tape and reel.
●
Reliable and robust
●
Pb free
█ Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
█ Applications :
●
TV set
●
Monitor
●
Telephone
●
Computer
1224SURC/S530-A6
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-122-079
AlGaInP Hyper Red Water Clear
http : //www.everlight.com
Prepared date:
2004/6/26
0
Rev.:
Prepared by:
3
Lens ColorPART NO. Material Emitted Color
Page: 1 of 6
Guangxiu Yuan
Page 2
Technical Data Sheet
w
m
3.0mm Round Type LED Lamps
Package Dimensions
1224SURC/S530-A6
Notes:
1.All dimensions are in millimetres
2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension ±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter Symbol Rating Unit
Forward Current I
Operating Temperature Topr -40 to +85 ℃
Storage Temperature Tstg -40 to +100 ℃
Electrostatic Discharge
Soldering Temperature Tsol 260 ± 5 ℃
Power Dissipation Pd 60 mW
Peak Forward Current I
F 25 mA
ESD
F(Peak) 160 mA
2000
V
Reverse Voltage V
Note: *1:I
FP Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
*2:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD
Device Number :
CDLE-122-079
R 5V
http : //
Prepared date: Prepared by:
: //www.everlight.co
2004/6/26
Rev.:
3
Page: 2 of 6
Guangxiu Yuan
Page 3
Technical Data Sheet
3.0mm Round Type LED Lamps
Electro-Optical Characteristics (Ta=25℃)
1224SURC/S530-A6
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol Min. Typ. Max. Unit
VF IF= 20 mA
IR VR=5V
Iv IF= 20 mA 630 1000
2θ1/2
λp
λd
△λ
Condition
IF= 20 mA
IF= 20 mA
IF= 20 mA
IF= 20 mA
／
／／
／
／
／
／
2.0 2.4 V
25
632
624
20
10
／
／
／
／
／
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com
Device Number :
CDLE-122-079
Prepared date: Prepared by:
2004/6/26
Rev.:
3
Page: 3 of 6
Guangxiu Yuan
.
Page 4
Technical Data Sheet
D
3.0mm Round Type LED Lamps
█

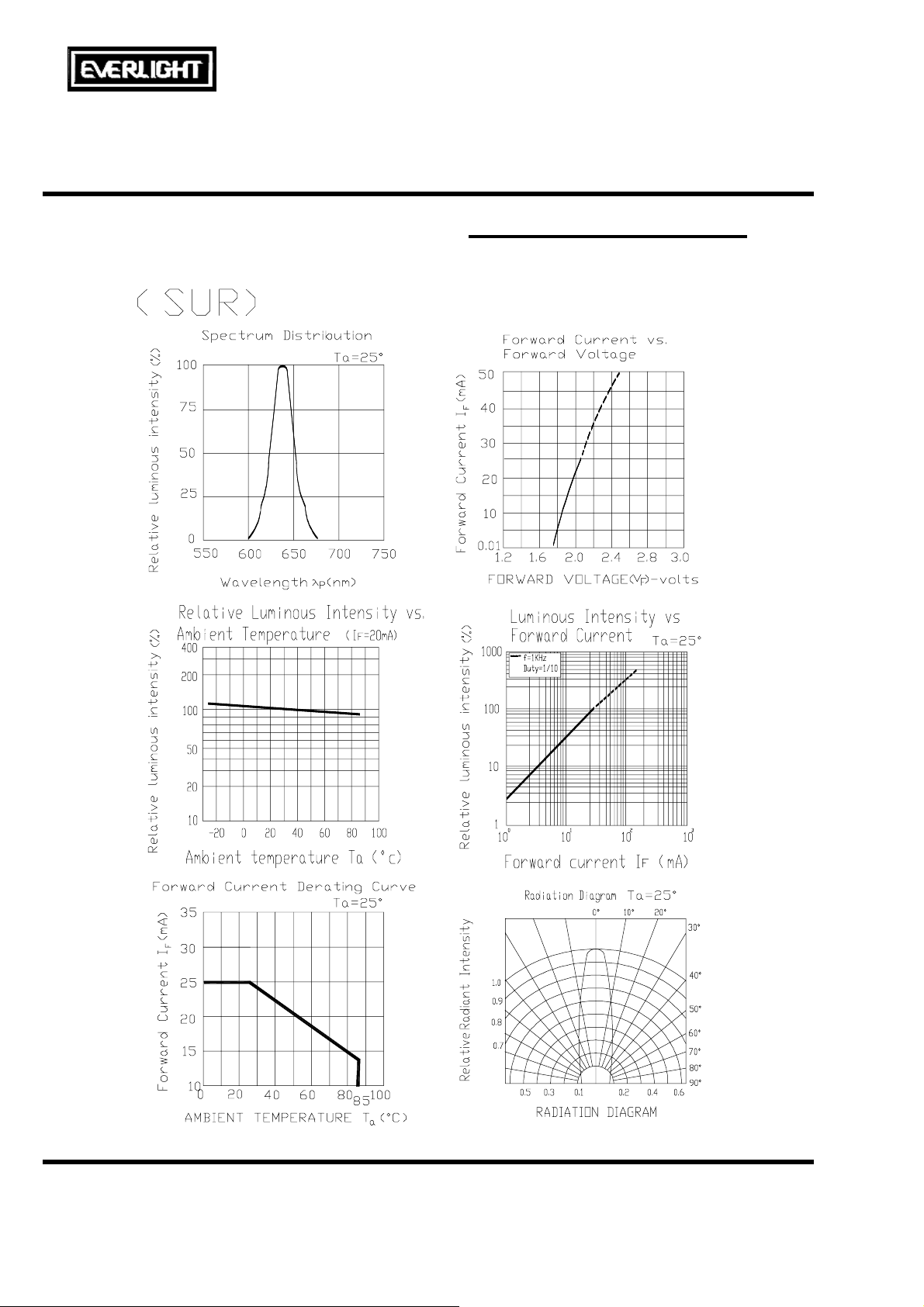

Typical Electro-Optical Characteristic Curves:
1224SURC/S530-A6
EVERLIGHT ELECTRONICS CO.,LT
Device Number : CDLE-122-079 Prepared date: 2004/6/26
http : //www.everlight.com
Rev.:
3
Prepared by:
Page: 4 of 6
Guangxiu Yuan
Page 5
Technical Data Sheet
3.0mm Round Type LED Lamps
█
Reliability test items and conditions:
1224SURC/S530-A6
NO Item Test Conditions
1 Solder Heat
2 Temperature Cycle ∫ 5 min 76 PCS
3 Thermal Shock ∫ 10 sec 76 PCS
4 High Temperature Storage TEMP : 100℃ 76 PCS
5 Low Temperature Storage TEMP : -40℃ 76 PCS
6 DC Operating Life
TEMP : 260℃ ± 5 ℃
H : +100℃ 15min
L : -40℃ 15min
H : +100℃ 5min
L : -10℃ 5min
TEMP : 25℃
I
F = 20mA
Test
Hours/Cycle
SEC
300 CYCLES
300 CYCLES
1000 HRS
1000 HRS
1000 HRS
Sample
size
76 PCS
76 PCS
Ac/Re
0/1
0/1
0/1
0/1
0/1
0/1
7
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-122-079
High Temperature / High
Humidity
85℃ / 85% RH 76 PCS
http : //www.everlight.com
Prepared date: 2004/6/26
1000 HRS
Rev.:
Prepared by:
3
0/1
Page: 5 of 6
Guangxiu Yuan
Page 6
Technical Data Sheet
E
3.0mm Round Type LED Lamps
Packing Quantity Specification
1.1000PCS/1Bag，4Bags/1Box
2.10Boxes/1Carton
Label Form Specification
1224SURC/S530-A6
1224SURC/S530-A6
CPN: Customer's Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT corporation.
Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent.
VERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http:\\www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-122-079 Prepared date: 2004/6/26
http : //www.everlight.com
Rev.:
Prepared by:
3
Page: 6 of 6
Guangxiu Yuan
