Epson WorkForce Pro WP-4533 User Guide

WorkForce® Pro WP-4520/WP-4533

User's Guide

Contents
WorkForce Pro WP-4520/WP-4533 User's Guide....................................................................................	13
Product Basics ..........................................................................................................................................	14
Setting Up the Control Panel..............................................................................................................	14
Printer Parts - Control Panel Buttons and Lights ...........................................................................	14
Changing LCD Screen Language..................................................................................................	16
Turning Off Control Panel Sounds.................................................................................................	16
Product Parts Locations .....................................................................................................................	17
Printer Parts - Paper Path..............................................................................................................	17
Printer Parts - Front .......................................................................................................................	19
Printer Parts - Inside......................................................................................................................	20
Printer Parts - Back........................................................................................................................	21
Two-Sided Printing, Scanning, Copying, and Faxing .........................................................................	21
Selecting Wireless Network Settings From the Control Panel............................................................	22
Wireless Printing from a Mobile Device..............................................................................................	25
Using EPSON Connect Email Print ...................................................................................................	25
Loading Paper ...........................................................................................................................................	26
Loading Paper in the Cassette ...........................................................................................................	26
Loading Paper in the Rear MP (Multipurpose) Tray ..........................................................................	31
Loading Envelopes ............................................................................................................................	34
Paper Loading Capacity.....................................................................................................................	37
Available EPSON Papers...................................................................................................................	38
Paper or Media Type Settings............................................................................................................	39
Setting the Paper Size for Each Source .............................................................................................	40
Setting the Paper Size for Each Source - Control Panel................................................................	40
Setting the Paper Size for Each Source - Windows.......................................................................	41
Setting the Paper Size for Each Source - Mac OS X .....................................................................	43
Setting Additional Paper Options .......................................................................................................	44
Installing the Optional Second Paper Cassette ..................................................................................	45
Placing Originals on the Product .............................................................................................................	47
Placing Originals on the Scanner Glass .............................................................................................	47

3

Placing Originals in the Automatic Document Feeder ........................................................................	48
Copying......................................................................................................................................................	52
Copying Documents or Photos...........................................................................................................	52
Paper Type Settings - Copying...........................................................................................................	53
Paper Size Settings - Copying............................................................................................................	54
Copying Options.................................................................................................................................	54
Printing From a Computer ........................................................................................................................	56
Printing with Windows ........................................................................................................................	56
Selecting Basic Print Settings - Windows ......................................................................................	56
Paper Source Options - Windows .............................................................................................	59
Print Quality Options - Windows ...............................................................................................	59
Multi-Page Printing Options - Windows.....................................................................................	59
Selecting Double-sided Printing Settings - Windows.....................................................................	60
Double-sided Printing Options - Windows.................................................................................	62
Print Density Adjustments - Windows .......................................................................................	63
Selecting Additional Layout and Print Options - Windows .............................................................	63

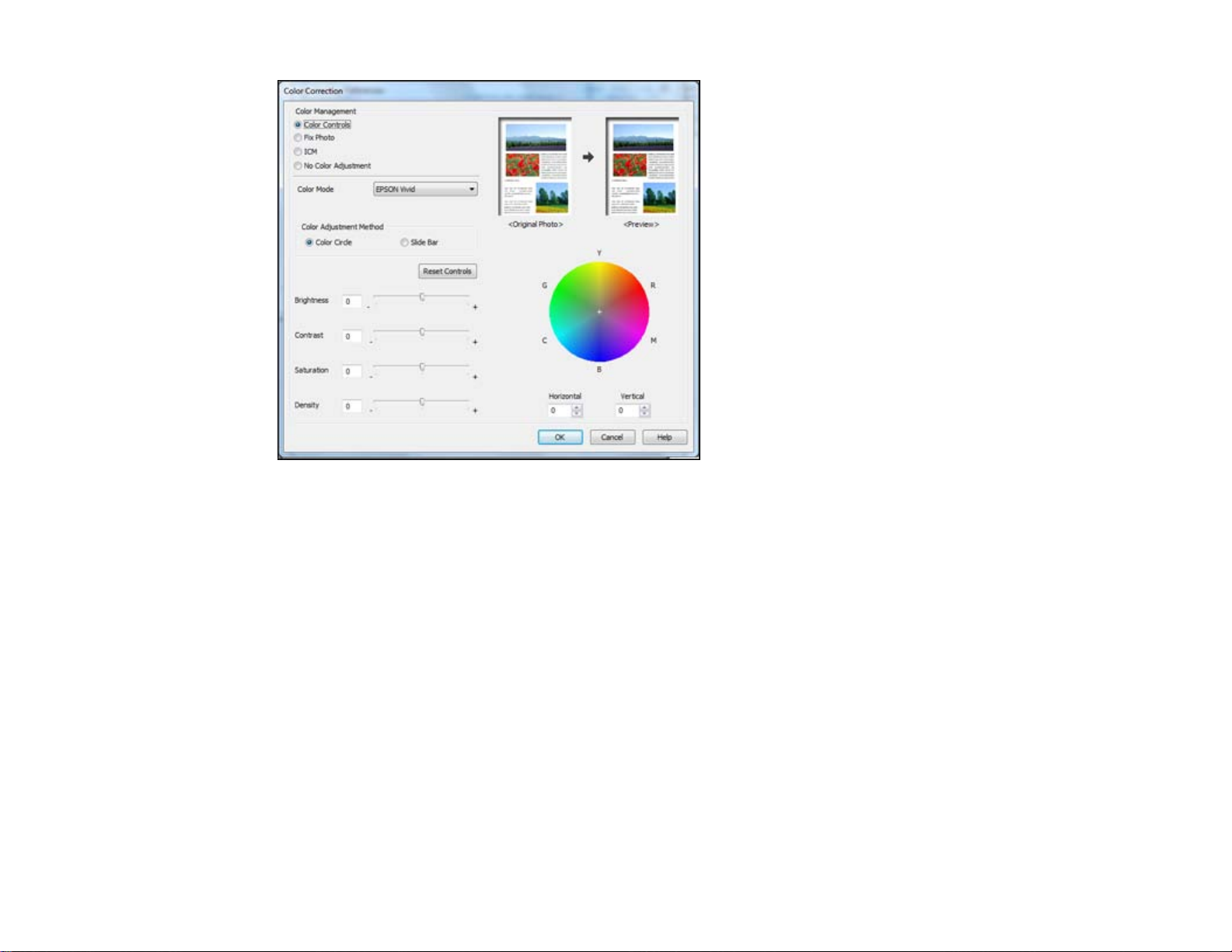

Custom Color Correction Options - Windows............................................................................	64
Additional Settings Options - Windows .....................................................................................	66
Selecting a Printing Preset - Windows...........................................................................................	66
Printing Your Document or Photo - Windows ................................................................................	67
Selecting Default Print Settings - Windows....................................................................................	68
Changing the Language of the Printer Software Screens .........................................................	69
Changing Automatic Update Options ............................................................................................	70
Printing with Mac OS X 10.5, 10.6, or 10.7.........................................................................................	71
Selecting Basic Print Settings - Mac OS X 10.5/10.6/10.7.............................................................	72
Paper Source Options - Mac OS X 10.5/10.6/10.7....................................................................	76
Print Quality Options - Mac OS X 10.5/10.6/10.7......................................................................	76
Print Options - Mac OS X 10.5/10.6/10.7 ..................................................................................	77
Selecting Page Setup Settings - Mac OS X 10.5/10.6/10.7 ...........................................................	77
Selecting Print Layout Options - Mac OS X 10.5/10.6/10.7 ...........................................................	77
Sizing Printed Images - Mac OS X 10.5/10.6/10.7.........................................................................	78
Selecting Double-sided Printing Settings - Mac OS X 10.5/10.6/10.7 ...........................................	79
Double-sided Printing Options and Adjustments - Mac OS X ...................................................	81

4

Managing Color - Mac OS X 10.5/10.6/10.7 ..................................................................................	81
Color Matching and Color Options - Mac OS X 10.5/10.6/10.7.................................................	82
Printing Your Document or Photo - Mac OS X 10.5/10.6/10.7.......................................................	83
Checking Print Status - Mac OS X 10.5/10.6/10.7 ....................................................................	84
Selecting Printing Preferences - Mac OS X 10.5/10.6/10.7 ...........................................................	84
Printing Preferences - Mac OS X 10.5/10.6/10.7 ......................................................................	85
Printing with Mac OS X 10.4...............................................................................................................	86
Selecting Page Setup Settings - Mac OS X 10.4 ...........................................................................	86
Selecting Basic Print Settings - Mac OS X 10.4.............................................................................	87
Paper Source Options - Mac OS X 10.4....................................................................................	90
Print Quality Options - Mac OS X 10.4......................................................................................	90
Print Options - Mac OS X 10.4 ..................................................................................................	91
Selecting Print Layout Options - Mac OS X 10.4 ...........................................................................	91
Sizing Printed Images - Mac OS X 10.4.........................................................................................	91
Selecting Double-sided Printing Settings - Mac OS X 10.4 ...........................................................	92
Managing Color - Mac OS X 10.4 ..................................................................................................	93
Color Options - Mac OS X 10.4.................................................................................................	94
Selecting Printing Preferences - Mac OS X 10.4 ...........................................................................	94
Printing Preferences - Mac OS X 10.4 ......................................................................................	95
Printing Your Document or Photo - Mac OS X 10.4.......................................................................	95
Checking Print Status - Mac OS X 10.4 ....................................................................................	96
Cancelling Printing Using a Product Button........................................................................................	97
Scanning ....................................................................................................................................................	98
Connecting a USB Thumb Drive or External Device ..........................................................................	98
Starting a Scan...................................................................................................................................	99
Starting a Scan Using the Product Control Panel ..........................................................................	99
Scan to USB Device Options ..................................................................................................	101
Changing Default Scan Button Settings..................................................................................	102
Starting a Scan Using the EPSON Scan Icon..............................................................................	103
Starting a Scan from a Scanning Program ..................................................................................	105
Selecting EPSON Scan Settings......................................................................................................	107
Scan Modes ................................................................................................................................	107
Selecting the Scan Mode.............................................................................................................	107

5

Scanning in Home Mode .............................................................................................................	108
Selecting a Scan Area - Home Mode ......................................................................................	111
Available Image Adjustments - Home Mode ...........................................................................	114
Selecting a Scan Size - Home Mode.......................................................................................	115
Scanning in Office Mode..............................................................................................................	117
Selecting a Scan Area - Office Mode ......................................................................................	119
Available Image Adjustments - Office Mode ...........................................................................	121
Scanning in Professional Mode ...................................................................................................	122
Available Image Types - Professional Mode...........................................................................	125
Selecting a Scan Area - Professional Mode............................................................................	125
Available Image Adjustments - Professional Mode.................................................................	128
Selecting a Scan Size - Professional Mode ............................................................................	130
Image Preview Guidelines...........................................................................................................	133
Scan Resolution Guidelines ........................................................................................................	133
Selecting Scan File Settings........................................................................................................	134
Available Scanned File Types and Optional Settings..............................................................	135
Scanning with Mac OS X 10.6/10.7 Using Image Capture ...............................................................	136
Available Scan Settings - Mac OS X 10.6/10.7 Image Capture ...................................................	137
Scanning Special Projects................................................................................................................	137
Scanning to a PDF File................................................................................................................	138
Restoring Photo Colors as You Scan ..........................................................................................	141
Convert Scanned Documents to Editable Text (OCR).................................................................	142
Scanning Using OCR - Windows ............................................................................................	142
Scanning Using OCR - Mac OS X...........................................................................................	144
Faxing.......................................................................................................................................................	147
Connecting a Telephone or Answering Machine..............................................................................	147
Setting Up Fax Features ..................................................................................................................	150
Setting Up Fax Features Using the Product Control Panel..........................................................	151
Selecting Your Country or Region...........................................................................................	151
Selecting the Date and Time...................................................................................................	152
Entering Fax Header Information............................................................................................	154
Entering Numbers and Characters for Faxing.........................................................................	155
Selecting Fax Send and Receive Settings ..............................................................................	156

6

Selecting Fax Communication Settings ..................................................................................	157
Printing Fax Reports ...............................................................................................................	158
Restoring Default Fax Settings ...............................................................................................	160
Fax Sending Options ..............................................................................................................	160
Fax Receive Options...............................................................................................................	161
Fax Communications Options.................................................................................................	161
Fax Report Options.................................................................................................................	162
Restore Default Settings Options............................................................................................	163
Setting Up Fax Features Using the Fax Utility - Windows............................................................	164
Setting Up Fax Features Using the Fax Utility - Mac OS X ..........................................................	165
Setting Up Speed Dial and Group Dial Lists.....................................................................................	166
Setting Up Speed/Group Dial Lists Using the Product Control Panel ..........................................	167
Creating Speed Dial List Entries .............................................................................................	167
Printing Your Speed Dial List ..................................................................................................	169
Creating Group Dial List Entries..............................................................................................	171
Printing Your Group Dial List...................................................................................................	174
Setting Up Speed/Group Dial Lists Using the Fax Utility - Windows............................................	175
Setting Up Speed/Group Dial Lists Using the Fax Utility - Mac OS X ..........................................	179
Sending Faxes .................................................................................................................................	180
Sending Faxes from the Product Control Panel...........................................................................	181
Manually Dialing or Redialing Fax Numbers ...........................................................................	181
Selecting Fax Numbers From Speed or Group Dial Lists........................................................	182
Dialing Fax Numbers from a Connected Telephone ...............................................................	183
Broadcasting a Fax .................................................................................................................	184
Sending a Fax at a Specified Time .........................................................................................	186
Fax Send Options ...................................................................................................................	187
Sending Faxes Using the Fax Utility - Windows ..........................................................................	187
Sending Faxes Using the Fax Utility - Mac OS X.........................................................................	189
Receiving Faxes...............................................................................................................................	192
Fax Reception .............................................................................................................................	192
Receiving Faxes Automatically (Auto Answer) ............................................................................	193
Receiving Faxes Manually...........................................................................................................	193

7

Replacing Ink Cartridges and Maintenance Boxes ..............................................................................	195
Check Cartridge and Maintenance Box Status.................................................................................	195
Checking Cartridge Status on the LCD Screen ...........................................................................	195
Checking Cartridge and Maintenance Box Status With Windows................................................	196
Checking Cartridge and Maintenance Box Status With Mac OS X ..............................................	199
Purchase EPSON Ink Cartridges and Maintenance Box..................................................................	199
Ink Cartridge and Maintenance Box Part Numbers .....................................................................	200
Removing and Installing Ink Cartridges............................................................................................	200
Replacing the Maintenance Box.......................................................................................................	204
Adjusting Print Quality............................................................................................................................	206
Print Head Maintenance...................................................................................................................	206
Print Head Nozzle Check.............................................................................................................	206
Checking the Nozzles Using the Product Control Panel .........................................................	206
Checking the Nozzles Using a Computer Utility......................................................................	209
Print Head Cleaning ....................................................................................................................	211
Cleaning the Print Head Using the Product Control Panel ......................................................	211
Cleaning the Print Head Using a Computer Utility...................................................................	213
Print Head Alignment .......................................................................................................................	216
Aligning the Print Head Using the Product Control Panel ............................................................	216
Aligning the Print Head Using a Computer Utility.........................................................................	218
Cleaning the Paper Path ..................................................................................................................	221
Cleaning and Transporting Your Product .............................................................................................	222
Cleaning Your Product .....................................................................................................................	222
Transporting Your Product ...............................................................................................................	223
Solving Problems ....................................................................................................................................	225
Checking for Software Updates........................................................................................................	225
Product Status Messages ................................................................................................................	226
Running a Product Check ................................................................................................................	227
Resetting Control Panel Defaults .....................................................................................................	229
Solving Setup Problems...................................................................................................................	230
Noise After Ink Installation...........................................................................................................	230
Software Installation Problems ....................................................................................................	230
Control Panel Setup Problems ....................................................................................................	231

8

Solving Network Problems ...............................................................................................................	231
Product Cannot Connect to a Wireless Router or Access Point ..................................................	232
Network Software Cannot Find Product on a Network.................................................................	232
Product Does Not Appear in Mac OS X Printer Window..............................................................	233
Cannot Print Over a Network.......................................................................................................	233
Cannot Scan Over a Network ......................................................................................................	234
Printing a Network Status Sheet..................................................................................................	234
Solving Copying Problems ...............................................................................................................	235
Product Makes Noise, But Nothing Copies..................................................................................	235
Product Makes Noise When It Sits for a While ............................................................................	236
Solving Paper Problems...................................................................................................................	236
Paper Feeding Problems.............................................................................................................	236
Paper Jam Problems Inside the Product .....................................................................................	237
Paper Jam Problems in the Cassette ..........................................................................................	239
Paper Jam Problems in the Duplexer ..........................................................................................	241
Document Jams in the Automatic Document Feeder ..................................................................	244
Paper Ejection Problems .............................................................................................................	247
Solving Problems Printing from a Computer ....................................................................................	248
Nothing Prints..............................................................................................................................	248
Product Icon Does Not Appear in Windows Taskbar...................................................................	249
Error After Cartridge Replacement ..............................................................................................	250
Printing is Slow ............................................................................................................................	250
Solving Page Layout and Content Problems....................................................................................	251
Inverted Image ............................................................................................................................	251
Too Many Copies Print ................................................................................................................	252
Blank Pages Print ........................................................................................................................	252
Incorrect Margins on Printout.......................................................................................................	253
Incorrect Characters Print............................................................................................................	253
Incorrect Image Size or Position..................................................................................................	254
Slanted Printout...........................................................................................................................	254
Solving Print Quality Problems.........................................................................................................	254
White or Dark Lines in Printout ....................................................................................................	255
Blurry or Smeared Printout ..........................................................................................................	255

9

Faint Printout or Printout Has Gaps.............................................................................................	257
Grainy Printout.............................................................................................................................	257
Incorrect Colors ...........................................................................................................................	258
Solving Scanning Problems .............................................................................................................	259
Scanning Software Does Not Operate Correctly .........................................................................	259
Cannot Start EPSON Scan..........................................................................................................	259
Solving Scanned Image Quality Problems .......................................................................................	260
Image Consists of a Few Dots Only.............................................................................................	261
Line of Dots Appears in All Scanned Images...............................................................................	261
Straight Lines in an Image Appear Crooked ................................................................................	261
Image is Distorted or Blurry .........................................................................................................	261
Image Colors are Patchy at the Edges ........................................................................................	262
Image is Too Dark .......................................................................................................................	262
Back of Original Image Appears in Scanned Image ....................................................................	262
Ripple Patterns Appear in an Image............................................................................................	263
Scanned Image Colors Do Not Match Original Colors.................................................................	263
Scan Area is Not Adjustable in Thumbnail Preview.....................................................................	263
Scanned Image Edges are Cropped ...........................................................................................	264
Solving Faxing Problems..................................................................................................................	264
Cannot Send or Receive Faxes...................................................................................................	264
Cannot Receive Faxes with a Telephone Connected to Your Product ........................................	265
When to Uninstall Your Product Software ........................................................................................	265
Uninstalling Product Software - Windows....................................................................................	266
Uninstalling Product Software - Mac OS X ..................................................................................	266
Where to Get Help............................................................................................................................	267
Technical Specifications ........................................................................................................................	269
Windows System Requirements ......................................................................................................	269
Mac System Requirements ..............................................................................................................	270
Printing Specifications......................................................................................................................	270
Scanning Specifications ...................................................................................................................	271
Automatic Document Feeder (ADF) Specifications ..........................................................................	271
Fax Specifications ............................................................................................................................	272
Paper Specifications ........................................................................................................................	272

10

Printable Area Specifications ...........................................................................................................	273
Ink Cartridge Specifications..............................................................................................................	275
Dimension Specifications .................................................................................................................	275
Electrical Specifications ...................................................................................................................	276
Environmental Specifications ...........................................................................................................	277
Interface Specifications ....................................................................................................................	277
External USB Device Specifications.................................................................................................	277
Network Interface Specifications......................................................................................................	278
Safety and Approvals Specifications ................................................................................................	278
Notices .....................................................................................................................................................	280
Telephone Equipment Safety Instructions........................................................................................	280
FCC Compliance Statement.............................................................................................................	280
Software Notices (WorkForce Pro WP-4520)...................................................................................	283
Software Notices (WorkForce Pro WP-4533)...................................................................................	288
Trademarks......................................................................................................................................	293
Copyright Notice...............................................................................................................................	293
libTIFF Software Acknowledgment..............................................................................................	294
A Note Concerning Responsible Use of Copyrighted Materials...................................................	294
Default Delay Times for Power Management for EPSON Products ............................................	295
Copyright Attribution....................................................................................................................	295

11

WorkForce Pro WP-4520/WP-4533 User's Guide

Welcome to the WorkForce Pro WP-4520/WP-4533 User's Guide.

13

Product Basics

See these sections to learn about the basic features of your product.

Note: Your product may look different from the illustrations in this guide, but the instructions are the same.

Setting Up the Control Panel

Product Parts Locations

Two-Sided Printing, Scanning, Copying, and Faxing

Selecting Wireless Network Settings From the Control Panel

Wireless Printing from a Mobile Device

Using EPSON Connect Email Print

Setting Up the Control Panel

See these sections to set up the control panel for use.

Printer Parts - Control Panel Buttons and Lights

Changing LCD Screen Language

Turning Off Control Panel Sounds

Parent topic: Product Basics

Printer Parts - Control Panel Buttons and Lights

WP-4520

14

WP-4533

1The power light

2The power button

3The Fax button

4The Scan button

5The Copy button

6The Auto Answer button

7The LCD screen

15

8The arrow buttons

9The OK button

10The number pad

11The Stop/Reset button

12The Error light

13The Speed Dial button

14The Redial/Pause button

15The Setup button

16The Help button

17The Menu button

18The Back button

19The B&W Start button

20The Color Start button

Parent topic: Setting Up the Control Panel

Changing LCD Screen Language

You can change the language used on the LCD screen.

1.Press the Setup button.

2.Press the arrow buttons to select Printer Setup and press the OK button.

3.Select Language and press the OK button.

4.Select a language and press the OK button.

5.Press the Copy button to exit.

Parent topic: Setting Up the Control Panel

Turning Off Control Panel Sounds

You can turn off the sound heard when you press buttons on the control panel.

1.Press the Setup button.

2.Press the arrow buttons to select Printer Setup and press the OK button.

16

3.Select Sound and press the OK button.

4.Select the Off setting and press the OK button.

5.Press the Copy button to exit.

Parent topic: Setting Up the Control Panel

Product Parts Locations

See these sections to identify the parts on your product.

Printer Parts - Paper Path

Printer Parts - Front

Printer Parts - Inside

Printer Parts - Back

Parent topic: Product Basics

Printer Parts - Paper Path

1 Edge guides on paper cassette

17

2Paper stopper

3Output tray extension

4Output tray

5Edge guides on rear MP tray

6Rear MP (multipurpose) tray

7Feeder guard

1Automatic document feeder (ADF) cover

2Edge guide

3Automatic document feeder

4Paper cassette

Parent topic: Product Parts Locations

18

Printer Parts - Front

1Document cover

2Scanner glass

3Control panel

4USB port for external devices

Parent topic: Product Parts Locations

19

Printer Parts - Inside

1Ink cartridge slots

2Front cover

3Print head

Parent topic: Product Parts Locations

20

Printer Parts - Back

1LINE port

2EXT port

3USB port

4Ethernet LAN port

5Maintenance box

6Duplexer (rear unit)

7AC inlet

Parent topic: Product Parts Locations

Two-Sided Printing, Scanning, Copying, and Faxing

You can print on both sides of the page automatically, using the product's built-in duplexer. By loading your pages in the automatic document feeder (ADF), you can also scan, copy, and fax double-sided documents on plain paper in these sizes: Letter (8.5 × 11 inches [216 × 279 mm]) and A4 (8.3 × 11.7 inches [210 × 297 mm]).

•To print on both sides of the page from your computer, select 2-Sided Printing (Windows) or one of the Two-sided Printing Settings (Mac OS X).

21

•To scan a double-sided document in the ADF, press the Scan button, select your scanning method, then press the Menu button. Select Scan Settings > 2-Sided Scanning. If you are using the EPSON Scan software, select ADF - Double-sided as the Document Source (Office or Professional Modes only).

•To copy a double-sided document in the ADF, press the Copy button, then press the Menu button. Select Paper and Copy Settings, then select one of the 2-Sided Copying settings.

•To fax a double-sided document in the ADF, press the Fax button, then press the Menu button. Select Send Settings > 2-Sided Faxing.

Parent topic: Product Basics

Related references

Copying Options

Scan to USB Device Options

Fax Sending Options

Fax Send Options

Related tasks

Selecting Double-sided Printing Settings - Windows

Selecting Double-sided Printing Settings - Mac OS X 10.5/10.6/10.7

Selecting Double-sided Printing Settings - Mac OS X 10.4

Placing Originals in the Automatic Document Feeder

Scanning in Office Mode

Scanning in Professional Mode

Selecting Wireless Network Settings From the Control Panel

You can select or change wireless network settings using your product control panel (WorkForce Pro WP-4533).

To install your product on a wireless network, follow the instructions on the Start Here sheet and install the necessary software from the product CD. The installer program guides you through network setup.

Note: Breakdown or repair of this product may cause loss of fax and network data and settings. Epson is not responsible for backing up or recovering data and settings during or after the warranty period. We recommend that you make your own backup or print out your fax and network data and settings.

1.Press the Setup button.

2.Select Wi-Fi/Network Settings and press the OK button.

22

3.Select Wi-Fi Setup and press the OK button. You see this screen:

4.Select Wi-Fi Setup Wizard and press the OK button.

Note: If you need to disable the wireless network to set up your product on an Ethernet network, select Disable Wi-Fi instead. Then follow the instructions on the Start Here sheet to set up your product on a wired network and install the necessary software from the product CD. The installer program guides you through network setup.

5.Select the name of your wireless network (SSID) or enter the name manually.

Note: To enter the wireless network name manually, select Other SSIDs and press the OK button. Use the displayed keypad to enter your network name, as described in the next step.

23

6. Enter your wireless password (or network name and then password) using the displayed keypad.

Note: If your password has uppercase (ABC) or lowercase (abc) letters, make sure you enter them correctly.

•Press the arrow buttons to highlight a character or a function button displayed on the keypad. Then press the OK button to select it.

•To change the case of letters or select symbols, select AB12 (uppercase), ab12 (lowercase), or Symbol and press the OK button. Then highlight an option and press the OK button to select it.

•To enter a space, select Space and press the OK button.

•To delete characters, select the back arrow and press the OK button.

•When you finish entering characters, select Done and press the OK button.

7.Confirm the displayed network settings and press the OK button to save them.

Note: If you need to change a setting, press the Back button.

8.If you want to print a network setup report, select Yes and press the Back button. (Otherwise, select No.)

9.Press the Copy button to exit.

The WiFi light should now be on, but not flashing.

24

Note: If the WiFi light is off, you may have selected the wrong network name (SSID) or entered the password incorrectly. Repeat these steps to try again.

Parent topic: Product Basics

Wireless Printing from a Mobile Device

You can print photos, documents, web pages, and more from smartphones or tablets, such as iPhones, iPads, and Android devices (WorkForce Pro WP-4533).

1.Set up your product for wireless printing as described on the Start Here sheet.

2.Visit www.epson.com/connect to learn more about mobile device printing and check the compatibility of your mobile device.

3.Connect your mobile device to the same wireless network that your product is using.

4.Print from your mobile device to your EPSON product.

Parent topic: Product Basics

Using EPSON Connect Email Print

With EPSON Connect Email Print, you can print from any device that can send email, such as your smartphone, tablet, or laptop. Email Print features a unique email address assigned to your EPSON product, similar to having a dedicated fax number. When you want to print, just send an email with attachments to your product's email address.

1.Set up your product for network printing as described on the Start Here sheet.

2.If you did not already set up Email Print when you installed your product software, visit www.epson.com/connect to learn more about Email Print, check compatibility, and get detailed setup instructions.

3.Send an email with attachments to your product's Email Print address.

Note: Both the email and any attachments print by default. You can change these printing options by logging into your EPSON Connect account.

Parent topic: Product Basics

25

Loading Paper

Before you print, load paper for the type of printing you will do.

Loading Paper in the Cassette

Loading Paper in the Rear MP (Multipurpose) Tray

Loading Envelopes

Paper Loading Capacity

Available EPSON Papers

Paper or Media Type Settings

Setting the Paper Size for Each Source

Setting Additional Paper Options

Installing the Optional Second Paper Cassette

Loading Paper in the Cassette

You can load Letter (8.5 × 11 inches [216 × 279 mm]), A4 (8.3 × 11.7 inches [210 × 297 mm]), and Legal (8.5 × 14 inches [216 × 357 mm]) plain paper in the paper cassette.

1. Close the output tray, if necessary.

26

2. Pull out the paper cassette.

3. Slide the edge guides outward.

Note: If you are using legal-size paper, squeeze the tab to extend the paper cassette.

27

4. Load a stack of paper, printable side down, in the cassette as shown.

28

5. Slide the edge guides against the paper, but not too tightly.

Note: Make sure the paper fits beneath the top edges of the guide, and is not sticking out from the end of the cassette.

29

Caution: To prevent paper feeding problems, make sure you do not load too much paper in the cassette.

6. Gently replace the paper cassette.

7. Extend the output tray and open the paper stopper.

30
