Home > Overview of Your Scanner Features

Scanning Documents with Carrier Sheet

The carrier sheet enables you to scan documents larger than A4 size (A3, B4, and US B), and documents having irregular shapes or documents with folds or wrinkles.

For instructions on using this feature, see Scanning Documents with Carrier Sheet.

Home > Overview of Your Scanner Features

Text Enhancement

When you scan documents, you can sharpen the text and increase accuracy by using the Text Enhancement feature in Epson Scan.

For instructions on using this feature, see Text Enhancement.

Home > Guide to the Scanner Parts

Scanner Parts

Removal Parts

a. input tray extension b. input tray c. edge guides d. cover open lever e. scanner cover f. output tray g. output tray extension

a. power switch b. DC inlet c. USB interface connector d. security slot

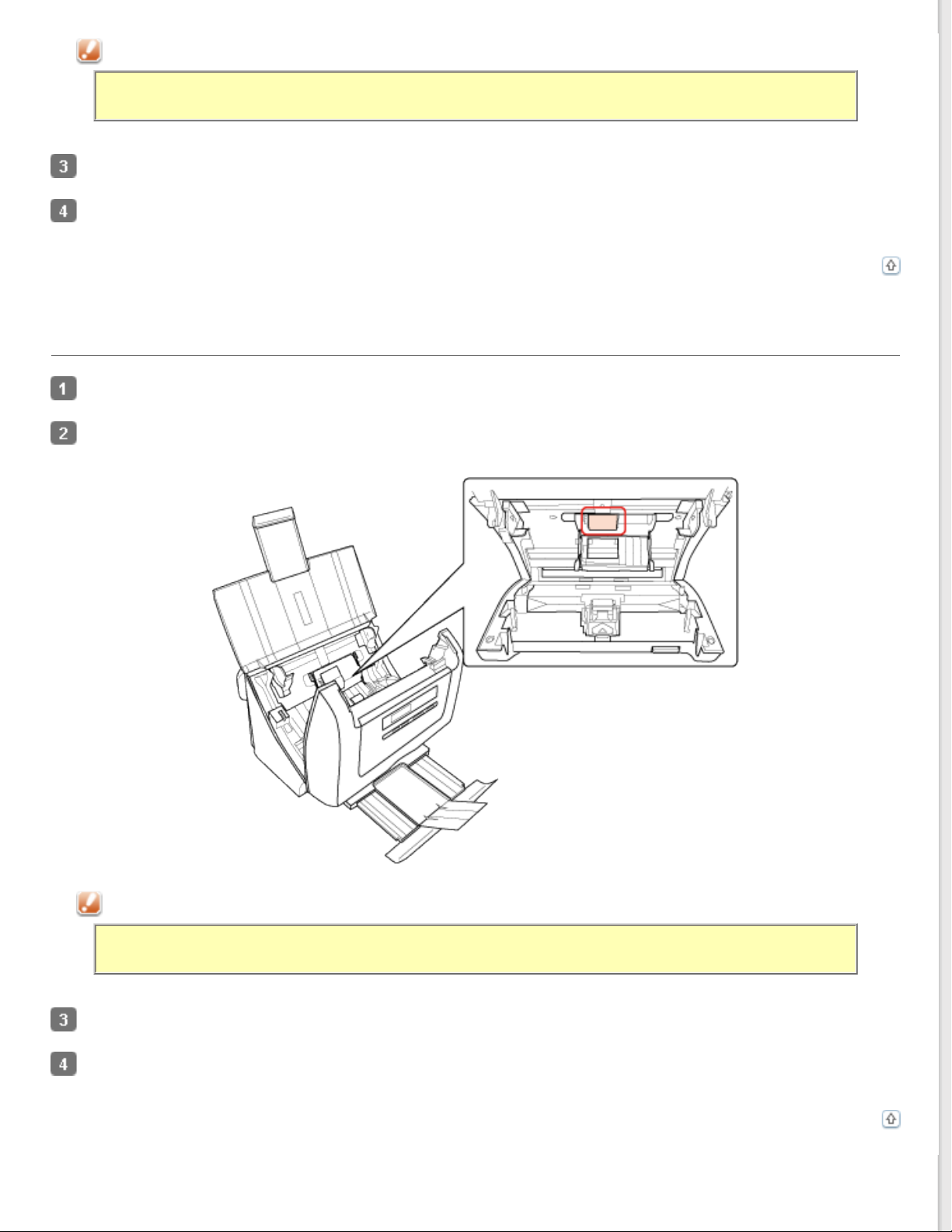

Removal Parts

a. paper feed roller b. separation pad

Top

Home > Guide to the Scanner Parts

Control Panel

Lights Buttons LCD Screen

The scanner has one LCD screen, two indicator lights, and four buttons.

Lights

The status lights are on the right side of the LCD screen.

a. LCD screen b. Error light c. Power light

Color Indicator

Status

Green On Ready to scan images.

Flashing Initializing or scanning.

Orange On Scanner cover is open. See The Lights Are Flashing for more information.

Flashing An error has occurred. See The Lights Are Flashing for more information.

(None) Off The scanner is off.

Meaning

Buttons

The buttons are at the bottom of the LCD screen.

Top

Button Function

a. b. c. d.

Start

Down arrow Up arrow

Cancel

Scrolls through the LCD screen menu list in forward order. Scrolls through the LCD screen menu list in reverse order. Starts scanning. Cancels scanning.

Top

LCD Screen

You can select the scan action from the LCD screen menu list. Press the Up arrow and Down arrow buttons to select the action. The settings or descriptions for the selected action are displayed on the LCD screen. For detailed information, see Assigning a Program to LCD Screen Menu List.

Note for Mac OS X users:

Only the number of the action is displayed on the LCD screen. To confirm the action, check the Epson Event Manager window. See Assigning a Project Program in Epson Event Manager to a LCD Screen Menu

List for instructions.

Top

Home > Placing Originals on the Scanner

Loading Documents

Document Specifications Loading Documents Directly Loading Document with Carrier Sheet

Loading Cards

You can load your original documents into the input tray to scan multiple pages quickly. Before loading documents into the input tray, see Document Specifications to make sure your original documents can be

loaded.

Document Specifications

The table below lists the sizes of paper you can load into the input tray. You can load up to 75 sheets (a stack thickness of 7.5 mm/0.3 inch or less).

Only load sheets that are all the same size.

Paper size Measurements

A4 210 × 297 mm (8.3 × 11.7 inches) Letter 215.9 × 279.4 mm (8.5 × 11 inches) Legal 215.9 × 355.6 mm (8.5 × 14 inches) B5 182 × 257 mm (7.2 × 10.1 inches) A5 148.5 × 210 mm (5.8 × 8.3 inches) A6 105 × 148 mm (4.1 × 5.8 inches)

A8 (Portrait) Business card up to 10 pieces per stack

Plastic card (including emboss card) (Portrait)

* For Windows only. ** For scanning of plastic cards with shiny surfaces, the results are not guaranteed.

Load only documents that meet the following specifications.

52 × 74 mm (2.0 × 2.9 inches)

up to 3.8-mm (0.15-inch) stack thickness 54 × 85.6 mm (2.1 × 3.3 inches)

up to 1 piece per stack up to 1.5-mm (0.06-inch) thickness

Size Width: 52 to 216 mm (2.0 to 8.5 inches)

Length: 73.7 to 914.4 mm (2.9 to 36.0 inches)

Weight

Paper type High-quality paper, Recycled paper

Documents with the following conditions cannot be loaded directly (without using the carrier sheet).

Auto Feeding: 50 to 130 g/m Manual Feeding: 45 to 200 g/m

(0.1 to 0.3 lb/m2)

(0.1 to 0.4 lb/m2)

The ink is wet.

The document is ripped or wrinkled. The document has staples, paper clips, or other objects attached to it; these may damage the feeder mechanism.

The document has folds. The document has cut-out areas. The document is a multi-part form or bound.

The document has rear carbon coating.

* A document with one of these conditions can be loaded if you use the carrier sheet. See Loading Document with

Carrier Sheet for detailed information.

See Loading Documents Directly for instructions on loading your documents.

Loading Documents Directly

Caution:

Do not feed photographs or valuable original artwork into the scanner directly. Misfeeding may wrinkle or damage the original. If you scan these originals, use the carrier sheet.

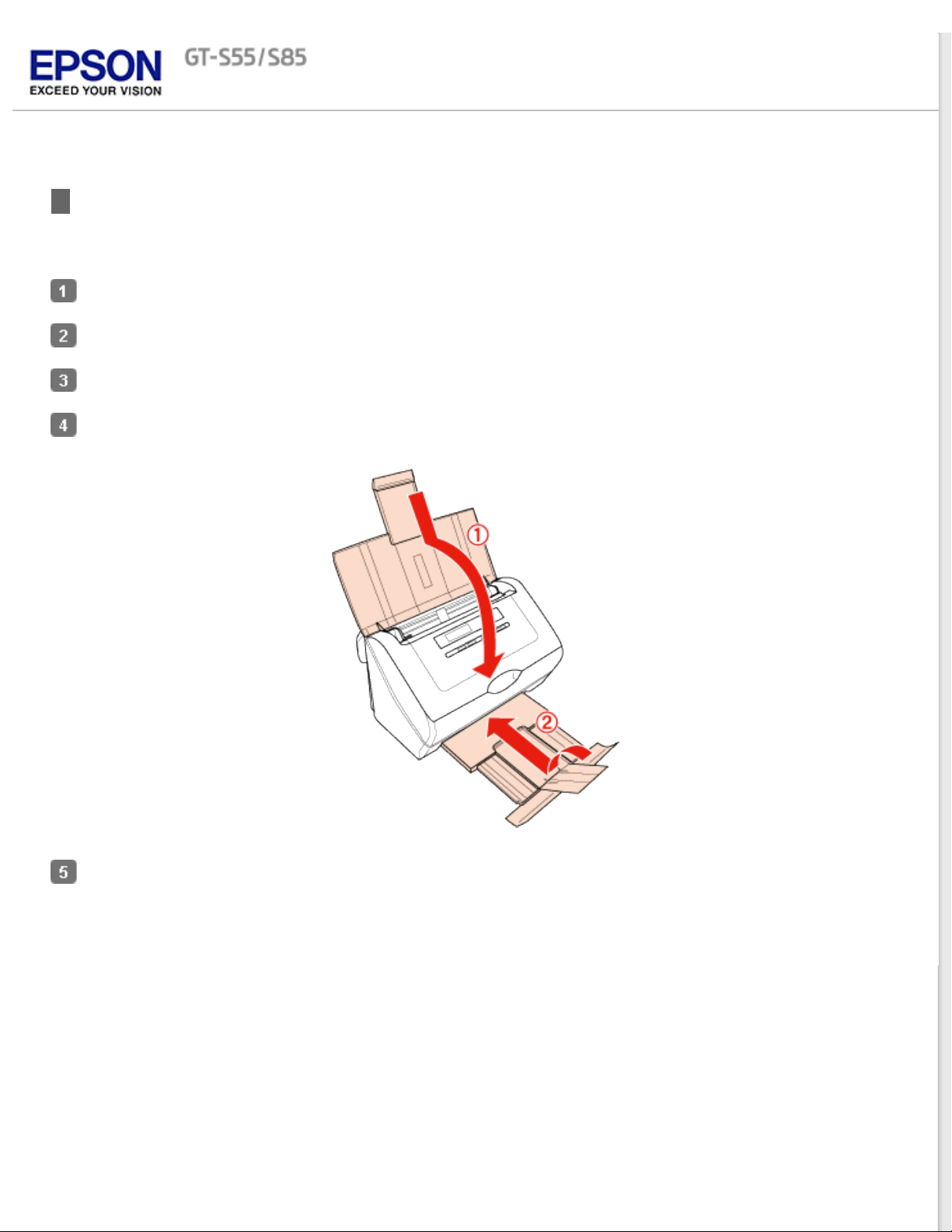

Open and extend the input tray. Then, slide out and extend the output tray.

Top

Slide the edge guides on the input tray all the way outward.

Load only the first page of your documents into the input tray with the printed side facing down and the top edge facing into the feeder. Slide the paper into the feeder until it meets resistance.

Note:

You will load only the first page of your documents, preview it in your scanner software, and load it again with the rest of your pages.

Align the edges of the document; otherwise a paper jam may occur.

Slide the edge guides over to fit the edge of the paper.

To start scanning, see Starting Scan Using the Epson Scan for instructions.

Loading Document with Carrier Sheet

Note:

Top

You can scan documents with the following condition using the carrier sheet.

The document has an irregular shape. The document has folds or wrinkles.

Make sure that the carrier sheet is not loaded mixed in with other documents that are not using the Carrier Sheet.

Open the carrier sheet and place the document inside on the top-center of the carrier sheet.

If the document is larger than A4 size, neatly fold the document with the printed side facing outwards.

Load the carrier sheet into the input tray with the printed side facing down and the top edge facing into the feeder.

If you place the folded document into the carrier sheet, load the carrier sheet into the input tray with the left side of the original document facing down and the top edge facing into the feeder.

Slide the carrier sheet into the feeder until it meets resistance. Then slide the edge guides over to fit the edge of the carrier sheet.

To start scanning, see Starting Scan Using the Epson Scan for instructions.

Loading Cards

Top

Note:

For scanning of plastic cards with shiny surfaces, the results are not guaranteed.

Open and extend the input tray. Then, slide out and extend the output tray.

Slide the edge guides on the input tray all the way outward.

Load the card into the input tray with the printed side facing down and the left edge facing into the feeder. Slide the card into the feeder until it meets resistance. Then slide the edge guides over to fit the edge of the card.

When you scan plastic cards, you can load only one card. When you scan cards or business cards, you can load up to 10 cards.

Caution:

Do not load plastic cards in landscape orientation.

Note:

When you scan cards or business cards, preview function is not available.

To start scanning using the Epson Scan, see Scanning Documents for instructions.

Home > Scanning Your Originals

Starting Scan Using the Control Panel

a. LCD screen b.

c. d. e.

You can start scanning by selecting one of the following functions from the LCD screen menu list. The scan starts with the scan action you assigned in advance. To assign a program to the LCD screen menu, see Assigning a Program to LCD

Screen Menu List for instructions.

Note for Mac OS X users:

Only the number of the action is displayed on the LCD screen. To confirm the action, check the Epson Event Manager window. See Assigning a Project Program in Epson Event Manager to a LCD Screen Menu

List for instructions.

B&W PDF-Simplex (Mac OS X) or Scan to PDF (B&W) (Windows) lets you scan Black & White images. The scanner scans the documents and saves them as one PDF file on your computer. See Scanning to a PDF File for

instructions. Color PDF-Simplex (Mac OS X) or Scan to PDF (Color) (Windows) lets you scan Color images. The scanner scans

the documents and saves them as one PDF file on your computer. See Scanning to a PDF File for instructions. B&W PDF-Duplex (Mac OS X only) lets you scan Black & White images. The scanner scans both sides of the

documents and saves them as one PDF file on your computer. See Scanning to a PDF File for instructions. Color Jpeg to E-mail function (Mac OS X only) lets you scan a color image and attach the scanned image file to

Down arrow button Up arrow button Start button

Cancel button

an E-mail message. See Scanning Directly to an E-mail for instructions. Scan to PDF (Gray) (Windows) lets you scan grayscale images. The scanner scans the documents and saves

them as one PDF file on your computer. See Scanning to a PDF File for instructions. Scan to PDF (Auto) (Windows) detects the document source automatically, scans both sides of documents

loaded in the ADF, and saves them as one PDF file on your computer. See Scanning to a PDF File for instructions.

Home > How to Scan

Scanning Using Document Capture Pro (for Windows)

This section explains basic scanning procedures using Document Capture Pro. See help for details on Document Capture Pro.

Place your original(s).

Start Document Capture Pro.

Select the start button icon or Start > All Programs or Programs > EPSON Software > Document Capture Pro.

Click Scan.

Adjust settings in the Main Settings window as necessary, and then click Scan.

Click Detailed Settings if you want to make more detailed adjustments using the EPSON Scan window. The document is scanned and displayed as an image in Document Capture Pro.

Check the scanned images (pages), and then edit as needed.

When you have finished checking the image, click the destination icon.

+ 67 hidden pages
