Epson Stylus Photo R200, Stylus Photo R210 Service Manual

SERVICE MANUAL

®

Color Inkjet Printer

EPSON Stylus Photo R200/R210

Notice

o All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or by any means electronic, mechanical,

photocopying, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION.

o The contents of this manual are subject to change without notice.
o All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would greatly

appreciate being informed of them.

o The above not withstanding SEIKO EPSON CORPORATION can assume no responsibility for any errors in this manual or the consequences thereof.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.

General Notice:Other product names used herein are for identification purpose only and may be trademarks or registered trademarks of the ir respective owners.

EPSON disclaims any and all rights in those marks.

Copyright © 2003 SEIKO EPSON CORPORATION.

Imaging & Information Product Division
TP • CS Quality Assurance Department

PRECAUTIONS

Precautionary notations throughout the text are categorized relative to 1) Personal injury and 2) damage to equipment.
DANGER Signals a precaution which, if ignored, could result in serious or fatal personal injury. Great caution should be exercised in performing

procedures preceded by DANGER Headings.

WARNING Signals a precaution which, if ignored, could result in damage to equipment.

The precautionary measures itemized below should always be observed when performing repair/maintenance procedures.

DANGER

1. ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL DEVICES PERFORMING ANY MAINTENANCE OR REPAIR PROCEDURES.

2. NO WORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIAR WITH BASIC SAFETY MEASURES AS DICTATED FOR ALL ELECTRONICS
TECHNICIANS IN THEIR LINE OF WORK.

3. WHEN PERFORMING TESTING AS DICTATED WITHIN THIS MANUAL, DO NOT CONNECT THE UNIT TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. WHEN
THE POWER SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN WORKING ON POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.

4. WHEN DISASSEMBLING OR ASSEMBLING A PRODUCT, MAKE SURE TO WEAR GLOVES TO AVOID INJURIER FROM METAL PARTS WITH SHARP EDGES.

WARNING

1. REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON CERTIFIED REPAIR TECHNICIAN.

2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE S AME AS THE RATED VOLT AGE, LISTED ON THE SERIAL NUMBER/ RATING PLATE. IF TH E EPSON PRODUCT
HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT CONNECT IT TO THE POWER SOURCE.

3. ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE POWER SOURCE BEFORE REMOVING OR REPLACING PRINTED CIRCUIT
BOARDS AND/OR INDIVIDUAL CHIPS.

4. IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE STATIC DISCHARGE EQUIPMENT, SUCH AS ANTI-STATIC WRIST STRAPS, WHEN
ACCESSING INTERNAL COMPONENTS.

5. DO NOT REPLACE IMPERFECTLY FUNCTIONING COMPONENTS WITH COMPONENTS WHICH ARE NOT MANUFACTURED BY EPSON. IF SECOND SOURCE IC OR
OTHER COMPONENTS WHICH HAVE NOT BEEN APPROVED ARE USED, THEY COULD CAUSE DAMAGE TO THE EPSON PRODUCT, OR COULD VOID THE
WARRANTY OFFERED BY EPSON.

About This Manual

This manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the printer. The instructions and
procedures included herein are intended for the experienced repair technicians, and attention should be given to the precautions on the preceding page.

Manual Configuration

This manual consists of six chapters and Appendix.

CHAPTER 1. TROUBLESHOOTING

Describes the step-by-step procedures for the troubleshooting.

CHAPTER 2. DISASSEMBLY / ASSEMBLY

Describes the step-by-step procedures for disassembling and
assembling the product.

CHAPTER 3. ADJUSTMENT

Provides Epson-approved methods for adjustment.

CHAPTER 4. MAINTENANCE

Provides preventive maintenance procedures and the lists of
Epson-approved lubricants and adhesives required for
servicing the product.

APPENDIX Provides the following additional information for

reference:

• Electrical circuit boards schematics

Symbols Used in this Manual

Various symbols are used throughout this manual either to provide additional
information on a specific topic or to warn of possible danger present during a
procedure or an action. Be aware of all symbols when they are used, and
always read NOTE, CAUTION, or WARNING messages.

A D J U S T M E N T

R E Q U I R E D

C A U T I O N

C H E C K

P O I N T

W A R N I N G

Indicates an operating or maintenance procedure, practice or
condition that is necessary to keep the product’s quality.

Indicates an operating or maintenance procedure, practice, or
condition that, if not strictly observed, could result in damage to,
or destruction of, equipment.

May indicate an operating or maintenance procedure, practice or
condition that is necessary to accomplish a task efficiently. It
may also provide additional information that is related to a
specific subject, or comment on the results achieved through a
previous action.

Indicates an operating or maintenance procedure, practice or
condition that, if not strictly observed, could result in injury or
loss of life.

Indicates that a particular task must be carried out according to a
certain standard after disassembly and before re-assembly,
otherwise the quality of the components in question may be
adversely affected.

Revision Status

Revision Issued Date Description

A January 29, 2004 First Release

CONTENTS

Chapter 1 TROUBLESHOOTING

1.1 Overview .............................................................................................................. 8

1.2 Troubleshooting with LED/LCD Indications and Status Monitor 3 Message ..... 9

1.3 Unit Level Troubleshooting ............................................................................... 14

Chapter 2 DISASSEMBLY AND ASSEMBLY

2.1 Overview ............................................................................................................ 31

2.1.1 Precautions ................................................................................................. 31

2.1.2 Tools .......................................................................................................... 32

2.1.3 Pre-Shipment Checks ................................................................................. 32

2.2 Caution regarding assembling/disassembling the printer mechanism, and how to

ensure the quality of reassembled product ............................................................... 34

2.3 Disassembly ........................................................................................................ 36

2.3.1 Paper Support Assy./Housing (left/right)/Stacker

Assy. removal ............................................................................................ 37

2.3.2 Housing (frame)/Panel Assy./Panel Board removal .................................. 39

2.3.3 ASF Unit removal ...................................................................................... 40

2.3.4 CR Motor removal ..................................................................................... 42

2.3.5 Print Head removal .................................................................................... 43

2.3.6 Porous Pad, Paper Guide, Front removal ................................................... 44

2.3.7 Board, Main removal ................................................................................. 45

2.3.8 Holder, Shaft Unit removal ........................................................................ 46

2.3.9 APG Unit removal ..................................................................................... 49

2.3.10 Paper Guide, Upper removal ................................................................... 50

2.3.11 Carriage Unit removal ................................................... ...... ...... .............. 51

2.3.12 Printer Mechanism/Housing (lower) removal ......................................... 57

2.3.13 Power Supply Unit removal ..................................................................... 61

2.3.14 CDR Guide Assy. removal ...................................................................... 62

2.3.15 Ink System Unit removal ......................................................................... 64

2.3.16 Paper Guide, Front/Roller EJ Assy. removal ........................................... 67

2.3.17 PF Motor removal .................................................................................... 71

Chapter 3 ADJUSTMENT

3.1 Adjustment Items and Overview ............................................ ...... ...................... 73

3.1.1 Servicing Adjustment Item List ................................................................. 73

3.1.2 Replacement Part-Based Adjustment Priorities ........................................ 77

3.2 Adjustment by using adjustment program ........................ .................................. 79

3.2.1 Market Setting ........................................................................................... 79

3.2.2 USB ID Input ............................................................................................. 79

3.2.3 Head ID Input ............................................................................................ 79

3.2.4 Head Angular Adjustment ......................................................................... 80

3.2.5 Bi-d Adjustment ........................................................................................ 80

3.2.6 PW Sensor Adjustment .............................................................................. 81

3.2.7 First Dot Adjustment ................................................................................. 81

3.2.8 Offset Input for CR Motor Calorific Limitation ........................................ 82

3.2.9 A4 Normal Paper Print .............................................................................. 82

3.2.10 A4 Photo Quality Inkjet Paper Print ........................................................ 82

3.2.11 A4 Photo Paper/ Glossy Photo Paper print .............................................. 82

3.3 Adjustment Except Adjustment Program ........................................................... 83

3.3.1 PG Adjustment .......................................................................................... 83

Chapter 4 MAINTENANCE

4.1 Overview ............................. ...... ...... ....................................... ............................ 87

4.1.1 Cleaning ..................................................................................................... 87

4.1.2 Service Maintenance .................................................................................. 87

4.1.3 Lubrication ................................................................................................. 89

Chapter 5 APPENDIX

5.1 Exploded Diagram .............................................................................................. 97

5.2 Electrical Circuits ............................................................................................... 97

TROUBLESHOOTING

CHAPTER

EPSON Stylus Photo R200/R210 Revision A

1.1 Overview

This chapter describes how to identify troubles in two levels: unit level repair and
component level repair. Refer to the flowchart in this chapter to identify the defective
unit and perform component level repair if necessary. This ch apter also ex plains m otor
coil resistance, Sensor specification and error indication.

START

UNIT-LEVEL TROUBLESHOOTING

UNIT REPAIR

ASSEMBLY AND ADJUSTMENT

END

Figure 1-1. Troubleshooting Flowchart

Table 1-1. Motor, Coil Resistance

Motor Location Check Point Resistance

PF Motor

(Same as ASF/

Pump Motor)

CN6

Pin 1 and 3
Pin 2 and 4

±10%

3.0W

(25°C/phase)

Since "CR Motor" and APG Motor are DC motors, the resistance among the electric
poles varies. Therefore, judge if it is normal or abnormal based on if there is operation
of the motor or not; the resistance values cannot be used to judge the abnormality.
However, it is difficult to judge accurately, if it is not clear, replace the motor.

Table 1-2. Sensor check point

Sensor name Location Check point Signal level Switch mode

Off :
No paper

On :
Detect paper

Off :
Anywhere of PG

On :
In process of
switchin g PG

On :
ASF mode

Off :
CDR mode

PE Sensor CN9 Pin 1 and 2

PG Sensor CN14 Pin 1 and 2

Star Wheel

Sensor

CN11 Pin 1 and 2

More than 2.4V

Less than 0.4V

More than 2.4V

Less than 0.4V

-

-

-

CDR Sensor CN11 Pin 3 and 4

-

Off :
No CDR Tray

On :
Detect CDR Tray

TROUBLESHOOTING Overview 8

EPSON Stylus Photo R200/R210 Revision A

1.2 Troubleshooting with LED/LCD Indications and Status Mo nit or 3 Message

This section describes the LED/LCD indication, the STM3 message and the error condition when the printer detects an error in each operation such as the power on, the paper
loading/feeding and the ink absorption operatio n. (As for the screen shot in STM3 message, it’s used screen shot of Stylus Photo R300/310 as a substitute for that of Stylus Photo
R200/210.)

Table 1-3. LED Indication and STM3

Printer status

Communication Error -- -- --

Error before Initial Ink

Charge

Power Paper Ink

Blink -- On

LED indication

STM3 message Condition for error detection

This error is detected when the printer cannot
communicate with the PC properly.

This error is detected when a defective cartridge
is installed in the printer which the Initial Ink
Filling is not done yet.

TROUBLESHOOTING Troubleshooting with LED/LCD Indications and Status Monitor 3 Message 9

EPSON Stylus Photo R200/R210 Revision A

Table 1-3. LED Indication and STM3

Printer status

Error before ink

replacement Cleaning

Ink Low Condition -- -- Blink

Power Paper Ink

-- -- On

LED indication

STM3 message Condition for error detection

Note :
Printing operation can be performed until it becomes ink
end condition even afte r the e rror message is display ed on
STM3. However, the Head Cl eaning oper ation ma y not be
performed due to the Ink Low condition.

This error is detected when replacing the Ink
Cartridge, if the new cartridge is defective.

This error is detected when the ink consumption
reaches about 90%.

(Note)
When the Ink Low Condition is detected, the
Maintenance LED will blink. The printer will
continue to keep this LED status even if a new
Ink Cartridge is installed in the Ink Cartridge
replacement posi tion . H oweve r, th is L ED st atus
will be reset (LED off) when "Carriage Unit"
returns to the home position.

TROUBLESHOOTING Troubleshooting with LED/LCD Indications and Status Monitor 3 Message 10

EPSON Stylus Photo R200/R210 Revision A

Table 1-3. LED Indication and STM3

Printer status

Ink Out Error

Paper Out Error

LED indication

Power Paper Ink

-- -- On

-- On --

STM3 message Condition for error detection

This error is detected in either of the following
cases.

1. The ink consumption reached 100%.

2. The Ink Cartridge is faulty. (CSIC memory
data error)

(Note)
If Ink Out Error is detected, a small amount of
ink remains in the Ink Cartridge to protect the
Print Head from printing operation.

This error is detected when the top of paper
cannot be detected with the PE Sensor in a
paper loading.

This error is detected when ;

1. The end of paper cannot be correctly

Paper Jam Error

(Including CD/DVD)

-- Blink --

detected with the PE Sensor in a paper
loading.

2. The rear of CD/DVD cannot be correctly
detected with the Star Wheel/CDR Sensor in
a CD/DVD loading.

TROUBLESHOOTING Troubleshooting with LED/LCD Indications and Status Monitor 3 Message 11

EPSON Stylus Photo R200/R210 Revision A

Table 1-3. LED Indication and STM3

Printer status

No Ink Cartridge

Maintenance Request

LED indication

Power Paper Ink

-- -- On

Off

Altternant

Blink 1

Altternant

Blink 2

STM3 message Condition for error detection

This error is detected when ;

1. The Ink Cartridge is not installed to
"Carriage Unit".

2. The Ink Cartridge is defective.

This error is detected when the value of the
Waste Ink Pad Counter A set in EEPROM
reaches its limit (Variable be tween 20000 and
46750 points).

This error is detected when ;

1. Paper is pre s e nt in "ASF Assy.", and "CDR
Guide Assy." is open while receiving print
data.

CD/DVD Guide Error

-- Blink 2 Fast Blink

2. "CDR Guide Assy." opens while printing.

3. "CDR Guide Assy." is open while receiving
ASF paper feed data.

4. Attempting to replac e the ink while "CDR
Guide Assy." is open.

TROUBLESHOOTING Troubleshooting with LED/LCD Indications and Status Monitor 3 Message 12

EPSON Stylus Photo R200/R210 Revision A

Table 1-3. LED Indication and STM3

Printer status

CD/DVD Tray Error

Fatal error

LED indication

Power Paper Ink

-- On --

Off Fast Blink Fast Blink

STM3 message Condition for error detection

This error is detected when "CD/DVD Tray"
cannot be detected while CD/DVD printing.

This error is detected when ;

1. "Carriage Unit" cannot move correctly by the
external force in each operation.

2. "PF Motor" cannot rotate correctly while " PF
Motor" operates.

Following is the Blink timing of each Blink condition.

-- : No change of the LED status
Blink : 0.5sec. on + 0.5sec. off
Blink 2 : 0.2sec. on + 0.2s ec. off + 0.2sec. on + 0.4sec. off
Fast Blink : 0.1sec. on + 0.1sec. off
Alternant Blink 1 : Same as Blink
Alternant Blink 2 : Same as Blink

TROUBLESHOOTING Troubleshooting with LED/LCD Indications and Status Monitor 3 Message 13

EPSON Stylus Photo R200/R210 Revision A

1.3 Unit Level Troubleshooting

You can identify the troubles by using the checklist in this section after confirming the
LED/LCD indication on the control panel or the error message displayed on STM3 of
the PC connected to the printer. As a result, you can save the whole repair time. When
finding any faulty parts, refer to Chapter 2 "ASSEMBLY/DISASSEMBLY" and
replace them. Following tables describe the error conditions (LED/LCD and STM3)
and their possible cause.

Table 1-4. Check Points for Communication Error to Each Phenomenon

Occurrence Timing

Position of CR

At power-on

Anywhere

At operation

Phenomenon Detail

When turning on the power, the printer
does not operate at all.

When turning on the power, the
initialization is performed correctly.
However, a Communication Error is
displayed on ST M3 even transf erring the
printing job to the printer.

Faulty Part/

Part Name

Power Supply

Board

Main Board

USB Cable

Printer Driver

1. Check if "Power Supply Bo ard Cable" is connect ed to
the CN2 on "Main Boa r d" .

2. Check if "Power Supply Board Cable" is not da maged.

1. Check if the correct mod el name is written in EEPROM
on "Main Board".

1. Check if "USB Cable" is connected properly bet ween
the printer and the PC.

1. Check if the Stylus Photo R200/R210 Printer Driver is
used for the printer job.

The following is the example of how to use the tables.
Example) When "Carriage Unit" is out of the home position at the power on timing,

the Fatal Error may be caused by the failure of "CR Motor". Moreover,
there are 3 possible causes on "CR Motor" failure.

(Note)
When individual part that makes up "Roller EJ Assy.", "PF Motor" and "Ink System
Assy." is defective, replace the Printer Mechanism with a new one basically. However,
if an individual part needs to be replaced urgently, execute the necessary operation by
referring to Chapter 2 "ASSEMBLY/DISASSEMBLY".

Check Point Remedy

1. Connect "Power Supply Board cable" to the
CN2 on "Main Board".

2. Replace "Power Supply Board" with a new
one.

* If the problem still occurs, replace "Main

Board".

1. Write proper Market Setting in the Adjustment
Program.

1. Connect the printer and the PC with a "USB
Cable".

1. Install the Stylus Phot o R200/R210 Pri nter
Driver in the PC.

TROUBLESHOOTING Unit Level Troubleshooting 14

EPSON Stylus Photo R200/R210 Revision A

Table 1-5. Check Points for Error Before the Initial Ink Charge, Error Before Ink Cartridge Replacement Cleaning and No Ink Cartridge Error

Occurrence Timing

Position of CR

At power-on

At HP

At power-on

Anywhere

Occurrence Timing

Position of CR

Phenomenon Detail

The printer does not perform the Initial
Ink Charge and the error is displayed on
LED and STM3.

The printer does not perform the Ink
Replacement Cleaning and the error is
displayed on LED and STM3.

The printer does not perform any print
operation and the err or is displayed on
LED and STM3.

Table 1-6. Check Points for Paper Out Error to Each Phenomenon

Phenomenon Detail

Faulty Part/

Part Name

Ink Cartridge

Main Board

Ink Cartridge

Ink Cartridge

Faulty Part/

Part Name

Check Point Remedy

1. Check if the Ink Cartridge is normal by installing it in
another printer.

1. Check if the correct data has been written in the address
5B<H> of EEPROM on "Main Board".
(We cannot check it with Adjustment Program of Sylus
Photo R200/R210.)

1. Check if the Ink Cartridge is normal by installing it in
another printer.

1. Check if ink still remains in the Ink Cartridge.

2. Check if the Ink Cartridge is normal by installing it in
another printer.

Check Point Remedy

1. Check if "Hopper" works properly while feeding paper. 1. Reassemble "ASF Frame" and "Compression

1. Replace the Ink Cartridge with a new one.

1. Write proper Market Setting in the
Adjustment Program.

1. Replace the Ink Cartridge with a new one.

1. Replace the Ink Cartridge with a new one.

2. Replace the Ink Cartridge with a new one.

Spring, 2.51" correctly.

Compression Spring, 2.51

At operation

-

"Holder, Shaft, LD Roller" rotates to
feed paper, but "Hopper" does not
operate.

ASF Assy.

TROUBLESHOOTING Unit Level Troubleshooting 15

EPSON Stylus Photo R200/R210 Revision A

Table 1-6. Check Points for Paper Out Error to Each Phenomenon

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

When feeding paper, the lead ing e dge o f
paper is detected properly, but the paper
is ejected without being set at the print
start position.

"PF Motor" and "Spur Gear, 37. 242"
rotate prop erly, but "Holder, Shaft, LD
Roller" does no t feed paper. (The
driving of "PF Motor" is not transmitte d
to "Holder, Shaft, LD Roller".)

Faulty Part/

Part Name

ASF Assy.

Holder, Shaft,

LD Roller

Check Point Remedy

1. Check if "Roller, Retard Assy." operates properly while
feeding paper.

1. Check if "Extension Spring,0.143" in "Clutch
Mechanism" has not come off.

2. Check if "Clutch" has not come off from the dowel of
"Shaft, LD Roller".

3. Check if "Clutch Tooth" is not damaged.

Extension Spring, 0.143

Clutch Tooth

1. Reasse mble "Exte ns ion Spr ing , 0.45 " loca ted
the under side of "Roller, Retard Assy.".

Extension

Spring, 0.45

1. Reassemble "Extension Spring, 0.143" in
"Clutch Mechanism".

2. Reassemble the round portion of "Clutch" on
the dowel of "Shaft, LD Roller".

3. Replace "Holder, Shaft, LD Roller" with a
new one.

Dowel of "Holder, Shaft, LD Roller"

4. Check if "Clutch" is not damaged.

4. Replace "Holder, Shaft, LD Roller" with a
new one.

Paper Guid e,

Upper

1. Check if "Paper Guide, Upp e r " (only HP side) has not
come off from "Main Frame".

1. Reassemble "Paper Guide, Uppe r" to "M ain
Frame".

(Only HP side)

TROUBLESHOOTING Unit Level Troubleshooting 16

EPSON Stylus Photo R200/R210 Revision A

Table 1-6. Check Points for Paper Out Error to Each Phenomenon

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

"PF Motor" and "Spur Gear, 37. 242"
rotate prop erly, but "Holder, Shaft, LD
Roller" does no t feed paper. (The drive
of "PF Motor" does not prop a ga te to
"Holder, Shaf t, LD Roller".)

"Holder, Shaft, LD Roller" is not set in
the ASF home position and paper is
always fed from "ASF Assy.".

"Holder, Shaft, LD Roller" does not feed
paper during the feeding operati on. "PF
Motor" and "Spur Gear, 37.242" also
does not rotate at all.

Faulty Part/

Part Name

Ink System

Ink System

PF Motor*

Check Point Remedy

1. Check if "Compression Spring, 2.36" of "Lever, Change"
does not come off.

Lever, Change

Compression Spring, 2.36

1. Check if the tip of "Lever, Change" is not damaged. 1. Replace "Ink System" with a new one.

1. Check if "PF Connector Cable" is connected to CN6 on
"Main Board".

2. Check if the coil resistance of "PF Motor" is
approximately 3.0W with a tester. Refer to Table 1-1.

3. Check if "PF Motor Connector Cable" is damaged.

1. Check if the surface of "LD Roller" is contaminated with
paper dust.

1. Replace "Ink System" with a new one.

1. Connect "PF Motor Connector Cable" to CN6
on "Main Board".

2. Replace "PF Motor" with a new one.

3. Replace "PF Motor" with a new one.

1. Remove the dust by using a soft bruch or soft
cloth moistened with alcohol.

* If the problem is not solved, replace "LD

At operation

-

"Holder, Shaft, LD Roller" rotates
properly, but paper is not fed.

Holder, Shaft

LD Roller

LD Roller

Roller" with a new one.

TROUBLESHOOTING Unit Level Troubleshooting 17

EPSON Stylus Photo R200/R210 Revision A

Table 1-7. Check Points for Paper Jam Error to Each Phenomenon

Occurrence

Timing

Position of CR

At power-on

Anywhere

Phenomenon Detail

"PF Motor" doe s not work at all. PF Motor

Paper feeding operation is performed
normally, but paper is not sent into the
printer.

Faulty Part/

Part Name

ASF Assy.

Check Point Remedy

1. Check if "PF Motor Co nnector Cable" is connected to
CN6 on "Main Board".

2. Check if the coil resistance of "PF Motor" is
approximately 3.0W with a tester. Refer to Table 1-1.

3. Check if "PF Motor Connector Cable" is damaged.

1. Check if "Roller, Retard Assy." operates properly while
feeding paper.

1. Check if "Torsion Spring, 0.22" is not unfa stened from
"PE Sensor Lever".

1. Connect "PF Motor Connector Cable" to CN6
on "Main Board".

2. Replace "PF Motor" with a new one.

3. Replace "PF Motor" with a new one.

1. Reassemble "Extension Spring, 0.45" located
the under side of "Roller, Retard Assy.".

Extension

Spring, 0.45

1. Reassemble "Torsion Sprin g, 0.22"

PE Sensor

Torsion Spring, 0.22

2. Check if "PE Sensor Cable" is not unfastene d.

3. Check if "PE Sensor Cabl e" is correctly mo unted on
"Holder, Shaft, LD Roller".

4. Check if "PE Sensor Cable" is not damage d.

2. Connect "PE Sensor" Connector to CN9 on
"Main Board".

3. Remount "PE Sensor Cable" correctly.

4. Replace "PE Sensor" with a new one.

TROUBLESHOOTING Unit Level Troubleshooting 18

EPSON Stylus Photo R200/R210 Revision A

Table 1-7. Check Points for Paper Jam Error to Each Phenomenon

Occurrence

Timing

Position of CR

At operation

Out of HP

At operation

-

Phenomenon Detail

"Carriage Unit" moves to the home
position properly when turning on the
power. Then paper feeding operation is
performed normally, but paper is not
sent into the printer.

When feeding paper, the leading edge of
paper is detected properly, but the paper
is ejected without being set at the print
start position. At this time, the next
paper is fed to "PE Sensor Lever".

Faulty Part/

Part Name

PE Sensor*

ASF Assy.

Frame EJ Assy.**

Paper Guide, Front

Check Point Remedy

1. Check if "Torsion Sp ring, 0.22" for " PE Sensor Lever" is
not unfastened.

2. Check if "PE Sensor Cabl e" is correctly mo unted on
"Holder, Shaft, LD Roller".

1. Check if "Roller, Retard Assy." operates properly while
feeding paper.

1. Check if "Star Wheels" have not come off.

2. Check if "Frame EJ Assy." is correctly assembled.

3. Check if "Frame EJ Assy." is not transformed toward
downward.

1. Check if "porous pad" of "Paper Guide, Front" has not
come off.

1. Reassemble "Torsion Spring, 0.22".

2. Remount "PE Sensor Cable" correctly.

1. Reas semble "Extens ion Spri ng, 0.45 " back of
"Roller, Retard Assy."

Extension

Spring, 0.45

1. Reassemble "Star Wheels" correctly.

2. Reassemble "Frame EJ Assy." correctly.

3. Replace "Frame EJ Assy." with a new one.

1. Remount "porous pad" correctly.

The leading edge of paper does not go
through between "Roller EJ Assy." and
"Star Wheels".

1. Check if "Roller EJ Assy." is correctly assembled.

2. Check if "Spur Gear, 41.48" has not come off.

Roller EJ Assy.

Spur Gear, 41.48

1. Reassemble "Roller EJ Assy." correctly onto
"Printer Mechanism".

2. Reattach "Spur Gear, 41.48" to "Roller EJ
Assy." co r r e ctly.

TROUBLESHOOTING Unit Level Troubleshooting 19

EPSON Stylus Photo R200/R210 Revision A

Table 1-7. Check Points for Paper Jam Error to Each Phenomenon

Occurrence

Timing

Position of CR

At operation

-

* "Carriage Unit" can move to the home position even if "Extension Spring, 0.22" has come off or "PE Sensor" is not set in the correct position. However, in the next operation, a Paper Jam Error

will be detected since "PE Sensor Lever" will maintain the High signal status.

** There some cases where the jammed paper may damage "Print Head" by contacting the surface of "Print Head nozzl e" when a Paper Jam Error occurs in each operation.

The leading edge of paper is not sent to
"PF Roller".

Phenomenon Detail

Faulty Part/

Part Name

Paper Guide,

Upper

Check Point Remedy

1. Check if "Paper Guide, Upp er" has not come off from
"Main Frame".

Paper Guide, Upper

1. Reattach "Pap er Guid e, Uppe r" to "M ai n
Frame".

TROUBLESHOOTING Unit Level Troubleshooting 20

EPSON Stylus Photo R200/R210 Revision A

Table 1-8. Check Points for CD/DVD Guide Error to Each Phenomenon

Occurrence Timing

Position of CR

At power-on

At HP

Phenomenon Detail

An error occurs even if "CDR Guide
Assy." is closed when turning on the
power.

Faulty Part/

Part Name

Housing, Middle

Star Wheel/

CDR Sensor

Check Point Remedy

1. Check if the contact point of "Housing, Middle" with
"Star Wheel/CDR Sensor" is not c racked.

Contact

point

1. Check if "Star Wheel/CDR Sensor" is connected to CN11
on "Main Board".

Star Wheel/CDR Sensor

1. Replace "Housing, Middle" with a new one.

1. Connect "Star Wheel/CDR Sensor" to CN11
on "Main Board".

Main Board

2. Check if "Star Wheel/CDR Sensor" is not damaged.

3. Check if "Star Wheel/CDR Sensor" cable is not cut off.

1. Check if any device on "Main Board" is not damaged. 1. Replace "Main Board" with a new one.

2. Replace "Star Wheel/CDR Sensor" with a
new one.

3. Replace "Star Wheel/CDR Sensor" with a
new one.

TROUBLESHOOTING Unit Level Troubleshooting 21

EPSON Stylus Photo R200/R210 Revision A

Table 1-9. Check Points for CD/DVD Tray Error to Each Phenomenon

Occurrence Timing

Position of CR

When printing

CDR/DVDR

-

Phenomenon Detail

An error occurs even though "CDR
Tray" is set when printing CDR/DVDR.

Faulty Part/

Part Name

CDR Tray

CDR Tray Sensor

Check Point Remedy

1. Check if the contact point of "CDR Tray" with "CDR
Tray Sensor" is not crack ed.

Contact point

1. Check if "CDR Tray Sens or" is connected to CN11 on
"Main Board".

CDR Tray Sensor

2. Check if "CDR Tray Sensor" is not damaged.

1. Replace "CDR Tray" with a new one.

1. Connect "CDR Tray Sensor" to CN11 on
"Main Board".

2. Replace "CDR Tray Sensor" with a new one.

Main Board

3. Check if "CDR Tray Sensor Connector Cable" is not cut
off.

1. Check if any device on "Main Board" is not damaged. 1. Replace "Main Board" with a new one.

3. Replace "CDR Tray Sensor" with a new one.

TROUBLESHOOTING Unit Level Troubleshooting 22

EPSON Stylus Photo R200/R210 Revision A

Table 1-10. Check Points for Fatal Error to Each Phenomenon

Occurrence Timing

Position of CR

At power-on

Out of HP

Phenomenon Detail

"CR Motor" does not work at all when
turning on the power.

"Carriage Unit" strikes on "Lever,
Change" which is leaning forward when
turning on the power.

Faulty Part/

Part Name

CR Motor

PF Motor

Ink System

Check Point Remedy

1. Check if "CR Motor Connector Cable" is connected to
CN5 on "Main Board ".

2. Check if "CR Motor Connector Cable" is not damaged.

1. Check if "PF Motor Connector Cable" is connected to
CN6 on "Main Board ".

2. Check if the resistance of "PF Motor" is approximately

3.0W using a tester. Refer to Tabl e 1-1.

3. Check if "PF Motor Connector Cable" is not damaged.

1. Check if "Compression Spring, 2.36" of "Lever, Change"
has not come off.

Lever, Change

Compression Spring, 2.36

1. Check if "Paper Guide, Upper" has not come off from
"Main Frame".

1. Connect "CR Motor Connector Cable" to
CN5 on "Main Board ".

2. Replace "CR Motor" with a new one.

1. Connect "PF Motor Connector Cable" to CN6
on "Main Board".

2. Replace "PF Motor" wit h a new one.

3. Replace "PF Motor" wit h a new one.

1. Replace "Ink System" with a new one .

1. Reassemble "Paper Guide, Upper" to "M ain
Frame".

Paper Guide, Upper

1. Reassemble "CR Scale" correctly.
* If the problem is not solved, replace

"Main Board" with a new one.

At power-on

Anywhere

"Carriage Unit" strikes on "Paper Guide,
Upper" which has come off from "Main
Frame" when turn ing on the power.

"Carriage Unit" strikes on the right side
of "Main Frame" when turning on the
power.

Paper Guid e,

Upper

CR Scale

1. Check if "CR Scal e " has not co m e off or it pr op e rly
passes through the slit of "CR Encoder Sensor Board".

TROUBLESHOOTING Unit Level Troubleshooting 23

EPSON Stylus Photo R200/R210 Revision A

Table 1-11. Check Points When More Than One Paper is Fed Constantly Without LED/STM3's Error Notifications

Occurrence Timing

Position of CR

At operation

-

Occurrence Timing

Position of CR

Phenomenon Detail

The printer always feeds more than one
sheet of paper without LED/STM3's
error notifications.

Phenomenon Detail

Abnormal sound is he ard in spite of the
normal print operation at the first power
on or some other time.

Faulty Part/

Part Name

1. Check if "Roller, Retard Assy." works correctly while
feeding paper.

ASF Assy.

Check Point Remedy

Table 1-12. Check Points for Abnormal Sound

Faulty Part/

Part Name

Carriage Unit

Ink System

1. Check if there is enough grease on "CR Guide Shaft". 1. Wipe t he remaining grease of f "CR Guide

1. Check if "Lever, Change" moves smoothly. 1. Replace "Ink System" with a new one .

Check Point Remedy

1. Reassemble "Extension Spring, 0.45" on the
back of "Roller, Retard Assy."

Extension Spring,

0.45

Shaft" and reap pl y some grease.

Any time

Anywhere

The bottom of "Carriage Unit" touches
the surface of "Front Frame".

"Carriage Unit" strikes on "Paper Guide,
Upper" while "Carriage Unit" is
working.

Frame EJ Assy.

Paper Guid e,

Upper

1. Check if "Frame EJ Assy." is not warping upward. 1. Replace "Frame EJ Assy." with a new one.

1. Check if "Paper Guide, Upper" has not come off from
"Main Frame".

1. Reassemble "Paper Guide, Upper" to "M ain
Frame".

TROUBLESHOOTING Unit Level Troubleshooting 24

EPSON Stylus Photo R200/R210 Revision A

Table 1-13. Check Points for Defective Print Quality

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

[Phenomenon 1]
When the printer is performing the
Cleaning task, the ink is not drained into
"Waste Ink Pad" in spite of the correct
function of "Pump Unit".
The ink is not absorbed from "Print
Head" to the Cap at all.

[Phenomenon 2]
When the printer is performing the

Cleaning task, the ink is drained into
"Waste Ink Pad". (This indic at es tha t
both of "Pump Unit" and "Cap Unit" are
working correctly.) However, missing
dots is not solved at certain nozzles even
performing the Cleaning several times.

[Phenomenon 3]
When the printer is performing the
Cleaning task, the ink is drained into
"Waste Ink Pad". (This indic at es tha t
both of "Pump Unit" and "Cap Unit"
work correctly.) However, the wiping
function is not executed correctly and
some different colors of ink mix
together.

Faulty Part/

Part Name

Ink System

Check Point Remedy

1. Check if there is not any for eign matter on the sealing
rubber on "Cap Unit".

Sealing rubber

2. Check if the sealin g rubb er on "Ca p Unit" is not d amaged .

3. Check if "Compression Spring, 2.53" is properly attached
in "Cap Unit".

Compression

Spring, 2.53

4. Check if "Pump Tube" is properly connected to the
bottom of "Cap Unit".

Contact point of

Pump Tube

1. Remove the foreign matter from the sealing
rubber.

2. Replace "Ink System" with a new one .

3. Replace "Ink System" with a new one .

4. Replace "Ink System" with a new one .

[Phenomenon 4]
When the printer is performing the
Cleaning task, the ink is drained into
"Waste Ink Pad". However, some

5. Check if "Extension Spring, 0.788" has not come off from
"Slider Cap".

6. Check if "Extension Spring, 0.441" has not come off from
"Slider Cap".

5. Reassemble "Extension Spring, 0.788"
correctly.

6. Reassemble "Extension Spring, 0.441"
correctly.

missing dots occurs while printing.
[Phenomenon 5]

Extension Spring, 0.441

When the printer is performing the
Cleaning task, the ink is drained into
"Waste Ink Pad". However, missing dot
occurs and the points where it occurs
varies in every movement of the

Extension Spring, 0.788

Cleaning.

TROUBLESHOOTING Unit Level Troubleshooting 25

EPSON Stylus Photo R200/R210 Revision A

Table 1-13. Check Points for Defective Print Quality

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

[Phenomenon 6]
When the Cleaning is working , the ink is
drained into "Waste Ink Pad". However,
some missing dots and out of alignment
occur while printing. They are not
solved even executing the Cleaning
several times.

* If the problem is not solved,

replace "Main Board" with a new
one.

Banding phenomenon occurs in a
direction perpendicular to "Carriage
Unit" movement getting uneven print
density.

Direction of

CR movement

Faulty Part/

Part Name

Ink System

Ink Cartridge

Print Head

Carriage Unit

Check Point Remedy

7. Check if "Slider Lock Lever" is not dam a ged. 7. Replace "Ink System" with a new one .

1. Check if ink still remains in Ink Cartridge 1. Replace the Ink Cartridge with a new one.

1. Check if there is not any foreign matte r on t he nozzle
surface of "Print Head".

2. Check if "Head FFC" is connected to CN7 and CN8 on
"Main Board", or to the board on "Print Head".

3. Check if "Head FFC" is not damaged.

4. Check if each segment prints correctly with t he Nozzle
Check Pattern.

1. Check if there is no foreign matter on the surface of "CR
Guide Shaft".

2. Check if there is no damage on the surface of "CR Gu ide
Shaft".

3. Check if there is enough grease on the surface of "CR
Guide Shaft".

4. Check if "CR Guide Shaft" is properly connected to
"Main Frame" with the fixing spring of "C R Guide
Shaft".

1. Perform the wiping operation. Replace
"Wiper" when "Wiper" is deformed or
contaminated awfully.

2. Securely connect "He ad F FC " to "Main
Board" or the board on "Print Head".

3. Replace "Head FFC" with a new one.

4. Perform Head Cleaning and check the Nozzle
Check Pattern.

* If the problem is not solved, repla ce "Print

Head" with a new one.

1. Remove the foreign matter on "CR Guide
Shaft".

2. Replace "CR Guide Shaft" with a new one.

3. Wipe the surface of "CR Guide Shaft" with a
dry soft cloth, and t hen apply G-63 to it.
Refer to Section 4.1.3.

4. Reassemble "CR Guide Shaft" correctly.

(Note)
If the problem is not so lved, replac e "CR
Motor" with a new one.

TROUBLESHOOTING Unit Level Troubleshooting 26

EPSON Stylus Photo R200/R210 Revision A

Table 1-13. Check Points for Defective Print Quality

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

Banding phenomenon occurs in a
direction perpendicular to "Carriage
Unit" movement getting uneven print
density.

Banding phenomenon occurs in a
direction horizontally to " Carriage Un it"
movement.

Direction of

CR movement

(Note)
If the problem is not solve d , rep lace " PF
Motor" with a new one.

Banded strip es appear in a dire ction
horizontally to "Carriage Unit"
movement.

Faulty Part/

Part Name

Frame EJ Assy.

Print Head

PF Roller

Printer Driver and

Special Paper

Print Head

Check Point Remedy

1. Check if the surface of "Frame EJ Assy." is precisely
horizontal.

1. Check if "Print Head" prints correctly with the Nozzle
Check Pattern.

1. Check if there is not any foreign matter on the su rface of
"PF Roller".

2. Check if "PF Roller" is not damaged.

3. Check if "Spur Gear, 37.242" is not dama ged or broken.

1. Check if approp ria te pa per is use d in a cco rdan ce with the
Printer Driver settings.

1. Check if "Print Head" prints correctly with the Nozzle
Check Pattern.

1. Check if "porous pad" in front of "Paper Guide, Front"
has not come off.

1. Replace "Frame EJ Assy." with a new one.

1. Perform the Head Cleaning, then check the
Nozzle Check Pattern.

* If the problem is not solved, repla ce "Print

Head" with a new one.

1. Clean the surface of "PF Roller".

2. Replace "Printer Mechanism" with a ne w
one.

3. Replace "Printer Mechanism" with a ne w
one.

1. Use the appropriate type of paper in
accordance with the Printer Driver.

1. Perform the Head Cleaning, then check the
Nozzle Check Pattern.

* If the problem is not solved, repla ce "Print

Head" with a new one.

1. Reattach "porous pad".

Paper Guide, Front

These stripes appear when the print
paths overlap each oth e r.

TROUBLESHOOTING Unit Level Troubleshooting 27

EPSON Stylus Photo R200/R210 Revision A

Table 1-13. Check Points for Defective Print Quality

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

One or more than one traces of "Star
Wheels" appear in a direction
perpendicular to "Carriage Unit"
movement.

Normal printing task is performed;
however, the top margin is less than
usual.

Faulty Part/

Part Name

Frame EJ Assy.

Roller EJ Assy.

Holder, Shaft,

LD Roller

Check Point Remedy

1. Check if "Star Wheels" have not come off.

2. Check if the surface of "Frame EJ Assy." is mounted
horizontally.

1. Check if "Roller EJ Assy. " has no t come off from "Pr inter
Mechanism".

1. Check if any paper dust has not adhered to the surface of
"LD Roller".

LD Roller

1. Reassemble "Star Wheels" correctly.

2. Replace "Frame EJ Assy." with a new one.

1. Reassemble "Roller EJ Assy." correctly.

1. Remove the dust by using a soft bruch or soft
cloth moistened with alcohol.

* If the problem is not solved, replace

"Holder, Shaft, LD R oller" with a new
one.

The print is light and thin.

Printer Driver and

Special Paper

Print Head

1. Check if approp ria te pa per is use d in a cco rdan ce with the
Printer Driver settings.

1. Check if the correct Head ID has bee n inpu t in EEPROM
by using the Adjustment Program.

1. Use the appropriate type of paper in
accordance with the Printer Driver settings.

1. Input 15-digit ID code of the Head ID in
EEPROM by using the Adjustment Progra m

TROUBLESHOOTING Unit Level Troubleshooting 28

EPSON Stylus Photo R200/R210 Revision A

Table 1-13. Check Points for Defective Print Quality

Occurrence Timing

Position of CR

At operation

-

Phenomenon Detail

The paper is stained with the ink.

The upper edge of the paper gets
creased.

Faulty Part/

Part Name

Frame EJ Assy.

Paper Guide, Front

Roller EJ Assy.

Paper Guid e,

Upper

PF Roller

Ink System

Print Head

ASF Assy.

Check Point Remedy

1. Check if there is any ink adhesion on "F rame EJ Assy.". 1. Clean the ink adhesion on "Fr a me EJ Assy."
with a soft cloth.

1. Check if "Frame EJ Assy." has not warped upward. 1. Replace "Frame EJ Assy." with a new one.

1. Check if there is any ink adhesion on "Paper Guide,

Front".

2. Check if "porous pad" of "Paper Guide, Front" has not

come off.

1. Check if there is any ink adhesion on "Roller EJ Assy.". 1. Clean the ink adhesion on "Ro ller EJ Assy."

1. Check if there is any ink adhesion on "Paper Guide,

Upper".

1. Check if there is any ink adhesio n on "PF Roller". 1. Clean the ink adhesion o n "PF Roller" with a

1. Check if the wiping operation has been perform ed

correctly.

1. Check if th ere is an y ink ad he s ion on "Print Head Cove r " . 1. Clean the ink adhesion on "Print Head Cover"

1. Check if "Hopper Pad" is stuck to "Hopper" correctly. 1. Replace "ASF Assy." with a new one.

1. Clean the ink adhesion o n "Paper Guide,
Front" with a soft cloth.

2. Reattach "porous pad".

with a soft cloth.

1. Clean the ink adhesion o n "Paper Guide,
Upper" with a soft cloth.

soft cloth.

1. Replace "Ink System" with a new one .

with a soft cloth.

TROUBLESHOOTING Unit Level Troubleshooting 29

DISASSEMBLY AND ASSEMBLY

CHAPTER

EPSON Stylus Photo R200/R210 Revision A

2.1 Overview

This section describes procedures for disassembling the main components of Stylus
Photo R200/R210. Unle ss otherwise speci fied, disassembly un its or components can be
reassembled by reversing the disassembly procedure.
"WARNING" indicates procedures which may result in damage, injury or involving
human lives if you don't take extra care.
"CAUTION" indicates precautions for any disassembly or assembly procedures.
"CHECK POINT" indicates points to be checked.
"REASSEMBLY" indicates reassembling procedures which are different from the
reverse order of the disassembling.
"ADJUSTMENT REQUIRED" indicates required adjustments after the assembly and
the disassembly.
Read precautions described in the next section before starting.

2.1.1 Precautions

Before starting the disassembling/reassembling work of this product, always read the
descriptions under the following headings "WARNING" and "CAUTION" carefully.

W A R N I N G

n Disconnect the power cable before disassembling or assembling

the printer.

n If you need to work on the printer with power applied, strictly

follow the instructions in this manual.

n Wear protective goggles to protect your eyes from ink. If ink gets

in your eye, flush the eye with fresh water and see a doctor
immediately.

n Always wear gloves for disassembly and reassembly to avoid

injury from sharp metal edges.

n To protect sensitive microprocessors and circuitry, use static

discharge equipment, such as anti-static wrist straps, when
accessing internal components.

n Never touch the ink or wasted ink with bare hands. If ink comes

into contact with your skin, wash it off with soap and water
immediately. If you have a skin ir ritation, consult a physician.

n When reassembling the waste ink pads and tray, always make

sure that the waste ink tube is fitted correctly in the specified
place. Fitting the ink tube in other than the specified position can
cause ink leakage.

W A R N I N G

C A U T I O N

C A U T I O N

n Avant de commencer, assure vous que l’imprimante soit eteinte

et que le cordon d’alimentation soit debranche.

n Veillez a jeter les piles usagees selon le reglement local.

Risque d’explosion si la pile est remplacée incorrectment. Ne
remplacer que par une pile du même type ou d’un type équivalent
recommandé par le fabricant. Eliminer les piles déchargées selon
les lois et les règles de sécurité en vigueur.

n When transporting the printer after installing the ink cartridge,

be sure to pack the printer for transportation without removing
the ink cartridge.

n Use only recommended tools for disassembling, assembling or

adjusting the printer. (Refer to Table 2-1 "Tool List".)

n Observe the specified torque when tightening screws.
n Use the specified lubricants and adhesives. (Refer to Chapter 4

for details.)

n Make the specified adjustments when you disassemble the

printer. (Refer to Chapter 3 for details.)

DISASSEMBLY AND ASSEMBLY Overview 31

EPSON Stylus Photo R200/R210 Revision A

2.1.2 Tools

Use only specified tools to avoid damaging the printer.

Table 2-1. Tools

Tool Name Supplier Code

Phillips Screw Driver (No. 0) EPSON 1080531
Phillips Screw Driver (No. 1) EPSON 1080530
Phillips Screw Driver (No. 2) EPSON 1080532
Tweezers EPSON 1080561
Acetate Tape EPSON 1003963

2.1.3 Pre-Shipment Checks

When returning this product to the user after completing printer repair, check that the
work is complete using the following table.

Table 2-2. Service Completion Pre-Shipment Check List

Classification Item Check Point Status

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

Main Unit

Adjustment

Self-test Is the operation normal?

On-line Test Is the printing successful?

Print Head

Carriage
Mechanism

Paper Feeding
Mechanism

Specified
Adjustment

Is ink discharged normally from
all the nozzles?

Does it move smoothly?

Is there any abnormal noise
during its opera tion?

Is there any dirt or foreign
objects on the CR Guide Shaft?

Is the CR Motor at the correct
temperature?
(Not too heated? )

• Is paper fed smoothly?

• No paper ja mming?

• No paper skew ?

• No multiple feeding?

• No abnormal noise?
Is the PF Motor at correct

temperature?
Is the paper path free of an y

obstructions?
Are all the adjustment done

correctly?

DISASSEMBLY AND ASSEMBLY Overview 32

EPSON Stylus Photo R200/R210 Revision A

Table 2-2. Service Completion Pre-Shipment Check List

Classification Item Check Point Status

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

o Checked
o Not necessary

Lubrication

Function ROM Version

Packing

Others

Specified
Lubrication

Ink Cartridge

Protective
Materials

Attachments,
Accessories

Are all the lubrication made at
the specified points?

Is the amount of lubrication
correct?

Is it the latest version?
Version:

Are the ink cartridges installed
correctly?

Have all relevant protective
materials been attached to the
printer?

Have all of the accessories been
included in the package?

DISASSEMBLY AND ASSEMBLY Overview 33

EPSON Stylus Photo R200/R210 Revision A

2.2 Caution regarding assembling/disassembling
the printer mechanism, and how to ensure the
quality of reassembled product

For the existing Low End models, it is basically forbidden to remove "Housing,
Lower" from "Printer Mechanism". This is because the strength of "Frame, Main" is
not strong enough, therefore, "Frame, Main" may be transformed when removing/
reinstalling it from/to "Housing, Lower".
For that reason, when replacing "Ink System" or "PF Motor", it is recommended to
replace not only "Housing, Lower" but also "Printer Mechanism".

For this printer, it is necessary that "Housing, Lower" be removed from "Printer
Mechanism" when replacing "Waste ink Pads" or "Ink System Unit".
Therefore, this chapter specifies the disassembly/assembly of "Printer Mechanism"
which "Housing, Lower" has been taken out in order to secure the quality of the
repaired items.

o Caution for disassembly/assembly of Printer Mechanism

1. "Printer Mechanism" with "Housing, Lower"

• Do not hold "Guide Plate, CR" Þ Transforming of "Frame, Main" and
"Guide Plate, CR" may give some bad influence to PG or printing.

• Do not touch "CR Guide Shaft" and/or the surface of the head nozzle.

2. "Printer Mechanism" without "Housing, Lower"

• Manage the standard values for installation. (See below)

• First, remove "Support Plate, Frame, Main". Then, remove "Roller PF
Unit", "Roller EJ Assy." and "Paper Guide, Front".

• Make sure to manage "Waste Ink Tube".

• Be careful with the interconnection of "Star Wheel/CDR Sensor"
connector cable.

• Assemble "Cam, CR, Left" while gearing with the APG gear.

n Management of the reference position for installation

[Reason]
Accurate installation for each comp onent of "Prin ter Mechanism" is on a basis
of "Housing, Lower".

[Support for Service]
Check if there is no gap between "Frame, Main" and "Housing, Lower".

[Reference]
In order to ensure the accuracy for installation, it is necessary to manage the
reference position for installation in X, Y and Z direction.

[X-axis direction]

• Check if "Frame, Main" is correctly set to the groove of "Housing,
Lower".

• Check if there is no gap between "Frame, Main" and "Housing, Lower".

[Y-axis direction]

• Check if the slot of "Frame, Main" is correctly attached to the projection
of "Housing, Lower".

[Z-axis direction]

• Check if there is no gap between "Frame, Main" and "Housing, Lower".

• Check if correctly secured with the hooks (2 on the left, 1 on the right, 1
on the right front) of "Printer Mechanism".

n Management of the perpendicular accuracy of "Guide Plate, CR" (The

standards of the guide rail's perpendicular direction is on the basis of the
hooks of "Carriage Unit" and "Print Head".)

[Reason]
Deformation of "Guide Plate, CR" may cause the defective print/operation.

[Support for Service]
Specify the correct raising position for "Main Frame" so that it will not be
deformed.

DISASSEMBLY AND ASSEMBLY Caution regarding assembling/disassembling the printer mechanism, and how to ensure the quality of reassembled product 34

EPSON Stylus Photo R200/R210 Revision A

n How to install "ASF Unit", "Main Board" and "Paper Guide, Upper"

[Reason]
When installing these three components, too much force can be given to
"Frame, Main", therefore, it may be deformed and cause the defective print/
operation.

[Support for Service]
Hold the opposite side of the components securely, when installing them.

3. CDR Guide Assy.

n Management of the level accuracy of "CDR Guide Assy."

[Reason]
Deformation of "CDR Guide Assy." may cause the defective print.

[Support for Service]
Disassemble/assemble carefully "CDR Guide Assy.".

o How to secure the quality for reassembled products

It can be judged that the quality for the reassembled products is guaranteed if the
printing test with the Adjustment program is successful.

DISASSEMBLY AND ASSEMBLY Caution regarding assembling/disassembling the printer mechanism, and how to ensure the quality of reassembled product 35

EPSON Stylus Photo R200/R210 Revision A

2.3 Disassembly

The following flowchart shows the order of disassembling procedure. When disassembling any unit, refer to the page number shown in the flowchart.

CR Motor removal

（2.3.4P.42）

Paper Suuport Assy./Housing (right/left)/

Stacker Assy. removal （2.3.1P.37）

Housing (frame)/Panel Assy./Panel
Board removal (2.3.2P.39）

Main Board removal

（2.3.7P.45）

APG Unit remov al

（2.3.9P.49）

Start

ASF Unit removal
（2.3.3P.40）

Holder, Sha ft Unit remo v al

（2.3.8P.46）

CR Unit removal

（2.3.11P.51）

Print Head removal

（2.3.5P.43）

Print Head removal

（2.3.5P.43）

NOTE: indicates that the procedure in the broken-line box is NOT the shortest

removing procedure, but the passi ng poi nt for the next removing procedure .

NOTE: When removing ’CDR Guide Assy.’ or ’Paper Guide, Front/ Roller EJ Assy.’, We

have to remove Carriage Unit before removing Printer Mechanism.

Porous Pad, Paper Guide, Front
removal （2.3.6 P.44 ）

Main Board removal

（2.3.7P.45）

Printer Mechanism/Housing (lower)
removal（2.3.12P.57）

Paper Guide, Upper removal

（2.3.10P.50）

CDR Guide Assy. removal

（2.3.14P.62）

Ink System Unit removal

（2.3.15P.64 ）

Paper Guide, Front/Roller, EJ Assy. removal

（2.3.16P.67）

PF Motor removal

（2.3.17P.71）

P/S Board Unit removal

（2.3.13P.61 ）

Figure 2-1. Disassembly Procedure Flowchart

DISASSEMBLY AND ASSEMBLY Disassembly 36

EPSON Stylus Photo R200/R210 Revision A

2.3.1 Paper Support Assy./Housing (left/right)/Stacker
Assy. removal

o External View

Housing, Right Housing, Left

5 5

Backside

2 1

6

Paper Support Assy.

3 3

6

Protrusion for paper
support assy.

C.B.P3x8(4‑6kgf/cm)C.B.P3x8(4‑6kgf/cm)

o Parts/Units which should be removed before removing paper support assy./

Housing (left/right)/Stacker assy.

Non

o Disassembly Proc e d u re

n Paper support assy. removal

1. Release t wo protrusions for securing the paper support assy. to ASF frame.

n Housing (left/right) removal

1. Remove the screw ( , x1, , x1) for securing the housing (left/right).

2. Release the hook ( , x1) forward by using screwdriver.

3. Release the hook ( , x1) by inserting minus screwdriver between the housing
(lower) and the housing (left/right).

4. Release "Carriage Lock" with the tweezers or alike, then move "Carriage
unit" to the centre of the printer.

5. Remove th e housing (left/right) by insert your hand to the printer mechanism.

1 2

3

4

4

Bottom (ri ght side) Bottom (left side)

Carriage lock lever

4

Figure 2-2. paper support assy./Housing (left/right)/Stacker assy. removal

DISASSEMBLY AND ASSEMBLY Disassembly 37

EPSON Stylus Photo R200/R210 Revision A

o External View

Left frontside

Stacker Assy.

Hook

Figure 2-3. Stacker assy. removal

n Stacker assy. removal

1. Release one hook for securing the stacker assy. to housing (lower), and remove it
forward.

C A U T I O N

o When removing paper support assy./ho using (left/right)/stacker

assy.;

n Do not injure your hand by the tool, such as the screwdrive.
n Do not tilt the printer too much because ink may flow if the

cap is not covered by the print head.

o When reinstalling paper support assy./housing (left/right)/

stacker assy.;

n Make sure that there is no clearance beteen the housing (left/

right) and the housing (frame).

n Make sure that the right side of the stacker assy. is set to the

damper correctly.

n Make sure that the paper support assy. is installed to the

ASF unit.

DISASSEMBLY AND ASSEMBLY Disassembly 38

EPSON Stylus Photo R200/R210 Revision A

2.3.2 Housing (frame)/Panel Assy./Panel Board removal

o External View

Left front side Right front side

1

5

Backside

3
2

4 4 4

C.B.P2.5x8(3‑5 kgf /c m)

C.B.S3x8(5‑7kgf/cm)

Panel FFC

Cover, Ink Tube

CN4

Housing, Frame

5

Panel assy.

o Disassembly Proc e d u re

n Housing (frame) removal

1. Remove the screw ( , x1) for securing the housing (frame) to the printer
mechanism.

2. Remove the screw ( , x1) for securing the "Cover, Ink tube" to the housing
(frame), and release the hook ( , x1) of the cover.

3. Release the hooks ( , x3) for securing the backside of the housing (frame).

4. Release the hooks ( , x2) for securing the front side of the housing (frame).

5. Remove the housing (frame) upward.

1

2

3

4

5

n Panel assy. removal

1. Release two hooks for securing the panel assy. to the housing (frame).

n Panel board removal

1. Remove the panel board upward.

o When reinstalling the housing (frame),

n You have to reeve the panel FFC to the hole of the housing

(frame) is inserted to the panel board before installing the
housing (frame).

n Make sure to connect panel FFC to the main board (CN4)/

panel board before installing the housing (frame).

Figure 2-4. Housing (frame) removal

Panel board

o Parts/Units which should be removed before removing Housing (frame)/

Panel assy./Panel board

Paper Support Assy./Housing (left/right)/Stacker Assy.

Hole for reeving the p anel FFC

Figure 2-5. Panel board installation

n Make sure that there is no clearance beteen the housing

(frame) and the housing (lower).

DISASSEMBLY AND ASSEMBLY Disassembly 39

EPSON Stylus Photo R200/R210 Revision A

2.3.3 ASF Unit removal

o External View

C.B.S 3x6 (5-7kgf/cm)

C.B.S 3x6 (5-7kgf/cm)

C.B.P 3x8 (5-7kgf/cm)

Backside

Screw, Frame, Main 3x6 (5-7kg f/cm)

C.B.P 3x6 (3-5kgf/cm)

Paper Return Lever

1

Extension Spring 0.45

ASF Unit

C.B.S(P4) 3x6 (5-7kgf/cm)

Screw, ASF (4-5kgf/cm)

Acetate tape

CN11

Board, Main

Support Plate, Frame, ASF

Torsion Spring 6.45

2

Roller, Retard Assy.

CN14

o Parts/Units which should be removed before removing "ASF Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)

o Disassembly Proc e d u re

1. Disconnect the PG sensor connector cable & the CDR tray sensor cable from
the connector (CN14/CN11) of the "Board, Main".

2. Remove the screws (x5) for securing "ASF Unit", and remove "ASF Unit" to
the backside of the printer.

3. Remove the screws (x3) for securing the PG sensor connector cable & the
CDR tray sensor cable to ASF frame, and release the cables.

4. Remove the ASF unit backward.

5. Open "Hopper" and then remove "Compression Spring, 2.51".

6. Bow slightly down "Paper Return Lever" and release the dowels (x2) on the
both sides in the order of , ., and remove "Paper Return Lever".

C A U T I O N

When removing "Paper Return Lever", the spring washer will
detach and drop. Take care not to lose it.

7. Remove the screws (x2) for securing "Support Plate, Frame, ASF".

8. Release the hooks (x2) for securing "Extension Spring, 0.45", and remove
"Roller, Retard Assy.".

1 2

Figure 2-6. ASF Unit removal

DISASSEMBLY AND ASSEMBLY Disassembly 40

EPSON Stylus Photo R200/R210 Revision A

o When reassembling "ASF Unit",

n Make sure that "Extension Spring, 0.45" is hooked on

"Frame, ASF" and "Roller, Retard Assy.".

n Make sure that "Torsion Spring, 6.45" is correctly installed

on "Paper Return Lever" and "Frame, ASF".

Torsion Spring, 6.45

Figure 2-7. "Torsion Spring, 6.45" removal

n Make sure that "Paper Return Lever" and "Roller, Retard

Assy." move smoothly.

n Do not touch the cork of "Hopper".

A D J U S T M E N T

R E Q U I R E D

o When having replaced "ASF Unit", apply G-46 grease to the

specified points in adequate dose. (Refer to Chapter 4
"MAINTENANCE")

o When having replaced or removed "ASF Unit", implement the

adjustment in the following order. (Refer to Chapter 3
"ADJUSTMENT")

1. First Dot Adjustment

o When reinstalling "ASF Unit",

n Install "Compression Spring, 2.51" on "Hopper", then

check if "Hopper" moves smoothly.

n Screw in the order as shown in the figure.
n Make sure that there is no gap between "ASF Unit" and

"Frame, Main".

DISASSEMBLY AND ASSEMBLY Disassembly 41

EPSON Stylus Photo R200/R210 Revision A

2.3.4 CR Motor removal

o External View

Backside

CR Motor

Puller, Driven

Timing Belt

Figure 2-8. CR Motor removal

Hook

CN5

C.C 3x4 (3.5-4.5kgf•cm)

1 2

CR Motor

o Disassembly Proc e d u re

1. Disconnect the CR motor connector cable from the connector (CN5) of
"Board, Main".

2. Release the CR motor connector cable from the "Holder, Shaft Unit".

3. Release the carriage lock with the tweezers or alike, then move "Carriage
Unit" to the centre of the printer.

4. Push "Pulley, Driven" in the direction of the arrow and loosen the tension of
"Timing Belt". Then, remove "Timing Belt" from the pinion gear of "CR
Motor".

5. Remove the screws (x2) which secure "CR Motor", and remove "CR Motor".

C A U T I O N

Do not damage the pinion gear when removing "CR Motor".

o When reinstalling the "CR Motor",

n Make sure to screw "CR Motor" in the order as shown in

the figure.

n Make sure that there is no gap between "CR Motor" and

"Frame, Main".

n Make sure that the part on which "CR Motor" Lot number

is printed is face-up.

o When having removed or replaced "CR Motor", implement the

adjustment in the following order. (Refer to Chapter 3
"ADJUSTMENT")

o Parts/Units which should be removed before removing "CR Motor"

Paper Support Assy./Housing (left/right)/Housing (frame)

A D J U S T M E N T

R E Q U I R E D

1. First dot Adjustment

2. PW Sensor Adjustment

3. Head Angular Adjustment

4. Bi-D Adjustment

5. Offset Input for CR Motor Calorific Limitation (When
Replaced)

DISASSEMBLY AND ASSEMBLY Disassembly 42

EPSON Stylus Photo R200/R210 Revision A

2.3.5 Print Head removal

o External View

Hooks

Holder, FFC

C.B.P 2.5x6 (3-5kgf•cm)

Hooks

Holder, IC

Print Head

Figure 2-9. Print Head removal

o Parts/Units which should be removed before removing "Print Head".

Paper Support Assy./Housing (left/right)/Housing (frame)

o Disassembly Procedure

1. Remove all the ink cartridges from "Carriage Unit".

2. Release "Carriage Lock Lever" with the tweezers or alike, then move
"Carriage Unit" to the centre of the printer.

Cable, Head

C.B.B (P2) 2.5x8 (3-5kgf•cm)

6. Remove the screws (x2) for securing "Print Head" with Phillips screwdriver
(No.1).

7. Disconnect "Cable, Head" from the connector (CN7/8) of "Print Head" while
slightly lifting "Print Head", and remove "Print Head".

C A U T I O N

Do not touch and/or damage t he nozzle surface of "Print Head"
when handling it.

o When reinstalling the "Print Head",

n Make sure that "Head FFC" is correctly connected to the

connector (CN7/8) of "Print Head".

n Make sure that "Print Head" is correctly set to "Carriage

Unit".

n Do not touch the nozzle surface of "Print Head".

A D J U S T M E N T

R E Q U I R E D

o When having removed or replaced "Print Head", implement the

adjustment in the following order.
(Refer to Chapter 3 "ADJUSTMENT")

1. Ink Charge (When Replaced)

2. Head ID Input (When Replaced )

3. PG Adjustment

4. First Dot Adjustment

5. PW Sensor Adjustment

6. Head Angular Adjustment

7. Bi-D Adjustment

3. Remove the screw (x1) for securing "Holder, FFC" with the No. 1 driver.

4. Slightly inflect the lower part of "Holder, FFC", release the hooks (x3) by
sliding it downward. Then, remove "Holder, FFC".

5. Release the hooks (x2) for securing "Holder, IC", and remove "Holder, IC"
upward.

DISASSEMBLY AND ASSEMBLY Disassembly 43

EPSON Stylus Photo R200/R210 Revision A

2.3.6 Porous Pad, Paper Guide, Front removal

o External View

Porous Pad, Paper Guide, Front, Left Porous Pad, Paper Guide, FrontPorous Pad, Paper Guide, Front, Left

Porous Pad, Paper Guide, Front, Support

Folding Points

Figure 2-10. "Porous Pad, Paper Guide, Front" removal

o Pars/Units which should be removed before removing "Porous Pad, Paper

Guide, Front"

Paper Support Assy./Housing (left/right)/Housing (frame)

o Disassembly Procedure

1. Remove th e following 3 types of p orous pads from "Paper Guide, Fron t" by
using the tweezers.

• Porous Pad, Paper Guide, Front

• Porous Pad, Paper Guide, Front, Support

• Porous Pad, Paper Guide, Front, Left

C A U T I O N

Make sure to take "Porous Pad, Paper Guide, Front" cleanly as it
is glued.

Vertical Direction: 4 ± 1mm

Horizontal Direction: 1-2mm

Vertical Direction: 4 ± 1mm

Horizontal Direction: 2-3mm

Figure 2-11. Gluing Point of "Porous Pad, Paper Guide, Front"

o When reinstalling "Porous Pad, Paper Guide, Front"/"Porous

Pad, Paper Guide, Front, Support"

n Fold perpendicularly left and right sides of "Porous Pad,

n Apply ThreeBond 1401 to the 6 points shown in the figure

n Install "Porous Pad, Paper Guide, Front" in piles. Put it

o When reinstalling "Porous Pad, Paper Guide, Front, Support"

n Insert the foot-parts into the holes of "Paper Guide, Front".

C A U T I O N

o Do not damage "Porous Pad, Paper Guide, Front, Support".
o Do not apply too much adhesive when using some. Do not

contaminate "Porous Pad, Paper Guide, Front , Support" with
the adhesive.

Horizontal Direction

: 3-4mm

Horizontal Direction

: 5-6mm

Paper Guide, Front, Support" at the marks and install it to
"Paper Guide, Front". Make sure that the slit engages with
the rib located on the side of "Paper Guide, Front" so that
they will fit securely.

above.

under the rib, and check if it is securely fit. Adjust the
clearance between "Porous Pad, Paper Guide, Front" and
"Paper Guide, Front" approximately in 0.5 - 1.0mm.

Then, put them under the rib and check if it is securely fit.

o Install "Porous Pad, Paper Guide, Front" immediately after

applying the adhesive.

o Make sure that the 3 porous pads are fit securely.

DISASSEMBLY AND ASSEMBLY Disassembly 44

EPSON Stylus Photo R200/R210 Revision A

2.3.7 Board, Main removal

o External View

C.B.S3x10(5‑ 7k gf/ cm )

4

1

Board, Main

C.B.S3x6(5‑7 kgf /c m)

Figure 2-12. Board, Main removal

o Pars/Units which should be removed before removing "Board, Main"

Paper Support Assy./Housing (left/right)/Housing (frame)

o Disassembly Procedure

1. Disconnect all connector cables from "Board, Main".
CN2 : Power supply connector cable

CN4 : Panel board connector cable
CN5 : CR motor connector cable
CN6 : PF motor connector cable
CN7 : Head FFC
CN8 : Head FFC
CN9 : PE sensor connector cable
CN10 : Interface board connector cable
CN11 : CDR tray sensor cable
CN13 : APG motor connecor cable
CN14 : PG sensor cable
CN15 : CSIC/CR encoder /PW sens or FFC

Shield Plate，M/B

3

2

/ASF Unit

3. Remove "Shield Plate, M/B" from "Board, M/B".

o When reinstalling "Board, Main",

n Make sure that all cables/FFCs are correctly connected to

the appropriciate connector of "Board, Main".

n Make sure to secure the screws in the order as shown in the

figure.

A D J U S T M E N T

R E Q U I R E D

o When having replaced "Main Board", implement the

adjustment in the following order. (Refer to Chapter 3
"ADJUSTMENT")

n When possible to read data from the old b oar d

1. EEPROM data copy

n When impossible to read from the old board

1. Replace "Waste Ink Pads" with new one.
(To count the amount of the waste ink)

2. M arket Setting

3. USB ID Input

4. Waste Ink Pad Counter

5. Head ID Input

6. First Dot Adjustment

7. PW Sensor Adjustment

8. Head Angular Adjustment

9. Bi-D Adjustment

10. Offse t Input for CR Motor Calorific Limitation

2. Remove the screws (x4) for securing "Board, Main"with the order in figure, and
remove "Board, Main".

DISASSEMBLY AND ASSEMBLY Disassembly 45

EPSON Stylus Photo R200/R210 Revision A

2.3.8 Holder, Shaft Unit removal

o External View

Backside

C.B.S 3x6 (6-8kgf/cm)

Shield Plate, FFC

Head FFC

Hook

2

Dowel

PE sensor

Hook

Hook

1 1

C.B.S 3x6 (6-8kgf/cm)

Right front side

CN7, CN8, CN15

Board, Main

CN9
CN5

o Parts/Units which should be removed before removing "Holder, Shaft Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Assy.

o Disassembly Proc e d u re

n Holder, Shaft Unit removal

1. Release the following connector cables from "Board, Main".
CN5 : CR motor connector cable

CN7 : Head FFC
CN8 : Head FFC
CN9 : PE sensor connector cable
CN15 : CSIC/C R encoder/PW sen sor FFC

2. Release the CR motor connector cable from "Holder, Shaft Unit".

3. Move "Carriage Unit" to the left side of the printer.

4. Remove the screws (x2) for securing "Holder, Shaft Unit".

5. Release the Head FFC with "Shield Plate, FFC" from "Holder, Shaft Unit".

C A U T I O N

o Do not use "Shield Plate, FFC" again if you peel it off.
o Do not damage "Shield Plate, FFC ".
o Do not damage "Cable, Head".

6. Release the hooks ( : x2) with the tweezers or alike while pulling"Holder,
Shaft Unit" upward, and release the dowel ( : x1) from "Ink System Frame".

7. Looking at the printer from its back side, press down "Paper Guide, Upper" on
the left, and release "PE Sensor Lever" from the slot. Then, remove "Holder,
Shaft Assy." by sliding it to the right.

1

2

Hook

Hook

C A U T I O N

Be careful not to damage "PE Sensor Lever" a nd "P aper Guide,
Upper" when removing them since "PE Sensor Lever" contacts

Figure 2-13. "Holder, Shaft Unit" removal (1)

with "Paper Guide, Upper".

DISASSEMBLY AND ASSEMBLY Disassembly 46

EPSON Stylus Photo R200/R210 Revision A

o External View

Paper, Block

Clutch

Dowel

Dowel

Shaft, LD Roller

LD Roller

Dowel

Holder, Shaft, LD Roller

PE Sensor Board

Hook

Dowel

n "LD Roller" removal

1. Release the dowels (x2) for securing "Paper, Block".

2. Release the dowels (x2) for securing "Shaft, LD Roller". Then, remove
"Shaft, LD Roller" and "Clutch" together from "Holder, Shaft, LD Roller".

3. Remove "LD Roller" from "Shaft, LD Roller".

C A U T I O N

Do not touch "LD Roller" with bare hands.

o When reinstalling "LD Roller",

n Make sure to match the direction ( Mark) indicated on

"Shaft, LD Roller" and the direction ( Mark) indicated on
the back side of "LD Roller".

mark on "LD Roller"

Extension Spring, 0.143

Spur Gear, 36.8

Figure 2-14. "Holder, Shaft Assy." removal (2)

Torsion Spring, 0.22

Lever Sensor, PE

mark on "Shaf t, LD Roller"

Figure 2-15. Position of "Torsion Spring, 137.7"

DISASSEMBLY AND ASSEMBLY Disassembly 47

EPSON Stylus Photo R200/R210 Revision A

o When reinstalling "Clutch",

n Make sure that the dowel of "Shaft, LD Roller" is fitted in

the installing hole of "Clutch".

n Make sure that "Extension Spring, 0.143" is securely set on

the hooks of "Clutch" and "Shaft, LD Roller".

n Do not set "Extension Spring, 0.143" in twisted form.
n Make sure that "Clutch" rotates correctly.

o When reinstalling "Shaft, LD Roller",

n Do not touch "LD Roller".
n Check if the straight part of "Torsion Spring, 137.7" is set

between the 2 cams of "Shaft, LD Roller".

Torsion Spring, 137.7

Make sure that the straight part of "Torsion

Spring, 137.7" is set between the two cams .

Figure 2-16. Position of "Torsion Spring, 137.7"

LD Roller

A D J U S T M E N T

R E Q U I R E D

o When reinstalling "Holder, Shaft Unit",

n Check if the hooks (x2), the dowel and the ribs (x5) of

"Holder, Shaft Assy." are correctly secured.

n Check if the connector cable of "PE Sensor" and "Cable,

Head" are installed at the correct position of "Holder, Shaft
Assy.".

n Do not touch "LD Roller".
n Do not damage the teeth of "Spur Gear, 36.8" and

"Combination Gear, 27.2, 19.2".

Combina t ion Gear, 27.2, 19.2

Spur Gear, 36.8

Figure 2-17. "Spur Gear, 36.8" and "Combination Gear, 27.2, 19.2"

o When having replaced "Shaft, LD Roller", apply G-46 grease to

the specified points in adequate dose. (Refer to Chapter 4
"MAINTENANCE")

o When having replaced or removed "Holder, Shaft Unit",

implement the following adjustment. (Refer to Chapter 3
"ADJUSTMENT")

n First Dot Adjustment

DISASSEMBLY AND ASSEMBLY Disassembly 48

EPSON Stylus Photo R200/R210 Revision A

2.3.9 APG Unit removal

o External View

Left backside

APG Unit

Shield Plate, M/B

C.B.S 3x6 (6-8kgf/cm)

Figure 2-18. "APG Unit" removal

o Parts/Units which should be removed before removing "APG Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Board, Main

o Disassembly Procedure

o When reassembling "APG Unit",

n Make sure that the hooks (x2) and the dowels (x2) of "APG

Unit" are securely attached to "Frame, Main".

n Check if the part indicated in the following figure is inserted

in the slits of "Frame, Main".

It has to be inserted in the
slit of "Frame, Main"

Dowel

Figure 2-19. "APG Unit" installation

Hook

APG Unit

1. Disconnect the APG motor connector cable from the connector (CN13) of
"Main Board"."

2. Remove the screw (x1) for securing "APG Unit", and remove the "APG Unit"
carefully.

DISASSEMBLY AND ASSEMBLY Disassembly 49

EPSON Stylus Photo R200/R210 Revision A

2.3.10 Paper Guide, Upper removal

o External View

Paper Guide, Upper

Paper Guide, Lower

TransparencyRoller PF Assy.

Hooks

2

Rib Rib

Dowels

Torsion Spring, 122.2

1

Hook

o Parts/Units which should be removed before removing "Paper Guide,

Upper"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Board, Main/
Holder, Shaft Unit

o Disassembly Proc e d u re

1. Move "Carriage Unit" to the home position.

2. Put a transparency between "Paper Guide, Upper" and "Roller PF Unit".

3. Release "Torsion Spring, 122.2" (x3) from the hook ( : 1 each) of "Frame,

1

Main", then pull it out to the front.

4. Release the hooks ( : 2 each) for securing "Paper Guide, Upper" (x3) to

2

upward. Then, release the dowels (2 each) while slightly holding up "Paper
Guide, Upper".

5. Press down "Paper Guide, Lower" and pull out "Paper Guide, Upper" (x3) to
the front while stepping it aside the ribs (2 each) of "Frame, Main"

o When reinstalling "Paper Guide, Upper",

n There are 2 types of "Driven Rollers" of "Paper Guide,

Upper". Install them as shown in the following figure.

Figure 2-20. "Paper Guide, Upper" removal

Driven Roller (Grey) Driven Roller (White)

Figure 2-21. Installation Position of "Paper Guide, Upper"

DISASSEMBLY AND ASSEMBLY Disassembly 50

EPSON Stylus Photo R200/R210 Revision A

2.3.11 Carriage Unit removal

o External View

Carria ge Unit

Dowel

Fixed

Spring, CR

Shaft, Left

Cover, Guide Plate, CR

Hook

Hooks

2

Rib

Guide Plate, CR

C.B.S 3x6 (7-9kgf•cm)

3

6

o Parts/Units which should be removed before removing "Carriage Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)/APG Unit/Print Head

o Disassembly Proc e d u re

1. Remove the screw (x7) for securing "Guide Plate, CR".

2. Remove "Fixed Spring, CR Shaft, Left" by releasing it from the hook of
"Frame, Main".

3. Release the ribs (x2) for securing "Guide Plate, CR", and remove "Guide
Plate, CR" while stepping aside the hook which has secured "Fixed Spring,
CR Shaft, Left".

4. Remove the right side of "CR Scale" from "Holder, Scale Right".

5. Pull out "CR Scale" from the back of "Carriage Unit" to the left. Then, release
"CR Scale" from one of two hooks of "Holder, Scale, Left" first, and next
release "Extension Spring, 3.289" from the other hook.

1

4

Rib

5

6. Remove "Extension Spring, 3.289" from "CR Scale".

7. Loosen the tension of "Timing Belt" by pushing "Pulley, Driven" to the right.
Then, remove "Timing Belt" from the pinion gear of "CR Motor" first, and
then from "Pulley, Driven".

Hook

Extension Spring, 3.289

Holder, Scale Left

Hook

Pulley, Dr iven

CR Scale

Timing Belt

Holder, Scale Right

Hook

Pinion Gear

Figure 2-22. "Carriage Unit" removal (1)

DISASSEMBLY AND ASSEMBLY Disassembly 51

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Holder, Scale Left

Cable, Head

E Ring
Flat Washer
Leaf Spring

E Ring
Flat Washer
Spring Washer

Hooks

Bushing,

Parallel

Adjust, Right

Cam, CR,

Right
E Ring

CR Guide Shaft

Cam, CR, Left

Holder, Scale, Right

C.P.S (P4) 3x6

(6-8kgf•cm)
Fixed Spring,

CR Shaft,

Right

Hook

CR Guide Shaft

8. Remove the E ring, "Holder, Scale Right" and "Cam, CR, Right" from the
right side of "CR Guide Shaft".

9. Remove the screw (x1) for securing "Bushing, Parallel Adjust, Right". Then,
remove "Bushing, Parallel Adjust, Right".

10. Remove "Fixed Spring, CR Shaft, Right" from the hook of "Frame, Main".
Then, remove "Fixed Spring, CR Shaft, Right" from "CR Guide Shaft".

11. Remove the E ring, the plain washer and the leaf spring for securing "Holder,
Scale, Left".

12. Remove the E ring, the plain washer and the spring washer from the left side
of "CR Guide Shaft". Then, remove "Holder, Scale, Left"

13. Release "Cable, Head" from the hooks (x7) of "Holder, Shaft Unit".

14. Slide "CR Guide S haft" to the right and pull it o ut from "Cam, CR , left".
Then, remove "Carriage Unit" and "CR Guide Shaft" together.

15. Pull out "CR Guid e Shaft" from "Carriage Unit".

Holder, Shaft

Assy.

Hooks

Figure 2-23. "Carriage Unit" removal (2)

DISASSEMBLY AND ASSEMBLY Disassembly 52

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Bushing, Parallel

Adjust, Right

CR Encoder

Sensor Board

Hooks

Holder Pad, Ring

Oil Pad, Ring

Extension Spring, 26.46

Pulley, Dr iv en

C.P.S (P4) 3x6

(6-8kgf•cm)

CSIC Board

Connector

Holder, FFC ; B

Timing Belt

CR Encoder Sensor Board

C.P.B (P1) 1.7x5

(1.5-2.5kgf•cm)

Hooks

16. Remove the screw (x1) for securing "Bushing, Parallel Adjust, Left". Then,
remove "Bushing, Parallel Adjust, Left".

17. Remove "Timing Belt" from "Carriage Unit".

18. Remove the screws (x2) for securing "Holder, FFC; B". Then, remove
"Holder, FFC; B".

19. Remove "Cable, Head" from the connectors of "CSIC Board" and "CR
Encoder Sensor Board". Then, remove "Cable Head" from "Carriage Unit".

20. Release the hooks (x2) from "Holder Pad, Ring" (x2). Then, remove "Holder
Pad, Ring" (x2) and "Oil Pad, Ring" (x2).

n "Pulley, Driven " removal

1. Remove "Extension Spring, 26.4 6" from "Pulley Driven" and the hook of
"Frame, Main" by using a flat-blade screwdriver. Then, remove "Extension
Spring, 26.46 ".

2. Slide "Pulley, Driven" in the direction of the arrow. Then, remove "Frame,
Main" from the slot.

n "CR Encoder Sensor Board" removal

1. Remove the screw which secures "CR Encoder Sensor Board" with Phillips
screwdriver (No.0). Disconnect "PW Sensor FFC" from the connector of "CR
Encoder Sensor Board". Then, remove "CR Encoder Sensor Board".

PW Sensor FFC

2

1

C.P.B (P1) 1.7x5

(1.5-2.5kgf•cm)

Connector Slot

Figure 2-24. "Carriage Unit" removal (3)

DISASSEMBLY AND ASSEMBLY Disassembly 53

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Cap, PW Sensor

Hooks

Torsion Spring, Lever, Cartridg e

Hook

Dowel

C.B.P 2.5x8 (3-5kgf•cm)

Guide, IC

PW Sensor Board

Connector

Lever, Cartridge

Slot and Dowel

n "PW Sensor Board" removal

1. Release the hooks (x3) which secure "Cap, PW Sensor". Then, remove "Cap,
PW Sensor".

C A U T I O N

When removing "Cap, PW Sensor", "PW Sensor Board" will be
free. Therefore, take care not to damage "PW Sensor Board".

2. Pull out "PW Sensor Board" from the slot of "Carriage Unit". Then, remove
"PW Sensor FFC" from the connector of "PW Sensor Board" and remove
"PW Sensor Board" and "PW Sensor FFC".

n "CSIC Board" removal

1. Remove "Torsion Spring, Lever, Cartridge" from the hook and the dowel of
"Guide, IC".

2. Remove the dowel of "Lever, Cartridge" from the slot on the right side of
""Guide, IC" by using the tweezers. Then, remove "Lever, Cartridge.

3. Remove the screws (x2) for securing "Guide, IC", then release the hook with
the tweezers. And remove "Guide, IC".

4. Release the hooks (x2) for securing "CSIC Board", then push up "CSIC
Board" from the slot located on the bottom of "Carriage Unit" with a flat­blade screwdriver or alike. Finally, remove "CSIC Board".

Hook

Electric Pole

Hooks

CSIC Board

Slot

C A U T I O N

Do not damage the electric pole with the flat-blade screwdriver or
alike when removing "CSIC Board".

Figure 2-25. "CR Unit" removal (4)

DISASSEMBLY AND ASSEMBLY Disassembly 54

EPSON Stylus Photo R200/R210 Revision A

o When reinstalling "CSIC Board",

n Check if "CSIC Board" is secured correctly.

o When reinstalling "PW Sensor Board",

n Check if "PW Sensor FFC" is correctly connected.
n Check if "PW Sensor Board" is correctly secured with

"Cap, PW Sensor".

o When reinstalling "CR Encoder Sensor Board",

n Check if "CR Encoder Sensor Board" is correctly secured.
n Check if "CR Encoder Sensor Board" is correctly

connected.

o When reinstalling "Holder, Scale, Right (Left)",

n Check if "Slider, Holder, Scale" is set.

Slider, Holder, Scale

Figure 2-26. "Slider, Holder, Scale" installation

o When reinstalling "Carriage Unit",

n Check if "Timing Belt" is correctly set to the installing

groove of "C arriage Unit".

n Check if "Grounding Plate, Head" is installed to the proper

position of "Carriage Unit".

Grounding Plate, Head

Figure 2-27. Installation Position of "Grounding Plate , Head"

o When reinstalling "CR Scale",

n Make sure that "Extension Spring, 3.289" is not twisted.
n Make sure to pass "CR Scale" through the slit of "CR

Encoder Sensor".

n Make sure to install "CR Scale" the cut-part on the left edge

up.

Cut-Part

Figure 2-28. "CR Scale" installation

o When reinstalling "Guide, CR",

n Screw in the order as shown in the figure.

C A U T I O N

Do not adhere the grease at the contact point of ’Carriage’ and
"CR Lock Lever". Otherwise, fatal error may possible occur
because ’CR Lock Lever’ is not moved.

DISASSEMBLY AND ASSEMBLY Disassembly 55

EPSON Stylus Photo R200/R210 Revision A

A D J U S T M E N T

R E Q U I R E D

o When replacing the following parts or components with new

ones, apply specified grease in its adequate dose. (Refer to
Chapter 4 "MAINTENANCE")

n Cam, CR, Right/Left
n CR Guide Shaft
n Holder, Scale, Right/Left
n Pulley, Driven Assy.

o When having removed or replaced "Carriage Unit" or "CR

Guide Shaft", implement the adjustment in the following order.
(Refer to Chapter 3 "ADJUSTMENT")

1. PG Adjustme nt

2. First Dot Adjustment

3. PW Sensor Adjustment

4. Head Angular Adjustment (Only "Carriage Un it")

5. Bi-D Adjustment

6. Offset Input for CR Motor Calorific Limitation (When
Replace "CR Guide SHaft")

o When having removed or replaced "PW Sensor", implement the

adjustment in the following order. (Refer to Chapter 3
"ADJUSTMENT")

1. PW Sensor Adjustment

DISASSEMBLY AND ASSEMBLY Disassembly 56

EPSON Stylus Photo R200/R210 Revision A

2.3.12 Printer Mechanism/Housing (lower)
removal

o External View

2 ± 1mm

C.B.S 3x6 (6-8kgf•cm)

C.B.P 3x10 (6-8kgfcm)

C.B.S 3x6 (5-7kgf•cm)

2

1

Hooks

Acetate Tape

Hook

1 2

C.B.P 3x8 (5-7kgf•cm)

4

Screw, Frame, Main (6-8kgf•cm)

Gear, 27.2, 19.2

Wire Band

Paper Guide, CDR

3

C.B.P 3x10 (6-8kgf•cm )

3

5

Handling Position

Figure 2-30. "Printer Mechanism"/"Housing, Lower" removal (2)

Hook

(Under the tube)

Lever, ChangeCombination

o Parts/Units which should be removed before removing "Printer

Mechanism"/Housing (lower)

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Main Board/
Holder, Shaft Unit

o Disassembly Proc e d u re

1. Move "Carriage Unit" to the centre of the printer.

2. Remove the screws (x3) for securing "Paper Guide, CDR".

3. Remove the screws (x5) for securing "Printer Mechanism".

4. Take off the acetate tape and release the connector of "Star Wheel/CDR
Sensor".

Figure 2-29. "Printer Mechanism"/"Housing, Lower" removal (1)

5. Cut off the wire band and release the connector cable.

6. Release the hooks (x4) for securing "Printer Mechanism". Th en, hold the both
right and left upper edges of "Frame, Main" and remo ve "Printer Mechanis m"
to upward.

DISASSEMBLY AND ASSEMBLY Disassembly 57

EPSON Stylus Photo R200/R210 Revision A

C A U T I O N

W A R N I N G

o When lifting up "Printer Mechanism", "Lever, Change" and

"Combination Gear, 27.2, 19.2" may detach and drop. Take care
not to drop and damage them .

o When lifting up "Printer Mechanism", take care not to leak and

drip ink from the end of "Waste Ink Tube" ("Waste Ink Pads"
side).

o To prevent "Frame, Main" from warping, do not lift "Printer

Mechanism" holding the places which are not specified to hold.

When installing "Printer Mechanism" to "Housing, Lower", pass
"Waste Ink Tube" through the hook indicated in the figure below,
and securely set it in the groove, so that "Porous Pad, Ink Eject,
Upper, Support" will not float from the tube. If installed
insecurely, it may cause the ink leakage.

Porous Pad, Ink Eject, Upper, Support

Hook

o When reinstalling "Printer Mechanism",

n For this printer, "Housing, Lower" is the standard to

correctly install each part of "Printer Mechanism".
In order to ensure the accuracy for installing, it is necessary
to manage the reference position for "Frame, Main"
installation in X, Y and Z direction as shown in the figure
below. If every part is set correctly, "Printer Mechanism"
can be secured with the hooks (x4).

[X-axis direction]

• Make sure that "Frame, Main" is installed correctly to the
groove of "H ousing, Lower" .

• Make sure that there is no gap between "Frame, Main"
and "Housing, Lower".

[Y-axis direction]
Make sure that the slot of "Frame, Main" is correctly
installed to the projection of "Housing, lower".
[Z-axis direction]

• Make sure that there is no gap between "Frame, Main"
and "Housing, Lower"

• Make sure that the left side of "Printer Mechanism" is
correctly secured with the hooks (x2).

Left

Right

Waste Ink Tube

Figure 2-31. "Waste Ink Tube" installation

Hooks

X-axis : (4 points)
Y-axis : (1 point)
Z-axis : (4 points)

Hooks

Figure 2-32. Reference position for "Frame, Main" installation

DISASSEMBLY AND ASSEMBLY Disassembly 58

EPSON Stylus Photo R200/R210 Revision A

n Make sure that "Waste Ink Pads" (x6) are set correctly to

the rib and the dowel of "Housing, Lower".

Waste Ink Pad, Small

Waste Ink Pad, Upper (Top)
Waste Ink Pad, Lower (Bottom)

Figure 2-34. "Waste Ink Pads" installation (2)

n After checking "Waste Ink Tube" is under "Waste Ink Pad,

Lower", put the jig on the indicated points in the figure
below, then install "Porous Pad, Ink Eject, Upper, Support".

Porous Pad, Ink Eject,

Upper, Support

Jig

Waste Ink Pad, Lower

Adjusting Point

Figure 2-35. "Porous Pad, Ink Eject, Upper, Support" installation

Cap, Ink Pad, Lower,
Small (Top)

Cap, Ink Pad, Lower,
Large (Bottom )

Figure 2-33. "Waste Ink Pads" installation (1)

DISASSEMBLY AND ASSEMBLY Disassembly 59

EPSON Stylus Photo R200/R210 Revision A

n Screw "Printer Mechanism" and "Paper Guide, CDR" in

the order as shown in the figure.

n Check if "Waste Ink Tube" is secured in the groove of

"Housing, Lower", then make sure that the line mark on the
tube is facing to the left. (Also make sure that it is not
twisted.)

Ink Tube (Image)

A D J U S T M E N T

R E Q U I R E D

Left

Front

Groove of

"Housing, Lower"

Figure 2-36. Installation position for "Ink Tube"

n Make sure that "Waste Ink Tube" is not squashed or

pressed.

n Check if "Cap Assy." moves smoothly.

o When having replaced "Waste Ink Pads" with new ones,

implement the following adjustment. (Refer to Chapter 3
"ADJUSTMENT")

n Waste Ink Pad Counter

DISASSEMBLY AND ASSEMBLY Disassembly 60

EPSON Stylus Photo R200/R210 Revision A

2.3.13 Power Supply Unit removal

o External View (The P/S Unit in figures is for Kubrick.)

2

Power Supply Unit

C.B.S 3x6 (6-8kgf•cm)

5

Hooks

C.B.P 3x10 (6-8kgf•cm)

4

C.B.S 3x6 (6-8kgf•cm)

1

3

C.B.S 3x6 (6-8kgf•cm)

Figure 2-37. "Power Supply Unit" removal

Shield Plate, Upper

1

3

o Disassembly Proc e d u re

1. Remove the screw (x1) for securing "Power Supply Unit". Then, remove
"Power Supply Unit".

2. Remove the screws (x5) which secure "Shield Plate, Upper".

3. Release the hooks (x2) which secure "Shield Plate, Upper", and then remove
"Shield Plate, Upper".

4. Remove the screws (x4) which secure "PSB/PSE Board", and then remove
"PSB/PSE Board".

o When reinstalling "PSB/PSE Board",

n Make sure to screw in the order as shown in the figure.

o When reinstalling "Shield Plate, Upper",

4

n Check if the "Power connector cable" is in between the two

shield plates.

n Check if "Shield Plate, Upper" is correctly installed.
n Make sure to screw in the order as shown in the figure.

A D J U S T M E N T

R E Q U I R E D

2

o When replacing "Power Supply Un it" with a new one,

implement the following adjustment. (Refer to Chapter 3
"ADJUSTMENT")

n Offset Input for CR Motor Calorific Limitation

o Parts/Units which should be removed before removing "Power Supply Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Main Board/
Holder, Shaft Unit/Printer Mechanism

DISASSEMBLY AND ASSEMBLY Disassembly 61

EPSON Stylus Photo R200/R210 Revision A

2.3.14 CDR Guide Assy. removal

o External View

C.B.P 3x6 (5-7kgf•cm)

Support Plate, Frame, Main

C.B.S 3x6 (7-9kgf•cm)

Hooks

C.B.S 3x6 (6-8kgf•cm)

1

Ribs

Flat Washer

2

Acetate Tape

Connector Cable

CDR Guide Assy.

3

Link, CDR Left

Flat Washer

Figure 2-38. "CDR Guide Assy." removal (1)

1

Hooks

CDR Guide, Lower

Figure 2-39. "CDR Guide Assy." removal (2)

o Parts/Units which should be removed before removing "CDR Guide Assy."

C.B.S 3x6 (6-8kgf•cm)Link, CDR Right

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Main Board/
Holder, Shaft Unit./APG Unit/Print Head/Carriage Unit/Housing (lower)

o Disassembly Proc e d u re

2

Ribs

Ribs

1. Take off the acetate tape and release the connector cable of "Star Wheel/ CDR
Sensor".

2. Remove the screws (x2) which secure "Support Plate, Frame, Main". Then,
remove "Support Plate, Frame, Main".

3. Remove the screws (x3) which secure "CDR Guide Assy.".

4. Remove the flat washer which secure "Link, CDR Left (Right)" with the
tweezers. Then, Remove "Link, CDR Left (Right)" from "CDR Guide Assy.".

5. Release the ribs (x7) which secure "CDR Guide Assy.", then remove "CDR
Guide Assy." through the right edge.

6. Remove the screws (x2) which secure "CDR Guide, Lower".

7. Sli de "CDR Guide, Lower" and then release the hooks (x7). After that,
remove "CDR Guide, Lower".

DISASSEMBLY AND ASSEMBLY Disassembly 62

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Shaft and Positioning Hole

Groove

Star Wheel/CDR Sensor

Compression Spring, 5.1

Lock, Stacker

Hooks

9. Release the connector cable of "Star Wheel/CDR Sensor" from the groove of
"CDR Guide, Upper".

o When reinstalling "Star Wheel/CDR Sensor",

n Match the Shaft (x2) of "CDR Guide, Upper" and the

positioning hole of "Star Wheel/CDR Sensor".

n Mount correctly the connector cable of "Star Wheel/CDR

Sensor" referring to the figure.

o When reinstalling "CDR Guide, Upper"

n Make sure that the hooks (x2) of "Lock Stacker" are

properly secured by the tension of "Compression Spring,

5.1".

n Make sure that "CDR Guide, Upper" is securely secured

with the hooks (x7) of "CDR Guide, Lower" and there is no
gap between "CDR Guide, Upper" and "CDR Guide,
Lower".

o When reinstalling "CDR Guide Assy.",

n Place the the connector cable of "Star Wheel/CDR Sensor"

on the red circle position of acetate tape.

n Place the the connector cable of "Star Wheel/CDR Sensor"

along with "Link, CDR Right" with standing "CDR Tray
Assy." vertically.

n Install "CDR Guide Assy." in the order of left edge, right

edge and middle.

n Match the slot (x6) of "CDR Guide Assy." and the ribs (x6)

of "Frame, Main".

n Check if "Link, CDR Left (Right)" is correctly installed.
n Check if the connector cable of "Star Wheel/CDR Sensor" is

not interrupting "Link, CDR Right".

n Check if "Frame, EJ Assy." works with "CDR Guide Assy."

and moves smoothly.

Figure 2-40. "CDR Guide Assy."removal (3)

8. Remove "Compression Spring, 5.1" and "Lock, Stacker" from "CDR Guide,
Upper".

DISASSEMBLY AND ASSEMBLY Disassembly 63

EPSON Stylus Photo R200/R210 Revision A

2.3.15 Ink System Unit removal

o External View

Support Plate,

Frame, Main

Acetate Tape

2

C.B.S 3x6

(7-9kgf•cm)

Dowel

Combination Gear, 27.2, 19.2

Cap Assy.

1

Dowels

1

C.B.P 3x8

(5-7kgf•cm)

Pump Assy.

Ribs

Combination

Gear, 20.82, 24

Hook

Dowels

Sealing Rubber Part

Cleaner Head

Lever, Change Assy.

Lever, Change

Spur Gear, 25.6

Dowels

Hooks

o Parts/Units which should be removed before removing "Ink System Unit"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Main Board/
Holder, Shaft Unit./APG Unit/Print Head/Carriage Unit/Housing (lower)/CDR
Gude Assy.

o Disassembly Proc e d u re

1. Take off the acetate tape, then release the connector cable of "Star Wheel/
CDR Sensor".

2. Remove the screws (x2) which secure "Support Plate, Frame, Main", and
remove "Support Plate, Frame, Main".

3. Remove the screw which secures "Cap Assy.".

4. Sli de "Cap Assy." inward "Printer Mechanism" and release the dowels
( : x2"). Then, remove "Cap Assy." from the ribs (x2) of "Frame Main".

1

C A U T I O N

o Do not remove the ink tube which is connected to "Cap Assy."

and "Pump Assy.".

o The ink tube cannot be removed from "Pu mp Assy." since it is

secured with silicon material for the following reasons.

n To prevent "Pump Assy." from ink leaka ge.
n To adjust the length of the ink tube extended from "Pump

Frame".

5. Release the hooks (x3) and the dowels (x3) which secure "Pump Assy.", and
hold on "Lever, Change Assy." and all the gears in order not to let them drop,
then remove "Cap Assy." and "Pump Assy." together.

6. Remove "Combination Gear, 20.82, 24", "Spur Gear, 27.2", "Lever, Change
Assy." and "Combination Gear, 27.2, 19.2" from "Pump Assy.".

7. Remove "Spur Gear, 25.6" from "Lever, Change".

8. Remove "Compression Spring, 2.36" from the dowel of "Lever, Change".

Spur Gear, 27.2

Silicon Material Part

Compression Spring, 2.36

Figure 2-41. "Ink System Unit" removal (1)

DISASSEMBLY AND ASSEMBLY Disassembly 64

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Frame, Cap

Extension

Spring, 0.788

Slider, Cap

Hooks

Porous Pad, Slider, Cap

Lever, Lock, Sli d er

Extension

Spring, 0. 441

Hook

9. Remove "Extension Spring, 0.441" from the hooks of "Slider, Cap" and
"Frame, Cap" by using the tweezers.

10. Remove "Extension Spring, 0.788" from the hooks of "Lever, Lock, Slider"
and "Frame, Cap" by using the tweezers.

11. Remove the shaft of "Slider, Cap" from the slot of "Frame, Cap", then remove
"Lever, Lock, Slider".

12. Remove "Porous, Slider, Cap" from the hook of "Slider, Cap".

o When reinstalling "Lever, Lock, Slider",

n Check if it works properly working with "Slider, Cap".

o When reinstalling "Ink System",

n Make sure that the ink tube is correctly connected to the

point of "Frame, Cap" shown in the figure below. If it is not
connected properly, it may cause ink leakage.

Figure 2-43. Connecting Point for the ink tube

Shaft

n Do not touch the sealing rubber part and "Cleaner Head".
n Make sure that the line mark of the ink tube is not twisted.

Figure 2-42. "Ink System Unit" removal (2)

n Check if "Cap Assy." moves smoothly.

DISASSEMBLY AND ASSEMBLY Disassembly 65

EPSON Stylus Photo R200/R210 Revision A

n Set all of the gears on the shaft of "Pump Frame" correctly,

and then check if they move smoothly.

n Make sure that the ink tube is not squashed or pressed.
n Install the ink tube to the grooves (x2) at the bottom surface

of "Cap Frame".

Figure 2-44. Installation point for the ink tube

o When reinstalling "Ink System"

n Check if "Pump Assy." is correctly secured.
n Do not let "Lever, Change", "Combination Gear, 27.2,

19.2", "Spur Gear, 27.2" and "Combination Gear, 20.82 ,
24" drop and break them.

DISASSEMBLY AND ASSEMBLY Disassembly 66

EPSON Stylus Photo R200/R210 Revision A

2.3.16 Paper Guide, Front/Roller EJ Assy. removal

o External View

Compression

Spring, 1.27

2

PF Timing BeltSpur Gear,37.242

Spur Gear, 41.48

Holder, I d le Roller

1

Frame EJ Assy.

Guide, Shaft, Frame EJ, Right

Flat Washer

Link EJ, Right

Support Plate,

Frame, Main

Hook

2

C.B.S 3x6

(7-9kgf•cm)

Guide, Shaft,

Frame EJ, Left

Link EJ, Left

Extension Spring,

Push Up, Plate, Left

Hooks

Flat Washer

1

o Parts/Units which should be removed before removing "Paper Guide,

Front"/"Roller EJ Assy."

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Main Board/
Holder, Shaft Unit./APG Unit/Print Head/Carriage Unit/Housing (lower)/CDR
Guide Assy./Ink System Unit

o Disassembly Proc e d u re

1. Remove the screws (x2) which secure "Support Plate, Frame, Main". Then,
remove "Support Plate, Frame, Main".

2. Release the hook of "Link EJ, Right" from the groove of "Gui de, Shaft, Fr ame
EJ, Right". Then, remove "Link EJ, Right".

3. Remove the flat washer which secures the right side of "Frame EJ Assy.".

4. Remove "PF Timing Belt" from "Spur Gear, 37.242", then remove "Spur
Gear, 41.48".

5. Remove "Compression Spring, 1.27" and "Holder, Idle Roller" together with
"PF Timing Belt".

6. Move back "Carriage Unit" to the home position, and then remove "Frame EJ
Assy." in the direction of the arrow, also in the order indicated in the figure.

C A U T I O N

When removing "Frame EJ Assy.", take care not to damage or
transform "Star Wheels" of "Frame EJ Assy.".

Hooks

Hook

7. Remove the flat washer which secures "Link EJ, Left", then Slide "Link EJ,
Left" to the right.

8. Remove "Extension Spring, Push Up, Plate, Left" from the hooks of "Guide,
Shaft, Frame EJ, Left" and "Frame, Main".

9. Release the hooks (Left x2, right x1) which secure "Guide, Shaft, Frame EJ,
Left (Right)". Then, remove "Guide, Shaft, Frame EJ, Left (Right)".

Figure 2-45. "Paper Guide, Front"/"Roller EJ Assy." removal (1)

DISASSEMBLY AND ASSEMBLY Disassembly 67

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Hook

Roller, PF Assy.

Figure 2-46. "Paper Guide, Front"/"Roller EJ Assy." removal (2)

Guide, Shaft, Frame EJ, Right

Paper Guide, Front

Hooks

Extension Spring,

Push Up, Plate, Left

10. Remove "Extension Spring, Push Up, Plate, Right" from the hooks (x2) of
"Guide, Shaft, Frame EJ, Right".

11. Release the hook which secures "Paper Guide, Front", then remove "Paper
Guide, Front".

12. Remove "Porous Pad, Paper Guide, Front" (x4) and "Porous Pad, Paper
Guide, Front, Support" from "Paper Guide, Front" by using the tweezers.

C A U T I O N

o Do not touch "Porous Pad, Paper Guide, Front".
o Do not damage the rib located on the upper surface of "Paper

Guide, Front".

o Take care not to damage the surface of "Roller, PF Assy.".

DISASSEMBLY AND ASSEMBLY Disassembly 68

EPSON Stylus Photo R200/R210 Revision A

o External View (Cont.)

Grounding Spring, EJ Left

Bushing, 5

Figure 2-47. "Paper Guide, Front"/"Roller EJ Assy." removal (3)

Dowel

Rubber Rollers

Dowel

Grounding Spring, EJ Right

Roller EJ Assy.

Bushing, 5

13. Remove "Grounding Spring, EJ Left (Right)" from "Roller EJ Assy.".

14. Release the dowels of both left and right "Bushing, 5" which secure "Roller
EJ Assy.", then turn them in the direction of the arrow.

15. Pull out the right "Bushing, 5" rightward, and pu ll ou t the left edge o f "Rol le r
EJ Assy." from "Frame, Main" through its left side.

C A U T I O N

When removing "Roller EJ Assy.", do not damage the rubber
rollers.

DISASSEMBLY AND ASSEMBLY Disassembly 69

EPSON Stylus Photo R200/R210 Revision A

o When reinstalling "Paper Guide, Front"

n Make sure that the dowels and the hook of "Paper Guide,

Front" are correctly secured to "Frame, Main".

Dowels

Hook

Figure 2-48. "Paper Guide, Front" installation

n Make sure that the tabs of "Porous Pad, Paper Guide, Front,

Left" and "Porous Pad, Paper Guide, Front, Support" are
facing straight to downward through the slots of "Paper
Guide, Front".

n Make sure that there is no gap between "Paper Guide,

Front" and "Frame, Main".

n If any ink leaks on the rib of "Paper Guide, Front", clean it

with a cotton swab. (At this time, take care not to touch
"Porous Pad, Paper Guide, Front" of "Paper Guide, Front"
with the cotton swab.)

o When reinstalling "Roller EJ Assy."

n Make sure that both left and right "Bushing, 5" are

correctly secured.

n Make sure that "Grounding Spring, EJ Left (Right)" is

correctly attached to the both ends of "Roller EJ Assy.".

n When installing "PF Timing Belt", do not damage the teeth

of "Spur Gear, 41.48".

n Make sure that "Roller EJ Assy." moves smoothly.

A D J U S T M E N T

R E Q U I R E D

o When replacing "Roller EJ Assy.", apply G-26 grease in the

adequate dose to the specified points.

o When removing or replacing "PF Timing Belt", implement the

tension adjustment with the digit al te nsion gauge.

o When having removed or replaced "Paper Guide, Front",

implement the following adjustment. (Refer to Chapter 3
"ADJUSTMANT")

1. First Dot Adjustment

2. PW Sensor Adjustment

3. Head Angular Adjustment

4. Bi-D Adjustment

DISASSEMBLY AND ASSEMBLY Disassembly 70

EPSON Stylus Photo R200/R210 Revision A

2.3.17 PF Motor removal

o External View

Spur Gear, 37.242

Compression

Spring, 1.27

Spacer Insulator

PF Timing Belt

Spur Gear, 41.48

Holder, I d le Roller

Pinion Gear PF Motor

4

2

Hexagon Nuts, M3 (5-7kgf•cm)

Compression Spring, 1.53 (Only this point)

Insulator, Motor, PF

1

3

o Disassembly Proc e d u re

1. Remove "PF Timing Belt" from "Spur Gear, 37.242", and remove "Spur Gear,

41.48" to the left side.

2. Remove "Compression Spring, 1.27" and "Holder, Idle Roller" together with
"Timing Belt".

3. Remove the nuts (x4) for securing "PF Motor", and remove "PF Motor".

C A U T I O N

n Do not damage the pinion gear.
n Do not drop/detach the "Compression Spring, 1.53". Be careful

not to lose it.

o When reinstalling "PF Motor",

n Make sure to tighten the nuts of "PF Motor" in the order

shown in the figure.

n Make sure that there is no gap between "Spacer, Insulator"

and "Frame, Main".

n Make sure to connect the PF motor connector cable to the

connector (CN6) of the main board.

Figure 2-49. "PF Motor" removal

o Parts/Units which should be removed before removing "PF Motor"

Paper Support Assy./Housing (left/right)/Housing (frame)/ASF Unit/Holder, Shaft
Unit/Main Board/APG Assy./Print Head/CR Unit/Printer Mechanism

DISASSEMBLY AND ASSEMBLY Disassembly 71

ADJUSTMENT

CHAPTER

EPSON Stylus Photo R200/R210 Revision A

3.1 Adjustment Items and Overview

This chapter describes adjustments to be made after the disassembly/reassembly of this product.

3.1.1 Servicing Adjustment Item List

The adjustment items of this product are as follows. For details of the adjustment items, refer to the detailed procedures and sketches of the adjustment items.

Table 3-1. Adjustment Items

Function Item Purpose Method Outline Tool Used Media

Market Setting At the time of Main Board replac ement, this adjustmen t is made

to write the board common information on a destinat ion basis.

USB ID Input This adjustment is made to allow the PC to recognize the

connected printers individually when multiple printers of the
same model are connected and used with the PC via a USB hub.

Head ID Input At the time of Print Head replacement, this adjustment is made

to correct head manufacturing variations and eliminate the
individual differences of print quality.

Head Angular
Adjustment

Adjustment items

Bi-D Adjustment This adjustment is made to correct the print timing in the go and

PW Sensor
Adjustment

This adjustment is made to correct the error in the Print Head
mounting position (angle of the Print Head to the paper surface)
to keep the nozzle intervals uniform in the CR main scanning
direction.

return paths in bi-directional printing.
(This printer carries out printing with PG (typ.) and PG (-))

This adjustment is made to correc t th e mo un tin g p osit ion of th e
PW Sensor on a software basis to minimize the paper detection
error caused by the variations of the mounting position.

Select and execute this function in the exclusive servicing program to
save the following data into the EEPROM.

Market ID, CSIC Printer ID, D4 Setting (USB, Parallel), First Dot
Adjustment fixed value.

Select this function in the exclusive servicing program and enter the
serial numbers of the pr inters. The correction value is s a ved to the
specific EEPROM address on the Main Board.

Enter the ID of the Head QR code label applied to the Print Head into
the exclusive servicing program to save it to the EE PR O M on the
Main Board. (Supplement: Read the QR code label from left to right
on the top row and from top to bottom in due order.)

Select this function in the exclusive servicing program and print the
adjustment pattern. Check the displacement amount of the pattern.
Print the exclusive pattern again and adjust the displacement amount.

Select this function in the exclusive servicing program and print the
adjustment patterns to check the displacement amounts of the patterns.
Select/enter the pattern number that has the smallest displacement
amount in the program. Print the exclusive patterns again and adjust
the displacement amount. The correction value is saved into the
EEPROM.

Select this function in the exclusive servicing program and print the
adjustment patterns. Sel ect the pattern number 5mm away from each
edge, and enter that number in the program. The correction value is
saved to the specific EEPROM address on the Main Board.

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Non-target

Non-target

Non-target


Quality Ink

Jet Paper

(A4)

Plain paper

(A4)

Photo Paper /
Glossy Photo

Paper (A4)

ADJUSTMENT Adjustment Items and Overview 73

EPSON Stylus Photo R200/R210 Revision A

Table 3-1. Adjustment Items

Function Item Purpose Method Outline Tool Used Media

Top margin This adjustment is made to correct the margin from the top edge

of the paper.

First Dot
Adjustment

Offset Input for
CR Motor
Calorific

Adjustment items

Limitation

This adjustment is made to correct the First Dot Position in the
CR main scanning direction.

When the Main Board, CR Motor or PSB/PSE Board is changed
individually, this adjustment is made to write the maximum
offset to prevent the occurrence of damage to the motor at the
time of CR Motor heat generation.

However, when the CR Guide Shaft is changed together with
the above part, this adjustment is made to measure the
manufacturing variations of the CR Motor and PSB/PSE Board,
utilize the motor capability to the maximum for motor heat
generation control, and prevent the motor from being damaged
by CR Motor heat generation.

Select and execute this function in the exclusive servicing program.
Enter the correction v alue in th e pr ogram using t he ru le po sition of th e
print pattern as a reference. The correction value is saved to the
specific EEPROM address on the Main Board.

Select and execute this function in the exclusive servicing program.
Enter the correction v alue in th e pr ogram using t he ru le po sition of th e
print pattern as a reference. The correction value is saved to the
specific EEPROM address on the Main Board.

Select and execute this function in the exclusive servicing program to
save the offset into the EEPROM.

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Plain paper

Plain paper

Non-target

Table 3-2. Maintenance Functio ns

Function Item Purpose Adjustment Outline Tool Used Media

Head Cleaning This function is used to execute Cleaning efficiently when ink is

not delivered from the Head proper ly, e.g. dot missing or
skewed injection. This fu nction is u sed togethe r with the No zzle
Check Pattern to confirm the Cleaning effects.

Select this function in the exclusive servicing program, and execute
CL 3.

Exclusive
servicing
program

Non-target

(A4)

(A4)

Ink Charge This function is used to drain the Shippin g Liqu id in the ASP

Print Head flow path and simultaneously fill ink in the head

Maintenance items

flow path to make all nozzles printable and stabilize the ink in
the Print Head.

Select this function in the exclusive servicing program, and execute
the ink sucking operation equivalent to the Initial Charge.

Exclusive
servicing
program

Non-target

ADJUSTMENT Adjustment Items and Overview 74

EPSON Stylus Photo R200/R210 Revision A

Table 3-3. Maintenance Functio ns

Function Item Purpose Adjustment Outline Tool Used Media

Waste Ink Pad
Counter

EEPROM Data

Maintenance items

Copy

This function is used after repair to read the Waste Ink Counter,
and if the value is close to th e predetermined near-end valu e or
end value, to recommend Pad replacement to the user in order to
prevent the repaired printer from being returned again for repair
in a short time. The reset func tio n is u s ed to rese t the Wa ste In k
Counter from the exclusive program after Waste Ink Pad
replacement.

This function is used to read the above necessary information
from the EEPROM of the faulty Main Bo ard using the D4
function to reduce the auxiliary adjustment items at the time of
Board replacement.

Select this function in the exclusive servicing program, read/display
the current data from the specific EEPROM address on the Main
Board, and check whether the current counter value is close to the
upper limit or not.

For the reset function, select this function in the exclusive servicing
program after Waste Ink Pad replacement, and reset the corresponding
data at the specific address in the EEPROM on the Main Board.

Select this function in the exclusive servicing program, and read the
data from the faulty board. After that, change the Main Board and then
write the read data to a new board.

Exclusive
servicing
program

Exclusive
servicing
program

Non-target

Non-target

Table 3-4. Check Pattern Printing

Function Item Purpose Adjustment Outline Tool Used Media

A4 Normal Paper
Print

A4 Photo Quality
Ink Jet Paper Print

A4 Photo Paper/
Glossy Photo
Paper Prin t

Check pattern items

CD-R Print Check if the center position of CDR is correct. This pattern is used to make a simple print check at the EPSON

This pattern is used to check whether all adjustment results are
normal.

This pattern is used to check whether all adjustment results are
normal.

This pattern is used to check whether all adjustment results are
normal.

Select this function in the exclusive servicing program, print the print
patterns, and check the adj ust ment result in each pattern.

Select this function in the exclusive servicing program, print the print
patterns, and check the adj ust ment result in each pattern.

Select this function in the exclusive servicing program, print the print
patterns, and check the adj ust ment result in each pattern.

service company.

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Exclusive
servicing
program

Plain paper

Quality Ink

Jet Paper

Glossy Photo

Paper (A4)

Sheet, CD,

Dummy

(A4)


(A4)

Nozzle Check
Pattern Print

This pattern is used to check simply whether all nozzles deliver
ink or not.

This pattern is used to make a simple print check at the EPSON
service company.

Exclusive
servicing
program

Plain paper

(A4)

ADJUSTMENT Adjustment Items and Overview 75

EPSON Stylus Photo R200/R210 Revision A

Table 3-5. Appendix

Function Item Purpose Adjustment Outline Tool Used Media

Save All
EEPROM Data

APG Check This function is used to check if APG Assy. works properly. Select this function in the exclusive servicing program, and check the

Appendix items

This function is used to analyze defectiv e pr od ucts. Save the data of all EEPROM addresses. Exclusive

CR Guide Shaft movement.

servicing
program

Exclusive
servicing
program

Non-target

Non-target

ADJUSTMENT Adjustment Items and Overview 76

EPSON Stylus Photo R200/R210 Revision A

3.1.2 Replacement Part-Based Adjustment Priorities

The following table shows the adjustment items and their order for the replacement
parts.

Note: "Required" in this table in dicate s th e adjust me nt items that must be implemented when the

correspondi ng pa rts/units have b een removed or replaced . "Recommended", on t he other
hand, indicates those which are recommended the adjustment after removing or replacing
them. "-" means the adjustment is not needed.
When having re mo ve d or r epl ac ed mo re t ha n one pa rt/ u nit , re f er t o the i t ems t ha t c or re spon d
to the parts/units.

Table 3-6.Adjustment Item

Performance Priority 1 2 3 4 5 6 7 8 9 10 11 12

EEPROM
Data Copy

"ASF Unit" Removal
"ASF Unit" Replacement
"CR Motor" Removal
"CR Motor" Replacement
"Paper Guide Upper" Removal
"Paper Guide Upper"

Replacement
"Front Frame" Removal
"Front Frame" Replacement
"CR Unit" Removal
"CR Unit" Replacement
"Print Head" Removal
"Print Head" Replacement
"Main Board" Remov al
"Main Board" Replacement

(Read OK)

Required------

"Main Board" Replacement
(Read NG)

*1) The adjustment has been completed at the unit level of ASP supply. However, since "Main Board", "P rin t Head" and "ASF" are supplied separately, refer to the each item that corresponds to the part/

unit.

"Holder Shaft Unit" Removal
"Holder Shaft Unit"

Replacement
"CR Guide Shaft" Removal
"CR Guide Shaft" Re placement

Market
Setting

- - - - - - - Required - - - -

-------Required----

- - - - - - - Required Required Recommended Required -

-------RequiredRequiredRecommendedRequiredRequired

- - - - - - - - - - - -

------------

- - - - - - - - - - - -

------------

- - - - - - Required Required Required Recommended Required -

------RequiredRequiredRequiredRecommendedRequired-

- - - - - - Required Required Required Required Required -

- - - - Required Required Required Required Required Required Required -

- - - - - - - - - - - -

- Required Required

------------

- - - - - - - - - - - -

------RequiredRequiredRequired-Required-

- - - - - - Required Required Required - Required Required

USB ID
Input

Waste Ink
Pad Counter

Required

(Replacing

Waste Ink

Pads)

Ink Charge

- Required - Required Required Required Required Required

Head ID
Input

PG
Adjustment

First dot
Adjustment

-----

PW Sensor
Adjustment

Head
Angular
Adjustment

Bi-d
Adjustment

Offset Inpu t
for CR Motor
Calorific
Limitation

ADJUSTMENT Adjustment Items and Overview 77

EPSON Stylus Photo R200/R210 Revision A

Performance Priority 1 2 3 4 5 6 7 8 9 10 11 12

"Paper Eject Roller" Removal
"Paper Eject Roller"

Replacement
"PSB/PSE Board" Removal
"PSB/PSE Board" Replacement
"Paper Guide Fron t" Removal
"Paper Guide Front"

Replacement
"PF Motor" Removal
"PF Motor" Replacement
"Waste Ink Pads" Removal
"Waste Ink Pads" Replacem e nt
"PW Sensor" Removal
"PW Sensor" Replacement
"Printer Mech an ism" Removal

*1)

EEPROM
Data Copy

Market
Setting

- - - - - - - - - - - -

------------

- - - - - - - - - - - -

-----------Required

- - - - - - - Recommended Recommended Recommended Required -

-------RecommendedRecommendedRecommendedRequired-

- - - - - - - - - - - -

------------

- - - - - - - - - - - -

---Required--------

- - - - - - - - Required - - -

--------Required---

- - - - - - Recommended - - - - -

USB ID
Input

Waste Ink
Pad Counter

Ink Charge

Head ID
Input

PG
Adjustment

First dot
Adjustment

PW Sensor
Adjustment

Head
Angular
Adjustment

Bi-d
Adjustment

Offset Input
for CR Motor
Calorific
Limitation

"Printer Mechanism"
Replacement *1)

"Ink System" Removal
"Ink System" Re placement

------Recommended-----

- - - - - - - - - - - -

------------

ADJUSTMENT Adjustment Items and Overview 78

EPSON Stylus Photo R200/R210 Revision A

3.2 Adjustment by using adjustment program

The procedures of the adjustment items will be explained here. The intended item is as
follows.

o Market Setting
o USB ID Input
o Head ID Input
o Head Angular Adjustment
o Bi-d Adjustment
o PW Sensor Adjustment
o First Dot Adjustment
o Offset Input for CR Motor Cal orific Limitation
o A4 Normal Paper Print
o A4 Photo Quality Inkjet Paper Print
o A4 Photo Paper/ Glossy Photo Paper Print

3.2.1 Market Setting

[Adjustment Procedure]

1. Select the Market Setting of the Adjustment Program.

2. Click the [OK] button to write the specific data into EEPROM.

3. Click the [Check] button to check market and model name.

3.2.2 USB ID Input

[Adjustment Procedure]

1. Select US B ID in the Adjustment Program.

2. Enter the 10-digits serial number from the label applied to the back side of the
Housing Middle.

3.2.3 Head ID Input

[Adjustment Procedure]

1. Select the Head ID of the Adjustment Program.

2. Ent e r the 15-digits code of the Head ID label applied to the Print Head. Enter the
Head ID from left to right on the top row and from top to bottom in due order.

ADJUSTMENT Adjustment by using adjustment program 79

EPSON Stylus Photo R200/R210 Revision A

3.2.4 Head Angular Adjustment

[Adjustment Procedure]

1. Select Head Angular Adjustment in the Adjustment Program.

2. Click the [Print] button to print Head Angular Adjustment Pattern of checked
items.

3. Select the pattern value of straight line in the printed lines.

4. Click the [input] button and write the adjustment value.
(Note: The range of the adjustment value is -3 to 3.)

[Treatment procedure for NG product]

1. Replace the Print Head with new one again.

2. Print the check pattern, and check the adjustment result.

3. If the result is NG level, confirm the installation cond ition of r emoved parts dur ing
disassembly.

4. Perform step2) again.

OK p atte rn

NG p atte rn

[Judging Standard]

- The printed line should be straight line.
[Reference: Standard value in manufactory]

- Standard: ± 50µm

3.2.5 Bi-d Adjustment

[Adjustment Procedure]

1. Select Bi-D Adjustment in the Adjustment Program.

2. Click the [Print] button to print Bi-D Adjustment Pattern of checked items.

3. After selecting the pattern that has the smallest misalignment in each variable dot,
click the [Go to input page] button in the Adjustment Program.

4. Click the [Input] button to write the adjustment value of checked items.

5. Click the [Go to print page] button.

[Treatment procedure for NG product]

1. Replace the Print Head with new one again.

2. Print the check pattern, and check the adjustment result.

3. If the result is NG level, confirm the installation condition of removed parts during
disassembly.

4. Perform step2) again.

OK pattern NG pattern

[Judging Standard]

- No gap/overlap between short block pattern
and long one.

[Reference: Standard value in manufactory]
VSD1: 60µm,
VSD2: 60µm,
VSD3: 40µm,
VSD4: 40µm,
ECO: 85µm.

Figure 3-1. Head Angular Printing Pattern

Figure 3-2. Bi-D Adjustment Pattern

ADJUSTMENT Adjustment by using adjustment program 80

EPSON Stylus Photo R200/R210 Revision A

3.2.6 PW Sensor Adjustment

[Adjustment Procedure]

1. Select PW Sensor Adjustment in the Adjustment Program.

2. Click the [Print] button to print PW Sensor Adjustment Pattern.

3. Select the pattern number 5mm away from each edge.

4. Click the [Input] button to write the adjustment value of checked items.
[Treatment procedure for NG product]

1. Replace the PW sensor with new one again.

2. Print the check pattern, and check the adjustment result.

3. If the result is NG level, confirm the installation cond ition of r emoved parts dur ing
disassembly.

4. Perform step2) again.

[Judging Standard]

- Top / Bottom: 3.7 to 6.0mm

- Right / Left : 4.0 to 5.5mm

3.2.7 First Dot Adjustment

[Adjustment Procedure]

1. Select First Dot Adjustment in the Adjustment Program.

2. Click the [Print] button to print First Dot Adjustment Pattern.

3. Determine the adjustment value in the shifting direction for the pattern printed on
the left margin. Input can be made in 0.0176mm increments for the adjustment
value of 1.

4. Click the [input] button and write the adjustment value.

[Treatment procedure for NG product]

1. Replace the repaired (replaced) part with new one.

2. Print the check pattern, and check the adjustment result.

3. If the result is NG level, confirm the installation condition of removed parts during
disassembly.

[Judging Standard]

- Standard: 3 ± 1.0mm away from left edge.

Figure 3-4. First Dot Adjustment

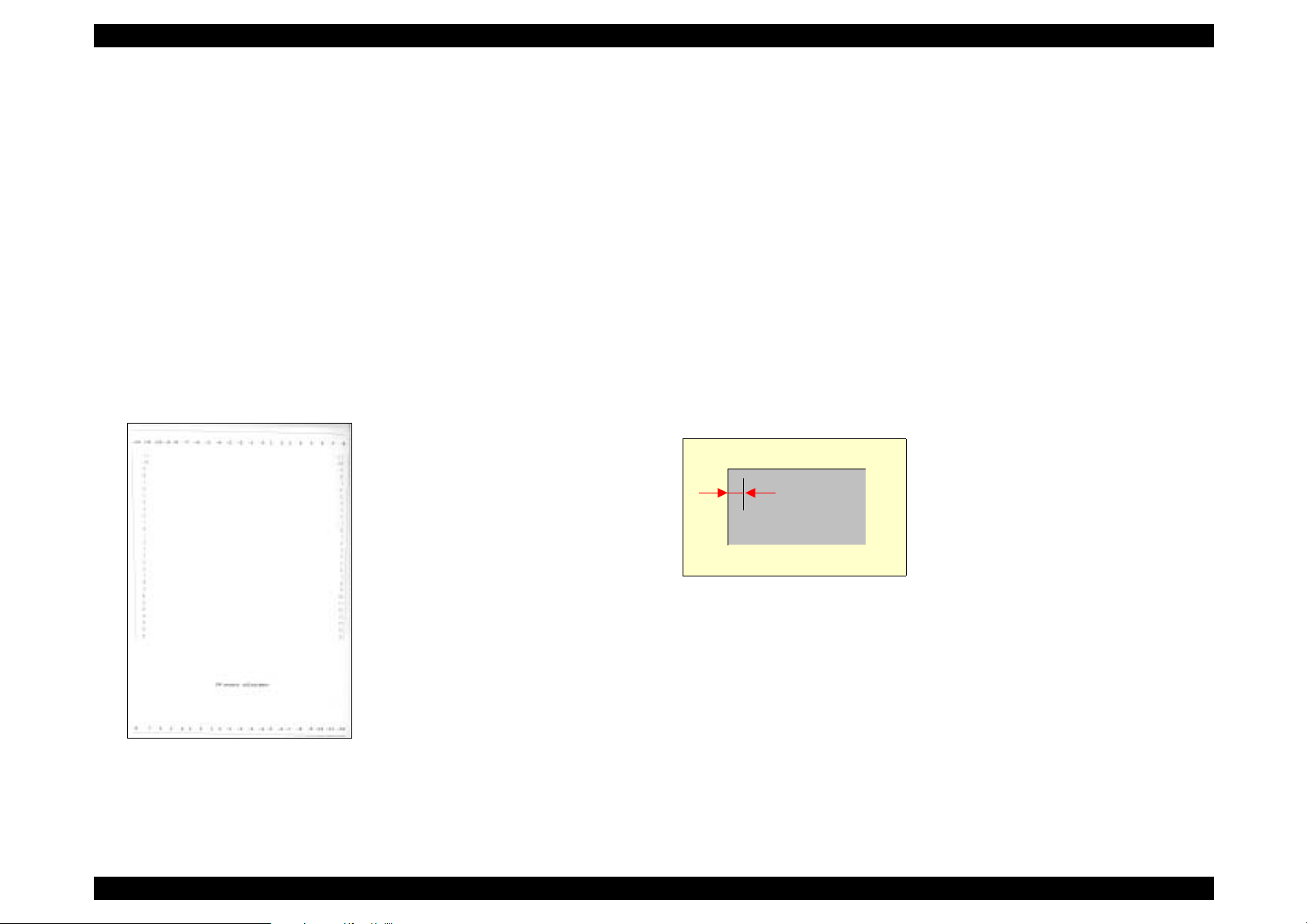

Figure 3-3. PW Sensor Adjustment Pattern

ADJUSTMENT Adjustment by using adjustment program 81

EPSON Stylus Photo R200/R210 Revision A

3.2.8 Offset Input for CR Motor Calorific Limitation

[Adjustment Procedure]

1. Select Offset Input for CR Motor Calorific Limitation in the Adjustment Program.

2. Check each box of the replaced parts/units checklist and then click the [OK]
button.

3.2.9 A4 Normal Paper Print

[Adjustment Procedure]

1. Select A4 Normal Paper Print in the Adjustment Program.

2. Click the [Print] button to print A4 Normal Paper Print Pattern.

3. Check the adjustment result in each pattern.

3.2.10 A4 Photo Quality Inkjet Paper Print

[Adjustment Procedure]

1. Select A4 Photo Quality Inkjet Paper Print in the Adjustment Program.

2. Click the [Print] button to print A4 Photo Quality Inkjet Paper Print Pattern.

3. Check the adjustment result in each pattern.

3.2.11 A4 Photo Paper/ Glossy Photo Paper print

1. Select A4 Photo Paper/ Glossy Photo Paper print in the Adjustment Program.

2. Click the [Print] button to print A4 Photo Paper/ Glossy Pho to Paper prin t Pattern.

3. Check the adjustment result in each pattern.

ADJUSTMENT Adjustment by using adjustment program 82

EPSON Stylus Photo R200/R210 Revision A

3.3 Adjustment Except Adjustment Program

Following is adjustment except Adjustment Program.

3.3.1 PG Adjustment

[Purpose]
This adjustment is required when removing or replacing the following parts/units in

order to secure the specified space between the print- side of the Print Head and the
paper.

o Carriage Unit
o CR Guide Shaft
o Bushing, Parallel Adjust, Left (Right)

(Including when having moved "Bushing Parallel Adjust, Left (Right)")

[Adjustment Procedure]

1. Make both sides of the two Thickness Gauge (1.15mm and 1.31mm) clean by
wiping with Bemcot with a little alcohol.

2. To make the PG position minus (-), turn the gear of "APG Assy." and match the
flag centre of "Cam, CR, Right" with "PG Sensor".

Gear of "APG Assy."

Cam, CR, Right

Flag

PG Sensor

Figure 3-5. Setting PG Position

3. Match the 0 position (Hole point of gear) of "Bushing, Parallel Adjust, Left
(Right)" with the rib of "Frame, Main".

Bushing, Parallel Adjust, Left

Ribs

Bushing, Parallel Adjust, Right

Ribs

Hole point

Hole point

Figure 3-6. Setting "Bushing, Parallel Adjust"

4. Move "Carriage Unit" to the centre of the printer and remove "Lever, Cartridge".
Then, set the PG-Adjustment Dummy Cartridge.

ADJUSTMENT Adjustment Except Adjustment Program 83

EPSON Stylus Photo R200/R210 Revision A

5. Move "Carriage Unit" to the left edge of the printer, then set the Thickness Gauge
(1.15mm) on the left ribs (X3) of "Paper Guide, Front".

Ribs

Thickness Gauge

Figure 3-7. Setting Thickness Gauge

6. Implement PG Adjustment on the left according to the flowchart in the Figure 3-8.

Start

Move "Carriage U n it" to

the right by using

"Timing Belt".

Does the Thickn es s

Gauge move?

No

Take down "Bushing, Parallel

Adjust, Left" toward the

printer front by 1 notch.

Take up: PG gets wider

Note: Take down to war d the pri nter front by 1 notch:

PG gets narrower.
Take up toward the printer back by 1 notch:
PG gets wider.

Yes

Take up "Bushing, Parallel

Adjust, Left" toward the

printer back by 1 notch.

Move "Carriage Unit" to

the right by using

"Timing Belt".

Does the Thickn ess

Gauge move?

No

Yes

7. Remove the Thickness Gauge and move "Carriage Unit" to the right edge. Then,
set the Thickness Gauge on the right ribs (X3) of "Paper Guide, Front".

Ribs

Thickness Gauge

Figure 3-9. Setting Thickness Gauge

8. Implement PG Adjustment on the right according to the flowchart in the Figure
3-10.

Start

Move "Carriage U n it" to
the left by using "Timing

Belt".

Does the Thickness

Gauge move?

No

Take down "Bushing, Parallel

Adjust, Right" toward the

printer front by 1 notch.

Take down: PG

gets narrower

PG gets wider

Note: Take down toward the pri nte r front by 1 notch:

PG gets narrower.
Take up toward the printer back by 1 notch:
PG gets wider.

Yes

Take up "Bushing, Parallel

Adjust, Right" toward the

printer back by 1 notch.

Move "Carriage Unit" to

Take up:

the left by using "Timing

Belt".

Does the Thickness

Gauge move?

Yes

Take down: PG gets narrower

Figure 3-8. PG Adjustment (Left Side)

Go to Step 7.

No

Go to Step 9.

Figure 3-10. PG Adjustment (Right Side)

ADJUSTMENT Adjustment Except Adjustment Program 84

EPSON Stylus Photo R200/R210 Revision A

9. After finishin g PG Adjustm ent on the right, move "Carriage Unit" to the left edge
again, then check PG according to the flowchart in the Figure 3-11.

Start

Move "Carriage U n it" to

the right by using

"Timing Belt".

Does the Thickness

Gauge move?

No

Go to Step 10

Take up: PG gets wider

Take down: PG gets narrower

Note: Take down towa rd the printer front by 1 notch:

PG gets narrower.
Take up toward the printer back by 1 notch:
PG gets wider.

Yes

Take up "Bushing, Parallel

Adjust, Le ft" toward the

printer back by 1 notch.

Move "Carriage Unit" to

the right by using

"Timing Belt".

Does the Th ickness

Gauge move?

No

Go Back to Step7

Yes

Figure 3-11. PG Checking (1)

10. Move "Carriage Unit" back to the left edge of the printer, then set the Thickness
Gauge (1.31mm) on the ribs (X3) of "Paper Guide, Front" in the same way as the
Figure 3-7.

11. Check PGs on both the left and right according to the flowchart in the Figure 3-12.

Start

Check left PG.

Move "Carriag e U nit" to

the right by using

"Timing Belt".

Does the Thickn ess

Gauge move?

Yes

Check right PG.

Move "Carriage U n it" to
the left by using "Timing

Belt".

Does the Thickness

Gauge move?

Yes

Go to Step 12

No

No

Go Back to Step3

Figure 3-12. PG Checking (2)

12. After finishing the adjustment, screw "Bushing, Parallel Adjust, Left (Right)".

13. After screwing, check PGs on both the left and right again according to the
flowchart in the Figure 3-12.

ADJUSTMENT Adjustment Except Adjustment Program 85

MAINTENANCE

CHAPTER

EPSON Stylus Photo R200/R210 Revision A

4.1 Overview

This section provides information to maintain the printer in its optimum condition.

4.1.1 Cleaning

This printer has no mechanical components which require regular cleaning except the
Print Head. Therefore, when returning the printer from the user, check the following
parts and perform appropriate cleaning if stain is noticeable.

C A U T I O N

o Housing

Use a clean soft cloth moistened with water and wipe off any di rt. If th e Housi n gs
are stained with ink, use a cloth moistened with neutral detergent to wipe it off.

o Inside the printer

Use a vacuum cleaner to remove any paper dust.

n Never use chemical solvents, such as thinner, benzine, and

acetone to clean the exterior parts of the printer like the housing.
These chemicals may deform the components of the printer or
deteriorate the quality of the printer.

n Be careful not to damage any components when you clean inside

the printer.

n Do not scratch the surface of the PF Roller. Use a soft brush to

wipe off dust. Use a soft cloth moistened with alcohol to remove
ink stain.

4.1.2 Service Maintenance

If print irregularity (missing dot, white line, etc.) has occurred or the printer indicates
"Maintenance Error", take the following actions to clear the error.

o Head Cleaning

If dot missing or banding phenomenon has occurred, use the Head Cleaning
function and perform the Print Head cleaning operation.* This function can be
performed by operating the control panel, the print driver utility and the
Adjustment Progra m.

When performed by operat ing the C ont ro l Pan el, first mak e sure that the printer is
in stand-by status. Then, select the cleani ng mode by pres sin g the Maintenance
button on the Control Panel. The message, "Beginning head cleaning" will be
displayed on LED. By pressing the OK button, the printer will start the cleaning
sequence.

When selecting the manual cleaning by the printer driver utility, the most
appropriate cleaning mode will be selected.

The following explanation is the operation process of the printer head cleaning by
the Printer Driver Utility.
Refer to Chapter 3 "ADJUSTMENT" for the operation of the Adjustment
Program.

* This product has three mode s for Manual Cleaning, and it automatically selects

the best cleaning mode in accordance with the various con ditions and perf orms
the operation. Therefore, the consumption of the ink by the manual cleaning
will vary according to the selected mode for the condition.

o LD Roller

When the paper loading function does not operate because friction of the LD
Roller has gone down due to paper dust, remove the dust by using a soft bruch or
soft cloth moistened with alcohol.

MAINTENANCE Overview 87

EPSON Stylus Photo R200/R210 Revision A

1. Select EPSON Status Monitor 3 in the Printer Driver Utility. Then make sure that
the printer connected to Status Monitor 3 is on standby status. If it is on standby,
the following will be displayed.

Figure 4-1. Display for Status Monitor 3

2. Select Head Cleaning in the Printer Driver Utility and execute the printer Head
Cleaning. After the cleaning, choose "Nozzle Check" and print the Nozzle Check
Pattern. If repeating the Print Head cleaning operation without choosing "Nozzle
Check", CL1, the weakest cleaning, will be repeated.

o Maintenance Request Error

Ink is used for operations such as Head Cleaning as well as printing. In that case,
the ink is drained into the Waste Ink Pad and its amount is counted in the Waste
Ink Counter set in the EEPROM on the control board. When the preset value is
reached (Waste Ink Counter = Waste Ink Pad Counter A = variable between 20000
and 46750), The Waste Ink Counter detects that the Was te Ink Pad has reached its
predetermined limit. The Maintenance Request Error will be displayed on Status
Monitor 3 as shown below.

Figure 4-3. Maintenance Request Error Display on Status Monitor 3

If this occurs, replace the Waste Ink Pad and res et the Waste I nk Counter set in the
EEPROM. Resetting of the Waste Ink Counter can be done only from the
Adjustment Program since this product does not have the reset function for the
Waste Ink Counter through the operation Panel Switch. Refer to Chapter 3
"ADJUSTMENT" for the reset procedure. During repair service, the Waste Ink
Counter must be checked according to the firmware version, the Main Board
checker program version and the Nozzle Check Pattern of the Nozzle Check
Pattern Print. Because another "Maintenance Request Error" could occur after
returning the repaired product to the user, if the Waste Ink Counter is close to its
limit, it is recommended that the Waste Ink Pad be replaced.

* As for the screen shot in this page, it’s used screen shot of Stylus Photo

Figure 4-2. Head Cleaning Functions of the Print Driver Utility

R300/310 as a substitute for that of Stylus Photo R200/210.

MAINTENANCE Overview 88

EPSON Stylus Photo R200/R210 Revision A

4.1.3 Lubrication

The lubrication used for the components of St yl u s Ph oto R2 00/ R 210 has been decided
on based on evaluation carried out by Epson. As a result, the specified amount of
lubricant should be applied in the places specified when carrying out repair and
maintenance work.

o When wiping off the grease during the cleaning
o If necessary when performing assembly/disassembly of the printer

C A U T I O N

n Never use oil or grease other than those specified in this manual.

Use of different types of oil or grease may damage the
components or affect the printer functions.

n Never apply a larger amount of oil or grease than specified in this

manual.

Table 4-1. Oil Applied to Stylus Photo R300/R310

Type Name EPSON Code Supplier

G-26 1080614

Grease

G-63 1218320

EPSONG-46 1039172

o Refer to the following figures for the lubrication points.

<Lubrication Point>

1. Contact point between
"Grounding Spring, PF" and

Grounding Spring, PF

1

Bushing, 5 left

Paper Guide, Rear

2

Roller, PF

Bushing, 5 right

"Roller, PF"

2. Surfa c e of co ntact point
between "Roll e r PF" and
"Paper Guide, Rear"

<Lubrication Type>

1. G-26

2. G-26

<Lubrication Amount>

1. Half periphery of "Roller, PF"

2. 4mm x 2 points

<Remarks>

Use a syringe to apply it

<Lubrication Point>

Inside surface of "Bushing, 5"
(Roller EJ Assy.)

<Lubrication Type>

G-26

C A U T I O N

n When using G-64, it is recommended to use a flux dispenser

(1049533) together.

<Lubrication Amount>

Adequate dose

<Remarks>

Use a cotton-tipped swab to apply
it

MAINTENANCE Overview 89

EPSON Stylus Photo R200/R210 Revision A

Roller, PF

Roller, EJ

Paper Guide, Front

Paper Guide, Front

<Lubrication Point>

Back of contact point between
"Roller, PF" and hook of "Paper
Guide, Front"

<Lubrication Type>

G-26

<Lubrication Amount>

10mm

<Remarks>

Use a syringe to apply it

<Lubrication Point>

Bottom of contact point between
"Roller, EJ" an d hook of "Paper
Guide, Front"

<Lubrication Type>

G-26

<Lubrication Amount>

3 points (Adequate dose)

<Remarks>

Use a cotton-tipped swab to apply
it

Guide, Shaft, Frame EJ Left

1

1

1

1

<Lubrication Point>

1. Contact point between shaft of
"Frame, EJ" and inside "Guide,
Shaft, Frame EJ Left"

2. Contact point between shaft of
"Frame, EJ" and upper surface
of "Push Up Plate Fra me EJ

1

Left"

<Lubrication Type>

1. G-26

2. G-26

<Lubrication Amount>

2

1. 3 points (Adequat e dose)

1. 1 point (Adequate dose)

<Remarks>

Use a brush to apply it

<Lubrication Point>

1. Contact point between shaft of
"Frame EJ" and inside "Guide,
Shaft, Frame EJ Right"

1

2. Contact point between shaft of
"Frame EJ" and upper surface
of "Push Up Plate Fra me EJ
Right

<Lubrication Type>

2

1. G-26

2. G-26

<Lubrication Amount>

1. 3 points (Adequat e dose)

Guide, Shaft, Frame EJ Right

1. 1 point (Adequate dose)

<Remarks>

Use a brush to apply it

MAINTENANCE Overview 90

EPSON Stylus Photo R200/R210 Revision A

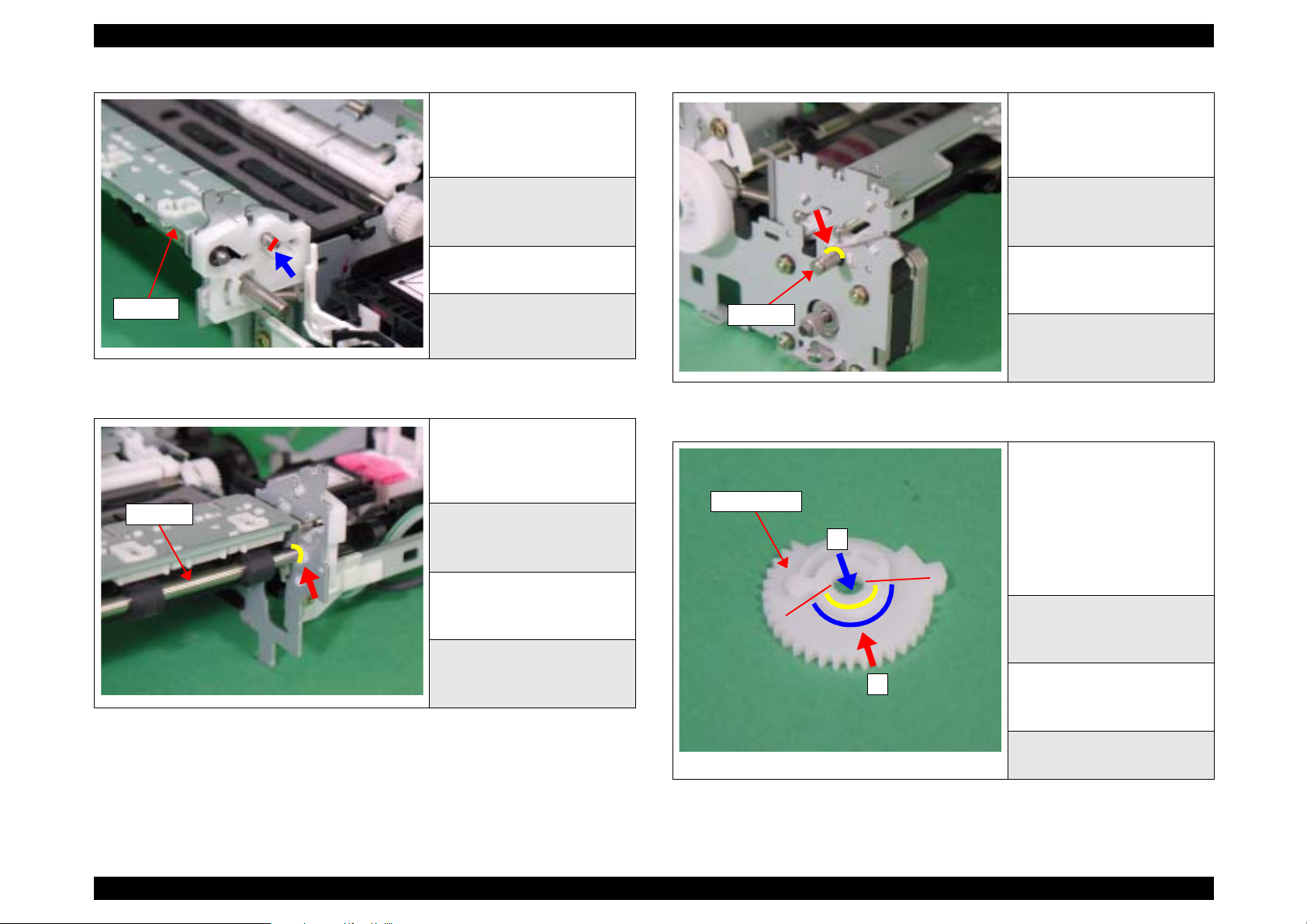

Frame EJ

Roller EJ

<Lubrication Point>

Right side surface of smaller shaft
of "Frame EJ"

<Lubrication Type>

G-26

<Lubrication Amount>

Half periphery of the shaft

<Remarks>

Use a cotton-tipped swab to apply
it

<Lubrication Point>

Contact point between "Roller EJ"
and "Ground Spri ng, EJ Right"

<Lubrication Type>

G-26

<Lubrication Amount>

Adequate dose

<Remarks>

Use a brush to apply it

Roller EJ

Cam, CR, Left

<Lubrication Point>

Contact point betwe en "Rol ler EJ"
and "Ground Spri ng, EJ Left"

<Lubrication Type>

G-26

<Lubrication Amount>

Adequate dose

<Remarks>

Use a brush to apply it

<Lubrication Point>

1. Surfa c e of co ntact point
between upper side of "Cam,
CR, Left" and "Frame, Main"

1

2. Surfa c e of co ntact point
between periphery surface of
"Cam, CR, Left" and "Bushing,
Parallel Adjust, Left"

<Lubrication Type>

1. G-63

2. G-63

2

<Lubrication Amount>

1. Half periphery

2. Half periphery

<Remarks>

Use a brush to apply it

MAINTENANCE Overview 91

EPSON Stylus Photo R200/R210 Revision A

Cam, CR, Right

CR Guide Shaft

<Lubrication Point>

Inside periphery surface of "Cam,
CR, Right"

<Lubrication Point>

Contact point between left side of
"CR Guide Shaft" and "Frame,
Main"

<Lubrication Type>

G-63

<Lubrication Amount>

Adequate dose

<Lubrication Type>

G-63

<Lubrication Amount>

3mm x 2 points

<Remarks>

<Remarks>

CR Guide Shaft

Use a syringe to apply it

• Use a brush to ap ply it

• Do not apply it outside the
boundary in the figure

<Lubrication Point>

Contact point between left side of

<Lubrication Point>

1. Groove on the right side of "CR
Guide Shaft" (Groove for
"Fixed Spring, Shaft CR, Left")

CR Guide Shaft

"CR Guide Shaft" and "Fixed
Spring, Shaft CR, Left"

<Lubrication Type>

G-63

2. Cont act point between right

2

2

side of "CR Gui d e S h af t" and
"Frame, Main"

<Lubrication Type>

1. G-63

2. G-63

<Lubrication Amount>

3mm

<Remarks>

Use a syringe to apply it

1

<Lubrication Amount>

1. Half periphery

2. 3mm x 2 points

<Remarks>

Use a syringe to apply it

MAINTENANCE Overview 92

EPSON Stylus Photo R200/R210 Revision A

Upper surface Upper surface

Both sides close to upper surface

Upper surfac e

Holder, Scale, Left

Holder, Scale, Right

Both sides

Upper surface

Inside surface of hole

Upper surface

Inside surface of hole

Inside surface of hole

Upper surfac e

Upper surface

Both sides

<Lubrication Point>

Specified points on "Holder,
Scale, Left" in the figure on the
left

<Lubrication Type>

G-63

<Lubrication Amount>

8 points (Adequate dose)

<Remarks>

Use a brush to apply it

<Lubrication Point>

Specified points on "Holder,
Scale, Right" in the figure on the
left

<Lubrication Type>

G-63

<Lubrication Amount>

8 points (Adequate dose)

<Remarks>

Use a brush to apply it

<Lubrication Point>

Pulley, Driven Assy.

"Pulley, Driven Assy."

<Lubrication Type>

G-26

<Lubrication Amount>

1mm x 4 points

<Remarks>

Use a syringe to apply it

1

<Lubrication Point>

1. Upper surface of curving area
of "Holder, Idle Roller"

2. Lower surface of curving area
of "Holder, Idle Roller"

<Lubrication Type>

1. G-26

2

2. G-26

<Lubrication Amount>

1. 2 points (Adequate dose)

2. 2 points (Adequate dose)

<Remarks>

Use a brush to apply it

MAINTENANCE Overview 93

EPSON Stylus Photo R200/R210 Revision A

Guide Plate, CR

<Lubrication Point>

Inside surface of "Guide Plate,
CR"

<Lubrication Type>

G-26

<Lubrication Amount>

Home possition side: To edge of

‘Cover, Guide Plate, CR’.
Opposite side: To about 40mm
from edge.

<Remarks>

Use a syringe to apply it

<Lubrication Point>

"CR Guide Shaft" outside the
bearing of the Carriage

<Lubrication Type>

G-63

<Lubrication Amount>

120mg-160mg x 2 points

<Remarks>

1. Use a syringe to apply it

2. Apply grease while rotating
"CR Guide Shaft"

<Lubrication Point>

Holes inside the Carriage

<Lubrication Type>

G-63

<Lubrication Amount>

150mg-210mg x 2 points

<Remarks>

Use a syringe to apply it

<Lubrication Point>

Shaft, LD Roller

1. Cam of "Shaft, LD Roller"
shown in the figure

1

2. Contact point between cam of
"Shaft, LD Roller" and "Paper
Back Lever"

<Lubrication Type>

1. G-46

2

1

1

2. G-46

<Lubrication Amount>

Adequate dose

<Remarks>

Use a flux dispenser to apply it

MAINTENANCE Overview 94

EPSON Stylus Photo R200/R210 Revision A

<Lubrication Point>

Paper Back Lever

Point shown in the figure of
"Paper Back Lever" set in "ASF
Assy."

<Lubrication Type>

G-46

<Lubrication Amount>

Adequate dose

<Remarks>

Use a flux dispenser

<Lubrication Point>

Point on the right side of "Hopper"
as shown in the figure

<Lubrication Type>

G-46

<Lubrication Amount>

Hopper

Adequate dose

<Remarks>

Use a flux dispenser to apply it

MAINTENANCE Overview 95

APPENDIX

CHAPTER

EPSON Stylus Photo R200/R210 Revision A

5.1 Exploded Diagram

An exploded diagram is not provided in the Stylus R200/R210 Service Manual. If
consultation of an exploded diagram is necessary, see the Exploded Diagram attached
to the Stylus R200/R210 Parts List.

5.2 Electrical Circuits

The electric circuit diagrams below are shown at the following pages:

o Main Board (C546 MAIN)
o Power Board (C546 PSH)
o Panel Board (C546PNL)

APPENDIX Exploded Diagram 97

Model: PM-G700
Board: C546MAIN
Rev. : F
Sheet: 1/1

Model: PM-G700
Board: C546PNL
Rev. : A
Sheet: 1/1

Model: PM-G700
Board: C528PSH
Rev. : A
Sheet: 1/1
