Epson SC-T3100M, SC-T5100, SC-T3100, SC-T5100N, SC-T3100N User Manual

User's Guide

CMP0139-05 EN

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Copyrights and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

EPSON, EPSON EXCEED YOUR VISION, EXCEED YOUR VISION, and their logos are registered trademarks or trademarks of Seiko Epson Corporation.

Microsoft

Apple, Mac, macOS, OS X, Bonjour, Safari, AirPrint, iPad, iPhone, iPod touch, iBeacon, iTunes and ColorSync are trademarks of Apple Inc., registered in the U.S. and other countries.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

Chrome

Intel

Adobe and Reader are either registered trademarks or trademarks of Adobe in the United States and/or other countries.

HP-GL/2

The SuperSpeed USB Trident Logo is a registered trademark of USB Implementers Forum, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

, Windows®, and Windows Vista® are registered trademarks of Microsoft Corporation.

, Chrome OS™, and Android™ are trademarks of Google Inc.

™

is a registered trademark of Intel Corporation.

and HP RTL® are registered trademarks of Hewlett-Packard Corporation.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Contents

Copyrights and Trademarks

Introduction

Notes on Manuals.......................... 6

Meaning of Symbols...................... 6

Illustrations............................ 6

Product Model Descriptions................ 6

Manual Organization..................... 6

Viewing PDF Manuals.................... 7

Printer Parts.............................. 8

Front................................. 8

Scanner (SC-T3100M Series only). . . . . . . . . . . 10

Inside................................ 11

Back................................. 12

Control panel.......................... 14

Home screen operations.................. 14

Features of Printer........................ 17

Realizing High Resolution................. 17

Insistence on Ease-of-Use................. 17

Notes on Usage and Storage.................. 18

Installation space....................... 18

Notes when using the printer............... 18

Notes when not using the printer............ 19

Notes on handling ink cartridges............ 19

Notes on handling paper.................. 20

Saving Power............................ 21

Introducing the Software

Provided Software......................... 23

Built-in Software in the Printer............... 24

How to Use Web Config.................... 25

How to Start........................... 25

Closing............................... 25

Function Summary...................... 25

Updating Software or Installing Additional

Software................................ 26

Checking Whether Updates Available and

Updating Software...................... 26

Receiving Update Notifications............. 26

Uninstalling Software...................... 27

Windows............................. 27

Mac................................. 27

Loading and Setting the Paper

Notes on Loading the Paper.................. 28

Paper Load Position....................... 28

Loading and Removing the Roll Paper.......... 29

Loading Roll Paper...................... 29

Cutting the Roll Paper.................... 31

Removing Roll Paper..................... 33

Loading and Removing Paper from the Auto

Sheet Feeder............................. 35

Installing and removing the paper stacker (for

plain paper)........................... 35

Loading paper into the auto sheet feeder. . . . . . 35

Removing paper from the auto sheet feeder. . . . 37

Loading and Removing Cut Sheet(1 sheet). . . . . . . 39

Loading Cut Sheet(1 sheet)................ 39

Removing Cut Sheet (1 Sheet).............. 40

Setting Loaded Paper....................... 41

For Roll Paper.......................... 41

For Auto Sheet Feeder/Cut Sheet(1 sheet)..... 43

Optimizing Paper Settings (Media Adjust)....... 45

Notes on Making Adjustments.............. 45

Adjusting............................. 45

Printing with the Printer Driver from Your Computer

Basic Operating Procedures (Windows)......... 48

Printing Procedure...................... 48

Canceling Printing...................... 50

Customizing the Printer Driver............. 51

Basic Operating Procedures (Mac)............. 54

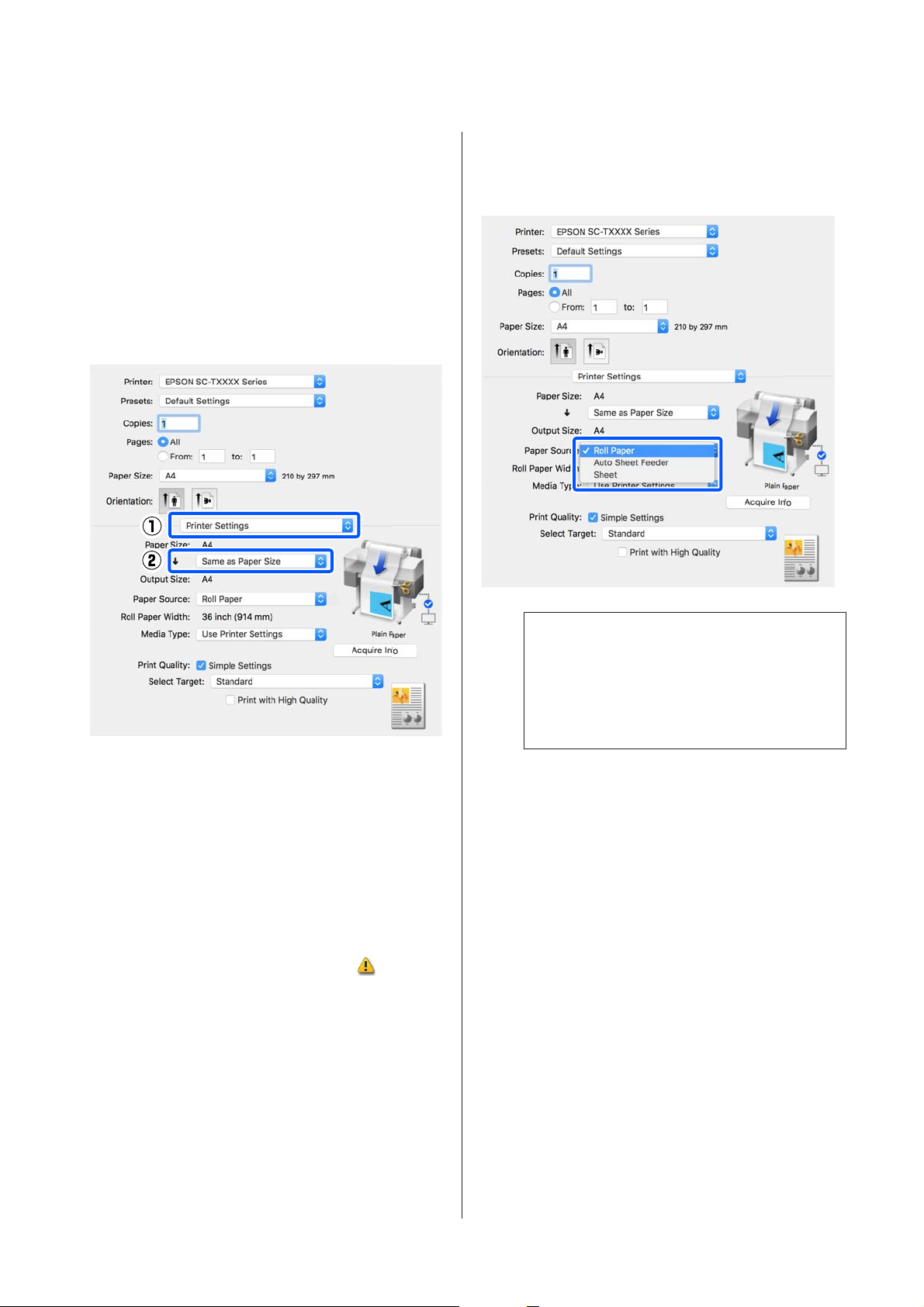

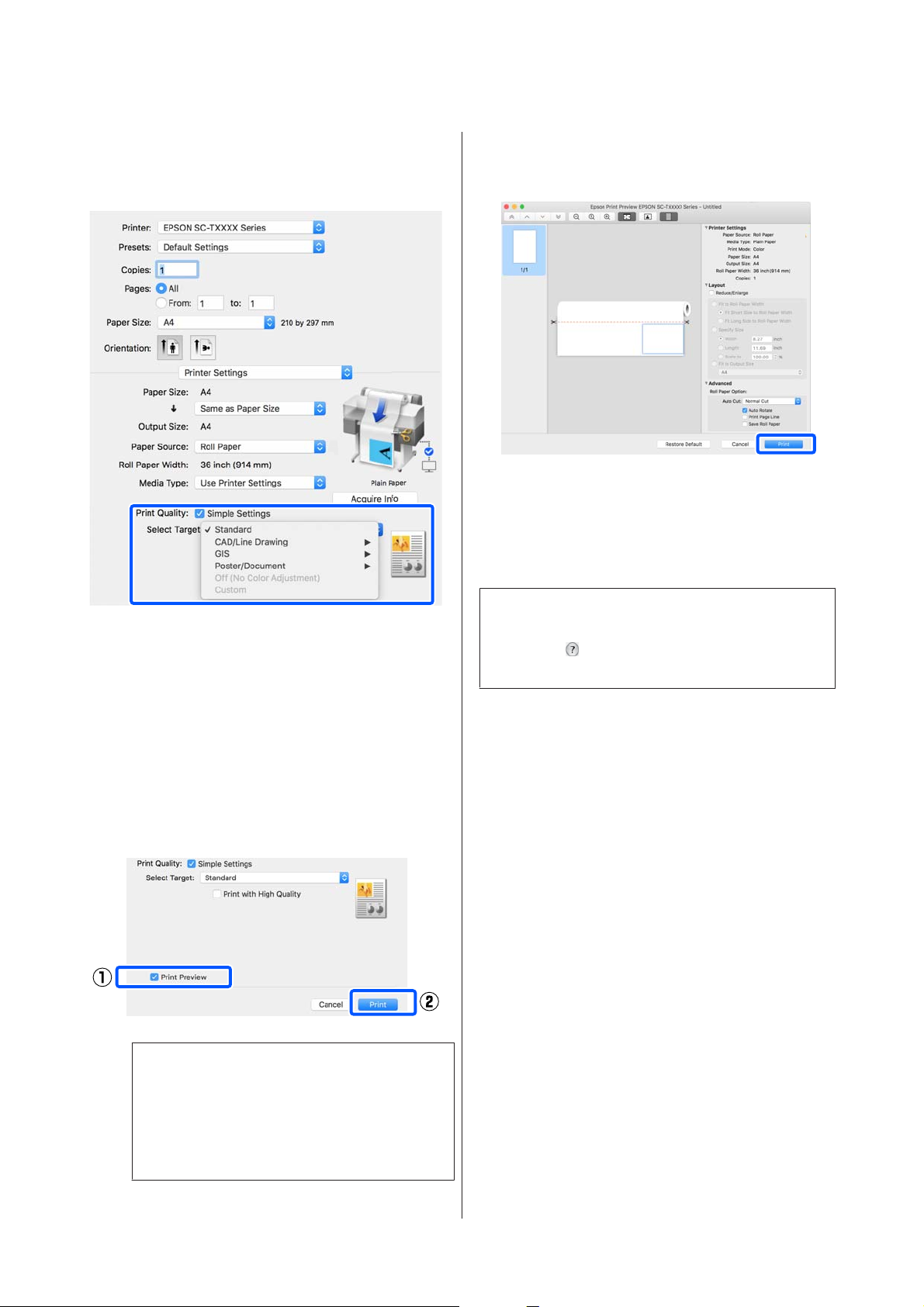

Printing Procedure...................... 54

Canceling Printing...................... 57

Customizing the Printer Driver............. 57

Printing CAD Drawings.................... 59

Enlargements and Horizontal and Vertical

Banners................................ 61

Fitting Documents to the Width of the Roll

Paper................................ 62

Fitting Documents to the Output Size. . . . . . . . 63

Choosing a Print Size.................... 65

Printing at Non-Standard Sizes............... 66

Correct color and print..................... 70

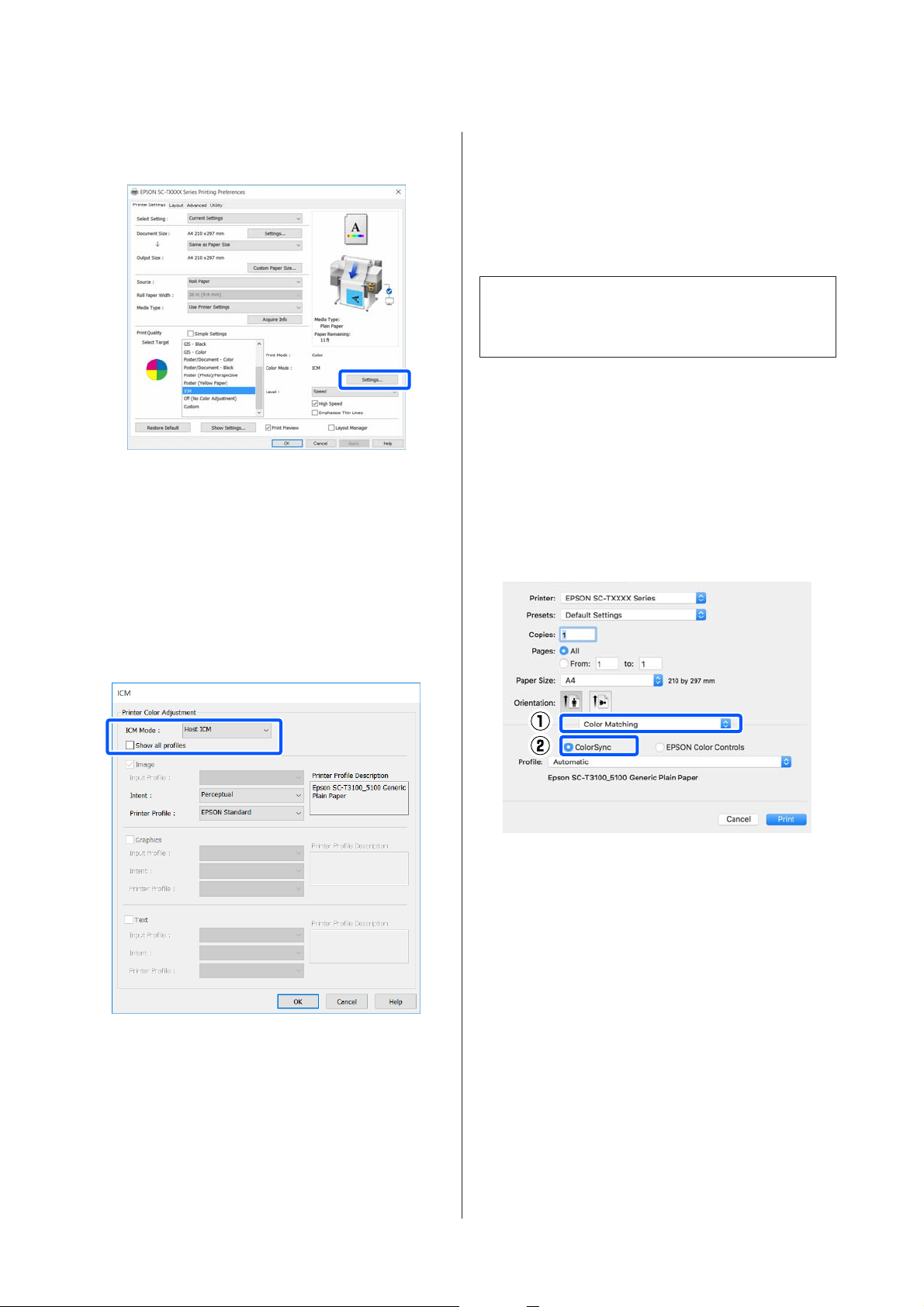

Color Management Printing................. 74

About Color Management................. 74

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Contents

Color Management Print Settings........... 74

Setting color management with the

applications........................... 75

Setting color management with the printer

driver................................ 77

Multi-Page Printing (N-up).................. 81

Manual Double Sided Printing (Windows Only)

...................................... 82

Notes on double-sided printing............. 82

Setting Procedures for Printing............. 82

Folded 2-Sided Printing (Windows only). . . . . . . . 84

Poster Printing (Windows Only).............. 85

Printing Multiple Documents (Layout Manager)

(Windows Only).......................... 90

Setting Procedures for Printing............. 90

Saving and Recalling Settings............... 91

Printing Using the HP-GL/2 or HP RTL Mode from a Computer

Printer Settings........................... 92

Basic Print Settings...................... 92

HP-GL/2 Specific Print Settings............. 92

CAD Application Settings................... 93

Changing the Network Connection Methods

Switching to Wired LAN.................... 94

Switching to Wireless LAN.................. 94

Directly Connecting Wirelessly (Wi-Fi Direct).... 95

Copying (SC-T3100M Series only)

Placing Documents in the Scanner............ 101

Loadable Document Sizes................ 101

Loadable Paper Types................... 101

Documents That Cannot Be Loaded......... 101

When loading documents that are thin, that are easily torn, or that you do not want to

damage.............................. 102

How to Load Documents................... 103

Procedure for Copying.................... 103

Scanning (SC-T3100M Series Only)

Function Summary....................... 105

Preparing to Scan........................ 105

Procedure for Scanning.................... 106

Scanning and Saving an Image to a Shared

Folder or FTP Server.................... 106

Scanning and Attaching an Image to an Email

................................... 107

Scanning and Saving an Image to a Memory

Device.............................. 108

Making Enlarged Copies with an A3 or A4 Scanner (Except for the SC-T3100M Series)

Connecting the Scanner.................... 109

Making Enlarged Copies................... 109

Placing Documents in the Scanner............ 110

Using AirPrint

Printing without Using the Printer Driver

Direct Printing Over the Web (Upload and Print)

(SC-T3100M Series Only). . . . . . . . . . . . . . . . . . . 97

Function Summary...................... 97

Upload and Print Procedure............... 97

Printing Files from a Shared Folder (Print from

Folder) (SC-T3100M Series Only)............. 98

Function Summary...................... 98

Preparing a Shared Folder................. 98

Print from Folder Procedure............... 99

Printing Files on USB Flash Memory Directly

(SC-T3100M Series Only) . . . . . . . . . . . . . . . . . . . 99

Using the Menu

Menu List.............................. 112

Paper Setting menu....................... 130

Roll Paper menu....................... 130

Auto Sheet Feeder menu................. 133

Cut Sheet(1 sheet) menu................. 134

Printer Status menu....................... 135

Settings menu........................... 136

General Settings....................... 136

Maintenance.......................... 158

Printer Status/Print..................... 159

Enlarged Copy menu (except for the SC-

T3100M Series). . . . . . . . . . . . . . . . . . . . . . . . . . 160

Memory Device (SC-T3100M Series only). . . . . . 161

Copy Menu (SC-T3100M Series Only) . . . . . . . . . 164

Scanning Menu (SC-T3100M Series Only)...... 168

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Contents

Network Folder/FTP Menu (SC-T3100M Series

only).................................. 177

Maintenance

Clearing a Clogged Print Head............... 179

Checking the print head for clogging and then

cleaning............................. 179

Powerful Cleaning...................... 179

Replacing Consumables.................... 180

Handling of Used Consumables............ 180

Replacing Ink Cartridges................. 180

Replacing Maintenance Box............... 182

Replacing the Cutter.................... 183

Problem Solver

What to do When a Message is Displayed. . . . . . . 186

When a Maintenance Call/Printer Error Occurs

..................................... 187

Troubleshooting......................... 188

You cannot print (because the printer does not

work)............................... 188

The printer operates, but nothing prints...... 190

The prints are not what you expected........ 191

Feeding or ejecting problems.............. 196

Others.............................. 199

Copying or Scanning Problems (SC-T3100M

Series Only).......................... 200

Web Config.......................... 221

Specifications Table....................... 222

For European users..................... 224

Where To Get Help

Technical Support Web Site................. 225

Contacting Epson Support.................. 225

Before Contacting Epson................. 225

Help for Users in North America........... 226

Help for Users in Europe................. 226

Help for Users in Taiwan................. 226

Help for Users in Australia/New Zealand. . . . . 227

Help for Users in Singapore............... 227

Help for Users in Thailand................ 228

Help for Users in Vietnam................ 228

Help for Users in Indonesia............... 228

Help for Users in Hong Kong.............. 229

Help for Users in Malaysia................ 229

Help for Users in India.................. 229

Help for Users in the Philippines........... 230

Appendix

Options and Consumable Products........... 205

Epson Special Media.................... 205

Ink Cartridges......................... 205

Others.............................. 206

Supported Media......................... 208

Epson Special Media Table............... 208

Supported Commercially Available Paper..... 211

Printable area........................... 214

Roll Paper............................ 214

Cut sheets (Auto sheet feeder)............. 216

Cut Sheet (1 sheet)..................... 216

Moving or Transporting the Printer........... 217

Moving to a Different Location in the Same

Building............................. 217

When Transporting..................... 218

Handling if Transporting/Leaving the Printer

in an Environment of -10°C or Less. . . . . . . . . 218

System Requirements..................... 220

Printer Driver......................... 220

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Notes on Manuals

Meaning of Symbols

Warning:

Caution:

Important:

Warnings must be followed to avoid serious bodily injury.

Cautions must be followed to avoid bodily injury.

Important must be followed to avoid damage to this product.

Manual Organization

The manuals for the product are organized as shown below.

You can view the PDF manuals using Adobe Acrobat Reader or Preview (Mac).

Setup Guide (booklet)

Operator's Guide (booklet or PDF)

General Information (PDF)

Online Manuals

Provides information on how to setup the printer after unpacking it from the box. Make sure you read this manual to perform operations safely.

Provides selected information on how to use the printer and frequently used features of the printer.

Provides important safety instructions, printer specifications and contact details.

Note:

Notes contain useful or additional information on the operation of this product.

Indicates related reference content.

Illustrations

The illustrations in the manuals may differ slightly from the model you are using. Please be aware of this when using the manuals.

Product Model Descriptions

Some models described in this manual may not be sold in your country or region.

User's Guide (this manual)

Administrator's Guide (PDF)

Provides overall information and instructions on using the printer and on solving problems.

Provides network administrators with information on management and printer settings.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

You can input and search for keywords, such as

Viewing PDF Manuals

the names of items you want to confirm.

This section uses the Adobe Acrobat Reader DC as an example to explain the basic operations for viewing the PDF in Adobe Acrobat Reader.

Click to print the PDF manual.

Each time it is clicked the bookmarks are hidden

or shown.

For Windows

Right click on a page in the PDF manual and select Find in the menu that is displayed to open the search toolbar.

For Mac

Select Find in the Edit menu to open the search toolbar.

To enlarge text in the display that is too small to

see clearly, click

. Click to reduce the size. To specify a part of an illustration or screenshot to enlarge, do the following.

For Windows

Right click on the page in the PDF manual and select Marquee Zoom in the menu that is displayed. The pointer changes to a magnifying glass, use it to specify the range of the place you want to enlarge.

For Mac

Click View menu - Zoom - Marquee Zoom in this order to change the pointer to a magnifying glass. Use the pointer as a magnifying glass to specify the range of the place you want to enlarge.

Click the title to open the relevant page.

Click [+] to open the titles lower in the hierarchy.

If the reference is in blue text, click the blue text to

open the relevant page.

To return to the original page, do the following.

For Windows

While pressing the Alt key, press the key.

For Mac

While pressing the command key, press the key.

Opens the previous page or next page.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Printer Parts

Front

A Control panel

U “Control panel” on page 14

B Cutter cover

Open when replacing the cutter.

U “Replacing the Cutter” on page 183

C Paper basket

Output from the printer collects in this basket, keeping the media clean and free of creases.

A dedicated stand that comes with a paper basket is provided as an option for SC-T5100N Series/SC-T3100M Series/SC-T3100N Series/SC-T2100 Series.

U “Options and Consumable Products” on page 205

D Casters

There are two casters on each leg. The casters are normally kept locked once the printer is in place.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

E Paper stacker (for plain paper)

Attach to the front of the printer as shown when printing multiple sheets of plain paper continuously from the auto sheet feeder. Printed paper stacks up in this tray after it is ejected. Remove this when printing on roll paper or cut sheets (1 sheet).

The paper stacker is not included with the SC-T2100 Series. It is available as an optional extra.

U “Installing and removing the paper stacker (for plain paper)” on page 35

F B1 width paper support (SC-T5100 Series/SC-T5100N Series only)

For roll paper or cut sheet (1 sheet) equivalent to B1 width (718 to 738 mm) only, raise the B1 width paper support before printing to prevent scuffing and soiling of the print surface

U “Loading Roll Paper” on page 29

U “Loading Cut Sheet(1 sheet)” on page 39

G Edge guide

Align these with the left and right edges of the paper loaded in the auto sheet feeder. Prevents paper from being fed at an angle.

H Auto Sheet Feeder

You can load multiple cut sheets of A4 to A3 paper. The loaded paper is fed automatically allowing you to print continuously. U “Loading paper into the auto sheet feeder” on page 35

I Cut sheet cover

Open when using the auto sheet feeder or when loading cut sheet paper. U “Loading Cut Sheet(1 sheet)” on page 39 When loading roll paper, open this cover and then open the roll paper cover.

To prevent dust from accumulating inside the printer, close the auto sheet feeder when it is not in use or when you are not loading cut sheet paper.

J Front cover

Open this cover when replacing ink cartridges or clearing a paper jam.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Scanner (SC-T3100M Series only)

A USB port (for USB flash drive)

You can connect a USB flash drive to print directly or save your scanned data.

U “Printing Files on USB Flash Memory Directly (SC-T3100M Series Only) ” on page 99

U “Scanning and Saving an Image to a Memory Device” on page 108

B Scanner unit

Open this cover when replacing ink cartridges or clearing a paper jam.

C Lock lever

While pressing the left and right lock levers, open the scanner cover.

D Document guide

This guide allows you to feed originals straight into the printer.

E Scanner cover

Open this when there is a paper jam, or when you want to clean the scanner.

F Document support

Prevents documents from falling backwards. You can also place long documents that have been rolled up.

U “How to Load Documents” on page 103

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Inside

A Roll paper cover

This cover protects the loaded roll paper and prevents dust from entering inside the printer. Except when loading or removing roll paper, it should be closed when using the printer. U “Loading Roll Paper” on page 29

B Paper slot

The slot through which roll paper or cut sheets are fed during printing. Insert cut sheets manually one by one.

C Ink Cartridges

Install cartridges into all slots.

U “Replacing Ink Cartridges” on page 180

D Cartridge cover

Open when replacing ink cartridges.

E Spindle

When loading roll paper into the printer, insert this through the roll paper.

F Movable flange (transparent)

This fixes the roll paper placed on the spindle. Attach or detach it when placing or removing roll paper on/ from the spindle.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

G Spindle holder

Install the spindle with the roll paper loaded. There is a holder on both the left and right sides.

U “Loading Roll Paper” on page 29

Back

A Maintenance box cover

Open when replacing the maintenance box.

B Maintenance box

A container for collecting waste ink.

U “Replacing Maintenance Box” on page 182

C AC inlet

Connect the supplied power cable here.

D LAN port

Connects the LAN cable.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

E Status light (green, orange)

The color indicates the network transmission speed.

Off: 10BASE-T

Orange: 100BASE-TX

Green: 1000BASE-T

F Data light (yellow)

The network connection status and data reception are indicated by a lit or flashing light.

On: Connected.

Flashing: Receiving data.

G OPTION port (except for the SC-T3100M Series)

Connect a scanner to perform enlarged copying.

U “Making Enlarged Copies with an A3 or A4 Scanner (Except for the SC-T3100M Series)” on page 109

H USB port

Connect the USB cable here.

I Vents

Do not block the vents. U “Installation space” on page 18

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Control panel

A Home button

Touch this button while a menu is displayed to return to the Home screen. The home button is off when it cannot be used during operations such as paper feeding.

P light (power light)

On : The power is on.

Home screen operations

Overview of Home screen operations U Operator's Guide (booklet or PDF)

A Information display area

Displays the printer's status, error messages, and so on.

Flashing : The printer is performing a process

such as starting up, powering off, data receiving, or print head cleaning. Please wait without performing any operation until this light stops flashing. Do not disconnect the power cord.

Off : The power is off.

P button (power button)

Turns the power on and off.

D Screen

This is a touch panel to display the printer's status, menus, error messages, and so on. You can select the menu items and options displayed on this screen by gently touching (tapping) them, and scroll the screen by moving your finger while it remains touching the screen.

B Roll paper information area

❏ When roll paper is loaded

Displays information on the loaded roll paper. When Setup is set to On, the approximate remaining amount (remaining length) is displayed. Touching this area displays a menu to perform operations such as setting and adjusting the roll paper. U “Roll Paper menu” on page 130

❏ When roll paper is not loaded

Displays "---". Touching this area displays the procedure for loading roll paper.

C Paper Setting menu button

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Touch this button when loading, removing, setting, or adjusting paper.

❏ See the following for more details on Roll Paper.

U “Loading and Removing the Roll Paper” on

page 29

Menu descriptions U “Roll Paper menu” on page 130

❏ See the following for details on the Auto Sheet Feeder.

U “Loading and Removing Paper from the Auto

Sheet Feeder” on page 35

Menu descriptions U “Auto Sheet Feeder menu” on page 133

❏ See the following for more details on Cut Sheet(1

sheet). U “Loading and Removing Cut Sheet(1 sheet)” on

page 39

Menu descriptions U “Cut Sheet(1 sheet) menu” on page 134

D Printer Status menu button

Touch this button when you want to check the status of consumables or details of displayed notifications. U “Printer Status menu” on page 135

The network connection status is indicated by an icon as shown below.

Touching the icon allows you to switch the network connection status.

U “Changing the Network Connection Methods”

on page 94

Not connected to a wired LAN or the wired LAN or wireless LAN not set.

Connected to a wired LAN.

Wireless LAN (Wi-Fi) is disabled.

Searching for SSID, IP address not set, or signal strength is 0 or poor.

Connected to a wireless LAN (Wi-Fi). The number of lines indicates the signal strength. The more lines there are, the better the signal strength.

Wi-Fi Direct (simple AP) connection is disabled.

E Settings menu button

Touch this button when you want to perform maintenance or configure the printer operation settings, network settings, or other settings. See the following for more details. U “Settings menu” on page 136

F Information icon

When there are notifications, such as consumable remaining amount low warnings, the number of notifications is indicated by a badge at the top right of this icon. If you touch this icon when the badge is displayed, a list of the notifications that require your action is displayed. Touching each item displays instructions on what to do. If you do not perform the actions, the badge will not disappear.

G Network icon

Wi-Fi Direct (simple AP) connection is enabled.

H Consumables status icon

Estimates of the remaining amounts of ink cartridges and the empty space in the Maintenance Box are indicated by the length of the bars. The shorter a bar is, the lower the remaining amount of ink or space.

When

is displayed, the remaining amount of the corresponding ink cartridge or the amount of empty space in the Maintenance Box is low. Touching the icon displays the consumables status screen so that you can check the ink cartridge and Maintenance Box product numbers. This is a shortcut button for Supply Status in the Printer Status menu.

U “Printer Status menu” on page 135

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Note:

Except for the SC-T3100M Series

When you connect an Epson A3 or A4 scanner to the printer, Enlarged Copy appears to allow you to easily make enlarged copies.

U “Making Enlarged Copies with an A3 or A4

Scanner (Except for the SC-T3100M Series)” on page 109

SC-T3100M Series only

❏ The Copy, Scan, and Network Folder buttons are

displayed.

U “Copying (SC-T3100M Series only)” on

page 101

U “Scanning (SC-T3100M Series Only)” on

page 105

U “Printing Files from a Shared Folder (Print

from Folder) (SC-T3100M Series Only)” on page 98

❏ Inserting USB flash drive into the printer displays

a Memory Device button on the screen.

U “Printing Files on USB Flash Memory Directly

(SC-T3100M Series Only) ” on page 99

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Features of Printer

Realizing High Resolution

CAD drawings that are clear, legible, and can even be used safely outdoors

Newly-developed Epson UltraChrome XD2 ink enables the printer to produce extremely detailed drawings both in black and white and in color.

The supplied printer driver offers a line drawing mode, making it easier to optimize printing for line drawing and, through unsurpassed reproduction of line drawing and fine lines in the form of connected lines, diagonals, and curves, ensuring the best possible results when the printer is used for drawings.

In addition, you can even safely take your drawings outdoors with you because they are printed using ink with excellent water resistance.

U “Specifications Table” on page 222

Automatic switching between auto sheet feeder (cut sheets) and roll paper

You can load roll paper in the printer, and load multiple sheets of A3 or smaller paper in the auto sheet feeder at the same time. Selecting one of them from the printer driver's Source settings allows you to automatically switch paper and print easily.

Smooth operation while checking the operating instructions on the screen

In addition to having a screen design that enables intuitive operation, this printer allows you to check illustrated instructions of operations such as how to load paper.

U Operator's Guide (booklet or PDF)

U “Printing CAD Drawings” on page 59

Posters and displays that are vivid and also allow for short-term outdoor display

Posters with vivid hues can be printed simply by selecting, for example, Poster (Photo)/Perspective in Select Target of the supplied printer driver.

Using ink with superb light resistance means that prints made for indoor use will take a very long time to fade.

Your posters will last even longer if you use lamination processing.

The effect differs depending on the paper.

Insistence on Ease-of-Use

Space-saving large-format printer

As the printer is smaller and lighter than our standard large-format printers, it does not take up as much space. The model without a stand can even be placed on a drawing storage cabinet or the like. See the following for dimensions.

Printer driver that is simple and easy to operate

Print settings can be optimized simply by choosing the desired use or target. This saves you the trouble of adjusting print settings individually. When you select a Source setting, printing failures due to paper loading mistakes are reduced because the size and type of paper loaded in the printer are applied automatically.

In addition to checking the set conditions in an illustration in the printer driver, you can also check a detailed image in the preview screen before printing.

Support for wireless LAN connection

This printer can be freely placed where desired without considering cable routing because it can connect with a computer via a wireless LAN to print. Of course, it also supports a wired LAN connection.

Furthermore, even if your device is not connected to a LAN, this printer also allows printing by directly connecting with it using Wi-Fi Direct.

U “Switching to Wireless LAN” on page 94

U “Directly Connecting Wirelessly (Wi-Fi Direct)”

on page 95

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Notes on Usage and Storage

Installation space

Make sure that you secure the following space, clear of any other objects, so that paper ejection and consumable replacement are not obstructed.

See the “Specifications Table” for the external dimensions of the printer.

U “Specifications Table” on page 222

SC-T5100 Series/SC-T3100 Series

W D H

SC-T3100M Series

SC-T5100N Series

SC-T3100N Series SC-T2100 Series

*1 105 mm for the SC-T3100M Series

*2 228 mm for the SC-T3100M Series

*3 When using the document support on the

SC-T3100M Series, you need at least 137 mm of space at the back of the printer.

*4 You need at least 130 mm of space at the back

when replacing the maintenance box.

1020 mm 1075 mm 520 mm

1318 mm 915 mm 380 mm

1020 mm 915 mm 380 mm

W D H

SC-T5100 Series

SC-T3100 Series

SC-T3100M Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series

1318 mm 1270 mm 1063 mm

1020 mm 1270 mm 1063 mm

Notes when using the printer

Note the following points when using this printer to avoid breakdowns, malfunctions, and print quality decline.

❏ When using the printer, observe the operating

temperature and humidity range described in the "Specifications Table". U “Specifications Table” on page 222 Even when the conditions above are met, you may not be able to print properly if the environmental conditions are not suitable for the paper. Be sure to use the printer in an environment where the paper's requirements are met. For more details, see the documentation supplied with the paper. Also, when operating in dry areas, air conditioned environment, or under direct sunlight, maintain the appropriate humidity.

❏ Do not install the printer next to heat sources or

directly in the path of air from a ventilator or air conditioner. Failure to observe this precaution could result in the print head nozzles drying and clogging.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

❏ The print head may not be capped (i.e., may not

move to the right-hand side) if an error occurs and the printer is turned off without first resolving the error. Capping is a function for automatically covering the print head with a cap (lid) to prevent the print head from drying out. In this case, turn on the power and wait a while until capping is performed automatically.

❏ When the power is on, do not remove the power

plug or cut the power at the breaker. The print head may not be capped properly. In this case, turn on the power and wait a while until capping is performed automatically.

❏ Even when printing is not performed, some of

each color of ink will be consumed by ink cartridge replacement, print head cleaning, and other maintenance operations needed to keep the print head in good condition.

❏ The printer may automatically perform print

head cleaning to maintain good printing quality. Please wait until cleaning finishes without opening any of the covers or turning off the power.

Notes when not using the printer

If you are not using it, note the following points when storing the printer. If it is not stored correctly, you may not be able to print properly the next time it is used.

❏ Store the printer after confirming that the print

head has been capped (the print head is positioned at the far right). If the print head is left uncapped for a long time, the print quality may decline.

Note:

If the print head is not capped, turn the printer on, and then turn it off.

❏ To prevent the accumulation of dust and other

foreign matter in the printer, close all covers before placing it in storage. If the printer will be not be used for an extended period, protect it with an anti-static cloth or other cover. The print head nozzles are very small, and they can become clogged easily if fine dust gets on the print head, and you may not be able to print properly.

❏ The print head may fail if the environmental

temperature becomes -10°C or lower. If the environmental temperature in the room or during transport is expected to become -10°C or lower, be sure to discharge the ink in advance. U “Handling if Transporting/Leaving the

Printer in an Environment of -10°C or Less” on page 218

Notes on handling ink cartridges

❏ When storing the printer, store it flat with the ink

cartridges installed. Do not place the printer tilted, upright, or upside down.

❏ If you do not print for a long time, the print head

nozzles may become clogged. We recommend that you print once a week to prevent the print head from clogging.

❏ The roller may leave an impression on paper that

is left in the printer. This can also cause wavy or curled paper resulting in paper feeding problems or the print head could be scratched. Remove any paper when storing.

Note the following points when handling ink cartridges to maintain good print quality.

❏ The ink cartridges packaged with your printer are

partly used during initial setup. In order to produce high quality printouts, the print head in your printer will be fully charged with ink. This one-off process consumes a quantity of ink and therefore these cartridges may print fewer pages compared to subsequent ink cartridges.

❏ The Initial Cartridge included with the printer is

designed for printer setup and not for resale or later use. After some ink is used for charging, the rest is available for printing. For the initial setup, make sure you use the Initial Cartridge.

❏ We recommend that ink cartridges be stored at

room temperature out of direct sunlight and used before the expiry date printed on the packaging.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

❏ To ensure good results, use all the ink in the

cartridges within 6 months of opening the packages.

❏ Do not open the ink cartridge package until you

are ready to install it in the printer. A vacuum pack is used to maintain quality.

❏ Ink cartridges that have been stored at low

temperatures for an extended period should be allowed to return to room temperature over a period of at least three hours.

❏ Be sure to peel off the tape (yellow) before

installing an ink cartridge. If you attempt to forcibly install an ink cartridge without removing the tape, the printer may become unable to print properly. Never peel off anything else such as the film or label. Otherwise, ink could leak.

❏ Do not touch the IC chip on the ink cartridge.

You may not be able to print properly. U “Replacing Ink Cartridges” on page 180

❏ Although the ink cartridges may contain recycled

materials, this does not affect printer function or performance.

❏ Do not dismantle or remodel ink cartridges. You

may not be able to print properly.

❏ Do not drop or otherwise subject an ink cartridge

to a strong impact. Ink may leak from the cartridge.

❏ Even when the printer is not in use, some of each

color of ink will be consumed by ink cartridge replacement, print head cleaning, and other maintenance operations needed to keep the print head in good condition.

❏ A mixture of color inks may be used to print

black depending on the paper type and print quality settings even for black and white and grayscale printing.

Notes on handling paper

❏ Install the ink cartridges for all the colors.

Printing is not possible if they are not all installed.

❏ Do not leave the printer without ink cartridges

installed. The print head nozzles may dry and printing may become no longer possible.

❏ The ink level and other data are stored in the IC

chip, allowing cartridges to be used after being removed and replaced. However, if an ink cartridge with not much ink remaining is removed and reinstalled, it may not be usable because some ink is consumed to ensure the reliability of the printer.

❏ To avoid getting dust on the ink supply port, store

a removed partially used ink cartridge with the ink supply port downward or horizontal in the same environment as this product. The ink supply port has a valve in it so it does not need to be capped.

❏ Removed ink cartridges may have ink around the

ink supply port, so be careful not to get any ink on the surrounding area when removing the cartridges.

❏ To maintain the quality of the print head, this

printer stops printing before ink cartridges are completely expended.

Note the following points when handling and storing the paper. If the paper is not in good condition, print quality may decline.

Check the documentation supplied with each paper.

Notes on Handling

❏ Use Epson special media under normal room

conditions (temperature: 15 to 25°C, humidity: 40 to 60%).

❏ Do not fold the paper or scratch the surface of the

paper.

❏ Avoid touching the printable surface of the paper

with your bare hands. Moisture and oils from your hands can affect print quality.

❏ Handle paper by the edges. We recommend

wearing cotton gloves.

❏ Changes in temperature and humidity may cause

paper to become wavy or curled. Check the following points.

❏ Load the paper just before printing.

❏ Do not use wavy or curled paper.

For roll paper, cut off the wavy or curled parts and then load it again.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

For cut sheets, use new paper.

❏ Do not wet the paper.

❏ Do not throw away the paper packaging as you

can use it for storing the paper.

❏ Avoid locations that are subject to direct sunlight,

excessive heat, or humidity.

❏ Keep cut sheets in their original package after

opening, and keep them in a flat place.

❏ Remove roll paper that is not in use from the

printer. Rewind it correctly and then store it in the original packaging that came with the roll paper. If you leave the roll paper in the printer for a long time, its quality may decline.

Notes on handling printed paper

To maintain long lasting, high quality print results, note the following points.

❏ Do not rub or scratch print outs. If they are

rubbed or scratched, the ink may peel off.

❏ Do not touch the surface of print outs. The ink

may peel off.

Note:

Typically, print outs and photos fade over time (color distortion) due to the effects of light and various constituents in the air. This also applies to Epson special media. However, with the correct storage method, the degree of color distortion can be minimized.

❏ See the documentation supplied with Epson special

media for detailed information on handling the paper after printing.

❏ The colors of photos, posters, and other printed

materials appear different under different lighting conditions (light sources

from this printer may also appear different under different light sources. * Light sources include sunlight, fluorescent light, incandescent light, and other types.

). The colors of print outs

Saving Power

The printer enters sleep mode or turns off automatically if no operations are performed for a set period. You can adjust the time before power management is applied. Any increase will affect the product's energy efficiency. Please consider the environment before making any change.

❏ Make sure the print outs are completely dry

before folding of stacking; otherwise, the color may change where they touch (leaves a mark). These marks will disappear if they are separated immediately and dried; however, they will remain if not separated.

❏ If you put the print outs in an album before they

are completely dry, they may be blurred.

❏ Do not use a dryer to dry the print outs.

❏ Avoid direct sunlight.

❏ Prevent color distortion while displaying or

storing the print outs by following the instructions in the paper's documentation.

Sleep mode

The printer enters sleep mode when there are no errors, no print jobs being received, and no control panel or other operations performed. When the printer enters sleep mode, the control panel's screen turns off and the internal motors and other parts switch off to consume less power.

Sleep mode is exited if a print job is received or the screen of the control panel is touched.

You can set the time it takes for the printer to enter sleep mode. At default settings, the printer enters sleep mode if no operations are performed for 15 minutes. The time it takes for the printer to enter sleep mode can be changed in the Basic Settings menu.

U “General Settings - Basic Settings” on page 136

Note:

When the printer enters sleep mode, the control panel's screen goes blank as if the power has been turned off,

but the P light remains lit.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introduction

Power Off Timer

This function automatically turns the printer off if no errors occur, no print jobs are received, and no control panel or other operations are performed for a set period of time.

The default setting differs as follows depending on the model.

❏ SC-T3100M/SC-T5100/SC-T5100N/SC-T3100/

SC-T3100N/SC-T2100 Set to 8h.

❏ SC-T3130M/SC-T3160M/SC-T3180M/SC-T5130/

SC-T5160/SC-T5160N/SC-T5180/SC-T5180N/ SC-T3130/SC-T3130N/SC-T3160/SC-T3160N/ SC-T3180N Set to Off.

Power Off Timer settings can be changed from the Basic Settings menu.

U “General Settings - Basic Settings” on page 136

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introducing the Software

Provided Software

The following table lists the provided software.

The supplied software disc contains the software for Windows. When using a Mac or a computer without a disc drive, download the software from http://epson.sn and then install it.

For details on the various software, see the online help of each software or the Administrator's Guide (online manual).

Note:

Convenient software compatible with this printer is introduced on the Epson website. Please check the information from the following link.

http://www.epson.com

Software Name Function

Printer Driver Install the printer driver to take full advantage of the functionality of this printer when

printing.

U “Printing with the Printer Driver from Your Computer” on page 48

EPSON Software Updater Software to check whether there is any software update information and then notify

you and install the software if an update is available. It allows you to update the firmware and already installed software of the printer.

U “Updating Software or Installing Additional Software” on page 26

LFP Print Plug-In for Office

(Windows Only)

EpsonNet Config Software to configure the initial settings of the network or change the settings of the

Plug-in software for Microsoft Office applications (Word, Excel, and PowerPoint). Installing this plug-in displays ribbon items in Office applications that give quick access to horizontal and vertical banner printing and enlarged printing.

It can be installed by selecting it in the Additional Installation screen when installing the software. You can also install it later with EPSON Software Updater.

The supported Microsoft versions are shown below.

Office 2003/Office 2007/Office 2010/Office 2013/Office 2016

network in bulk when installing or relocating Epson printers and scanners.

EpsonNet Config is not installed automatically. Download it from the Epson website and then install it if necessary.

http://www.epson.com

For Windows, you can install the software from the following folder on the supplied software disc.

\\Network\EpsonNetConfig

U Administrator's Guide

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introducing the Software

Built-in Software in the Printer

The following software comes preinstalled in the printer. Start and use it from a Web browser via the network.

Software Name Function

Web Config The network security settings can be configured from Web Config. This software also

has an email notification function for notifying of printer errors and other problems.

U “How to Use Web Config” on page 25

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introducing the Software

How to Use Web Config

This section describes how to start the software and provides a summary of its functions.

How to Start

Start the software from a web browser on a computer or smart device that is connected to the same network as the printer.

Check the IP address of the printer.

Touch connected network, and check the IP address.

Note:

The IP address can also be checked by printing a network connection check report. A report can be printed by touching the following in order from the Home screen.

Settings - General Settings - Network Settings Connection Check

Start a Web browser on a computer or smart

device connected to the printer via the network.

Enter the IP address of the printer in the

address bar of the Web browser and press the Enter or Return key.

Format:

IPv4: http://IP address of printer/

IPv6: http://[IP address of printer]/

Example:

IPv4: http://192.168.100.201/

on the Home screen, select the

Function Summary

This section introduces the main functions of Web Config. See the Administrator's Guide for more details.

Main Functions

❏ Check the printer's status, such as the remaining

amount of ink.

❏ Check and update the printer's firmware version.

❏ Configure the printer's network settings and

advanced security settings, such as SSL/TLS communication, IPsec/IP filtering, and IEEE802.1X, which cannot be configured with the printer alone.

❏ Edit the custom paper settings and export and

import the settings. The custom paper settings registered in Settings -

General Settings - Printer Settings - Custom Paper Setting of the printer can be changed as

well as exported to a file and then imported (registered) to another printer. This is convenient when you install multiple printers and want to use common custom paper settings for them.

IPv6: http://[2001:db8::1000:1]/

Closing

Close the Web browser.

❏ You can print by simply selecting the file you

want to print, and then uploading it to the printer. (SC-T3100M Series only) U “Direct Printing Over the Web (Upload and

Print) (SC-T3100M Series Only)” on page 97

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introducing the Software

Updating Software or Installing Additional Software

When you install the software during setup as described in the Setup Guide, Epson Software Updater is installed. Epson Software Updater allows you to update the software that has been installed on your computer.

Note:

The software is updated as needed for greater convenience and more robust functionality. We recommend setting to receive update notifications with Epson Software Updater and updating the software as soon as possible when there is a notification.

Checking Whether Updates Available and Updating

Select the software or manuals to be updated

and then update them.

Follow the on-screen instructions.

Important:

Do not turn off the computer or printer during the update.

Note:

Software not displayed in the list cannot be updated with EPSON Software Updater. Check the latest versions of software on the Epson website.

Please note that you cannot update or install software using Epson Software Updater if you are using a Windows Server OS. Download the software from the Epson website.

http://www.epson.com

Receiving Update Notifications

Software

Check that the computer and printer are in the

following states.

❏ Computer is connected to the Internet.

❏ Printer and computer can communicate.

Start Epson Software Updater.

❏ Windows

Display the list of all the programs and then click Epson Software Updater in the Epson Software folder.

Note:

❏ If you press the Windows key (key with

Windows logo mark) on the keyboard and then type the software name in the search box of the displayed window, the software appears immediately.

❏ The software can also be started by clicking

the printer icon on the Taskbar of the desktop and then selecting Software Update.

Windows

Start Epson Software Updater.

Click Auto update settings.

Select the interval to perform the update check

in the Interval to Check field of the printer and then click OK.

Mac

The software is set by default to check and notify whether there are updates every 30 days.

❏ Mac

Select Go - Applications - Epson Software - EPSON Software Updater.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Introducing the Software

Uninstalling Software

Windows

Important:

❏ You must log in as an Administrator.

❏ If the password or confirmation of an

administrator is requested, enter the password and then continue with the operation.

Turn off the printer, and unplug the interface

cable.

Close all applications running on your computer.

Go to the Control Panel and click Uninstall a

program from the Programs category.

Select the printer icon, and then click OK.

Follow the on-screen instructions to continue.

When the delete confirmation message appears, click Yes.

Restart the computer if you are reinstalling the printer driver.

Mac

Select the software you want to remove and

then click Uninstall/Change (or Change/ Remove / Add/Remove).

You can remove the printer driver and EPSON Status Monitor 3 by selecting EPSON SC-XXXXX Printer Uninstall.

When reinstalling or upgrading the printer driver or other software, follow the steps below to uninstall the target software first.

Printer Driver

Use the "Uninstaller".

Downloading the Uninstaller

Download the "Uninstaller" from the Epson website.

http://www.epson.com/

Using the Uninstaller

Follow the instructions on the Epson website.

Other Software

Drag and drop folder with the software name from the Applications folder into Trash to delete.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Unsupported paper

Loading and Setting the Paper

Do not use paper that is wavy, torn, cut, folded, too thick, too thin, has a sticker affixed, etc. Doing so may cause paper jams or soiled prints. See the following for paper supported by the printer.

U “Epson Special Media Table” on page 208

Notes on Loading the Paper

U “Supported Commercially Available Paper” on

page 211

Caution:

Do not rub the edges of the paper with your hands. The edges of the paper are thin and sharp and could cause an injury.

Do not leave paper loaded in the printer.

The roller may leave an impression on paper that is left in the printer. In addition, the paper may become wavy or curled due to damp, which may cause paper feeding problems, paper jams, or soiled prints.

We recommend that you return the paper to its original package and store it flat, and take it out of the package for use when printing.

Do not load roll paper with the right and left edges uneven

Loading roll paper with the right and left edges uneven may cause paper feeding problems or paper meandering may occur during printing. Rewind the paper to make the edges even before using roll paper or use roll paper with no problem.

Paper Load Position

The loading position differs depending on the shape and size of the paper being loaded. See the following for more details on the paper that can be used with the printer. U “Supported Media” on page 208

Roll Paper

You can load roll paper from 329 mm to the maximum printable width.

Auto Sheet Feeder

Do not load curled paper

Loading curled paper may cause paper jams or soiled prints. Flatten the paper before use by bending it in the opposite way or use paper with no problem.

You can load multiple sheets of A4 to A3 paper. The number of sheets that can be loaded at one time depends on the paper. See the following for more details. U “Cut Sheet” on page 209

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Cut Sheet(1 sheet)

One sheet of cut paper from A4 to the maximum printable width can be loaded.

Note:

❏ The paper slot for Roll Paper and Cut Sheet(1

sheet) is the same. Insert either one into the paper slot.

❏ You can load paper in the auto sheet feeder while

roll paper is loaded. You can switch to the paper source you want to print from in the printer driver.

Loading Roll Paper

Caution:

Hold the flange while loading the roll paper. If you load the paper while holding another part, your hand or fingers may get trapped causing an injury.

Note:

You can load the paper while viewing the loading procedure on the screen. To view the procedure on the screen, touch the Roll paper information area of the Home screen.

Check that "Load paper." is displayed on the

Home screen and then open the cut sheet cover.

Loading and Removing the Roll Paper

Place the roll paper on the supplied spindle and then load the roll paper in the printer.

When replacing paper, remove the loaded paper first.

U “Removing Roll Paper” on page 33 U “Removing Cut Sheet (1 Sheet)” on page 40

If paper is loaded in the auto sheet feeder, remove the paper, load or remove the roll paper, and then re-load the paper in the auto sheet feeder. Remove the paper stacker when printing on roll paper.

U “Removing paper from the auto sheet feeder” on

page 37

U “Installing and removing the paper stacker (for

plain paper)” on page 35

Unlock the center lock and open the roll paper

cover.

Remove the inserted spindle.

Pull off the transparent flange from the spindle.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Place the roll paper on a flat surface and then

insert the spindle.

With the black flange is on the right, orient the roll paper so that the leading edge is as shown in the figure below.

Push the flange to the roll paper until there is

no gap between the flange and roll paper.

Attach the transparent flange and push it until

there is no gap between the flange and roll paper.

Check that the leading edge of the roll paper is

not bent and then insert it into the paper slot until you hear a beep.

Important:

Hold the edges of the paper and insert it straight into the paper feed slot. Inserting it skewed will cause a skew error or paper jam.

Note:

If the leading edge of the roll paper is not horizontal or not cut cleanly, it will be cut automatically after loading completes. However, it will not be cut if Auto Cut is set to Off.

If there are gaps between the flanges at both ends and the roll paper, the paper may be fed skewed resulting in an error.

Place the spindle shaft into the left and right

grooves on the spindle holder with the black flange of the spindle on the right.

Close the roll paper cover and cut sheet cover.

On the displayed screen, set the paper type that

matches the loaded paper and set remaining amount management if necessary.

Not setting the appropriate paper type will cause print quality trouble. See the following for more details on the paper types and the remaining amount management setting. U “For Roll Paper” on page 41

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Important:

When paper equivalent to B1 width is loaded in the SC-T5100 Series/SC-T5100N Series

Raise the B1 width paper support as shown in the figure only when you have loaded B1 width (718 to 738 mm) paper. If you do not raise the B1 width paper support, the print surface may be scuffed or soiled.

Leave the support lowered when printing to a size other than equivalent to B1 width.

For the SC-T5100 Series and SC-T3100 Series,

check that the paper basket attached to the stand is open.

Note:

Close the paper basket before printing banners or other documents of sizes that will not fit in the paper basket. Before the paper ejected from the printer touches the floor, we suggest that you take it in both hands close to the paper eject slot and continue to lightly support it until printing is complete.

❏ When printing of one page is finished

The roll paper is cut before printing of the next page starts.

If you do not want to cut each page or you want to cut at a desired position, see the following procedure.

Cutting after Last Page Printed or at Desired Position

Turn off auto cut in the printer driver, print, and then cut using the Feed/Cut Paper menu of the printer after printing finishes.

Select Off in Advanced - Roll Paper Option -

Auto Cut of the printer driver and then print.

Leave the auto cut setting of the printer on.

Note:

❏ The auto cut setting of the printer driver has

priority over that of the printer. The auto cut setting of the printer driver is reset to the default setting of Normal Cut when the application closes.

❏ To turn off auto cut when HP-GL/2 mode

printing or enlarged copying, turn off the auto cut setting of the printer. Touch the Roll paper information area - Advanced Media Setting - Auto Cut - Off from the Home screen. The change to the setting is saved as a setting of the currently selected paper type.

Touch the Roll paper information area - Feed/

Cut Paper from the Home screen of the printer after printing finishes.

Use the buttons displayed on the screen to cut and feed the paper.

Cutting the Roll Paper

Auto Cut

Auto Cut is set to On for the printer by default. When On is set, the roll paper is cut automatically at the following times.

❏ When the leading edge is detected as not

horizontal After the roll paper is loaded, the leading edge part is cut straight.

When cutting at the printer default cut position (right after the bottom margin)

Touch the and the paper leading edge returns to the print wait position.

(Cut) button. The paper is cut

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

When cutting at desired position

Hold down the (Forward) or (Backward) button until the position you want to cut reaches the position of the dotted line in the figure.

You cannot set the cutting position further inside than the bottom margin.

Touch the (Cut) button.

The paper is cut.

Note:

When the length of than the following length, the paper is fed automatically until the required length is obtained at the time of cutting.

❏ Plain paper or tracing paper: 100 mm

❏ Photo paper or coated paper: 80 mm

❏ Synthetic paper and other thick paper:

60 mm

in the figure is shorter

Important:

❏ If commercially available synthetic or canvas

paper is cut with the built-in cutter, the cutter may be damaged or its life may be shortened. When using such paper, cut the paper with scissors as described in the following procedure.

❏ Do not use a cutter. The printer may be

damaged.

Turn off the auto cut setting and then print.

To print cut lines, turn off the auto cut setting of the printer. When printing via the printer driver, also turn off the setting of the printer driver.

❏ Printer settings

Roll paper information area - Advanced Media Setting - Auto Cut - Off from the Home screen.

❏ Printer driver settings

Advanced - Roll Paper Option - Auto Cut Off

Touch the Roll paper information area - Feed/

Cut Paper from the Home screen of the printer after printing finishes.

Operate the buttons displayed on the screen.

When printing cut lines at the printer default position (right after the bottom margin)

Cutting Commercially Available Synthetic or Canvas Paper with Scissors

When using commercially available paper that cannot be cleanly cut with the cutter of the printer, print cut lines and cut the paper with scissors.

Touch the cut lines selection screen appears.

When printing cut lines at desired position

Hold down the (Backward) button until the position you want to print the cutting line reaches the position of the dotted line in the figure.

Cut lines cannot be printed further inside than the bottom margin. Once you have finished moving the paper, touch print cut lines selection screen appears.

(Cut) button. The cut or print

(Forward) or

(Cut). The cut or

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Touch Print Cutting Guideline.

Cut lines are printed and the paper is ejected automatically to a position where it can be easily cut with scissors.

Cut the paper along the cut lines with scissors

and then touch Done.

The paper rewinds to return the paper leading edge to the print wait position.

Removing Roll Paper

This section describes how to remove and store roll paper after printing. If you leave the roll paper loaded in the printer, the rollers may leave impressions on the roll paper.

Note:

You can remove the roll paper while viewing the roll paper removal procedure on the screen. To view the on-screen instructions, touch the Roll paper information area on the home screen, and then touch Remove.

Unlock the center lock and open the roll paper

cover.

Press Remove.

The paper is rewound and ejected.

Note:

If printed paper is not cut and remains, a confirmation screen appears.

Touch Cut to cut the paper at the default cut position or touch Print Cutting Guideline to print cut lines at the default position.

If you want to change the cut position or the cut lines print position, touch Close, and change the position in the Feed/Cut Paper menu.

See the following for more details. U “Cutting the Roll Paper” on page 31

If the rear edge of the printed paper is held by

the printer, grasp the paper with both hands and slowly pull it towards you.

The printed paper drops automatically when the next print job starts.

Open the cut sheet cover.

Hold the flanges on both ends of the spindle

and remove the spindle from the spindle holder.

Detach the transparent flange from the spindle.

Remove the spindle from the roll paper.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Important:

After rewinding the roll paper carefully, store it in the original package.

Attach the transparent flange to the spindle and

return the spindle in the printer.

Close the roll paper cover and cut sheet cover.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Loading and Removing Paper from the Auto Sheet Feeder

Installing and removing the paper stacker (for plain paper)

Attach the paper stacker supplied when printing multiple sheets of plain paper continuously from the auto sheet feeder.

The stacker can hold approximately 20 sheets of printed paper.

However, when printing on roll paper or cut sheets (1 sheet), remove the paper stacker so that paper can be ejected smoothly.

Installing

Insert the hooks on the paper stacker straight into the slots on the front of the printer.

Removing

Pull the paper stacker straight out to remove it.

Loading paper into the auto sheet feeder

Note:

❏ The number of sheets that you can load into the

auto sheet feeder varies depending on the paper type. See the following for more details.

U “Cut Sheet” on page 209 U “Supported Commercially Available Paper”

on page 211

❏ You can load the paper while viewing the loading

procedure on the screen. To view the procedure on the screen, touch Paper Setting - Auto Sheet

Feeder from the Home screen.

Important:

When loading multiple sheets of printing paper, carefully wipe away any paper dust and arrange the edges. However, do not clean or bend photo paper. Otherwise, the printable surface could be scratched.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Check that Load paper.or Ready is displayed

on the Home screen, and then open the cut sheet cover.

Unfold the auto sheet feeder, and pull it up and

out.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Load paper in the auto sheet feeder with the

printable side facing you.

Align the paper edges before loading.

Important:

Insert all paper in portrait orientation. Inserting paper in landscape orientation may cause a decline in print quality.

Removing paper from the auto sheet feeder

Move the edge guides away from the paper and

remove the paper.

Align the edge guides with the edges of the paper.

If the edge guides are too far from the edges of the paper, the paper may be fed at an angle which can cause skew errors and paper jams.

On the displayed screen, set the paper type and

size that match the loaded paper.

Not setting the appropriate paper type will cause print quality trouble. See the following for more details on the paper types and sizes. U “For Auto Sheet Feeder/Cut Sheet(1

sheet)” on page 43

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Push the auto sheet feeder back into its slots,

and then fold it forward.

Close the cut sheet cover.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Loading and Removing Cut Sheet(1 sheet)

Loading Cut Sheet(1 sheet)

When roll paper is loaded, remove it.

U “Removing Roll Paper” on page 33

If paper is loaded in the auto sheet feeder, remove the paper and stow the auto sheet feeder. Also, make sure you remove the paper stacker if it is installed.

U “Removing paper from the auto sheet feeder” on

page 37

U “Installing and removing the paper stacker (for

plain paper)” on page 35

Check that Load paper.is displayed on the

Home screen, and then touch Paper Setting Cut Sheet(1 sheet).

Insert the leading edge of the paper straight

into the paper slot until you hear a beep.

Important:

Hold the edges of the paper and insert it straight into the paper feed slot. Inserting it skewed will cause a skew error or paper jam.

On the displayed screen, set the paper type and

size that match the loaded paper.

Open the cut sheet cover.

With the printable side of the paper facing you,

align the right edge of the paper with the right edge mark, and the left edge of the paper with the paper size mark.

Not setting the appropriate paper type will cause print quality trouble. See the following for more details on the paper types and sizes. U “For Auto Sheet Feeder/Cut Sheet(1

sheet)” on page 43

Important:

Insert all paper in portrait orientation. Inserting paper in landscape orientation may cause a decline in print quality.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Important:

When B1 size paper is loaded in the SC-T5100 Series/SC-T5100N Series

After printing, the paper stops with the trailing edge still held by the printer. If you start printing the next job before removing it manually, it will drop automatically.

Leave the support lowered when printing to a size other than equivalent to B1 width.

For the SC-T5100 Series and SC-T3100 Series,

check that the paper basket attached to the stand is open.

Removing Cut Sheet (1 Sheet)

When removing unprinted cut sheets

Touch Paper Setting - Cut Sheet(1 sheet) - Remove from the Home screen.

The paper is ejected.

When removing printed cut sheets

Grasp the paper with both hands, and pull it out towards you.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Setting Loaded Paper

For Roll Paper

Configure the following settings after loading roll paper.

Paper Type settings

This is the most important setting to obtain the optimum print results. Not setting a paper type that matches the loaded paper will cause wrinkles, scuffing, uneven colors, and other trouble.

Manage Remaining Amount settings

When Manage Remaining Amount is set to On and the total length of the loaded roll paper has been entered, an estimate of the remaining amount of roll paper is displayed on the printer's Home screen and on the printer driver screen. Furthermore, a notification can also be displayed when the remaining amount has become low.

How to Set

The currently set paper type is shown on the

screen displayed after loading roll paper.

When changing Paper Type

Proceed to step 2.

When setting Paper Remaining without changing Paper Type

Proceed to step 5.

When not changing either of them

The remaining amount is saved along with the paper type selected above. For example, you can manage the amount remaining for plain paper and tracing paper separately.

Note:

When you want to manage the amount remaining when using roll paper with different widths with the same paper type, register one width in Custom Paper Setting. Registering a Custom Paper Setting means adding a new paper type setting. Register the new settings in Settings - General Settings - Printer Settings - Custom Paper Setting. For details on Custom Paper Setting, see the following Custom Paper Setting menu.

U “General Settings - Printer Settings” on page 139

Touch OK. You can start printing once Ready appears on the screen.

Note:

The settings are confirmed if no operations are performed for 90 seconds on the above screen. To change the settings later, touch the Roll paper information area - Change Paper Type from the Home screen and then configure the settings.

Touch Paper Type.

The following paper type selection screen appears.

Note:

The three options other than Others display the most recently selected paper type.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Select the paper type that matches the loaded

roll paper.

Epson Special Media

Select the same product name as the one shown on the package of the paper.

Commercially available non-Epson paper

Select from the following commercially available paper types.

❏ Plain Paper

❏ Coated Paper(Generic)

❏ Photo Paper(Generic)

❏ Tracing Paper

❏ Tracing Paper <LowDuty>

❏ Matte Film

❏ Blueprint Paper

To select a paper type that is not displayed on the screen, touch Others.

Touch Paper Remaining.

Touch Setup.

The setting changes to On, and Remaining Amount and Remaining Alert are enabled.

Touch each one and enter a value as follows.

❏ Remaining Amount: Total length of roll

paper (see the manual supplied with the roll paper)

❏ Remaining Alert: Remaining amount value

that will be the timing for displaying the remaining amount warning notification.

Select a category and select the target paper type.

Note:

If you scroll downward in the category selection screen, Custom Paper appears. To select custom paper that has already been registered, touch Custom Paper.

When a paper type is selected, the screen

returns to the one in step 1.

If you will not set the remaining amount management setting, touch OK.

Note:

On the keypad screen for entering a numeric value, enter numbers that include a number of the first decimal place. For example, if you want to enter 5 m, touch [5] and [0].

Touch at the top left of the screen to return

to the screen of step 5 and then touch OK.

You can start printing once Ready appears on the screen.

Note:

If you replace the paper after the amount remaining display shows 0 m or the paper has actually run out, Remaining Amount returns to the manufacturer's setting of 30m.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

For Auto Sheet Feeder/Cut Sheet(1 sheet)

Make the following settings after loading paper in the Auto Sheet Feeder or after loading Cut Sheet(1 sheet).

Settings of Paper Type

This is the most important setting to obtain the optimum print results. Not setting a paper type that matches the loaded paper will cause wrinkles, scuffing, uneven colors, and other trouble.

Settings of Paper Size

The paper size for paper loaded in the auto sheet feeder or for Cut Sheet(1 sheet) is not detected automatically. Set the size of the loaded paper.

How to Set

The currently set paper type is shown on the

screen displayed after loading cut sheet.

Note:

The settings are confirmed if no operations are performed for 90 seconds on the above screen. To change the settings later, touch the following in order from the Home screen and then configure the settings.

❏ For Auto Sheet Feeder

Paper Setting - Auto Sheet Feeder - Change Paper Type/Paper Size

❏ For Cut Sheet(1 sheet)

Paper Setting - Cut Sheet(1 sheet) - Change Paper Type/Paper Size

Touch Paper Type.

The following paper type selection screen appears.

When changing Paper Type

Proceed to step 2.

When changing Paper Size without changing Paper Type

Proceed to step 4.

When not changing either of them

Touch OK. You can start printing once Ready appears on the screen.

Note:

The three options other than Others display the most recently selected paper type.

Select the paper type that matches the loaded

paper.

Epson Special Media

Select the same product name as the one shown on the package of the paper.

Commercially available non-Epson paper

Select from the following commercially available paper types.

❏ Plain Paper

❏ Coated Paper(Generic)

❏ Photo Paper(Generic)

❏ Tracing Paper

❏ Tracing Paper <LowDuty>

❏ Matte Film

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

❏ Blueprint Paper

To select a paper type that is not displayed on the screen, touch Others.

Select a category and select the target paper type. When a paper type is confirmed, the screen returns to the one in step 1.

Note:

If you scroll downward in the category selection screen, Custom Paper appears. To select custom paper that has already been registered, touch Custom Paper.

Select a category and select the target paper size.

Note:

Setting non-standard size

For a non-standard size, touch User-Defined at the end of the list and then enter the paper width and length.

On the keypad screen for entering a numeric value, enter numbers that include a number of the first decimal place. For example, if you want to enter 5 m, touch [5] and [0].

When the screen of step 1 is redisplayed, touch

OK.

You can start printing once Ready appears on the screen.

Touch Paper Size.

If you will not change the paper size, touch OK.

For Auto Sheet Feeder

For Cut Sheet(1 sheet)

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Optimizing Paper Settings (Media Adjust)

Perform Media Adjust in the following cases. You can make adjustments easily by using the wizard to make sure that your paper prints correctly.

❏ When there are streaks, double ruled lines, or

warped characters in the print results

❏ When registered with custom paper settings

Adjustment results are saved until the next time you make adjustments. After adjustments are complete, simply select the paper type and the printer will print correctly.

Note:

Adjustment for paper registered with custom paper settings

For roll paper and cut sheets, optimal paper settings will differ even when the paper types are the same. When using roll paper and cut sheets with the same paper type, register the custom paper separately and make adjustments separately.

Adjusting

Adjustments are performed by using a wizard. Follow the on-screen instructions to print the adjustment pattern twice. Adjustments are made by visually checking the pattern and specifying the optimal pattern from the first and second adjustment sheets. The following shows the length and number of sheets of paper used for adjustment pattern printing. Roll paper: Approx. 420 mm

Auto sheet feeder: 2 sheets of A4 or A3

Cut sheets: 1 sheet for A2 or larger, 2 sheets for smaller than A2

Touch the following in order from the Home

screen.

❏ Roll Paper

Roll paper information area - Media Adjust

❏ Auto Sheet Feeder

Paper Setting - Auto Sheet Feeder - Media Adjust

❏ Cut Sheet(1 sheet)

Paper Setting - Cut Sheet(1 sheet) - Media Adjust

Registering a Custom Paper Setting means adding a new paper type setting. Register the new settings in

Settings - General Settings - Printer Settings Custom Paper Setting.

For details on Custom Paper Setting, see the following Custom Paper Setting menu. U “General Settings - Printer Settings” on page 139

Notes on Making Adjustments

❏ Correctly load the paper that actually requires

adjustment and then select the paper type that matches the loaded paper.

❏ If paper with visible curls, wrinkles, waves, folds,

or bends is used, correct adjustment may not be possible. Remove curled, wavy, or folded sections by cutting them off.

Touch Start.

Printing of the first set of adjustment patterns starts.

Important:

When auto cutting is turned off for cut sheets or roll paper that is A2 size or larger, the paper cannot be removed to perform the second print even when the first print is complete. Do not pull the printed paper.

Note:

A print head nozzle clogging check is performed automatically before adjustment pattern printing. If nozzles are determined to be clogged, cleaning starts and the adjustment patterns will be printed after cleaning finishes.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

Enter the numeric value of the pattern with the

least streaks among the printed adjustment patterns of #1 and then touch Alignment #2.

In the following example, pattern 0 has the least streaks so you would enter 0.

If there is no difference between two adjacent patterns and you are unsure which is the best one to choose, enter the numeric value that comes between them. For example, if you are unsure whether to enter pattern 0 or 2, enter 1.

Enter the numeric value of the pattern with the

least streaks among the adjustment patterns of #2 and #1, and then touch Alignment #3.

Important:

When using A2 size or larger cut sheets or roll paper with the auto cut turned off, the part with the first set of patterns printed on it is pulled inside the printer to print the second set of patterns. Do not touch the paper with your hands.

Enter the numeric value of the pattern with the

least streaks among the printed adjustment patterns of #1 and then touch Alignment #2.

In the following example, pattern 0 has the least streaks so you would enter 0.

Enter the numeric value of the pattern with the

most visible straight lines among the adjustment patterns of #3, and then touch Alignment #4.

In the following example, pattern 0 has the most straight lines, so you would enter 0.

In adjustment pattern #4, enter the numeric

value of the pattern with the most straight lines in #3 on the screen.

Touch OK.

Printing of the second set of adjustment patterns starts. For cut sheets smaller than A2 size, load the second sheet of paper.

Enter the numeric value of the pattern with the

least streaks among the adjustment patterns of #2 in the same way as #1, and then touch Alignment #3.

Enter the numeric value of the pattern with the

least streaks among the adjustment patterns of #3 and then touch OK.

In the following example, pattern 0 has the least streaks so you would enter 0.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Loading and Setting the Paper

The adjustment results are saved as settings of the currently selected paper type. Next time, simply select the paper type to realize the optimum print results.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select the printer in Printer and then click

Printing with the

Printer Properties.

The printer driver dialog will be displayed.

Printer Driver from Your Computer

Basic Operating Procedures (Windows)

Printing Procedure

This section describes the basic procedure to print various data, including the data of Word, Excel, and PowerPoint of Microsoft Office and PDFs of Adobe Acrobat, using the printer driver from a computer.

Turn on the printer, and load the paper.

U “Loading Roll Paper” on page 29

U “Loading paper into the auto sheet feeder”

on page 35

U “Loading Cut Sheet(1 sheet)” on page 39

When you have created the data in the

application, click Print in the File menu.

Note:

When printing a PDF file In the Print dialog box of Adobe Acrobat, select the Actual size (or Page Scaling: None) radial button and Choose paper source by PDF page size check box. To enlarge or reduce the size, configure the setting in the printer driver settings dialog box.

Check Document Size on the Printer Settings

tab of the printer driver.

The paper size set in the application is displayed automatically. However, the paper sizes (page sizes) of some applications such as PowerPoint may not be displayed correctly. In such a case, click Settings... and specify the size in the displayed Change Paper Size dialog box.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

If the desired size is not available in the pull-down menu of the Change Paper Size dialog box, click Custom Paper Size... and then set and save a custom size.

U “Printing at Non-Standard Sizes” on

page 66

Set Output Size.

To enlarge or reduce the size, select from the pull-down menu below the Document Size.

For Roll Paper Width (Paper Size for cut sheets) and Media Type, the settings configured in the control panel of the printer are applied automatically.

Note:

If the paper is loaded or changed after opening the printer driver's dialog box, the paper size and paper type settings configured on the printer will not be applied. In this case, click the Acquire Info button to apply the settings.

See the following for more details on enlargement settings.

U “Enlargements and Horizontal and

Vertical Banners” on page 61

Select Source and check the roll paper width

and media type.

Select from Roll Paper, Auto Sheet Feeder, or Sheet. If you select a paper source for which paper is not loaded in the printer,

appears.

Select Select Target in Print Quality.

Choose an option according to the type of document and how it will be used.

To set the color correction method or color balance in detail to match your preferences, clear the Simple Settings check box. See the following for more details.

U “Correct color and print” on page 70

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Check that the Print Preview check box is

selected and then click OK.

If a preview is not necessary, clear the check box and then click OK.

Note:

In the print preview, you can check and change the print settings while viewing the image to be actually printed. We recommend to check with the preview when printing on roll paper or large-sized paper.

Click Print in the Print dialog box of the

application.

Note:

See the printer driver help for more details on setting items. You can display the help in the following two ways:

❏ Click Help at the bottom right of the screen.

❏ Right-click the item you want to check and then

click Help. (This is not possible in the print preview screen.)

Canceling Printing

There are a few ways to stop printing operations depending on the situation. When the computer has finished sending data to the printer, you cannot cancel the print job from the computer. Cancel on the printer.

Canceling from a Computer

When the Progress Bar is displayed

Click Cancel.

The print preview screen appears.

Check the print settings in the print preview

screen, and if there is no problem, click Print to start printing.

The icons and menus at the top of the preview screen allow you to change the image display settings. You can change the print settings using the menus on the right side. See the help for more details.

When the Progress Bar is not displayed

Click the printer icon on the taskbar.

Whether or not an icon is displayed depends on the settings selected for Windows.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select the print data you want to cancel and

click Cancel in the Document menu.

To cancel all print data, click Cancel All Documents in the Printer menu.

If the job has been sent to the printer, print data is not displayed on the above screen.

Canceling on the printer

Open View devices and printers or Devices

and Printers.

Windows 10/8.1/8/7

Click in the following order: Hardware and Sound (or Hardware) > View devices and printers (or Devices and Printers).

Windows Vista

Click in the following order: Hardware and Sound and then Printer.

Windows XP

Click in the following order: Printers and Other Hardware, and then Printers and Faxes.

Note: If your Windows XP Control Panel is in Classic View, click Start, Control Panel, and then Printers and Faxes.

Right-click your printer icon, and click

Printing preferences.

The Cancel button is displayed on the control panel screen during printing. Touch the Cancel button. The print job is canceled even in the middle of printing. It may take a while before the printer returns to the ready status.

However, print jobs in the print queue on a computer cannot be deleted in this way. Use the procedure of "Canceling from a Computer" to delete print jobs in the print queue.

Customizing the Printer Driver

You can save the settings or change the display items as you prefer.

Saving Frequently Used Settings

If you start the printer driver from the Control Panel, change the settings to those you use frequently, and then save the settings, the printer driver's dialog box will be displayed with the saved settings from any application that it is displayed.

The printer driver setting screen is displayed.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Make the necessary settings. These settings become the default settings of the printer driver.

Saving various settings as your Select Settings

You can save all printer driver settings as a Select Setting. This allows you to easily load settings that have been stored in Select Settings, and repeatedly print using exactly the same settings.

Set each item on the Printer Settings, Layout,

and Advanced tabs to the settings you want to save as Select Settings.

Click Custom Settings.

Note: Sharing Select Setting settings with multiple computers

Select the settings you want to share, click Export..., and then export the settings to a file. Display the same screen of the printer driver on another computer, click Import..., and then import the settings.

Rearranging display items

The display items of Select Setting, Media Type, and Paper Size can be arranged as follows to display the

ones you use normally right away.

❏ Hide unnecessary items.

❏ Rearrange in an order of most frequent use.

❏ Arrange in groups (folders).

Click Utility tab - Menu Arrangement.

Enter the desired name in Name, and then

click Save.

You can save up to 100. The saved select settings can be recalled from Select Setting.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select Edit Item.

Change the display order and groups in List.

❏ You can move and order items by dragging

and dropping.

❏ To add a new group (folder), click Add

Group....

Click Save.

❏ To delete a group (folder), click Delete

Group.

❏ Drag and drop unnecessary items to Not

Display.

Note:

When Delete Group is performed, the group (folder) is deleted, but the settings in the deleted group (folder) remain. Delete them individually from List in the save location.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Basic Operating Procedures (Mac)

Printing Procedure

This section describes the basic procedure to print using the printer driver from a computer.

Basic Printing Procedure

Turn on the printer, and load the paper.

U “Loading Roll Paper” on page 29

U “Loading paper into the auto sheet feeder”

on page 35

U “Loading Cut Sheet(1 sheet)” on page 39

When you have created the data in the

application, click Print in the File menu.

Note:

If page settings are not displayed in the print dialog, click the "page settings" option (e.g., Page Setup) in the File menu.

Check that this printer is selected, and then set

the paper size.

Click Show Details (or ) at the bottom of

the screen.

There are three options available for each paper size. For example, if you click A2, the following three options are displayed.

❏ A2

❏ A2 (Retain Scale)

❏ A2 (Roll Paper Banner)

Normally, you should select the option without parenthesis (A2 in the example above). Select one of the other two options in the following situations.

Retain Scale

In the following procedure, the PDF or image data may be printed at a slightly reduced size even if the output size is Same as Paper Size. This is done to secure the necessary margins (3 mm on each side) for this printer. Select this when you want to print at the full size without any reduction.

Roll Paper Banner

Select to make long prints on roll paper using banner printing software.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select Printer Settings from the list and set

Output Size.

If Printer Settings is not displayed in the list, the dedicated printer driver for this printer has not been added. See the following and then add the printer driver.

U “How to Select the Dedicated Printer

Driver for This Printer” on page 56

To enlarge or reduce the size, select from the pull-down menu below the Paper Size.

For Roll Paper Width (Paper Size for cut sheets) and Media Type, the settings configured in the control panel of the printer are applied automatically.

See the following for more details on enlargement settings.

U “Enlargements and Horizontal and

Vertical Banners” on page 61

Select Source and check the roll paper width

(paper size when cut sheet) and paper type.

Select from Roll Paper, Sheet, or Auto Sheet Feeder. If you select a paper source for which paper is not loaded in the printer,

Note:

appears.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select Select Target in Print Quality.

Choose an option according to the type of document and how it will be used.

Check the print settings in the print preview

screen, and if there is no problem, click Print to start printing.

To set the color correction method or color balance in detail to match your preferences, clear the Simple Settings check box. See the following for more details.

U “Correct color and print” on page 70

Check that the Print Preview check box is

selected and then click Print.

If a preview is not necessary, clear the check box and then click Print.

Note:

See the printer driver help for more details on setting items. Click to display Help.

in the printer driver settings dialog box

How to Select the Dedicated Printer Driver for This Printer

If the menus described in the previous section "Basic Printing Procedure" are not displayed, select the dedicated printer driver for the printer in Printer. The dedicated printer driver for this printer is displayed as follows.

❏ For USB connections EPSON SC-TXXXX

❏ For network connections

EPSON TXXXX or EPSON TXXXX-YYYYYY

*: "XXXX" is the product model number. "YYYYYY" is the last

six digits of the MAC address.

Note:

If the dedicated printer driver for this printer is not displayed in the list, add it with the following procedure.

Select System Preferences - Printers &

Scanners (or Print & Scan / Print & Fax) from the Apple menu.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Click [+] and select Add Printer or Scanner.

When the list of devices appears, select the

dedicated printer driver for this printer and click Add.

Canceling Printing

Canceling from a Computer

Click the icon of this printer in the Dock.

Customizing the Printer Driver

You can assign a name to frequently used setting information (paper size and each item of the basic settings) and then save the information to Presets. This allows you to easily load settings and repeatedly print using exactly the same settings.

Saving frequently used settings as a preset

Set each item on the Paper Size and Printer

Settings tabs to the settings you want to save as Presets.

Click Save Current Settings as Preset in

Presets.

Select the job you want to cancel, and then click

Delete.

If the job has been sent to the printer, print data is not displayed on the above screen.

Canceling on the printer

However, print jobs in the print queue on a computer cannot be deleted in this way. Use the procedure of "Canceling from a Computer" to delete print jobs in the print queue.

Enter a name, and then click OK.

Note: When All printers is selected from Preset Available For, you can select the saved Presets

from all printer drivers installed on your computer.

The settings are saved to Presets. You can then select the settings you saved from Presets.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Deleting from presets

Click Show Presets... from Presets in the Print

dialog box.

Select the setting you want to delete, click

Delete, and then click OK.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Printing CAD Drawings

There are the following two methods to print CAD drawings.

Printing with the printer driver

This method is best suited for printing CAD drawings such as the appearance views of buildings at high quality. This section describes the procedure to print using the printer driver from AutoCAD 2018.

Open the data to be printed and then click Plot.

Select the printer in Printer/ plotter and then

click Properties.

Important:

If lines or parts in your drawing are not printed properly, print using the HP-GL/2 or HP RTL mode.

Printing using the HP-GL/2 or HP RTL mode

This method is best suited for printing CAD and GIS drawings such as maps and blueprints.

You can print from an application that supports HP-GL/2 (compatible with HP Designjet 750C) and HP RTL. See the following for more details.

Click Custom Properties.

U “Printing Using the HP-GL/2 or HP RTL Mode

from a Computer” on page 92

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

The printer driver's dialog box for this printer appears.

Set Output Size and Source in the printer driver.

U “Basic Operating Procedures (Windows)”

on page 48

U “Basic Operating Procedures (Mac)” on

page 54

Select CAD/Line Drawing - Black, CAD/Line

Drawing - Color, or CAD/Line Drawing Bi-Level from the Select Target list.

Windows

Check other settings, and then start printing.

Note:

If the output size is portrait and the height is smaller than the width of the roll paper, the print image is printed rotated 90˚ to save paper. This function is enabled if the Auto Rotate check box is selected in Roll Paper Option on the Advanced tab.

Mac

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

❏ Specify Size

Enlargements and Horizontal and Vertical

You can specify the enlargement or reduction ratio. Use this method for a non-standard paper size.

Banners

The printer driver can enlarge or reduce documents for different paper sizes. There are three setting methods.

Before printing at non-standard sizes, including vertical or horizontal banners and documents with equal sides, enter the desired paper size in the printer driver.

Note:

U “Printing at Non-Standard Sizes” on page 66

❏ Fit to Roll Paper Width

Automatically enlarges or reduces the image size to fit the roll paper width.

❏ Fit to Output Size

Automatically enlarges or reduces the image size to fit the paper size.

❏ When printing from applications designed

expressly for horizontal or vertical banners, adjust printer driver settings as described in the application documentation.

❏ When using a Windows application designed for

banners, select Print Banner on the Layout tab if necessary.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Fitting Documents to the Width of the Roll Paper

Check the document size (or paper size) setting

on the Printer Settings tab of the printer driver.

Windows

Display the Printer Settings tab of the printer driver from the application and check that the document size is the same as the setting of the application.

If the size is different, select the correct size from the pull-down menu.

U “Basic Operating Procedures (Mac)” on

page 54

Note:

In the case of an application without a page setup menu item, you can set the paper size if you open the Print dialog box from the Print menu item.

Click Fit to Roll Paper Width on the Printer

Settings tab of the printer driver and select either Fit Short Side to Roll Paper Width or

Fit Long Side to Roll Paper Width.

Windows

If it differs, click Settings... and specify the correct size in the Change Paper Size dialog box.

U “Basic Operating Procedures (Windows)”

on page 48

Mac

Open the page setup screen of the application and check that this printer is selected in Printer and check the paper size.

Select a paper size that does not have (Retain Scale) or (Roll Paper Banner).

Mac

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Fit Short Side to Roll Paper Width

Select this when you want to print with the print image enlarged to the maximum size for the loaded roll paper.

Fit Long Side to Roll Paper Width

Select this when you want to print with the print image enlarged as much as possible to the extent that paper will not be wasted.

Fitting Documents to the Output Size

Check the document size (or paper size) setting

on the Printer Settings tab of the printer driver.

Windows

Display the Printer Settings tab of the printer driver from the application and check that the document size is the same as the setting of the application.

Check other settings, and then start printing.

If it differs, click Settings... and specify the correct size in the Change Paper Size dialog box.

U “Basic Operating Procedures (Windows)”

on page 48

Mac

Open the page setup screen of the application and check that this printer is selected in Printer and check the paper size.

Select a paper size that does not have (Retain Scale) or (Roll Paper Banner).

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

If the size is different, select the correct size from the pull-down menu.

U “Basic Operating Procedures (Mac)” on

page 54

Select Fit to Output Size on the Printer

Settings tab of the printer driver.

Windows

Select the desired size from the Output Size

pull-down menu.

Windows

Mac

Check other settings, and then start printing.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Choosing a Print Size

Check the document size (or paper size) setting

on the Printer Settings tab of the printer driver.

Windows

Display the Printer Settings tab of the printer driver from the application and check that the document size is the same as the setting of the application.

U “Basic Operating Procedures (Mac)” on

page 54

Note:

In the case of an application without a page setup menu item, you can set the paper size if you open the Print dialog box from the Print menu item.

Display the Output Size input screen from the

Printer Settings tab of the printer driver.

Windows

Select Others... and then select Specify Size in the displayed Output Size dialog box.

If it differs, click Settings... and specify the correct size in the Change Paper Size dialog box.

U “Basic Operating Procedures (Windows)”

on page 48

Mac

Open the page setup screen of the application and check that this printer is selected in Printer and check the paper size.

Select a paper size that does not have (Retain Scale) or (Roll Paper Banner).

Mac

Select Specify Size.

If the size is different, select the correct size from the pull-down menu.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select the size specification method from

Width, Length, and Scale to and then enter the setting value.

The print image is enlarged or reduced so that it becomes the specified width, length, or scale while maintaining the aspect ratio of the print data.

Windows

Mac

Printing at Non-Standard Sizes

Before printing at non-standard sizes, including vertical or horizontal banners and documents with equal sides, save the desired paper size in the printer driver. Once they have been saved in the printer driver, custom sizes can be selected in the application Page Setup and other print dialogs.

The following sizes can be used.

Paper Width

SC-T5100 Series/ SC-T5100N Series

89 to 914 mm

Check other settings, and then start printing.

SC-T3100M Series/ SC-T3100 Series/ SC-T3100N Series/ SC-T2100 Series

Paper Length

*: The paper length can be longer when using an application

that supports banner printing. However, the actual print size depends on the application, the paper size loaded in the printer, and the computer environment.

Important:

❏ The smallest size supported by the printer is

89 mm wide × 127 mm long. When a smaller size than this is set in Custom Paper Size... of the printer driver, trim the unnecessary margins.

❏ For Custom Paper Sizes of a Mac, although

you can specify a large paper size which cannot be loaded in this printer, it will not be printed properly.

127 to 18000 mm

89 to 610 mm

❏ The available output size is limited depending

on the application.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Settings in Windows

Display the Printer Settings tab of the printer

driver from the application and then click

Custom Paper Size....

The User-Defined Paper Size dialog box appears.

Set the paper size to use in the User-Defined

Paper Size dialog box and then click Save.

Note:

❏ To change the paper size you saved, select the

paper size name from the list on the left.

❏ To delete a saved paper size, select the paper

size name from the list on the left of the screen and then click Delete.

❏ You can save up to 100 paper sizes.

Click OK to close the User-Defined Paper Size

dialog box. Also close the printer driver's dialog box.

Registration of the user-defined size is now complete.

Select the registered paper size in, for example,

the page size settings of the application and then create the data.

Note:

If the registered paper size is not displayed in the application, check whether it exceeds the sizes supported by the application.

❏ The Paper Size Name is displayed as an

document size or output size option. Set a meaningful name such as "400x500mm" or "Horizontal Banner".

❏ To view the Paper Width and Paper Height

values for a standard size close to the desired custom size, select the appropriate option in Base Paper Size.

❏ If you select an aspect ratio in Fix Aspect

Ratio and select Landscape or Portrait for Base, you can set the size by just entering a

value in either Paper Width or Paper Height.

When you have finished creating the data,

display the Printer Settings tab of the printer driver from the Print dialog box.

The registered paper size is displayed in Paper Size on the Printer Settings tab.

U “Basic Operating Procedures (Windows)”

on page 48

Check other settings, and then start printing.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Settings in Mac

Open the page setup screen of the application

and check that this printer is selected in Printer and then select Manage Custom Sizes from Paper Size.

U “Basic Operating Procedures (Mac)” on

page 54

Enter values in Width and Height of the Paper

Size, enter the margins, and then click OK.

The ranges of page sizes and margin sizes that can be specified differ depending on your printer model and the settings on the printer.

U “Printable area” on page 214

Note:

❏ To edit a saved custom size, choose its name

from the list on the left.

Note:

For applications without a page setup menu item, the paper size settings can be displayed by opening the Print dialog box from the Print menu.

Click + and then enter the paper size name.

❏ To duplicate a saved paper size, select its

name from the list on the left of the screen and click Duplicate.

❏ To delete a saved paper size, select its name

from the list on the left of the screen and click

−.

❏ The custom paper size setting differs

depending on the operating system version. See your operating system's documentation for details.

Click OK to close the Custom Paper Sizes

dialog box. Also close the printer driver's dialog box by clicking Cancel.

Registration of the custom paper size is now complete.

Select the registered paper size in, for example,

the page size settings of the application and then create the data.

Note:

If the registered paper size is not displayed in the application, check whether it exceeds the sizes supported by the application.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

When you have finished creating the data,

display the Printer Settings tab of the printer driver from the Print dialog box.

The registered paper size is displayed in Document Size on the Printer Settings tab.

U “Basic Operating Procedures (Mac)” on

page 54

Check other settings, and then start printing.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

If you clear the Simple Settings check box, you can

Correct color and print

The optimal method is selected from the following color correction methods for each print target in the print quality settings of the printer driver.

❏ EPSON Standard (sRGB)

Optimizes the sRGB space and corrects the color.

❏ Business Graphics

Performs color correction to sharpen your images based on the sRGB space.

❏ Line Drawing

Optimizes color correction for line drawing by processing the border between lines and the background as discontinuous.

check which of the above color correction methods is used. Standard of Select Target is the most suitable setting for the currently selected paper type.

❏ GIS

Performs the optimal printing for topographic maps and other data of the geographic information system (GIS).

❏ ICM

Performs color management to match the colors in the image data to those in the printed output (Windows only). U “Color Management Printing” on page 74

❏ Off (No Color Adjustment)

Color correction is not performed by the printer driver. Choose if color management is performed by the application. U “Color Management Printing” on page 74

Clicking the Settings button allows you to, for example, finely adjust the Gamma, Brightness, Contrast, Saturation, and color balance.

Use this option when the application in use does not have a color correction function.

Note:

The color correction options available vary with the operating system and the type of paper used.

If you want to select the color correction method yourself, select Custom at the very bottom of the print target list.

Settings in Windows

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from Step 2.

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6 or later Adobe Photoshop Lightroom 1 or later

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

OS Color Management

Settings

Windows 10,

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Windows XP (other than the above)

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Printer Manages Colors

No Color Management

Display the Printer Settings tab of the printer

driver and then clear the Simple Settings check box in the Print Quality area.

U “Basic Operating Procedures (Windows)”

on page 48

Select the print target. If you want to select the

color correction method yourself, select Custom at the very bottom of the list.

When Custom is selected for the print target,

select the color and color correction method settings.

Setting example of Adobe Photoshop CC

Open the Print dialog box.

Select Color Management, then select Printer

Manages Colors in Color Handling, and click Print.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

If necessary, click Settings and then adjust

items such as the Gamma, Brightness, Contrast, Saturation, and color balance.

See the printer driver help for more details on each item.

Settings example of Adobe Photoshop CC

Open the Print dialog box.

Select Color Management, then select Printer

Manages Colors in Color Handling, and click Print.

Note:

You can adjust the correction value by checking the sample image on the left side of the screen. Furthermore, you can select Color Circle or Slide Bar of Color Adjustment Method and finely adjust the color balance.

Check other settings, and then start printing.

Settings in Mac

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from Step 2.

When using the following applications, set the color management setting to Printer Manages Colors.

Display the Print screen.

U “Basic Operating Procedures (Mac)” on

page 54

Select Color Matching from the list, and then

click EPSON Color Controls.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6 or later Adobe Photoshop Lightroom 1 or later

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Note: EPSON Color Controls will not be available in

the following applications if Step 1 is omitted.

❏ Adobe Photoshop CS3 or later

❏ Adobe Photoshop Lightroom 1 or later

❏ Adobe Photoshop Elements 6 or later

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Select Printer Settings from the list and then

clear the Simple Settings check box in the Print Quality area.

If necessary, click Settings and then adjust

items such as the Gamma, Brightness, Contrast, Saturation, and color balance.

See the printer driver help for more details on each item.

Check other settings, and then start printing.

Select the print target. If you want to select the

color correction method yourself, select Custom at the very bottom of the list.

When Custom is selected for the print target,

select the color and color correction method settings.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Color Management Printing

About Color Management

Even when using the same image data, the original image and the displayed image may look different, and the printed results may look different to the image you see on the display. This occurs due to the difference in characteristics when input devices such as scanners and digital cameras capture colors as electronic data, and when output devices such as display screens and printers reproduce colors from the color data. The color management system is a means to adjust differences in color conversion characteristics among input and output devices. A color management system is included with operating systems such as Windows and Mac OS, in addition to image processing applications. Windows and Mac OS X include the ICM and ColorSync color management systems, respectively.

Color Management Print Settings

You can perform color management printing using this printer's printer driver in the following two ways.

Choose the best method according to the application you are using, the operating system environment, the aim of the print out, and so on.

Setting color management with the applications

This method is for printing from applications that support color management. All color management processes are carried out by the application's color management system. This method is useful when you want to obtain the same color management print results using a common application among different operating system environments.

U “Setting color management with the applications”

on page 75

Setting color management with the printer driver

In a color management system, a color definition file called a "Profile" is used to perform color matching between devices. (This file is also called an ICC profile.) The profile of an input device is called an input profile (or source profile), and the profile of an output device, such as a printer, is called a printer profile (or output profile). A profile is prepared for each media type in this printer's driver.

The color conversion areas by the input device and the color reproduction area by the output device differ. As a result, there are color areas that do not match even when performing color matching using a profile. In addition to specifying profiles, the color management system also specifies conversion conditions for areas where color matching failed as "intent". The name and type of intent vary depending on the color management system you are using.

You cannot match the colors on the printed results and display by color management between the input device and the printer. To match both colors, you need to perform color management between the input device and the display as well.

The printer driver uses the operating system's color management system and carries out all color management processes. You can configure the color management settings in the printer driver using the following two methods.

❏ Host ICM (Windows) / ColorSync (Mac OS X)

Set when printing from applications that support color management. This is effective in producing similar print results from different applications under the same operating systems. U “Color Management Printing by Host ICM

(Windows)” on page 77

U “Color Management Printing by ColorSync

(Mac)” on page 78

❏ Driver ICM (Windows only)

This allows you to perform color management printing from applications that do not support color management. U “Color Management Printing by Driver ICM

(Windows Only)” on page 79

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Setting profiles

Settings for the input profile, printer profile, and intent (matching method) vary between three types of color management printing since their color management engines are used differently. This is because color management usage differs between the engines. Make settings in the printer driver or application as described in the following table.

Input profile settings

Driver ICM (Windows)

Host ICM (Windows)

ColorSync (Mac OS X)

Application Application Application Application

Printer Driver

Application Printer

Printer profile settings

Printer Driver

Driver

Intent settings

Printer Driver

Application

Setting color management with the applications

Print using applications with a color management function. Make the color management settings in the application and disable the printer driver's color adjustment function.

Make color management settings in the

applications.

Settings example of Adobe Photoshop CC

Open the Print dialog box.

Select Color Management, select Photoshop

Manages Colors in Color Handling, select Printer Profile and Rendering Intent, and

click Print.

Printer profiles for each paper type that is needed when performing color management are installed with the printer's printer driver. You can select the profile from the printer driver's settings screen.

You can select the profile from the printer driver's settings screen.

U “Color Management Printing by Driver ICM

(Windows Only)” on page 79

U “Color Management Printing by Host ICM

(Windows)” on page 77

U “Color Management Printing by ColorSync

(Mac)” on page 78

U “Setting color management with the applications”

on page 75

Display the printer driver's settings screen

(Windows) or Print screen (Mac).

Make printer driver settings.

For Windows

U “Basic Operating Procedures (Windows)”

on page 48

For Mac

U “Basic Operating Procedures (Mac)” on

page 54

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Set color management to off.

For Windows

Clear the Simple Settings check box in the Print Quality area of the Printer Settings tab and select Off (No Color Adjustment) from the print target list.

For Mac

Select Printer Settings from the list and clear the Simple Settings check box in the Print Quality area, and select Off (No Color Adjustment) from the print target list.

Note:

In Windows 7, Windows Vista, and Windows XP (Service Pack 2 or later and .NET 3.0), Off (No Color Adjustment) is selected automatically.

Check other settings, and then start printing.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Setting color management with the printer driver

Color Management Printing by Host ICM (Windows)

Use image data in which an input profile has been embedded. Also, the application must support ICM.

Make the settings for color adjustment using

the application.

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6.0 or later Adobe Photoshop Lightroom 1 or later

OS Color Management

Settings

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Windows XP (other than the above)

Printer Manages Colors

No Color Management

Settings example of Adobe Photoshop CC

Open the Print dialog box.

Select Color Management, then select Printer

Manages Colors in Color Handling, and click Print.

When using an application without a color management function, start from step 2.

Clear the Simple Settings check box in the

Print Quality area on the Printer Settings tab of the printer driver and then select ICM from the Select Target list.

U “Basic Operating Procedures (Windows)”

on page 48

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Click Settings.

Select Host ICM in ICM Mode.

See the printer driver help for more details.

The printer profile corresponding to the Media

selected on the Printer Settings tab is set

Type automatically and is displayed in the Printer Profile Description area.

Color Management Printing by ColorSync (Mac)

Use image data in which an input profile has been embedded. Also, the application must support ColorSync.

Note:

Depending on the application, color management printing by ColorSync may not be supported.

Disable the color management functions in the

application.

Display the Print screen.

U “Basic Operating Procedures (Mac)” on

page 54

Select Color Matching from the list, and then

click ColorSync.

To change the profile, select the Show all profiles check box.

*: *: If Source is selected on the Printer Settings tab, the paper type set on the printer is set automatically. Media Type becomes Use Printer Settings, and the paper type name is displayed on the right side.

The printer profile corresponding to the

currently selected paper type automatically and displayed at the bottom of the profile area. To change the profile, select the desired profile from the Profile pull-down menu.

*: It is set in the screen displayed by selecting Printer Settings from the list. If Source is selected, the paper type set on the printer is set automatically, and Use Printer Settings is displayed. The paper type name is displayed on the right side of it.

is specified

Check other settings, and then start printing.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Color Management Printing by Driver ICM (Windows Only)

The printer driver uses its own printer profiles to perform color management. You can use the following two color correction methods.

❏ Driver ICM (Basic)

Specify one type of profile and intent for processing the entire image data.

❏ Driver ICM (Advanced)

The printer driver distinguishes the image data into the Image, Graphics, and Text areas. Specify a different profile and intent for each of the three areas.

When using applications featuring a color management function

Make the settings for color processing using the application before making printer driver settings.

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6.0 or later Adobe Photoshop Lightroom 1 or later

Select Color Management, then select Printer Manages Colors in Color Handling, and click Print.

Clear the Simple Settings check box in the

Print Quality area on the Printer Settings tab of the printer driver and then select ICM from the Select Target list.

U “Basic Operating Procedures (Windows)”

on page 48

OS Color Management

Settings

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Windows XP (other than the above)

Printer Manages Colors

No Color Management

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Settings example of Adobe Photoshop CC

Open the Print dialog box.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Click Settings.

Select Driver ICM (Basic) or Driver ICM

(Advanced) in ICM Mode from the ICM screen.

Intent Explanation

Relative Colorimetric

Absolute Colorimetric

Converts the data so that a set of color gamut and white point (or color temperature) coordinates in the original data match their corresponding print coordinates. This feature is used for many types of color matching.

Assigns absolute color gamut coordinates to the original and print data and converts the data. Therefore, color tone adjustment is not performed on any white point (or color temperature) for the original or print data. This feature is used for special purposes such as logo color printing.

Check other settings, and then start printing.

If you select Driver ICM (Advanced), you can specify the profile and intent for each type of image data such as photos, graphics data, and text data.

Intent Explanation

Saturation Keeps the current saturation

unchanged and converts the data.

Perceptual Converts the data so that a

more visually natural image is produced. This feature is used when a wider gamut of color is used for image data.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Multi-Page Printing (N-up)

Two or four consecutive pages can be printed on a single sheet.

Settings in Windows

Note:

In Windows, you can use the Reduce/ Enlarge function (Fit to Page) to print the data on different sizes of paper.

U “Printing at Non-Standard Sizes” on page 66

Set Number of pages per sheet and Page

Order in the Print Layout dialog box.

If the Print page frames check box is selected, page frames are printed on each page.

Check other settings, and then start printing.

Settings in Mac

Display the Layout tab of the printer driver and

select the Page Layout check box. Then, select N-up and click the Settings button.

U “Basic Operating Procedures (Windows)”

on page 48

Display the Print dialog box, select Layout

from the list, and specify the number of pages per sheet and so on.

U “Basic Operating Procedures (Mac)” on

page 54

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Note:

You can print frames around arranged pages using the Border function.

Check other settings, and then start printing.

Manual Double Sided Printing (Windows Only)

This function is only available when Auto Sheet Feeder is selected as the Source. This function cannot be used for Roll Paper or Sheet.

After you have finished printing even pages, you can turn the paper over, re-load it, and then print the odd pages to create double-sided prints.

Notes on double-sided printing

Note the following points when performing double-sided printing.

❏ Make sure you use paper that supports

double-sided printing.

❏ Depending on the type of paper and the data

being printed, the ink may smear on the back of the paper.

❏ Continuous double-sided printing can lead to a

decline in print quality and paper jams. If print quality declines, lower the ink density in the printer driver or try printing one sheet at a time.

❏ If you perform double-sided printing

continuously, the inside of the printer may be smeared with ink. Clean the rollers if the paper is smeared after printing. U “Smearing occurs when printing from the

auto sheet feeder” on page 194

Note:

Printing in combination with Multi-Page Printing (N-up) can help to save more paper.

U “Multi-Page Printing (N-up)” on page 81

Setting Procedures for Printing

Load the paper into the Auto Sheet Feeder.

U “Loading paper into the auto sheet feeder”

on page 35

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Display the Basic Settings screen for the printer

driver, and then select Auto Sheet Feeder as the Source.

U “Basic Operating Procedures (Windows)”

on page 48

Display the Layout tab of the printer driver,

and then select 2-sided printing.

Note:

❏ Click Binding Settings to set the Binding

Edge and Binding Margin. Depending on

the software you are using, the width of the margin you set and the actual print results may differ, we therefore recommended that you perform a test print first.

❏ Select Folded Booklet to print as a booklet.

In the following example, when the paper is folded in two, the inner pages (pages 2, 3, 6, 7, 10, and 11) are printed first.

Check other settings, and then start printing.

When you have finished printing the odd pages

and the instructions screen is displayed, follow the on-screen instructions to re-load the paper, and then click Resume.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Folded 2-Sided Printing (Windows only)

Two consecutive pages can be printed on a single sheet. The second page is flipped 180˚ and printed adjacent to the first page, allowing the paper to be folded to make a 2-sided document.

Display the Layout tab of the printer driver and

select the Page Layout check box. Then, select Folded Double-Side and click the Settings...

button.

Set Binding Edge and Binding Margin in the

Folded Double-Side Setting dialog box.

Check other settings, and then start printing.

U “Basic Operating Procedures (Windows)”

on page 48

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Poster Printing (Windows Only)

A single page can be printed across multiple sheets. The sheets can then be joined together to form large posters (up to 16 times the original size).

Display the Layout tab of the printer driver and

select the Page Layout check box. Then, select Poster and click the Settings... button.

Set Number of panels in the Poster dialog box.

U “Basic Operating Procedures (Windows)”

on page 48

If you want to print marks to serve as a guide

when joining together paper printed with poster printing, select the Print Cutting Guides check box.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Overlapping Alignment Marks

Prints guides for joining the paper with overlapping. The finished size is smaller only for the overlapping portions.

Print page frames

Prints frames for joining the paper without overlapping.

Check other settings, and then start printing.

Joining poster sheets in multi-page printing

If Overlapping Alignment Marks is selected, join guides (indicated by the lines drawn through and around the X marks in the illustration below) will be printed on each sheet.

The following section describes how to join four printed pages together.

Note:

If the output is in color, the join guides will be in blue and the cut guides in red; otherwise, all the guides will be printed in black.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Ready the two top sheets and trim the excess

from the left sheet by cutting along the line joining the two join guides (the centers of the X marks).

With the two sheets overlapping, trim the

excess by cutting along the line joining the two cut guides (the lines to the left of the X marks).

Lay the upper left sheet on top of upper right

sheet. Lineup the X marks as shown in the illustration below, and temporarily fasten them using an adhesive tape on the back.

Rejoin the two sheets.

Use an adhesive tape to stick the backs of the sheets together.

Repeat steps 1 to 4 for the lower two sheets.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Trim the bottom from the upper sheets by

cutting along the line joining the two guides (the lines above the X marks).

Lay the upper sheet on top of the lower sheet.

Lineup the X marks as shown in the illustration below, and temporarily fasten them using an adhesive tape on the back.

With the two sheets overlapping, trim the

excess by cutting along the line joining the two cut guides (the lines above the X marks).

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Join the upper and lower sheets together.

Use an adhesive tape to stick the backs of the sheets together.

After joining all the sheets, trim off the borders

by cutting along the cut guides (outside the X marks).

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

Printing Multiple Documents (Layout Manager) (Windows Only)

Documents created in different applications can be printed together in your choice of layout. This allows you to improve print work efficiency and conserve paper.

Sample Multi-Document Layout

Setting Procedures for Printing

Open the file you want to print in your

application.

Select the Layout Manager check box on the

Printer Settings tab of the printer driver and check that the size set in the application is displayed in Document Size.

U “Basic Operating Procedures (Windows)”

on page 48

Sample Free Vertical/Horizontal Layout

Note: Document Size is the size of the document to be

placed on the Layout Manager screen. The actual printing paper size is set in the screen in Step 6.

Click OK. When printing from an application,

the Layout Manager screen opens.

The print data is not printed, but one page is placed on the paper of the Layout Manager screen as one object.

Leaving the Layout Manager screen open,

repeat steps 1 to 3 until all the print data has been added to the layout.

The objects are added to the Layout Manager screen.

Arrange the objects on the Layout Manager

screen.

Objects can be moved or resized by dragging as well as rearranged or rotated using the tool buttons or the options in the Object menu.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing with the Printer Driver from Your Computer

The overall size and placement of the objects can be changed using the Preferences and Arrangement options in the File menu.

See the Layout Manager screen help for more details on each function.

Click Properties in the File menu and set the

print settings in the printer driver dialog box.

Saving and Recalling Settings

The layout and setting information on the Layout Manager screen can be saved as a file. If you need to close your application in the middle of a job, you can save it to a file and then open it later to continue your work.

Saving

Click the File menu on the Layout Manager

screen, and then click Save As....

Enter the file name, select the location, and

then click Save.

Close the Layout Manager screen.

Opening saved files

Right-click the printer icon ( ) on the

Windows taskbar, and then click Layout Manager in the displayed menu.

Check Media Settings, and set Print Quality.

The Layout Manager screen appears.

Note: When the printer icon is not displayed on the Windows taskbar

Open the Utility tab of the printer driver and click the Monitoring Preferences. Select Register the shortcut icon to the taskbar in the Monitoring Preferences dialog box.

Click the File menu in the Layout Manager

screen, and then click Print.

Printing starts.

Click Open in the File menu on the Layout

Manager screen.

Select the location and open the required file.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing Using the HP-GL/2 or HP RTL Mode from a Computer

Check Paper Source and change the setting if

Printing Using the HP-GL/2 or HP RTL Mode from a

necessary.

The default setting is Roll Paper. When HP-GL/ 2 or HP RTL print data is sent, an error occurs if paper is not loaded for the paper source set here.

Computer

The printer can emulate* HP-GL/2 (compatible with HP Designjet 750C) and HP RTL. This section describes the settings of the printer and the settings in the CAD application for printing while emulating.

* Not all functions are supported. If you will use an

untested application, test its output in advance.

Important:

The printer may not perform as expected if the size of the data to be printed is extremely large.

Note:

CAD drawings can also be printed using the CAD/ line drawing mode of the supplied printer driver. We recommend printing from the printer driver when you want to print with better image quality.

U “Printing CAD Drawings” on page 59

Check the other items and make changes if

necessary.

See the following for more details on Universal Print Settings items.

U “General Settings - Printer Settings” on

page 139

HP-GL/2 Specific Print Settings

If you want to change HP-GL2 specific settings such as rotating print data, merging lines, and changing the Define Palette set in the application, use the following procedure.

Touch Settings - General Settings - Printer

Settings - HP-GL/2 Unique Settings from the Home screen.

Touch and change the settings of the desired

items.

See the following for more details on HP-GL/2 Unique Settings items.

U “General Settings - Printer Settings” on

page 139

Printer Settings

Change the printer settings for printing in the HP-GL/ 2 or HP RTL mode as necessary in the control panel of the printer. The printer settings include basic print settings such as the paper source and margins (Universal Print Settings) and HP-GL/2 specific settings such as palette settings (HP-GL/2 Unique Settings).

Basic Print Settings

Touch Settings - General Settings - Printer

Settings - Universal Print Settings from the Home screen.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing Using the HP-GL/2 or HP RTL Mode from a Computer

Note: When HP-GL/2 or HP RTL printing is not performed properly

The printer automatically determines whether normal printing from the printer driver or emulation printing of HP-GL/2 or HP RTL from the sent print data and then switches the print mode accordingly. If mode switching is not performed correctly and printing is not performed properly, configure the setting as follows.

❏ When the computer and printer are connected via

USB Select Settings - General Settings - Printer Settings - Printing Language - USB from the Home screen and then change the setting from Auto to HP-GL/2.

❏ When the computer and printer are connected via

a network Select Settings - General Settings - Printer Settings - Printing Language - Network from the Home screen and then change the setting from Auto to HP-GL/2.

❏ SC-T3100M Series/SC-T3100 Series/

SC-T3100N Series/SC-T2100 Series: HP Designjet 750C C3195A

To print from the printer driver as usual after HP-GL/ 2 or HP RTL finishes, return the setting to Auto.

CAD Application Settings

Set the output device as follows according to your model. This explanation uses AutoCAD 2018 as an example.

Click Plot.

Set the plotter in Printer/plotter.

❏ SC-T5100 Series/SC-T5100N Series:

HP Designjet 750C C3196A

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Changing the Network Connection Methods

Connect your router and the printer with a

Changing the Network Connection

LAN cable.

See the following for the location of the printer's LAN port. U “Back” on page 12

Methods

The printer can connect to a wired LAN or a wireless LAN. Furthermore, it also supports Wi-Fi Direct (Simple AP) which allows a smart device or other device to directly connect wirelessly with the printer even when there is no wired LAN or wireless LAN environment.

The printer cannot connect to a wired LAN and wireless LAN at the same time. A Wi-Fi Direct connection is possible regardless of whether or not the printer is connected to a network.

This section describes the procedures to use to switch the connection method.

Note:

See the Administrator's Guide (online manual) for details on the network settings.

Switching to Wired LAN

Switching to Wireless LAN

The SSID (network name) and password of the access point to which the printer is to be connected are required. Confirm them in advance. The printer can be connected to a wireless LAN while the LAN cable is still connected.

Note:

If your access point supports WPS (Wi-Fi Protected Setup), the printer can be connected using Push Button Setup(WPS) or PIN Code Setup(WPS) without using an SSID and password. U “General Settings - Network Settings” on page 150

Touch on the Home screen.

Note:

The shape and color of the icon differ depending on the connection status. U “Home screen operations” on page 14

Touch on the Home screen.

Note:

The shape and color of the icon differ depending on the connection status. U “Home screen operations” on page 14

Touch Description.

Touch Wired LAN Connection Method.

Touch Start Setup.

The process to disable the wireless LAN connection with the access point starts. Wait until the The Wi-Fi connection is disabled. message appears.

Touch Router.

Touch Start Setup.

Details of the wired LAN connection status are displayed.

Touch Change to Wi-Fi connection., check

the displayed message, and touch Yes.

Touch Wi-Fi Setup Wizard.

Select the desired SSID.

If the desired SSID is not displayed, touch Search Again to update the list. If it is still not displayed, touch Enter Manually and directly enter the SSID.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Changing the Network Connection Methods

Touch Enter Password and enter the password.

Note:

❏ Differentiate between uppercase and

lowercase when entering the password.

❏ If the SSID was entered directly, set

Password to Available before entering the password.

When input is finished, touch OK.

Check the settings and then touch Start Setup.

Touch OK to finish the procedure.

If the connection fails, select Print Check Report to print a network connection check

report. You can check the action to take in the report.

Close the Network Connection Settings screen.

Directly Connecting

Touch on the Home screen.

Note:

The shape and color of the icon differ depending on the connection status. U “Home screen operations” on page 14

Touch Wi-Fi Direct.

When Wi-Fi Direct is already enabled, the network (SSID), password, number of connected devices, and so on are displayed. Proceed to step 5.

Note:

If a part of the displayed network (SSID) or device name, and so on cannot be seen because it is cut off at the right edge of the screen, touch the corresponding item to display the entire setting value.

Touch Start Setup.

Wi-Fi Direct is enabled, and the network (SSID) and password are displayed.

Wirelessly (Wi-Fi Direct)

A direct connection with the printer can be established temporarily when, for example, the printer is not connected to a network or you do not have permission to log on to the network.

Wi-Fi Direct is disabled by default. The following describes the procedure from enabling Wi-Fi Direct to connecting.

Note:

The printer can connect with up to four smart devices or computers at the same time. If you want to connect another device when there are already four devices connected, disconnect the connection to the printer from a device that is already connected.

Open the Wi-Fi setting screen on the device

you want to connect with the printer, select the SSID displayed on the screen of the printer, and enter the password just as it is displayed on the screen.

When a connection is established, touch Close

to finish the procedure.

Touch Close on the screen of the printer to

close the network connection settings screen.

When the printer driver is installed on the connected device, you can print using the printer driver.

Note:

When you turn off the power of the printer, the connections with connected devices are all disconnected. To reconnect after turning the printer back on, perform the procedure again from step 1.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Using AirPrint

AirPrint enables instant wireless printing from iPhone, iPad, iPod touch, and Mac without the need to install drivers or download software.

Note:

If you disabled paper configuration messages on your product control panel, you cannot use AirPrint. See the link below to enable the messages, if necessary.

Load paper in your product.

Set up your product for wireless printing. See

the link below.

http://epson.sn

Connect your Apple device to the same wireless

network that your product is using.

Print from your device to your product.

Note:

For details, see the AirPrint page on the Apple website.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing without Using the Printer Driver

U “Loading paper into the auto sheet feeder”

Printing without

on page 35

U “Loading Cut Sheet(1 sheet)” on page 39

Using the Printer

Start Web Config.

Driver

U “How to Start” on page 25

This section explains how you can print, even if the printer driver is not installed on your computer, if you are connected to a network; it also explains how to connect a USB flash memory to the printer and print the files on the USB flash memory.

Direct Printing Over the Web (Upload and Print) (SC-T3100M Series Only)

Function Summary

Upload and Print is a function that prints by running Web Config from a computer on which the printer driver is not installed.

U “How to Use Web Config” on page 25

The Print tab appears. Click Upload and Print.

Note:

If the Print tab does not appear, contact your system administrator.

Do the settings for printing.

Select Color Mode and Paper Source in Basic Settings.

You can print by simply selecting the file you want to print, and then uploading it to the printer. If the browser you are using supports drag and drop, you can upload multiple files in a batch and print them in order.

The following are files that can print from an upload.

❏ JPEG

❏ HP-GL/2

❏ TIFF

❏ PDF (only data created on an Epson printer)

Upload and Print Procedure

Load the paper into the printer.

U “Loading Roll Paper” on page 29

Do the settings, such as Quality, from Advanced.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing without Using the Printer Driver

Start printing by dragging and dropping the data.

Printing Files from a Shared Folder (Print from Folder) (SC-T3100M Series Only)

Function Summary

You can select and print a file from a shared folder on the network that has been setup in advance.

Do the settings for the shared folder on the printer's screen or on Web Config.

Touch General Settings - Network Settings -

Advanced - Shared Folder.

The shared folder settings screen appears.

Enter each item.

❏ Folder Name: Within 255 characters, enter

the network path for the shared folder.

❏ User Name: Enter the user name that you use

to log into the computer.

❏ Password: Enter the password that you use to

log into the computer.

Touch Proceed to complete the settings for the

shared folder.

U “Preparing a Shared Folder” on page 98

The following files can be printed from a network folder/FTP.

❏ JPEG

❏ HP-GL/2

❏ TIFF

❏ PDF (only data created on an Epson printer)

Preparing a Shared Folder

Setup from the printer

Touch Settings on the Home screen.

Setup from Web Config

Start Web Config.

U “How to Start” on page 25

The Print tab appears. Click Basic.

Note:

If the Print tab does not appear, contact your system administrator.

Enter each item for Print from Folder.

❏ Print from Folder: Select enable.

❏ Folder Name: Enter the network path for the

shared folder.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing without Using the Printer Driver

❏ User Name: Enter the user name that you use

to log into the computer.

❏ Password: Enter the password that you use to

log into the computer.

Click OK to complete the settings for the

shared folder.

Print from Folder Procedure

The procedure to print from a folder from the printer's screen is as follows.

On the Home screen, touch Network Folder.

After a short while, a list of the files in the shared folder appears.

Select 1 file to print.

Note:

❏ If HP-GL/2 files are selected in Page

Margins option - Borderless, either Clip By Margins or Oversize in Settings - General Settings - Printer Settings - Universal Print Settings - Page Margins option is applied.

❏ You can select Reduce/Enlarge in HP-GL/2

files, but it is not applied.

Touch the Print button.

Printing Files on USB Flash Memory Directly (SC-T3100M Series Only)

By connecting a USB flash memory to this printer, you can print JPEG, TIFF, or PDF files (only data created on an Epson printer) stored on the drive directly from this printer.

USB flash memories formatted in FAT and exFAT file systems can be used. However, you cannot use USB flash memories with security functions such as password protected ones.

Select Black/White or Color.

Using advanced settings such as enlarging or reducing size

Proceed to step 4.

Printing at actual size without advanced settings

Proceed to step 5.

Touch the Advanced tab.

Enlarge/reduce settings can be configured in Reduce/Enlarge. If you set Auto Fit Page to On, printing is performed by automatically enlarging to fit the width of the roll paper or the size of the cut sheet paper loaded in the printer.

See the following for more details on other settings items.

U “Network Folder/FTP Menu (SC-T3100M

Series only)” on page 177

Connect the USB flash memory, in which the

data to be printed is saved, to the printer.

Touch Memory Device on the Home screen.

Touch JPEG, TIFF, or PDF.

Touch JPEG to display thumbnails of JPEG files.

Touch TIFF to display a list of TIFF files.

Touch PDF to display a list of PDF files.

SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide

Printing without Using the Printer Driver

Select 1 file to print.

Printing JPEG files

Touch to select the file image to print, then touch Proceed to Print. This will add a check mark to the selected image. Touch Single View to enlarge the selected image to confirm. To change the display order of files, touch

Printing TIFF and PDF files

From the list, touch a file name to select it. To change the display order of files, touch

Note:

❏ Files other than JPEG, TIFF, or PDF files are

not displayed on the printer screen.

❏ Any characters in the folder or file names

that cannot be displayed by the printer will be displayed as "?".

Note:

If you touch to frequently used print settings and then register them to Presets.

The screen for entering a name can be switched as shown below with the button marked.

Also, each touch of the following bottom left icon switches the input method as follows.

ABC: Enters alphabet letters.

123#: Enters numbers and symbols.

Touch the numeric value for the number of prints and then enter the number of prints in the keypad screen.

(Presets), you can assign a name

Select Black/White or Color.

Using advanced settings such as enlarging or reducing size

Proceed to step 6.

Printing at actual size without advanced settings

Proceed to step 7.

Touch the Advanced tab.

See the following for more details on other settings items.

U “Memory Device (SC-T3100M Series

only)” on page 161

Note:

You can use the Preview button to check the print image (JPEG or TIFF only).

Touch the Print button.

100

Epson SC-T3100M, SC-T5100, SC-T3100, SC-T5100N, SC-T3100N User Manual

Specifications and Main Features
