Epson PL Pro Cinema 7500UB User Manual

PowerLite® Pro Cinema 7500 UB

Home Theater Projector

User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.

Trademarks

Epson is a registered trademark, 1080Perfect is a trademark, and Epson Exceed Your Vision is a registered
logomark of Seiko Epson Corporation.

PowerLite and PrivateLine are registered trademarks, DigiScan and AccuCinema are trademarks, and Extra Care
and Epson Connection are service marks of Epson America, Inc.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing, LLC.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

x.v.Color is a trademark of Sony Corporation.

2

General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

© 2008 Epson America, Inc. 11/08

CPD-26535R2

Contents

Introduction 7

Projector Parts 8

Front 8
Back 8
Bottom 9

Projector Control Panel 9
Remote Control Button Map 10
Optional Accessories 11
Registration and Warranty 11
Using This Manual 12

Setting Up the Projector 13

Choosing a Location 13
Installing the Projector 17
Connecting the Cables 19

Connecting Video and Computer Equipment 19

Making Other Connections 21
Installing Batteries in the Remote Control 22
Turning the Projector On and Off 22

Turning On the Projector 22

Turning Off the Projector 23
Selecting the Image Source 24
Positioning the Image 25

Making Basic Adjustments 27

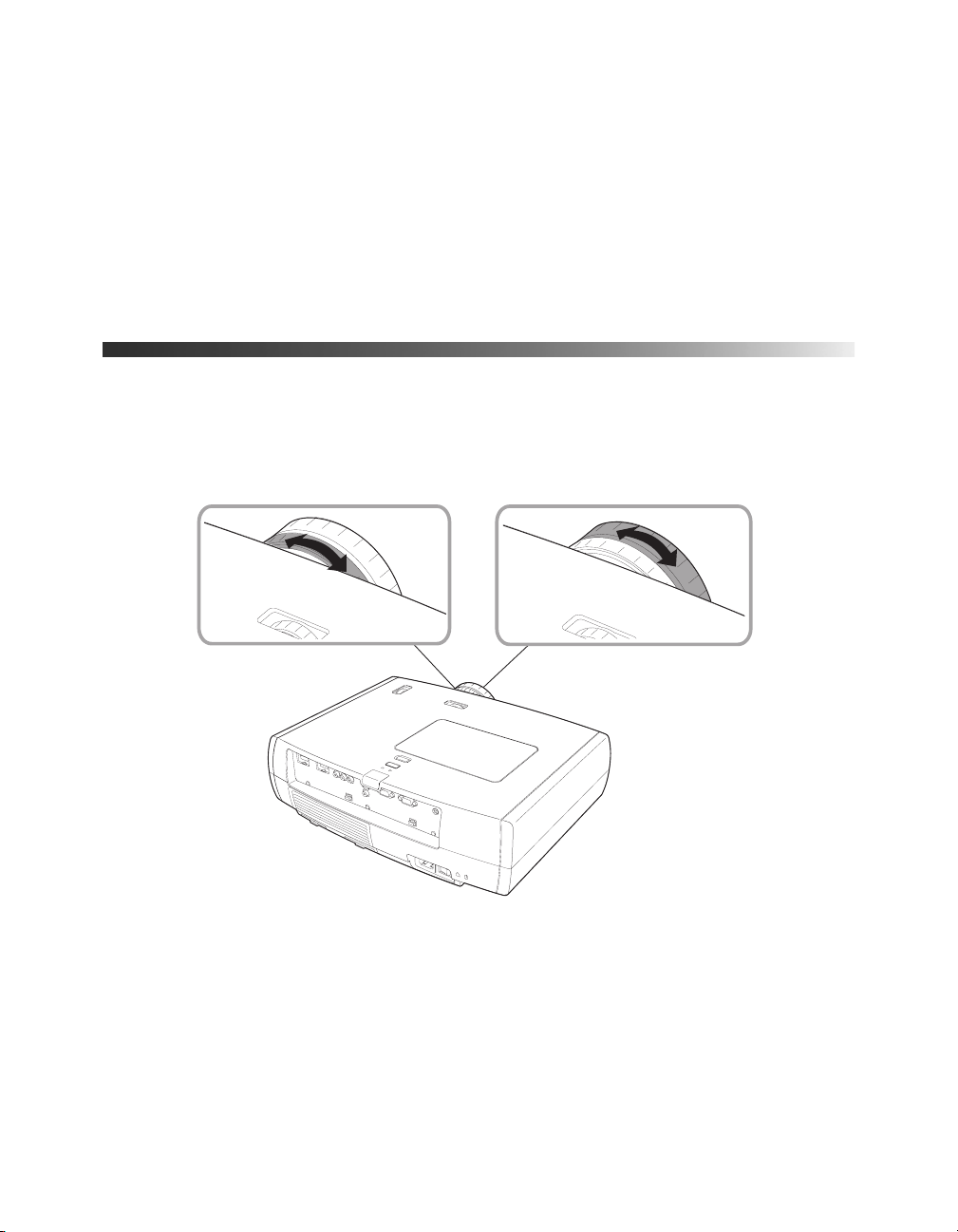

Focusing and Zooming 27
Choosing the Aspect Ratio 28
Choosing the Color Mode 29

Contents 3

Advanced Color Adjustments 30

Adjusting the Gamma Setting 30

Adjusting RGBCMY 31
Locking the Projector 32

Making Detailed Adjustments 33

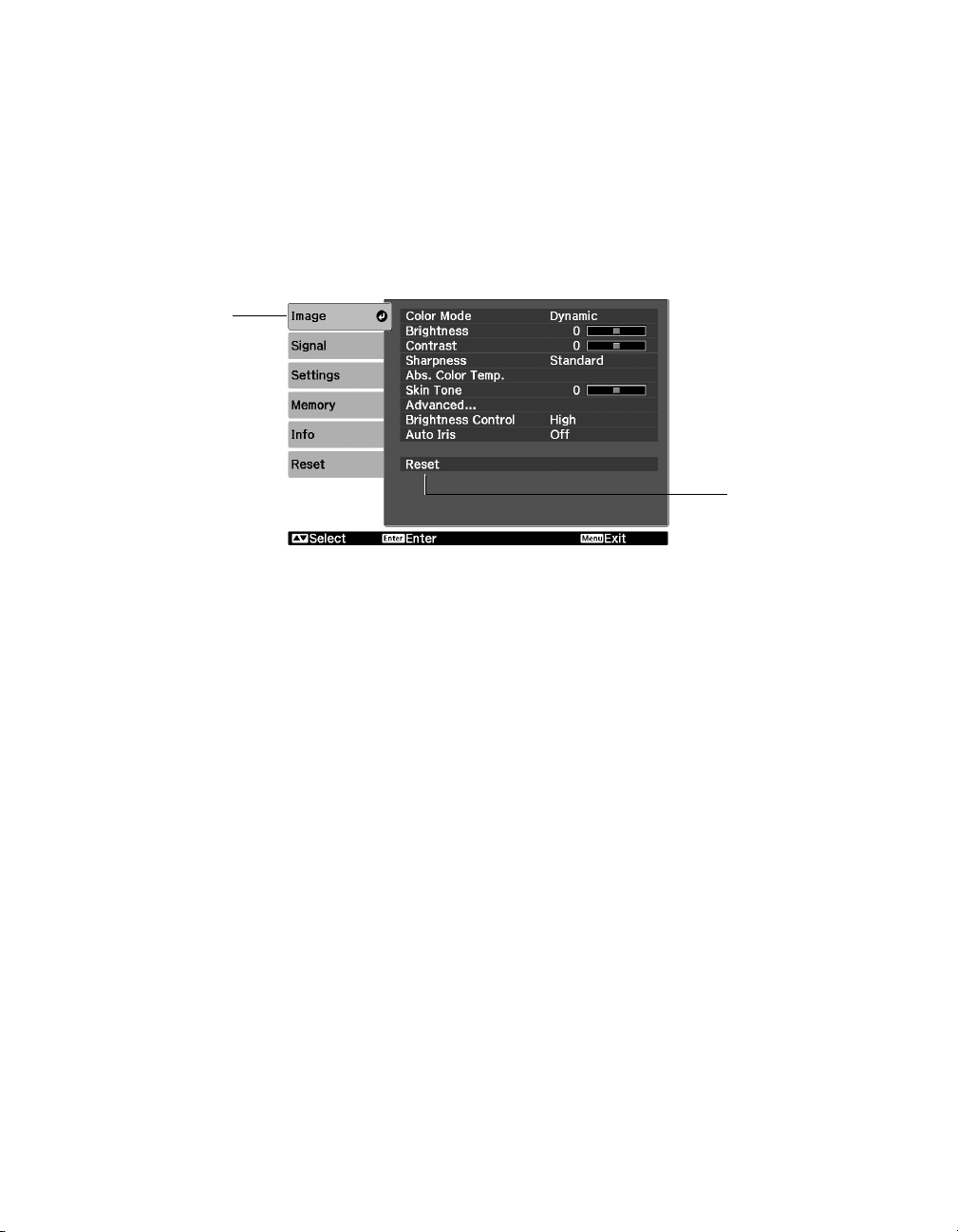

Using the Menu System 33

Changing How the Menus Display 35
Adjusting the Picture Quality 35

Input Brightness Settings 35

Sharpness and Picture Quality Settings 37

Color Settings 39

Adjustments for Computer Images 41
Selecting Memory Settings and Resetting the Projector 42

Selecting Memory Settings 42

Creating Memory Settings 43

Renaming Memory Settings 43

Deleting Saved Memory Settings 43

Resetting the Projector 44
Customizing Projector Features 45

Image Sizing 45

Screen Options 46

Other Setup Options 46

Maintenance 49

Cleaning the Lens 49

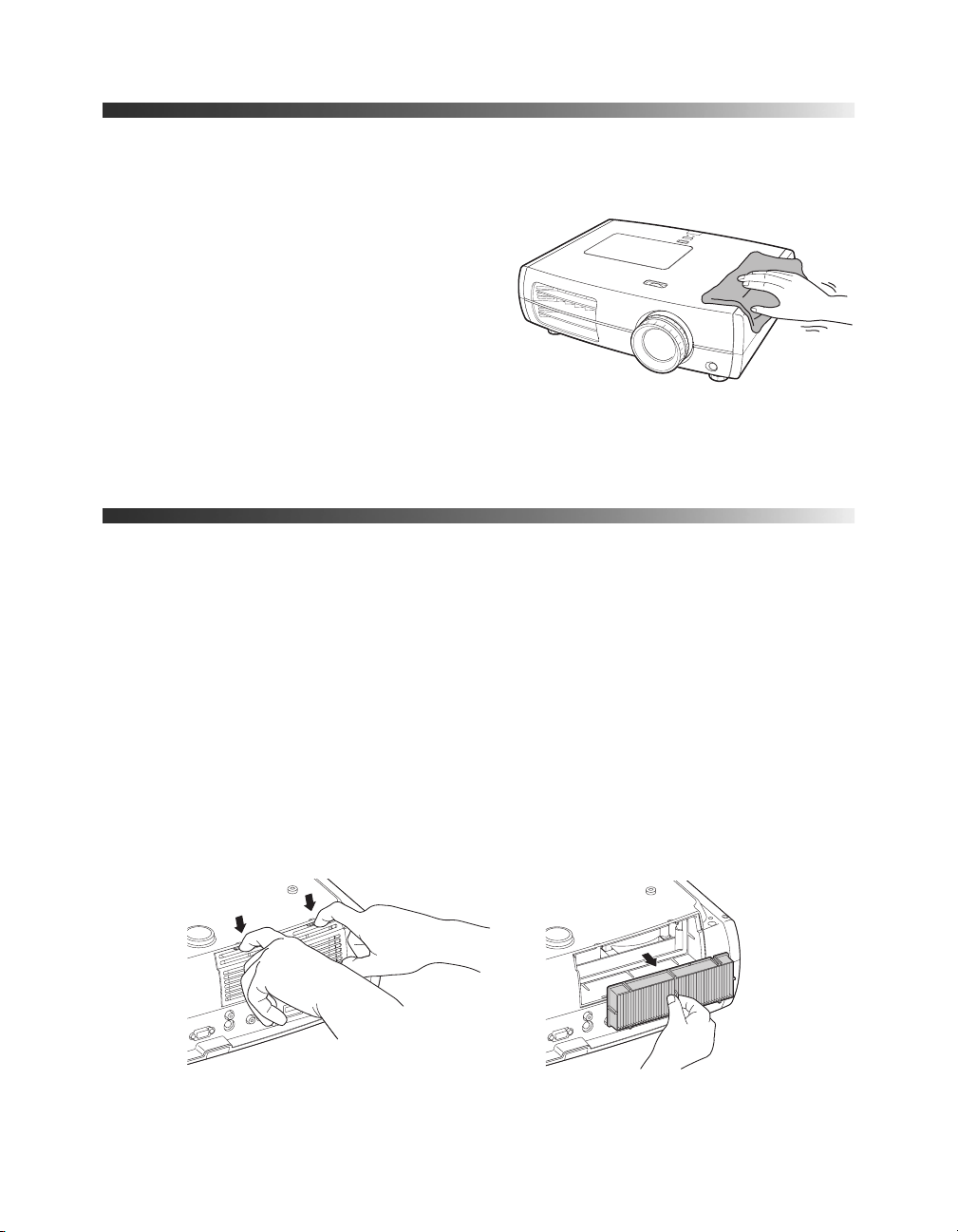

Cleaning the Projector Case 50
Cleaning and Replacing the Air Filter 50

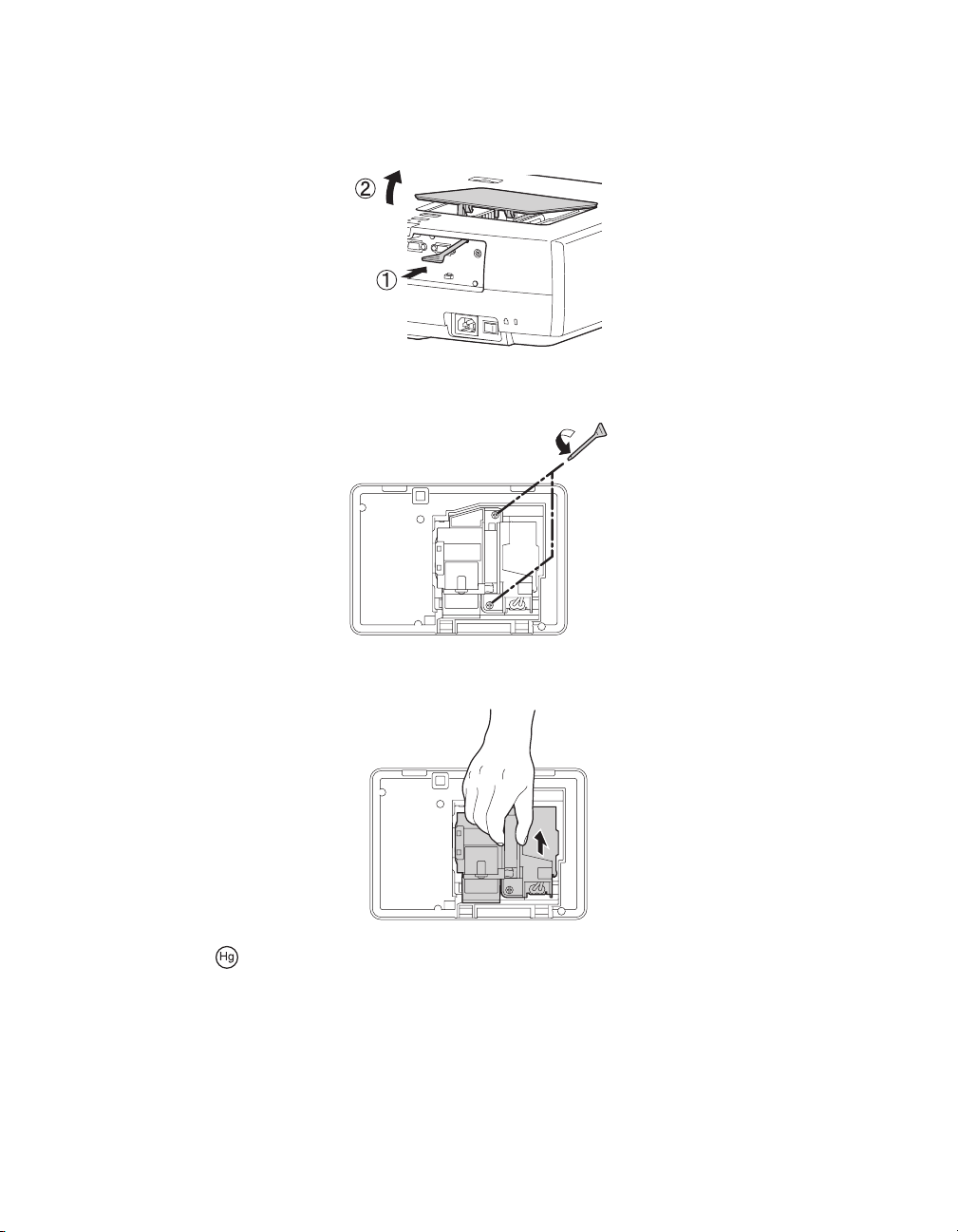

Replacing the Lamp 52

Checking the Projector Status 55
Storing the Projector 56
Transporting the Projector 56

4 Contents

Resetting the Lamp Usage Timer 55

Problem Solving 57

What To Do When the Lights Come On or Flash 57
Solving Picture Problems 59
Solving Remote Control Problems 62
Where To Get Help 63

Specifications 65

General 65
Lamp 65
Remote Control 66
Dimensions 66
Electrical 66
Environmental 66
Safety 66
Compatible Video Formats 67
ESC/VP21 Command Codes 69

Notices 71

Important Safety Information 71
FCC Compliance Statement 73
Declaration of Conformity 74
Epson America, Inc. Limited Warranty 75

Index 77

Contents 5

6 Contents

Introduction

The PowerLite® Pro Cinema 7500 UB projector lets you enjoy theater-quality images in the
relaxing environment of your own home. Designed especially for home cinema use, it offers
these outstanding features:

■ Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 75000:1, and up to

1600 lumens of brightness (white light output and color light output) for incredibly rich,

sharp images in any room lighting

■ Auto Iris system that constantly controls the lamp intensity based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■ Epson

■ 1080Perfect

■ 10-bit color quality for unmatched color accuracy, with over a billion colors available

■ Epson AccuCinema

■ HDMI

®

Crystal Fine 3LCD technology for reliable picture quality, increased contrast

ratio and uniform colors

™

video processing for more film-like images free of noise or artifacts

™

color management delivered by the built-in optical Cinema Filter
blocks out excess light for an expanded, purer color range and sophisticated grayscale
tracking

™

(High Definition Multimedia Interface™) port for superior, uncompressed

digital video

■ True 16:9 wide-format projection

■ Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal offset lens shift

■ Seven color modes, including x.v.Color

™

, to quickly optimize viewing for different

lighting environments, and a vast array of custom color adjustments

Introduction 7

Projector Parts

Front

Lamp cover

Control panel (top)

Vertical lens shift dial

Control panel
(side)

Zoom ring

Ventilation slots

Horizontal lens shift dial

Back

HDMI ports

Component
video port

Focus ring

S-Video port

Lens cover

Infrared receiver

PC port

Infrared receiver

Adjustable foot

Control (RS-232C) port

Lamp cover release

Trigger out
port

Kensington
lock port

®

8 Introduction

Air intake (filter)

Cable holder

Video port

Main power switch

AC power inlet

Bottom

Mounting bracket
attachment points

Optional cable cover
attachment points
(brass colored)

Projector Control Panel

Power
button

Source button
Switches the
video input source

Warning lights

Top control panel Side control panel

Menu button
Displays the
menus

Enter button
Selects menu items or
opens the line menu

Menu navigation
button

Esc button
Exits the current
menu item

Introduction 9

Remote Control Button Map

Power button
Turns projector on or off

Default button
Restores default settings
when menu is displayed

Menu navigation
buttons

Memory button
Recalls custom
picture settings

RGBCMY button
Adjusts the hue,
saturation, and brightness
for each color

Gamma button
Adjusts the gamma values
of the screen display

Illumination button
Lights the remote control
buttons for easy viewing

Source buttons
Switch between equipment
connected to the projector

Esc (escape) button
Exits the current menu item

Enter/Line Menu button
Selects menu items or opens
the line menu

Menu button
Displays the projector’s menus

Color Mode button
Optimizes viewing for
different lighting environments

Aspect button
Changes the picture’s aspect ratio

Sharpness button
Adjusts image sharpness

Pattern button
Displays test patterns
to adjust the image

10 Introduction

Blank button
Temporarily stops projection or
hides the menu screen

Optional Accessories

Epson provides the following optional accessories for the projector:

Product Part number

Replacement lamp V13H010L49 (ELPLP49)

Air filter replacement V13H134A21 (ELPAF21)

Kensington security lock (anti-theft device) ELPSL01

Cable cover V12H003001 (ELPCC01B)

Projector mount ELPHB800

You can purchase accessories from an authorized Epson reseller. To find the nearest
reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit
www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic three-year carry-in warranty. For details, see page 75.

In addition, Epson offers free Extra Care
equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will
ship you a replacement unit anywhere in the United States or Canada, usually via overnight
delivery. See your Extra Care Home Service brochure for details.

SM

Home Service. In the unlikely event of an

To register, simply fill out the registration card that came with your projector and mail it to
Epson. Or you can register online at www.epson.com/webreg. Registering also lets you
receive special updates on new accessories, products, and service.

Introduction 11

Using This Manual

This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at www.epson.com/support. Use this site to view FAQs (Frequently Asked Questions) or
product information and e-mail your questions to Epson support.

If you need more help, you can use the Epson PrivateLine
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.

®

Support service. Call

12 Introduction

Setting Up the Projector

Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.

Choosing a Location

You can install the projector for the viewing setups shown below, as well as rear projection.

Center

Side

Ceiling

Setting Up the Projector 13

Ideally, keep the projector level and place it at a height so its lens is centered between the top
and bottom of the screen, as shown below. If this is not possible, you can use the lens shift
dials to reposition the image. As a rule of thumb, you can use lens shift to move the image up
or down by nearly its full height, and left or right by about one-half its width (for details, see
page 26).

Offset A

Offset B

Offset refers to distance from

Projection distance

bottom of image to center of
lens using maximum lens shift.

If you place the projector off to the side, aim it straight ahead (rather than at the center of the
screen), then use the horizontal lens shift dial to center the image on the screen.

Horizontal lens shift dial

Vertical lens shift dial

Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the
lens shift dials to change the lens position.

14 Setting Up the Projector

The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the Zoom ring, the actual size may
differ. Use this table as a rough guide for projector placement:

16:9 aspect ratio

Projection distance

2.8 to 6.2 feet

0.87 to 1.88 m

Diagonal image size
(width × height) Offset A Offset B

30 in. (26 × 15 in.)

76.2 cm (66 × 37 cm)

6.8 in.
17 cm

21.5 in.
55 cm

Horizontal
Offset

0 to 13 in.
0 to 33 cm

3.8 to 8.3 feet

1.17 to 2.52 m

5.8 to 12.5 feet

1.77 to 3.80 m

7.8 to 16.7 feet

2.38 to 5.0 m

9.8 to 20.9 feet

2.98 to 6.36 m

11.8 to 25.1 feet

3.59 to 7.64 m

14.7 to 31.4 feet

4.50 to 9.56 m

19.7 to 41.8 feet

6.01 to 12.76 m

Projection distance

3.5 to 7.6 feet

1.07 to 2.31 m

40 in. (35 × 20 in.)

101.6 cm (89 × 50 cm)

60 in. (51 × 28 in.)

152.4 cm (130 × 75 cm)

80 in. (71 × 39 in.)

203.2 cm (180 × 100 cm)

100 in. (87 × 47 in.)
254 cm (220 × 120 cm)

120 in. (106 × 59 in.)
305 cm (270 × 150 cm)

150 in. (130 × 75 in.)
381 cm (330 × 190 cm)

200 in. (173 × 98 in.)
508 cm (440 × 249 cm)

4:3 aspect ratio

Diagonal image size
(width × height) Offset A Offset B

30 in. (24 × 18 in.)

76.2 cm (61 × 46 cm)

9.1 in.
23 cm

13.6 in.
35 cm

18.2 in.
46 cm

22.7 in.
58 cm

27.0 in.
69 cm

34.0 in.
86 cm

45.4 in.
115 cm

8.3 in.
21 cm

28.7 in.
73 cm

43.0 in.
109 cm

57.4 in.
146 cm

71.7 in.
182 cm

86.0 in.
219 cm

107.6 in.
273 cm

143.5 in.
364 cm

26.3 in.
67 cm

0 to 17 in.
0 to 43 cm

0 to 26 in.
0 to 66 cm

0 to 35 in.
0 to 89 cm

0 to 44 in.
0 to 112 cm

0 to 52 in.
0 to 132 cm

0 to 65 in.
0 to 165 cm

0 to 87 in.
0 to 221 cm

Horizontal
Offset

0 to 16 in.
0 to 41 cm

4.7 to 10.1 feet

1.44 to 3.09 m

7.1 to 15.3 feet

2.18 to 4.66 m

9.6 to 20.4 feet

2.92 to 6.23 m

12 to 25.5 feet

3.66 to 7.79 m

40 in. (32 × 24 in.)

101.6 cm (81 × 61 cm)

60 in. (47 × 35 in.)

152.4 cm (120 × 90 cm)

80 in. (63 × 47 in.)

203.2 cm (160 × 120 cm)

100 in. (79 × 59 in.)
254 cm (200 × 150 cm)

11.1 in.
28 cm

16.7 in.
42 cm

22.2 in.
56 cm

27.8 in.
71 cm

35.1 in.
89 cm

52.7 in.
134 cm

70.2 in.
178 cm

87.8 in.
223 cm

0 to 21 in.
0 to 53 cm

0 to 32 in.
0 to 81 cm

0 to 43 in.
0 to 109 cm

0 to 53 in.
0 to 135 cm

Setting Up the Projector 15

4:3 aspect ratio

Projection distance

14.4 to 30.7 feet

4.40 to 9.36 m

18 to 38.4 feet

5.51 to 11.71 m

24.2 to 51.3 feet

7.36 to 15.62 m

Diagonal image size
(width × height) Offset A Offset B

120 in. (94 × 71 in.)
305 cm (240 × 180 cm)

150 in. (118 × 91 in.)
381 cm (300 × 230 cm)

200 in. (161 × 118 in.)
508 cm (410 × 300 cm)

33.0 in.
85 cm

41.7 in.
106 cm

55.6 in.
141 cm

105.0 in.
268 cm

131.7 in.
334 cm

175.6 in.
446 cm

Horizontal
Offset

0 to 64 in.
0 to 163 cm

0 to 80 in.
0 to 203 cm

0 to 107 in.
0 to 271 cm

To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Projection
Distance Calculator. You can download this program from the Epson website at
www.epson.com/support.

Also keep these considerations in mind:

■ Make sure there is plenty of space for ventilation around and under the projector. Do not

set the projector on top of loose materials that could block the vents underneath.

■ Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or

extension cord.

16 Setting Up the Projector

Installing the Projector

To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the table on page 15 as a guide to positioning the
projector.

To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 11 for ordering information. Follow the instructions included with
the mount to install the projector.

Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.

If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:

1. Press the

2. Open the

3. Select

4. Press the

Menu button on the remote control.

Settings menu, then select Projection.

Front/Ceiling.

Menu button when done.

Note that you can rotate the Epson logo plate
180 degrees when suspending the projector from a
ceiling.

If you are planning to use an AV controller with the
projector, refer to the table of ESC/VP21 command
codes on page 69.

Setting Up the Projector 17

The following illustrations show the dimensions of the projector:

Center of lens

5.4 in.

136 mm

0.5 in.

12 mm

0.2 in.

4.5 mm

1.8 in.

45 mm

17.7 in.

450 mm

11.8 in.

300 mm

5.9 in.

150 mm

2.2 in.

56 mm

5.2 in.

131 mm

3.0 in.

75 mm

2.8 in.
72 mm

5.3 in.
135 mm

5.8 in.
148 mm

M4× 9 mm

18 Setting Up the Projector

6.3 in.
160 mm

15.3 in.
390 mm

Connecting the Cables

Connecting Video and Computer Equipment

You can connect the projector to many types of video equipment, such as a VCR, DVD
player, digital tuner, cable or satellite box, video game console, camcorder, or digital camera.
You can also connect it to a desktop or laptop PC or Apple
on compatible video formats, see page 67.

You can connect up to six pieces of video equipment at the same time, using any of the
commercially available cables shown below:

Port name Video equipment connection Computer connection

®

Macintosh® system. For details

HDMI 1/
HDMI 2

Component Use a component video cable

PC — Use a Mini D-sub, 15-pin monitor cable

S-Video Use an S-video cable: —

Video Use an RCA video cable: —

Use an HDMI cable:

—

(with RCA-style connectors):

Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports.

to connect to a computer RGB
(monitor) port:

Setting Up the Projector 19

For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to one of the following ports (highest quality
listed first):

Component (for component video), S-Video, or Video (for composite video).

Connect video equipment to one
of these ports

Connect a computer to one
of these ports

When you connect a large or heavy cable to the projector,
such as an HDMI cable, it is recommended that you fasten
it to one of the two holders using a commercially available
cable tie.

20 Setting Up the Projector

Making Other Connections

Connect the power cable and other cables described below, depending on how you plan to
use the projector.

■ Plug the power cable into the projector and a grounded electrical outlet.

■ The Trigger out port outputs a 12-volt DC signal

when the projector is turned on. This lets a central
control system monitor whether the projector is on
or off, and can be used to raise or lower your
projection screen automatically when the projector
is in use.

Connect a 3.5-mm mini jack to the port, as shown.
To enable the port, turn on the

Trigger Out

setting (see page 47).

■ To use an AV controller with the projector, connect a 9-pin null modem serial cable to

RS-232C port. Refer to the table of ESC/VP21 command codes on page 69.

the

Setting Up the Projector 21

Installing Batteries in the Remote Control

The remote control uses two AA batteries.

Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor
immediately.

1. Release the tab and lift open the cover.

2. Insert two new AA batteries as shown.

3. Insert the tab on the cover and press it down until it
clicks into place.

Aim the remote control at the screen, or at the front or
back of the projector. Make sure you are within 30 feet
of the projector.

If you suspect the batteries are weak, press the illumination button. If the buttons do not
glow, replace the batteries.

Turning the Projector On and Off

Turning On the Projector

1. Remove the lens cap.

2. Turn on any connected equipment you plan to use.

3. Turn on the main power switch on the back of the projector.

22 Setting Up the Projector

ON

4. Press the Ppower button on the remote control or projector.

Remote control Projector

Note: To prevent children from turning on the projector, you can use the Child Lock feature. See
page 32 for details.

If you’ll be using the projector at an altitude above 4900 feet (1500 meters), turn on High Altitude
Mode so the fan can properly cool the projector at the high altitude air pressure. See page 47 for
details.

The projector takes about 30 seconds to warm up and display an image. If you don’t see a
picture, you may need to change the image source as described on page 24.

Turning Off the Projector

1. Turn off any equipment connected to the projector.

2. Press the Ppower button on the remote control or projector. When you see a
confirmation message, press the Ppower button again to turn the projector off.

3. When the Ppower light stops flashing orange and stays on, turn off the projector’s main
power switch on the back.

It is now safe to unplug the projector, if necessary.

Caution: Turn off this product when not in use to prolong the life of the projector. Continuous
24-hour-a-day use may reduce the overall life of the product. Never turn off the main power switch
without first turning off the projector and letting it cool as described above, or you could damage it
and reduce lamp life.

Setting Up the Projector 23

Selecting the Image Source

The source buttons on the projector and remote control let you switch between images from
different pieces of equipment connected to the projector (such as a DVD player, cable or
satellite box, or video game console).

Press the
video source is connected.

If you press the source button on the projector, you see a list of available sources. Press
the source button to move through the list and select the desired source.

Source button on the remote control that corresponds to the port to which your

Note: If an image does not appear, see “Problem Solving” on page 57.

To temporarily turn off the image and darken the screen, press the Blank button on the remote
control. Press the Blank button again to return to normal viewing.

24 Setting Up the Projector
