Epson FRAME-EVO-E10 Mounting frame for projectors
FRAME-EVO-E10
Mounting frame for projectors
Manual Version 1.6
Date
Revision No.
Author
Checked
Approved
Description
18.12.2018
1.4
DWN
DWN
DWN
Epson model number changed
03.01.2019
1.5
DWN
VIU
DWN
US Version removed
14.01.2019
1.6
DWN
DWN
DWN
New layout
The following projectors can be mounted in this frame:
Epson 3LCD – EB-L1000 series
Contact
Tel.: +49 2266 4764 0
E-Mail: info@solutions4av.com
Web: www.solutions4av.com
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 1 of 39
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 2 of 39
Table of content
1. Preamble .................................................................................................... 3
1.1 FRAME-EVO-E10 designation ........................................................................................................ 3
1.2 Tools required ............................................................................................................................... 4
2. Safety instructions ...................................................................................... 5
3. What’s in the box? .................................................................................... 10
4. Optional Accessories ................................................................................. 11
5. Fitting the projector in the frame .............................................................. 14
6. Removing the Upper Ring - Installation Version ........................................ 16
7. Reinstalling the Upper Ring ....................................................................... 19
8. Adjustment options ................................................................................... 22
9. Stacking frames ........................................................................................ 24
10. Mounting the frame on a truss ................................................................ 25
11. Maximum stacking information ............................................................... 27
12. System maintenance and inspection (Re-examination) ........................... 33
13. Declaration of Conformity ....................................................................... 36
14 Dimensions ............................................................................................... 37
14.1 FRAME-EVO-E10 ........................................................................................................................ 37
14.2 FRAME-EVO-E10 Installation Version - without the Upper Ring ............................................... 38
Imprint .......................................................................................................... 39
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 3 of 39
1. Preamble
Congratulations on your purchase of the FRAME-EVO-E10 projector frame from LANG AG.
Please read very carefully the instructions provided in this manual. In the following pages
you will find all the information needed for a safe and fast installation.
After the installation is done properly, you can enjoy all the features of your new product.
Please consider keeping the original box and packaging materials, in case you ever need to
ship the frame.
Model number: FRAME-EVO-E10
1.1 FRAME-EVO-E10 designation
Note: In this manual, when reference is made to the manufacturer model number it is also
automatically a reference to the Epson model number like described in the table below:
Description
Number
Manufacturer model number
FRAME-EVO-E10
Epson model number
ELPMB59
Epson SKU
V12H996B59
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 4 of 39
1.2 Tools required
The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-E10.
These installation instructions must always be handed over to the installing person1
Read these instructions carefully before installing the system.
Copyright © 2018 LANG AG. All rights reserved.
1
Only a qualified person should install this product
4 mm hex key (Allen key)
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 5 of 39
2. Safety instructions
INTENDED USE
The FRAME-EVO-E10 frame is intended for use by fully qualified, trained and competent
persons to provide safe and secure transportation, installation and adjustment of
projectors.
Only use the frame with projector in a closed environment (conference rooms, theaters,
convention halls, etc.) where there is no wind, moisture, excessive heat etc.
Make sure that only the corresponding projectors are installed in this frame! Do not try to
use it with other projectors because serious accidents can occur!
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 6 of 39
WARNINGS
Installation work should only be carried out by a qualified technician.
• If this product is not installed correctly, serious accidents may result.
Do not use the FRAME-EVO-E10 frame outdoors.
• This product is made only for indoor usage. If the FRAME-EVO-E10 frame is mounted
outdoor, there are many influences like wind or rain that can have an effect on the
stability of the whole system. This can cause serious accidents and property damage.
Do not place the frame on top of unstable surfaces.
• If the frame is placed on top of a surface which is sloped or unstable, it may fall down
or tip over and injury or damage could result. Make sure that the surface can support
a load of 165 kg (363.76 lbs)2 plus the weight of all additional equipment as well as
other potential systems.
Do not hang the frame from unstable or inappropriate structures.
• If the frame is hung on an unstable structure, the entire system can fall down and
injuries may occur. Make sure that the construction can support a total weight of 165
kg (363.76 lbs) plus the weight of all additional equipment as well as other potential
systems.
Make sure to not exceed max. weight loads for ceiling mounting.
• For suspended installations, use only designated hanging accessories, like TH-SHORT-
150-8, TH-SHORT-60-6, FRAME-PF-UNI-PORAD Portrait Adapter and FRAME-PF-UNICLP5030, FRAME-PF-UNI-CLP30PT rigging clamps for a max. weight load of 165 kg
(363.76 lbs). Please refer to the corresponding instructions for the accessories used.
Please also refer to chapter “4. Optional Accessories” and “11. Maximum stacking
information”.
2
165 kg (363.76 lbs) = 3 x (weight of heaviest projector + weight of heaviest lens + weight of FRAME-EVO-E10)
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 7 of 39

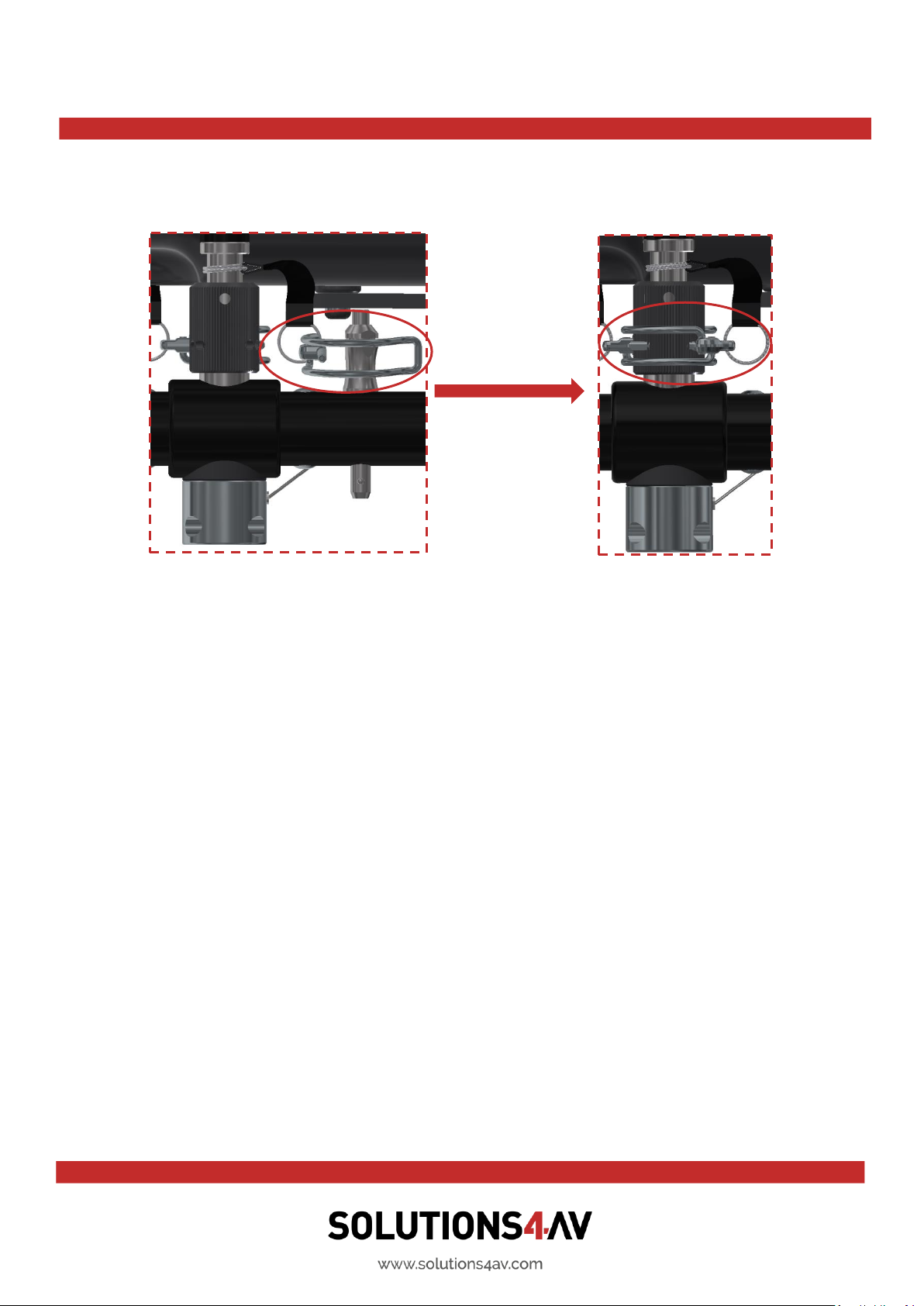

For stacking, make sure that all four locking pins pass completely through the female
stacking bolt.
• Make sure the four male bolts enter into the correspondent female bolts and are
locked.
Do not install the FRAME-EVO-E10 or the projector while people are present under the
mounting zone during the installation process.
• When installing the projector, make sure no one is in the area underneath the
installation zone.
Always secure the frame to the rigging truss with a safety steel cable.
• The frame should always be secured with an appropriate safety steel cable so that in
case of a malfunction it doesn’t fall more than 5 cm. Please consult the local laws or
regulations regarding the additional safety of hanging equipment.
CAUTION
Before installing the projector in the FRAME-EVO-E10 frame, please read the projector’s
user manual. When the projector has a lens attached, please remove it.
• The FRAME-EVO-E10 frame with the projector inside must be installed only in an
environment that is recommended by the projector manufacturer.
Minimum two persons are required to install the FRAME-EVO-E10 frame.
• With regard to the overall weight of all necessary installation devices, make sure to
handle those with at least two people.
Make sure that the structure from which you hang up to 3 FRAME-EVO-E10 frames
including projectors is capable of carrying the overall weight of approx. 165 kg (363.76 lbs)
plus the weight of all additional equipment as well as other potential systems.
• Prior to any installation, you must do a visual inspection to make sure that the
system is in a good condition. For more information please refer to chapter
“12. System maintenance and inspection (Re-examination)”.
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 8 of 39
RISK SITUATIONS
Risk of injury due to the possibility of falling objects during the assembly or disassembly of
the FRAME-EVO-E10 frame.
• Protection objective: avoid injury from falling parts.
• Wear appropriate safety shoes, gloves and helmet.
• Make sure the area under the installing places is clear.
Risk of hitting the head with the FRAME-EVO-E10 frame during the hanging set up process.
• Protection objective: avoid injury from hitting the head.
• Wear a helmet.
Incorrect installation may lead to certain parts of the FRAME-EVO-E10 frame or the entire
FRAME-EVO-E10 frame to fall down.
• Protection objective: prevent personal injury and property damage.
• Double check the FRAME-EVO-E10 frame and its installation.
Insufficient load capacity of the supporting structure may lead to certain parts of the
FRAME-EVO-E10 frame or the entire FRAME-EVO-E10 frame to fall down.
• Protection objective: prevent personal injury and property damage.
• Provide adequate dimensioning of the supporting structure. The supporting structure
must be able to support the combined weight of all the equipment attached to, or
hung from it.
• Ensure correct installation of the supporting structure.
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 9 of 39

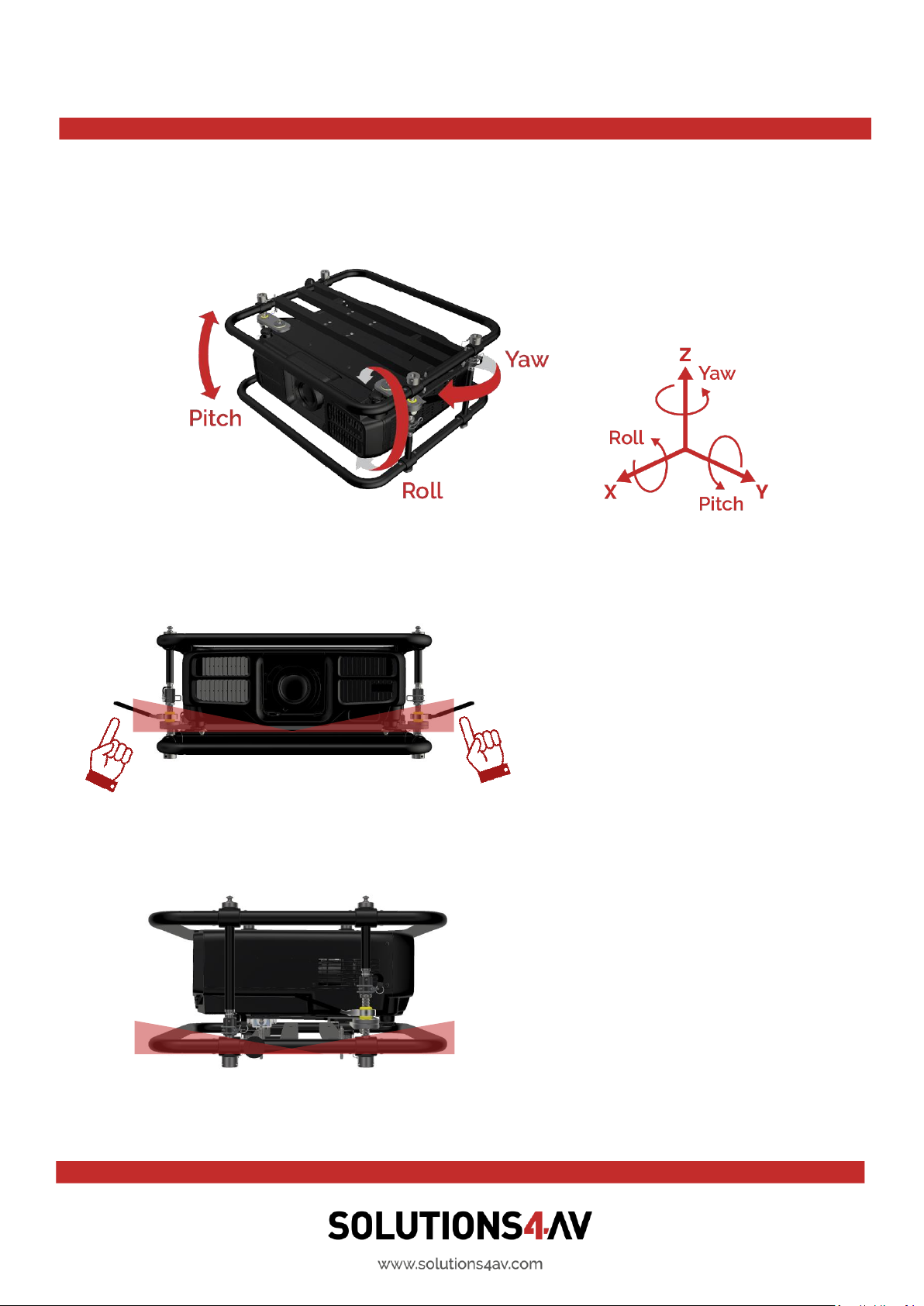

The fingers or the hand of the user can be caught between the outer rings and the plates
or projector.
• Protection objective: prevent personal injury by using safety gloves.

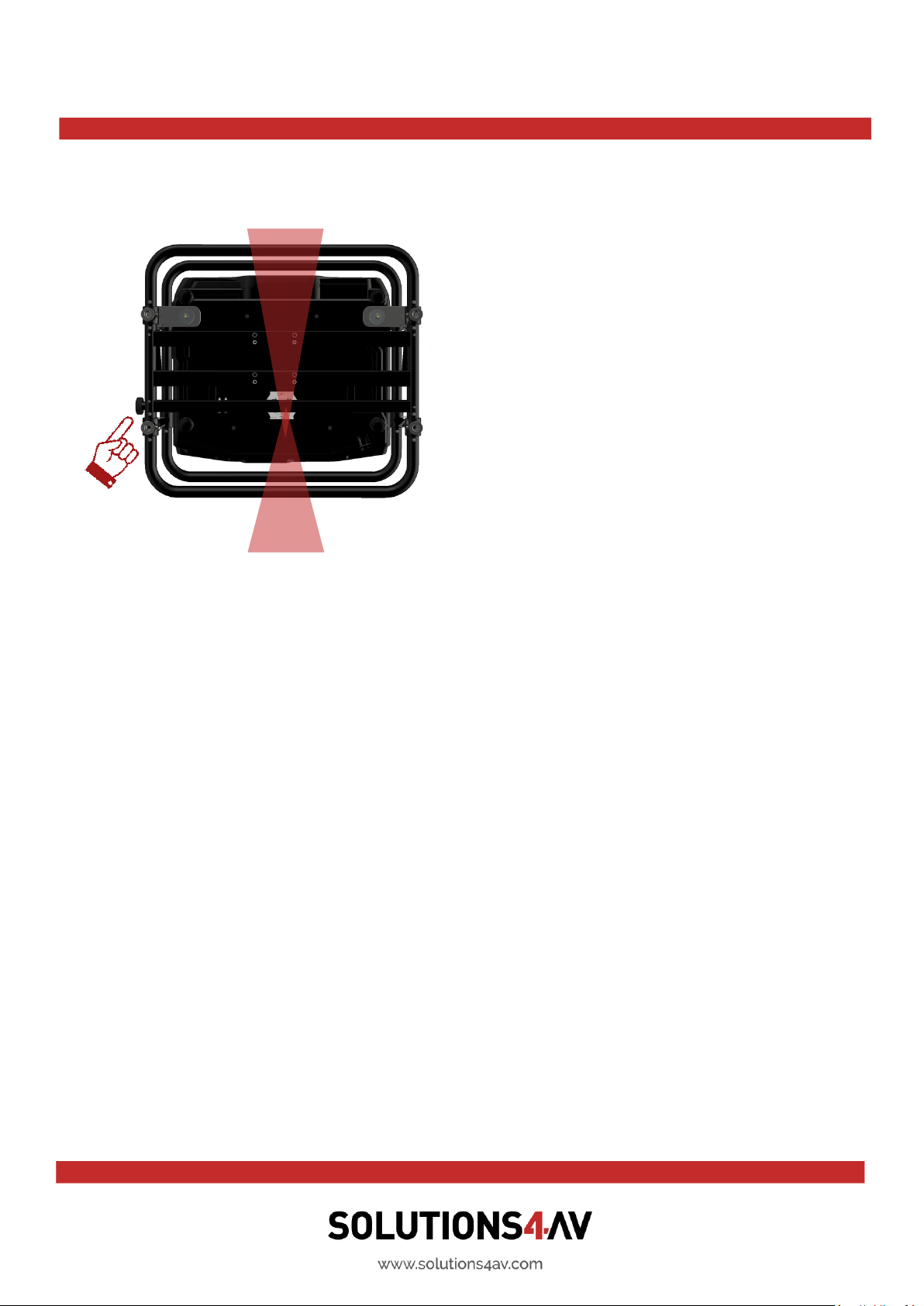

• When the adjustment of the image is made, the user must always keep his hands on
the hand levers (see picture below).
• Because the spring of the spring clip is strong, please be careful not to clamp your
fingers between the spring and the attachment nut.
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 10 of 39
3. What’s in the box?
FRAME-EVO-E10
• Used for projector installation
• Number of units: 1
• Weight: 13,8 kg / 30.42 lbs
1) 4 x M6x20 ISO 7380 screws
(galvanized steel 10.9)
2) 4 x Ø6 Schnorr Washer
Used to secure the projector
in the frame
User manual and installation guide
for FRAME-EVO-E10
Make sure your box contains everything you ordered. If any pieces are missing, contact the
vendor.
2
1
Manual FRAME-EVO-E10
Version 1.6
14.01.2019
Page 11 of 39
4. Optional Accessories
Please refer to chapter “10. Mounting the frame on a truss” and the following for
information regarding the usability of the optional accessories.
TH-SHORT-60-6
Optional accessory for truss mount
installations.
More information can be found in the
TH-SHORT-60-6 Installation manual.
TH-SHORT-150-8
Optional accessory for truss mount
installations.
More information can be found in the
TH-SHORT-150-8 Installation manual.
