Epson Expression 1680 User Manual

Color Graphics Scanner

User’s Guide

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for use with this EPSON scanner. EPSON is not responsible for any use of this information as applied to other scanners.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.

A Note Concerning Responsible Use of Copyrighted Materials

Ink jet printers, digital cameras and scanners, like photocopiers and conventional cameras, can be misused by improper copying and printing of copyrighted material. While some countries’ laws permit limited copying of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume. EPSON encourages each user to be responsible and respectful of the copyright laws when using digital cameras and scanners.

Trademarks

EPSON is a registered trademark, and Matrix CCD is a trademark of SEIKO EPSON CORPORATION. Micro Step Drive is a trademark, EPSON Expression and ColorTrue are registered trademarks, and EPSON Store is a service mark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

4/03

Printed on recycled paper

WELCOME 1

About Your Scanner 1 Getting More Information 2

Warnings, Cautions, Notes, and Tips 2

Viewing Your Electronic User’s Guide 3

Chapter 1 HOW TO SCAN 5

Placing Your Original Document 5 Using EPSON Scan 6

Starting Your Scan and Choosing a Mode 7 Scanning With EPSON Scan in Home Mode 8 Scanning With EPSON Scan in Office Mode 10 Scanning With EPSON Scan in Professional Mode 12 Selecting the Scanning Area in the Preview Window 16

Scanning Tips 17

Selecting Resolution 17 Scaling (Resizing) Images 18 Scanning Color Images 18

Chapter 2 USING OPTIONAL EQUIPMENT 19

Transparency Unit 20

Unpacking the Transparency Unit 20 Removing the Shipping Screw 21 Installing the Transparency Unit 21 Using the Film Guides 23 Scanning Reflective Documents 27

iii

Automatic Document Feeder 28

Unpacking the Automatic Document Feeder 28 Installing the Automatic Document Feeder 29 Loading Paper in the Automatic Document Feeder 31 Fixing Paper Jams 32

IEEE 1394 FireWire Scanner Interface Card 33

Installing the Card in Your Scanner 33 Connecting the Scanner to Your Computer 34

Chapter 3 MAINTENANCE 35

Transporting the Scanner 35 Transporting the Transparency Unit 36 Cleaning the Scanner 37

Chapter 4 SOLVING PROBLEMS 39

Diagnosing Scanner Problems 40

Checking the Scanner’s Lights 40

Problems and Solutions 41

Scanner Problems 41 Software Problems 43

Quality Problems 44 Uninstalling and Reinstalling EPSON Scan 49 Where To Get Help 51

EPSON Technical Support 51

Software Technical Support 52

iv Contents

Appendix A SPECIFICATIONS

Appendix B REQUIREMENTS AND NOTICES 57

System Requirements 57

Windows 57

Macintosh 58 Important Safety Instructions 58 Declaration of Conformity 59 FCC Compliance Statement 60 ENERGY STAR Compliance 61 Warranty 61

INDEX 63

Contents v

vi Contents

Welcome

The EPSON Expression® 1680 is a 48-bit color, professional scanner designed to meet the needs of graphic arts professionals and business graphics users. Using

EPSON’s ColorTrue amazingly accurate detail and color. Your scanner can achieve up to 1600 × 3200 dpi hardware resolution with EPSON’s proprietary Micro Step Drive one of the fastest scanners in its class.

About Your Scanner

Your EPSON Expression 1680 scanner comes with these features:

■ Superior image quality with remarkable 1600 × 3200 dpi hardware resolution

■ 48-bit color and 3.6 Dmax optical density

II Imaging System, the scanner reproduces images with

™

technology, and is

■ Easy-to-use scanner software with three scanning modes offering progressive levels

of control over the scanned image

■ Optional transparency unit, automatic document feeder, and IEEE 1394

FireWire

Note: The transparency unit comes with the Professional and Professional FireWire models of the Expression 1680. The IEEE 1394 FireWire scanner interface card is preinstalled on the Professional FireWire model.

scanner interface card

Getting More Information

There are several ways to learn more about your EPSON Expression 1680 scanner. In addition to the printed materials, help utilities and electronic manuals are available. Here’s where to look for help:

■ EPSON Expression 1680 User’s Guide

Provides instructions on using EPSON Scan, including maintenance information and troubleshooting tips. You installed an HTML version of this manual on your computer when you installed the scanner software. See page 3 for instructions on viewing the on-screen manual.

■ On-Screen Help

For more information about your EPSON Scan software, click the Help button. If you have the Professional or Professional FireWire model, most of the applications that come with your scanner include on-screen help.

■ Electronic Documents

For Professional or Professional FireWire models, LaserSoft Imaging™ SilverFast,® Adobe® Photoshop Elements,® and MonacoEZcolor® include electronic manuals in Adobe Acrobat PDF format.

If none of these sources answers your questions, please see “Where To Get Help” on page 51.

Warnings, Cautions, Notes, and Tips

Please follow these guidelines as you read this manual:

Warning: Warnings must be followed carefully to avoid bodily injury.

Caution: Cautions must be observed to avoid damage to your equipment.

Note: Notes contain important information about your scanner.

Tip: Tips contain additional hints for great scanning.

2 Welcome

Viewing Your Electronic User’s Guide

An electronic version of this EPSON Expression 1680 User’s Guide was installed on your computer when you installed the scanner software. You must have a web browser (Netscape Navigator® or Microsoft® Internet Explorer, versions 3.0 or later) to view it.

To open the manual, double-click the Exp1680 User’s Guide shortcut icon on your desktop.

Your browser opens and you see this window:

Click a page icon to view its topic

Click on one of the page icons on the left side of the screen to move to that topic in the manual.

Welcome 3

4 Welcome

Chapter 1

How To Scan

This chapter gives you step-by-step instructions for scanning with EPSON Scan. Follow the instructions here for:

■ Placing your document on the scanner’s document table

■ Starting EPSON Scan

■ Scanning with each of the three scanning modes

■ Using the preview window to select the area of your image that you want to scan

■ Selecting resolution, resizing images, and scanning color images

Placing Your Original Document

This section explains how to position a photo or single-page document for scanning.

If you’re scanning film or slides, see “Using the Film Guides” on page 23 for instructions on placing your transparencies (you must have the transparency unit installed). If you’re scanning a multi-page document using the optional automatic document feeder, see “Loading Paper in the Automatic Document Feeder” on page 31.

Note: If you have a Professional or Professional FireWire model of the EPSON Expression 1680, the transparency unit came with your scanner. Or you can order the transparency unit and automatic document feeder from EPSON. See page 19 for ordering information.

1. Raise the scanner cover and place your document face down on the document table. Align it with the scales along the upper right corner of the document table.

2. Close the document cover slowly. Be careful not to move the document.

Tip: If the edges of your document don’t scan properly, move it in one-quarter inch from the edges of the document table.

You can remove the document cover if you need to scan a thick item—such as a photo in an album—that doesn’t fit under the cover. Simply lift the back of the cover straight up. When you reattach the cover, line the rods up with the positioning holes and lower the cover into place.

Using EPSON Scan

EPSON Scan provides three scanning modes to give you progressive levels of control over your scanned image:

■ Home Mode: Makes scanning quick and easy. It includes a simple interface,

automatic image adjustments, and preset configurations for various types of scans.

■ Office Mode: Includes a basic interface with practical scan settings designed for

documents. Choose either this mode or Professional Mode to scan multi-page documents on the optional automatic document feeder (see page 28). You cannot use this mode to scan film or slides, and it is not recommended for photos.

■ Professional Mode: Lets you manually configure advanced image settings,

including the histogram setting, tone, color depth, balance, saturation, brightness, and contrast.

6 How To Scan

Starting Your Scan and Choosing a Mode

You can use the import or acquire function of a TWAIN-compliant application such as Adobe® Photoshop® to scan images directly into your application. Or you can scan to your hard drive by starting EPSON Scan from the Windows® Start menu, or the Macintosh® Apple® menu or Applications folder. You would then open the file in another application to print it or modify it for the screen or World Wide Web.

Follow these steps to start EPSON Scan and choose a scanning mode:

1. Choose the Import (or Acquire) option in your application and choose EPSON

Expression 1680

■ In Windows, click Start > Programs or All Programs > EPSON Scan >

EPSON Scan

■ In Mac OS X, double-click the EPSON Scan icon in your Applications

folder.

■ In Mac OS 8.6 to 9.x, click EPSON Scan in the Apple menu.

Note: If you have multiple scanners installed, you are prompted to choose your scanner. Click EPSON Expression 1680 and click

2. Choose a mode from the Mode list at the top of the EPSON Scan dialog box.

, or open EPSON Scan as follows:

OK.

If you choose Home Mode, a preview scan opens automatically. (This is the default. If you don’t want an automatic preview, deselect Auto Preview on the EPSON Scan dialog box.)

3. Continue with the instructions for your mode:

■ “Scanning With EPSON Scan in Home Mode” on page 8

■ “Scanning With EPSON Scan in Office Mode” on page 10

■ “Scanning With EPSON Scan in Professional Mode” on page 12

How To Scan 7

Scanning With EPSON Scan in Home Mode

1. Start EPSON Scan and choose Home Mode from the Mode menu (see page 7). You see this dialog box:

Select Home Mode

2. If you don’t see an automatic preview of your scan, click Preview.

3. Click the Auto Detect button in the preview window to automatically select your entire photo or document, or click and drag to create a scanning selection area (marquee). For more information on using marquees, see page 16.

Note: If the scanned image in the preview window has a blue box around it, you’re previewing in thumbnail mode and won’t be able to create a marquee. Click the arrow beside the Preview button in the EPSON Scan dialog box and select Normal from the pull-down menu. Then click the Preview button to preview in normal mode.

8 How To Scan

4. Choose a Document Type from the list.

Note: If you’re scanning film, choose Color Negative Film, B&W Negative Film, or Positive Film. If you’re scanning slides, choose

Positive Film.

5. Choose an Image Type:

■ Color for color photos or documents with color

■ Grayscale for black-and-white photos or documents with grayscale images

■ Black&White for plain text documents

6. Choose a Destination setting:

■ Printer if you’re printing the image

■ Screen/Web if you will only view your image on the screen

■ Other if you’re shrinking or enlarging your image. Then choose the Target

Size for your final scanned image.

7. Select a Target Size if you want to specify any size other than that of the original document.

8. Adjust the Brightness and Contrast settings, if necessary.

9. If you’re scanning printed materials, select Descreening Filter to reduce the moiré patterns in the image.

10. Click Scan.

■ If you’re scanning from an application, the image opens in your application

window. Click

■ If you’re scanning to your hard drive, you

Close to close the EPSON Scan window.

see a File Save Settings window. Type a name for your file in the Prefix field, then choose an image type and click OK. (For more details, see the EPSON Scan on-screen Help.)

How To Scan 9

Scanning With EPSON Scan in Office Mode

1. Start EPSON Scan and choose Office Mode from the Mode menu (see page 7). You see this dialog box:

Select Office Mode

2. Click Preview to see a preview of your scan.

3. Click the Auto Detect button in the preview window to automatically select your entire document, or click and drag in the preview window to create a scanning selection area (marquee). For more information on using marquees, see page 16.

4. Choose an Image Type:

■ Color for documents with color

■ Grayscale for documents with grayscale images

■ Black&White for plain text documents

10 How To Scan

5. Choose the Document Source:

■ Document Table for documents placed on the scanner’s document table (See

page 5.)

■ ADF for documents loaded in the optional automatic document feeder (You

must have the automatic document feeder installed to see this option; see page 28.)

■ Auto Detect to allow the scanner to automatically detect whether your

document is on the document table or loaded in the automatic document feeder (You must have the automatic document feeder installed to see this option; see page 28.)

6. Select the Size of your document, or select Auto Detect in the Size list to let the scanner automatically detect the document size.

Note: The Orientation option is not functional for the Expression 1680.

7. Make any of these adjustments, as necessary:

■ Select a resolution

■ Adjust the Brightness and Contrast settings for your image

■ If you’re scanning printed materials, select Descreening Filter to reduce the

moiré patterns in the image

■ To sharpen the image, select Unsharp Mask Filter

8. Click Scan.

■ If you’re scanning from an application,

the image opens in your application window. Click

Close to close the EPSON

Scan window.

■ If you’re scanning to your hard drive, you

see a File Save Settings window. Type a name for your file in the Prefix field, then choose an image type. (For more details, see the EPSON Scan on-screen Help.)

How To Scan 11

Scanning With EPSON Scan in Professional Mode

1. Start EPSON Scan and choose Professional Mode from the Mode menu (see page 7). You see this dialog box:

Select Professional Mode

2. Click Preview to see a preview of your scan.

4. Choose the Document Type:

■ Reflective for a photo or printed document

■ Transparency for film or slides (You must have the transparency unit

installed to see this option; see page 20.) If you choose this option, go to step 6.

12 How To Scan

Note: The Document Type you select determines which options appear in the EPSON Scan dialog box.

5. If you chose Reflective as the Document Type, do the following:

■ Choose the Document Source: Document Table, or ADF for documents

loaded in the optional automatic document feeder (see page 28).

■ Choose the Auto Exposure Type: Photo to optimize exposure for photos, or

Document to optimize exposure for printed material.

6. If you chose Transparency as the Document Type, choose the Film Type:

Positive Film (for slides and some film), Color Negative Film, or B&W Negative Film

7. Either click Scan to complete your scan, or continue with the instructions in the next section to fine-tune it.

Using Professional Mode To Customize Your Scan

1. Choose a color depth setting from the Image Type menu:

■ 48-bit Color ■ 16-bit Grayscale

■ 24-bit Color ■ 8-bit Grayscale

■ Color Smoothing ■ Halftone

■ Black & White

Note: If you choose 48-bit Color, make sure your application supports 48-bit image files.

Click to see more options, then choose Best or Draft for the Scanning Quality setting.

2. Choose a resolution setting (

50 to 12800 dpi).

3. If you want to specify a Target Size for your scanned image other than the original size, select a size from the pull-down menu. You can also click to see more options, then type in the width and height, or scale the image with a percentage. If Trimming is set to On, your image is cropped to fit your specified size. If it is Off, your image is sized to fit you specified size as closely as possible.

How To Scan 13

4. Use the Adjustment settings to modify your image as necessary. (You may have to use the scroll bar to see these options.)

Auto Adjust – Click this button to let the software detect and analyze the image with the document settings you’ve specified to determine the optimum settings for your scan.

Histogram Adjustment – Click this button to adjust the highlight, shadow, and gamma input levels.

Tone Correction – Click this button to choose a preset tone curve for specific effects or to change the tone curve manually.

Image Adjustment – Click this button to adjust the color balance, saturation, brightness, and contrast settings.

For any of the setting windows above, you can click Reset to go back to the default settings for your image. See the EPSON Scan on-screen help for more information about the Adjustment options.

5. If you want to sharpen the image, select the Unsharp Mask Filter option. Click to see more options, then choose a Level to reduce or increase the effect.

6. Select the Descreening Filter option to reduce the moiré patterns in the image.

To specify the source image you are scanning, click to see more options, then choose the closest option to your source document in the Screen Ruling menu. (You may have to use the scroll bar to see this menu.)

14 How To Scan

7. Click Scan.

■ If you’re scanning from an application,

the image opens in your application window. Click Close to close the EPSON Scan window.

■ If you’re scanning to your hard drive,

you see a File Save Settings window. Type a name for your file in the Prefix field, then choose an image type. (For more details, see the EPSON Scan on-screen Help.)

How To Scan 15

Selecting the Scanning Area in the Preview Window

The preview window lets you select the area of your image that you want to scan with a marquee (a frame that you draw around the previewed image). You can create up to 50 marquees at one time. The currently selected marquee has a moving, dotted line. EPSON Scan adjusts the image quality settings to optimize each selected area.

Duplicate button

Delete button

Auto Detect button

Number of marquees

Focus - click to change the scanner’s focus setting

Densitometer - click to view a pixel-level preview of the image

■ To automatically create a marquee around the entire image (and cut out the

document table area) click the Auto Detect button.

■ To select the area to scan, click and drag in the preview window. A marquee

appears around the selection.

■ To move the marquee, move the cursor to its center. When the cursor turns to a

hand symbol, click and drag the marquee to a new position.

■ To resize the marquee, move the cursor to an edge or corner of the dotted line.

When the cursor turns into an arrow symbol, click and drag to resize the selection area.

16 How To Scan

Currently selected marquee

■ To zoom to the selected area, click the Zoom button. If you have multiple

marquees, the currently selected one appears in the Zoom preview.

■ To erase a marquee, click the marquee and click the Delete button.

■ To create multiple marquees of the same dimensions, select one marquee, then

click the Duplicate button.

■ To scan all marquees at once, click the All button.

Scanning Tips

Getting the best scan possible depends on several factors, including the quality of your original and the resolution you select. The better your original is, the better your scan will be. To get the best possible scan, keep the document table clean, and make sure the document is flat against the glass surface. You can make many corrections in your scanning software (EPSON Scan, or LaserSoft SilverFast if you have the Professional or Professional FireWire model of the scanner). For additional photo retouching, use an image editing program such as Adobe Photoshop Elements.

Selecting Resolution

Resolution refers to how many dots per inch (dpi) or dots per centimeter (dpcm) your image contains. The best resolution for a scanned image depends on the type of image you’re scanning and your final output device.

For most images, use a scanning resolution that is approximately one third of your output resolution. For example, use a scanning resolution of 200 dpi if you want to print at 600 dpi. If you’re scanning an image to view on-screen, choose a resolution of 96 dpi.

How To Scan 17

Follow the guidelines in this table for selecting a resolution:

Type of scan Resolution

Photograph 300 dpi

Text with images 400 dpi

Film or slides 300 to 3200 dpi

Line art 300 to 3200 dpi

Image for web 96 to 150 dpi

Text for OCR 400 dpi

Newspaper 400 dpi

Magazine 300 dpi

Scaling (Resizing) Images

If you plan to enlarge your image, it’s better to enlarge it by scanning at a higher resolution. If you change the image resolution or size in an application, you lose image quality. Keep this in mind when scanning small photos or film that you plan to enlarge.

Scanning Color Images

If the colors in your scanned image don’t match those in your original document, try experimenting with the Document Type/Image Type settings and Image Adjustment settings to adjust the colors. Also, try selecting just the area that you want to scan with a marquee (see page 16). This will let the scanner software choose the optimum color and exposure settings for that part of the image. If there is a border around your image or if the document cover is in the scanning area, this may adjust the exposure and colors in your scan.

18 How To Scan

Chapter 2

Using Optional Equipment

There are three options available for the EPSON Expression 1680 color scanner:

■ Transparency unit (B813182)

■ Automatic document feeder (B813162)

■ IEEE 1394 FireWire scanner interface card (B808342)

Note: If you have the Professional or Professional FireWire model of the EPSON Expression 1680, the transparency unit came with your scanner. If you have the Professional FireWire model, the IEEE 1394 FireWire scanner interface card was preinstalled in your scanner.

You can purchase supplies and accessories from the EPSON Store™ at (800) 873-7766, or visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

Follow the instructions in this chapter for:

■ Unpacking and installing the transparency unit

■ Using the film guides

■ Scanning reflective documents when the transparency unit is installed

■ Unpacking and installing the automatic document feeder

■ Loading paper in the automatic document feeder

■ Fixing paper jams in the automatic document feeder

■ Installing the IEEE 1394 FireWire scanner interface card

Transparency Unit

The transparency unit (B813182) allows you to scan transparent materials—35 mm slides, filmstrips, and film up to 8.5 × 11.7 inches (216 × 297 mm) in size. To switch between scanning transparent materials and normal reflective (paper) documents, simply insert or remove the reflective document mat that came with the scanner. For instructions on using the reflective document mat, see page 27.

Unpacking the Transparency Unit

Make sure that all of the following items are included in the transparency unit box. If any items are missing or damaged, contact your EPSON dealer, or contact EPSON at (562) 276-4382 (in the United States) or (905) 709-3839 (in Canada). Keep all the packing materials so you can use them for storage when you are not scanning transparencies.

Storage slot

Transparency unit

Note: Use the transparency unit’s storage slot to store the reflective document mat. Don’t store anything else in the storage slot.

20 Using Optional Equipment

Screws

Flm holders

Reflective document mat

Removing the Shipping Screw

To prevent damage during shipping, a shipping screw is attached to the transparency unit to secure its lamp assembly. You must remove this screw before using the transparency unit.

1. Turn the transparency unit so the glass side faces up.

2. Use a Phillips (cross head) screwdriver to remove the shipping screw from the hole labeled CLAMP, as shown at right.

3. Install the screw in the storage hole labeled

STOCK.

Caution: Before transporting the transparency unit, follow the procedures on page 36 to protect it from damage.

Installing the Transparency Unit

1. Make sure the scanner is turned off.

2. Remove the document cover by grasping the back of the document cover and easing the cover up.

3. Make sure the document table is clean and dust free.

4. Position the slots on the transparency unit’s mounting bracket over the heads of the two mounting screws located at the back of the scanner.

Using Optional Equipment 21

5. Slide the transparency unit forward slightly until the two holes in front of these slots are aligned with the screw holes at the back of the scanner.

6. Insert the two installation screws that came with the transparency unit into the screw holes, then tighten the screws with a coin.

7. Gently close the transparency unit.

8. Connect the transparency unit cable to the the back of the scanner. Tighten the attached screws.

See “Using EPSON Scan” on page 6 for scanning instructions.

OPTION connector at

22 Using Optional Equipment

Using the Film Guides

You can use the four film guides that came with the transparency unit to scan 35mm slides, strips of 35mm negative or positive film, 120-size or 220-size format film, and 4 × 5-inch film.

If the reflective document mat is installed (see page 27), be sure to remove it before scanning film or slides. Keep it in the transparency unit’s storage slot when not in use.

Note: Make sure the transparency unit is completely closed before you scan, or an error will occur and you will be unable to scan.

Loading 35mm film

Follow these steps to load 35mm positive or negative film:

1. Place the 35mm filmstrip guide on a flat surface and remove the cover from one of the strip holders.

2. Insert a filmstrip in the holder with the shiny side face down and the film emulsion layer face up. Line up the sprocket holes on the filmstrip with the guide posts on the holder.

3. Replace the film cover and press down until it clicks.

4. Repeat steps 1 through 3 for all the film strips you scan.

L400 16

Using Optional Equipment 23

5. Place the 35mm filmstrip guide on the document table, and align it with the ruled edges of the document table.

6. Close the TPU and begin scanning.

If you’re using EPSON Scan, follow these guidelines:

■ Choose either Home Mode or Professional Mode.

■ In Home Mode, choose the correct Document Type (Color Negative Film,

B&W Negative Film, or Positive Film).

■ In Professional Mode, select Transparency as your Document Type, then

select the correct Film Type.

Loading 35mm slides

Follow these steps to load 35mm slides:

1. Load slides in the 35mm slide holder as shown. Make sure the glossy side of each slide faces down, and the film emulsion layer faces up.

2. Position the slide holder on the document table. Align the slide holder with the ruled edges of the document table.

3. Close the TPU and begin your scan.

If you’re using EPSON Scan, follow these guidelines:

■ Choose either Home Mode or

Professional Mode.

■ In Home Mode, choose Positive Film as your Document Type.

■ In Professional Mode, choose Transparency as your Document Type and

Positive Film the Film Type.

24 Using Optional Equipment

Loading 4 × 5-inch film

Follow these steps to load 4 × 5-inch film:

1. Place the 4 × 5-inch film guide on a flat surface and remove the cover from one of the film holders.

2. Insert the film in the film holder, making sure the glossy (smooth) side of the film faces down and the film emulsion layer faces up. Then close the cover.

Note: Make sure that the film cover is completely closed, and that it holds the film taut without bowing. Bowing can cause distortions in the scanned image.

3. Repeat steps 1 and 2 for all the film you scan.

4. Place the 4 × 5-inch film guide on the document table. Align it with the ruled edges of the document table as shown.

5. Close the TPU and begin your scan.

If you’re using EPSON Scan, follow these guidelines:

■ Choose either Home Mode or Professional Mode.

■ In Home Mode, choose the correct Document Type (Positive Film, Color

Negative Film

■ In Professional Mode, select Transparency as your Document Type, then

, or B&W Negative Film).

select the correct Film Type.

Using Optional Equipment 25

Loading 120-size or 220-size (medium format) film

Follow these steps to load 120-size or 220-size format film:

1. Place the 120/220-size film guide on a flat surface and open the cover for one of the film holders.

2. Insert the film in the film holder, making sure the glossy (smooth) side of the film faces down, and the film emulsion layer faces up. Then close the cover.

Note: Make sure that the film cover is completely closed, and that it holds the film taut without bowing. Bowing can cause distortions in the scanned image.

3. Repeat steps 1 and 2 for all the film you scan.

4. Place the film guide on the document table. Align it with the ruled edges of the document table, as shown.

5. Close the TPU and begin your scan.

If you’re using EPSON Scan, follow these guidelines:

■ Choose either Home Mode or Professional Mode.

■ In Home Mode, choose either Positive Film, Color Negative Film or B&W

Negative Film

■ In Professional Mode, select Transparency as your Document Type, then

select either

as the Document Type.

Positive Film, Color Negative Film or B&W Negative Film as

the Film Type.

26 Using Optional Equipment

Scanning Reflective Documents

To scan reflective documents with the transparency unit installed, insert the reflective document mat included with the transparency unit.

1. If you’ve previously stored the reflective document mat, remove it from the transparency unit’s storage slot.

2. Open the transparency unit. If there’s a film guide on the document table, remove it.

3. Slide the mat into place, taking care to insert the

Storage slot

tabs into the slots on the transparency unit.

4. Place your document face down on the document table and close the transparency unit.

5. Scan your document.

If you’re using EPSON Scan, follow these guidelines:

■ If you’re scanning in Home Mode, choose

the correct Document Type.

■ In Professional Mode, select Reflective as

your Document Type.

To remove the reflective document mat, slide it up and out of the slots on the transparency unit. For safe keeping, always store it in the transparency unit’s storage slot.

Using Optional Equipment 27

Automatic Document Feeder

The automatic document feeder (B813162) allows you to load and scan documents of up to 30 pages.

Unpacking the Automatic Document Feeder

When you unpack your automatic document feeder, make sure you have the parts shown below. If any items are missing or damaged, contact your EPSON dealer, or call EPSON at (562) 276-4382 (in the United States) or (905) 709-3839 (in Canada).

Screws

Caution: Don’t remove the protective foam block from the automatic document feeder’s mounting bracket until you’ve finished installing the unit.

Protective foam block

Automatic document feeder

28 Using Optional Equipment

Installing the Automatic Document Feeder

Caution: Because the automatic document feeder is heavy, you may want to have someone help you with this procedure.

1. Make sure your scanner is turned off.

2. Remove your scanner’s document cover by grasping the back of the cover as shown and easing it straight up.

3. Make sure the document table is clean and dust free.

4. Position the automatic document feeder’s mounting slots over the two mounting screws located at the back of the scanner.

5. Slide the automatic document feeder forward slightly until the two holes in front of these slots are aligned with the screw holes at the back of the scanner.

Don’t remove the foam block until you’re done installing the unit.

Using Optional Equipment 29

6. Insert the two installation screws that came with the automatic document feeder into the screw holes, then tighten the screws with a coin.

7. Remove the protective foam block from the automatic document feeder’s mounting bracket, and then gently close the automatic document feeder.

8. Attach the automatic document feeder’s cable to the scanner’s

OPTION connector. Tighten the screws.

Remove the foam block after tightening the installation screws.

9. Close the automatic document feeder.

30 Using Optional Equipment

Loading Paper in the Automatic Document Feeder

Your automatic document feeder can load up to 30 sheets of the following paper sizes: Letter, Legal, Checks (3.3 × 5 inches), A4 (8.27 × 11.7 inches), and B5 (7.17 × 10.1 inches).

Follow these steps to load paper:

1. Slide the automatic document feeder’s left edge guide all the way to the left.

2. Insert your document face up in the automatic document feeder’s tray.

Note: Don’t push the paper into the feed path or the paper may jam.

3. Move the right edge guide so it touches the right edge of your paper.

4. Scan your document. If you’re using EPSON Scan, follow these guidelines:

■ Select either Office Mode or Professional Mode in the Mode box.

■ Select ADF as the Document Source.

■ If you want to scan only part of the document page, load the first page only.

Click the Preview button. The first page is ejected. Adjust the marquee in the Preview area, then load your entire document. When you click Scan, the scanner scans the area defined by the marquee on each page.

Note: You can still load documents manually, if you want. Just lift the automatic document feeder and place the first sheet of your document face down on the document table. If you scan documents individually on the document table, select Document Table as the Document Source in EPSON Scan. Be sure to close the automatic document feeder before scanning. If you open it while scanning, you’ll get an error.

Using Optional Equipment 31

Fixing Paper Jams

If a paper jam occurs, follow these steps to clear it:

1. Open the automatic document feeder’s cover to determine where the paper jam occurred.

2. Pull forward on the jam-release lever, and slowly pull the jammed paper out of the feeder mechanism. Be careful not to tear the paper.

3. After removing the jammed paper, close the document feeder cover. Make sure the ERROR light is off and the READY light isn’t flashing before trying to scan.

4. If the error isn’t cleared, turn your scanner off and then on again. Also, close EPSON Scan. Don’t restart EPSON Scan until the green READY light stops flashing.

Note: If you attempt to preview or scan before the scanner is ready, EPSON Scan may stop responding. If this happens, restart your computer.

32 Using Optional Equipment

IEEE 1394 FireWire Scanner Interface Card

To use the IEEE 1394 FireWire scanner interface card (B808342), your system must have the following:

■ Built-in IEEE 1394 FireWire port or IEEE 1394 FireWire PCI card

(OHCI-compliant)

■ Macintosh: OS 8.6 or later with FireWire Update 2.1 or later

■ Windows: pre-installed version of Windows XP, 2000, or Me

This section explains how to install the IEEE 1394 FireWire scanner interface card in your scanner, and how to connect the scanner to your computer.

Note: If you have the Professional FireWire model of the Expression 1680, the card was preinstalled in your scanner.

Installing the Card in Your Scanner

Before you begin, turn off the scanner and disconnect the power cord and any cables.

Caution: Static electricity can damage electronic components like the IEEE 1394 FireWire scanner interface card. To discharge static electricity, touch the scanner’s metal frame before handling the card.

1. Remove the two screws securing the shield plate to the scanner’s optional interface slot, and then remove the plate. Put the screws and shield plate in a safe place in case you want to reinstall the shield plate later.

Using Optional Equipment 33

2. Turn the card over so that the component side is facing down, and insert it in the optional interface slot.

3. Push gently until the card is firmly seated.

4. Tighten the retaining screws and reconnect the scanner’s cables.

Now you’re ready to connect the scanner to your computer.

Connecting the Scanner to Your Computer

Plug one end of the IEEE 1394 cable into the IEEE 1394 port on the card, and the other end into an IEEE 1394 (FireWire) port on your computer.

34 Using Optional Equipment

Chapter 3

Maintenance

To protect your scanner and ensure optimum performance, follow the instructions in these sections:

■ Transporting the scanner

■ Transporting the transparency unit

■ Cleaning the scanner

Transporting the Scanner

Always secure the carriage when you transport the scanner a long distance or store it for an extended time.

1. Make sure the transportation lock on the back of the scanner is in the UNLOCK position.

2. If you’re using a transparency unit or automatic document feeder, remove it and replace the scanner cover.

Home position

3. Turn on the scanner and wait until the carriage moves to the home position, as shown. Then turn off the scanner.

Note: If the carriage doesn’t automatically return to the home position, slowly raise the front of the scanner and let the carriage slide to the home position. The carriage won’t move automatically to the home position if you have a transparency unit installed; you must remove the transparency unit first.

4. Slide the transportation lock at the back of the scanner to the

LOCK position.

5. Tape the cover to the scanner.

6. Use the scanner’s original box, or a similar box with enough packaging material to prevent movement inside the box.

Locked position

Transporting the Transparency Unit

If you have a transparency unit, prepare it for shipping as follows:

1. Slowly raise the front of the transparency unit to allow the lamp assembly to slide to the back of the unit. Wait until the lamp assembly comes to rest.

2. Reinstall the transparency unit’s shipping screw in the hole marked CLAMP.

3. Pack the transparency unit in its original box, or use a similar box with enough packaging material to prevent any movement inside the box.

36 Maintenance

Cleaning the Scanner

To keep your scanner operating at its best, clean it periodically.

1. Press the P power button to turn the scanner off, and unplug the power cord.

2. Use a soft, damp cloth and mild detergent to clean the outer case.

Caution: Don’t let water get into the scanner.

3. Clean dust and smudges from the document table glass with a soft, dry cloth (a microfiber glass cleaning cloth is recommended). You can also use compressed air dust remover sprays. Dust on the glass can cause white spots to appear in your scanned image.

To remove grease, use pretreated lens/scanner wipes, or a small amount of glass cleaner on a soft cloth. Dry the document table glass afterwards.

4. Use a soft, dry cloth to remove dust from the narrow section of glass above the scanner’s document table. If you’re using a transparency unit, this area is used for white calibration before each scan.

Caution: Always unplug the scanner before cleaning.

Never use a harsh or abrasive brush or cleaning product to clean the document table. A damaged glass surface can decrease the scanning quality.

Never use alcohol, thinner, or corrosive solvent to clean the scanner. These chemicals can damage the scanner components as well as the case.

Be careful not to spill liquid into the scanner mechanism or electronic components. This could permanently damage them.

Don’t spray lubricants inside the scanner.

Never open the scanner case. If you think repairs or adjustments are necessary, consult your dealer or contact EPSON.

Unplug the scanner and refer servicing to qualified service personnel if the power cord or plug is damaged, if liquid has entered the scanner, if the scanner has been dropped or the case damaged, or if the scanner does not operate normally or exhibits a distinct change in performance.

Maintenance 37

38 Maintenance

Chapter 4

Solving Problems

This chapter explains how to interpret the signals from your scanner’s lights, and gives you the basics for diagnosing and solving scanner problems. It also tells you how to uninstall your software and how to contact EPSON.

See “Diagnosing Scanner Problems” in the next section to determine what the cause of your scanner problem might be. Then see these sections for solutions:

■ Scanner Problems

■ Software Problems

■ Quality Problems

■ Uninstalling and Reinstalling EPSON Scan

■ Where To Get Help

Tip: It’s a good idea to check EPSON’s support web site periodically for possible updates to your scanner software. Visit http://support.epson.com and check the Drivers & Support section for your product to see if there is new software available, free of charge, for downloading to your computer. Download instructions are posted for your convenience.

Diagnosing Scanner Problems

You can diagnose some problems by checking the scanner’s lights, as described in this section. If you don’t find the answer here, see “Problems and Solutions” on page 41.

Checking the Scanner’s Lights

Follow the guidelines below when you check your scanner’s lights:

Light Scanner Status

READY light is on or

flashing.

ERROR light is flashing; READY light is off.

ERROR and READY

lights are both on.

ERROR and READY

lights are both off.

The green READY light is on when the scanner is ready to scan. It flashes when scanning is in progress.

There’s a problem with your cable connection. Reconnect the cable to both the scanner and your computer, and then restart your computer. If this doesn’t work, try using a different cable. If you have a USB connection, use the USB cable that came with your scanner. If you have a SCSI connection, always restart your computer after changing or reconnecting the cable.

The scanner has received an incorrect command from your scanning software. Try rescanning the document.

Make sure your scanner is connected to a working outlet, then press the P power button. Restart your computer.

If the green problem with either the transparency unit or automatic document feeder. Make sure your unit lies flat against the scanner. Then reconnect it to the back of the scanner. If you have a transparency unit, make sure you removed the shipping screw from the hole labeled feeder has paper and there’s no paper jam.

READY light doesn’t come on, there may be a

OPTION connector on the

CLAMP. Make sure your automatic document

ERROR and READY

lights are both flashing.

40 Solving Problems

Check that the transportation lock on the back of the scanner is set to turn it off and back on again. Restart your computer. If this doesn’t solve the problem, contact EPSON as described on page 51.

UNLOCK. If not, unlock the scanner, then

Problems and Solutions

Here are some troubleshooting tips if you’re having trouble setting up your scanner, scanning, or getting the quality you want from your scans.

Scanner Problems

The READY light doesn’t come on or flashes.

■ The READY light flashes when

scanning is in progress. If you are scanning a large file, wait for scanning to finish.

■ Make sure the scanner power cord

is securely plugged into the scanner and the power outlet, and that the scanner is on. If the scanner was unplugged or off, restart your computer before trying to scan.

■ Check that the power outlet is

working and provides sufficient power for the scanner.

■ If you’re using a transparency unit

or automatic document feeder and both the READY and ERROR lights are off, make sure your installed option is closed (lying flat against the scanner). Reconnect your unit to the OPTION connector on the back of the scanner.

■ Make sure your automatic

document feeder isn’t out of paper and doesn’t have a paper jam.

■ Make sure you removed the

shipping screw from the hole labeled

CLAMP in your transparency unit.

■ Make sure the SCSI ID is set

between 1 and 6. If you reset the SCSI ID switch on the back of the scanner, turn the scanner off and then on again. Then restart your computer.

You see an error message that there is no response from the scanner, or that you can’t start EPSON Scan.

■ Check your cable connections. If

your cable is securely connected to both the scanner and computer, try another cable, then restart your computer.

■ Make sure your scanner is on. If it

was off, turn the scanner on first, then restart your computer before you try to scan.

Solving Problems 41

If you have a USB connection, use

■

the cable that came with the scanner. If your scanner is connected to a USB hub, connect it directly to the computer’s USB port.

■ If you have a SCSI connection,

turn off both your scanner and computer. Then turn on your scanner before you turn on the computer.

■ If you have a SCSI connection,

make sure your SCSI board is installed correctly. For Windows, check the Device Manager to make sure the SCSI board is listed.

■ Mac OS 8.6 to 9.x users: if you

have an IEEE 1394 FireWire connection, make sure the following Extensions are enabled in the Extensions Manager:

EPSON FW Scanner Enabler, EPSON FW Scanner Expert,

and EPSON FW ScannerLib.

■ If you purchased the IEEE 1394

scanner interface card as an option, make sure that it is installed correctly. (See page 33.)

■ If all else fails, uninstall and

reinstall your software. See the instructions for uninstalling software beginning on page 49.

■ If the SCSI board is found, but not

the scanner, check the terminator switch and SCSI ID switch on the back of the scanner. Make sure the SCSI ID doesn’t conflict with another SCSI device. Unless the scanner is in the middle of a SCSI chain, the terminator switch should be set to ON.

■ If you’ve replaced your SCSI board

or changed the SCSI ID, you may need to uninstall and reinstall your scanner software. See the instructions beginning on page 49.

■ Check for IRQ conflicts with

built-in options.

The scanner doesn’t scan your image.

■ Make sure the scanner is ready to

scan. Wait until the READY light stops flashing and remains on.

If you attempt to preview or scan before the scanner is ready, EPSON Scan may stop responding. If this happens, restart your computer.

■ Make sure the scanner’s

transportation lock is in the

UNLOCK position.

■ Windows users: check the Device

Manager in the Windows Control Panel. If there is an Unknown

Device Remove.

icon, select it and click

42 Solving Problems

■ If you’re using photo-editing

software like Adobe Photoshop or Photoshop Elements, make sure you select File > Import >

EPSON Expression 1680

as your source. If you’re using the SilverFast Plug-in with a program like Photoshop, select File >

Import > SilverFast (Epson Expr 1680)

■ Make sure the SCSI ID switch on

the back of the scanner is not set to the asterisk (*), and that it’s set to a number that doesn’t conflict with any other SCSI devices. If you reset the SCSI ID switch, turn the scanner off and then on again. Then restart your computer.

■ Make sure you have enough

memory to scan your image. If you’re scanning a large image or scanning at a high resolution, close any unnecessary programs. For Mac OS 8.6 to 9.x, try increasing the memory of the host application. If your computer still doesn’t have enough memory to process the image, try scanning at a lower resolution, or select part of the image to scan. If you still cannot scan, you may need to upgrade your RAM.

■ If you have a ZIP drive, it may be

interfering with your scanner. Disconnect your ZIP drive, restart your computer, then try scanning.

■ If you’re using the optional

automatic document feeder, run EPSON Scan in Office Mode or Professional Mode, and select ADF as the Document Source. Also, make sure the original document is inserted face up.

When previewing a scan, you see a message that the document could not be located.

Make sure you’ve selected the correct Document Type in EPSON Scan.

Software Problems

EPSON Scan doesn’t work properly.

■ Make sure the system

requirements are correct for your software. See the requirements beginning on page 57.

■ Check your computer’s memory.

If you’re running other software at the same time, using RAM resident programs, or have many device drivers, the computer may not have enough memory. (See your software and computer manuals.) If you’re scanning a large image or scanning at a high resolution, your computer may not have enough memory to process the image.

Solving Problems 43

Check your software installation.

■

Make sure that your software is correctly installed and set up. If all else fails, uninstall your software, then reinstall it.

You can’t select ADF as the Document Source (Office Mode or Professional Mode).

Make sure the optional automatic document feeder is installed correctly and securely connected to the

OPTION connector on the back of the

scanner. If you need to reinstall or reconnect it, restart your computer afterward.

Quality Problems

You can’t select the correct Document Type for your film or slides.

Make sure the transparency unit is installed correctly and securely connected to the OPTION connector on the back of the scanner. If you need to reinstall or reconnect it, restart your computer afterward.

The file size is too big.

Adjust your scan settings. Try setting at a lower resolution (dpi), or scan only part of the image.

44 Solving Problems

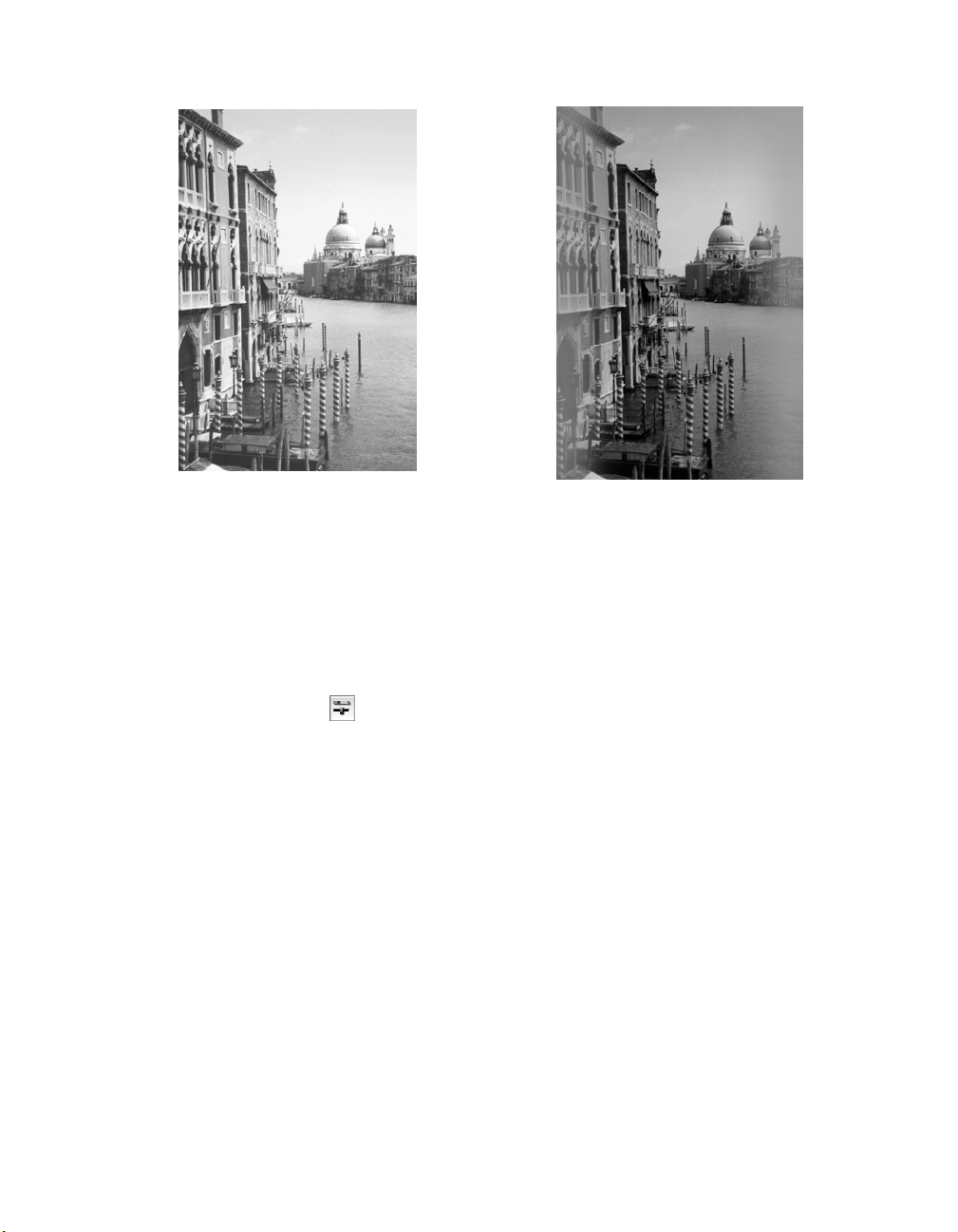

Your scanned image is faint or has gaps.

Your scanned image is blurred or distorted.

■ Check the brightness. Decrease the

software or driver’s brightness setting.

■ Select Professional Mode and

experiment with the Image Adjustment setting.

■ Check the condition of your

original. If the document is damaged, dirty, or wrinkled, these imperfections will show up in your scan.

■ Make sure the document is placed

flat against the document table.

■ Check the position and condition

of your document. Make sure the document is placed flat against the scanner’s document table glass. If only part of the image is blurred, part of your document may be wrinkled or warped.

■ Make sure the document table

glass is clean.

■ Make sure the scanner is on a flat,

stable surface.

Solving Problems 45

The edges of the document aren’t scanned.

■ Don’t place your document right

up against the edges of the document table. Allow a little space (about 2 mm).

■ If colors are patchy or distorted at

the edges of the image, the document may be too thick, or there may be outside light interfering with the scan.

Your image scans at an angle.

Check the position of your document. It may be placed at an angle on the document table. Align it so the horizontal and vertical edges are carefully aligned with the scales on the top and side of the document table.

Straight lines in the image come out jagged.

Make sure the document is aligned with the scales on the top and side of the document table.

46 Solving Problems

A line of dots is missing from the image.

■ When a line of dots is missing

from the scanned image on your screen, the scanner sensor has malfunctioned. Contact your EPSON dealer.

■ When a line of dots is missing

from your printouts, your printer has malfunctioned. See your printer manual.

The colors in your scanned image look different than the colors in the original document.

■ Experiment with the Unsharp

Mask Filter setting in EPSON Scan (not available in Home Mode).

■ Make sure the Image Type setting

is correct.

■ Try different combinations of

gamma and color settings in EPSON Scan. Click the

Configuration button at the

bottom of the window, then make any changes on the

Color tab.

Moiré (cross-hatch) patterns appear in the image when you perform halftone scanning.

■ Make the image size slightly

smaller.

■ In EPSON Scan, select the

Descreening Filter checkbox in

Home Mode or the Unsharp

Mask

checkbox in Professional or

Office Mode.

■ Use a transparent sheet between

the document and the document table to defocus the image.

■ Reposition the document on

the document table. Try positioning the document at a slight angle.

The printed image is larger or smaller than the original.

You can’t judge the size of the printed image by what you see on your screen. The image size settings in your scanner software determine the size of the printed image.

You can’t print scanned images, or the printed image looks garbled.

■ Make sure your printer is securely

connected to your computer and that you’re using the correct cable.

■ Make sure the correct printer is

selected in your printer software.

Solving Problems 47

The image doesn’t scan, or you can only scan a few dots.

■ Make sure the document is face

down on the document table.

■ If you’re using an automatic

document feeder, make sure the original document is inserted face up.

You’re using a transparency unit, and the colors of your negative film preview look strange.

■ Make sure you’ve selected the

correct Document Type in EPSON Scan.

■ The scanner perceives the film

guide’s frame as white, which alters the exposure of the scanning area and makes the preview appear darker. To see the correct colors, do a zoom preview on an area toward the center of an image.

■ If you see light vertical lines on the

scanned image, the TPU calibration area (the small rectangle of glass above the document table) may contain dirt or dust. Clean the calibration area with a lint-free cloth.

48 Solving Problems

Uninstalling and Reinstalling EPSON Scan

If you’ve tried every other solution and your system still doesn’t recognize your scanner, try uninstalling and reinstalling the scanner software.

Follow the procedure below for uninstalling EPSON Scan on your system.

Windows

1. Double-click the Add or Remove Programs utility in the Windows Control Panel.

2. Select EPSON Scan, and click the Change/Remove (or Add/Remove) button.

3. Follow the on-screen instructions to remove the software.

See the Start Here sheet to reinstall your software.

Macintosh

1. Insert the EPSON Expression 1680 CD-ROM in your drive. If necessary, double-click the CD-ROM icon to open the EPSON window.

2. Double-click . You see this screen:

Make sure EPSON Scan is selected and deselect Scanner User’s Guide

3. Make sure that Guide, deselect the

4. Click Install.

EPSON Scan is selected. If you don’t want to uninstall the User’s

Scanner User’s Guide checkbox.

Solving Problems 49

5. If you’re running OS X, enter your Administrator’s name and password, if prompted.

6. When you see the license agreement, click Accept. You see this screen:

Select Uninstall

7. Select Uninstall from the Easy Install list. Then click Uninstall.

8. Follow the on-screen instructions to uninstall the software. When you’re done, click Quit to close the EPSON Scan Installer screen.

See the Start Here sheet to reinstall your software.

50 Solving Problems

Where To Get Help

If you are having problems with EPSON Scan or your scanner, see the contact information in the section below. If you have the Professional or Professional FireWire model of the scanner and are having problems with your bonus software, see page 52.

EPSON Technical Support

EPSON provides technical assistance 24 hours a day through the electronic support services and automated telephone services listed in the following table:

Service Access

World Wide Web From the Internet, you can reach EPSON Support at

http://support.epson.com. At this site, you can download drivers and other files, look at product documentation, access troubleshooting information, and receive technical advice through e-mail.

Automated Telephone Services

A variety of automated help services are available 24 hours a day, seven days a week. To use these services, you must have a touch tone telephone and call (800) 922-8911. Your EPSON SoundAdvice Express Code is 68720. Use it to select your scanner in SoundAdvice.

To speak to a technical support representative, dial (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 6 AM to 6 PM, Pacific Time, Monday through Friday. Toll or long distance charges may apply.

Before you call, please have the following information ready:

■ Product name (EPSON Expression 1680)

■ Product serial number (located on the back of scanner)

■ Proof of purchase (such as a store receipt) and date of purchase

■ Computer configuration

■ Description of the problem

You can purchase supplies and accessories from the EPSON Store at (800) 873-7766, or visit www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

Solving Problems 51

Software Technical Support

If you have the Professional or Professional FireWire model, use the resources listed in the following table for help with your bonus software:

Software Telephone Fax Online and E-mail

Adobe Photoshop Elements

(206) 675-6126

AM to 5:00 PM,

6:00 Pacific Time, Monday through Friday (pay support)

— www.adobe.com/support

techdocs@adobe.com

LaserSoft Imaging SilverFast

Monaco Systems MonacoEZcolor

ArcSoft Software Suite

™

(941) 383-7496

9:00

AM to 5:30 PM, Eastern

Time, Monday through Friday (pay support)

(978) 749-9944

9:00

AM to 5:00 PM,

Eastern Time, Monday through Friday

(510) 440-9901

8:30

AM to 5:30 PM,

Pacific Time, Monday through Friday

(941) 387-7574

— www.monacosys.com/

— www.arcsoft.com/

www.SilverFast.com

support@SilverFast.com

support.html

support@monacosys.com

techmain.htm

support@arcsoft.com

52 Solving Problems

Appendix A

Specifications

Scanner

General

Scanner type

Flatbed, color

Photoelectric device

Color MatrixCCD

Effective pixels

13600 × 18720 pixels (1600 dpi)

Optical density

3.6 Dmax

Color depth

48-bit internal/48-bit external

Grayscale depth

16-bit internal/16-bit external

Maximum document size

8.5 × 11.7 inches (216 × 297 mm) A4 or Letter (the reading area can be specified from your software)

Resolution

1600 dpi (optical)

Maximum hardware resolution*

1600 dpi (main scan) 3200 dpi with Micro Step Drive (sub scan)

* The maximum hardware resolution of

1600 × 3200 dpi is achieved using EPSON’s Micro Step Drive technology

Maximum interpolated resolution

12800 × 12800 dpi

™

line sensor

Speed (1600 dpi, draft mode)

Color: 9.2 msec/line (approx.) Grayscale: 3.1 msec/line (approx.) Line Art: 3.1 msec/line (approx.)

Color separation

RGB color filters on CCD

Reading sequence

Monochrome: One-pass scanning Color byte sequence: One-pass scanning

(R, G, B) Color line sequence: One-pass scanning

(R, G, B)

Zoom

50 to 200% in 1% increments

Command level

ESC/I-B8 FS

Pixel depth

16 bits per pixel (16 bits per pixel input, 1 to 16 bits per pixel output)

Brightness

7 levels

Line art settings

Fixed threshold TET (Text Enhancement Technology,

enable/disable selectable)

Digital halftoning

AAS (Auto Area Segmentation, enable/disable selectable)

3 error diffusion modes (A, B, and C) 4 dither patterns (A, B, C, and D) for

bi-level and quad-level data (2 downloadable dither patterns)

Gamma correction

2 types for CRT display 3 types for printer 1 type user-defined

Color correction

1 type for CRT display 3 types for printer (available in color

byte sequence mode and color line sequence mode)

1 type user-defined

Interfaces

SCSI 2 (micro DB 50-pin connectors) USB (Type B receptacle connector) IEEE 1394 (FireWire), optional

Light source

Xenon gas cold cathode fluorescent lamp

Reliability

100,000 cycles of carriage movement (main unit MCBF)

Dimensions

Width: 13 inches (332 mm) Depth: 22.1 inches (562 mm) Height: 5.3 inches (133 mm)

Weight

Approximately 18.7 lb (8.5 kg)

Electrical

Input voltage range

100 to 120 VAC: 90 to 132 VAC 220 to 240 VAC: 198 to 264 VAC

Rated frequency

50 to 60 Hz

Rated current

100 to 120 VAC: 0.8 A 220 to 240 VAC: 0.4 A

Power consumption

Operating: Approximately 30 W

Approximately 50 W with TPU or ADF unit

Standby: Approximately 10 W

Environmental

Temperature

Operating: 41 to 95 °F (5 to 35 °C)

50 to 89 °F (10 to 32 °C when using ADF)

Storage: –13 to 140 °F

(–25 to 60 °C)

Humidity (without condensation)

Operating: 10 to 80% Standby: 10 to 85%

Operating conditions

Ordinary office or home conditions. Avoid dust, direct sunlight, and proximity to strong light sources.

Safety Approvals

120 V model

Safety: UL 1950

CSA C22.2 No. 950 EMC FCC part 15

subpart B class B CSA C108.8 class B

230 V model

Safety: EN 60950 EMC: EN 550022

(CISPR Pub 22) class B AS/NZS 3548 class B

54 Specifications

SCSI Interface

Interface type

ANSI X3T9.2/375R Revision 10L (SCSI 2)

Logic level

TTL-compatible

ID setting

Selectable from 1 to 6

Terminator

Internal terminator (enable/disable selectable)

Connector type

Two micro DB 50-pin connectors

USB Interface

Interface type

Universal Serial Bus Specification Revision 1.1

Electrical standard

Full speed mode (12Mb) of Universal Serial Bus Specification Revision 1.1

Connector type

One receptacle (Type B)

IEEE 1394 FireWire

Interface type

IEEE 1394-1995 compatible

Data transfer method

Half-duplex Data/Strobe differential serial

Synchronization method

Clock synchronization with DS-Link

Encoding/decoding

DS-Link

Logic level

3.3 V

Compatible connectors

IEEE 1394-1995 compatible

Power class

Power class code 100 No power supply from external sources Fitted with a repeat function with bus

power

Environmental

Temperature

Operating: 41 to 95 °F

(5 to 35 °C)

Standby: –13 to 140 °F

(–25 to 60 °C)

Humidity (without condensation)

Operating: 10 to 80% Standby: 10 to 85%

Option Interface Connector

Interface type

For use with the optional automatic document feeder (B813162) and transparency unit (B813182)

Output voltage

21.6 to 26.4 VDC

4.75 to 5.25 VDC

Output current

0.6 A (24 V)

0.3 A (5 V)

Initialization Methods

SCSI interface

Hardware: Initialized when the scanner

is turned on or the scanner receives a SCSI Reset signal from the SCSI interface

Software: Initialized when the

software sends the Esc @ (initialize the scanner command), or the scanner receives a SCSI Bus Device message

Specifications 55

USB interface

Hardware: Initialized when the scanner

is turned on or the USB cable is plugged into the USB port on the scanner

Software: Initialized when the

software sends the Esc @ command or the scanner receives a Bus Reset from the USB interface

Transparency Unit (B813182)

General

Reliability

MCBF 100,000 cycles

Readable area

8.5 × 11.7 inches (216 × 297 mm)

Dimensions

Width: 12.8 inches (324 mm) Depth: 21.3 inches (540 mm) Height: 3.6 inches (92 mm)

Weight

Approximately 11 lb (6 kg)

Electrical

Input voltage

21.6 to 26.4 VDC

4.7 to 5.25 VDC

Rated current

1.6 A

0.1 A

Environmental

Temperature

Operating: 41 to 95 °F (5 to 35 °C) Standby: –14 to 140 °F

(–20 to 60 °C)

Humidity (without condensation)

Operating: 10 to 80% Standby: 10 to 85%

Automatic Document Feeder (B813162)

General

Paper input/output

Load face up; eject face down

Paper quantity

30 pages (55 g/m thickness under 0.24 inches [6 mm])

Reliability

100,000 sheets (load/eject MCBF)

Dimensions

Width: 12.2 inches (310 mm) Depth: 20.9 inches (528 mm) Height: 3.6 inches (92 mm)

Weight

Approximately 9.9 lb (4.5 kg)

Electrical

Input voltage

22.8 to 25.2 VDC

4.75 to 5.25 VDC

Input current

24 V: 0.6 A 5 V: 0.3 A

Environmental

Temperature

Operating: 50 to 89 °F (10 to 32 °C) Standby: –4 to 140 °F

Humidity (without condensation)

Operating: 20 to 80% Standby: 95% or less

paper, maximum total

(–20 to 60 °C)

56 Specifications

Appendix B

Requirements and Notices

System Requirements

The minimum system requirements for Windows and Macintosh are listed below. For optimum performance, a faster processor and more memory are recommended. If you’re scanning high resolution images, you need more than the minimum available hard disk space.

Note: Color and tone reproduction are subject to the display capability of your computer system, including the video card, monitor, and software. See the documentation for these products for details.

Windows

■ A Microsoft

recommended

■ Preinstalled Windows XP, 98, Me, or 2000

■ SCSI, USB, or FireWire IEEE 1394 (Windows XP, Me, or 2000 only) port; FireWire card must

be OHCI-compliant

■ 128MB RAM (256MB RAM recommended for all systems)

■ 300MB available hard disk space

■ CD-ROM drive

■ VGA color monitor with 640 × 480 resolution (a color monitor with a resolution of 800 × 600 or

higher recommended)

■ 16-bit, 65K-color display adapter card (24-bit display adapter card with millions of colors

recommended)

Windows-compatible PC with a Pentium®-equivalent processor, 233 MHz or faster

Macintosh

■ Macintosh OS 8.6 to 9.x, or OS 10.1.2 to 10.2.x

Note: Check the Apple® web site for any updates to your operating system.

■ Macintosh standard (built-in) SCSI or compatible PCI SCSI/SCSI 2 card, or USB interface; for

IEEE 1394 FireWire connections, either a built-in IEEE 1394 FireWire port or an IEEE 1394 FireWire PCI card (FireWire card must be OHCI-compliant)

■ 128MB RAM (256MB RAM recommended)

■ 300MB available hard disk space

■ CD-ROM drive

■ VGA color monitor with 640 × 480 screen resolution (a color monitor with a resolution of

800 × 600 or higher recommended)

■ 16-bit 65K-color display adapter card (24-bit display adapter card with millions of colors

recommended)

Important Safety Instructions

Read all of these instructions and save them for later reference. Follow all warnings and instructions marked on the scanner.

■ Unplug the scanner before cleaning. Clean with a damp cloth only. Don’t spill liquid on the

scanner. Use a soft, dry cloth or a compressed air spray designed for cleaning electronic equipment to clean dust from the document table glass.

■ Do not place the scanner on an unstable surface or near a radiator or heat source.

■ Use only the type of power source indicated on the scanner’s label.

■ Connect all equipment to properly grounded power outlets. Avoid using outlets on the same

circuit as photocopiers or air control systems that regularly switch on and off.

■ Do not let the power cord become damaged or frayed.

■ If you use an extension cord, make sure the total ampere rating of the devices plugged into the

extension cord doesn’t exceed the cord’s ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet doesn’t exceed the wall outlet’s ampere rating.

■ Do not attempt to service the scanner yourself.

■ Unplug the scanner and refer servicing to qualified service personnel under the following

conditions: if the power cord or plug is damaged; if liquid has entered the scanner; if the scanner has been dropped or the cabinet damaged; if the scanner does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.

58 Requirements and Notices

Declaration of Conformity

According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal Computers:

We: EPSON AMERICA, INC.

Located at: MS 3-13

3840 Kilroy Airport Way Long Beach, CA 90806-2469 Telephone: (562) 290-5254

Declare under sole responsibility that the product identified herein complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON Type of Product: Image Scanner Model: G780B Product: EPSON Expression 1680

Requirements and Notices 59

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Warning

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du Canada.

60 Requirements and Notices

ENERGY STAR Compliance

As an ENERGY STAR Partner, EPSON has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

The EPA ENERGY STAR Office Equipment Program is a voluntary partnership with the computer and office equipment industry to promote the introduction of energy-efficient personal computers, monitors, printers, fax machines, copiers, and scanners, in an effort to reduce air pollution caused by power generation.

Warranty

Epson America, Inc. Limited Warranty

What Is Covered: Epson America, Inc. (“EPSON”) warrants to the first end user customer of the EPSON product enclosed with this limited warranty statement that the product, if purchased and used in the United States or Canada, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a period of one year from the date of original purchase. EPSON warrants that the EPSON product is manufactured from new components and parts, or if you have purchased a refurbished product, like-new components and parts which perform like new and meet the EPSON standard of quality. For warranty service, you must provide proof of the date of original purchase.

What EPSON Will Do To Correct Problems: Should your EPSON product prove defective during the warranty period, please bring the product securely packaged in its original container or an equivalent to your EPSON Dealer or EPSON Customer Care Center. You are responsible for all costs (shipping, insurance, travel time) in getting the product to the service location. EPSON will, at its option, repair or replace on an exchange basis the defective unit, without charge for parts or labor. When warranty service involves the exchange of the product or of a part, the item replaced becomes EPSON property. The replacement unit may be new or refurbished to the Epson standard of quality, and at Epson’s option, the replacement may be another model of like kind and quality. Epson’s liability for replacement of the covered product will not exceed the original retail selling price of the covered product. Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited warranty.

What This Warranty Does Not Cover: This warranty covers only normal use in the United States and Canada. This warranty does not cover damage to the EPSON product caused by parts or supplies not manufactured, distributed or certified by EPSON. This warranty does not cover third party parts, components or peripheral devices added to the EPSON product after its shipment from EPSON, e.g., dealer-added boards, chips or drives. This warranty is not transferable and will not apply to products

Requirements and Notices 61

purchased from an end user. EPSON is not responsible for warranty service should the EPSON label or logo or the rating label or serial number be removed or should the product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-EPSON products, or service other than by an EPSON Authorized Servicer. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE VOID. IN THE EVENT THE REMEDIES ABOVE FAIL, EPSON’S ENTIRE LIABILITY SHALL BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT COVERED BY THIS LIMITED WARRANTY. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts and some jurisdictions do not allow certain exclusions or limitations on damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction.

To locate the EPSON Authorized Reseller or EPSON Customer Care Center nearest you call: (800) 922-8911 or write to: Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012.

62 Requirements and Notices

Index

Numerics

48-bit color images, 13

Accessories, 19, 51 Adobe Photoshop Elements, 52 ArcSoft software, 52 Auto Exposure Type setting, 13 Automatic document feeder

Document Source setting, 11, 13, 31 fixing paper jams, 32 installing, 29 to 30 loading paper, 31 problems, 40, 44 purchasing, 19, 51 specifications, 56 unpacking, 28 using, 31

Descreening Filter setting, 9, 11, 14 Document position, 5 to 6, 46 Document Source setting, 11, 13 Document Type setting, 9, 12 Documentation, 2 to 3

Electrical requirements, 54 Environmental requirements, 54 EPSON

help, 51 to 52 Store, 19, 51

EPSON Scan

Home Mode, 6 to 9 Office Mode, 6 to 7, 10 to 11 previewing scans, 7, 8, 10, 12, 16 to 17, 43 problems, 43 to 44 Professional Mode, 6 to 7, 12 to 15 starting, 7

Blurred image, 45 Brightness setting, 9, 11, 14, 45

Cleaning the scanner, 37 Color depth, selecting, 13 Colors, problems, 47 to 48 Contrast setting, 9, 11, 14

Faint image, 45 FCC compliance statement, 60 File size, 44 Film guides, using, 23 to 26 Film Type setting, 13 Film, scanning, 23 to 26 FireWire

installing the scanner card, 33 to 34 scanner card specifications, 55 system requirements, 33

Gamma adjustment, 14, 47

Help

bonus software, 52

EPSON, 51 to 52 Histogram adjustment, 14 Home Mode

description, 6

selecting, 7

using, 8 to 9

IEEE 1394, see FireWire Image quality problems, 44 to 48 Image Type setting, 9, 10, 13 Installing

automatic document feeder, 29 to 30

FireWire scanner interface card, 33 to 34

transparency unit, 21 to 22

Office Mode

description, 6 selecting, 7 using, 10 to 11

Optional equipment, see Automatic document

feeder, FireWire, Transparency unit

PanoramaMaker, 52 Paper jams, fixing, 32 PhotoBase, 52 Photoshop Elements, 52 PhotoStudio, 52 Preview window, 16 Problems

automatic document feeder, 32, 40, 44 image quality, 44 to 48 previewing scan, 43 scanner, 41 to 43 software, 43 to 44 transparency unit, 40, 44, 48

Professional Mode

description, 6 selecting, 7 using, 12 to 15

LaserSoft SilverFast, 2, 52 Lights, 40 Loading paper

Lock, transportation, 35 to 36

Macintosh, system requirements, 58 Maintenance, 35 to 37 MonacoEZcolor, 2, 52 Moving

6 Index

automatic document feeder, 31

single sheet, 5 to 6

scanner, 35 to 36

transparency unit, 36

Requirements

electrical, 54 environmental, 54

system, 33, 57 to 58 Resizing images, 18 Resolution

choosing, 11, 13, 17 to 18

maximum, 53

Safety instructions, 58 Scaling images, 18 Scanner

cleaning, 37 moving, 35 to 36 problems, 41 to 43

Scanning

color images, 18 film, 23 to 26 into an application, 7, 9, 11, 15 previewing scans, 7, 8, 10, 12, 16 to 17, 43 reflective documents, 27 slides, 24

to your hard drive, 7, 9, 11, 15 Scanning Quality setting, 13 SCSI

interface specifications, 55

problems, 42 Service, 51 to 52 SilverFast, LaserSoft, 2, 52 Slides, scanning, 24 Software

problems, 43 to 44

uninstalling, 49 to 50 Specifications

automatic document feeder, 56

electrical, 54

environmental, 54

FireWire card, 55

scanner, 53 to 56

transparency unit, 56 Support, 51 to 52 System requirements, 33, 57 to 58

Transparency unit

installing, 21 to 22 moving, 36 problems, 40, 44, 48 scanning film, 9, 12 to 13, 23 to 26 scanning reflective document, 27 specifications, 56 unpacking, 20

using film guides, 23 to 26 Transportation lock, 35 to 36, 42 Transporting

scanner, 35 to 36

transparency unit, 36 Troubleshooting

automatic document feeder, 40, 44

image quality, 44 to 48

scanner, 41 to 43

software, 43 to 44

transparency unit, 40, 44, 48

Uninstalling software, 49 to 50 Unpacking

automatic document feeder, 28

transparency unit, 20 Unsharp Mask Filter, 11, 14 USB

interface specifications, 55

requirements, 57, 58 User’s Guide, viewing, 3

Target Size setting, 9, 13 Technical support, 51 to 52 Tone correction, 14

Warranty, 61 to 62 Windows, system requirements, 57

Index 7

8 Index

Epson Expression 1680 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Welcome

About Your Scanner

Getting More Information

Warnings, Cautions, Notes, and Tips

Viewing Your Electronic User’s Guide

How To Scan

Placing Your Original Document

Using EPSON Scan

Starting Your Scan and Choosing a Mode

Scanning With EPSON Scan in Home Mode

Scanning With EPSON Scan in Office Mode

Scanning With EPSON Scan in Professional Mode

Selecting the Scanning Area in the Preview Window

Scanning Tips

Selecting Resolution

Scaling (Resizing) Images

Scanning Color Images

Using Optional Equipment

Transparency Unit

Unpacking the Transparency Unit

Removing the Shipping Screw

Installing the Transparency Unit

Using the Film Guides

Scanning Reflective Documents

Automatic Document Feeder

Unpacking the Automatic Document Feeder

Installing the Automatic Document Feeder

Loading Paper in the Automatic Document Feeder

Fixing Paper Jams

IEEE 1394 FireWire Scanner Interface Card

Installing the Card in Your Scanner

Connecting the Scanner to Your Computer

Maintenance

Transporting the Scanner

Transporting the Transparency Unit

Cleaning the Scanner

Solving Problems

Diagnosing Scanner Problems

Checking the Scanner’s Lights

Problems and Solutions

Scanner Problems

Software Problems

Quality Problems

Uninstalling and Reinstalling EPSON Scan

Where To Get Help

EPSON Technical Support

Software Technical Support

Specifications

Scanner

General

Electrical

Environmental

Safety Approvals

SCSI Interface

USB Interface

IEEE 1394 FireWire

Environmental

Option Interface Connector

Initialization Methods

Transparency Unit (B813182)

General

Electrical

Environmental

Automatic Document Feeder (B813162)

General

Electrical

Environmental

Requirements and Notices

System Requirements

Windows

Macintosh

Important Safety Instructions

Declaration of Conformity

FCC Compliance Statement

ENERGY STAR Compliance
