Safety Instructions

Important Safety Instructions

Read all these instructions and save them for later reference. Follow all warnings and instructions marked on the scanner.
Unplug the scanner before cleaning. Clean with a damp cloth
only. Do not spill liquid on the scanner.
Do not place the scanner on an unstable surface, or near a
radiator or heat source.
Use only the type of power source indicated on the scanner’s
label.
Connect all equipment to properly grounded power outlets.
Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.
Do not let the power cord become damaged or frayed.
If you use an extension cord with the scanner, make sure the
total ampere rating of the devices plugged into the extension cord does not exceed the cord's ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
Except as specifically explained in this Setup Guide, do not
attempt to service the scanner yourself.
Safety Instructions
1
Unplug the scanner and refer servicing to qualified service
personnel under the following conditions:
If the power cord or plug is damaged; if liquid has entered the scanner; if the scanner has been dropped or the case damaged; if the scanner does not operate normally or exhibits a distinct change in performance. (Do not adjust controls that are not covered by the operating instructions.)
If you plan to use the scanner in Germany, observe the
following:
To provide adequate short-circuit protection and over-current protection for this scanner, the building installation must be protected by a 16 Amp circuit breaker.
Note for German-speaking users:
Bei Anschluß des Scanners an die Stromversorgung muß sichergestellt werden, daß die Gebäudeinstallation mit einem 16 A-Überstromschalter abgesichert ist.
2
Safety Instructions

Warnings, Cautions, and Notes

Warnings
must be followed carefully to avoid bodily injury.
w
Cautions
must be observed to avoid damage to your equipment.
c
Notes contain important information and useful tips on the operation of your scanner.
E
NERGY STAR® Compliance
As an ENERGY STAR® Partner, EPSON has determined that this product meets the
NERGY STAR® guidelines for energy
E
efficiency.
The International a voluntary partnership with the computer and office equipment industry to promote the introduction of energy-efficient personal computers, monitors, printers, fax machines, copiers, and scanners, in an effort to reduce air pollution caused by power generation.
NERGY STAR® Office Equipment Program is
E
Safety Instructions
3

For United Kingdom Users

Safety information
Warning:
w
As the colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The green and yellow wire must be connected to the terminal in
the plug which is marked with the letter E or with the earth
symbol (
This appliance must be earthed. Refer to the rating plate for voltage and check that the appliance voltage corresponds to the supply voltage.
Important: The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:
Green and yellow — Earth Blue — Neutral Brown — Live
G).
The blue wire must be connected to the terminal in the plug
marked with the letter N.
The brown wire must be connected to the terminal in the plug
marked with the letter L.
If damage occurs to the plug, replace the cord set or consult a
qualified electrician.
Replace fuses only with a fuse of the correct size and rating.
4
Safety Instructions
Chapter 1

Getting to Know Your Scanner

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Unpacking the Scanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Scanner Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Lights and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
1
Getting to Know Your Scanner
1-1

Features

The EPSON Expression 1680/Expression 1680 Pro scanner offers
the following features:
Optical resolution of 1600 dots per inch (dpi) for main
scanning, and 3200 dpi with micro step for sub scanning (48-bit input, 48-bit output).
A4/Letter size scanning area.
Start Button control for one-step local and network scanning.
When the scanner is connected directly to your computer, the
Start button can automatically start a scanning sequence by
a
invoking Presto! PageManager for EPSON and EPSON TWAIN Pro, scanning the document, launching an application, and importing the scanned image to the application.
Start button on the
In a network configuration, pressing the scanner starts the same operation as clicking the Scan button in the EPSON TWAIN Pro Network dialog box.
a
Full color or grayscale scanning. Capture your images with
up to 281,500 billion colors, or up to 65,536 shades of gray.
EPSON TWAIN Pro lets you take full advantage of your
scanner's advanced features.
EPSON TWAIN Pro Network and EPSON Scan Server
software work together to directly control all of the features of your EPSON scanner in a network environment.
EPSON TWAIN Pro and TWAIN Pro Network’s Unsharp
Mask option automatically sharpens the image to provide crisp detail.
1-2
Getting to Know Your Scanner
EPSON TWAIN Pro and TWAIN Pro Network’s De-screening
option automatically removes unwanted moiré patterns from scanned images for higher quality output.
Auto Area Segmentation (AAS) allows you to separate text
from photographs on a page so that grayscale images are clearer and text recognition is more accurate.
Text Enhancement Technology (TET) enhances text
recognition accuracy for optical character recognition (OCR) scanning.
The Expression 1680 Pro includes the Transparency Unit,
which enables negative film and slide film to be scanned. The Transparency Unit is available as an option for the Expression 1680.
The Automatic Document Feeder, which enables continuous
sheet scanning, is available as an option.
1
Getting to Know Your Scanner
1-3

Unpacking the Scanner

Your Expression 1680/Expression 1680 Pro comes shipped with
CD-ROMs which include the driver software that runs your
scanner, and some additional items, depending on your scanner
model.
scanner
USB interface cablepower cord
1-4
Getting to Know Your Scanner
For the Expression 1680 Pro
1
Transparency Unit
Note:
The Transparency Unit that comes standard with the Expression 1680 Pro is also available as an option for the Expression 1680.
Depending on the country of purchase, the power cord may come attached to the scanner. The shape of the AC plug also varies, so make sure the plug included is the correct shape for the electrical outlet in your country.
installation screws (2) reflective
document mat
film holders
Getting to Know Your Scanner
1-5

Scanner Parts

document cover
carriage (in the home position)
document table
ERROR light
READY light
operate button
option interface connector SCSI ID rotary switch
AC inlet
optional interface slot
1-6
Getting to Know Your Scanner
transportation lock lever
USB interface connector
start button
SCSI terminator switch
SCSI interface connectors

Lights and Buttons

The scanner has two indicator lights and two buttons.

Lights

Light Functions
READY Turns on when the scanner is ready for scanning, and
flashes when the scanner is warming up and during scanning.
In combination with the ERROR light, turns on, flashes, or turns off to indicate a variety of error conditions.
ERROR In combination with the READY light, turns on, flashes,
or turns off to indicate a variety of error conditions.
1
Note:
For details on the types of errors indicated by these lights, see “Error Indicators” in the online Reference Guide.

Buttons

Button Function
P
Operate
a
Start
Turns the scanner on and off.
When the scanner is connected directly to your computer, can open an application of your choice, or can scan and send the scanned image to a specified application, depending on your operating system and installed software. In a network environment, this button starts the same operation as the Scan button in EPSON TWAIN Pro Network.
Getting to Know Your Scanner
1-7

Options

The following optional items are available to expand the
versatility of your scanner. For detailed information on the use of
these options, see “Options” in the online Reference Guide.
Automatic Document Feeder (B81316✽✽✽)
Designed primarily for optical character recognition (OCR)
scanning, the Automatic Document Feeder allows you to scan up
to 30 pages automatically, then use them in word processing
programs, as if you had typed the text yourself.
Transparency Unit (B81318✽✽✽)
Allows you to scan transparent materials; primarily 35 mm slides
and filmstrips. The Transparency Unit’s reading area allows you
to scan film up to 8.5 × 11.7 inches (216 × 297 mm) in size.
IEEE 1394 Scanner I/F Card (B80834✽✽✽)
Allows you to connect your computer or scanner to other devices
which support the IEEE 1394 standard.
Note:
The asterisk is a substitute for the last digit of the product number, which
varies by country.
1-8
Getting to Know Your Scanner
Chapter 2

Setting Up the Scanner

Choosing a Place for the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Releasing the Transportation Lock . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Plugging in the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
Checking Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Connecting the Scanner Using the SCSI Interface . . . . . . . . . . . .2-7
Installing a SCSI interface board . . . . . . . . . . . . . . . . . . . . . . 2-8
Understanding SCSI connections. . . . . . . . . . . . . . . . . . . . . . 2-9
Setting the SCSI ID number . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Setting the terminator switch . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
Power-on sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Power-off sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
When changing the ID number or replacing the
SCSI board in Windows 98. . . . . . . . . . . . . . . . . . . . . . . . . 2-15

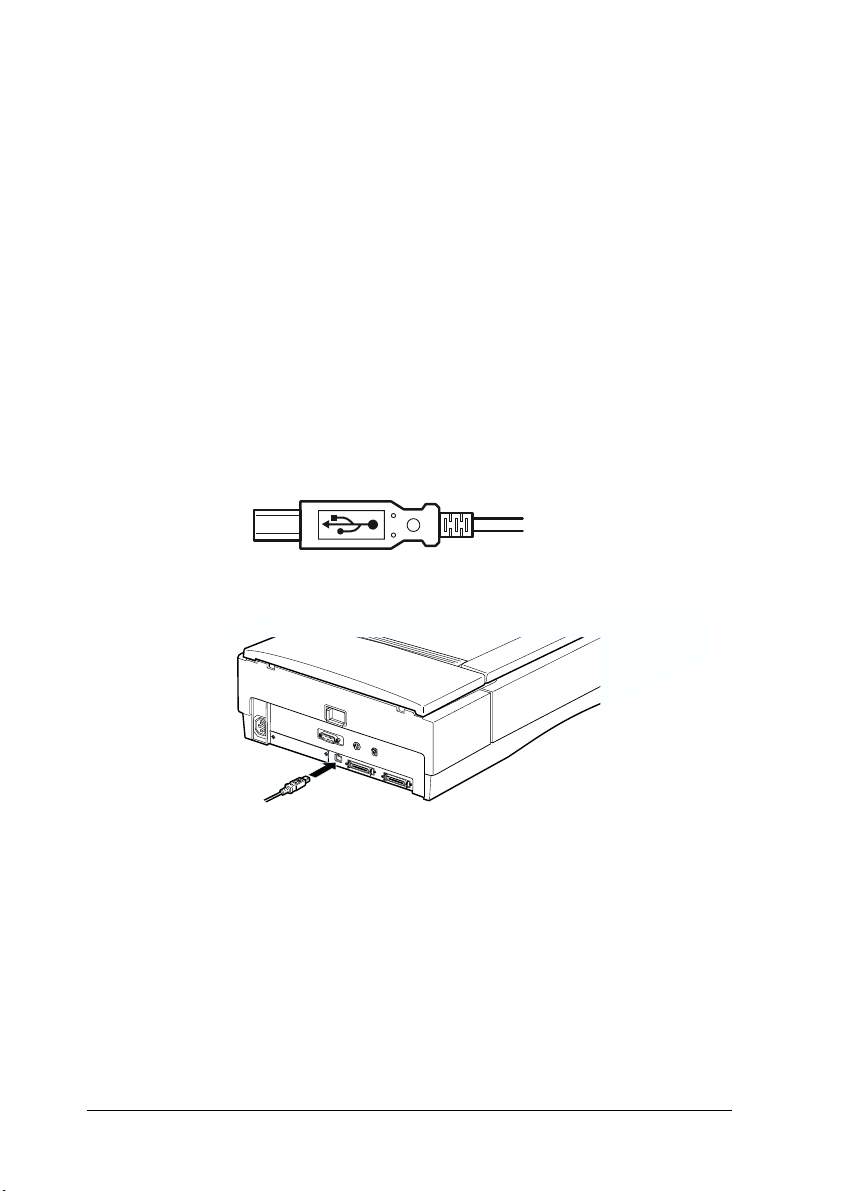

Connecting the Scanner Using the USB Interface. . . . . . . . . . . . . 2-18
Understanding USB connections . . . . . . . . . . . . . . . . . . . . . . 2-18
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-20
When changing the USB port in Windows 98 . . . . . . . . . . . 2-21
2
Setting Up the Scanner
2-1

Choosing a Place for the Scanner

Follow the guidelines below when selecting a location for your
scanner.
Place the scanner on a flat, stable surface. The scanner will not
operate properly if it is tilted at an angle.
Place the scanner close enough to the computer for the
interface cable to reach it easily.
Place the scanner near a wall outlet where the power cord can
be easily unplugged.
Note for French-speaking users:
Placez le scanner près d’une prise de courant où la fiche peut-être débranchée facilement.
2-2
Setting Up the Scanner
Allow space behind the scanner for the cables, and space
above the scanner so that you can fully raise the document cover.
550 mm
2
133 mm*
562 mm
332 mm
* When document cover is closed.
150 mm or more
Keep the scanner away from high temperatures, humidity
and excessive dirt or dust. Also avoid using or storing the scanner in places subject to rapid changes of temperature and humidity.
Keep the scanner away from direct sunlight and strong light
sources.
Avoid places subject to shocks and vibrations.
Setting Up the Scanner
2-3

Releasing the Transportation Lock

Before connecting the scanner to a power source, you must release
the transportation lock.
1. Place the scanner on a flat, stable surface with the back facing you.
2. Slide the transportation lock lever on the back of the scanner to the UNLOCK position, as shown below.
Note:
Simply sliding the transportation lock to the LOCK position does not fully lock the carriage. Before moving or transporting the scanner, be sure to perform the procedure under “Transporting the Scanner and the Transparency Unit” in the online Reference Guide.
2-4
Setting Up the Scanner

Plugging in the Scanner

1. Make sure that the scanner is turned off. The scanner is off when the
2. If the power cord is not attached to the scanner, connect it to the AC inlet on the back of the scanner, and plug the other end into a properly grounded electrical outlet.
P operate button is raised (not depressed).
2
c
Caution:
It is not possible to change the scanner's voltage. If the label on the back of the scanner does not show the correct voltage for your country, contact your dealer. Do not plug in the power cord.
Setting Up the Scanner
2-5

Checking Initialization

Before connecting the scanner to your computer, follow the steps below to make sure that the scanner initializes, or starts up, properly.
1. Open the document cover so you can see the operation of the scanner during initialization.
2. Turn on the scanner by pressing the

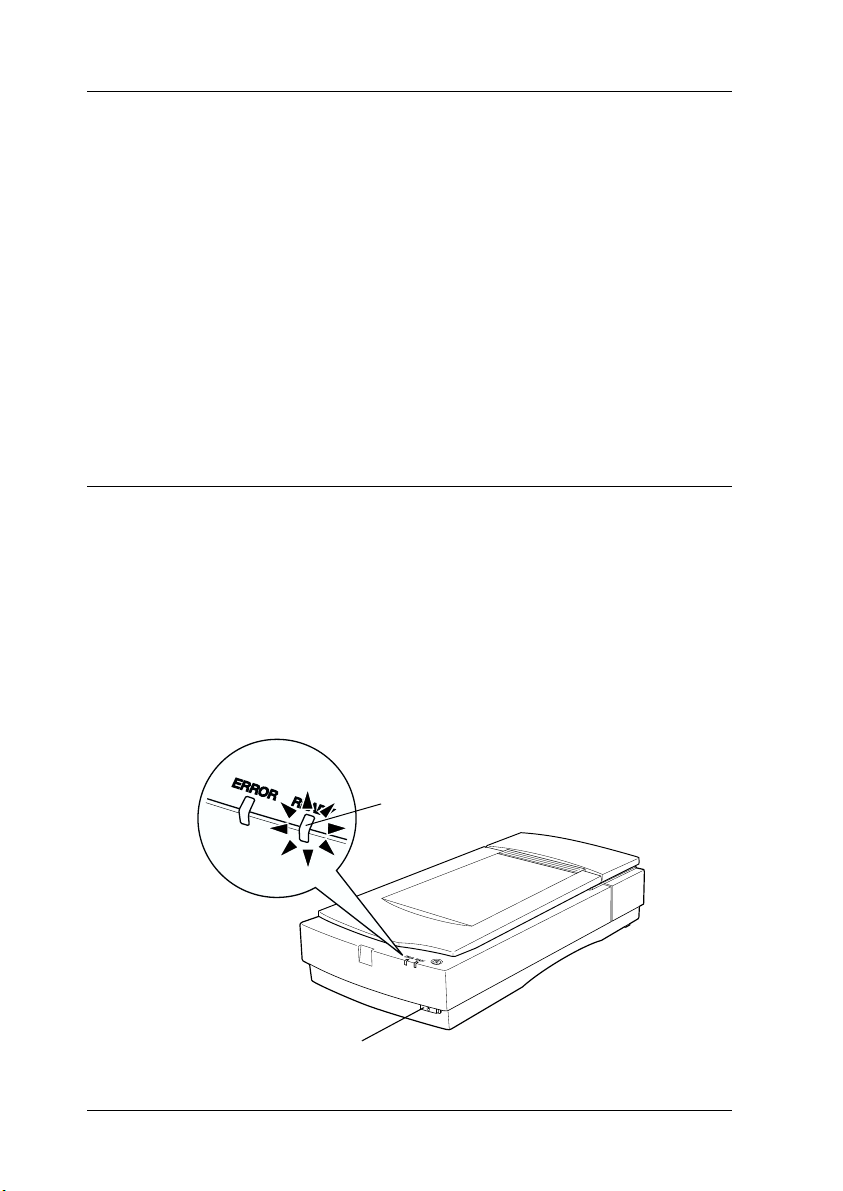

3. Make sure the fluorescent lamp on the carriage and the READY light flash, and the carriage moves slightly.
light stops flashing and stays on, it means the
4. When READY scanner has completed initialization.
5. Turn off the scanner.
If the scanner does not work as described, make sure the power cord is firmly plugged in and that you have released the transportation lock, then try again.
P operate button.
2-6
Caution:
Whenever you turn off the scanner, wait at least 10 seconds before
c
turning it back on. Rapidly turning the scanner on and off can damage it.
Setting Up the Scanner

Connecting the Scanner Using the SCSI Interface

For instructions on connecting the scanner to your computer using the SCSI interface, read this section.
®
Note for Macintosh
You need to install the scanner software before connecting the scanner to your computer. Follow the instructions in Chapter 3 to install your software, then connect your scanner as described in this chapter.

For PC users:

Unless your PC already has a SCSI board installed, you need to install one, along with SCSI driver software. Install the SCSI board according to the directions included with it. Also see “Installing a SCSI interface board” on page 2-8.
Note:
You will also need to install the SCSI driver that is normally included with Windows (see your Windows documentation for instructions), or the driver described in your SCSI board installation documentation.
If your PC has a SCSI board up and running, connect the scanner as described in “Connecting the scanner” on page 2-13.
users:
2

For Macintosh users:

Your Macintosh may or may not have SCSI ports, depending on which model you own. See the next section if you need to install a SCSI board in your Macintosh. If your Macintosh already has a SCSI port, install the scanner software as described in Chapter 3, then connect the scanner to your Macintosh as described in “Connecting the scanner” on page 2-13.
Note:
The latest driver may be available for download from the Web site of the SCSI board manufacturer.
Setting Up the Scanner
2-7

Installing a SCSI interface board

Follow the instructions in this section to install a SCSI board and SCSI software in your computer. You should do this before installing the scanner driver and software applications.
If you already have a SCSI board installed in your PC or Macintosh, go to the next section.
Note:
For additional information, see the installation guide that comes with your SCSI board.
1. Turn off the computer and any peripheral devices. Unplug any power cords, then disconnect all cables from your computer.
2. Remove the cover from your computer.
Caution:
c
Static electricity can damage electronic components. Discharge static electricity by touching the metal frame of your computer before handling the interface board or any of the computer’s circuit boards.
3. Insert the interface board into an appropriate expansion slot, then secure it with the retaining screw.
4. Replace the computer cover and reconnect all cables.
2-8
Setting Up the Scanner

Understanding SCSI connections

Read this section to determine how to set up your SCSI devices and whether you need any optional SCSI cables.
Daisy chain
The SCSI interface allows you to connect up to seven devices (such as a scanner, hard disk, CD-ROM, and so on) to the computer, in what is called a “daisy chain” arrangement. Only the first SCSI device in a daisy chain is connected to the computer; each of the other devices is connected to another SCSI device.
SCSI cables
You may need to purchase SCSI cables before setting up your SCSI daisy chain. Be sure the SCSI cable connectors are suitable for your hardware, depending on the maker of your SCSI device and SCSI interface board.
SCSI ID and terminator
2
Each device has a SCSI ID number: the computer is usually number 7, and each of the other devices must have a different number between 0 and 6. Also, the first device and the last device in the chain (not including the computer) must have a terminator. No other device can have a terminator, or if a terminator does exist, it must be turned off or removed.
Setting Up the Scanner
2-9

Setting the SCSI ID number

The scanner's SCSI ID switch is set to number 2 at the factory.
SCSI ID rotary switch
If you add the scanner to a system in which one of your SCSI devices already has a SCSI ID of 2, change the ID number to an unused number using the rotary switch. See the table below as a guide.
ID Availability Description
0 Not available for Macintosh Used for hard disks
Not recommended for PCs Usually used for hard disks
1 Not recommended Usually used for hard disks
2 Available Factory setting of the
3 Available Not available if your
4 Available
5 Available
6 Available
scanner
Macintosh has a built-in CD-ROM
2-10
Setting Up the Scanner
ID Availability Description
7 Not available for Macintosh Always used for the
May not be available for PCs.
* Scanner will not work if selected.
Not available For transportation purposes.*
Macintosh itself
Usually used for the PC’s SCSI board
See ”Transporting the Scanner and the Transparency Unit” in the Maintenance and Troubleshooting section of the online
Reference Guide
Caution:
c
Do not set the SCSI ID to an ID number that is already assigned to another device. Otherwise the computer, scanner, and other devices will not operate properly.

Setting the terminator switch

The scanner has a built-in terminator, which allows SCSI devices to communicate properly with each other. Depending on your computer system, you may need to change the terminator switch setting.
2
.
Note:
Do not use an external terminator.
The terminator switch is located at the rear of the scanner.
Setting Up the Scanner
2-11
Only the scanner is connected
terminator on
The scanner is the last device in the daisy chain
(other SCSI device)
The scanner is in the middle of the daisy chain
terminator on
2-12
(other SCSI device)
terminator off
Setting Up the Scanner

Connecting the scanner

Connect the scanner to your computer or to another SCSI device as described below.
Note:
The types of connectors needed on the SCSI interface cable varies depending on the maker of your SCSI device and SCSI interface board.
1. Make sure the scanner, computer, and all other SCSI devices are turned off and unplugged from the power source.
Caution:
Do not connect the scanner to the computer or other devices
c
while they are turned on as damage may occur.

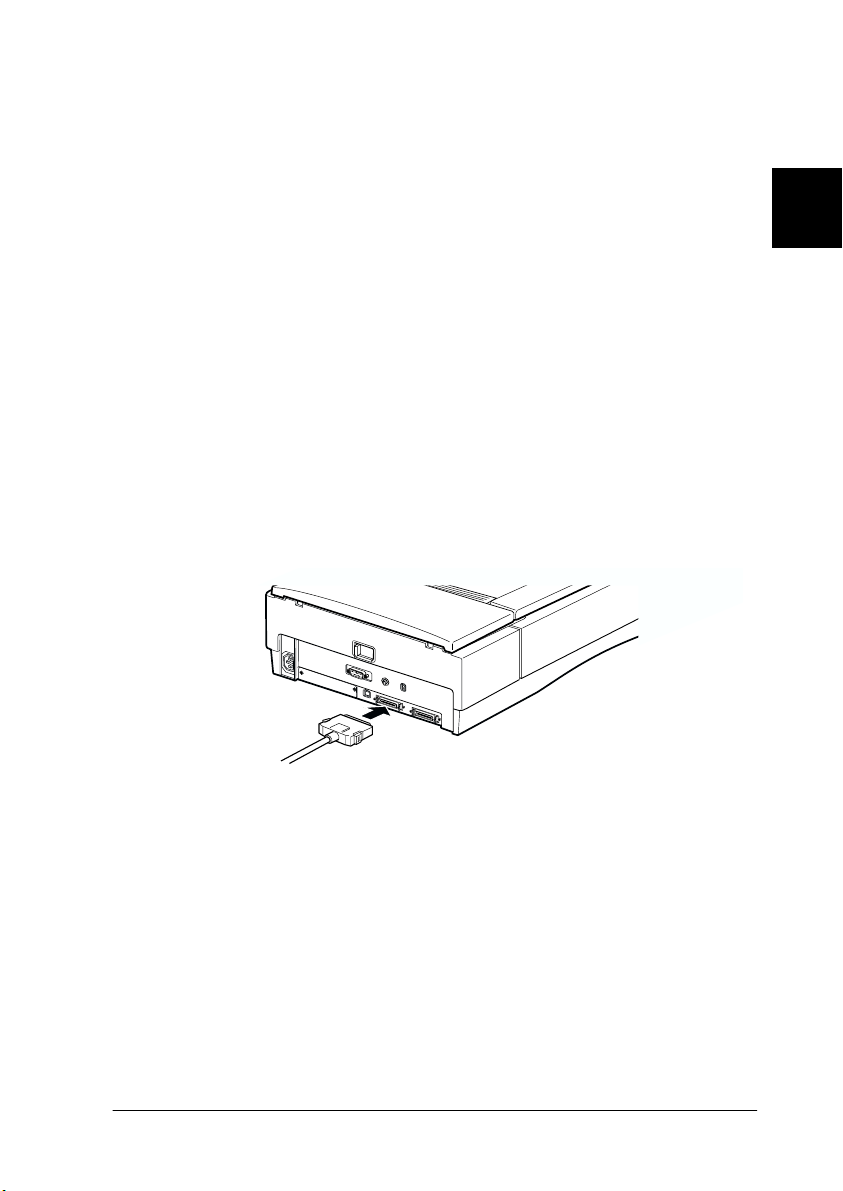

2. Connect one end of the interface cable to one of the scanner SCSI connectors until the locks on both sides snap in.
2
Note:
To connect the scanner to a SCSI device other than the
computer, the length of cable in the daisy chain must not exceed 6 meters; otherwise the system may not work properly.
To connect the scanner to a PC using SCSI-2, the length of the
cable must not exceed 3 meters.
Make sure no other interface is used.
Setting Up the Scanner
2-13
3. Connect the other end of the cable to the SCSI port of your computer or another SCSI device.
Note:
The SCSI port on the Macintosh is the larger port with the SCSI icon over it.
4. Plug in the power cords of your computer, scanner, and other external SCSI devices.
When all devices are connected and plugged in, take note of the information in “Power-on sequence” on page 2-14 and “Power­off sequence” on page 2-15, then install the scanner software as described in Chapter 3.

Power-on sequence

Always turn on your scanner or other SCSI devices before turning on the computer. If your scanner is connected to a daisy chain, turn on the SCSI device which is connected at the farthest end of the chain first, then proceed to the second farthest device and so on before turning on your computer. If you attempt to use a SCSI device that has been turned on after the computer, it may not work properly, or the computer may not work properly.
Note:
If the scanner software is not yet installed, a dialog box or message prompting you to set up the device and install the scanner software may appear when you turn on the computer when the scanner is on. In this case, see the scanner software installation instructions in Chapter 3, “Installing the Software,” to complete the setup procedure.
2-14
Setting Up the Scanner

Power-off sequence

Keep the following in mind every time you turn off your computer, scanner, and other SCSI devices.
When you are finished using your system, turn off your
computer first, then the scanner and other SCSI devices in reverse order of the power-on sequence.
While using your computer, do not turn off any SCSI device
which has a terminator that is on.
Do not turn the scanner off and back on while using your
computer; otherwise the scanner may not work properly.
When changing the ID number or replacing the SCSI board in Windows 98
If you want to change the SCSI ID number of your scanner, or replace your computer’s SCSI board, you may need to remove your scanner from your system first, depending on the version of Windows 98 installed on your computer. If Windows 98 Second Edition is installed on your computer, you can make these changes without removing the scanner from the system. If your version of Windows 98 is not the Second Edition, you need to remove and then reinstall the scanner software in your computer as described in “Changing the ID number or SCSI board” on page 2-16. See the next section for instructions on checking your Windows 98 version.
2
Setting Up the Scanner
2-15
Checking your Windows 98 version
Follow the steps below to check your Windows 98 version.
1. Right-click the My Computer icon on your desktop, and select Properties.
2. In the General menu, read the description under System.
If you see 4.10.1998, your version of Windows 98 is not the Second Edition, and you must follow the steps in the next section when changing the SCSI board or ID number.
If the description does not include 4.10.1998, you can change the ID number or SCSI board without following the steps below.
Changing the ID number or SCSI board
1. Connect the scanner to your computer.
Note:
If you have cameras or scanners other than the EPSON Expression 1680 listed in the Control Panel's Scanner and Cameras Properties dialog box, you must also connect them to your computer or USB hub.
2. Turn on the scanner and any other devices listed in the Scanner and Cameras Properties dialog box, then turn on your computer.

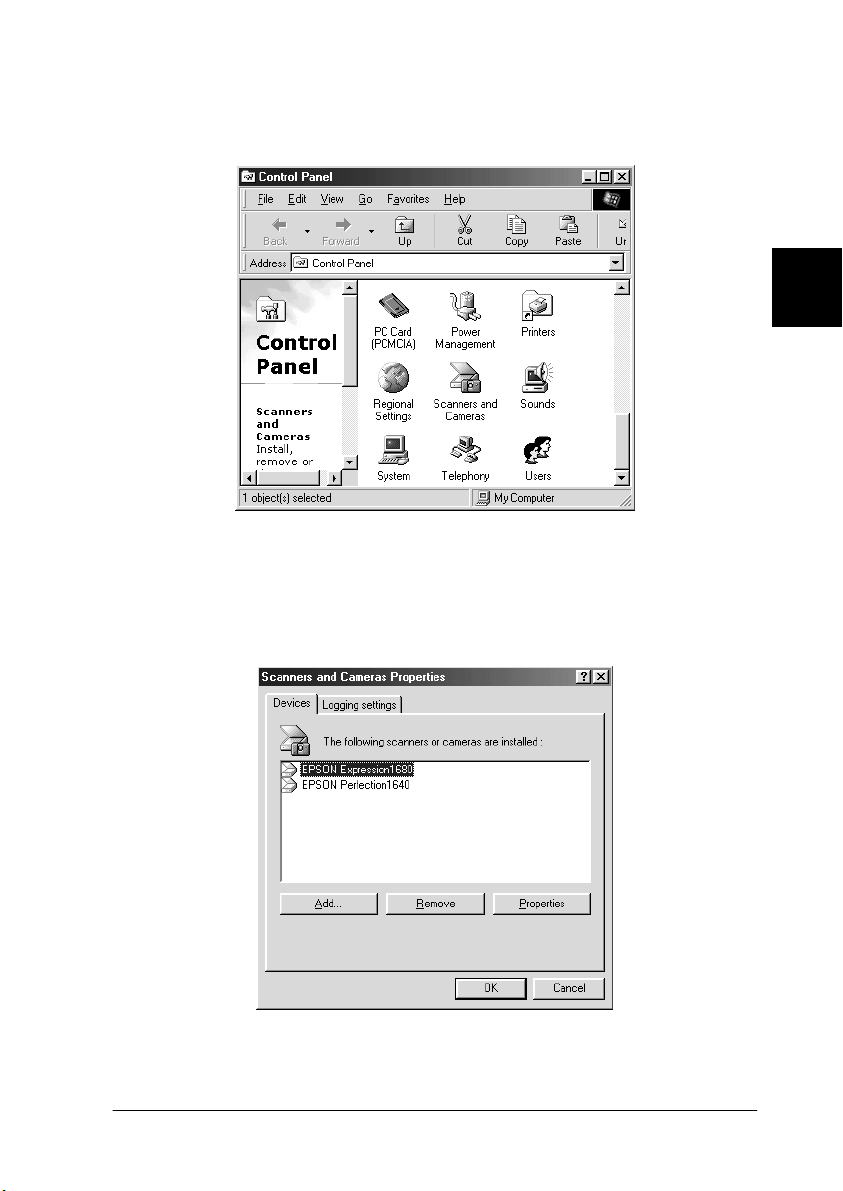

3. Click the Start menu, point to Settings and click Control Panel.
4. Double-click the Scanners and Cameras icon.
5. Select EPSON Expression1680 and click Remove.
2-16
Setting Up the Scanner
Note:
If other devices listed in the Scanners and Cameras Properties dialog box are not connected to the computer when you click Remove, those devices may also be removed. Be sure to connect and turn on all the devices listed in the Scanners and Cameras Properties dialog box before turning on your computer and removing the scanner.
6. Click OK to close the dialog box, then close the Control Panel.
7. Shut down Windows and turn off your computer.
8. Turn off the scanner.
9. Change the scanner’s SCSI ID number, or if you are changing the SCSI board, disconnect the SCSI cable and replace the board. Then reconnect the SCSI cable.
10. Turn on the scanner, then turn on your computer.

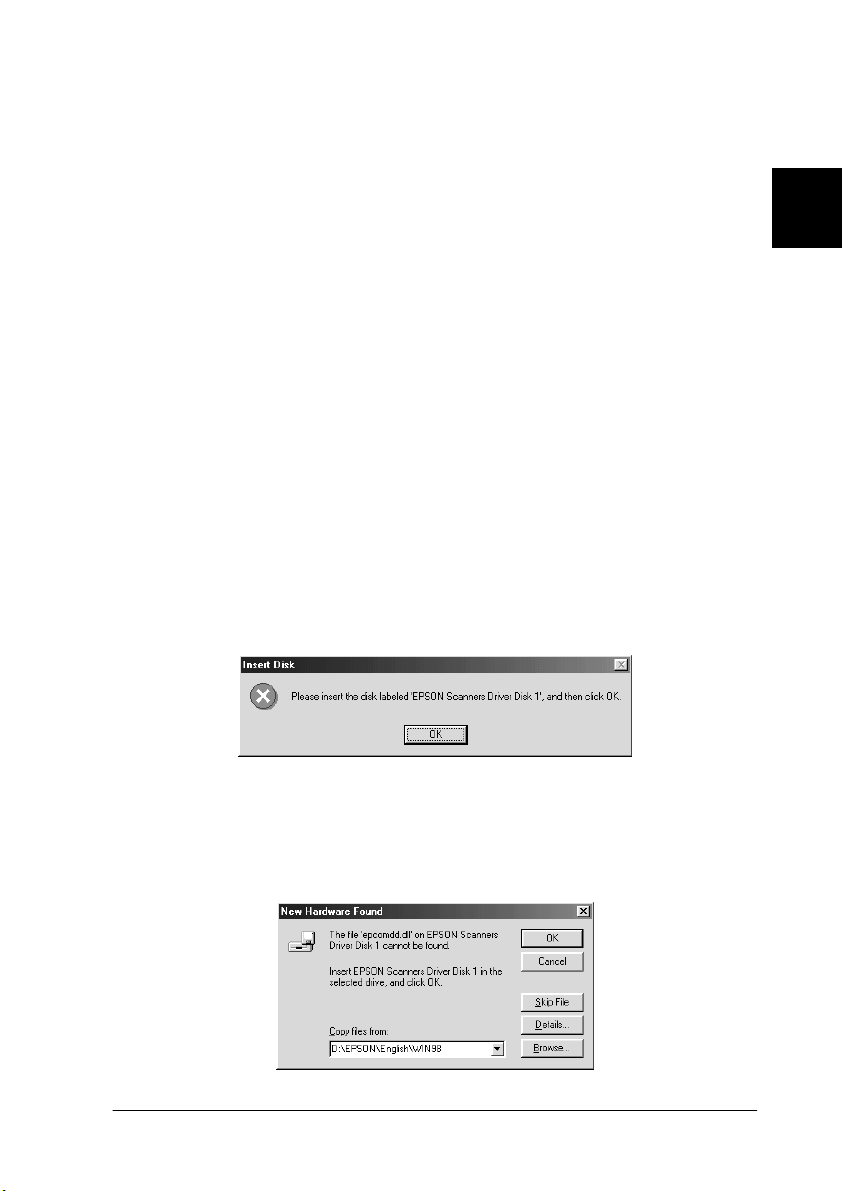

11. When the dialog box below appears, insert your scanner software CD into your CD-ROM drive, then click OK to reinstall EPSON TWAIN Pro.
2
Note:
If the following dialog box appears, browse the CD-ROM for EPSON\(your preferred language)\Win98, then click OK.
Setting Up the Scanner
2-17

Connecting the Scanner Using the USB Interface

To connect your scanner to your computer with the USB cable, your PC must be pre-installed with Windows Millennium Edition, 98, or 2000, and have a working USB port.
Your Apple Macintosh must be equipped with a PowerPC processor running Mac OS 8.5 or later, and have a working USB port.
Note for Macintosh users:
Be sure to install the scanner software before connecting the scanner to your computer. For details, see Chapter 3, “Installing the Software.”
Note for Windows users:
If you want to connect the scanner to a different USB port on your computer or hub after installing the scanner software, you must uninstall the scanner software before switching ports, then reinstall the software once the scanner is connected to the new port. Follow the instructions in “When changing the USB port in Windows 98” on page 2-21.

Understanding USB connections

Read this section for a general understanding of USB cables and USB hubs.
USB cables
USB cables enable you to connect or remove peripherals to and from your computer easily, without having to shut down and restart the system each time a peripheral is plugged in or unplugged. You do not have to set an ID number or a terminator.
Note:
Do not connect or disconnect USB cables when the scanner is in use.
2-18
Setting Up the Scanner
The connectors at each end of USB cables are different. The end that connects to your computer has a "Type A" connector, shown below:
The end that connects to your scanner has a "Type B" connector, shown below:
USB hubs
You can also use a USB hub, allowing you to increase the number of USB ports and therefore connect several devices to your computer at the same time.
2
Note:
If you connect your scanner through more than one hub, your system may not work properly. In this case, try connecting the scanner directly to the computer’s USB port. Also, your system may not work properly if you use a USB cable other than that supplied by EPSON.
Setting Up the Scanner
2-19

Connecting the scanner

Follow these steps to connect the scanner to your computer or USB hub.
Note for Windows 98 users:
If you want to connect the scanner to a different USB port on your computer or hub after installing the scanner software, you must uninstall the scanner software before switching ports, then reinstall the software once the scanner is connected to the new port. Follow the instructions in “When changing the USB port in Windows 98” on page 2-21.
1. Connect the end of the cable shown below to the USB port on the back of the scanner.
2-20
Setting Up the Scanner
2. Connect the other end of the cable shown below to the USB port on your computer, or USB hub.
Note:
USB cables enable you to connect the scanner whether your
computer is on or off. If you connect the scanner and turn it on while your computer is on and the scanner software is not yet installed, a dialog box or message prompting you to set up the device may appear on your screen. In this case, see the EPSON TWAIN Pro installation instructions in Chapter 3 to complete the setup procedure.
Connect the USB cable to your computer before installing or
starting the scanner software. Do not connect or disconnect the USB cable while the scanner software is open.
Make sure no other interface is used.
2

When changing the USB port in Windows 98

If you want to connect the scanner to a different USB port on your computer or hub, you may need to remove your scanner from your system first, depending on the version of Windows 98 installed on your computer. If Windows 98 Second Edition is installed on your computer, you can change the USB port without removing the scanner from the system. If your version of Windows 98 is not the Second Edition, you need to remove and then reinstall the scanner software in your computer as described in “Changing the USB port” on page 2-22. For instructions on checking your Windows 98 version, see the next section.
Setting Up the Scanner
2-21
Checking your Windows 98 version
Follow the steps below to check your Windows 98 version.
1. Right-click the My Computer icon on your desktop, and select Properties.
2. In the General menu, read the description under System.
If you see 4.10.1998, your version of Windows 98 is not the Second Edition, and you must follow the steps in the next section when changing the USB port.
If the description does not include 4.10.1998, you can change the USB port without following the steps below.
Changing the USB port
1. Connect the scanner to your computer.
Note:
If you have cameras or scanners other than the EPSON Expression 1680 listed in the Control Panel's Scanner and Cameras Properties dialog box, you must also connect them to your computer or USB hub.
2. Turn on the scanner and any other devices listed in the Scanner and Cameras Properties dialog box, then turn on your computer.
3. Click the Start menu, point to Settings and click Control Panel.
4. Double-click the Scanners and Cameras icon.
2-22
Setting Up the Scanner
5. Select EPSON Expression 1680 and click Remove.
Note:
If other devices listed in the Scanners and Cameras Properties dialog box are not connected to the computer when you click Remove, those devices may also be removed. Be sure to connect and turn on all the devices listed in the Scanners and Cameras Properties dialog box before turning on your computer and removing the scanner.
6. Click OK to close the dialog box, then close the Control Panel.
7. Shut down Windows and turn off your computer, but leave the scanner on.
8. Connect the USB cable to the new USB port.
9. Turn on your computer.

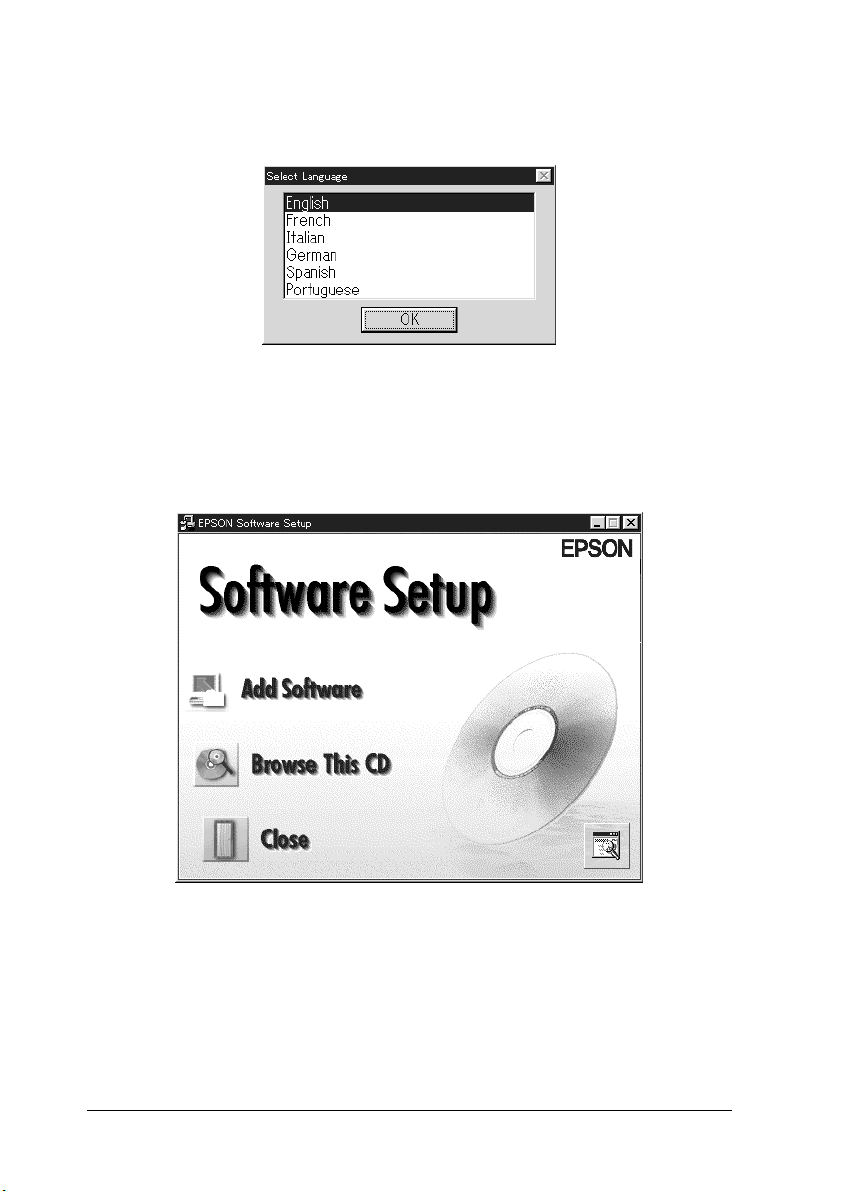

10. When the dialog box below appears, insert your scanner software CD into your CD-ROM drive, then click OK to reinstall EPSON TWAIN Pro.
2
Note:

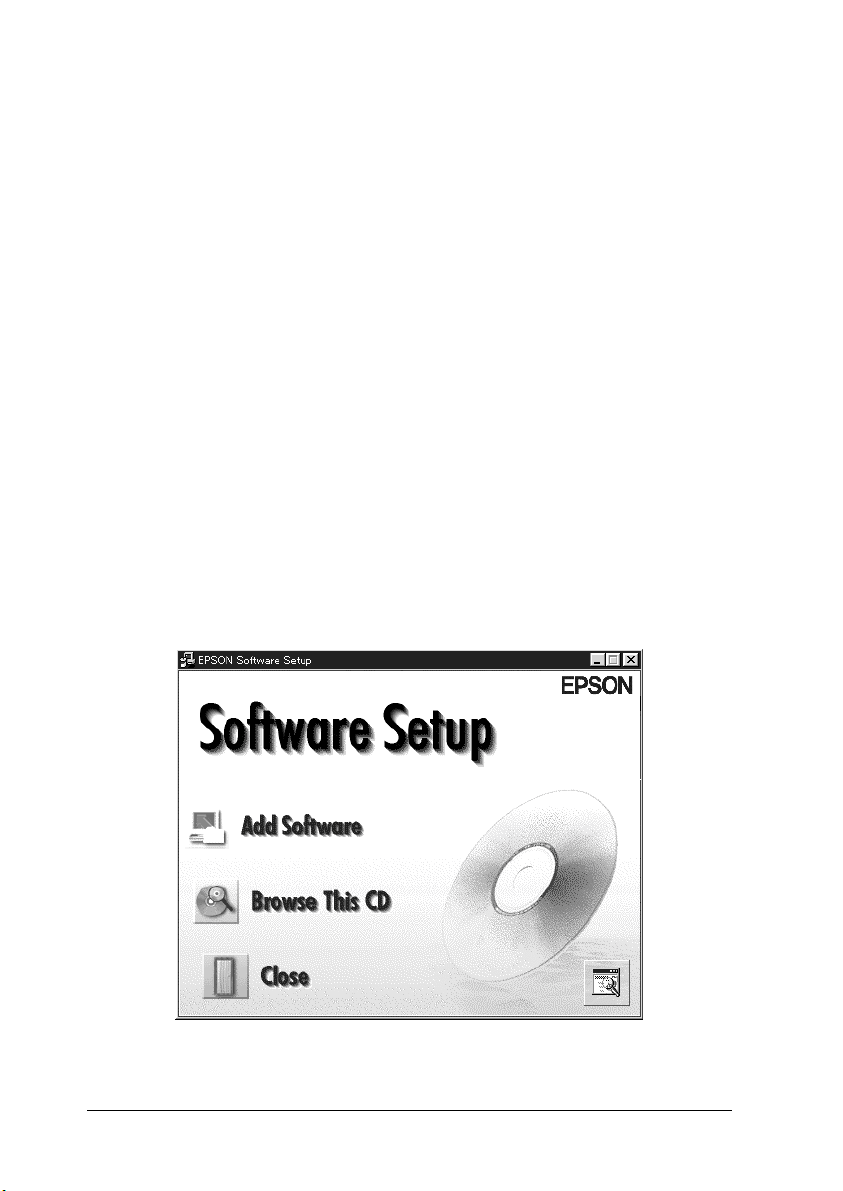

If the following dialog box appears, browse the CD-ROM for EPSON\language\Win98, then click OK.
Setting Up the Scanner
2-23
2-24
Setting Up the Scanner
Chapter 3

Installing the Software

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
When connecting the scanner directly to
your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
When scanning over a network . . . . . . . . . . . . . . . . . . . . . . . 3-5
Installing EPSON TWAIN Pro for Windows . . . . . . . . . . . . . . . .3-6
For Windows Millennium Edition users. . . . . . . . . . . . . . . . 3-7
For Windows 2000 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
For Windows 98 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Installing other scanner software for
Windows Millennium Edition, 98, and 2000 . . . . . . . . . .3-17
For Windows 95 and Windows NT 4.0 users. . . . . . . . . . . . 3-19
Installing EPSON TWAIN Pro for Macintosh. . . . . . . . . . . . . . . . 3-25
Installing Software for Scanning Over a Network . . . . . . . . . . . .3-27
Installing EPSON Scan Server . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Setting the Scanner Server PC's IP Address . . . . . . . . . . . . .3-36
Installing EPSON TWAIN Pro Network. . . . . . . . . . . . . . . . 3-37
3
Selecting Scanners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
For Windows Millennium Edition, 98, and 2000 users. . . . 3-44
For Macintosh users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-47
When Updating Your Windows Operating System. . . . . . . . . . .3-48
Uninstalling the Scanner Software for Windows . . . . . . . . . . . . . 3-49
Installing the Software
3-1

System Requirements

Before installing the scanner software, make sure that your system meets the following requirements.

When connecting the scanner directly to your computer

To use your scanner when it is directly connected to your computer through a SCSI or USB connection, make sure your system meets the requirements in the appropriate section below.
Note:
For requirements when using your scanner over a network, see “When scanning over a network” on page 3-5.
For Windows
SCSI users
Scanner: EPSON Expression 1680/Expression 1680 Pro
System: Microsoft
Windows 98, Windows 95, Windows 2000, or Windows NT 4.0
Interface: Adaptec
Display: VGA or higher resolution monitor 640 ×
resolution (800 × 600 or higher recommended), and 65,000 colors (or higher)
Note:
Color and tone reproduction are subject to the display capability of your computer system, including the video card, display monitor, and software. See the product documentation for details.
3-2
Installing the Software
®
Windows Millennium Edition,
®
SCSI a
dapter
480
screen
USB users
Scanner: EPSON Expression 1680/Expression 1680 Pro
System: Microsoft Windows Millennium Edition,
Windows 98, or Windows 2000 pre-installed
Interface: USB port (Type A receptacle)
Display: VGA or higher resolution monitor 640 × 480 screen
resolution (800 × 600 or higher recommended), and 65,000 colors (or higher)
Note:
Color and tone reproduction are subject to the display capability of your computer system, including the video card, display monitor, and software. See the product documentation for details.
3
Installing the Software
3-3
For Macintosh
SCSI users
Scanner: EPSON Expression 1680/Expression 1680 Pro
®
System: Apple
Macintosh with a PowerPC processor
running system 8.0 or later
Interface: SCSI adapter
Note:
You cannot use a serial interface.
Display: Color Monitor, 640 × 480 screen resolution (or higher
recommended), and 32,000 colors (or higher)
Note:
Color and tone reproduction are subject to the display capability of your computer system, including the video card, display monitor, and software. See the product documentation for details.
USB users
Scanner: EPSON Expression 1680/Expression 1680 Pro
System: Apple Macintosh PowerPC with built-in USB ports
and running Mac OS 8.5 or later
iMac running Mac OS 8.5 or later
Interface: USB port
Note:
You cannot use a serial interface.
3-4
Installing the Software
Display: Color Monitor, 640 × 480 screen resolution (or higher
recommended), and 32,000 colors (or higher)
Note:
Color and tone reproduction are subject to the display capability of your computer system, including the video card, display monitor, and software. See the product documentation for details.

When scanning over a network

Computer: for EPSON Scan Server
IBM PC/AT compatible computer (Intel Pentium or faster processor is recommended)
for EPSON TWAIN Pro Network
IBM PC/AT compatible computer (Intel Pentium or faster processor is recommended), or Apple Power Macintosh
3
Operating system: for EPSON Scan Server
Windows Millennium Edition, 98, 95, 2000 Server or Professional, or NT 4.0 Server or Workstation
for EPSON TWAIN Pro Network
Windows Millennium Edition, 98, 95, 2000 Professional, NT 4.0 Workstation, or Apple System 8.0 or later
System configuration:
Scanner: EPSON Expression 1680/1680 Pro
Minimum two computers in a network.
Installing the Software
3-5
Interface for scanner:
SCSI, USB, IEEE 1394
Interface for network:
Ethernet communication protocol:
10BaseT/100BaseTX, 10Base5, 10Base2
TCP/IP

Installing EPSON TWAIN Pro for Windows

After connecting the scanner to your computer, you need to install the scanner software from the CD-ROM. If the scanner is connected directly to your computer, follow the instructions for your version of Windows in this section. If the scanner is connected through a network, follow the instructions in “Installing Software for Scanning Over a Network” on page 3-27.
Note:
If you are planning to upgrade your Windows operating system,
you should do so before installing the scanner software.
If you have already installed the scanner software in Windows 98,
95, or NT 4.0 and you plan to upgrade your Windows operating system, you need to uninstall the scanner software before upgrading Windows. See “When Updating Your Windows Operating System” on page 3-48 for more information.
3-6
Installing the Software

For Windows Millennium Edition users

Follow the steps below to install EPSON TWAIN Pro using the Plug and Play feature.
1. Connect your scanner to your computer and turn on the scanner and then your computer.
Note:
It is important to follow this power on sequence if you are using a SCSI interface. Otherwise the Plug and Play feature will not work.
2. The first time you turn on the computer after connecting the scanner, the dialog box shown below appears. Select Specify the location of the driver, then click Next.
3. Insert your scanner software CD in the CD-ROM drive.
3
Installing the Software
3-7

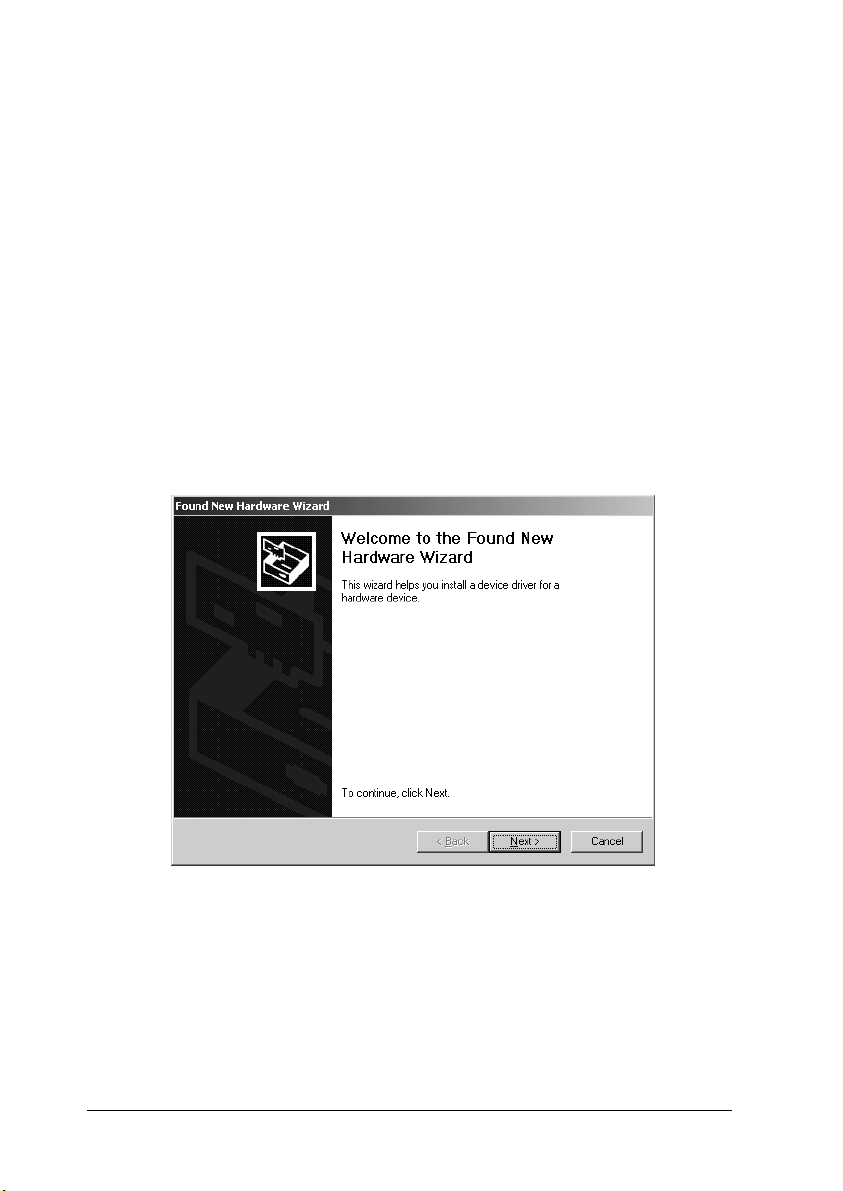

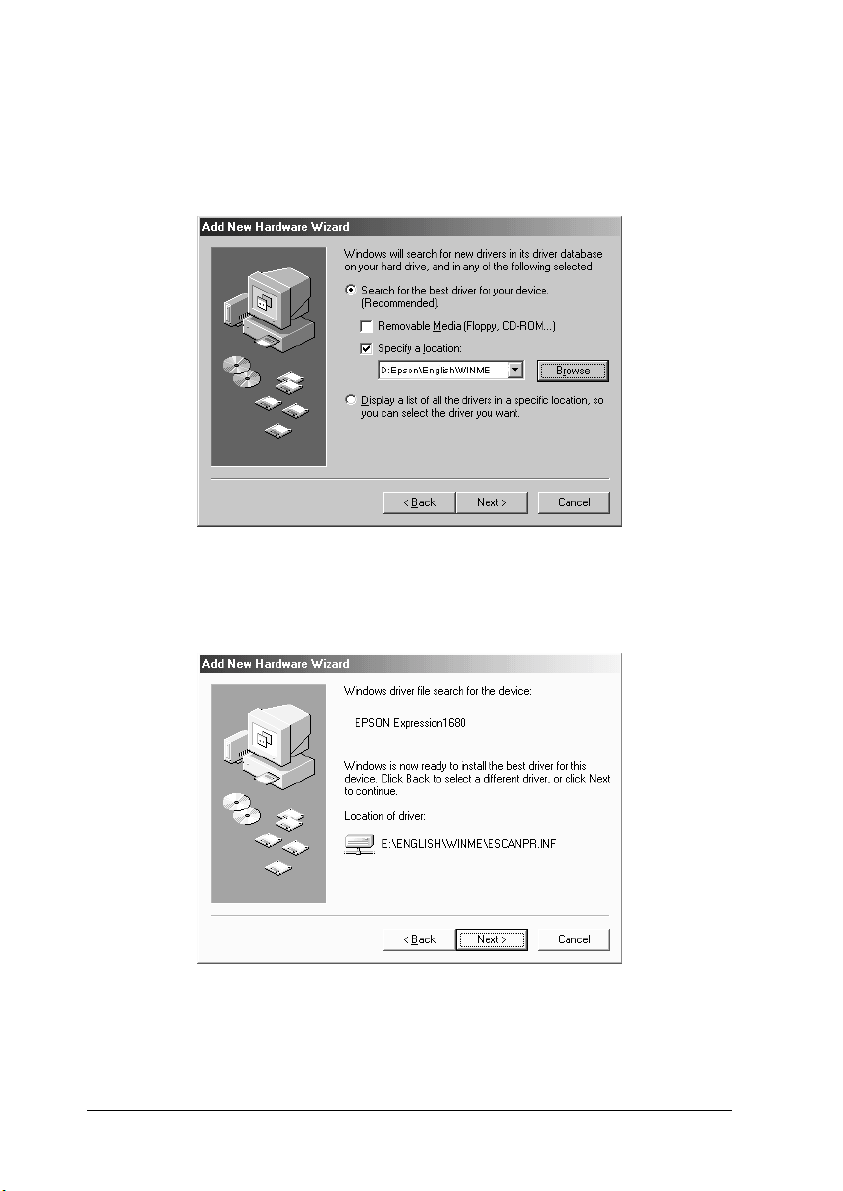

4. Make sure the Search for the best driver for your device option and the Specify a location check box are selected, then browse the CD-ROM for EPSON\(your preferred language)\WINME, then click Next.
5. When a dialog box similar to the one shown below appears, click Next.
3-8
Installing the Software
6. When the dialog box shown below appears, click Finish.
7. This completes the EPSON TWAIN Pro installation. Restart your computer.
Note:
It is important to restart your computer before using the scanner.
You are now ready to install the other software from your scanner software CD-ROM. See “Installing other scanner software for Windows Millennium Edition, 98, and 2000” on page 3-17.
3
Installing the Software
3-9

For Windows 2000 users

Follow the steps below to install EPSON TWAIN using the Plug and Play feature.
1. Connect your scanner to your computer and turn on the scanner and then your computer.
Note:
It is important to follow this power on sequence if you are using a SCSI interface. Otherwise the Plug and Play feature will not work.
2. The first time you turn on the computer after turning on the scanner, the dialog box shown below appears. Insert your scanner software CD in the CD-ROM drive, then click Next.
3-10
Installing the Software
3. Make sure that the Search for a suitable driver for my device option is selected, then click Next.
4. Make sure only Specify a location is selected, and click Next.
3
Installing the Software
3-11

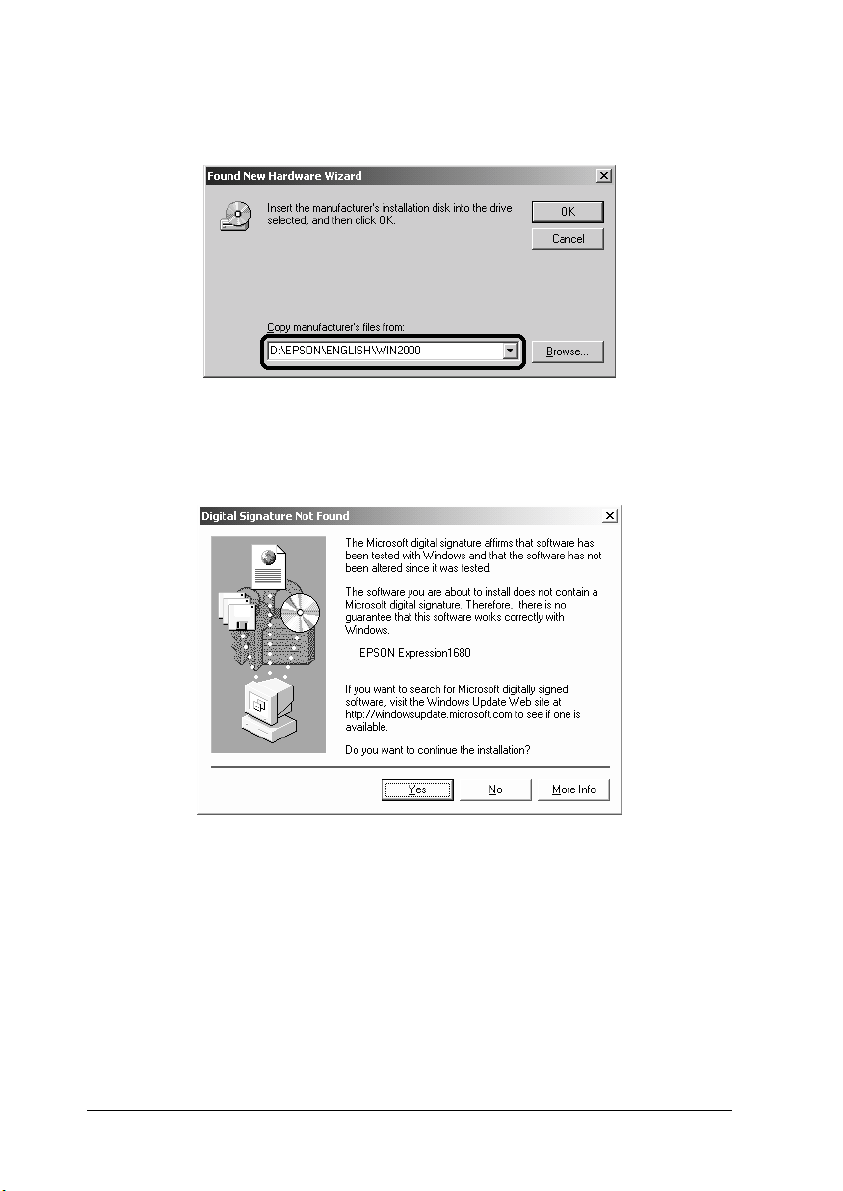

5. Browse the CD-ROM for EPSON\(your preferred language)\WIN2000, then click OK.
6. Follow the instructions on the screen. When the dialog box shown below appears, click Yes to continue.
3-12
Note:
If you click No and stop installation, your scanner will appear under Other Devices with a ? mark in the Device Manager menu. To
reinstall EPSON TWAIN, you must first uninstall the software. Follow the instructions in “Recovering from Scanner Software Installation Problems on Windows 98, 2000, and Millennium Edition” in the online Reference Guide to uninstall your scanner before installing EPSON TWAIN again.
Installing the Software

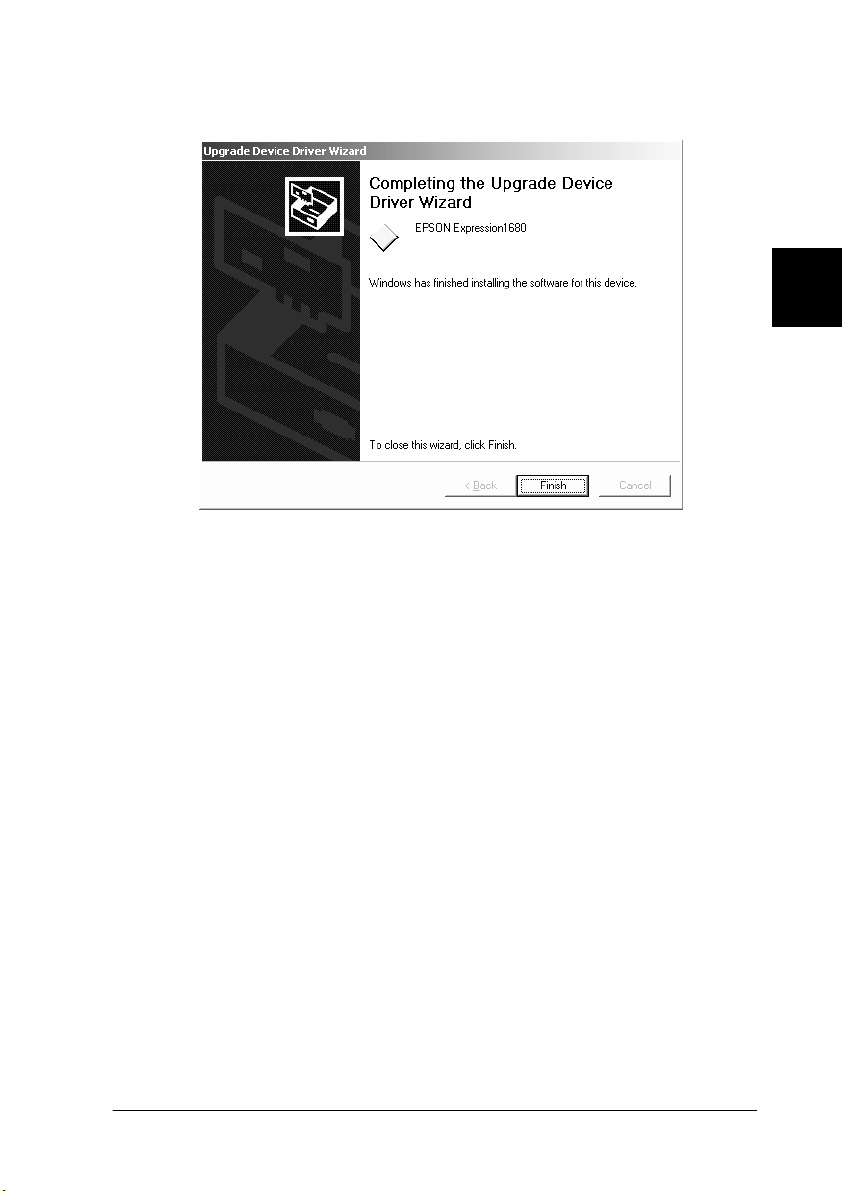

7. When the dialog box shown below appears, click Finish.
Note:
If a message appears instructing you to restart your computer, click Yes to restart your computer.
You are now ready to install the other software from your scanner software CD-ROM. See “Installing other scanner software for Windows Millennium Edition, 98, and 2000” on page 3-17.
3
Installing the Software
3-13

For Windows 98 users

Follow the instructions below to install the scanner software on your Windows 98 system.
Note:
If you plan to upgrade from Windows 98 to a newer Windows operating system, do not install the scanner software until you have finished upgrading your system.
1. Connect your scanner to your computer and turn on the scanner and then your computer.
Note:
It is important to follow this power on sequence if you are using a SCSI interface. Otherwise the Plug and Play feature will not work.
2. When the dialog box below or similar appears, insert the scanner software CD in the CD-ROM drive, then click Next
.
3-14
Installing the Software
3. Select the Search for the best driver for your device option, then click Next.
4. Make sure the Specify a location check box is selected, then browse the CD-ROM for EPSON\(your preferred language)\WIN98, as shown below, and click Next.
3
Installing the Software
3-15
5. Follow the instructions on the screen. Depending on your system, you may be asked to insert the Windows 98 CD-ROM.
Make sure that the correct CD-ROM drive letter and the Win98 folder are specified in the Copy files from box as shown below.

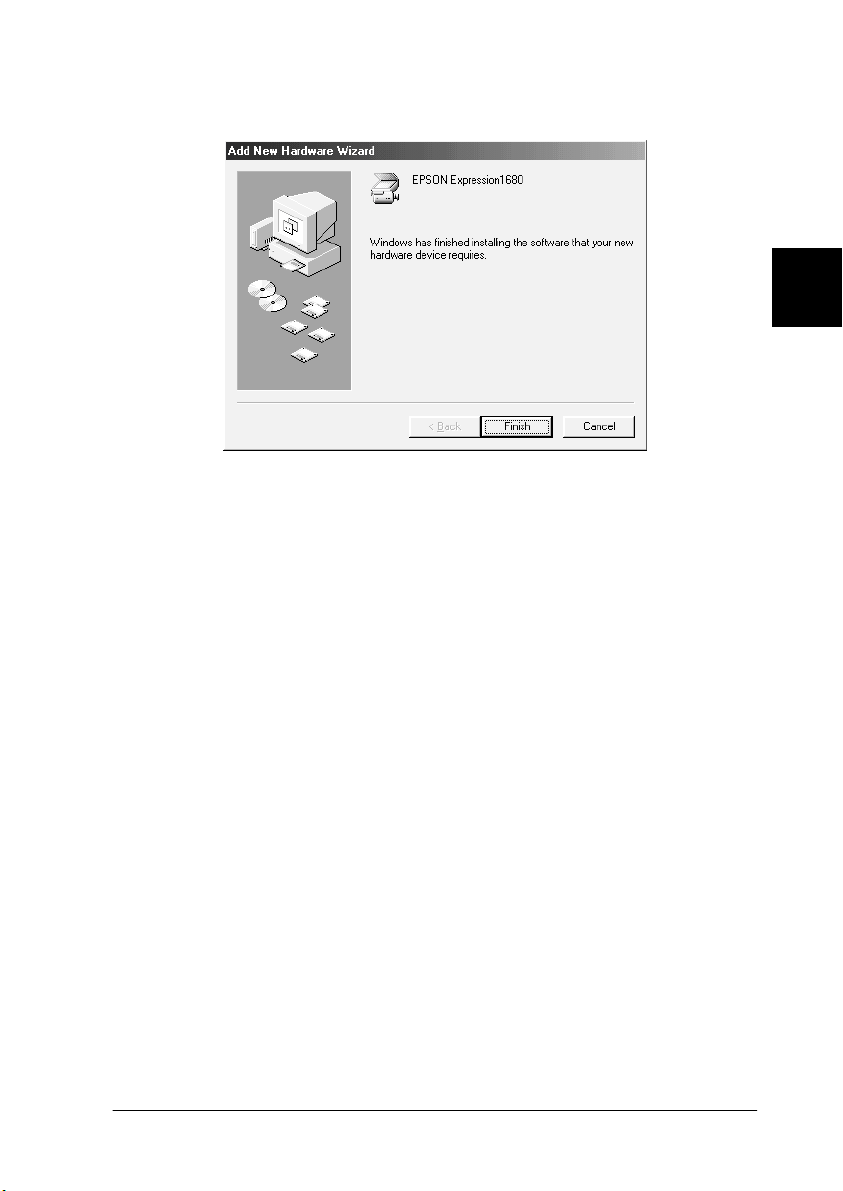

6. When the following dialog box is displayed, click Finish.
3-16
Installing the Software
Note:
If a message appears instructing you to restart your computer, click Yes to restart your computer.
This completes the EPSON TWAIN Pro installation. See the next section to install additional software from the CD-ROM.
Installing other scanner software for Windows Millennium Edition, 98, and 2000
Follow the steps below to install Presto! PageManager for EPSON and other scanner software in your computer.
Note:
To take advantage of all the functions of your scanner’s be sure to install Presto! PageManager for EPSON following the instructions below.
1. Double-click the My Computer icon.
2. Double-click the CD-ROM drive icon. A dialog box asking for your preferred language appears on your screen. If no dialog box appears, double-click the Cdsetup.exe icon.
3. Select your preferred language and click OK.
a Start button,
3
Installing the Software
3-17
4. The following dialog box appears. Click Add Software.
5. A list of software appears. Click to select the names of the
software you want to install in your PC. Make sure Presto! PageManager for EPSON Ver.4.2 is selected.
6. Click OK, then follow the on-screen instructions to finish
installing the software.
Note:
If folders for the applications on the CD-ROM contain README files, double-click and read them as they contain up-to-date information regarding the software.
3-18
Installing the Software
For Windows 95 and Windows NT 4.0 users
Follow the steps below to install the scanner software in your Windows 95 or Windows NT 4.0 system.
Note:
If you plan to upgrade from Windows 95 or Windows NT 4.0 to a newer Windows operating system, do not install the scanner software until you have finished upgrading your system.
1. Connect your scanner to your computer and turn on the scanner and then your computer.
Note:
It is important to follow this power on sequence if you are using a SCSI interface. Otherwise the Plug and Play feature will not work.
If you are using Windows NT 4.0, insert the scanner software CD in the CD-ROM drive, then proceed to step 3.
If you are using Windows 95, one of the following dialog boxes will appear.
3
Installing the Software
3-19

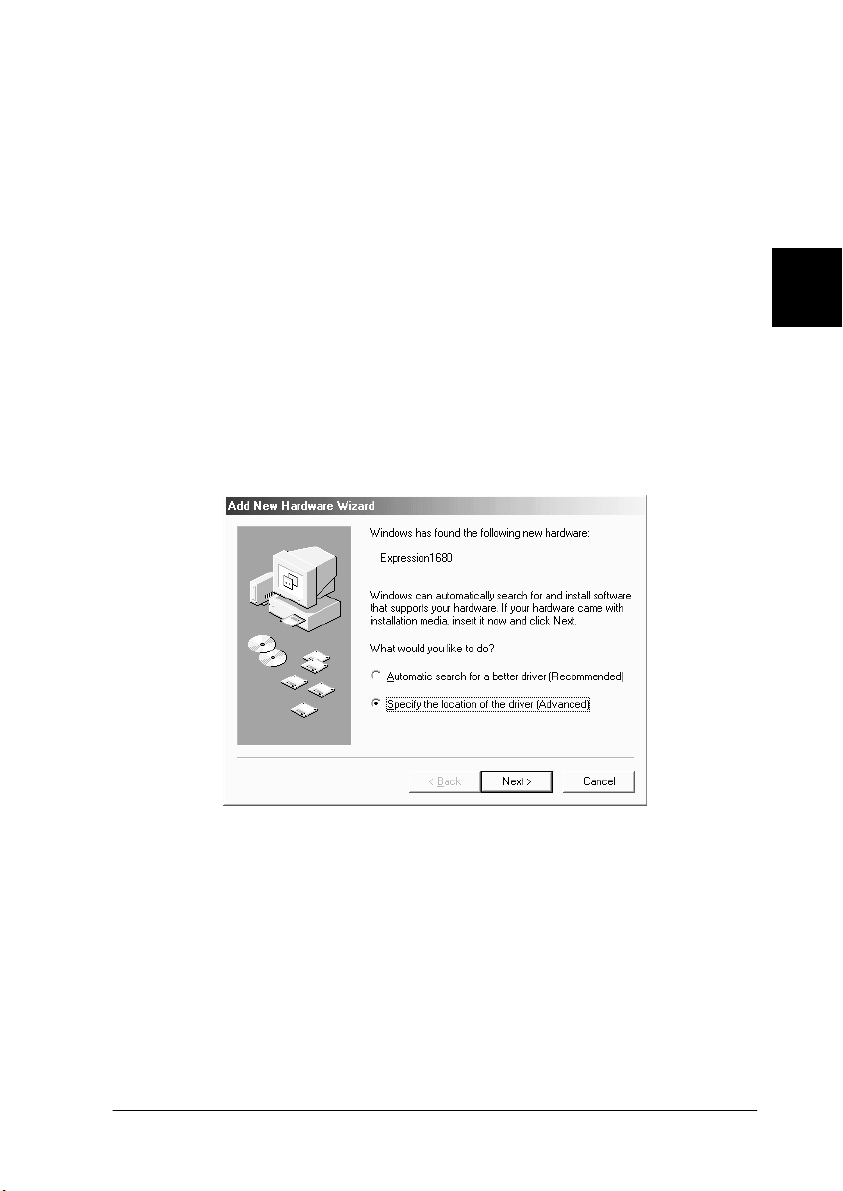

If the dialog box below appears, insert the scanner
software CD in the CD-ROM drive.
Select Driver from disk provided by hardware
manufacturer, then click OK. Browse the CD-ROM for EPSON\(your preferred language)\WIN95, then click OK. Go to step 3.
3-20
Installing the Software

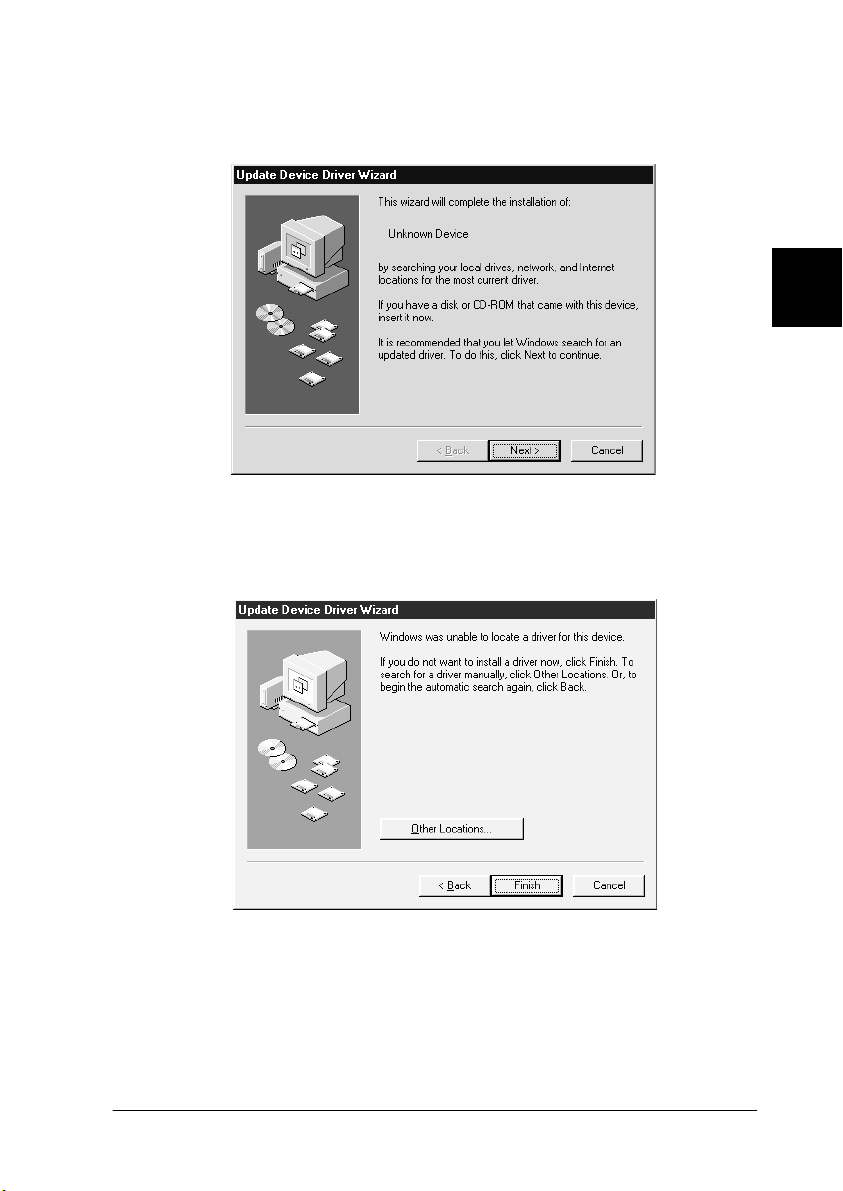

If the dialog box below appears, insert the scanner
software CD in the CD-ROM drive, then click Next
When the following dialog box appears, click the Other Location button.
.
3
Installing the Software
3-21
The Select Other Location dialog box appears. Browse the CD-ROM for EPSON\(your preferred language)\WIN95, then click OK.
When the following dialog box or similar appears, click Finish.
2. Double-click the My Computer icon.
3. Double-click the CD-ROM drive icon. A dialog box asking your preferred language appears on your monitor. If no dialog box appears, double-click the Cdsetup.exe icon.
4. Select your preferred language, then click OK.
3-22
Installing the Software
5. The following dialog box appears. Click Add Software.
6. A list of software appears. Click to select the names of the
software you want to install in your PC. Make sure Presto! PageManager for EPSON Ver.4.2 is selected.
7. Click OK. Then follow the instructions on the screen.
The setup program installs EPSON TWAIN Pro, EPSON Scanner Monitor and Presto! PageManager for EPSON.
3
8. After EPSON TWAIN Pro is installed, the following dialog box appears.
Installing the Software
3-23

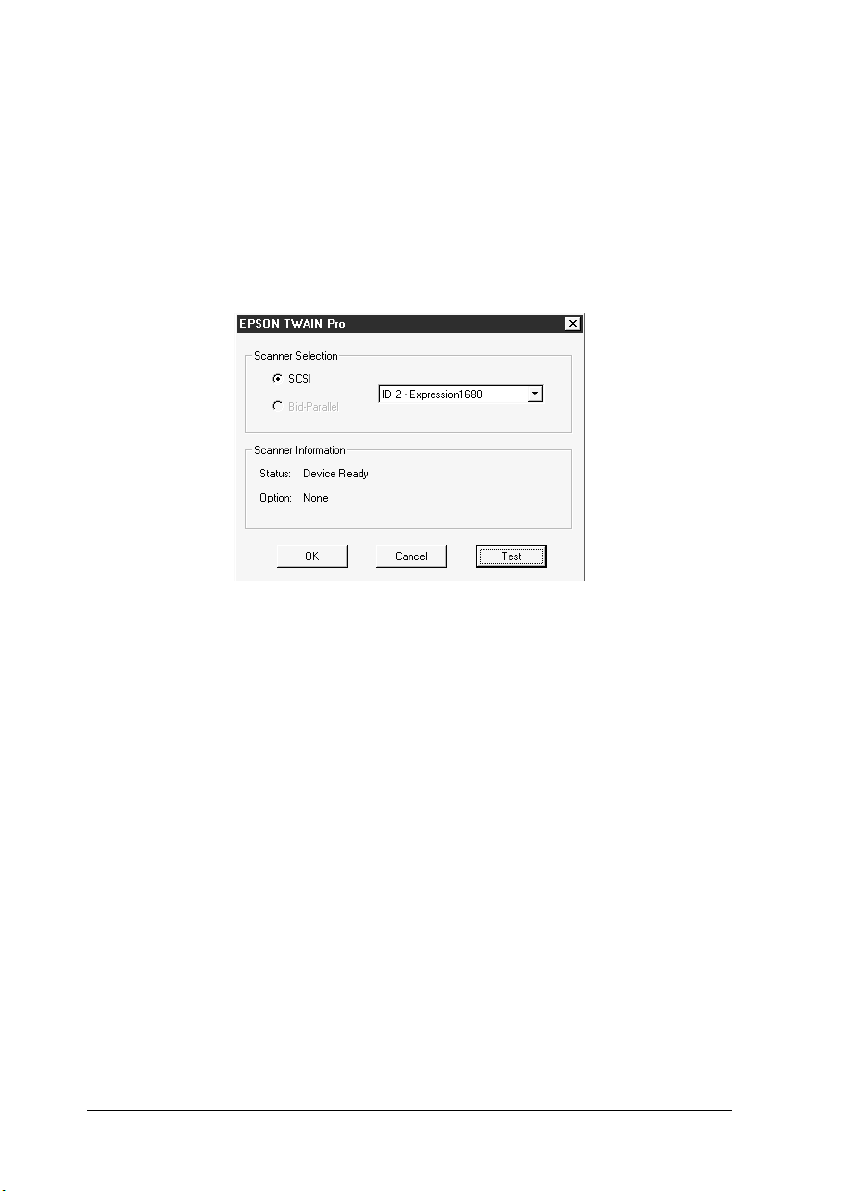

9. Make sure that SCSI is selected and your EPSON scanner
appears in the Scanner Selection list. If not, see “Software Setup Problems” in the Maintenance and Troubleshooting section of the online Reference Guide.
10. Click Test to check the connection. If everything is properly installed and connected, Status: Device Ready appears under Scanner Information in the dialog box
.
If Device Ready does not appear, see ”Software Setup Problems” in the Maintenance and Troubleshooting section of the online Reference Guide.
11. Click OK to close the EPSON TWAIN Pro dialog box.
3-24
Installing the Software

Installing EPSON TWAIN Pro for Macintosh

Before connecting the scanner to your Macintosh computer, you must first install the EPSON scanner software from the CD-ROM.
Note:
If you are using an EPSON scanner or EPSON Stylus Scan series product that has a USB port and you have installed EPSON TWAIN or EPSON Stylus Scan FB/SF TWAIN on your Macintosh, do the following before you install the software:
1) Go to Control Panels in the Apple Menu.
2) Open Extensions Manager.
3) Clear the check box next to EPSON Scanner Monitor USB Extension.
4) Restart your Macintosh.
Follow the steps below to install the ESPON scanner software.
1. Turn on the computer.
2. Insert the CD in the CD-ROM drive.
3
3. Double-click the EPSON TWAIN Pro folder, then double-click
the folder of your preferred language.
4. Double-click the EPSON TWAIN Pro Installer icon.
Installing the Software
3-25
5. In the Installer dialog box, click Install and follow the
instructions on the screen.
6. When installation is finished, click Restart to restart your
computer, then proceed to step 7 to install other software.
7. Double-click the folder that contains the software you want to install, then double-click the folder of your preferred language.
Note:
To take advantage of all the functions of your scanner’s button, be sure to install Presto! PageManager for EPSON.
8. Double-click the installer icon to start the installation program. Then follow the instructions on the screen.
9. After installing the software, connect the scanner to your computer as described in Chapter 2. (Keep in mind the “Power-on sequence” on page 2-14 if you are using a SCSI interface.)
3-26
Installing the Software
a
Start

Installing Software for Scanning Over a Network

To use your scanner over a network, you need to install EPSON Scan Server on the computer that will act as the scanner server, and you need to install EPSON TWAIN Pro Network on each computer that will use the scanner on the network. Follow the instructions in this section.

Installing EPSON Scan Server

Note:
EPSON Scan Server cannot be installed on a Macintosh.
Follow these steps to install EPSON Scan Server:
1. Connect your scanner to the PC that will function as the scanner server.
2. Turn on the scanner, then turn on the scanner server PC.
3. Insert your scanner software CD in the CD-ROM drive.
3
In Windows Millennium Edition, 98, 95, or 2000, a setup wizard starts. Follow the on-screen instructions to install necessary driver files in your system, then proceed to step 4 to continue installing EPSON Scan Server.
If a message appears prompting you to specify a location for the driver, you must browse the CD-ROM for the appropriate folder listed below.
For Windows Millennium Edition users:
EPSON\(your preferred language)\WinMe
For Windows 98 users:
EPSON\(your preferred language)\Win98
Installing the Software
3-27
For Windows 95 users:
EPSON\(your preferred language)\Win95
For Windows 2000 users:
EPSON\(your preferred language)\Win2000
After specifying the appropriate folder, follow the on-screen instructions to finish installation and close the wizard. In Windows 95, an INF (information) file is installed. In Windows Millennium Edition, 98, and 2000, EPSON TWAIN Pro is installed.
4. Start Windows Explorer and double-click Cdsetup.exe in
the CD-ROM drive.
5. Select the language that you want to use in the Select
Language dialog box and click OK.
The EPSON Software Setup dialog box appears.
6. Click Add Software in the EPSON Software Setup dialog
box.
3-28
Installing the Software

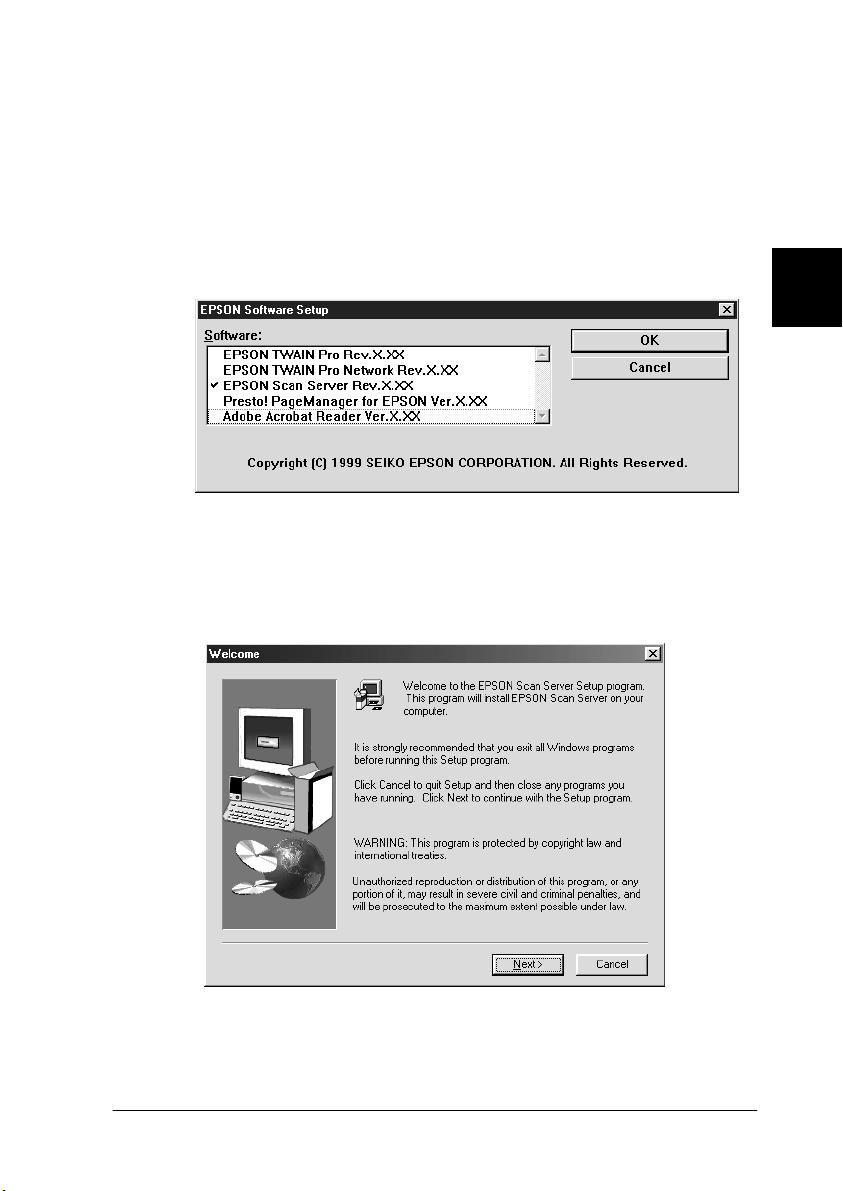

7. Select EPSON Scan Server. Make sure to remove check marks from any software that is already installed on the scanner server PC.
Note:
You must also select EPSON TWAIN Pro Network if you want to scan using the scanner server PC.
8. Click OK to start installation.
9. Click Next to begin copying the program files.
3
Installing the Software
3-29
10. When all files are copied, the following message appears.
Click Yes or No.
11. Find your version of Windows below and follow the instructions.
For Windows Millennium Edition, 98, and 2000 users:
The information dialog box appears. Click OK, then go to step 12 to finish the setup procedure.
3-30
Installing the Software
For Windows 95 and Windows NT 4.0 users:
The EPSON Scan Server dialog box appears.
Click Next. The EPSON Scan Server setup dialog box appears.
3
Installing the Software
3-31
Select the scanner to be used from the Scanner Selection list.
Note:
If the EPSON TWAIN Pro software or device information file is not already installed on the scanner server PC using Windows 95, no available scanners will appear on the list at this point. In this case, skip selection of the scanner name and continue the installation. Then proceed with the installation of the EPSON TWAIN Pro software. After the installation, select EPSON Scan Server from the Control Panel. Now the scanner name is on the list and can be selected.
To display the Scanner Information, click the Test button.
Select either Icon or Dialog box as the start up mode. If you select Icon, the EPSON Scan Server icon appears in the Taskbar tray when Scan Server starts. If you select Dialog, the EPSON Scan Server dialog box appears when Scan Server starts.
EPSON Scan Server icon
EPSON Scan Server dialog box
12. Click OK, then follow the on-screen instructions to finish installing the software.
Windows 95 and NT 4.0 users should proceed to “Installing EPSON TWAIN Pro Network” on page 3-37. Windows Millennium Edition, 98, and 2000 users need to specify the default scanner as explained in the section below.
3-32
Installing the Software
Specifying the default scanner in Windows Millennium Edition, 98, and 2000
After installing EPSON Scan Server in Windows Millennium Edition, 98, or 2000, you need to specify the default scanner as described below.
1. Make sure you have completed installation of EPSON Scan Server as described in “Installing EPSON Scan Server” on page 3-27.
2. Double-click the Scanners and Cameras icon in the Control Panel.
3
The Scanners and Cameras Properties dialog box appears showing a list of scanners and cameras installed in your computer system.
Installing the Software
3-33
3. Select EPSON Expression 1680 and click the Properties
button.
The EPSON Expression 1680 Properties dialog box appears.
3-34
Installing the Software
4. Click the Utility tab, make sure Select as default scanner for EPSON Scan Server is checked and then click OK.
5. Click OK.
3
Installing the Software
3-35
Changing the start up mode
Dialog box to Taskbar icon:
To change from the dialog box start up mode to the Taskbar icon start up mode, click the scanner icon in the upper left corner of the EPSON Scan Server dialog box and select Taskbar Icon from the drop down menu. A check mark will appear next to Taskbar
Icon.
Taskbar icon to dialog box:
To change from the Taskbar icon start up mode to the dialog box start up mode, right-click the Scan Server icon in the Taskbar tray and click Taskbar Icon to remove the check mark.
Your settings will take effect the next time you start EPSON Scan Server.

Setting the Scanner Server PC's IP Address

To use EPSON scanners in a network environment, you need to assign IP addresses to the scanner server PC and client PCs.
If EPSON scanners are installed in an internal LAN (Local Area Network), that is, isolated from the Internet, the following IP addresses can be assigned to the scanner server PC.
Note:
If you use IP addresses from these ranges, you will not be able to connect this LAN to the Internet in the future, otherwise there will be IP address conflicts.
10.0.0.0 - 10.255.255.255
172.16.0.0 - 172.31.255.255
192.168.0.0 - 192.168.255.255
If you plan to use a scanner server PC in a network connected to the Internet, you should acquire a formal IP address for the scanner server PC from the Internet organization of your country.
3-36
Installing the Software

Installing EPSON TWAIN Pro Network

EPSON TWAIN Pro Network supports Windows Millennium Edition, 98, 95, 2000, Windows NT 4.0, and Power Macintosh computers. Install and use EPSON TWAIN Pro Network on each computer that will use the scanner on the network. Make sure you know the IP address or host name of the host computer on which you installed EPSON Scan Server as you will need it while installing EPSON TWAIN Pro Network. For instructions on setting the host computer’s IP address, see “Setting the Scanner Server PC's IP Address” on page 3-36.
For Windows
Note:
If you are planning to upgrade Windows 98, 95, or NT 4.0 to
Windows Millennium Edition or Windows 2000, you should do so before installing the scanner software.
If you have already installed the scanner software in Windows 98,
95, or NT 4.0 and you plan to upgrade to Windows Millennium Edition or Windows 2000, you need to uninstall the scanner software before upgrading Windows. See “Uninstalling the Scanner Software for Windows” on page 3-49 for more information.
3
1. Insert your scanner software CD in the CD-ROM drive.
The installer automatically starts and the Select Language dialog box appears. If the dialog box doesn't appear, start Windows Explorer and double-click Cdsetup.exe in the CD-ROM drive.
Installing the Software
3-37
2. Select the language that you want to use in the Select
Language dialog box and click OK.
The EPSON Software Setup dialog box appears.
3. Click Add Software in the EPSON Software Setup dialog
box.
3-38
Installing the Software
4. Select EPSON TWAIN Pro Network and any other software you want to install. Be careful not to select EPSON TWAIN Pro if it appears in the list, and remove check marks from any software that is already installed on the scanner server PC.
5. Click OK to start installation.
6. Click Next.
3
Installing the Software
3-39
7. Click Next.
The EPSON TWAIN Pro Network setup dialog box appears.
3-40
Installing the Software
Note:
If you need to change any settings in the EPSON TWAIN Pro Network setup dialog box after setup is complete, double-click the EPSON TWAIN Pro Network icon in the Control Panel.
8. Specify the IP address or Host name of the scanner server PC in the Network Scanner Address box.
Note:
For details on specifying the IP address, see “Setting the
Scanner Server PC's IP Address” on page 3-36.
A host name can be used on networks that use the DNS, WINS,
or LMHOSTS naming services.
9. Specify a Timeout Setting between 30 and 300 seconds. Normally you do not need to change this value.
10. To test the status of the scanner, click Test.
After the test is complete, information about the scanner's status is displayed below the heading Scanner Status.
11. After setting this dialog box, click OK.
3
Installation of EPSON TWAIN Pro Network is complete.
Installing the Software
3-41
For Macintosh
1. Insert your scanner software CD in the CD-ROM drive.
2. Double-click the EPSON TWAIN Pro Network folder, then
double-click the folder of your preferred language.
3. Double-click the EPSON TWAIN Pro NET Installer icon.

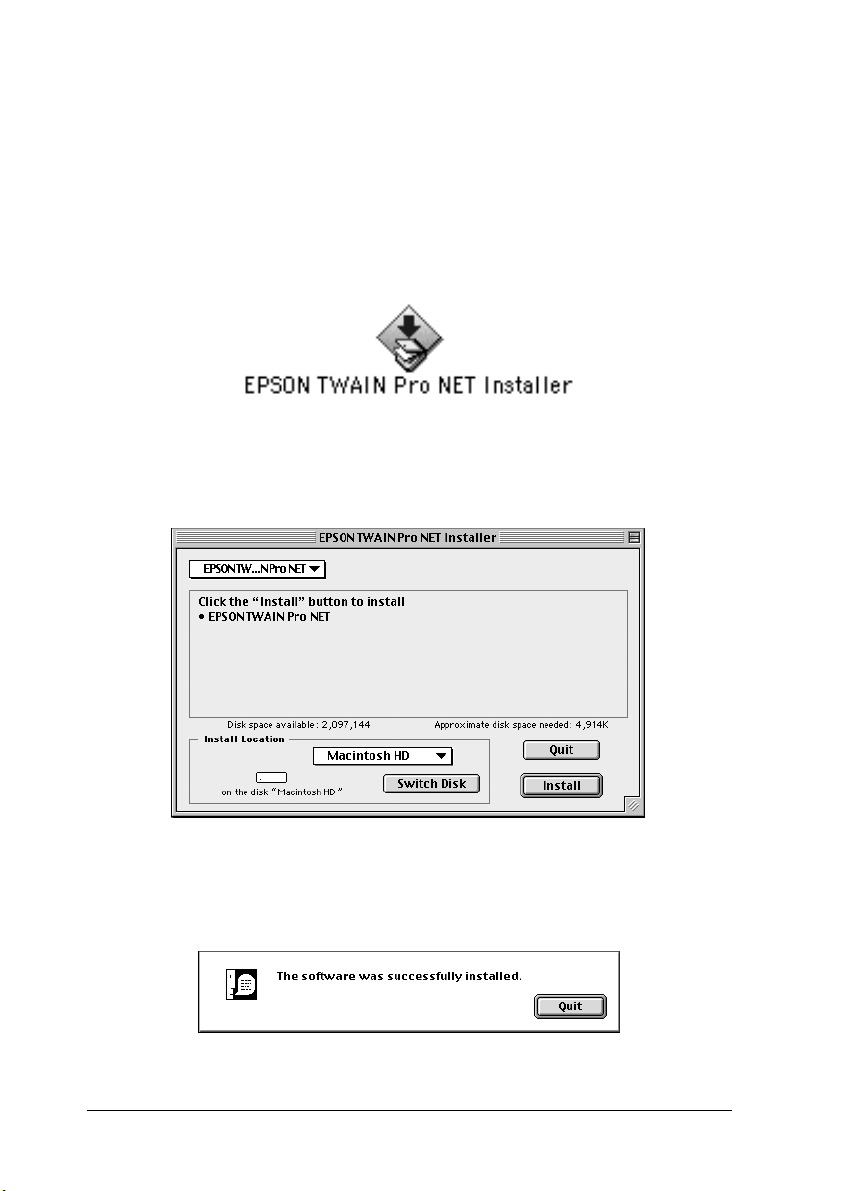

4. In the Installer dialog box, click Install and follow the
instructions on the screen.
5. When you finish installation, the following message appears
on the screen. Click Quit.
3-42
Installing the Software
6. The EPSON TWAIN Pro Network setup dialog box appears.
Enter the IP address or Host name of the scanner server PC in the Network Scanner Address box.
Note:
For details on specifying the IP address, see “Setting the
Scanner Server PC's IP Address” on page 3-36.
3
A host name can be used on networks that use the DNS naming
service.
If you need to change any settings in the EPSON TWAIN Pro
Network setup dialog box after setup is complete, select EPSON TWAIN Pro NET in the Apple Menu Control Panels.
7. Specify a Timeout Setting between 30 and 300 seconds. Normally you do not need to change this value.
Installing the Software
3-43
8. To test the status of the scanner, click Test.
After the test is complete, information about the scanner's status is displayed below the heading Scanner Status.
9. After setting this dialog box, click OK.
Installation of EPSON TWAIN Pro Network is complete.

Selecting Scanners

If you connect several scanners that are supported by EPSON TWAIN Pro to your computer, follow the instructions below to select which scanner to use.
Note:
You can only use more than one scanner of the same model if you connect them using a different type of interface.

For Windows Millennium Edition, 98, and 2000 users

Note:
The illustrations in this section are of Windows 98. The screens in other versions of Windows may vary slightly.
3-44
Installing the Software
1. Double-click the Scanners and Cameras icon in Control Panel.
2. Select the scanner you want to use from the installed scanners and cameras list in the Scanners and Cameras Properties dialog box. Click Properties, and then click the Utility tab.
3
Installing the Software
3-45
3. Make sure Select as default scanner for EPSON TWAIN Pro is selected and then click OK.
Note:
If you have installed EPSON Scan Server, you can setup your scanner to be used over the network by selecting the Select as default scanner for EPSON Scan Server check box.
3-46
Installing the Software

For Macintosh users

1. Choose Control Panels from the Apple menu. Then click the EPSON ScannerSelector icon.
2. Select the scanner you want to use from the list in the EPSON ScannerSelector dialog box and click OK.
3
Installing the Software
3-47

When Updating Your Windows Operating System

If you are using your EPSON scanner with a PC running Windows 98 or 95 and are planning to update your system to Windows Millennium Edition or Windows 2000, you need to uninstall EPSON TWAIN Pro or EPSON TWAIN Pro Network before updating your operating system, as described below.
1. Uninstall EPSON TWAIN Pro or EPSON TWAIN Pro Network. For detailed instructions, see “Uninstalling the Scanner Software for Windows” on page 3-49.
2. Turn off your PC and scanner and disconnect your scanner from your PC.
3. Turn on your PC and install Windows Millennium Edition or Windows 2000.
4. Make sure that the Windows Millennium Edition or Windows 2000 operating system was installed correctly, then shut down your computer.
5. Connect your scanner and start your computer to install the scanner software. Follow the instructions in “Installing EPSON TWAIN Pro for Windows” on page 3-6.
3-48
Installing the Software

Uninstalling the Scanner Software for Windows

You need to uninstall the EPSON scanner software before upgrading your Windows operating system or if the software was not properly installed on your system. To uninstall EPSON TWAIN Pro or EPSON TWAIN Pro Network, follow the steps in the appropriate section below.
Note:
To reinstall the scanner software, follow the appropriate installation steps in this chapter.

Uninstalling EPSON TWAIN Pro

Follow the instructions for your Windows version below.
For Windows 95 or NT 4.0 users
1. Click the EPSON Scanner Monitor icon in the task bar and
select Close to close EPSON Scanner Monitor.
3
2. Click Start and select Programs, then EPSON Scanner or
EPSON Network Scanner. Then click EPSON TWAIN Pro Uninstall.
3. Click Yes to uninstall.
4. After the uninstall program finishes, click OK.
Installing the Software
3-49
For Windows Millennium Edition, 98, and 2000 users
1. Connect the scanner to your computer.
Note:
If you have cameras or scanners other than the EPSON Expression 1680 listed in the Control Panel's Scanner and Cameras Properties dialog box, you must also connect them to your computer or USB hub.
2. Turn on the scanner and any other devices listed in the Scanner and Cameras Properties dialog box, then turn on your computer.
3. Click the Start menu, point to Settings and click Control Panel.
4. Double-click the Scanners and Cameras icon.
5. Select your scanner from the list of installed devices, then click Remove.
6. Click OK to close the dialog box.
7. Insert your scanner software CD in the CD-ROM drive.
8. When the Select Language dialog box appears, select English, then click OK. In the EPSON Software Setup screen, click the Browse This CD icon.
Note:
If the Select Language dialog box does not appear, double-click the icon for your CD-ROM drive.
9. Double-click the EPSON folder.
10. Double-click the folder of your preferred language, then double-click the Uninst folder.
3-50
Installing the Software
11. To uninstall the EPSON TWAIN Pro software, double-click
the Esuninst.exe icon, then follow the on-screen instructions.
12. After EPSON TWAIN Pro has been uninstalled, click OK, then
restart your computer.

Uninstalling EPSON TWAIN Pro Network

1. Click Start and select Programs, then EPSON Scanner or EPSON Network Scanner. Then click EPSON TWAIN Pro Network Uninstall.
2. Click Yes to uninstall.
3. After the uninstall program finishes, click OK.
3
Installing the Software
3-51
3-52
Installing the Software
Chapter 4

Using Your Scanner

Scanning Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Placing a Document on the Scanner . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Starting EPSON TWAIN Pro or EPSON TWAIN
Pro Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Using a TWAIN-compliant application . . . . . . . . . . . . . . . . 4-9
Using the scanner’s Start button . . . . . . . . . . . . . . . . . . . . . .4-11
Scanning Your Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14
Making settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Scanning and saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
4
Using Your Scanner
4-1

Scanning Procedure

The basic scanning process explained in this chapter involves the following procedures:
1. Placing the document on the scanner.
2. Starting EPSON TWAIN Pro or EPSON TWAIN Pro Network.
3. Making basic settings.
4. Scanning and saving the document.

Placing a Document on the Scanner

Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.
1. Turn on the scanner by pressing the
READY light comes on.
READY light
operate button
4-2
Using Your Scanner
P operate button. The
2. Turn on the computer and make sure that the scanner’s
READY light is on.
3. Open the document cover.
Note:
If you are scanning a very large or thick document, you may need to remove the document cover. See “Removing the cover for thick or large documents” on page 4-6 for instructions.
4
Using Your Scanner
4-3
4. Place the document on the document table, with the side to be scanned facing down. Make sure that the document is carefully aligned in the corner of the document table as shown below.
corner of the document
Note:
An area approximately 1.6 mm from the horizontal and 1 mm from the vertical edges of the document table glass will not be scanned.
4-4
1.6 mm (approx.)
1 mm (approx.)
Using Your Scanner
Loading...
