Epson Dot Matrix Range
http://www.mercadoactual.es
Offering a wider choice than any other
manufacturer – and spanning every duty
cycle, from light to heavy duty – the
Epson dot matrix range enables you to
strike exactly the right balance between
capability, performance and cost. And
built to the standards which have made
the Epson brand synonymous with
reliability, Epson dot matrix printers are
not only competitively priced, but
extremely economical to run.
Epson 9-pin dot matrix printers
Featuring durable, heavy and medium
duty printers for continuous data
processing and high speed drafting tasks
– while offering competitively priced low
cost printers – the Epson 9-pin dot matrix
range offers exceptional value.
Outstanding performance combined with
high precision alignment and
sophisticated paper handling enables this
truly comprehensive range of narrow and
wide carriage printers to tackle the widest
range of high speed printing tasks with
supreme accuracy, making them ideal for
commercial, industrial and logistic
applications – including data processing,
invoicing, stock requisitions, cheque runs,
label printing etc.
Epson 24-pin dot matrix printers
Offering all the features available across
the Epson 9-pin range, but with the
addition of scalable fonts and letter
quality, for superior print quality, Epson
24-pin printers are ideal for front desk
applications in the retail and service
industries, and for tasks such as invoice
and order printing.
The range is further enhanced with flatbed printers that enable 24-pin printing to
be achieved on less flexible materials and
a wide variety of non-standard stationery
such as receipts and label printing.
Epson is the world’s largest manufacturer of dot
matrix printers with a product range that offers the
ultimate in high speed, low cost, reliable and durable
printing across all stationery types. Ideal for drafting,
high volume data processing, and multi-part
stationery – for which there is simply no alternative –
no other technology offers such broad capability from
a single machine
http://www.mercadoactual.es
Epson PLQ-20
Epson LQ-590
Epson DFX-9000
9-Pin 24-Pin POS
Instore Accounting Listing
Product Index
Passbook
Light
Medium
High
High
Heavy
Light
Medium
Light
Medium
Medium
High
Heavy
Heavy
LX-300+
LX-1170
FX-890
FX-2190
DFX-9000
LQ-300+
LQ-590
LQ-630
LQ-680/680 Pro
LQ-2090
LQ-2180
DLQ-3500
PLQ-20/20M
■
■
■
■
■
•••
••
•
■
•••
■
••
■
••
■
••
■
■
■
■
•
•
••
•••
•••
•••
•••
•••
•••
•••
•••
•
••
••
•••
••
•
•••
•••
•••
•••
•••
•••
••
••
•••
•••
•
•
•••
http://www.mercadoactual.es
Motorised sheet feeders
For high volume cut sheet printing,
optional motorised cut sheet feeders
are available for selected products,
like the 150 sheet cut sheet feeder for
the LQ-2180. Equipped with productivity
enhancing, independent motor drives,
these feeders reduce paper handling
time and ensure optimum paper
throughput.
Paper feed tractors
A choice of push, pull, and push/pull
combined tractors not only enable
more than one stationery type to be
permanently loaded for delivery on
demand, but handle continuous and
multi-part stationery more efficiently.
Roll paper holder
This provides an inexpensive
alternative to using continuous roll
paper for applications requiring
variable paper lengths.
*Using Epson paper handling options
In their paper handling versatility, Epson dot matrix
printers really excel. Advanced models offer paper
feeding from up to six paper sources*, and enable up
to four types of stationery to be held ‘on call.’ What’s
more, when space is at a premium, multi-path paper
feed gives you flexibility to position your printer
without compromising its functionality.
• Cut sheet manual feed front in –
front out
• Optional 150 sheet cut sheet feeder
• Optional 50 sheet cut sheet feeder
• Tractor fed continuous
Typical Paper Paths
Optional equipment
A comprehensive range of Epson
paper handling options includes:
Cut sheet feeders
Tractor unit
Cut sheet feeders
Offering 50, 150 and 250 sheet,
for automatic selection of forms
and plain stationery.
Flat
paper path
• Three continuous paper paths–front, rear,
and bottom
• Two cut sheet paper paths – front
and top
http://www.mercadoactual.es
Compatibility – ESC/P2
ESC/P (Epson Software
Command/Printers) is the defacto
standard dot matrix printer control
language, worldwide. Adopted in the
vast majority of popular software
packages, ESC/P enables you to plug
straight in – and print. The versatility and
quality of Epson impact printing is further
extended by ESC/P2 which enables
Epson 24-pin printers to achieve scalable
fonts and high resolution graphics.
Fully compatible with existing software,
ESC/P2 is designed for use with non
Windows® operating systems, enabling
you to achieve font manipulation without
the need for costly on-board processors.
If you are working within the Windows®
environment you will be able to achieve
your printer’s maximum speed by using
printer resident fonts.
Connectivity
Epson connectivity goes far beyond
USB, parallel and serial interfaces.
Where Epson impact printers are
required to serve either as a shared
resource or as a personal printer within
IBM or mainframe environments, we offer
Ethernet, Wireless 802.11b, Twinax, Coax
and LocalTalk interfaces.
For full details of interfacing options
please refer to the options and
specifications tables at the back
of this brochure.
Epson supplies
Your Epson dot matrix printer demands
Epson ribbons for high performance.
Designed to withstand the stresses
of everyday use, Epson ribbons come
in three types – fabric, film and colour.
Epson fabric ribbons are highly durable
and hold an exact charge of ink to ensure
clear characters with no splattering.
To minimise printhead wear, Epson ink
includes lubricating oils.
Epson film ribbons are plastic, coated
on one side with ink to give clear, crisp
characters of letter quality output.
Colour printing
Colour printing highlights important
information and gives clarity to forms.
Epson colour ribbons are ultra tough
and produce colourful results without
bleed or smudging. An easily installed
colour upgrade is available for selected
printers. For full details of printing
options please refer to the options
and specifications tables at the back
of this brochure.
Because of its compact dimensions, the Epson LX-300+
is the ideal 9-pin printer for front and back office
applications where space is limited. But also as a printer
for measurement and control systems the Epson LX-300+
is a low cost solution. Auto switching standard serial and
parallel interfaces are included allowing flexible
standalone connectivity.
Key features
• Compact 9-pin narrow carriage
printer
• Up to 337 characters per second
(12cpi)
• Prints up to 5-part forms (1 original
+ 4 copies)
• Versatile top, bottom and rear paper
paths
• 8 built-in Bar code fonts
• Auto switching parallel and serial
interfaces
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Colour upgrade kit
• Push/Pull tractor unit
Standard Optional
Cut sheet
Standard Optional
Continuous
Dot Matrix Printer
9-Pin
http://www.mercadoactual.es
Dot Matrix Printer Dot Matrix Printer
This narrow carriage printer combines high speed with
the highest reliability. A mean volume between failure
of 52 mill. lines makes it ideal for medium and large
print volumes. Paper can be fed from front, top, rear
or bottom and an optional push/pull tractor can store
a second continuous form – perfect for warehouses,
wholesalers, freight forwarders and finance departments.

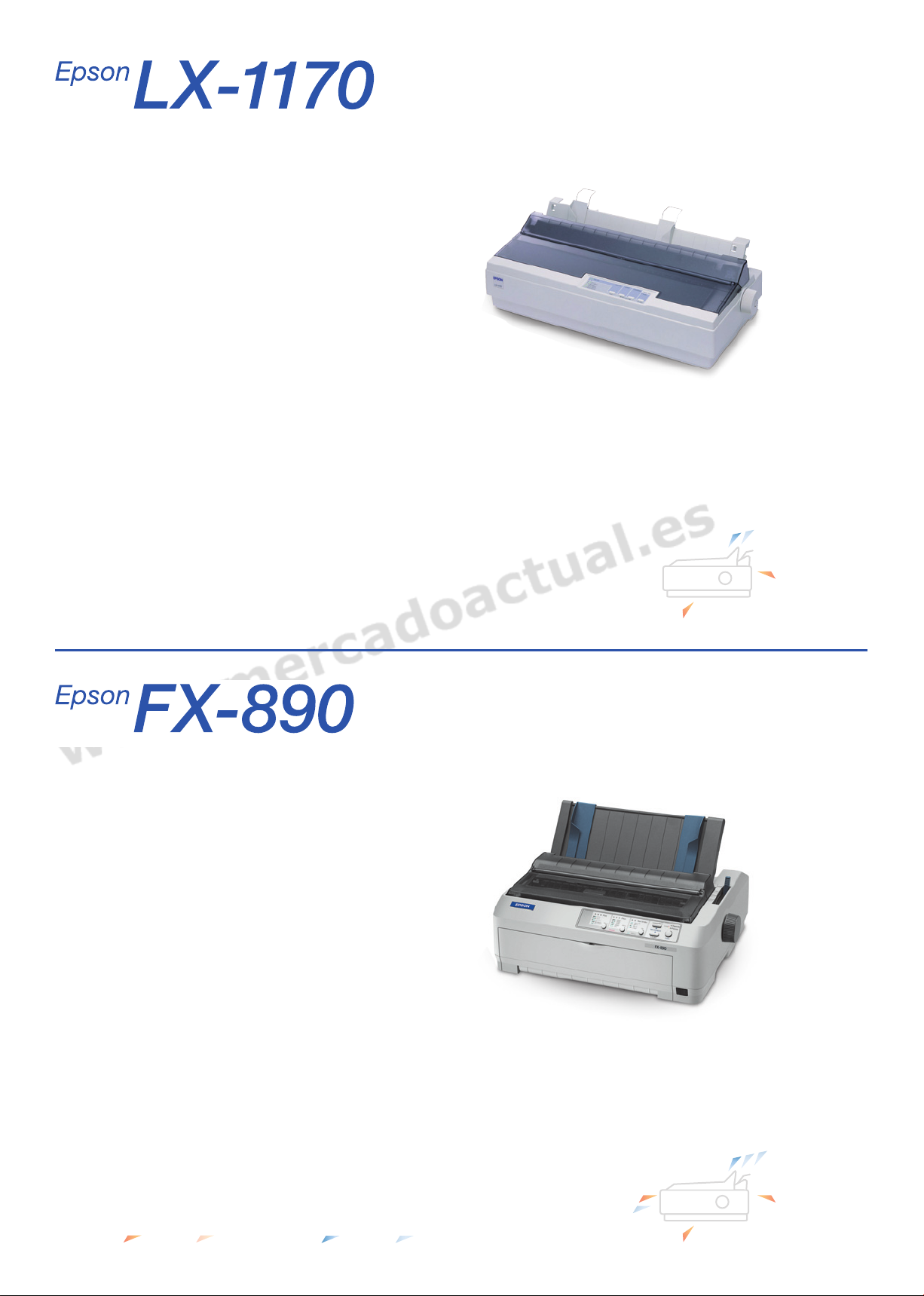

LX-1170 is the ideal 9-pin printer for light duties. The copy
capability of one original plus four copies makes the
LX-1170 suitable for a variety of environments including
data reporting (e.g. telephone statistics and call log in,
helpdesk and computer systems reporting), listings,
shipping documents and measurement and control
systems.
Key features
• Wide carriage 9-pin printer
• Up to 337 characters per second
(12cpi)
• Prints up to 5-part forms (1 original
+ 4 copies)
• Versatile top, bottom and rear
paper paths
• 8 built-in Bar code fonts
• Parallel and serial interfaces as
standard
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Push/Pull tractor unit
Key features
• Fastest printer in its class up to
680cps (12cpi)
• High copy capability of 6-part
forms
• Extremely robust printer with a
MTBF of 20,000 POH
• Reliable print head life of 400 mill.
characters
• Long lasting ribbon of 7.5 mill.
characters
• Versatile front, top, bottom and rear
paper paths
Options
• Wireless and wired network
interfaces, Serial, Twinax, Coax
• 150 or 50 sheet cut sheet feeders
• Front sheet
• Front paper guide
• Push/pull tractor unit
• Roll paper holder
Standard Optional
Cut sheet
Standard Optional
Continuous
9-Pin
9-Pin
http://www.mercadoactual.es
Dot Matrix Printer Dot Matrix Printer
This wide carriage printer combines high speed printing
with outstanding reliability. A mean volume between failure
of 52 mill. lines makes the printer suitable for medium and
large print volumes. The paper can flexibly be fed from the
front, top, rear or bottom and an optional push tractor can
store a second continuous form, which is ideal for
commercial and industrial environments.
Key features
• Fastest printer in its class up to
680cps (12cpi)
• High copy capability of 6-part
forms
• Extremely robust printer with a
MTBF of 20,000 POH
• Reliable print head life of 400 mill.
characters
• Long lasting ribbon of 12 mill.
characters
• Versatile front, top, bottom and rear
paper paths
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front sheet guide
• Front paper guide
• Push/pull tractor unit
• Roll paper holder
• Wired and wireless network
interfaces, Serial, Twinax, Coax
9-Pin
9-Pin
The DFX-9000 is a High print volume printer providing an
unprecedented level of reliability for the most demanding
business. It’s advanced paper handling accommodates a
variety of paper types while the standard front and rear
push tractors can be switched easily between different
types of continuous paper.
An optional perforation cutter provides paper finishing
capabilities.
Key features
• Extremely fast and reliable 4x9 pin
wide carriage printer
• Extremely robust printer with a
MVBF of 133 Millions characters
• Fast speed up to 1,550 cps
• Prints up to 10-part forms
(1 original + 9 copies)
• Automatic platen gap adjustment
• Interface slot for optional network
interfaces
Options
• Pull tractor unit
• Perforation cutter
• Wired network interfaces
http://www.mercadoactual.es
Dot Matrix Printer
With a mean volume between failure of 40 mill. lines and
a high speed of 529cps this extremely robust printer is
ideal for medium and large print volumes. Flexible paper
management allows insertion from front, top, rear, and
bottom, while a front sheet guide enables front feeding
of small paper. Typical applications are label, barcode
and POS invoice printing.
Key features
• Very high print speed of up to
529cps (12cpi)
• High copy capability of 5-part
forms
• Extremely robust printer with a
MTBF of 20,000 POH
• Reliable print head life of 400 mill.
strokes/wire
• Long lasting ribbon of 5 mill.
characters
• Versatile front, top, bottom and rear
paper paths
• Sound reduction down to 49 dB(A)
in low-noise mode
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front paper guide
• Push/pull tractor unit
• Roll paper holder
• Wired and wireless network
interfaces, Serial, Twinax, Coax
The compact Epson LQ-300+ is the ideal printer for front
and back office applications where space is rather limited
as well as for measurement and control systems. The
copy capability of one original plus three copies makes
the 24-pin printer suitable for POS applications where
reliable light duty printing is required.
Key features
• Compact 24-pin narrow carriage
printer
• Up to 300 characters per second
(10cpi)
• Prints up to 4-part forms
(1 original + 3 copies)
• Versatile top, bottom and rear
paper paths
• 8 built-in Bar code fonts
• Auto switching parallel and serial
interfaces
Options
• 50 sheet cut sheet feeder
• Roll paper holder
• Colour upgrade kit
• Push/Pull tractor unit
Dot Matrix Printer
24-Pin
24-Pin
Standard Optional
Cut sheet
Standard Optional
Continuous
http://www.mercadoactual.es
Dot Matrix Printer
Key features
• Compact and robust design
• Prints up to 5-part forms
(1 original + 4 copies)
• Print speed up to 360cps (12cpi)
• Also prints on small cut sheet
paper (9cm x 7cm)
• Flatbed technology for ergonomic
front paper feed
• Parallel and USB v1.1 interfaces
Options
• Wired and wireless network
interfaces
Dot Matrix Printer
24-Pin
With a 38.6cm x 30.6cm (w x d) footprint, a column length
of 80 characters, and print speed of up to 360cps, this
printer is ideal for restricted space environments such
as retail stores, doctors’ surgeries, ticket offices and
industrial, trade and service companies.
Dot Matrix Printer
These highly durable printers have a straight, flat paper path
for ultra reliable flatbed printing. The Epson LQ-680Pro also
includes automatic platen gap adjustment for optimised
print quality and optimised paper feeding – ideal for frequent
changing between different paper types. It handles paper
with varying thickness (e.g. overlapping forms and labels),
and has simple push button paper source selection
(e.g. between cut sheet and continuous paper).
Key features
• Reliable and durable 24-pin flat
bed printer
• 106 columns printing width
• Prints up to 6-part forms
(1 original + 5 copies)
• Prints up to 413 characters per
second (10cpi)
• Standard parallel interface
• Automatic paper thickness
adjustment
1
• Push button paper source section
1
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder*
• Roll paper holder
• Network, Serial, Twinax, Coax
interfaces
*150 Sheet cut sheet feeder must be fitted first
1
Epson LQ-680Pro
Dot Matrix Printer
24-Pin
http://www.mercadoactual.es
Dot Matrix Printer
An extremely robust printer with a mean volume between
failure of 40 mill. lines. With its high speed of 529 cps it
is the ideal solution for medium and large print volumes.
The Epson LQ-2090 impresses with flexible paper
management which allows paper insertion from the front,
top, rear, and bottom. A front paper guide makes it easy
to insert small sheets from the front.
Key features
• Very high print speed of up to
529cps (12cpi)
• High copy capability of 5-part forms
• Extremely robust printer with a
MTBF of 20,000 POH
• Reliable print head life of 400 mill.
strokes/wire
• Long lasting ribbon of 8 mill.
characters
• Versatile front, top, bottom and rear
paper paths
• Sound reduction down to 50 dB(A)
in low-noise mode
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Front sheet guide
• Push/Pull tractor unit
• Roll paper holder
• Wired and wireless network
interfaces, Serial, Twinax, Coax
Dot Matrix Printer
24-Pin
Dot Matrix Printer
This fast, flexible and very reliable printing solution is ideal
for high volume applications. A high speed draft mode of
up to 480cps ensures maximum productivity, while
versatility is assured by two standard tractors for flexible
changing between media, the ability to handle up to 6-part
forms and the choice of top, bottom and rear paper paths.
Key features
• Robust and durable 24-pin wide
carriage printer
• Very high print speed up to
480cps (10cpi)
• Prints up to 6-part forms
(1 original + 5 copies)
• Two tractor units as standard
• Versatile front, top, bottom and
rear paper paths (43)
• Standard parallel interface
Options
• 150 sheet cut sheet feeder
• 50 sheet cut sheet feeder
• Network, Serial, Twinax, Coax
interfaces
• Push/Pull tractor unit
• Roll paper holder
Dot Matrix Printer
24-Pin
Standard Optional
Cut sheet
Standard Optional
Continuous
http://www.mercadoactual.es
Dot Matrix Printer
This printer offers ultra reliable high speed printing.
An ability to print on 8-part forms is especially useful
for multiple copy forms, while up to three media paths
provide versatile paper handling – front sheet feed with
auto loading, rear tractor feed with paper park, and an
optional automatic cut sheet feeder. Both black and
colour fabric ribbons are supplied.
Key features
• Wide carriage 24-pin flat-bed
printer
• Very fast print speed up to 550cps
(10cpi)
• Prints up to 8-part forms (1 original
+ 7 copies)
• Push button paper source selection
• Automatic paper thickness
adjustment
• Parallel and USB interfaces with
optional Ethernet interfaces (63)
• Colour printing
Options
• 250 sheet cut sheet feeder
• Automatic sheet alignment unit
• Wireless and wired network
interfaces, Serial, Twinax, Coax
Dot Matrix Printer
24-Pin
Dot Matrix Printer
PLQ20, Epson’s Passbook printer is ideal for all front
desks applications such as banking, public administrations,
and all booklet or thick media high speed good quality
printing requirement. With it’s tiny footprint, automatic
sheet alignment and print head adjustment it’s the perfect
solution for your flatbed printing needs.
Key features
• Nice design compact and
robust printer
• Automatic Sheet alignment and
Thickness adjustment
• High print speed of up to 480 cps
• Quiet 24-pin impact document or
passbook printer
• Print up to 7 part-forms
(1 original + 6 copies)
• Flatbed technology for ergonomic
front paper feed
• PLQ-20M: Magnetic Stripe
Reader/Writer (MSRW) included
Options
• Roll paper Holder
• Space saving Kit (includes a top
paper tray and a rear paper guide)
• Wired and wireless network
interfaces
24-Pin
http://www.mercadoactual.es
Options, accessories and supplies
Epson 9-pin
Optional paper handling Order code LX-300+ LX-1170 FX-890 FX-2190 DFX-5000+ DFX-8500 DFX-9000
Colour upgrade kit C12C832082 •
Convertible tractor unit C12C800202 •
C12C800212 •
C12C800302 •
C12C800341 •
Pull tractor unit C12C800352 ••
C12C800382 •
Paper roll holder C12C811141 • • • •
Front paper guide C12C814022 *5 •
C12C814032 *5 •
Front sheet guide C12C814001 *6 •
C12C814011 *6 •
50 sheet cut sheet feeder C12C806372 • •
C12C806392 • •
150 sheet cut sheet feeder C12C806382 •
C12C806402 •
Paper cutter C12C815002 •
Perforation cutter C12C815072 ••
Supplies
Black fabric ribbon C13S015019 •
Black fabric ribbon C13S015020 •
Black fabric ribbon C13S015055 ••
Black fabric ribbon refill C13S015025 ••
Black fabric ribbon C13S015329 •
Black fabric ribbon C13S015327 •
Black fabric ribbon C13S015384 •
Colour fabric ribbon C13S015073 •
Optional interfaces Order code
Serial 0K buffer C12C823061 • • • • •
Serial 32K buffer C12C823081 • • • • •
Parallel 32K bi-directional C12C823453 • • • • •
Epsonnet 10/100 Base Tx Int.
Printer Server 5 C12C824342 • • • • •
Coax C12C823142 • • • • •
Twinax C12C823152 • • • • •
LocalTalk C12C823122 •••
EpsonNet 802.11b wireless Ext.
print server (240V) C12C823972 • •
Warranty Order code
Standard 1 year replacement or repair
••••
Standard 1 year on-site
••
Optional extension to 3 years
ECPGRP10 •
ECPGRP25 • •
ECPGRP30 •
ECPGRP60 •
ECPGRP70 ••
*3 150 sheet cut sheet feeder must be fitted first
*5 can be used in conjunction with front continuous paper feeding
*6 cannot be used in conjunction with front continuous paper feeding
http://www.mercadoactual.es
Optional paper handling Order code LQ-300+ LQ-590 LQ-630 LQ-680/ LQ-2090 LQ-2180 DLQ-3500 PLQ 20/
680 Pro 20M
Colour upgrade kit C12C832112 •
Convertible tractor unit C12C800202 •
C12C800212 •
C12C800302 •
C12C800322 •
Paper roll holder C12C811141 • • • • •
Front sheet guide C12C814011 •
Front paper guide C12C814022 •
50 sheet cut sheet feeder C12C806372 • •
C12C806392 •
C12C806742
*3
•
C12C806792
*3
•
150 sheet cut sheet feeder C12C806382 •
C12C806402 •
C12C806732 •
C12C806872 •
250 sheet cut sheet feeder C12C806832 •
Space saving kit C12C802202 •
Roll Paper Holder C12C811141 •
Automatic sheet
Alignment unit C12C806882 •
Supplies
Black fabric ribbon C13S015021 •
Black fabric ribbon C13S015337 •
Black fabric ribbon C13S015262 •
Black fabric ribbon C13S015066 •
Black fabric ribbon C13S015336 •
Black fabric ribbon C13S015086 •
Black fabric ribbon C13S015339 •
Black fabric ribbon C13S015307 •
Colour fabric ribbon C13S015067 •
Colour fabric ribbon C13S015077 •
Black film ribbon C13S015255 • •
Optional interfaces
Serial 0K buffer C12C823061 • • • • •
Serial 32K buffer C12C823081 • • • • •
Parallel 32K bi-directional C12C823453 • • • • •
EpsonNet 10/100 Base Tx int.
print server C12C823914 • • • • •
EpsonNet 10/100 Base Tx
external print server (220V) C12C824025 • •
Coax C12C823142 • • • • •
Twinax C12C823152 • • • • •
LocalTalk C12C823122 • • • • •
EpsonNet 802.11b wireless .
Ext print server (240V) C12C823972 • • • • •
Warranty
Standard 1 year replacement or repair ••••• •
Standard 1 year On-site •
•
Extension to 3 years ECPGRP10 •
ECPGRP20 • • •
ECPGRP30 ••
ECPGRP50 •
Epson 24-pin
http://www.mercadoactual.es
Specifications
Epson 9-pin
LX-300+ LX-1170 FX-890 FX-2190 DFX-9000
Part numbers C11C294141DA C11C406003DA C11C524021DA C11C526021DA C11C605011
Carriage width in columns 80 136 80 136 136
Print speeds 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi
Ultra high speed draft 566 680 566 680
High speed draft 300 337 300 337 559 627 559 627 1550 1450
Draft 225 270 225 270 419 503 419 503 1320 1320
Near letter quality 56 67 56 67 104.6 125.9 104.6 125.9 330 330
Emulations
Epson LX ESC/ P LX ESC/ P FX ESC/ P FX ESC/ P FX ESC/ P
IBM / OKI 2380 Plus 2381 Plus ProPrinter DS / ML ProPrinter DS / ML PPDS
Paper handling features
Auto paper loading ■■ ■■■
Auto and manual tear off position ■■ ■■■
Paper parking – continuous stationery ■■ ■■■
Micro feed ■■ ■■■
Automatic platen gap adjustment ■
Cut sheet stationery
Single sheet, paper, labels or envelopes ■■ ■■
Multi-part forms (original + copies) 1+4 1+4 1+5 1+5
Front in top out
Top in top out ■■ ■■
50 sheet cut sheet feeder
150 sheet cut sheet feeder
Combined 50/150 sheet cut sheet feeders
Front paper guide *5
*5
Front sheet guide
*6
*6
Roll paper
■
Continuous stationery
Single sheet or labels ■■ ■■■
Multi-part (original + copies) 1+4 1+4 1+5 *9 1+5 *9 1+9 front
1+6 rear
Sheets with varying thickness
Multipart with Overlap ■
Rear in top out – push feed ■■ ■■
Rear in top out – pull feed ■■ ■■■
Rear in top out – push and pull feed *1
*1
*1
*1
Front in top out – push feed ■■
Front in top out – pull feed ■■■
Front in top out – push and pull feed *1
*1
Bottom in top out – pull feed ■■ ■■
Two stationery types loaded at once *1
*1
■
Buffer 8 KB 8 KB 128 KB 128 KB 128 KB
Acoustic noise level 49 dB(A) 49 dB(A) 55 dB(A) 55 dB(A) 58 dB(A)
Colour printing
Fonts
Epson Draft ■■ ■■■
Epson Roman ■■ ■■■
Epson Sans Serif ■■ ■■■
Barcode fonts
Code 128 ■■ ■■■
Code 39 ■■ ■■■
EAN-13 ■■ ■■■
EAN-8 ■■ ■■■
Interleave 2 of 5 ■■ ■■■
PostNet ■■ ■■■
UPC-A ■■ ■■■
UPC-E ■■ ■■■
Interfaces
USB ■■■
Parallel ■■ ■■■
Serial ■■
■
Ethernet print server
802.11b wireless
LocalTalk
Coax
Twinax
Dimensions in millimetres
Width 366 mm 546 mm 414 mm 589 mm 700 mm
Depth 275 mm 275 mm 350 mm 350 mm 378 mm
Height 159 mm 163 mm 167.5 mm 167.5 mm 363 m
Weight 4.4 kg 6.3 kg 7.2 kg 9.4 kg 34 kg
MTBF (power on hours) 6,000 6,000 20,000 20,000 20,000
Print head life (million strokes per wire)
Black 400 m 400 m 400 m 400 m 400 m
Colour 100 m characters characters characters
Ribbon life (in million characters)
Black ribbon 3 m 3 m 7,5 m 12 m 15 m
Ribbon life (in characters)
Colour ribbon
Black 1 m
Cyan 0,7 m
Magenta 0,7 m
Yellow 0,5 m
■ = Standard
= Optional S = Scalable from 2 to 32 point in 2 point steps
*1 requires additional convertible tractor unit option
*2 requires two additional convertible tractor unit options
*3 150 sheet cut sheet feeder must be fitted first
*4 front feed only
*5 can be used in conjunction with front continuous paper feeding
*6 cannot be used in conjunction with front continuous paper feeding
*7 LQ-680 Pro only
*8 LQ-630: USB/Parallel I/F LQ-630S: USB/Serial I/F
*9 Multipart 1+6 copies when using pull feed
http://www.mercadoactual.es
Specifications
Epson 24-pin
LQ-300+ LQ-590 LQ-630/S LQ-680/Pro LQ-2090 LQ-2180 DLQ-3500 PLQ20/20M
Part numbers
C11C395004DA C11C558021DA C11C480014DA C11C376024DA C11C559011DA C11C272161DA C11C396083DA C11C560021BZ
C11C480071DA C11C376124DA C11C560031BZ
Carriage width in columns 80 80 80 106 136 136 136 94
Print speeds 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10 cpi 12 cpi 10cpi 12cpi
High speed draft 300 n/a 440 529 300 360 413 n/a 440 529 480 n/a 550 n/a 480 576
Draft 225 270 330 396 225 270 310 372 330 396 360 431 495 594 360 432
Letter quality 75 90 110 132 79 94 103 124 110 132 120 143 165 198 120 144
Emulations
Epson LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2 LQ ESC/P 2
IBM/OLIVETTI 2390 Plus IBM PPDS IBM PPDS 2390 Plus IBM PPDS 2391 Plus ProPrinter DS IBM PPDS/PR2
Paper handling features
Auto paper loading ■ ■■■ ■ ■■
Auto and manual tear off position ■ ■■■ ■ ■■
Paper parking – continuous stationery ■ ■■■ ■ ■■
Micro feed ■ ■■■ ■ ■■
Automatic platen gap adjustment
*7 ■■■
Cut sheet stationery
Single sheet, paper, labels or envelopes ■ ■■■ ■ ■■■
Multi-part forms (original + copies) 1+3 *41+4 1+4 1+5 1+4 1+5 1+7 1+6
Sheets with varying thickness *7 ■■■
Multipart with overlap *7 ■■■
Front in front out ■■ ■■
Front in rear out ■
Front in top out ■■■
Top in top out ■■ ■ ■
50 sheet cut sheet feeder
*3
*3
150 sheet cut sheet feeder
250 sheet cut sheet feeder
Combined 50 and 150 sheet cut sheet feeders
*3
Front paper guide *5 ■ *5
*5 ■
Front sheet guide *6
■■*6 ■■
Automatic sheet alignment unit
■
Roll paper
Continuous stationary
Single sheet or labels ■ ■■■ ■ ■■■
Multi-part (original + copies) 1+3 1+4 1+4 1+5 1+4 1+5 1+7 ■
Sheets with varying thickness *7 ■■■
Multipart with Overlap *7 ■■■
Rear in front out – push feed ■■ ■
Rear in top out – push feed ■■ ■ ■
Rear in top out – pull feed ■■ ■ ■
Rear in top out – push and pull feed *1
*1
*1
■
Front in top out – push feed ■■■
Front in top out – pull feed ■■■
Front in top out – push and pull feed *1
*1
*1
Bottom in top out – pull feed ■■ ■ ■
Two stationery types loaded at once *1
*1
■
Buffer 32 KB 128 KB 32 KB 64 KB 128 KB 64 KB 128 KB 64 KB
Acoustic noise level 49 dB(A) 49 dB(A) 57 dB(A) 55 dB(A) 50 dB(A) 54 dB(A) 59 dB(A) 53 dB(A)
Colour printing
■
Fonts
Epson Draft ■ ■■■ ■ ■■■
Epson Courier ■ ■■■ ■ ■■
Epson OCR-B ■ ■■■ ■ ■■■
Epson Orator ■ ■■■ ■ ■■
Epson Orator-S ■ ■■■ ■ ■■
Epson Prestige ■ ■■■ ■ ■■
Epson Roman ■ S ■ S ■ S ■ S ■ S ■ S ■ S ■
Epson Roman T ■ S ■ S ■ S ■ S ■ S ■ S ■ S
Epson Sans Serif ■ S ■ S ■ S ■ S ■ S ■ S ■ S ■
Epson Sans Serif H ■ S ■ S ■ S ■ S ■ S ■ S ■ S
Epson Script ■ ■■■ ■ ■■
Epson Script C ■ ■■■ ■ ■■
Barcode fonts
Code 128 ■ ■■■ ■ ■■
Code 39 ■ ■■■ ■ ■■■
EAN-13 ■ ■■■ ■ ■■■
EAN-8 ■ ■■■ ■ ■■■
Interleave 2 of 5 ■ ■■■ ■ ■■■
PostNet ■ ■■■ ■ ■■■
UPC-A ■ ■■■ ■ ■■■
UPC-E ■ ■■■ ■ ■■■
Interfaces ■
USB ■ *8 ■■■■
Parallel ■■*8 ■■ ■ ■■■
Serial ■
*8 ■
■
Ethernet print server
802.11b wireless
LocalTalk
Coax
Twinax
Dimensions in millimetres
Width 366 mm 437.5 mm 386 mm 497 mm 612.5 mm 639 mm 660 mm 384 mm
Depth 275 mm 374.5 mm 306 mm 387 mm 374.5 mm 402 mm 432 mm 280 mm
Height 159 mm 171.5 mm 185 mm 230 mm 171.5 mm 268 mm 276 mm 203 mm
Weight 4.4 kg 7.1 kg 3.5 kg 9.4 kg 9.5 kg 13 kg 18.1 kg 7.7/8.7 kg
MTBF (power on hours) 6,000 20,000 6,000 10,000 20,000 10,000 10,000 10,000
Print head life
(Million strokes per wire)
Black 200 m 400 m 200 m 400 m 400 m 400 m 400 m 400 m
Colour 100 m
Ribbon life (in million characters)
Black ribbon 2 m 5 m 2 m 2 m 8 m 8 m 6 m or 9 m 5 m
Ribbon life (in characters)
Colour ribbon
Black 1 m 1,5 m
Cyan 0,7 m 1,1 m
Magenta 0,7 m 1,1 m
Yellow 0,5 m 0,8 m
http://www.mercadoactual.es
Epson Dot Matrix Quick Reference Guide
EPSON® is a registered trademark of SEIKO EPSON® Corporation. All other product names and other company names
used herein are for identification purposes only and may be trademarks or registered trademarks of their respective
owners. Errors and omissions excepted, all specifications are subject to change without notice.
Telephone: +44 (0) 1442 261144
Fax: +44 (0) 8702 413093
E-mail: info@epson.co.uk
www.epson.co.uk
SIDM QRG - 2GB - 07/05
http://www.mercadoactual.es
Loading...
