ATX Midi Tower

ATX Midi Tower

ECA3210-A

ECA3210-M

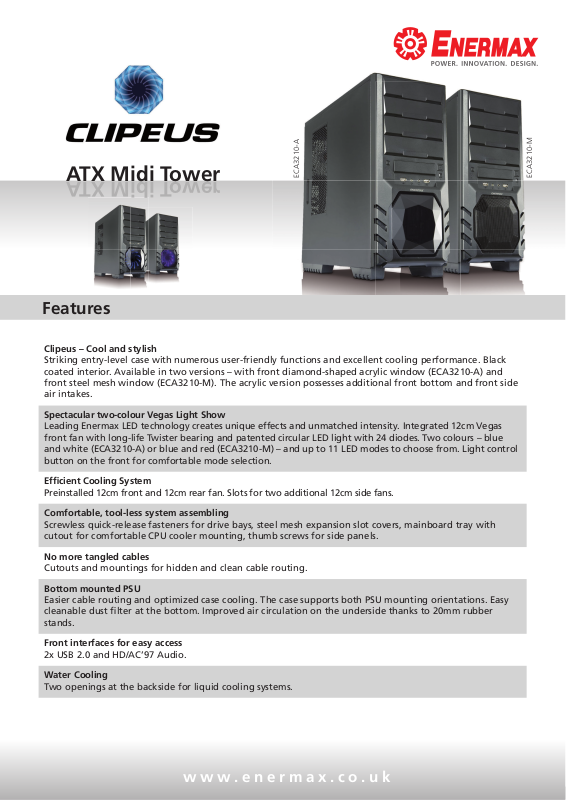

Clipeus – Cool and stylish

Striking entry-level case with numerous user-friendly functions and excellent cooling performance. Black
coated interior. Available in two versions – with front diamond-shaped acrylic window (ECA3210-A) and
front steel mesh window (ECA3210-M). The acrylic version possesses additional front bottom and front side
air intakes.

Spectacular two-colour Vegas Light Show

Leading Enermax LED technology creates unique effects and unmatched intensity. Integrated 12cm Vegas
front fan with long-life Twister bearing and patented circular LED light with 24 diodes. Two colours – blue
and white (ECA3210-A) or blue and red (ECA3210-M) – and up to 11 LED modes to choose from. Light control
button on the front for comfortable mode selection.

Efficient Cooling System

Preinstalled 12cm front and 12cm rear fan. Slots for two additional 12cm side fans.

Comfortable, tool-less system assembling

Screwless quick-release fasteners for drive bays, steel mesh expansion slot covers, mainboard tray with
cutout for comfortable CPU cooler mounting, thumb screws for side panels.

No more tangled cables

Cutouts and mountings for hidden and clean cable routing.

Bottom mounted PSU

Easier cable routing and optimized case cooling. The case supports both PSU mounting orientations. Easy
cleanable dust filter at the bottom. Improved air circulation on the underside thanks to 20mm rubber
stands.

Front interfaces for easy access

2x USB 2.0 and HD/AC’97 Audio.

Water Cooling

Two openings at the backside for liquid cooling systems.

id

Features

w w w . e n e r m a x . c o . u k

Leading LED Technology: Two-colour Vegas Light Show

Blue all LEDs on White* all LEDs on Combo all LEDs on Blue Propeller White* Propeller Combo Propeller

Blue Flash

* ECA3210-M with red instead of white LEDs.

Vegas-Mode – repeated: Blue all LEDs on / White* all LEDs on / Combo all LEDs on

Memory Function: The front fan is equipped with a memorizing function and will safe the last mode which has been chosen before shutting
down the system.

Quick-Off Function: To switch off the LED light, you can alternatively press the light button on the front for ca. 3 seconds.

Support graphics cards up to 298 mm
(up to 310mm without using FDD).

White* Flash Combo Flash Vegas* Off all LEDs on

VGA Length Cooling System

FRONT (Intake)

1x 12cm fan for HDD cooling

SIDE (Intake)

2x 12cm fan for CPU/VGA
cooling

REAR (Exhaust)

1x 12cm fan for CPU/VGA
cooling

Support graphics cards up to 298 mm

(up to 310mm without using FDD).
