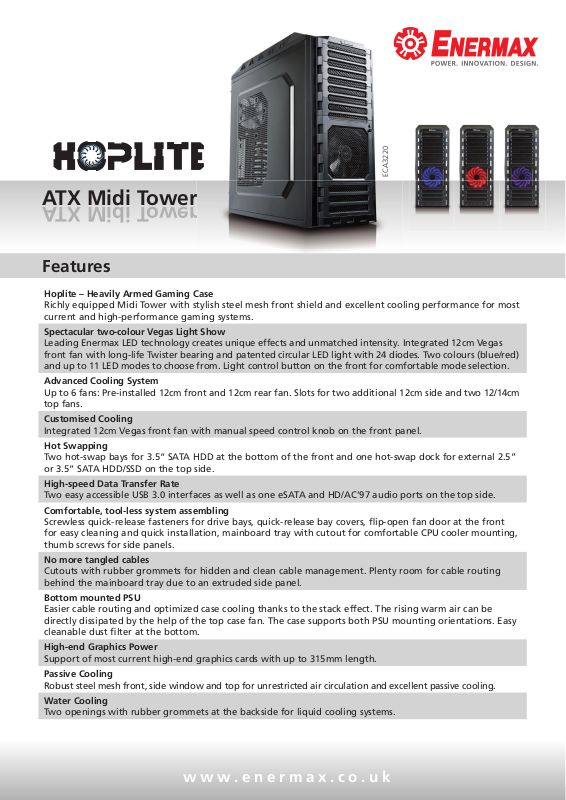

ATX Midi Tower
ATX Midi Tower
ECA3220
Features
Hoplite – Heavily Armed Gaming Case
Richly equipped Midi Tower with stylish steel mesh front shield and excellent cooling performance for most
current and high-performance gaming systems.
Spectacular two-colour Vegas Light Show
Leading Enermax LED technology creates unique effects and unmatched intensity. Integrated 12cm Vegas
front fan with long-life Twister bearing and patented circular LED light with 24 diodes. Two colours (blue/red)
and up to 11 LED modes to choose from. Light control button on the front for comfortable mode selection.
Advanced Cooling System
Up to 6 fans: Pre-installed 12cm front and 12cm rear fan. Slots for two additional 12cm side and two 12/14cm
top fans.
Customised Cooling
Integrated 12cm Vegas front fan with manual speed control knob on the front panel.
Hot Swapping
Two hot-swap bays for 3.5“ SATA HDD at the bottom of the front and one hot-swap dock for external 2.5”
or 3.5” SATA HDD/SSD on the top side.
High-speed Data Transfer Rate
Two easy accessible USB 3.0 interfaces as well as one eSATA and HD/AC’97 audio ports on the top side.
Comfortable, tool-less system assembling
Screwless quick-release fasteners for drive bays, quick-release bay covers, flip-open fan door at the front
for easy cleaning and quick installation, mainboard tray with cutout for comfortable CPU cooler mounting,
thumb screws for side panels.
No more tangled cables
Cutouts with rubber grommets for hidden and clean cable management. Plenty room for cable routing
behind the mainboard tray due to an extruded side panel.
Bottom mounted PSU
Easier cable routing and optimized case cooling thanks to the stack effect. The rising warm air can be
directly dissipated by the help of the top case fan. The case supports both PSU mounting orientations. Easy
cleanable dust filter at the bottom.
High-end Graphics Power
Support of most current high-end graphics cards with up to 315mm length.
Passive Cooling
Robust steel mesh front, side window and top for unrestricted air circulation and excellent passive cooling.
Water Cooling
Two openings with rubber grommets at the backside for liquid cooling systems.
彩色版灰階版紙箱_單色版
Page 2
w w w . e n e r m a x . c o . u k
Special Features
inside
Special Features
outside
Hot-Swap Docking Station
for 2.5“/3.5“ HDD/SSD on top side
Top interfaces
2x USB-3.0, 1x eSATA and
HD/AC’97-Audio on top side
Flip-open fan door
for easy cleaning and quick
installation
Bottom mounted PSU
Opimized case cooling.
Removable PSU dust filter
Water Cooling
Openings with rubber
grommets at the backside
Easy ODD access
Quick-release bay covers
Fan Control
LED mode switch and
speed control buttons on
front panel
2x Hot-Swap bays
for 3,5“-HDDs on the
front side
Cutouts with rubber
grommets
for hidden cable routing
TOP (Exhaust)
2x 12cm or 14cm fans for
CPU cooling
FRONT (Intake)
1x 12cm fan for HDD
cooling
SIDE (Intake)
2x 12cm fans for CPU/VGA
cooling
REAR (Exhaust)
1x 12cm fan for CPU/VGA
cooling
Quick release fasteners
for tool-less ODD installation
VGA Length
Support graphics cards
up to 315mm
Easy HDD installation
thanks to tool-less
mechanisms
Advanced Cooling System
Page 3
w w w . e n e r m a x . c o . u k
Technical Details
Model
ECA3220
Type
ATX Midi Tower
Dimensions (mm)
D 493 x W 200 x H 490
Material
0.6 – 0.8mm SECC
Drive Bays
5,25“
4
3,5“
4 + 2 hot-swap bays
2,5“
2
Hot-swap dock on top side
for HDD/SSD 2.5“/3.5“ SATA
M/B
ATX & Micro ATX
I/O
2x USB 3.0, 1x eSATA, HD/AC’97 Audio
Air Cooling
Front
1x 12cm Vegas fan (preinstalled)
Rear
1x 12cm fan (preinstalled)
Top
2x 12/14cm fans (optional)
Side
2x 12cm fans (optional)
Expansion Slots
7
Liquid Cooling Holes
2
Opening for data cables on the back side
1
Certifications & Standards
Leading LED Technology: Two-colour Vegas Light Show
Blue all LEDs on Red all LEDs on Combo all LEDs on Blue Propeller Red Propeller Combo Propeller
Blue Flash
* Vegas-Mode – repeated: Blue – Lighthouse / Red – Lighthouse / Combo – Lighthouse / Blue – Propeller / Red – Propeller / Combo – Propeller / Blue –
Triple Propeller / Red – Triple Propeller / Combo – Triple Propeller
Memory Function: The front fan is equipped with a memorizing function and will safe the last mode which has been chosen before shutting down
the system.
Quick-Off Funktion: To switch off the LED light, you can alternatively press the light button on the front for ca. 3 seconds.
Red Flash Combo Flash Vegas* OFF all LEDs off
