Page 1
www.enermax.com

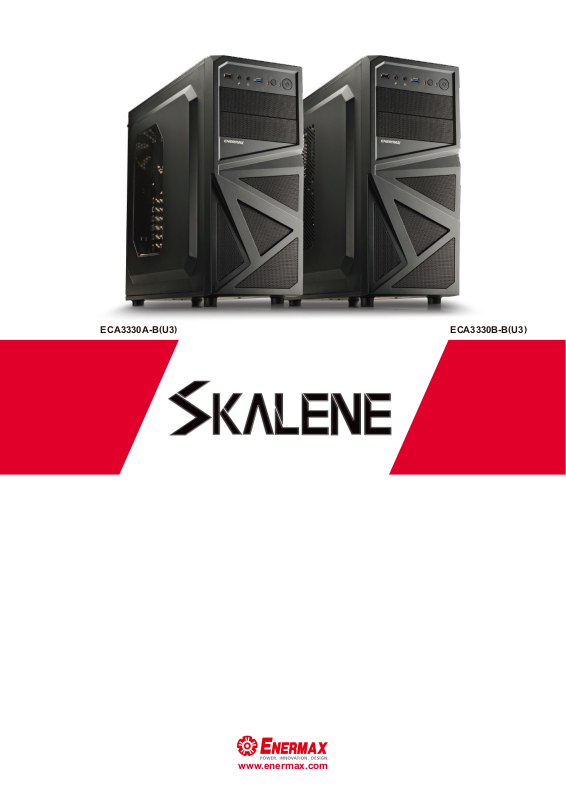

ECA3330A-B(U3
)
ECA3330B-B(U3
)
Page 2
FeaturesFeatures
ECA3330
CP003P
Adjustable 2.5” HDD bracket
One extra 2.5” HDD space
ECA3330B-B(U3
)
montage
at the bottom
○ Spacious interior supports micro ATX, ATX size of motherboard
○ Supreme cooling performance with up to 6 fans support (*Depending on the models)
- 2 x 12cm front fans
- 1 x 12cm top fan
- 1 x 12cm rear fan
- 2 x 12cm side fans
Dual front 12cm fans support
Top I/O for easy accessCutout for CPU cooler
○ Easy Access Front Interfaces
- With up to 2 x USB 3.0 or up to 2 x USB 2.0 and HD audio I/O (*Depending on the models
○ Utmost Expandability
- Removable 2.5” HDD bracket allows long VGA card installation (up to 390 mm / 15.35 inch)
- Supports up to 2 x 5.25” ODDs, 3 x 3.5” HDDs and 4 x 2.5” SSDs
○ User Friendly Installation
- Cut-out on M/B tray for easy CPU cooler montage
- Removable dust filter at bottom for easy cleaning
- 16mm clearance behind M/B tray for easy cable routing
- Direct access bays: ideal and user-friendly structure
)
Page 3
Advanced Cooling System
Rear (exhaust)
1 x 12cm fan
for CPU / VGA cooling
Top (exhaust)
1 x 12cm fan
for CPU / VGA cooling
VGA Card Support
a. 390mm(2.5” bracket removed)
b. 314mm(2.5” position)
c. 280mm(3.5” position)
Side (intake
2 x 12cm fans
for CPU / VGA cooling
ECA3331B-B(U3) illustrated
)
Options
SIDE PANEL TOP PANEL ODD / HDD SCREWLESS KITS
Acrylic extruded side panel Extruded side panel
with 2 x 12cm fan slots
Specifications
Front (intake)
2 x 12cm fans
for HDD cooling
Extruded top panel with 12cm fan slot
Plain top panel
5.25” ODD kits x 3pcs /
3.5” HDD kits x 3pcs
Dimensions
Power Supply
Drive Bays
Fan Slots
Expansion Slots
Inner Coating
CPU Cooler Height
VGA Card Length
I/O
M/B
ECA3330(U3) SeriesECA3330(U3) SeriesECA3330(U2) SeriesECA3330(U2) Series ECA3330(2U3) SeriesECA3330(2U3) Series
D453 x W203 x H427mm
1 x USB 3.0+ 1 x USB 2.0, HD Audio
2 x USB 3.0, HD Audio2 x USB 2.0, HD Audio
ATX / Micro ATX
ATX 12V (Optional)
5.25"
3.5"
2.5"
Front
Rear
Left
2 x 12cm (Optional)
1 x 12cm (Included)
2 x 12cm or Acrylic Window (Optional)
2
3
4
6
Black
165mm
390mm (2.5" HDD bracket removed)
* Extruded top panel is available for ECA3331 series.
www.enermax.com
©
2013 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual product and accessories may differ
from illustrations.Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the
property of others.
Oct. 2013
