Enermax EDF550AWN User Manual

EDF550AWN

www.enermax.com

DIGIFANLESS

Power Supply Series

EDF550AWN

550W

Features

Fanless+Digital Power Features

○ 90 PLUS ready!

World’s 1st digitally controlled fanless PSU with 80 PLUS Platinum certification

○ Fanless and full power @ 40°C

Fanless design creates a 0 dBA soundless operation for home theater/noise sensitive systems with a full power output @ 40°C/ 104°F ambient

○ ZDPMS digital control

Advance ZDPMS (Zero Delay Power Monitoring System) digital controlling provides real time power supply status and allows for a variety of personal configurations such as output voltage, protection, 12V rails qty

○ Individual Sleeved Cable

Full modular cabling design with individual sleeved wiring for flexible and refined cable management

○ 100% 105°C Japanese electrolytic capacitors

Highest components standards for maximum durability and stability

○ Copper-Bridge Array Transmission

Unique Copper-Bridge Array creates wide conduction path, and greatly decreases voltage & energy loss

○ 2013 ErP Lot 6 ready!

Help system to meet 2013 ErP Lot 6 (< 0.5W at standby mode) with high efficient +5Vsb circuitry. (With ErP Lot 6 enabled motherboard)

○ DC to DC Technology

DC to DC circuit perfectly supports new gen processors with C°6 low power state, offering best DC regulation and increase in power efficiency

○ CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC

○ SafeGuard

Industry-leading protection: OCP, OVP, UVP, OPP, OTP, SCP & SIP

○ Future ready!

12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors

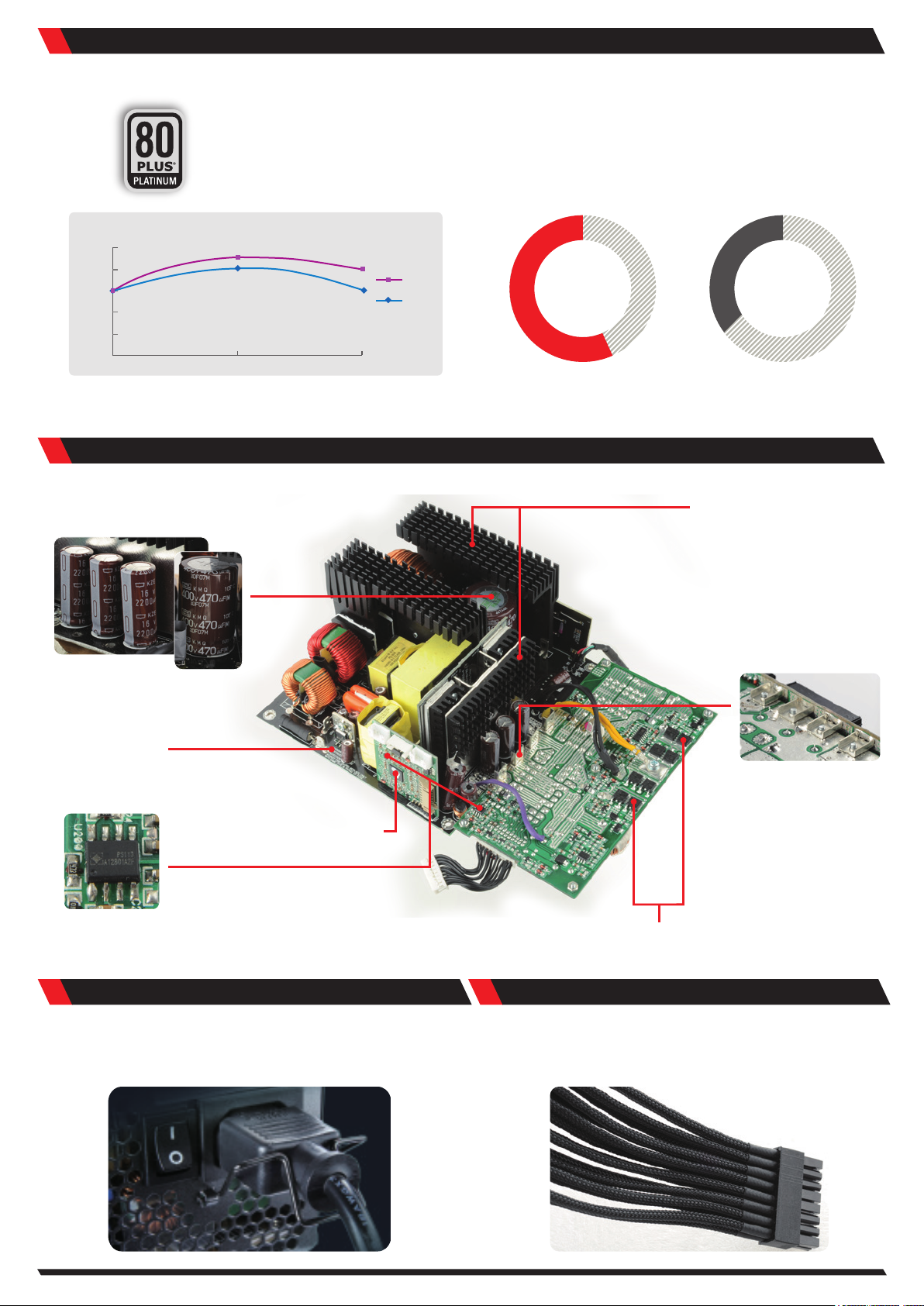

90PLUS/2013 ErP Lot 6 ready

High efficiency performance certified 80PLUS® Platinum.

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet 2013 ErP Lot 6 ( AC < 0.5W at standby) requirement. *With ErP Lot 6 enabled motherboard.

PSU +5Vsb efficiency @ 0.045A load, 230VAC

%

94

92

90

88

PSU Efficiency

86

20% 50% 100%

High efficiency standard & ECO design.

High Quality Components

100% 105°C Japanese electrolytic capacitor

230VAC

115VAC

PSU Loading

> 50%

as Intel Suggested

ENERMAX 2013 ErP Lot 6 Compliant PSU

36%

Non 2013 ErP Lot 6 Compliant PSU

Extended surface heat sink for 40°C ambient

Copper-Bridge Array ensures tight regulation

2x2oz PCB, low power loss, higher efficiency

ZDPMS digital control board

Industry-leading protection

DC to DC circuitry for C6/C7 Zero load compatibility

CordGuard Individual Sleeved Cable

Full modular cabling design with individual

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

sleeved wiring for flexible and refined cable management.

ZDPMS (Zero Delay Power Monitor System)

ENERMAX DIGIFANLESS is the world’s first digital monitor controlled fanless power supply. The proprietary ZDPMS (Zero Delay Power Monitoring System) software allows user to read the real-time PSU power consumption, efficiency and internal temperature. The DC output current, voltage protection warning points and 12V rail(s) can also be manually configured.

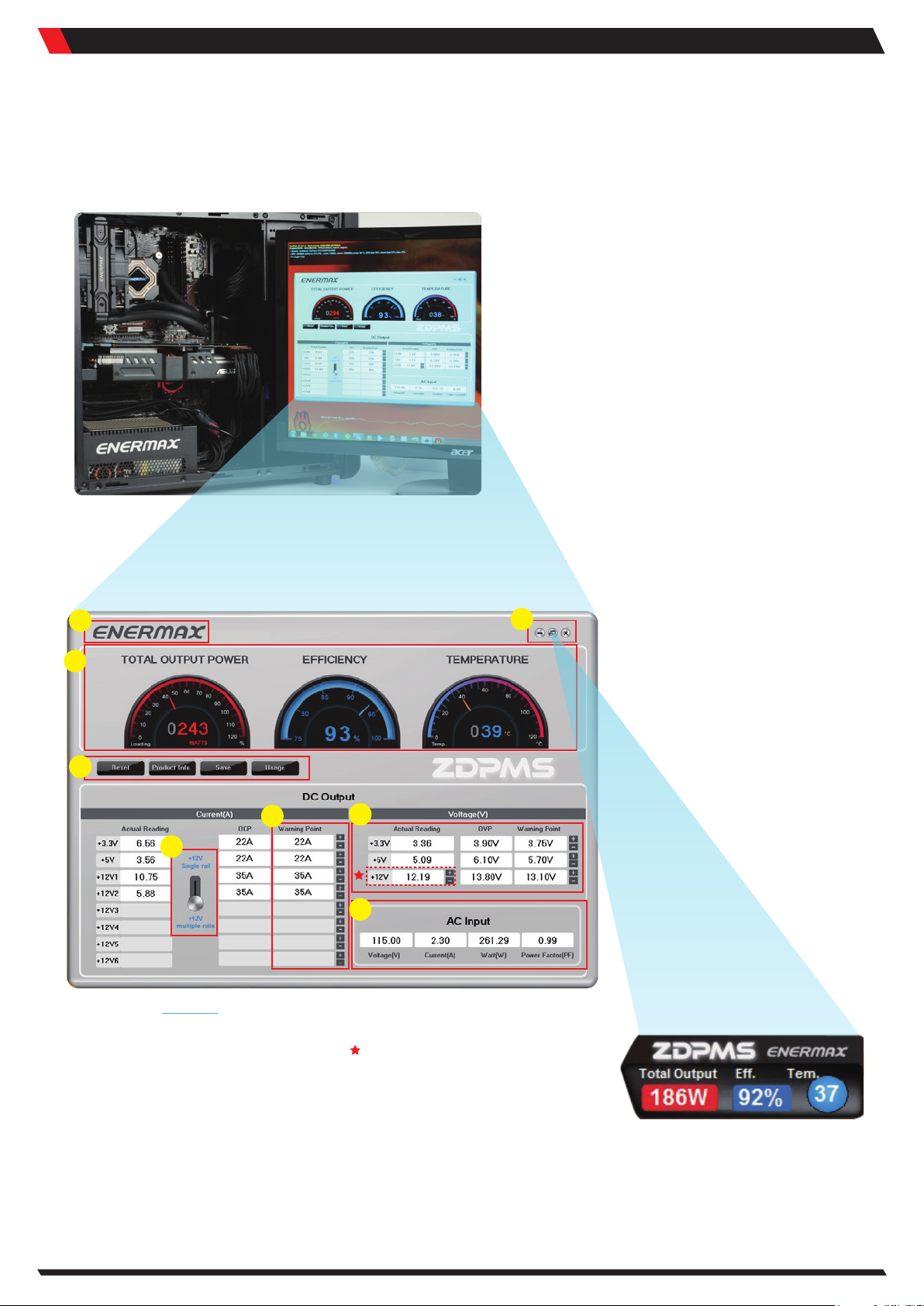

ZDPMS Main console

1

3

8

5

4

1. Quick link to Enermax

2. Window Control Tab　

3. General PSU Status Information

4. 12V rail(s) controller

5. DC output Current status & control

6. DC output Voltage status & control

7. AC input status

8. Additional Information Tab

2

6

7

Simple Mode

Adjustable 12V Output

Users are allowed to fine tune +12V output voltage for special application. Fine tune range: 11.64~12.36V

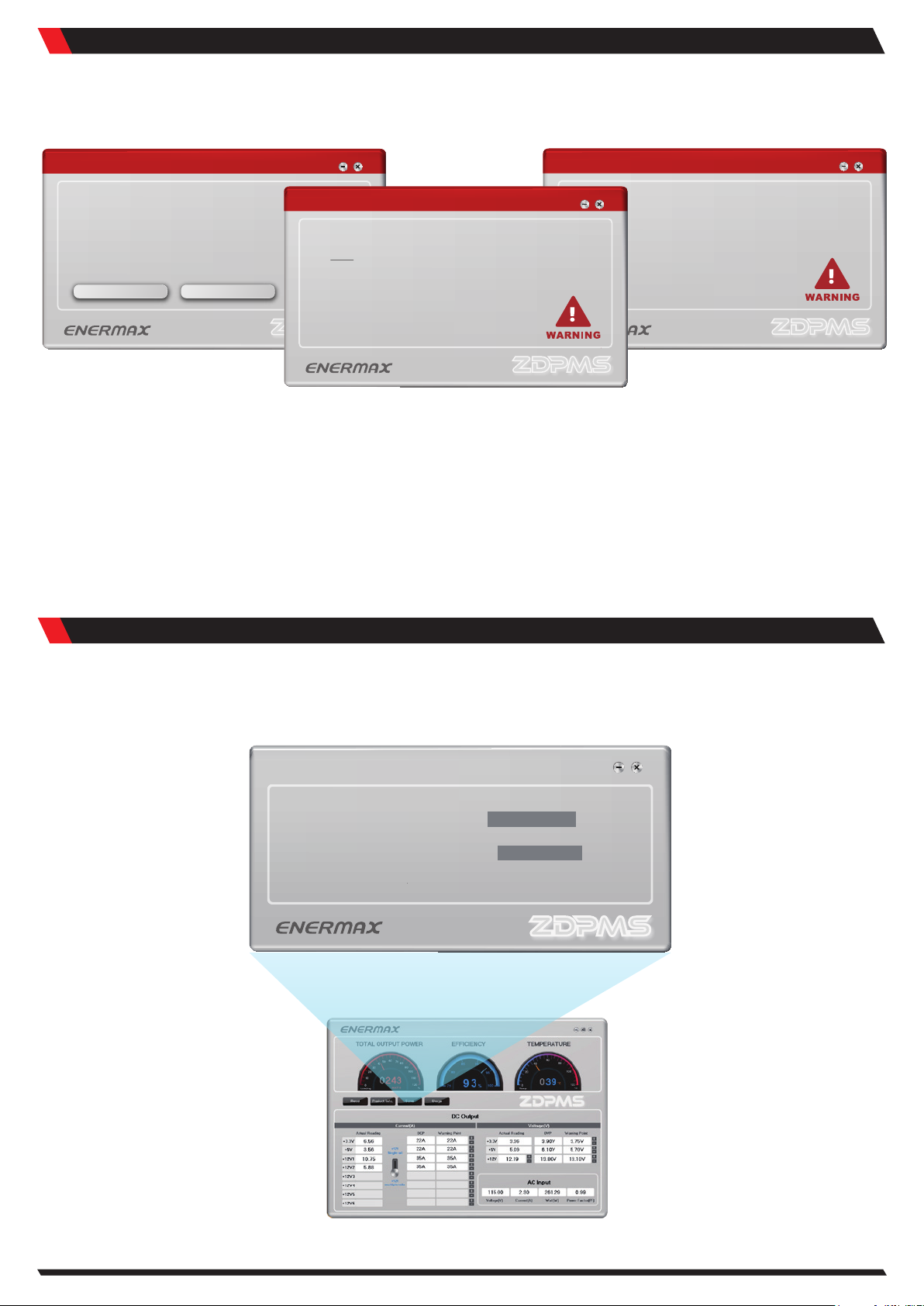

Pre-warning mechanism

DIGIFANLESS is equipped with ENERMAX’s comprehensive circuit protection layout to avoid the risk of system damage. Additionally, the warning message will be displayed if ZDPMS detects any abnormal power load, which gives users the opportunity to debug before the system shut down.

Over Temperature Warning

The PSU internal temperature is high. Please

1. Check if your system has sufficient cooling, or increase system’s fan speed

2. Reduce / Close unnecessary programs.

The over temperature protection will be triggered and shut

down the power if the PSU internal temperature reaches

o

90~120

C/195~248oF.

Remind me later Don’t remind me

Over Voltage Warning

The output voltage reaches the warning point.

Please reduce the voltage by adjusting the

corresponding voltage regulator.

a. OTP warning point: > 85°C

b. OVP warning adjustable range:

3.3V : 3.45~3.7V 5V : 5.2~5.7V 12V : 12.4~13.1V

c. OCP warning adjustable range:

3.3V/5V : 18~22A 12V1/12V2 : 31~35A (12V single rail mode: 46~50A)

Over Current Warning

The rail output current reaches the warning point.

Please reduce / close unnecessary programs to decrease

the system load.

Electricity calculator for easy TCO management

Input your local average electricity tariff and regional CO consumption, cost and CO

2 emission of the system.

Operation Time since ZDPMS started : ________ hr________ min.

Enter your regional CO2 emission factor : Kg/KwH

Estimated CO2 emission since ZDPMS started: Kg

Enter your region’s average electricity fare : $/KwH

Estimated electricity power consumption since ZDPMS started : ______KwH

Estimated electricity cost : $___________.

2 footprint, ZDPMS will calculate the estimated electricity

00 08

0.522

0.02

________

3

0.03

0.09

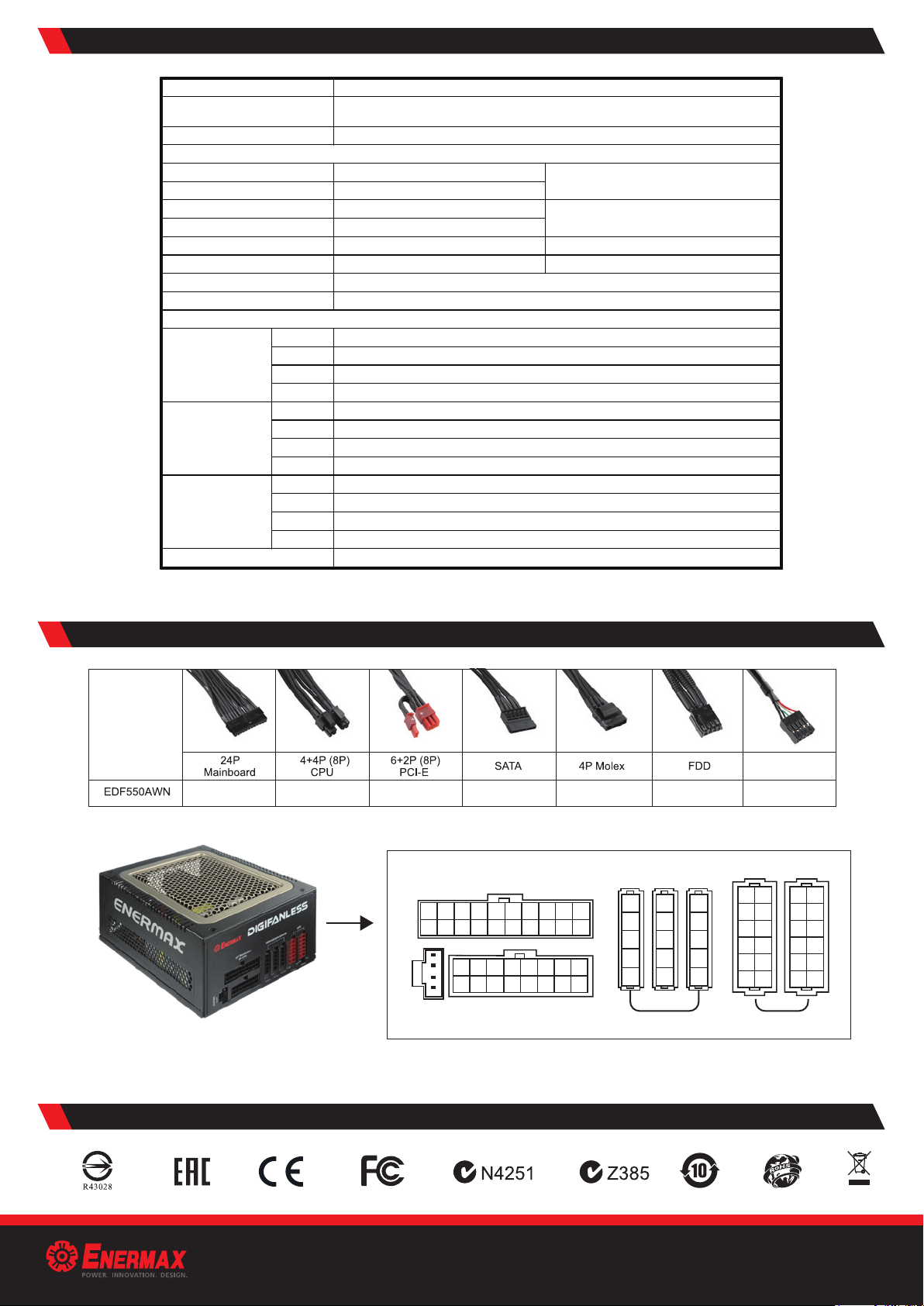

Specifications

AC Input Voltage

Over Current

Protection

Over Voltage

Protection

(DC) Under Voltage

Protection

ower

EDF550AWNModel Number

110-240VAC, 50-60Hz

(Maximum range: 99-265VAC, 47-63Hz)

6.0-2.5AAC Input Current

RATED DC OUTPUT

20A3.3V

20A5V

30A12V1

30A12V2

550WTotal P

605WPeak Power*1

PROTECTION CIRCUIT

OCP Trigger RangeDC Rail

22-32A3.3V

22-32 A5V

35-45A / rail, 50-60A (Single rail mode)12V

OVP Trigger RangeDC Rail

3.7-4.1V3.3V

5.7-6.5V5V

13.1-14.5V12V1/2

UVP Trigger RangeDC Rail

2.0 – 2.4V3.3V

3.3 – 3.7V5V

8.5 – 9.5V12V1/2

Activated when PSU heat sink > 90 ~ 120oC.Over Temperature Protection

100W

540W (45A)

6W0.5A-12V

12.5W2.5A5Vsb

*Peak power may last up to 60 seconds

Cables & Connectors

Model

1

(600mm)

Dimension: 175x150x86mm (DxWxH)

1

(650mm)

4

(500mm)

+12V1

RS+

RS-

VBus

Data+

Data-

GND

ZDPMS port

8

(450/600/750/900mm)

24P Mainboard

8P CPU

+5V

+5

+12

+3.3V

RS+

PW_OK PS_OK

Vsb

V1

+12V1+12

COM COM COM

V1

+12V1+12

COM COM COM COM +3.3V +3.3V

V1

+12V1+12

COM COM COM COM +3.3V +3.3V

V1

4

(450/600/750/900mm)

1

(1050mm)

Modular socket pin assignment

+3.3V

COM -12V +5V

+5V +5V +5V

+5V

COM

+12

V2

+3.3V

+5V

COM

+12

V2

HDD/ODD/Peripheral PCI-E/CPU

COM

+12

V2

+12

V2

+12

V2

ZDPMS data link

(600mm)

COM

+12

V2

+12

V2

+12

V2

1

COM

+12

V2

+12

V2

+12

V2

* Keep the main air vent side up in the chassis. DO NOT block air vents. Install adequate system cooling device to ensure its stability.

Certifications & Standards

www.enermax.com

©

in different areas or from illustrations. Some trademarks may be claimed as the property of others.

Feb. 2015
