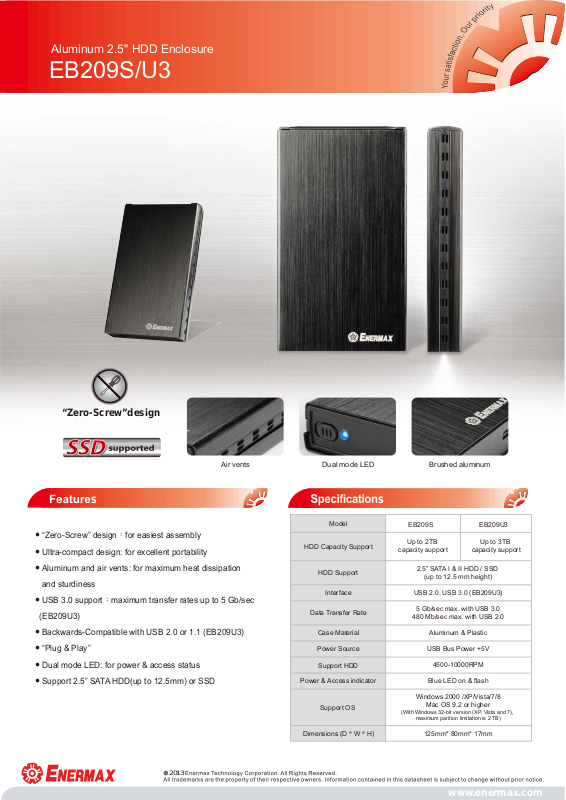

Enermax EB209S-B User Manual

Aluminum 2.5" HDD Enclosure

EB209S/U3

“Zero-Screw”design

Air vents Dual mode LED Brushed aluminum

s

●

“Zero-Screw” design：for easiest assembly

●

Ultra-compact design: for excellent portability

●

Aluminum and air vents: for maximum heat dissipation

and sturdiness

●

USB 3.0 support：maximum transfer rates up to 5 Gb/sec

(EB209U3)

●

Backwards-Compatible with USB 2.0 or 1.1 (EB209U3)

●

“Plug & Play”

●

Dual mode LED: for power & access status

●

Support 2.5” SATA HDD(up to 12.5mm) or SSD

Model

HDD Capacity Support

HDD Support

Interface

Data Transfer Rate

Case Material

Power Source

Support HDD

Power & Access indicator

Support OS

Dimensions (D＊W＊H)

s

EB209S EB209U3

Up to 2TB

capacity support

2.5” SATA I & II HDD / SSD
(up to 12.5 mm height)

USB 2.0, USB 3.0 (EB209U3)

5 Gb/sec max. with USB 3.0

480 Mb/sec max. with USB 2.0

Aluminum & Plastic

USB Bus Power +5V

4500-10000RPM

Blue LED on & flash

Windows 2000 /XP/Vista/7/8

Mac OS 9.2 or higher

(With Windows 32-bit version (XP, Vista and 7),

maximum parition limitation is 2 TB)

125mm* 80mm* 17mm

Up to 3TB

capacity support

2013

www.enermax.com
