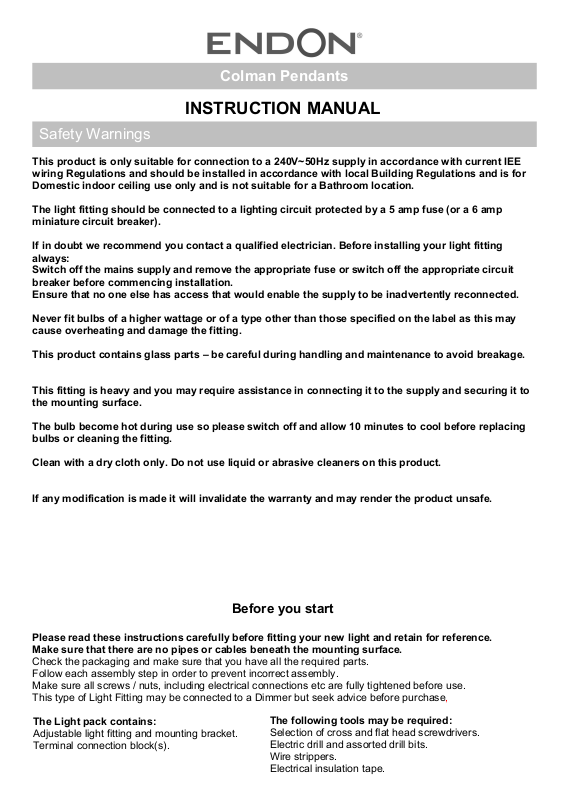

INSTRUCTION MANUAL
This product is only suitable for connection to a 240V~50Hz supply in accordance with current IEE
wiring Regulations and should be installed in accordance with local Building Regulations and is for
Domestic indoor ceiling use only and is not suitable for a Bathroom location.
The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp
miniature circuit breaker).
If in doubt we recommend you contact a qualified electrician. Before installing your light fitting
always:
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit
breaker before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
Never fit bulbs of a higher wattage or of a type other than those specified on the label as this may
cause overheating and damage the fitting.
This product contains glass parts – be careful during handling and maintenance to avoid breakage.
This fitting is heavy and you may require assistance in connecting it to the supply and securing it to
the mounting surface.
The bulb become hot during use so please switch off and allow 10 minutes to cool before replacing
bulbs or cleaning the fitting.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Make sure that there are no pipes or cables beneath the mounting surface.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly.
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
This type of Light Fitting may be connected to a Dimmer but seek advice before purchase,
Adjustable light fitting and mounting bracket.
Terminal connection block(s).
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
1
Electrical insulation tape.

Assembly/ User Instructions
1. Decide on the position of the light fitting / or remove
Details of terminal wiring.
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
LS9 0SE
20150811
(A)
existing light fitting. Take a note of the position of the
electrical connections. Ensure there is a solid mounting
surface, preferably a wooden joist or joist bridge to
support the weight of the light fitting.
2. See Diagram A. Remove the fixing bracket (2), by
undoing the 2 side screws (1), retain these for re-use.
3. Use the fixing bracket (2) as a template to mark the
screw holes, mark the screw holes and secure to the
ceiling with the screws (3) supplied.
4. Diagram B. If you want to reduce the overall length of
the fitting it is essential that this is done before the fitting
is mounted to the ceiling and / or connected to the mains
supply. To do this, remove the chain links as shown until
the desired length is reached. We recommend that the
minimum distance between the ceiling cup and the top of
the lamp holder section is 100mm. The cable must now
be shortened and the excess cable cut and re-connected
to the terminal block. To do this, firstly take a note of the
position of the cables in the terminal block then feed the
cable up through the ceiling cup entry hole, cut off the
excess cable and re-connect to the terminal block. Move
the cable anchor down the cable – from (A) to (B).This is
a strain relief device and must be used. NOTE: The
electric cable must always be longer than the chain
to prevent strain being placed on the cable.
5. Support your fitting and connect the house wiring to the
terminal block – see also details of terminal wiring.
NOTE: This is a Class I fitting and must be earthed.
th
terminal block connector is used for the “loop”
The 4
wires of the “Ring Circuit”. There may be more than one
set of cables in the “loop” connections. If there is a
“Ring Circuit” and you do not understand the
connections you must consult an electrician. Any
loose terminal blocks – not secured to the ceiling cup –
should always be covered with 2 layers of good quality
insulation tape. Secure the fitting back onto the fixing
bracket with the 2 side screws (1), removed in 2 above.
Make sure that all the internal cables and connections
are inside the ceiling cup taking care not to trap or strain
the internal cables and that any excess support cable
wires do not touch the terminal connections.
6. Diagram D. Fit the bulb into the lamp holder. NOTE:
Never fit bulbs of a higher wattage than those
specified on the label (as these may cause
overheating and damage the fitting).
7. Turn on the power and test.
2
