Page 1
The Light pack contains:
The following tools may be required:

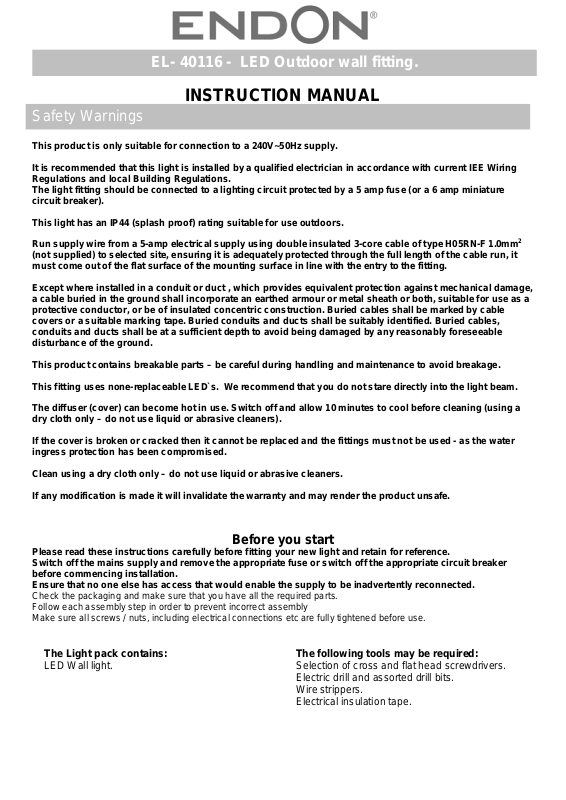

EL- 40116 - LED Outdoor wall fitting.
Safety Warnings
INSTRUCTION M ANUAL
This product is only suitable for connection to a 240V~50Hz supply.
It is recommended that this light is installed by a qualified electrician in accordance with current IEE Wiring
Regulations and local Building Regulations.
The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature
circuit breaker).
This light has an IP44 (splas h p roof) rating suitable for use outdoors.
Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm
(not supplied) to selected site, ensuring it is adequately protected through the full length of the cable run, it
must come out of the flat surface of the mounting surface in line with the entry to the fitting.
Except where installed in a conduit or duct , which provides equivalent protection against mechanical damage,
a cable buried in the ground shall incorporate an earthed armour or metal sheath or b o th , suitable for use as a
protective conductor, or be of insulated concentric construction. Buried cables shall be marked by cable
covers or a suitable marking tape. B u ried conduits and ducts shall be suitably identified. Buried cables,
conduits and ducts shall be at a suffic ient depth to avoid being damaged by any reasonably foreseeable
disturbance of the ground.
This product contains breakable parts – be careful during handling and maintenance to avoid breakage.
This fitting uses none-replaceable LED`s. We recommend that you do not stare directly into the light beam.
The diffuser (cover) can become hot in use. Switch off and allow 10 minutes to cool before cleaning (using a
dry cloth only – do not use liquid or abrasive cleaners).
If the cover is broken or cracked then it cannot be replaced and the fittings must not be used - as the water
ingress protection has been compr o m ised.
Clean using a dry cloth only – do not use liquid or abrasive cleaners.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Switch off the mains supply and remove the a p p ropriate fuse or switch off the appropr iate circuit breaker
before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
LED Wall light.
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
2
Page 2
Endon Lighting
LS9 0SE
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
Assembly / user instructions
L240 005

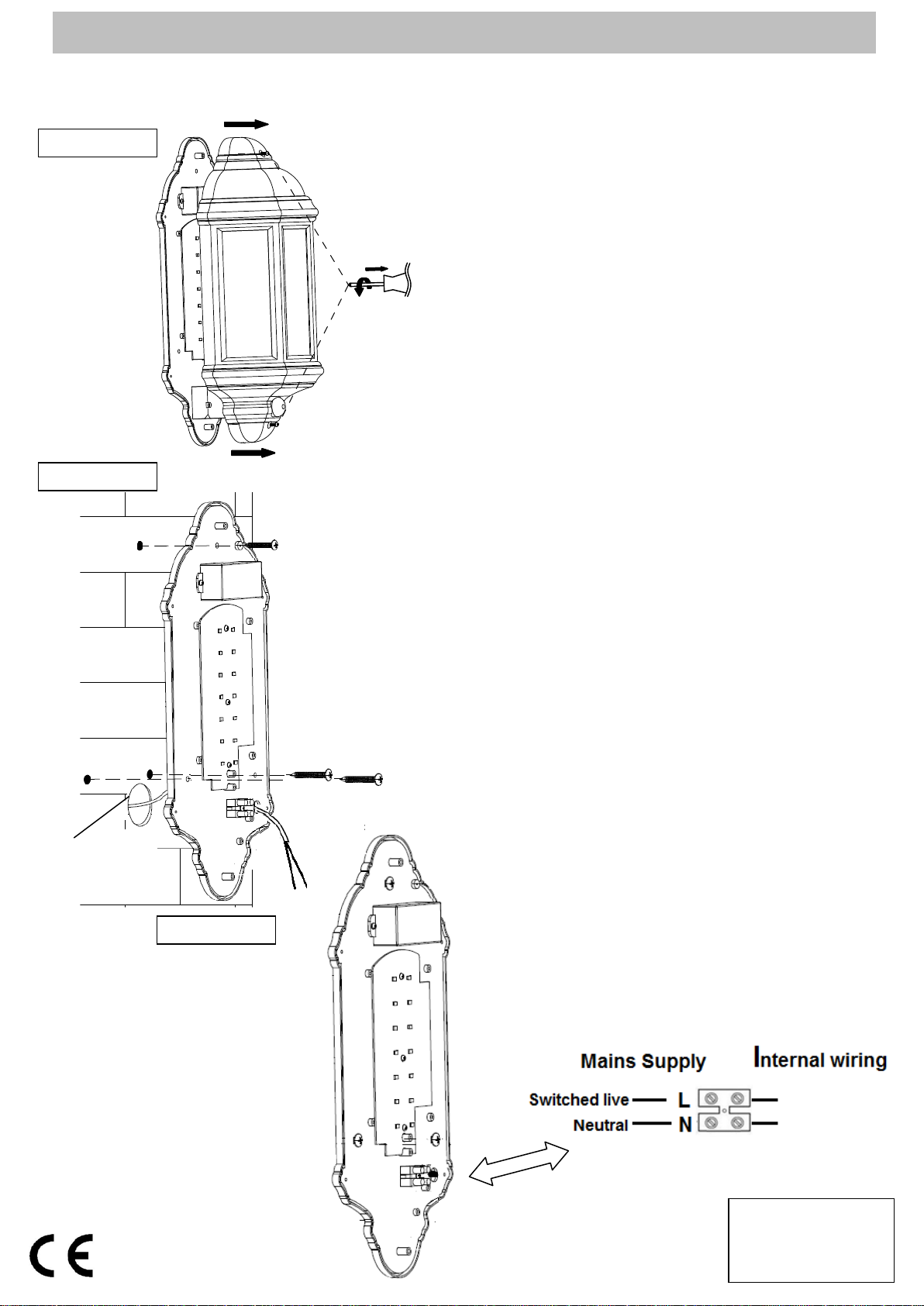

Diagram A
Diagram B
Diagram C
1. Diagram A. Remove the securing screws and lift
Mains supply
the front cover off the back plate. Retain these
Front cover.
terminal block. The cable entry grommet must be
securely in place to ensure that the water ingress
protection is maintained. Use appropriate fixings to
secure the back plate to the wall, making sure the
damage any cables. Fix the back plate to the wall.
NOTE: This is a Class II fittin
screws for re-use.
2. Diagram B. Determine the position of your light
fitting taking into account the exit position of the
cable. Ensure that the mounting surface is solid,
preferably a brick or block wall and ensure that there
are no other cables or pipes beneath the surface.
Use the back plate as a template and mark the 3
fixings holes. Bring the house wiring to the inter
back plate is correctly aligned and you do not trap or
3. Diagram C. Connect the house wiring – see wiring
details.
g and must not be
earthed. If you have any earth cables make sure
that they are connected to each other – to
maintain earth continuity throughout your
property – and wrap the earth terminal and
connections in 2 layers of good quality insulation
tape and keep them away from the terminal
connections of the fitting.
nal
cable
4. Re-fit the front cover with the screws removed in
1 above.
5. Turn on the power and test.
Leeds
UK
