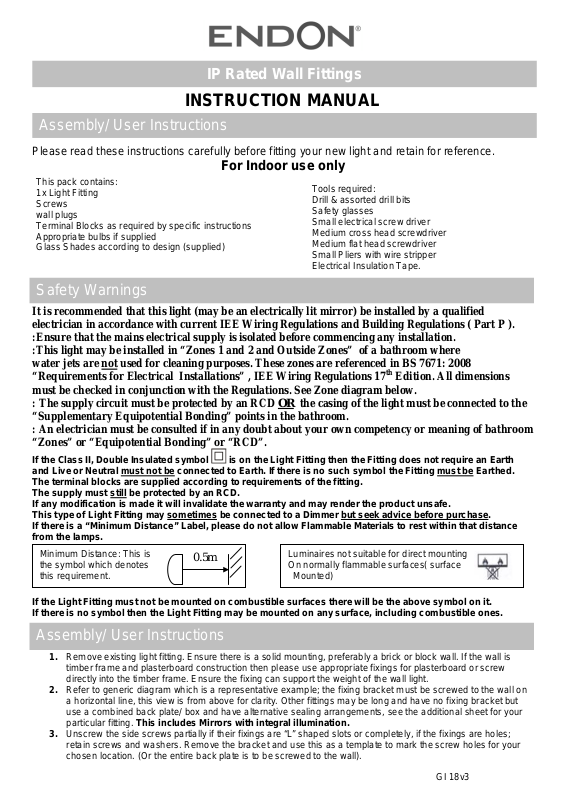

Assembly/ User Instructions
Assembly/ User Instructions
IP Rated Wall Fittings
Safety Warnings
This pack contains:
Tools required:
Electrical Insulation Tape.
Minimum Distance: This is
Luminaires not suitable for direct mounting
0.5m
INSTRUCTION M ANUAL
Please read these instructions carefully before fitting your new light and retain for reference.
For Indoor use only
1x Light Fitting
Screws
wall plugs
Terminal Blocks as required by specific instructions
Appropriate bulbs if supplied
Glass Shades according to design (supplied)
Drill & assorted drill bits
Safety glasses
Small electrical screw driver
Medium cross head screwdriver
Medium flat head screwdriver
Small Pliers with wire stripper
It is recommended that this light (may be an electrically lit mirror) be installed by a qualified
electrician in accordance with current IEE Wiring Regulations and Building Regulations ( Part P ).
:Ensure that the mains electrical supply is isolated before commencing any installation.
:This light may be installed in “Zones 1 and 2 and Outside Zones” of a bathroom where
water jets are not used for cleaning purposes. These zones are referenced in BS 7671: 2008
“Requirements for Electrical Installations” , IEE Wiring Regulations 17th Edition. All dimensions
must be checked in conjunction with the Regulations. See Zone diagram below.
: The supply circuit must be protected by an RCD OR the casing of the light must be connected to the
“Supplementary Equipotential Bonding” points in the bathroom.
: An electrician must be consulted if in any doubt about your own competency or meaning of bathroom
“Zones” or “Equipotential Bonding” or “RCD”.
If the Class II, Double Insulated symbol is on the Light Fitting then the Fitting does not require an Earth
and Live or Neutral must not be
The terminal blocks are supplied according to requirements of the fitting.
The supply must still be protected by an RCD.
If any modification is made it will invalidate the warranty and may render the product unsafe.
This type of Light Fitting may sometimes be connected to a Dimmer but seek advice before purchase.
If there is a “Minimum Distance” Label, please do not allow Flammable Materials to re st within that distance
from the lamps.
the symbol which denotes
this requirement.
If the Light Fitting must not be mounted on combustible surfaces there will be the a b o ve symbol on it.
If there is no symbol then the Light Fitting may be mounted on any surface, including com b u stible ones.
1. Remove existing light fitting. Ensure there is a solid mounting, preferably a brick or block wall. If the wall is
timber frame and plasterboard construction then please use appropriate fixings for plasterboard or screw
directly into the timber frame. Ensure the fixing can support the weight of the wall light.
2. Refer to generic diagram which is a representative example; the fixing bracket must be screwed to the wall on
a horizontal line, this view is from above for clarity. Other fittings may be long and have no fixing bracket but
use a combined back plate/ box and have alternative sealing arrangements, see the additional sheet for your
particular fitting. This includes Mirrors with integral illumination.
3. Unscrew the side screws partially if their fixings are “L” shaped slots or completely, if the fixings are holes;
retain screws and washers. Remove the bracket and use this as a template to mark the screw holes for your
chosen location. (Or the entire back plate is to be screwed to the wall).
connected to Earth. If there is no suc h sy mbol the Fitting must be Earthed.
On normally flammable surfaces( surface
Mounted)
GI 18v3
Page 2
Assembly/ User Instructions continued

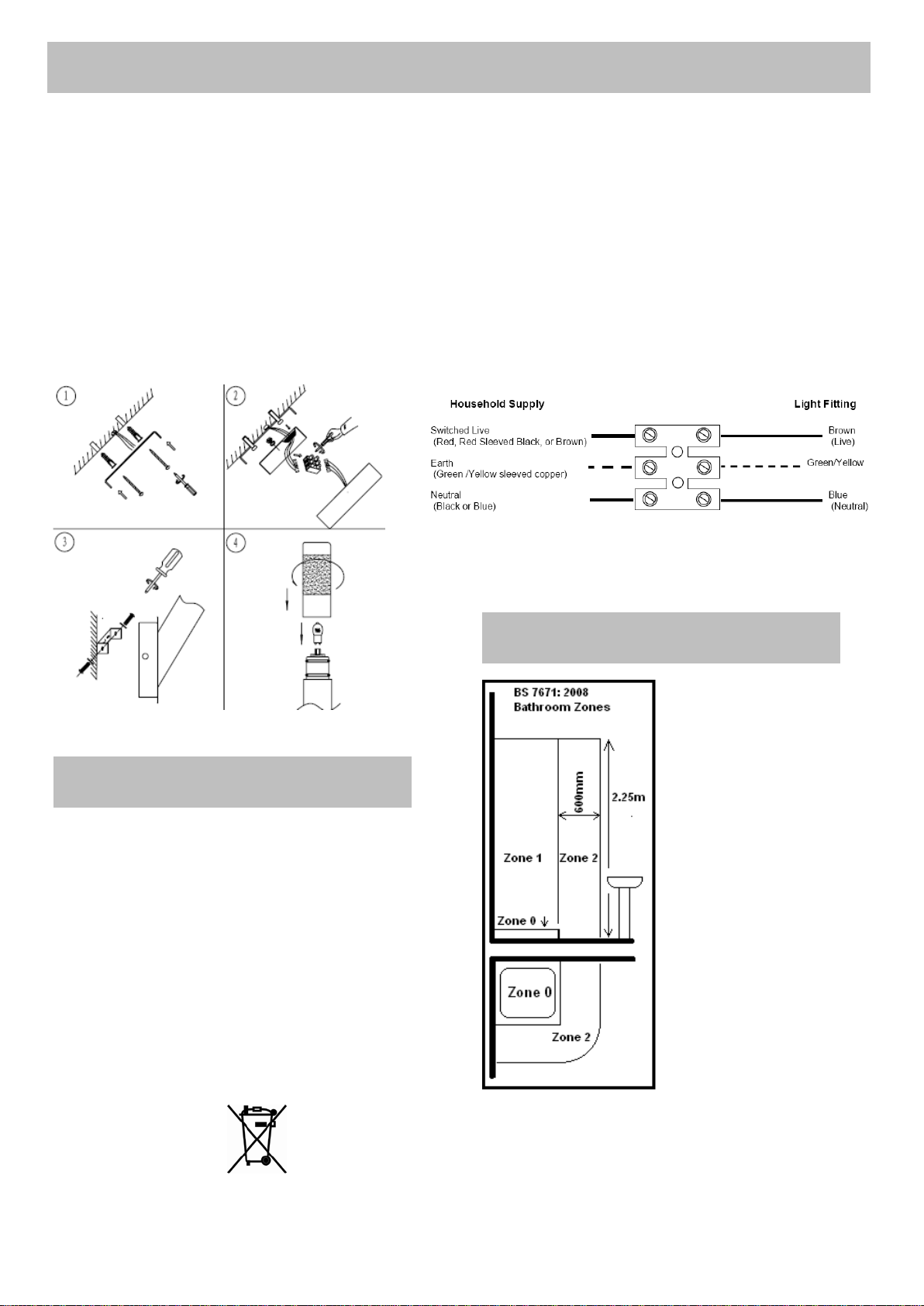

4. Diagrams (1) & (2) Screw the bracket (or back plate) to the wall, make a small hole in the grommet in the back
plate/ box and pass the house wiring through it ensuring a good seal.
5. Support your fitting and connect the house wiring according to the Terminal Block diagram. Ensure no strands
of wire escape the terminal Block. When you are sure of the connections wrap the Terminal Block and overlap
the wiring both sides with 2 layers of insulation tape. Fixed Terminal Blocks with an Insulation plate underneath
them do not require further insulation. Re-fit the back box ensuring no wires are damaged, trapped or left
exposed. Check the seal. (or go to step 6 if back plate screwed to wall)
6. Diagram (3) Fix your fitting in position by reversing step 3, ensuring no wires are damaged, trapped or left
exposed. Check the waterproofing seal.
7. Diagram (4) Install the Bulbs, do not install bulbs with a greater wattage or different shape than specified on
the label. Please do not touch the glass envelope of G9 bulbs (if used) with bare fingers. Attach any Glass
Shades, these sometimes push onto a rubber sealing ring, or are clamped against a seal. This last
construction applies to Mirrors with integral illumination. Refer to additional instruction sheet.
Terminal Block in Generic Diagram
Shower tray shown; bath
Generic Diagram has equivalent diagram.
Refer to Standard for more
Care Information
All Light Fittings for UK Market are designed
for 240V ac, 50 Hz (220-240V ac)
Please retain these instructions for future reference.
Switch off and allow 10 minutes to cool b efore
cleaning, use only dry cloth.
Endon Lighting
LS9 0SE
information.
Basins should be regarded
as having a 600mm Zone 2
hemi-sphere above and
extending down to floor.
Zone Information
GI 18v3
