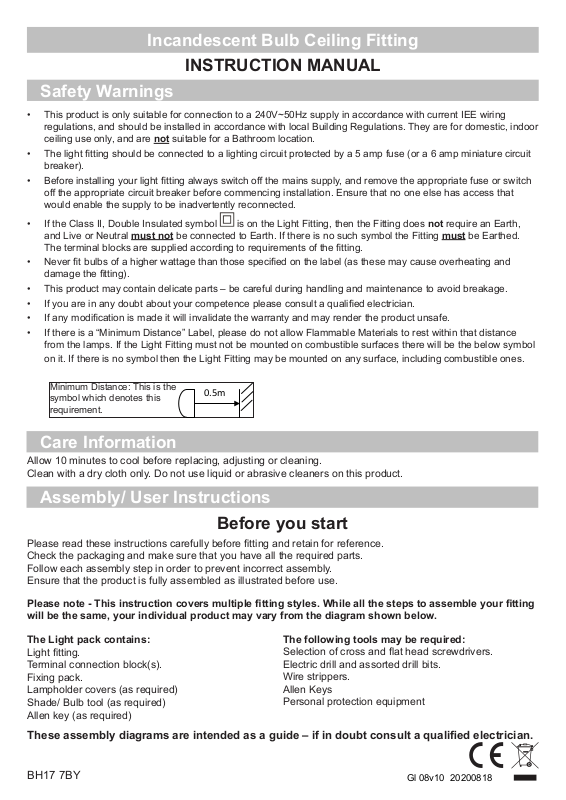

Incandescent Bulb Ceiling Fitting
INSTRUCTION MANUAL
Safety Warnings
• This product is only suitable for connection to a 240V~50Hz supply in accordance with current IEE wiring
regulations, and should be installed in accordance with local Building Regulations. They are for domestic, indoor
ceiling use only, and are not suitable for a Bathroom location.
• The light tting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature circuit
breaker).
• Before installing your light tting always switch o the mains supply, and remove the appropriate fuse or switch
o the appropriate circuit breaker before commencing installation. Ensure that no one else has access that
would enable the supply to be inadvertently reconnected.
• If the Class II, Double Insulated symbol is on the Light Fitting, then the Fitting does not require an Earth,
and Live or Neutral must not be connected to Earth. If there is no such symbol the Fitting must be Earthed.
The terminal blocks are supplied according to requirements of the tting.
• Never t bulbs of a higher wattage than those specied on the label (as these may cause overheating and
damage the tting).
• This product may contain delicate parts – be careful during handling and maintenance to avoid breakage.
• If you are in any doubt about your competence please consult a qualied electrician.
• If any modication is made it will invalidate the warranty and may render the product unsafe.
• If there is a “Minimum Distance” Label, please do not allow Flammable Materials to rest within that distance
from the lamps. If the Light Fitting must not be mounted on combustible surfaces there will be the below symbol
on it. If there is no symbol then the Light Fitting may be mounted on any surface, including combustible ones.
Minimum Distance: This is the
symbol which denotes this
requirement.
Care Information
Allow 10 minutes to cool before replacing, adjusting or cleaning.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.
Assembly/ User Instructions
Before you start
Please read these instructions carefully before tting and retain for reference.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly.
Ensure that the product is fully assembled as illustrated before use.
Please note - This instruction covers multiple tting styles. While all the steps to assemble your tting
will be the same, your individual product may vary from the diagram shown below.
The Light pack contains:
Light tting.
Terminal connection block(s).
Fixing pack.
Lampholder covers (as required)
Shade/ Bulb tool (as required)
Allen key (as required)
The following tools may be required:
Selection of cross and at head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Allen Keys
Personal protection equipment
These assembly diagrams are intended as a guide – if in doubt consult a qualied electrician.
BH17 7BY
Gl 08v10 20200818
Assembly/ User Instructions Continued
1. Decide on the position of the light tting / or remove existing light tting. Take a note of the position of the
electrical connections. Ensure there is a solid mounting surface, preferably a wooden joist or joist bridge to
support the weight of the light tting.
2. If you want to reduce the overall length of the tting it is essential that this is done before the tting is mounted
to the ceiling and/ or connected to the mains supply. Remove the chain links until the desired length is
reached. The cable must now be shortened and the excess cable cut and re-connected to the terminal block.
Feed the cable up through the plastic bush and form a loop above the ceiling cup, and secure the cable.
This might be done by moving the gure of 8 cable restraint down the exposed cable or by using a clamp or
grub screw to grip the cable. NOTE: The electric cable must always be longer than the chain to prevent
strain being placed on the cable. If you are unsure about your ability to do this, we recommend you
contact a qualied electrician.
3. Refer to generic diagram; the Ceiling Cup is for pendants. Although three suspension wires are shown,
Fittings may be supported by a single chain, a solid stem, the electrical cable or may have lamp holders
mounted on the Ceiling Cup which will be a larger diameter than shown.
4. Remove the two side screws(3) and retain the screws for re-use. Use the xing bracket as a template to mark
the screw holes. Mark the screw holes and secure to the ceiling with appropriate screw xings (1), making
sure the bracket is correctly aligned.
5. Support your tting and connect the house wiring to the terminal block – see expanded wiring details below.
6. Secure the ceiling cup over the bracket by using the screws (3) removed in Point 4.
7. Slide the lampholder covers or “Candle Tubes” over the lamp holders, and ax any decorative beads, if
appropriate for your tting.
8. If there are shades, they can be tted by removing the shade ring, sliding the shade over the lampholder and
replacing the shade ring.
9. Fit the bulb(s). NOTE: Never t bulbs of a higher wattage than those specied on the label (as these
may cause overheating and damage the tting).
10. Turn on the power and test.
BH17 7BY
Class I Class II
2
Gl 08v10 20200818
