Emko ESD-9950 User guide

ESD-9950 96 x 96 1/4 DIN
With Analogue Set, ON / OFF or Time
Proportional Digital & Analogue Temperature
Controller
- 4 Digits Display
- J type Thermocouple Input or , K type Thermocouple Input or , R type Thermocouple Input or , S type Thermocouple Input or , 2 or 3-wire PT 100 Input (It must be determined in order)
- ON/OFF or Time Proportional Operation
- Adjustable Hysteresis Value with DIP Switch for ON/OFF Control
- Adjustable Control Period with DIP Switch for ON/OFF Control
- Adjustable Set Offset Value
ESD-9950 96x96 1/4 DIN Digital & Analogue Temperature Controller
Instruction Manual. ENG ESD-9950 02 V02 03/05
ABOUT INSTRUCTION MANUAL
Instruction manual of ESD-9950 Digital & Analogue Temperature Controller consists of two main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS” section. User can reach to any title with section number.
Installation:
In this section, physical dimensions of the device, panel mounting, electrical wiring, physical and electrical installation of the device to the system are explained.
Operation
physical and electrical mounting or using the device.
:
In this section, user interface of the device, definitions of operation form are explained.
Also in these sections, there are warnings to prevent serious injury while doing the
Explanation of the symbols which are used in these sections are given below.
This symbol is used for safety warnings. User must pay attention to these warnings.
c
This symbol is used to determine the dangerous situations as a result of an electric shock. User must pay attention to these warnings definitely.
a
This symbol is used to determine the important notes about functions and usage of
i
the device.
2
CONTENTS
1.PREFACE............................................................................................................................................
1.1 GENERAL SPECIFICATIONS
1.2 ORDERING INFORMATION
1.3 WARRANTY
1.4 MAINTENANCE
2.INSTALLATION....................................................................................................................................
2.1 GENERAL DESCRIPTION
2.2 DIMENSIONS
2.3 PANEL CUT-OUT
2.4 ENVIRONMENTAL RATINGS
2.5 PANEL MOUNTING
2.6 INSTALLATION FIXING CLAMP
2.7 REMOVING FROM THE PANEL
3.ELECTRICAL WIRINGS......................................................................................................................
3.1 TERMINAL LAYOUT AND CONNECTION INSTRUCTIONS
3.2 ELECTRICAL WIRING DIAGRAM
3.3 VIEW OF THE DEVICE LABEL
3.4 SUPPLY VOLTAGE INPUT CONNECTION OF THE DEVICE
3.5 TEMPERATURE SENSOR INPUT CONNECTION
3.5.1 TC (THERMOCOUPLE) CONNECTION
3.5.2 RTD CONNECTION
3.6 GALVANIC ISOLATION TEST VALUES OF ESD-9950 DIGITAL & ANALOGUE TEMPERATURE CONTROLLER
Page 5
Page 7
Page 12
3.7 RELAY OUTPUT CONNECTION
3.8 SSR DRIVER OUTPUT CONNECTION
4.FRONT PANEL DEFINITION AND OPERATION SETTINGS.............................................................
4.1 FRONT PANEL DEFINITION
4.2 OPERATION SETTINGS
4.2.1 SET VALUES
4.2.2.ON/OFF, TIME PROPORTIONAL OPERATION FORM SELECTION
4.2.3 ADJUSTMENT OF HYSTERESIS VALUE FOR ON/OFF CONTROL
4.2.4 ADJUSTMENT OF CONTROL PERIOD FOR TIME PROPORTIONAL CONTROL
4.2.5 ADJUSTMENT OF SET OFFSET VALUE
5.FAILURE MESSAGES IN ESD-9950 DIGITAL & ANALOGUE TEMPERATURE CONTROLLER....
6.SPECIFICATIONS................................................................................................................................
Page 19
Page 25
Page 26
3
EU DECLARATION OF CONFORMITY
Manufacturer Company Name : Emko Elektronik A.S.
Manufacturer Company Address: DOSAB, Karanfil Sokak, No:6, 16369 Bursa, Turkiye
The manufacturer hereby declares that the product conforms to the following standards and conditions.
Product Name : Digital & Analogue Temperature Controller
Model Number : ESD-9950
Type Number : ESD-9950
Product Category : Electrical equipment for measurement, control and
Laboratory use
Conforms to the following directives :
73 / 23 / EEC The Low Voltage Directive as amended by 93 / 68 / EEC
89 / 336 / EEC The Electromagnetic Compatibility Directive
Has been designed and manufactured according to the following specifications
EN 61000-6-4:2001 EMC Generic Emission Standard for the Industrial Environment
EN 61000-6-2:2001 EMC Generic Immunity Standard for the Industrial Environment
EN 61010-1:2001 Safety Requirements for electrical equipment for measurement, control and laboratory use
4
1.Preface
ESD Series Digital & Analogue Temperature Controllers are designed for measuring and
controlling temperature. They can be used in many applications with their simple and easy to use properties, On / Off and time proportional control form.
Some application fields which they are used are below:
Application Fields
Glass Plastic Petro-Chemistry Textile Automative Machine production industries
1.1 General Specifications
ESD-9950
Supply Voltage Input
Temperature Sensor Input
Standard
Relay Output
Standard
230 V V (±15%) , 50/60Hz
Optional Supply Voltage Input
115 V V (±15%) , 50/60Hz 24 V V (±15%) , 50/60Hz
J , K , R and S Type TC 2 or 3-wire PT 100
Control Output Alarm Output
ON/OFF or Time
Proportional
Operation
Standard
SSR Driver Output
Control Output Alarm Output
ON/OFF or Time
Proportional
Operation
5
1.2 Ordering Information
A BC D E FG HI //U V W Z/
ESD-9950 (96x96 1/4 DIN)
Supply Voltage
A
24V V (±15%) 50/60Hz
3
115V V (±15%) 50/60Hz
4
230V V (±15%) 50/60Hz
5
Customer
9
Input TypeBC
01
PT 100 , IEC751(ITS90) PT 100 , IEC751(ITS90)
02
03
PT 100 , IEC751(ITS90)
04
J ,Fe CuNi IEC584.1(ITS90) J ,Fe CuNi IEC584.1(ITS90)
05
K ,NiCr Ni IEC584.1(ITS90)
06
S ,Pt10%Rh Pt IEC584.1(ITS90)
07
R ,Pt13%Rh Pt IEC584.1(ITS90)
08
Output-1
E
6 Relay & SSR (Configurable)
/
0 00 0 0
006
Scale(°C)
-100.0°C 100.0°C
0°C 0°C
0°C
0°C
0°C 0°C
200.0°C
400°C 400°C
800°C
1200°C
1600°C 1600°C
0.0°C
All order information of ESD-9950 Digital & Analogue Temperature Controller are given on the table at left. User may form appropriate device configuration from information and codes that at the table and convert it to the ordering codes.
Firstly, supply voltage then other specifications must be determined. Please fill the order code blanks according to your needs.
Please contact us, if your needs are out of the standards.
HysteresisU
0.25% of full scale
0
0.5% of full scale
1
1% of full scale
2
2% of full scale
3
Control PeriodV
1 second
1
5 seconds
2
10 seconds
3
20 seconds
4
c
SSR Driver Output
SSR Driver and Relay Output
SSR Driver and Relay Output
SSR Driver and Relay Output
V Symbol means Vac, Z Symbol means Vdc
1.3 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.
1.4 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.
6
2.Installation
Before beginning installation of this product, please read the instruction manual and warnings below carefully.
c
In package ,
- One piece unit
- Two pieces mounting clamps
- One piece instruction manual
A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it’s own fixing clamps. Do not do the montage of the device with inappropriate fixing clamps. Be sure that device will not fall while doing the montage.
It is your responsibility if this equipment is used in a manner not specified in this instruction manual.
7
2.1 General Description
Terminal protection
cover
Product label
Mounting clamp
Front Panel IP65 protection NEMA 4X
2.2 Dimensions
PWR
160
120
80
200
240
Panel surface (maximum thickness 15mm / 0.59 inch)
Maximum 15mm / 0.59 inch
OUT
o
C
280
320
40
15
0
ON OFF
30
% PB
0
96mm / 3.78 inch
360
400
0
-
SV-OFFSET
ESD-9950
+
96mm / 3.78 inch
12.5 ± 1 mm /0.49 inch
76mm / 2.99 inch
11.5 ± 1 mm /0.45 inch
8
2.3 Panel Cut-Out
129 mm / 5.08 inch (min)
129 mm / 5.08 inch (min)
92mm / 3.62 inch
92mm / 3.62 inch
9
2.4 Environmental Ratings
Operating Conditions
Operating Temperature : 0 to 50 °C
Max. Operating Humidity : 90% Rh (non-condensing)
Altitude : Up to 2000m.
Forbidden Conditions: Corrosive atmosphere
c
Explosive atmosphere Home applications (The unit is only for industrial applications)

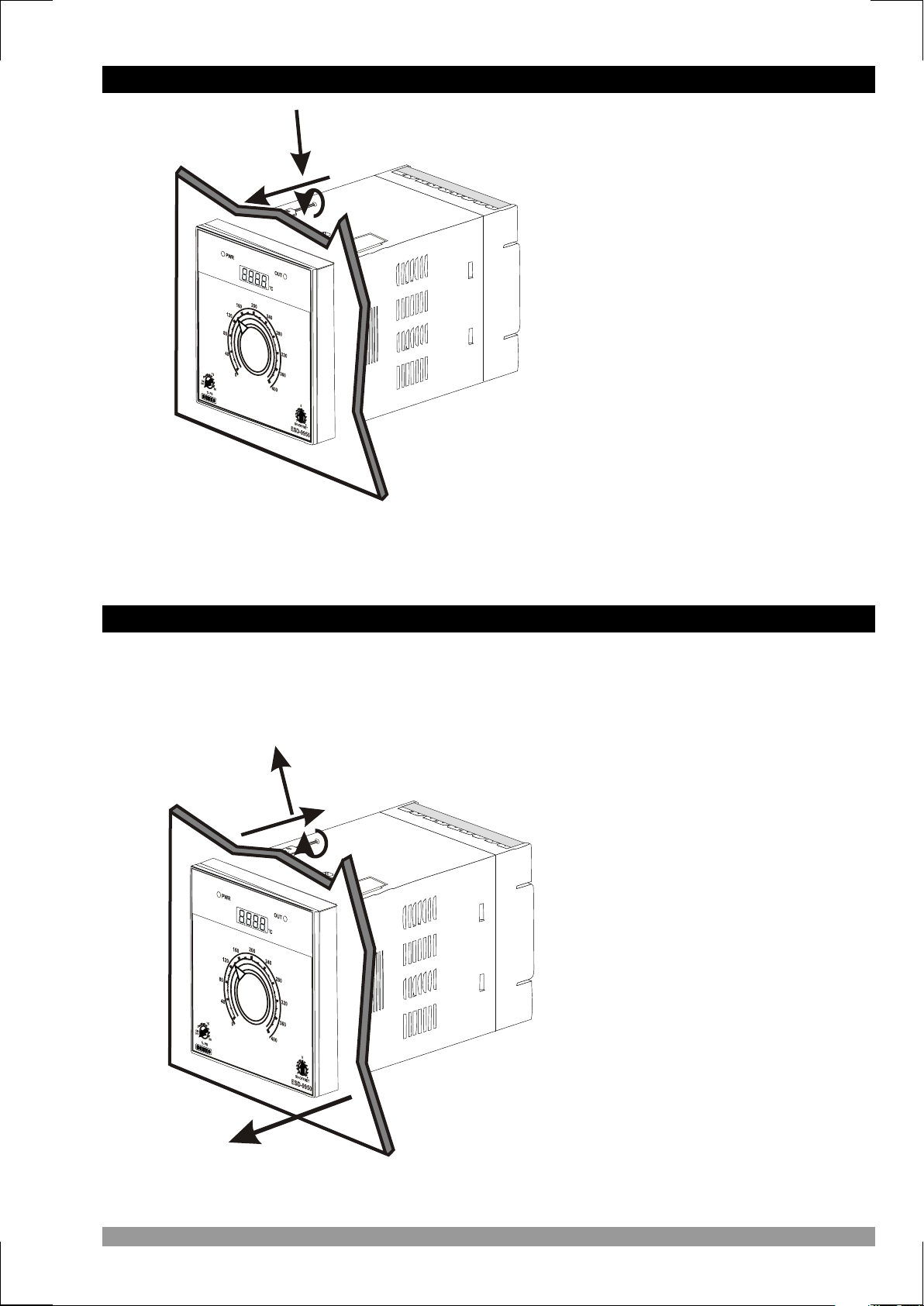

2.5 Panel Mounting
1
1-Before mounting the device in your panel, make sure that the cut-out is of the right size.
2-Check front panel gasket position
3-Insert the device through the cut­out. If the mounting clamps are on the unit, put out them before inserting the unit to the panel.
c
3
2
During installation into a metal panel, care should be taken to avoid injury from metal burrs which might be present. The equipment can loosen from vibration and become dislodged if installation parts are not properly tightened. These precautions for the safety of the person who does the panel mounting.
10
2.6 Installation Fixing Clamp
1
The unit is designed for panel mounting.
2
Montage of the unit to a system must be done with it’s own fixing clamps. Do not do the montage of the device with inappropriate fixing clamps. Be sure that
c
2.7 Removing from the Panel
device will not fall while doing the montage.
1-Insert the unit in the panel cut-out from the front side.
2- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fix i n g s c rews until the un i t completely immobile within the panel
c
Before starting to remove the unit from panel, power off the unit and the related system.
2
1
1-Loosen the screws.
2-Pull mounting clamps from top and bottom fixing sockets.
3-Pull the unit through the front side of the panel
3
11
3.Electrical Wirings
You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled, and/or personal injury. It is your responsibility, as the installer, to ensure that
c c
c
the configuration is correct. Device parameters has factory default values. These parameters must be set according to the system’s needs.
Only qualified personnel and technicians should work on this equipment. This equipment contains internal circuits with voltage dangerous to human life. There is severe danger for human life in the case of unauthorized intervention.
Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.
c
3.1 Terminal Layout and Connection Instructions
1132143154165176187198209211022112312
24
6 mm / 0.236 inch Wire Size: 18 AWG / 1 mm² Solid /Stranded
24 screws terminal M3
Empty terminals
Torque 0.5 Nm
aa
Screw driver 0.8x3mm
0.5Nm
12
3.2 Electrical Wiring Diagram
Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel injury.
c
Temperature Sensor Input
(TC or PT-100)
Pt-100
Sensor or Transmitter
Supply Voltage
SSR Driver Output
Max 50mA@18V Z
TC
1 2 3 4 5 6
P/N : ESD-9950
CAT II
Y
c
12 V Z
Max 50mA
7
8 9
10 11 12
5A@250V V
a
13 14 15 16 17 18
N
Supply Voltage Input
230V V (±15%) 50/60Hz - 4VA 115V V (±15%) 50/60Hz - 4VA
24V V (±15%) 50/60Hz - 4VA
(It must be determined in order)
Temperature Sensor Input is in CAT II class
L
ii
C NO NC
19
20 21 22 23 24
RELAY OUTPUT
13
3.3 View of the Device Label
ON
OFF
1
ONOFF
1 2 3 4
2
OFF
1 2
1 2
OFF OFF
1 2
HYS
0.25% of scale
ON
HYS
0.5% of scale
HYS 1% of scale
ON ON
HYS 2% of scale
ONON
OFFOFF
3 4
OFF
3 3 4 4
ON
C.Time
1 sec.
SSR
C.Time 10 sec.
SSR&Relay
ON
OFF
3 4
C.Time
5 sec.
SSR&Relay
C.Time 20 sec.
SSR&Relay
13
230 VV ± 15% 50/60Hz - 4VA 115 VV ± 15% 50/60Hz - 4VA
1
14
N
24 VV ± 15% 50/60Hz - 4VA
2
15
L
Pt-100
TC
3
12 V Z
16
Input Type
Max.50mA
4
17
PT-100 (-100.0;+100.0) PT-100 (0.0;200.0) PT-100 (0;400) J (TC) (0;400) J (TC) (0;800) K (TC) (0;1200) R (TC) (0;1600) S (TC) (0;1600)
5
18
6
19
20
21
P/N : ESD-9950
7
a
8
Y
9
c
CAT II
22
C
Relay Output
5A@250VV
SSR Driver Output
Max.50mA@18V Z
10
23
11
24
NCNO
12
14

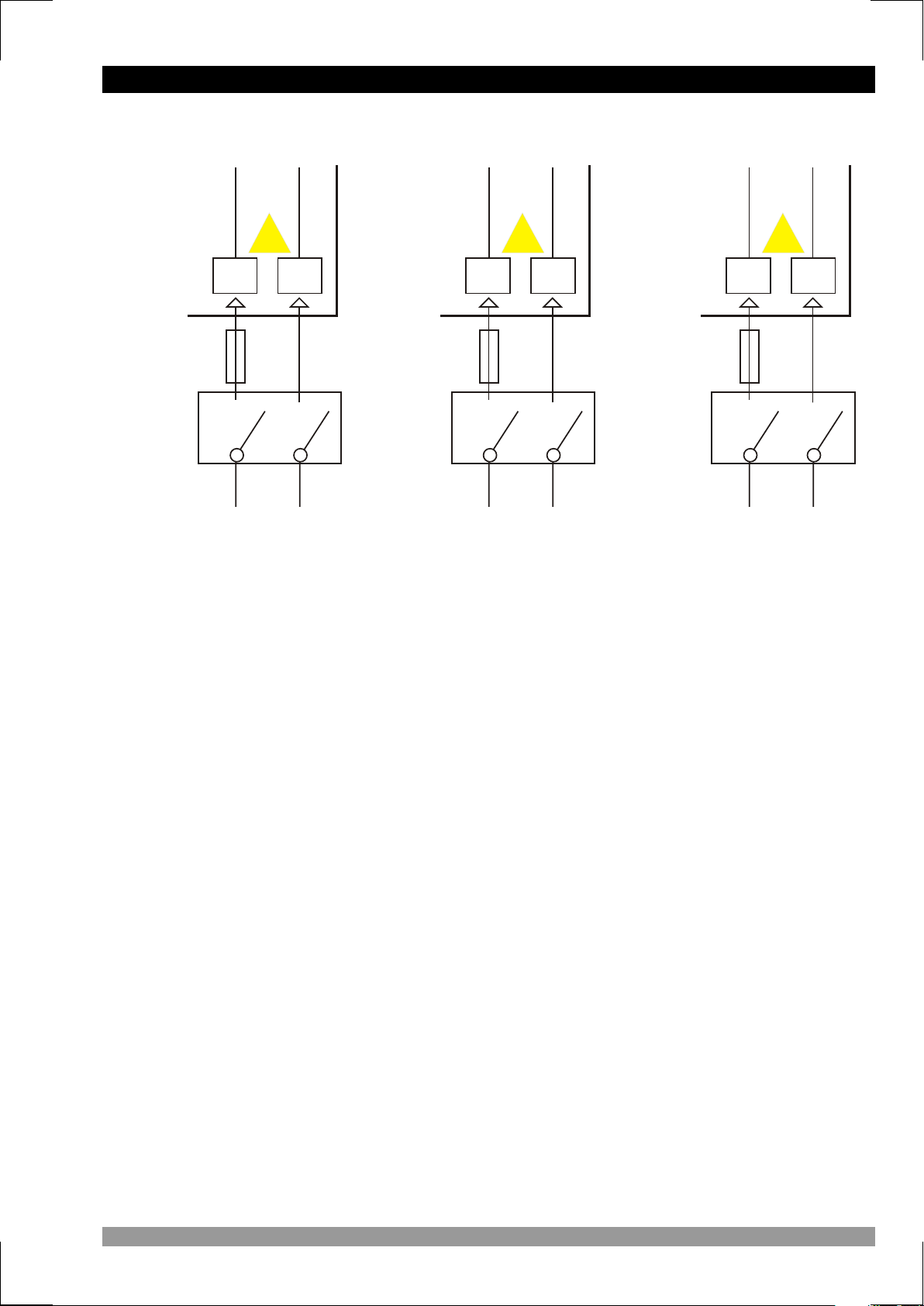

3.4 Supply Voltage Input Connection of the Device
Connection of Standard
Supply Voltage Input
Y
a
14
External
Fuse
(1 A VT)
Power Supply Switch
c
Supply Voltage
230 V V (±15%) 50/60Hz
13
Connection of 115V V
Supply Voltage Input
Y
NL
a
NL
Connection of Low Voltage
24 V V Supply Voltage Input
Y
a
NL
14 13 14 13
External
Fuse
(1 A VT)
Power
Supply
Switch
c
Supply Voltage
115V V (±15%) 50/60Hz
External
Fuse
(1 A VT)
Power Supply Switch
c
Supply Voltage
24V V (±15%) 50/60Hz
c c
c c
Supply voltage range must be determined in order. While installing the unit, supply voltage range must be controlled and appropriate supply voltage must be applied to the unit. Controlling prevents damages in unit and system and possible accidents as a result of incorrect supply voltage.
There is no power switch or fuse on the device. So a power switch and a fuse must be added to the supply voltage input. Power switch and fuse must be put to a place where user can reach easily.
Power switch must be two poled for seperating phase and neutral. On/Off condition of power switch is very important in electrical connection. On/Off condition of power switch must be signed for preventing the wrong connection.
External fuse must be on phase connection in Vsupply input.
15
3.5 Temperature Sensor Input Connection
3.5.1 TC (Thermocouple) Connection
TC
Connect the wires with the polarity as shown in the figure left.
1 2 3
Always use compensation wire corresponding to the thermocouple used. If
i
present, the shield must be connected to a proper ground.
Input resistance is greater than 10M W.
ii
3.5.2 RTD Connection
Pt-100
Note 1
Pt-100
Note 2
1 12 23 3
3-wire Pt-100 connection (with line compensation)
(Max. Line impedance is 10 W)
Note 1 : In 3-wire system, use always cables of the same diameter (min 1mm²) Always use wires of the same gauge and type whether a 2-wire or 3-wire system.
Note 2 : Install a jumper between terminals 2 and 3 when using a 2-wire RTD. Note 3 : If the distance is longer than 10 meters, use 3-wire system
2-wire Pt-100 connection (without line compensation)
Input resistance is greater than 10M W.
ii
16
3.6 Galvanic Isolation Test Values of ESD-9950 Digital & Analogue Temperature Controller
2000V V ( For ESD-9950.5..... )
2000V V ( For ESD-9950.4..... )
500V V ( For ESD-9950.3..... )
Ground
2
Supply Voltage Input
13
14
2000V V
2000V V
2000V V
2000V V

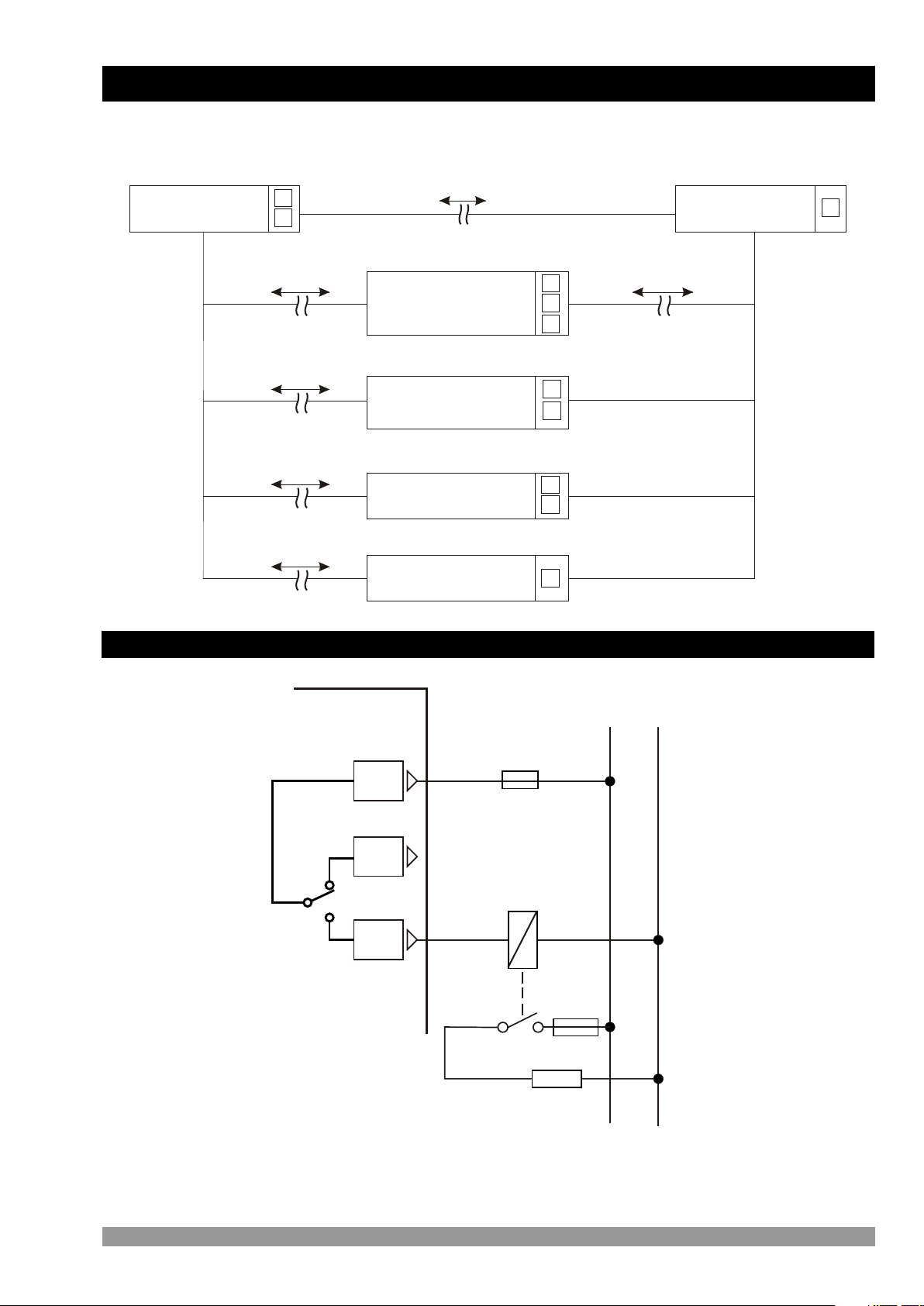

3.7 Relay Output Connection
Device
Relay Output
SSR Driver
Output
Analogue
Inputs
12V Z Sensor
Supply Voltage
22
23
24
11
12
2000V V
1
3
4
L N
c
C
5A V T Fuse
22
NC
24
Last Control Element
(Contactor)
23
NO
c
Fuse
Load
Fuses must be selected according to the applications
17

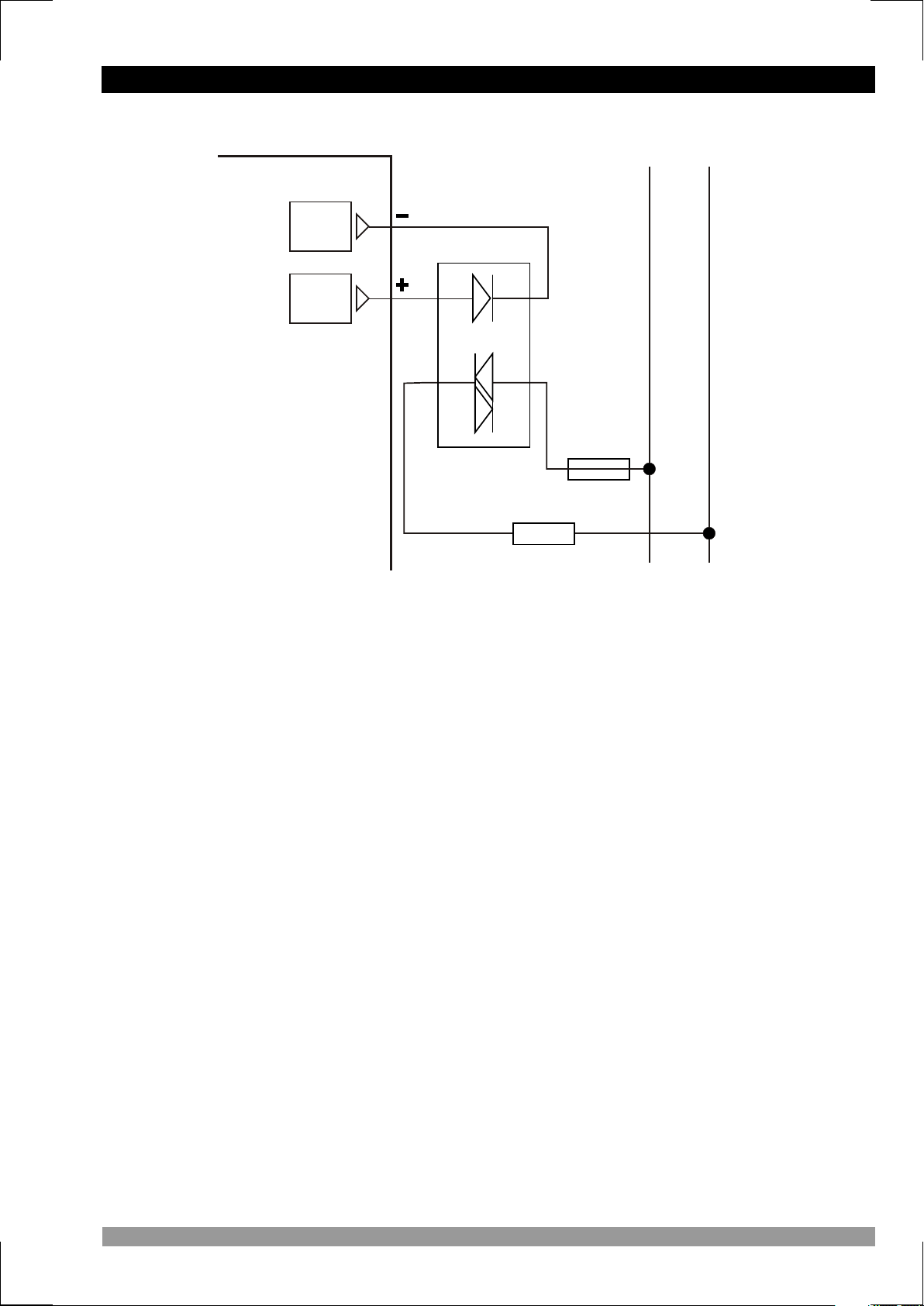

3.8 SSR Driver Output Connection
Device
11
13
15-18 V Z
Max. 50mA
Last Control
Element
(SSR)
Load
L N
c
Fuse
c
Fuses must be selected according to the applications
18
4. Front Panel Definition and Operation Settings
4.1 Front Panel Definition
Led indication of device
is active
15
0
ON OFF
30
% PB
80
PWR
120
40
Led indication of Control
Outputs Status
OUT
Displays
Temperature
Scale changes according
160
200
240
o
C
280
to the type and scale of
320
360
0
400
0
-
SV-OFFSET
ESD-9950
+
the device
Adjustment of Proportional
Band and Selection of
ON/OFF Control Form
Potentiometer for Adjustment
Adjustment of Set
Offset Value
of Set Value
19
4.2 Operation Settings
4.2.1 Set Values
Set value can be adjusted with Set Value Adjustment Potentiometer that is on the front panel. Set value range changes according to the type and scale of the device. Minimum and maximum values of Set value according to the device type are given below:
Set Values according to the Type and Scale of the Device
For PT-100 ( -100.0 to 100.0 )°C For PT-100 ( 0.0 to 200.0 )°C For PT-100 ( 0 to 400 )°C For J Type TC ( 0 to 400 )°C
For J Type TC ( 0 to 800 )°C For K Type TC ( 0 to 1200 )°C
For R Type TC ( 0 to 1600 )°C For S Type TC ( 0 to 1600 )°C
4.2.2 ON/OFF , Time Proportional Operation Form Selection
Operation form can be adjusted with proportional band adjustment and ON/OFF Control Form selection trimpot that is on the front panel.
15
0
ON OFF
30
Trimpot is adjusted to point out ON/OFF part for ON/OFF Control form.
PB%
Trimpot is adjusted to point out different from ON/OFF part for proportional operation. Proportional Band Value can be adjusted from 0% to 30% of full scale. Minimum and maximum value of proportional band according to the type and scale of the device are given below:
Proportional Band Values according to the type and scale of the device
For PT-100 ( -100.0 to 100.0 )°C scaled device: 0.0 to 60.0°C For PT-100 ( 0.0 to 200.0 )°C scaled device : 0.0 to 60.0°C For PT-100 ( 0 to 400 )°C scaled device : 0 to 120°C For J Type TC ( 0 to 400 )°C scaled device : 0 to 120°C
ON OFF
15
0
30
PB%
For J Type TC ( 0 to 800 )°C scaled device : 0 to 240°C For K Type TC ( 0 to1200 )°C scaled device : 0 to 360°C
For R Type TC ( 0 to 1600 )°C scaled device : 0 to 480°C For S Type TC ( 0 to 1600 )°C scaled device : 0 to 480°C
20
4.2.3 Adjustment of Hysteresis Value for ON/OFF Control
In ON/OFF control algorithm, temperature value is tried to keep equal to set value by opening or closing completely last control element. ON/OFF controlled system, temperature value oscillates continuously. Temperature value’s oscillation period or amplitude around set value changes according to controlled system. For reducing oscillation period of temperature value, a threshold zone is formed below or around set value and this zone is named hysteresis. Action of control output is described with figures below.
Temperature
Temperature
Set Value
Hysteresis
Time
Temperature
Control Output
ON
OFF
Time
Temperature
Control Output
Temperature
Set Value
ON
ON/OFF Control
Form with
OFF
HYS
Temperature
hysteresis
In operation with ON/OFF Control form; hysteresis value can be adjusted with DIP
ii
Switch on the device.
NCNO
24
23
5A@250VV
Relay Output
C
22
21
5 sec.
C.Time
SSR&Relay
ON
OFF
3
4
SSR
1 sec.
C.Time
ONON
OFFOFF
3
4
HYS
HYS
HYS
scale
scale
scale
1% of
0.5% of
0.25% of
ON
ON
OFF
OFF
1
111
2
222
ONOFF
1
234
20
C.Time
20 sec.
SSR&Relay
19
P/N : ESD-9950
18
C.Time
10 sec.
SSR&Relay
ON
17
OFF
3 3
4 4
HYS
scale
2% of
ON ON
OFF OFF
PT-100 (-100.0;+100.0)
PT-100 (0.0;200.0)
PT-100 (0;400)
J (TC) (0;400)
J (TC) (0;800)
Input Type
16
15
L
14
N
24 VV ± 15% 50/60Hz - 4VA
230 VV ± 15% 50/60Hz - 4VA
115 VV ± 15% 50/60Hz - 4VA
13
K (TC) (0;1200)
SSR Driver Output
CAT II
Pt-100
Max.50mA@18V Z
Y
a
c
R (TC) (0;1600)
S (TC) (0;1600)
12
11
10
9
8
7
6
5
4
Max.50mA
12 V Z
3
TC
2
1
DIP Switch is under cover and cover is on top side of the device
21
Hysteresis Value Selection
ONOFF
1 2
0.25% of full scale is selected
ONOFF
1 2
1 2
1 2
OFF
OFF
ON
ON
0.5% of full scale is selected
1% of full scale is
selected
2% of full scale is
selected
Minimum and maximum value of hysteresis according to the type and scale of the device are given below:
If 0.25% of full scale is selected with DIP
Switch, then hysteresis;
For PT-100 ( -100.0 to 100.0 )°C: ( 0.0 to 0.5 )°C
For PT-100 ( 0.0 to 200.0 )°C : (0.0 to 0.5)°C
For PT-100 ( 0 to 400 )°C : (0 to 1)°C
For J Type TC ( 0 to 400 )°C : (0 to 1)°C
For J Type TC ( 0 to 800 )°C : (0 to 2)°C
For K Type TC ( 0 to 1200 )°C : (0 to 3)°C
For R Type TC ( 0 to 1600 )°C : (0 to 4)°C
For S Type TC ( 0 to 1600 )°C : (0 to 4)°C
If 1% of full scale is selected with DIP
Switch, then hysteresis;
For PT-100 ( -100.0 to 100.0 )°C : ( 0.0 to 2.0 )°C
For PT-100 ( 0.0 to 200.0 )°C : (0.0 to 2.0)°C
For PT-100 ( 0 to 400 )°C : (0 to 4)°C
For J Type TC ( 0 to 400 )°C : (0 to 4)°C
For J Type TC ( 0 to 800 )°C : (0 to 8)°C
For K Type TC ( 0 to 1200 )°C : (0 to 12)°C
For R Type TC ( 0 to 1600 )°C : (0 to 16)°C
For S Type TC ( 0 to 1600 )°C : (0 to 16)°C
If 0.5% of full scale is selected with DIP
Switch, then hysteresis;
For PT-100 ( -100.0 to 100.0 )°C : ( 0.0 to 1.0 )°C
For PT-100 ( 0.0 to 200.0 )°C : (0.0 to 1.0)°C
For PT-100 ( 0 to 400 )°C : (0 to 2)°C
For J Type TC ( 0 to 400 )°C : (0 to 2)°C
For J Type TC ( 0 to 800 )°C : (0 to 4)°C
For K Type TC ( 0 to 1200 )°C : (0 to 6)°C
For R Type TC ( 0 to 1600 )°C : (0 to 8)°C
For S Type TC ( 0 to 1600 )°C : (0 to 8)°C
If 2% of full scale is selected with DIP
Switch, then hysteresis;
For PT-100 ( -100.0 to 100.0 )°C : ( 0.0 to 4.0 )°C
For PT-100 ( 0.0 to 200.0 )°C : (0.0 to 4.0)°C
For PT-100 ( 0 to 400 )°C : (0 to 8)°C
For J Type TC ( 0 to 400 )°C : (0 to 8)°C
For J Type TC ( 0 to 800 )°C : (0 to 16)°C
For K Type TC ( 0 to 1200 )°C : (0 to 24)°C
For R Type TC ( 0 to 1600 )°C : (0 to 32)°C
For S Type TC ( 0 to 1600 )°C : (0 to 32)°C
22
4.2.4 Adjustment of Control Period for Time Proportional Control
In time proportional operation; Control Period is adjusted by changing the position
ii
of the DIP Switch that is on the device.
NCNO
24
12
DIP Switch is under cover and cover is on top side of the device
Control Period Selection
ONOFF
3 4
(For SSR Driver Output)
1 Second
23
5A@250VV
Relay Output
C
22
21
5 sec.
C.Time
SSR&Relay
ON
OFF
3
4
SSR
1 sec.
C.Time
ONON
OFFOFF
3
4
HYS
HYS
HYS
scale
scale
scale
1% of
0.5% of
0.25% of
ON
ON
OFF
OFF
1
111
2
222
ONOFF
1
234
20
C.Time
20 sec.
SSR&Relay
19
P/N : ESD-9950
18
C.Time
10 sec.
SSR&Relay
ON
17
OFF
3 3
4 4
HYS
scale
2% of
ON ON
OFF OFF
PT-100 (-100.0;+100.0)
PT-100 (0.0;200.0)
PT-100 (0;400)
J (TC) (0;400)
J (TC) (0;800)
Input Type
16
15
L
14
N
24 VV ± 15% 50/60Hz - 4VA
230 VV ± 15% 50/60Hz - 4VA
115 VV ± 15% 50/60Hz - 4VA
13
K (TC) (0;1200)
SSR Driver Output
CAT II
Pt-100
Max.50mA@18V Z
Y
a
c
R (TC) (0;1600)
S (TC) (0;1600)
11
10
9
8
7
6
5
4
Max.50mA
12 V Z
3
TC
2
1
Temperature Control
Output (%)
Proportional Band = Scale * (PB%)
100
SET
ONOFF
3 4
5 Seconds
(For SSR and Relay
Output)
0
SET - Proportional Band
Relay Output : Output period must be short
Temperature
for stable process control. Relay must not be used in short output periods because of limited life of their relay contact (number of open/close events). SSR Output : If short output period is needed in a system (approximately 1-2 seconds) SSR driver output module as last control element is recommended.
3 4
3 4
OFF
OFF
ON
ON
10 Seconds
(For SSR and Relay
Output)
20 Seconds
(For SSR and Relay
Output)
Example : For a (0 , 400°C) scaled device, proportional band is adjusted 15 with proportional
band adjustment and ON/OFF control form trimpot, control period is adjusted 10 seconds with DIP switch. The system will give 100% output, until temperature is in proportional band, namely until temperature is 340°C (Scale*15/100 = 400*15/100 = 60). When temperature is being close to set value, %output is started to be reduced. In this case, when the device calculates 60% output, the system will be energised for 60% of device’s control period. (For this example; 60% of
10 seconds Þ 6 seconds the system will be energised, but the system will not be energised for 4 seconds)
23
4.2.5 Adjustment of Set Offset Value
Set offset value can be adjusted with set offset trimpot that is located on front panel.
0
-
+
Temperature
Control Output (%)
Proportional Band = Scale * (%PB)
100
SV-OFFSET
0
SET-Proportional Band
SET-OFFSET SET+OFFSET
When temperature is not equal to SET value, to remove the difference between SET value and temperature and to make equal the temperature and SET value, Set offset is used. It can be adjusted from -20% to 20% of full scale. Minimum and maximum value of Set offset value according to the type and scale of the device are given below:
Set offset Values according to the type and scale of the device
For PT-100 ( -100.0 to 100.0 )°C scaled devices : (-20.0 to +20.0)°C For PT-100 ( 0.0 to 200.0 )°C scaled devices : (-20.0 to +20.0)°C For PT-100 ( 0 to 400 )°C scaled devices : (-8 to 8)°C For J Type TC ( 0 to 400 )°C scaled devices : (-8 to 8)°C
SET
Temperature
For J Type TC ( 0 to 800 )°C scaled devices : (-16 to 16)°C For K Type TC ( 0 to1200 )°C scaled devices : (-24 to 24)°C
For R Type TC ( 0 to 1600 )°C scaled devices : (-32 to 32)°C For S Type TC ( 0 to 1600 )°C scaled devices : (-32 to 32)°C
24
5. Failure Messages in ESD-9950 Digital & Analogue Temperature Controller
Sensor failure in analogue inputs.
PWR
OUT
o
C
It occurs if Sensor connection is wrong or There is no sensor connection or The value on analogue input exceeds scale of the device.
120
160
200
240
280
80
40
15
0
ON OFF
30
% PB
0
400
320
360
0
-
+
SV-OFFSET
ESD-9950
25
6. Specifications
Device Type : Digital & Analogue Temperature Controller Housing&Mounting : 96mm x 96mm x 100mm 1/4 DIN 43700 plastic housing
for panel mounting. Panel cut-out is 92x92mm.
Protection Class : NEMA 4X (IP65 at front, IP20 at rear). Weight : Approximately 0.40 Kg. Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters
with none condensing humidity.
Storage/Operating Temperature : -40 C to +85 C / 0 C to +50 C
o o o o
Storage/Operating Humidity : 90 % max. (None condensing) Installation : Fixed installation Overvoltage Category : II Pollution Degree : II, office or workplace, none conductive pollution Operating Conditions : Continuous
Supply Voltage and Power : 230V V (±15%) 50/60 Hz. 4VA
115V V (±15%) 50/60 Hz. 4VA 24V V (±15%) 50/60 Hz. 4VA
Temperature Sensor Inputs : TC, RTD Thermocouple Input Types : J, K , R , S (IEC584.1)(ITS90) Thermoresistance Input Type : PT-100. (IEC751)(ITS90) Accuracy : 1% of full scale for Thermocouple and Thermoresistance Cold Junction Compensation : Automatically ± 0.1°C/1°C.
Line Compensation : Maximum 10 W . Sensor Break Protection : Upscale Sampling Cycle : 3 samples per second Resolution of Set Point : ± 0.2% of full scale Accuracy of Set Point : ±1% of full scale Control Forms : ON / OFF , Time Proportional
Relay Output : 5A@250V V (Electrical Life : 100.000 Operation (Full
Load))
SSR Driver Output : Maximum 50mA@18V Z Display : 8 mm Green 4 digits LED indicator
Led Indicators : PWR (Green) , OUT (Red)
26
Loading...
