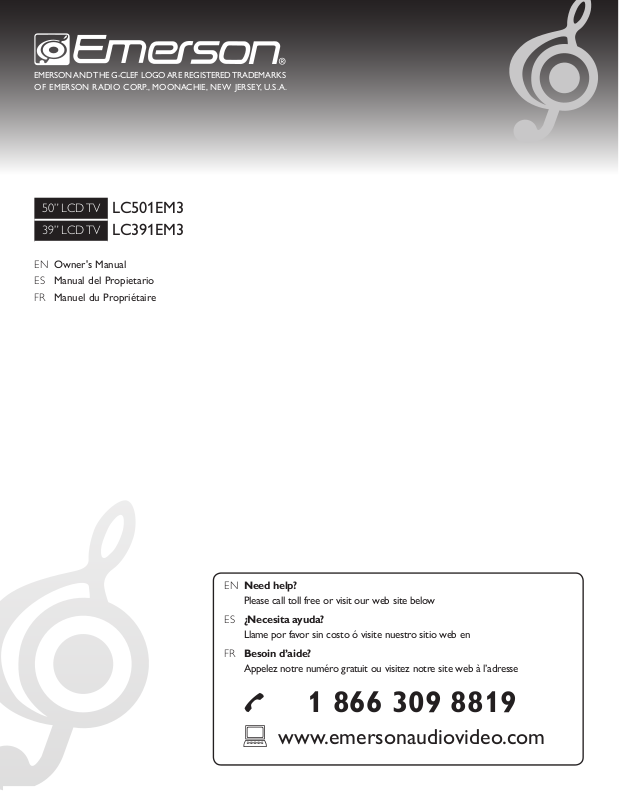

Emerson LC391EM3 Owner's Manual

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS
OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A.

50” LCD TV

39” LCD TV

EN Owner's Manual

ES Manual del Propietario

FR Manuel du Propriétaire

LC501EM3
LC391EM3

EN Need help?
Please call toll free or visit our web site below

ES ¿Necesita ayuda?
Llame por favor sin costo ó visite nuestro sitio web en

FR Besoin d’aide?
Appelez notre numéro gratuit ou visitez notre site web à l’adresse



1 866 309 8819

www.emersonaudiovideo.com





Contents

English

2

1 Notice 5

2 Important 6

Positioning the TV 6
Regulatory notices 6
Environmental care 6

3 Get started 7

Features 7
Supplied accessories 7
Symbols used in this Owner’s Manual 7
Stand assembly 8
Attaching the base 8
Mounting the unit on your furniture 8
Managing cables 9
Installing the remote control batteries 9
Remote control 10
Control panel 11
Terminals 11
Connecting the antenna or the cable 12
Plugging in the AC power cord 12
Initial setup 13

4 Use your TV 14

Switching on your TV and putting it in standby mode 14
Adjusting volume 14
Switching channels 14
Watching channels from an external device 15
Using auto mode 15
Sleep timer 15
Freeze mode 15
Switching audio mode 16
Changing picture format 16
TV screen information 17

6 Upgrade your TV software 29

Checking your current software version 29
Upgrading the software 29

7 Connecting devices 30

Selecting your connection quality 30
Connecting your devices 30

8 Useful tips 33

FAQ 33
Troubleshooting 33

9 Information 35

Glossary 35
Maintenance 35

10 Specications 36

11 Warranty 37

5 Use more of your TV 18

Displaying the main menu 18

Picture 19
Sound 20
Setup 20

Autoprogram 20
Channel list 21
Add channels 21
Antenna conrmation 21

Features 22

Caption settings 22
Child and ratings lock 23
PC settings 25
fun-Link (HDMI CEC) 26
Setting your location to home 27
E-sticker 27

Language 27
USB 28

maintenance (servicing) instructions in the literature accompanying

Return your Product Registration Card or visit at

www.emersonaudiovideo.com today to get the very most from your purchase.

Registering your model with Emerson makes you eligible for all of the valuable benefits listed below, so don't miss out.
Complete and return your Product Registration Card at once or visit at www.emersonaudiovideo.com to ensure:

*Product Safety Notification *Additional Benefits

By registering your product, you'll receive notification ­directly from the manufacturer - in the rare case of a
product recall or safety defect.

Registering your product guarantees that you'll receive
all of the privileges to which you're entitled, including
special money-saving offers.

English

3

Know these safety symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear or bottom of the cabinet.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall

not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
ATTENTION

: Pour éviter les choc électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu’au fond.

Visit our World Wide Web Site at www.emersonaudiovideo.com

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the apparatus’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.

The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and

the apparatus.

www.CE.org/safety

Important Safety Instructions

English

4

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding­type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.

11. Only use attachments / accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart / apparatus combination to avoid injury
from tip-over.

13. Unplug this apparatus during lightning storms or when unused for
long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.

Note to the CATV system installer:

This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in par ticular, species that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.

Example of Antenna Grounding as per NEC − National
Electric Code

GROUND CLAMP

ELECTRIC SERVICE
EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE
UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

Wall Mount Bracket Kit

Brand: SANUS

Model # Screw dimension

LC501EM3 F55 M6 x 0.787” (20mm)

LC391EM3 SAN25b M4 x 0.472” (12mm)

• The recommended Wall Mount Bracket Kit (sold separately)
allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to the
Wall Mount Instruction Book.

• Funai is not responsible for any damage to the product or injury
to yourself or others if you elect to install the TV Wall Mount
Bracket or mount the TV onto the Bracket on your own.

• The Wall Mount Bracket must be installed by experts.

Funai is not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall Mount
Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their specied
length. If screws too long are used this may cause mechanical or
electrical damage inside the TV set. If screws too short are used
this may cause the TV set to fall.

• Do not fasten the screws by excessive force. This may damage
the product or cause the product to fall, leading to an injur y.

• For safety reasons use 2 people to mount the TV onto a Wall
Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket while
your TV is plugged in or Turned On. It may result in an electrical
shock injury.

When installing the unit on the wall, allow this much space.

Top: 11.8 inches (30cm)
Left and right side: 5.9 inches (15cm)
Bottom: 3.9 inches (10cm)

English

5

1 Notice

EMERSON and the G-CLEF logo are registered trademarks of Emerson
Radio Corp. in the U.S. and Canada, used under license by Funai Electric
Co., Ltd. and Funai Corporation, Inc.

Funai reserves the right to change products at any time without being
obliged to adjust earlier supplies accordingly.

The material in this Owner’s Manual is believed adequate for the
intended use of the system. If the product or its individual modules or
procedures are used for purposes other than those specied herein,
conrmation of their validity and suitability must be obtained. Funai
warrants that the material itself does not infringe any United States
patents. No fur ther warranty is expressed or implied.

Funai cannot be held responsible neither for any errors in the content
of this document nor for any problems as a result of the content in this
document. Errors reported to Funai will be adapted and published on
the Funai support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has
effective pixels of 99.999% or more, black dots or bright points of light
(red, green or blue) may appear constantly on the screen. This is a
structural proper ty of the display (within common industry standards)
and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers
to the inside of the product. Repairs may only be done by Service
Centers and ofcial repair shops. Failure to do so shall void any
warranty, stated or implied.

Any operation expressly prohibited in this Owner’s Manual, any
adjustments or assembly procedures not recommended or authorized
in this Owner’s Manual shall void the warranty.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits
for a Class B Digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one
or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician
for help.

Modications

This apparatus may generate or use radio frequency energy. Changes
or modications to this apparatus may cause harmful interference
unless the modications are expressly approved in the Owner’s Manual.
The user could lose the authority to operate this apparatus if an
unauthorized change or modication is made.

Cables

Connections to this device must be made with shielded cables with
metallic RFI / EMI connector hoods to maintain compliance with FCC
Rules and Regulations.

Canadian notice

This Class B Digital apparatus complies with Canadian ICES-003.
Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7.

Copyright

All other registered and unregistered trademarks are the proper ty of
their respective owners.

The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI

Portions of this software are copyright © The FreeType Project
(www.freetype.org).

The American Academy of Pediatrics discourages television viewing
for children younger than two years of age.

© 2012 Funai Electric Co., Ltd. All rights reserved.
No part of this Owner’s Manual may be reproduced, copied,
transmitted, disseminated, transcribed, downloaded or stored in any
storage medium, in any form or for any purpose without the express
prior written consent of Funai. Furthermore, any unauthorized
commercial distribution of this Owner’s Manual or any revision hereto is
strictly prohibited.

Licensing LLC in the United States and other
countries.

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

is a trademark of SRS Labs, Inc. SRS
SOUND technology is incorporated under
license from SRS Labs, Inc.
SRS Sound delivers a rich and immersive
surround sound experience.

Declaration of Conformity

Trade Name : Emerson
Responsible Party : FUNAI CORPORATION, Inc.
Model : LC501EM3, LC391EM3
Address : 19900 Van Ness Avenue, Torrance, CA

Telephone Number : 1 866 309 8819

90501 U.S.A.

English

6

2 Important

Positioning the TV

• Large screen TVs are heavy. 2 people are required to carry and
handle a large screen TV.

• Make sure to hold the upper and bottom
frames of the unit rmly as illustrated.

• Install the unit in a horizontal and stable
position.

• Do not install the unit in direct sunlight
or in a place subject to dust or strong
vibration.

• Depending on the environment, the temperature of this unit may
increase slightly. This is not a malfunction.

• Avoid a place with drastic temperature changes.

• Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the
picture and / or sound may be generated if the unit is placed too
close to them. In this case, please ensure enough space between
the external devices and the unit.

• Do not insert the AC power cord into the power socket outlet
before all the connections are made.

• Ensure that you always have easy access to the AC power cord or
plug to disconnect the TV from the power.

• Before you move the TV, disconnect attached cables to prevent
damage to connectors.

• Be sure to unplug the AC power cord from the AC outlet before
moving or carrying the unit.

Regulatory notices

Do not place the unit on the furniture that is capable of being tilted
by a child and an adult leaning, pulling, standing or climbing on it.
A falling unit can cause serious injury or even death.

Environmental care

The packaging of this product is intended to be recycled.
Contact your local authorities for information about how to recycle the

packaging.
For product recycling information, please visit -

www.emersonaudiovideo.com

End of life directives

This LCD TV contains a lamp with Mercury, please dispose of according
to all local, state and federal laws.

Emerson pays a lot of attention to produce environment-friendly
products in green focal areas. Your new TV contains materials which can
be recycled and reused. At the end of its life, specialized companies can
dismantle the discarded TV to concentrate the reusable materials and to
minimize the amount of materials to be disposed of. Please ensure you
dispose of your old TV according to local regulations.

Disposal of used batteries

The batteries supplied do not contain the heavy metals mercury and
cadmium. Nevertheless, in many areas batteries may not be disposed
of with your household waste. Please ensure you dispose of batteries
according to local regulations.

This apparatus should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided.
Make sure to leave a space of 4 inches (10cm) or more around this
apparatus.

to turn the unit on and go into standby mode.

Press
To completely turn Off the unit, you must unplug the AC power cord.
Disconnect the AC plug to shut the unit off when trouble is found or
not in use. The AC plug shall remain readily available.

Never use a gas duster on this TV.
The gas trapped inside of this unit may cause ignition and explosion.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall not be

exposed to excessive heat such as sunshine, re or the
like.

WARNING: To prevent injur y, this apparatus must be securely

attached to the furniture / wall in accordance with the
instructions. Tipping, shaking, or rocking the unit may
cause injury / death.

English

AAA

7

3 Get started

Features

• DTV / Analog TV / CATV

You can use your remote control to select channels which are broadcast in

Digital format and conventional Analog format. Also, cable subscribers can
access their cable TV channels.

• Information display

You can display the title, contents (DTV only) and other information of the

current program on the TV screen.

• Autoprogram

This unit automatically scans and memorizes channels available in your area,

eliminating difcult setup procedures.

• Child lock

This feature allows you to block children’s access to inappropriate

programs.

• Closed Caption decoder

Built-in Closed Caption decoder displays text for Closed Caption

supported programs.

• MTS / SAP tuner

Audio can be selected from the remote control.

• Auto Standby

If there is no Input signal and no operation for 15 minutes, the unit will go

into Standby mode automatically.

• Sleep timer

You can set the unit to go into Standby mode after a specic amount of

time.

• Choices for on-screen language

Select your on-screen language: English, Spanish or French.

• Stereo sound function

• PLL frequency synthesized tuning

Provides free and easy channel selection and lets you tune directly to any

channel using the number and decimal point “•” buttons on the remote
control.

• Various adjustment for picture and sound

Customizes image quality suitable for your room and sets your sound

preference.

• fun-Link via HDMI link

fun-Link allows your other HDMI link devices to be controlled by the HDMI

cable connected to your TV.

• HDMI Input

• HDMI-DVI Input

If your video device has DVI Output jack, use an HDMI-DVI conversion

cable to connect the unit.

• Component Video Input

• PC Input

• AV Input

• USB terminal

The picture (JPEG) and video (Motion JPEG) les stored on a USB Memory

Stick can be played back on this unit.

• Digital Audio Output

• Headphone Audio Output

Supplied accessories

Owner’s Manual Quick Start guide

Quick

Start

Remote Control and
batteries (AAA, 1.5V x 2)

AAA

Cable management tie

Note

• If you lose the screws, please purchase the above-mentioned Phillips head screws at

your local store.

• If you need to replace these accessories, please refer to the par t name or No. with

the illustrations and call our toll free customer support line found on the cover of this
Owner’s Manual.

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand.

Refer to the instruction book accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

TV base and screws

50 inch TVs

39 inch TVs

Screws packed with this unit:

Model Quantity Size

LC501EM3 8 M4 x 12

LC391EM3 3 M4 x 20

AC power cord (50 inch TVs only)

Registration card

IMPORTANT

Symbols used in this Owner’s Manual

The following is the description for the symbols used in this
Owner’s Manual. Description refers to:

Digital TV operation

Analog/Cable TV operation

• If neither symbol appears, the operation is applicable to both.

English

1

3

2

3

5

2

1

1

2

8

Stand assembly

(50 inch TVs only)

x

Attaching the base

You must attach the base to the unit to have it as a table top unit.
Be sure the front and rear of the base match the proper direction.
For large screen TVs, at least 2 people are required for these steps.

50 inch TVs

1

4

39 inch TVs

1

1

2

1

4

2

3

x

Note

• Make sure to use a table which can support the weight of this unit and is larger than

this unit.

• Make sure the table is in a stable location.

• When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of

the base is downward. If it’s not downward, the 2 hooks don’t t into the base.

• When attaching the base, ensure that all screws are tightly fastened. If the base is not

properly attached, it could cause the unit to fall, resulting in injuries as well as damage
to the unit.

• To remove the base from this unit, unscrew the Phillips head screws in step 2.

Be careful not to drop the base when you remove it.

2

Mounting the unit on your furniture

(39 inch TVs only)

Screw this unit on your furniture tightly using wood screw (not supplied)
in the hole at the back of the base as shown.

4

x

• Recommended screw dimension : 3/16 x 3/4 inches (5.1 x 20 mm)

rear of this unit

screw hole

Note

• When you remove this unit make sure to unscrew the wood screw from your Wood

Stand, Furniture and other wood item.

Managing cables

Route your antenna cable and all other cables through the cable
management tie at the back of the TV.
The holder helps keep your cables tidy and easily manageable.

1 Attach the cable management tie as illustrated below.

2 Pass cables through the cable management tie to avoid tangles.

English

9

Installing the remote control batteries

1 Slide the batter y cover off the back of the remote control.
2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

• Remove the batteries if not using the remote control for an extended period of time.

10

English

Remote control

a k
b

c

d

e
f

g
h

i

j

l
m

n
o

a (POWER-ON / STANDBY-ON)

Press to Turn the unit On and go into Standby mode. To completely

Turn Off the unit, you must unplug the AC power cord.

b AUTO MODE

Cycles through preset picture and sound settings.

c FREEZE

Press to freeze screen image.

d 0 − 9 (NUMBER buttons)

Press to select channels.

• (DOT) Press to shift the subchannel from the main channel.
PREV.CH Press to return to the previously viewed channel.
CH + / − Press to select channels.

e SAP

Digital Mode (DTV) : Press to select the Audio language.
Analog Mode (Analog TV) : Press to select the Audio mode.

f VOL + / −

Press to adjust the volume.

g (MUTE)

Press to turn the sound On and Off.

h BACK

Press to return to the previous menu operation.

i OK

Press to decide the command of setting when the main menu is

displayed.

j ▲▼◄► (NAVIGATION buttons)

Press to move left / right / up / down through the items.

k SOURCE

Toggle to select the connected devices.

l SLEEP

Press to activate the sleep timer.

m FORMAT

Selects a picture format.

n INFO

Displays information about the TV channel or accessor y device.

o MENU

Press to display the main menu.

11

English

Control panel

50 inch TVs

39 inch TVs

a db c e

f g

4 23

fg

a VOL ◄/►

Touch to adjust volume down (◄) / up (►) or to move

left (◄) / right (►) when selecting menu items.

b CH ▲/▼

Touch to select channels or to move up (▲) / down (▼) when

selecting menu items.

c MENU

Touch to display the main menu.

d SOURCE

Touch to select the connected devices.

e (POWER-ON / STANDBY-ON)

Touch

to Turn the unit On and go into Standby mode.

To completely Turn Off the unit, you must unplug the AC power

cord.

f Power On indicator

Lights up red when the unit is in Standby mode and ashes while

the unit is Turning On.

g

 Infrared sensor

Receives IR signals from remote control.

a b c d e

Terminals

h

i

j

k

l

m

n

o

h Digital Audio Output jack

Digital Audio (S/PDIF) Output to home theaters and other Digital

Audio systems.

i Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks for

VIDEO

Composite Video Input (VIDEO) jack is shared jack with

Component Video Input (Y) jack.

j Analog Audio (L/R) Input jacks

Connect Analog Audio signals from;

- HDMI-DVI / Analog Audio (L/R) jacks signal

- Component Video / Analog Audio (L/R) jacks signal

- Composite Video / Analog Audio (L/R) jacks signal

- PC Connection / Analog Audio (L/R) jacks signal with Stereo
mini 3.5mm plug Audio cable on PC

k HDMI Input jack(s)

Digital audio and video Input from high denition Digital devices

such as Blu-ray disc players, cable boxes and satellite set-top
boxes.

l PC Input jack

VGA cable connection for PC.

m USB terminal

Data Input from USB Memor y Stick only.
Do not connect any device to this terminal such as; Digital

camera, keyboard, mouse, etc.

n 75 ohm Cable / Antenna connection

Signal Input from an antenna, cable or satellite.

o Headphone Audio Output jack

Headphone 3.5mm stereo jack for personal listening.

12

English

Connecting the antenna or the cable

Be sure your antenna or other device is connected properly before
plugging in the AC power cord.

If you connect to an antenna through RF cable

Any DTV programs that are broadcasted in your area can be received
for free through an antenna connection.

cable

antenna

ININ

RF cable

If you connect a set-top box through RF cable

If the TV is connected to a cable box or satellite set-top box via a
coaxial connection, set the TV to channel 3, 4 or the channel specied
by the service provider.

antenna

ININ

RF cable

OUT

RF cable

IN

OUT

set-top box

Connecting a set-top box, Blu-ray disc / DVD recorder
via composite connectors and Analog Audio

Do not place your recorder too close to the screen because some
recorders can be susceptible to signals.

OUT

OUT

ININ

Audio (L/R) + Video cables

IN

IN

RF cable

RF cable

IN

OUT

Audio (L/R) +

Video cables

OUT

OUT

Blu-ray disc/DVD recorder

Note

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further

information.

• Depending on your antenna system, you may need different types of combiners

(mixers) or separators (splitter s) for HDTV signal. The minimum RF bandpass on these
devices is 2,000MHz or 2GHz.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable

from the antenna Input jack before moving the unit.

• If you did use an antenna to receive Analog TV, it should also work for DTV reception.

Outdoor or attic antennas will be more effective than a set-top box or inside antenna.

• To Turn On your reception source easily between antenna and cable, install an antenna

selector.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

cable

set-top box

OUT

IN

If you connect a set-top box through HDMI

If the TV is connected to a cable box or satellite set-top box via HDMI,
make sure you select the correct Source by using SOURCE.

RF cable

ININ OUT

HDMI cable

IN

set-top box

If you connect a set-top box through Component Video Input

If the TV is connected to a cable box or satellite set-top box via
Component Video Input, make sure you select the correct Component
Video Source by using SOURCE.

RF cable

OUT

Audio (L/R) cables

IN

IN

IN

IN

Component (Y/Pb/Pr) video cables

OUT

OUTOUT

IN

set-top box

Plugging in the AC power cord

Make sure that the AC power cord must be plugged to an AC outlet
after all the necessary connections are made.

Caution

• Do not connect the AC power cord to a power supply outside the indicated voltage of

this unit (AC 120V).

• Connecting the AC power cord to a power supply outside of this range may result in

re or electrical shocks.

Note

• Each time you plug in the AC power cord, no operations will be performed for a few

seconds. This is not a malfunction.

13

English

These operations are accessible by remote control.

Some may also be accessible by control panel on the main unit.

Initial setup

This section will guide you through the unit’s initial setting which
includes selecting a language for your on-screen menu and autoprogram,
which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections, press to Turn On the

unit.

• It may take a few moments to Turn On the unit for the rst time.

• Initial setup menu appears automatically after the unit is Turned
On.

2 Use ▲▼ to select the on-screen language from the choices

(English / Español / Français) on the right side of the TV screen, then
press OK.

3 Use ▲▼ to select Antenna for TV channels or Cable for CATV

channels, then press OK.

Initial setup

Make sure the antenna is connected to ‘’ANTENNA IN’’ jack.
Select your signal source.

Antenna

Cable

Select OK Back Skip

Or

ANTENNA IN

Antenna

Cable
Skip

4 Use ▲▼ to select the desired location setting, then press OK.

Initial setup

Retail

Location Home is recommended for normal home use.
In the Retail Store mode, all settings are fixed.

Select OK

• Select Retail, the unit will be set up with predened setting for
retail displays.

• Select Home, the unit is set to maximize the energy efciency
for home setting and it can be adjusted through a choice of
picture and sound quality according to your preference. Use this
setting to remove the E-sticker if visible from the display.

• When the initial setup is completed, the lowest memorized
channel with the conrmation message of the location setting
will be displayed on the TV screen.

• You must set Home in step 4. Otherwise, Picture and Sound
settings you adjusted will not be memorized after the unit goes
into Standby mode.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, this setup of TV channels will be

canceled.

• The initial autoprogram function can be executed for either Antenna or Cable only

once. When you change the connection (Antenna / Cable), set Autoprogram again.

p. 20

➠

• If there is no signal Input from the antenna terminal and no operation for several

seconds after you Turn On the unit, helpful hints appears. Follow the instructions listed
on the TV screen.

Home

➠

p. 27

– When Antenna is selected, the TV detects antenna signals. It

searches for DTV and Analog TV channels available in your area.

– When Cable is selected, the TV detects signals supplied by cable. It

searches for DTV, Analog TV and Cable channels available in your
area.

• Autoprogram will begin.

Initial setup

Please wait while the system is scanning for channels.
Auto programming may take more than 20 minutes to
complete.

0%

Digital channels

Analog channels

0 ch

0 ch

Skip

Initial setup

No channel is registered.
Try Autoprogram again?
Verify that you have a cable connected to the “ANTENNA IN” jack
on the back of the TV, the channel installation process
searches this connection. If you are using a cable or satellite
box, please confirm the input which you have connected to
the box and press “SOURCE” key on the remote control to
select the appropriate source input.

Select OK Skip

After an initial setup is completed...

• If you want to scan the channels automatically again.

Autoprogram

• You can add the desired cable and Analog channels
unmemorized by autoprogram.

Add channels

• If you want to change to another language.

Language

• If you want to change the location setting.

Location

➠

➠

➠

➠

p. 20

p. 21

p. 27

p. 27

Retry

Later

14

English

4 Use your TV

Switching on your TV and putting it in standby
mode

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To Turn Power On or to Turn Standby On

• Touch or press . on the front panel or the remote control.

Note

• Energy consumption contributes to air and water pollution. When the AC power

cord is plugged in, your TV consumes energy. Your TV has very low standby power
consumption.

Switching channels

Adjusting volume

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To increase or decrease volume

• Touch VOL ◄(down) / ►(up) on the front panel or press
VOL + / − on the remote control.

To mute or unmute sound

• Press on the remote control to mute the sound.

• Press

again or VOL + / − to recover the original sound.

• The above image is an example for 50 inch screen size TVs.

It may differ depending on what product you purchased.

To select Channels by using CH ▲/▼ or CH + / −

• Touch CH ▲(up) / ▼(down) on the front panel or press CH + / −
on the remote control.

To select Channels by using the NUMBER buttons

Digital TV operation

• For Digital channels, press a number followed by a dot “•” and the
corresponding sub channel number.

– When selecting Digital channel 11.1

Be sure to press • before entering the subchannel number.

Analog/Cable TV operation

– When selecting cable or Analog channel 11

Press PREV.CH to return to the previously viewed channel.

Note

• To select the non-memorized channels, use the NUMBER buttons.

• No Signal will appear on the TV screen after the subchannel broadcast is over.

• Audio only program message will appear on the TV screen, when you receive only

sound signal.

15

English

Watching channels from an external device

Switching Each Input Mode can easily switch with the remote control
between TV (DTV or Analog TV) and external devices when they are
connected to the unit.

1 Turn On a set-top box or the connected device.

• The picture from your set-top box or the connected device
might appear automatically on the TV screen.

 Ifthepicturedoesnotappear

Press SOURCE repeatedly to select the set-top box or the

connected device and wait a few seconds till the picture appears.

Source
TV
HDMI1
HDMI2
HDMI3
Video
PC

• Pressing ▲ reverses the direction of the Input modes.

e.g.)

11.1 HDMI1 HDMI2

DTV / AnalogTV

channel

Video

PC HDMI3

or

Component

2 Use the remote control of the set-top box or the connected device

to select channels.

Using auto mode

Press AUTO MODE to set your TV to a predened picture and

1

sound setting.

Sleep timer

Sleep Timer can set the unit to go into Standby mode after an
incremental period of time.

Press SLEEP repeatedly to change the amount of
time (increases the time by 30 minutes up to 120

Sleep 120min.

minutes).
Press SLEEP once to call up the display for checking the remaining time.

• To cancel sleep timer, press SLEEP repeatedly until Off is displayed.

Freeze mode

Freeze Mode can freeze the image shown on the TV screen for 5
minutes.

Press FREEZE to freeze the image.

• The sound Output will not be paused.

• To cancel freeze mode, press any buttons except

Freeze

.

2 Use ▲▼to select one of the following settings :

Auto picture Auto sound Description

Personal

Standard

Vivid

Sports

Movie

Game -

Eco -

- Music

- News

The customized settings you dened using
the Picture and Sound menu

For normal TV viewing

Enhanced picture contrast, sharpness and
sound for viewing in a well-lit room

Brilliant picture settings and clear sound for
high action

Deep picture and powerful sound settings
for a cinematic experience

Optimized for PCs and game consoles

Eco TV settings for low power
consumption

Optimized for music playback

Controls picture tone and set the anchor's
voice at a comfortable volume

16

English

Switching audio mode

Digital TV operation

1 Press SAP to display the currently selected

language and the number of available languages.

11.1

English 1/3

2 Press SAP repeatedly to cycle through the available audio languages.

Note

• Available languages differ depending on the broadcast.

• Other is displayed when the audio language cannot be acquired or the acquired

languages are other than English, French or Spanish.

Analog/Cable TV operation

1 Press SAP to display the currently selected audio mode.
2 While receiving an MTS broadcast, press

repeatedly to cycle through the available audio
channels.

e.g.) When all audio are available

SAP / STEREO SAP / MONO SAP / STEREO

STEREO : Outputs stereo-audio
SAP : Outputs second audio program
MONO : Outputs mono-audio

11

SAP / STEREO

For 16:9 video signal

Normal Movie expand4:3

Full can also be selected

after Wide if an HDMI
device is selected. This
picture format similarly
displays like Normal.

(HDMI device only)

Full

Normal

4:3

Movie expand

Zoom

Wide

Original size.

Shortened horizontally.
Sidebars appear on both edges of the screen.

Vertically stretched to ll the screen.
This only crops out the top of the picture.

Maximum size without changing its horizontal and vertical
ratio.

Horizontally stretched picture.
This crops out the left and right sides of the picture.

Wide Zoom

For 4:3 video signal

Normal Movie expand

Full can also be selected

after Wide if an HDMI
device is selected. This
picture format similarly
displays like 16:9.

(HDMI device only)

Full

16:9

Wide Zoom

Changing picture format

Display modes can be selected when your TV receives a 16:9 or 4:3
video signal.
Three types of display modes can be selected for a PC Input signal.

Press FORMAT repeatedly to switch the TV aspect ratio.

Normal

16:9

Movie expand

Zoom

Wide

Original size.
Sidebars appear on both edges of the screen.

Stretched horizontally to ll the screen.

Stretched more vertically at the top of the screen.
This crops out the top of the picture.

Maximum size that is more vertically stretched to ll the
screen.
This crops out the top and bottom of the picture.

Original size and the edges stretched horizontally to ll the
screen.

For PC Input signal

Normal

This unit can also be connected to your PC that has a DVI terminal. Use an HDMI-DVI

•

conversion cable for this Video connection and it requires Stereo mini 3.5mm plug Audio
cable for Analog Audio signal as well.

• Refer to 16:9 video signal on this page if PC has HDMI Output.

Normal

Full

Unscaled

Proportionately stretched picture.
Sidebars appear on both edges of the screen.

Stretched out of proportion to ll the screen.

Original size.

Full

Unscaled

TV screen information

You can display the currently selected channel or other information
such as the aspect ratio on the TV screen.

In the Digital mode, the detailed broadcasting information for the
current off the air channel such as program title and program guides are
displayed.

1 Press INFO.

Digital TV operation

a b c d

17

English

A Day of Memories

A quarter-century ago,which may now qualify as the
good old days of newspapering,run-of-paper sales
accounted for 80 percent of the industry's advertising
revenues. Depar tment stores and supermarket were

TV: TV-14

KABC

English 1/2

1080i 16:9HD

Rating

11.1

e
f

CC

g
h

a program title
b program guide

(The program guide added to broadcasting information is

displayed to a maximum of 4 lines.)

c broadcast station

Analog/Cable TV operation

d

11

SAP / STEREO

480i 4:3SD

TV-PG DLSV

e
f

CC

g
h

d channel number

Switching channels

➠

p. 14

e audio language (DTV) / audio mode (Analog TV)

Switching audio mode

➠

p. 16

f program’s image aspect ratio

Changing picture format

➠

p. 16

g CC (not available if Closed Caption is set to Off)

Caption settings

➠

p. 22

h child lock rating

Child and ratings lock

➠

p. 23

2 Press INFO to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲▼ to scroll to the

next / previous lines.

• No description provided. is displayed when the program guide is not provided.

• While the program guide is displayed, the Closed Caption function is interrupted.

• In external Input mode, the following screen is displayed;

e.g.) When an external device is connected to Video Input jack.

Video

480i 4:3SD

TV-PG DLSV

CC

• The information display will automatically disappear in 5 seconds.

5 Use more of your TV

This section describes the overview of the main menu displayed when
you press MENU.
The main menu consists of the function setting items below.

Displaying the main menu

Press MENU to display the main menu.

1

2 Use ▲▼ to select the desired menu and an item, then press OK

or use ▲▼◄► to determine the setting.

18

English


Sound
Setup
Features
Language
USB

Auto picture
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced settings

Personal
18
50
30
30
0
2


Adjusting the picture mode or customize the picture
quality as your preference.

Sound

Adjusting the sound mode, equalizer and some other
sound functions.

Setup

Scanning the channels available in your area and see what
the antenna levels are.

Features

Adjusting the Closed Caption, parental guide and some
other useful functions.

➠

➠

➠

➠

p. 19

p. 20

p. 20

p. 22

Language

You can choose English, Spanish or French as your
on-screen language.p

USB

You can view picture (JPEG) and video (Motion JPEG) les
stored on a USB Memory Stick.

➠

➠

p. 27

p. 28

3 When the setting is completed, press MENU or BACK to exit.


Before you begin:

You must set Home in Location. ➠ p. 27
Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU and use ▲▼ to select Picture then press OK.

Picture Auto picture

Sound
Setup
Features
Language
USB

Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced settings

Personal
18
50
30
30
0
2

19

*You can set a particular about picture quality in Advanced settings.

Picture Color alignment

Sound
Setup
Features
Language
USB

Noise reduction
Dynamic backlight
Black stretch
Dynamic contrast
Gamma

Color

temperature

mode

Red gain

to set the color temperature to Personal,
Cool, Normal and Warm

When you adjust the following settings,
Personal will be set automatically.

to decrease contrast
with red

Cursor ◄ Cursor ►

Normal
On
On
On
On
Gamma 2

to increase contrast
with red

English

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

to select the desired setting, then press OK

Auto picture

Backlight

Contrast

Brightness

Color

Tint

Sharpness

* Advanced settings

*Dynamic backlight will only display for 50 inch TVs.

(Personal, Standard, Vivid, Sports, Movie, Game and Eco)
When you adjust the following settings, Personal will
be set automatically.

Cursor ◄ Cursor ►

to reduce power
consumption

to decrease contrast to increase contrast

to decrease brightness to increase brightness

to decrease color
intensity

to add red to add green

to soften to sharpen

to select the desired setting, then press OK
(Color alignment, Noise reduction, *Dynamic backlight,
Black stretch, Dynamic contrast and Gamma)

to set the backlight
brighter

to increase color intensity

Color

alignment

Noise

reduction

*Dynamic

backlight

Black

stretch

Dynamic
contrast

Gamma

Green gain

Blue gain

Red offset

Green offset

Blue offset

Off

On

Off

On

Off

On

Off

On

Gamma 1

Gamma 2

Gamma 3

to decrease contrast
with green

to decrease contrast
with blue

to decrease
brightness with red

to decrease
brightness with green

to decrease
brightness with blue

to set noise reduction to Off

to reduce noise in an image

to set dynamic backlight to Off

to adjust backlight for best picture quality
based on the incoming video signal

to set black stretch to Off

to enhance black color

to set dynamic contrast to Off

to enhance contrast in an image automatically

to change the gamma setting

to increase contrast
with green

to increase contrast
with blue

to increase brightness
with red

to increase brightness
with green

to increase brightness
with blue

20

English

Sound

Before you begin:

You must set Home in Location. ➠ p. 27
Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU and use ▲▼ to select Sound, then press OK.

Picture Auto sound Standard

Sound Equalizer

Setup SRS Sound On
Features Auto volume leveling Off
Language TV speakers On
USB

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Auto sound

Adjust the tonal quality for each frequency.

Equalizer

This selects sound modes for more spatial or surround sound
reproduction.

SRS Sound

This function keeps a constant loudness differential between the TV
commercials and the programs.

Auto volume

leveling

You can select the Audio Output from the unit’s speakers or not. If your
amplier is HDMI link function compatible and connected by an HDMI
cable to this unit, some sound operations such as volume up can be
changed by using this unit’s remote control. Make sure fun-Link control
is set to On.

TV speakers

You can set the output mode as a default for the sound mode (Analog TV only).

This setting is not interlocked when you change the output mode by
pressing SAP. Refer to Switching audio mode.

Primary MTS

Primar y MTS

p. 26

➠

Stereo

to select the desired setting, then press OK.
(Personal, Standard, Vivid, Sports, Movie, Music and
News)
When you adjust the following settings (Equalizer,
SRS Sound and Auto volume leveling), Personal will
be set automatically.

Cursor ◄ Cursor ►

to adjust the each level of tonal quality
Press BACK to go back to the previous menu.

to set SRS Sound to Off

Off

to set SRS Sound to On

On

to remove the auto volume leveling

Off

to reduce volume differences between

On

the TV commercials and the programs

to output sound from the unit’s

On

speakers

not to output sound from the unit’s

Off

speakers

to control Audio Output from your

CEC Link

Stereo

Mono

SAP

connected fun-Link Compliant Devices
with VOL + / − by using this unit's
remote control.

p. 16

➠

to output stereo-audio

to output mono-audio

to output second audio program

Setup

Before you begin:

Make sure the unit is connected to antenna or cable.

1 Press MENU and use ▲▼ to select Setup, then press OK.

Picture Autoprogram
Sound Channel list

Setup Add channels

Features
Language
USB

2 Adjust the following items.

Autoprogram

Be sure the RF cable is correctly connected to this unit and you are
registered with your cable TV provider when you install Cable channels.

1 Use ▲▼ to select Autoprogram, then press OK.

• If you run Autoprogram when you have locked channels, a
message appears asking to enter your PIN . Enter your PIN in
order to complete the installation. You need to set the channel
lock again after the installation.

2 Use ▲▼ to select an appropriate option, then press OK.

– When Antenna is selected, the TV detects antenna signals.

It searches for DTV and Analog TV channels available in your
area.

– When Cable is selected, the TV detects signals supplied by cable. It

searches for DTV, Analog TV and Cable channels available in your
area.

Sound Antenna

Setup

Features
Language
USB

Continued on next page.

Antenna

Autoprogram will rescan all channels.
Auto programming may take more than 20
minutes to complete.

Select your signal source.

Antenna

Cable

Or

ANTENNA IN

Back

Cable

21

English

• When the scanning and memorizing are completed, the lowest
memorized channel will be displayed.

Autoprogram

Please wait while the system is scanning for channels.
Auto programming may take more than 20 minutes to
complete.

75%

Digital channels

Analog channels

Exit

Note

• After setting Autoprogram, using CH + / − skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, the setup of TV channels will be

canceled.

• Even if Autoprogram is completed, the channel setting will be lost if the AC power

cord is unplugged before the unit goes into Standby mode by pressing

• The PIN Code will be required once you set a PIN code in the Child and ratings lock.

p. 23

➠

• If you want to change your PIN code, follow the instruction of Change PIN.

10 ch

6 ch

.

p. 25

➠

Channel list

Add channels

This function lets you add the off the air Analog TV or Analog Cable
channels that were not added by the autoprogram due to reception
conditions during the initial setting.

1 Use ▲▼ to select Add channels, then press OK.
2 Use the NUMBER buttons to enter the number of the channel you

want to add, then press OK.

Picture Add channels
Sound

Setup

Features
Language
USB

Note

• If setup completes successfully, Added to the channel list. is displayed.

• If external Input is used, it is not possible to register the channel and Unavailable will be

displayed on the TV screen.

• Some channels cannot be selected by CH + / −. Use the NUMBER buttons to select

the memorised channels.

For analog channels, select a
channel to be added using
number keys.
For digital channels, you must
perform Autoprogram function.

Ch Change Back

The channels selected here can be skipped when selecting the channels
using CH + / −.

Those channels can still be selected with the NUMBER buttons.

1 Use ▲▼ to select Channel list, then press OK.
2 Use ▲▼ to select the channel you want to remove, then press

OK.

Picture DTV 11.1
Sound

Setup

Features
Language
USB

• The channel display for the removed channel darkens. You will
not be able to select the channel again using CH + / −.

• To reactivate a removed channel, use ▲▼ and press OK. The
registered channels are highlighted.

• When you remove a main channel, its subchannels are removed
as well.

Note

Highlight channels for
Ch Up / Down key selection.

Ch Select Watch / Skip Back

DTV 11.2
DTV 11.3

Antenna conrmation

Digital TV operation

This function lets you check the Digital signal strength of each channel.

1 Use ▲▼ to select Antenna, then press OK.
2 Use the NUMBER buttons or CH + / − to select the channel for

which you want to check the Digital signal strength.

Picture Back
Sound

Setup

Features

Current 50

Language
USB

Note

• If the channel is set to Analog channel or external Input, you cannot conrm the

antenna condition.

Max 50

Ch Change

• The channel with DTV indicated on the display is ATSC. Otherwise the channel is

Analog TV.

Features

1 PressMENUanduse▲▼toselectFeatures,thenpressOK.

Picture Captionsettings
Sound Childlock
Setup PCsettings

Features fun-Link(HDMICEC)

Language Location Home
USB

2 Adjustthefollowingitems.

Caption settings

ClosedCaptioningdisplaystheaudioportionofprogrammingastext
superimposedoverthevideo.

1 Use▲▼toselectCaption settings,thenpressOK.

Picture Captionservice Off
Sound Digitalcaptionservice
Setup

Features

Language
USB

E-sticker

Softwareupgrade

Captionstyle

--

Off

Analog/Cable TV operation

Selectifyoudonotwantcaptionservice.

Off

CC-1

and

CC-3

and

Caption service

CC-2,
CC-4,

and

Youcanchoosethesize,font,color,backgroundandother
characteristicsofthecaptiontext.

Caption style

Background

Theprimarycaptionandtextservices.The
captioningortextisdisplayedinthesame
languageastheprogram’sdialog(upto4

T-1

linesofscriptontheTVscreen).

Serveasthepreferreddatachannels.
Thecaptioningortextisoftenasecondary
language.

T-3

Rarelyavailableandbroadcastersusethem
onlyinspecialconditions,suchaswhenCC-1
andCC-3orT-1andT-3arenotavailable.

•Thereare3displaymodesaccordingto
programs:

DisplaysInputcharactersonthe
TVscreenimmediately.

Oncecharactersarestoredin
memory,theyaredisplayedall
atonce.

Displaysthecharacters
continuouslybyscrolling(max.
4lines).

Font style

Font size

Font color

color

opacity

Edge color

Edge type

ClosedCaptioningfont
style,size,colorand
transparencycanbe
changed.

Backgroundcolorand
transparencyofthe
displayedcaptioncanbe
switched.

Edgecolorandtypeof
thedisplayedcaptioncan
beswitched.

T-2

T-4

Font

Edge

Paint-on

Pop-on

Roll-up

Font opacity

Background

Background

22

English

2 Use▲▼◄►toselecttheitemyouwanttoadjust,thenpress

OK.

Digital TV operation

InadditiontothebasicClosedCaption,DTVhasitsownClosed
CaptioncalledDigitalcaptionservice.Usethismenutochangethe
settingsforDigitalcaptionservice.

SelectsifyoudonotwantDigital

Off

captionservice.

Digital caption service

CS-1to

CS-6

Selectsoneofthesebeforechanging
anyotheriteminCaption settings
menu.ChooseCS-1undernormal
circumstances.

Picture display

So, y ou m us t be P hi li p. H i!

So, y ou m us t be P hi li p. H i!

I’m p le as ed to me et y ou .

I’m p le as ed to me et y ou .

Font

( Font style, Font size, Font color and Font opacity)

Edge

(Edge color and Edge type)

Background

( Background color and Background opacity)

• Reviewyoursettingchoicemadebelowbylookingintheupper
rightcornerofthedisplayedsettingbox(notallselectionsshow
thedifferencesselected).

 Continued on next page.

English

23

Note

• Digital caption service that you can switch differs depending on the broadcast

description.

• Caption style will not effect if the User setting is set to Off.

• Closed Captioning service may not be controlled by this unit’s menu options if you are

watching television through an external cable or satellite set-top box. In which case
you will need to use the menu options on the external set-top box to control Closed
Captioning.

• The captions do not always use correct spelling and grammar.

• Not all TV programs and product commercials include Closed Caption information.

Refer to your area TV program listings for the TV channels and times of Closed Caption
shows. The captioned programs are usually noted in the TV listings with service mar ks
such as CC.

• Not all captioning services are used by a TV channel during the transmission of a

Closed Caption program.

• Closed Caption will NOT be displayed when you are using an HDMI connection.

• To show the Closed Caption on your TV screen, broadcast signal must contain the

Closed Caption data.

• Not all TV programs and commercials have the Closed Caption or all types of the

Closed Caption.

• Captions and texts may not exactly match the TV voice.

• Changing channels may delay the Closed Caption for a few seconds.

• Adjusting or muting the volume may delay the Closed Caption for a few seconds.

• Abbreviations, symbols and other grammatical shor tcuts may be used in order to keep

pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the main menu or functions

display is shown.

• If a black box appears on the TV screen, this means that the Closed Caption is set to

the text mode. To clear the box, select CC-1, CC-2, CC-3, CC-4 or Off.

• If the unit receives poor quality television signals, the captions may contain errors or

there might be no captions at all. Some possible causes of poor quality signals are:

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen fl utter)

- Data dropout and Pixelation (for DTV only)

• The unit retains the Closed Caption setting if the power fails.

• When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a

VCR’s video Output channel (ch3 or ch4), the unit may not display the correct caption
or text.

• The EUT setting that satisfi es § 79.102 (e) is as follows:

Font: Mono-font
Character size: Large

Child and ratings lock

You can prevent your children from watching certain programs or
certain channels by locking the TV controls and by using ratings.

1 Use ▲▼ to select Child lock, then press OK.

Picture Caption settings
Sound Child lock
Setup PC settings

Features fun-Link (HDMI CEC)

Language Location Home
USB

E-sticker

--

Software upgrade

2 Use the NUMBER buttons to enter the 4-digit numbers for your

PIN code.

• When you have not set up your PIN code, enter 0, 0, 0, 0.

• When the PIN code is correct, Child lock menu is displayed.

See the following description for setting each item.

Picture Channel lock

US movie ratings lock
US TV ratings lock
Canadian English rating
Canadian French rating
Region ratings lock
Clear region ratings lock
Change PIN

Sound
Setup

Features

Language
USB

Note

• When you select a rating and set it to or , the higher ratings will be blocked

automatically. The lower ratings will be available for viewing.

• When you set the highest rating to , all ratings turn to automatically.

• To block any inappropriate programs, set your limits in US movie ratings lock,

US TV ratings lock and Region ratings lock.

• The child lock setting will be retained after a power failure or after the power is

removed for longer than 10 seconds (except the PIN code reverts to 0000).
Child and ratings lock

➠

p. 23

• Region ratings lock and Clear region ratings lock will be available when the unit

receives a Digital broadcast using the new rating system.

• For the United States, the unit may download the Region Ratings Lock Table, if required.

• The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy.

Channel lock

Particular channels or external Input modes can be invisible in this
function.

3 Use ▲▼ to select Channel lock, then press OK.
4 Use ▲▼ to select the particular channels or external Input, then

press OK repeatedly to switch between view and block.

• indicates that the channel or Input Source is locked.

• indicates that the channel or Input Source is not locked.


HDMI1

HDMI2

HDMI3

Video

PC

40.1 DTV

40.2 DTV

Sound
Setup

Features

Language
USB

24

English

Setting US movie and TV ratings

US movie ratings lock is the rating system created by MPAA.
US TV ratings lock has controlled access to individual programs based
on their age ratings and content rating.

3 Use ▲▼ to select US movie ratings lock or US TV ratings lock,

then press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

• For US TV ratings, you can further set the sub ratings to block
specic elements of programming.

• or indicates that the rating is locked.

• indicates that the rating is not locked.

US movie ratings lock

Sound
Setup

Features

Language
USB

US TV ratings lock

Sound
Setup

Features

Language
USB

All

NR

G

PG

PG-13

R

NC-17

X

All

None

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

To set the sub ratings

As for TV-Y7, TV-PG, TV-14 or TV-MA, you can further set the sub
ratings to block specic elements of programming. To set the sub ratings,
follow the step below.

Use ▲▼ ◄► to select the desired rating, then press OK repeatedly

TV-Y7

TV-PG

TV-14

TV-MA

and .

All

None

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

(FV) Fantasy Violence

(FV) Fantasy Violence

(D) Dialog
(L) Language
(S) Sex
(V) Violence

(L) Language
(S) Sex
(V) Violence

to switch between

Sound
Setup

Features

Language
USB

US TV ratings Sub Rating

Note

• Blocked sub rating will appear beside the main rating category in US TV ratings lock

menu.

• You cannot block a sub rating if the main rating is set to .

• Changing the category to or automatically changes all its sub ratings to the same

(

or ).

US movie

ratings

US TV ratings Description

All

NR None

− TV-Y

− TV-Y7

G TV-G

PG TV-PG

PG-13 −

− TV-14

R −

NC-17 −

X TV-MA

All ratings locked including no rating

No rating

Appropriate for all children

Appropriate for all children 7 and older

General audience

Parental guidance suggested

Unsuitable for children under 13

Unsuitable for children under 14

Restricted under 17 requires accompanying
parent or adult guardian

No one under 17 admitted

Mature audience only

25

English

Canadian English or Canadian French ratings

You can select the rating for Canadian English or Canadian French
broadcasting.

3 Use ▲▼ to select Canadian English rating or

Canadian French rating, then press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

• indicates that the rating is locked.

• indicates that the rating is not locked.

Canadian

English rating

C −

C8+ −

− 8ans+

PG −

− 13ans+

14+ −

− 16ans+

18+ 18ans+

Note

• The V-Chip can block non rated programs as per “CEA-608-E sec. L.3”. If the option to

block NR, None or E programs is used in US movie ratings lock, US TV ratings lock,
Canadian English rating or Canadian French rating accordingly “unusual results
may occur and the unit may not receive emergency bulletins or other types of
programming:” / Emergency Bulletins (Such as EAS messages, weather warnings
and others) / Locally originated programming / News / Political / Public Service
Announcements / Religious / Sports / Weather.

Change PIN

Although the default PIN code (0000) is supplied with the unit, you can
set your own PIN code.

Canadian

French rating

All

E

G

Description

Locked all ratings

Exempt program

For all children

For children over 8

General audience

Unsuitable for ages under 8

Parental guidance suggested

Unsuitable for ages under 13

Unsuitable for ages under 14

Unsuitable for ages under 16

Adult audience only

PC settings

This function lets you adjust the PC screen position, clock and phase
during PC Input.

Use ◄► to adjust Clock setting to stabilize the PC screen and Phase
setting to improve the clarity of the PC screen.

1 Use ▲▼ to select PC settings, then press OK.

Picture Auto adjustment
Sound
Setup Horizontal position 0

Features Vertical position 0

Language Clock 0
USB Phase 0

2 Use ▲▼ to select the item you want to adjust, then press OK.

• The horizontal/vertical position, clock and phase of the PC
screen are automatically adjusted.

Auto adjustment

Horizontal position

Vertical position

Clock

Phase

Note

• You may not obtain an appropriate screen with Auto adjustment for some signals. In

this case, adjust the settings manually.
Adjust Phase setting after Clock setting has been properly adjusted.

•

Select if you want to adjust automatically.

Cursor ◄ Cursor ►

to move PC screen left to move PC screen right

to move PC screen down to move PC screen up

to decrease setting value to increase setting value

3 Use ▲▼ to select Change PIN, then press OK.
4 Press the NUMBER buttons to enter the new 4-digit PIN code.

• Enter PIN code again in Conrm PIN. entr y eld.

Sound
Setup

Features

Language
USB

Note

• Make sure new PIN code and conrm PIN code must be exactly the same. If they are

different, the space is cleared for reentering.

• Your PIN code will be erased and returns to the default PIN code (0000) when a

power failure occurs.

• If you forget the PIN code, unplug the AC power cord then wait for 10 seconds to plug

the AC power cord in again.
The unit will restore the PIN code to 0000 as the factory default.

Enter PIN.

- - - -

Confirm PIN.

- - - -

PIN Code Back

26

English

fun-Link (HDMI CEC)

This function allows you to operate the linked functions between our
brand devices with a fun-Link feature and this unit connecting through
an HDMI cable. You must connect this unit to our brand fun-Link
devices and be sure its fun-Link (HDMI CEC) setting is also set to On.

1 Use ▲▼ to select fun-Link (HDMI CEC), then press OK.

Picture fun-Link control
Sound
Setup

Features

Auto device off
Auto TV on
Device list

Language
USB

On
On
On

2 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Set the fun-Link control On or Off. The following additional settings will
be grayed out when you set to Off.

Disables all fun-Link.

Off

fun-Link control

Selects if you have connected an
external device that is compatible with

On

the fun-Link function.

Device list

This function lets you see the product model number or name of
connected devices.
Use ▲▼ to select the desired fun-Link devices listed on the TV screen,
then press OK.
Your connected fun-Link device will be Turned On if the device is in
Stand by mode.

Sound
Setup

Features

Language
USB

HDMI1 DVD recorder

HDMI2 Blu-ray disc player

HDMI3 Home theater system

Input Change Refresh Back

You can set your device to Turn Off by interlocking from this unit’s
power.

Your connected fun-Link device stays on

Off

even if the unit goes into Standby mode.

Auto device off

This unit will Turn On when the Power On signal is sent from your
connected fun-Link device.

Auto TV on

Your connected fun-Link device Turns
Off automatically when the unit goes

On

into Standby mode.

This unit stays in Standby mode even if
you Turn On your connected fun-Link

Off

device.

This unit Turns on automatically when
you Turn On your connected fun-Link

On

device.

27

English

Setting your location to home

You can set the location of your TV to Home or Retail. Choosing Home
gives you full exibility to change predened settings for picture and sound.

1 Use ▲▼ to select Location, then press OK.

Sound Child lock
Setup PC settings

Features fun-Link (HDMI CEC)

Language Location Home
USB

Caption settings

E-sticker

Software upgrade

--

2 Use ▲▼ to select Home or Retail, then press OK.

Retail

Home

Note

• You must set Home. Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

The unit will be set up with predened settings for retail
displays. In this setting, you can set the backlight brighter.

The unit is set to maximize the energy efciency for home
setting and it can be adjusted through a choice of picture
and sound quality according to your preference.

Language

1 Press MENU and use ▲▼ to select Language, then press OK.

Sound

Select your menu language.

Setup
Features

Seleccione el idioma para el menú.

Language

USB

Sélectionnez la langue du menu.

2 Use ▲▼ to select English, Español or Français, then press OK.

Note

• If you need the English menu instead of the Spanish or French menu’s, press MENU.

Use ▲▼ to select Idioma or Langue, then press OK.
Use ▲▼ to select English then press OK.
Press MENU to exit the main menu.

English

Español

Français

E-sticker

When you set Location to Retail store, E-sticker (Electronic Sticker) is
displayed. E-sticker can be Turned Off using procedure below.

1 Use ▲▼ to select E-sticker, then press OK.
2 Use ▲▼ to select Off, then press OK.

Off

Top

Bottom

Note

• If you select Home, E-sticker will not be displayed.

You can Turn Off E-sticker.

E-sticker is displayed on top of the TV screen.

E-sticker is displayed on bottom of the TV screen.

28

English

USB

Your TV is tted with a USB connection that enables you to view
photos or watch Motion JPEG les stored on a USB Memory Stick.

1 Connect the USB Memory Stick to the USB terminal on the side of

your TV.

2 Press MENU and use ▲▼ to select USB, then press OK.

• The highlighted text will move to the name of your USB
Memory Stick, then press OK again.

Sound
Setup

This menu allows you to enjoy
your pictures and videos via
your USB device.

Features

\

Language

USB

3 Use ▲▼ to select the Picture or Video, then press OK.

• The les recorded under the following specications are
required.

Picture (JPEG)

Video

(Motion JPEG)

Note

• Up to 2GB (FAT16) or 8GB (FAT32) capacity can be supported.

• Up to 10,000 les or 1,000 folders with 19 hierarchies can be recognized.

• Up to 255 English characters can be recognized.

• This unit does not support MTP(Media Transfer Protocol).

• This unit supports FAT16 and FAT32 le systems.

• If the le is not supported, an error message appears.

• When the USB Memory Stick is not recognized, try reconnecting it again.

• We cannot be held responsible if your USB Memory Stick is not supported, nor will we

accept any liability for damage or loss of stored data.

• A le name exceeding 128 characters or contains a dot character is not supported on

this TV.

• Progressive JPEG les are not supported.

• Only a Motion JPEG le with an “.avi” extension is supported. An extension “.mov” is

not supported.

• During Motion JPEG playback, “Pause”, “Forward” and “Reverse” do not wor k on this

unit.

Upper limit 24Mpixel

Size 320 x 240 (QVGA)

Frame rate 30fps

Audio type LPCM

Sampling frequency
(32 kHz, 44.1 kHz or 48 kHz)
Quantization bit rate (16 bit)

Your USB

Picture (JPEG)

1 Use ▲▼ to select the desired le, then press OK.

Your USB


..


1 2

Press “OK” key to play/pause

• To toggle between List and Thumbnails press
the NUMBER 2 button each time.

• The unit goes to the Slide show automatically.

To pause / play the Slide show, press OK.

• Use the NUMBER buttons (1 through 4

1

(

) or change the following settings ( 2 ~ 4 ).

See the description on the top of the next column.

Item Detail

1

More Detail

4

Start show

2

Transitions

3

Slide time

4

Stop show

2

Rotate

3

Zoom

Press 1 to display le details below.
Name, Album, Date, Size and Next.

Press 1 again to remove le details.
Press 4 or OK to start the Slide show.

While the Slide show is on, the following 2 settings will be
displayed.

Press 2, then use ▲▼ to select the transition mode
choosing from;

None, Dissolve, Wipe right, Wipe left, Wipe up,
Wipe down, Box in and Box out.

Press 3, then use ▲▼ to change the display time
choosing from; Short, Medium and Long.

Press 4 or OK to stop the Slide show.
While the Slide show is Off, the following 2 settings will be
displayed.

Every press on 2 will turn the picture clockwise by 90
degrees.

Press 3, then use ▲▼ to select the zoom factor (1x, 2x
or 4x). Press OK to set the zoom factor.

Video (Motion JPEG)

Thumbnails

Picture Picture

1200:900
2009:04:02 17:42:06

3 4

) to see the le detail

1 Use ▲▼ to select the desired le, then press OK.

Your USB

Video

..
MOVIE1.avi

MOVIE2.avi
MOVIE3.avi
MOVIE4.avi
MOVIE5.avi

Video Video
MOVIE1.avi

Title: MOVIE1.avi
Director:
Date: 2009/04/02
Duration: 00:06:37

1 2 3 4

Supported format: motion jpeg, 320 x 240, 30FPS

• To stop playback and return to the le list, press
BACK, OK or CH +.

• Press CH − to play back from the beginning.

Item Detail

1

More Detail

Press 1 to display le details below.
Title, Director, Date and Duration.

Press 1 again to remove le details.

29

English

6 Upgrade your TV software

Emerson continuously tries to improve its products and we strongly
recommend that you upgrade the TV software when upgrades are
available.

New software can be downloaded from our website at
http://emersonaudiovideo.com/support/download.php
using the model number of your TV to nd information.

Checking your current software version
1

Press MENU and use ▲▼ to select Features, then press OK.

2 Use ▲▼ to select Software upgrade, then press OK.

Sound
Setup

Features

Language
USB

Current software info
Upgrade

Warning

• When the software upgrade is running, don’t press any buttons.

• Do not remove the USB Memory Stick during the software upgrade.

• If an error occurs during the upgrade, retr y the procedure or for further assistance,

please contact Call Center.

Downloading the software

Find information and software related to your TV and download the
latest software upgrade le to your PC.

1 On your PC, open a web browser and go to

http://emersonaudiovideo.com/support/download.php

2 Enter the model number in the “Type the Model Number...” eld.
3 Click the desired software to be downloaded.

• Decompress the ZIP-le.

4 Copy the upgrade le to the root directory of the USB Memory

Stick.

Starting the software upgrade

1 Connect your USB Memory Stick with the upgrade le to the USB

terminal on the side of your TV.

3 Use ▲▼ to select Current software info, then press OK.

• The version and a description of the current software is
displayed.

Sound
Setup

Features

Language
USB

Release Version:
XXXXXXX_XX_XX_XXXX_XX

Back

Upgrading the software

You can upgrade the software by using USB Memory Stick.

Preparing for the software upgrade

You require the following equipment :

• A PC with web browsing capability.

• An archive utility that supports the ZIP-format
(e.g. WinZip for Windows or StuffIt for Mac OS).

• An empty clean formatted USB Memory Stick.

Note

• Only FAT / DOS-formatted por table memory is suppor ted.

• Use only software upgrades that can be found on the Emerson web site.

2 Press MENU and use ▲▼ to select Features, then press OK.
3 Use ▲▼ to select Software upgrade, then press OK.
4 Use ▲▼

to select Upgrade, then press OK.

5 Read the on-screen instructions and conrm that you want to

continue with the installation.

Sound
Setup

Features

Language
USB

Would you like to upgrade the
software?

Start now

6 When the software upgrade is completed, press to set the unit

to go into Standby mode, then remove the USB Memory Stick and
then press

• The TV star ts up with the new software.

For further assistance, please contact Call Center.

again to Turn the unit On.

30

English

7 Connecting devices

No supplied cables are used with these connections:

• Please purchase the necessary cables at your local store.

Before you connect AC power cord:

Be sure other devices are connected properly before plugging in the AC
power cord.

Selecting your connection quality

HDMI - Highest quality

Supports high-denition Digital signals and gives highest picture and
sound quality. Video and audio signals are combined in one cable.
You must use HDMI for full high-denition video and to enable
fun-Link (HDMI CEC).

Note

• Emerson HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP

is a form of Digital Rights Management that protects high denition content in Blu-ray
discs or DVDs.

Connecting your devices

HDMI Digital connection

HDMI connection offers the highest picture quality.
HDMI (High-Denition Multimedia Interface) transports high denition
Digital video and multi-channel Digital Audio through a single cable.

set-top box

or

ININ OUT

HDMI cable

HDMI-DVI connection

This unit can be connected to your device that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it requires
audio cable for Analog Audio signal as well.

ININ OUT

Blu-ray disc player

or

HD game console

cable receiver or

satellite box with the

DVI Output jack

Component (Y Pb Pr) - High quality

Supports high-denition Analog signals but gives lower picture quality than
HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue
video cables with red / white audio (L/R) cables. Match the cable colors
when you connect to the TV.

Composite - Basic quality

For analog connections. Composite Video / Audio Analog cable usually
combine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) of Component
Video Input jacks.

HDMI-DVI

conversion cable

IN

IN

Audio (L/R) cables

Note

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

For HDMI connection

• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz

/ 44.1kHz and 48kHz of audio signals.

• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal

(LPCM).

• This unit accepts only signals in compliance with EIA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

OUT

31

English

Component Analog Video Connection

Component Analog Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks,
connect Analog Audio cables to the Analog Audio (L/R) Input jacks.

OUT

OUT

Audio (L/R) cables

IN

IN

IN

IN

Component (Y/Pb/Pr) Video cables

OUTOUT

set-top box

or

Blu-ray disc/DVD recorder

Note

• The unit accepts 480i / 480p / 720p and 1080i of video signals for this connection.

Composite Analog Video Connection

Composite Analog Video connection offers standard picture quality for
video devices connected to the unit.
If you connect to the unit’s Composite Video (Y/VIDEO) Input jack,
connect audio cables to the Audio (L/R) Input jacks. When the Audio is
monaural, then only connect to the Audio L Input jack.

Digital Audio Output Connection

If you connect this unit to an external Digital Audio device, you can
enjoy multi-channel audio like 5.1ch Digital broadcasting sound.
Use a Digital Audio coaxial cable to connect the unit to external Digital
Audio devices.

ININ

OUT

OUT

Digital Audio coaxial cable

Digital home theater

amplier

OUTOUT

DVD player

IN

IN

Audio (L/R) + Video cables

Note

• With this unit, yellow cable must be connected to Y (green) of Component Video Input

jacks.

• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must

disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks
connected, it may cause of unstable picture.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

32

English

PC connection

HDMI connection

This unit can be connected to your PC that has a HDMI terminal. Use
an HDMI cable for this Digital connection.

ININ OUT

HDMI cable

HDMI-DVI connection

This unit can be connected to your PC that has a DVI terminal. Use
an HDMI-DVI conversion cable for this Video Digital connection and it
requires Stereo mini 3.5mm plug Audio cable for Analog Audio signal as
well.

PC

The following video signals can be displayed:

Format Resolution Refresh rate

VGA 640 x 480

SVGA 800 x 600

XGA 1,024 x 768

WXGA

FHD 1,920 x 1,080

1,280 x 768

1,360 x 768

60Hz

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise.

- Attach a ferrite core to the AC power cord of your PC.

- Unplug the AC power cord and use the built-in batter y of your PC.

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate audio connections as well and the audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

USB Memory Stick

This unit offers easy playback of picture (JPEG) and video
(Motion JPEG) les.
Insert the USB Memory Stick into the USB terminal shown below.

p. 28

USB

➠

OUT

PC

OUT

IN

IN

ININ

HDMI-DVI

conversion cable

Stereo mini 3.5 mm plug Audio cable

VGA connection

This unit is equipped with a PC Input jack. If you connect this unit to
your PC, you can use this unit as a PC monitor.
Use a VGA cable for this Video connection and it requires a Stereo mini

3.5mm plug Audio cable for Analog Audio signal as well.

VGA cable

OUTIN

PC

OUT

Stereo mini 3.5 mm plug Audio cable

IN

IN

IN

Note

• The unit recognizes only a USB Memory Stick.

• Do not use a USB hub or an extension cable to connect an external hard disk drive to

the unit. (Not supported.)

• A USB Memory Stick is always inserted to this unit directly.

• A USB Memory Stick is not supplied with this unit.

• We do not guarantee that all USB Memory Sticks can be supported by this unit.

• Be sure to keep a backup copy of the original les on your device before you play them

back on this unit. We have no responsibilities for damage or loss of your stored data.

• To protect your USB Memory Stick les from being erased place the write protect

sliding tab in the protect position.

• When you are ready to remove a USB Memory Stick, set the unit to go into Standby

mode to avoid any damage to your data and the unit.

• A USB Memory Stick that requires its own driver or the device with a special system

such as ngerprint recognition are not suppor ted.

• This unit is not allowed to use the USB Memory Stick which requires an external

power supply (500mA or more).

8 Useful tips

FAQ

Question Answer

My remote control does not
work.
What should I do?

How come the Initial setup
appears every time I Turn On
this unit?

Why can I not watch some RF
signal TV programs.

How come there is no image
from the connected external
devices?

When I enter a channel number,
it changes automatically.

Why are captions not displayed
entirely? Or, captions are
delayed behind the dialog.

How can I set the clock ? • There is no clock function on this unit.

I cannot change the Child lock
setting because my PIN code no
longer works.

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal Output use IR Signal Check.

If okay, then possible infrared sensor trouble.

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/– ) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. Move
the infrared-equipped device away from this unit, change the angle of the infrared sensor or Turn Off the infrared communication
function.

• Connect the RF coaxial cable to the unit directly and run the initial setup.

• Make sure to complete the initial setup before the unit goes into Standby mode.

• Autoprogram must be completed when you set up the unit for the rst time or move it to a location where previously unavailable
channels are broadcast.

• Make sure Autoprogram has been completed.

• The selected channel may not be broadcasting.

• When Autoprogram is interrupted and not completed, some channels will not be received. Make sure to complete the
Autoprogram.

• The selected channel cannot be viewed by the Child and ratings lock setting.

• The unit requires some kind of antenna Input. An indoor antenna (Digital or VHF / UHF), an external antenna (Digital or VHF / UHF)
or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

• Check if the correct Input mode is selected by pressing SOURCE or using CH + / −. Refer to Watching channels from an external
device.

➠

• Check the antenna, cable or other Input connection to the unit.

• When using the Component Video connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected
to their corresponding colored jacks on the unit.

• Many Digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the
broadcasting station channel number. These basic numbers used for previous Analog broadcasts. (e.g., Input ch# 30 automatically
changes to ch# 6.1)

• Captions that are delayed a few seconds behind the actual dialog are common for live broadcasts. Most captioning production
companies can display a dialog to maximum of 220 words per minute. If a dialog exceeds that rate, selective editing is used to
insure that the captions remain up-to date with the current TV screen dialog.

• If a Power failure occurs for longer than 10 seconds the child lock setting is retained, but the PIN code is reset to the default code

0000. Refer to Child and ratings lock.

p. 15

➠

p. 20

➠

p. 23

➠

p. 35

p. 20

➠

➠

p. 23

33

English

Troubleshooting

If the unit does not perform properly when operated as instructed in this Owner’s Manual,

check the following chart and all connections once before calling for service.

Symptom Remedy

No power • Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that the AC
outlet operates normally.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

Control buttons do not work. • Press only one button at a time. Do NOT press more than one button at the same time.

• Ensure that no buttons on the remote control are depressed and move freely.

Continued on next page.

Symptom Remedy

Power is ON but no screen
image.

No picture or sound • Check if the Power is on.

No color • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

No sound, distorted sound or
incorrect Audio Sound is heard
when using the HDMI-DVI
connections.

Adjusted Picture or Sound
settings are not effective every
time the unit is Turned On.

Sound OK, picture poor • Electrical interference from nearby appliances may affect picture quality.

Picture OK, sound poor • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

You see a distorted picture or
hear an unusual sound.

Ghosts, lines or streaks in picture • Electrical interference from nearby appliances may affect picture quality.

You see noise or trash on the
screen.

Different color marks on the TV
screen

You switch to a different Input
and the volume changes.

You switch to a different Input
and the screen size changes.

The display image does not
cover the entire screen.

Captions are displayed as a white
box. No caption is displayed in
the Closed Caption-supported
program.

Black box is displayed on the TV
screen.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray disc / DVD recorder.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to
wake up your computer.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray / DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and Turn On the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to
wake up your computer.

• Make sure that the sound is not muted. Press

• Make sure that the volume is NOT set to 0 or

• Adjust Color in Picture settings.

• Make sure that the Analog Audio signals from the HDMI-DVI device are connected to the Analog Audio (L/R) Input jacks.

• When using Component Analog Video, Composite Analog Video or PC VGA Video make sure that the Analog Audio (L/R)
connectors are mounted into the Audio (L/R) Input jacks.

• You must set Home in Location.

Otherwise, the settings you adjusted will not be memorized after the unit goes into Standby mode.

• Adjust Contrast and Brightness in Picture settings.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• For the best picture quality, watch High Denition wide screen programs.

If the HD content is not available, watch Standard Denition programs instead.

• Check if the audio cable is connected into the unit correctly.

• You may be getting interference from electrical appliances, automobiles, motorcycles or uorescent lights.

• Try moving the unit to another location to see if this is the cause of the problem.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• When the capabilities of the unit exceed the capabilities of the Digital broadcasting, the signal will be increased to match the
capabilities of the display of the unit. This may cause noise or trash.

• View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

• Make sure Auto volume leveling is set to On.

• This unit will memorize the viewing mode from the last time you used the particular Input modes.

• If you are using the unit as a PC monitor, make sure that Horizontal position and Vertical position in PC settings are set correctly.

• If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to
switch various screen modes.

• Interference from buildings or weather conditions may cause captioning to be incomplete if watching Analog TV signals.

• Broadcasting station may shorten the program to inser t advertisements.

• The Closed Caption decoder cannot read the information of the shor tened program.

• The text mode is Selected. For caption, select CC-1, CC-2, CC-3, CC-4 or Off.

➠

➠

p. 19

p. 27

so that the volume bar and current volume level will appear on the TV screen.

. If so, use VOL + / − to adjust to the desired volume.

p. 19

➠

p. 20

➠

34

English

Note

• The LCD screen is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a xed point of blue, green or red.

This is not to be considered a defect in the LCD screen.

• Some functions are not available in specic modes, but this is not a malfunction. Read the description in this Owner’s Manual for more details on correct operations.

9 Information

35

English

Glossary

Analog TV (NTSC)

Acronym that stands for National Television Systems Committee and the name
of Analog broadcasting standards.
Off the air Analog TV signals are no longer being sent by major broadcasting
stations in the USA.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other
words, the TV screen is almost square); widescreen models are 16:9 (the TV
screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with
CEC feature and this unit. We do not guarantee 100% interoperability with other
brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors of light
(red, blue and green) through different signal lines. This allows the viewers to
experience picture colors as original as it is. There are several signal formats,
including Y / Pb / Pr and Y / Cb / Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress Digital sound. It offers
stereo sound (2ch) or multi-channel audio.

DTV (ATSC)

Initialism that stands for Advanced Television Systems Committee and the name
of the Digital broadcasting standards.

E-sticker

E-sticker is showing set features, technical information, etc on this TV set
that is displayed on the TV screen mainly used by TV retailers. Previously the
information was on a printed sticker that was put on the display.

HDMI (High-Denition Multimedia Interface)

Interface that supports all uncompressed, Digital Audio / Video formats including
set-top box, Blu-ray / DVD recorder or Digital television, over a single cable.

HDTV (High Denition TV)

Ultimate Digital format that produces high resolution and high picture quality.

PIN code

A stored 4-digit number that allows access to parental control features.

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio
channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Denition TV)

Standard Digital format that is similar to the Analog TV picture quality.

SRS Sound

Delivers a rich and immersive surround sound experience.

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with
a soft cloth.

• Never use a solvent or alcohol. Do not spray insecticide liquid near
the unit. Such chemicals may cause damage and discoloration to
the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel,
disconnect the AC power cord.

Servicing

Should your unit become inoperative, do not try to correct the
problem yourself. There are no user serviceable parts inside. Call
our toll free customer support line found on the cover of this
Owner’s Manual to locate an authorized service center.

IR Signal Check

If the remote control is not working properly, you can use a Digital
camera (including a cellular phone with built-in camera) to see if it is
sending out an infrared signal.

With a Digital camera
(including built-in cell phone cameras):
Point the Digital Camera towards the remote control
infrared diode at the front of the remote control.
Press any button on the remote control and look
through the camera display. If the infrared pulsating
light appears through the camera, the remote control
is sending out an IR signal.

English

36

10 Specifications

Model # LC501EM3 / LC391EM3


Type FHD (1920 x 1080 pixels 60Hz)

Aspect ratio 16:9

Viewing angles 176° (V) by 176° (H)

Built-in Digital tuner ATSC / NTSC

Sound

Mono / Stereo Mono, Stereo, SRS Sound

Power Output (RMS watts) 10 W x 2

Equalizer 5 band

Ease of use

Picture format

SD (4:3 Source) :
HD (16:9 Source) :
HDMI AV (4:3 Source) :
HDMI AV (16:9 Source) :
PC Source :

Normal / 16:9 / Movie expand / Zoom / Wide
Normal / 4:3 / Movie expand / Zoom / Wide
Normal / 16:9 / Movie expand / Zoom / Wide / Full
Normal / 4:3 / Movie expand / Zoom / Wide / Full
Normal / Full / Unscaled
(Refer to HDMI AV (16:9 Source) above if PC has HDMI Output.)

Photo Slide show JPEG fi les only

Video playback Motion JPEG 320 x 240, 30fps and fi le extension “.avi” only

Channel

Channel coverage

Terrestrial DTV (ATSC) VHF :

UHF :

2~13
14~51 (each channel has e.g. 2.1~2.9, 3.1~3.9, etc.)

Terrestrial Analog (NTSC) VHF :

UHF :

2~13
14~69

CATV

2~13, A~W,

W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A

Tuning system Channel frequency synthesized tuning system

Channel access

Direct access keyboard,

Programmable scan, and up / down

Connectivity

Component Video Input (Y/Pb/Pr)

1

supporting video signals : 480i/p, 720p, 1080i 60Hz

Composite Video Input

(shared terminal with Y of components)

1

HDMI Input

3

supporting video signals : 480i/p, 720p, 1080i/p, 24Hz-60Hz

PC-Input signal up to FHD (1920 x 1080)

Audio L/R Input 1

PC Input via VGA, HDMI and HDMI-DVI + Analog Audio L/R

USB 1

Digital Audio Output

1

supporting Dolby Digital

Headphone Output

1

1/8 inches (3.5mm)

Power

Power requirements 120V~ AC +/− 10%, 60Hz +/− 0.5%

Temperature

Operating temperature 41 °F (5 °C) to 104 °F (40 °C)

• Specifi cations are subject to change without prior notice.

11 Warranty

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

37

English

WARRANTY COVERAGE:
This warranty obligation is limited to the terms as set forth
below.

WHO IS COVERED:
This product warranty is issued to the original purchaser or the
person receiving the product as a gift against defects in materials
and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.

WHAT IS COVERED:
This warranty covers new products if a defect in material or
workmanship occurs and a valid claim is received within the
Warranty Period. At its option, the company will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or ser­viceable used parts and is at least functionally equivalent or most
comparable to the original product in current inventory, or (3)
refund the original purchase price of the product.
Replacement products or parts provided under this warranty are
covered against defects in materials and workmanship from the
date of the replacement or repair for ninety (90) days or for the
remaining portion of the original product’s warranty, whichever
provides longer coverage
exchanged, any replacement item becomes your property and the
replaced item becomes company property. When a refund is
given, your product becomes company property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMI­TATIONS:
This Limited Warranty applies only to new company manufac­tured products that can be identified by the trademark, trade
name, or logo affixed to it. This Limited Warranty does not apply
to any hardware product or any software, even if packaged or
sold with the product, as manufacturers, suppliers, or publishers
may provide a separate warranty for their own products pack­aged with the bundled product.

for you.

When a product or part is

or a part that has been modified without written company per­mission, or (d) if any serial number has been removed or defaced,
or (e) product, accessories or consumables sold “AS IS” without
warranty of any kind by including refurbished product sold “AS
IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjust-

ment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary con­tent for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of the company.

• Damage or claims for products not being available for use, or
for lost data or lost software.

• Damage from mishandled shipments or transit accidents when
returning product.

• A product that requires modification or adaptation to enable
it to

operate in
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.

• A product used for commercial or institutional purposes
(including but not limited to rental purposes).

• Product lost in shipment and no signature verification receipt
can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…
Contact the Customer Care Center at:

1 866

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON­SUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER­CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY.

any country other than the country for which

309 8819

The company is not liable for any damage to or loss of any pro­grams, data, or other information stored on any media contained
within the product, or other additional product or part not cov­ered by this warranty. Recovery or reinstallation of programs,
data or other information is not covered under this Limited
Warranty.

This warranty does not apply (a) to damage caused by accident,
abuse, misuse,
(b) to damage caused by service performed by anyone other than
company approved Authorized Service Location, (c) to a product

neglect,

misapplication, or non-supplied product,

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501

Some states do not allow the exclusions or limitation of inciden­tal or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you.

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS
OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A.

FUNAI CORPORATION, Inc.

19900 Van Ness Avenue, Torrance, CA 90501

A21UFUH /A21UCUH /A21U1UD /A21T1UH
