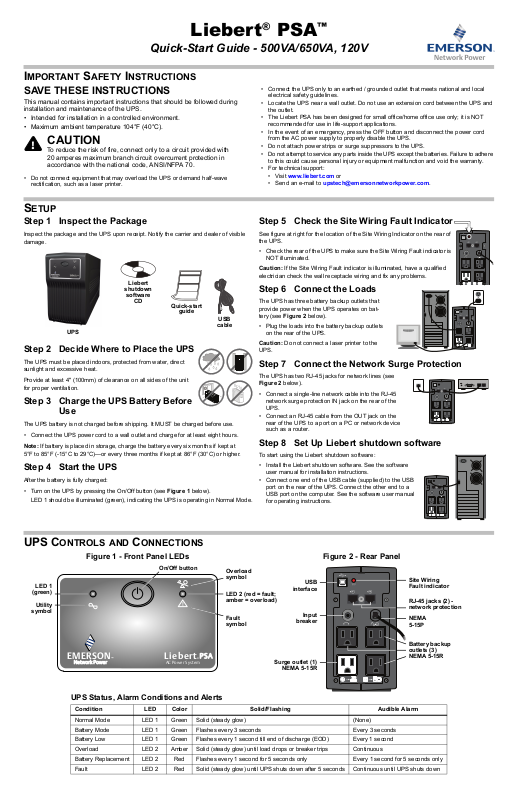

Liebert® PSA

Quick-Start Guide - 500VA/650VA, 120V

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during installation and maintenance of the UPS.

• Intended for installation in a controlled environment.

• Maximum ambient temperature 104°F (40°C).

CAUTION

To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit overcurrent protection in accordance with the national code, ANSI/NFPA 70.

• Do not connect equipment that may overload the UPS or demand half-wave rectification, such as a laser printer.

SETUP

™

• Connect the UPS only to an earthed / grounded outlet that meets national and local electrical safety guidelines.

• Locate the UPS near a wall outlet. Do not use an extension cord between the UPS and the outlet.

• The Liebert PSA has been designed for small office/home office use only; it is NOT recommended for use in life-support applications.

• In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.

• Do not attach power strips or surge suppressors to the UPS.

• Do not attempt to service any parts inside the UPS except the batteries. Failure to adhere to this could cause personal injury or equipment malfunction and void the warranty.

• For technical support:

• Visit www.liebert.com or

• Send an e-mail to upstech@emersonnetworkpower.com.

Step 1 Inspect the Package

Inspect the package and the UPS upon receipt. Notify the carrier and dealer of visible damage.

Liebert

shutdown

software

UPS

Quick-start

guide

USB

cable

Step 2 Decide Where to Place the UPS

The UPS must be placed indoors, protected from water, direct sunlight and excessive heat.

Provide at least 4" (100mm) of clearance on all sides of the unit for proper ventilation.

Step 3 Charge the UPS Battery Before

Use

The UPS battery is not charged before shipping. It MUST be charged before use.

• Connect the UPS power cord to a wall outlet and charge for at least eight hours.

Note: If battery is placed in storage, charge the battery every six months if kept at 5°F to 85°F (-15°C to 29°C)—or every three months if kept at 86°F (30°C) or higher.

Step 4 Start the UPS

After the battery is fully charged:

• Turn on the UPS by pressing the On/Off button (see Figure 1 below).

LED 1 should be illuminated (green), indicating the UPS is operating in Normal Mode.

Step 5 Check the Site Wiring Fault Indicator

See figure at right for the location of the Site Wiring Indicator on the rear of the UPS.

• Check the rear of the UPS to make sure the Site Wiring Fault indicator is NOT illuminated.

Caution: If the Site Wiring Fault indicator is illuminated, have a qualified electrician check the wall receptacle wiring and fix any problems.

Step 6 Connect the Loads

The UPS has three battery backup outlets that provide power when the UPS operates on battery (see Figure 2 below).

• Plug the loads into the battery backup outlets on the rear of the UPS.

Caution: Do not connect a laser printer to the UPS.

Step 7 Connect the Network Surge Protection

The UPS has two RJ-45 jacks for network lines (see Figure 2 below).

• Connect a single-line network cable into the RJ-45 network surge protection IN jack on the rear of the UPS.

• Connect an RJ-45 cable from the OUT jack on the rear of the UPS to a port on a PC or network device such as a router.

Step 8 Set Up Liebert shutdown software

To start using the Liebert shutdown software:

• Install the Liebert shutdown software. See the software user manual for installation instructions.

• Connect one end of the USB cable (supplied) to the USB port on the rear of the UPS. Connect the other end to a USB port on the computer. See the software user manual for operating instructions.

UPS CONTROLS AND CONNECTIONS

On/Off button

LED 1

(green)

Utility

symbol

EMERSON

Network Power

™

UPS Status, Alarm Conditions and Alerts

Condition LED Color Solid/Flashing Audible Alarm

Normal Mode LED 1 Green Solid (steady glow) (None)

Battery Mode LED 1 Green Flashes every 3 seconds Every 3 seconds

Battery Low LED 1 Green Flashes every 1 second till end of discharge (EOD) Every 1 second

Overload LED 2 Amber Solid (steady glow) until load drops or breaker trips Continuous

Battery Replacement LED 2 Red Flashes every 1 second for 5 seconds only Every 1 second for 5 seconds only

Fault LED 2 Red Solid (steady glow) until UPS shuts down after 5 seconds Continuous until UPS shuts down

Liebert

AC Power System

PSA

Overload symbol

LED 2 (red = fault; amber = overload)

Fault symbol

USB

interface

Input

breaker

Surge outlet (1)

NEMA 5-15R

Figure 2 - Rear PanelFigure 1 - Front Panel LEDs

Site Wiring Fault indicator

RJ-45 jacks (2) network protection

NEMA 5-15P

Battery backup outlets (3) NEMA 5-15R

REPLACING THE BATTERY

To replace the battery:

1. Turn off all connected loads, then turn off the UPS (batteries are NOT hot-swappable).

2. Use a Phillips head screwdriver to remove the two screws from the bottom edge of the front panel.

3. Slide the panel downward and remove it.

4. Gently pull the battery out of the UPS.

5. Remove the black wire from the negative (-) terminal and the red wire from the positive (+) terminal.

6. Verify that the replacement battery matches the dimensions and battery type in the Specifications section below.

7. Connect the battery leads to the new battery. Be sure to reconnect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal.

Note: Small sparks may occur at the battery connectors during reconnection.

8. Slide the battery into the UPS.

9. Close the front panel and replace the two screws from Step 2.

Dispose of the old battery properly at an appropriate recycling facility.

Steps 2 and 3

Steps 4 and 5

TROUBLESHOOTING

If the UPS malfunctions during operation, check the following chart for proper adjustment. For further assistance, please contact your local Emerson Network Power representative.

Problem Possible Causes Solutions

The UPS may not be turned on.

Utility power is normal, but LED 1 is not illuminated.

LED 1 flashes (green) every 3 seconds, but there is no output power.

Alarm buzzer beeps continuously although utility power is normal.

UPS does not provide expected backup time. The UPS battery reached end of life. • Replace the internal battery.

The UPS is on and connected to input power, but fails to operate properly.

The power cord may not be connected properly.

The upstream input circuit breaker may be tripped.

Battery voltage may be too low. • Recharge the UPS for 8 hours.

The UPS may be overloaded (check LED 2). • Disconnect some equipment from the UPS.

Utility power may be outside the unit’s operating range.

• Press the On/Off button to turn on the UPS.

• Connect the power cord securely into a wall outlet.

• Reset the input circuit breaker.

• If utility power is normal, try reconnecting input power and restarting the UPS.

SPECIFICATIONS

Model Number PSA500MT3-120U PSA650MT3-120U

Capacity (VA/W) 500/300 650/390

Net Weight, lb. (kg) 14.1 (6.4) 14.6 (6.6)

Shipping Weight, lb. (kg) 15.9 (7.2) 16.3 (7.4)

Dimensions - W x D x H, in. (mm) 3.7 x 14 x 6.7 (95 x 356 x 171)

On-Line Input Voltage 84-140VAC

On-Line Frequency 50/60Hz ±5Hz

Output Voltage (Utility Power Normal) Typical 97-129VAC

Output Voltage (Battery Operation) 120VAC ±5%

On-Battery Wave Form Stepped sinewave

Battery Type - VDC x Ah x Quantity 12V x 7Ah x 1

Typical Recharge Time 6-8 hours to 90%

Battery Run Time* - Full Load 3-5 minutes

Battery Run Time* - Half Load 10 minutes

Audible and Visual Audible alarm / LED

Backup Outlets NEMA 5-15R (3)

Surge Outlets NEMA 5-15R (1)

Operating Temperature, °F (°C) 32 to 104 (0 to 40)

Storage Temperature, °F (°C) 5 to 104 (-15 to 40)

Operating / Storage Relative Humidity 0%-90%, non-condensing

EMI Classification FCC Part 15 Class B

Agency

Transportation ISTA Procedure 1A Certification

* Battery run time may vary depending on load

® Liebert is a registered trademark of Liebert Corporation. All names referred to are trademarks or registered trademarks of their respective owners.

SL-23300_REV0_04-08

Safety UL 1778, c-UL Listed

Technical Support / Service United States

800-222-5877 (Outside U.S. 614-841-6755) upstech@emersonnetworkpower.com Web site: www.liebert.com

1050 Dearborn Drive P.O. Box 29186 Columbus, OH 43229
