Car Audio

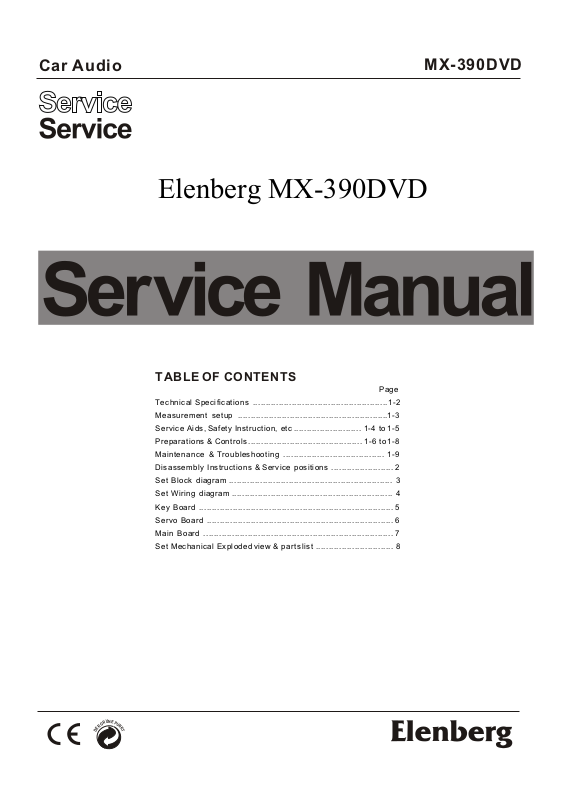

Elenberg MX-390DVD
MX-390DVD
TABLE OF CONTENTS
Page
Technical Specifications ....................................................1-2
Measurement setup ..........................................................1-3
Service Aids, Safety Instruction, etc .......................... 1-4 to 1-5
Preparations & Controls ............................................ 1-6 to 1-8
Maintenance & Troubleshooting ....................................... 1-9
Disassembly Instructions & Service positions ........................ 2
Set Block diagram ............................................................... 3
Set Wiring diagram .............................................................. 4
Key Board ........................................................................... 5
Servo Board ........................................................................ 6
Main Board ......................................................................... 7
Set Mechanical Exploded view & parts list .............................. 8
N
E
U
P
R
U
G
N
R
K
E
T
D
SPECIFICATIONS
1-2
General
Power supply:
Maximum power output:
Continuous power output:
Suitable speaker impedance:
Pre-Amp output voltage:
Fuse:
Dimensions(WxHxD)
Weight:
FM Stereo Radio
Frequency range:
Sensitivity:
Frequency response:
Stereo separation:
Image response ratio:
IF response ratio:
Signal/noise ratio
12V DC(11V-16V)
Test voltage 14.4V, negative ground
45Wx4 channels
20Wx4 channels (4 10% T.H.D.)
4-8 ohm
2.0V
15A
178x50x155mm
1.7kg
87.5 - 108.0 MHz
65.0-74.0 MHz (OIRT mode)
8 dB
30Hz-15KHz
30dB(1KHz)
50dB
70dB
55dB
Components
Mounting collar
Tapping screws M5x6 mm 4
M4x6 mm 4
Mounting bolt (50 mm) 1
Wire connector
Removable face plate case
Trim plate 1
T-key 2
User manual
Rubber cushion 1
Remote control
1
1
1
1
1
Disc Player
System:
Frequency response:
Signal/noise ratio:
Total harmonic distortion:
Channel separation:
Video signal format system:
Video:
video output:
horizontal nesowtiou:
Note: Specifications and design are subject to change
without notice for product improvements.
Disc digital audio system
20 Hz - 20KHz
>80 dB
Less than 0.20%(1KHz)
>60 dB
PAL/NTSC
1 0.2V
500 lines
MEASUREMENT SETUP
Tuner FM
1-3
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
RF Generator
e.g. PM5326
DUT
Ri=50
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum(50Hz,100Hz) and disturbance from the pilottone(19kHz,38kHz).
Tuner AM (MW,LW)
RF Generator
e.g. PM5326
Ri=50
DUT
Frame aerial
e.g. 7122 707 89001
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
S/N and distortion meter
e.g. Sound Technology ST1700B
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday s cage.
Use a bandpass filter ( or at least a high pass filter with 250Hz) to eliminate hum ( 50Hz,100Hz ).
CD
Use Audio Signal Disc SBC429 4822 397 30184
(replaces test disc 3)
DUT
L
R
S/N and distortion meter
e.g. Sound Technology ST1700B
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
'
HANDLING CHIP COMPONENTS
GENERAL DISMOUNTING MOUNTING
e.g.WELLER
Solder tip PT-H7
SOLDER WICK
4822 321 40042
CHIP
SOLDER
COMPONENT
GLUE
SOLDER
COPPER TRACK
P.C.B
SOLDER WICK
1-4
VACUUM PISTON
SOLDERING
IRON
SOLDERING
IRON
e.g. A PAIR OF TWEEZERS
HEATING HEATING
SOLDERING
IRON
4822 395 10082
CLEANING
A
B
C
e.g. A PAIR OF TWEEZERS
SLODER
0.5-0.8mm
SLODERING
IRON
SLODERING TIME
< 3 secretary / side
PRESSURE
PRESSURE
EXAMPLES
SOLDER
0.5-0.8mm
SLODERING
IRON
A
B
SERVICE PACKAGE
SOLDERING
IRON
SOLDERING
IRON
PRECAUTIONS
CORRECT
COPPER TRACK
CHIP COMPONENT
CORRECT
SOLDERING
IRON
NO
GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d'autres
semi-conducteurs sont sensibles aux
decharges statiques(ESD).
Leur longevite pourrait etre considerablement
ecourtee par le fait qu'aucune precaution n'est
prise a leur manipulation.
Lors de reparations,s'assurer de bien etre relie
au meme potentiel que la masse de l'appareil et
enfiler le bracelet serti d'une resistance de
securite.
Veiller a ce que les composants ainsi que les
outils que l'on utilise soient egalement ace
potentiel.
1-5
ESD
D
WARNING
Alle ICs und viele andere Halbleiter sind
empfindich gegenuber elektrostatischen
Entladungen(ESD).
Unsorgfaltige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie,dass Sie im Reparaturfall uber
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerates.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
NL
WAARSCHUWING
Alle IC's en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat .
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
AVVERTIMENTO
I
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche(ESD).
La loro longevita potrebbe essere fortemente
ridatta in caso di non osservazione della piu
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell'apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
ATTENTION
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.
NL
Veiligheidsbepalingen vereisen,dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde,worden toegepast.
F
Les normes de securite exigent que I'appareil soit remis a I' etat
d'origine et que soient utilisees les pieces de rechange identiques
a celles specifiees.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten.Der Original zustand des Gerats darf nicht verandert werden;
fur Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che I'apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
Pour votre securite,ces documents
doivent etre utilises par des specialistes agrees,seuls habilites a reparer
votre appareil en panne .
CLASS 1
LASER PRODUCT
Warning!
GB
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning!
Osynlig laserstralning nar apparaten ar oppnad och sparren
ar urkopplad. Betrakta ej stralen.
SF
Varoitus!
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
nakymattomalle laserisateilylle. Ala katso sateeseen!
3122 110 03420
After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist .The leakage current
must not exceed 0.5mA.
DK
Advarse!
Usynlig laserstr ling ved abning nar sikkerhedsafbrydere er
ude af funktion.Undga udsaettelse for straling.
a
PREPARATIONS
Wiring Diagram
1-6
Purple
Black
Stripe
Right Speaker
(Rear)
Antenna
Gray/
Gray GreenPurple/
Black
Stripe
Right Speaker
(Front)
A
B
White/
Black
Stripe
White
Left Speaker
(Front)
Yellow
Black
Blue
Red
Green/
Black
Stripe
Left Speaker
ISO Connector
To car battery(+)
Continuous +12VDC
Ground Lead
Motor/Electric Antenna relay control Lead
Amplifier relay control Lead
Ignition key
+12V DC When ON/ACC
(Rear)
Filter Box
Connector
Line-out (Gray)
Video-out
Fuse 15A
R(Red)
L(White)
For some VW/Audi or Opel(Vauxhall)
car models, you may need to modify
wiring of the supplied power cord as
illustrated, or else the memory of the
unit may be lost after you power off.
Contact your authorized car dealer
before installing this unit.
Original wiring
Yellow Yellow
Red
Red
Modified wiring
Yellow Yellow
Red
Red
(Yellow)
Amplifier
ACC+/red
ANT or AMP controll/blue
Battery 12V(+)/yellow
Ground/black
1-7
CONTROLS
Power On : Press any button on the panel except to turn on the unit.
Remote Sensor
Power ON/OFF
Push to select VOL/BAS/
TRE/BAL/FAD, Rotate the
knob to adjust level
Rotate the knob to
adjust volume level
Push the knob for more than 2
seconds to select
EQ/BEEP/VOL LAST
Rotate the knob to select
NORMAL/POP/ROCK/CLASSIC)
Beep( ON/OFF)
Vol (LAST/ADJ)
FM stereo/mono
Tuner
Disc play
(when disc is in)
MENU
Vol Knob
2nd function
MON
IR
VOL-
VOL+
PUSH SEL/MENU
Press to a preset station
Hold for more than 2 seconds to store station
listen to
Display switch
Radio preset
Panel Open
CAR DVD PLAYER MX-390DVD
4X45W
DSP
Radio tune
To fast search within
INT RPT RDM
SRC
LOUD
1 2 3 4 5 6
P/N R/L
BAND
AMS
LO/DX
a track/ skip to next
or previous track
AMS
s
FM1
FM2
Loudness
Play / Pause
Top play ( press
Intro play(10sec)
more than 2 sec ) .
Track repeat play
Video System PAL / NTSC
Track random play
DVD/VCD Audio Channel L/R/ST
Radio local/distant
band switch
FM3
Radio auto preset
Radio preset scan
OIRT
Press the button to open the panel and press to eject the disc.
Disc Eject
Slot ,Insert the disc
Panel status indication:
When the panel slide down it will light up.
When the panel detached from body it will flash.
REMOTE CONTROLS
Power On/Off : Press to turn on/off the unit.
Zoom(DVD only)
Title(DVD only)
Power on/off
DVD Setup
SETUP
TITLE
1-8
ZOOM
SUB.T
SRC
REPEAT
Subtitle(DVD only)
Tunre
Disc Play
(when disc inserted)
REPEAT: Title\chapter\disk\track\index
Menu cursor
Enter
Program
Digit Area
Audio Mode Select
VOL/BAS/TRE/BAL/FAD
Push more than 2 seconds
to Menu mode
Volume
Mute
Radio Tune
Track Skip / Seek
PROG
1
ABC
4
JKL
7
TUV
0
+-_
VOL
MUTE
ENTER
2
DEF
5
MNO
8
WXYZ
SEEK+
-
SEL
-
SEEK
GHI
PQRS
SPACE
10+
VOL+
BAND
P/N
A B
3
GOTO
6
MENU
PBC
9
OSD
AUDIO
DISP
ANGLE
Video system PAL/NTSC/AUTO
A-B repeat
Stop / Return
Play / Pause
Goto Search
DVD MENU
PBC (for VCD 2.0 or up)
ON Screen display
Audio(DVD only)
ON Panel display
Angle(DVD only)
Radio band
Replacing the lithium battery of remote control unit.
* When the operation range of the card remote
control becomes short or no Properly, replace
the lithium battery with a new one. Make sure
the battery polarity replacement is correct.
1. Pull out the battery holder while pressing the stopper.
2. Insert the button-type lithium battery with the
mark facing upward.
remote control.
Insert the battery holder into the
(CR 2025)
(+)
WARNINGS:
Store the battery in place where children cannot reach.
If a child accidentally swallows the battery,
consult a doctor immediately.
Do not recharge, short, disassemble or heat the battery
or dispose it in a fire.
Doing any of these things may cause the battery to give
off heat,crack or start a fire.
Do not leave the battery with other metallic materials.
Doing this may cause the battery to give off heat, crack
or start a fire.
When throwing away or saving the battery, wrap it in tape
and insulate;otherwise, the battery may start to give off
heat, crack or start a fire.
Do not poke the battery with tweezers or similar tools.
Doing this may cause the battery to give off heat, crack
or start a fire.
1-9
MAINTENANCE AND TROUBLESHOOTING
Maintenance
Clearing disc
When a disc becomes dirty clean it with a cleaning cloth.
Wipe the disc from the center out.
Cleaning the disc lens
After prolonged use, dirt or dust may accumulate at the lens. To ensure good playback quality, clean the disc with Philips CD lens
Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
Cleaning the heads and the Tape Parts
To ensure good playback quality, clean the heads A ,the capstan B ,
and pressure roller C after every 50 hours of tape operation.Used
a cotton swab slightly moistened with cleaning fluid or alcohol.
You can also clean the heads by playing a cleaning tape once.
Troubleshooting
If you suspect something is wrong, immediately switch power off. Immediately stop using it and call the store where you purchased it.
Never try to repair the unit yourself because it is dangerous to do so.
General
No power or
no sound
Disc
Disc is inserted but
no sound.
Disc sound skips,
tone quality is low.
Sound skips due
to vibration.
Car's engine switch is not on.
Turn your car s key to ACC or ON.
Cable is not correctly connected.
Check connection.
Fuse is burnt. Replace fuse.
Check volume or mute on / off.
If the above solutions cannot help,
press the RESET button.
Disc is upside down.
Place disc in the correct direction,
and the label side up.
Disc is dirty or damaged
Clean disc or change another disc.
Disc is dirty or damaged.
Clean CD or change another CD.
Mounting angle is over 30 .
o
Adjust mounting angle to less than 30 .
Unstable mounting.
Mount the unit securely with the
mounting parts.
o
Radio
Much noise in
broadcasts
Preset station
is reset
Error Display Messages
Station is too far, or signals are too weak.
Select other stations of higher signal level.
Battery cable is not correctly connected.
Connect the battery cable to the
terminal that is always live.
Disc is not CD or contains no MP3 files.
Disc upside down.
Recovery error, check the disc.
MP 3 e rror, check the disc.
Disc mechanism error
EJ
Press button to eject the disc.
In case that the disc cannot be
ejected by pressing button,
press the RESET switch and press
EJ
the button again.
EJ
If still not ejecting consult your
dealer.
DISMANTLING INSTRUCTIONS
2-1
2-1
1 Pull out the short sheet from main set.
Loosen 8 screws to
remove heatsink &
top cover & bottom
cover.
2 emove top and bottom covers.
R
4 Remove CD loader
Remove 2 pcs
screw on the
top of loader.
Remove 2 pcs screw
from metal side.
3 Loosen 4 pcs screw to remove Front Cabinet.
Remove 2 pcs screw
from front cabinet.
Remove the screw
on the right side of
the cabinet.
Remove the 2 pcs
screw to dismantle
the frame.
Remove the screw
on the left side of
the cabinet.
Remove the 2 pcs
screw to dismantle
the frame.
Remove 6 pcs
screw on the
main board.
Pull out FPC
wire.
Remove the
connector from
the mainboard.
Loading...
